Seaclusion | 2016 Bali 4.0

Hollywood, FL, US

Seaclusion | Bali 4.0 40ft

US $349,000

Hollywood, FL, US



  • Length: 40ft
  • Builder: Catana
  • Beam: 22' 0"
  • Draft: 4' 2"
  • Year: 2016
  • Hull: Fiberglass
  • Status: Active

View More Specs


  • Builder: Catana
  • Designer: Xavier Fay
  • Keel: Fin Keel


  • Length Overall: 40 ft
  • Max Draft: 4' 2"
  • Bridge Clearance Measure: 62' 8"
  • Beam Measure: 22' 0"



  • Fresh Water Tanks: 1 (105 Gallons)
  • Fuel Tanks: 1 (105 Gallons)


  • Number of cabins: 4
  • Number of heads: 4


4 Cabins/4 heads lay out

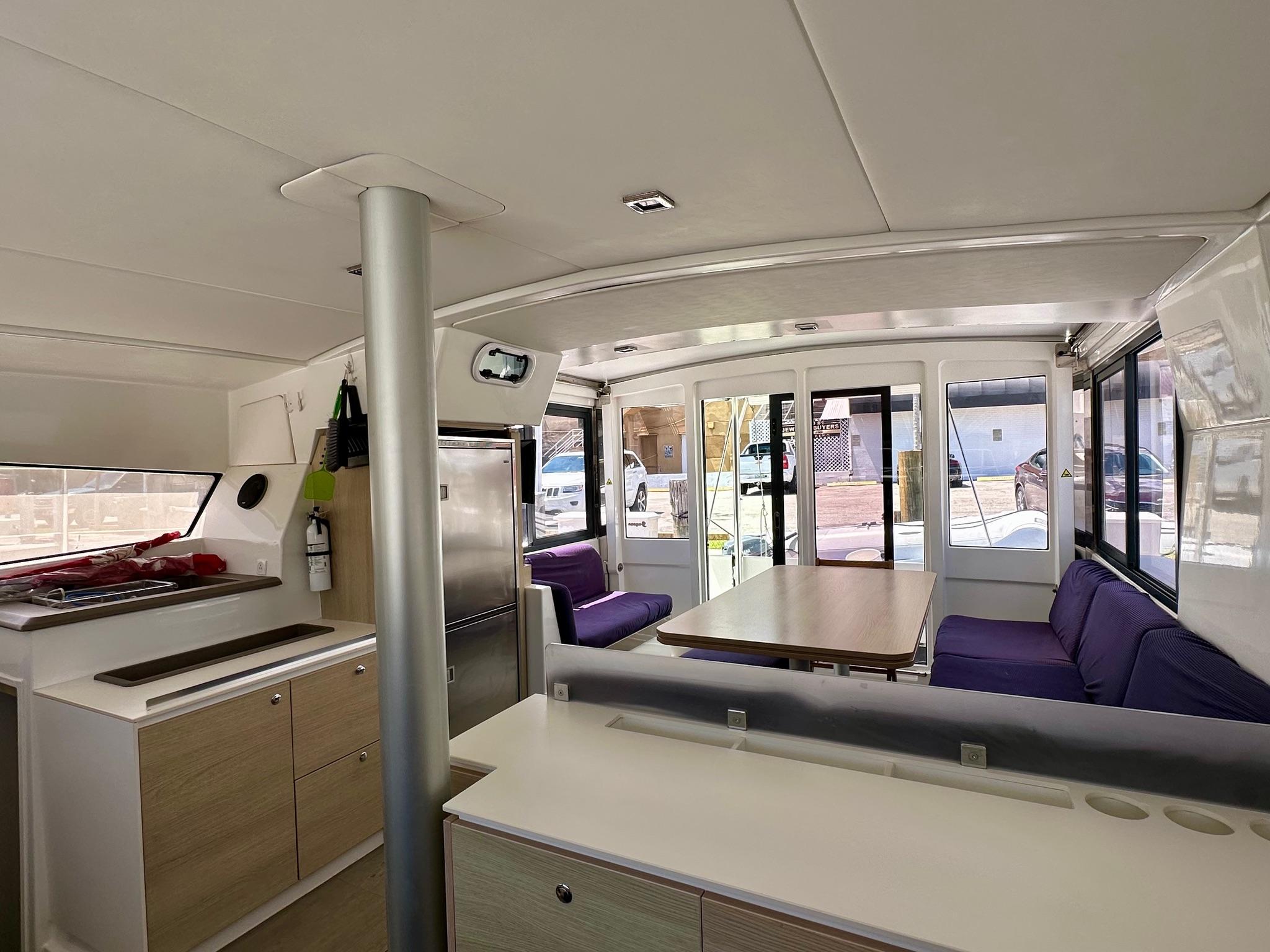

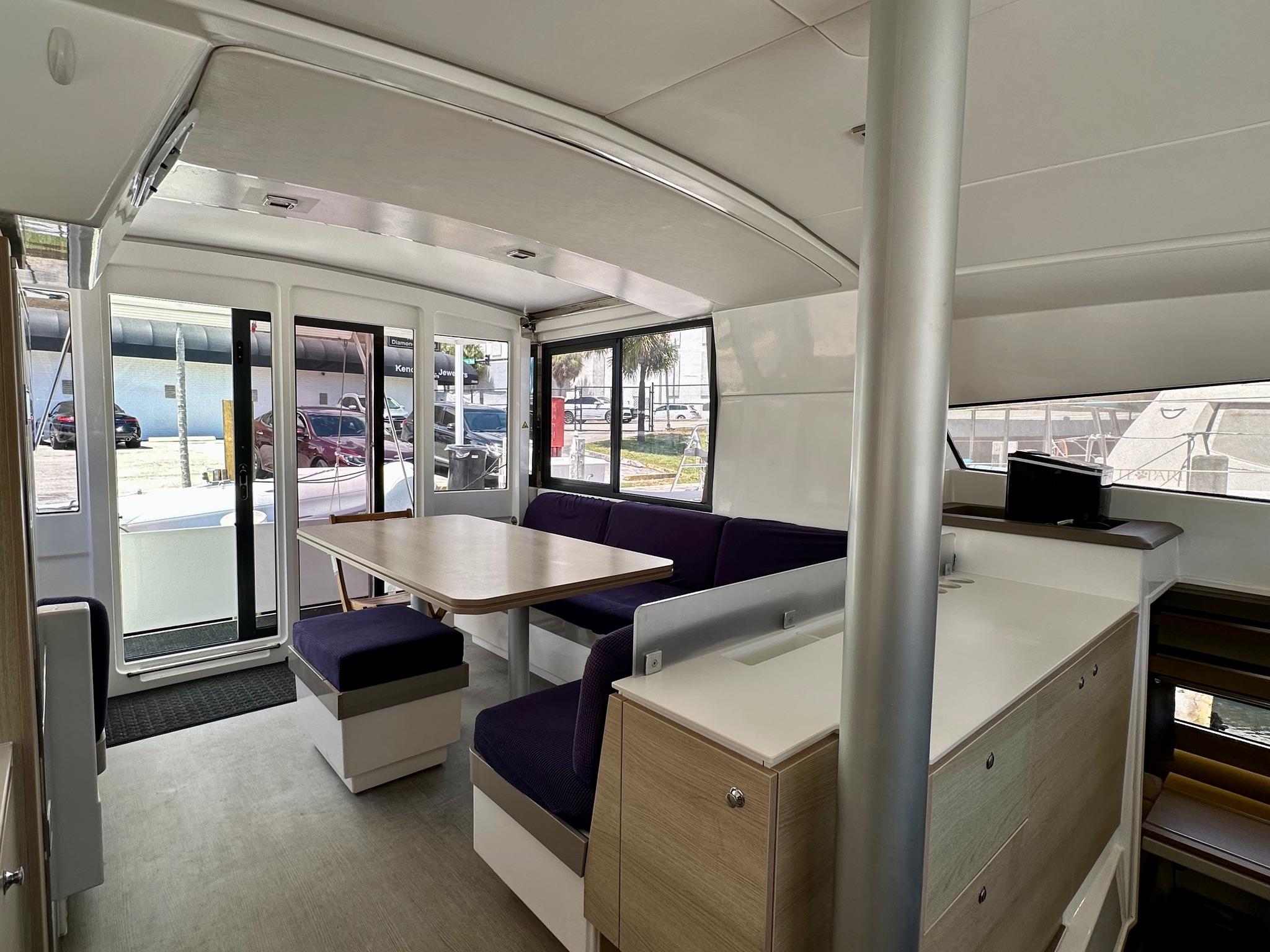

Salon is a full open space – day bed on starboard side-
Large storage under seat –
Salon table convertible in double berth
Lateral sliding windows

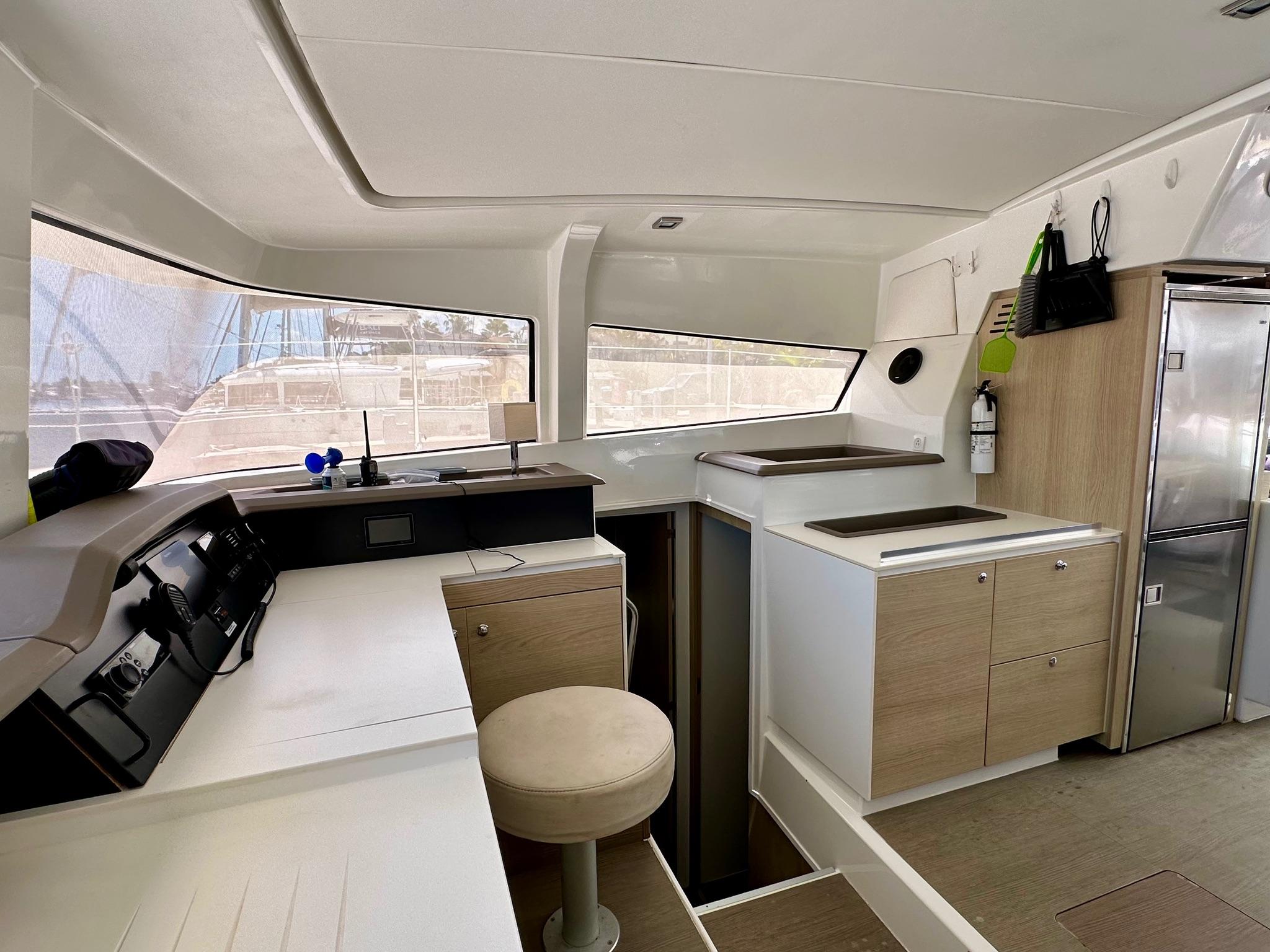

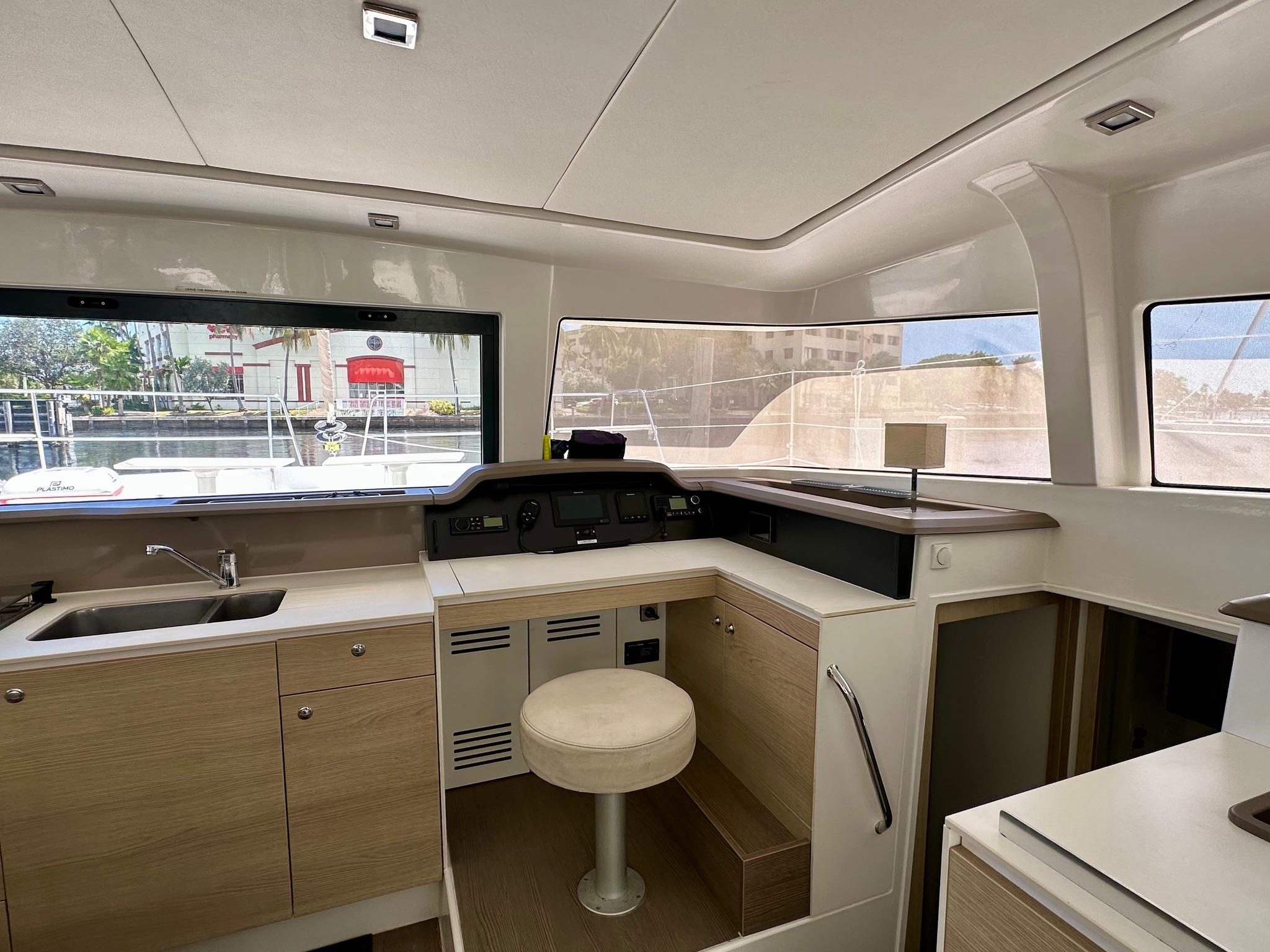

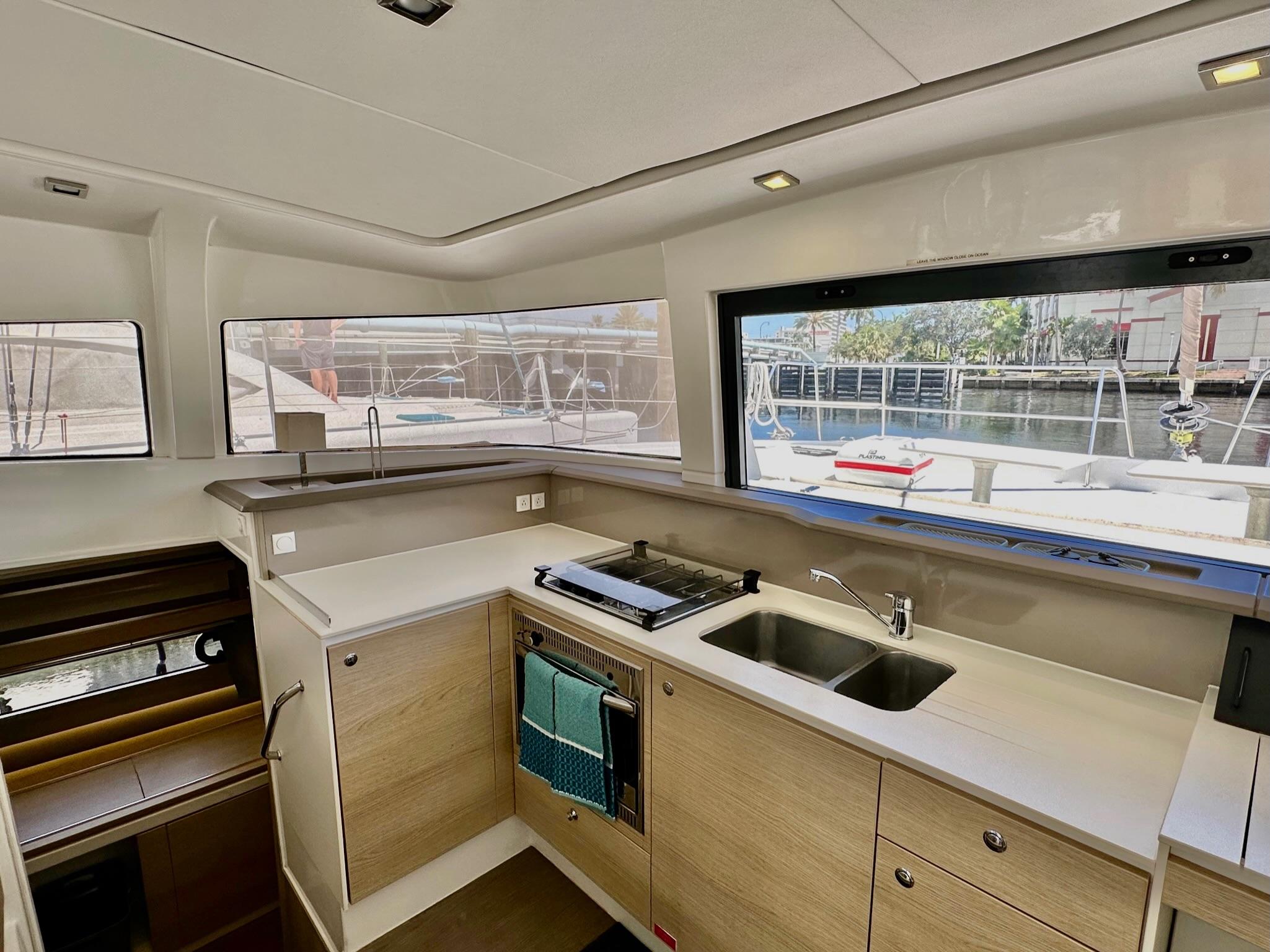

Galley on port side, with large countertop  – Front large slide down window , fully retractable – Numerous storage lockers.
Double Stainless steel sinks- mixer tap for fresh and hot water- Garbage can –
Combined refrigerator and freezer 272 L with dedicated invertor   –

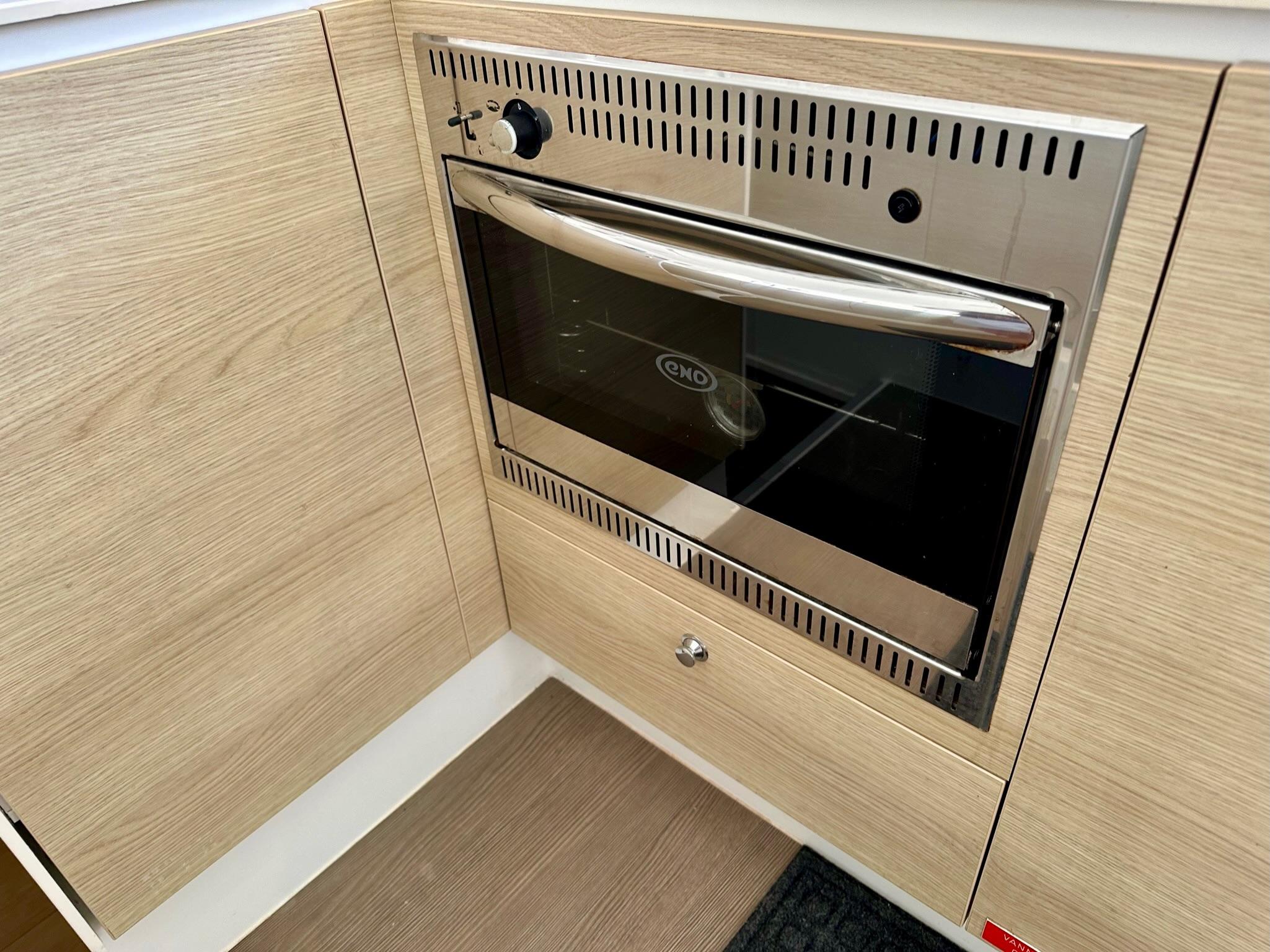

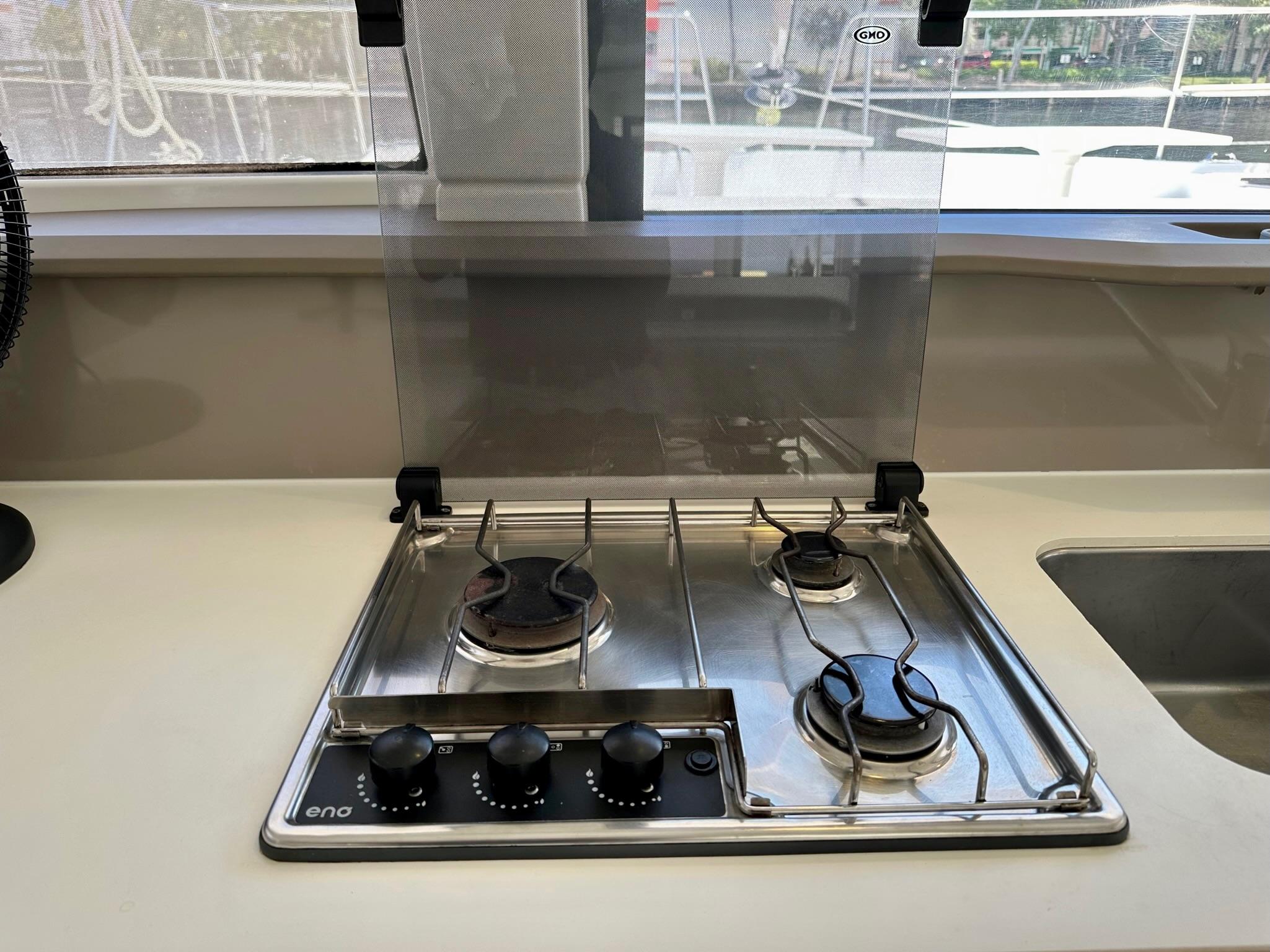

3 burners gas stove – Oven

Chart table – Storage and bookcase –  Chart table light –

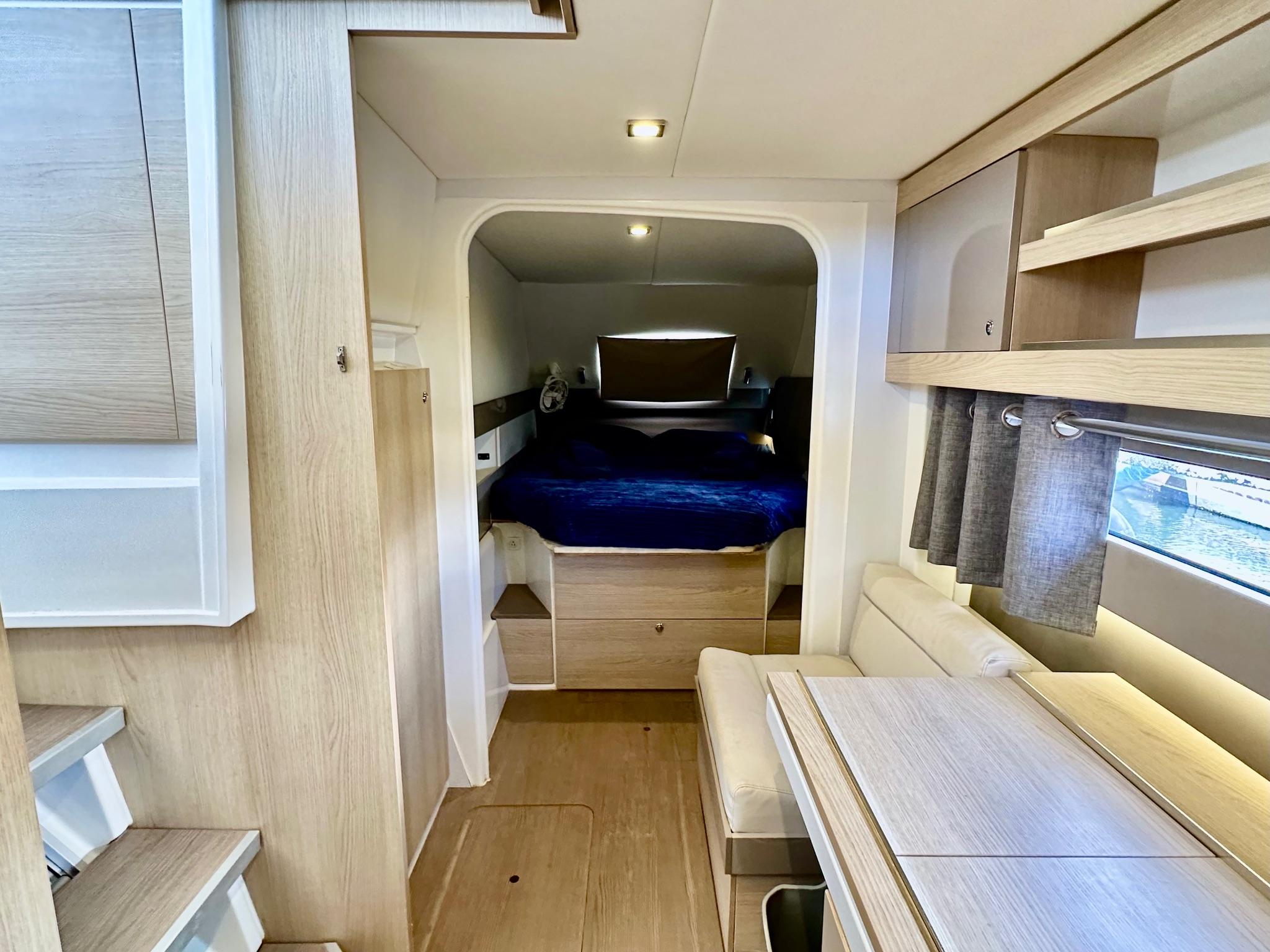

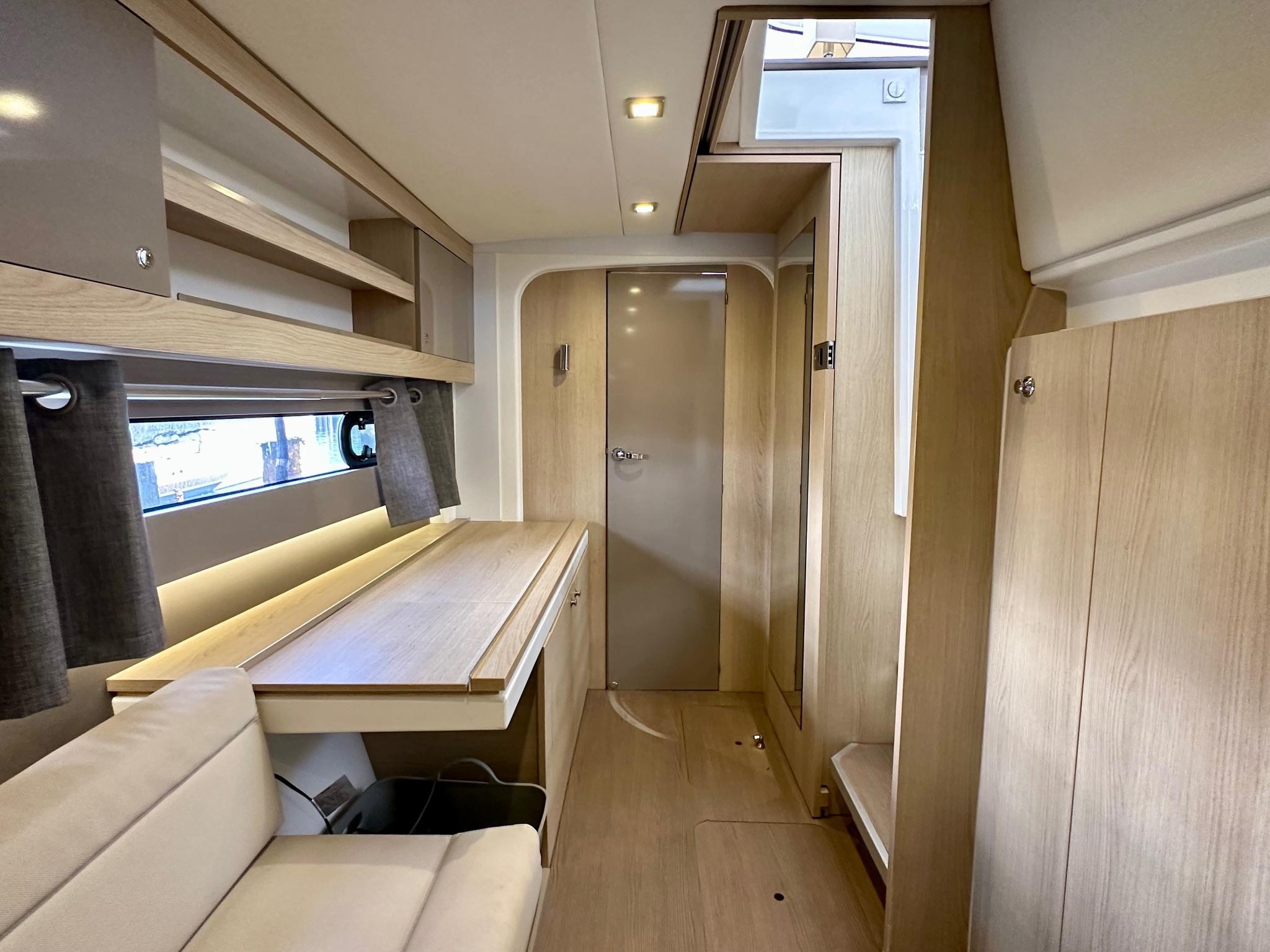

Cabins :

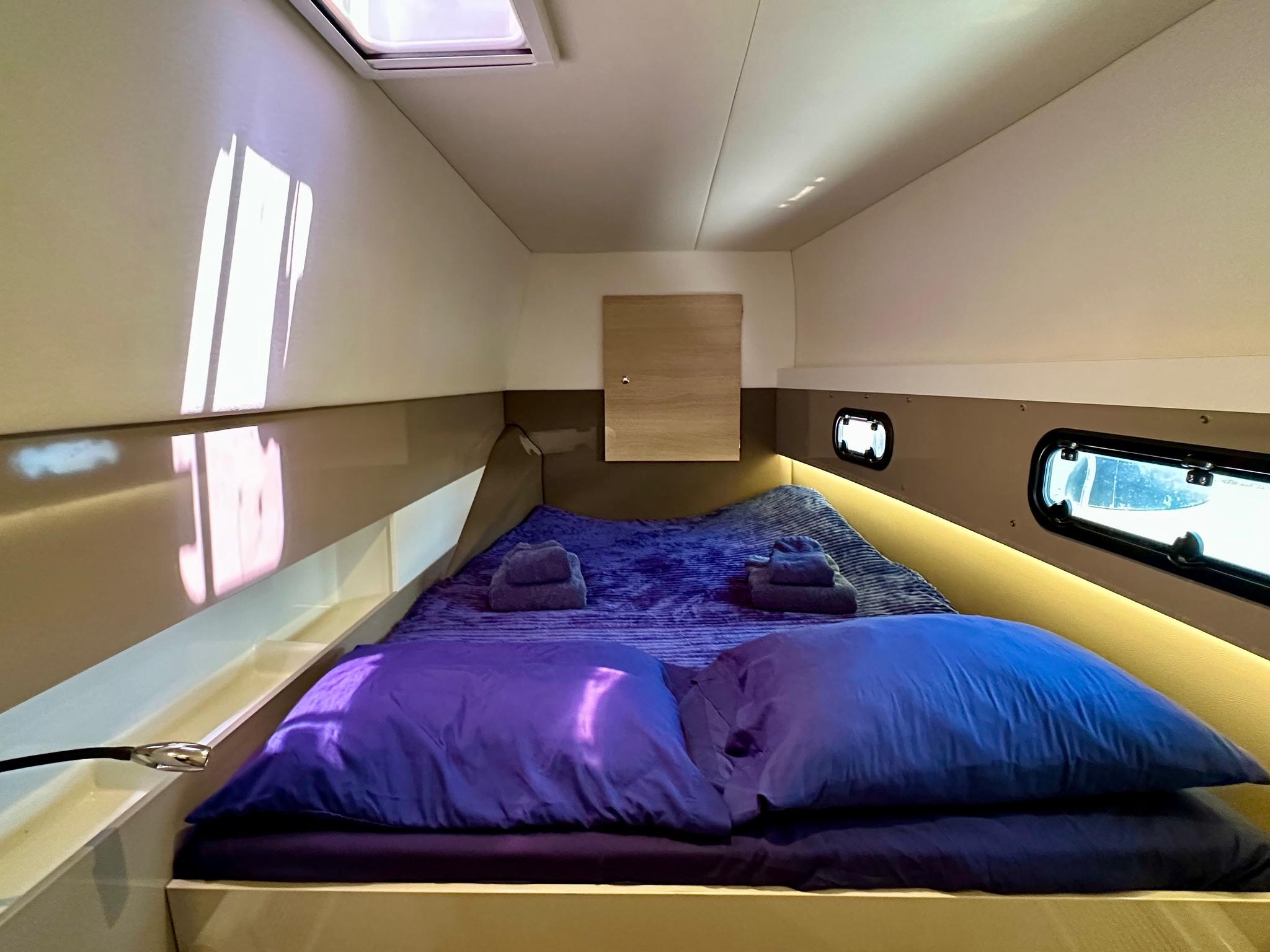

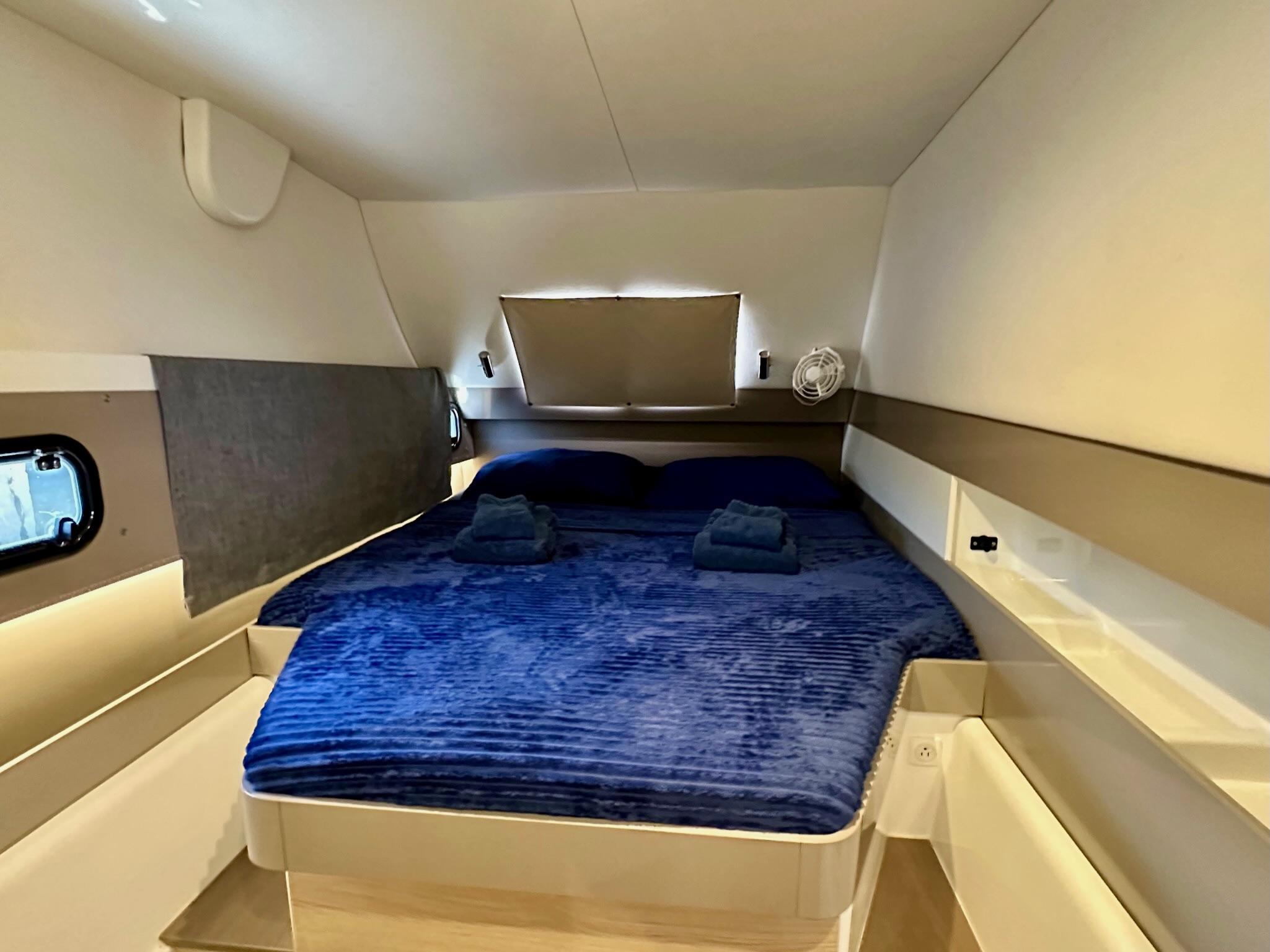

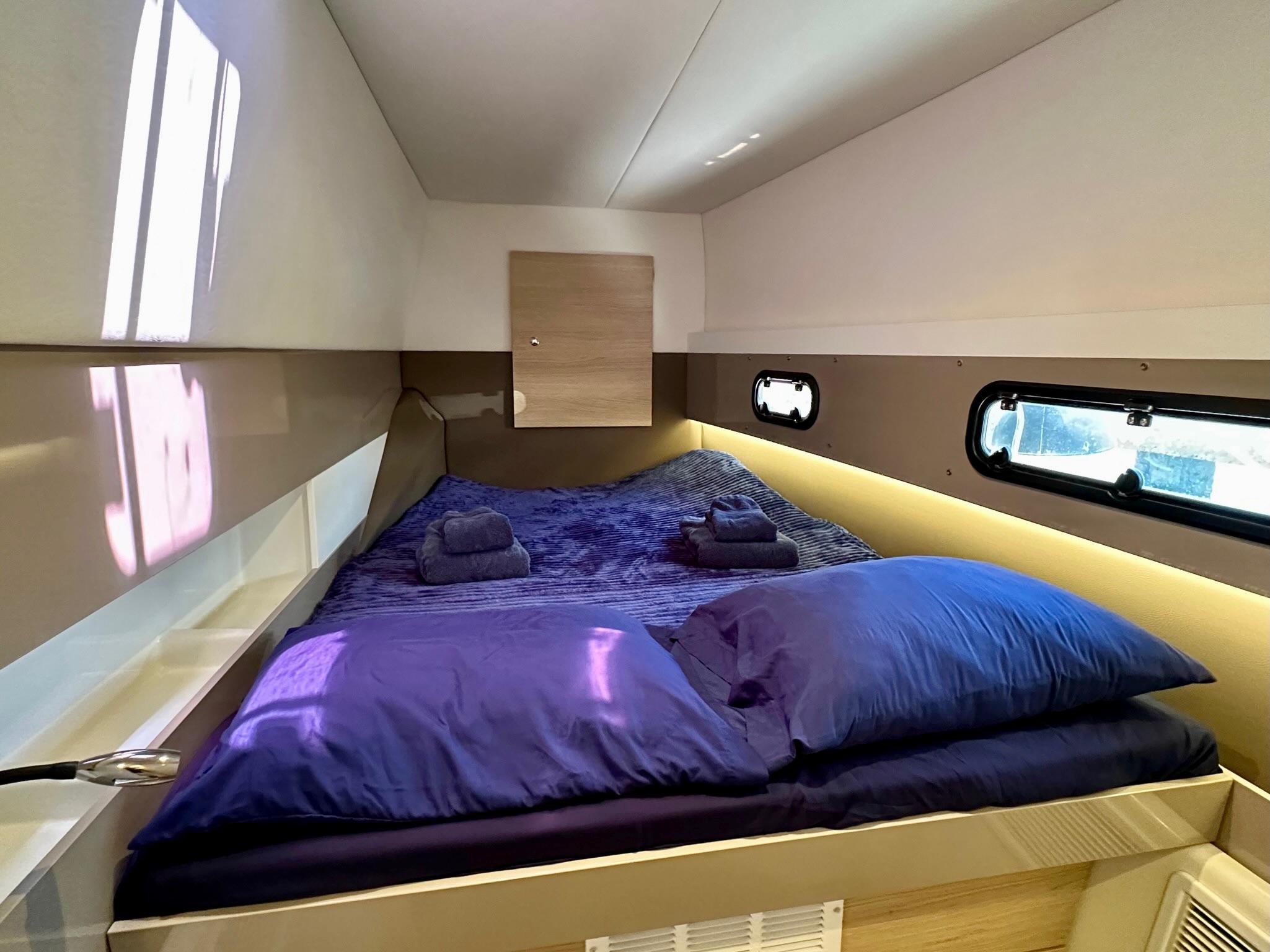

Double bed in forward  and  aft cabin, with 1 drawer under bed  –
Storage with shelves and 1 Hanging locker per cabin –
Porthole for light and ventilation
Air conditioning in cabins (on shore power)

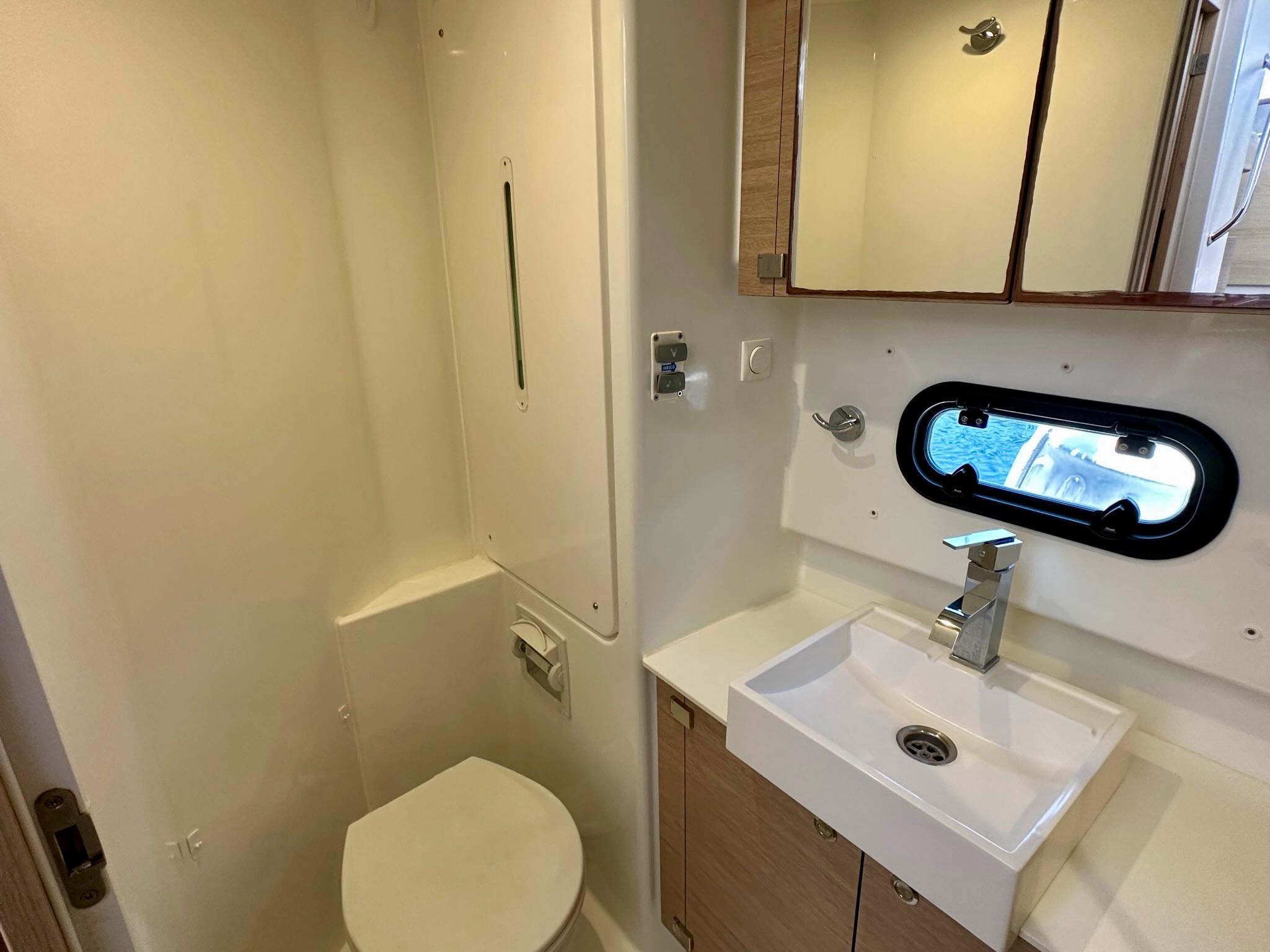

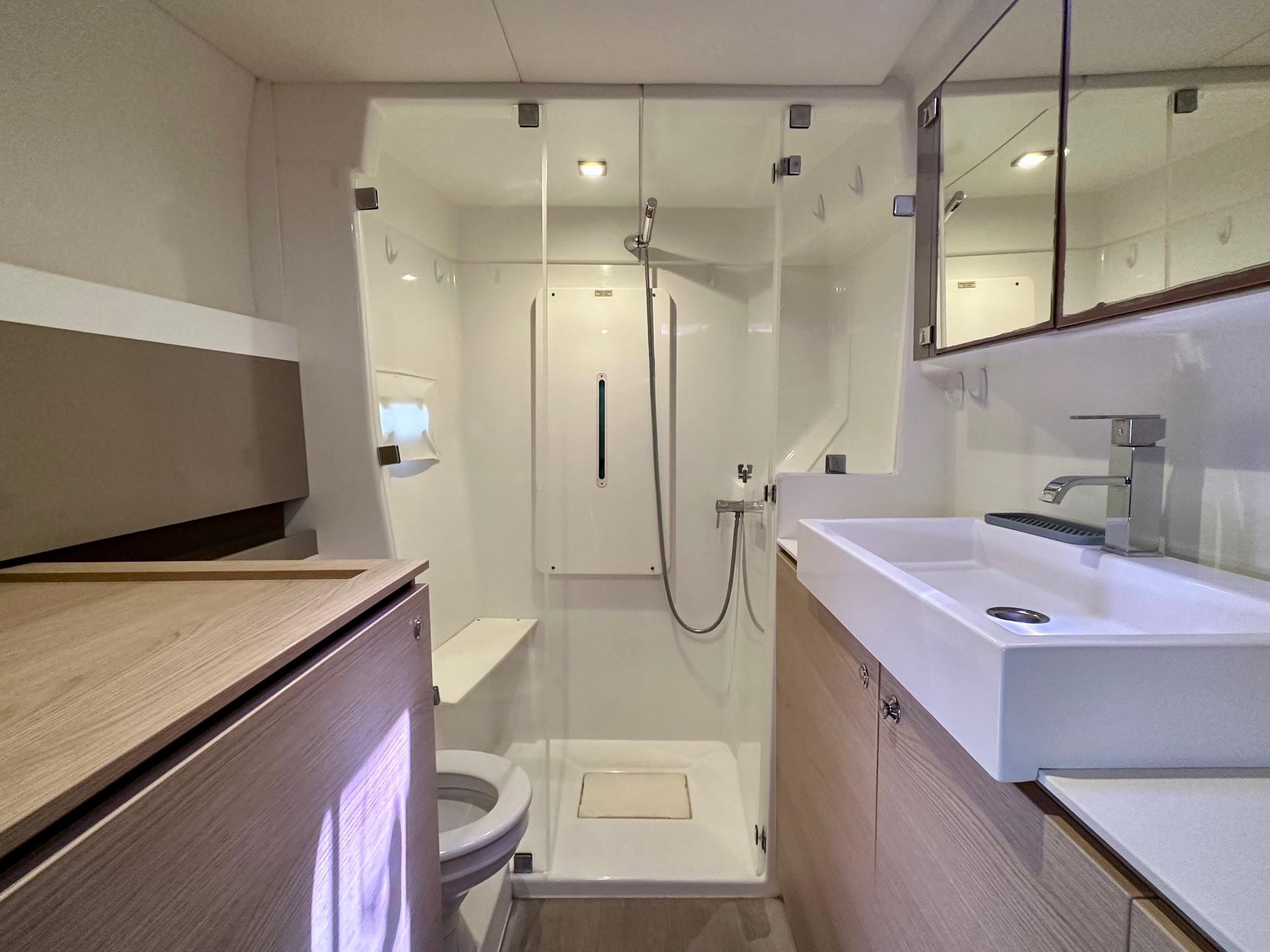

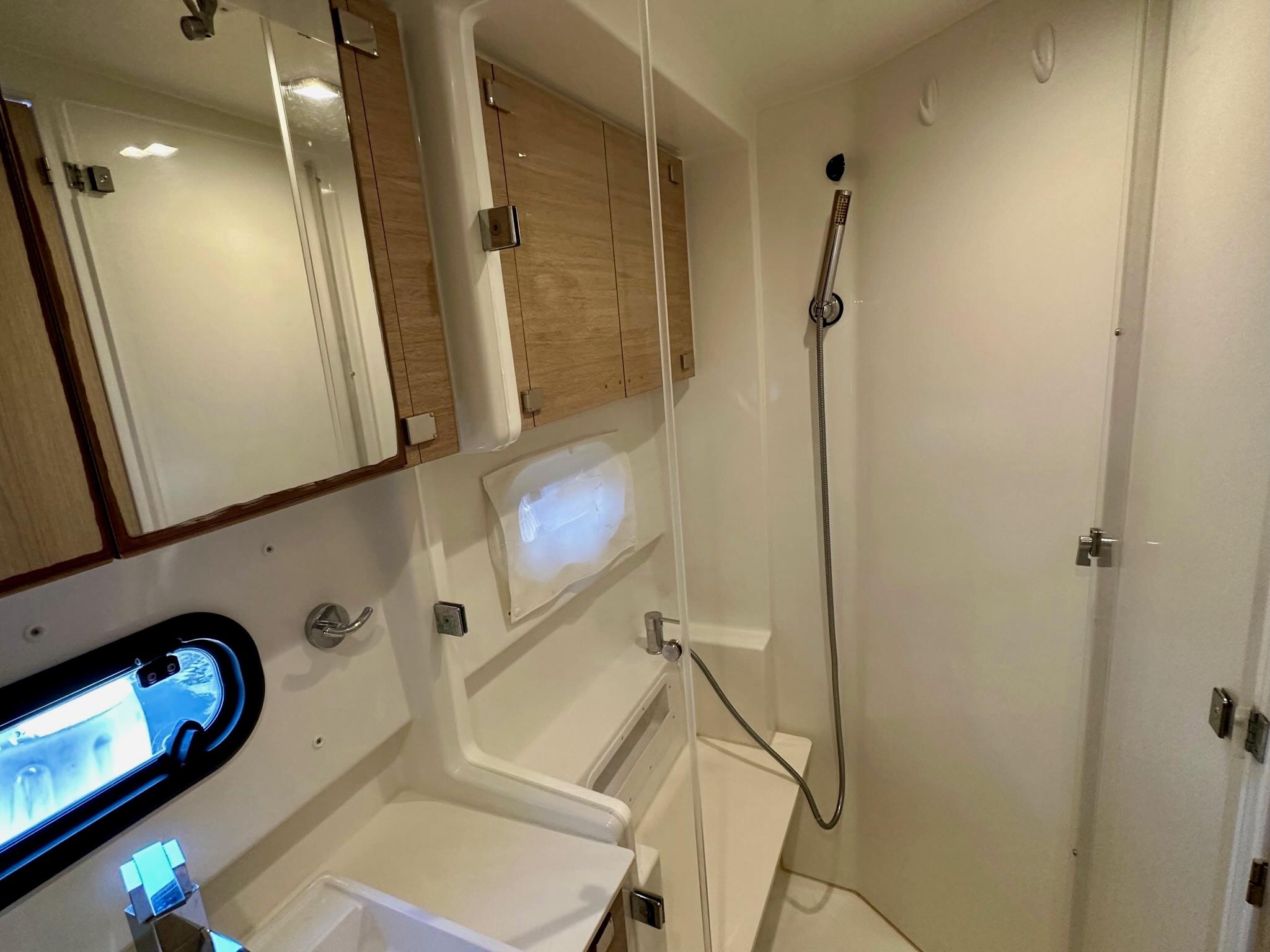

Bathroom with single basin, shower and head , mirror and shelf – Mixer taps with ceramic seals – Porthole for light and ventilation
Electric heads-

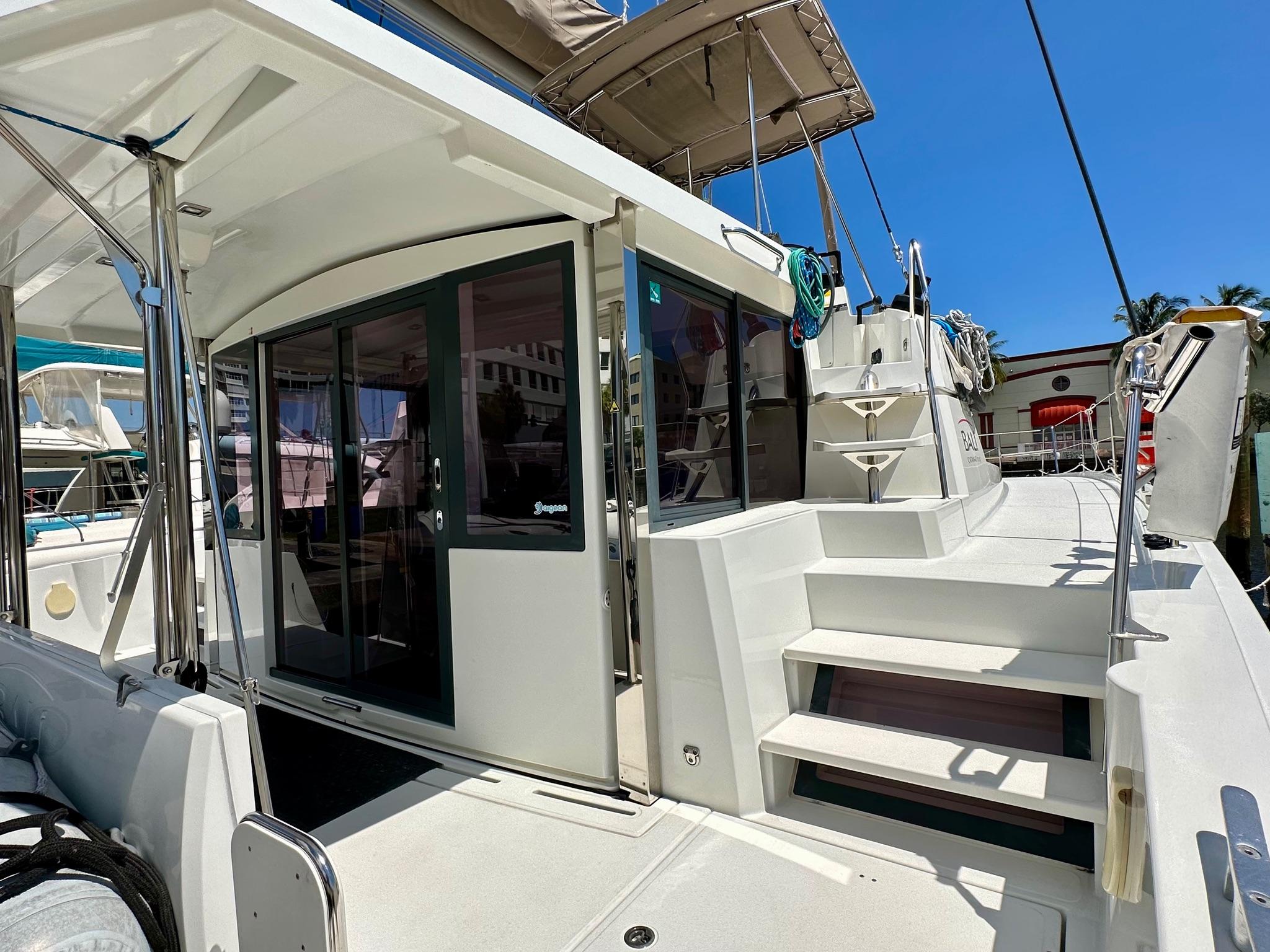

Cockpit equipment

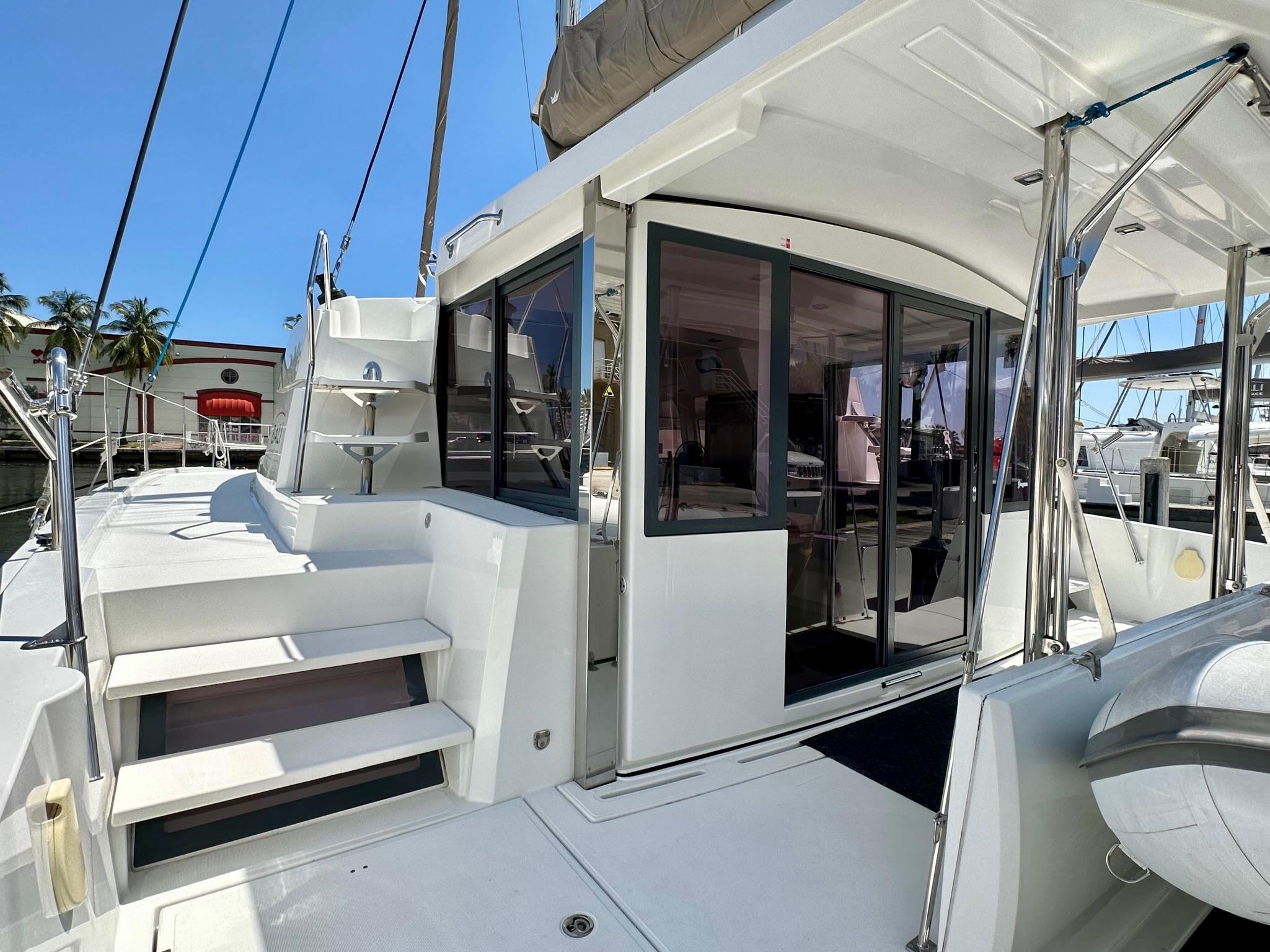

Large tilt-and-over bay with sliding door – Lifting assistance tilt-and-over door by pneumatic struts  – Lateral sliding windows – Davits  – Cockpit extension by a tilting platform
Life raft locker with automatic release  – LED lighting

Folding swim ladder on port transom –
2 transom life lines –
Shower with pressurized fresh water hot/cold in the port transom
1 Stainless cap for access to the emergency tiller port side and starboard side.

the windlass is a Quick 1000W windlass
Oversized 55lb/25kg new Rocna Vulcan anchor – New anchor bridle
New dock lines

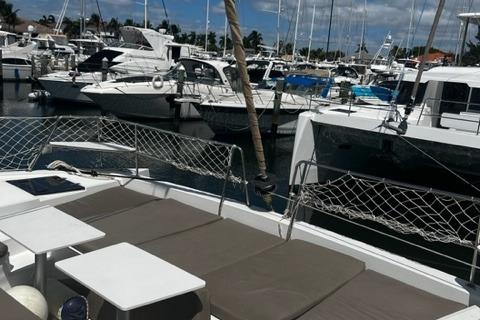

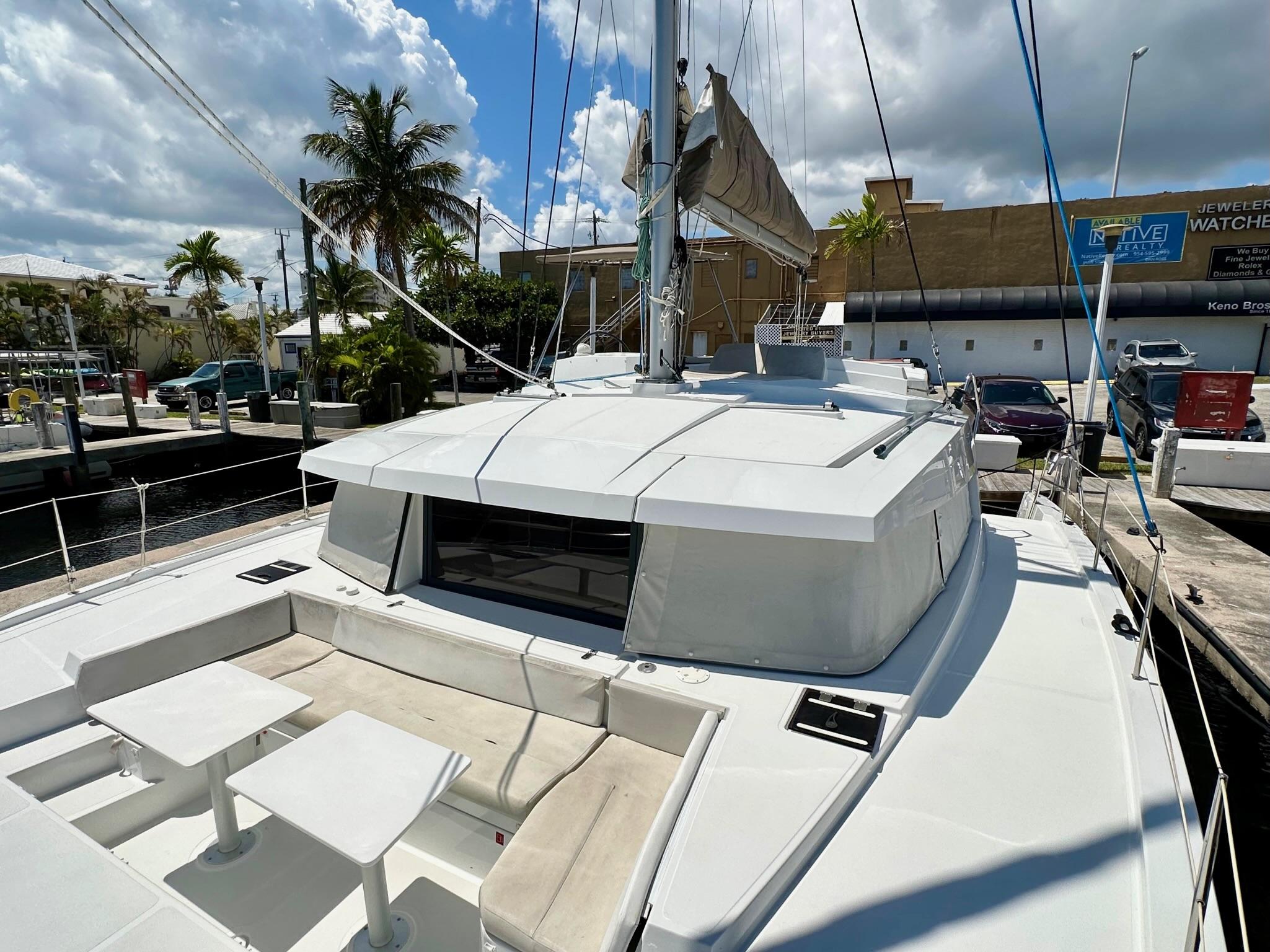

Forward Cockpit – Lounge area-
2 forward cockpit tables (removable)
Pulpit with plywood seating


Sails and Riggging

48 sqm Full batten Mainsail in Dacron with 3 reefs –

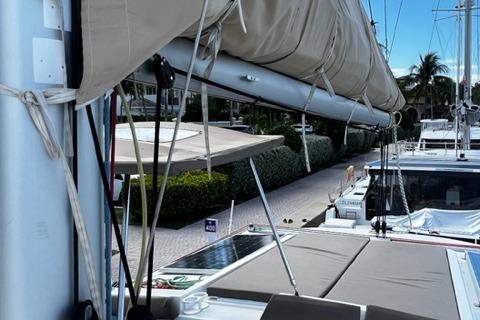

Lazy Bag, Lazy jacks.
32 sqm Self-tacking Jib in Dacron with UV protection, on furler –

Mast / Rigging:
Anodized aluminum mast, air-draught: 17,85 m –
Anodized aluminium boom –

Electrical winch for mainsail halyard, furler line , mainsail track control and davits  –
1 winch for solent sheet, mainsail sheet and reefs

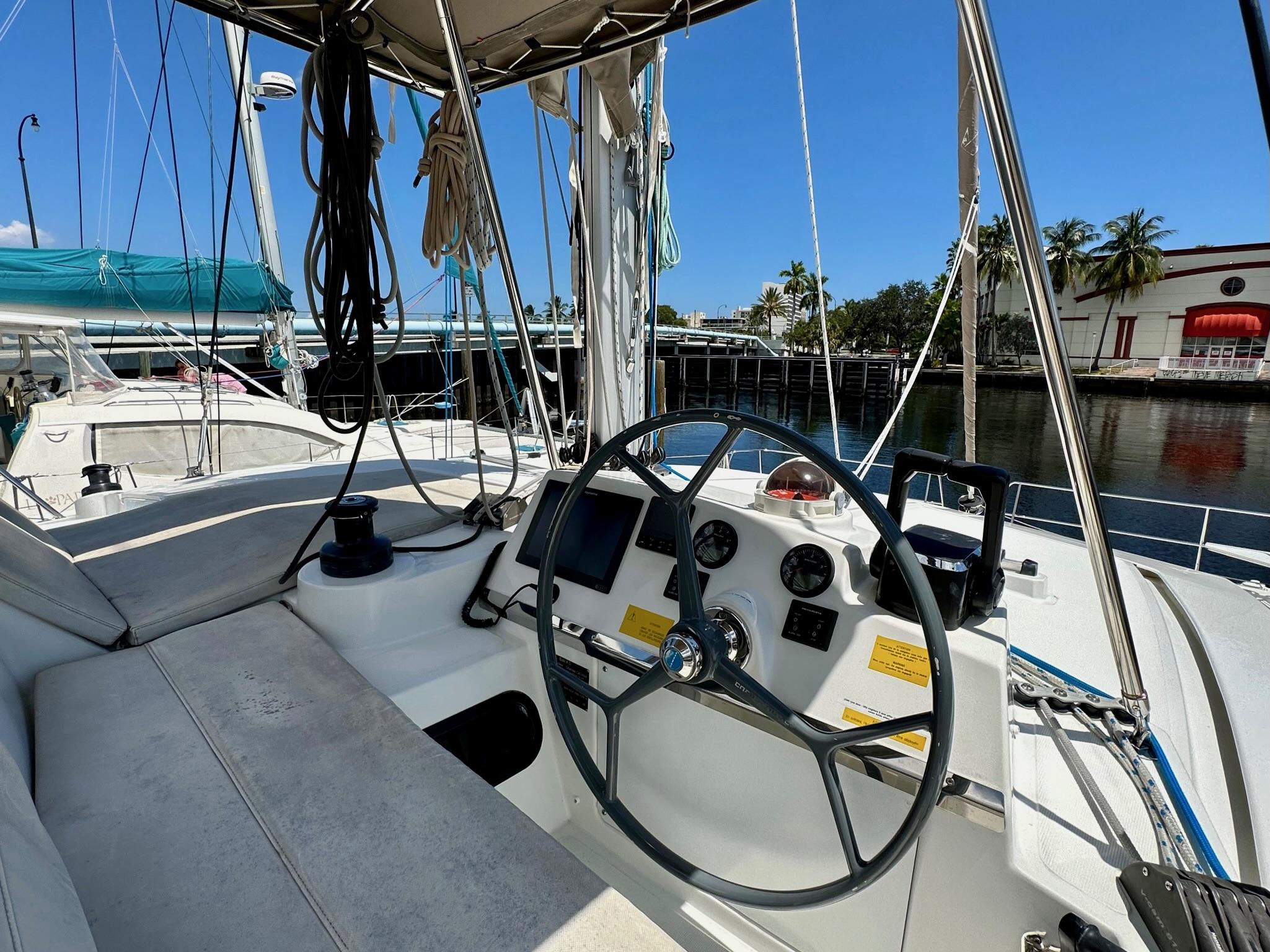

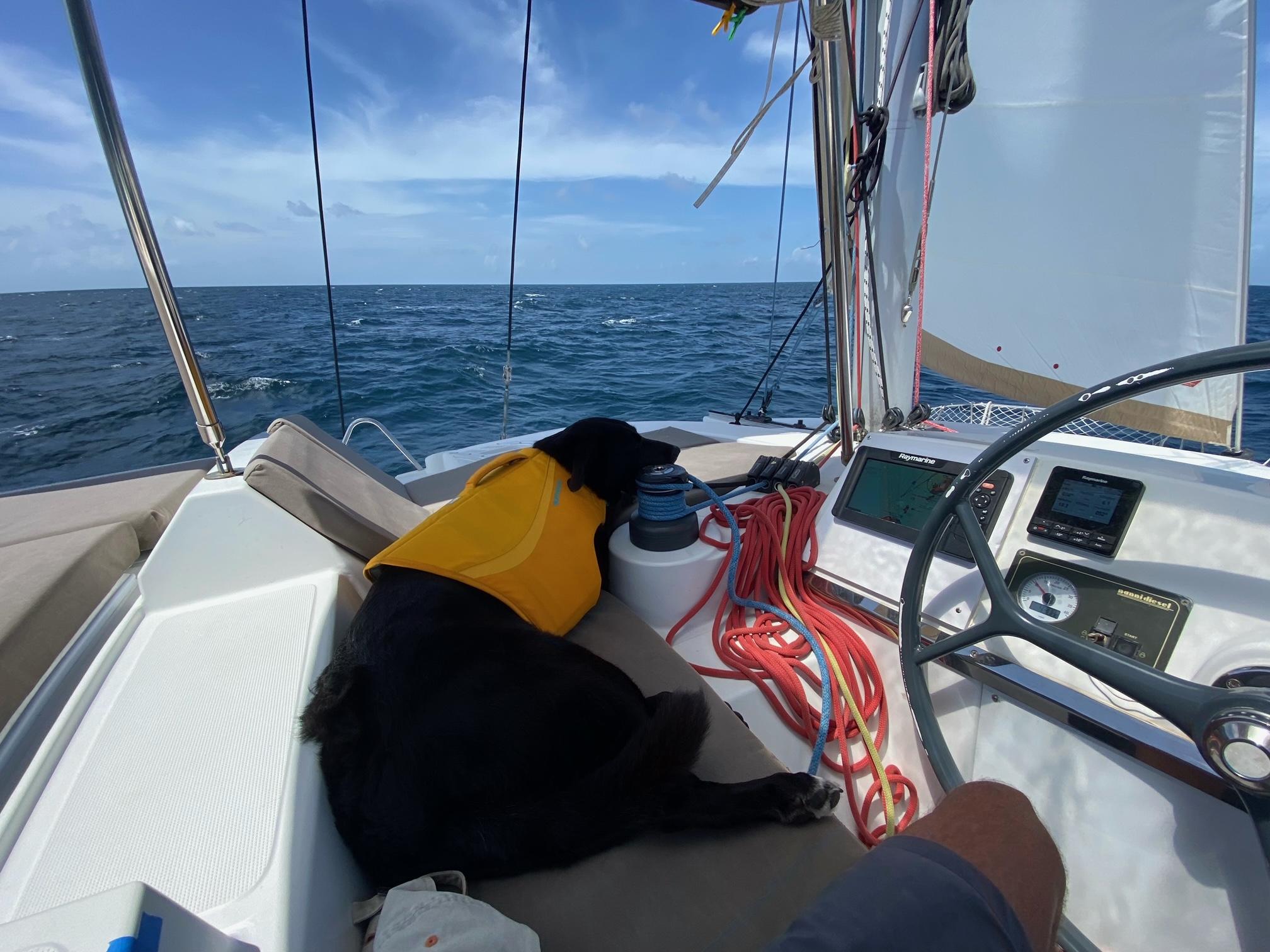

Helm Station

Helmstation and steering:

Raised helmstation on starboard for optimal visibility –
Helm seat – Ladder on starboard to access to helmstation – Second ladder on port to access to bimini
Helmstation canvas bimini

Composite 800 mm steering wheel –
Magnetic compass with correction, light and protection cover – 2 balanced spade rudders with stainless steel shaft –
1 Emergency tiller – Tracks and cars driven steering system with rigid link between the rudders –
Manual engine controls at helm station with control panels with alarms –

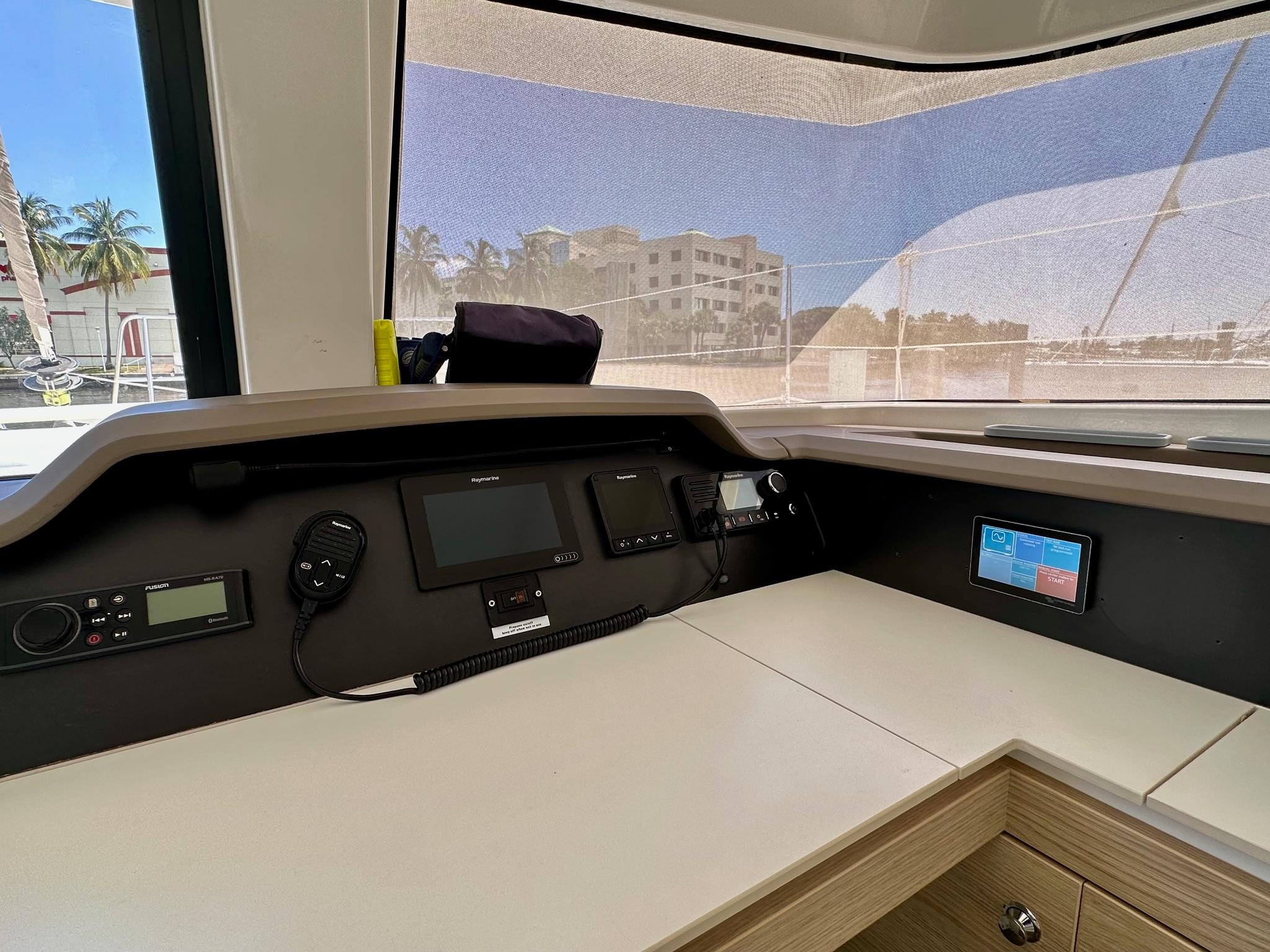

Raymarine electronic pack   including autopilot, autopilot control, GPS Plotter
VHF Cobre MRF55 and second handheld VHF at the Helm station
CD radio>MP3 Fusion + 4 speakers



Service voltage: 12 VDC and 220 VAC / 50H

4x 140AH AGM house batteries with a Victron Bluetooth Smart Battery Monitor for the house and starter batteries
Low charge alarm Buzzer for the house battery bank at chart table

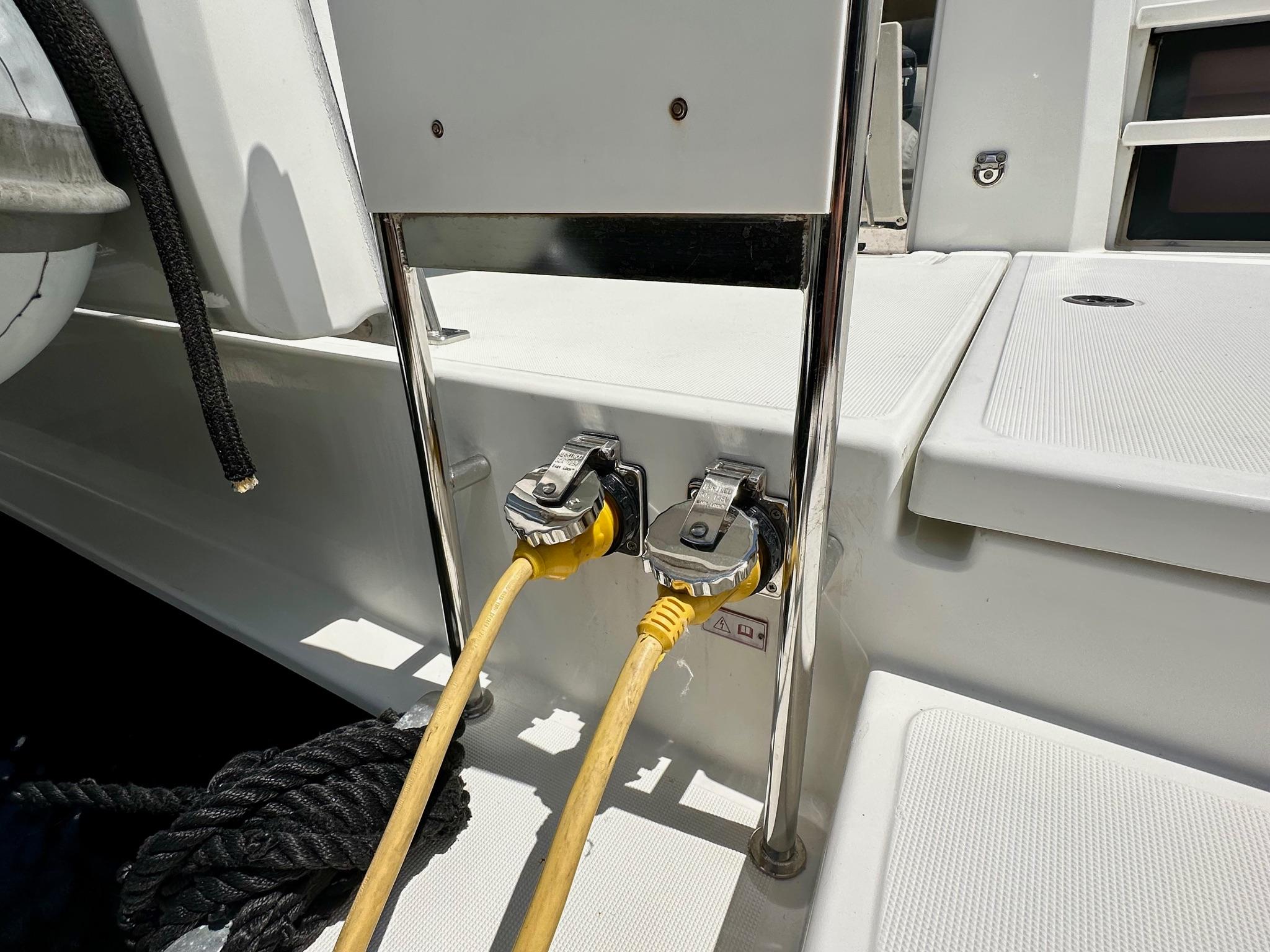

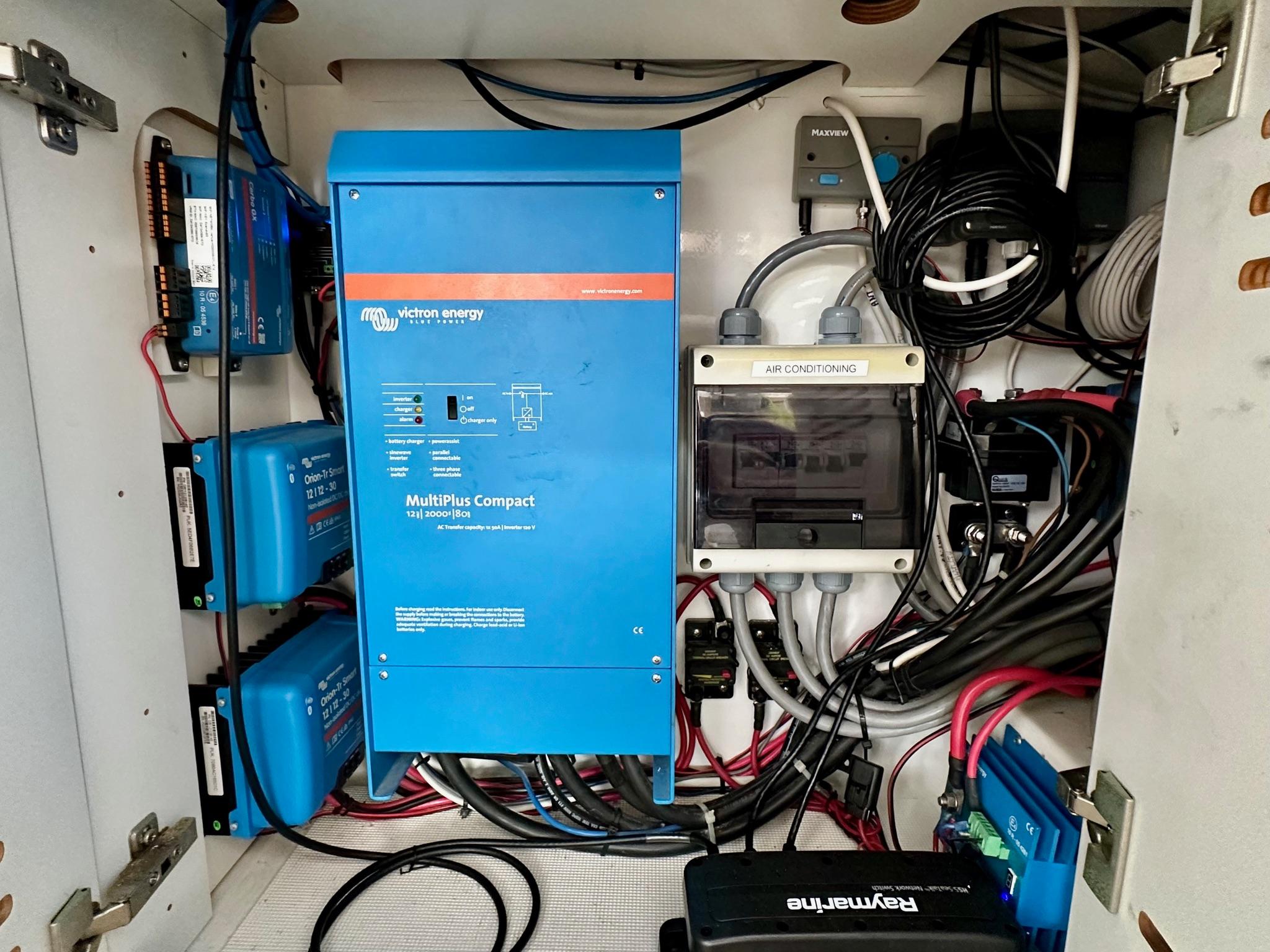

220 VAC wiring with waterproof power plug , AC outlet in each cabin, and salon – LED lighting on board – LED navigation lights -12 V outlet at the chart table and in each cabin – Charger / Inverter12V / 2000 VA
2x 175W solar panel with a Victron Bluetooth Solar Power Monitor


Engine rooms totally separate from the accommodation
2 X  40 HP NANNI diesel engines,
Engine control panels at helm station –
Mechanical engine controls at helmstation –
2 Saildrive transmissions –
2x fixed 3-blade propellers
2 Fuel filters / decanters – Ceiling lights –
1 Fuel tank with gauge display at chart table
total capacity 400 L


1 fresh water tank with display gauge at chart table, total capacity 800 L
Pressurized fresh water pump with expansion tank
50 L electrical water heater connected on the engine cooling circuit

Gas installation in the cockpit seat for 13 kg tank –
4 electrical bilge pumps –
2 manual bilge pumps –
2 x 60L holding tank, drain at sea or by deck drain hole


Mould built with three main parts with joint localised at the keel junction.
Anti drift plan provided by 2 profiled keels limiting drag.
Platform and inner sides of the hull built in one part for a maximum of rigidity.
Hull made in GRP infused PVC Foam Sandwich, Polyester resin.
Anti-osmotic vinylester underwater protection
Deck in GRP infused Foam Sandwich with monolithic / plywood reinforcements.
Bulkheads in multiplywood, laminated or glued

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
