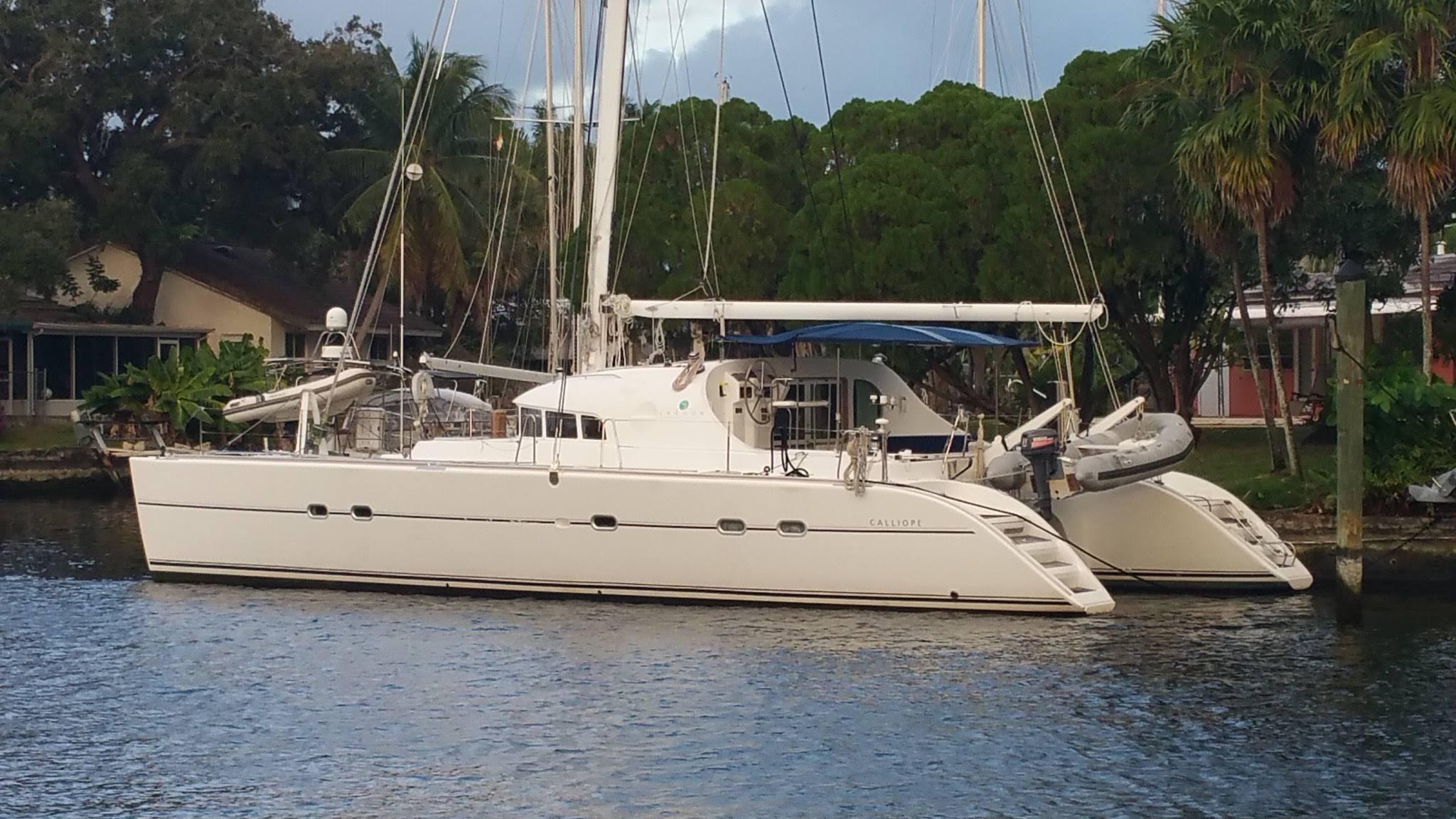

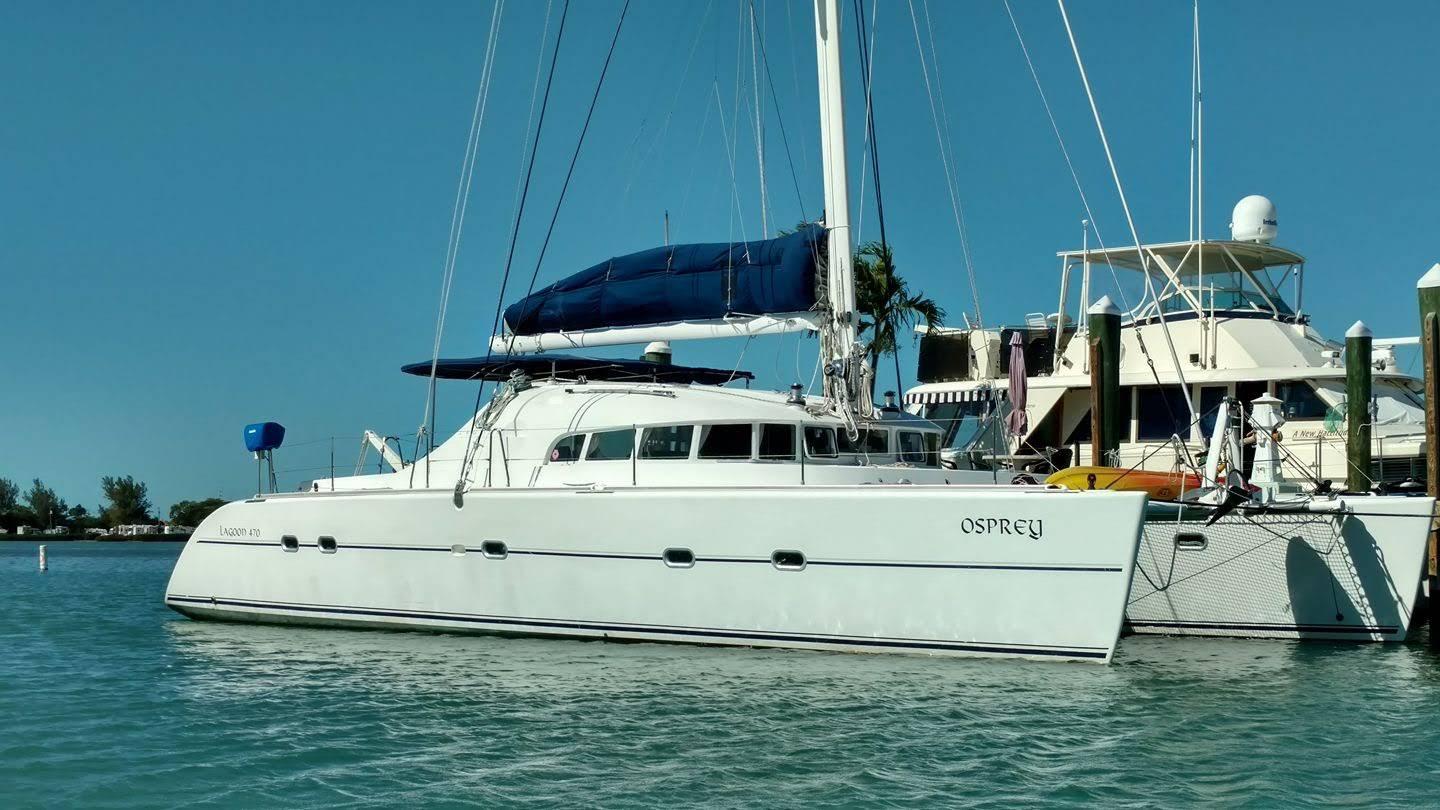

OSPREY | 2002 Lagoon 470

St George's, GD

About

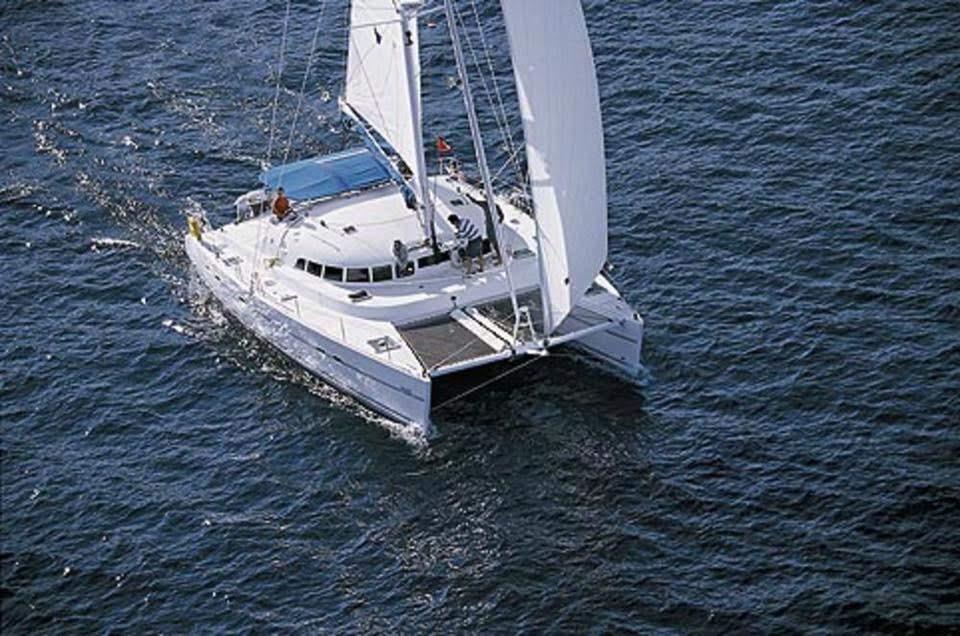

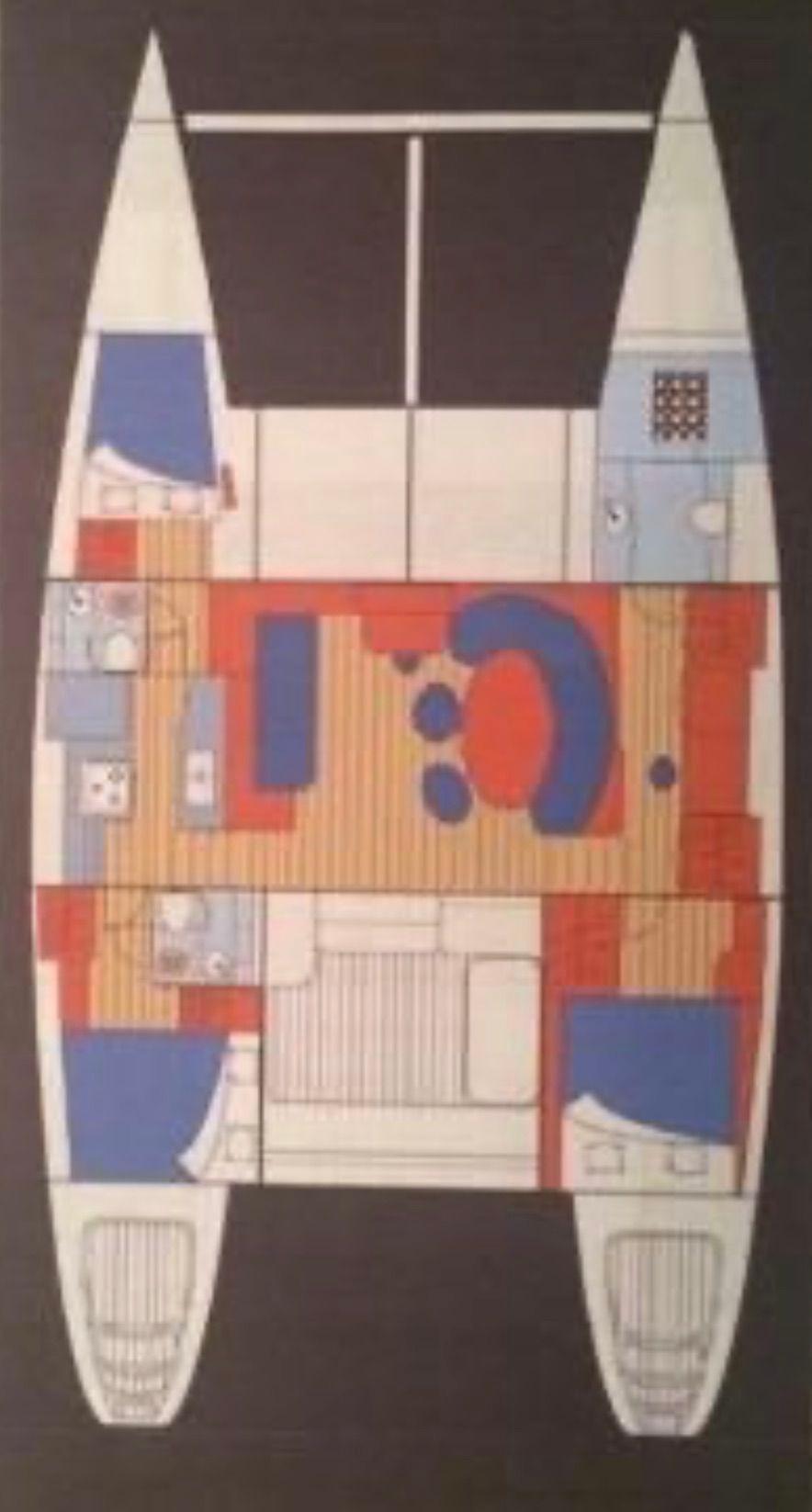

This 2002 Lagoon 470 is the 3 cabin owner version with the galley down which creates an immense amount of living space in the salon and cockpit.
The boat is well equipped for blue water cruising with generator, air conditioning throughout, solar panels and a water maker. While the Lagoon 470 has the distinctive look of a Lagoon catamaran this generation of boat were lighter and sleeker than the later models and with a dry weight around 20,000 lbs are great to sail.
Key Items:

  • Yanmar 56hp engines.
  • New & improved SD – 60 sail drives.
  • 3 blade folding propellers.
  • 50,000 BTU Air-conditioning.
  • 9.5 kw Generator.
  • Modular 20 gph Water Maker.
  • Solar panels (Total watts 1510w).
  • 2 electric winches.
  • Lofrans Tigres Electric windlass.
  • New cockpit & salon cushions.


**Contact broker for more information**

Specifications

  • Length: 48ft
  • Builder: Lagoon
  • Beam: 26' 0"
  • Draft: 4' 6"
  • Year: 2002
  • Hull: Fiberglass
  • Status: Active

View More Specs

SPECS

  • Builder: Lagoon
  • Designer: Marc Van Peteghem / Vincent Lauriot Prévost

MEASUREMENTS

  • Length Overall: 47.5 ft
  • Max Draft: 4' 6"
  • Beam Measure: 26' 0"

ENGINE(S)

  • Total Power: 112
  • Engine Brand: Yanmar
  • Year Built: 2002
  • Engine Model: 4JH3E
  • Engine Type: Inboard
  • Engine/Fuel Type: Diesel
  • Engine Hours: 4875
  • Engine Power: 56 hp

  • Total Power: 112
  • Engine Brand: Yanmar
  • Year Built: 2002
  • Engine Model: 4JH3E
  • Engine Type: Inboard
  • Engine/Fuel Type: Diesel
  • Engine Hours: 4470
  • Engine Power: 56 hp

TANKS

  • Fresh Water Tanks: 1 (140 Gallons)
  • Fuel Tanks: 1 (140 Gallons)

Accommodations

  • Number of cabins: 3
  • Number of heads: 3

Accommodation

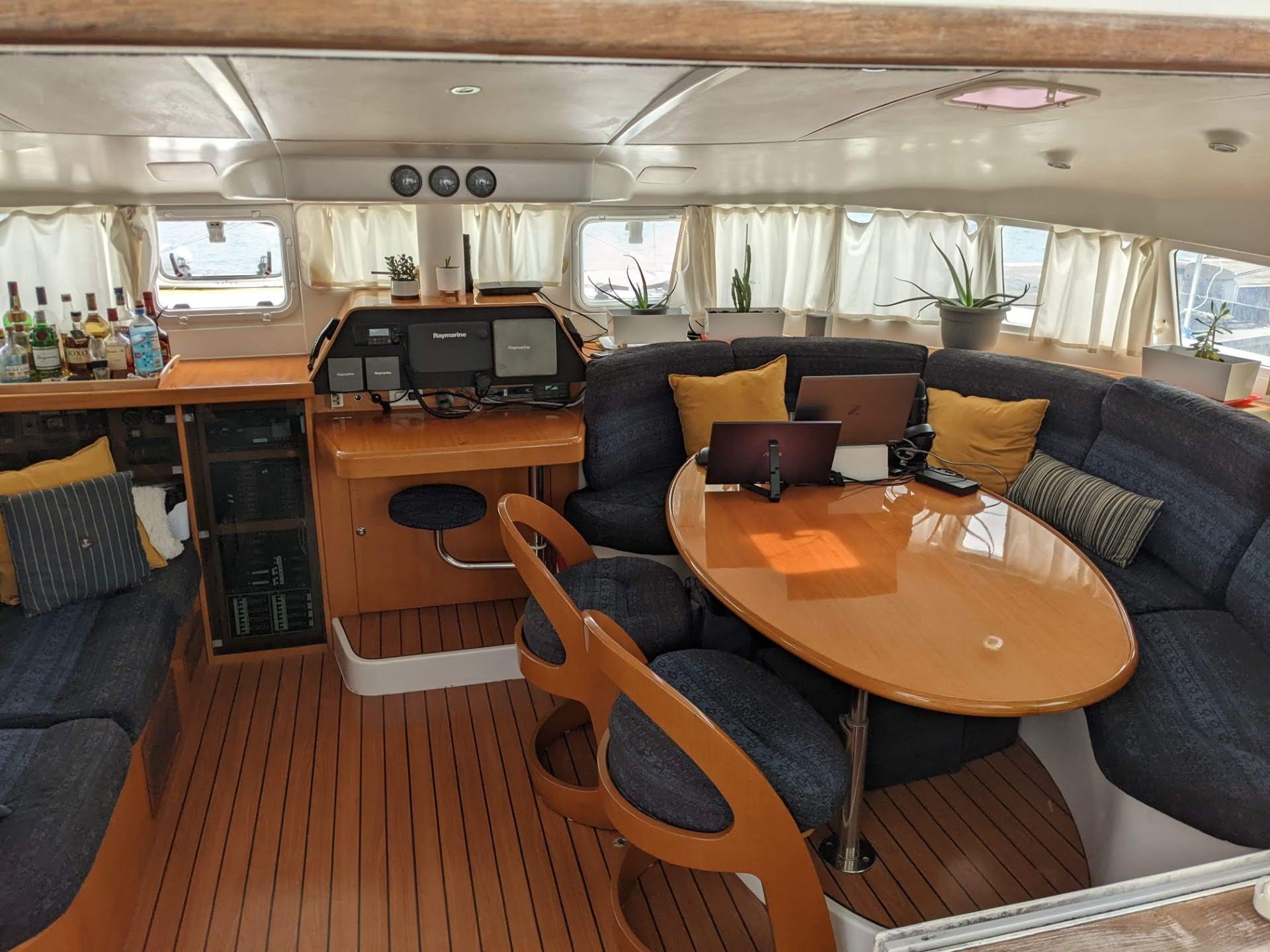

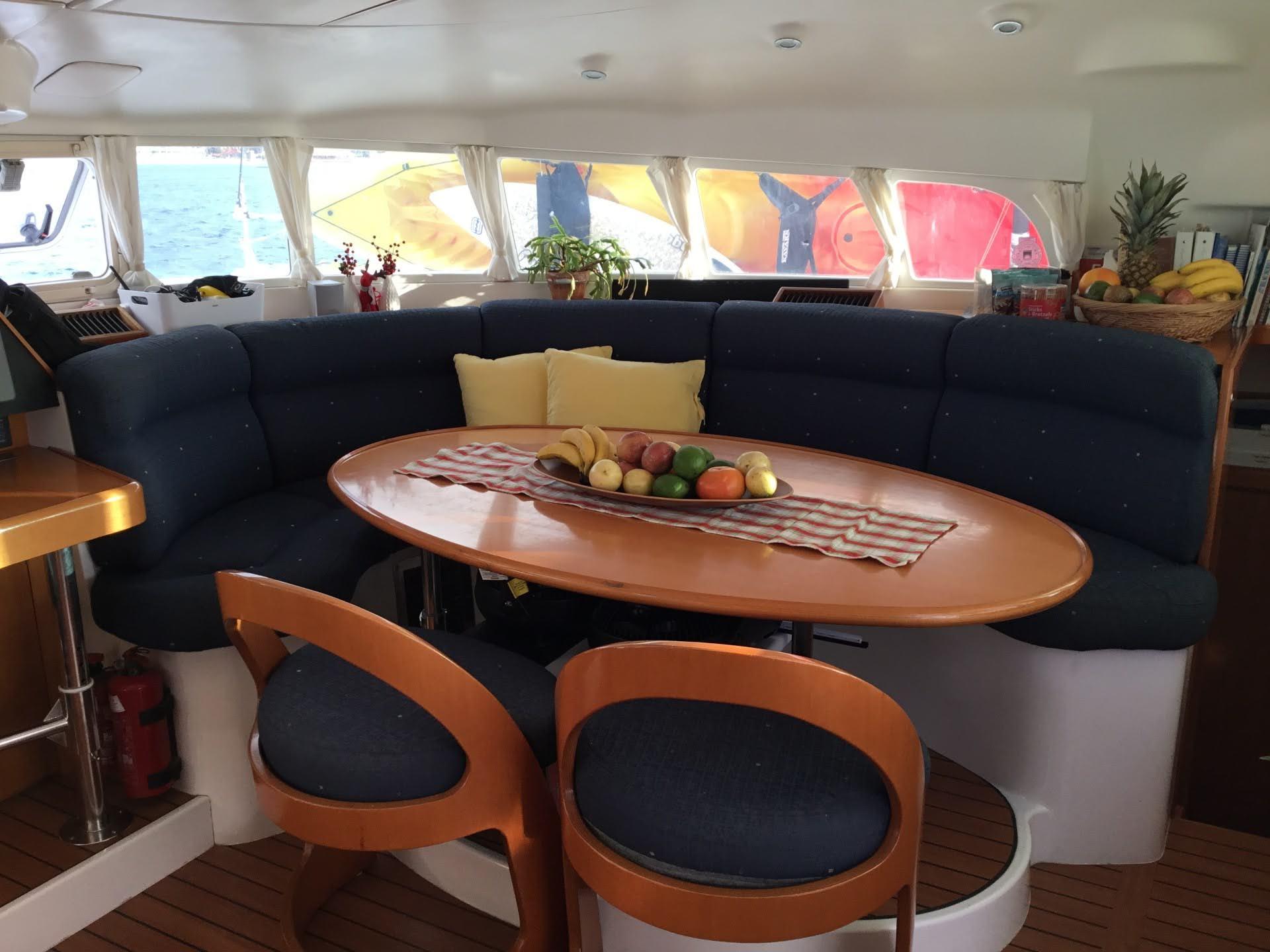

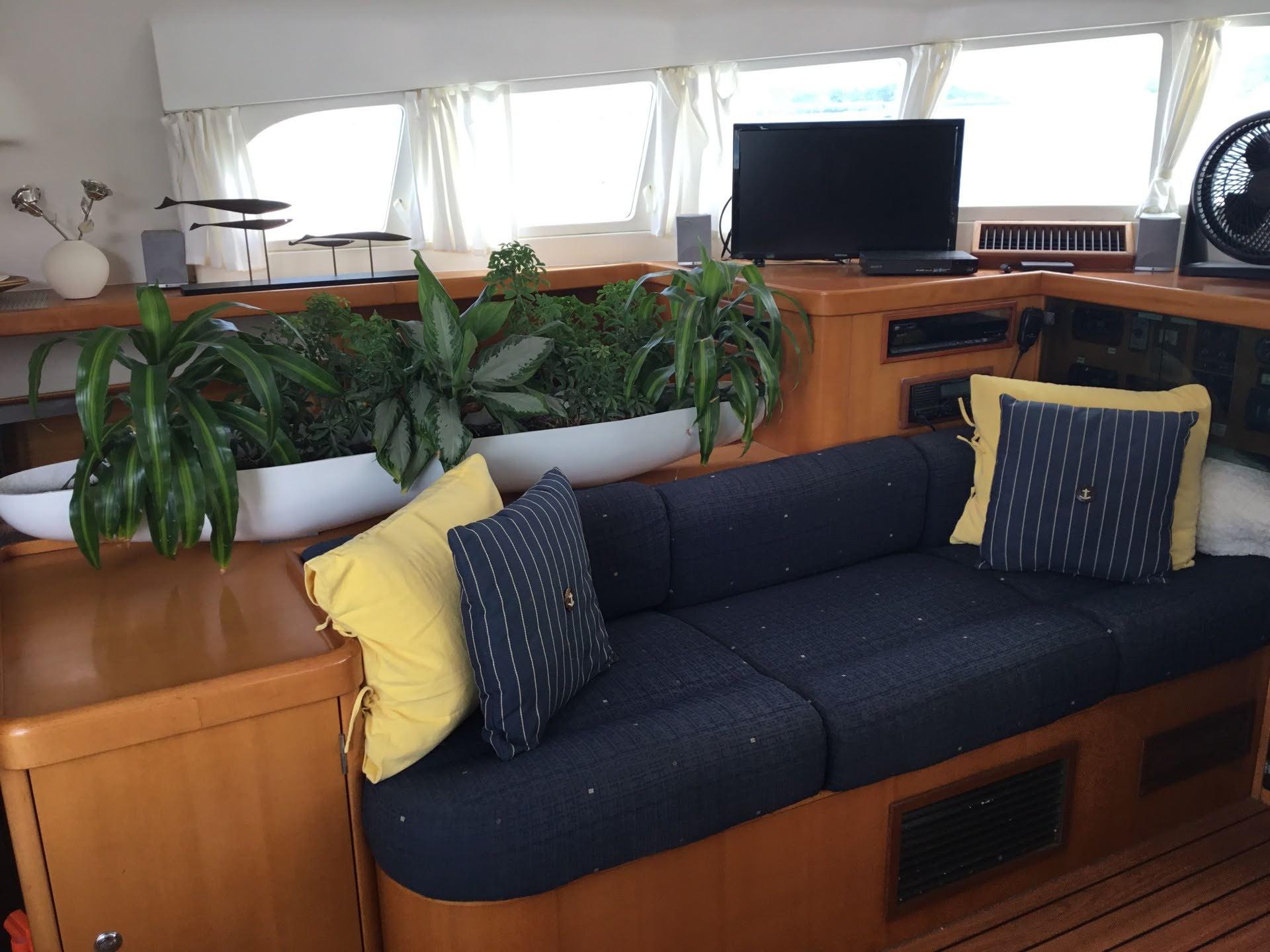

Large sliding doors open from the cockpit to the spacious and open salon. There is a large oval table to starboard with plenty of seating and an additional two stand-alone chairs. The table drops down to convert the salon seating into an extra bed/daybed with custom cushion which is a perfect place to be on passages; its central location in the boat makes it a comfortable place to sleep or hang out while also being just a couple of steps away from being back at the helm. To port-side of the salon is a long sofa and a forward-facing chart table with navigation instruments in the centre of the forward aspect.

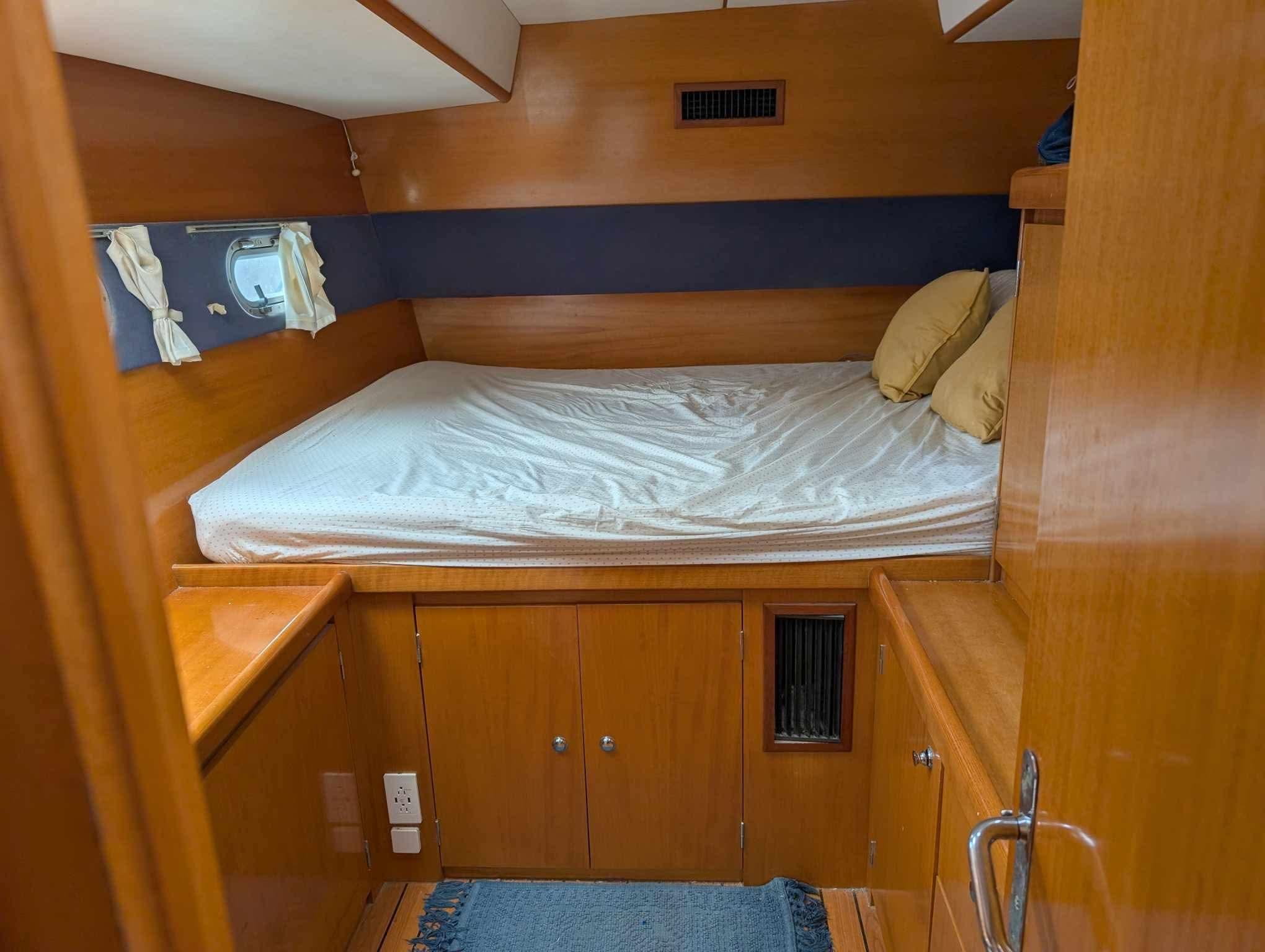

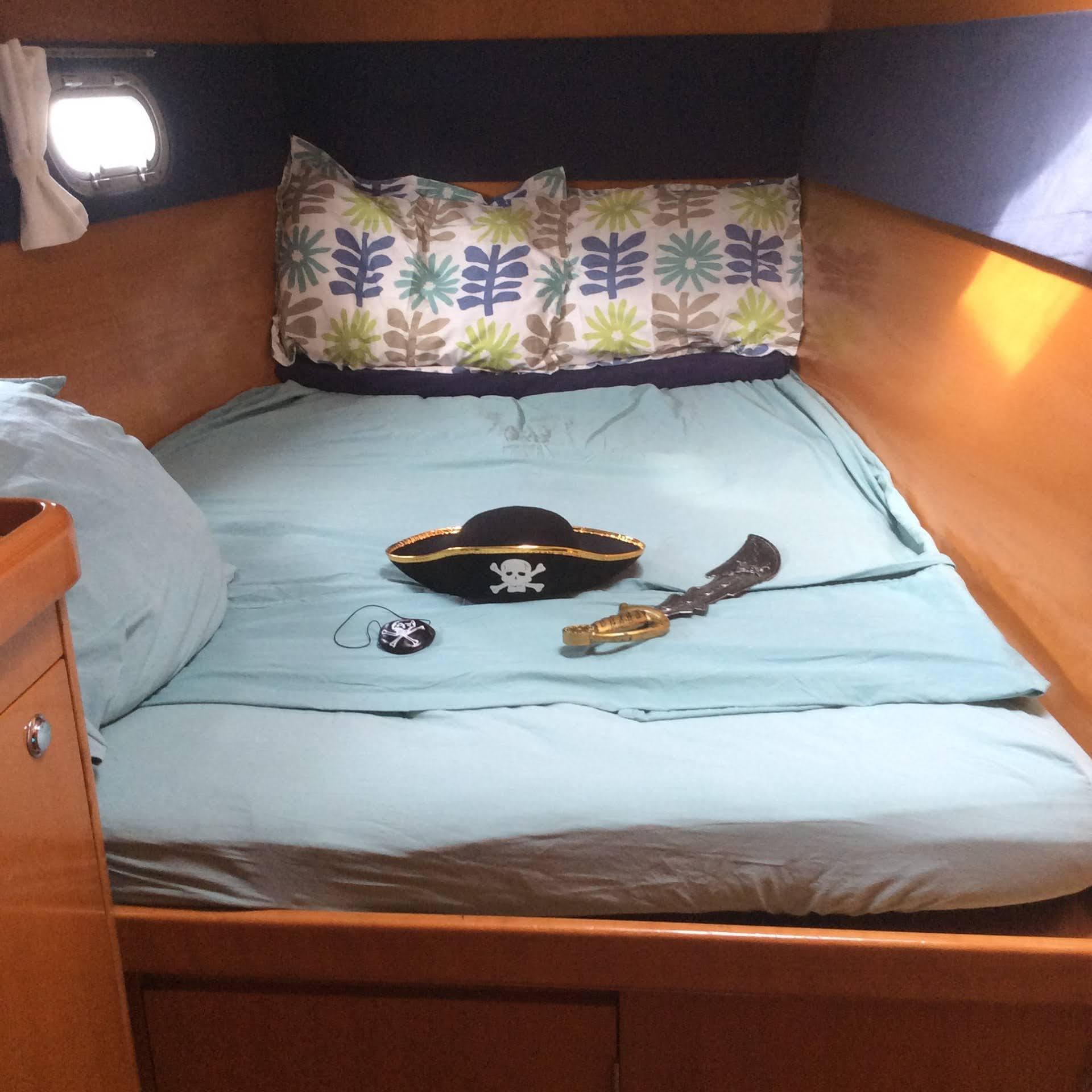

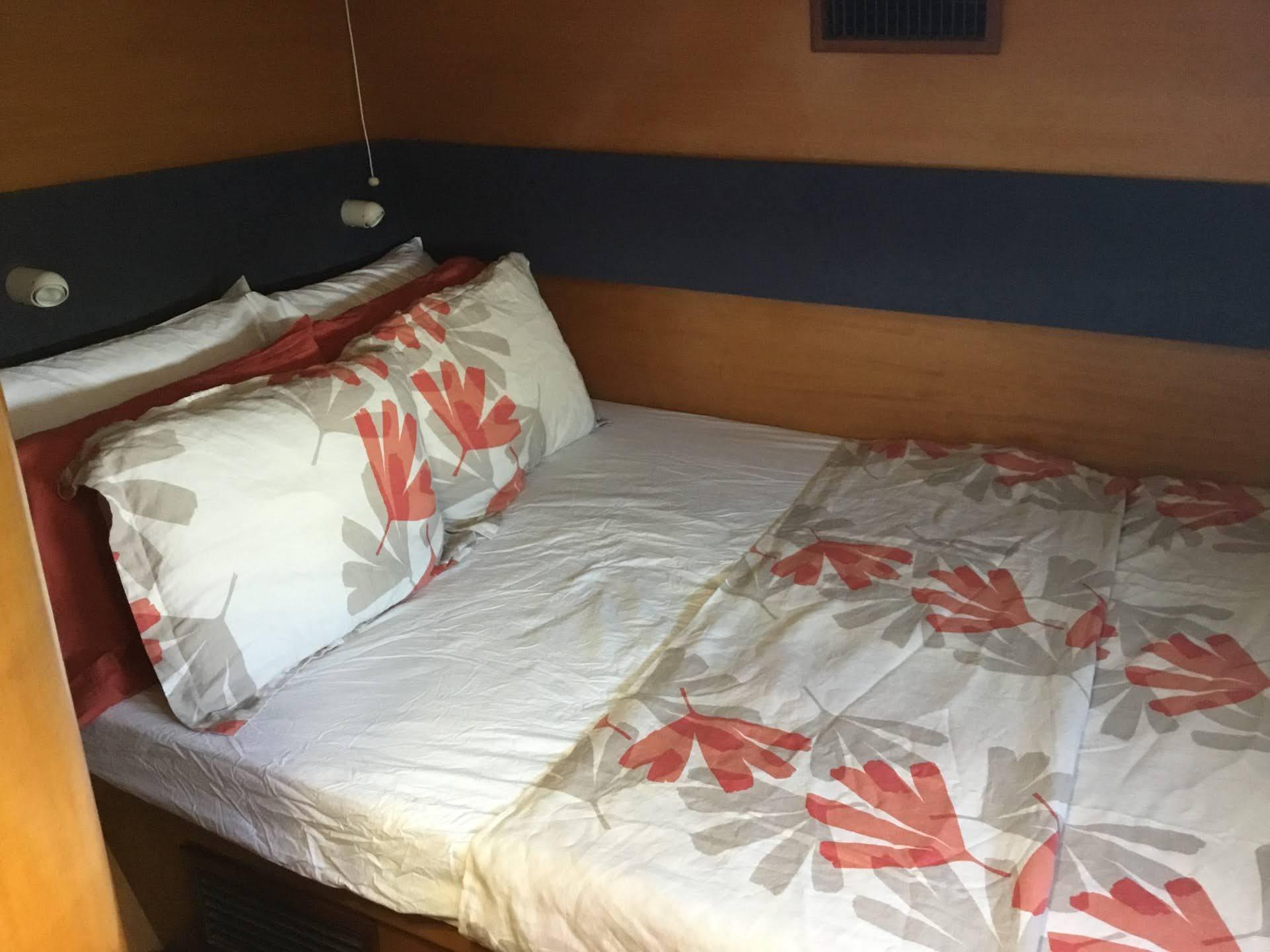

The starboard hull is entirely dedicated to the owner. Spacious and comfortable it offers a Queen size bed, settee, desk, hanging lockers and cupboards and an en-suite toilet with walk in shower. 2 guest cabins each with en suite toilet and shower are located in the port hull. Between each of these cabins is the galley.

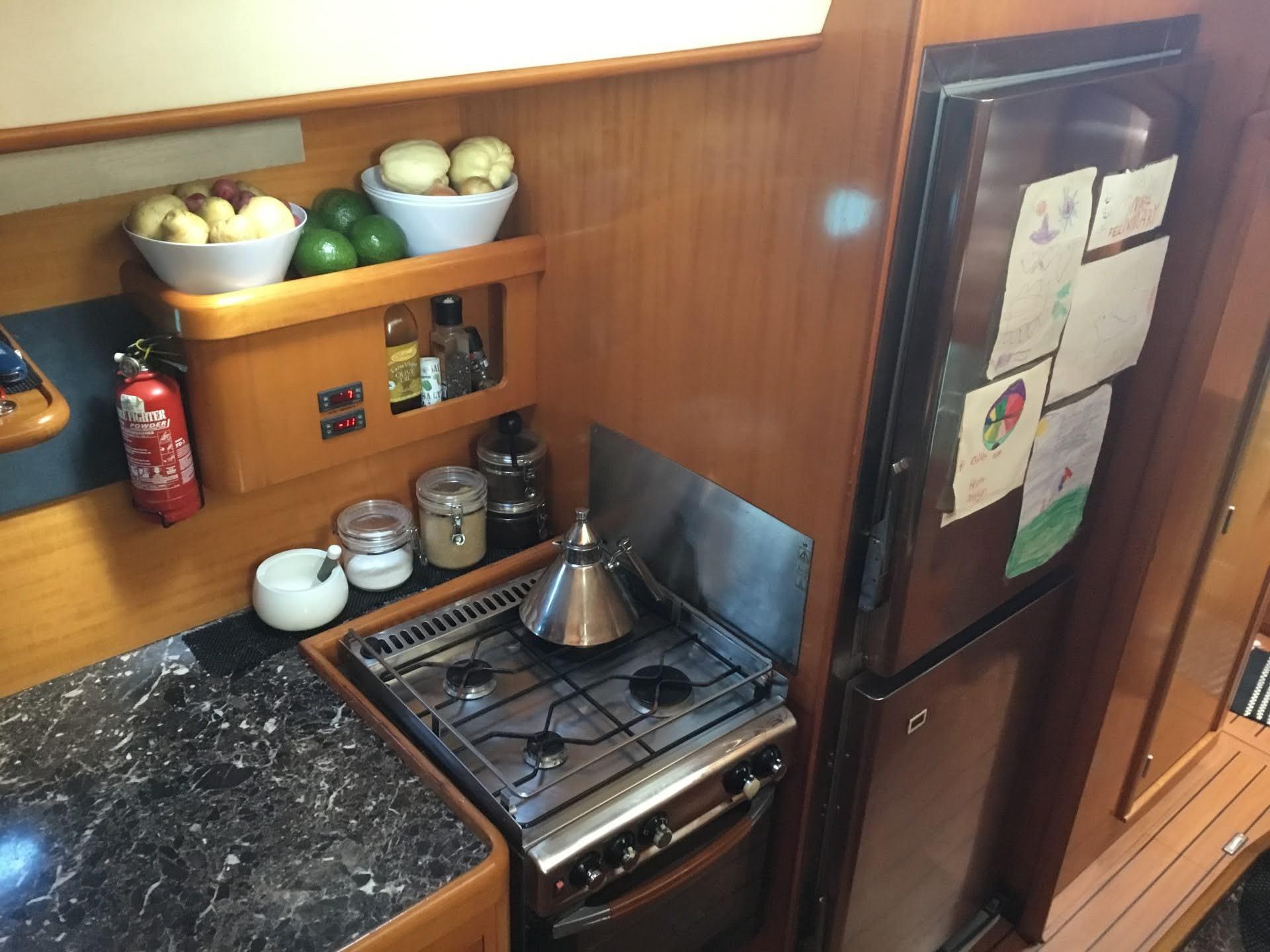

Galley

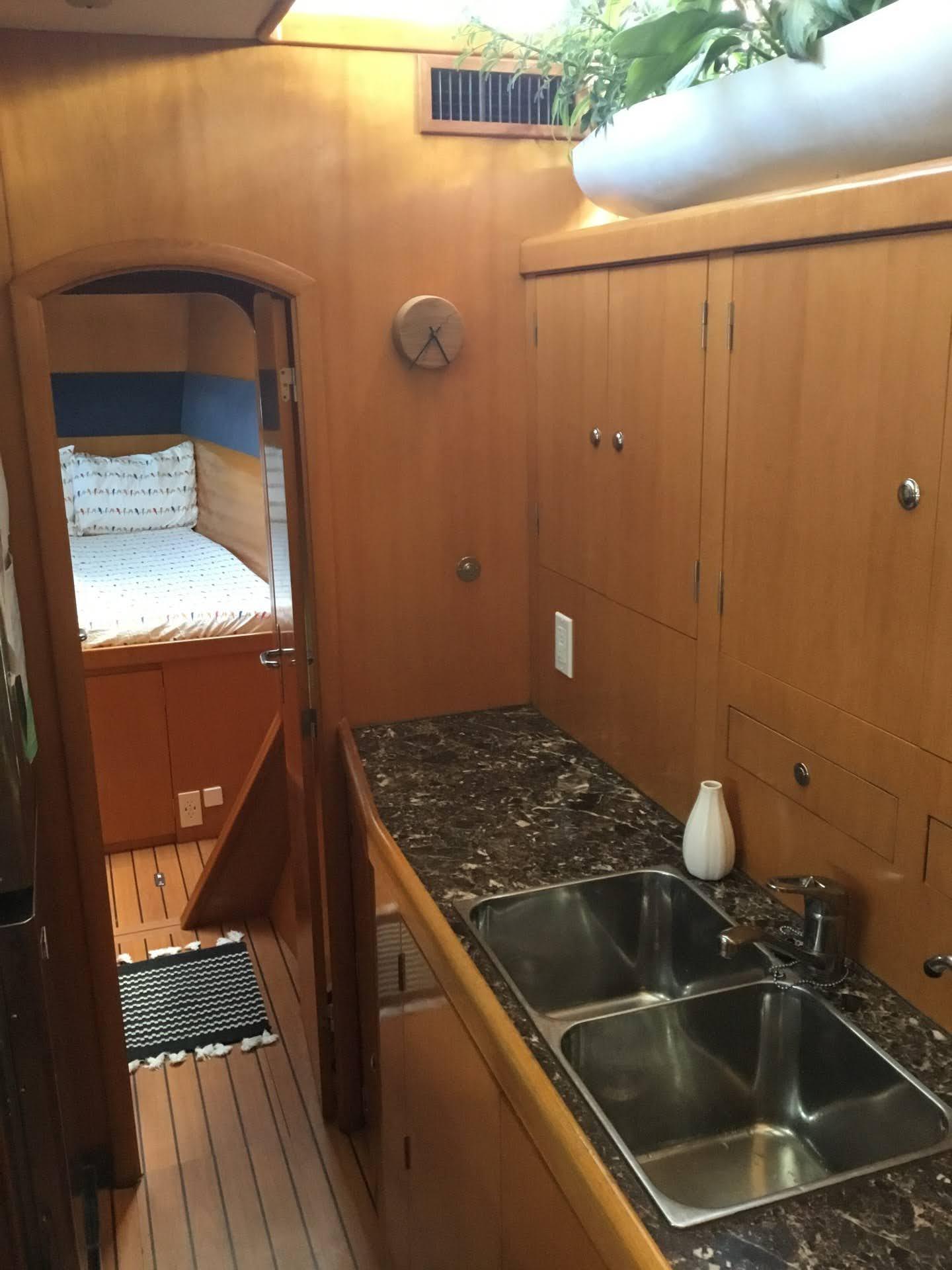

The galley is well equipped and offers a separate refrigerator and freezer, double sink, stove, oven, and plenty of cabinet, pantry and counter space.

  • Double stainless steel sink with hot/cold mixer and Culligan filtered water faucets.
  • Formica counter top.
  • ENO 4 burner oven.
  • Frigoboat refrigerator
  • Frigoboat freezer
  • Iceco portable 45 Qt 12/120/240v fridge freezer.
  • Euhomy 35lb/day table-top ice maker.
  • Toaster.
  • Convection microwave.

Deck & Equipment

  • 2x Harken 53 manual winches.
  • 2x Harken 48 electric winches.
  • Lofrans Tigres Electric windlass.
  • Rocna 25kg anchor with 300ft 3/8″ galvanized chain.
  • Plough 25kg spare anchor with 300ft 3/8″ galvanized chain.

Sails & Rigging

  • Mainsail (2018).
  • Genoa (2019).
  • Reacher (2018).
  • Stack pack.

Electronics & Navigation

  • Chart plotter: Raymarine C95 9″ multi function display.
  • Radar: Raymarine RL70C chart plotter 7″ with analog radar.
  • Auto pilot: Raymarine linear drive with ST6002 control head.
  • Wind instrument: Raymarine ST60.
  • VHF: Icom IC-M412.
  • AIS: COMAR CSB200 TX/RX.
  • Iridium satellite phone.
  • Starlink.

Electrical, Power & Plumbing

  • Mastervolt 220v/2000w Inverter charger.
  • Xantrex 12v/2000w inverter/charger.
  • House batteries: 4x Lifeline GPL-4DA 210AHr (840 AHr total).
  • Victron BMV712 battery controller.
  • Mastervolt 12v/80A battery charger.
  • Solar panels: 2x 410w (2023) & 2x 345w (2019).
  • Solar controller: 2x Victron energy.
  • Onan Cummins MDKBN 9.5 (240v/50Hz) generator.
  • Jabsco manual flush toilets.
  • 2 x 11 gallon Kuuma water heaters heated by engine or 240v.
  • Modular 20gph watermaker (rebuilt 2025).

Engines & Mechanical

  • Engine Brand:  YANMAR
  • Year Built:  2002
  • Engine Model:  4JH3E
  • Engine Type:  Inboard
  • Engine/Fuel Type:  Diesel
  • Engine Hours:  Port: 4875 / Stb: 4470
  • Engine Power:  56 hp
  • Propeller: 3-blade. Fixed pitch aluminum.
  • Sail Drive: SD60. (Serviced and seals replaced 2022).

Additional Information

  • 50,000 BTU Air-conditioning (4x air conditioners, 2 chiller units).
  • Dinghy: 2017 Limin HYP330 11ft Dinghy with custom chaps.
  • Outboard: Yamaha 15hp 2-stroke, short shaft.
  • Bottom painted (2022).
  • 3x gas bottles (1x16lb, 1x6lb, 1x20lb).
  • New salon and cockpit cushions.
  • Custom hardtop.
  • Life raft: Viking 8 person (last service 2019).

Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

The Multihull Company is pleased to assist you in the purchase of this vessel though the vessel may be listed with another brokerage company.
