SPECS
- Builder: Lagoon
- Designer: Lagoon
- Keel: Fin Keel
MEASUREMENTS
- Length Overall: 45.8 ft
- Max Draft: 4' 3"
- Bridge Clearance Measure: 76' 10"
- Beam Measure: 25' 10"
ENGINE(S)
- Total Power: 80
- Engine Brand: Yanmar
- Year Built: 2015
- Engine Model: 4JH5CE
- Engine Type: Inboard
- Engine/Fuel Type: Diesel
- Engine Hours: 1614
- Engine Power: 40 hp
- Total Power: 80
- Engine Brand: Yanmar
- Year Built: 2015
- Engine Model: 4JH5CE
- Engine Type: Inboard
- Engine/Fuel Type: Diesel
- Engine Hours: 1627
- Engine Power: 40 hp
TANKS
- Fresh Water Tanks: 2 (500 Gallons)
- Fuel Tanks: 2 (500 Gallons)
Accommodations
- Number of cabins: 3
- Number of heads: 3
Manufacturer Provided Description

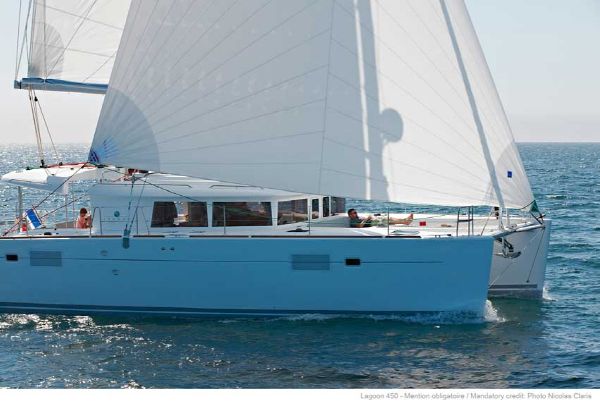

Replacing a catamaran that has come to be seen as a benchmark is no easy task. But the VPLP architects, in partnership with Lagoon and the celebrated Nauta Design studio, have been brilliantly successful in creating the new Lagoon 450.
Construction
- Polyester and high quality anti osmotic resin
- Hull and deck laminated by infusion
- Balsa core hull, solid laminate under water line, white gel coat
- Balsa core bridge deck and deck
- Solid laminate inner liners and deck
- Laminated marine plywood bulkheads
Deck
- Storage locker on aft cockpit portside
- Big storage locker
- Access to the windlass and chain locker by a vertical pannel
- Deck light on mast
- Locker on starboard side (genset as an option)
- Settee
- Hardware
- 8 mooring cleats
- 1 winch size 60 on starboard side of helm for mainsail halyard and reefing lines and genoa
- 1 winch, size 50,on port side for genoa halyard, spi (option), toping lift
- 1 winch, size 60, for genoa on port side1 winch, size 50,for main sheet, traveller and furler
- Vertical axe windlass 12V 1700W in anchor locker, with 12 mm gypsy
- Trampoline with knot-less nylon netting
- Extern stern pulpits
- Inboard stern pulpits including on portside flagpole fittings and buoy support
- Composite forward longitudinal beam with recessed chain run and mooring cleat
- Aluminium crossbeam with furler genoa chain plate, anchor roller and navigation lights
- Mainsheet traveller track and ball-bearing car
- 2 genoa tracks with genoa car and stopper
Cockpit
- Large cockpit usable as deck salon, protected by fixed composite bimini with recessed cockpit lighting
- U-shape foredeck seating area with technical generator locker on the front
- Removable wood varnished cockpit table accommodates 8 / 10 people, with protective cover
- 2 storage lockers in stern crossbeam
- Large storage locker with possibility to install extra (fridge, icemaker, etc…)
- Synthetic resin countertop
- Sliding window between cockpit and galley
- Direct access from cockpit to helm station on starboard side
- Lazy boy on starboard side with storage locker
- Bin with upper access and front door
- Storage locker with top access (70 liters / 18 gallon US ) with drainage
- Aeration hatch – Opening roof on the fly for cockpit aeration
- Storage for 2 gas tanks on starboard side of the cockpit
- Built-in storage area for cockpit table in bimini ceiling
- Polyester non streaming toe rail on the cockpit sides
Accommodations
Salon
- Large main salon with panoramic view – standing headroom approx: 2,05 m / 6’9”
- Steel pillar with fabric cover
- Varnished coffee table that can be swapped with the large cockpit table
- Seating for 5 / 6 people
- Storage compartments under bench seats
- Locking aluminium sliding cockpit door with open/closed positions
- 2 opening hatches on forward windows
- Curtains on forward salon windows
Aft Cabins
- Queen-size berth (2,04m / 6’7”x 1,60m / 5’2” at widest point)
- Semi-island berth
- 1 drawer under berths.
- 1 hanging lockers
- 1 low shelf
- Shoes storage in the floor
- Ceiling led spotlight
- 2 reading lights per berth
- 2 bed tables with storage
- 1 opening deck hatch
- 1 opening port hole
- 1 large hull window in plexiglass
- 1 opening escape hatch
- Curtains on portholes, hatches and fixed one-way windows
Forward cabins
- Transformable double berth or 2 simple berths
- double berth version 2.04 m x 1.63 m x 1.16 on the floor / 6’7” x 5’3” x 3’8” on the floor
- 2 simple berths version 2.06 m x0.69 m x 0.58 m on the floor / 6’75” x 2’26” x 1’9” on the floor
- 2 drawers under berths
- 2 space storages
- 1 bookshelf
- 1 bed table with storage and shoes storage
- Hanging lockers and shelves
- LED ceiling lights
- 2 reading lights per berth
- 1 opening deck hatch
- 1 opening port hole
- 1 large hull window
- Curtains on portholes, hatches and fixed one-way windows
- 1 mirror
- 3 lockers storage under the berth
Heads
- Moulded GRP units with white laminate walls – standing headroom 2,04m /6’9”
- Washbasin with mixer tap / shower
- Full-size marine toilet
- 1 holding tank with gravity drain/deck pump out in the aft port head
- Mirror
- Storage locker and 2 mirror doors
- Ceiling lights and spotlights over the mirror
- Forward heads access from cabin
- Synthetic resin countertop
- Separated shower
- Shower grating
- 1 opening deck hatch
- Technical access under washbasin
Galley
- Galley in main salon to starboard with directaccess to cockpit through sliding window
- White synthetic resin countertop
- Double stainless steel sink with chrome-plated mixer tap hot and cold water
- Integrated dish drainage area.
- Cutlery drawer
- Storage under sink
- 3 burner stove / oven with grill stainless steel
- 12V fridge 130L / 34 US Gallons, front loading
- Microwave
Engine
- Engine hatch gas struts
- Yanmar 2 x 40 HP saildrive diesel engines
- Engine controls at helm station
- Soundproofed engine compartments, soundproof access panels
- Electrical extractor for ventilation
- Sea water filters
- Lights
Electrical
- Main 12V electrical panel starboard side of salon next to companionway with wood protection
- LED lights
- Ammeter, voltmeter, circuit breakers, back lighting, water gauge, 12V outlet, fuel gauge
- 2 engine start batteries: 12 v- 110 Amp
- 3 house batteries: 12 v-140 Amp
- Inverter
- Solar panels
- Genset (Cummins Onan)
Flybridge
- Twin deck access stairways from deck
- Large bench seat for 6 people
- Ergonomically-designed helm station with leathered wheel with brake, engine throttles, engine panels, hourmeters, compass, large instrument console for electronic displays, cup holders, rope storage
- Protection cover for helm position canvas bimini
- Space storage around lateral staircases of the flybridge
- 4 Electric Winches (Harken)
- Navigation Equipment Chart plotter (B&G)
- Auto Pilot (B&G)
Sails
- 1 dacron full roach full batten mainsail
- 1 furling genoa with UV protection
Rigging
Standing Rigging
- Aluminium mast with mainsail track and ball-bearing
- Double pushing spreader rig
- 1 aluminium boom
- 2 shrouds with chafe guards
- 2 lower shrouds
- 1 forestay with furler for genoa
- 2 mainsail lazy-jacks for battened main sail
Running Rigging
- 1 double-purchase spectra mainsail halyard
- 1 spectra genoa halyard
- 1 mainsail sheet pre-stretched
- 1 genoa sheets pre-stretched
- 3 mainsail reefing lines pre-stretched
- 1 genoa furling line pre-stretched
- 2 mainsail traveller car control lines pre-stretched
Others – Additional
- Dinghy with outboard
- EPIRB (at Salon)
- Water Filters (Drinking water)
- TV (salon)
- Water maker
