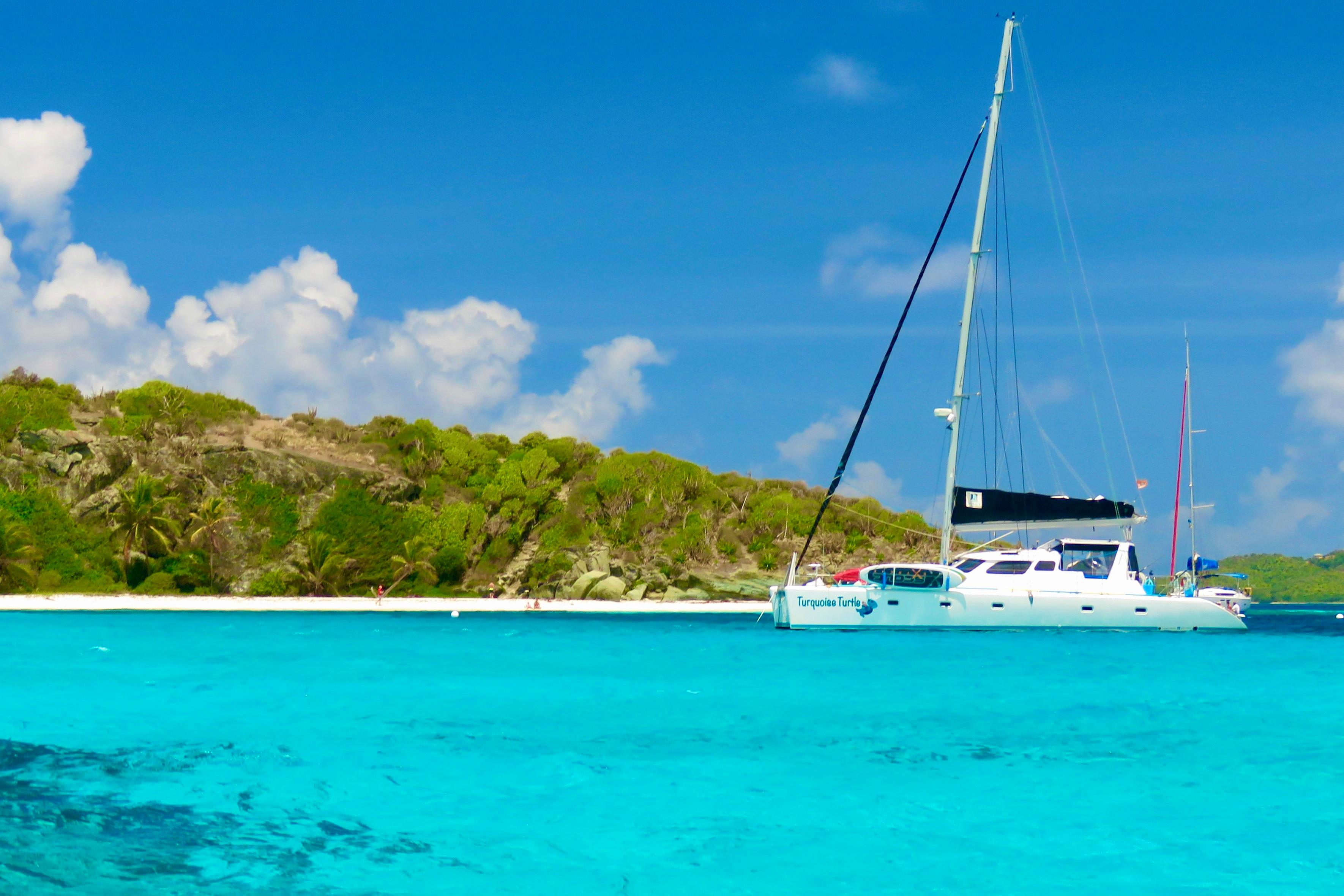

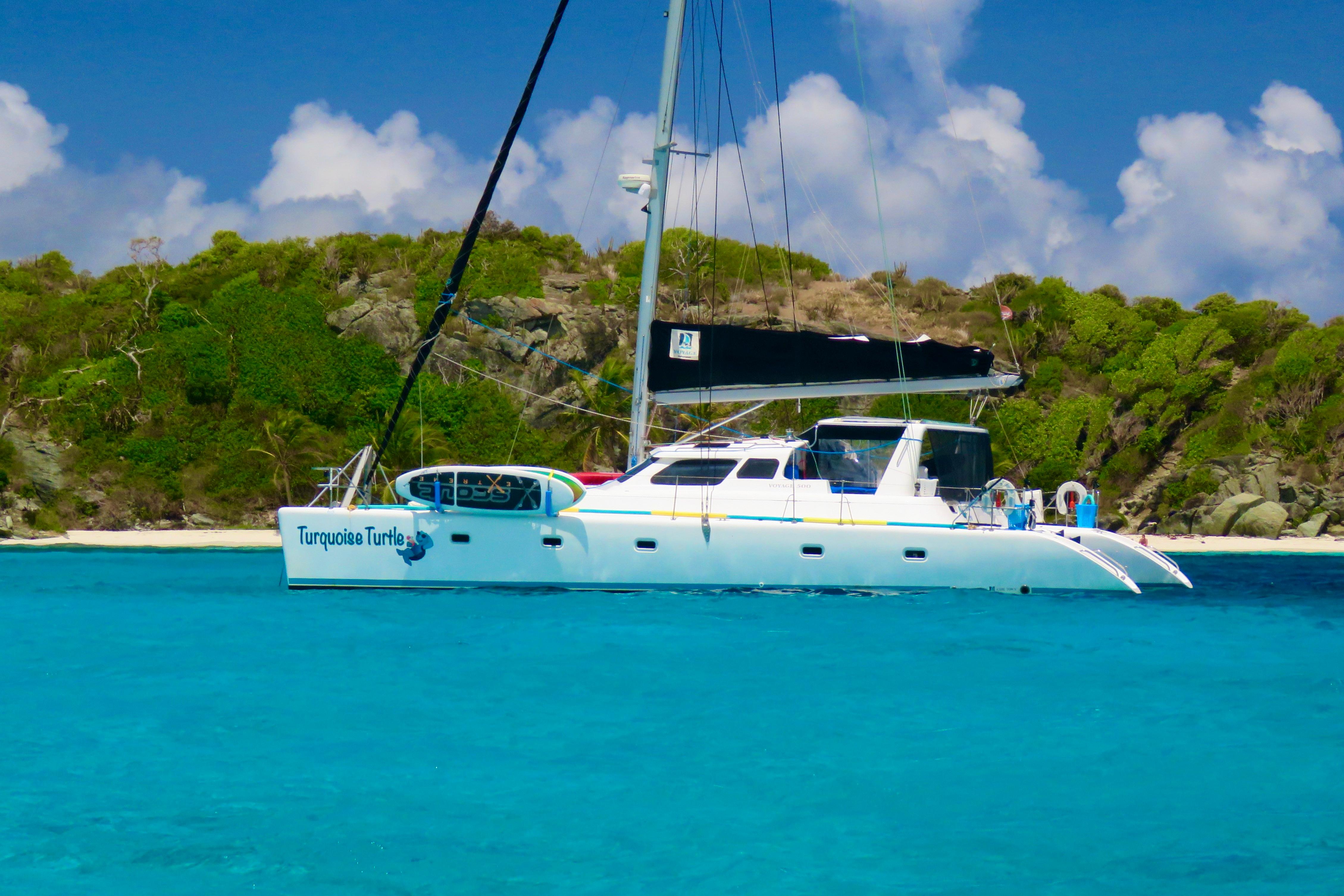

Voyage 500 in Exceptional Condition, Fully Upgraded and Ready for Blue Water Cruising

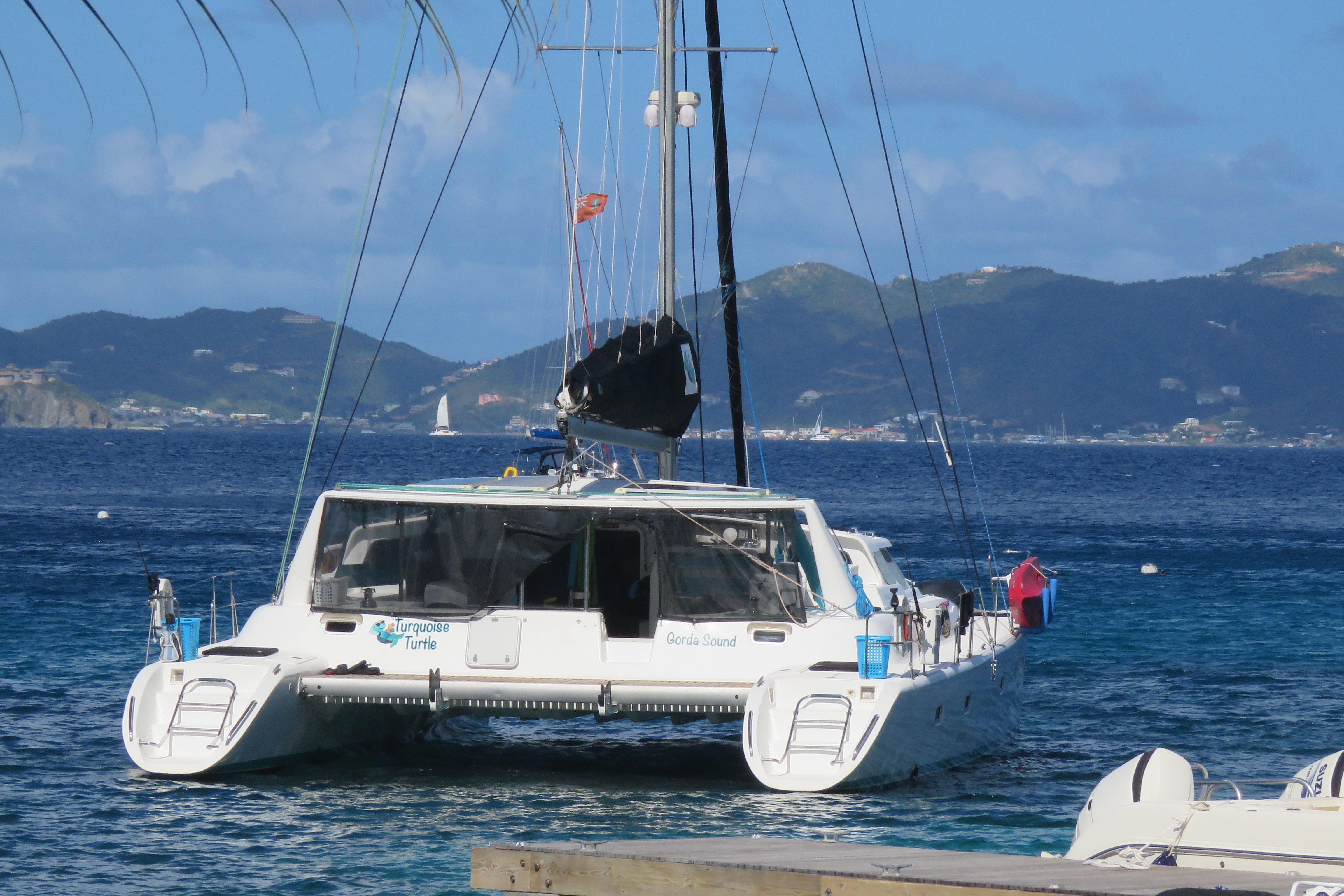

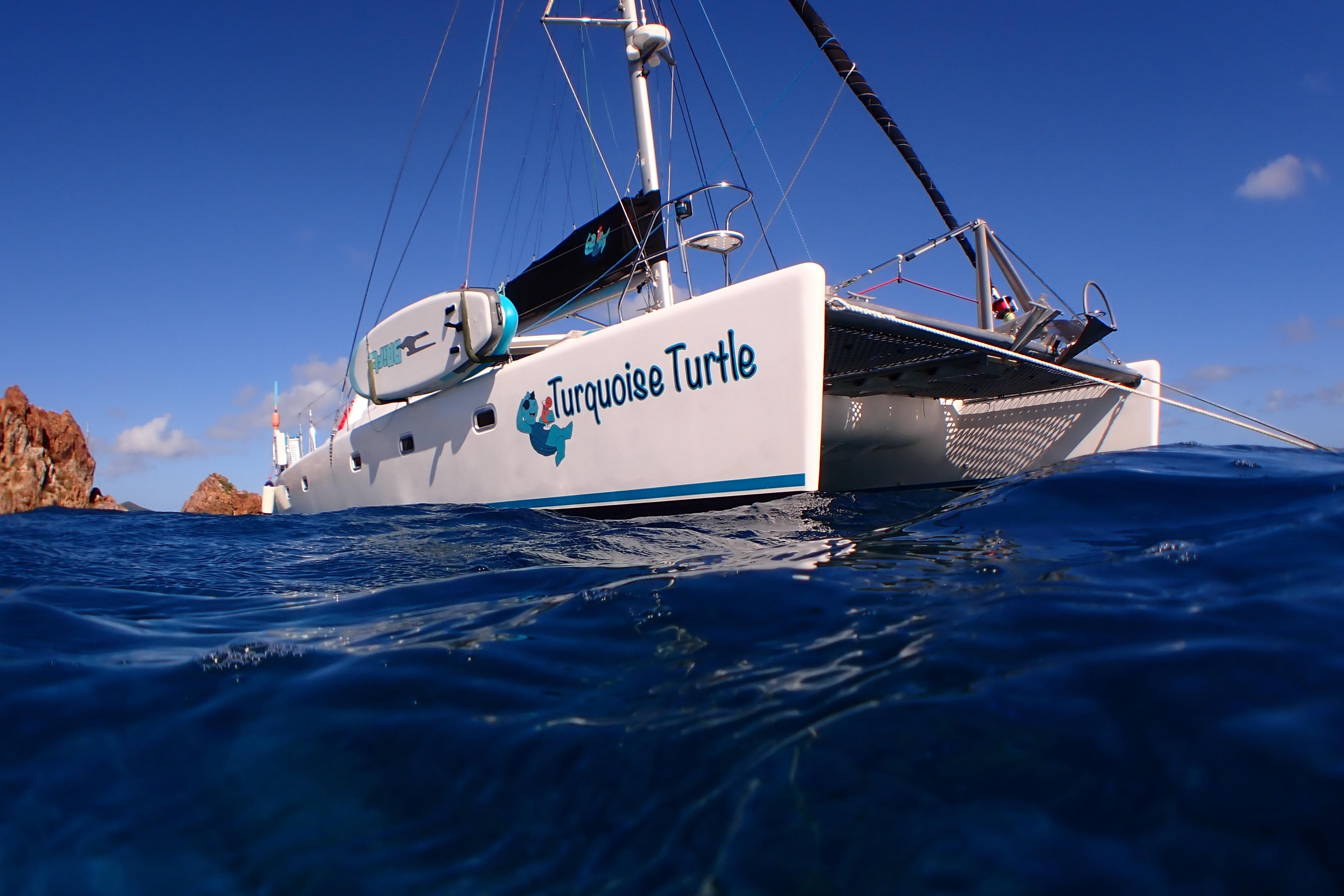

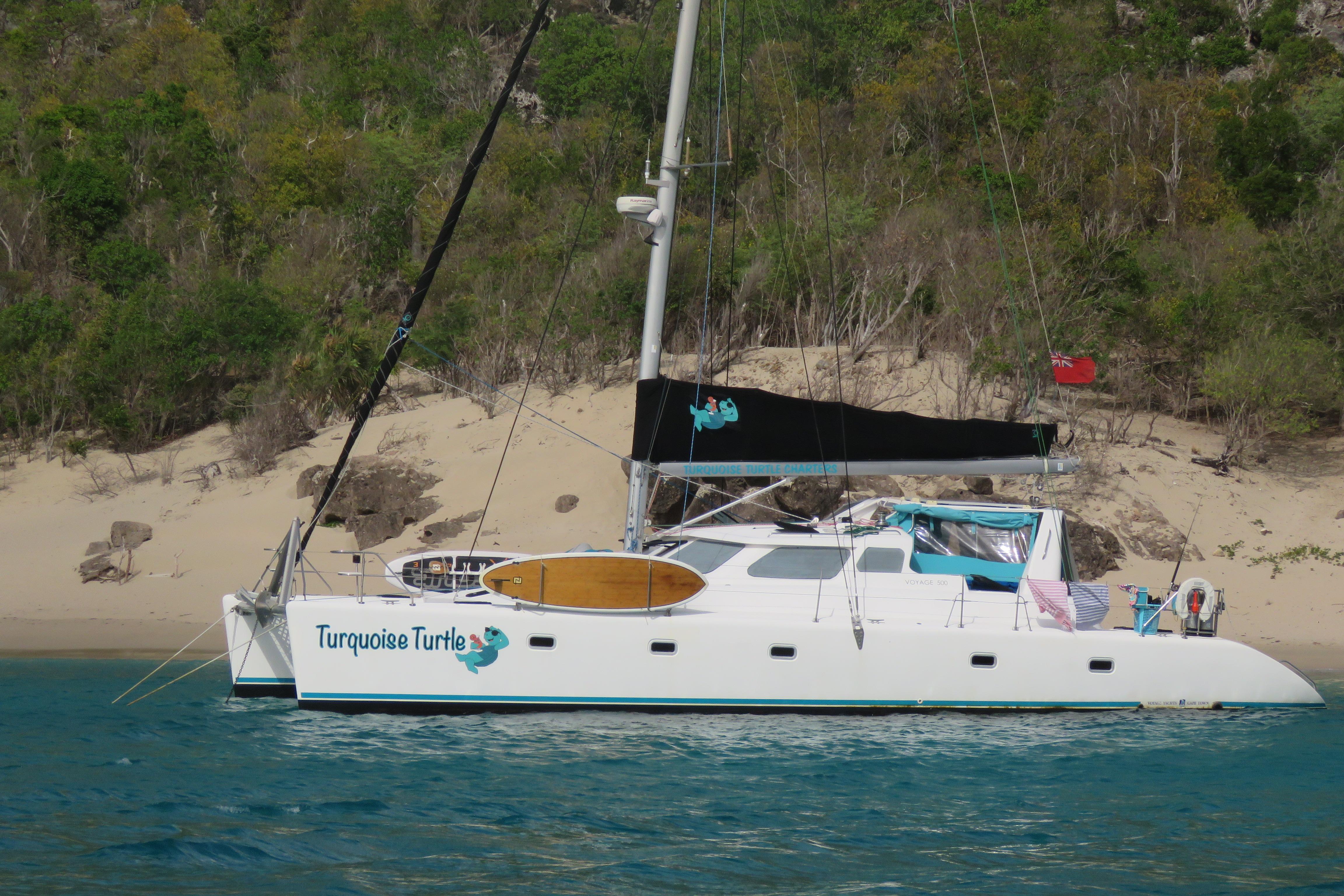

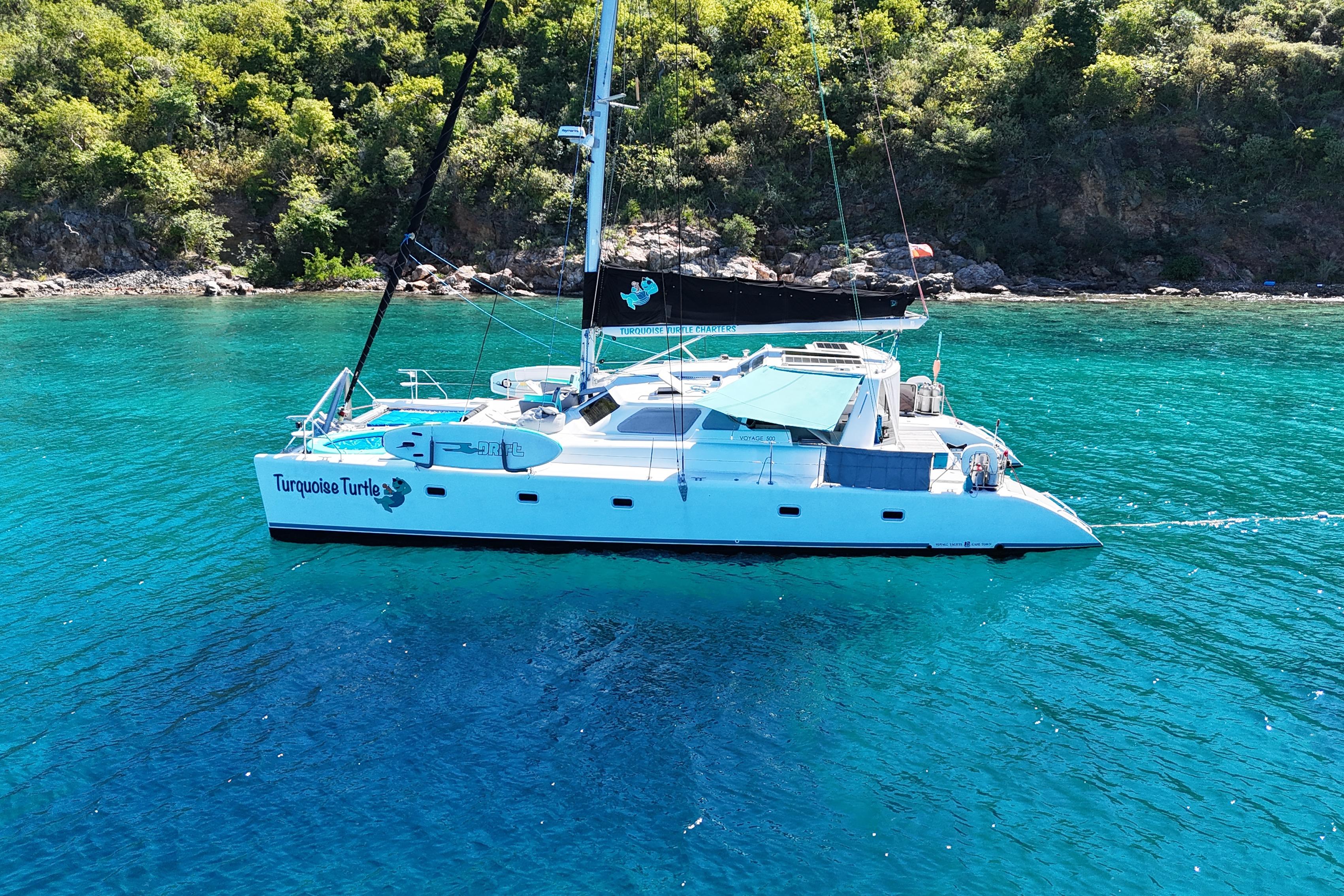

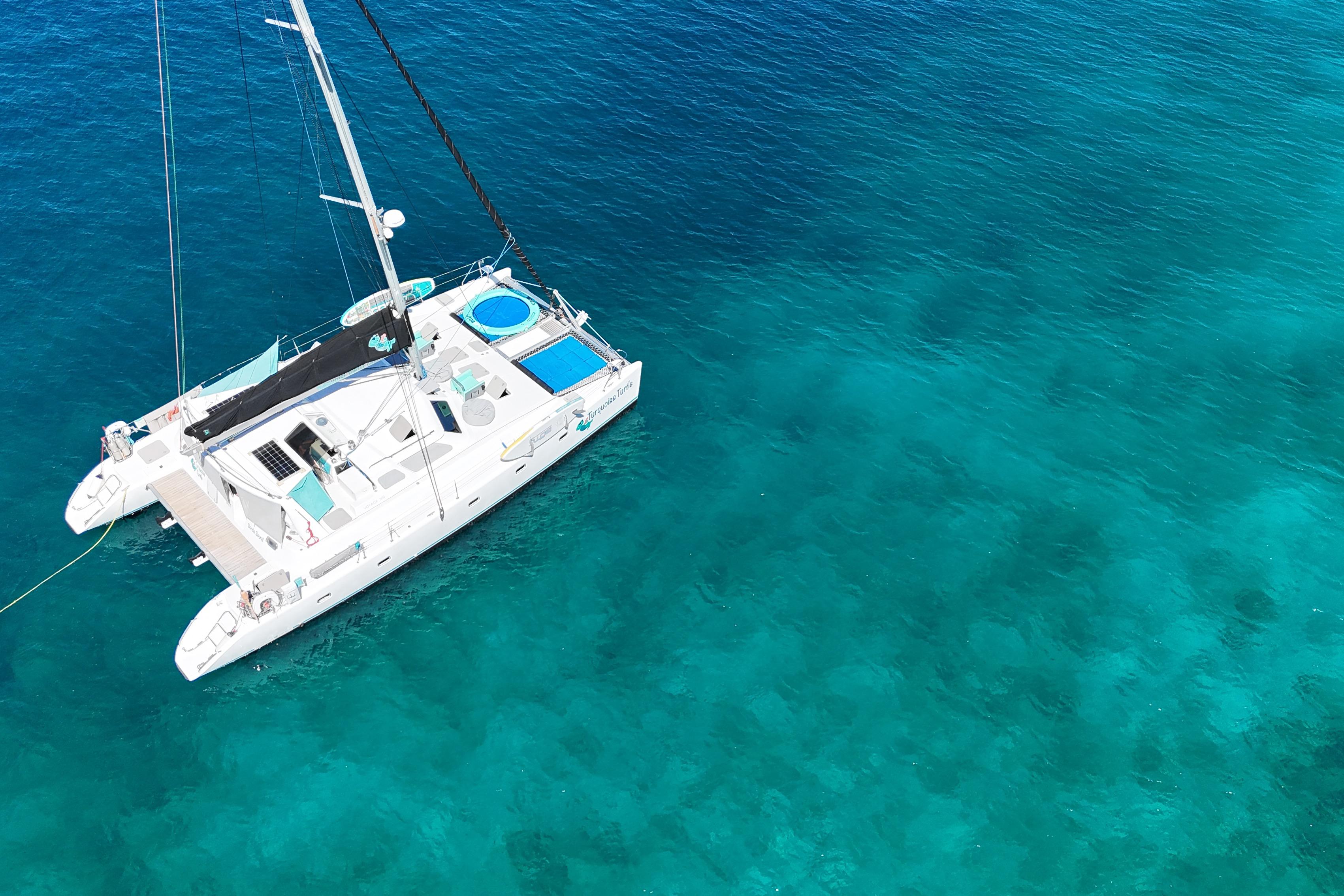

This Voyage 500 is a superb example of a true blue water cruising catamaran. Designed by Alexander Simonis and built in South Africa to exacting standards, the Voyage 500 is widely respected for its strength, stability, and long range capability. It is a proven design that delivers excellent performance under sail while offering the comfort and volume demanded by serious cruisers and charter guests.
The model began life in 1993 as the Mayotte 470 and was refined under Voyage Yachts from 1994 onward, with further development from Tom Lubbe in consultation with Simonis. The modern Voyage 500 has been in continuous production since 1996 and is regarded as one of the most capable and practical cruising catamarans in its class. The line recently evolved into the new Voyage 590, yet the 500 remains sought after for its robust construction and well considered layout.
This particular vessel has been owner operated and professionally maintained for the past eight years. She has served both as a comfortable live aboard home and as a successful term charter yacht, benefiting from continuous upgrades throughout current ownership. All major systems and components have been replaced, renewed, or modernised, and her general condition reflects the high level of care she has received. The focus has always been reliability, safety, and presenting a welcoming environment for guests.
Well equipped, well maintained, and already proven on extended voyages, she is a capable cruising catamaran ready for her next adventure.
Specifications
SPECS
MEASUREMENTS
ENGINE(S)
TANKS
Accommodations
General Arrangements
Design and Construction
Overall length: 15.2 m
Waterline length: 14.4 m
Beam: 8.3 m
Draft: 1.2 m
Mast height off WL: 20.8 m
Light ship weight: greater than 11,000 kg
CE Certification:
Design category A
Maximum recommended load 1000 kg
Maximum recommended persons 10
Maximum rated engine power 50 hp
Fuel capacity 500 L
Water capacity 900 L
Engines and Propulsion

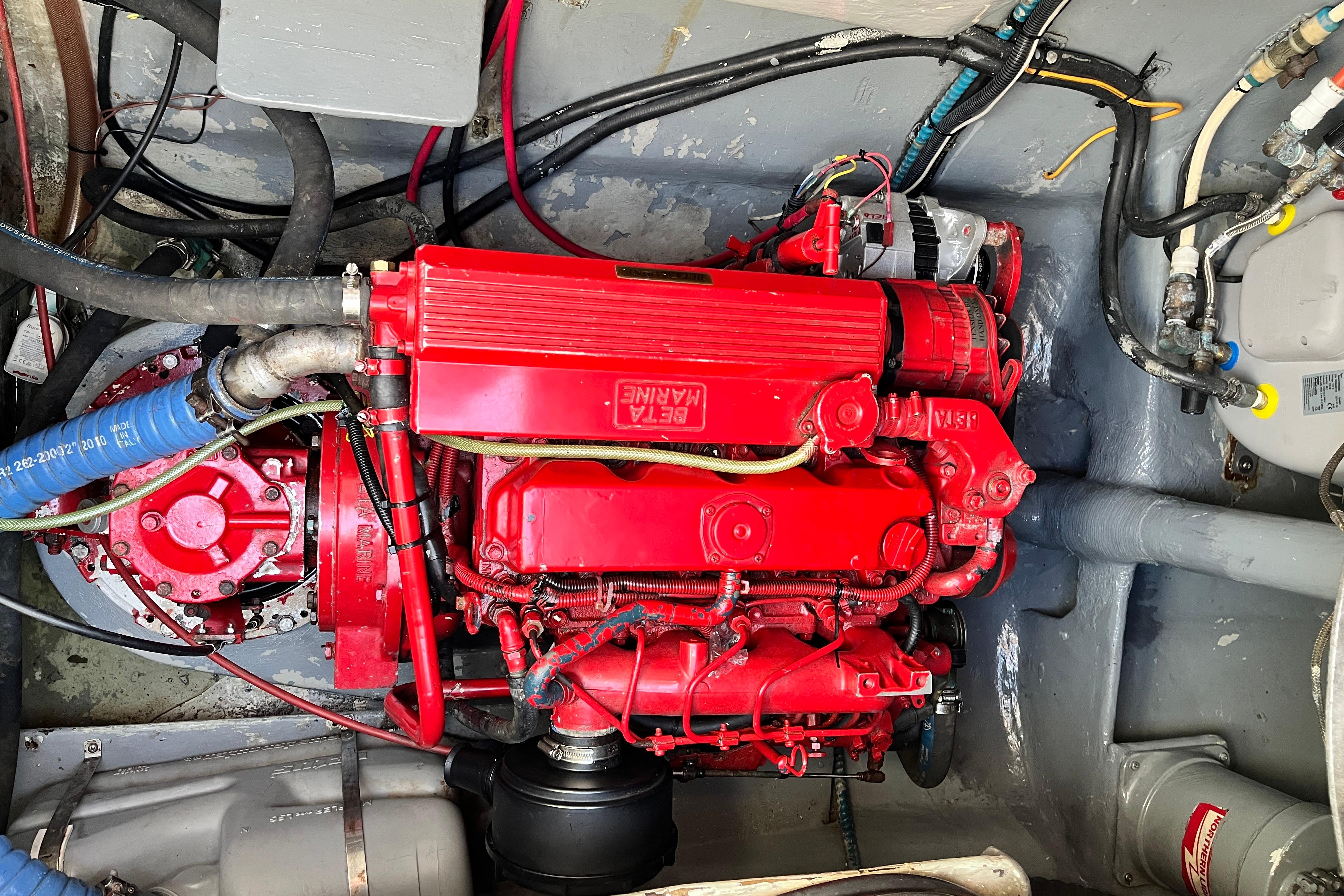

Engines:

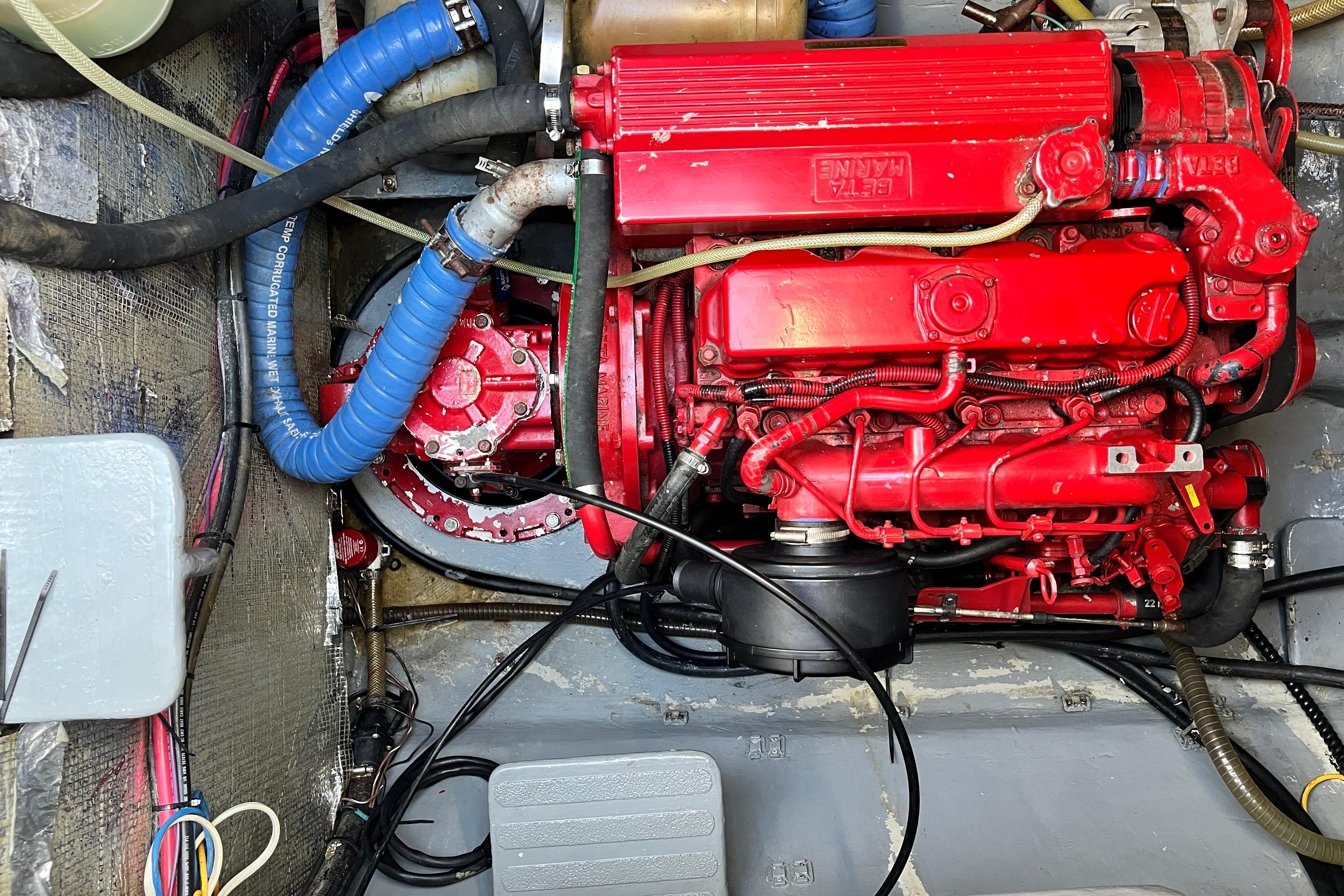

2 x 50 hp Beta Marine (new 2015), approximately 2072 hours
Each engine equipped with two alternators (two alternators replaced 2025)
2 x Balmar M614 regulators (new 2023)
Saildrives:
2 x Twin Disc Sea Prop 60 (new 2015)
Propellers:
2 x Flexofold three bladed folding 17 x 13 (new 2018)
2 x spare three bladed fixed props

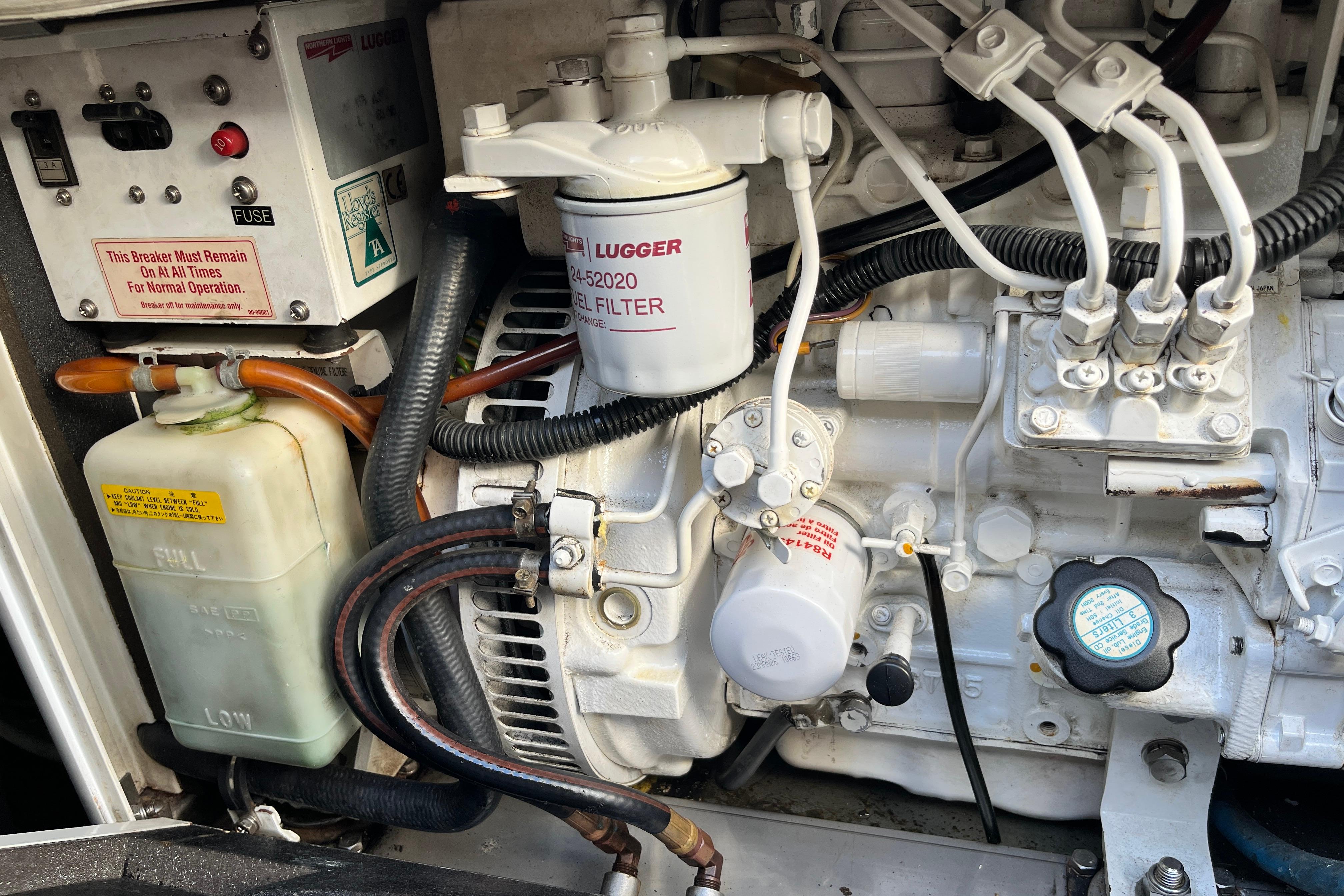

Generator:

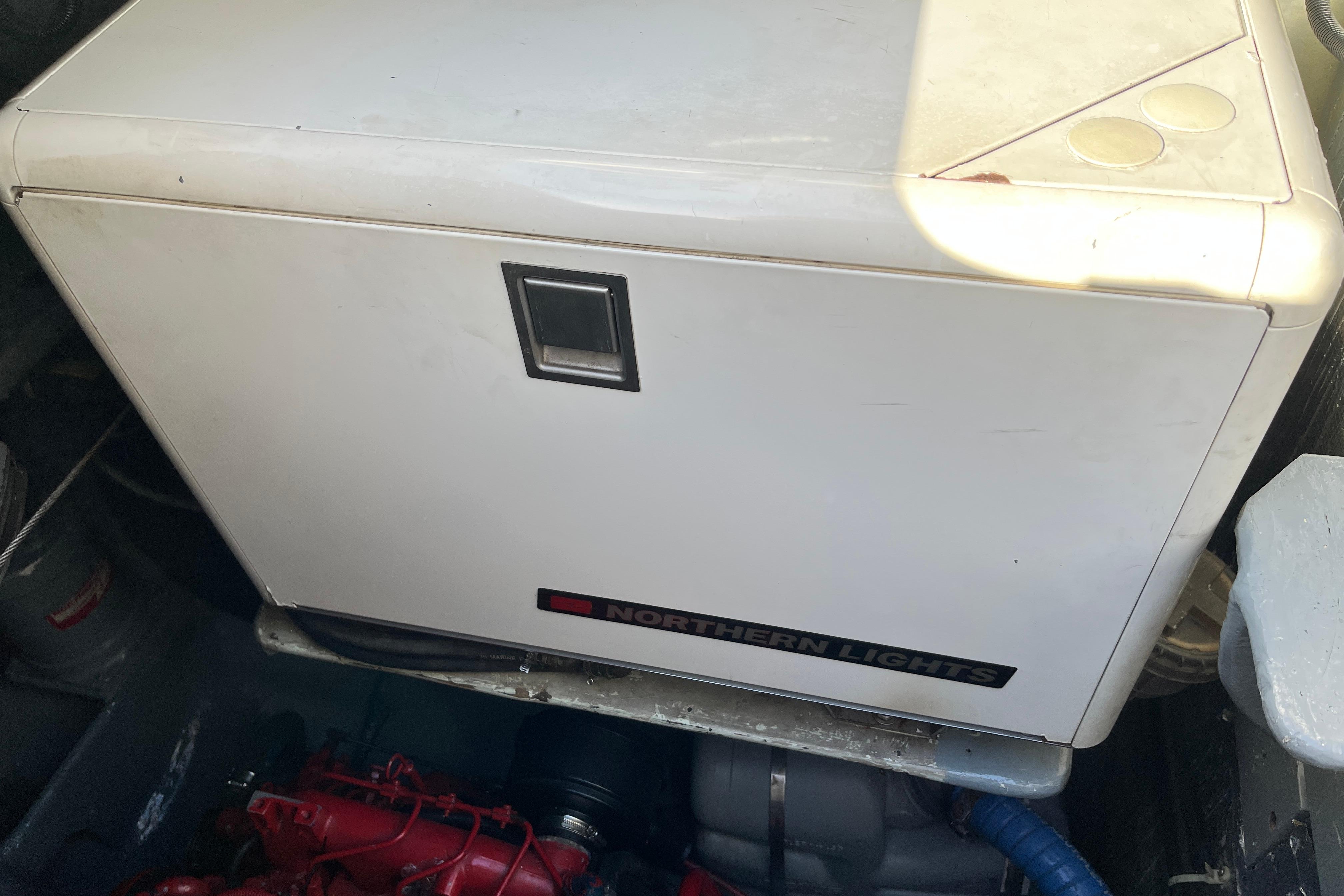

Northern Lights OM673L (new 2018), approximately 6000 hours
Electrical System
Battery Banks:
2 banks, each with 3 x 100 Ah Battleborn LiPo4 batteries
Total 600 Ah LiPo4 (new 2025)
Charging and Power:
Victron 3000 W 12 V to 110 V inverter charger (new 2023)
Victron touch screen color controller (new 2022)
Victron Cerbo GX (new 2022) with WiFi for remote monitoring
2 x Victron DC to DC chargers (new 2025)

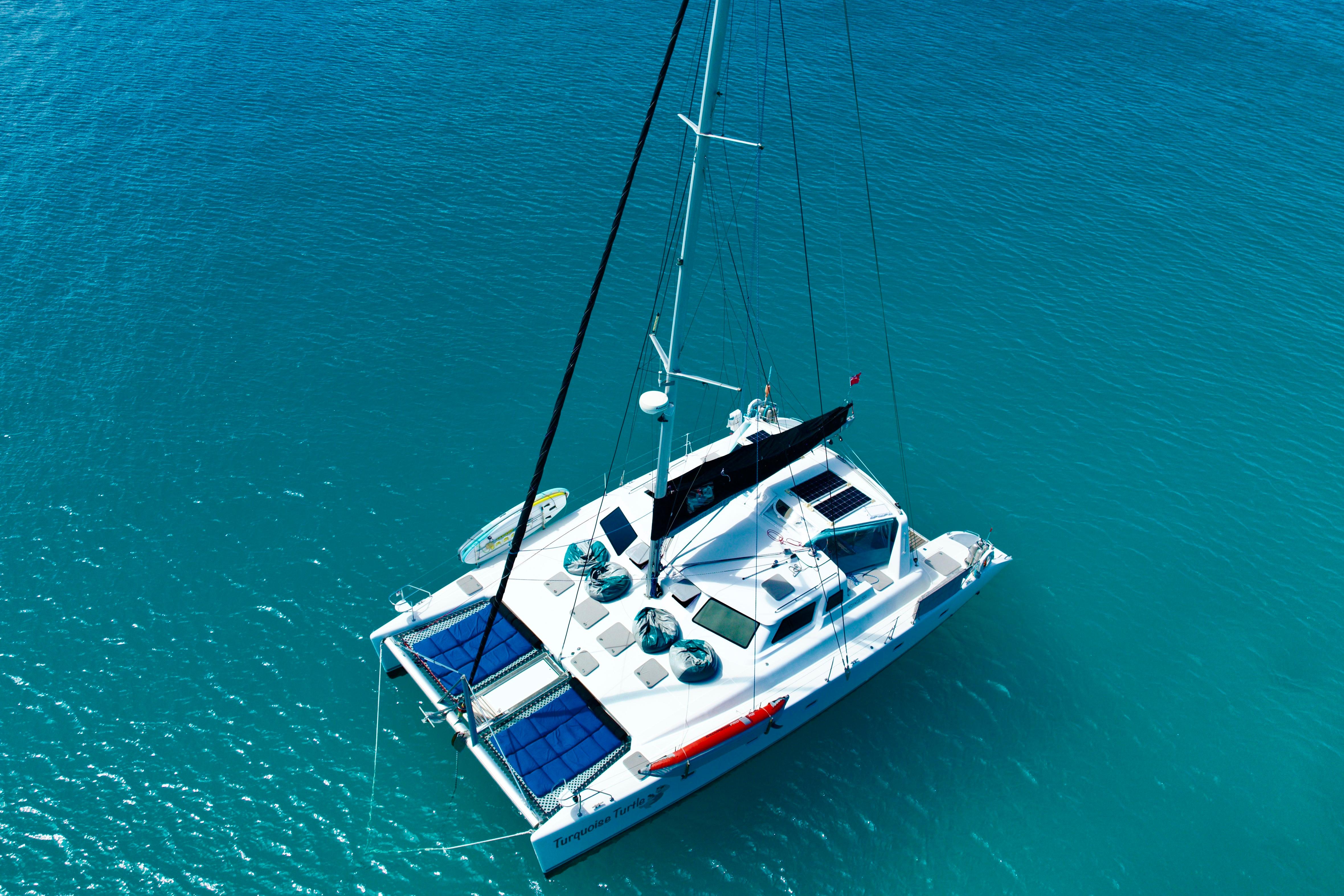

Solar:
3 panels totaling 680 W
MPPT solar controller
Shore Power:
Two 110 V 30 A shore power inputs with splitter cable
Navigation and Electronics
Raymarine Axiom Pro 12 RVX touch screen (new 2023)
Raymarine ST60 Plus wind instrument
Raymarine ST60 Plus Tridata depth, speed, and temperature
Raymarine P70 S autopilot control head (new 2020)
Raymarine EV1 autopilot computer (new 2023)
Raymarine ACU 400 actuator unit (new 2020)
Raymarine AIS 650 transceiver (new 2020)
Raymarine MOB system with two wrist sensors
Raymarine Quantum 2 digital Doppler radar (new 2024)
Raymarine fish finder sonar (new 2023)
SeaTalk STNG converter
Ritchie standby compass
Standard Horizon VHF radio with helm remote (new 2019)
Fusion Link UD 750 sound system with helm remote, Bluetooth connectivity, and speakers located in the saloon, cockpit, and mast.
12 V Jensen TV (new 2018)
2 x Ocean LED multicolor underwater lights (new 2021)
Radios and speakers in each cabin
LED lighting throughout
USB charging ports at helm, nav station, and in each cabin
Printer
Interior and Domestic Systems
Air Conditioning:
4 units, one per cabin spilling over into saloon (three units new 2018)
Ventilation:
2 electric fans in each cabin
2 fans in the saloon (new 2024)
Refrigeration and Freezer:
1 freezer with modified plate and electronic thermostat (2020)
2 refrigerators with electronic thermostats (one compressor new 2025)
1 external WACO 12 V or 110 V or 220 V fridge freezer in cockpit

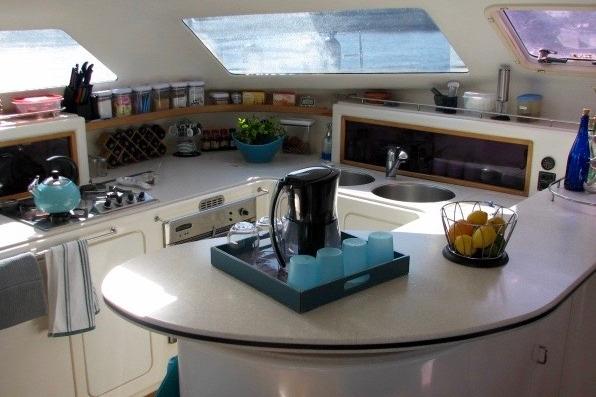

Galley:
Propane hob
Propane oven
Laundry:
Top loading clothes washer
Water Maker:
800 gallons per day
Heads and Hot Water:

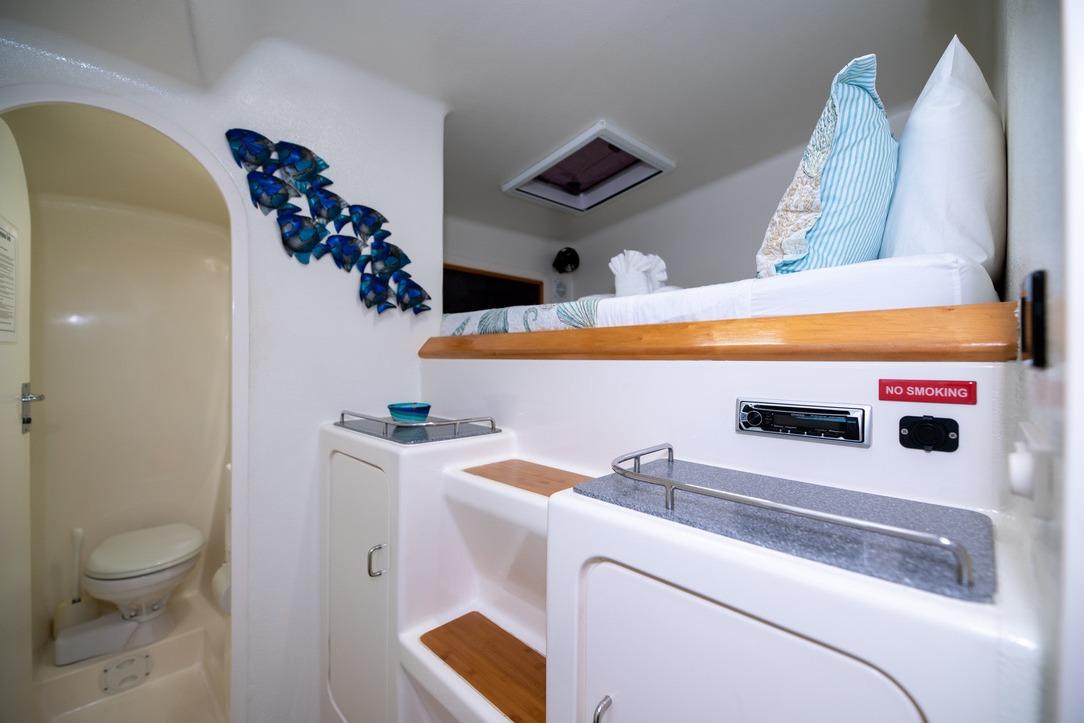

Jabsco silent flush electric heads
2 x water heaters (one new 2025), electric and engine heated
Propane:
2 x 17 lb composite propane tanks
Interior Features:
Saloon and cabin hatches fitted with Oceanair surround screens (new 2023)
Cockpit cushions in vinyl (new 2024)
Sails

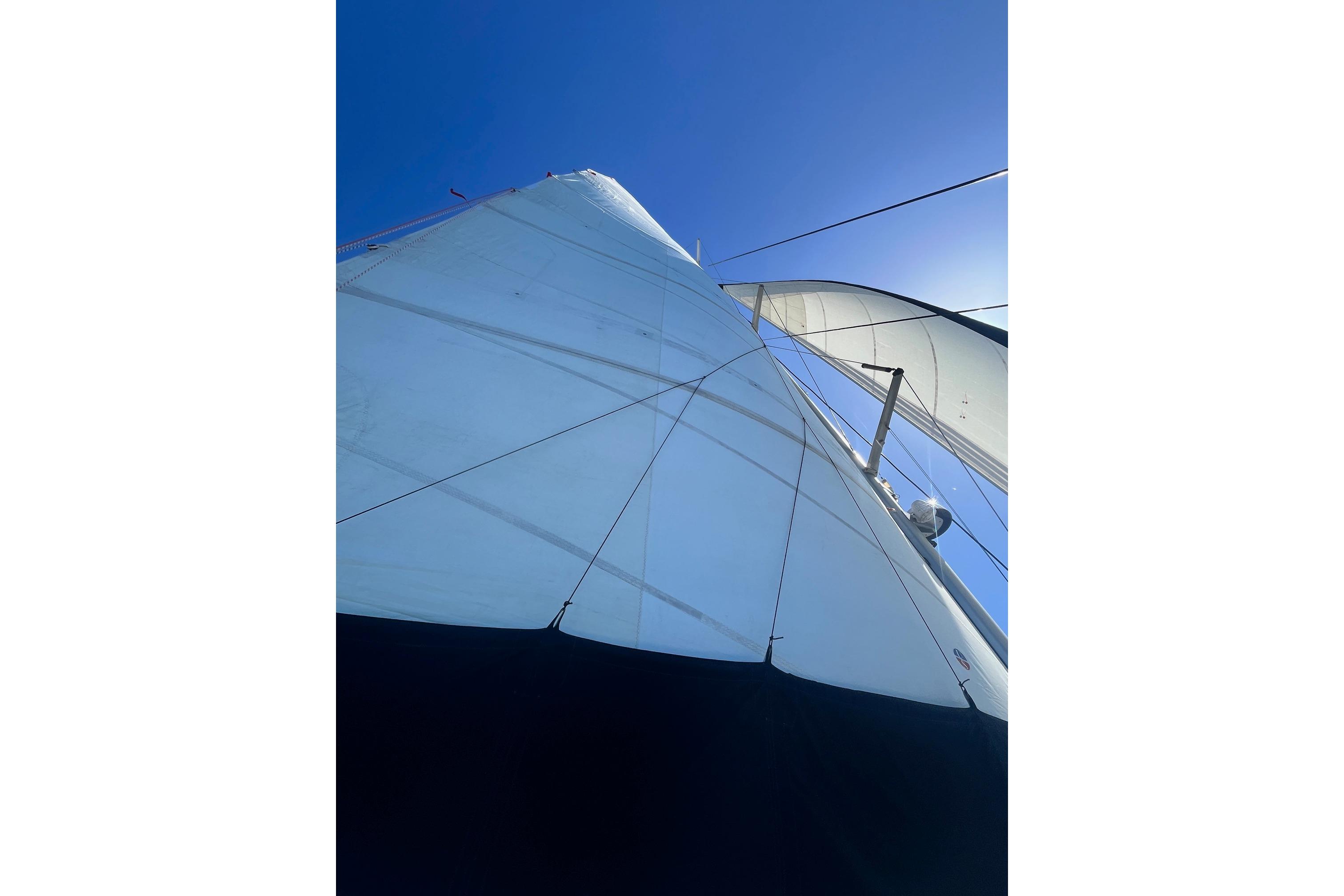

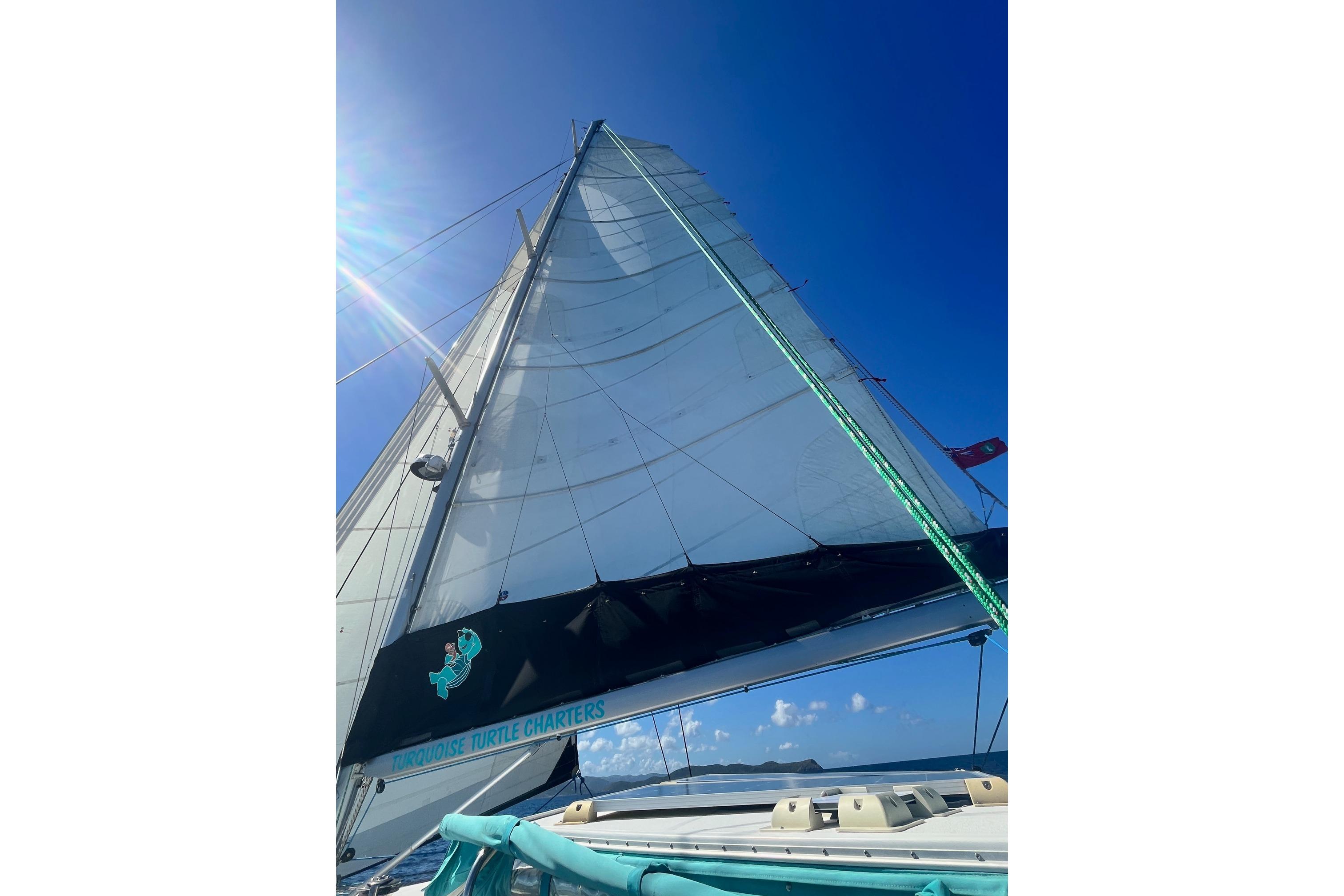

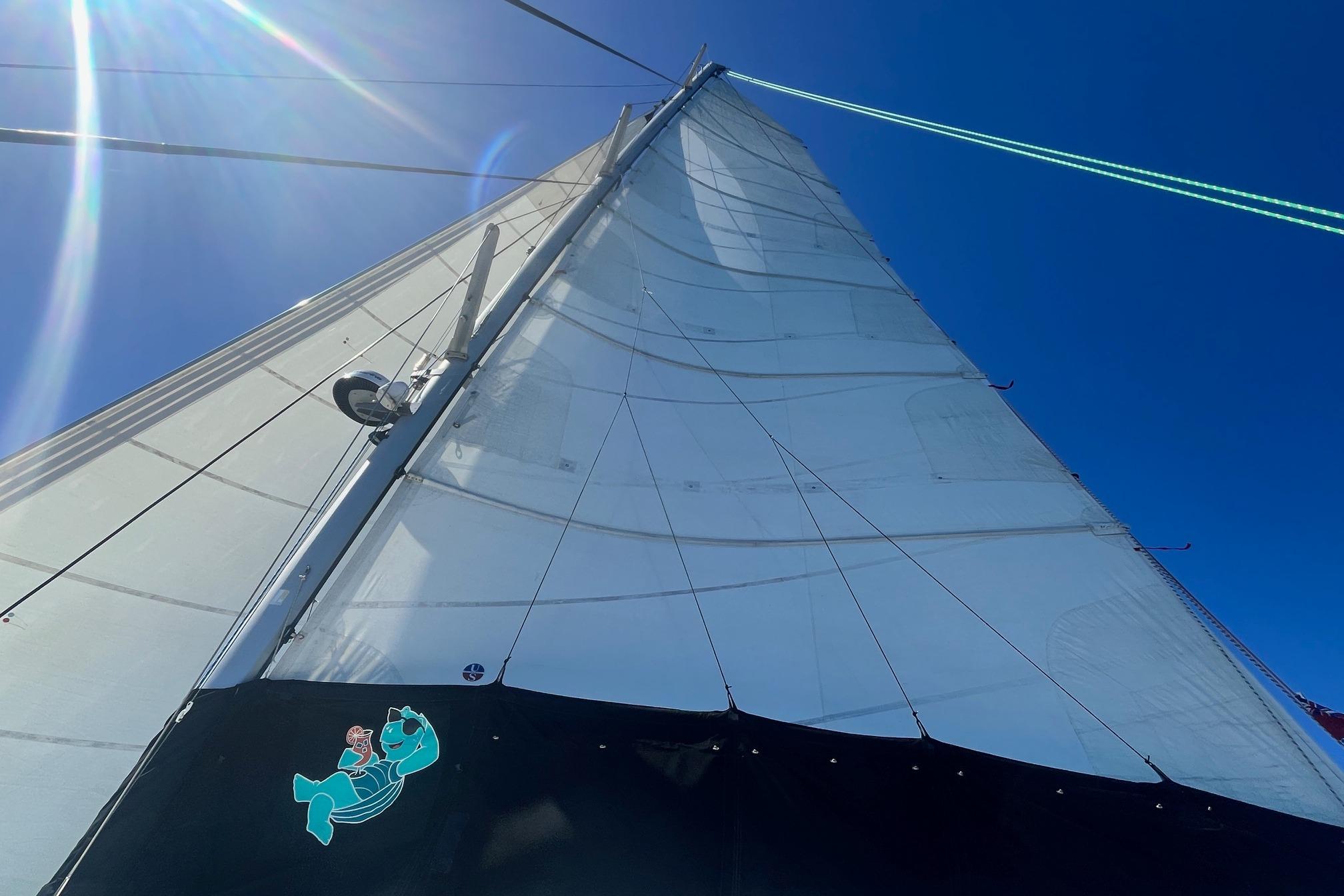

Main sail Ullman (new 2018, good condition)

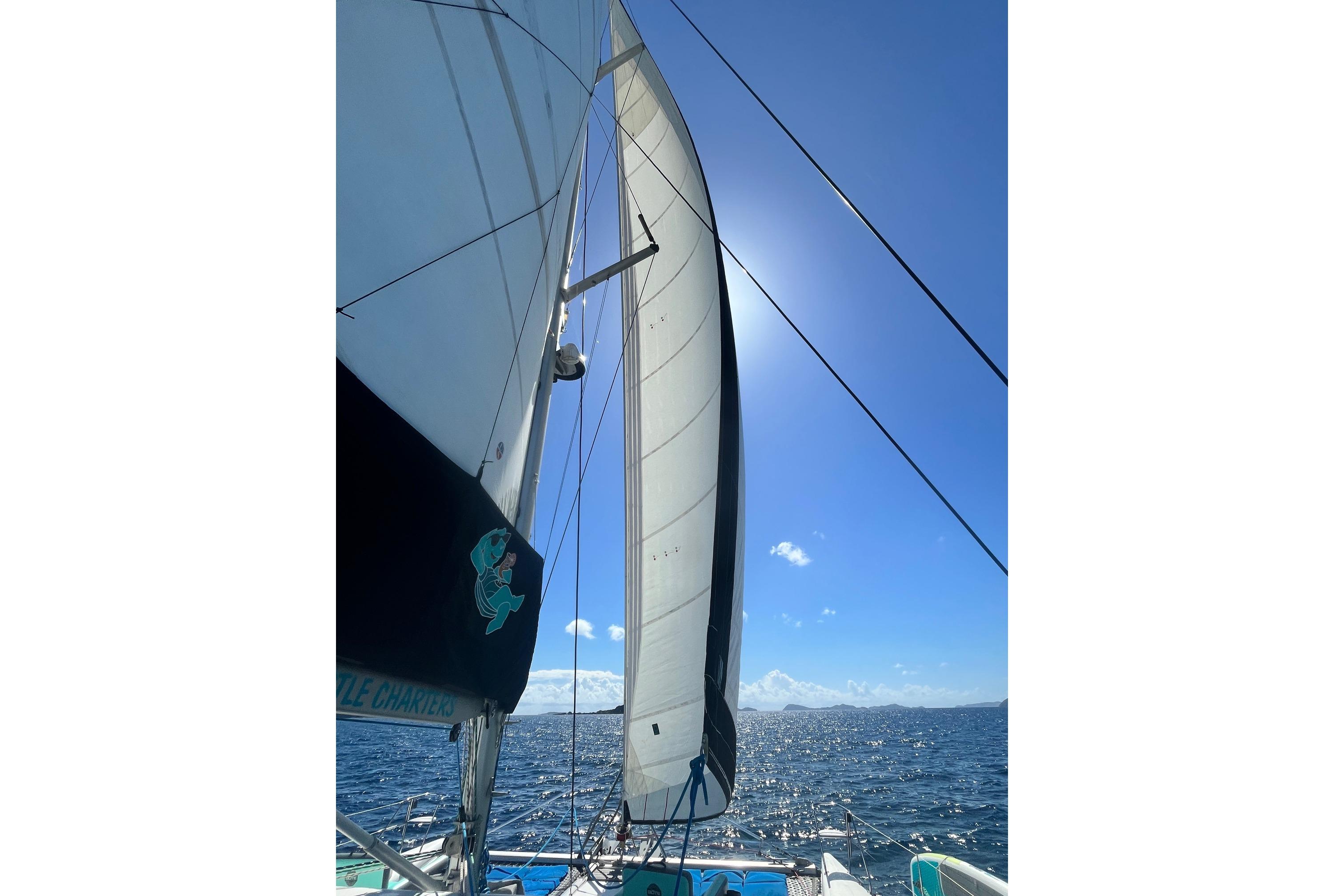

Quantum genoa (good condition)
Asymmetric spinnaker (good condition)
Storm sail in excellent condition, never used
Rigging
Standing Rigging:
Mast diamonds replaced 2022
Four main shrouds, forestay, and inner stay replaced 2023
Four shroud bottle screws replaced 2023
Seagull striker replaced 2023
Running Rigging:
Replaced as needed
Winches and Deck Gear:
Port main winch powered, with new motor and gearbox (2022)

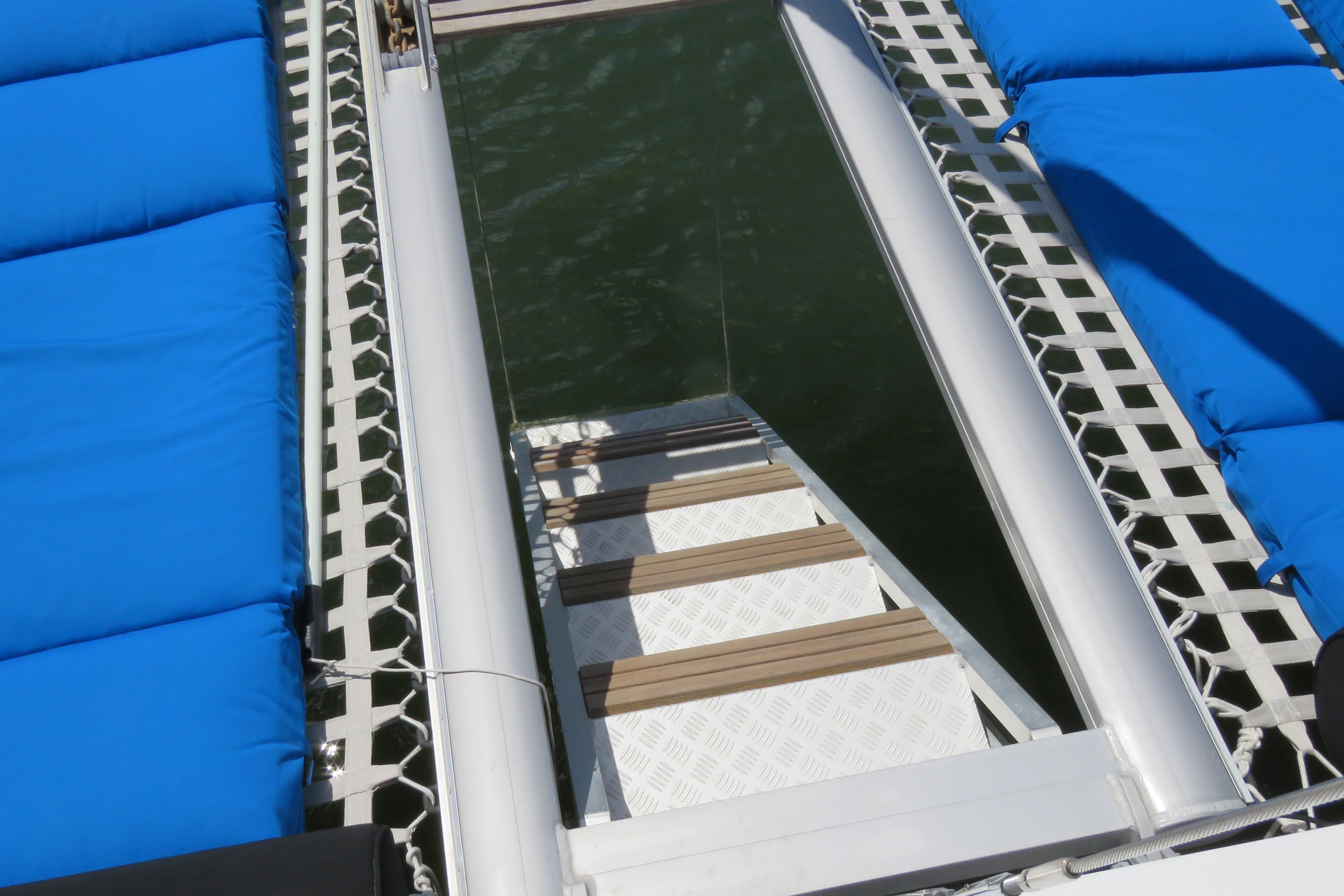

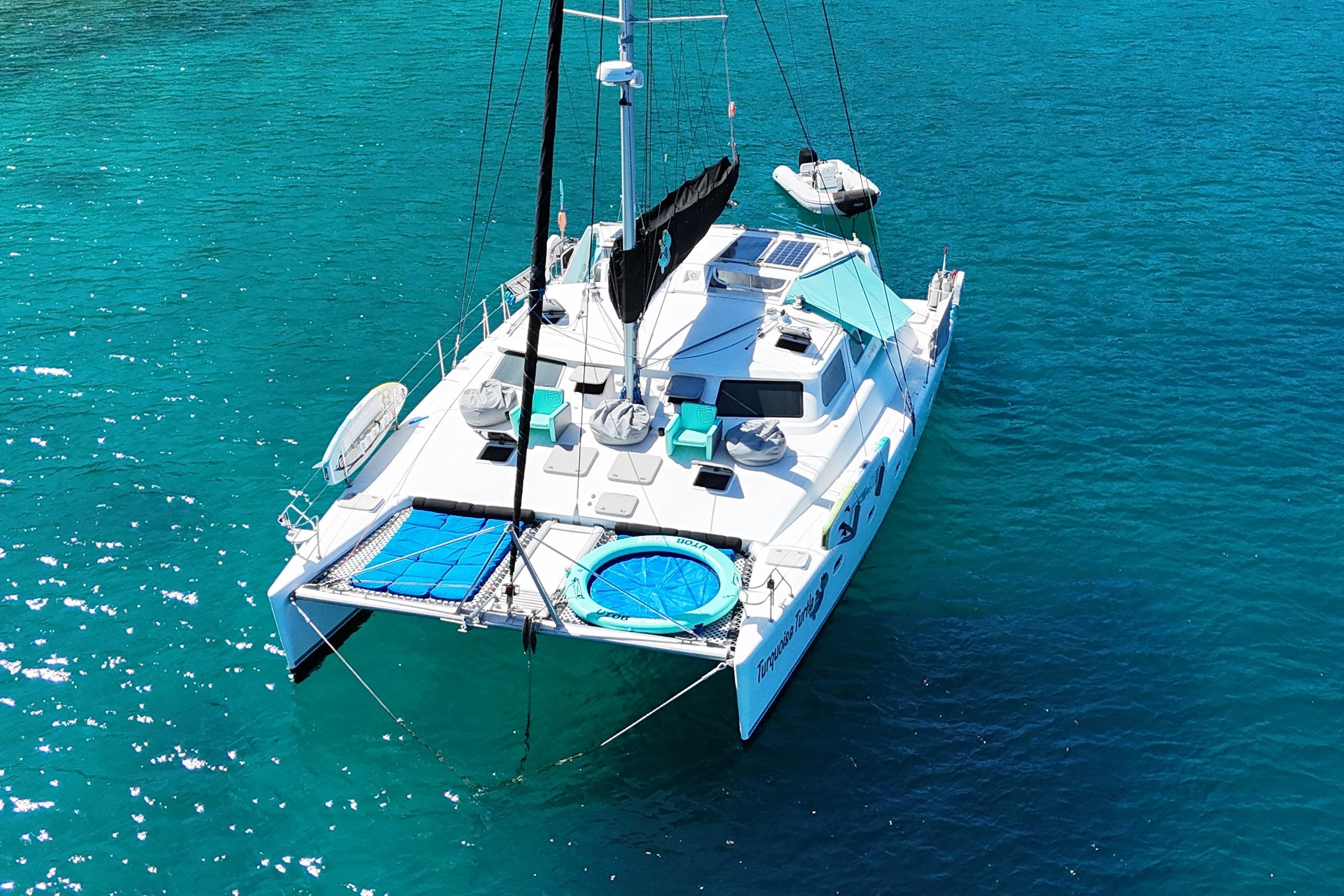

2 trampoline nets by Multihull Nets (new 2021)
Tender and Outboard
14 ft Caribe dinghy, 8 pax (2016) with dinghy chaps (new 2026)
50 hp Yamaha four stroke outboard (2016)
Chaps (new 2025)
Anchoring and Ground Tackle
Main anchor Mantus 105 lb
Second anchor Fortress FX-32
Additional spare Fortress FX-32
200 ft of 3 to 8 in G4 chain (new 2025)
Lofrans Tigress windlass (new 2025)
Mantus bridle hook (new 2023)
Safety Equipment
MCA approved with current SCV2 certificate
EPIRB (new 2019)
Propane sensor
Propane solenoid
Smoke detectors
6 fire extinguishers (4 powder, 2 CO2)
Extras and Inventory
Starlink system

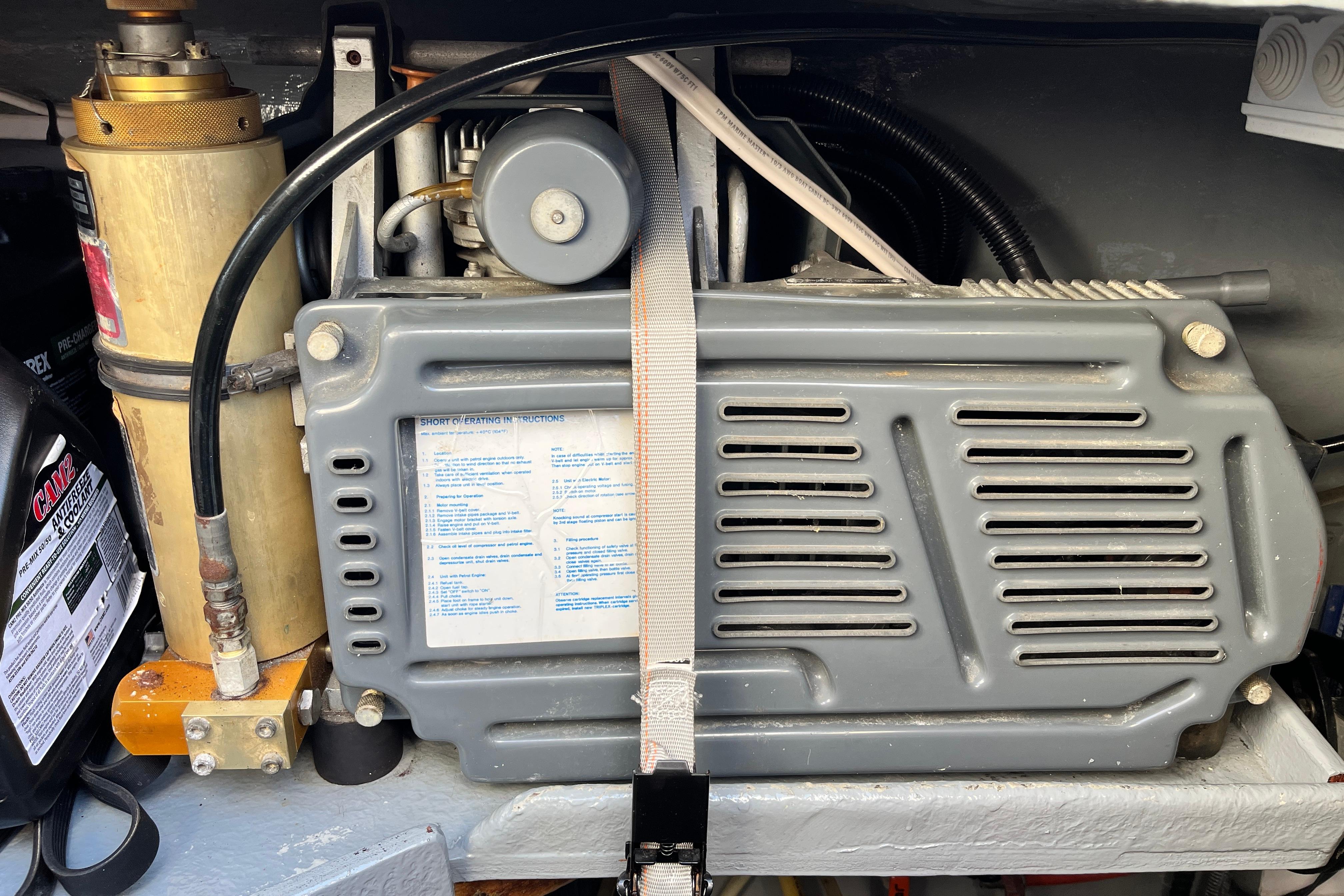

Bauer compressor (Utilus)
9 scuba tanks
Assorted fins, masks, and snorkels
Pulling tube
Knee board
Floating mat island
Nespresso machine
Tools and spares
Pots, plates, cutlery
Air fryer
Blender
3 fishing poles
Speargun
Pole spears
Barbecue
3 deck beanbag cushions
2 inflatable deck seats
6 deck mattresses
Assorted board games

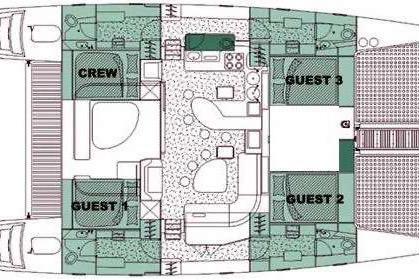

Layout Notes

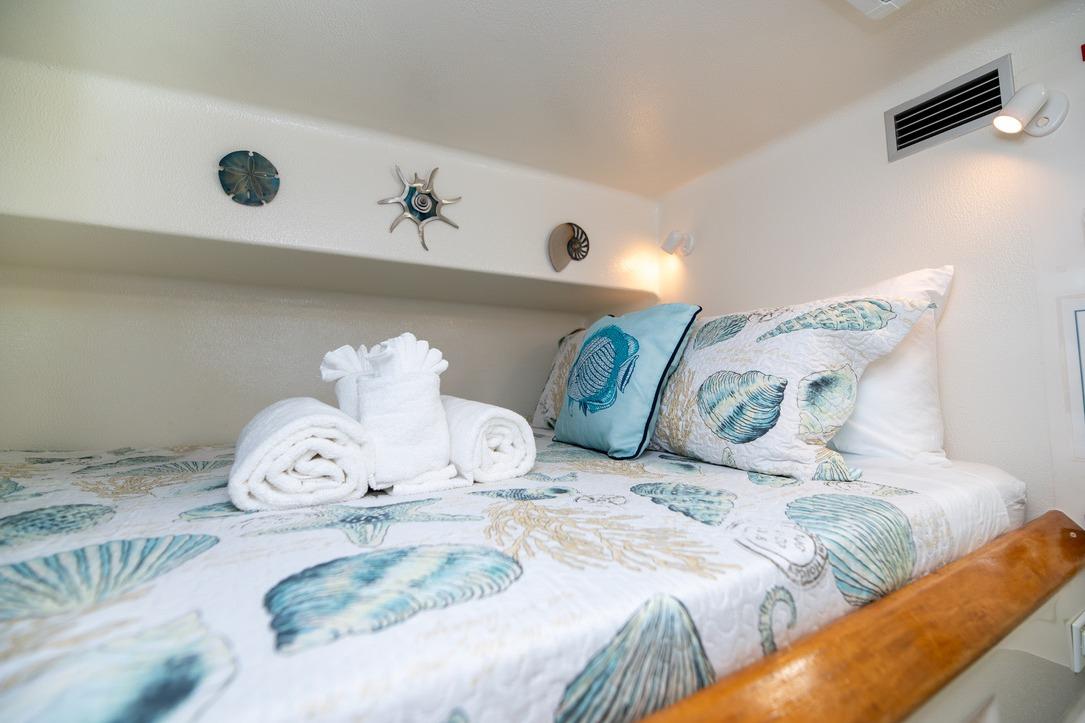

Aft cabins upgraded with extra cabinetry built by a professional cabinet maker
Fifth cabin currently used as a storage area
Fifth head converted to storage, pantry, and laundry space
