SPECS
- Builder: Lagoon
- Designer: Van Peteghem-Lauriot Prévost
- Keel: Fin Keel
MEASUREMENTS
- Length Overall: 45 ft
- Max Draft: 4' 3"
- Bridge Clearance Measure: 75' 0"
- Beam Measure: 25' 9"
ENGINE(S)
- Total Power: 106
- Engine Brand: YANMAR
- Year Built: 2012
- Engine Model: 4JH5E
- Engine Type: Inboard
- Engine/Fuel Type: Diesel
- Engine Hours: 5372
- Engine Power: 53 hp
- Total Power: 106
- Engine Brand: YANMAR
- Year Built: 2012
- Engine Model: 4JH5E
- Engine Type: Inboard
- Engine/Fuel Type: Diesel
- Engine Hours: 5372
- Engine Power: 53 hp
TANKS
- Fresh Water Tanks: 4 (275 Gallons)
- Fuel Tanks: 1 (275 Gallons)
Accommodations
- Number of cabins: 4
- Number of heads: 4
Construction
- Polyester and high-quality anti osmotic resin
- Hull and deck laminated by infusion
- Balsa core hull, solid laminate under water line, white gel coat
- Balsa core bridge deck and deck
- Solid laminate inner liners and deck
- Laminated marine plywood bulkheads (Never had a problem with this batch)

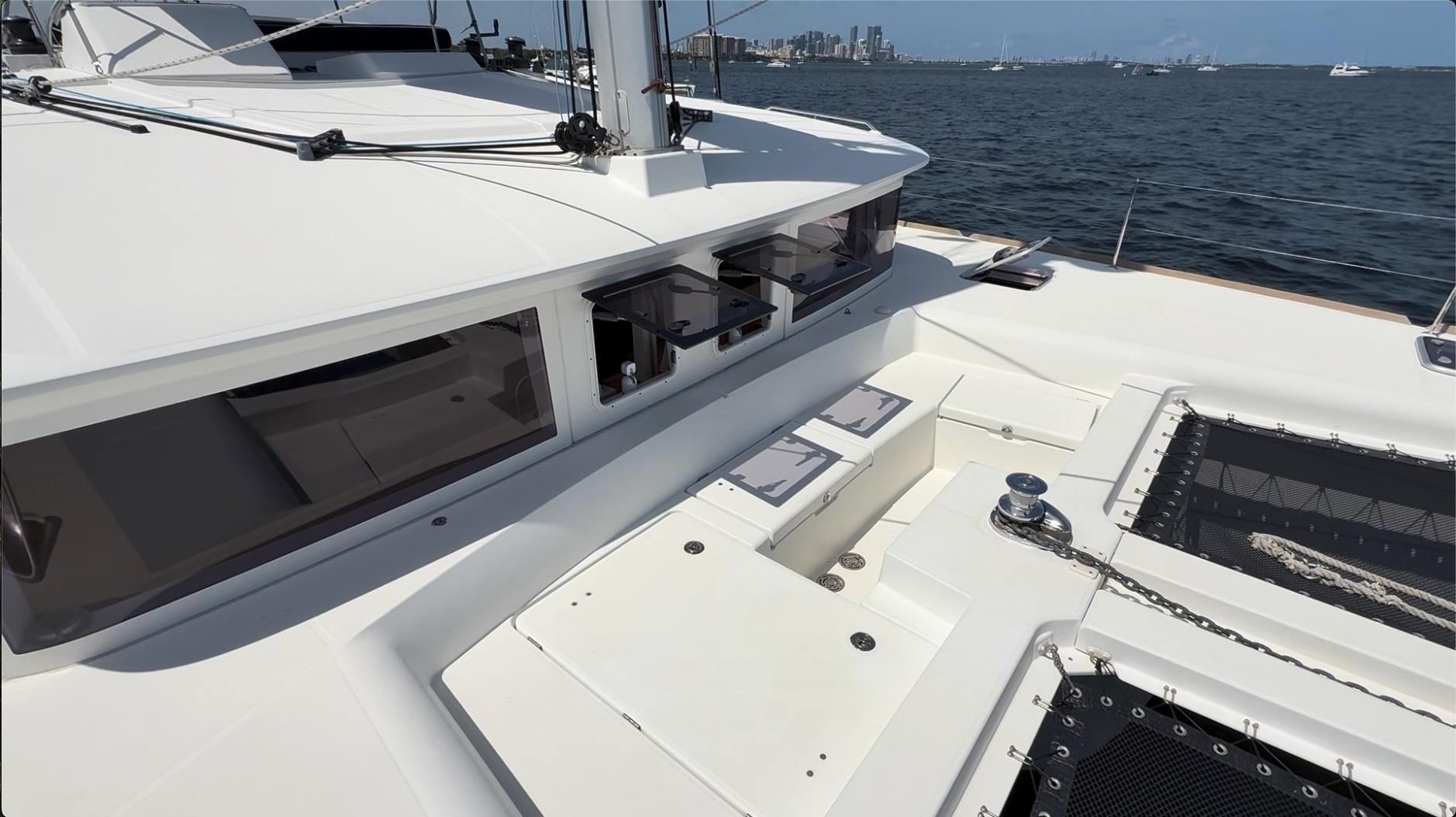

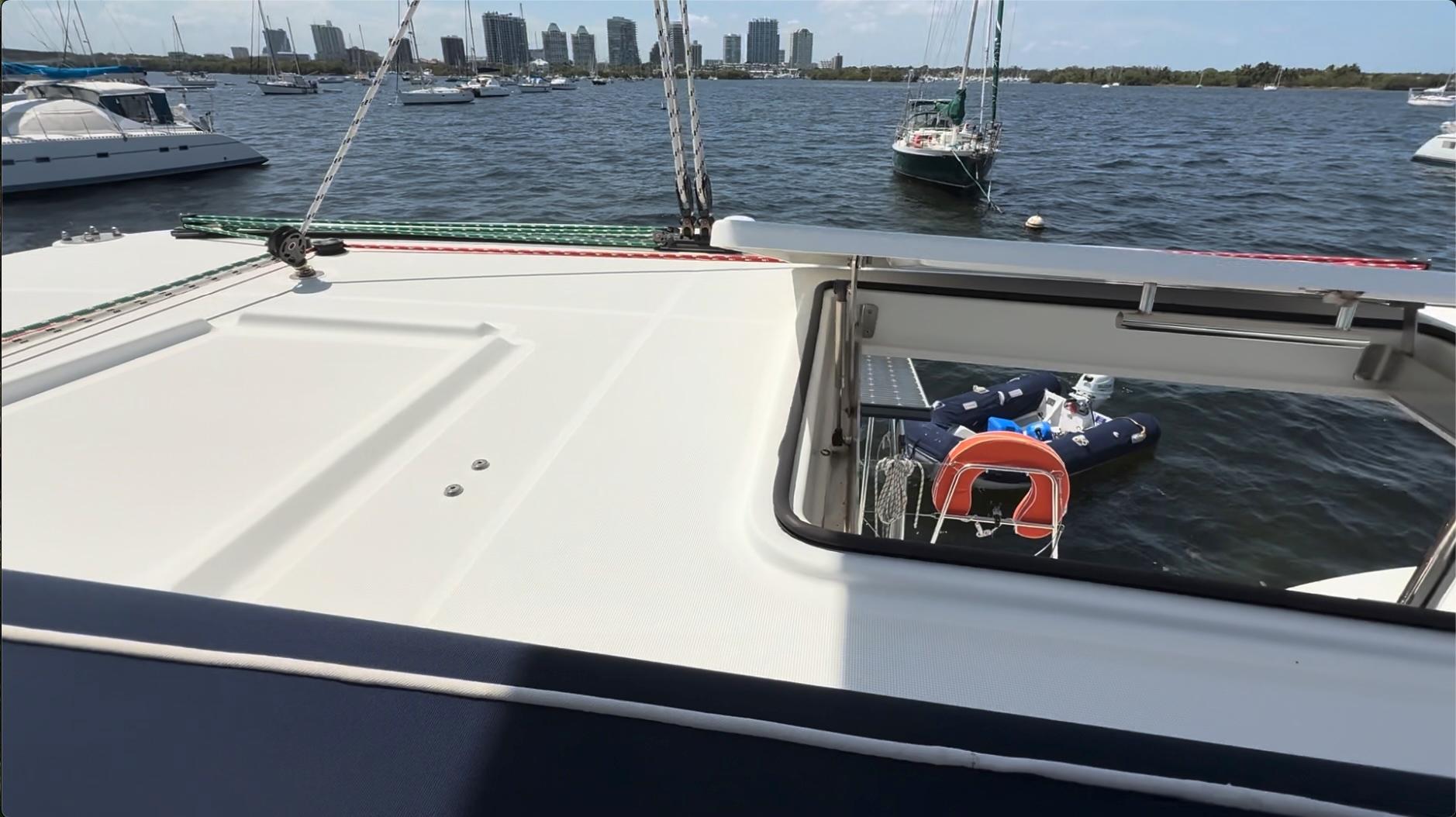

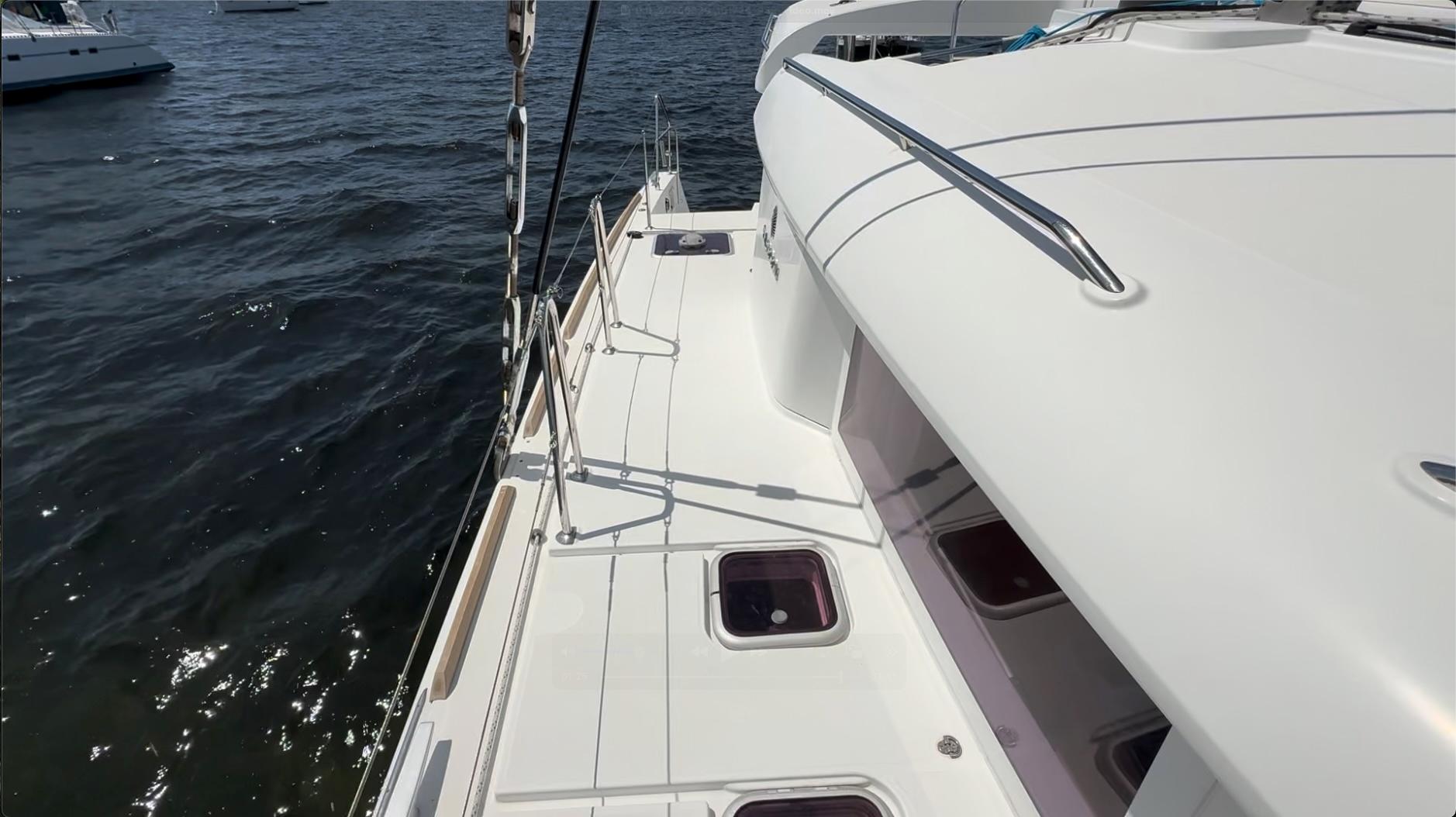

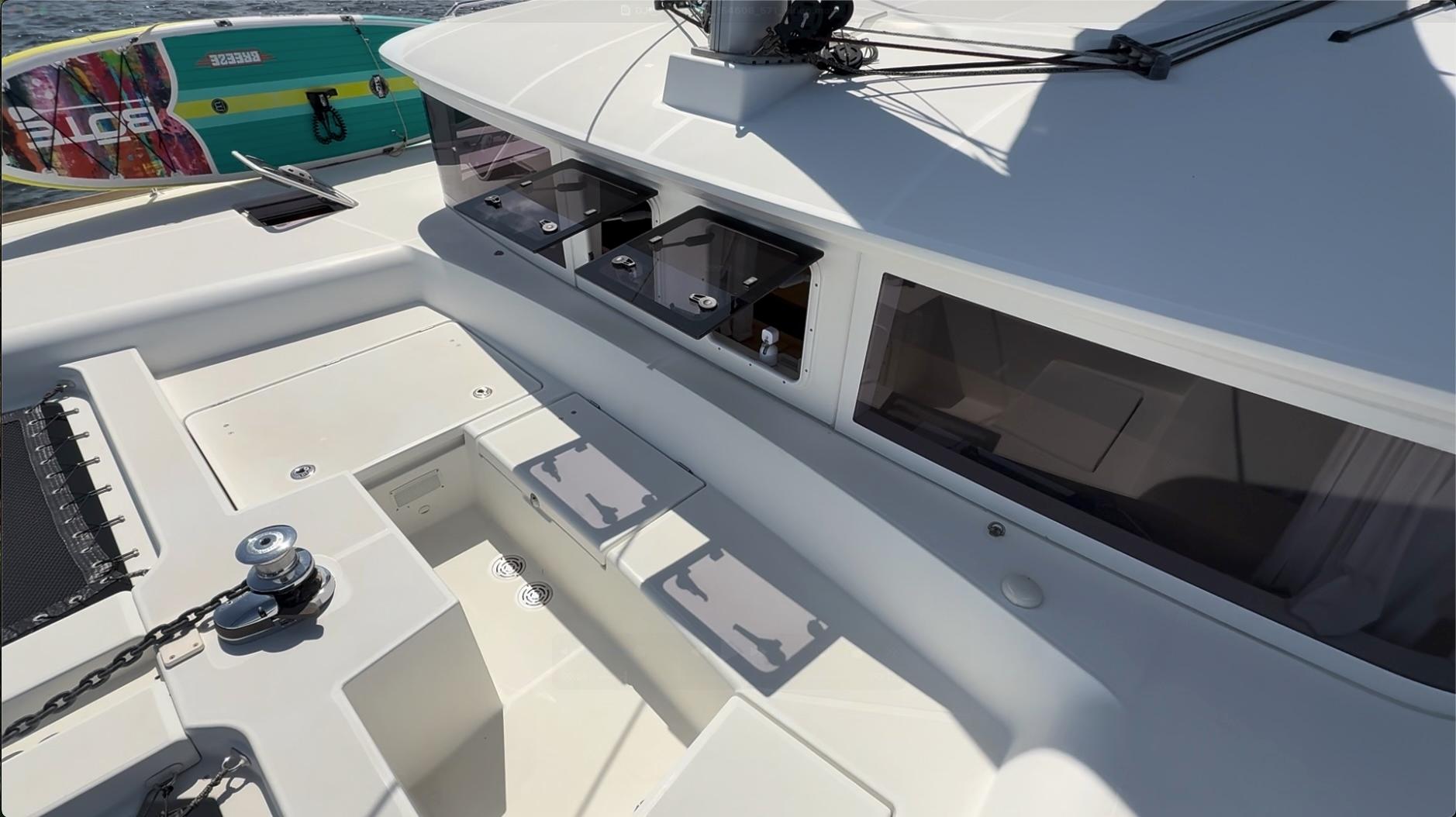

Deck
- Storage locker on aft cockpit portside settee
- Large storage locker overhead on ceiling of cockpit hardtop
- Access to the windlass and chain locker by a vertical panel
- Deck light on mast

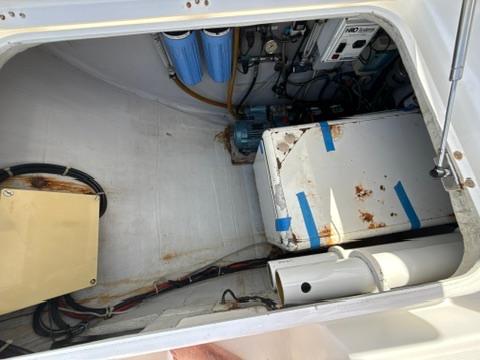

- Locker on starboard side (genset and watermaker)
- Sun pad area fwd of helm
- Settee for 6 at Flybridge
Hardware
- 8 mooring cleats
- 1 power winch size 60 on starboard side of helm for mainsail halyard and reefing lines and genoa
- 1 winch, size 50,on port side for genoa halyard, spinnaker (option), toping lift
- 1 winch, size 60, for genoa on port side
- 1 winch, size 50, for main sheet, traveller and furler

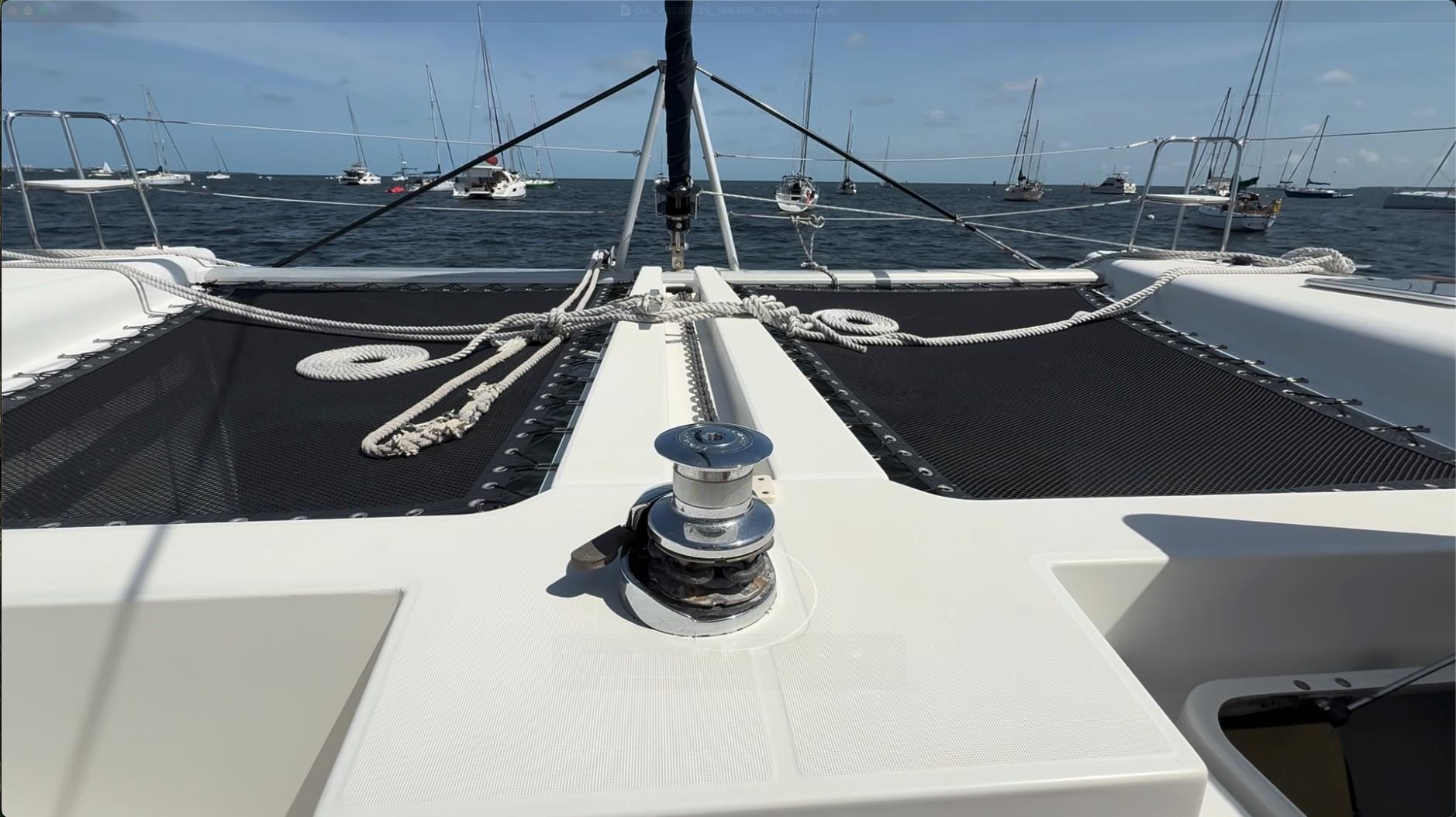

- Vertical axe windlass 12V 1700W in anchor locker, with 12 mm gypsy

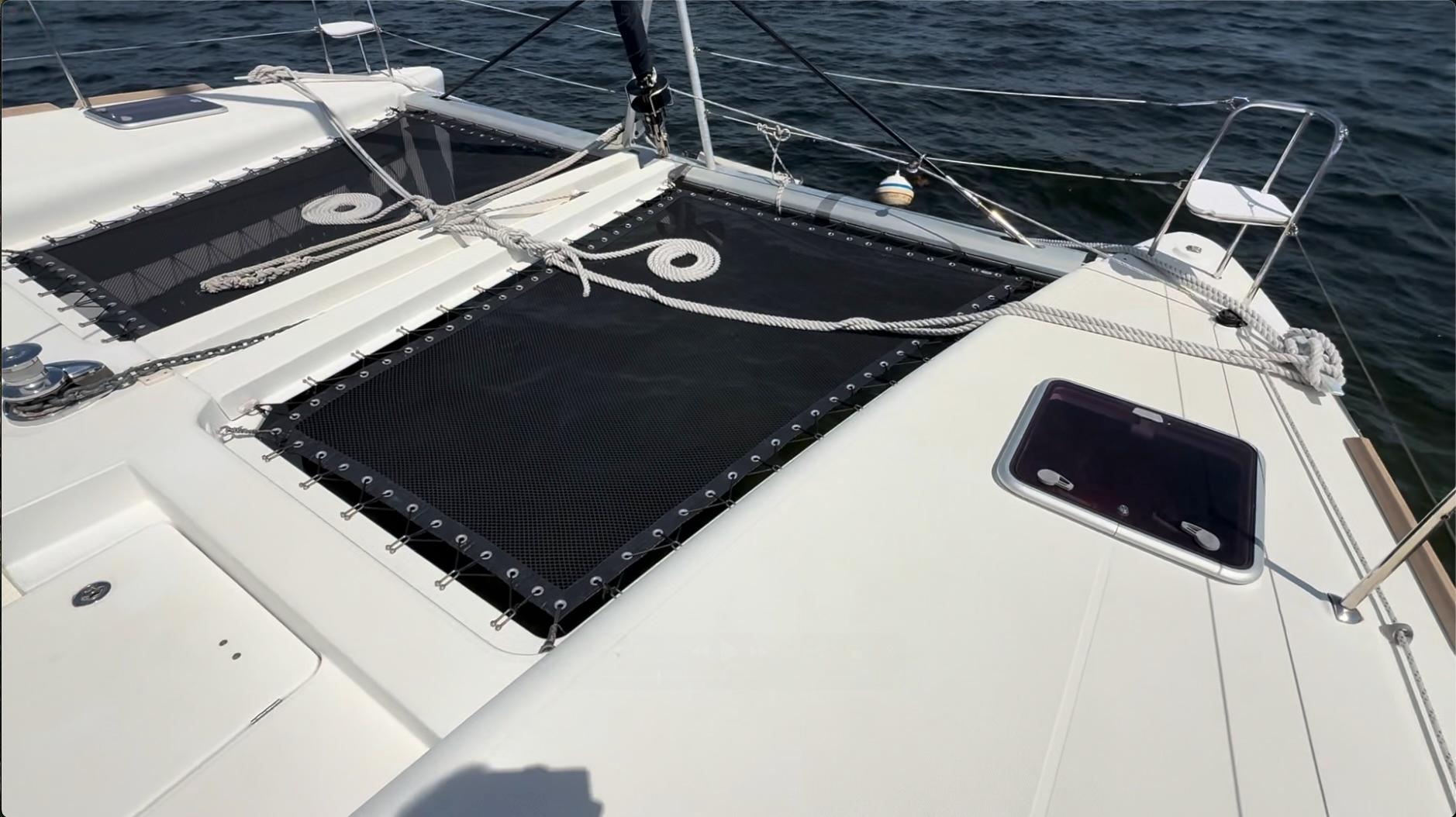

- New black trampoline in 2023
- Inboard stern pulpits including on portside flagpole fittings and buoy support
- Composite forward longitudinal beam with recessed chain run and mooring cleat
- Aluminum crossbeam with furler genoa chain plate, anchor roller and navigation lights
- Mainsheet traveller track and ball-bearing car
- 2 genoa tracks with genoa car and stopper

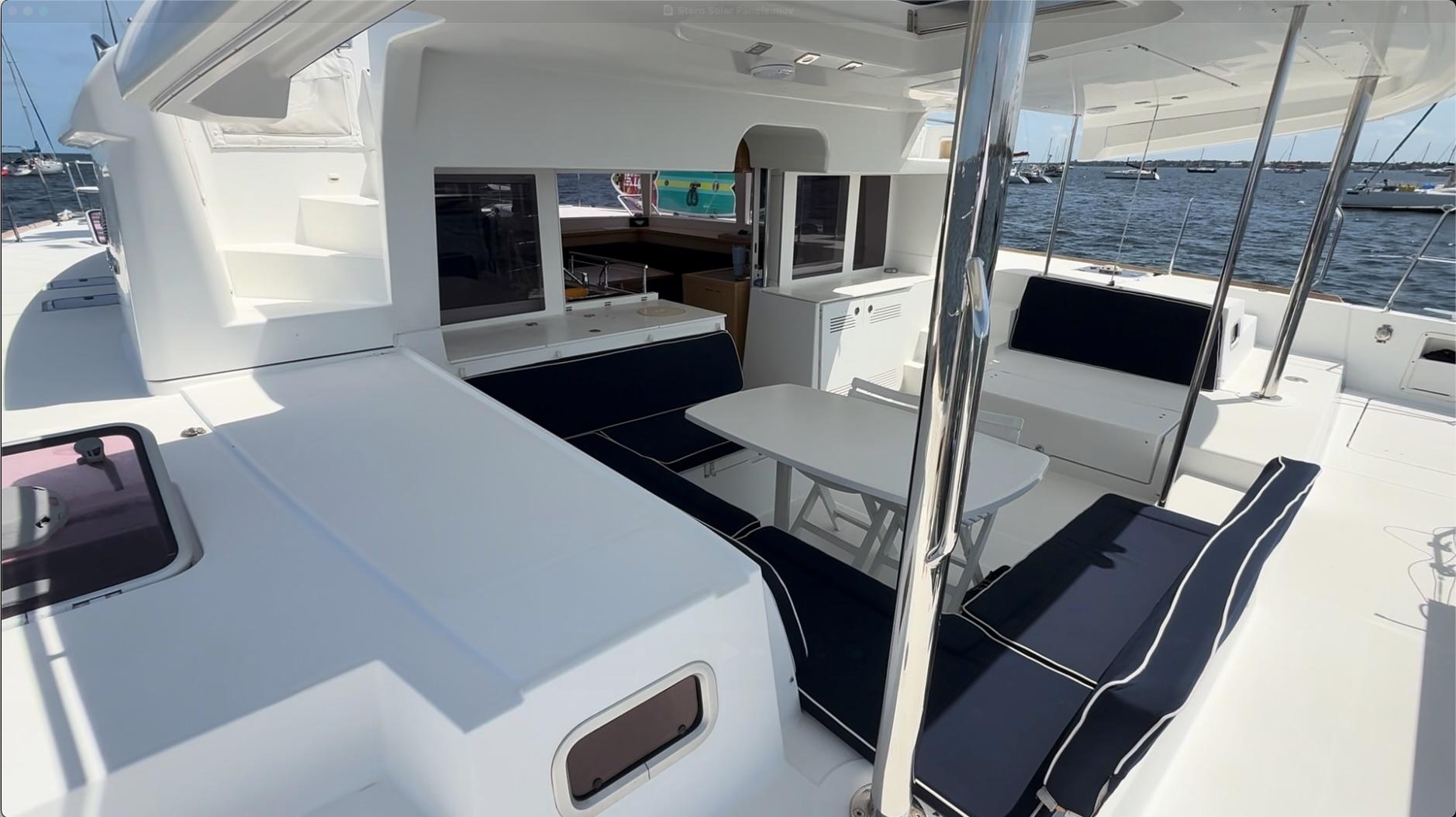

Cockpit

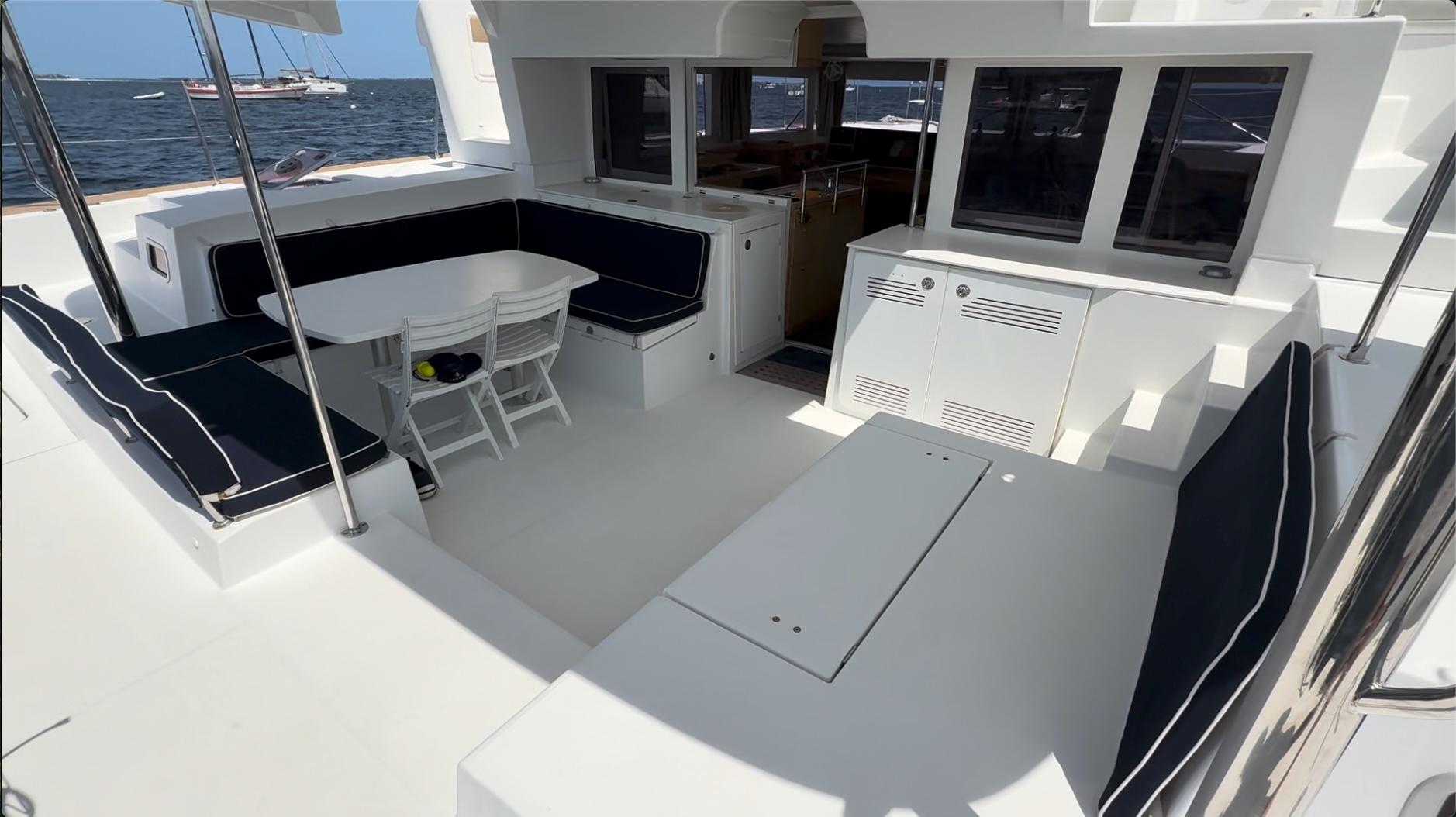

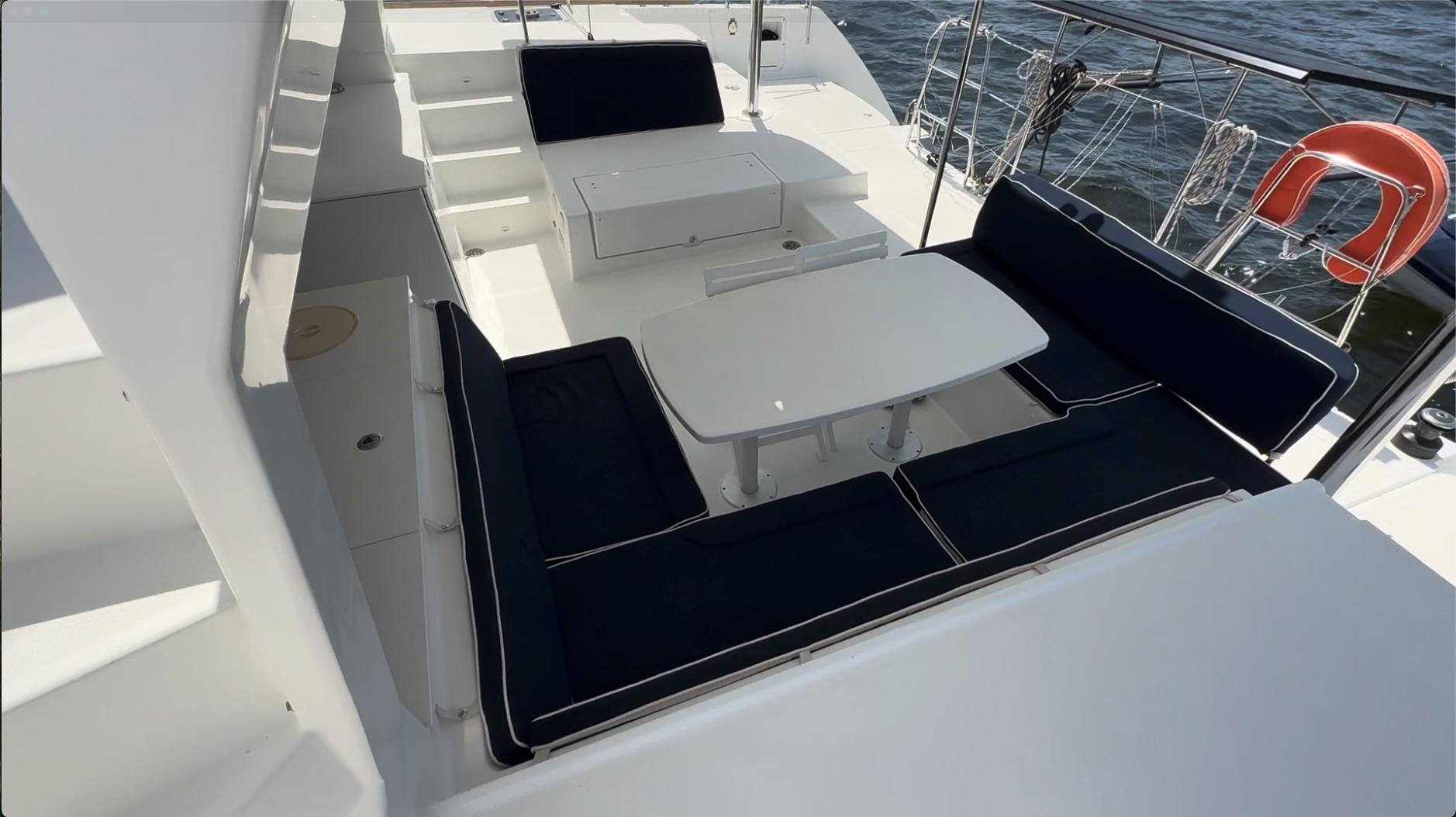

- Large cockpit usable as deck salon, protected by fixed composite hardtop with recessed cockpit lighting
- U-shape foredeck seating area with technical generator locker on the front
- Removable cockpit table accommodates 8 – 10 people
- 2 storage lockers in stern crossbeam

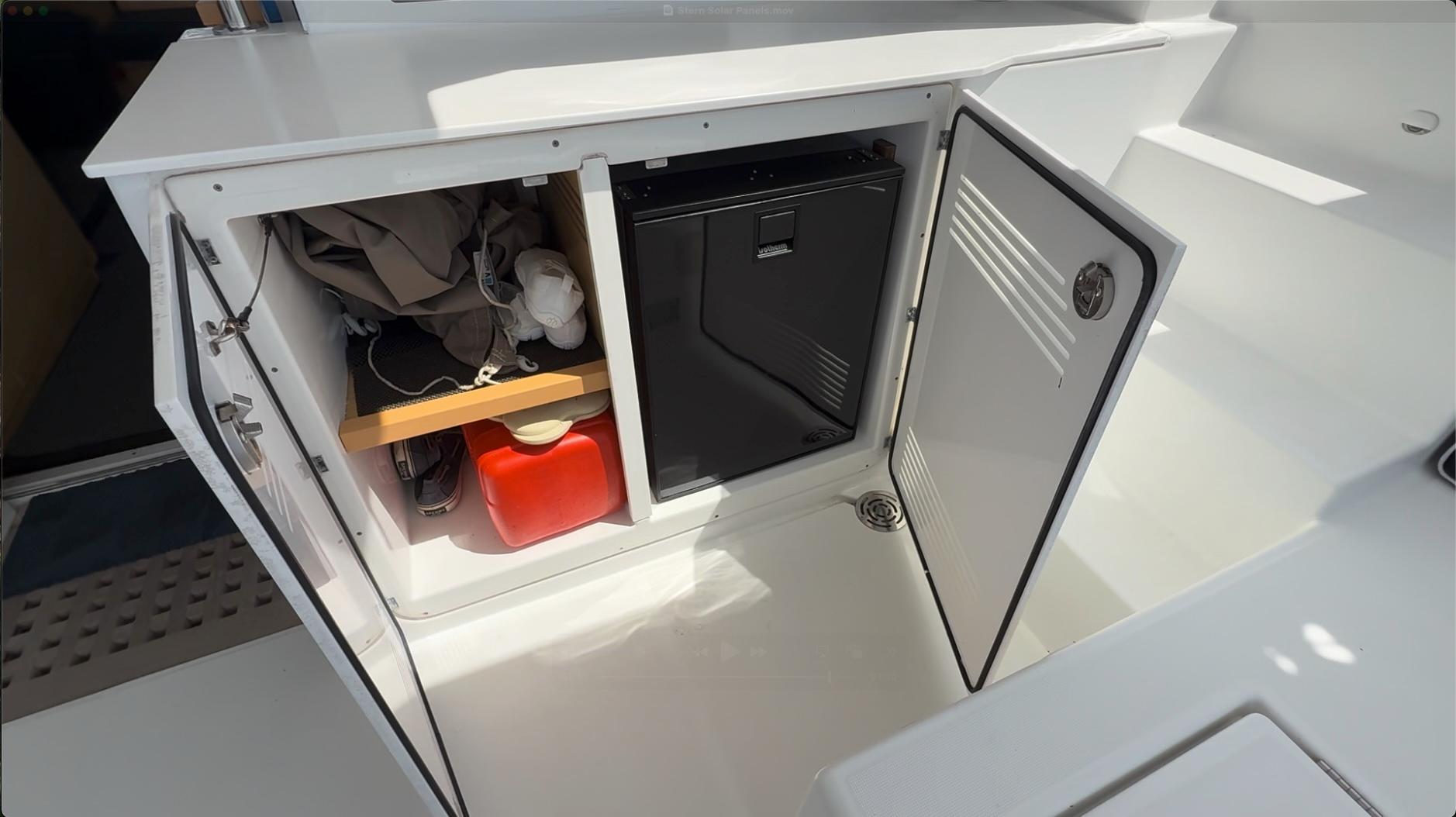

- Large storage cabinet and fridge in cockpit
- Synthetic resin countertop
- Sliding window between cockpit and galley
- Direct access from cockpit to helm station via steps on starboard side

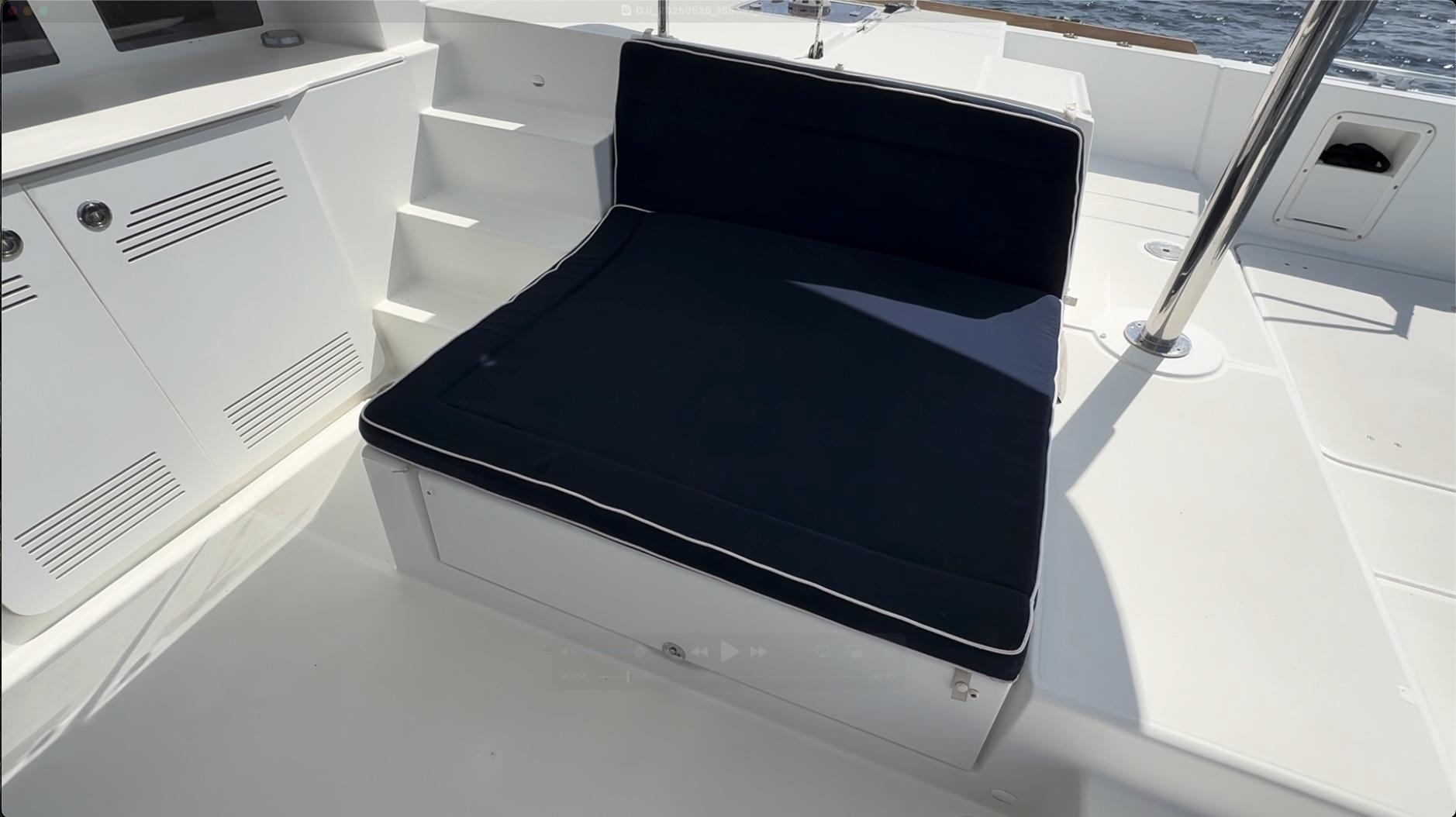

- 2-person chaise on starboard side with storage locker
- Bin with upper access and front door

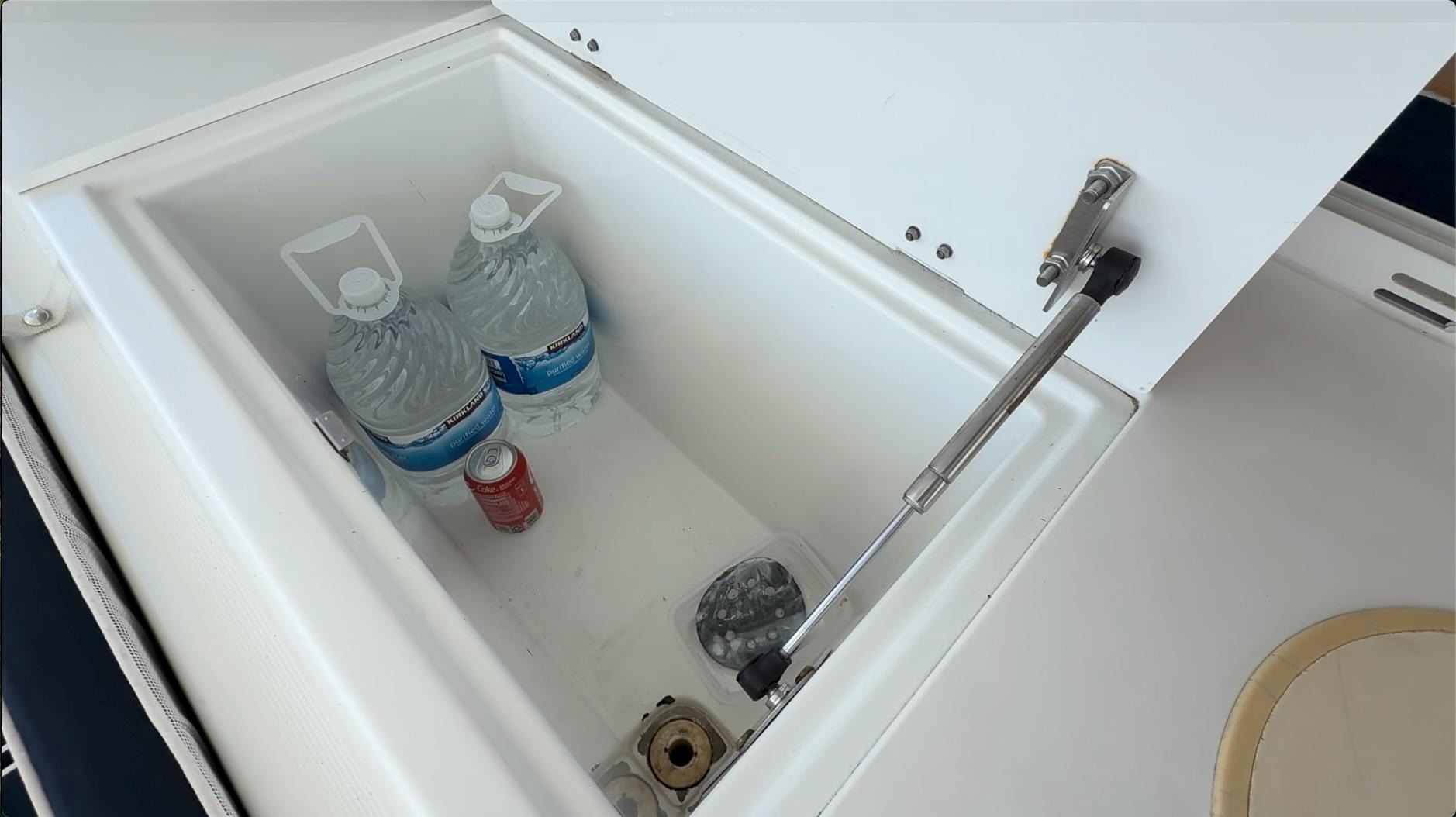

- Beverage cooler with top access (70 liters / 18 gallon US ) with drainage
- Aeration hatch – Opening roof on the fly for cockpit aeration
- Storage for 2 gas tanks on port side of the cockpit
- Built-in storage area for cockpit table in bimini ceiling
- Polyester non streaming toe rail on the cockpit sides

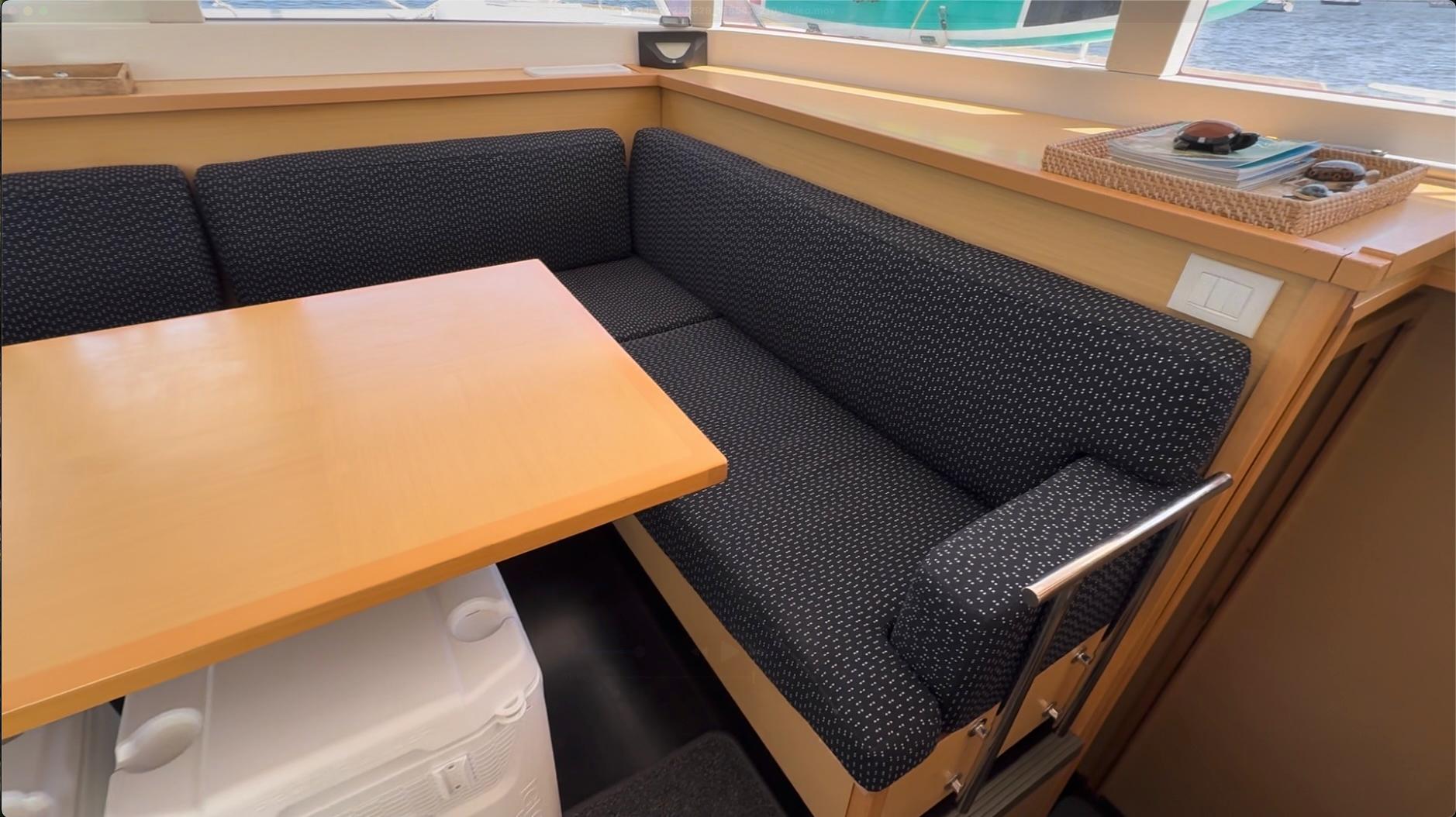

Saloon

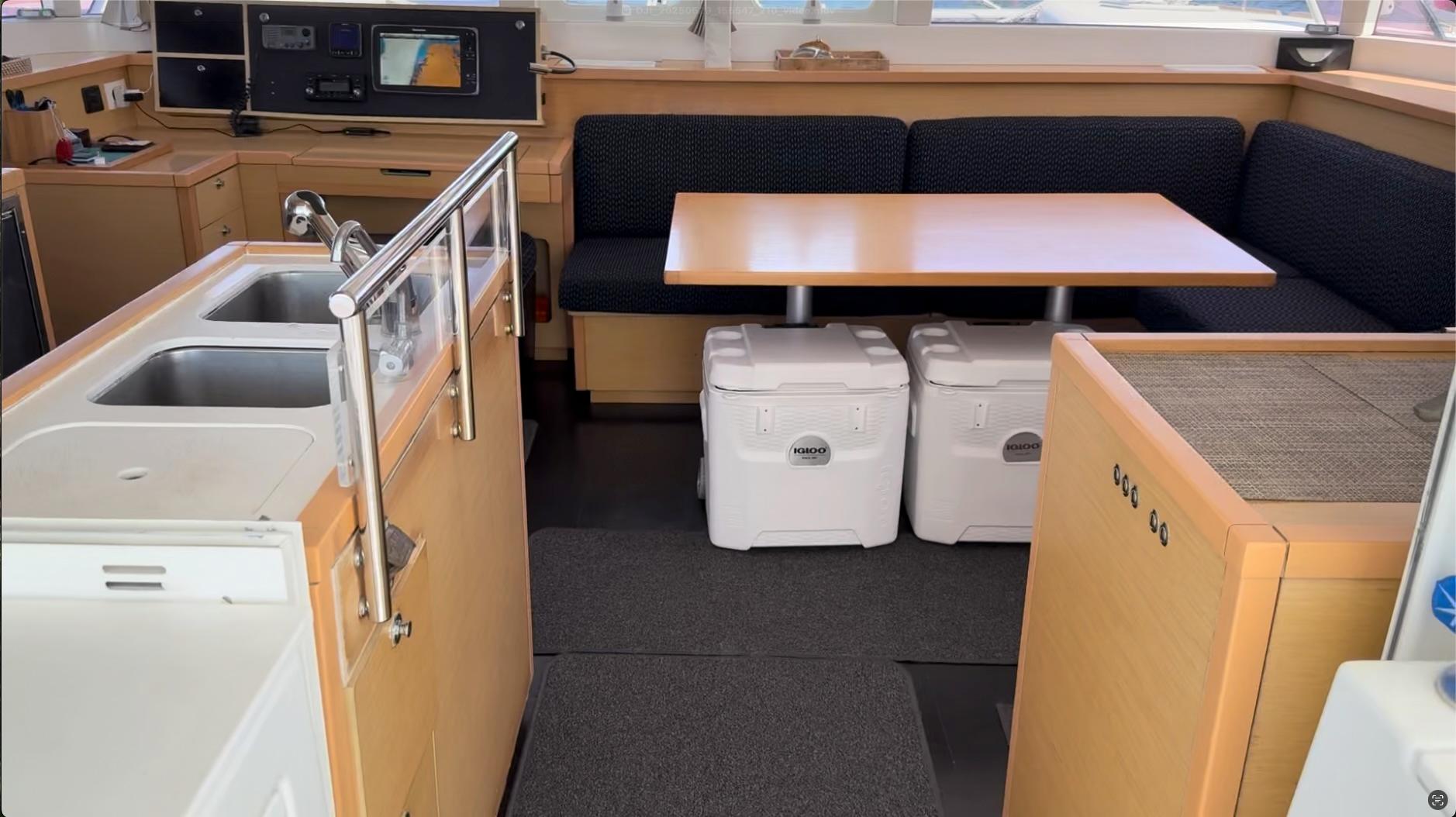

- Large main saloon with panoramic view – standing headroom approx: 2,05 m / 6’9”
- Steel mast pillar with fabric cover
- Varnished coffee table that can be swapped with the large cockpit table
- Seating for 5 – 6 people
- Storage compartments under bench seats
- Locking aluminum sliding cockpit door with open/closed positions
- 2 new opening hatches on forward windows
- Curtains on forward salon windows
- All new upholstery in 2023

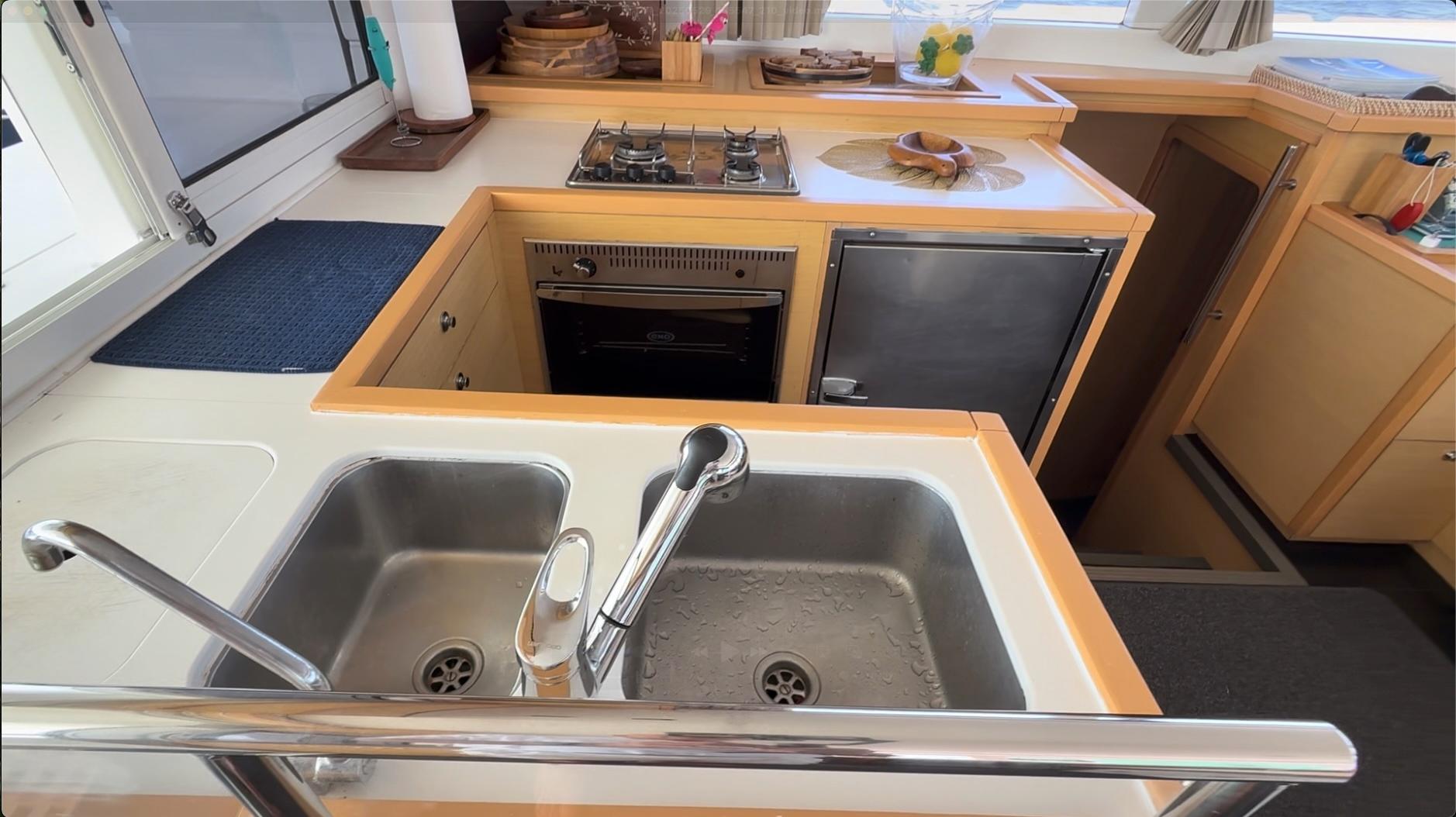

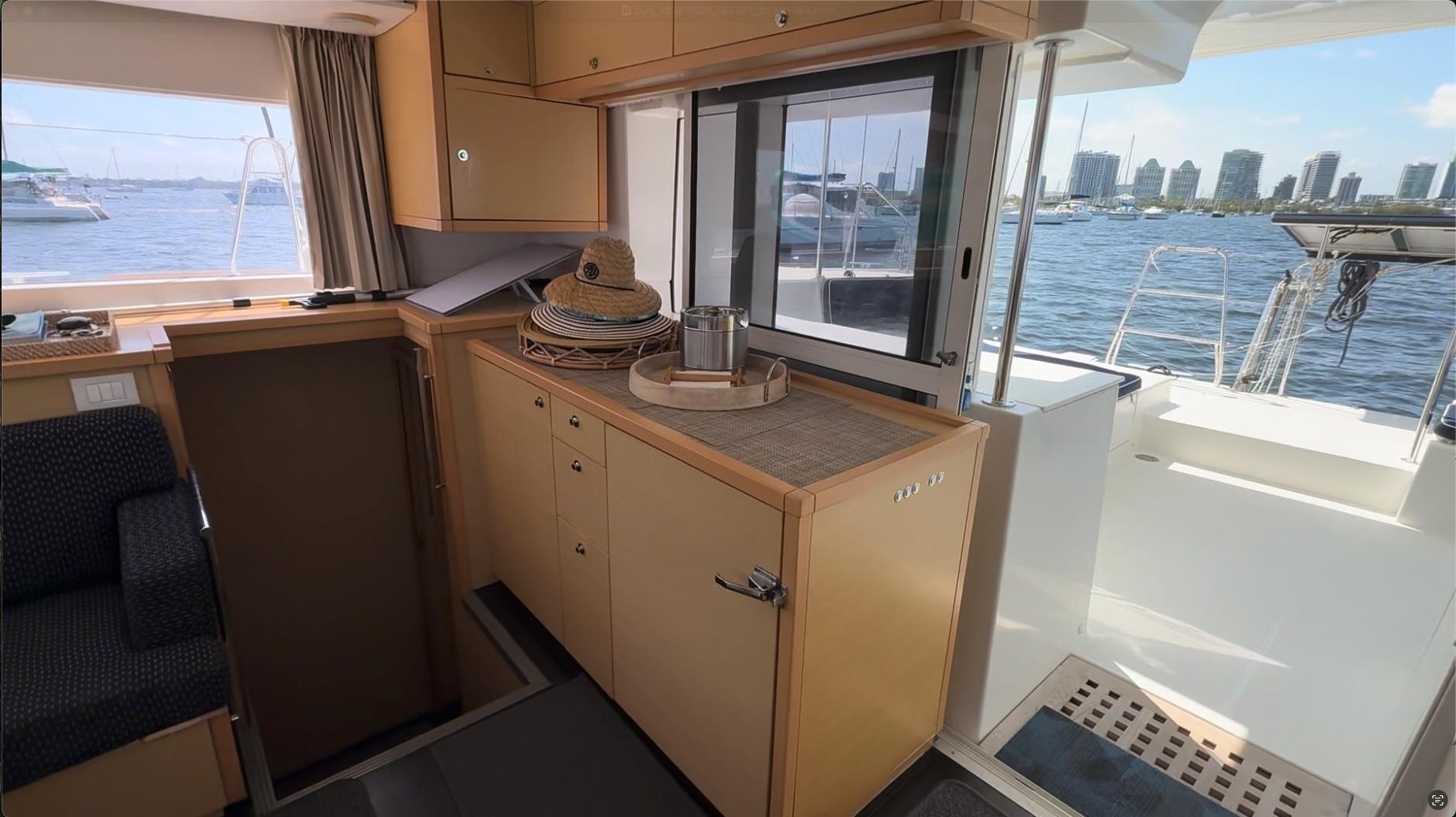

Galley

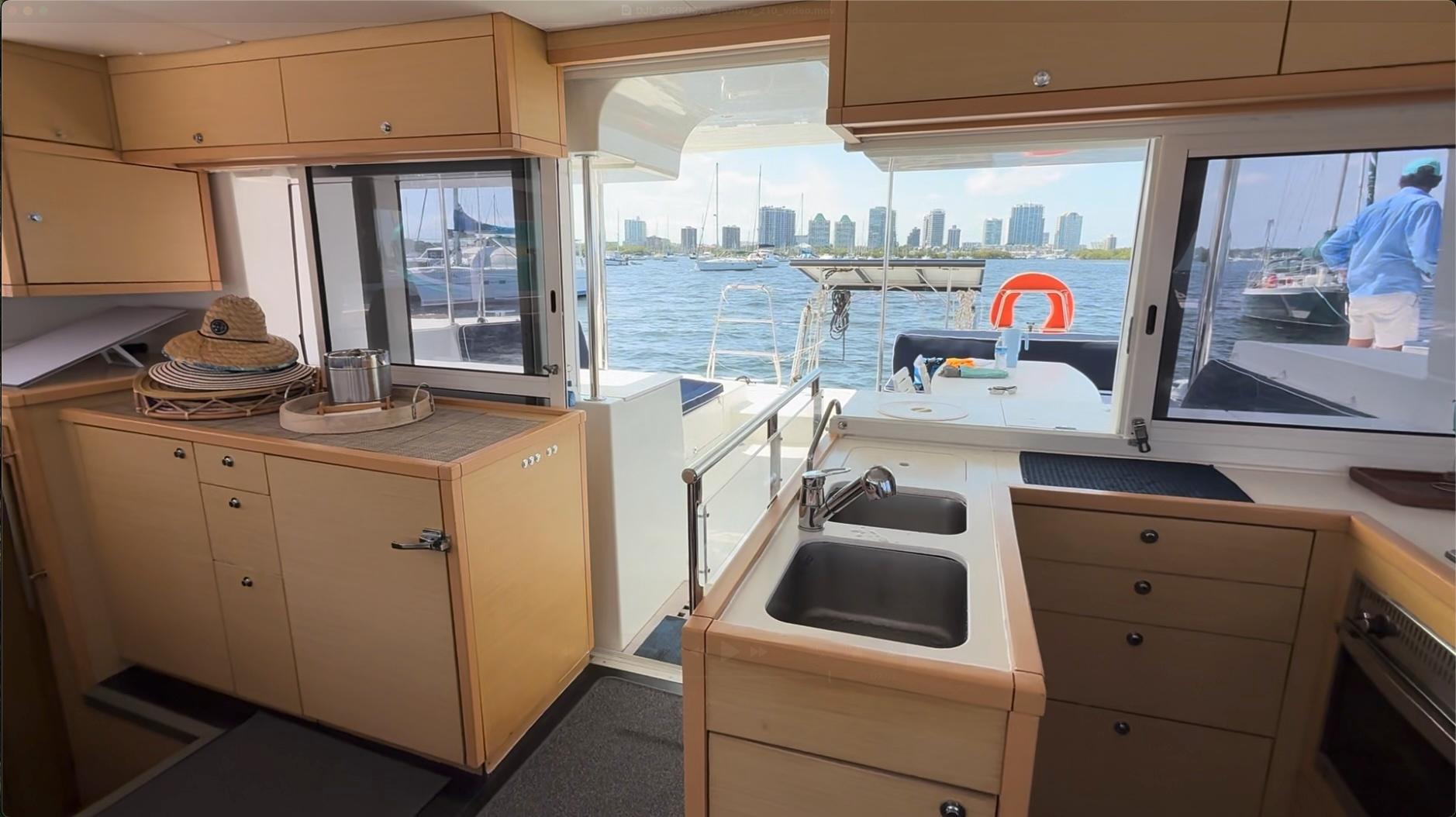

- Galley in main salon to starboard with directaccess to cockpit through sliding window
- Synthetic resin countertop
- Double stainless steel sink with chrome-plated mixer tap hot and cold water
- Integrated dish drainage area.
- Cutlery drawer
- Storage under sink
- 3 burner stove / oven with grill stainless steel
- 12V fridge 130L / 34 US Gallons, front loading
- 2nd 12V Freezer 100 l / 26 US gallons

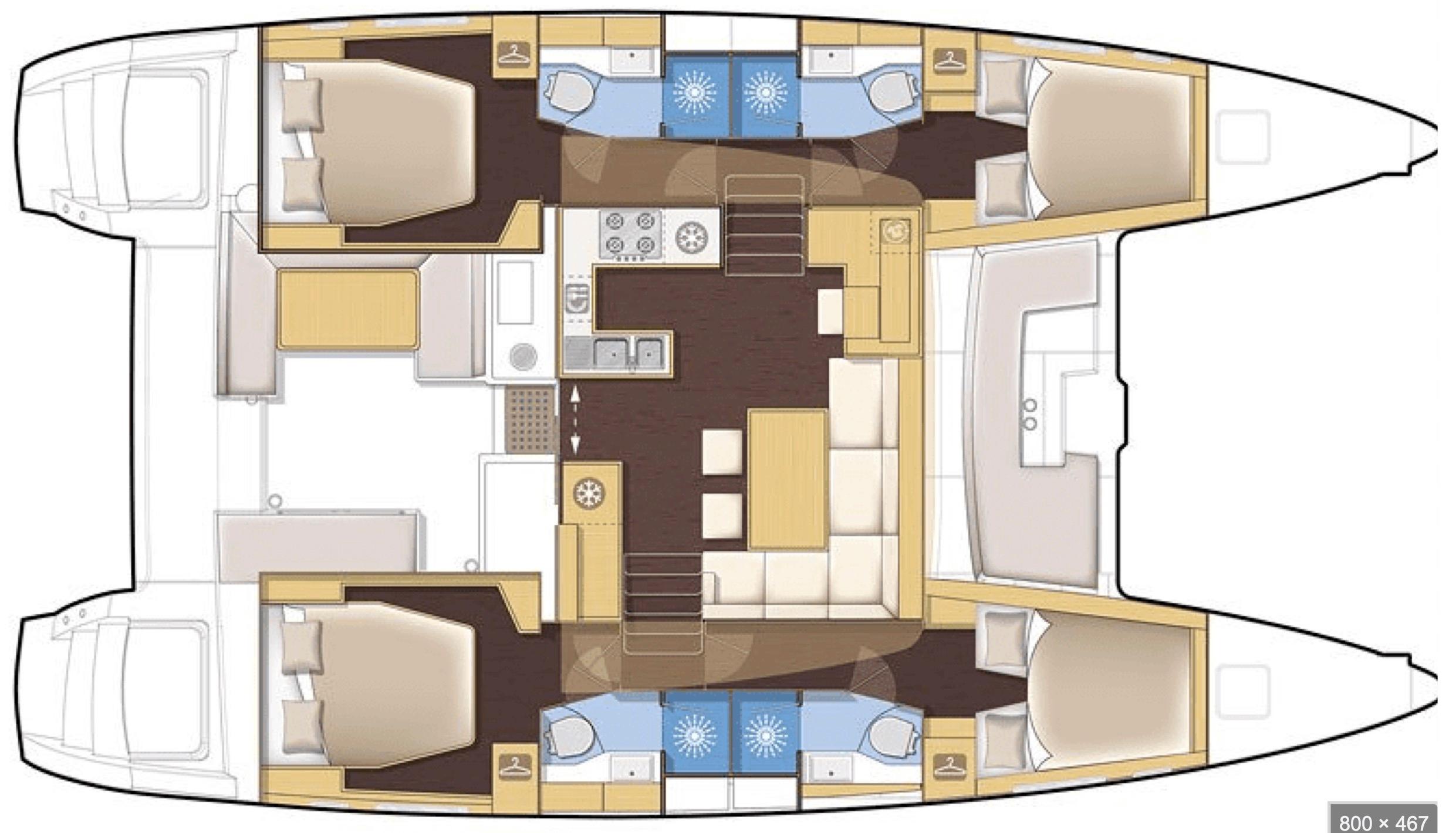

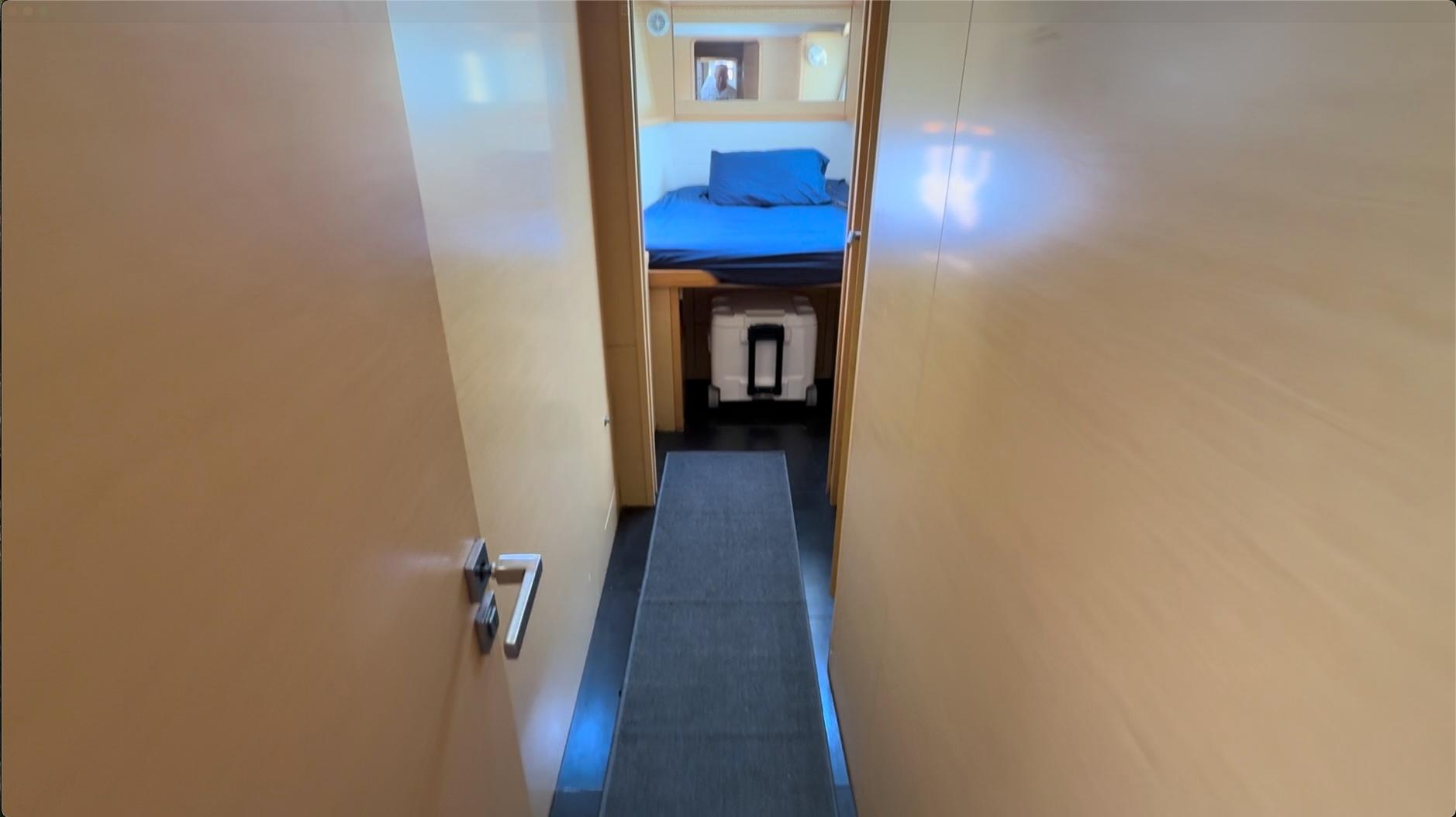

Cabins

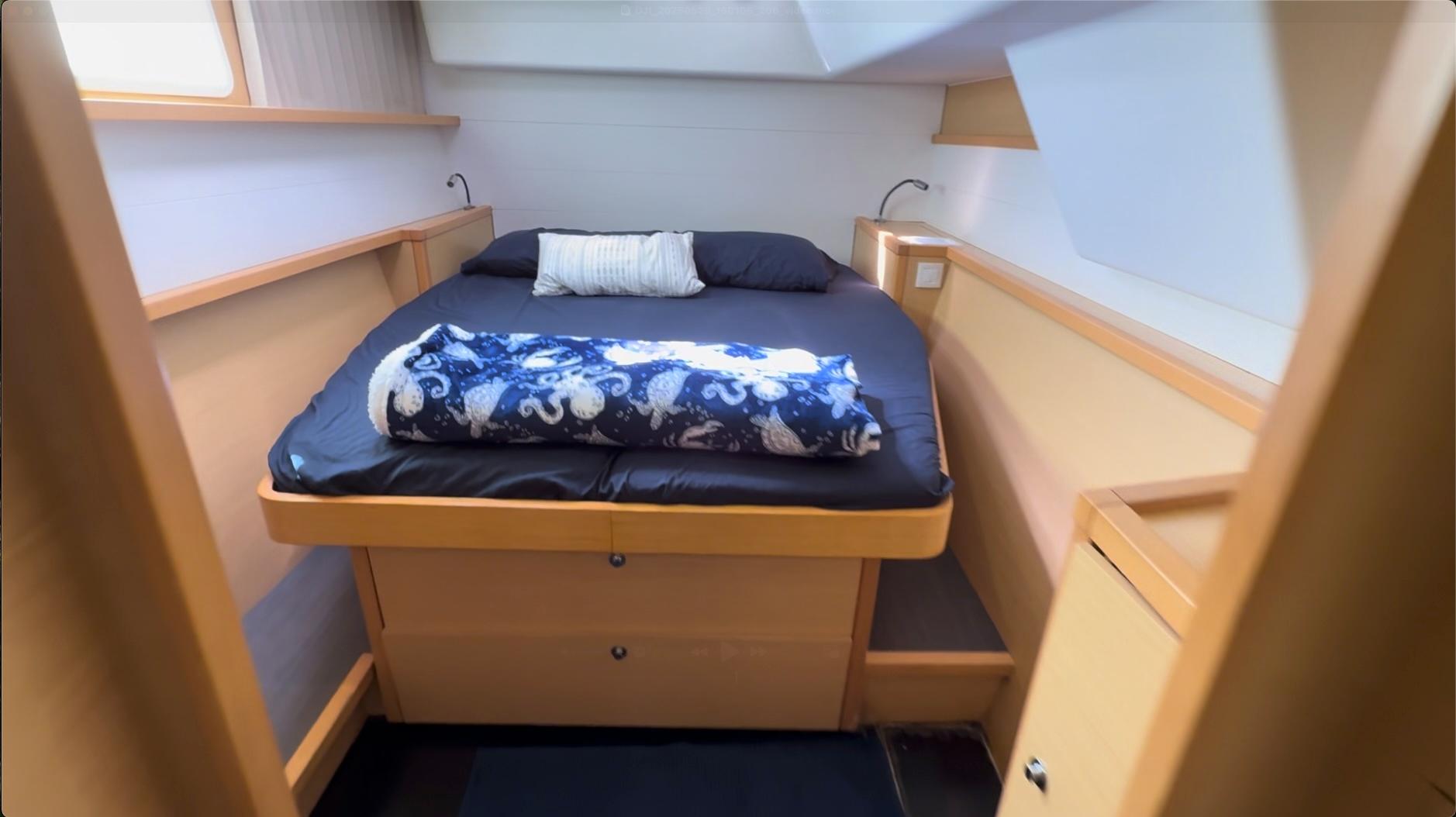

Aft Cabins
- Queen-size berth (2,04m / 6’7”x 1,60m / 5’2” at widest point)
- Semi-island berth
- 1 drawer under berths.
- 1 hanging lockers
- 1 low shelf
- Shoes storage in the floor
- Ceiling led spotlight
- 2 reading lights per berth
- 2 bed tables with storage
- 1 opening deck hatch
- 1 opening port hole
- 1 large hull window in plexiglass
- 1 opening escape hatch
- Curtains on portholes, hatches and fixed one-way windows
Forward cabins
- Transformable double berth or 2 simple berths
- double berth version 2.04 m x 1.63 m x 1.16 on the floor / 6’7” x 5’3” x 3’8” on the floor
- 2 simple berths version 2.06 m x0.69 m x 0.58 m on the floor / 6’75” x 2’26” x 1’9” on the floor
- 2 drawers under berths
- 2 space storages
- 1 bookshelf
- 1 bed table with storage and shoes storage
- Hanging lockers and shelves
- LED ceiling lights
- 2 reading lights per berth
- 1 opening deck hatch
- 1 opening port hole
- 1 large hull window
- Curtains on portholes, hatches and fixed one-way windows
- 1 mirror
- 3 lockers storage under the berth

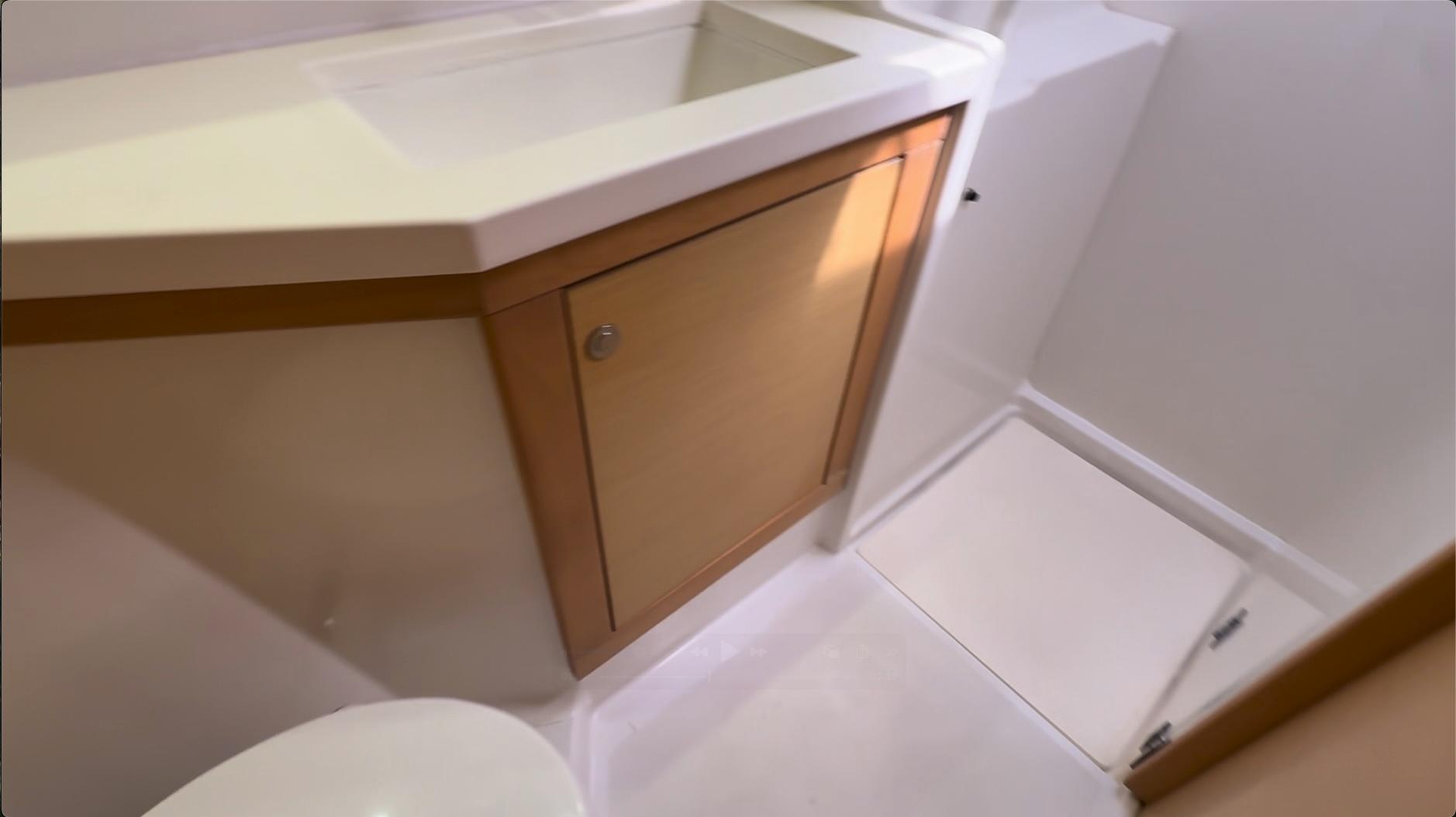

Heads
- Moulded GRP units with white laminate walls – standing headroom 2,04m / 6’9”
- Washbasin with mixer tap / shower

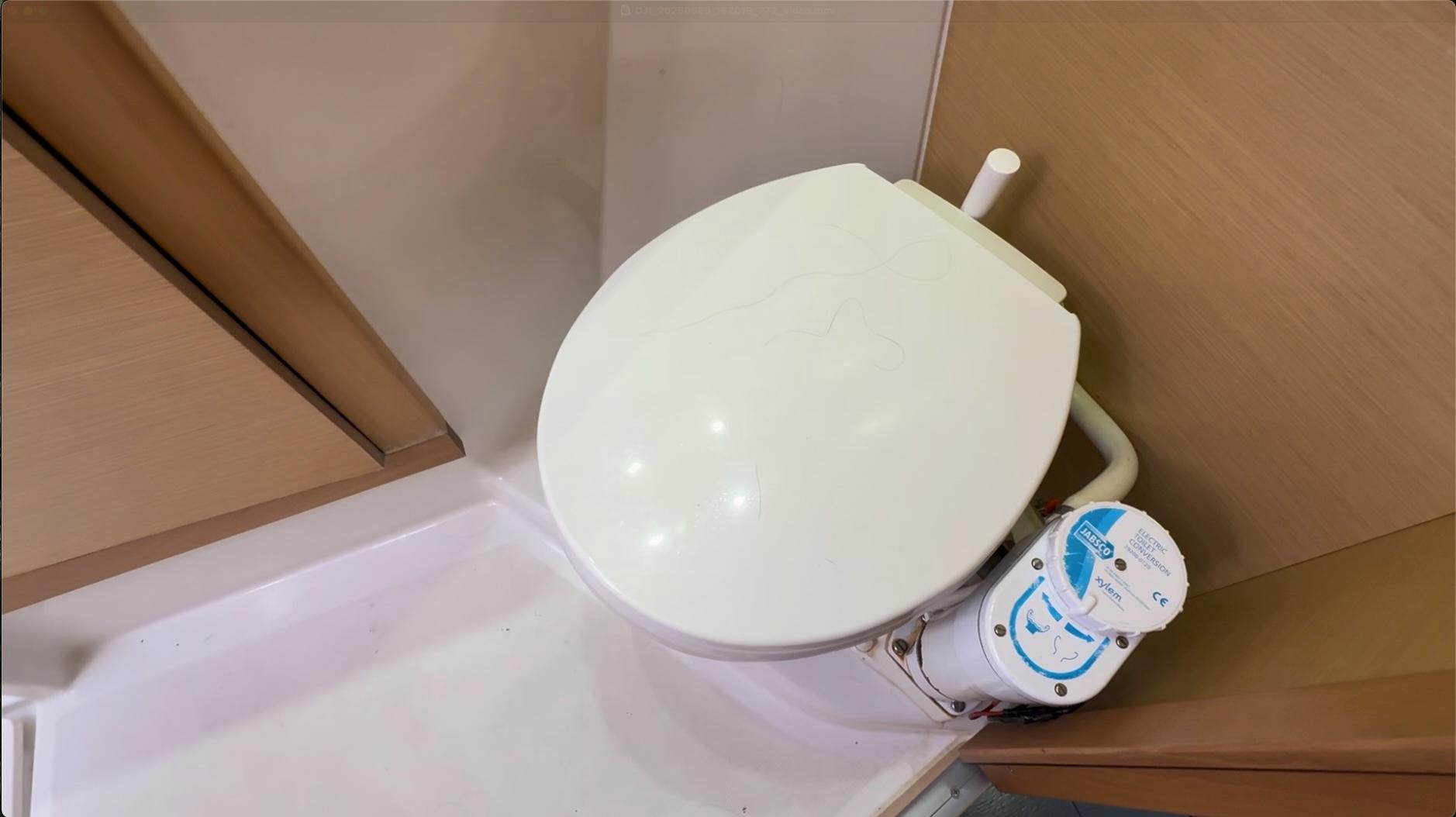

- Full-size marine toilet
- 1 holding tank with gravity drain/deck pump out in the aft port head
- Mirror
- Storage locker and 2 mirror doors
- Ceiling lights and spotlights over the mirror
- Forward heads access from cabin
- Synthetic resin countertop
- Separate shower with plexiglass door
- Shower grating
- 1 opening deck hatch
- Technical access under washbasin

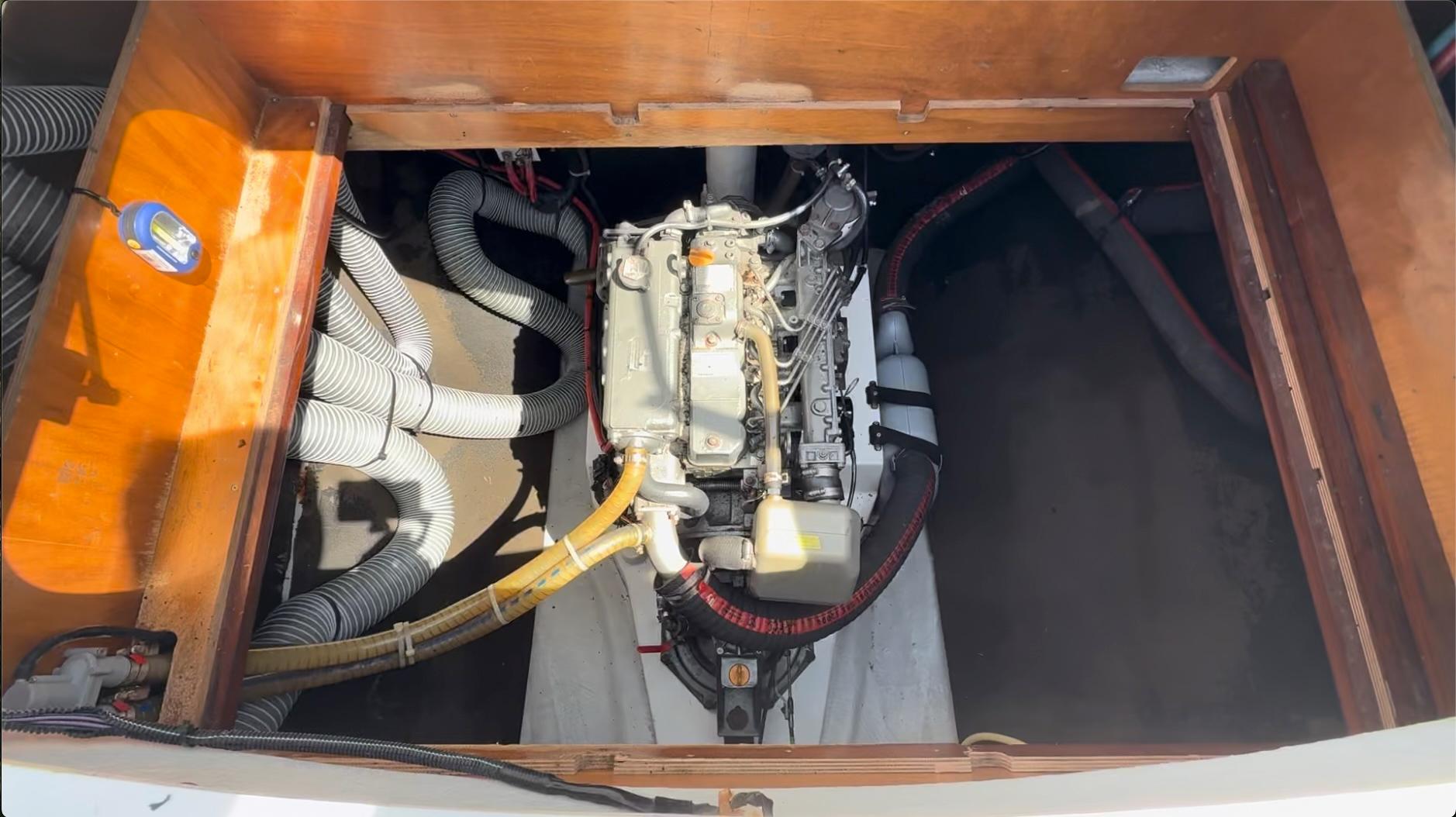

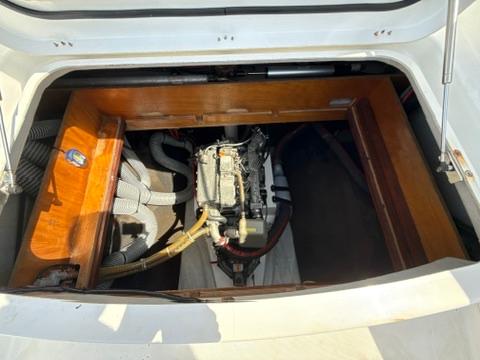

Engine

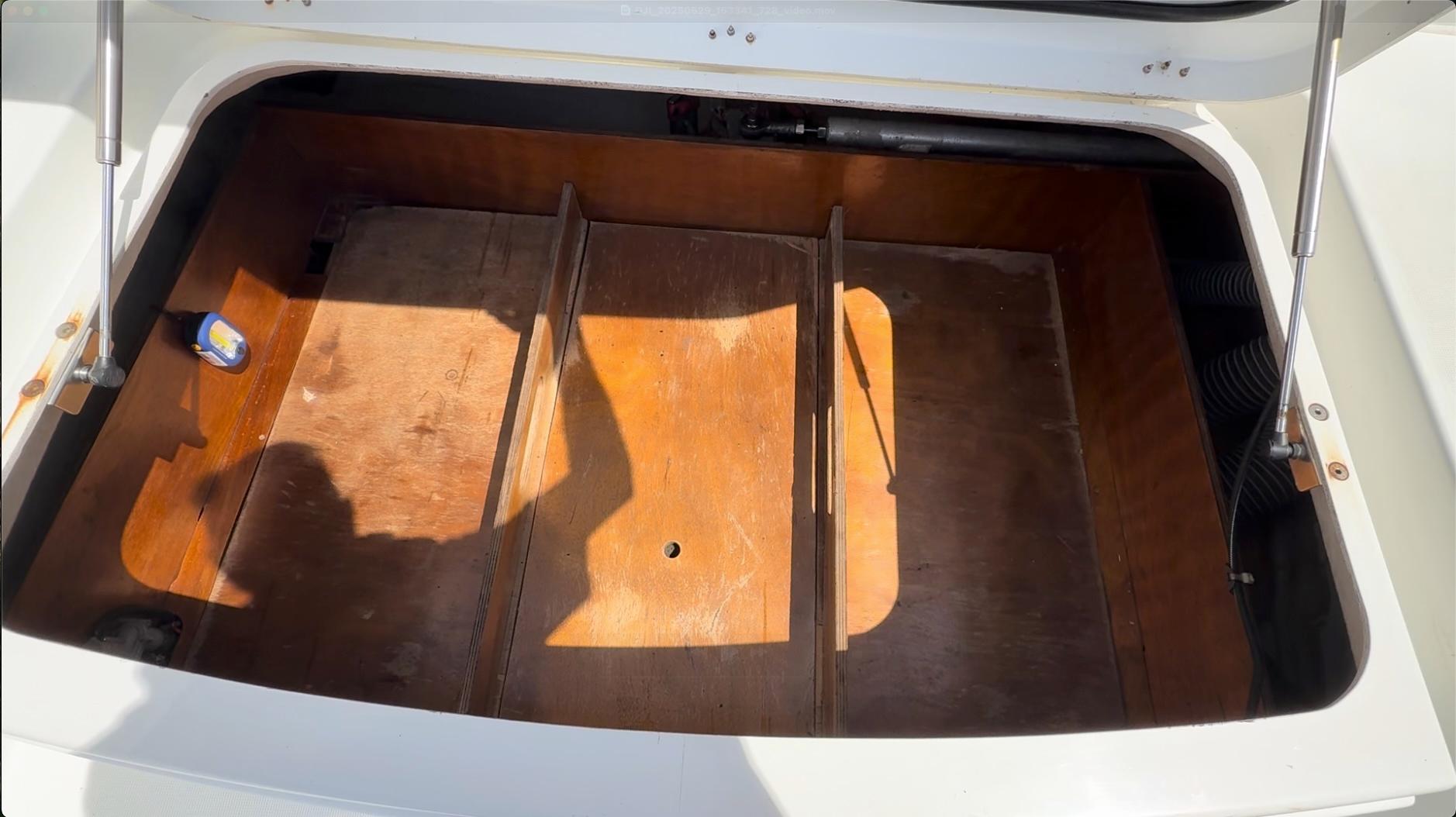

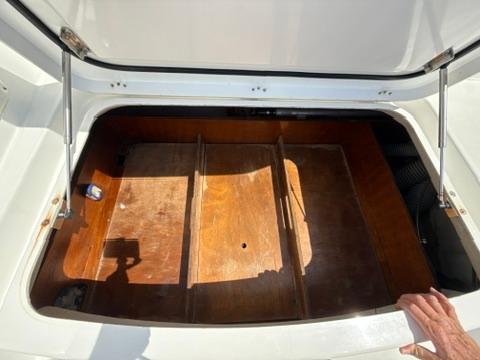

- Engine hatch with gas struts
- 2 x 54 HP sail-drive diesel engines
- New engine starters Nov. 2020
- Engine controls at helm station
- Soundproofed engine compartments, soundproof access panels
- Sea water filters
- LED Light in Engine rooms
Electrical
- 220 V / 50 Hz Electrical Circuit

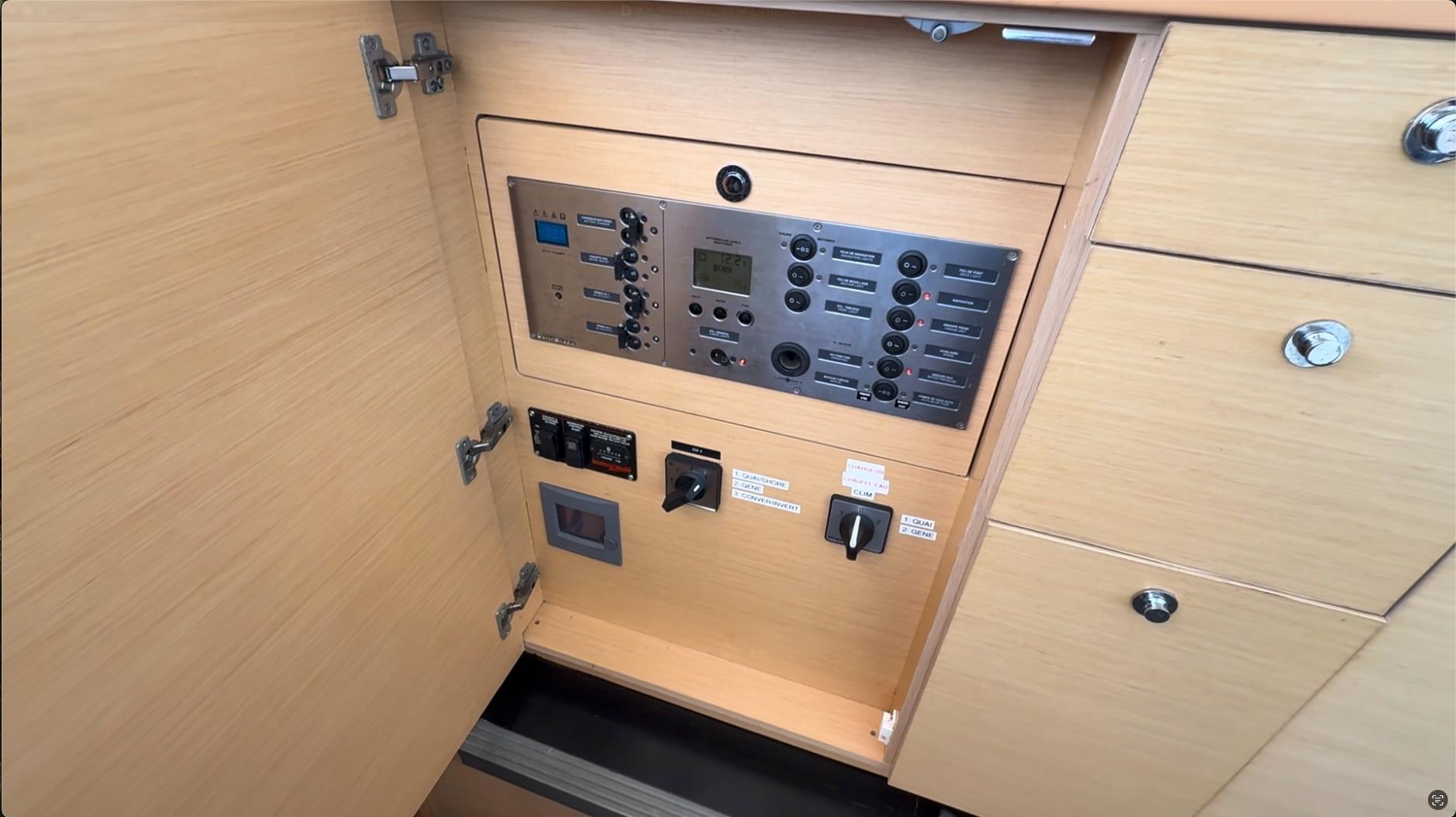

- Main 12V electrical panel starboard side of salon next to companionway with wood protection
- LED lights throughout
- Ampmeter, voltmeter, circuit breakers, back lighting, water gauge, 12V outlet, fuel gauge
- 2023 Starboard engine battery: 12 V – 110 Amp
- 2019 Port engine battery: 12 V – 110 Amp
- 2019 – six lead acid house batteries: 12 v-140 Amp
- One 25′ 50 Amp Shorepower cable.

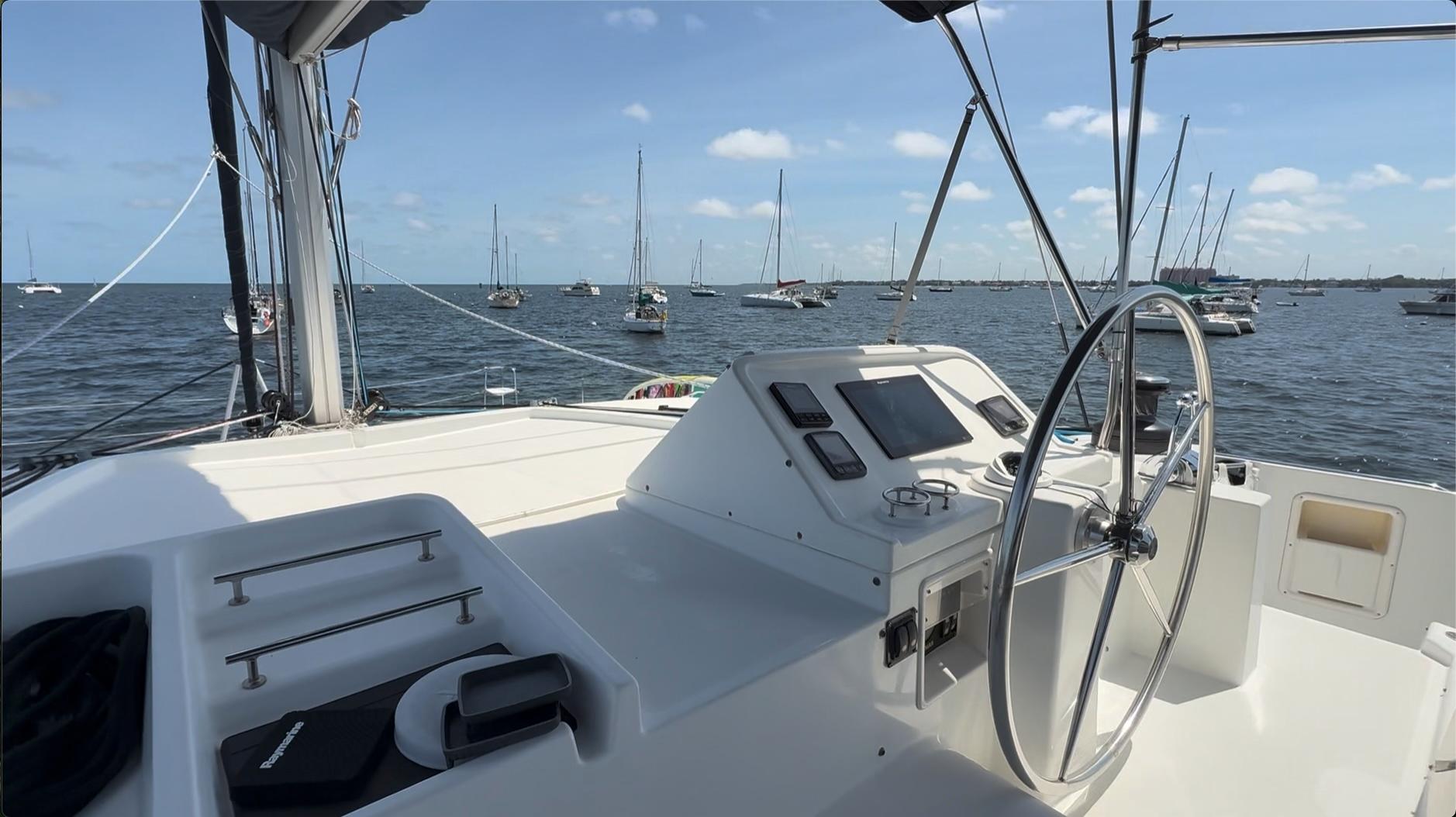

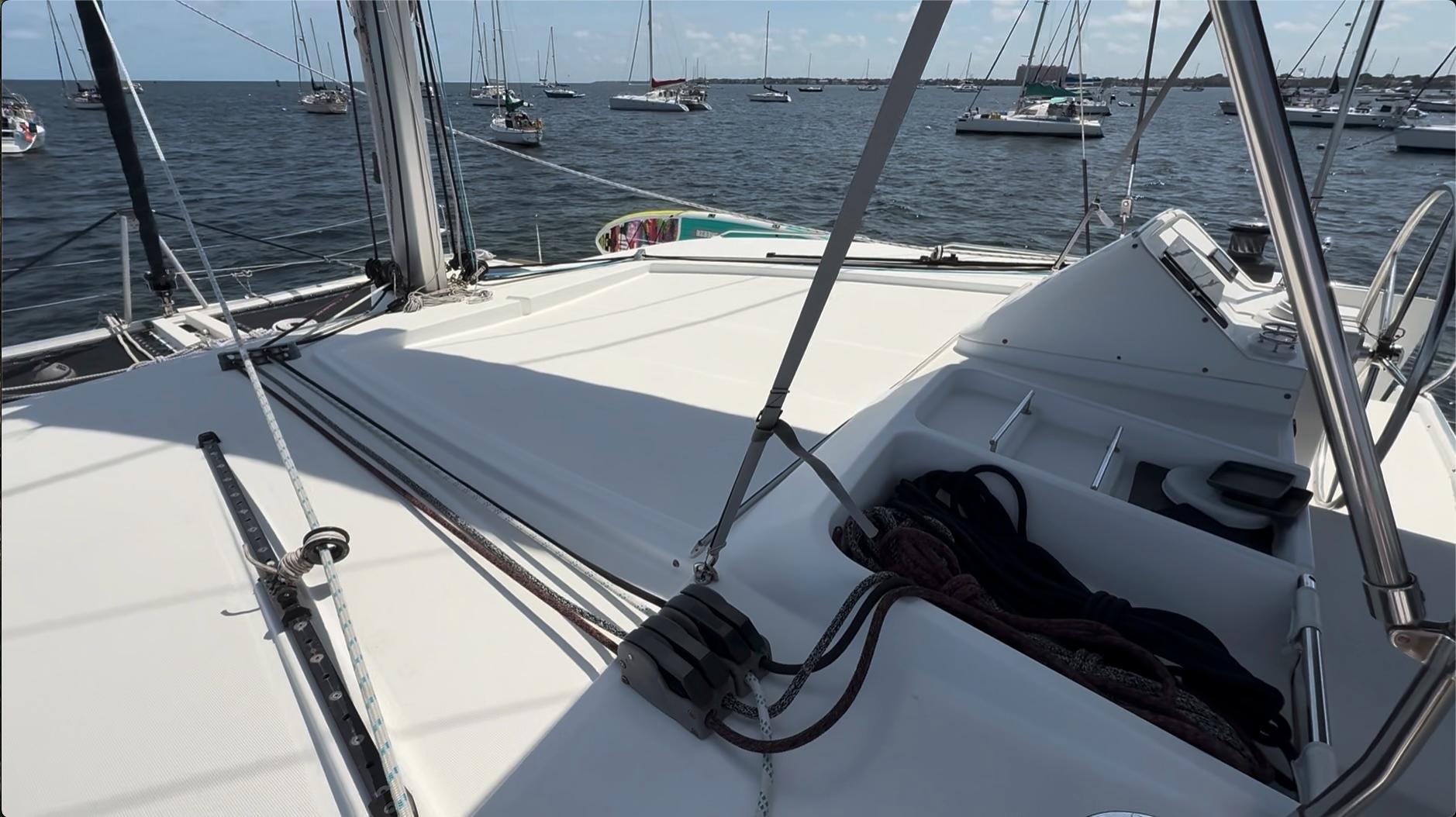

Flybridge
- Twin deck access stairways from deck
- Large bench seat for 6 people
- Ergonomically-designed helm station with destroyer-style wheel with hub clutch-brake, engine throttles, and engine instrumentation

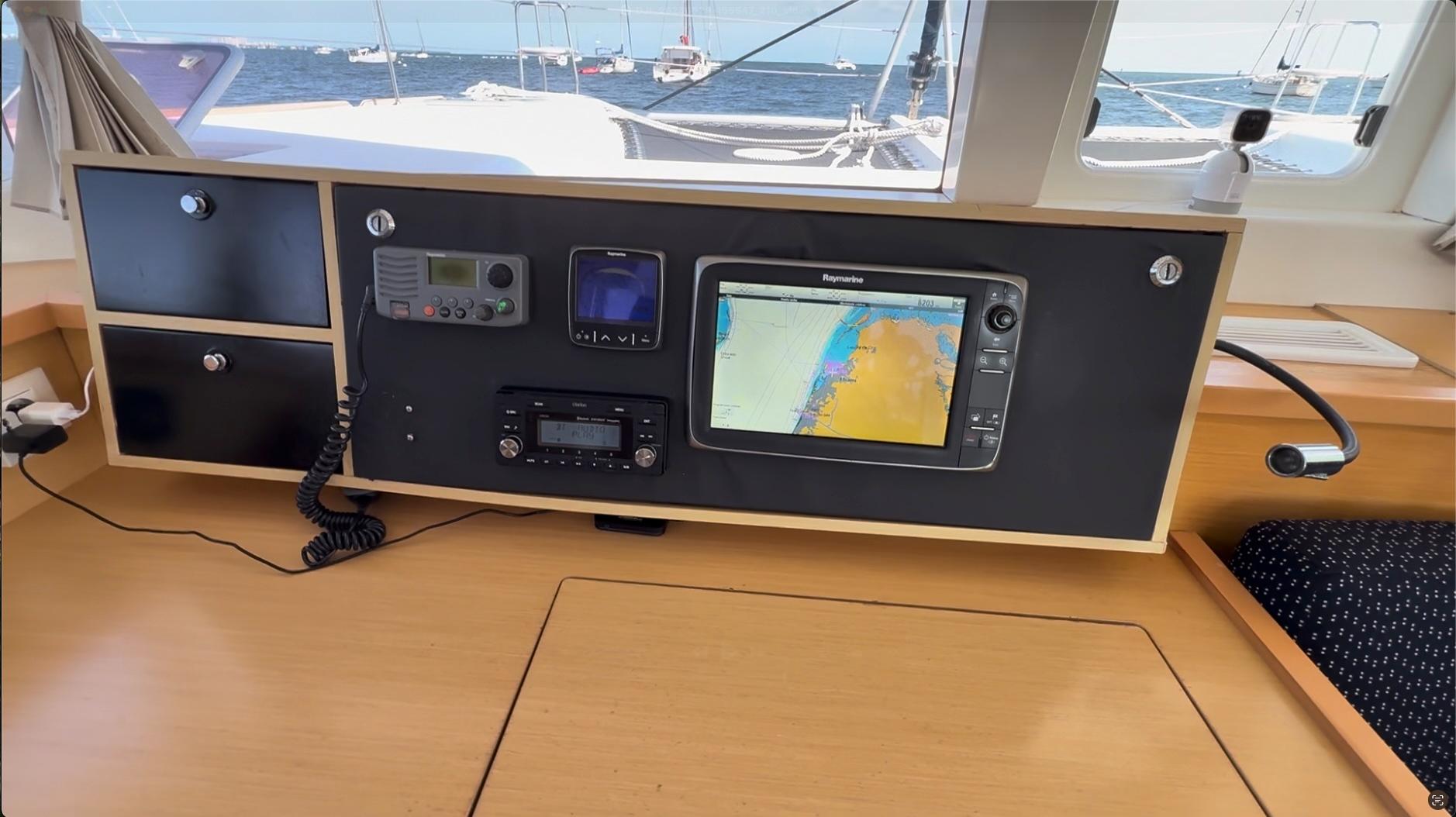

- Hour-meters, compass, large electronics console, cup holders, control lines storage
- Sun protection bimini cover for helm position, and Isinglass dodger.
- Two Storage bins – at top of each staircase of the flybridge
- Convenient shelf for miscellaneous storage.

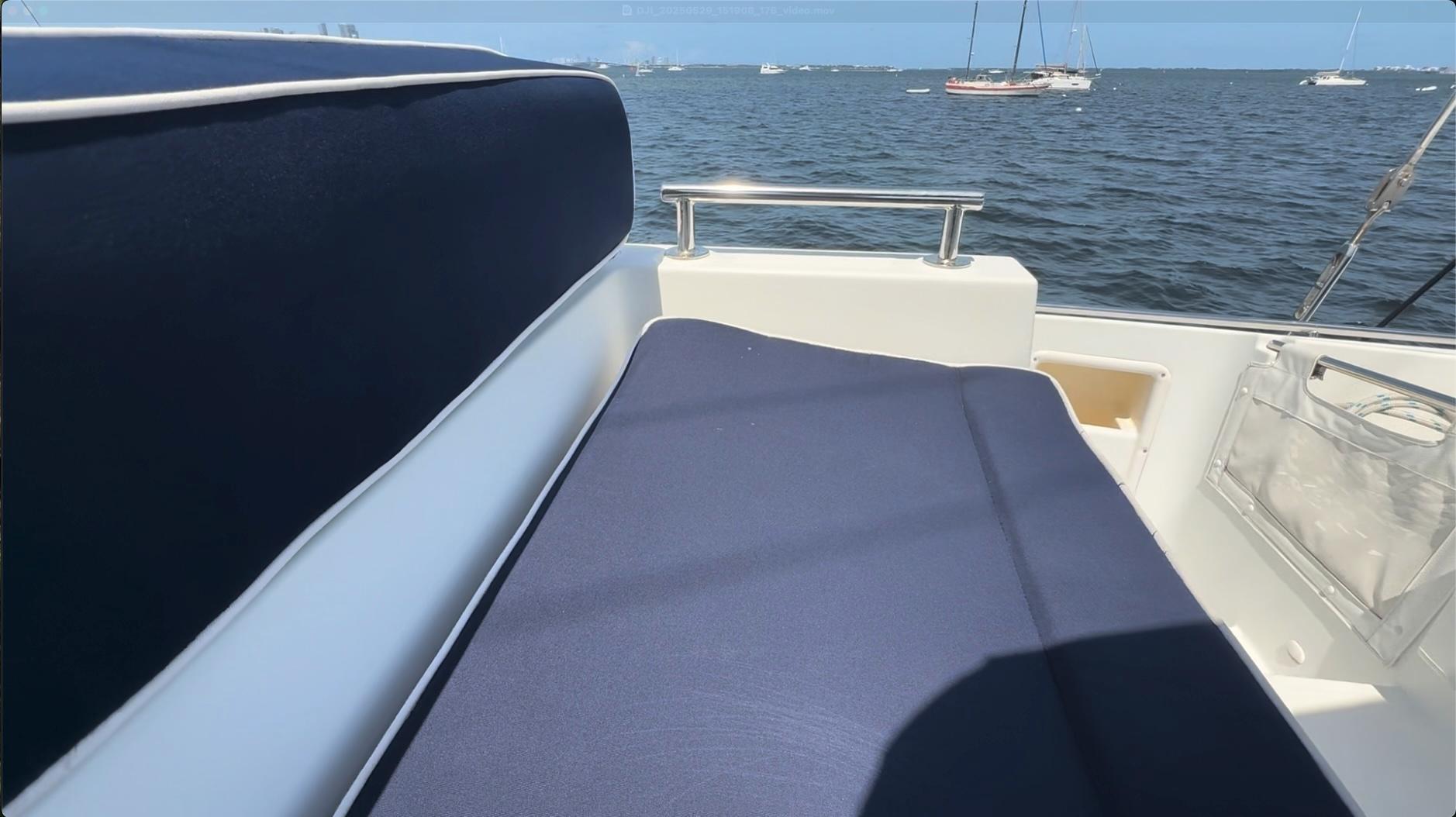

- Sunbathing area in front of the helm station
Sails
- 1 dacron full roach fully battened mainsail – original in good condition
- 1 furling genoa with UV protection – new in 2023

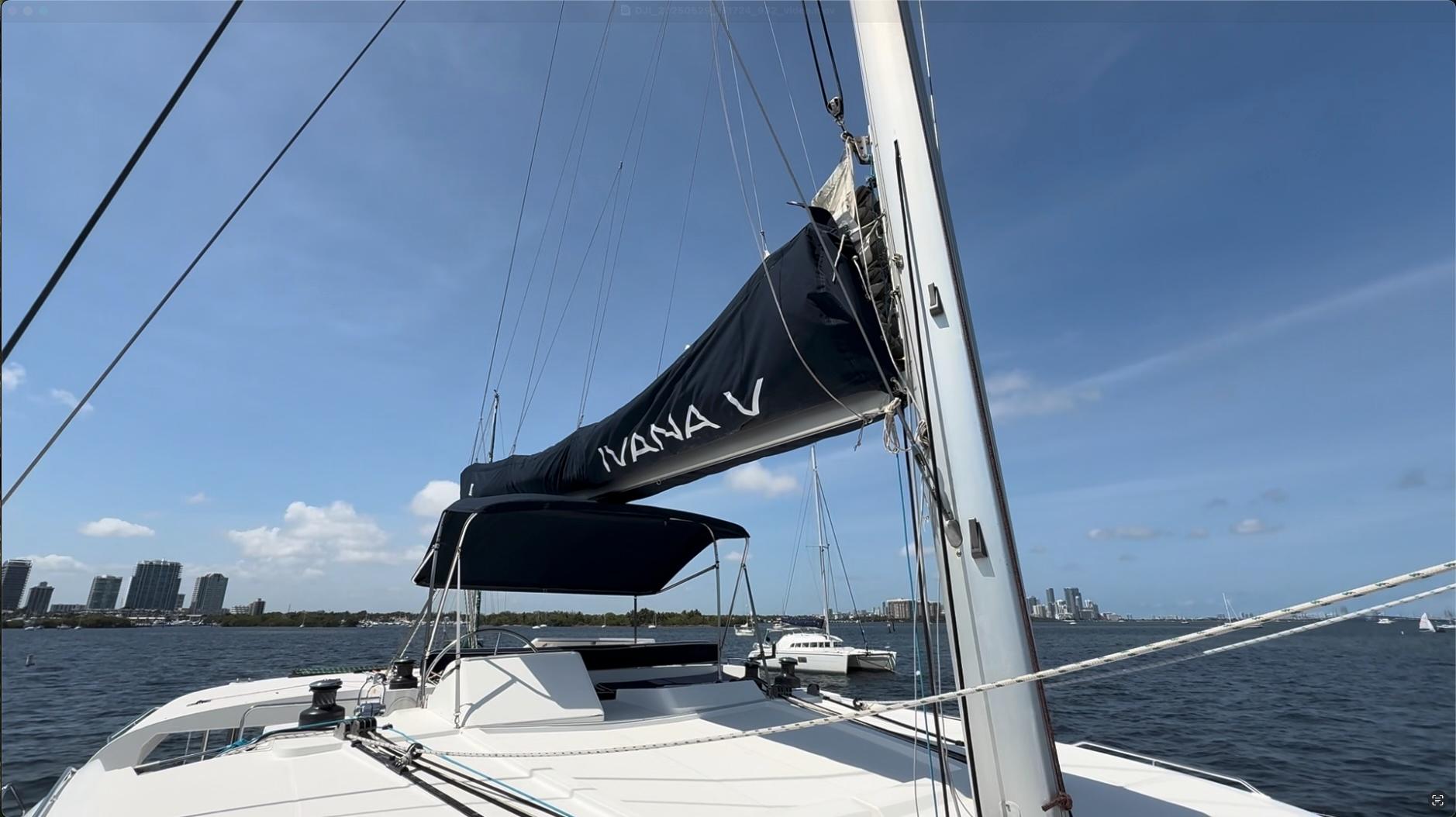

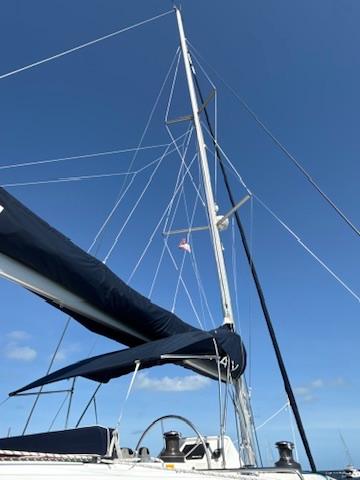

Rigging
New Standing Rigging in 2023
- Aluminum mast with mainsail track and ball-bearing
- Double pushing spreader rig
- 1 aluminum boom
- 2 shrouds with chafe guards
- 2 lower shrouds
- 1 forestay with genoa furler
- 2 mainsail lazy-jacks for battened main sail
Running Rigging (all new in 2020)
- New 2025 (on order) 1 double-purchase spectra mainsail halyard
- 1 spectra genoa halyard
- 1 mainsail sheet pre-stretched
- 2 genoa sheets pre-stretched
- 3 mainsail reefing lines pre-stretched
- New 2024 genoa furling line pre-stretched
- 2 mainsail traveller car control lines pre-stretched
