2009 Sunreef 70

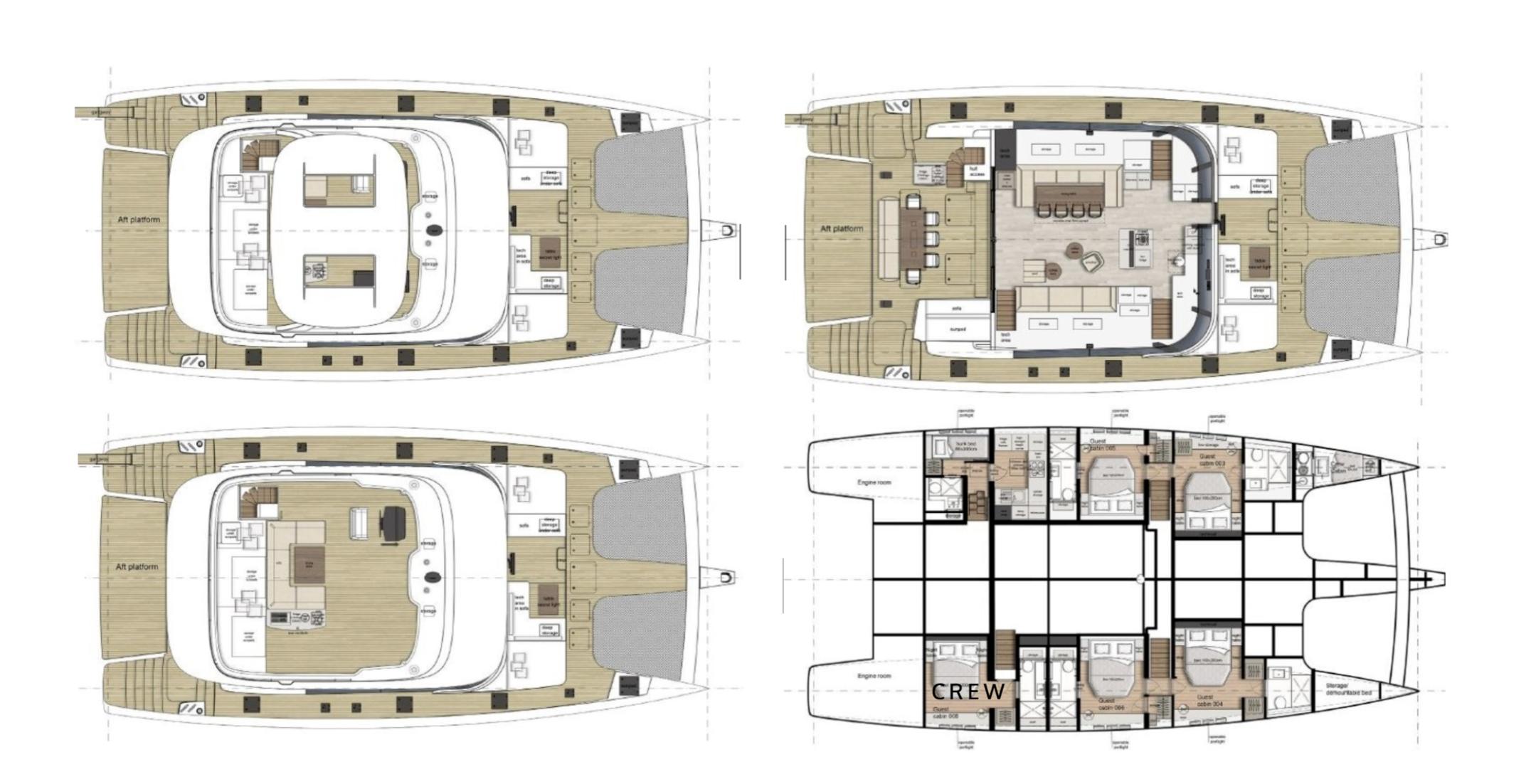

Layout & Accommodation

Main Deck Salon
The main salon features an open-plan galley-up layout with a bar area, three brass bar stools and a generous interior dining area with sofa seating. Forward in the salon is a wine fridge and an open cabinet for spirits. The salon also includes a comfortable lounge area with coffee table, seating, Philips 43-inch flat-screen TV and a Denon stereo system with Infinity subwoofer and six surround-sound speakers. OceanAir Skyvenetian wooden blinds complete the classic nautical finish.

Below Decks
Below decks, the yacht offers four queen staterooms, all with en-suite bathrooms. The forward port cabin also benefits from an adjoining cabin, which can be used as a private suite lounge, a single cabin, or converted into a bunk arrangement. All four double beds and the sofa bed have large storage areas underneath. All five cabins are fitted with independent air-conditioning units and concealed Skyscreen blinds on the overhead hatches. All bathrooms are finished with Sicilian tiles, brass details and rain showers with teak floor panels, creating a warm and distinctive Mediterranean feel throughout.

Starboard Hull The forward stairs lead to a double en-suite cabin with a spacious bathroom, large rain shower and separate toilet. Aft is the owner’s suite, featuring a double bed with bedside tables, full-size cupboards, bookshelves, a sofa chair and a large open bathroom with double sink, rain shower and separate toilet.

Port Hull The forward stairs lead to a double en-suite cabin with cupboard space, shelving and a large bathroom with sink, toilet and rain shower. This cabin also benefits from an adjoining cabin, which can be arranged as a private suite lounge, a single berth, or converted into a bunk cabin. There is excellent storage throughout. The aft stairs lead to another double en-suite cabin with cupboards, bookshelves, an open bathroom with sink, rain shower and separate toilet. This cabin may also be used as a captain’s cabin if desired.
Bow Crew Quarters The port bow crew cabin features a large V-berth and bathroom with toilet, shower and sink. Access is available from the deck or via a removable wall panel from the forward port cabin. The starboard bow forepeak is fitted with a single berth, toilet and sink, with access from the deck only.

Cockpit

• Cockpit space: 41 m2
• Teak flooring
• Teak stairs to flybridge with plexi panel to close flybridge access from cockpit
• Dining table in Teak seating for up to 10
• Reversable seat back to (to form cocktail area with Sofa Area)
• Sofa / Drinks area
• Large Daybeds on Port & Starboard Side (new 2026)
• All seating cushions updated yearly and in perfect condition
• Two larger under floor storage areas
• Large bin locker & gas bottle storage
• Wide swimming platforms for easy access to the water
• Sunreef custom hydraulic system for launching the tender installed on the aft platform
• Complete set of cockpit closure screens
• Removable sunshades aft & side (new 2026)
• Sink water filter & chiller – natural & sparkling water on tap
• Fridge – Frigonautica 220V / 24V with two large pull-out draws
• Ice Maker – Isotherm 220V
• Fusion waterproof stereo speakers x 2
• Led lighting • Optical fiber lights in the cockpit (effect of “ciel etoile”)
• Eufy movement sensor camera

Flybridge

• Flybridge surface: 26.74 m2
• Composite Bimini • Teak flooring
• Dining Table in Teak and cushioned Sofa seating for up to 8
• Large, cushioned Captain’s Seat with reversible seat back (to form cocktail area)
• Large Sunbathing cushions
• All cushions updated yearly and in perfect condition
• Complete set of flybridge closure screens
• Removable sunshades for seating area (new 2026)
• Centralized main helm station on the flybridge for easy sail handling
• Navigation station with a steering wheel
• Bar Fridge – Dometic 24V
• Fusion waterproof stereo speakers x 2
• LED lights are dimmable.

Galley

• Galley up – equipped with:
• Stainless steel bench top
• Overhead stainless steel shelving with Miele Microwave Oven
• Storage cupboards & draws
• 2 x 2 Alpes liftable stainless steel gas cooking plates
• 1 x 2 Alpes liftable ceramic glass induction cooking plate
• 2 x Frigonautica 130L Fridges 220V / 24V
• 2 x Frigonautica 130L Freezers 220V / 24V
• Steel Cucine Electric Oven, Steam & Grill 90cm
• Xintex gas shut-off system with sensors
• Miele Dishwasher
• Miele XL Washer / Dryer
• Franke triple Stainless Steel Sink, drying rack, InSinkerator garbage disposal, water filter & chiller – natural & sparkling water on tap
• Vitifrigo wine fridge operating on both 220V and 24V

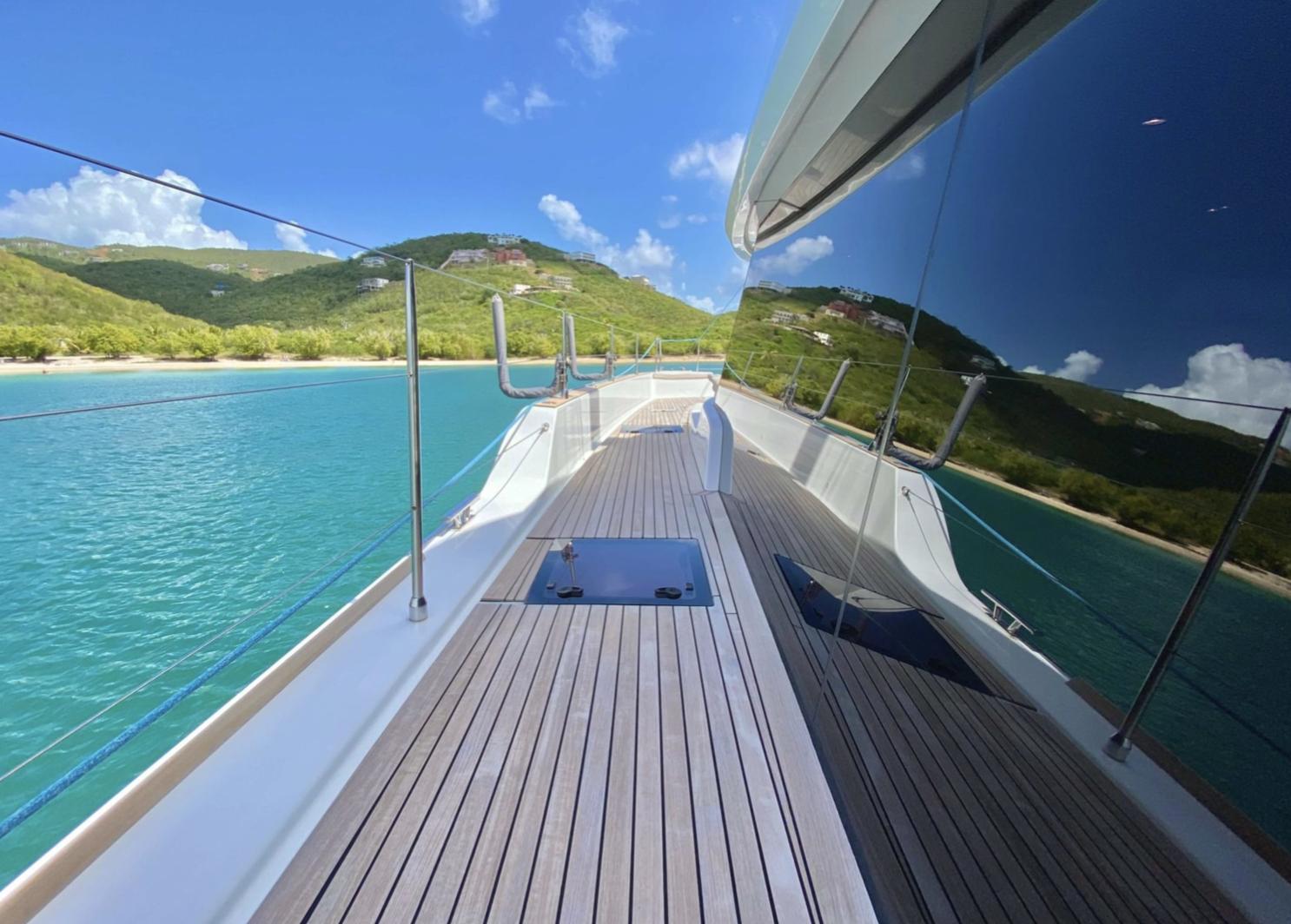

Deck & Equipment

•1x  (3000w 24V) Windlass
• Windlass control on deck (+ 2 x wireless remote control) and at flybridge nav station + chain counter
• Rocna 70kg anchor
• Spare anchor FOB 20kg
• 150m of 13mm stainless steel chain
• Quick docking winches x 2 starboard & port aft
• Quick docking winches x 2 starboard & port forward
• Cariboni ‘Magic Trim’ Main Sail Trimming system – controls main sheets & traveler with 4 hydraulic cylinders. Power pack unit installed in the starboard engine room.
• Harken Winches flybridge: 2 x Electrical B980.2STEA24H (jib sheets) / 1 x Electrical (main halyard) B70.2STEA24H / 2 x Manual B60.2STA (preventer & topping lift)
• Profurl Electric furling systems for Solent and Genoa with control at the flybridge nav station
• Bamar electric Gennaker furler
• Harken Blocks • Spinlock jammers
• Hydraulic retractable Gangway Opacmare
• ‘Exit’ carbon fiber mountable spare Gangway
• Electric lifting system for the dinghy with two telescopic extendable arms and remote controller (2 x Orvea winches & engine)
• Tender refueling system
• Stern Spotlight
• LEDs in the skirts’ stairs, cockpit, and flybridge
• Spotlight on Mast
• Jabsco Searchlight on Mast
• 2 Fusion waterproof speakers (forward)
• Lateral ladders on each side are integrated in the railing
• Swim ladders port & starboard
• Lewmar port lights
• Bimini on the flybridge in composite Rigid wave breaking window on flybridge
• Plexi panel to close flybridge access from cockpit • Wrap-around sunshade for salon windows • Bow pulpits with integrated teak seats
• Trampoline netting x 2 at bow (new 2026)
• Forward sun cushions (new 2026)
• Removable forward deck sunshade (new 2025)

Electronics & Navigation

Steering System
• Rudders constructed of a moulded sandwich lamination glass / vinylester
• Self-aligning lower and top bearings
• 5 strokes steering wheel (diameter 1000mm)
• Hydraulic steering system
• 2 emergency tillers
• Yacht Controller Evolution EVO

Raymarine ELECTRONIC – new system installed May 2024. Work listed below:
• 2 × AXIOM+ 12 multifunction displays, 12.1” colour, WiFi and touchscreen
• 1 × AXIOM+ 12 RV multifunction display, 12.1” colour, WiFi and touchscreen, with 600W fishfinder
• 1 × Navionics chart card: Mediterranean and Black Sea
• 2 × RMK-10 remote keypads
• 1 × RCR-SDUSB — SD card reader
• 1 × RS150 10Hz GPS antenna — GPS / GLONASS / BeiDou, SeaTalkng
• 1 × RNS5 — network switch, 5 × RayNet ports, 1 Gigabit
• 1 × RNS8 — network switch, 8 × RayNet ports, 1 Gigabit, 4 × POE
• 4 × CAM300 IP cameras
• 1 × AR200 augmented reality sensor
• 1 × M232 Flir thermal camera
• 1 × adapter plate for M232 thermal camera
• 4 × i70 multifunction displays
• 1 × p70s autopilot display
• 1 × EV400 package complete with p70s display (Raymarine Evolution autopilot package)
• 1 × Quantum Doppler radar with 15 m cables
• 1 × Ray90 VHF complete with handset and speaker
• 1 × second wireless Ray90 station complete with hub and active speaker
• 1 × 5 m Ray90 handset extension cable
• Supply and replacement of the wind transducer at the masthead, and repositioning of the transducer base
• Creation of a second N2K line, from the Captain’s cabin to the flybridge

• Additional (separate from main system): Wind station (fly roof) + stern port depth sounder/repeaters in Captain’s cabin & flybridge

Other Navigation and Electronics
• Compass plastimo (size 135mm) on console
• Chronometer and barometer (Plastimo, mat SS finish)
• Interphase Forward looking Sonar SE-200
• Navtex McMurdo ICS Nav 6
• Starlink Internet
• Poynting 5G router located on fly + repeaters
• Loud Hailer & Foghorn (Marco) at fly & chart table
• Stern docking cameras x 2
• Engine room cameras x 2
• Icom MF/HF Receiver
• Depth Sounder starboard forward

Electrical, Power & Plumbing

Electrical Systems
• AC-230V
– Main switchboard panel aft port cabin
– 220v sockets in engine rooms, cabins, saloon and galley
– Shore power inlet (63A inlet)
– Shore power cord (3 x 25m, 63A)
• DC-24V
– Main switchboard
– Battery monitor BTM1
– 8 Mastervolt AGM 12/270 12V 270Ah house service batteries
– 4 Optima starting batteries (12v/75Ah)
– 4 Optima batteries (12v/75Ah) for Cariboni Magic Trim
– 8 Optima batteries (12v/75Ah) for Max Power bow thrusters
– Mastervolt 24/100 Battery Charger x 1 (2018)
– Mastervolt 24/100 Combi Ultra Battery Charger / Inverter (2025)
– Mastervolt Inverter x 1 (2018)
– Mastervolt Masterlink Battery Monitors x 2
– Mastervolt 24/60 Battery Chargers 1 x Bow Thruster / 1 x Magic Trim
– Mastervolt current regulators Ø Mastervolt 24/30 battery & charger for emergency VHF use

Electrical other
• Generator – 2 x Kholer gensets 220V 20 kW / 50 Hz
• Wind Generator – Eclectic Energy D400 (new 2024)
• Solar Panels – Solbian panels on flybridge roof 8,8 kW/h (new 2025)
• Air conditioning system Dometic
• 6 x Air Handler Units Dometic (1 Salon + 5 Cabins)
• Chilled Water Master Control Panel Dometic x 2 (1 at chart table/1 in starboard engine room)
• 2 Chillers (Marine Air Systems) located in the starboard engine room.

Lighting
• Lighting with LED lights with dimmers in the saloon and the owner’s cabin
• Optical fiber lights in the cockpit (effect of “ciel etoile”)
• Underwater lights (led x 4)

Plumbing
• Fresh water: Ø 4 x 390 Lt. (4 x 103 US gal) level indicators at inside nav station
– 2 x pressurized Feit water pumps
– 2 x Quick inox water heaters of 80l each (new 2026)
• Black water:
– 2 x 225l each tank with gravity discharge system and a level gauge at inside the nav station
– 4 x electric Vetus pumps with automatic discharge (2 as a backup system)
– Equipped with 3-way valves (discharge in the sea or holding tanks)
• Grey water:
– 2 x 225 L each tank with gravity discharge system and a level gauge at inside nav station
– 4 x electric Vetus pumps with automatic discharge (2 as back up system)
– Equipped with 3-way valves (discharge in the sea or holding tanks)
• 5 x electric toilets 24V TECMA in bathrooms with freshwater flush (silence version)
• 1 x Jabsco hand pump toilet (crew starboard bow)
• 8 x electric bilge pumps (4 float switch system + 4 high water sensor system)
• 2 x manual bilge pumps (cockpit)
• Watermaker Schenker 100l/h – 24V (starboard engine room)
• Watermaker Sea Recovery Aqua Matic Compact 240l/h – 220V (port engine room)
• Sea & freshwater pumps (2 aft + 1 forward) for deck washing
• 2 x hand showers on deck + 1 Exit carbon fiber mountable rain shower

Engine & Mechanical

• 2 x 240 hp Yanmar engines
• 2 x Mastervolt 80AMP alternators to charge the service batteries
• Stainless steel shafts
• Ewol Pegasus four bladed feathering 28” (new 2020)
• 2 x fuel tanks of 3000 lt. each + transfer pump and control at the inside nav station
• Algae-X Fuel polishing system in each engine room
• ZF electronic engine control panels at flybridge nav station and chart table
• 2 x FloScan Fuel consumption indicators
• Gianneschi ventilation system in the engine rooms
• 2 x electric oil changing pumps located in the engine rooms
• 2 x Max Power electric bow thrusters (port & starboard bow) with control at the flybridge nav station

Sails & Rigging

• Carbon mast with incorporated LEDs (white finish) + aluminum Harken track
• Mast steps up to 5 meters
• Carbon boom (canoe body, white finish) with 2 reefing lines
• Lazy Bag • 2023 NEW Mast Rigging stainless steel standing rig
• 2026 NEW all running rig
•  4 Sails:
 – 2018 NEW fully battened main sail cross cut Dacron (Banks Sail)
 – 2022 NEW Gennaker Code 0 triradiale (Doyle)
 – Genoa, triradial cut, Hydranet (Dacron/Spectra)
 – Solent Hydranet (Dacron/Spectra), coupe triradiale
• Main sail sheet control ‘Magic Trim’ by hydraulic ram with control at flybridge nav station and release push button control at inside nav station, this system will work manually if needed
• Main sail traveler control ‘Magic Trim’ by hydraulic ram with control at flybridge nav station

Other

Safety
• Liferaft RFD Surviva MKIV Inflatable 12 person
• Icom SOLAS emergency portable VHF x 2
• MOBI transponder man overboard system
• Epirb McMurdo Smartfind G8 Beacon with Hydrostatic housing
• Sart Ocean Signal S100
• Indemar Sea fire 131-420 control panels x 2 for engine shut off at chart table

Leisure
• Phillips Flat Screen TV 110cm/43inch
• Denon Stereo System with Infinity Subwoofer & 5 Surround Sound Speakers
• KVH 60 Satellite TV Antenna
• Fusion waterproof speakers x 6 (2 cockpit/2 fly/2 forward)
• Safe in the owner’s cabin

Diving
• Olmeva compact 8.4 Electric diving compressor (2018)
• 6 diving bottles
