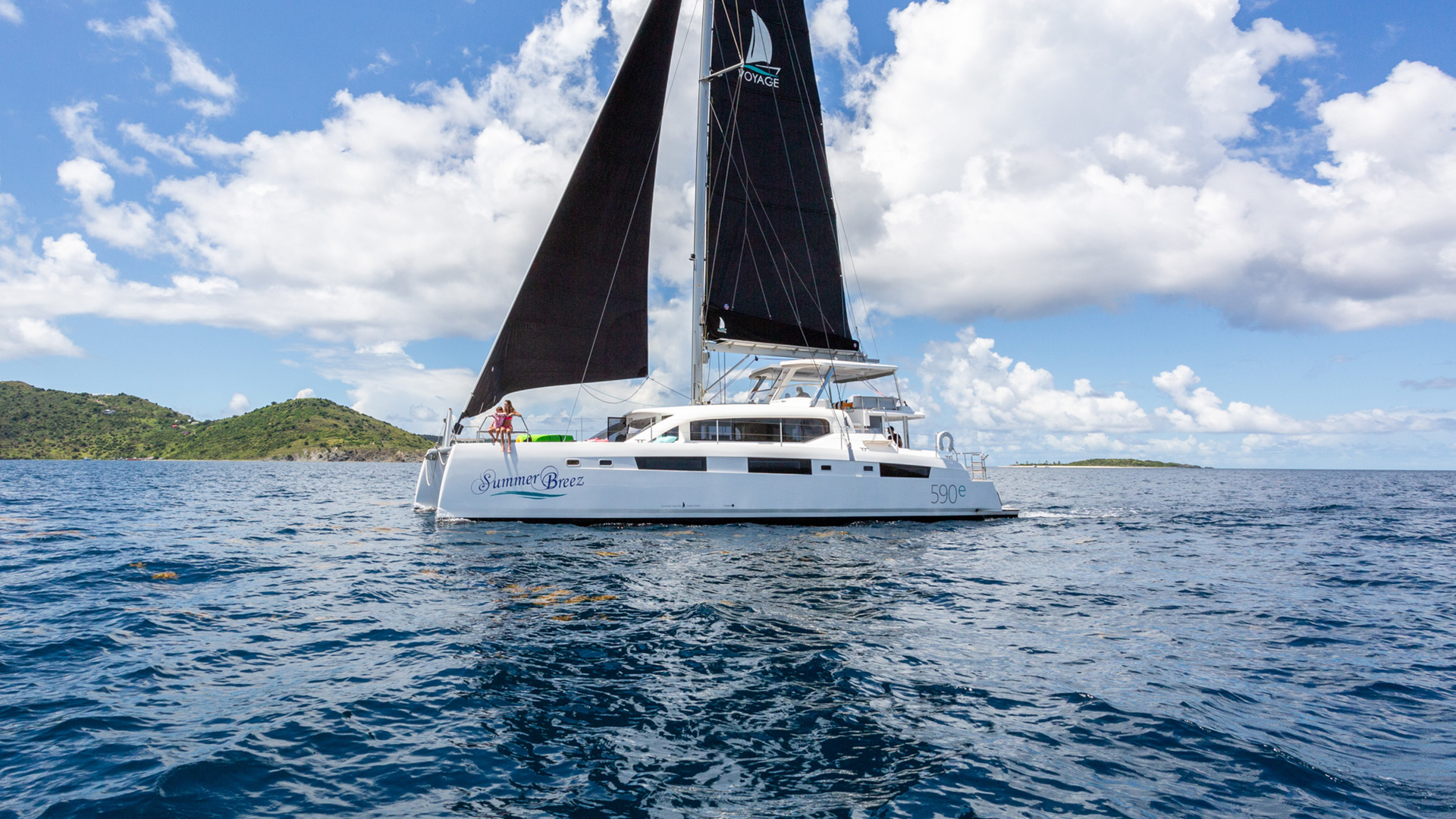

Embark on a VOYAGE

Since 1994 VOYAGE yachts have manufactured luxury, blue-water cruising catamarans in Cape Town, South Africa. Our commitment to high standards and quality craftsmanship have made the entire VOYAGE range sought after by the discerning voyager who knows it’s less about the destination, and more about the VOYAGE.

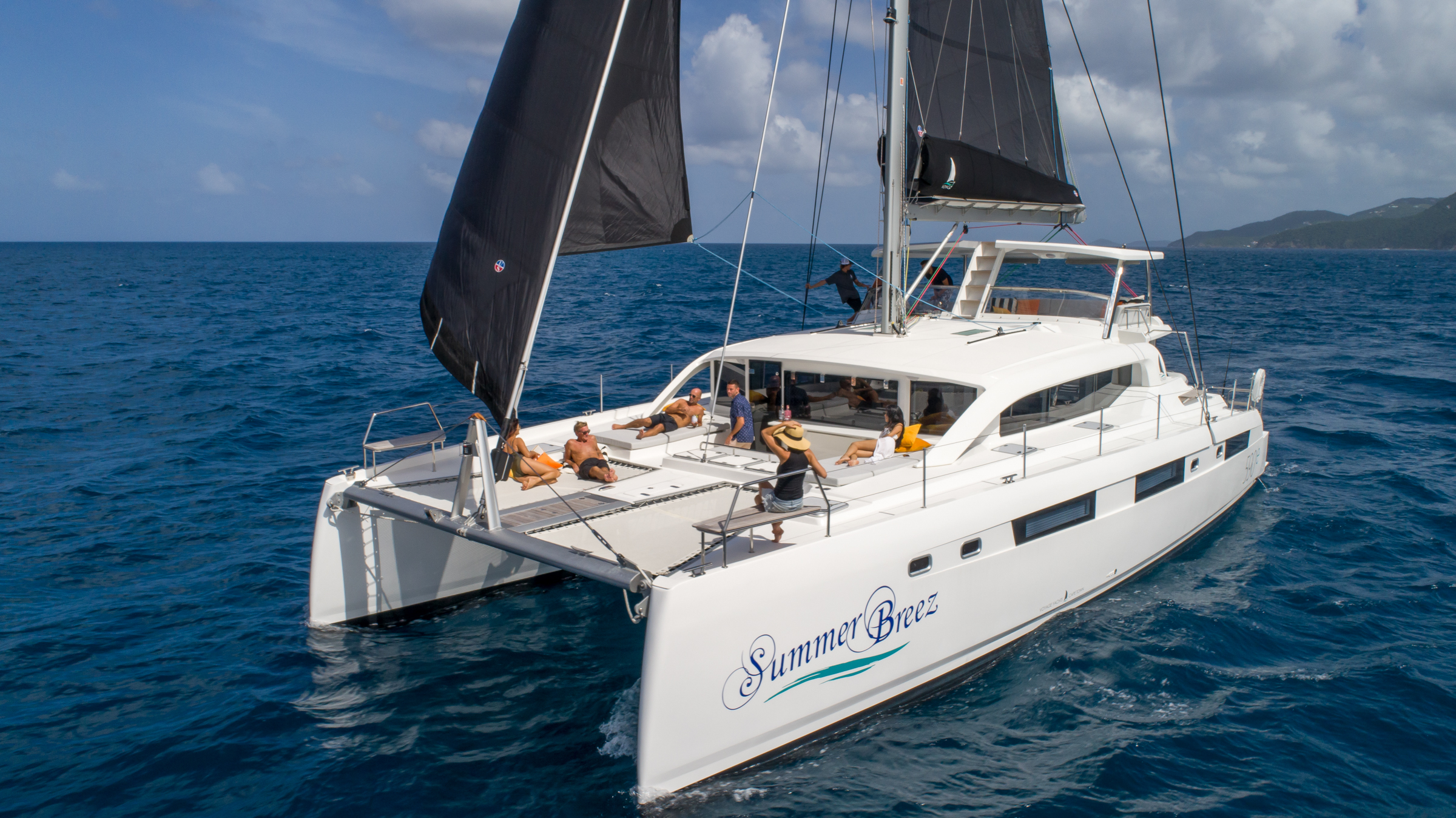

The all new VOYAGE 590 maximizes luxury accommodation and comfort, with the performance and blue-water capability characteristic of all VOYAGE yachts.

Specifications

  • Price$2,199,000
  • LOA17.72m | 58'3"
  • Waterline Length17.61m | 57’ 9”
  • Beam28’ 5”
  • Draft1.59m | 5’ 2”
  • Sail Area202.5 m2 | 2,179 ft2
  • Displacement25,000 kg | 55,121 lbs
  • Power2 x 56kW (75 hp) shaft drive
  • Cruising Speed9 knots
  • Fuel Capacity950L | 250 Gal
  • Water Capacity950L | 250 Gal

[+] More

Hull Deck and Bulkheads

  • Antifouling over epoxy based osmosis barrier
  • Closed cell PVC foam core, vacuum bonded for stiffness, strength and minimal weight
  • Forward water tight compartments with horizontal bulkheads
  • Vacuum infused Vinyl Ester Resin construction using multi layers of Quadriaxial glass roving
  • Polyester white gelcoat molded finish
  • Low aspect reinforced keels.
  • Reinforced fitting areas for cleats and chain plates
  • Spade rudders with stainless steel rudder shafts

[+] More

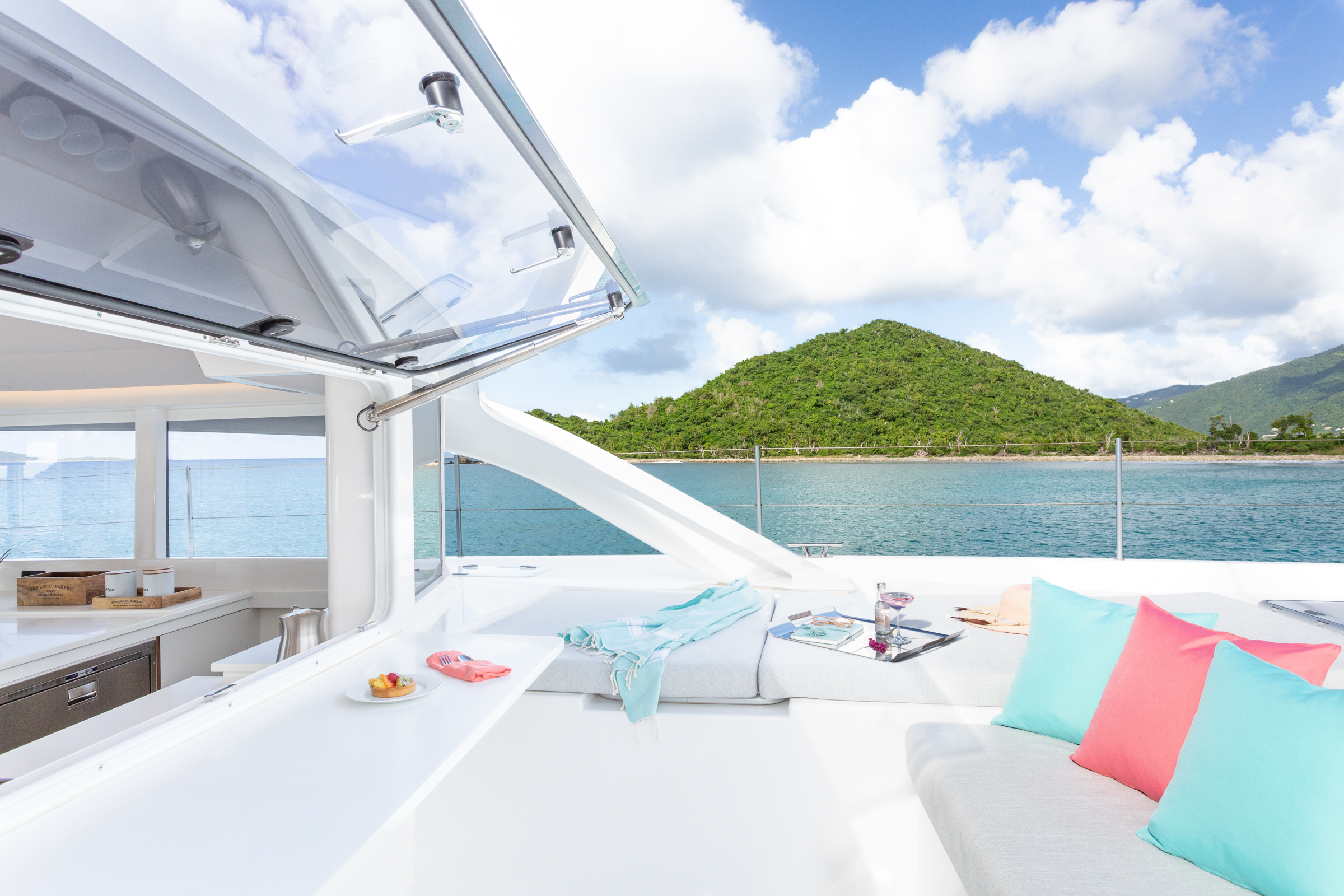

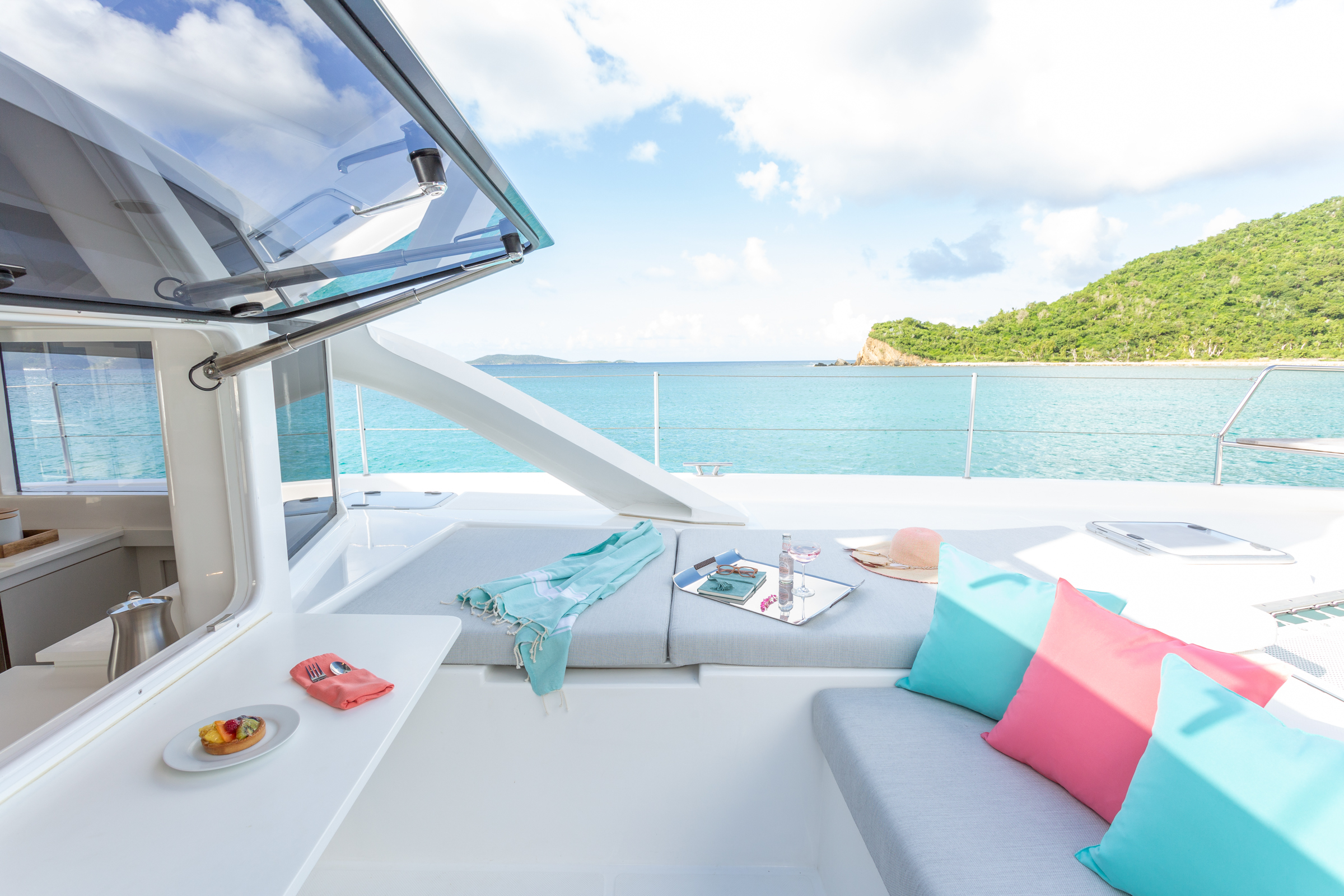

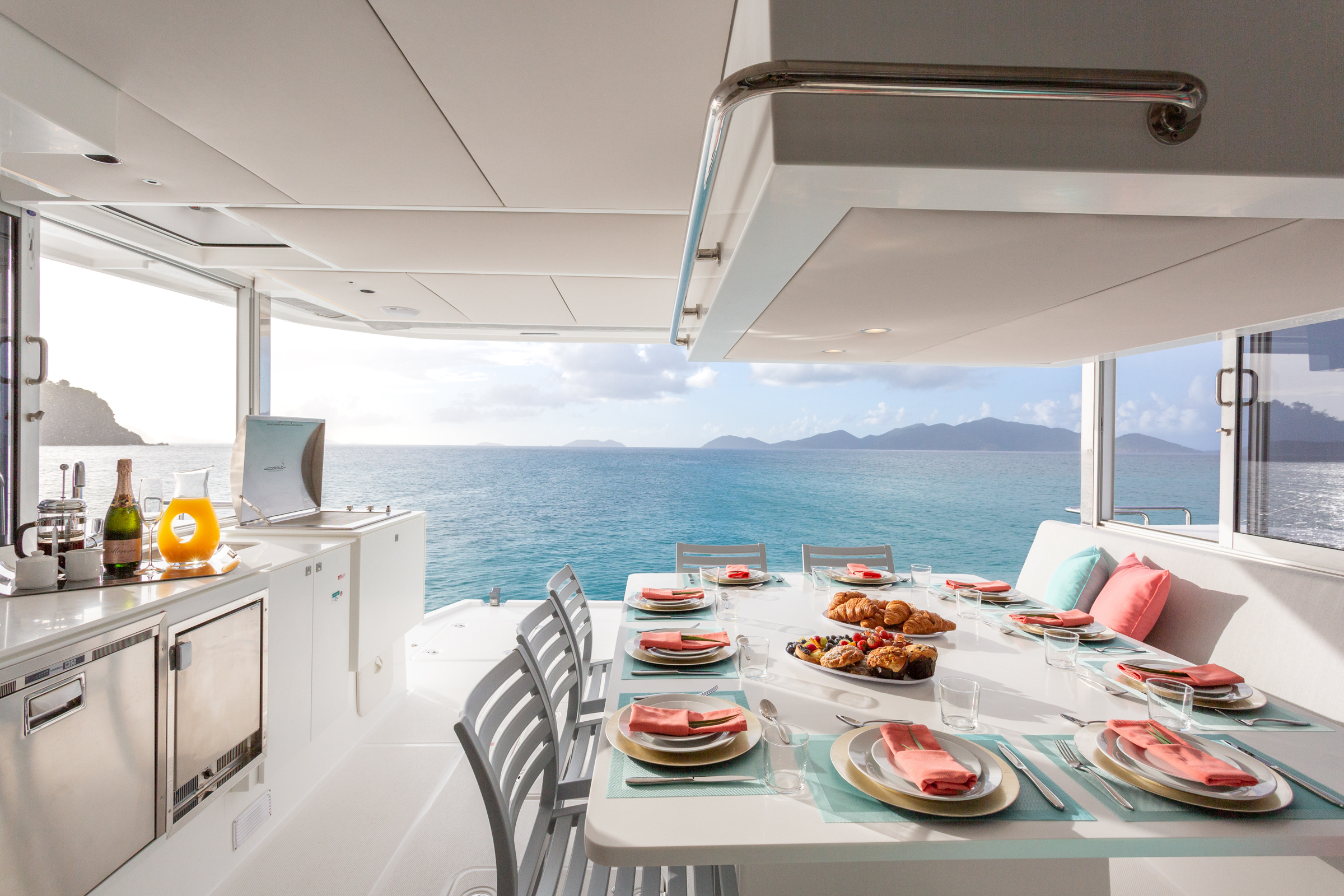

Deck Layout

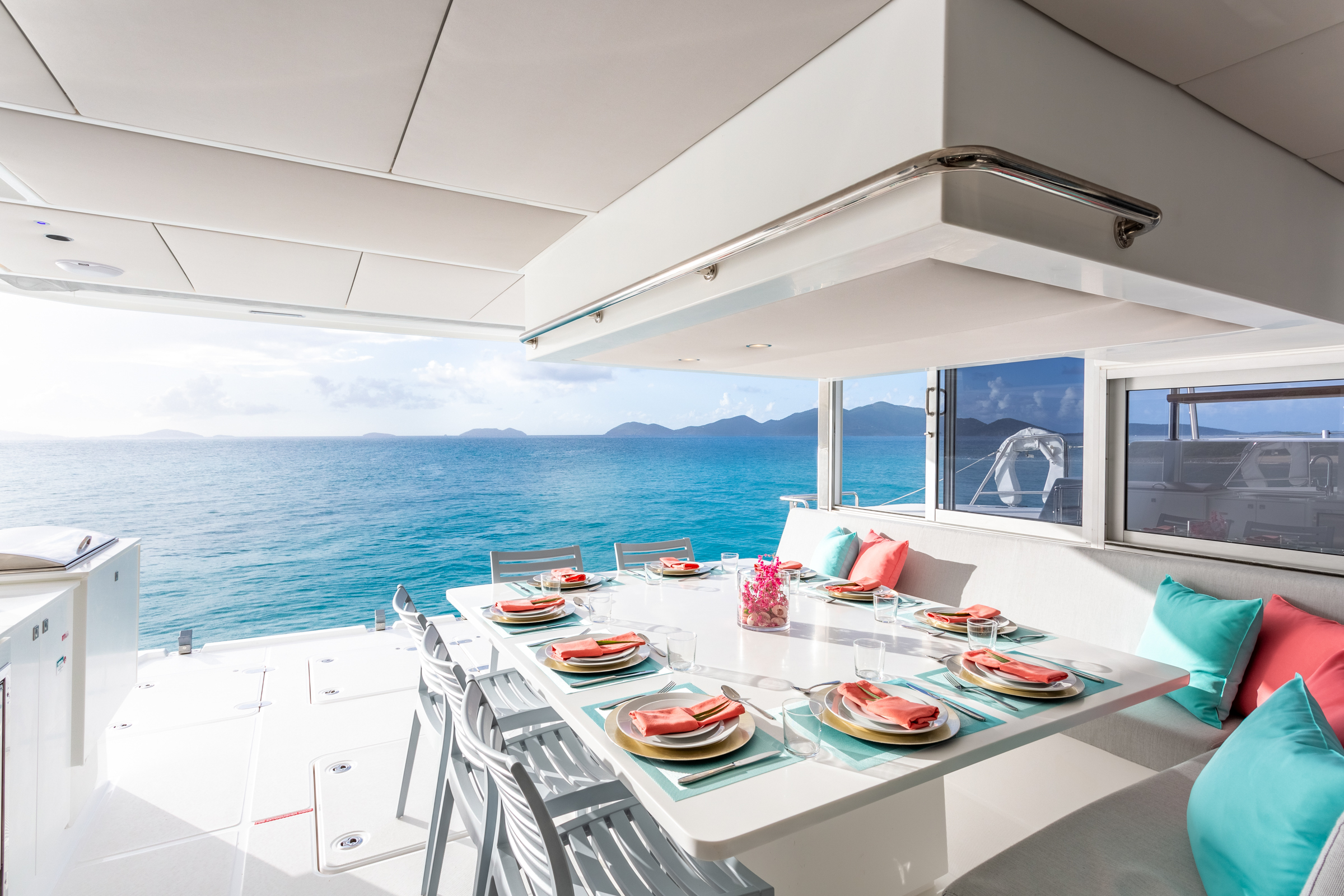

  • GRP Cockpit table and chairs with exterior upholstery, seating and dinning for 12
  • Prep-basin with pressurized hot and cold water
  • Built into the countertop, propane BBQ
  • VITRIFRIGO drawer fridge
  • Sliding glass side doors for rain protection
  • Dive/snorkel gear lockers Port & Starboard
  • Front door access to salon
  • GRP Cockpit counter with chairs

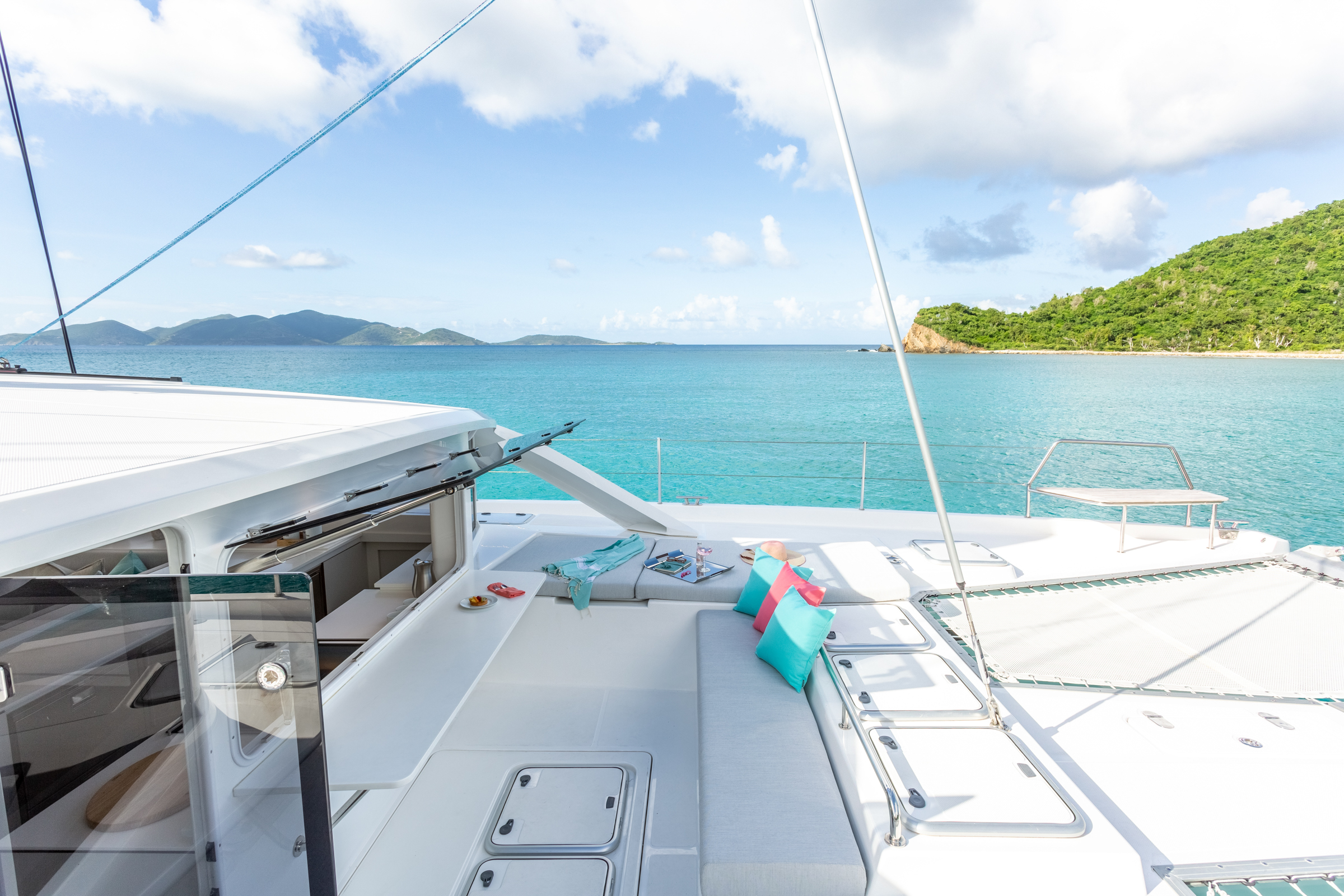

  • Upholstered seating & sunbeds
  • Front window lift up
  • Storage lockers with GRP lids

[+] More

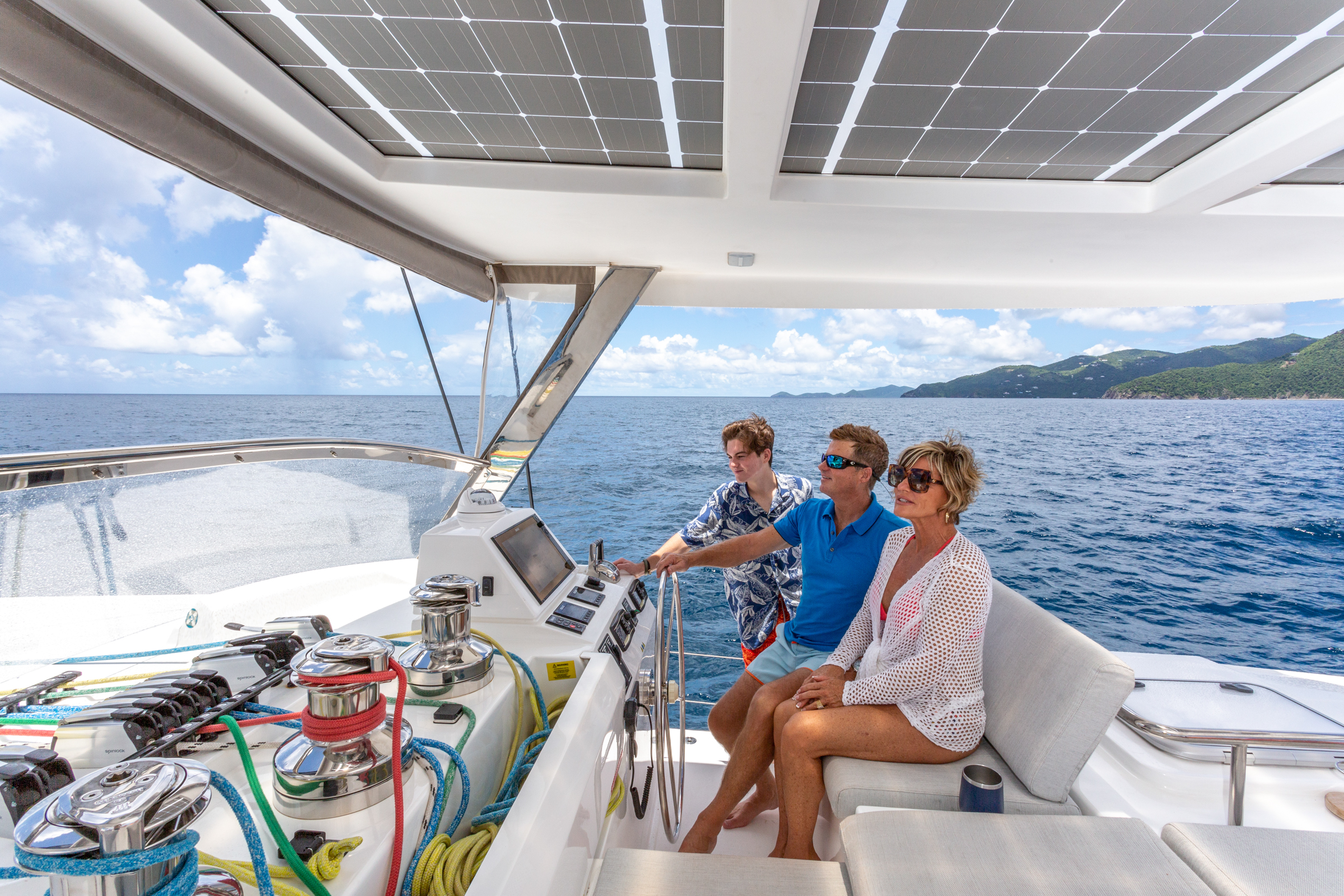

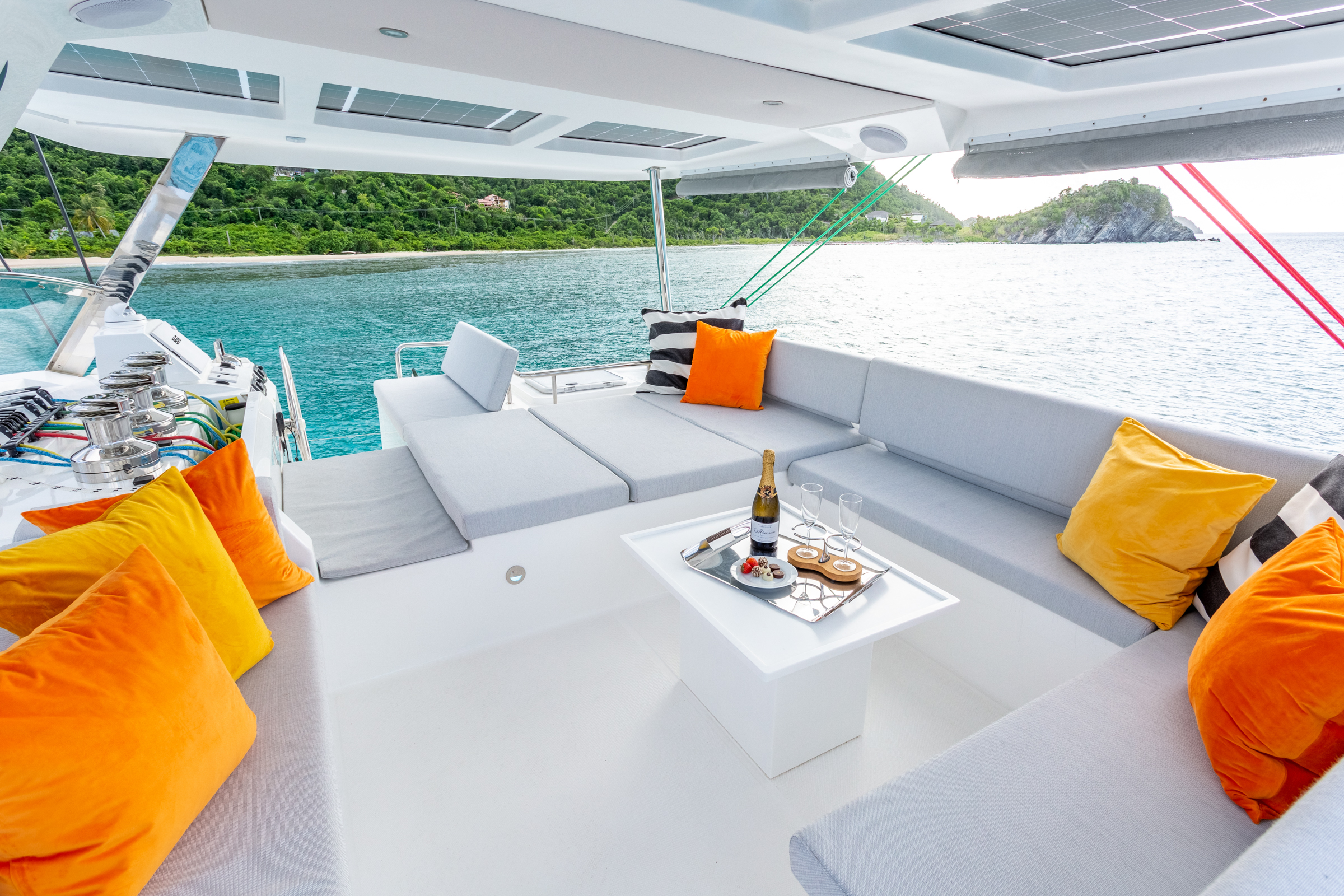

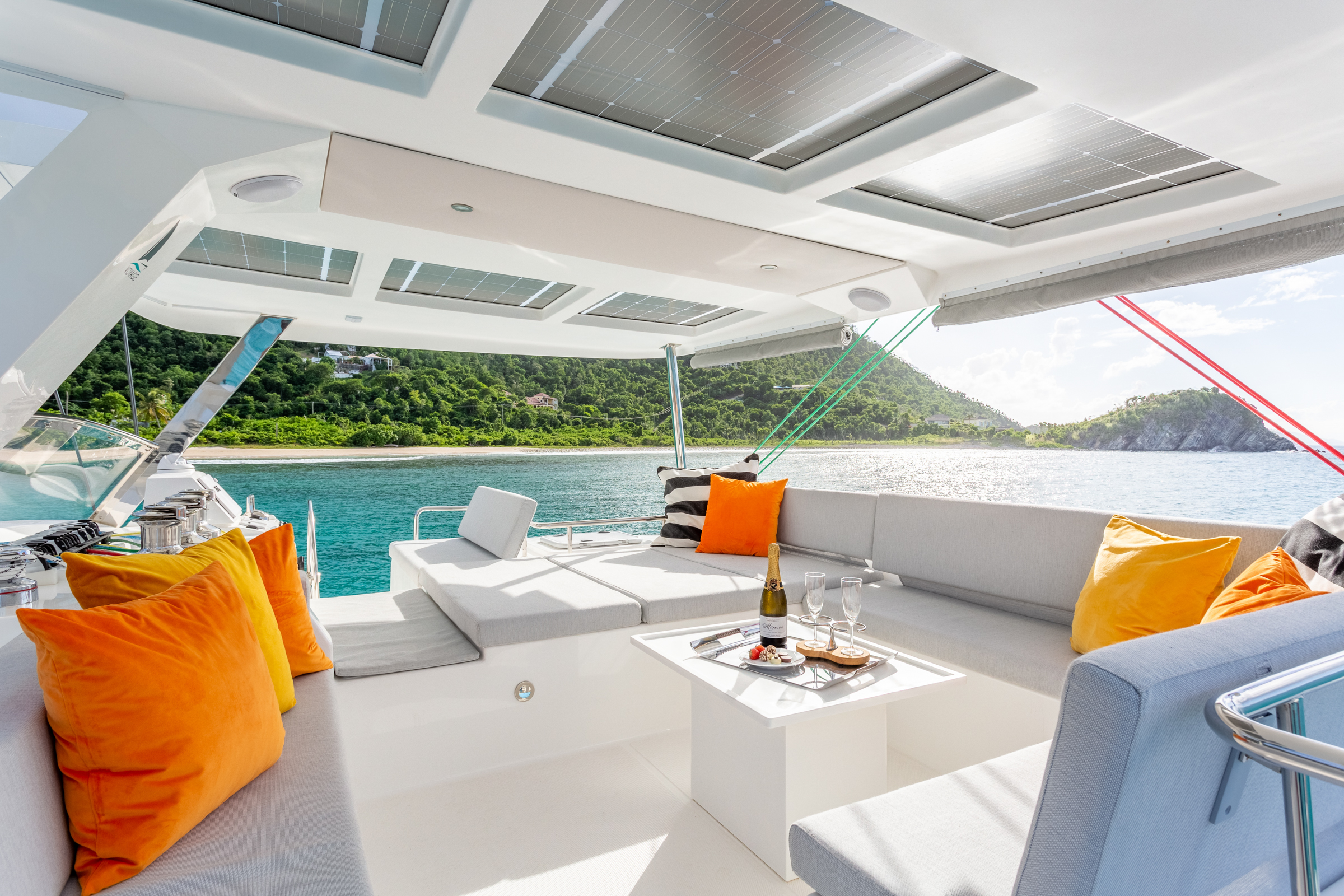

Flybridge

  • Access Port or Starboard
  • Upholstered seating for 8 & large sunbed
  • Stainless Steel grab rails
  • Sheet and utility pouches
  • Storage lockers with GRP lids
  • Helm Station starboard, double helmsman seat, instrument console, windshield, stainless steering wheel

[+] More

Engine Equipment

  • YANMAR 75HP Diesels
  • Duplex stainless steel prop shafts with stern tubes
  • Fixed, 3-Blade propellers

[+] More

Electrics

  • US 240VAC/120VAC/60Hz split-phase supply (L1/L2/N).
  • 50A/240V shore cable socket
  • Battery isolator switches
  • BLUE SEA circuit breaker panel
  • Forward, Fly bridge and Aft Cockpit lights
  • VICTRON 5 kW inverter charger
  • 24V house bank VICTRON. 600-amp hour (14Kw)

[+] More

The ultimate, luxury sailing catamaran offers exceptional accommodations integrated in beautiful hulls beneath a perfect sail plan. This charter yacht will leave you wanting to come back again and again...

Voyage 590

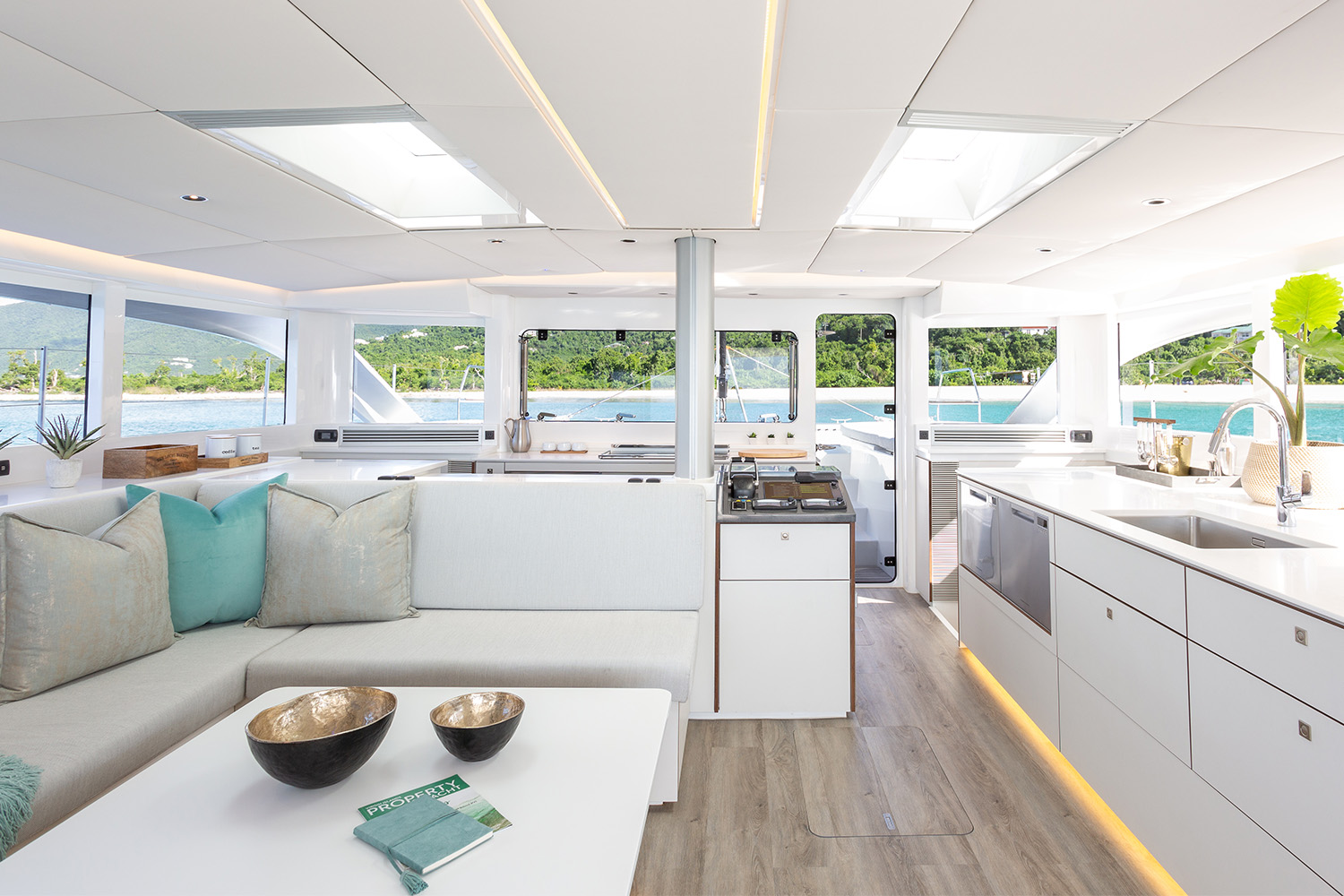

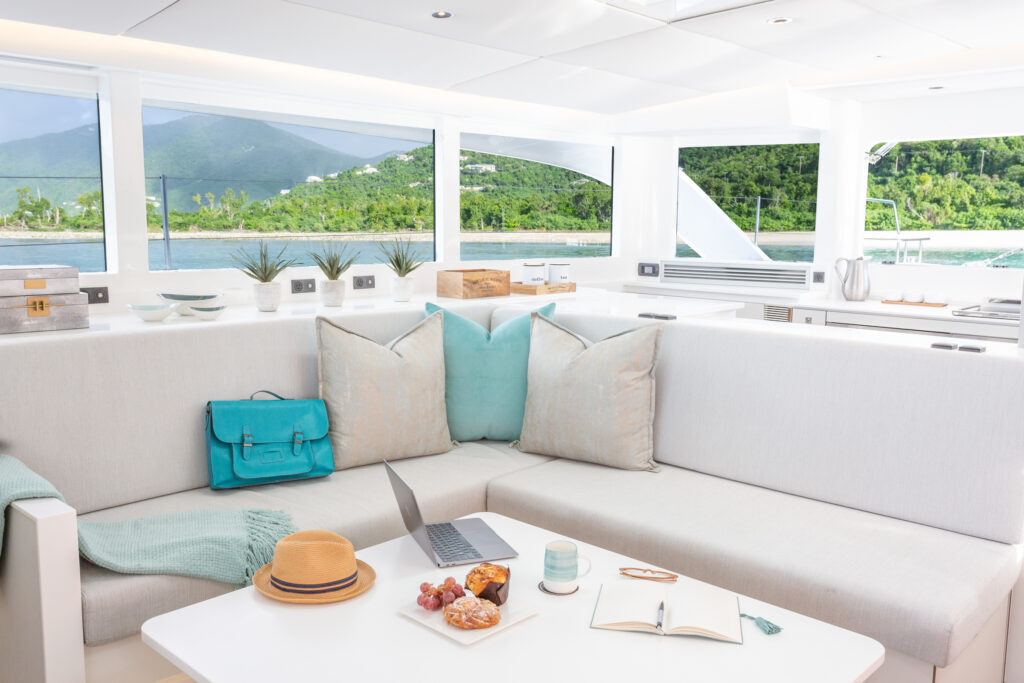

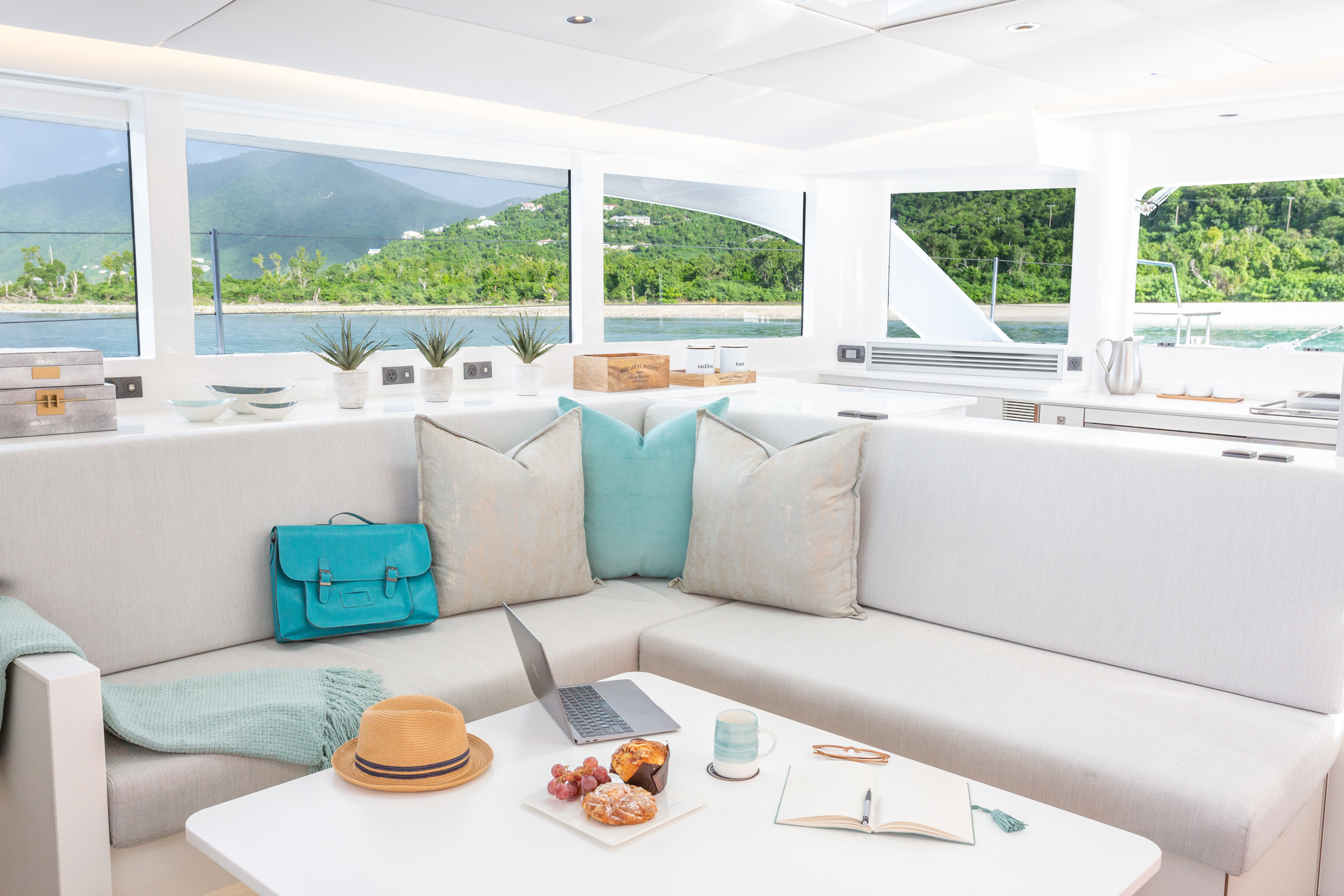

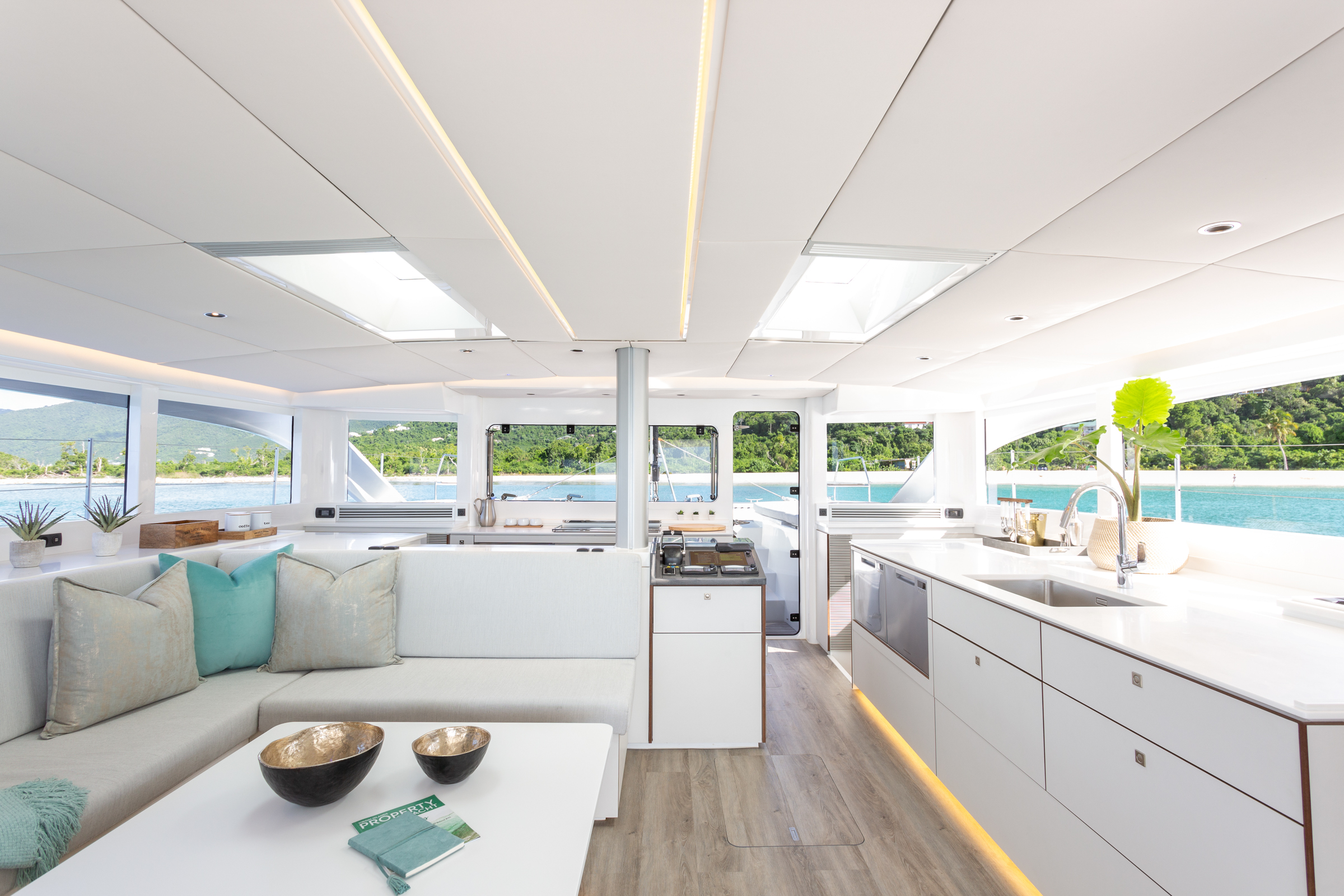

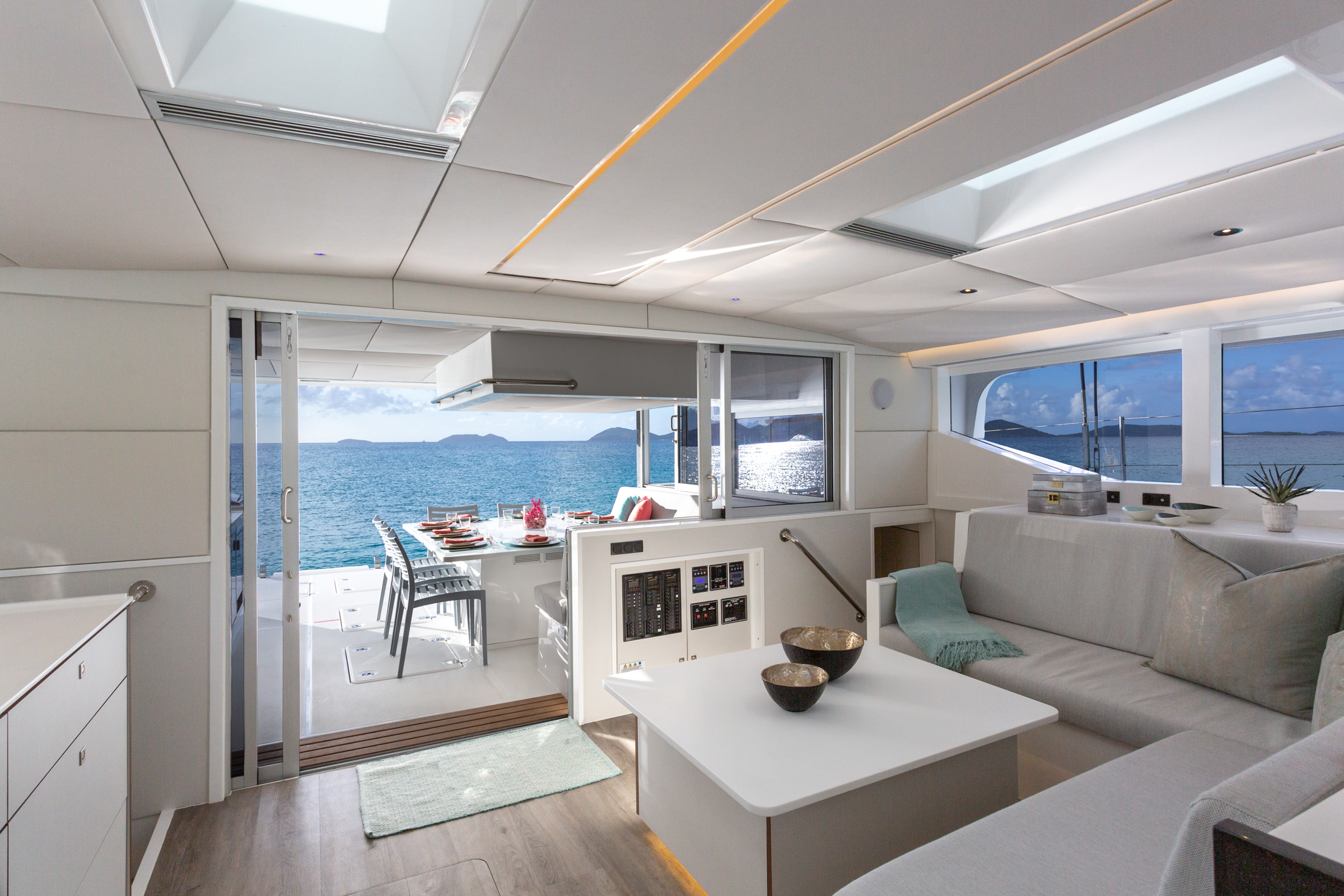

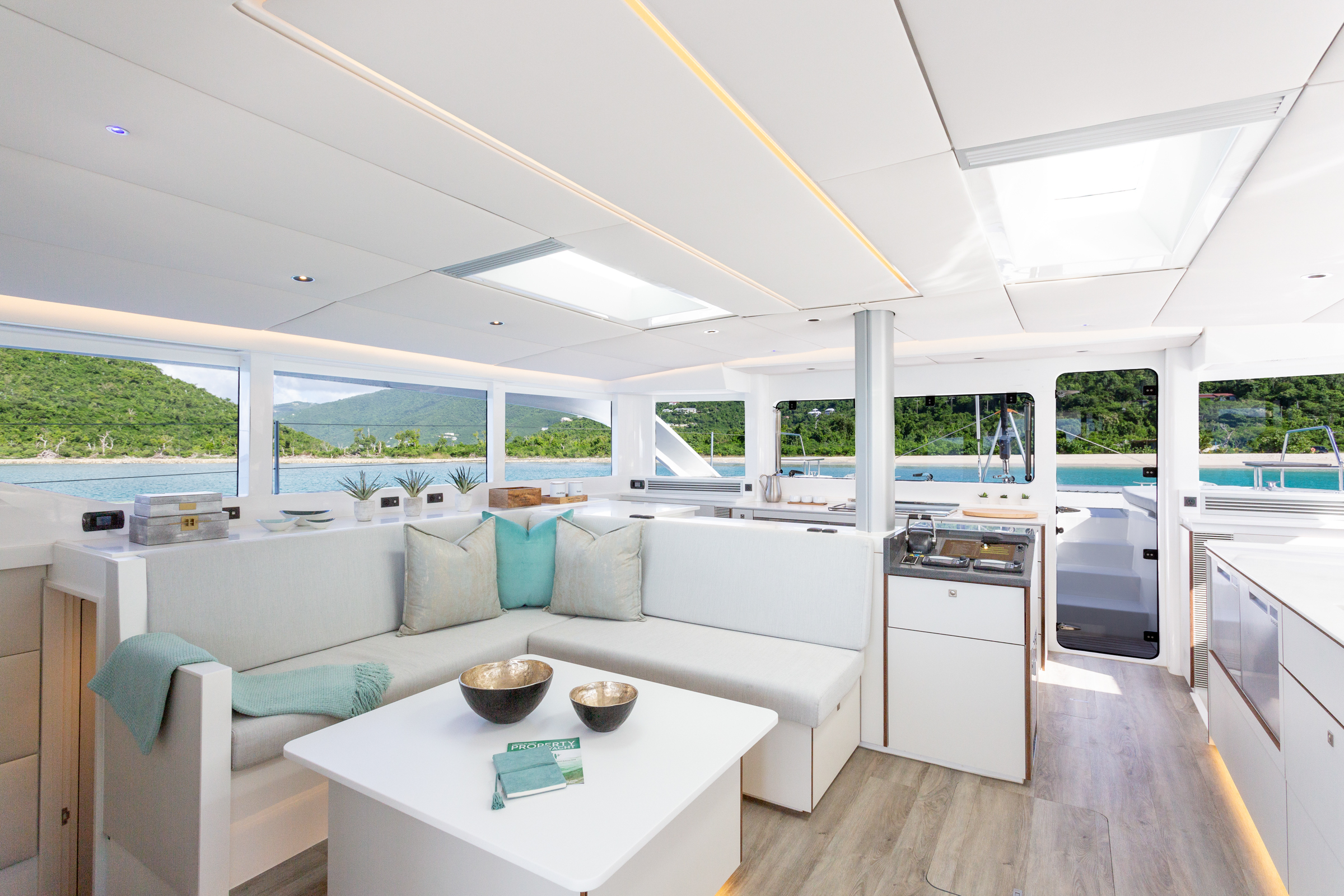

Main Salon

  • Acrylic Corian type surfaces
  • Synthetic hardwearing furniture
  • Flooring in hard wearing Vinyl
  • Headliner with ambient lighting
  • Faux leather upholstered settee
  • Counter with drawers
  • Saloon coffee table with seating for 6
  • Standing height throughout 2.1 to 1.9 m
  • 110v outlets
  • Double USB outlets

[+] More

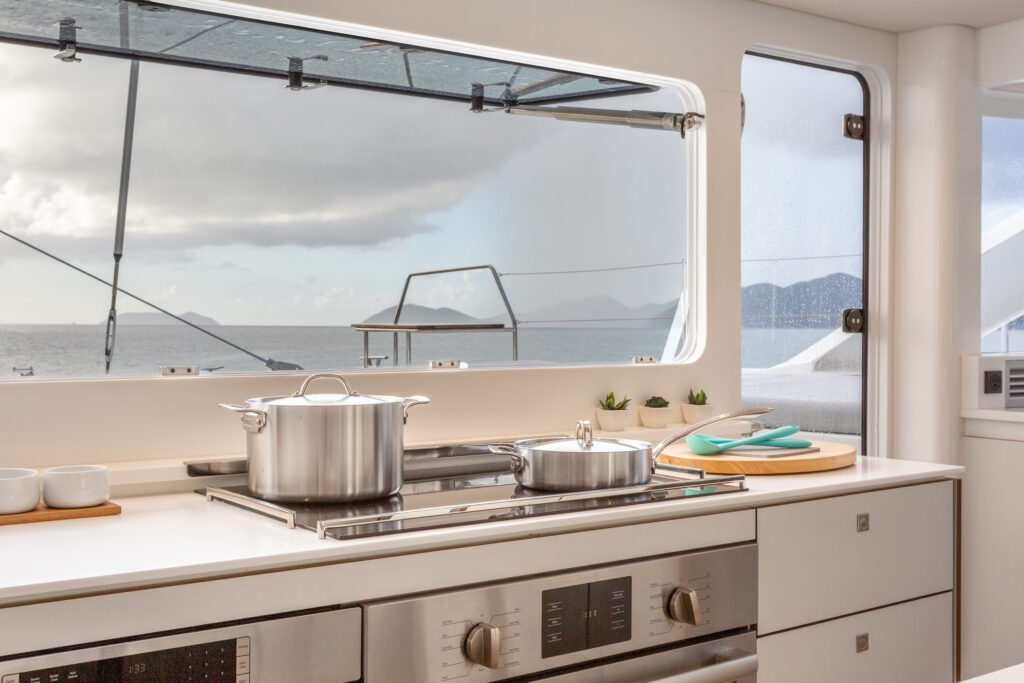

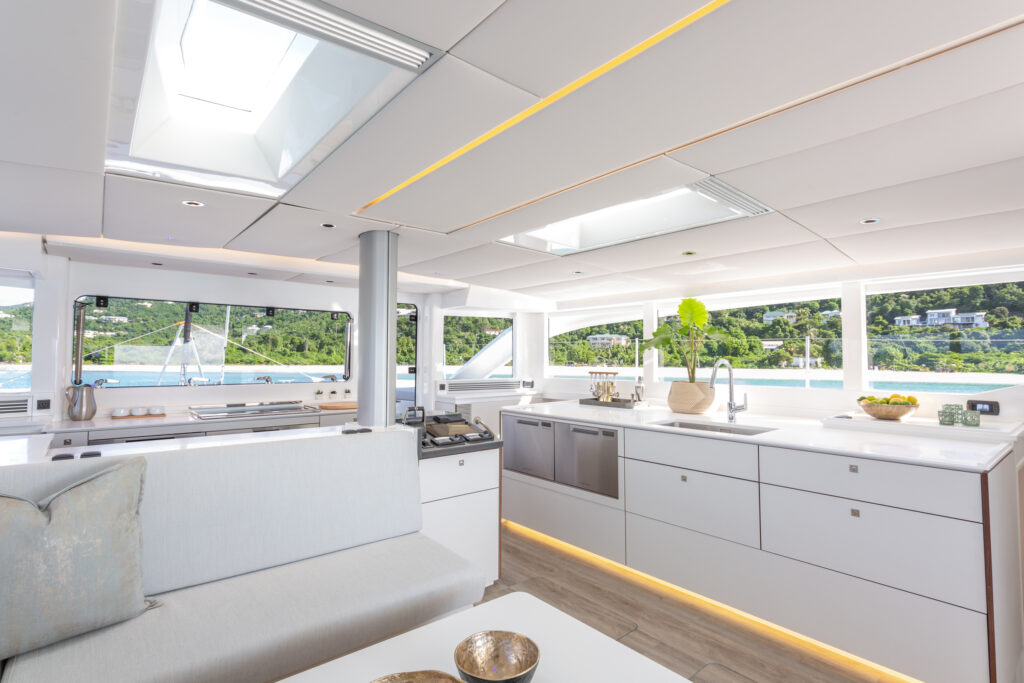

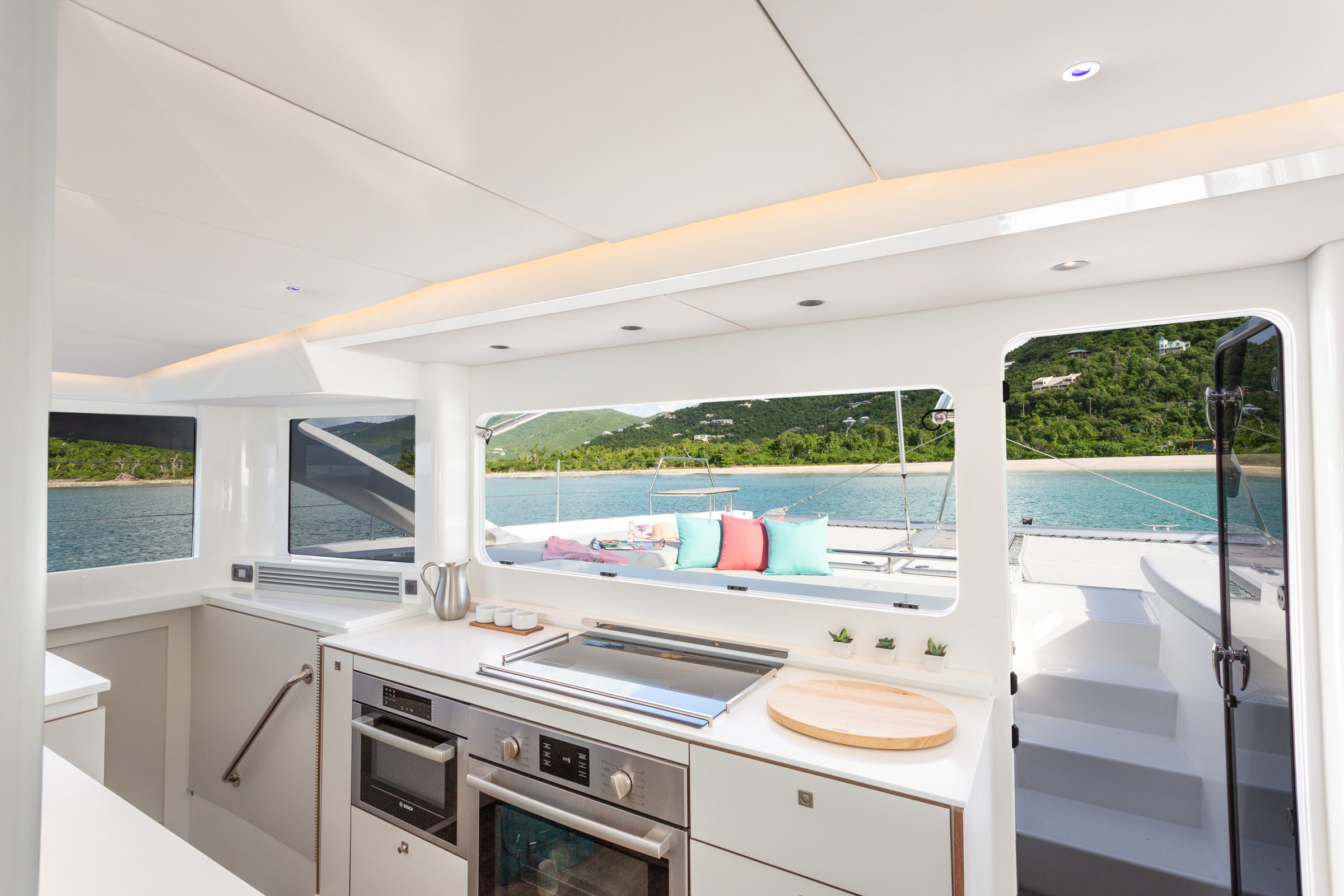

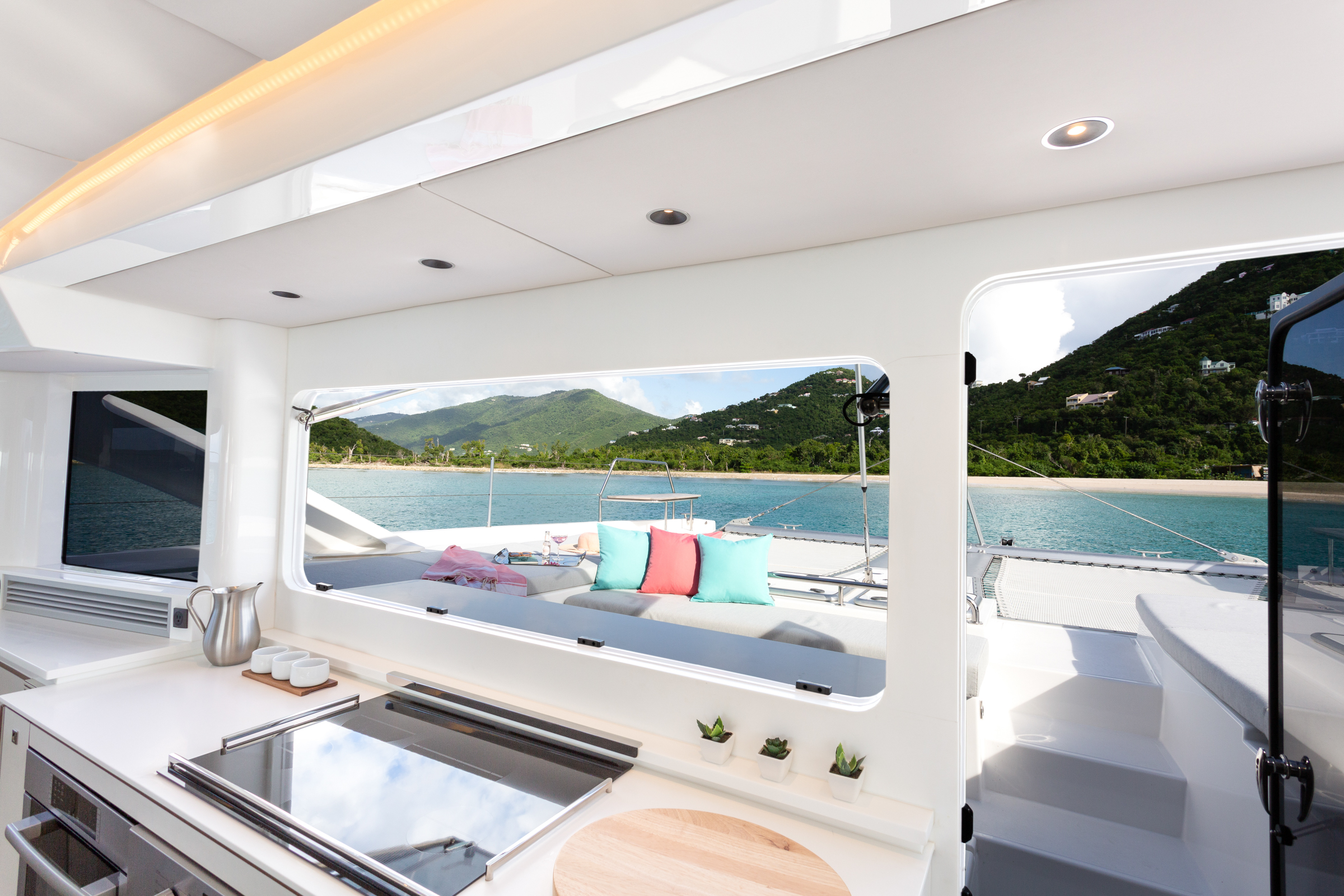

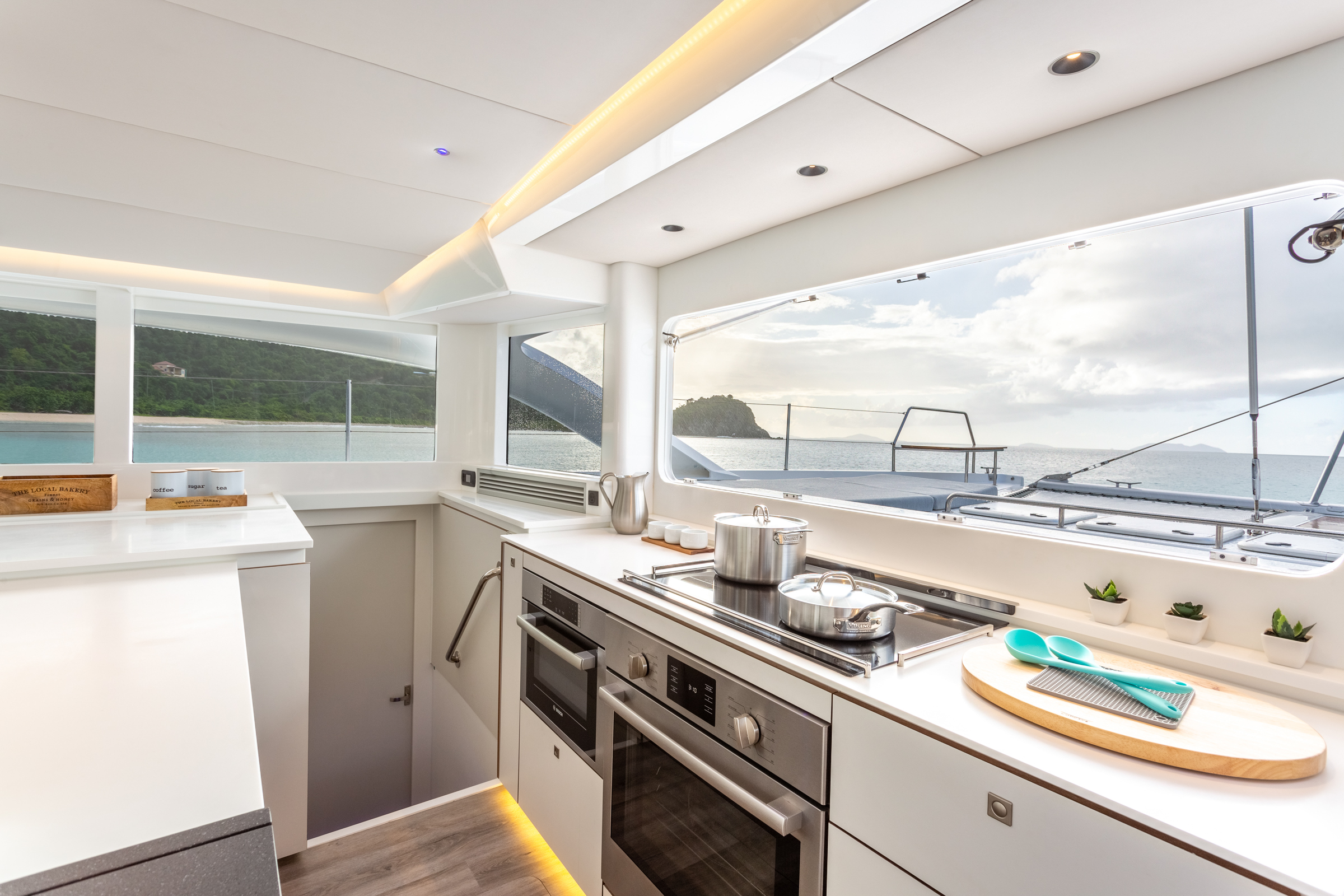

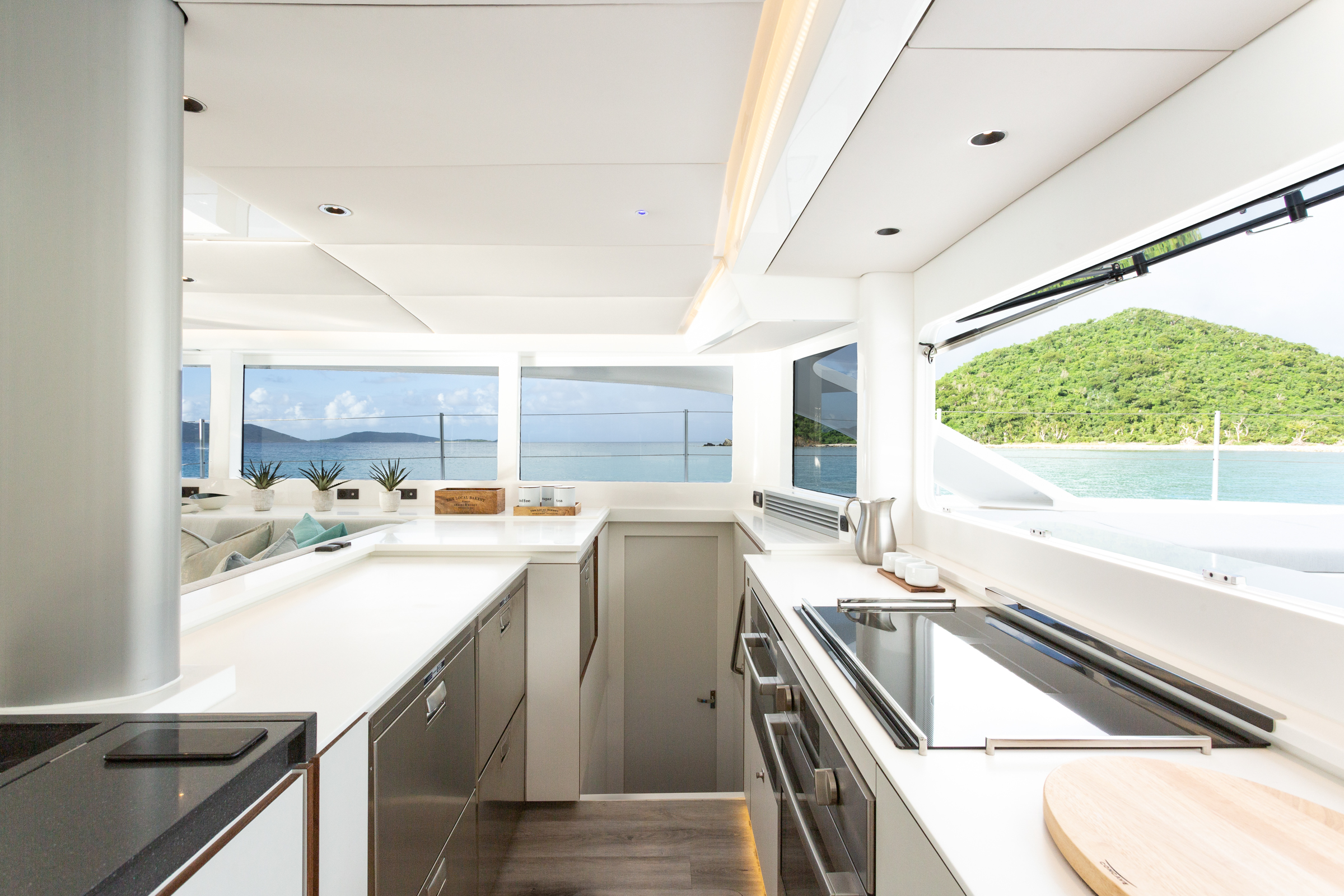

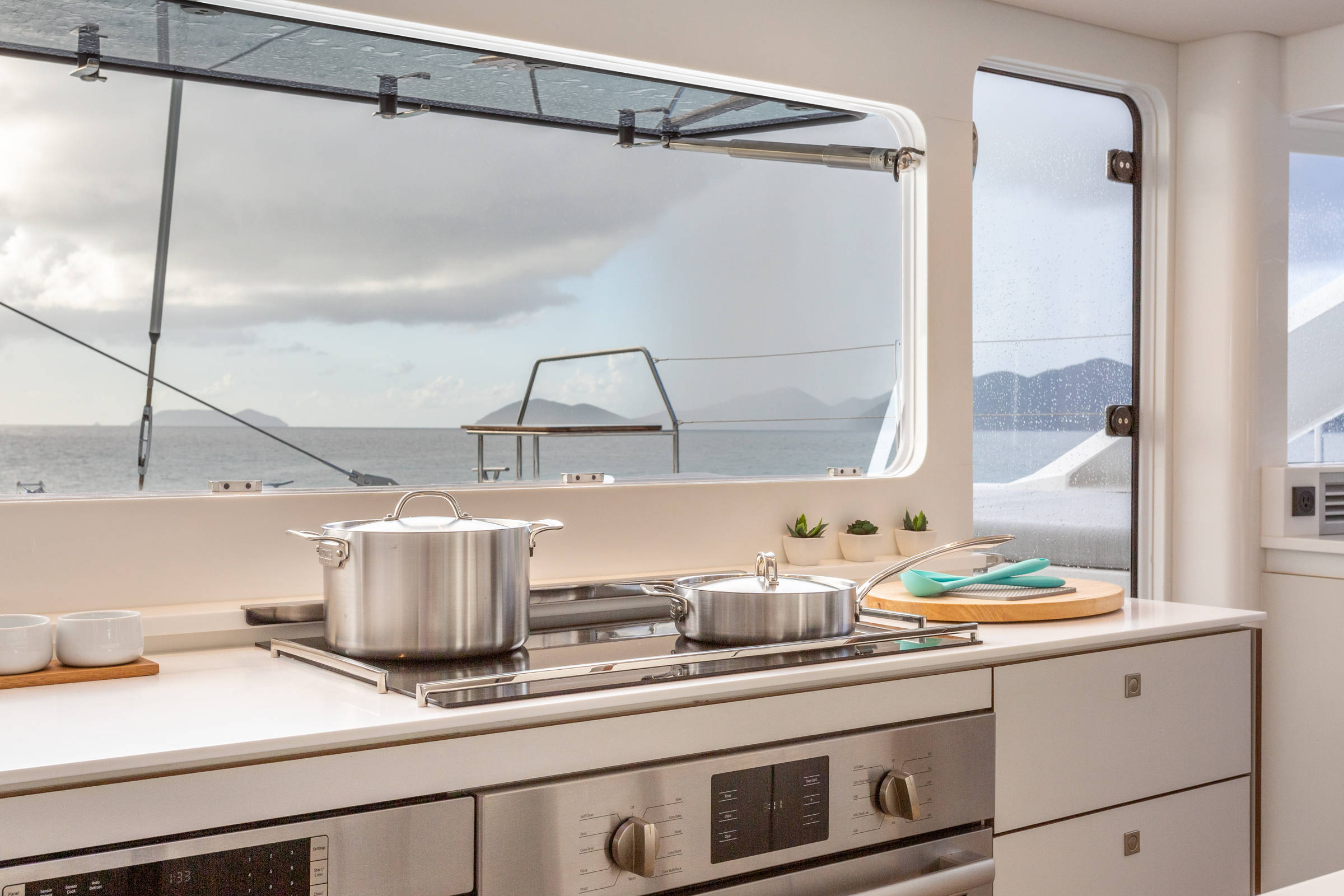

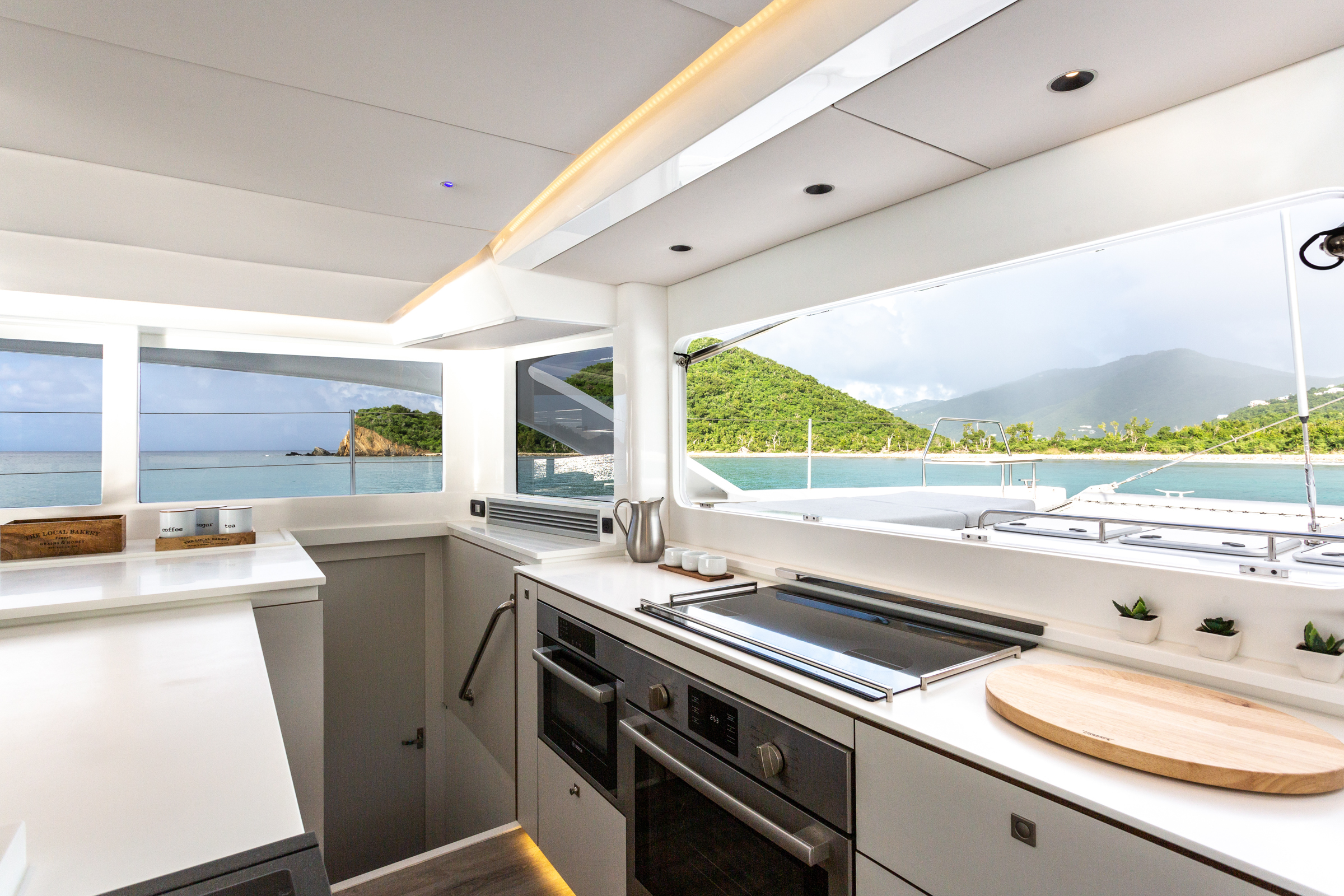

Galley

  • Acrylic Corian type work surfaces with stainless steel rails
  • Synthetic hardwearing furniture
  • Flooring in hard wearing Vinyl
  • Galley front facing window opening to forward cockpit bar seating
  • Gourmet Bosch electric Stainless Steel oven with rotisserie
  • Gourmet Bosch propane Stainless Steel cooktop
  • Cutlery and crockery drawers
  • Headliner with ambient lighting
  • Large recessed drip-tray for galley sink
  • Large working areas
  • Pressurized hot and cold water
  • Stainless steel waste chute with covers
  • Stainless steel double sink
  • Double VITRIFRIGO Drawer refrigerator 24V
  • Double VITRIFRIGO Drawer Freezer 24V
  • 110V outlets

[+] More

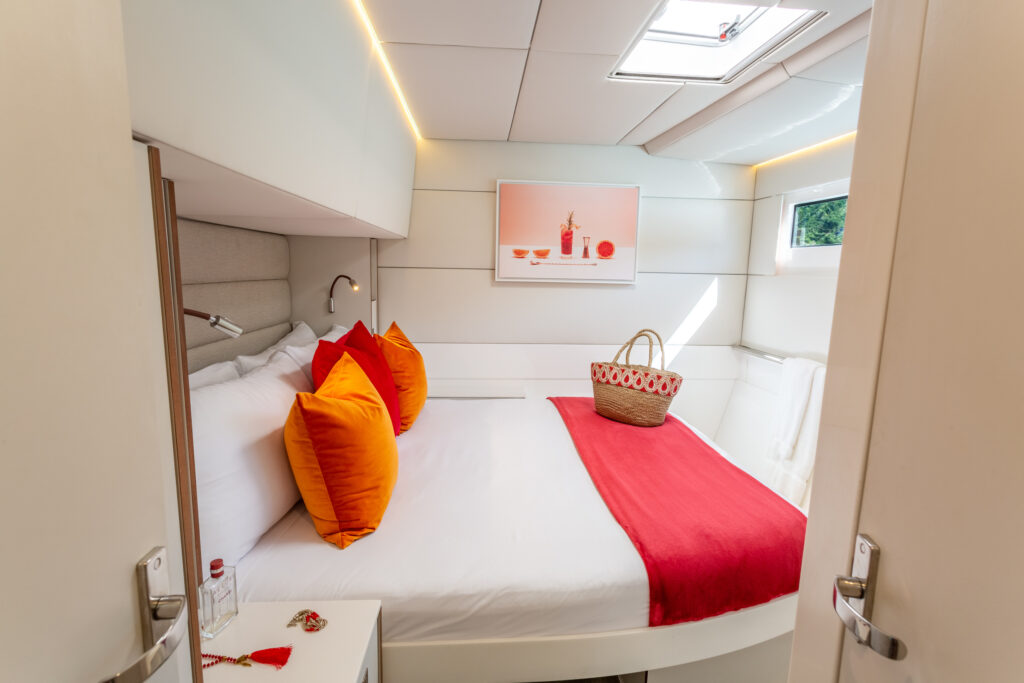

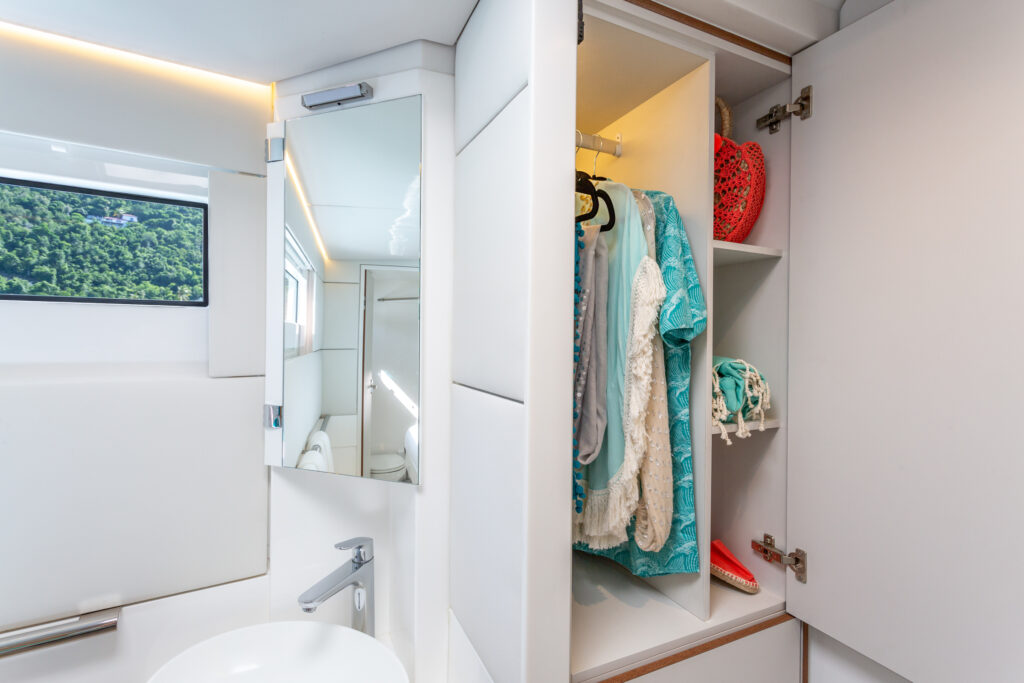

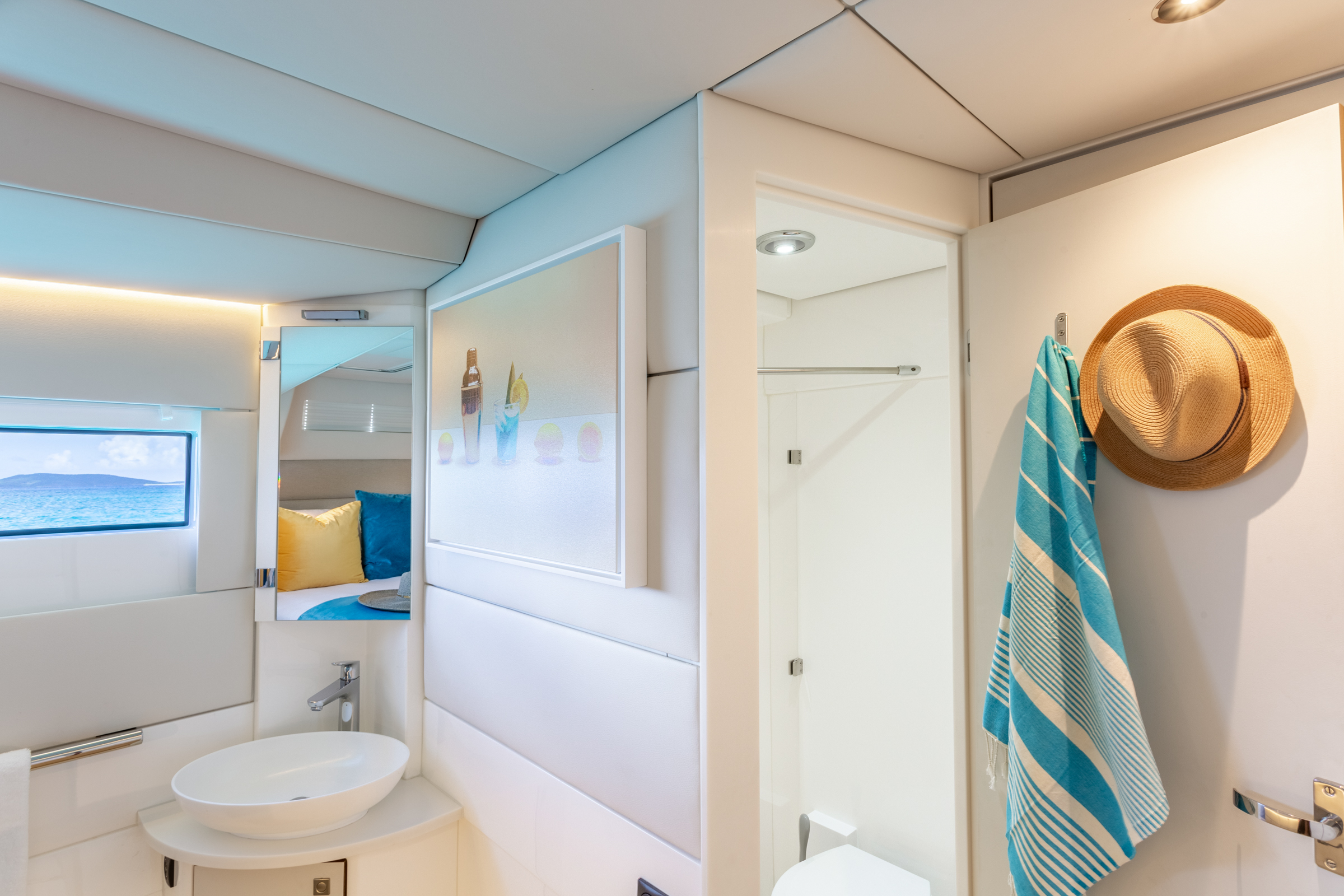

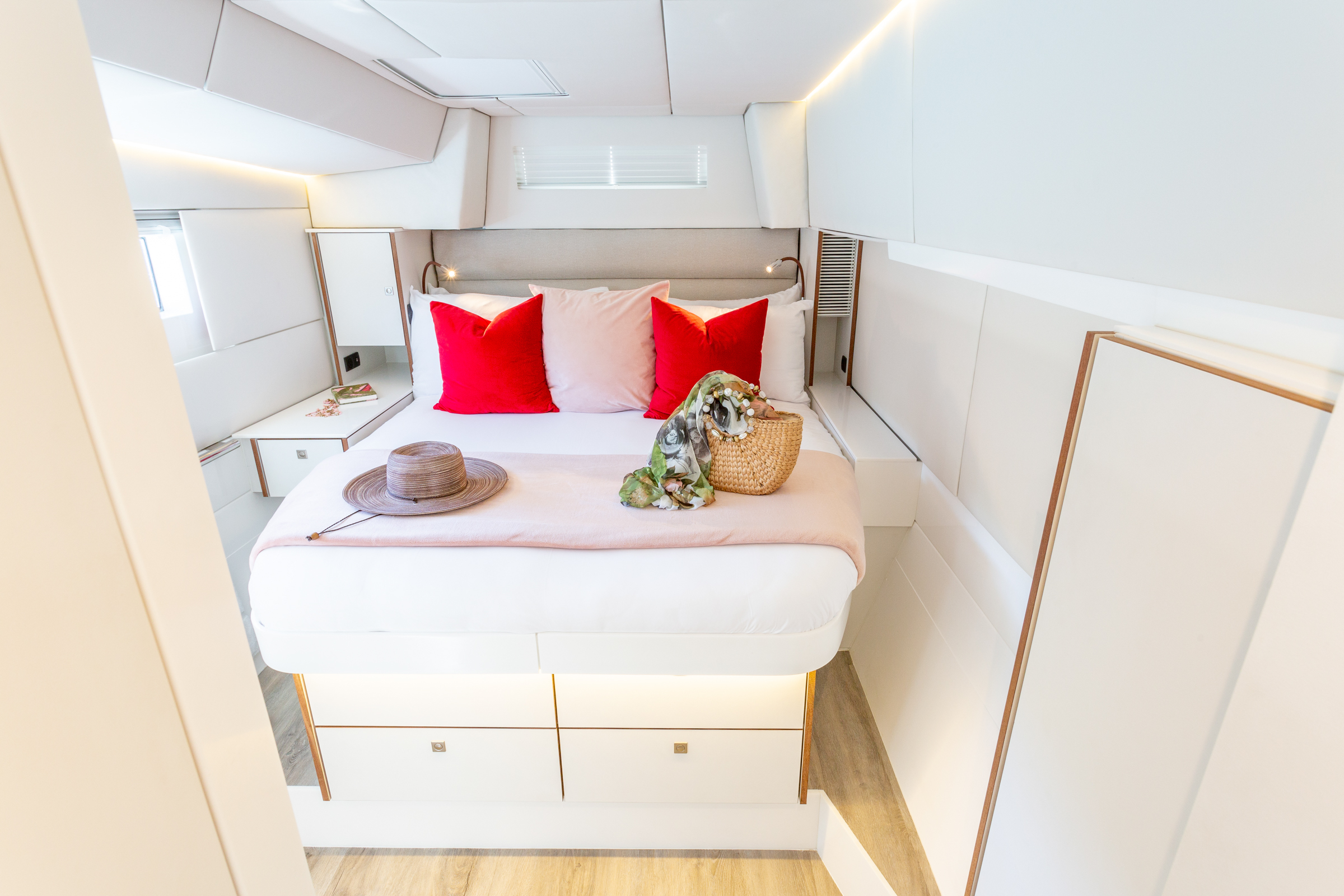

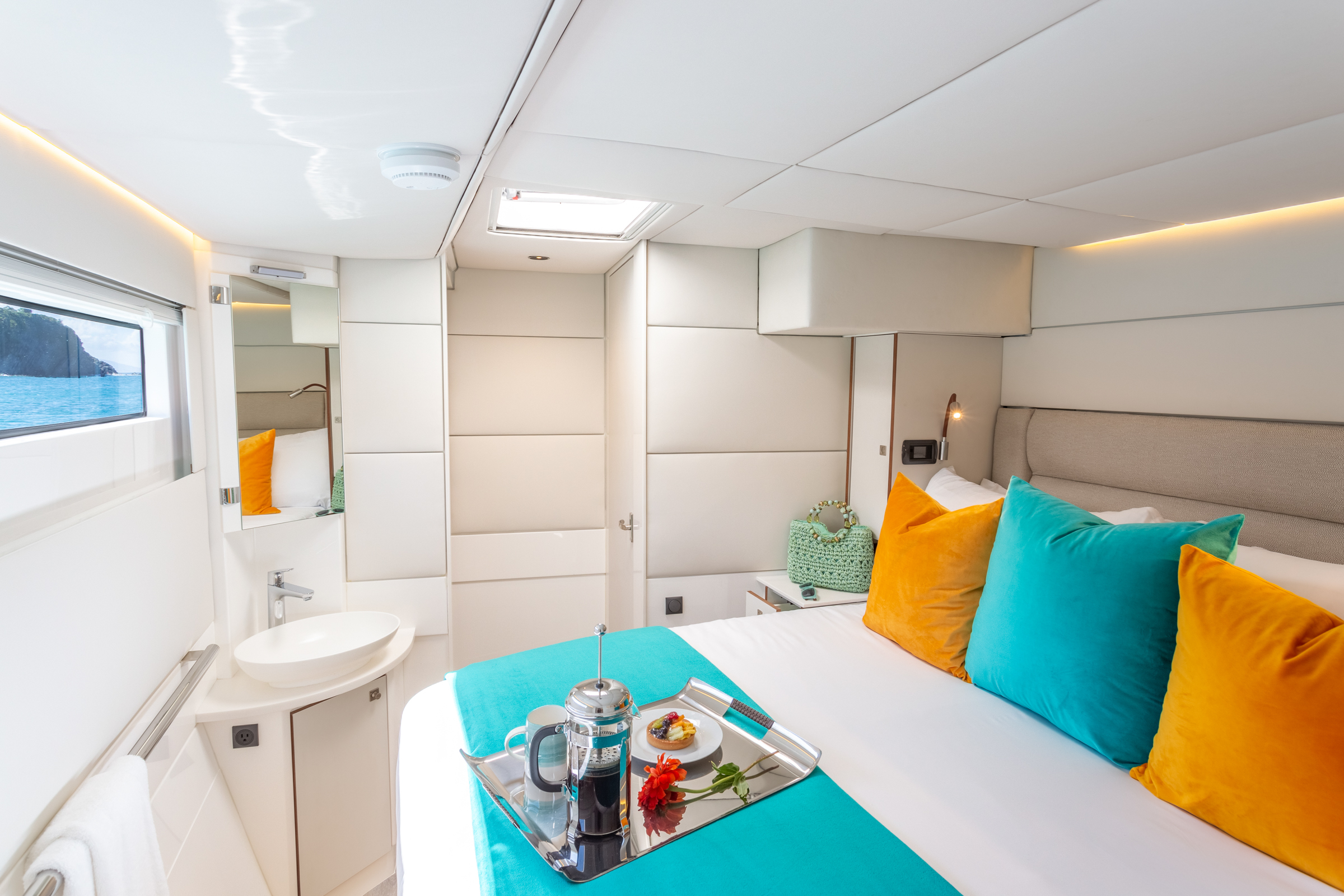

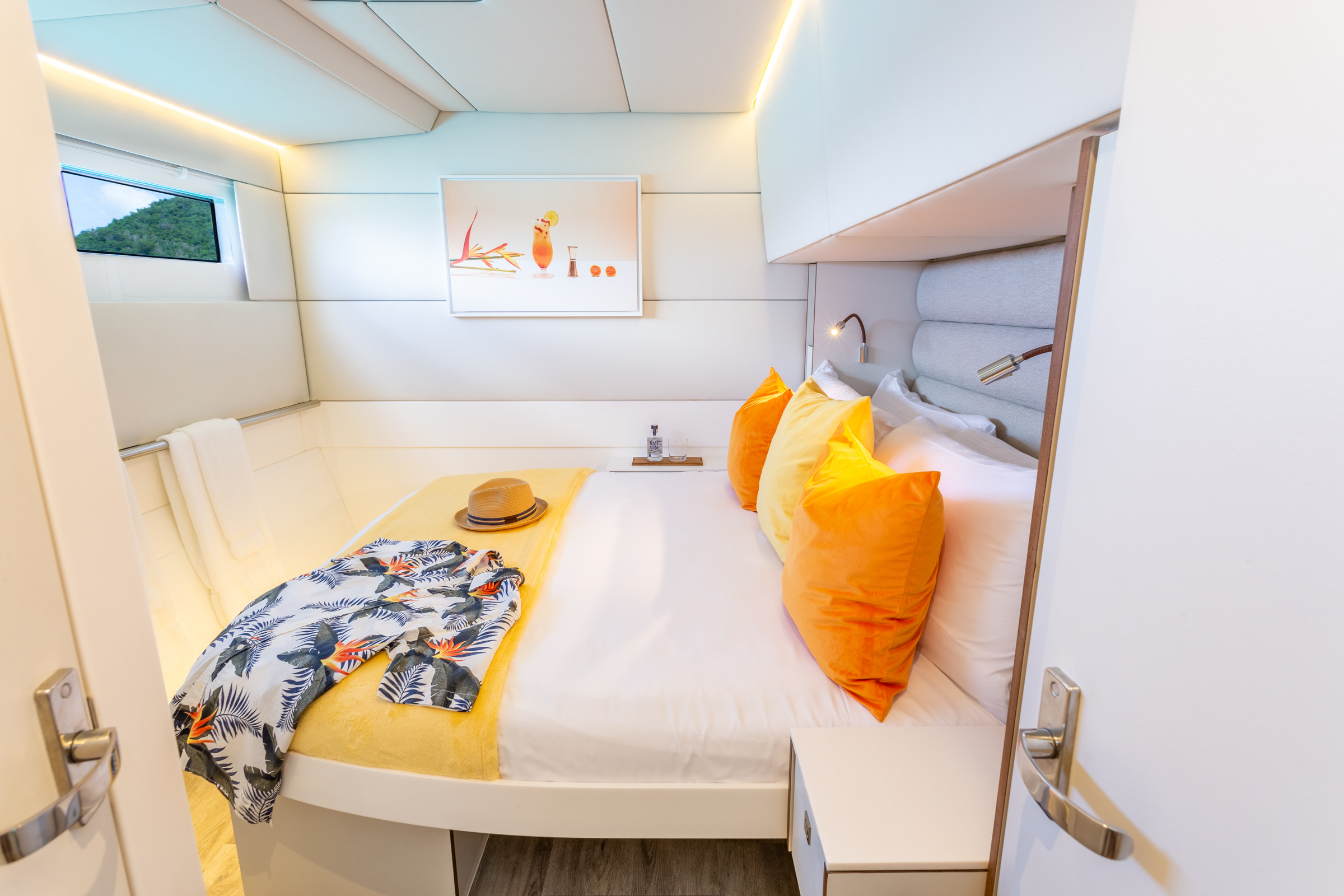

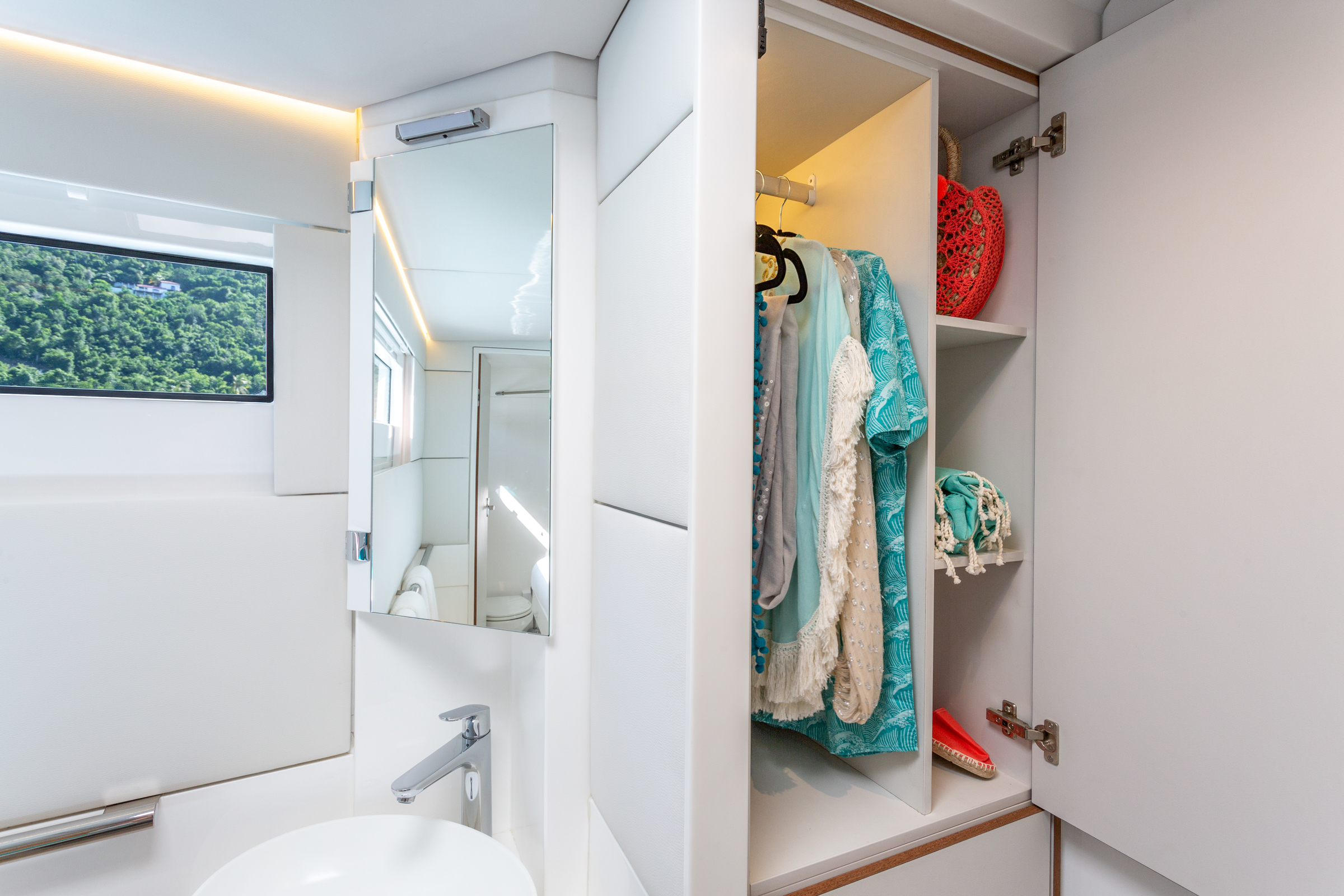

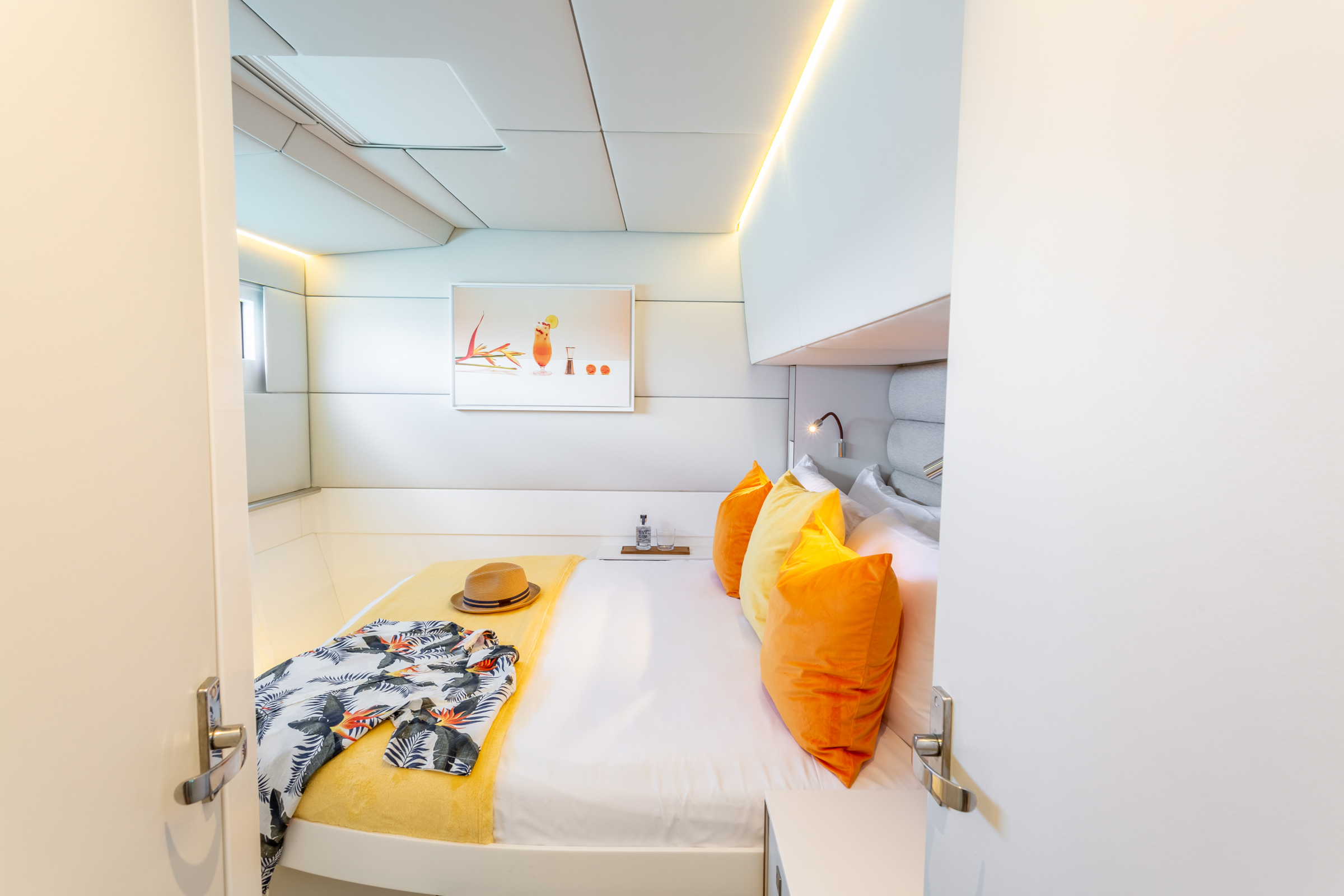

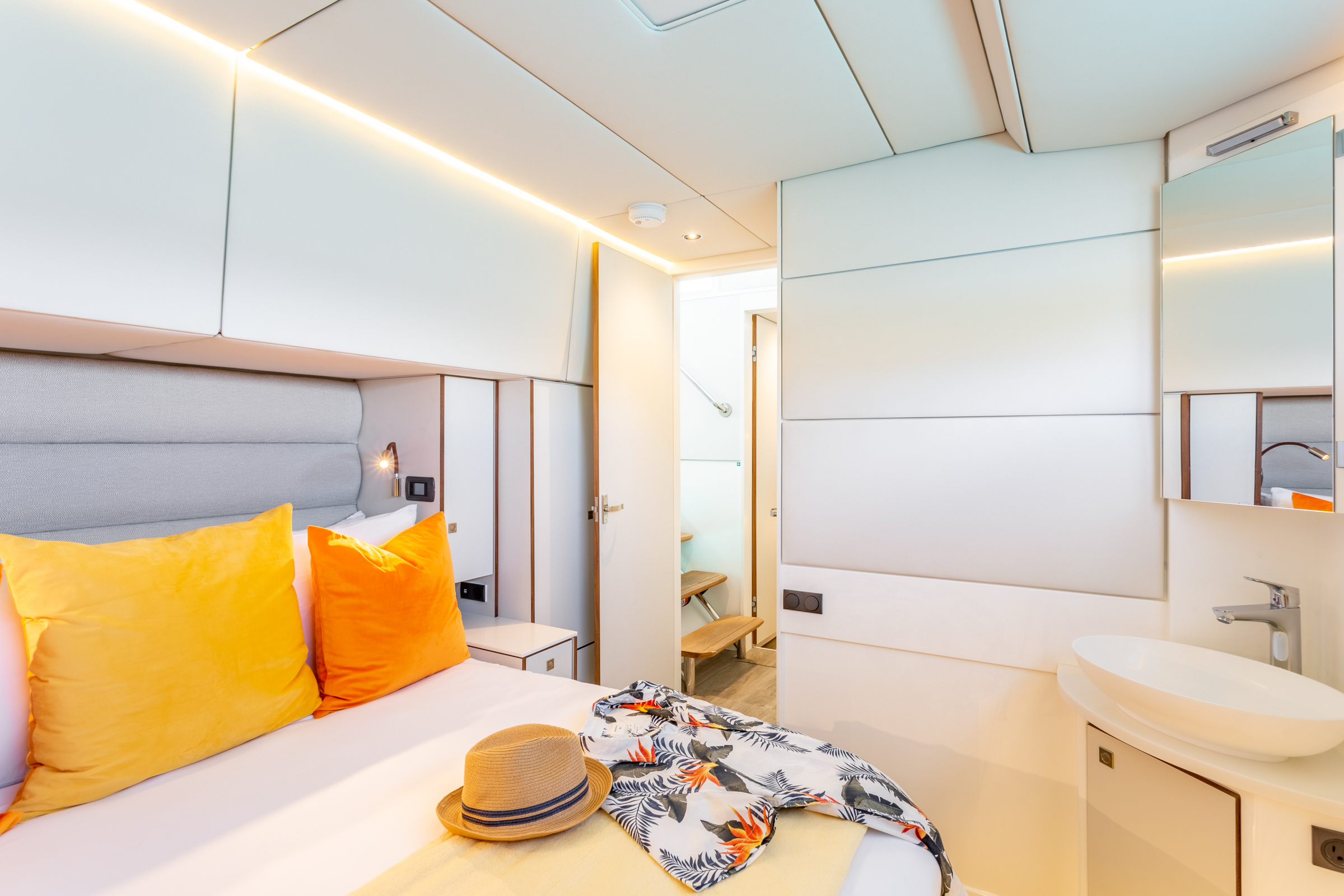

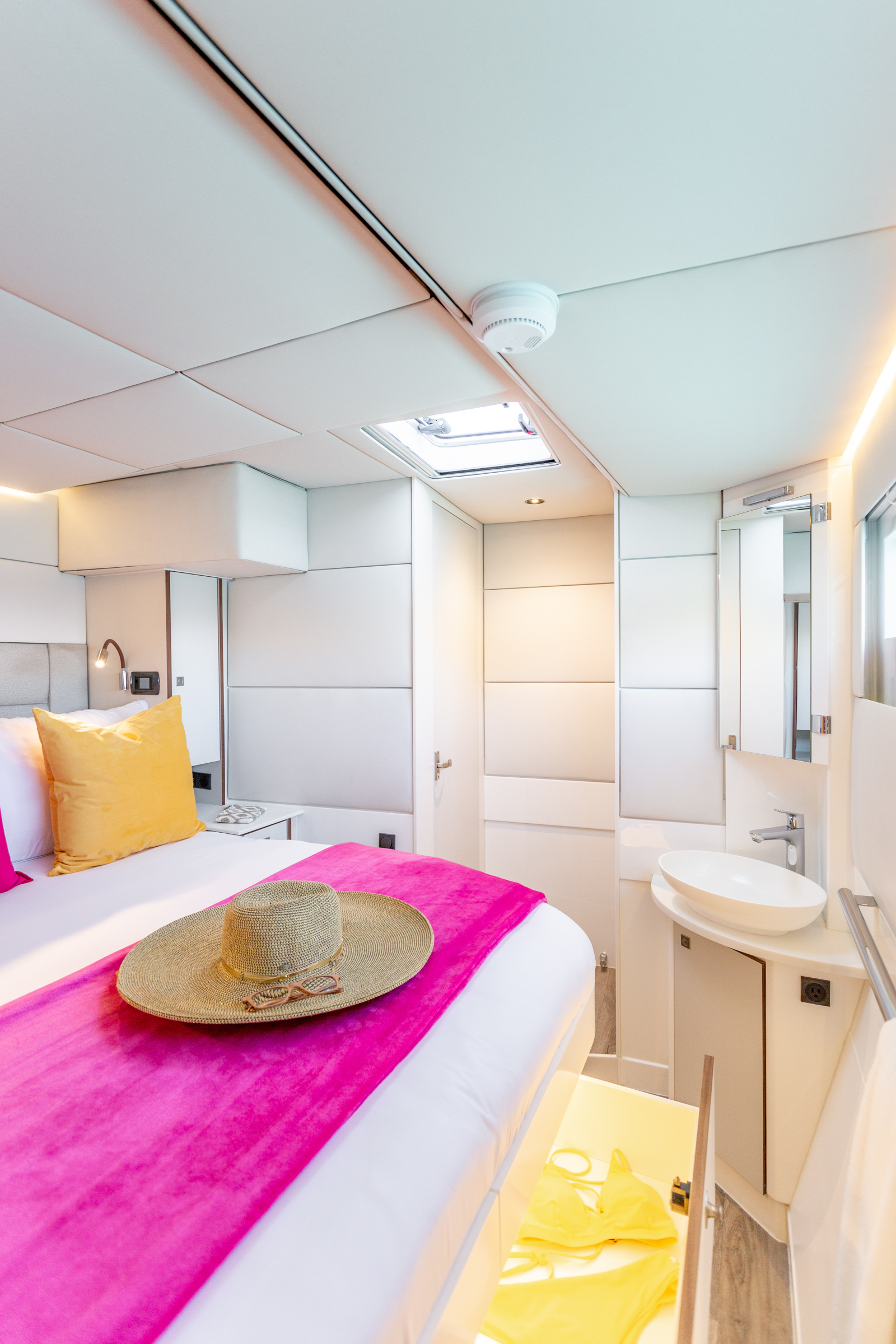

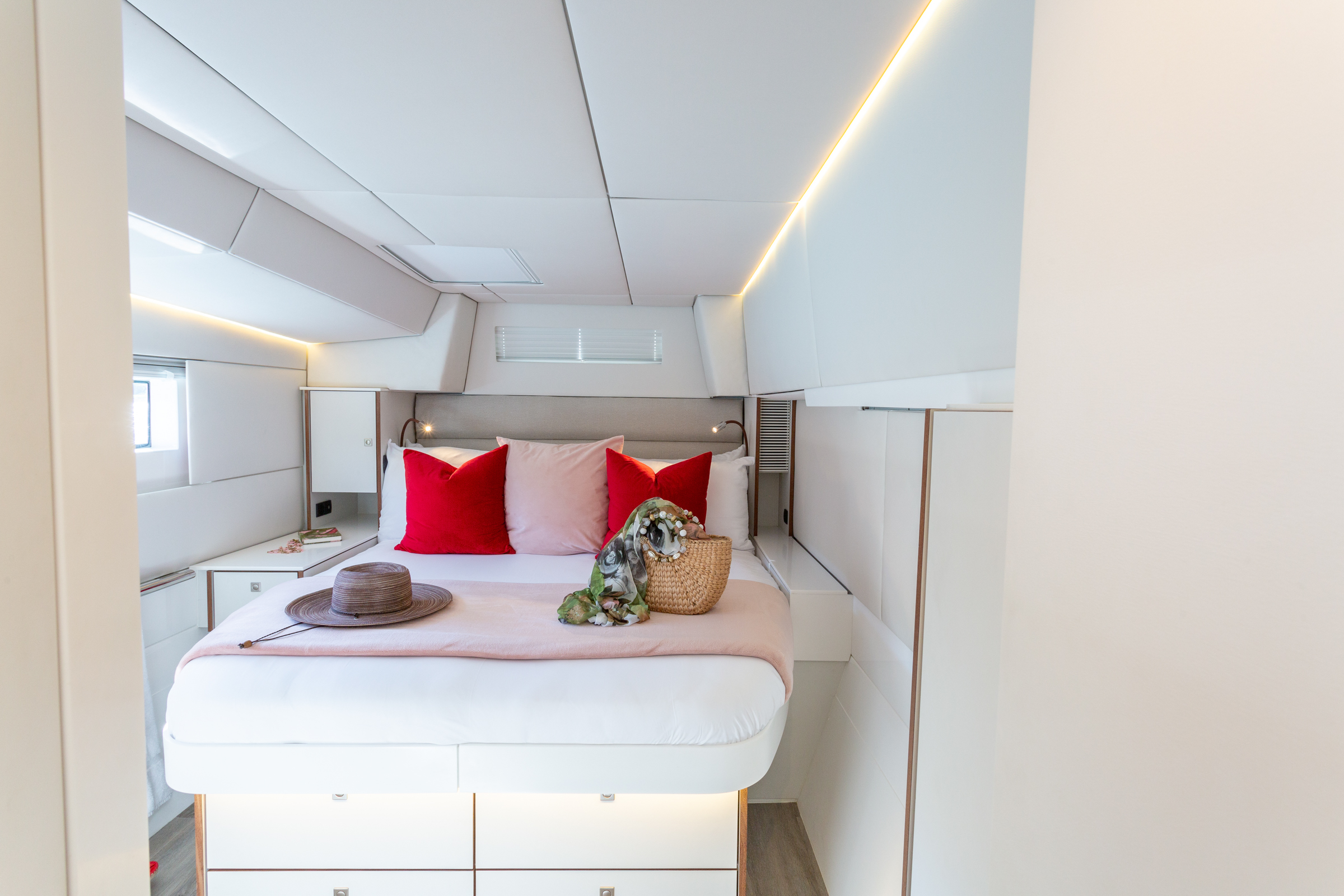

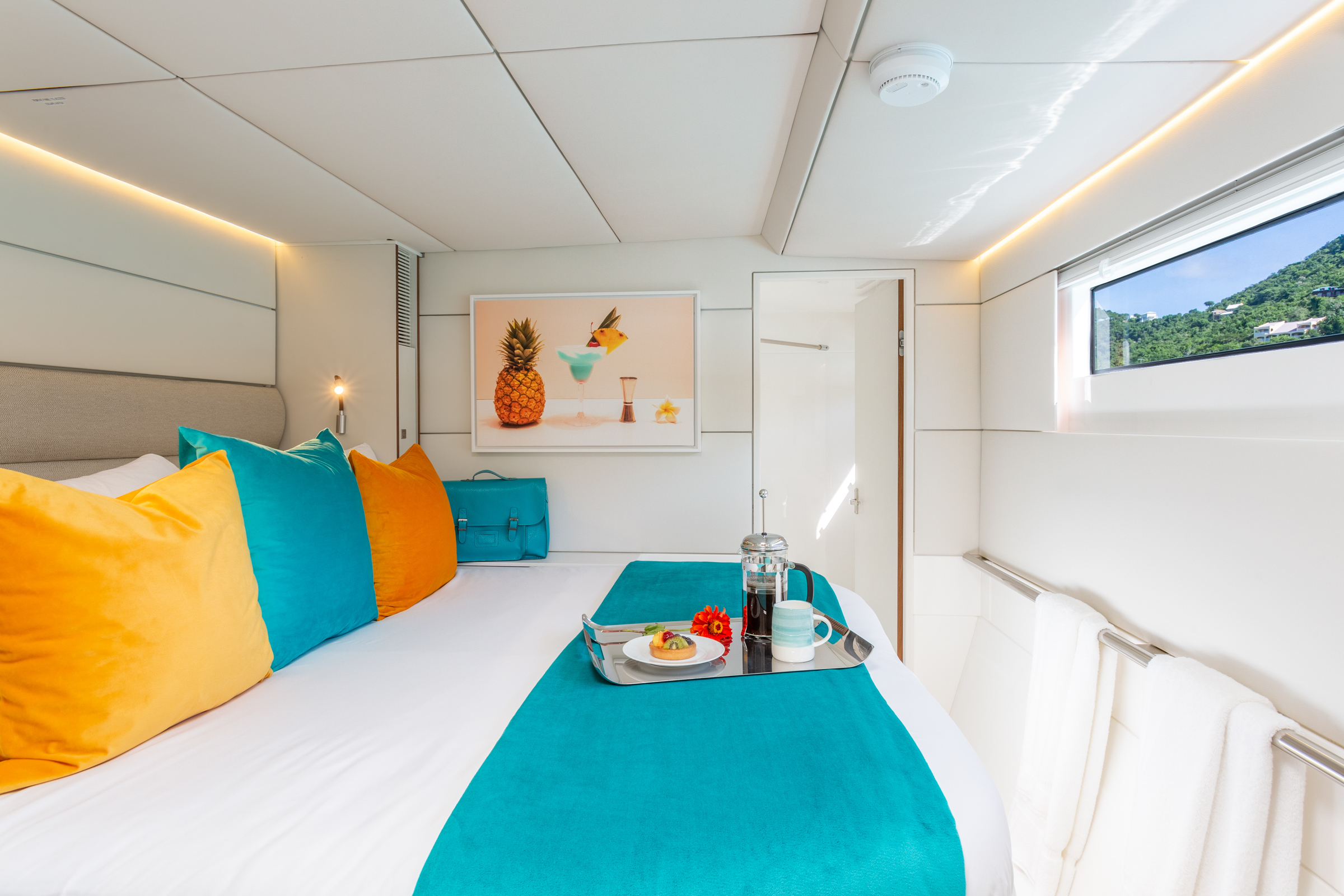

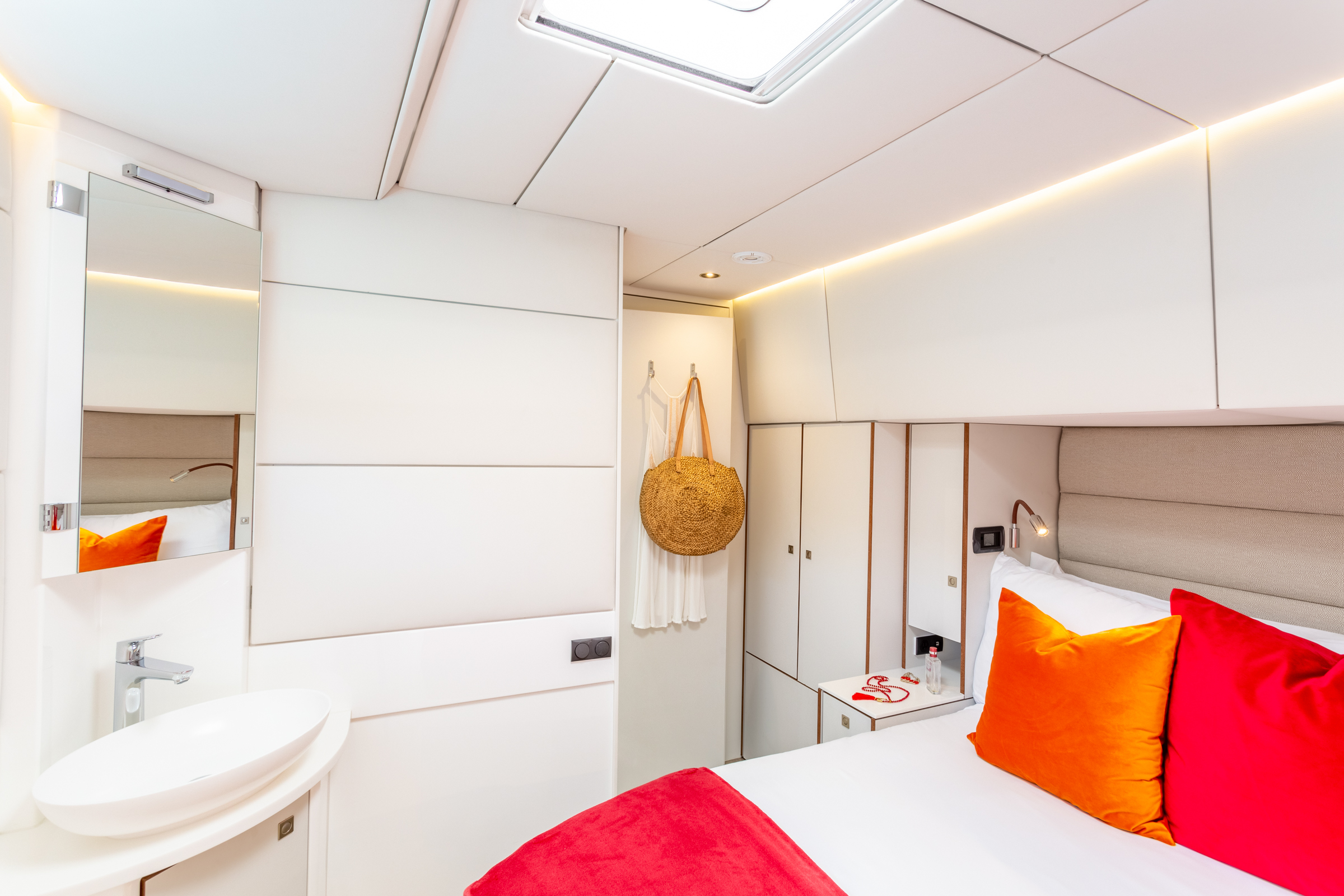

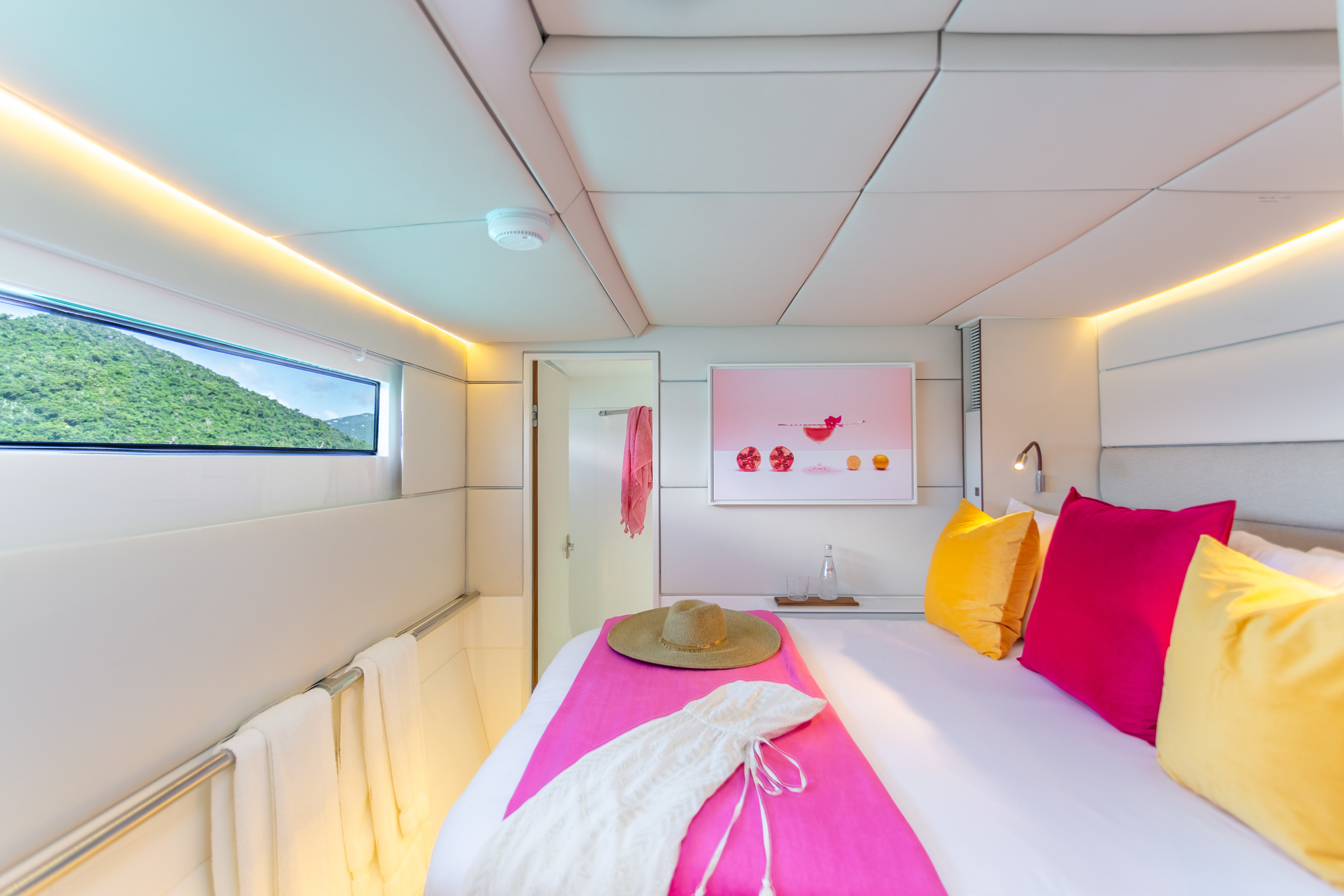

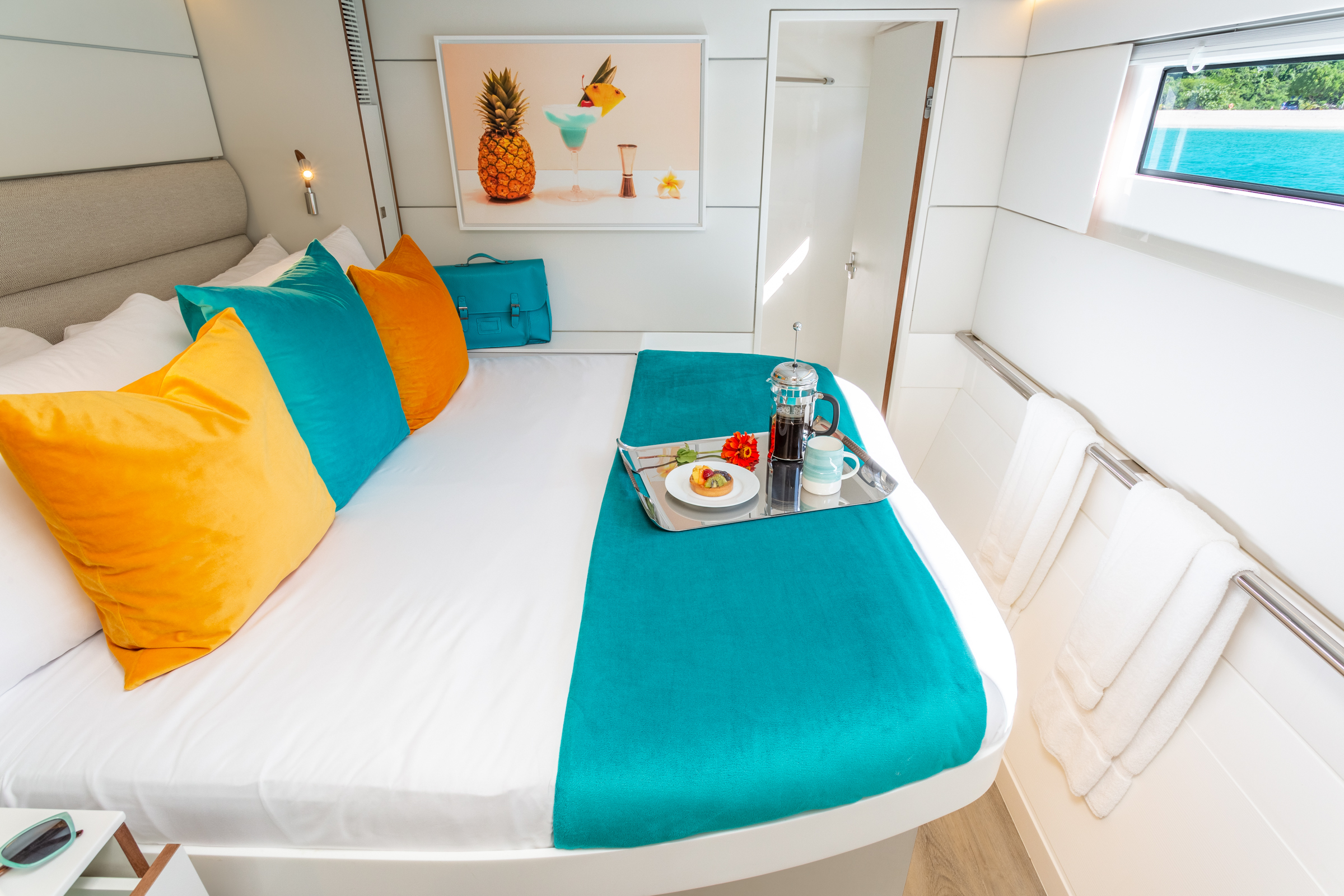

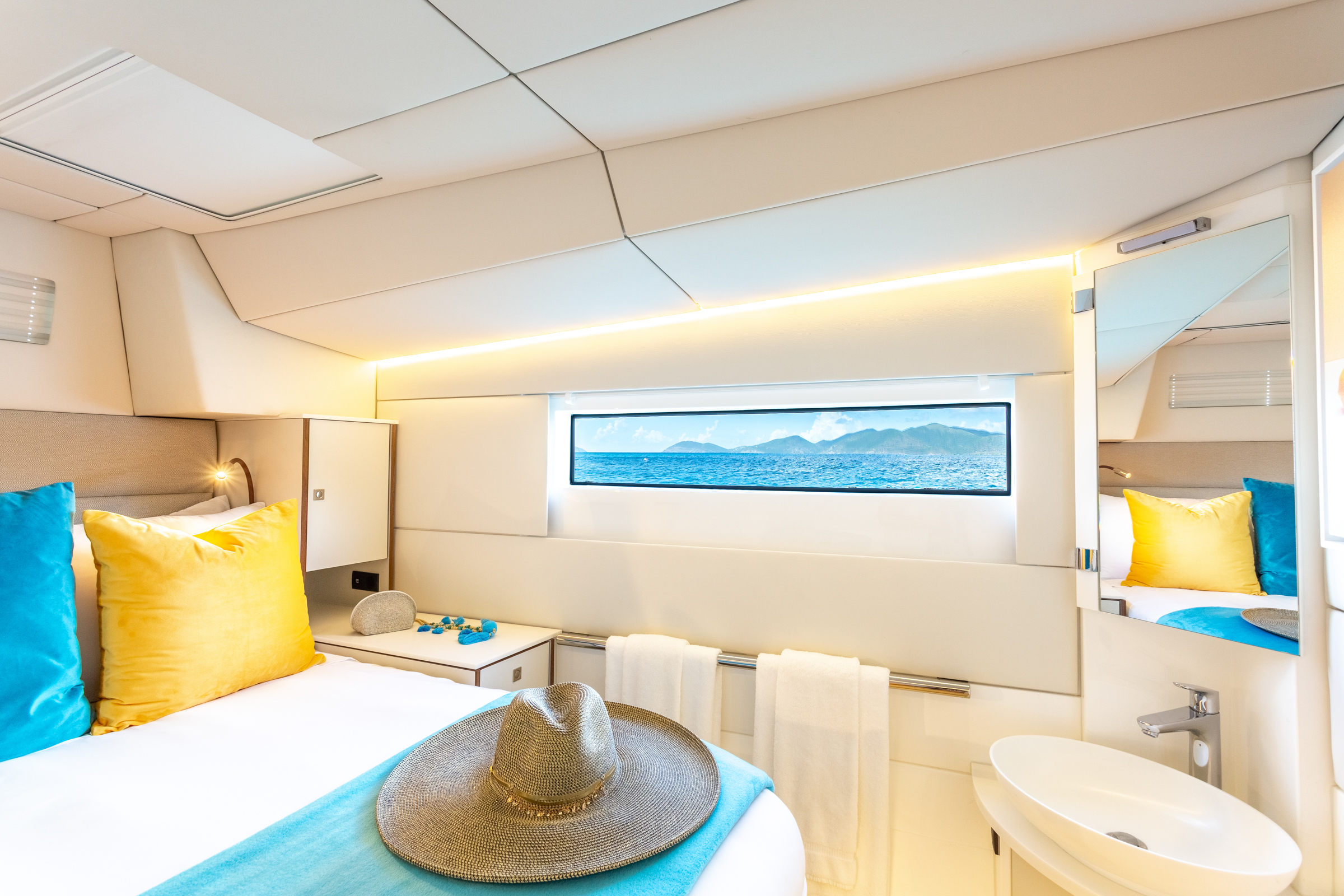

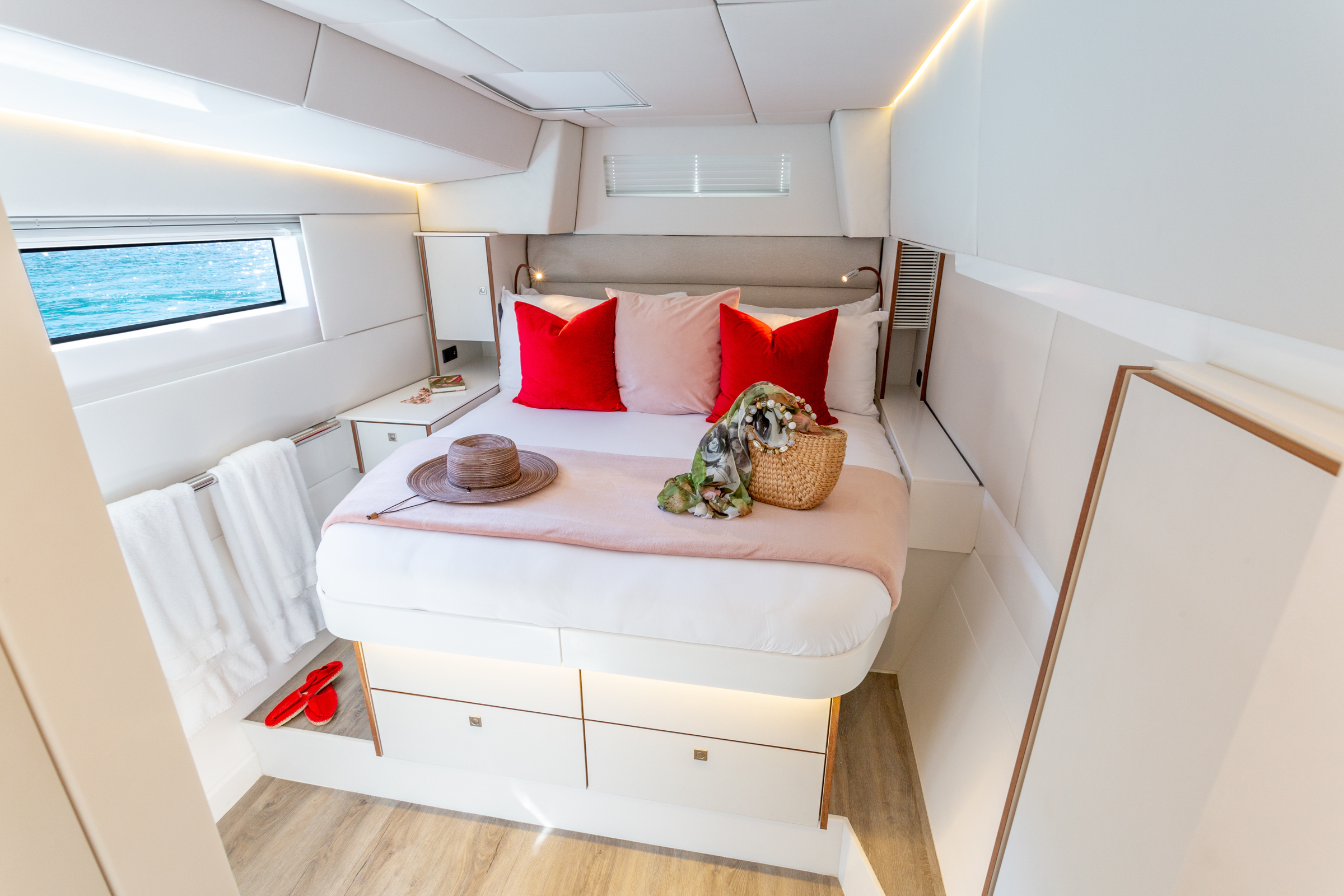

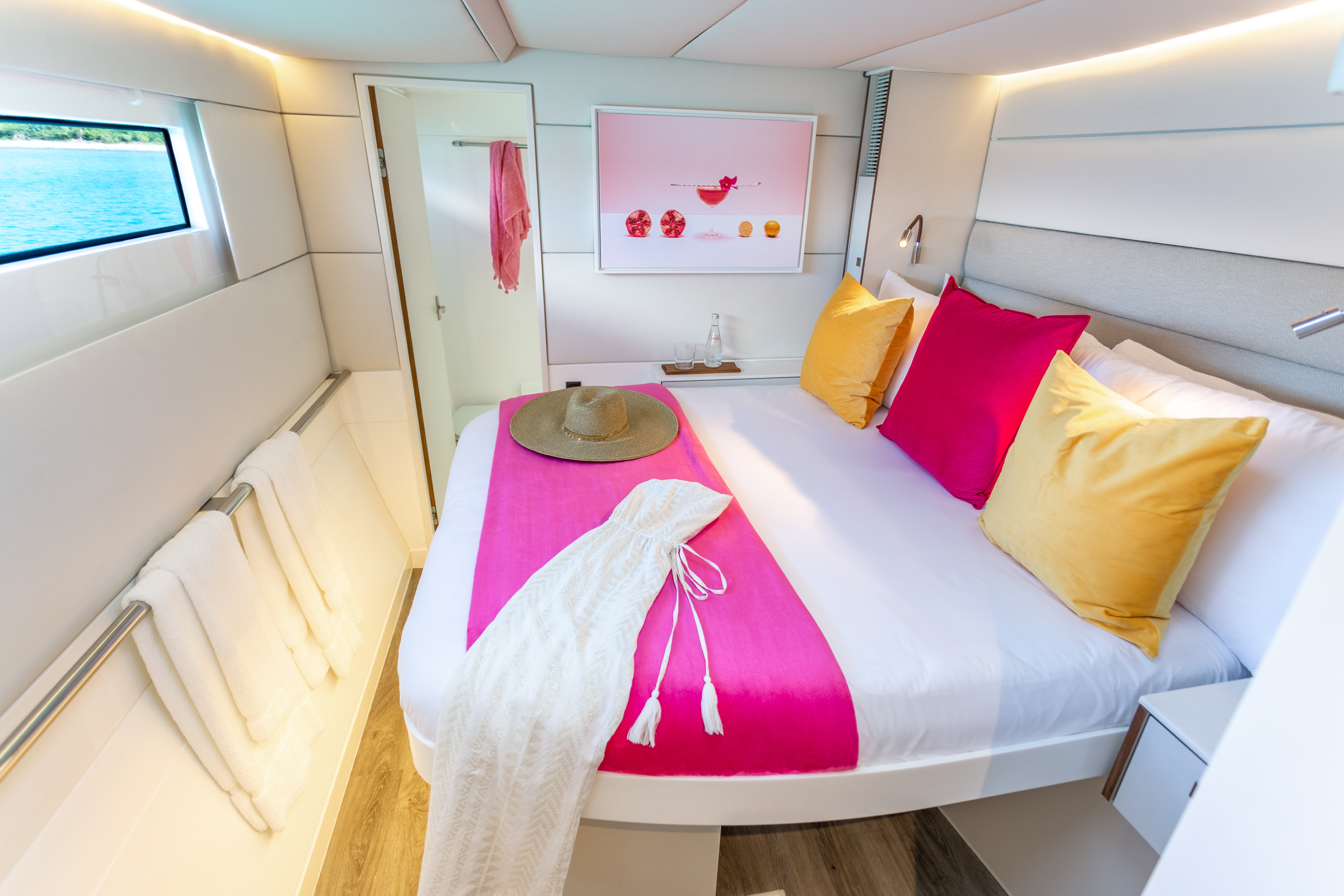

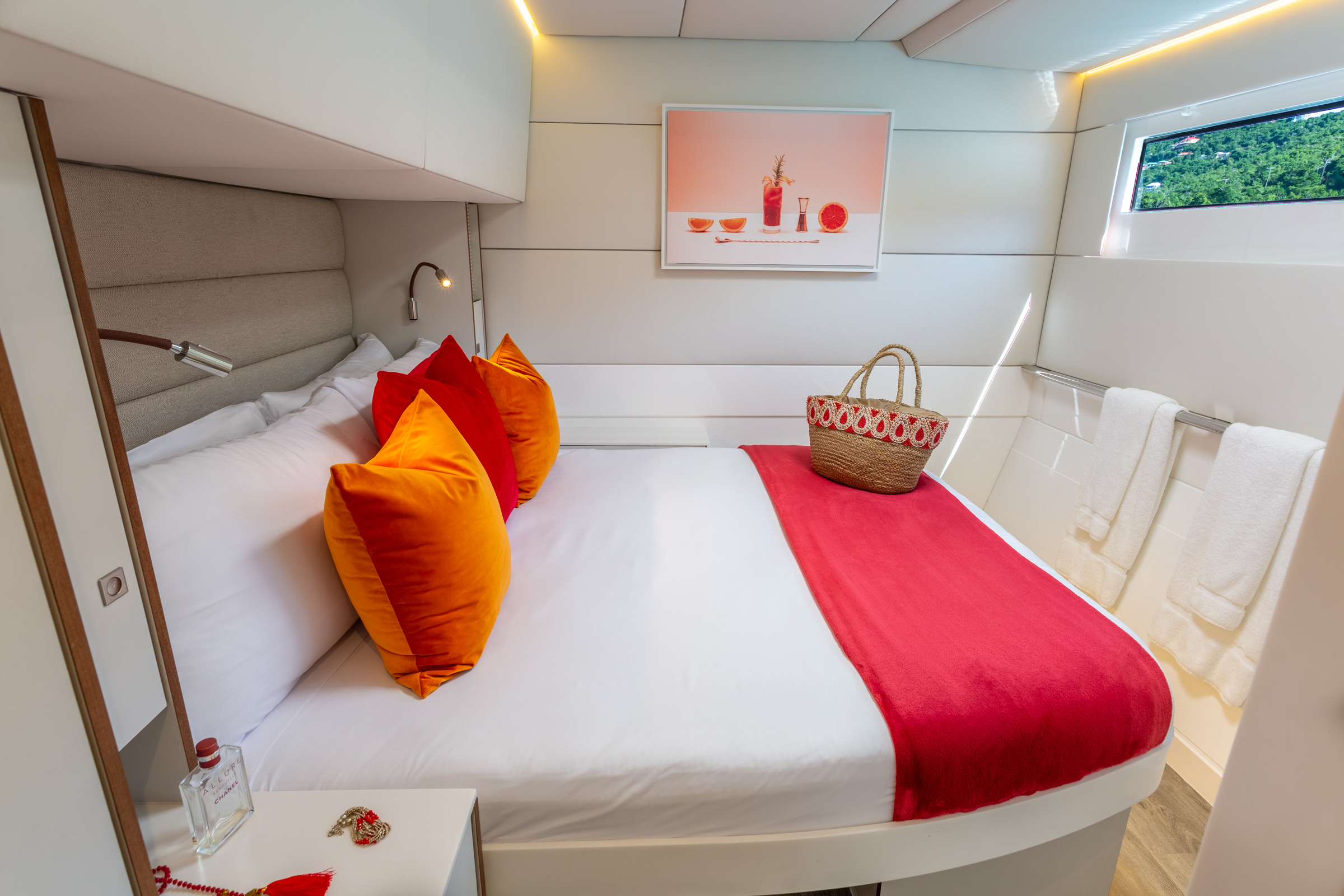

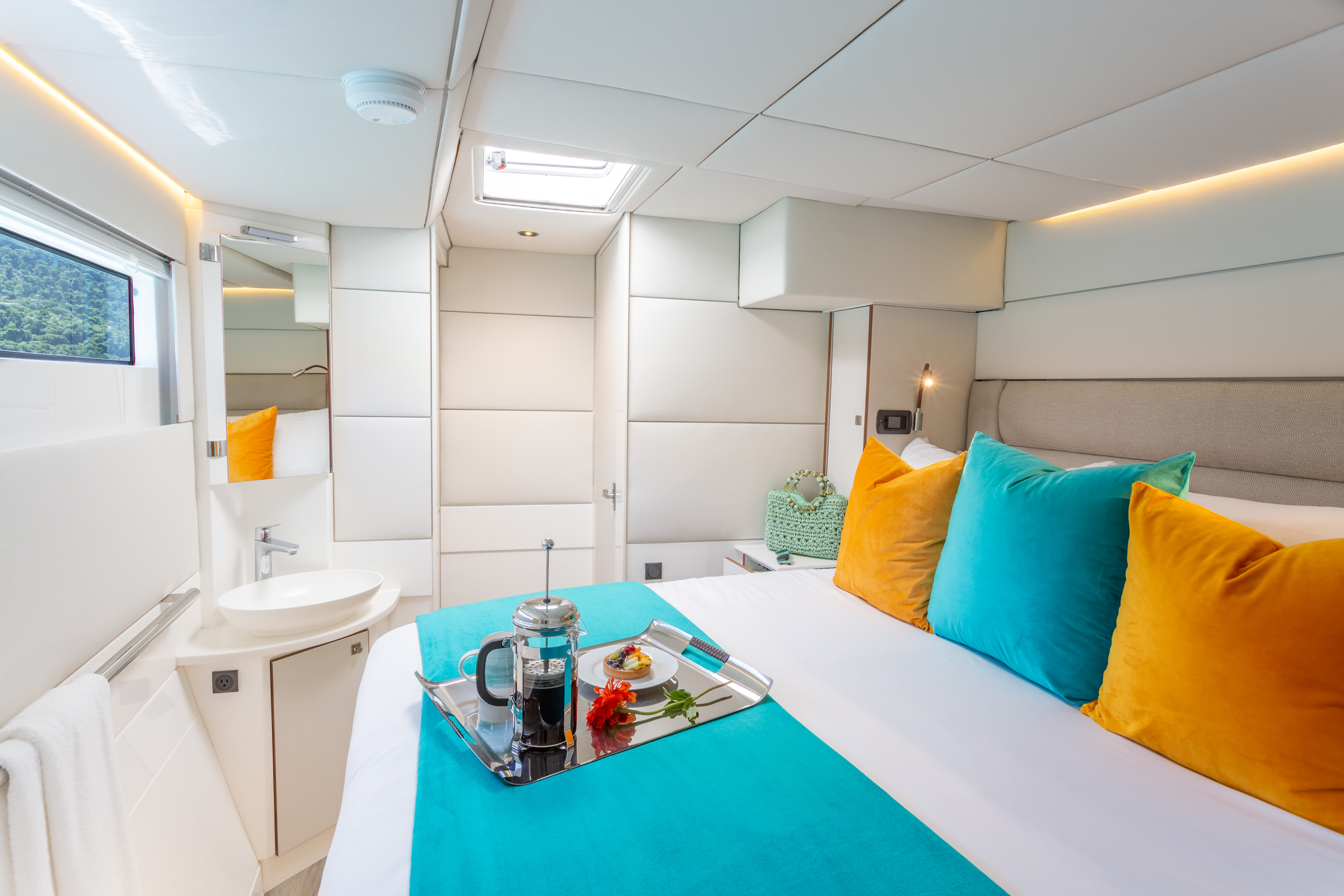

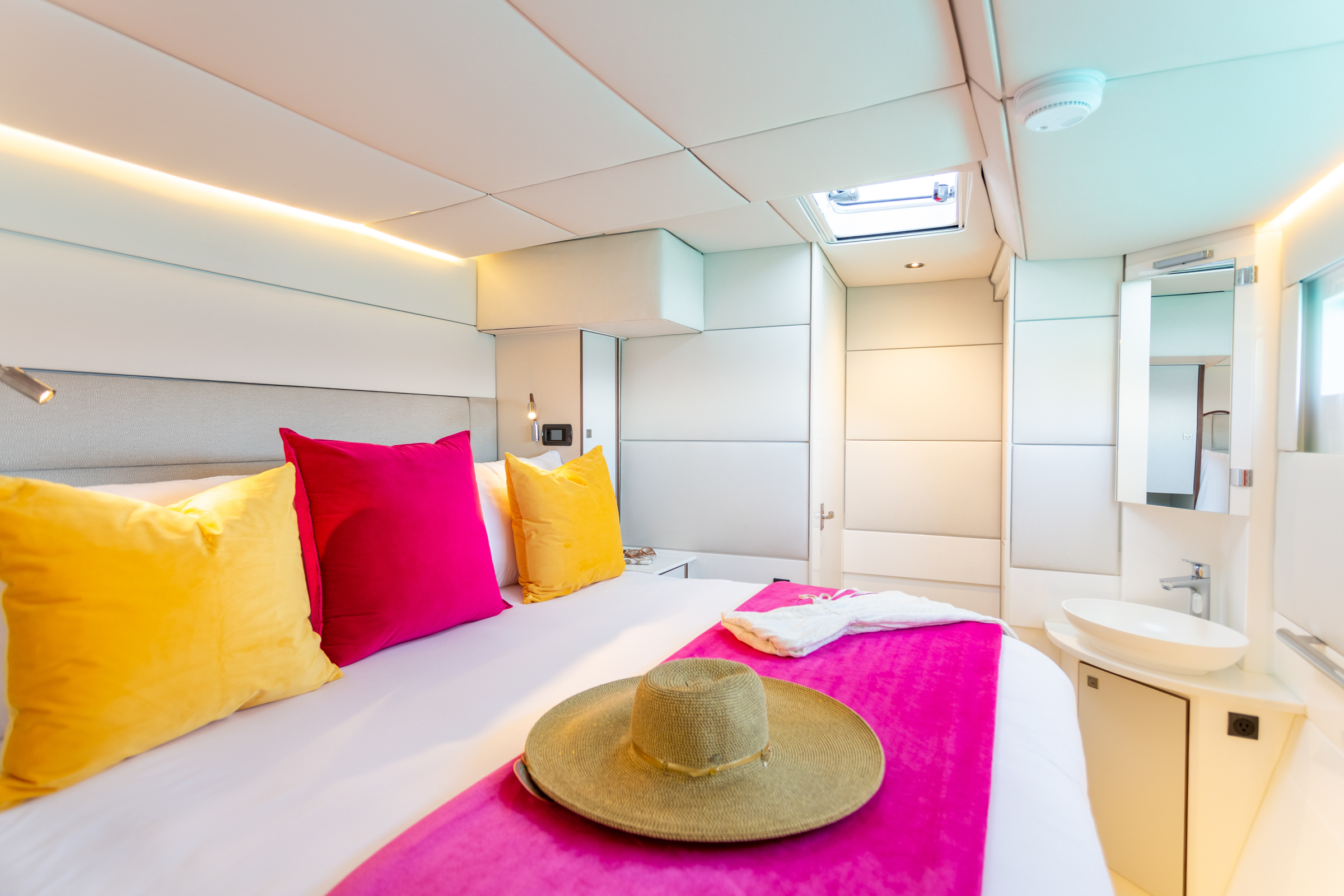

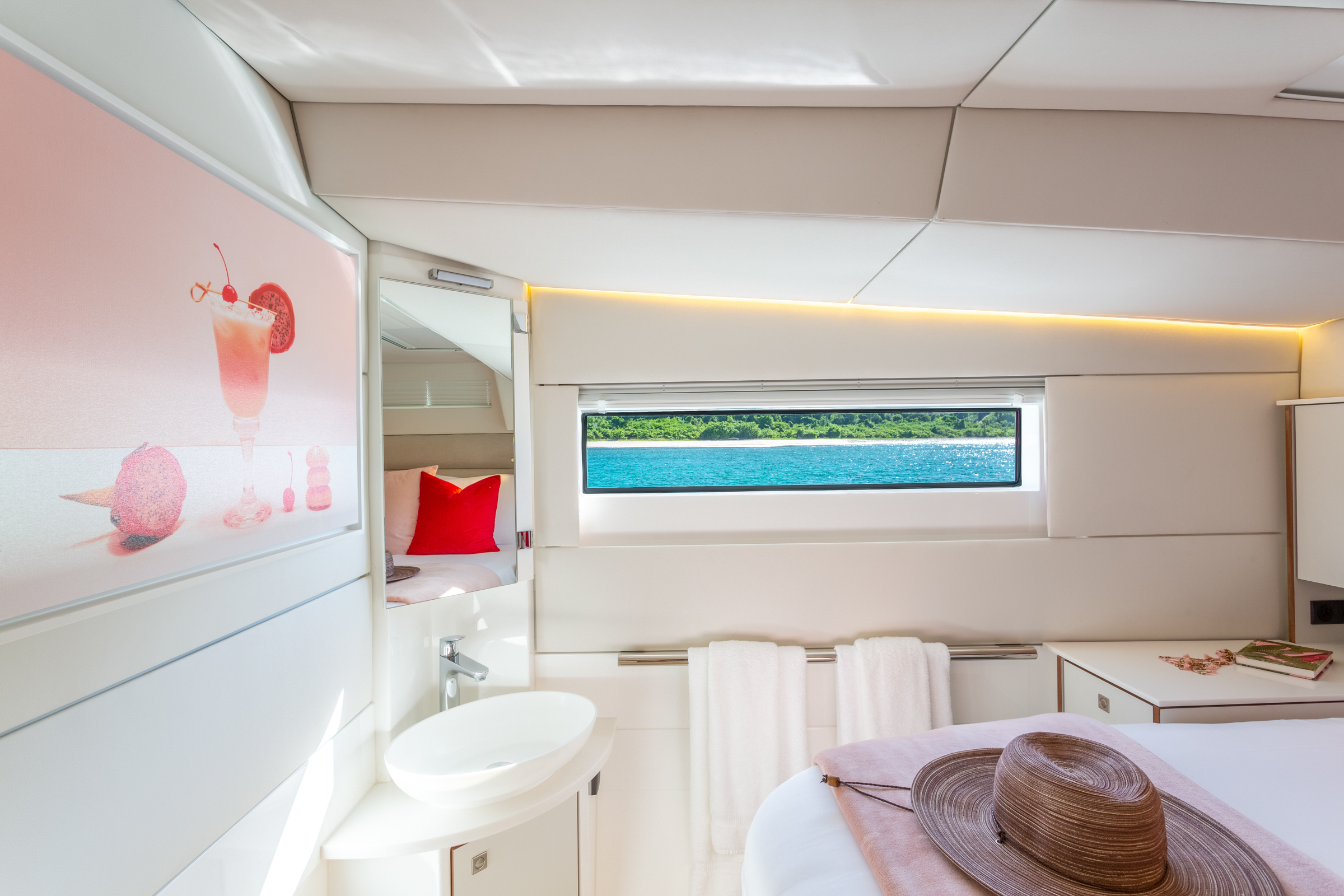

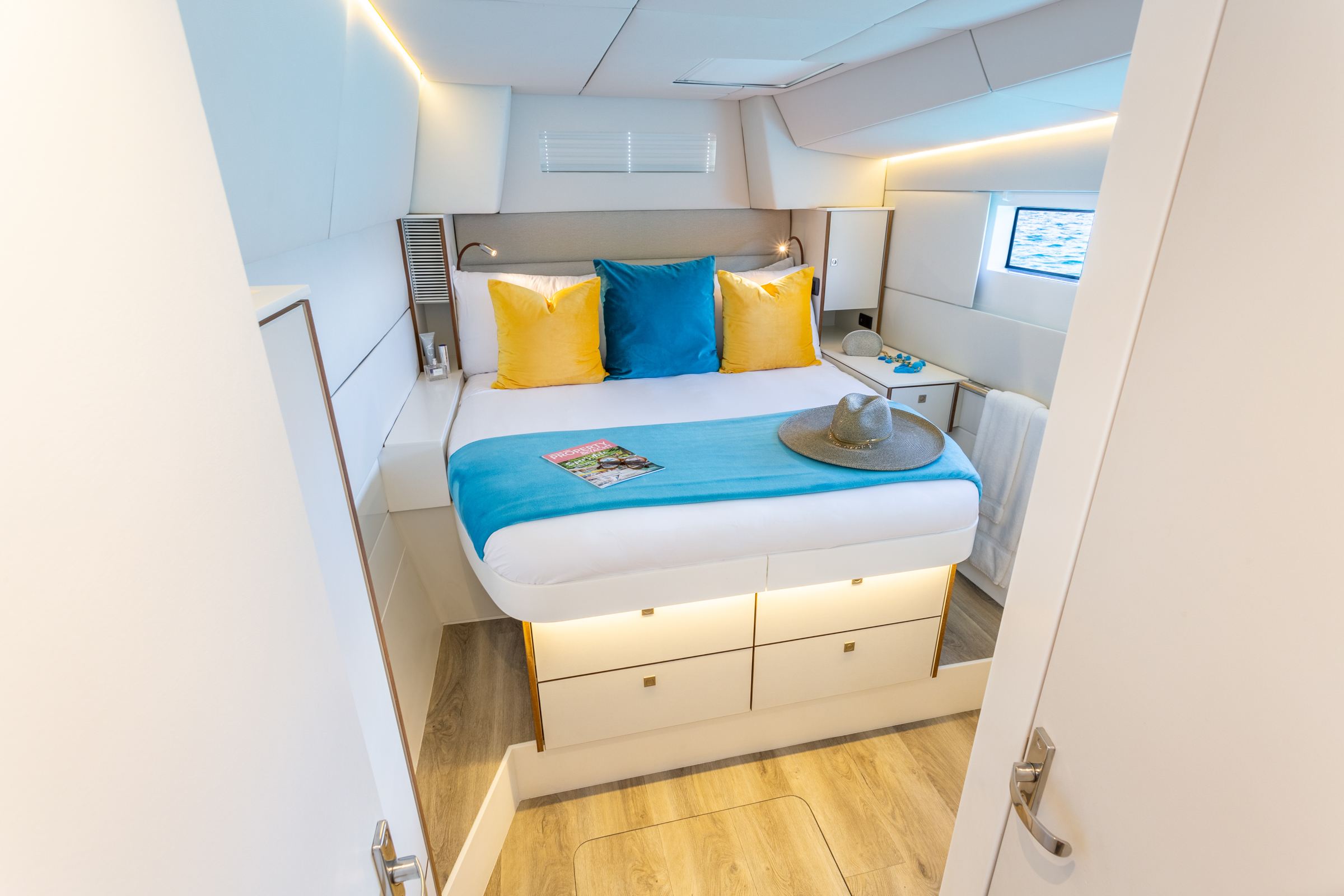

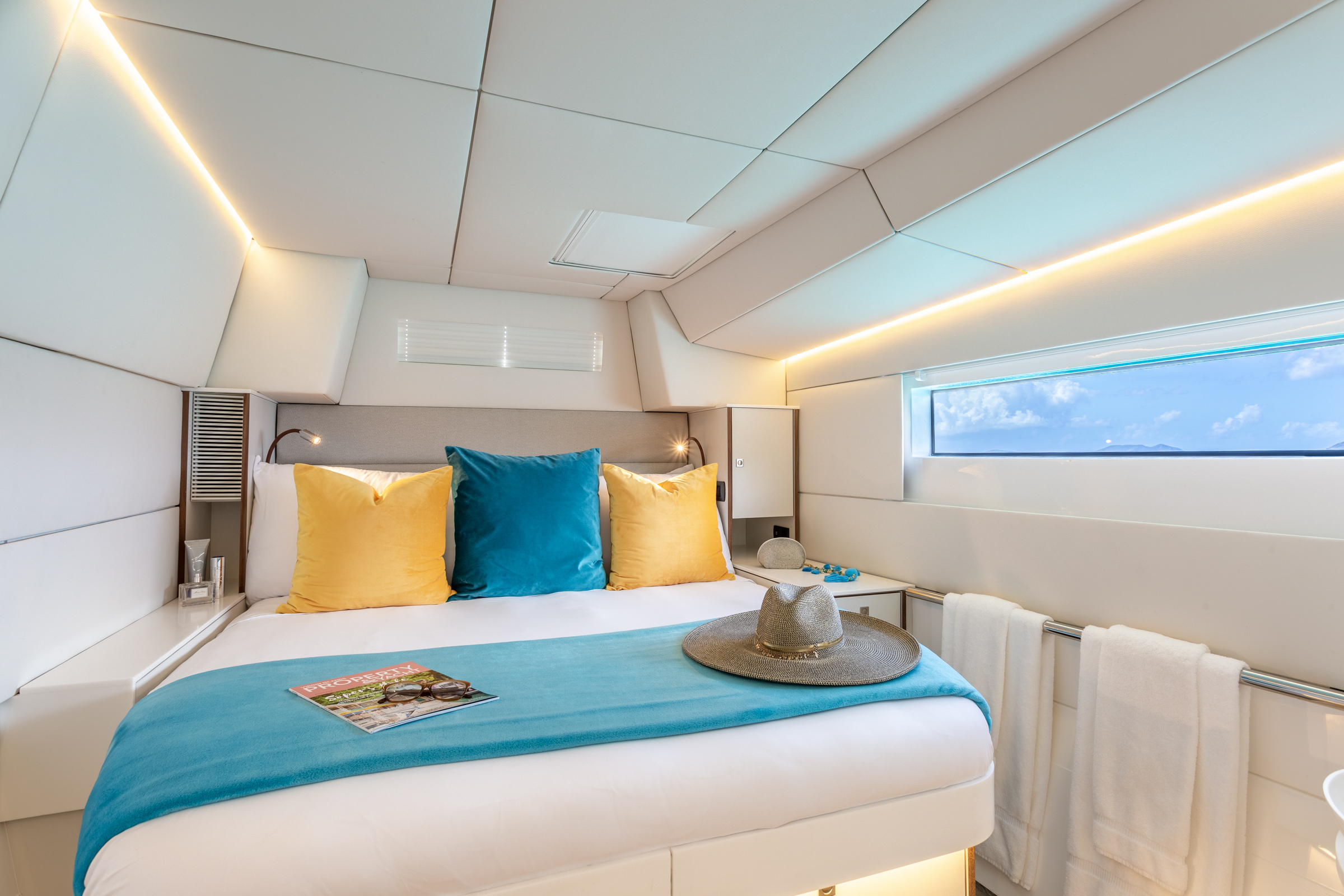

Cabins en Suite

  • Acrylic Corian type surfaces
  • Synthetic hardwearing furniture
  • Ultra Suede Headliner with Ambient lighting
  • Cabin and reading lights
  • Super Queen size bunk with split mattresses
  • Double Drawers under the bunk
  • Bag storage under the bunk

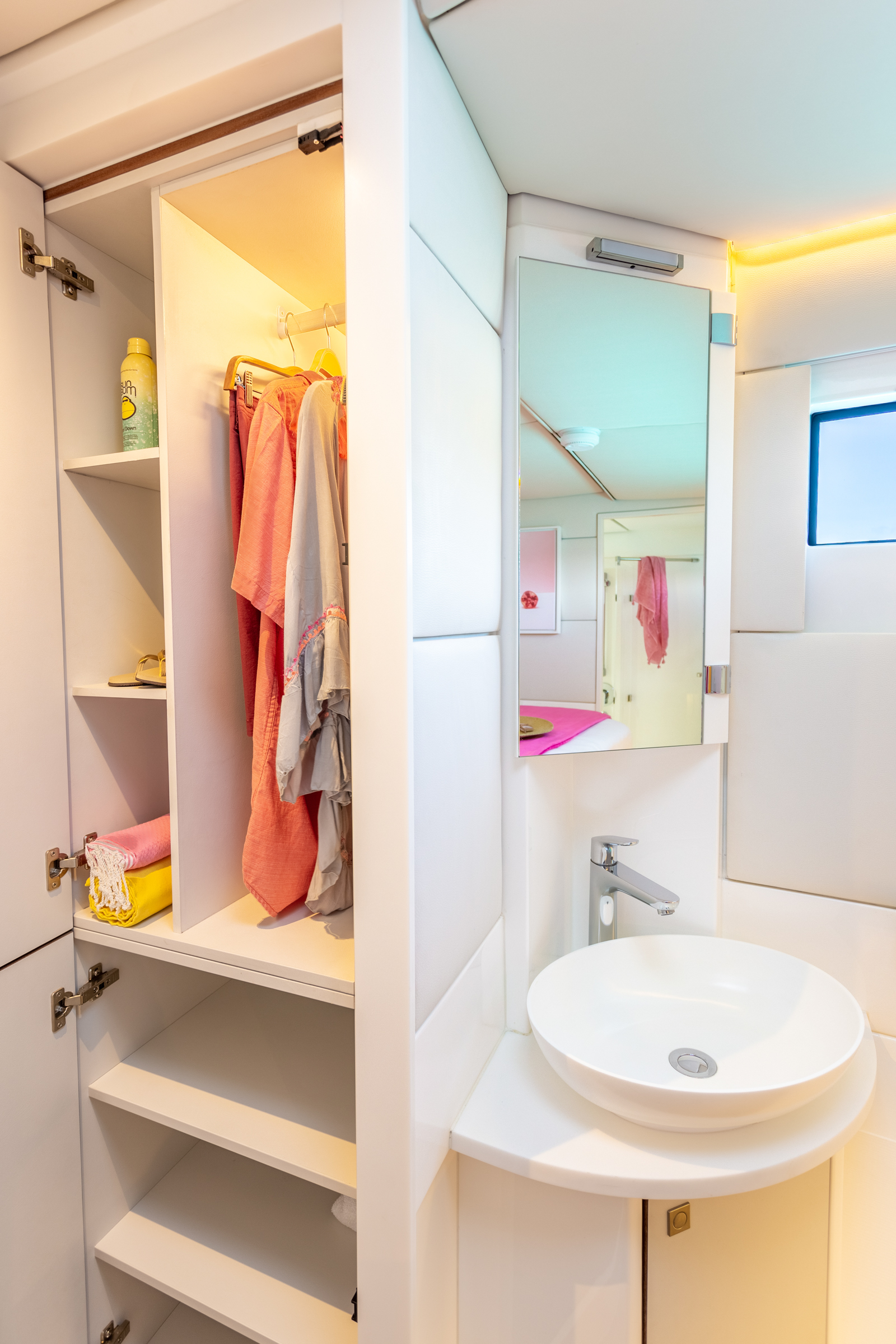

  • Hanging and storage wardrobes
  • Mirrors, full length
  • Electric Marine toilet

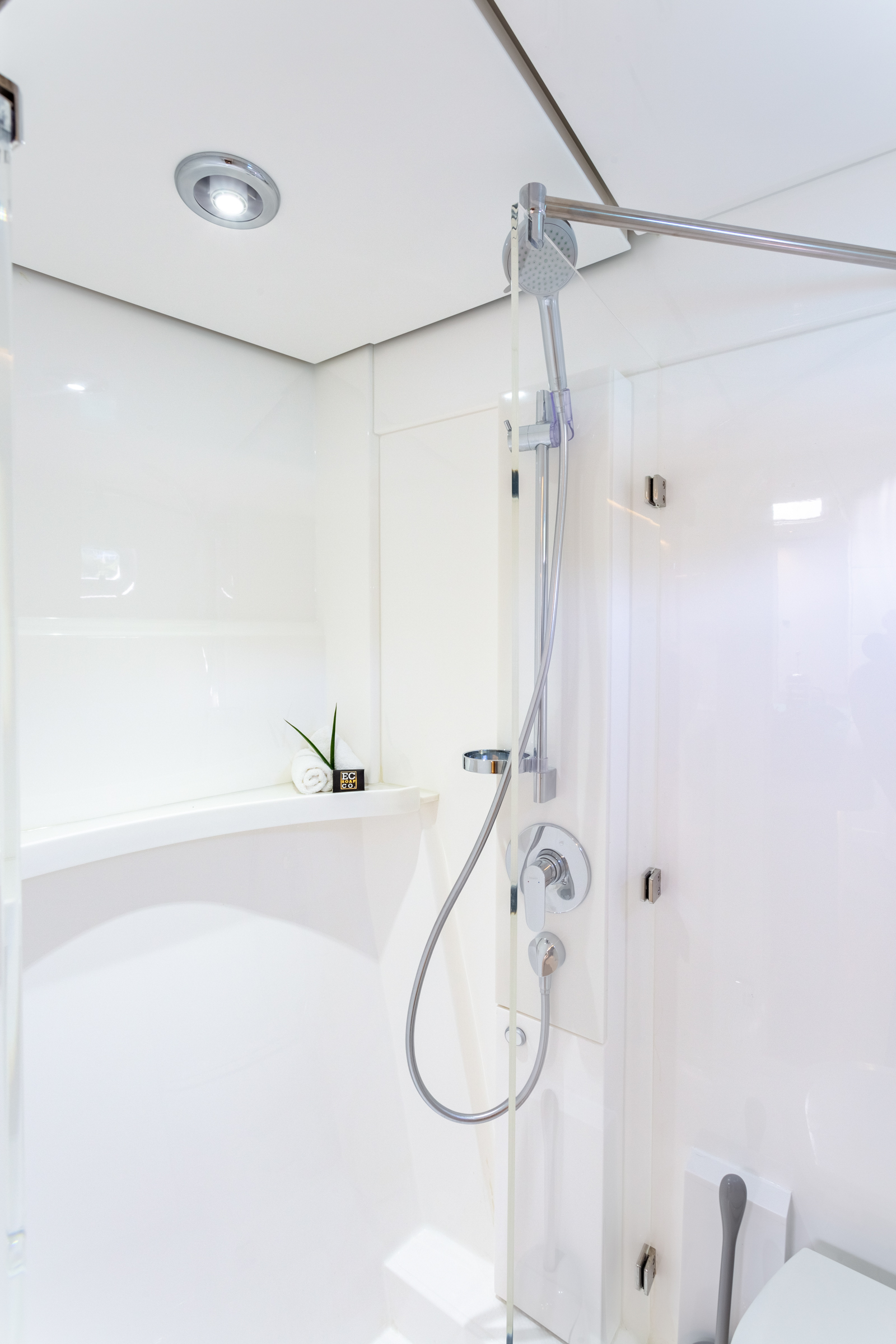

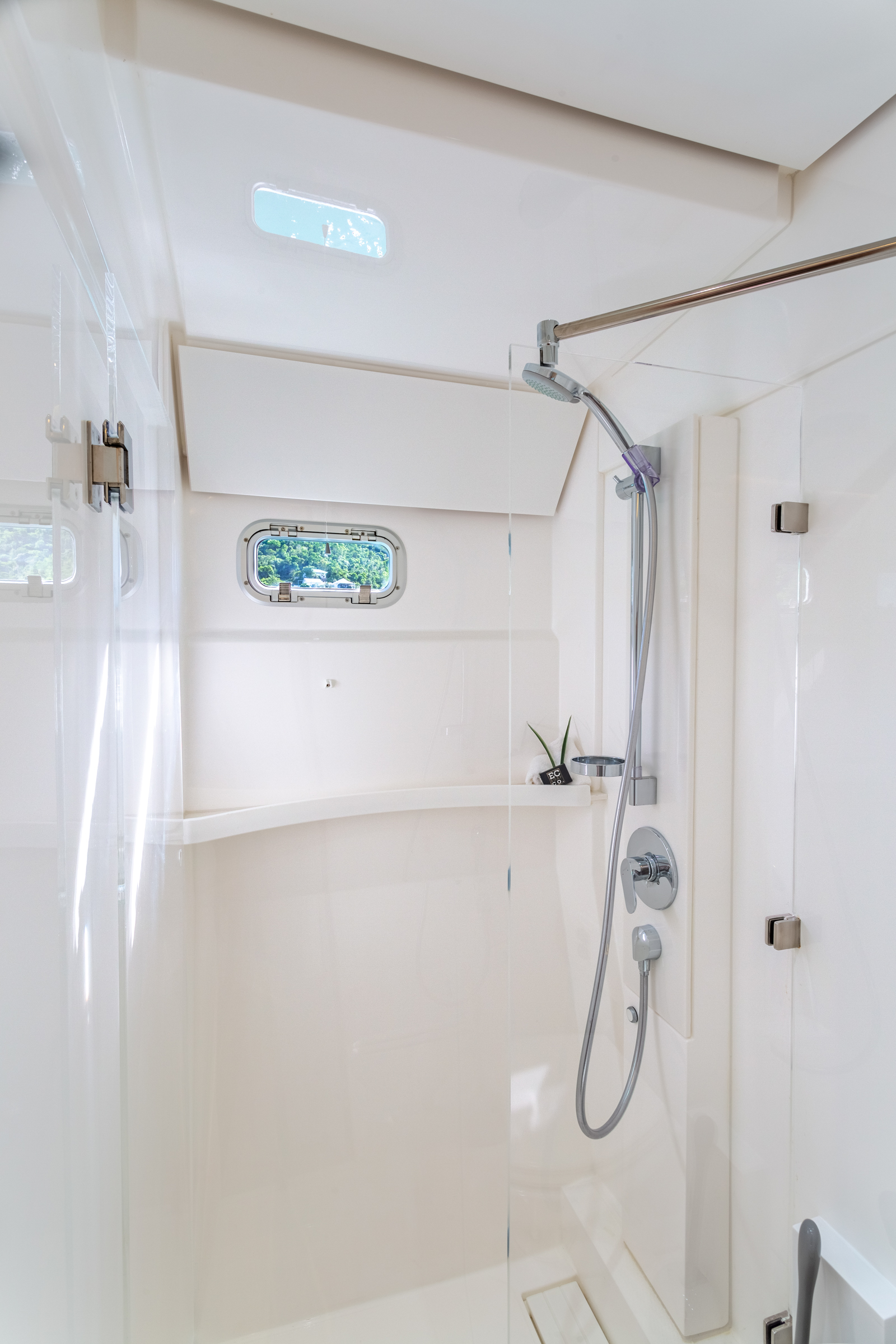

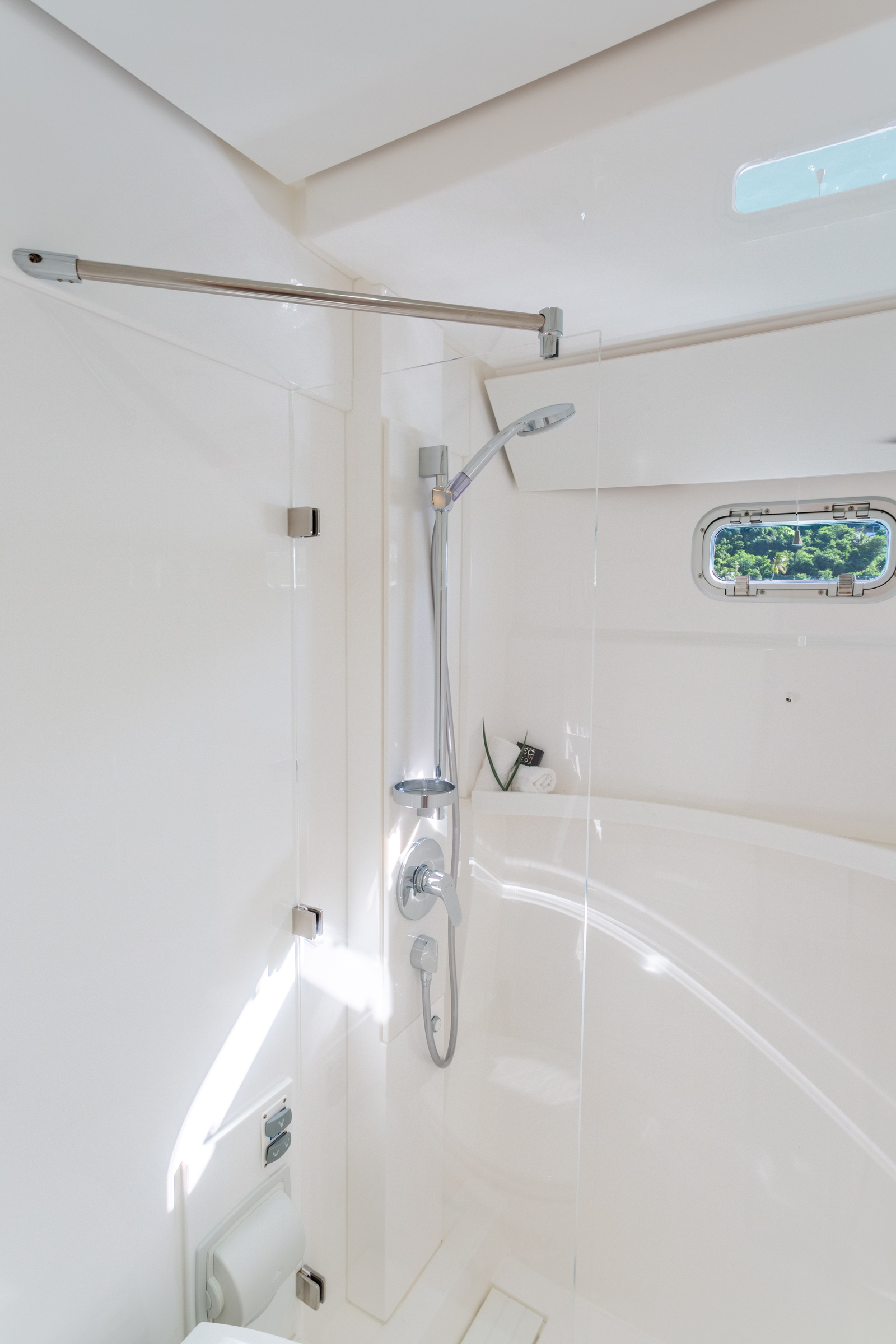

  • Separate shower with pressurized hot and cold water
  • Stainless steel towel rails
  • Stainless steel towel hooks
  • Vanity above wash basin with mirror
  • Washbasin in the cabin pressurized hot and cold fresh water
  • 110V outlets
  • Double USB outlets

[+] More

Instrumentation

  • RAYMARINE Autopilot with 24V Whitlock Rotary Drive
  • RAYMARINE Tri data & Wind
  • RAYMARINE 9” Chart plotter
  • Compass
  • RAYMARINE VHF Radio

[+] More

Plumbing

  • Automatic electric bilge pumps with high-level alarms
  • Black water systems and holding tanks
  • Water Heaters 60 liters (16USG) each (hot water system)
  • Grey water systems for basins and showers
  • Pressurized hot and cold fresh water system with 2 fresh water pumps
  • Fresh water tanks, 950 liters total (250 USG)
  • Deck wash fresh water Faucets Forward and Aft for deck wash-down
  • Deck wash pump system for salt water chain-locker wash down
  • Manual bilge pumps operable from the cockpit
  • Hot and cold deck shower, Port and Starboard
  • Self-draining cockpit Fwd and Aft

[+] More

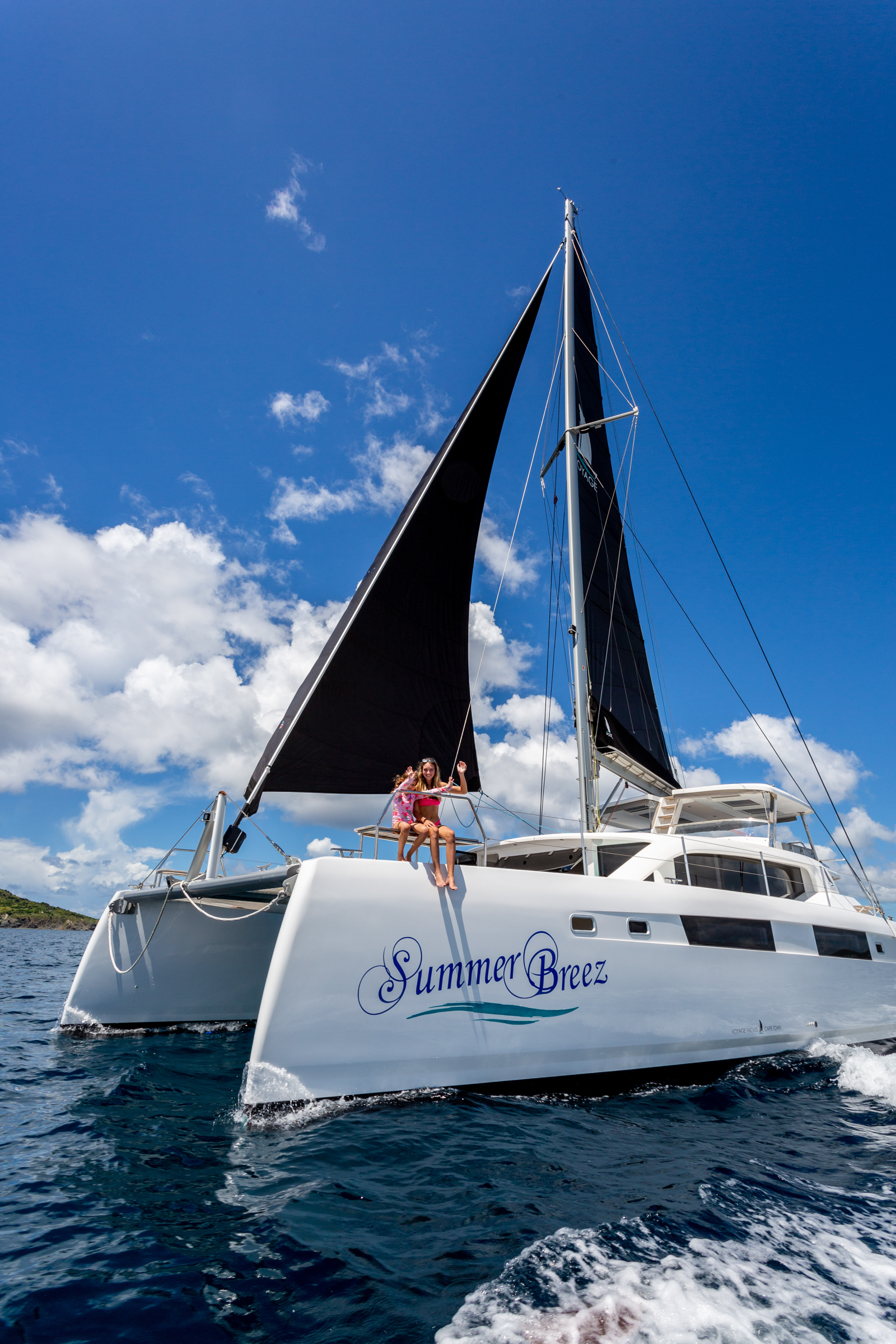

Sails

  • HARKEN Batt car system for Mainsail
  • Mainsail Stowage Pack with lazy jacks
  • PROFURL Electric Genoa Roller Furler
  • ULLMAN Fully battened main, 3 reef points, High Aspect, Cross cut Dacron with laminated leech
  • ULLMAN Furling Genoa with foam luff and UV cover, high modulus cross cut Dacron
  • Sheets and Control lines

[+] More

Beautiful, air-conditioned private en-suite cabins designed for extra comfort. Walk-around, ultra comfy queen beds with plush headboards, reading lights & USB plugs, pull out drawers and under-bed storage space. Double in-lit hanging lockers, ambient celling lights and large hatches are just a few of the fabulous cabin features. Each of these gorgeous rooms offer extra large port-holes with black out shades for more privacy, towel hanging rails, in-room vanity at the basin and a separate shower with dry head.

Hatches and Windows

  • Rear Aluminum framed sliding door with tinted toughened glass
  • Forward Aluminum framed door with tinted toughened glass
  • Tinted toughened glass side forward and side windows
  • Tinted toughened glass hull windows in each cabin
  • LEWMAR Hatches: 10
  • LEWMAR Port lights: 10
  • OCEAN AIR Sky hatch screens: 8
  • OCEAN AIR Port-light screens: 10

[+] More

Stainless Steel

  • Bow pulpits with seats
  • Brackets for two overboard lights
  • Stanchions and stanchion bases
  • Double guard wires
  • Grab rails on coach roof sides
  • Stern push pits with brackets for life ring buoys
  • Swim ladders

[+] More

Deck Equipment

  • ANDERSEN 58ST Sheet winch, electric: 2
  • ANDERSEN 58ST Main Halyard winch, electric: 1
  • HARKEN Black Magic blocks
  • Aluminum mooring cleats: 10
  • HARKEN tracks and cars
  • SPINLOCK Jammers & organizers
  • Trampolines

[+] More

Rigging

  • 7/8th fractional rig
  • Anodized aluminum mast, boom, cross beam
  • Color coded sheets and control lines
  • Double purchase main halyard
  • Flag halyards
  • Lazy jacks
  • Luff pendants
  • Mainsheet system
  • Mast supported by double spreaders, intermediate and cap shrouds
  • Navigation lights and VHF antenna
  • Reefing lines

[+] More

Mooring Gear

  • LOFRANS 24V windlass
  • Anchor bridle with thimbles for anchoring
  • Anchor chain 12 mm, 60 m galvanized and 60 m nylon anchor rode
  • DELTA anchor, 60 kg
  • Two anchor rollers, one with tipper
  • Dock lines and fenders

[+] More

Upgrades (All Included at Advertised Price)

  • AC outlet single x10 (2x saloon, 4x galley, 4x aft cockpit)
  • Air conditioning, FRIGOMAR, self contained, direct expansion units, 10 x 7,000 BTU
  • Anchor chain - upgrade to S/S, 12mm, 263' (80m)
  • Anchor upgrade to S/S DTX 63Kg/140LBS
  • Basin @ cooktop
  • Battery upgrade to 2x MG LFP Battery 25.6V/280A 14.4 KWh
  • Battery upgrade: add 4x MG LFP Battery 25.6V/280A from 14.4Kw to 43Kw
  • Bow thruster - Lewmar TT185 6Kw 24V with control @ helm station
  • Black water tank upgrade to electric with upgraded tank
  • Sensors and timer switches
  • Cook top & oven upgrade (induction hob & 30" oven)
  • Crew cabins incl. similar finish as cabins, acrylic surface, V-bunk, port lights, air condition, reading light, S/S ladder, cupboards, elec. Toilet, shower & basin, fan
  • Deck wash point with hose in PVC module fly bridge, fresh water only
  • Dinghy Lift Platform
  • Dinghy lift assist; internal boom system incl. dedicated halyard
  • Dishwasher - Fisher Paykel single drawer x2
  • Fridge single drawer 75L Vitrifrigo 12/24V
  • Fridge single drawer 95L Vitrifrigo 12/24V
  • Generator 16Kw AC Northern Lights, 60Hz 1800RPM w. sound enclosure x2
  • Hardtop Bimini with lights, fwd. wind screen & rear sun screen
  • Hayrack to boom for easier sail storage
  • Headboard hook system for mainsail
  • Ice Maker - Vitrifrigo x2
  • Ice Maker - Vitrifrigo x2
  • Inverter/charger-shore power assist Victron 4x 5Kw 240V
  • Light upgrade - 10 external courtesy lights - aft & forward cockpit, fly bridge
  • Light upgrade - Blue/white spreader lights - 1 under each spreader
  • Light upgrade - Blue/white spreader lights - 1 under each spreader
  • Microwave oven convectional
  • Nav. - B&G Zeus3-12" chartplotter to replace the standard Zeus3-9"
  • Nav. - B&G Zeus³-16" chartplotter navigation system in addition to Zeus³-9"
  • Nav. - B&G NAIS-500 class B AIS with GPS-500 GPS antenna
  • Rear screen, SOLTIS, roll up into cockpit ceiling
  • Sail upgrade - Genoa sail to BLACK
  • Sail upgrade - Main sail to BLACK

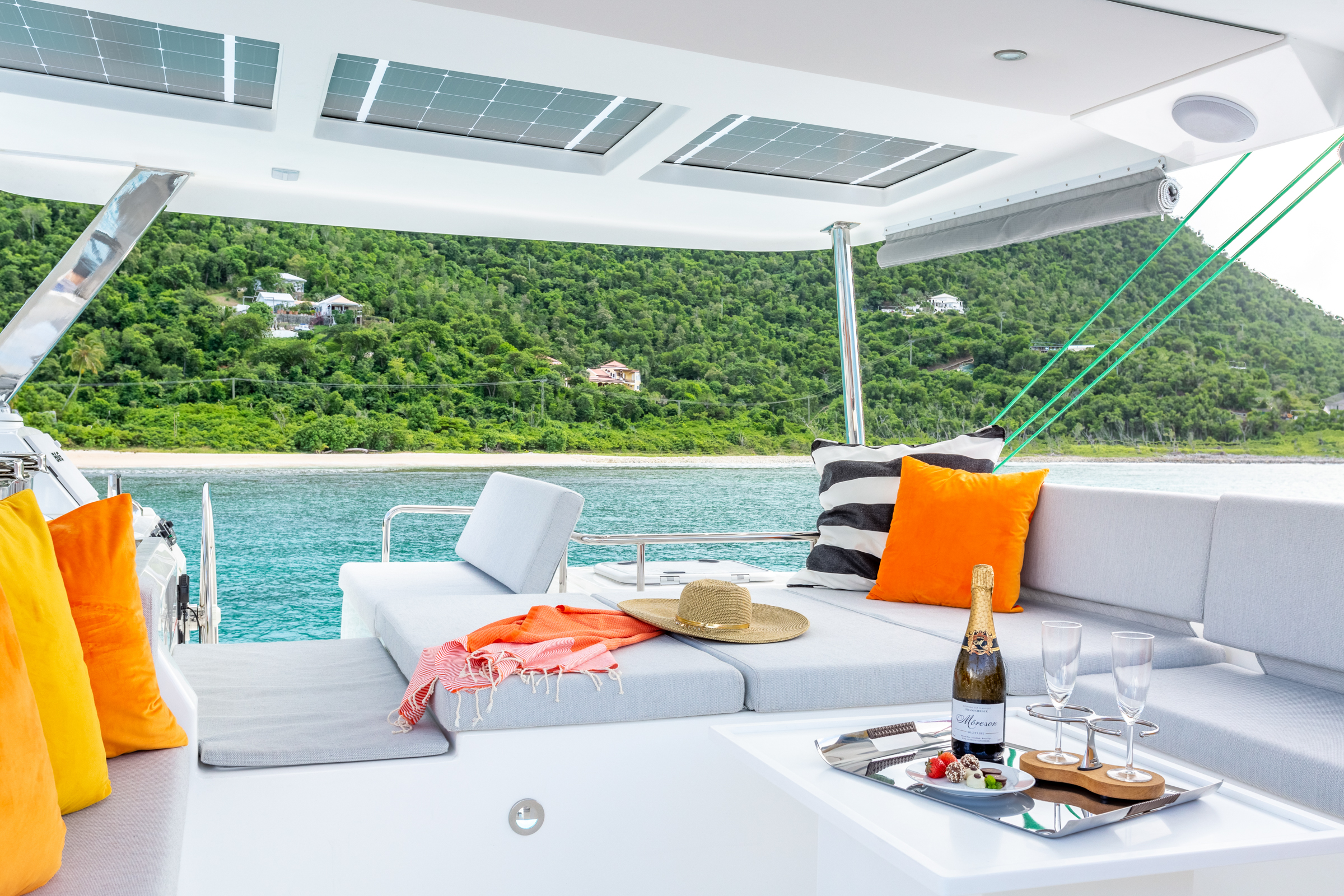

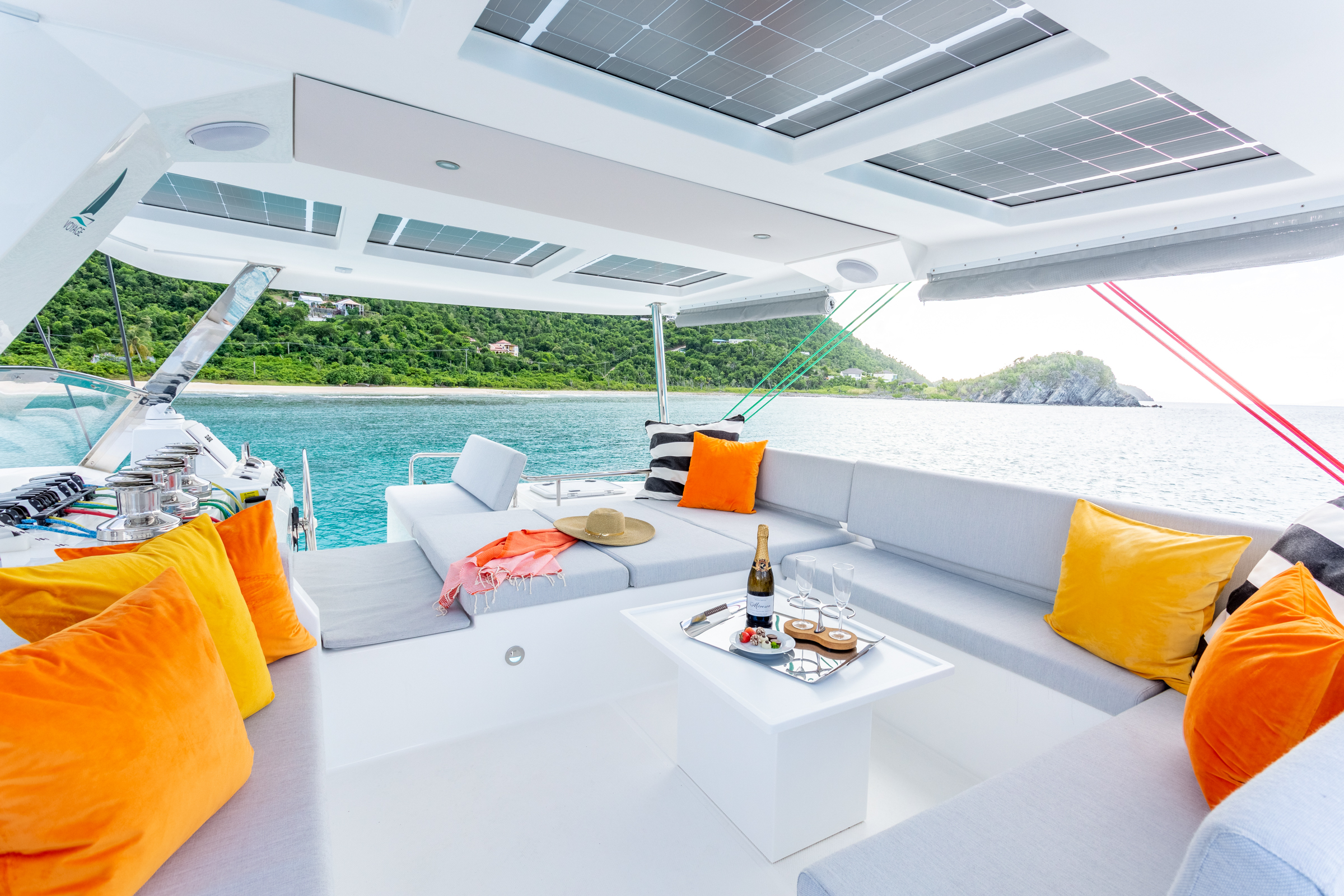

  • Solar panels 5x 300W LUMOS, on hard top to charge house bank battery
  • Sound System - FUSION RA770 with Wifi, Bluetooth, USB, iPod, Android, remote, amplifier, NRX300 remote, 1600W amplifier, Subwoofer, 3 sets speakers @ saloon, aft & fwd cockpit
  • Sound System - FUSION additional set of 2 speakers with amplifier (Hardtop bimini)
  • Underwater Lights - SeaBlaze3, x14
  • Upholstery add-ons: knee cushion @ helm, wedges in fwd cockpit
  • USB outlet, double x4 (2x saloon, 2x aft cockpit)
  • Water filter, carbon, in galley
  • Watermaker Sea RO, Nautilus 1200GPD
  • Windlass control at helm (fixed) with chain counter

[+] More

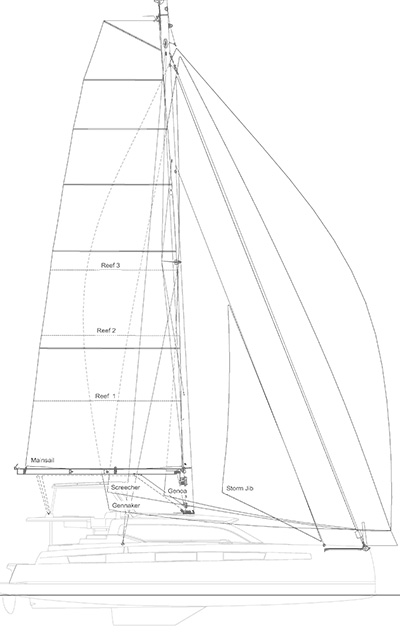

Sailplan

 Download Plan

Layouts

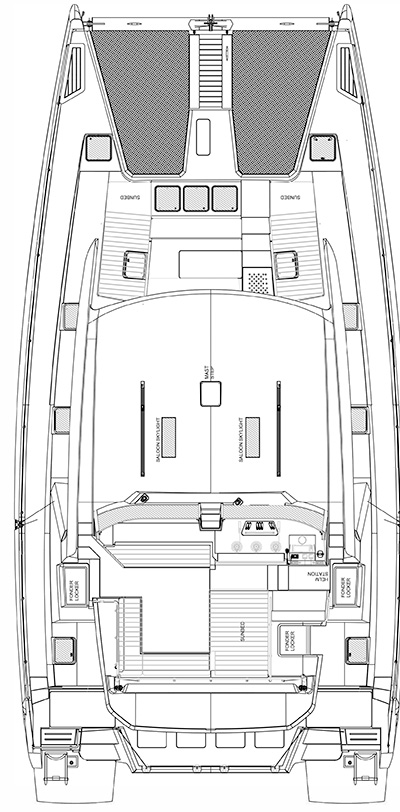

Deck Layout - Flybridge Version

Click to Download

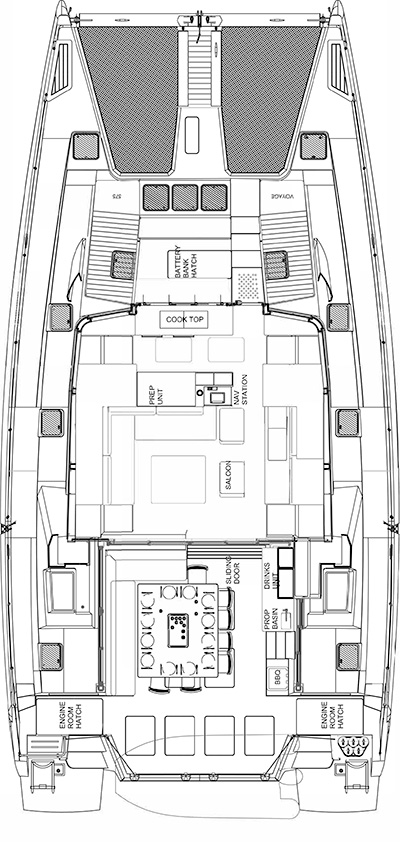

Saloon Layout

Click to Download

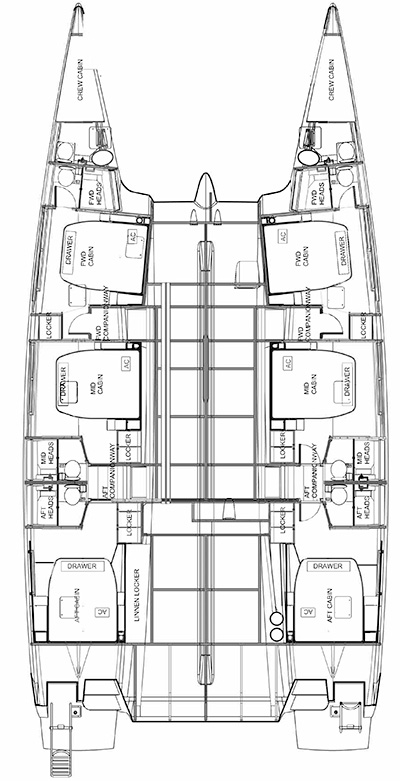

6 Cabin Layout

Click to Download
