About
Specifications
SPECS
MEASUREMENTS
ENGINE(S)
Accommodations
Layout & Accommodations

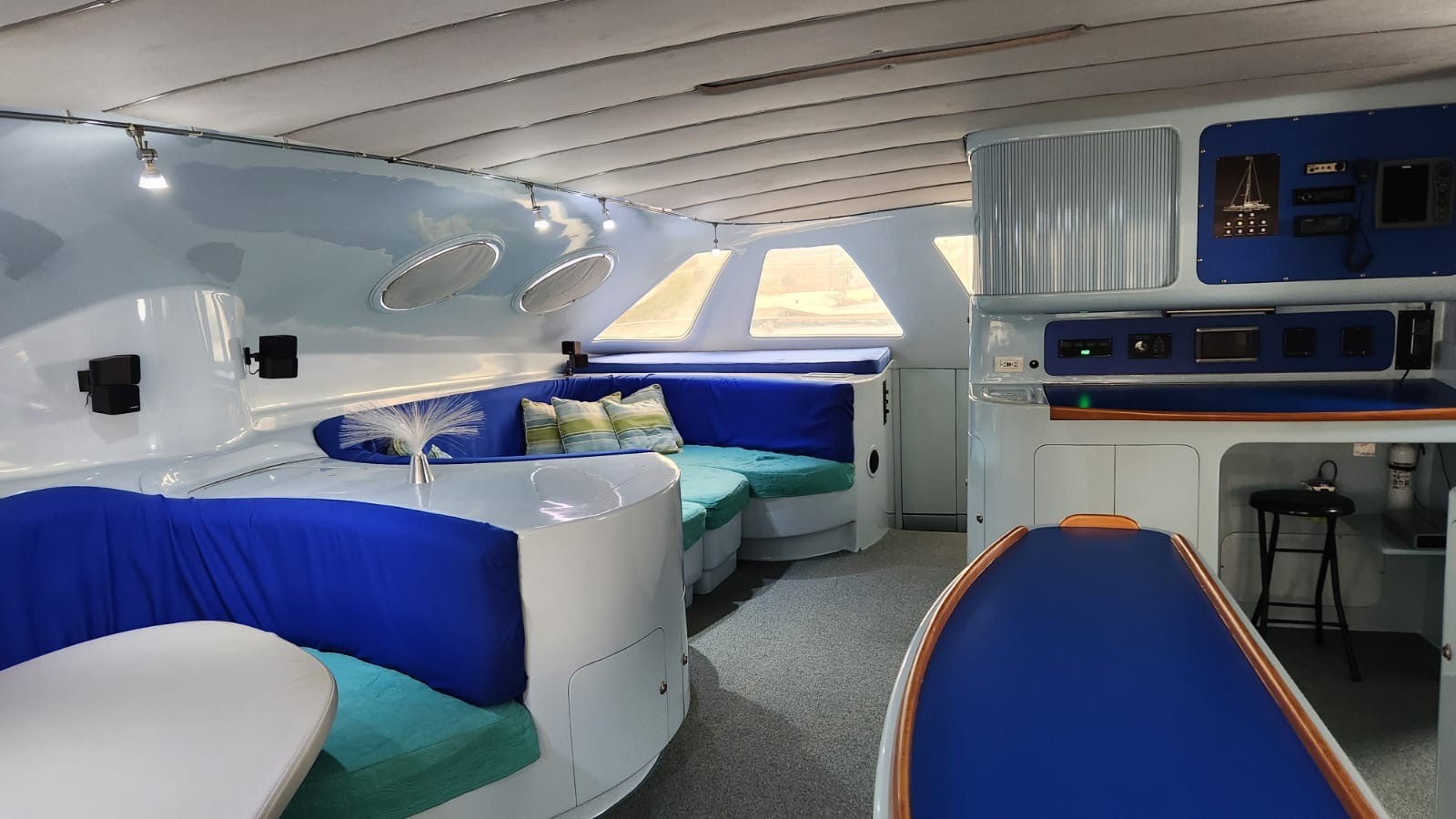

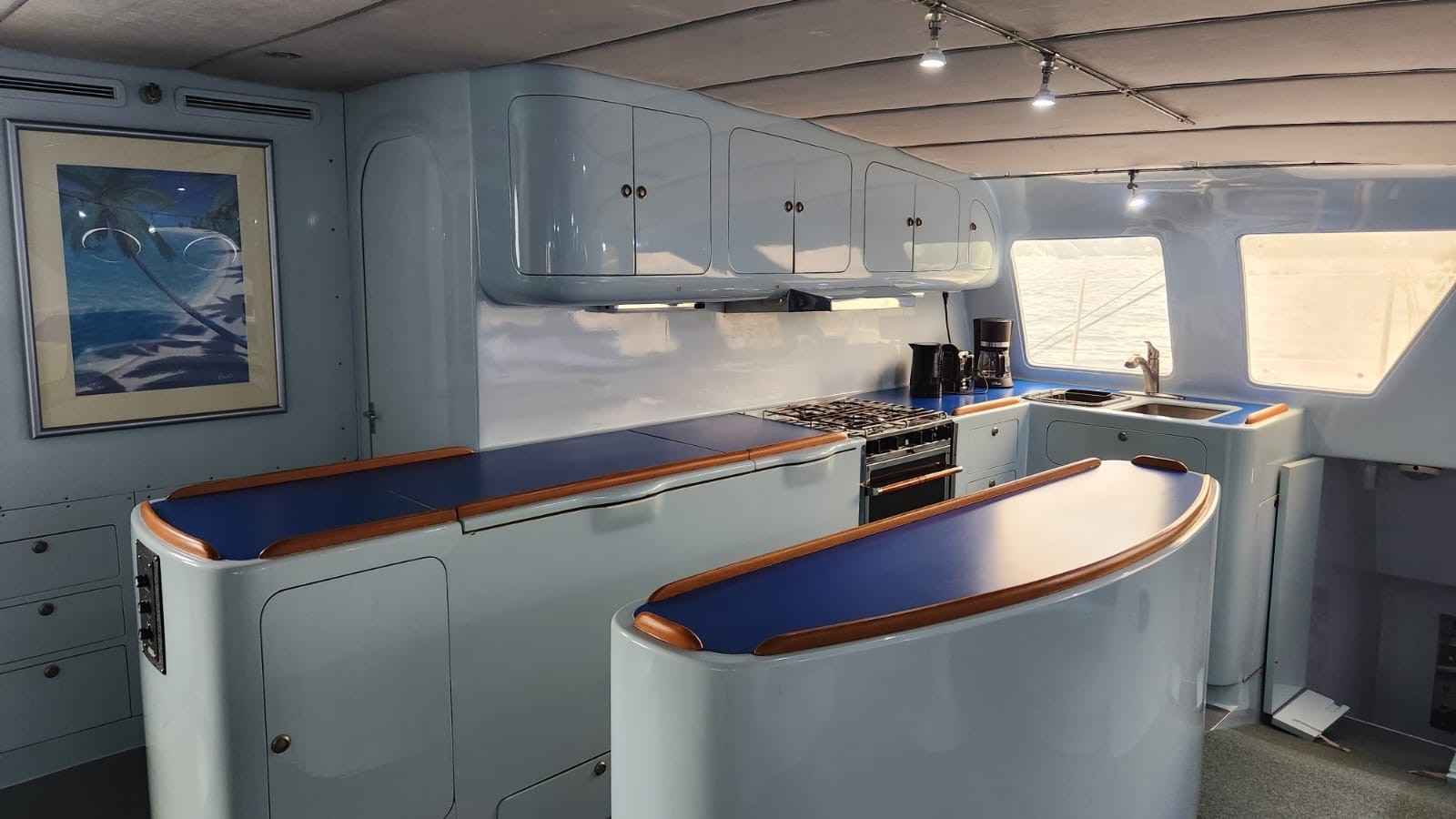

Saloon-
12V DC / 240V AC / 120V AC breaker panel
700 Ah house batteries
House battery chargers, two WM RSP-1500-15 units producing 200 amps @ 13V with remote display
Go Power 3000W DC to AC inverter with remote display and control
Audio visual system, Samsung TV, stereo, pre-amplifier, channel amplifier and eight Bose speakers
Fitted safe
Sea Frost chest fridge and freezer, twin chiller plates with spill over to fridge
Four burner and oven Broadwater marine stove with extraction hood
Amberton propane fume detection and control system
RCA microwave oven
Whale 11 gallon water heater
Ultraviolet fresh water sterilization system and
Dometic Marine Systems AC unit 10,000 BTU
Day head-
Vacuflush marine head, fresh water
Port forward lazarette-
Village Marine Tech 3PW 1200 water maker
190 US Gal diesel fuel tank
Fuel board with Racor filter and micro-valves for on / off control of main engine, generator, transfer and polishing
Two bilge pumps with high water alarms
Starboard forward lazarette-
190 US Gal diesel fuel tank
Fuel board with Racor filter and micro-valves for main engine, generator, transfer and polishing
Two bilge pumps with high water alarms
Stb / port shore power, stb / port generator selection breaker panel
Port forward cabin-

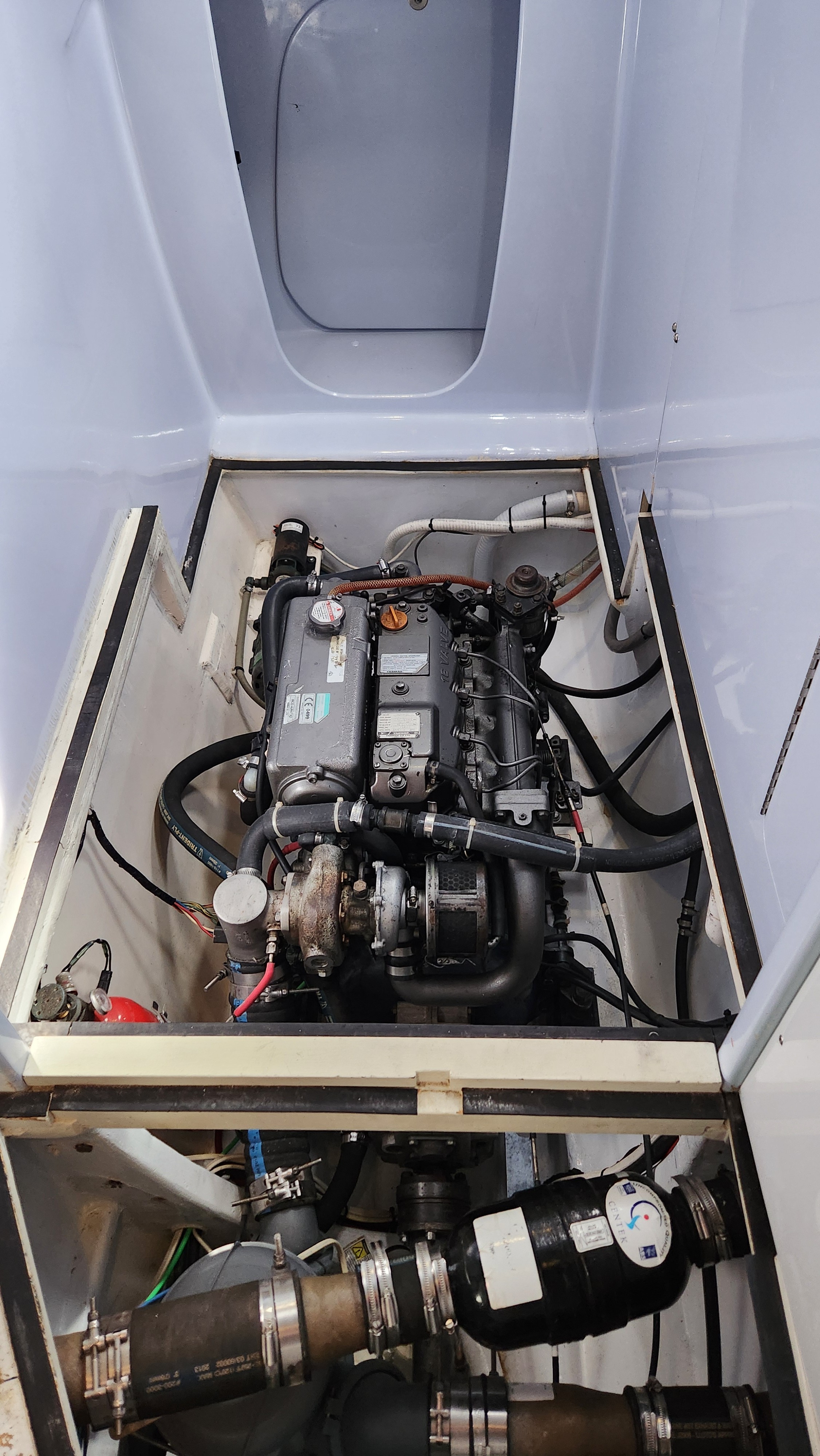

Yanmar 4JH4-TE 75hp @ 3200 rpm main engine 1267 hrs
ZF 25MA transmission 2.27 ratio fwd
Seafire extinguisher fire safety system
Aquadrive, pillow block bearing, PSS seal, 1 1/4” stainless shaft and Gori 3 blade folding propeller
Refrigeration pump
AC system pump
Two bilge pumps with high water alarms
Custom sea chest with strainer
Dometic Marine Systems AC unit (shared with saloon) 10,000 BTU
100 US Gal pressurized fresh water tank
110 US Gal black water tank located in keel
Starboard forward cabin-
Yanmar 4JH4-TE 75hp @ 3200 rpm main engine 1229 hrs
ZF 25MA transmission 2.27 ratio fwd
Seafire extinguisher fire safety system
Aquadrive, pillow block bearing and PSS seal 1 1/4” stainless shaft and Gori 3 blade folding propeller
Two bilge pumps with high water alarms
Custom sea chest with strainer
Dometic Marine Systems AC unit (shared with saloon) 10,000 BTU
100 US Gal pressurized fresh water tank
110 US Gal black water tank located in keel

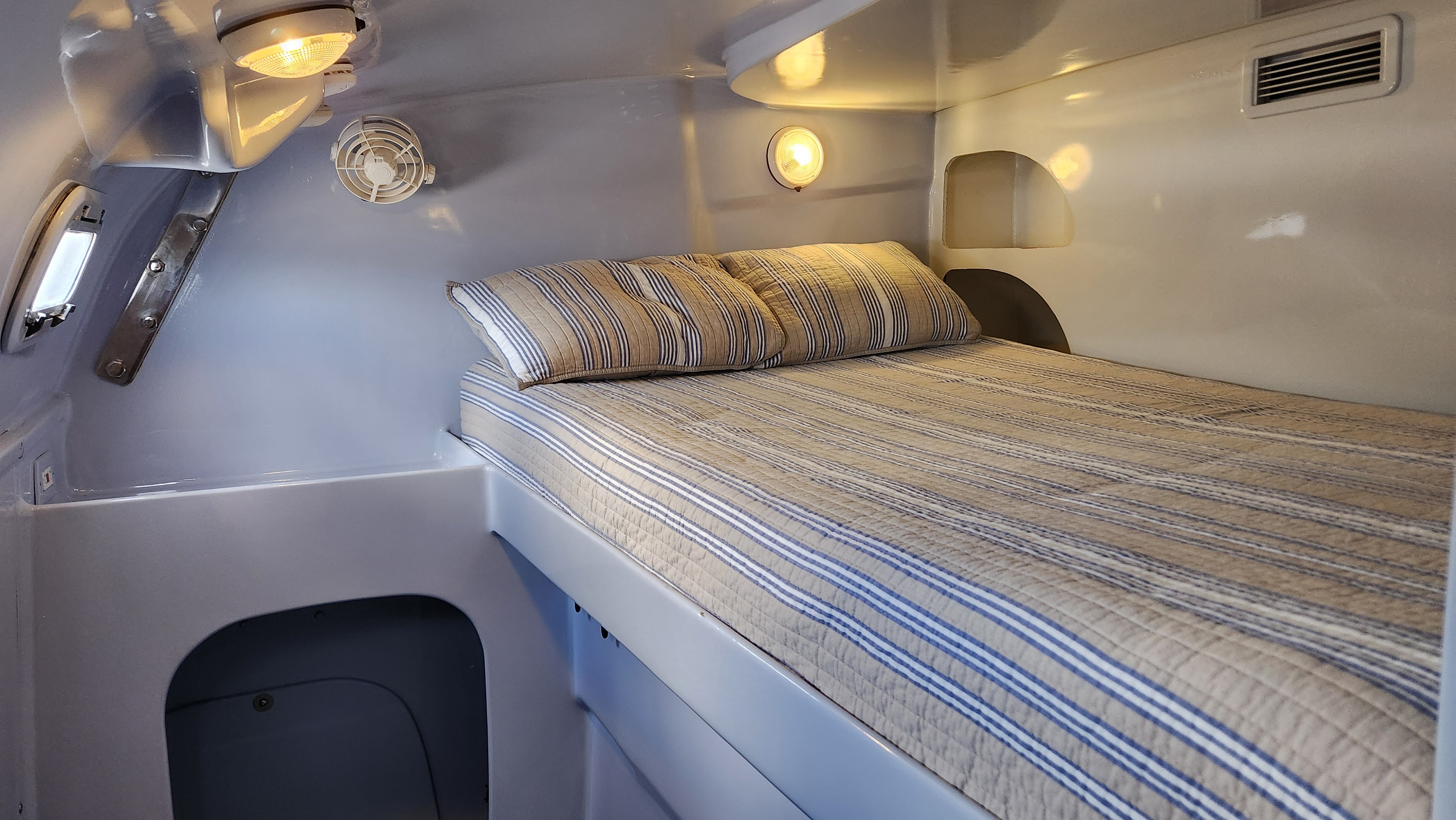

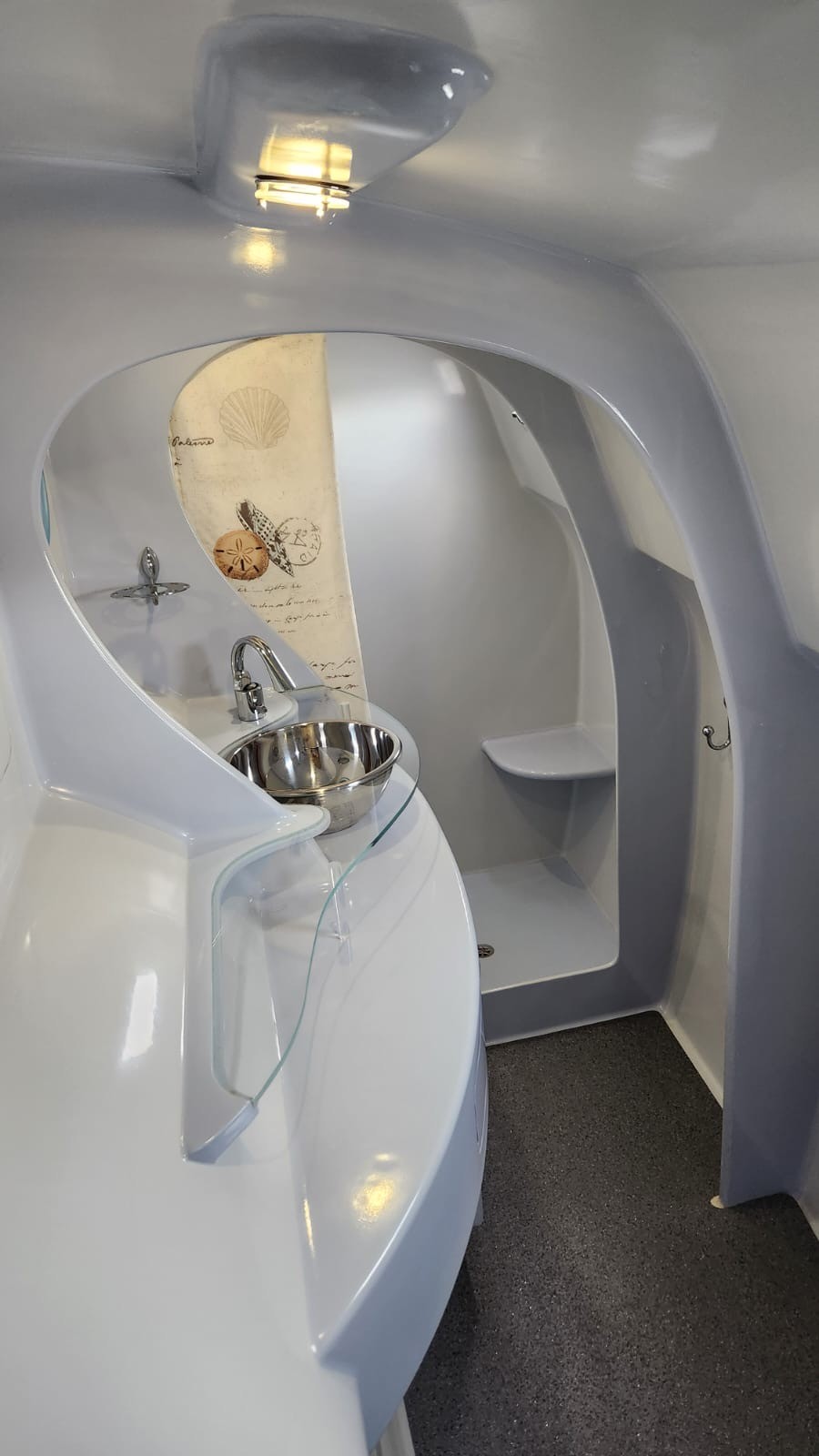

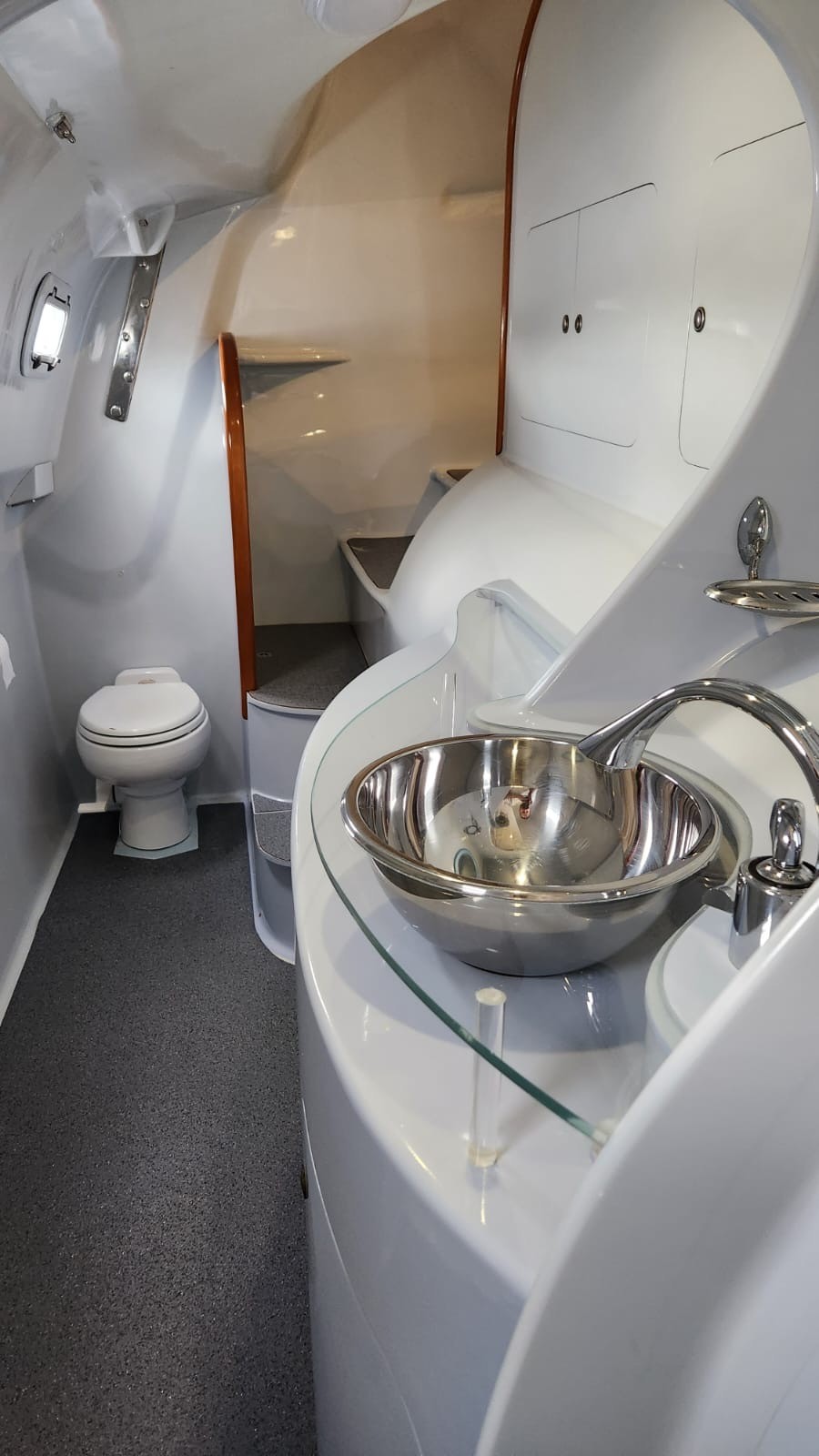

Port stateroom-
Vacuflush marine head, fresh water
Automatic shower pump
High water bilge alarm
Individual stereo system with four Bose speakers
Dometic Marine Systems AC unit 10,000 BTU

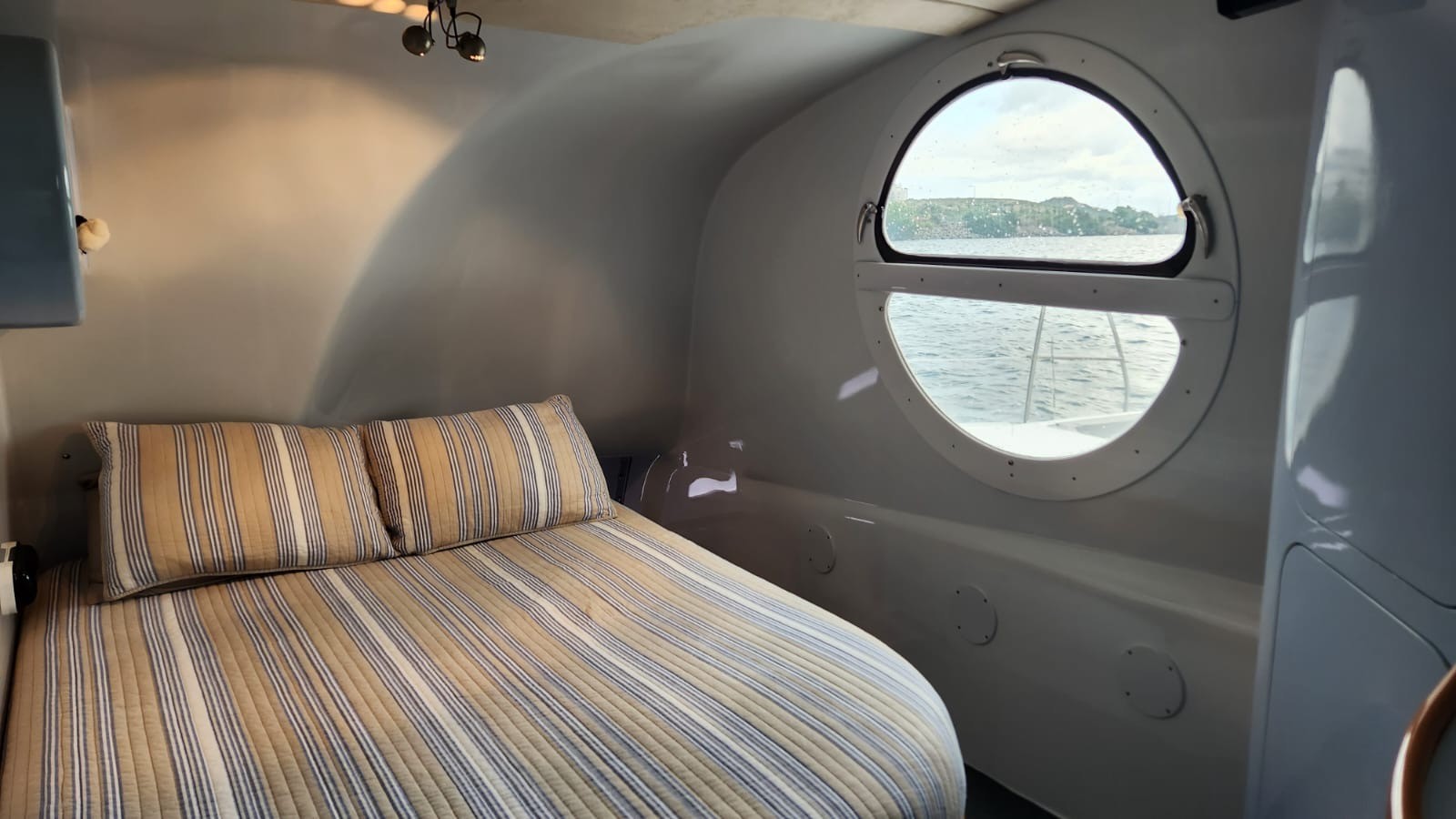

Starboard stateroom-
Vacuflush marine head, fresh water
Automatic shower pump
High water bilge alarm
Individual stereo system with four Bose speakers
Dometic Marine Systems AC unit 10,000 BTU
Port aft lazarette-

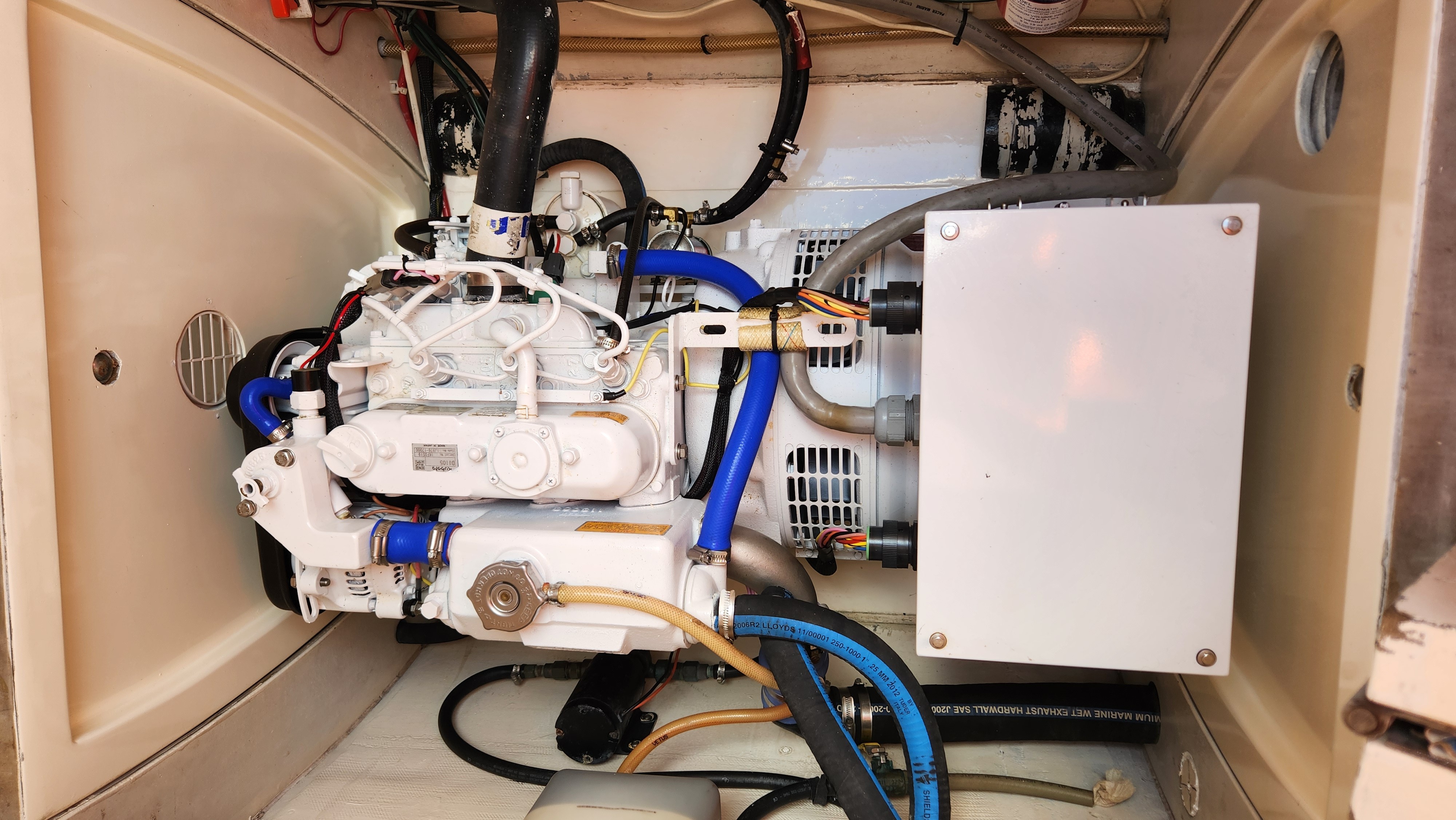

10 kW Phaser Generator with control panel, sound box and heat extraction system 136hrs
Bilge pump with high water alarm
Deck fresh water wash-down faucet (on deck)
Starboard aft lazarette-
12 kW Phaser Generator with control panel, sound box and heat extraction system 1035 hrs
Bilge pump with high water alarm
Deck fresh water wash-down faucet (on deck)
Deck & Equipment

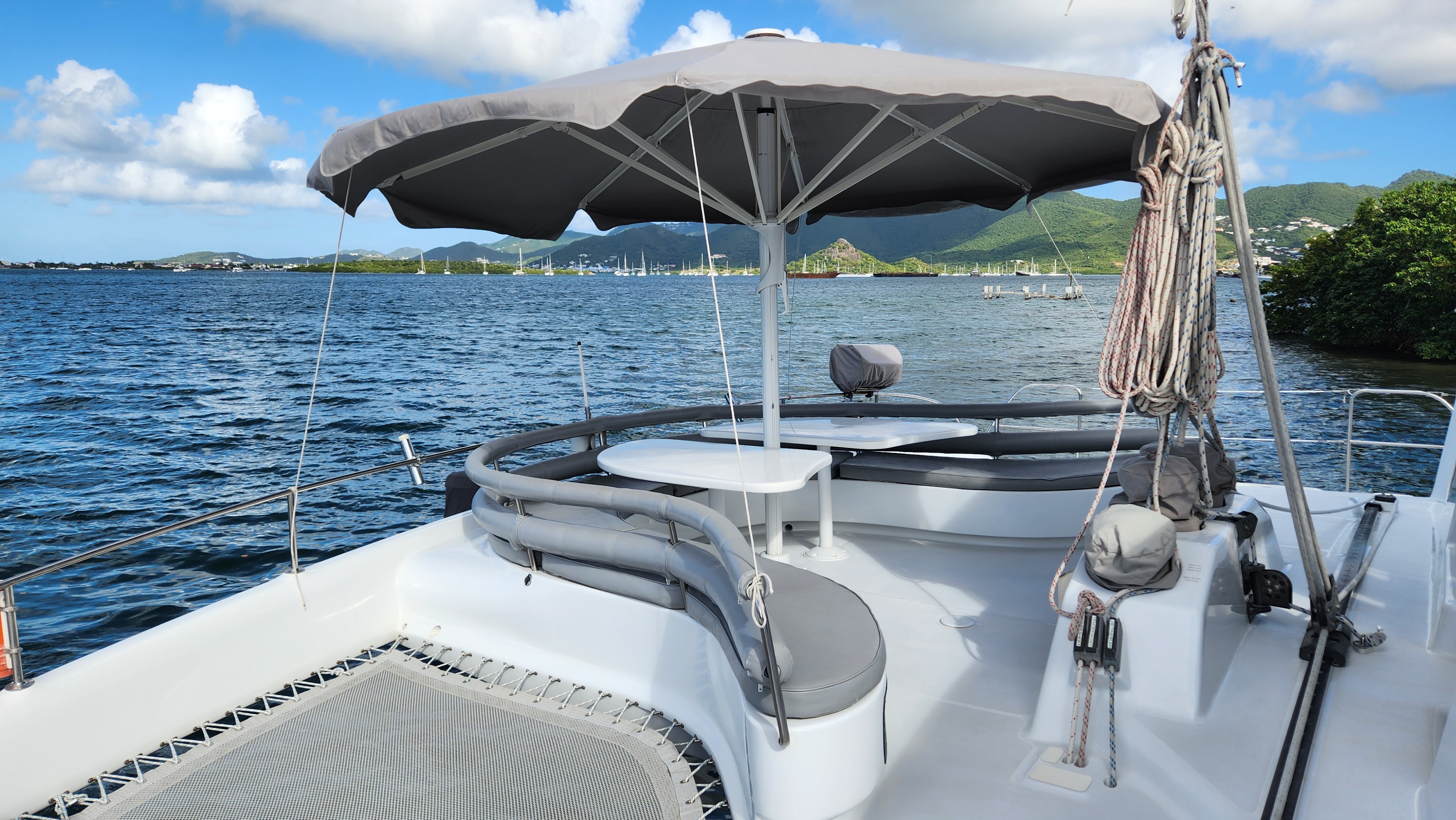

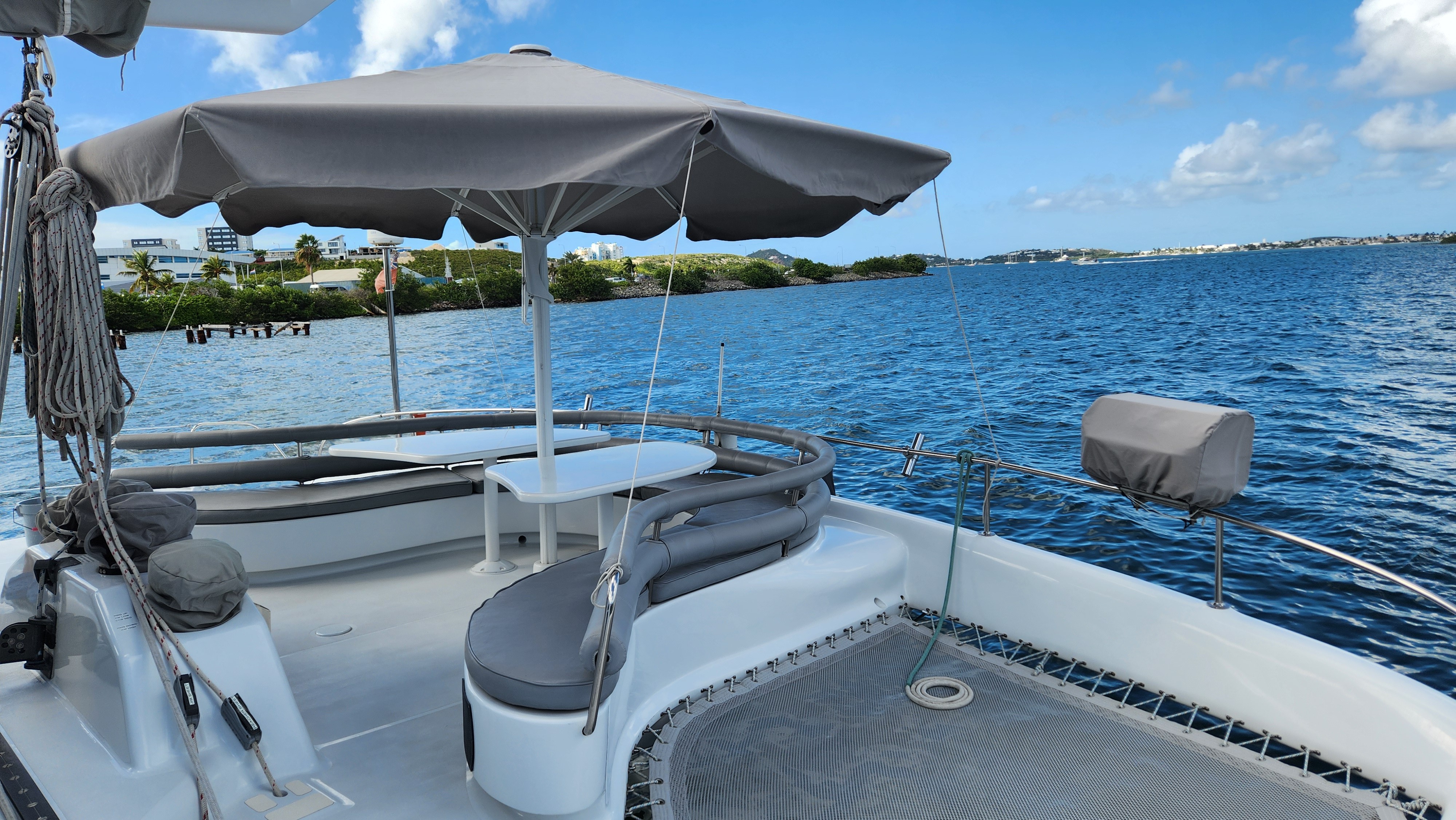

Cockpit-
Two Harken 65.3 three speed winches, two Lewmar 66 2 speed winches
Navtec manual hydraulic out-haul system
Magma propane grill

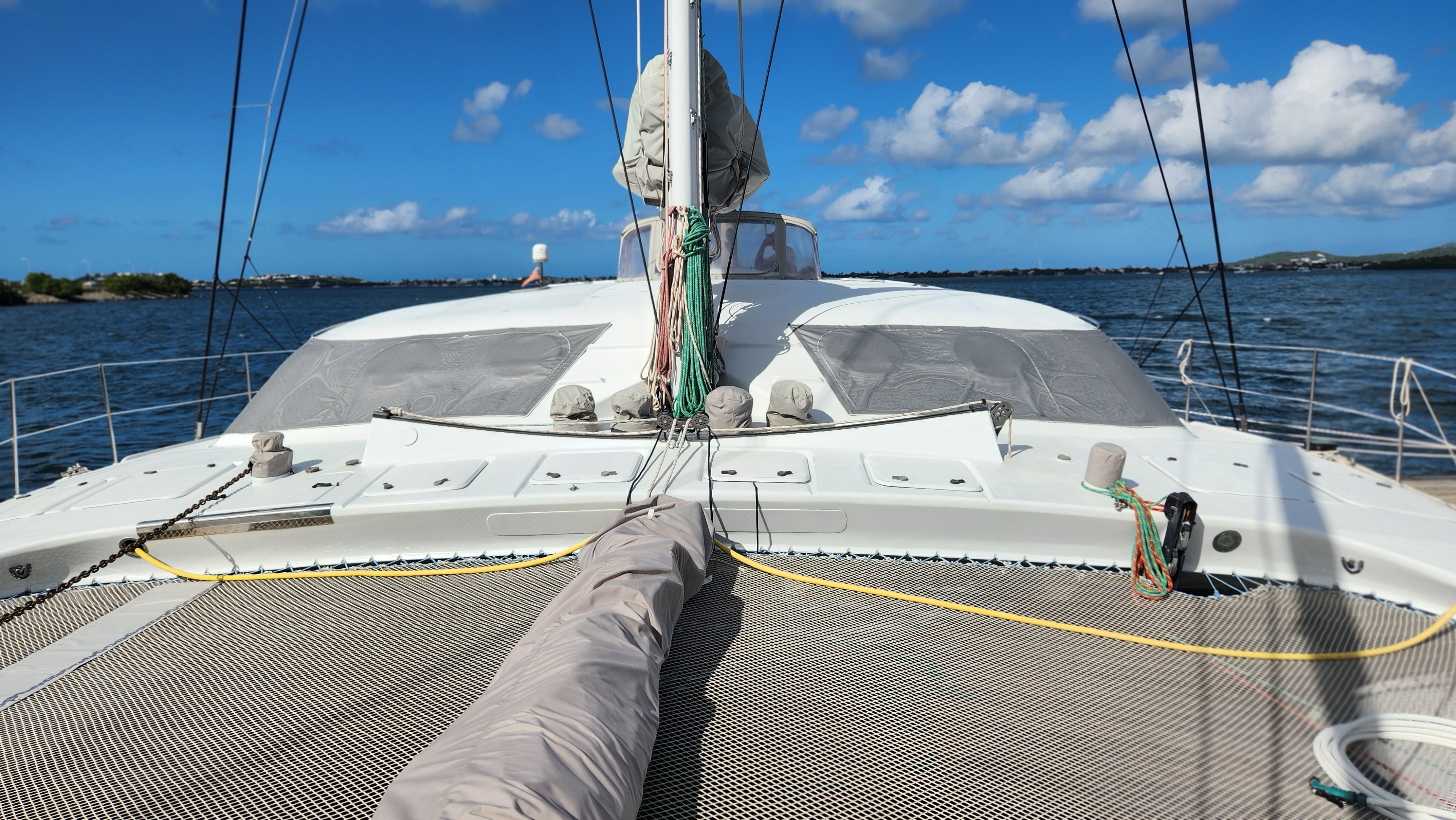

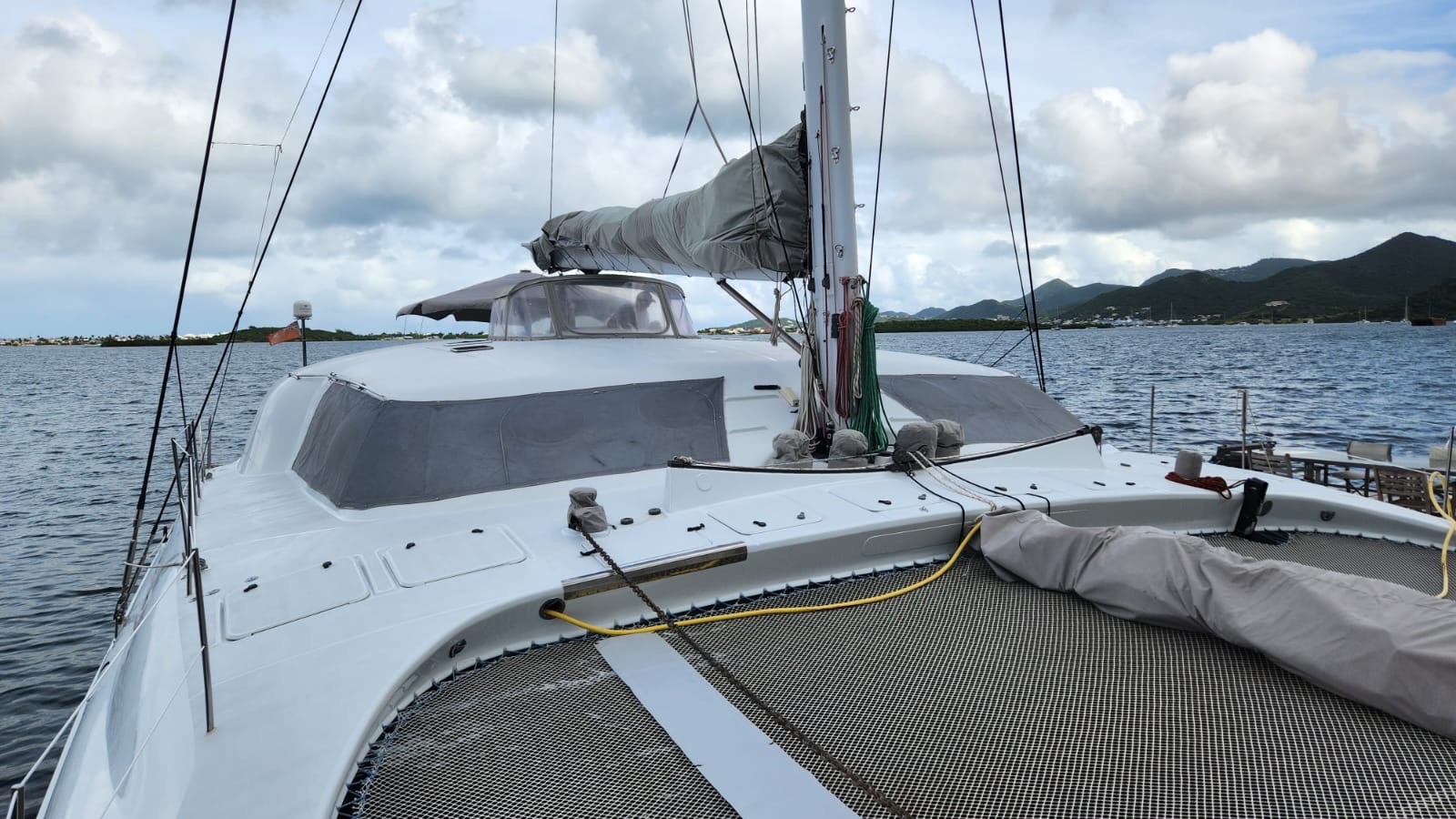

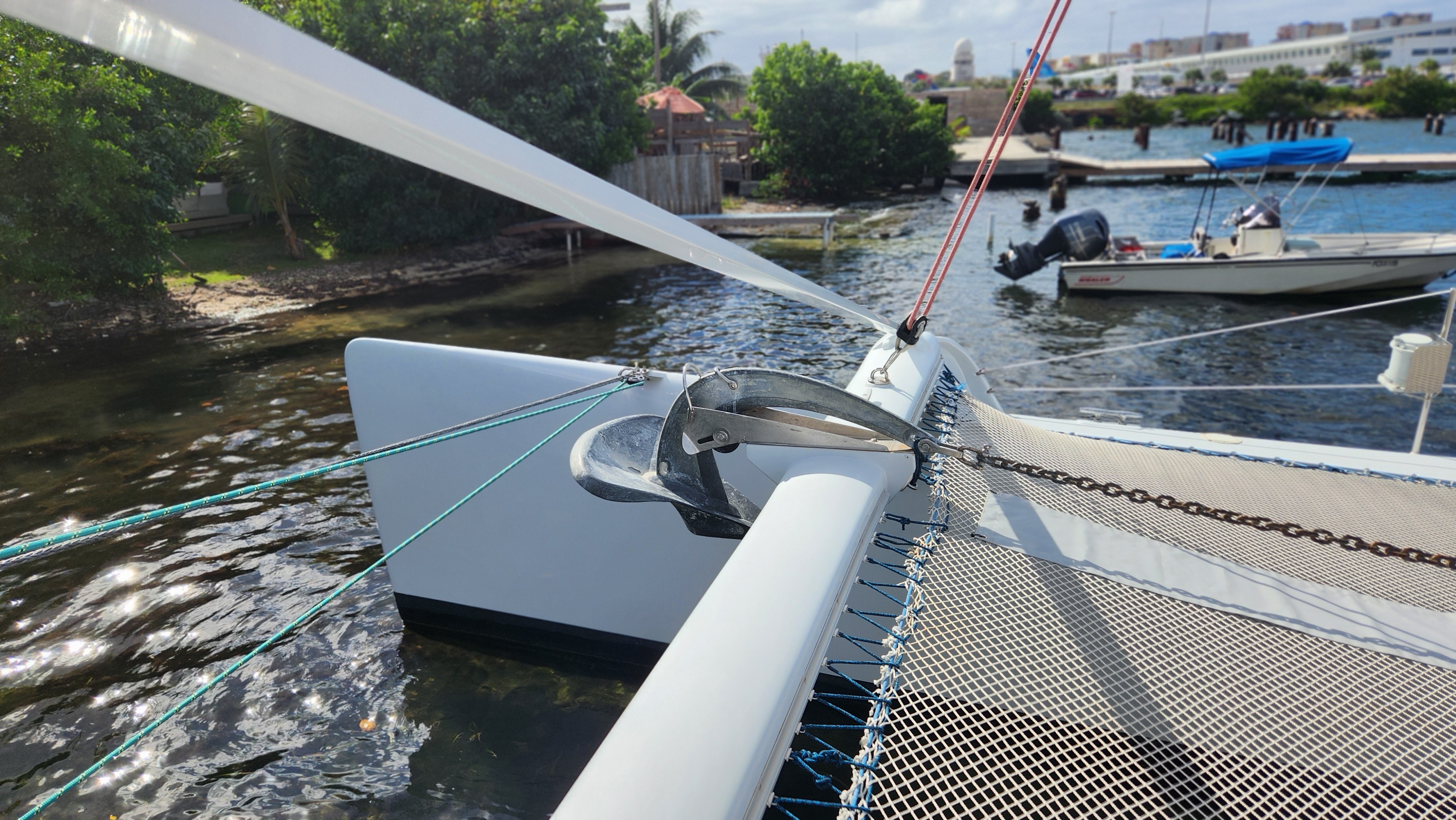

Deck forward-
Maxwell electric anchor windlass

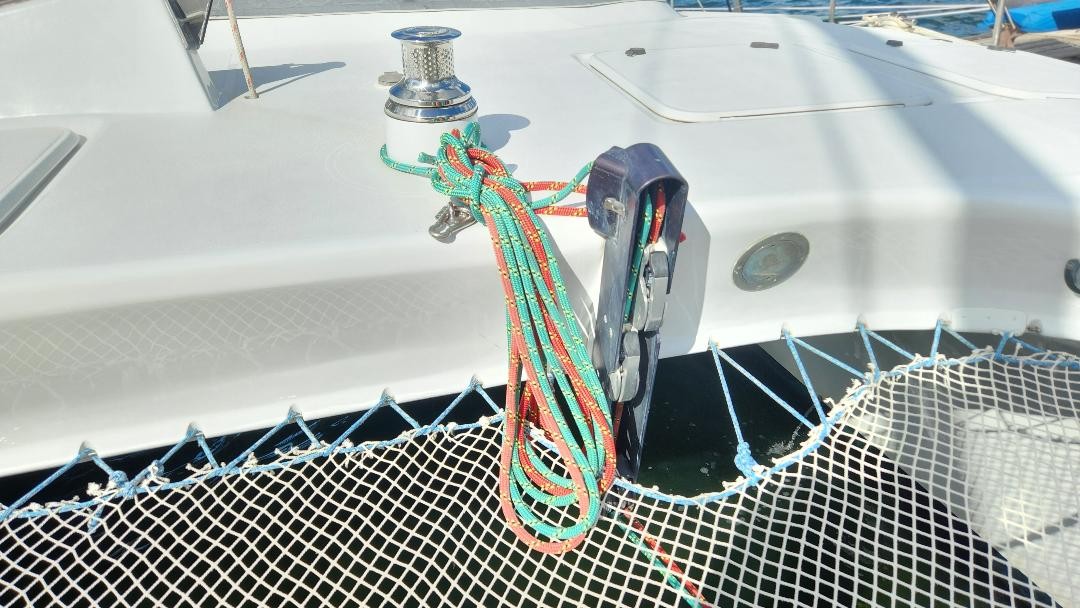

Lewmar capstan for screecher tacking lines
Three Lewmar 66 2 speed winches
Lewmar 68 2 speed electric winch
Electronics & Navigation

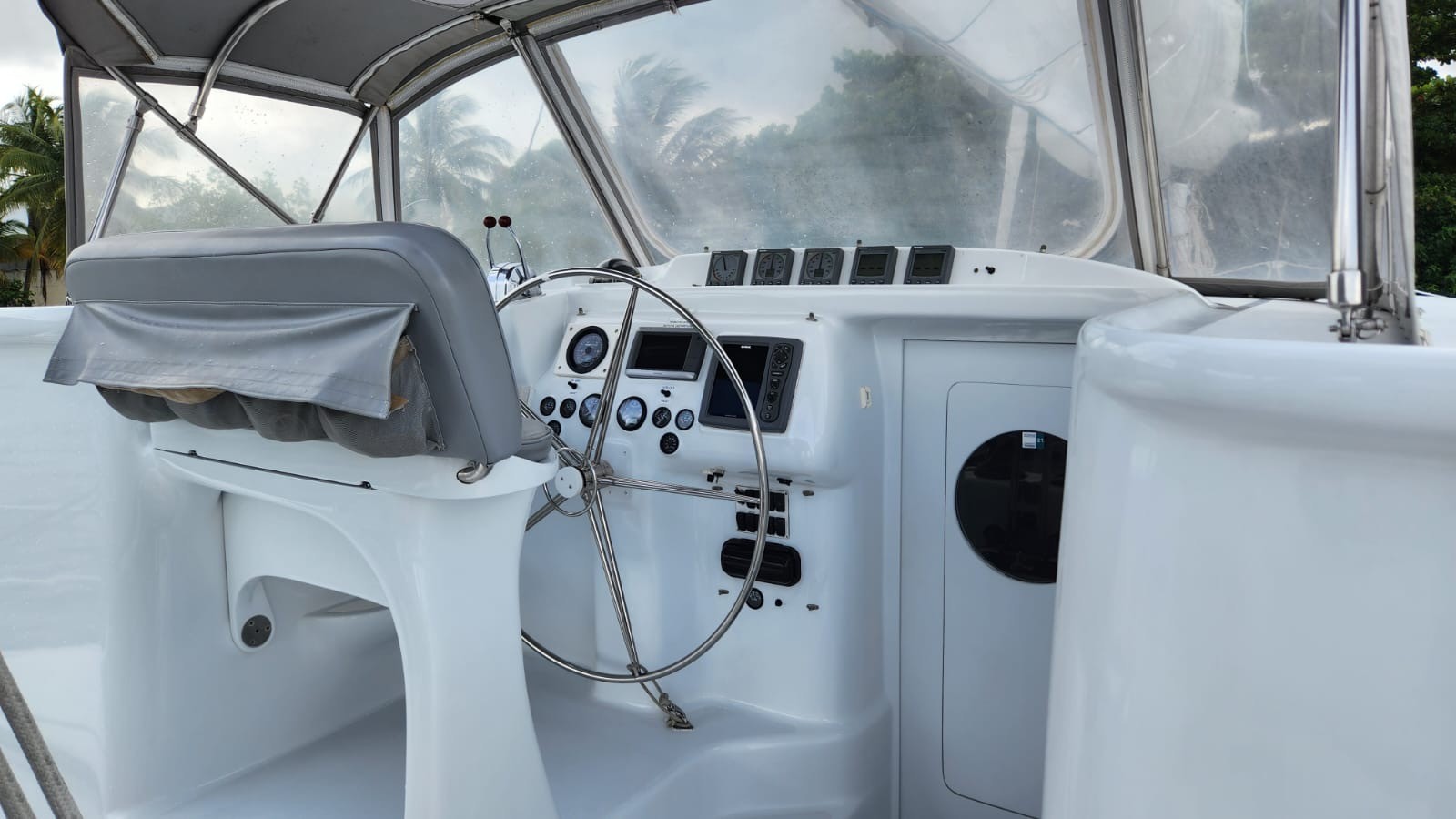

Helm-
Simrad AP20 autopilot
Garmin GPS 740 chart plotter
SI-TEX radar display
Six Raymarine ST60+ sailing instruments displays
Signet Marine SL254 wind instrument
Main engines VDO tachometer / water temp. / oil pressure / exhaust pyrometer gauges
Select-able VDO temperature gauge for gensets
Morse single handle engine controls

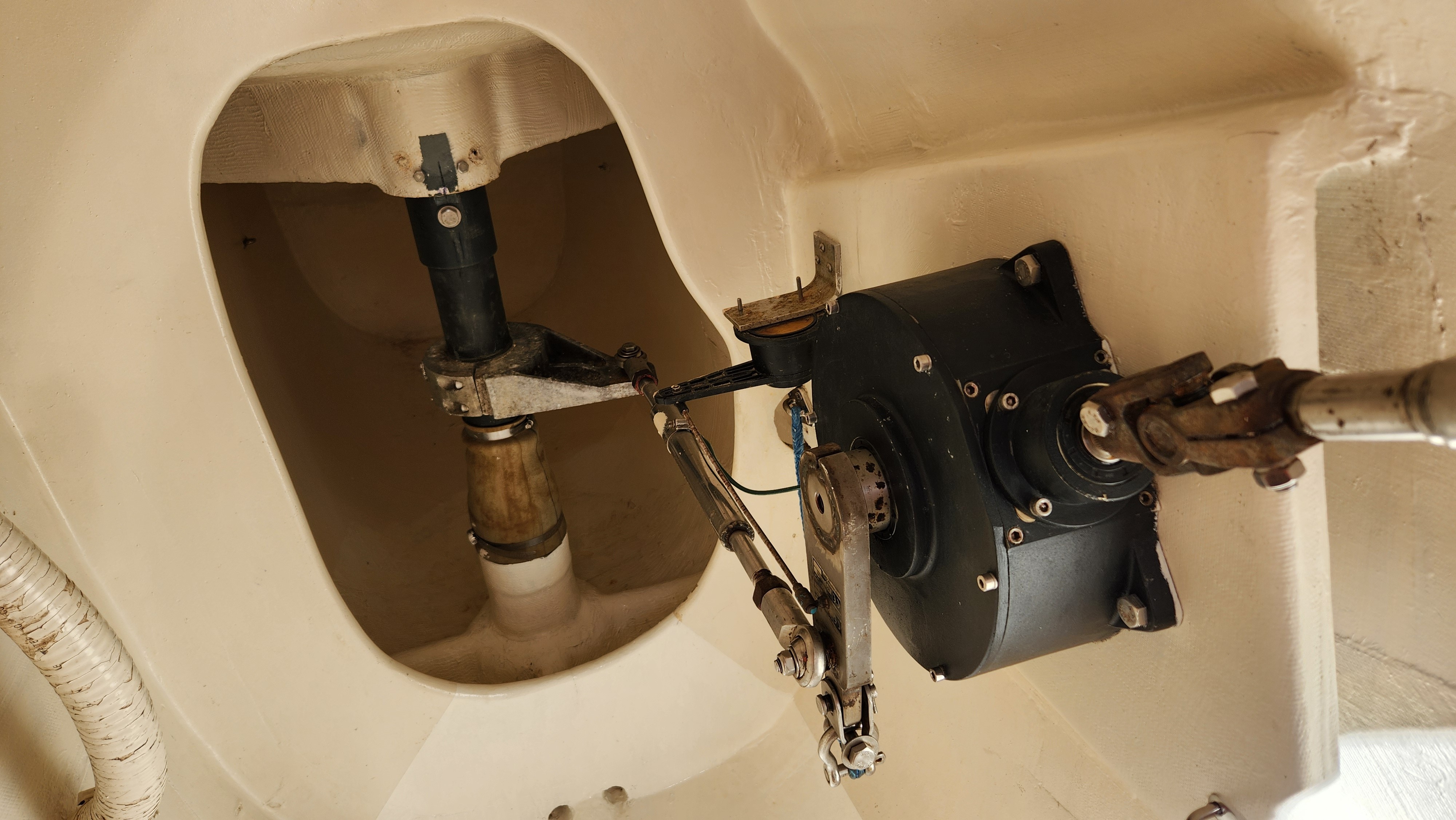

Whitlock Mamba rod-link steering “rack and pinion
Electrical, Power & Plumbing
12V DC / 240V AC / 120V AC breaker panel
700 Ah house batteries
House battery chargers, two WM RSP-1500-15 units producing 200 amps @ 13V with remote display
Go Power 3000W DC to AC inverter with remote display and control
10 kW Phaser Generator with control panel, sound box and heat extraction system 136 hrs
12 kW Phaser Generator with control panel, sound box and heat extraction system 1035 hrs
Port side-
100 US Gal pressurized fresh water tank
110 US Gal black water tank located in keel
190 US Gal diesel fuel tank
Starboard side-
100 US Gal pressurized fresh water tank
110 US Gal black water tank located in keel
190 US Gal diesel fuel tank
Engine & Mechanical
Port side –
Yanmar 4JH4-TE 75hp @ 3200 rpm main engine 1267 hrs
ZF 25MA transmission 2.27 ratio fwd
Gori 3 blade folding propeller
Starboard side
Yanmar 4JH4-TE 75hp @ 3200 rpm main engine 1229 hrs
ZF 25MA transmission 2.27 ratio fwd
Gori 3 blade folding propeller

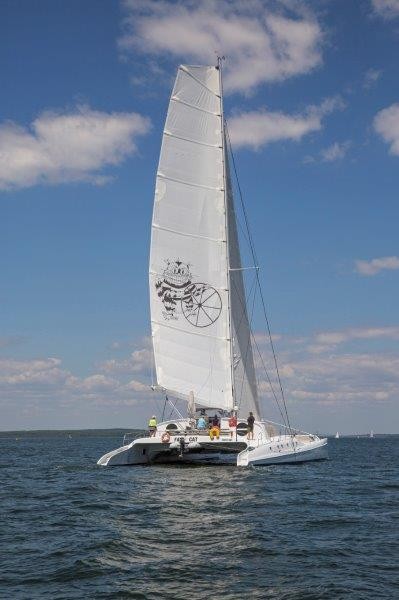

Sails & Rigging
Spars and rigging-
Full carbon fiber mast and boom
Aramid shrouds with ECsix mast diamonds and forestay
New North Sails 3di cruising Main and Solent. 2015 Doyle furling screecher, due for replacement
Additional Information
Other
Auxiliary-

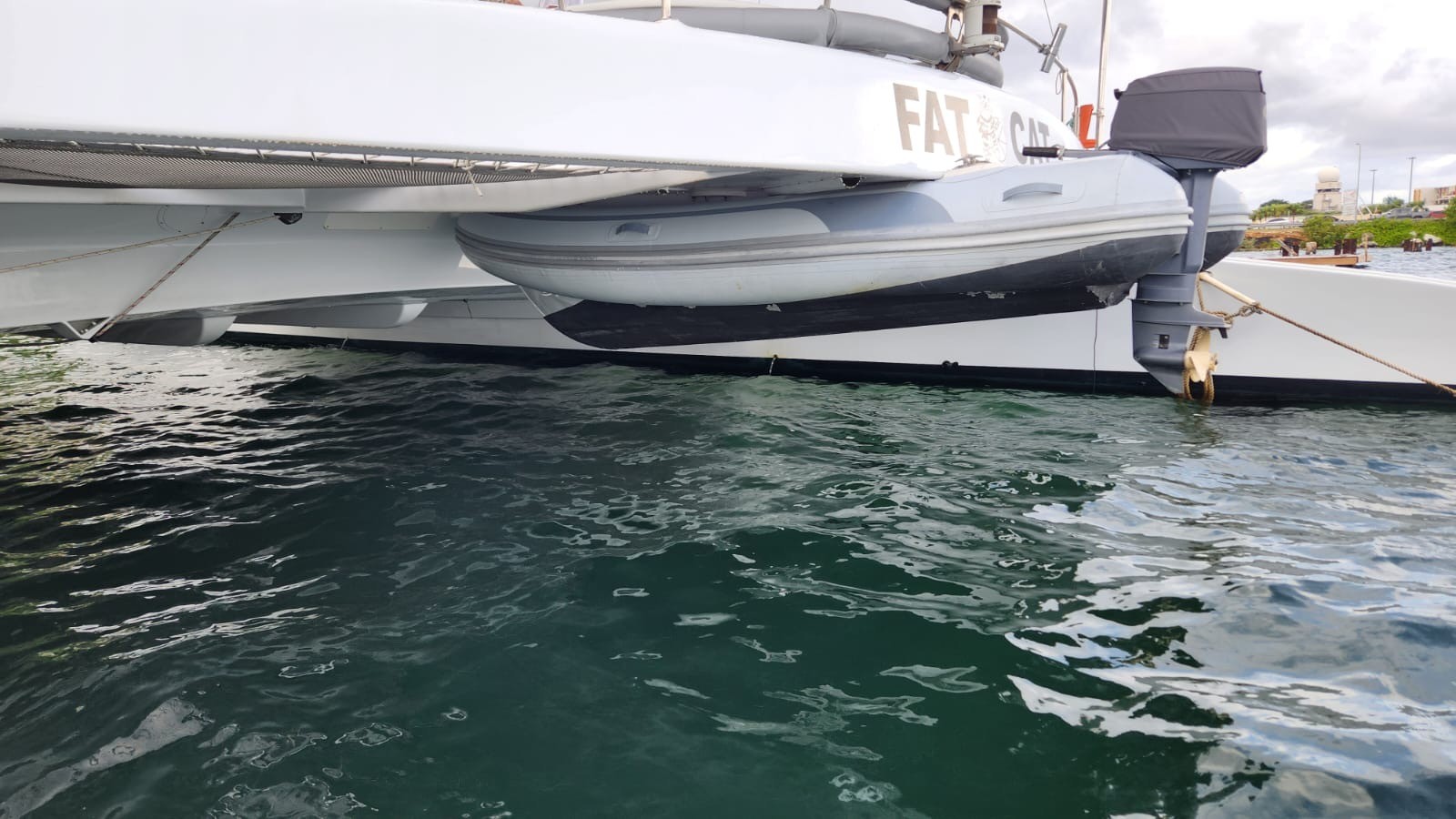

AB 14′ ALX aluminum hull inflatable tender
Yamaha Enduro two stroke 30hp outboard
The Multihull Company is pleased to assist you in the purchase of this vessel though the vessel may be listed with another brokerage company.
