Happy Fluke | 2023 Lagoon 46

Tortola, VG

About

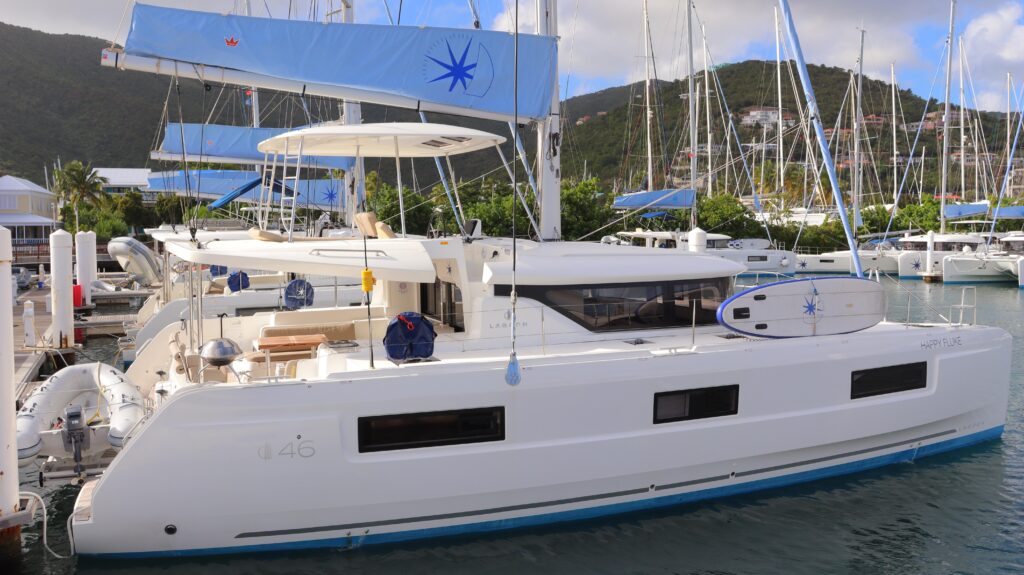

46' Lagoon 46 named "Happy Fluke"

Fully loaded with generator and air conditioner!

This model reinforces everything that puts the Lagoon brand at the top of its industry. Not only has Lagoon proved once again that comfort and performance go hand in hand, but with Lagoon 46, they also show that elegance and design does not have to be compromised in the process. Elegance and simplicity are the key focus points in the design of the Lagoon 46 and they permeate every aspect of both interior and exterior. This model is perfectly able to stand her ground beside the larger models thanks to the superior design that somehow puts her in a class by herself.

The Lagoon 46 is characterized by large and generous spaces, all easily accessible and carefully planned out. The comfortable and spacious flybridge, accessible from two points, is no doubt one of the main highlights on this model. Up here, you have great visibility, while also being protected from both sun and wind, and it’s a wonderful place to just be, whether you are manoeuvring the vessel or simply relaxing. The forward cockpit, another highlight, is great for lounging with friends and family in the late afternoon and it may be transformed into a sunbathing area for ultimate comfort during daytime. It also has large storage areas and windows connecting to the interior.

The moment you step inside, you get the impression of being on a much bigger yacht. The area is truly spacious, filled with natural light from large windows all around. Lagoon is dedicated to making use of every single space aboard the Lagoon 46 to provide as much storage as possible, a commitment reflected in every living space aboard this catamaran. From the impressively spacious four double cabins and their respective bathrooms to the multipurpose cockpits, you will find possibilities for storage in the most unexpected places.

Availability: Now. Can stay in the fleet or leave for private use.

Please enquire directly for further information.

Further tax advantages are available to US Citizens.





Specifications

  • Length: 46ft
  • Builder: Lagoon
  • Beam: 27' 0"
  • Draft: 6' 3"
  • Year: 2023
  • Hull: Fiberglass
  • Status: Active

View More Specs

SPECS

  • Builder: Lagoon
  • Designer: VPLP Design - Nauta Design
  • Keel: Other

MEASUREMENTS

  • Length Overall: 45.75 ft
  • Max Draft: 6' 3"
  • Beam Measure: 27' 0"

ENGINE(S)

  • Total Power: 114
  • Engine Brand: Yanmar
  • Year Built: 2022
  • Engine Model: 4JH57
  • Engine Type: Inboard
  • Engine/Fuel Type: Diesel
  • Engine Power: 57 hp

  • Total Power: 114
  • Engine Brand: Yanmar
  • Year Built: 2022
  • Engine Model: 4JH57
  • Engine Type: Inboard
  • Engine/Fuel Type: Diesel
  • Engine Power: 57 hp

TANKS

  • Fresh Water Tanks: 2 (137 Gallons)
  • Fuel Tanks: 2 (137 Gallons)

Accommodations

  • Number of cabins: 4
  • Number of heads: 4

Construction

  • HULL CONSTRUCTION: Polyester and high quality anti-osmotic resin; Hull and deck laminated by infusion; Balsa core hull, white gel coat; Laminated or glued plywood bulkhead
  • DECK MATERIAL: Balsa core bridge deck and deck, white gel coat
  • CE Certification A : 12 – B : 14 – C : 20 – D : 30

Accommodations

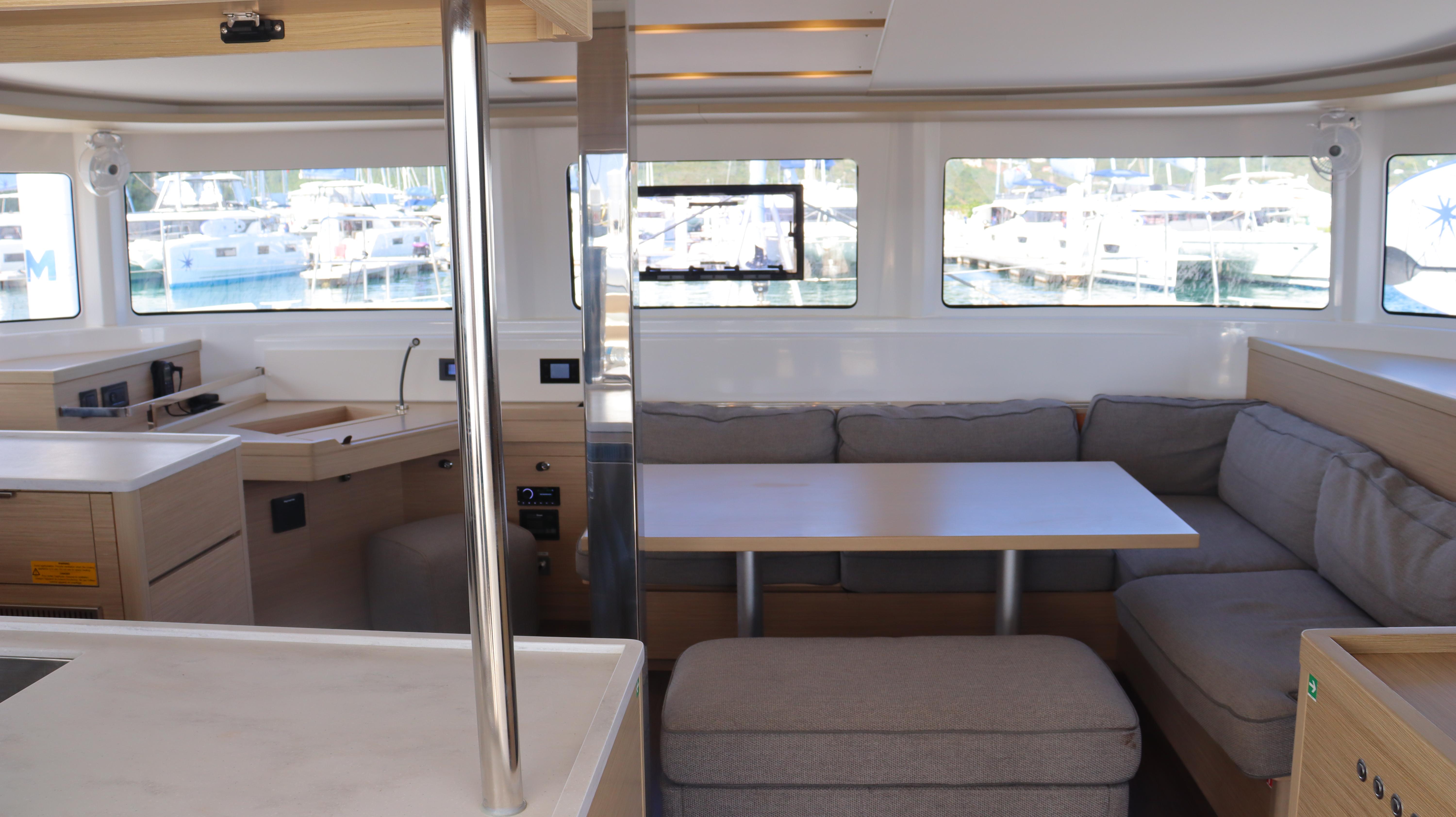

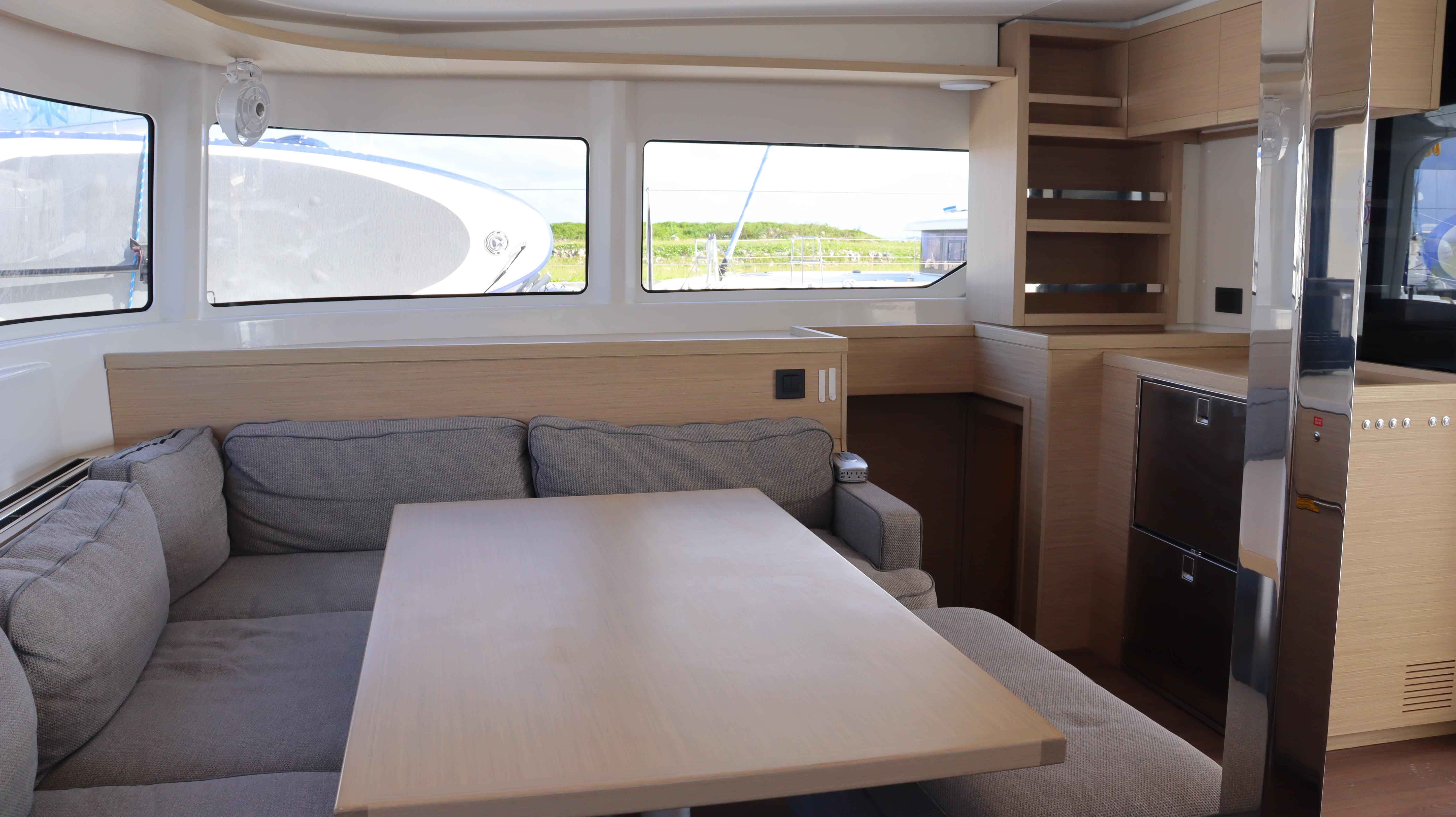

SALOON

  • Sliding door and window with aluminium bolt for the access to the cockpit, can be locked open or closed
  • Large varnished saloon table convertible in berth (optional)
  • L-shaped couch for 6 people, forward to starboard
  • Locker under bench and storage under floor hatches
  • Various high and low storage areas in the starboard cupboard in front of the table (TV option / Second fridge or freezer option)
  • Mast support strut: square, stainless steel mirror polished

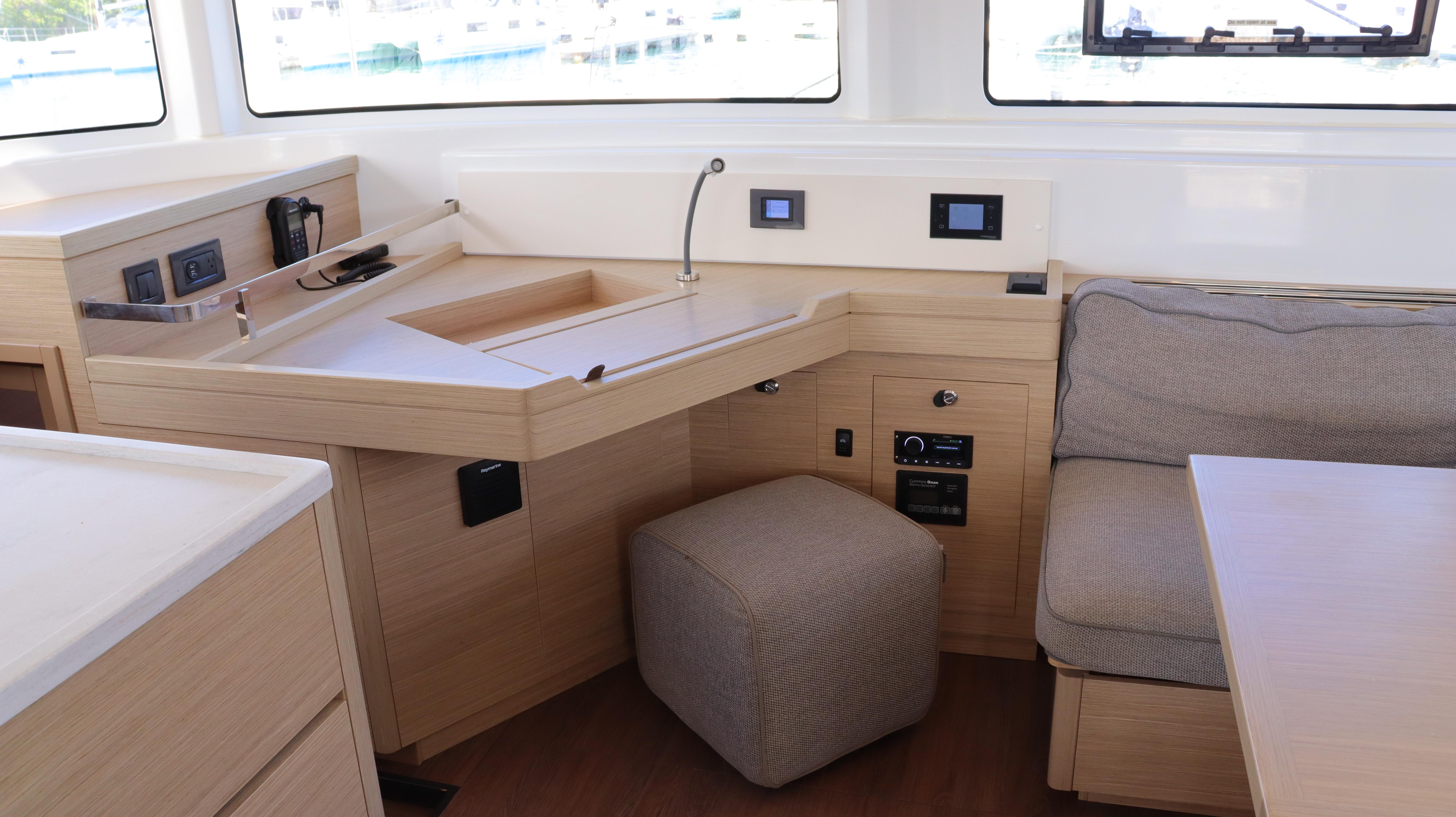

CHART TABLE

  •  Desk with a flap
  • Storage niches

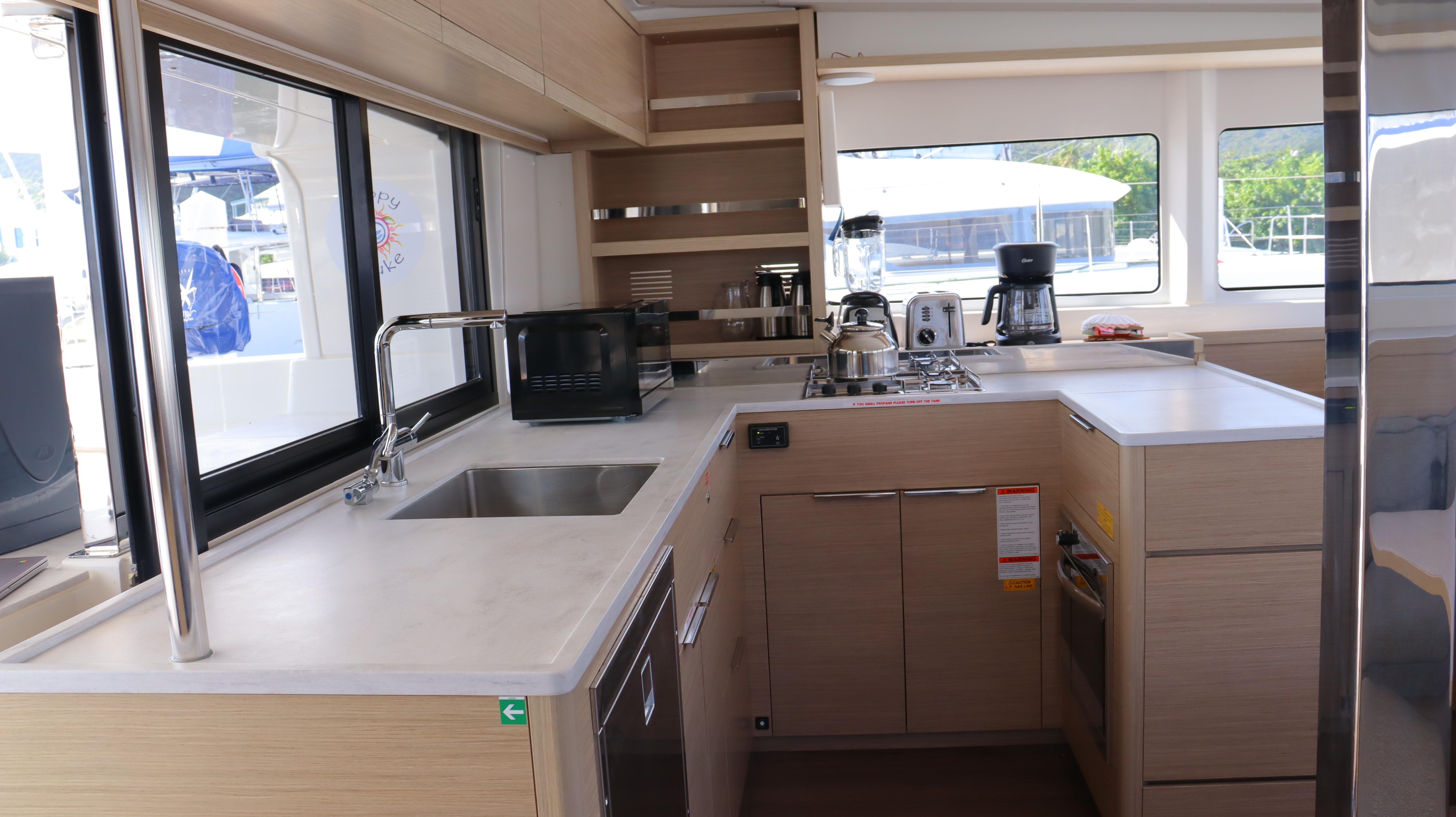

GALLEY

  • U-shaped galley on port side
  • Worktop in Corian® – Warm Grey
  • Large tray s/s sink with hot/cold mixer tap
  • Storage under the sink

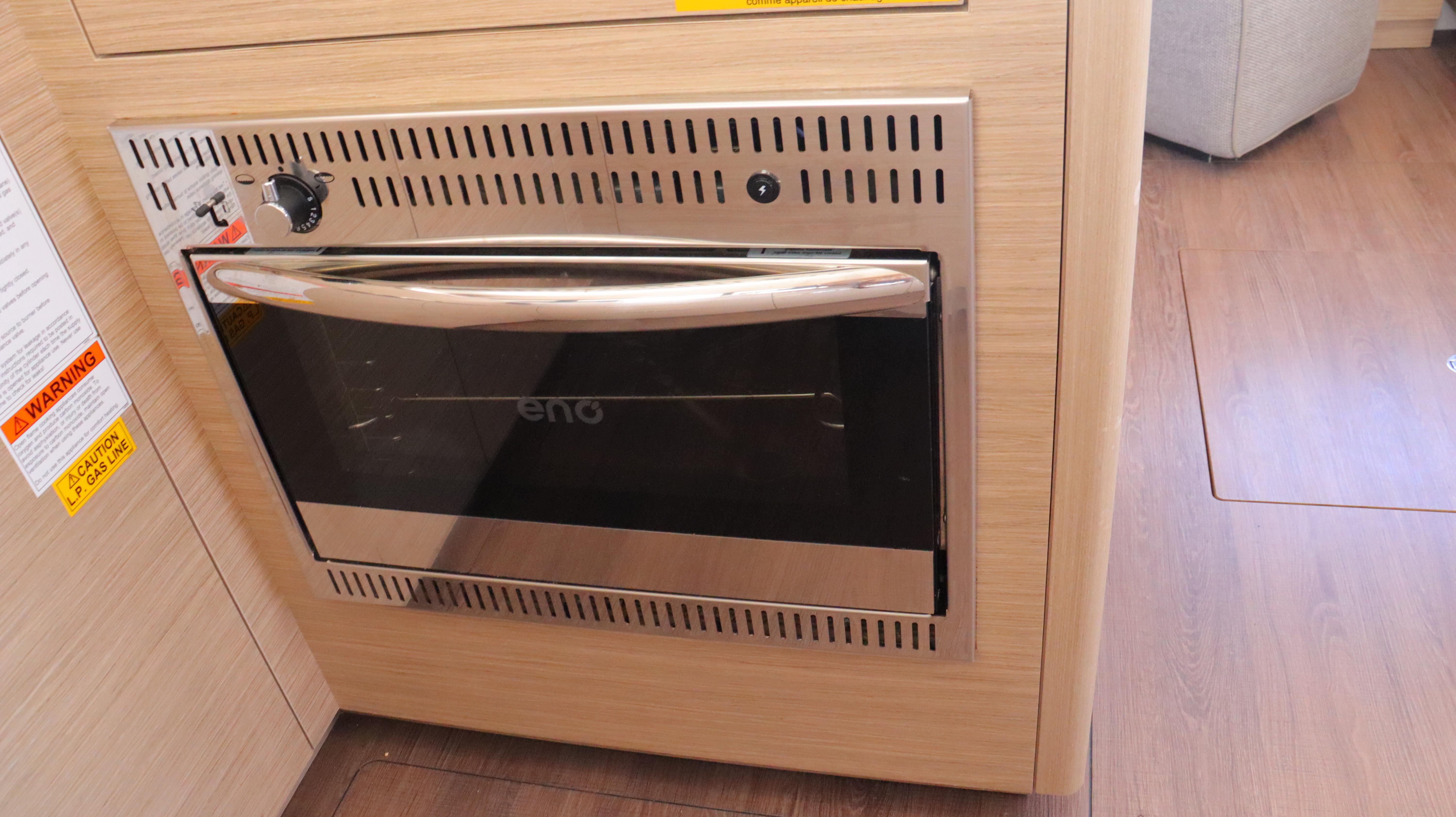

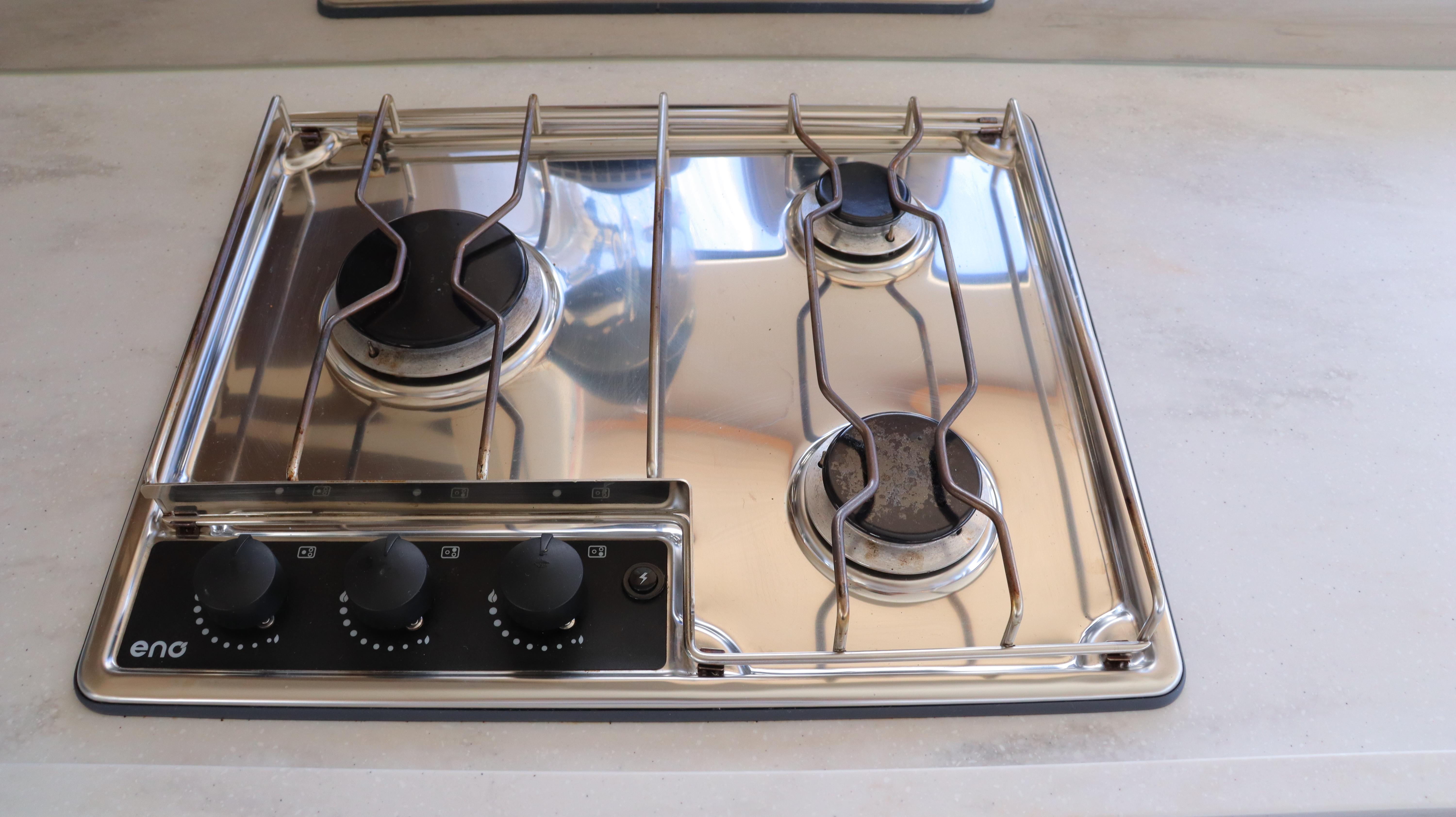

  • 3 burner gas stove and grill oven with s/s inside
  • Drawer above the oven

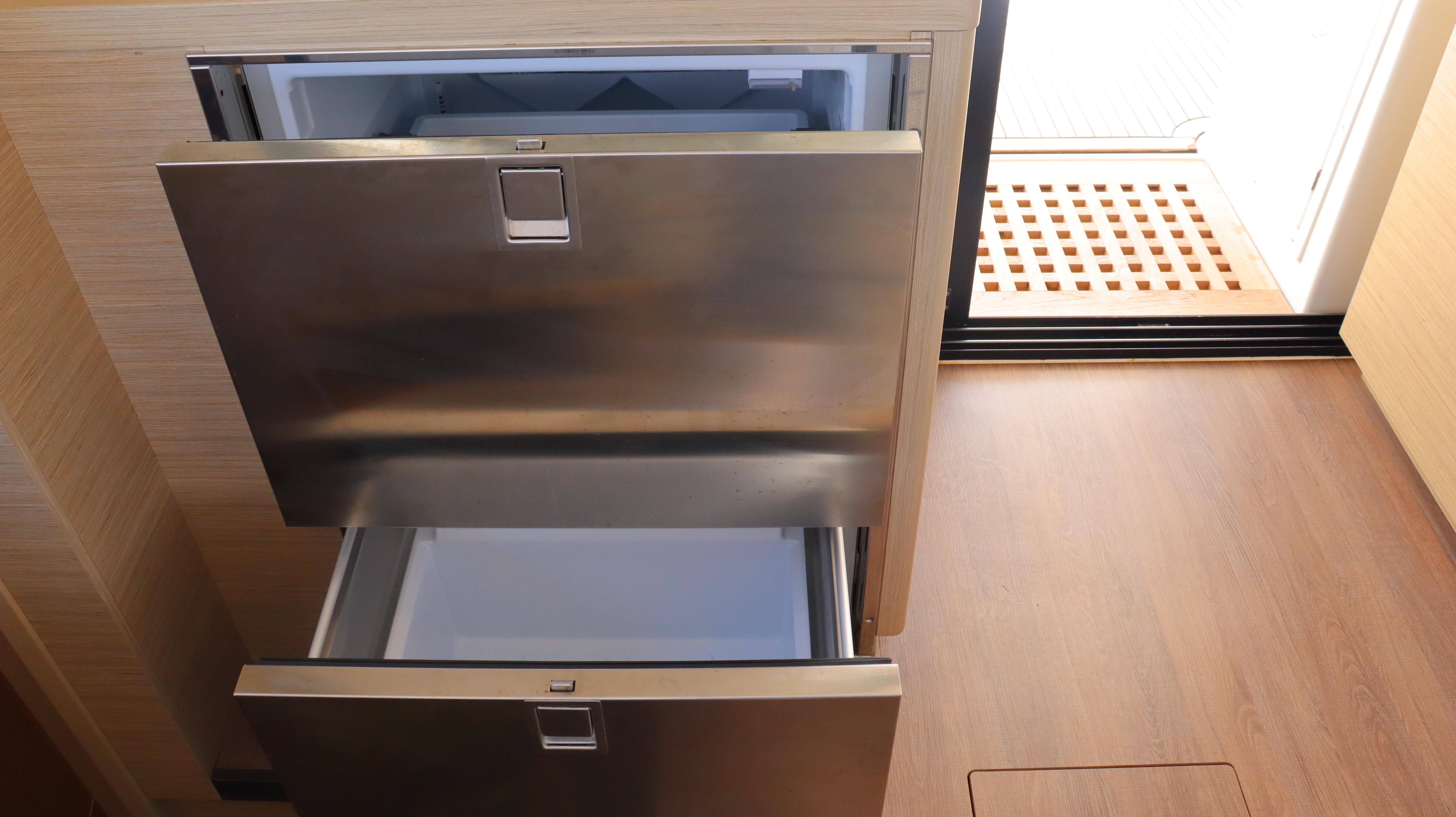

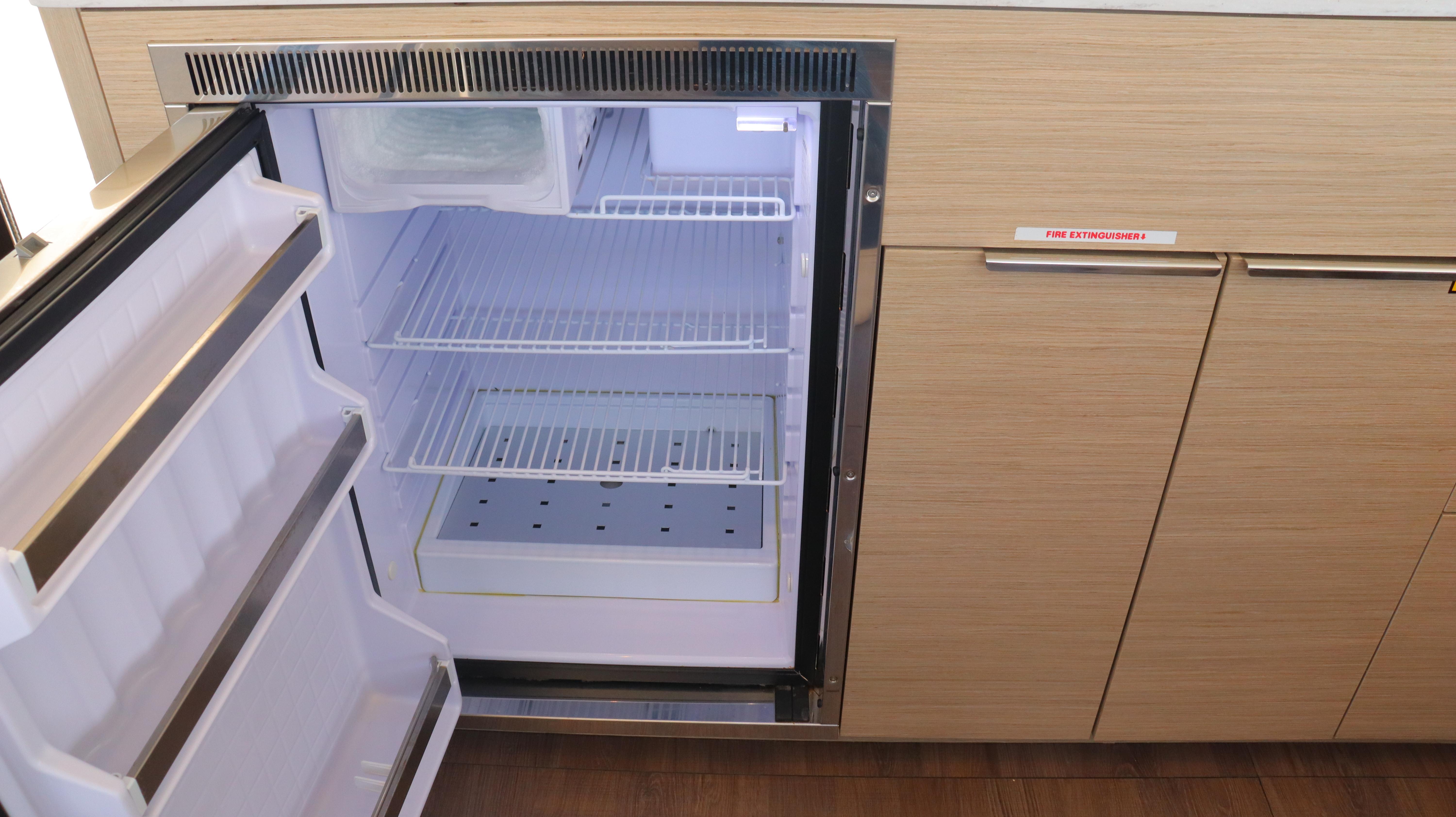

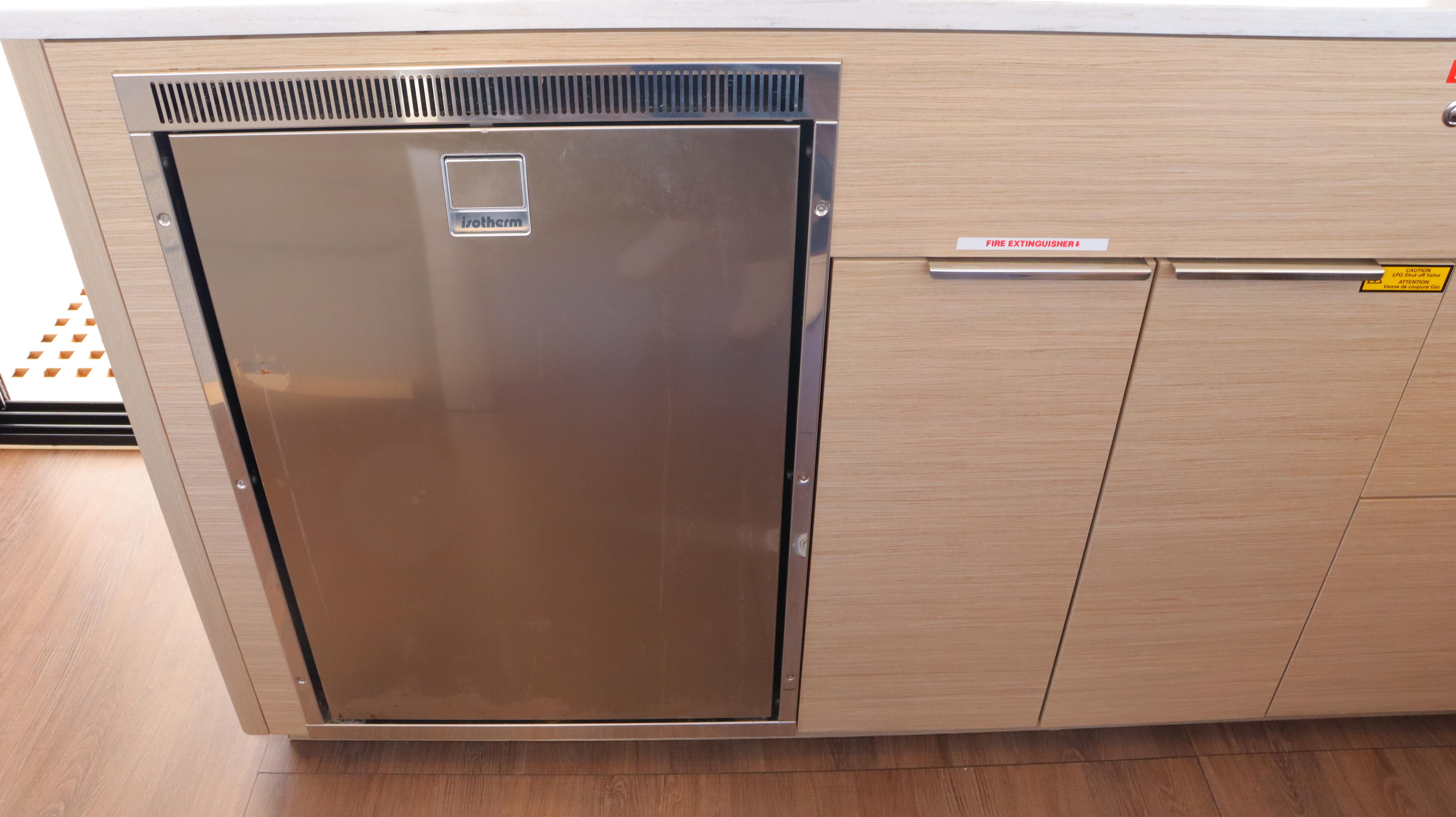

  • Fridge 12V (130L / 34 US gal)
  • Storage unit with drawers (dishwasher option)
  • High cupboards on port side (microwave option

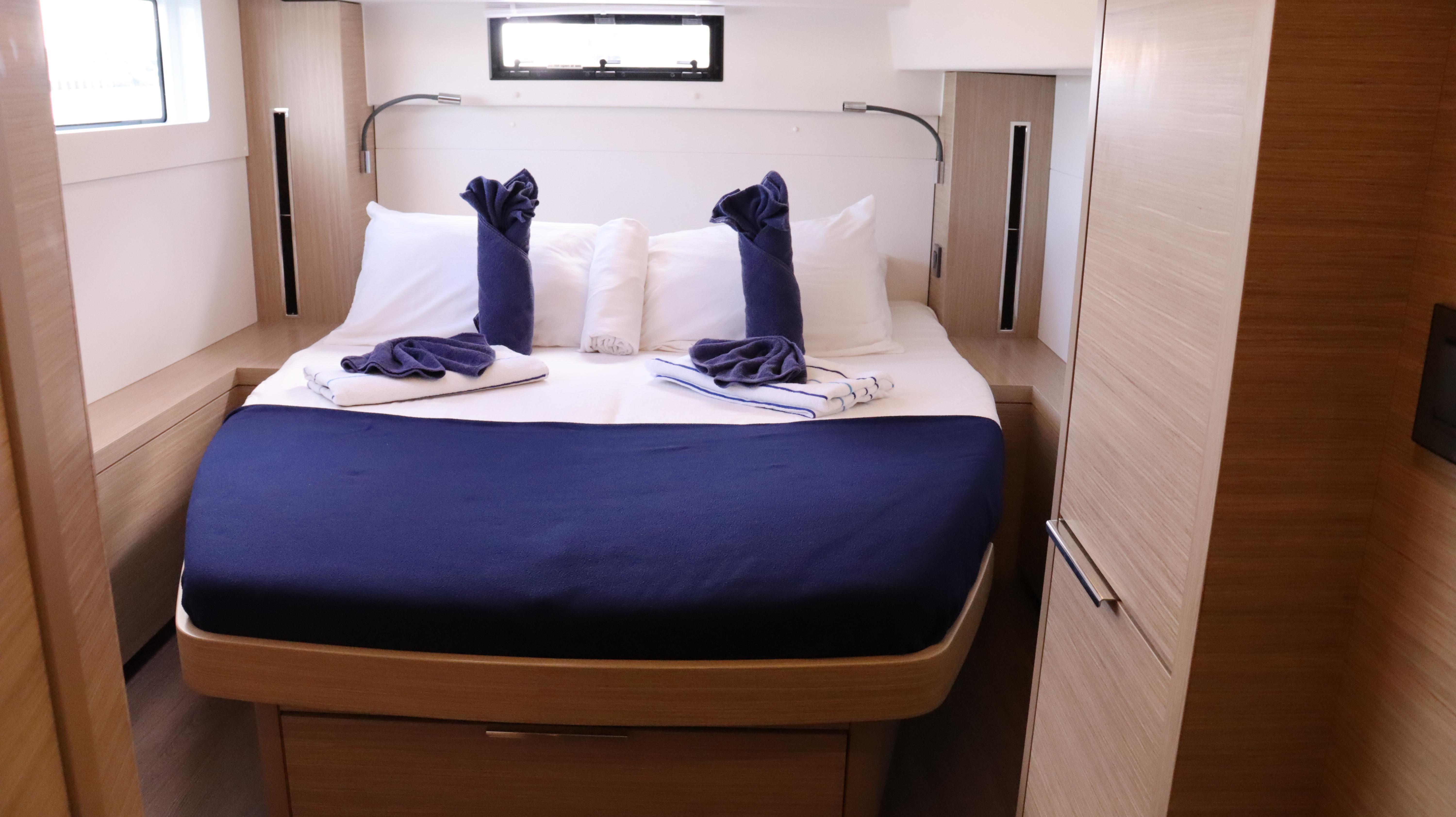

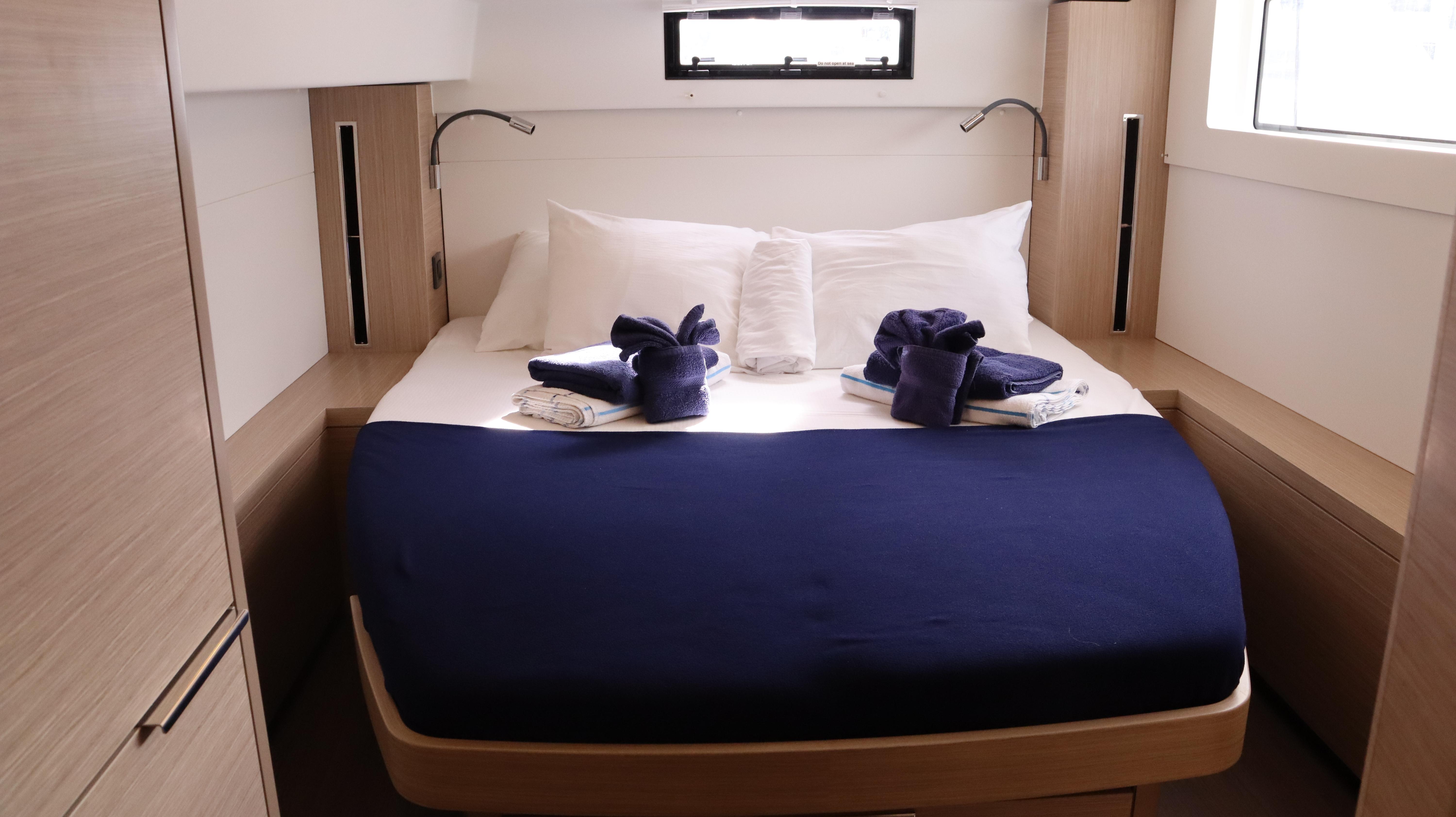

AFT CABINS

  • 1 double bed with lateral access (2.05 x 1.60 m / 6’9’’x5’3’’ at the widest)
  • 1 under bed drawer
  • 2 bed nightstands with side tables along sides
  • 1 low unit with storage + bookcase, outboard side
  • 1 unit with storage, inboard side

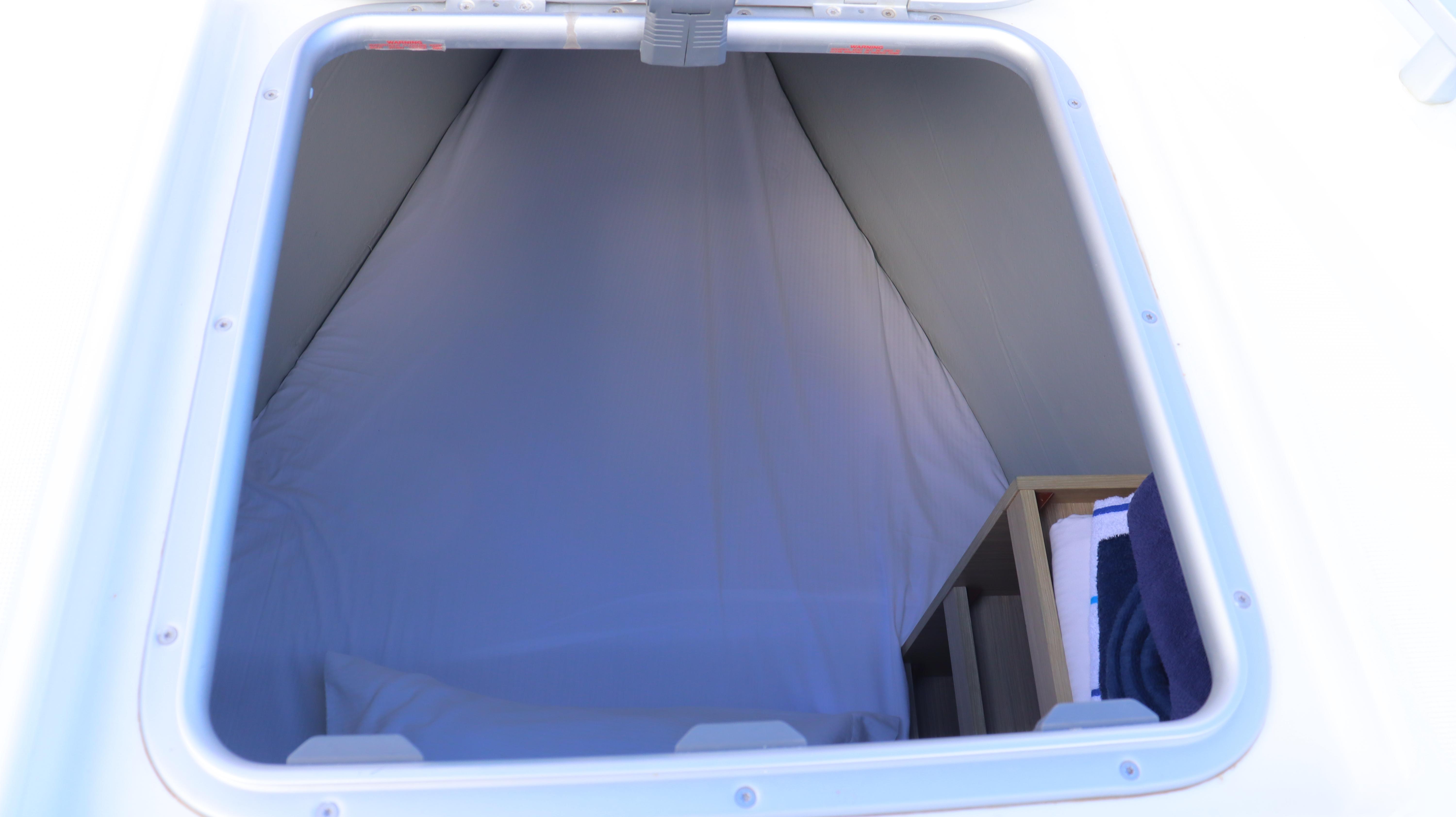

  • 1 opening deck hatch
  • 1 opening hull porthole
  • 1 large fixed hull window in Plexiglas (1525×275 mm / 5’x 11’’)

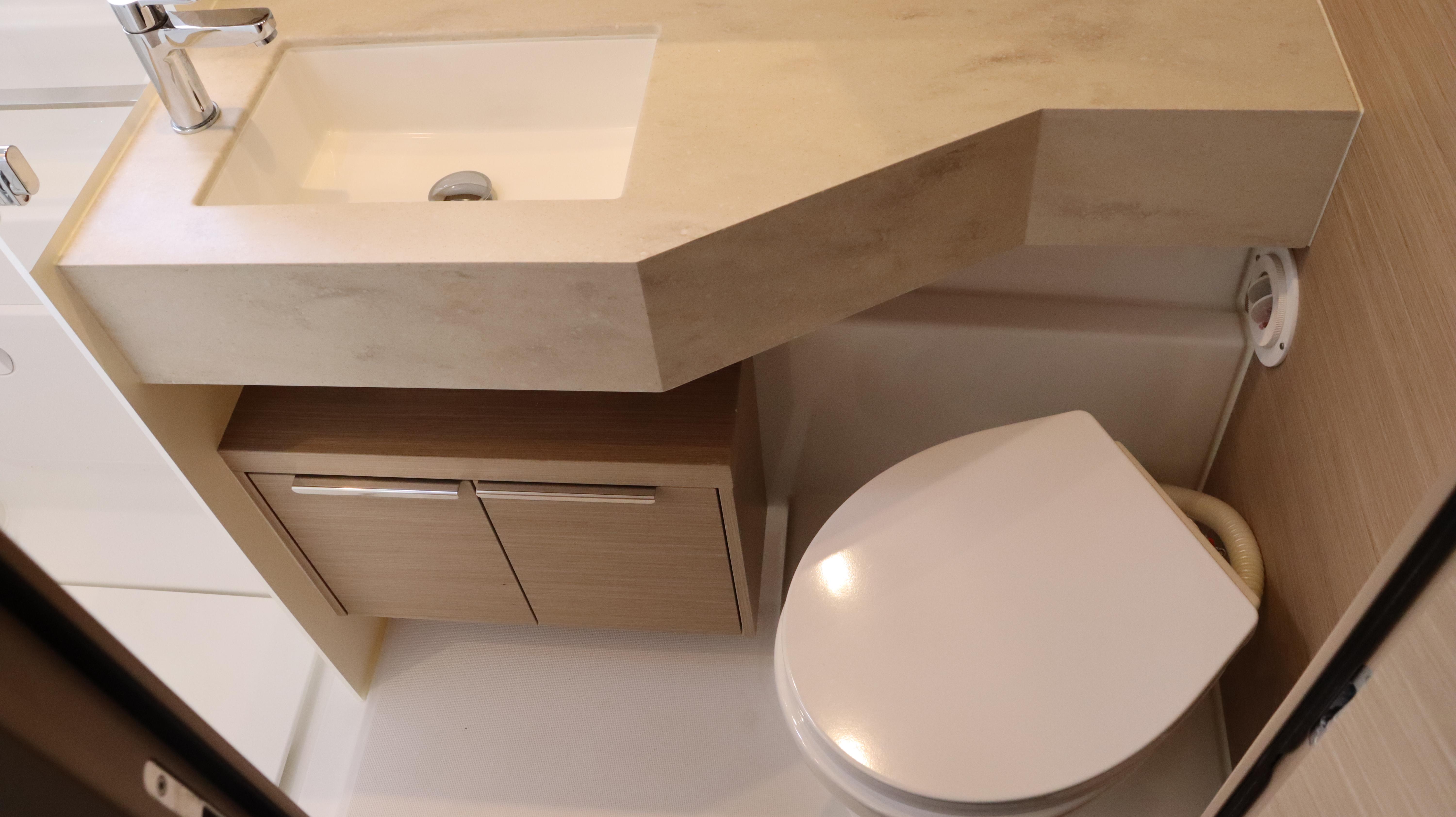

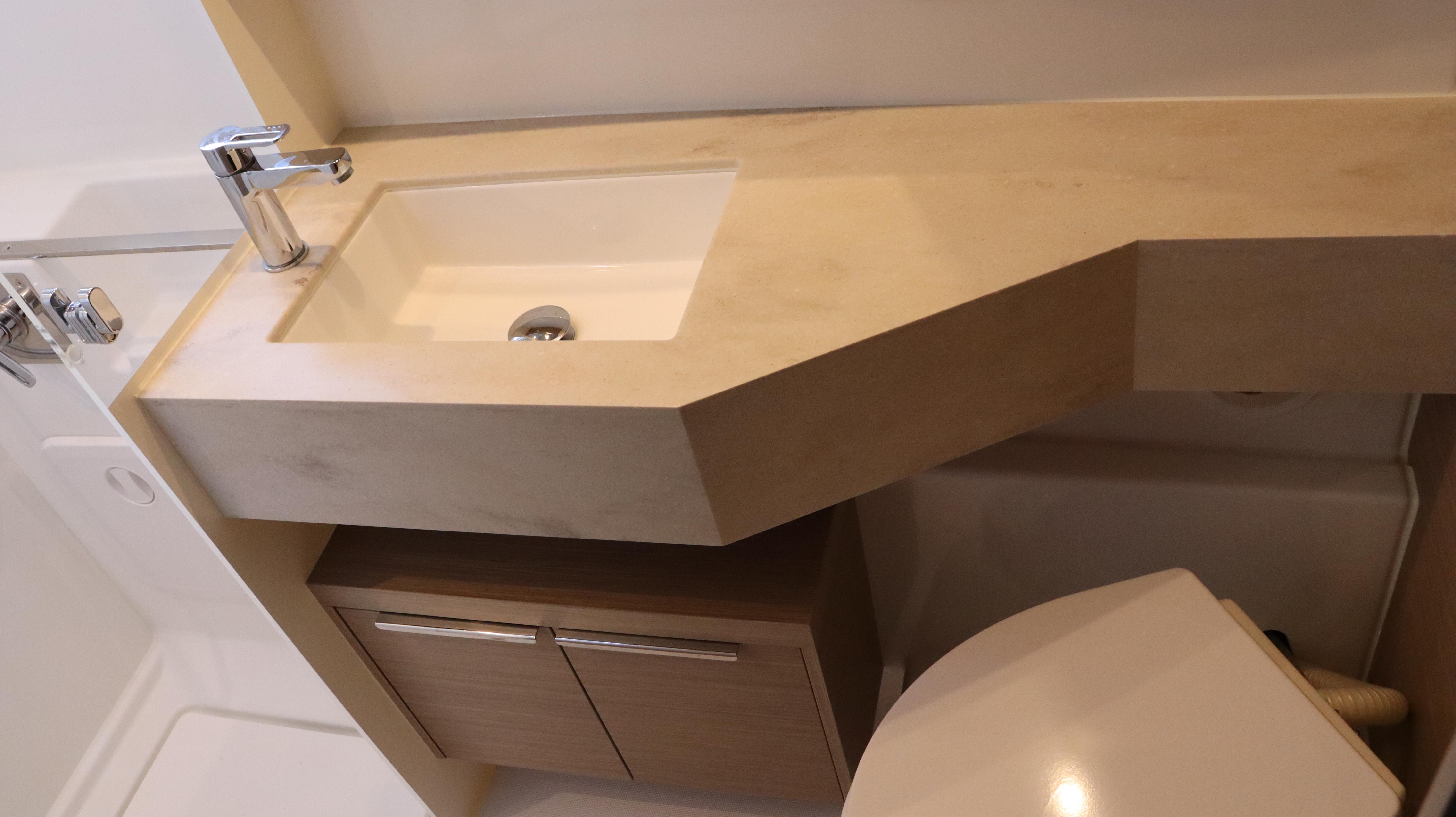

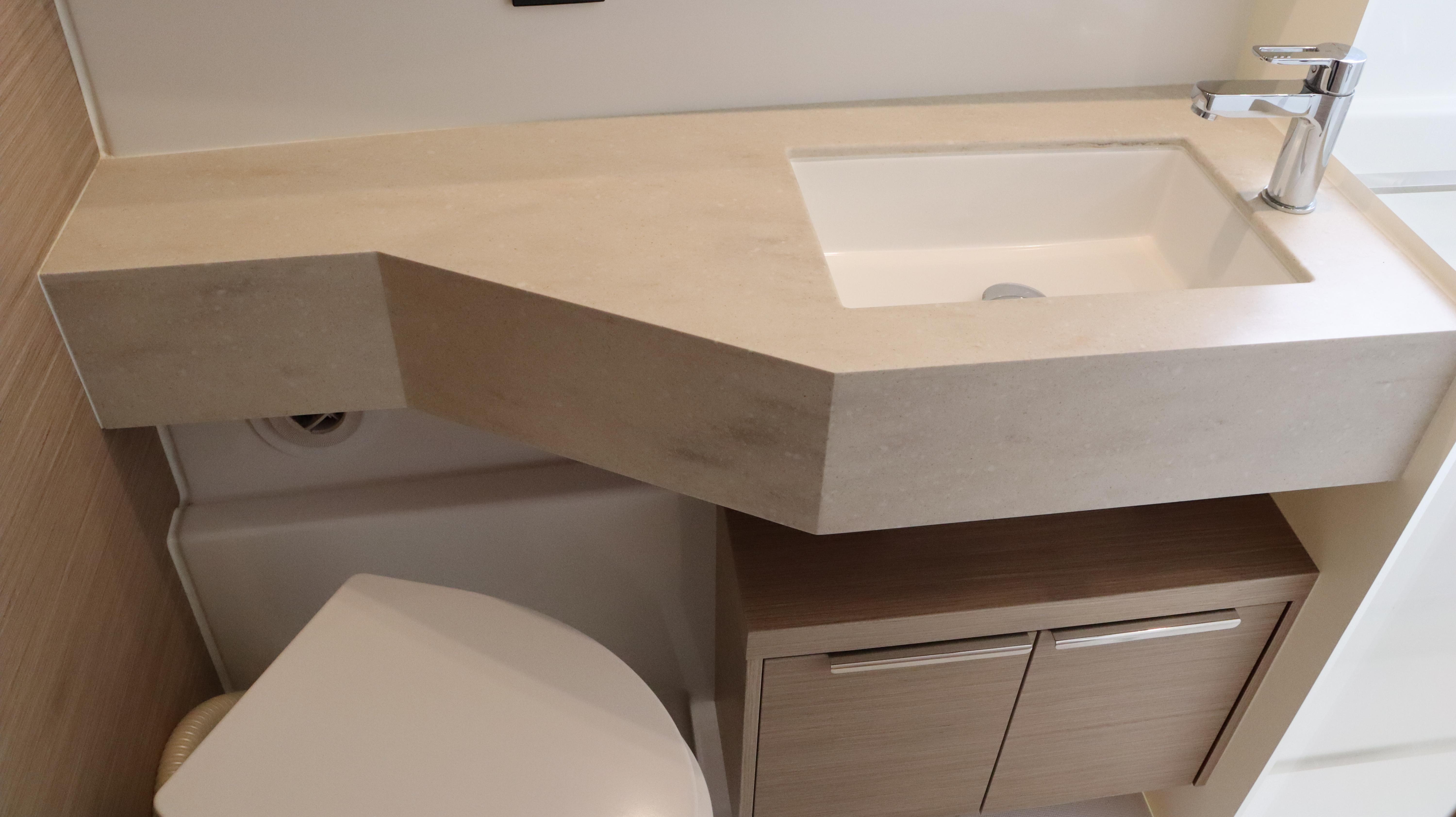

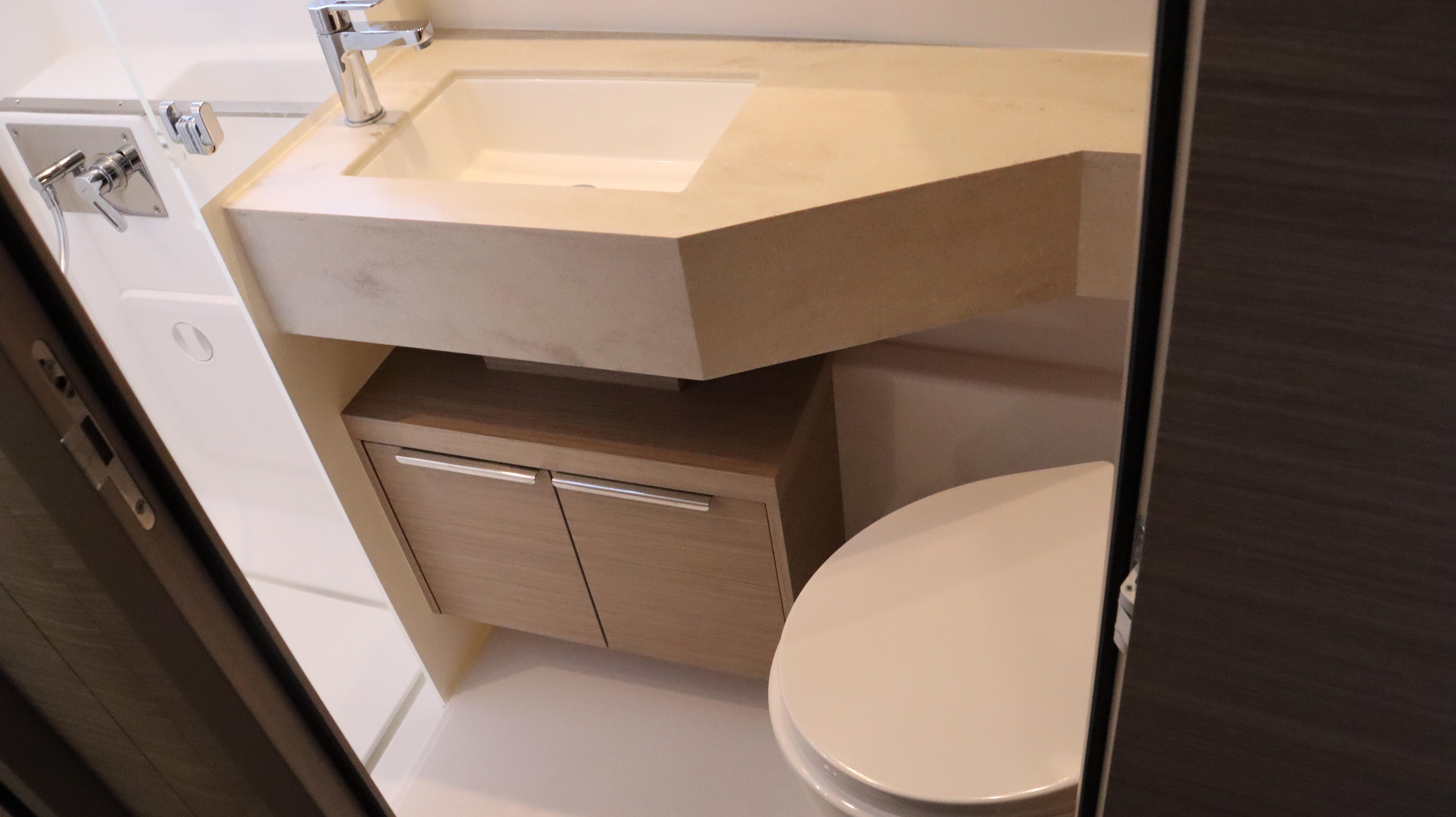

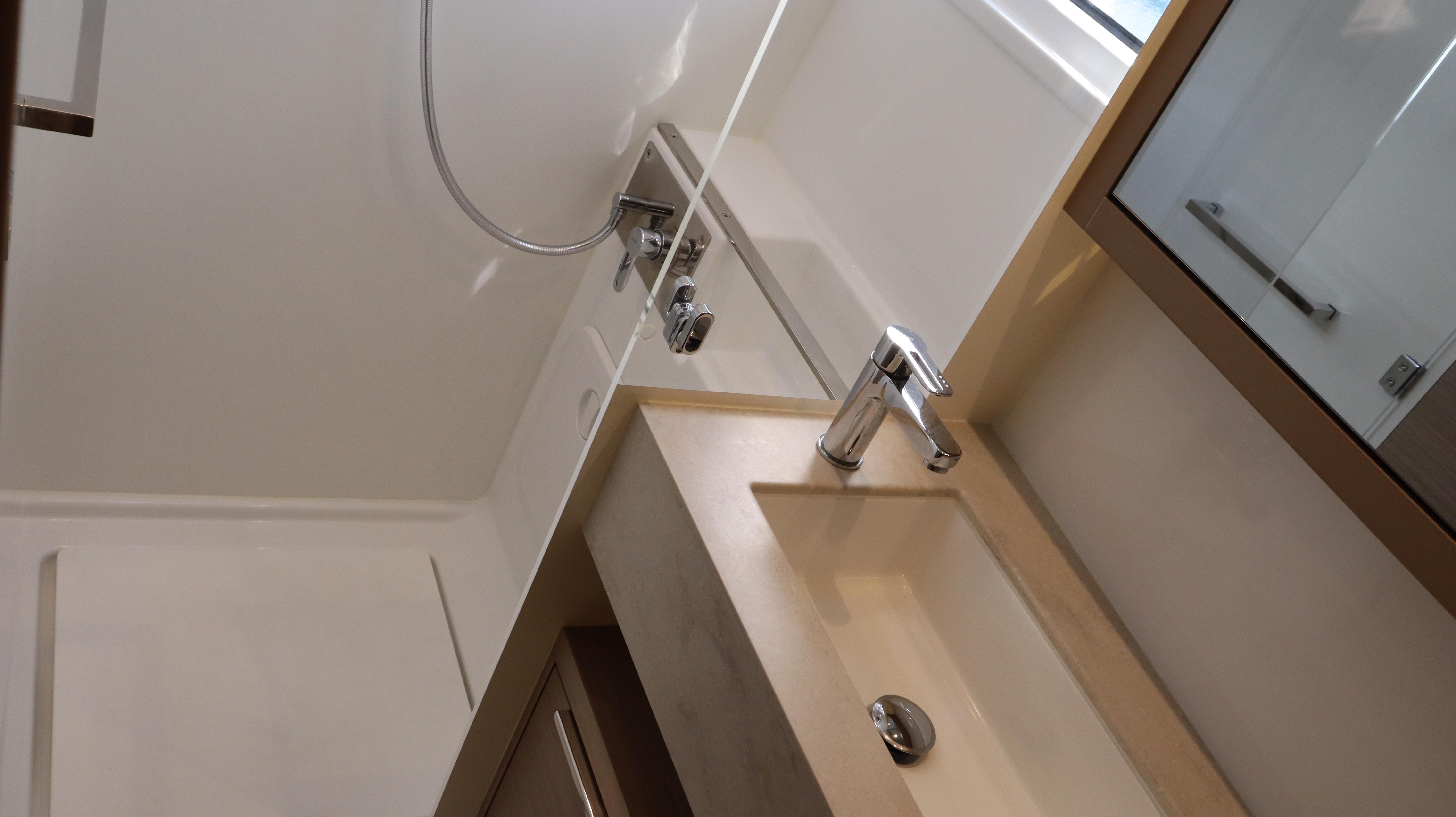

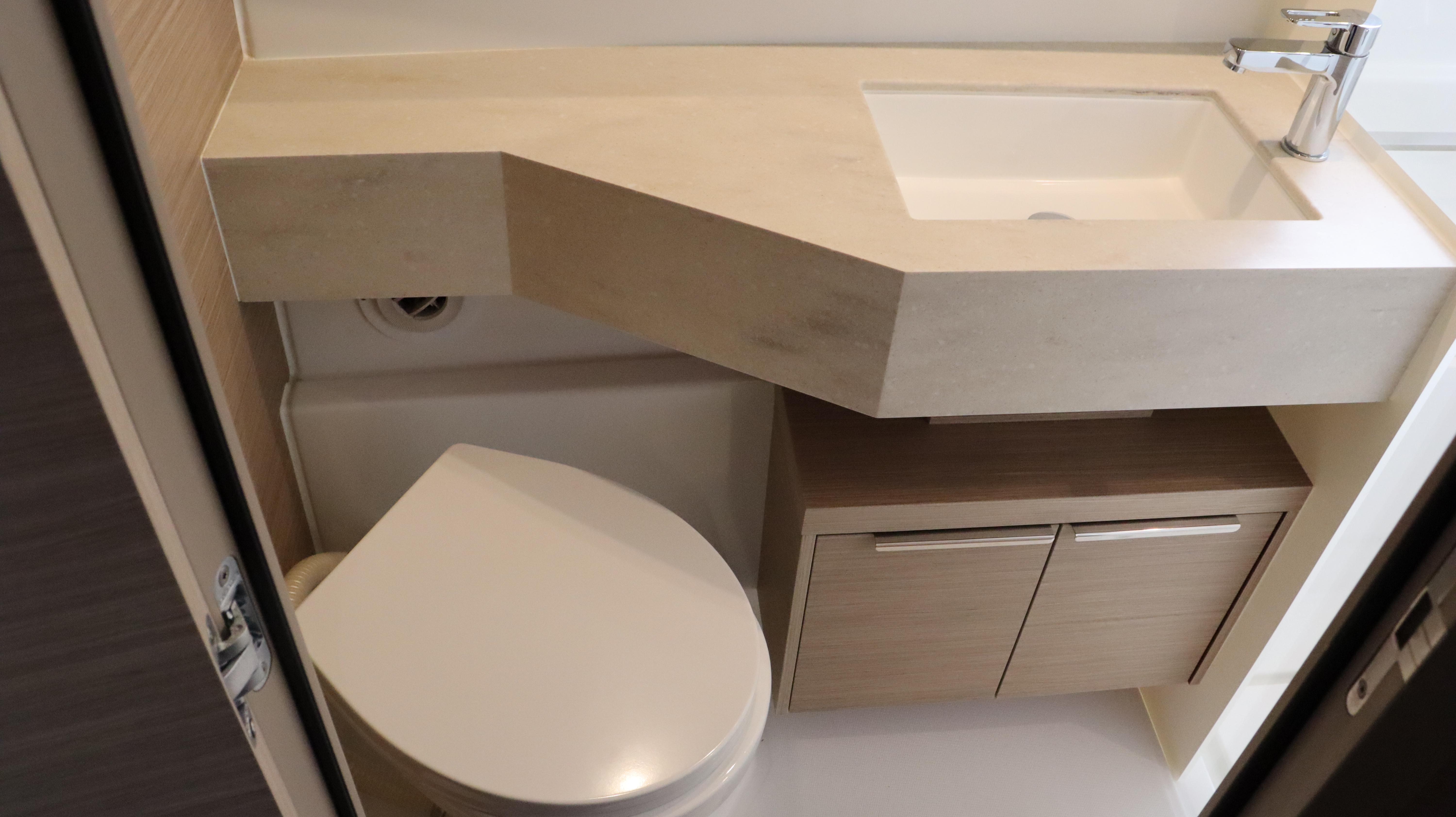

AFT/ FORWARD HEAD

  • Worktop in Corian® – Clam shell
  • Sink with hot/cold mixer tap

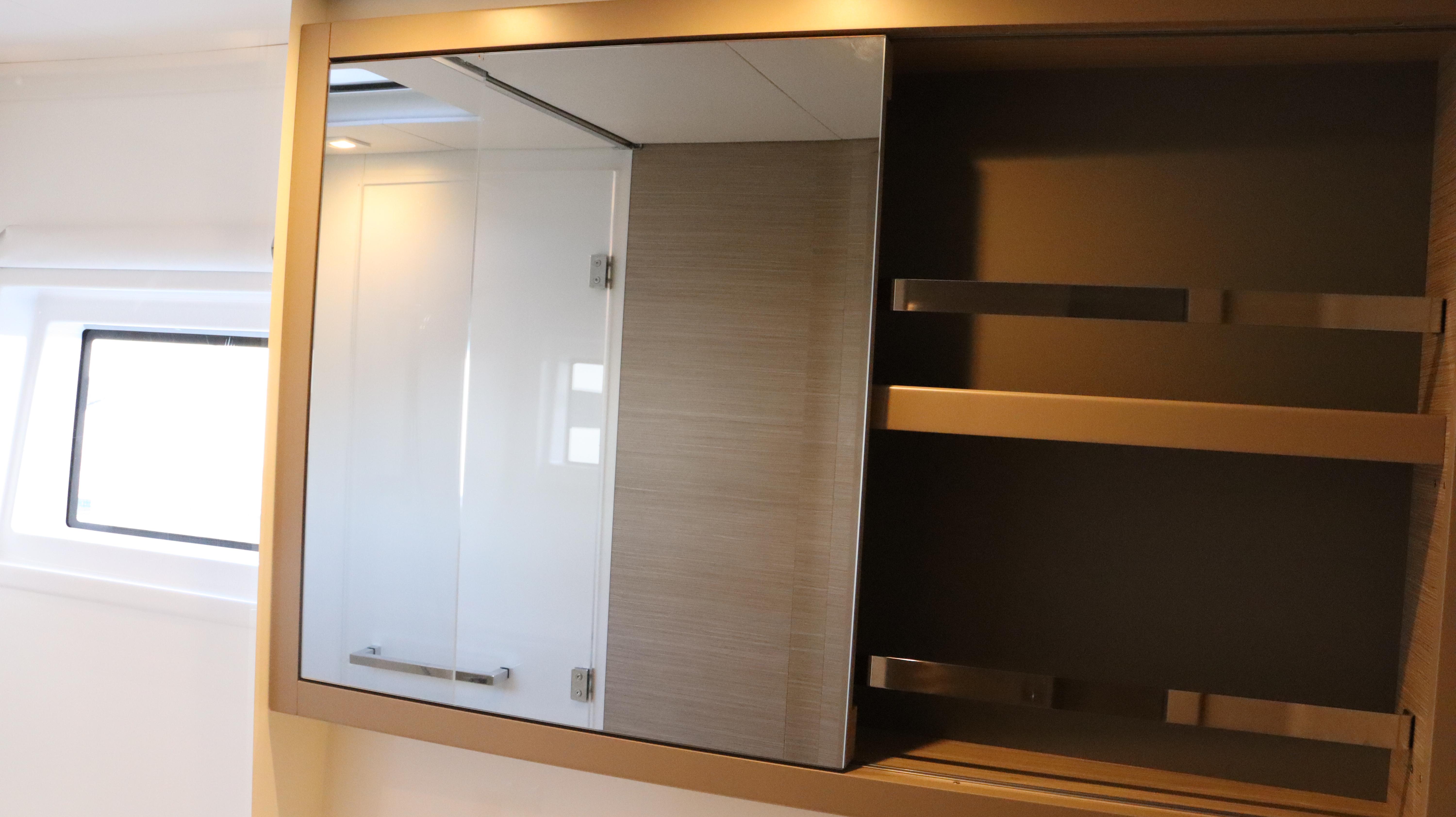

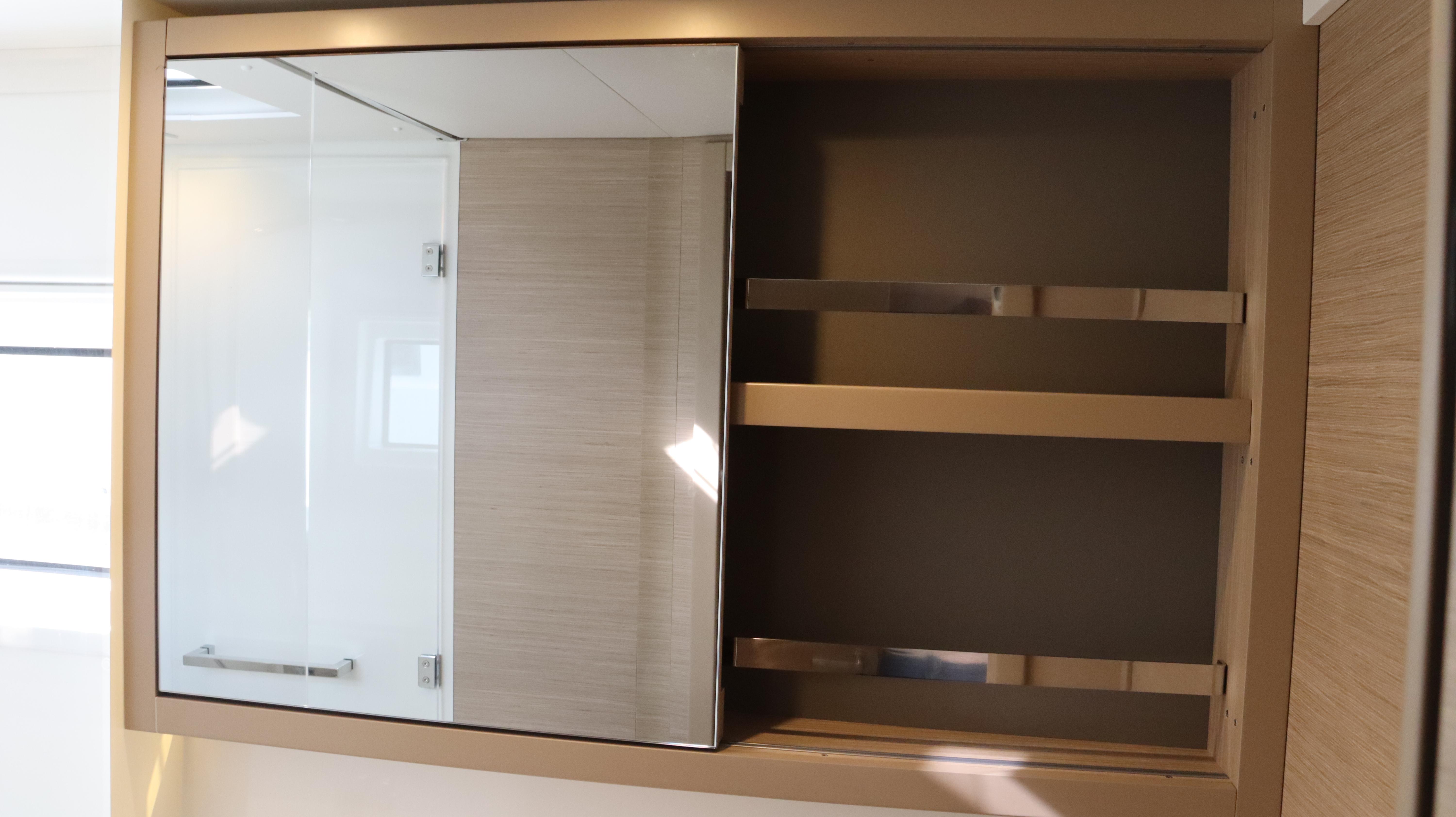

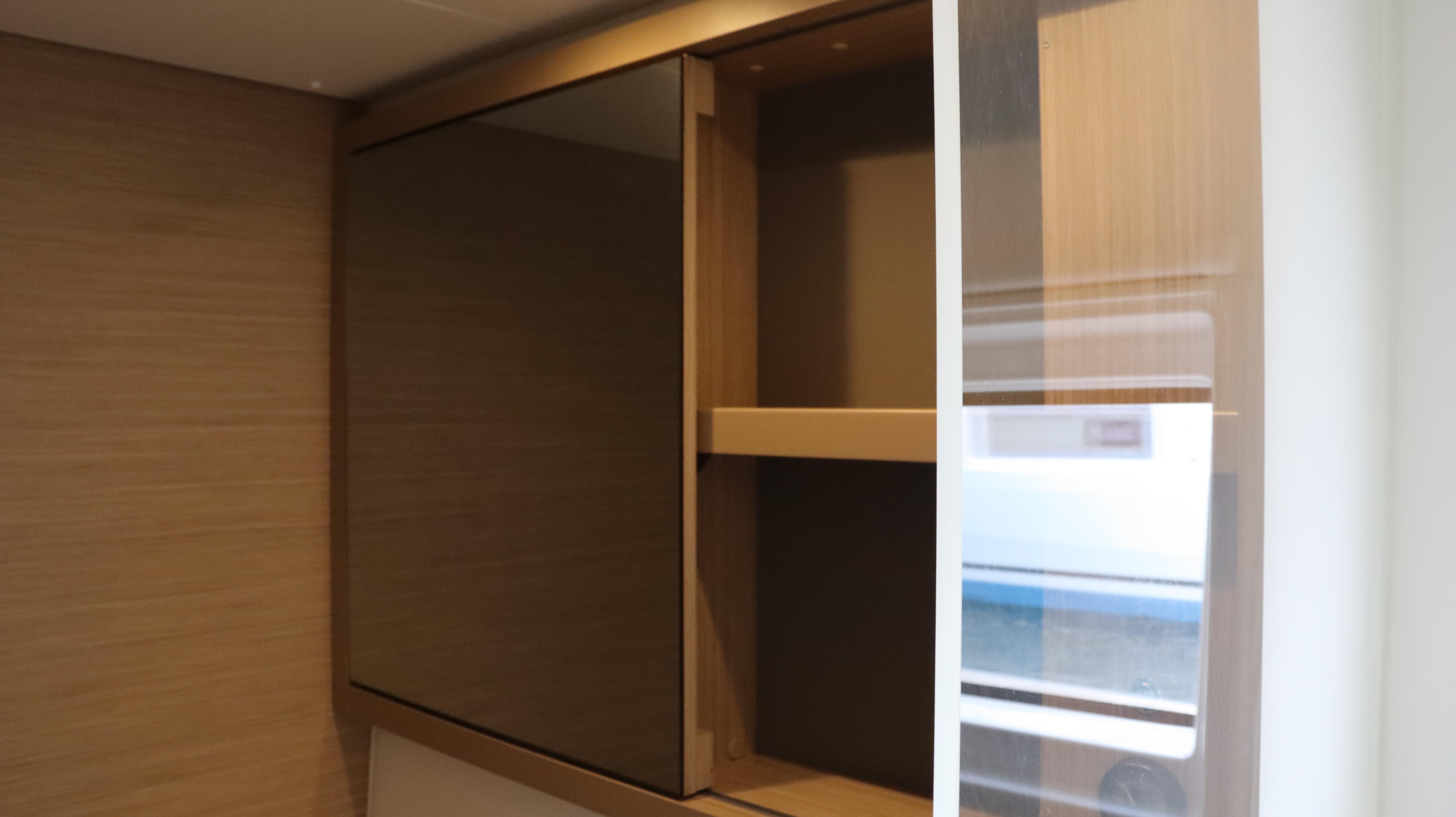

  • High unit with a sliding door with mirror
  • Under sink storage unit with 2 doors
  • Separate shower with Plexiglas door
  • Composite shower duckboard

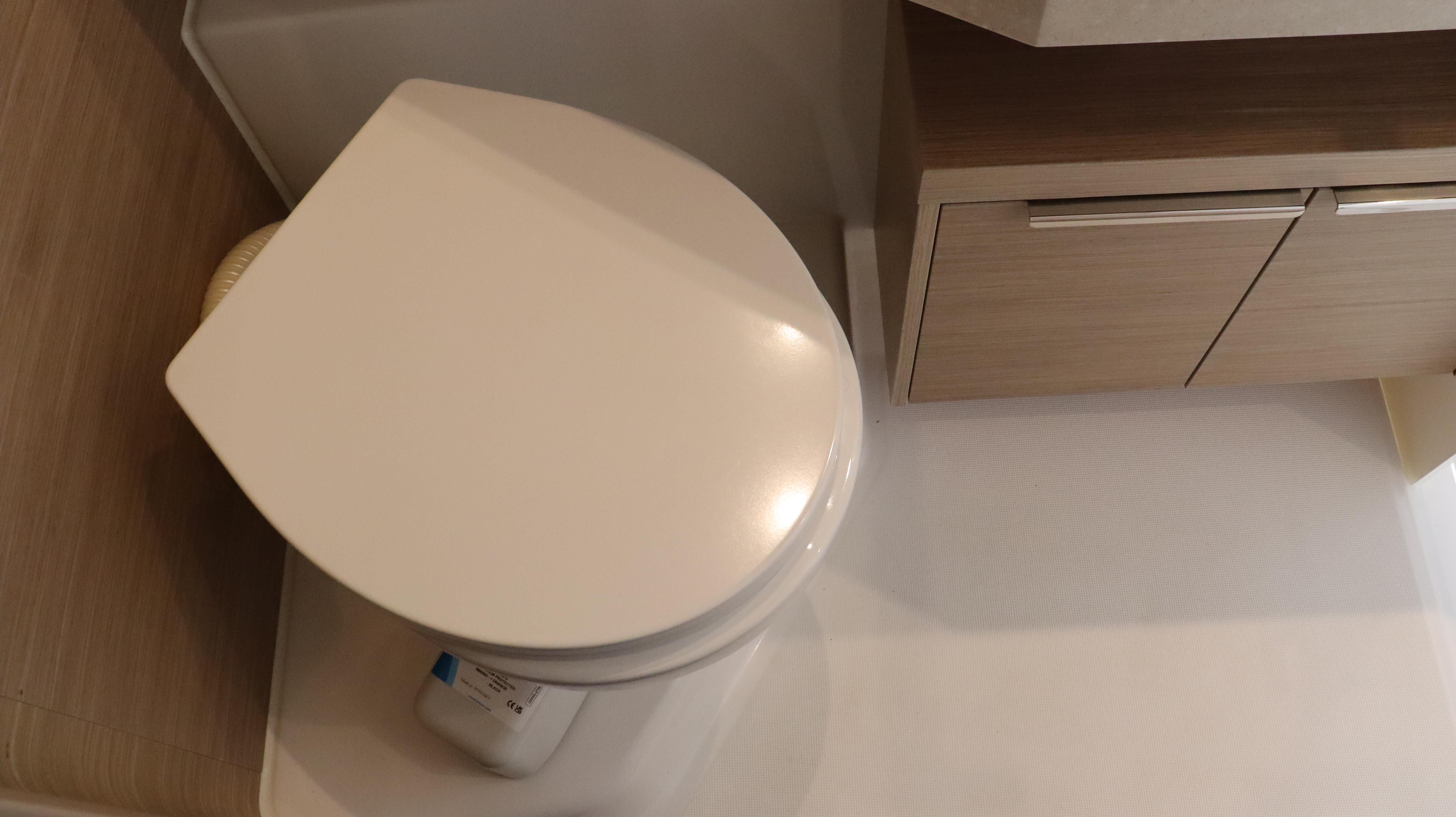

  • Large manual toilet
  • 1 opening deck hatch
  • Fixed window in the shower (450x275mm / 1’6’’x11’’)

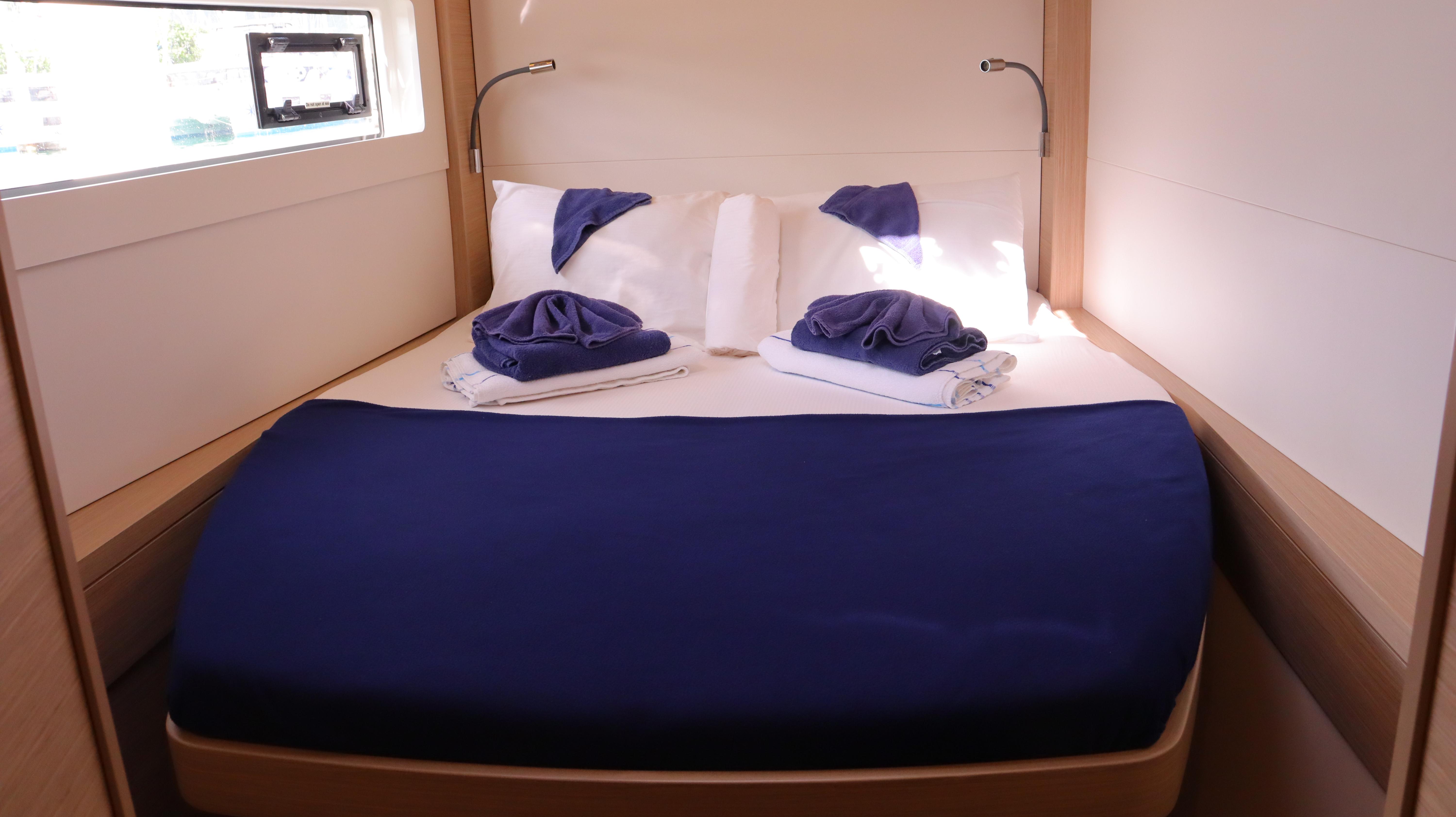

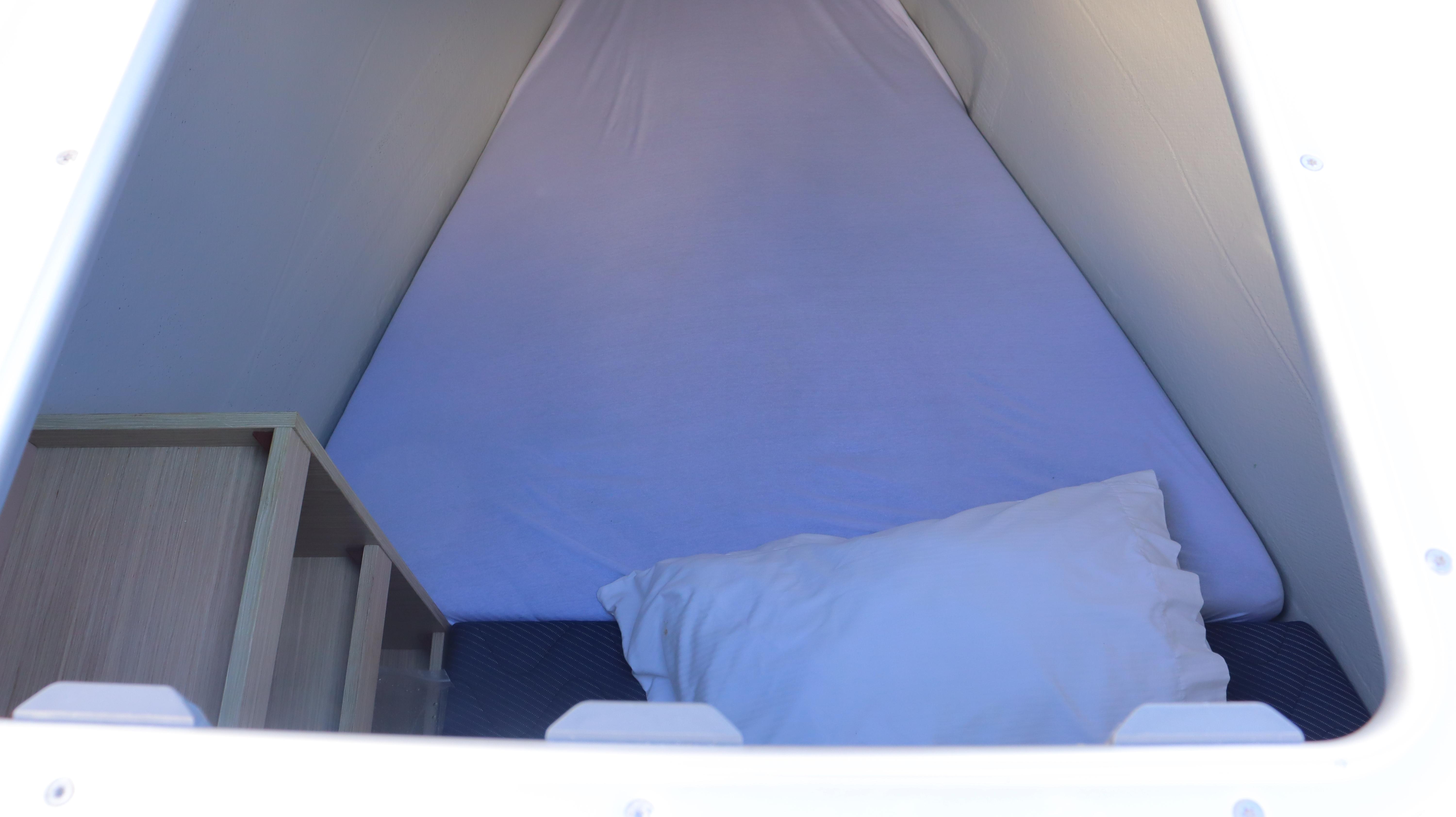

FORWARD CABIN

  • 1 double bed with lateral access (2.05 x 1.60 m at the widest x 1.10m at the foot /6’9’’x5’3’’x3’7’’)
  • 1 under bed drawer
  • 1 low unit with storage, outboard side
  • 1 unit with shelves and wardrobe, inboard side
  • 1 opening deck hatch LAGOON
  •  1 opening hull porthole
  • 1 fixed hull window in Plexiglas 1525×275 mm / 5’x 11’’

STARBOARD HULL

  • Identical to the port hull

STANDING HEADROOM

  • Saloon: 1.97 m / 6’6’’
  • Cabin: 1.95 – 1.96 m / 6’5’’- 6’5’’
  • Bathroom: 1.91 – 1.97 m / 6’3 – 6’6’’

Engines and Controls

  • ENGINE 1: Yanmar 4JH57 (57HP)
  • Hours Run/ Date:
  • ENGINE 2:  Yanmar 4JH57 (57HP)
  • Hours Run/ Date:
  • Engine Numbers:  E22240 and E22041
  • Engines Last Serviced:
  • Drive Type: Common rail sail-drive
  • Cooling System: Raw water filter
  • Propeller: Fixed two-bladed propeller
  • Mechanical engine throttles at the helm station
  • Engine compartment ventilation: electrical extraction in the aft beam
  • Access to the engine compartments from the transom through hatches
  • Fuel circuit: – 2 Aluminium tanks of 520 Litres / 137 US gal (under the aft cabin, port/starboard)
  • Fuel filter systems
  • Fuel shut off valve
  • Gauge at the general control panel

Electrical Equipment

  • Power Circuit: DC – 12V/ 115v/ 60HZ
  • 2 harnessed alternators 12V – 125A
  • 2 engine batteries 12V – 110A (acid)
  • 3 service batteries 12V – 140A (acid)
  • Battery circuit breaker in the engine compartment, port & starboard
  • 12V General distribution panel in starboard companionway protected by circuit breaker
  • Ammeter, voltmeter, circuit breaker, panel lighting, USB outlet
  • 12V LED outside lighting
  • 12V LED navigation lights
  • 12V engine compartment lighting
  • 12V LED inside lighting: Indirect lighting in cabins and saloon by LED ceiling spotlights
  • LED reading lights for headboard
  • LED reading lights with red LED light at the chart table



Inside Equipment

  • FANS: Fans in salon and each cabin; USB sockets in salon and cabins (1 double module per cabin + 1 at salon chart table)
  • FRESH WATER PUMP: Yes
  • COOKER TYPE: Yes
  • GRILL: Yes
  • SINK: Yes
  • SHOWERS: Yes
  • HANDBASINS: Yes
  • UPHOLSTERY/COLOUR SCHEME: Upholstery, grand comfort charcoal
  • INTERIOR CONSTRUCTION/WOOD TYPE:

Winches

GENOA WINCHES

  • 2 Electrical winches
  • 1 manual winch Harken 35 STA

Sails and Rigging

SAILS

  • 1 Roached mainsail in Dacron with battens
  • 1 Self-tacking jib in Dacron on furler with UV strip protection

STANDING RIGGING

  • Anodized aluminium mast with ball-bearing track system on mainsail luff
  • Anodized aluminium boom
  • Double spreaders
  • 2 Encased shrouds
  • 1 Jib forestay with furler
  • 2 Lazy-jacks
  • Deck light on the mast

RUNNING RIGGING

  • 1 Double purchase Dyneema mainsail halyard
  • 1 Dyneema jib halyard
  • 1 mainsheet, pre-stretched
  • 1 Jib sheet, pre-stretched
  • 3 Reefing lines, pre-stretched (1st Dyneema)
  • 1 Jib furling line, pre-stretched
  • 2 Mainsail traveller car control lines, pre-stretched

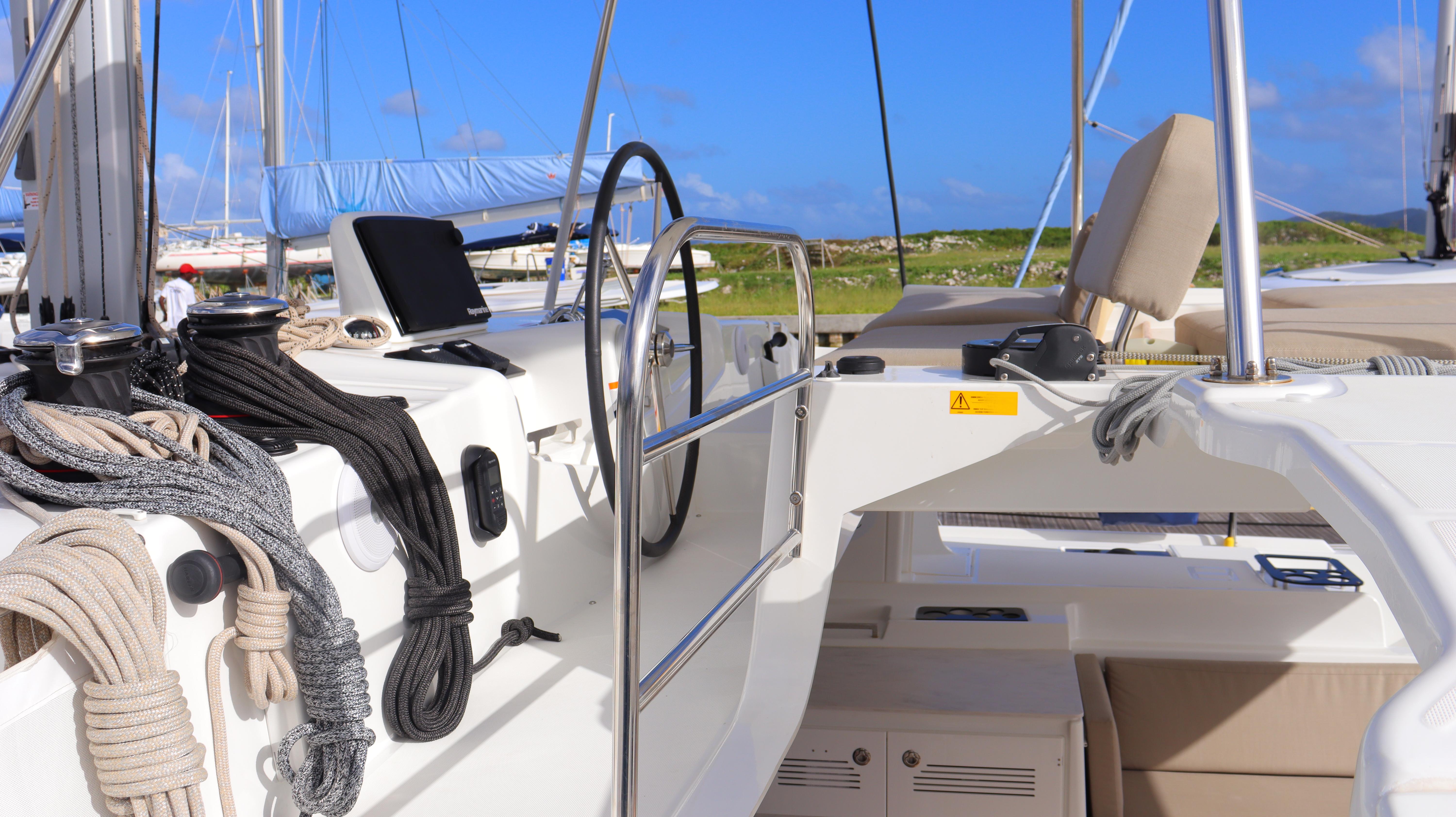

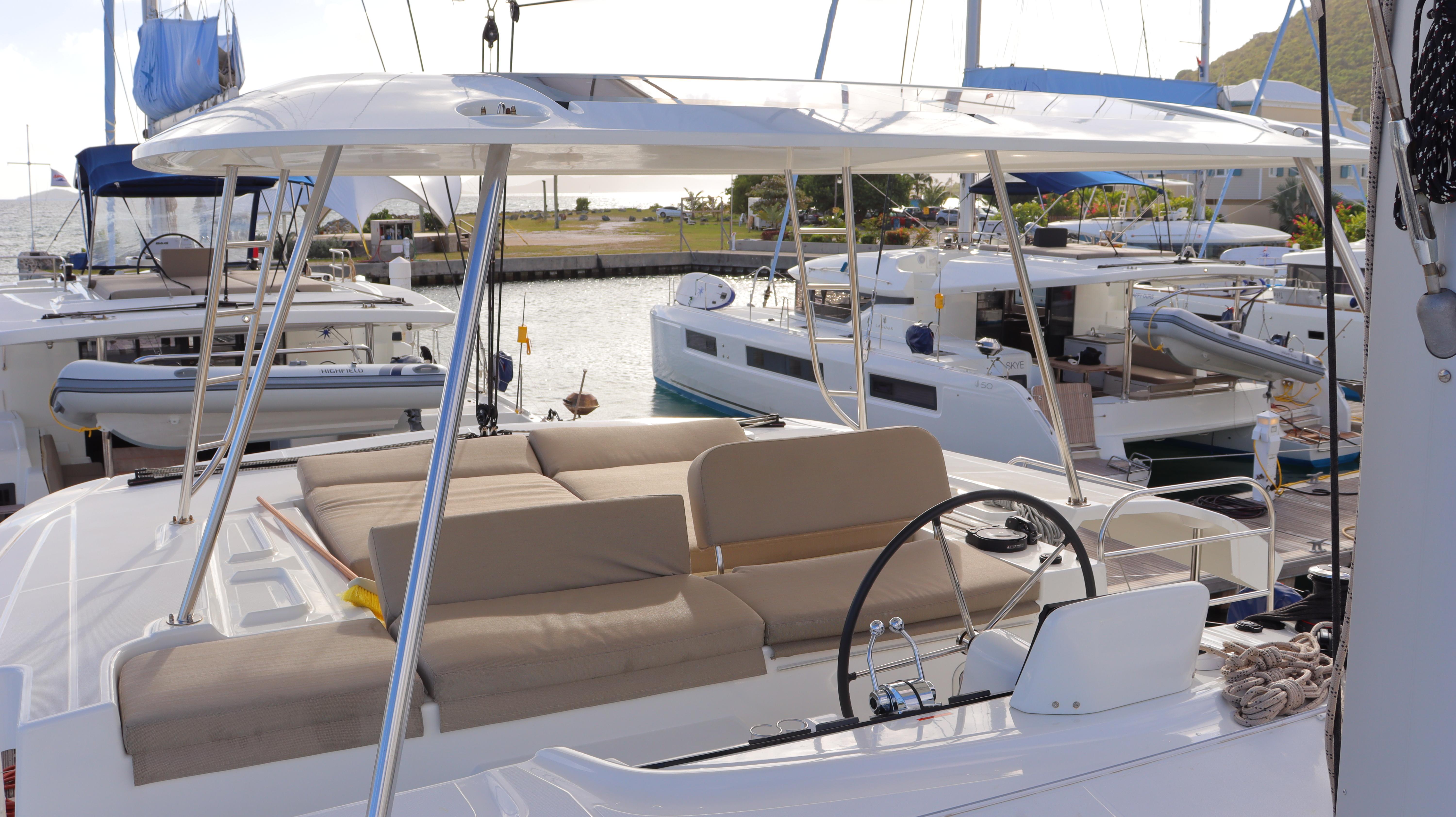

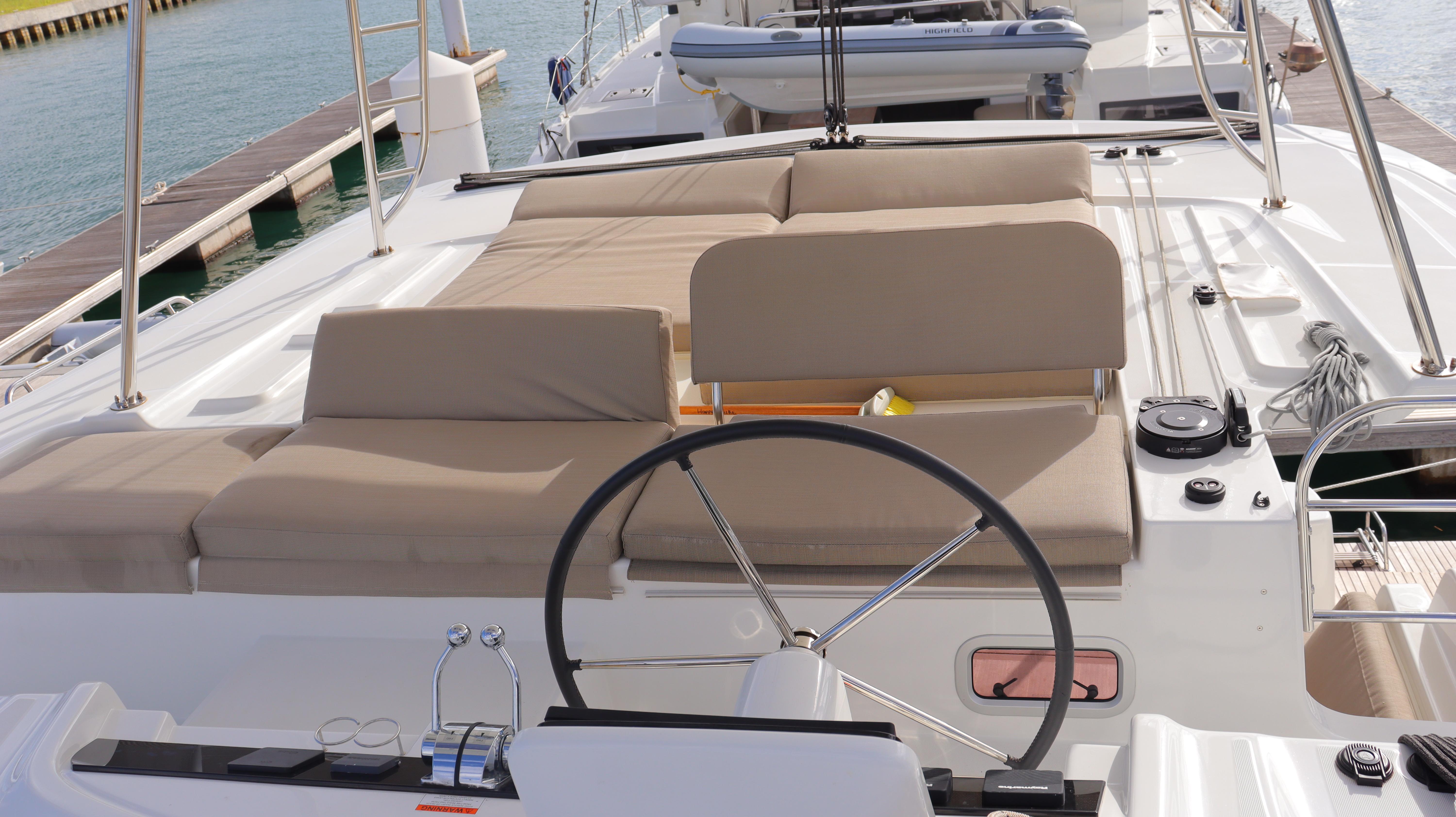

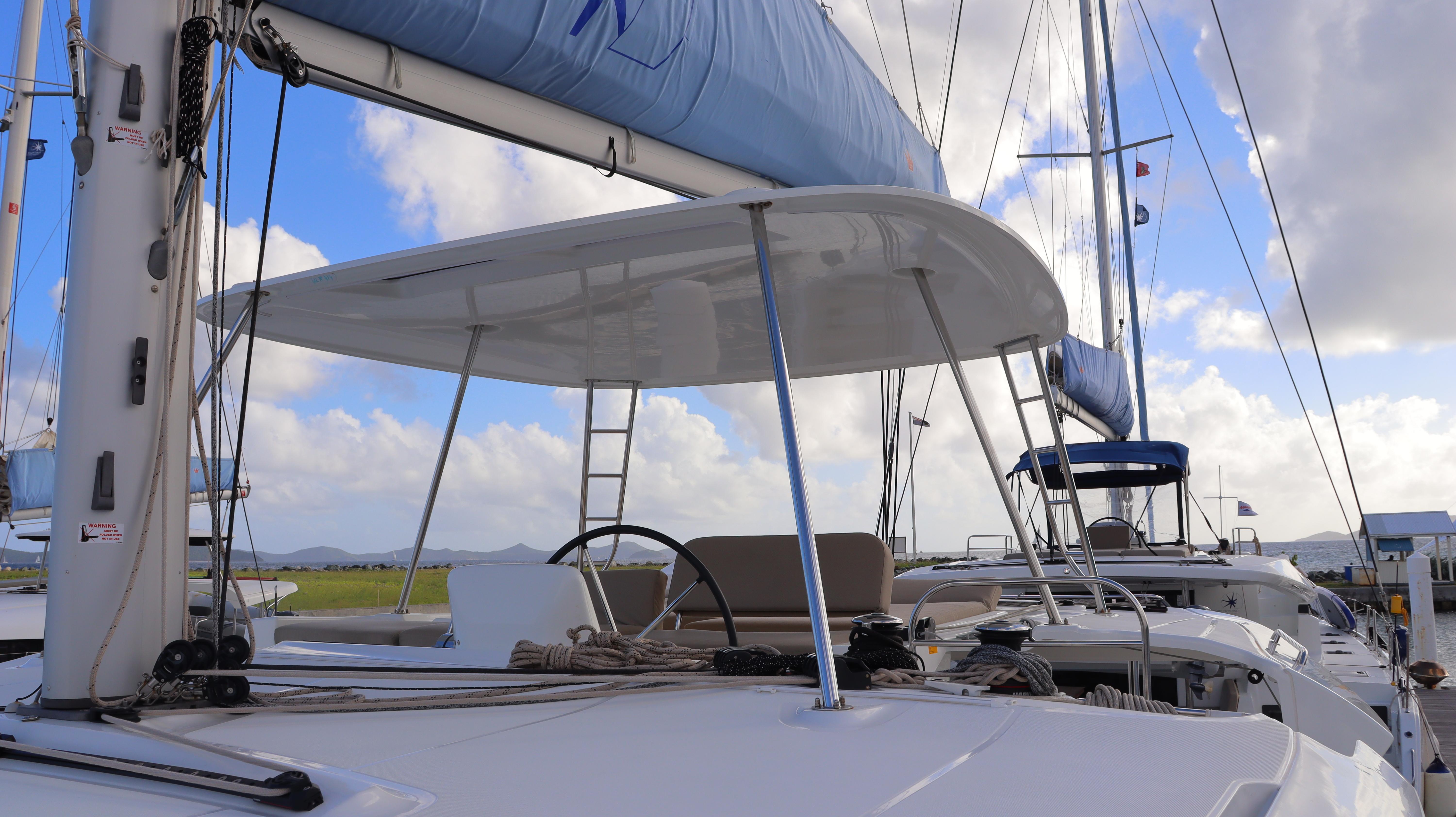

Helm

  • (1) Helm stations seat
  • (1) Aft cockpit cushions
  • (1) Forward cockpit cushions
  • (1) Sunbath cushions with lifting backrest for fly-bridge

Ground Tackle

  • Composite longitudinal crossbeam with integrated anchor chain run and anchoring cleat
  • Primary Anchor: Delta Anchor Galvanised 25KG – Mooring Line Yacht 48 (80m Chain 12MM + 2m Rope + Splice)
  • Secondary anchor: Fox Anchor Galvanised 20KG – Chain Galvanised 12MM (10 meters)
  • Long rope: 50m Rope 18mm with eye / splice / shackles
  • Ropes: 2x25M & 3x15M Amarre Tressee 18MM dark blue
  • Set Chain mark 12MM (Red, Green & Yellow)
  • S/steel dinghy hoist system & manual winch
  • 8 mooring cleats
  • 1700W / 12V electrical windlass with vertical axis in chain locker, gypsy 12mm
  • Access to the windlass and to the chain locker through a vertical hatch

Safety Equipment

  • (1) Lalizas ISO Atlantic C Life-raft (12 Persons)
  • (1) Horseshoe Buoy Quick RD 142N ORANGE
  • (1) Horseshoe Buoy Support
  • (1) 30M Orange Floating Rope Diameter 8mm
  • (1) Lifebuoy Light M.O.B. (LSA code)
  • (1) Rail Base for lifebuoy Light
  •  (1) Rubber Bucket 7 Litre
  • (12) Aluminium Boat Hook 1.80M
  • Adjust Life Link Double Harness Link LG185
  • (1) Binoculars
  • (5) Flashlight LED Waterproof
  • Motoring Black Cone
  • Anchor Black Ball Cone
  • Floating Flexible Handbailer
  • Collapsible Water Carrier 20 Litres
  • Jerrican Portable Fuel Tank 22 Litres
  • Jerrican Portable Fuel Tank 5 Litres
  • Ocean Solid Fender Match 60
  • (1) Boat wash brush
  • (1) Safety Jacklines Life-link (Pair)
  • 10M Pavillon Etats Unis 30X45 (Ensign flag)
  • (1) Rail Mount Motor Bracket
  • White wind indicator Windex 15
  • Ocean Buoy R4. 52×68 CM.
  • White / Blue Hand Signal Smoke Signal
  • Parachute Signal
  • Ocean Fender RT3 26,5 x 68,5
  • White Folding Anchor Galvanised 2,5KG

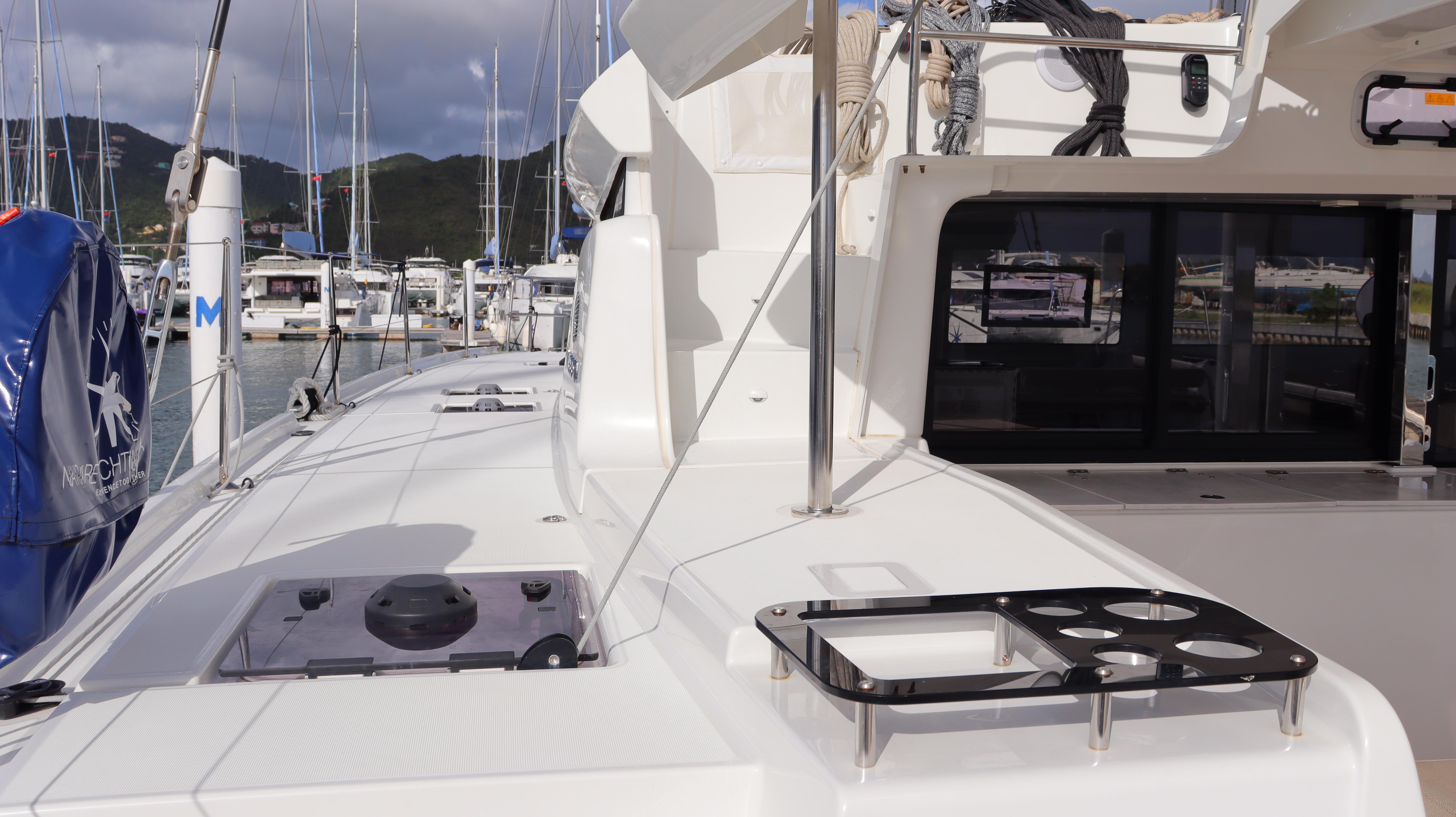

Deck Equipment

Pulpits with wooden seats

  • Deck courtesy lights in cockpits, transoms and flybridge
  • Large Foldable Teak Table with cover – Papyrus (sliding bench compulsory)
  • Extra for sliding cockpit bench
  • Aft cockpit and + Transoms in teak (option sliding cockpit bench compulsory)
  • All electric fly-bridge winches in lieu of standard & flat-winder for mainsail traveller
  • 4 Under water spot lights
  • Helm stations seat
  • Aft cockpit cushions
  • Forward cockpit cushions
  • Sunbath cushions with lifting backrest for flybridge

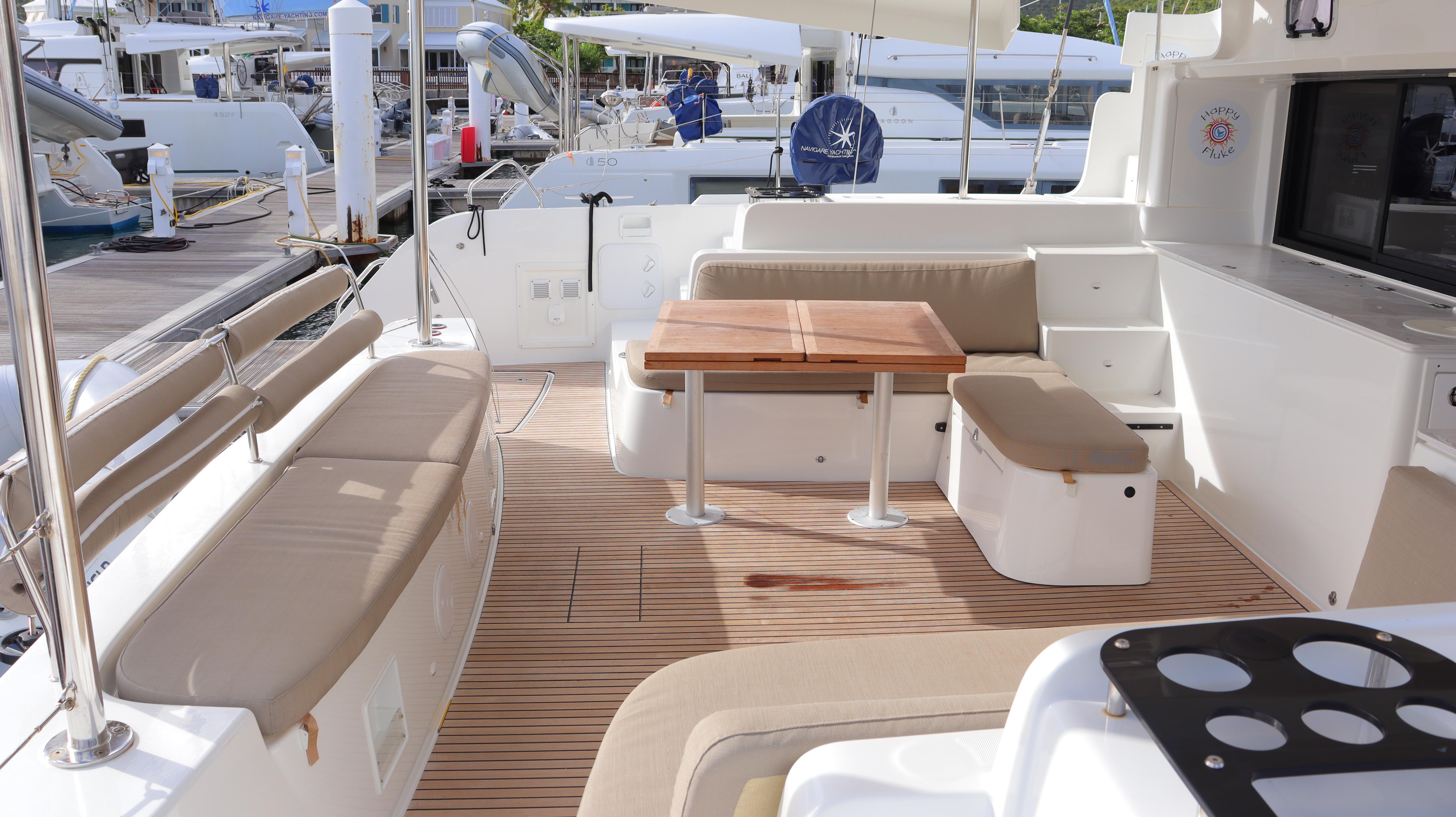

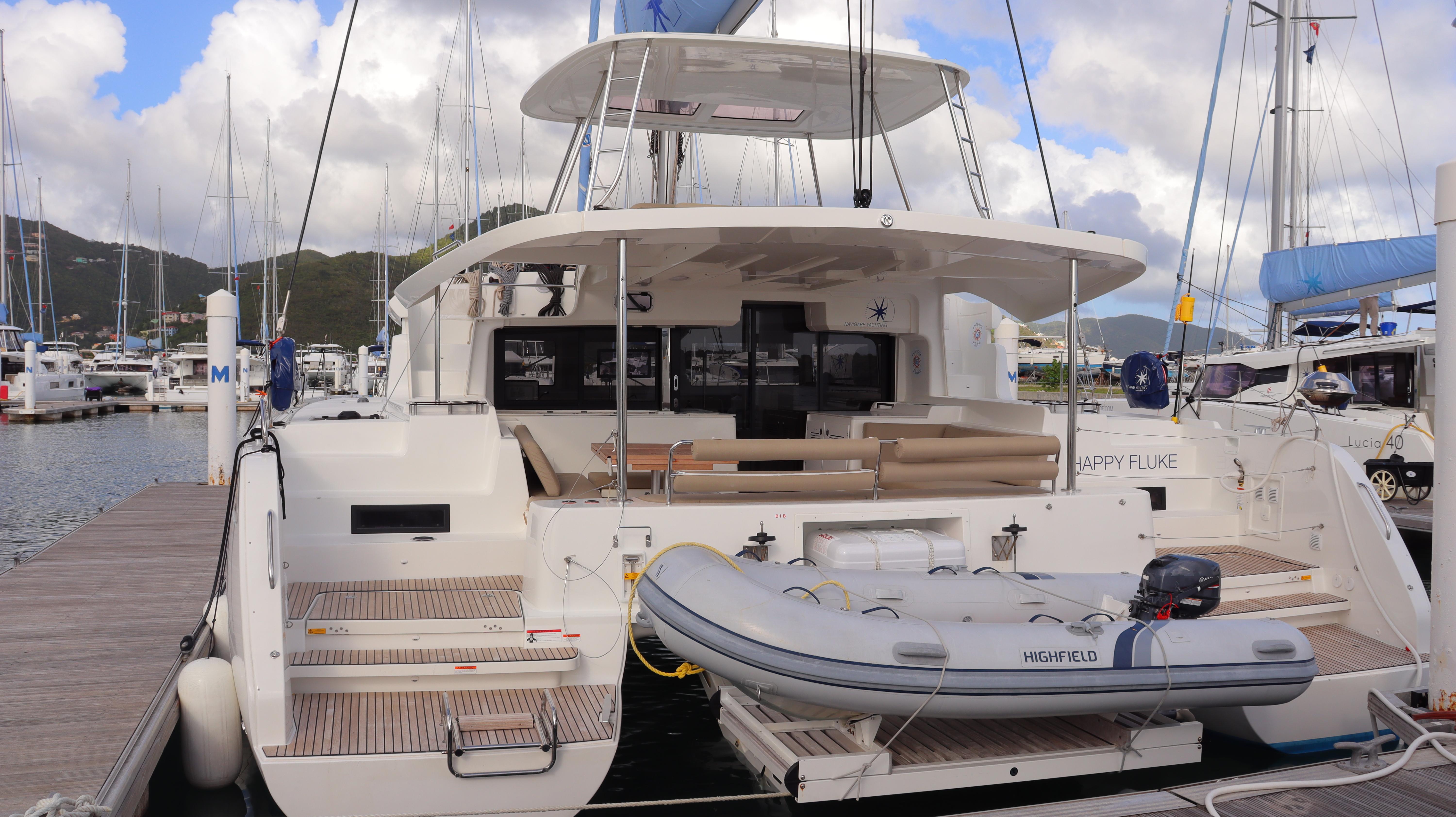

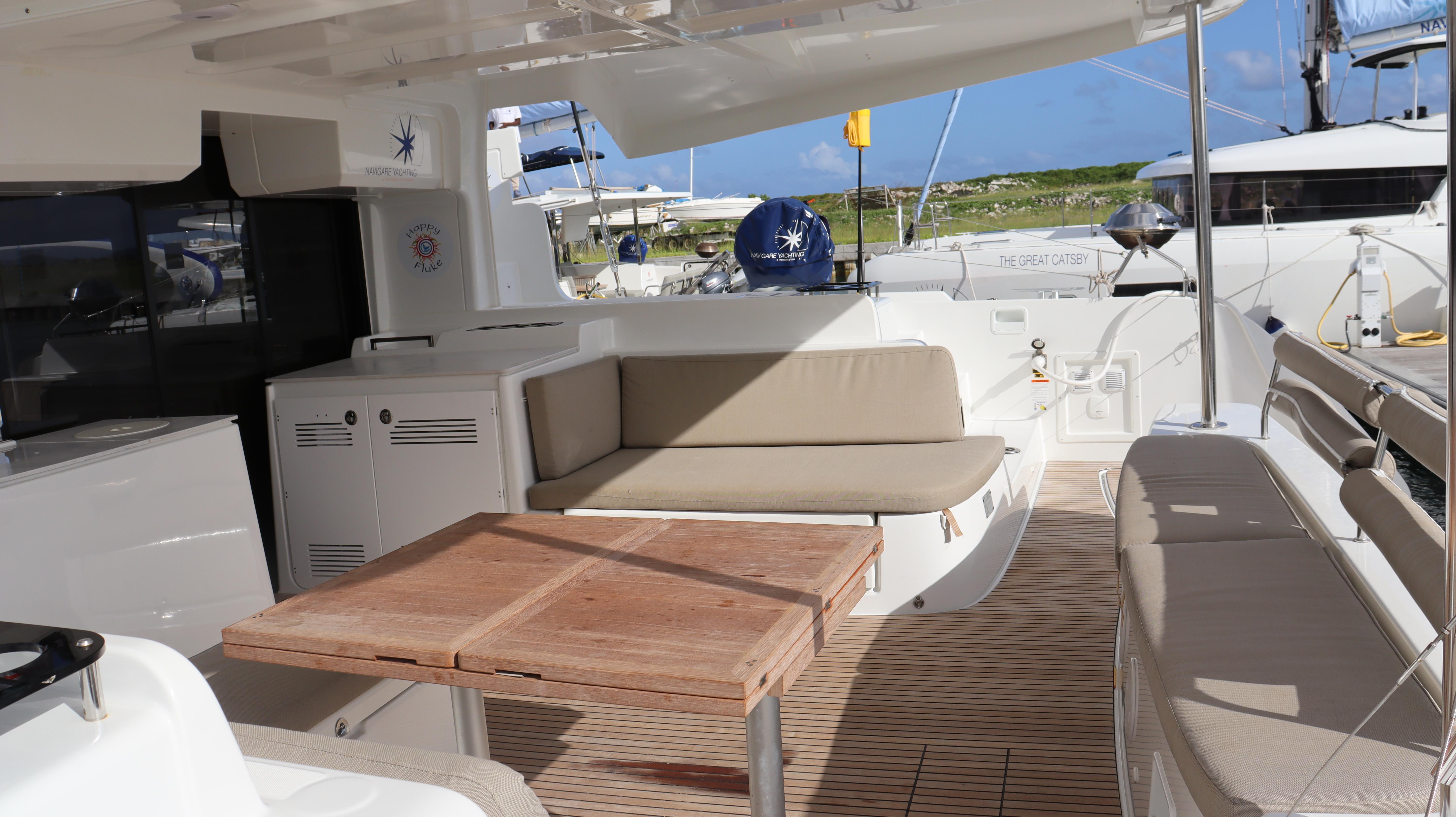

AFT DECK

  • Large cockpit usable as a deck saloon, protected by a hard top bimini
  • L-bench with storage locker on port
  • Polyester cockpit table (820x1400mm / 2’8’’x 4’7’’) on port
  • Furniture with storage on port Functions: – Worktop in Corian® -Warm Grey – Storage with top opening (70 L / 18 US gal)
  • Gas locker in the cockpit furniture ( 2 bottles (US) of 6 Kg / 13 lbs or equivalent)
  • Waste bin with upper access and full-height lateral door
  • Furniture with storage on starboard Functions:
  • Worktop in Corian® -Warm Grey
  • Tray and cup holder – Double door with shelves
  • (1) Lounger with storage locker in the seat on starboard
  • Composite aft beam
  • (1) YAMAHA engine 15 hp 2 stroke, short shaft
  • Dinghy: No

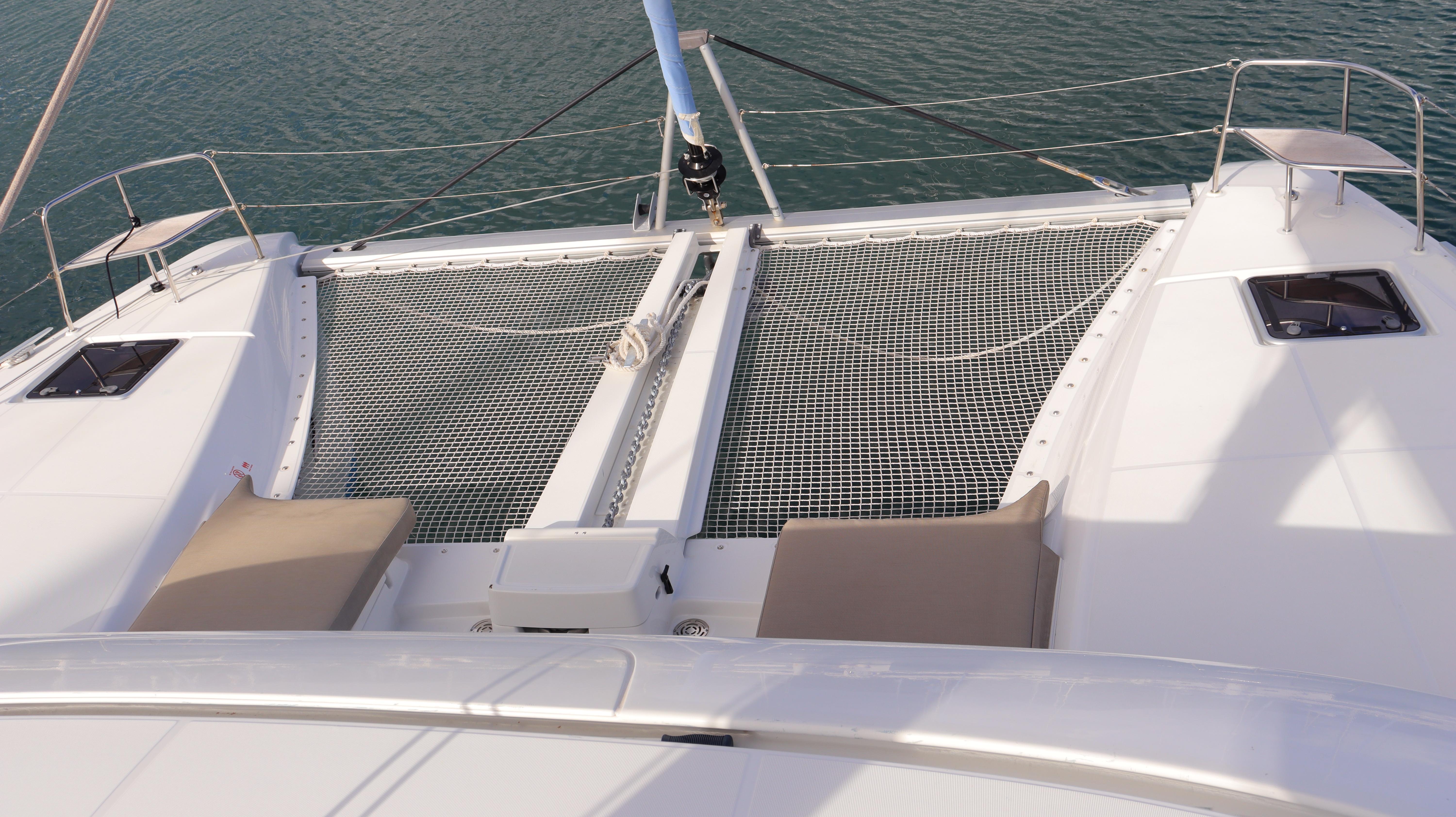

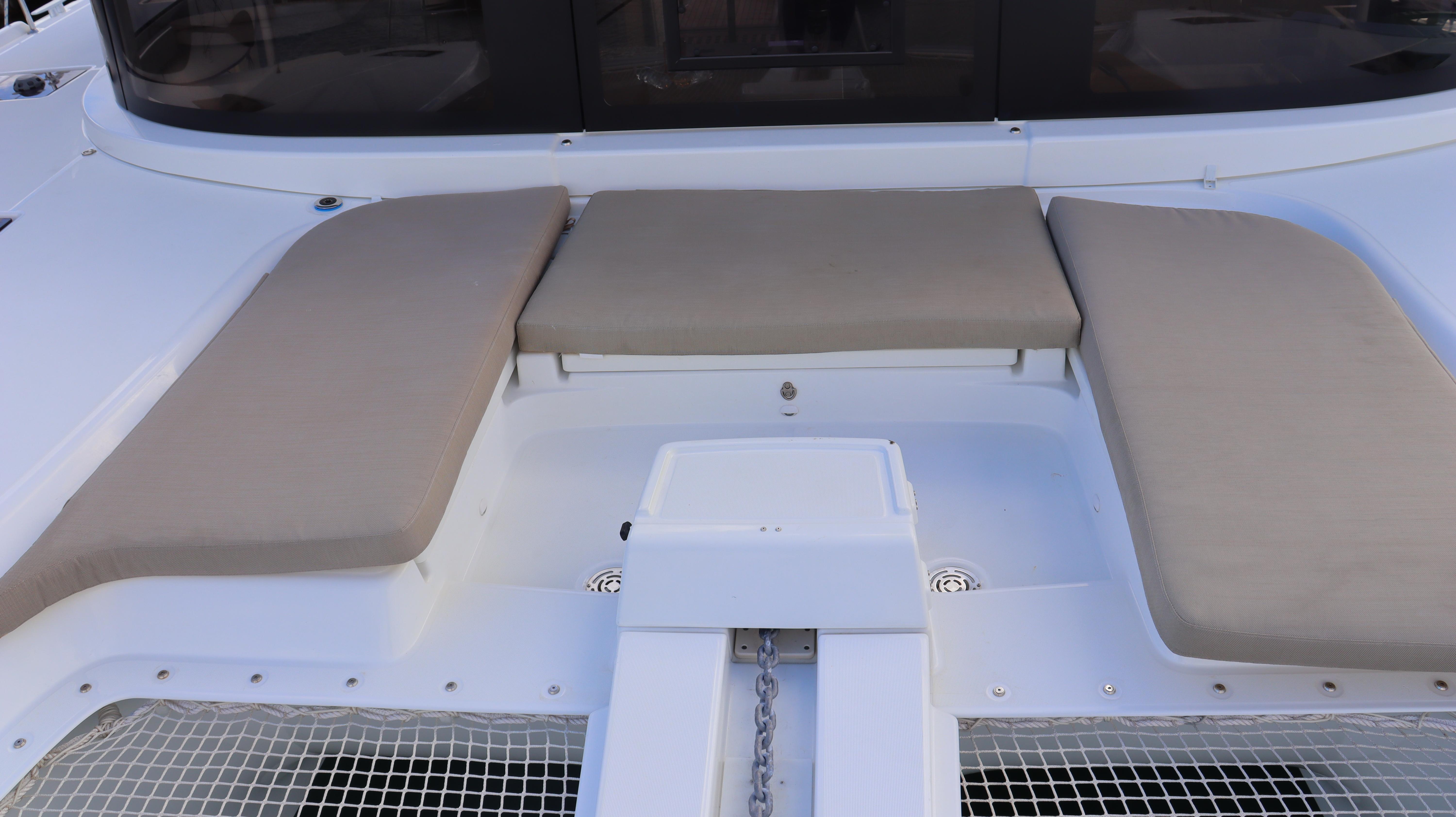

FORWARD COCKPIT

  • U -shaped seating area
  • Locker access to fresh water tanks and storage under central and starboard seats
  • Locker access to generator (option) under seat
  • Trampoline (nylon)

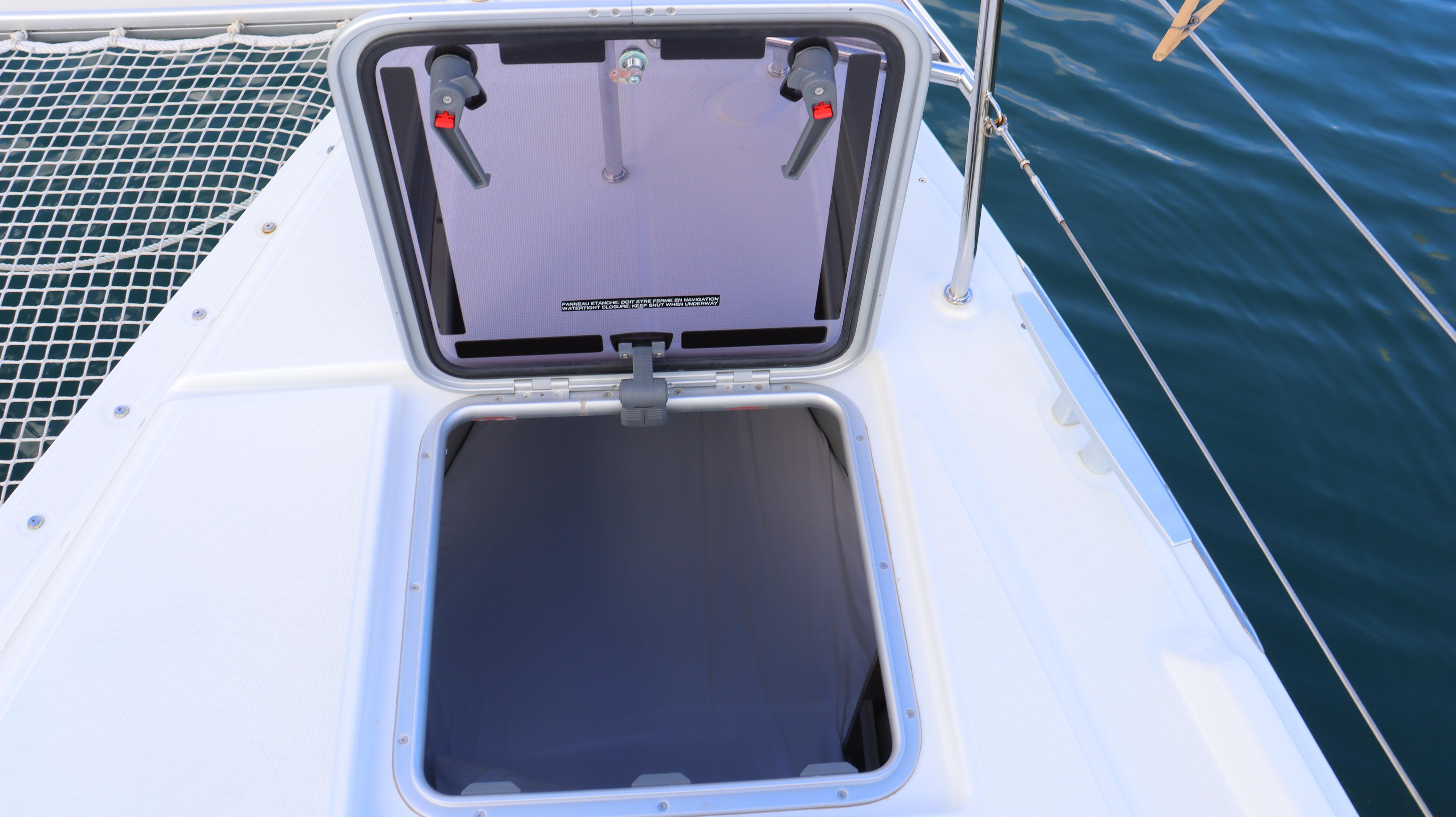

BOW LOCKER

  • Access through locking deck hatches
  • Wooden flooring
  • Grey painting
  • Lighting

STANCHIONS AND LIFE LINES

  • Push-pits with flag support
  • Stanchions: H 610mm / 24in
  • Double lifeline

Plumbing

FRESH WATER CIRCUIT

  • Fresh water tank: 2 x 300L / 79 US gal Gauge at the general control panel on touch screen
  • Fresh water circuit with 1 main water pump in port companionway: 18.5L / 5 US gal
  • Hot water circuit with 1 water heater 60L / 16 US gal, with 230V heater element and engine heat exchanger

GREY WATER

  • Shower and sink draining by automatic water sensor with time

BLACK WATER

  • 2 black water holding tanks about 120L / 32 US gal (240L / 63 US gal in total) under the passageway floor, port & starboard

BILGE PUMP CIRCUIT

  • 1 manual bilge pump in each hull with a pump in the cockpit
  • 1 automatic immersed bilge pump per hull
  • 1 manual release non-immersed bilge pump per hull



Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

The Multihull Company is pleased to assist you in the purchase of this vessel but may be listed with another brokerage company.
