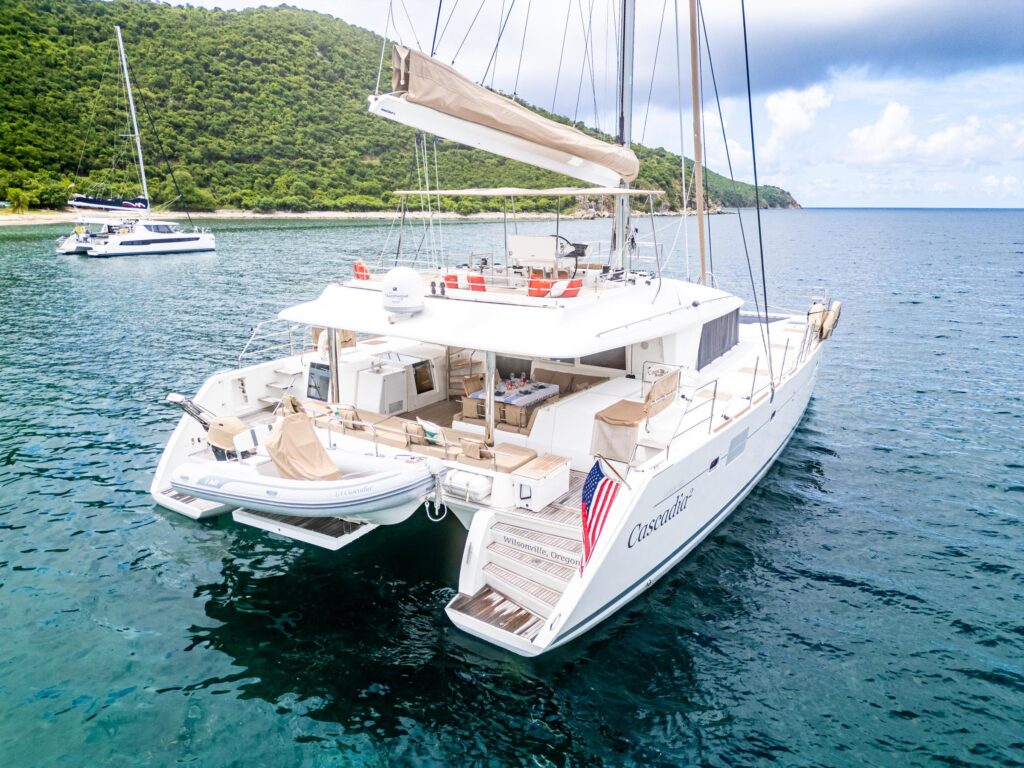

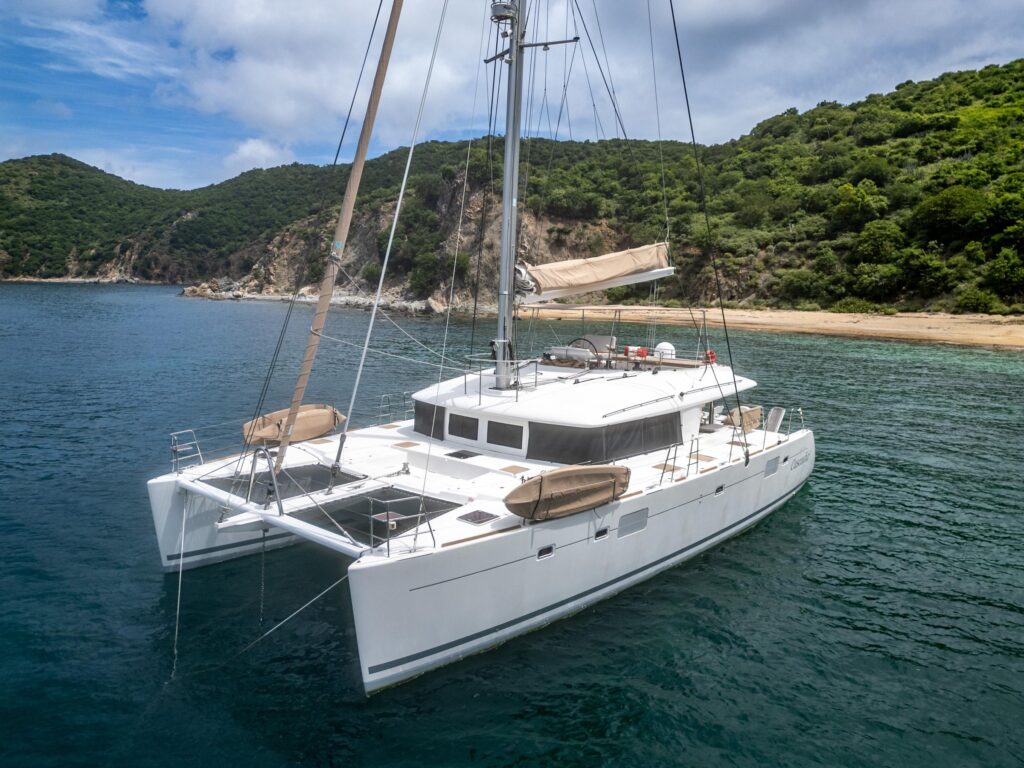

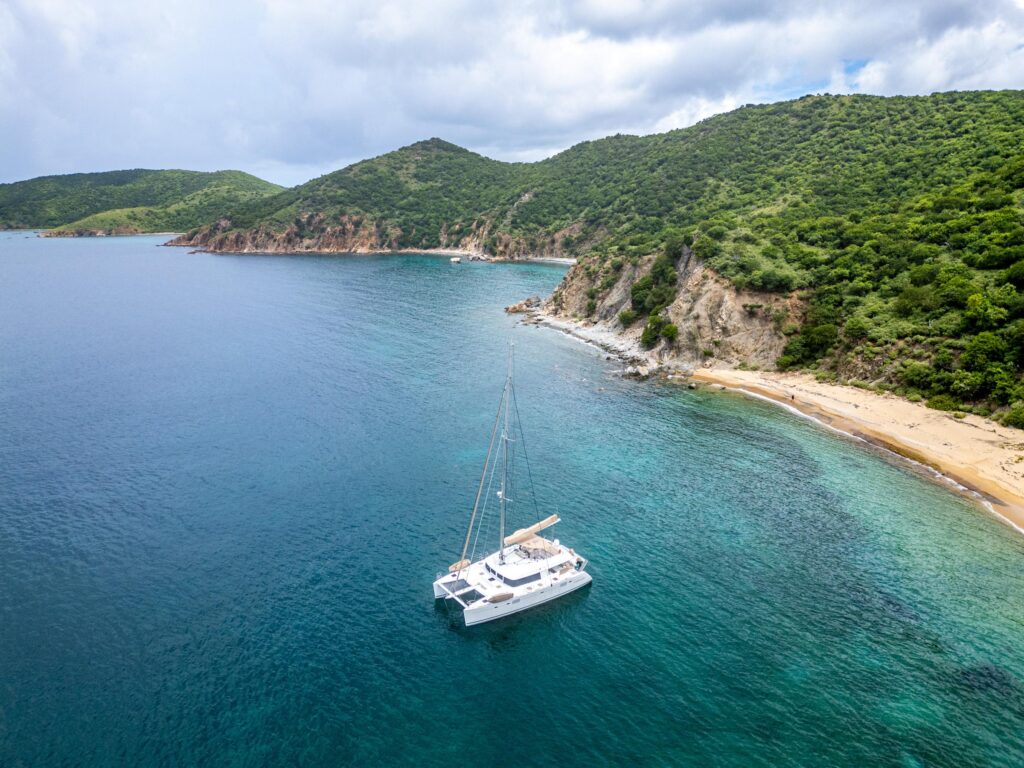

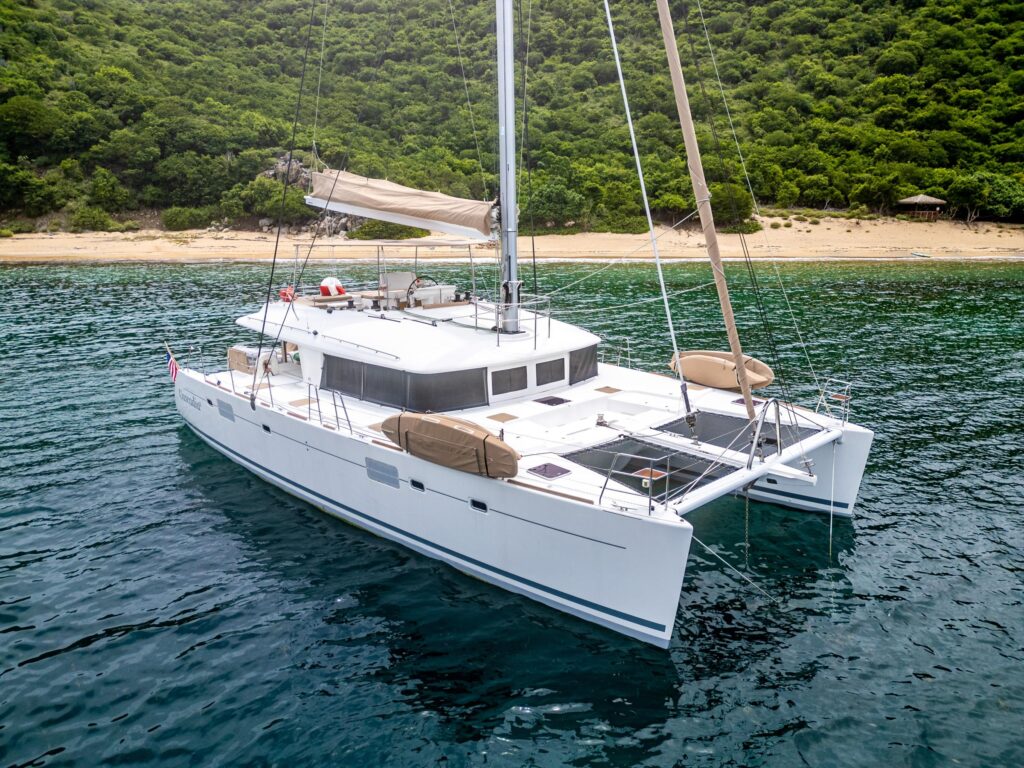

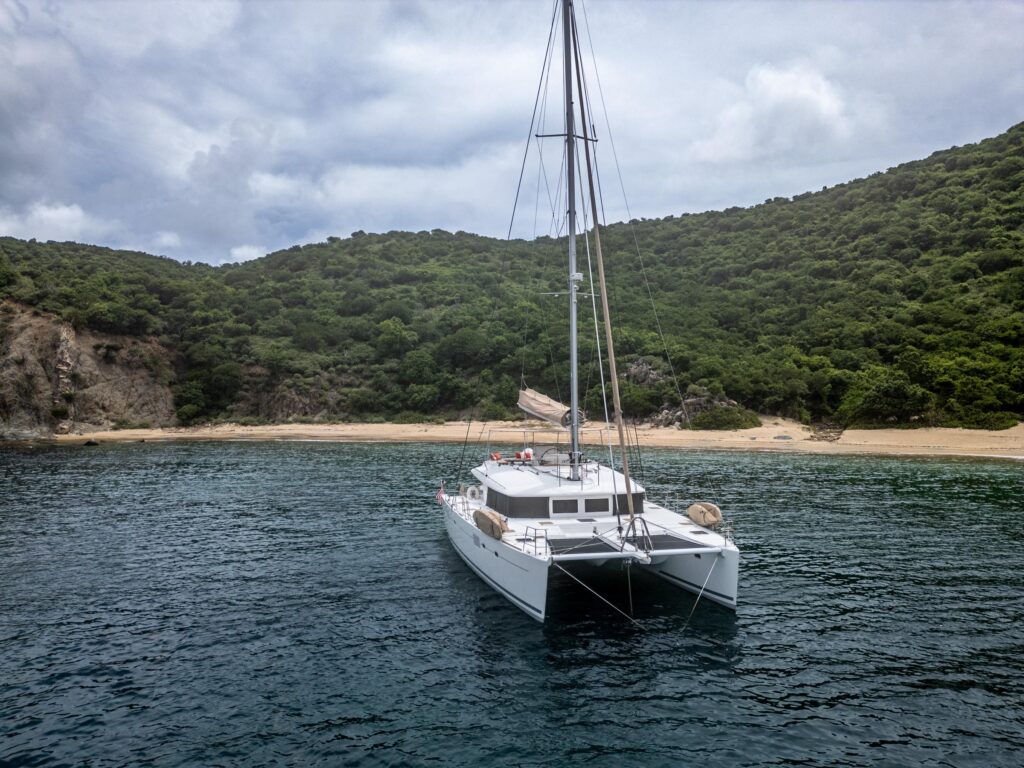

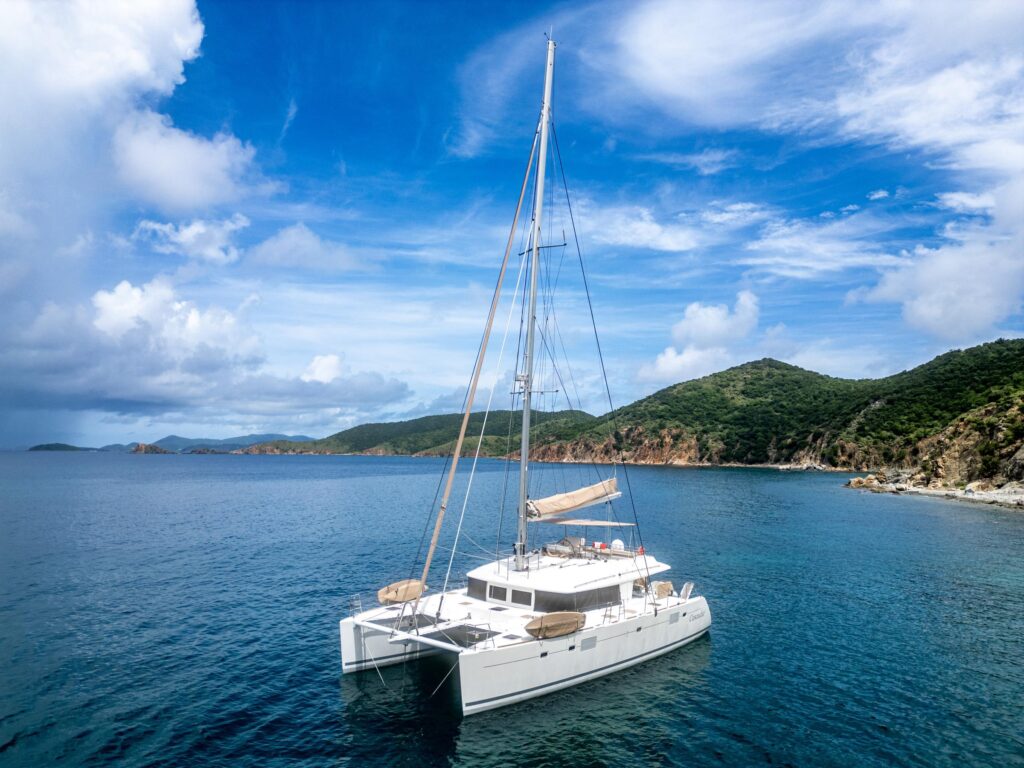

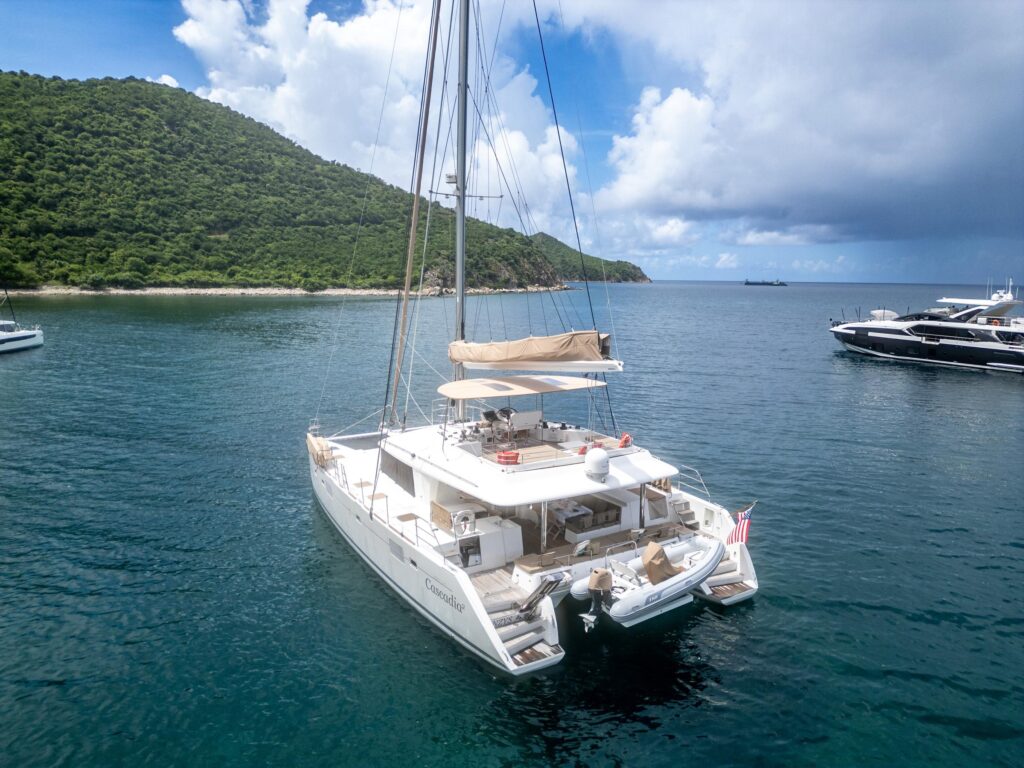

CASCADIA 2 | 2012 Lagoon 560

Nanny Cay, VG

About

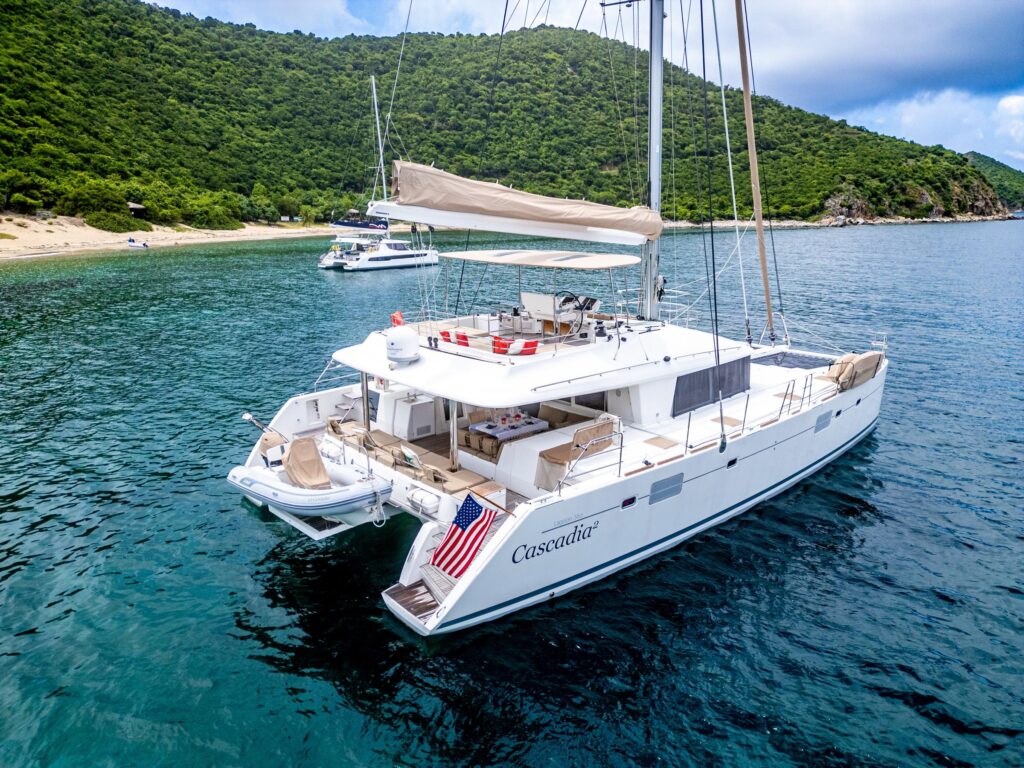

This stunning 2012 Lagoon 560 catamaran, CASCADIA 2, was crafted for the selective seafarer, offering the perfect blend of performance, comfort, and elegance. CASCADIA 2 can accommodate up to 10 guests in 5 spacious staterooms and is in turnkey condition for entertaining or charter.

Step aboard to find an interior designed with premium materials, showing off a harmonious balance of comfort and style. Escape to a private stateroom, each equipped with plush bedding and en-suite facilities, ensuring a restful retreat after a day of sailing.

Entertainment abounds on this Lagoon 560. Whether it be a lively gathering or a quiet evening under the stars, the deck areas boast ample space for relaxation and socialization. Take in breathtaking views from the flybridge, unwind in the luxurious salon, or dine alfresco in the cockpit.

CASCADIA 2 is expertly engineered for smooth sailing, with cutting-edge technology and responsive handling. This catamaran delivers an exhilarating experience with uncompromising reliability.

Specifications

  • Length: 56ft
  • Builder: Lagoon
  • Beam: 31' 0"
  • Draft: 4' 11"
  • Year: 2012
  • Hull: Fiberglass
  • Speed: 10
  • Status: Active

View More Specs

SPECS

  • Builder: Lagoon
  • Designer: Van Peteghem-Lauriot Prevost

MEASUREMENTS

  • Length Overall: 56 ft
  • Length Waterline: 54 ft ft
  • Max Draft: 4' 11"
  • Beam Measure: 31' 0"

ENGINE(S)

  • Total Power: 220
  • Engine Brand: Yanmar
  • Engine Model: 4JH4
  • Engine Type: Inboard
  • Engine/Fuel Type: Diesel
  • Engine Power: 110 hp

  • Total Power: 220
  • Engine Brand: Yanmar
  • Engine Model: 4JHF
  • Engine Type: Inboard
  • Engine/Fuel Type: Diesel
  • Engine Power: 110 hp

TANKS

  • Fresh Water Tanks: 2 (650 Gallons)
  • Fuel Tanks: 2 (650 Gallons)

Accommodations

  • Number of cabins: 6
  • Number of heads: 6

Specs

Build: Lagoon
Model: 560
Year: 2012
Designer: Van Peteghem-Lauriot Prevost
LOA: 56′
Beam: 31′
LWL: 54′
Draft: 4’11”
Displacement: 66,812lbs
Hull Material: Fiberglass
Propellers: 3-Blade Fixed
Engines: (2) Yanmar 110HP, Straight Shaft
Double Electronic Engine Throttle at Nav Station with Panels
Cruising Speed: 9knts
Max Speed: 10knts
Bridge Clearance: 28.66

Upgrades

2024
New Hydraulic Hoses for Bow Thruster
New Bottom Paint, Custom Gray to Match Factory
New Propspeed & Zincs
New Main Halyard

2023
New Lifelines
New Flybridge Bimini Canvas

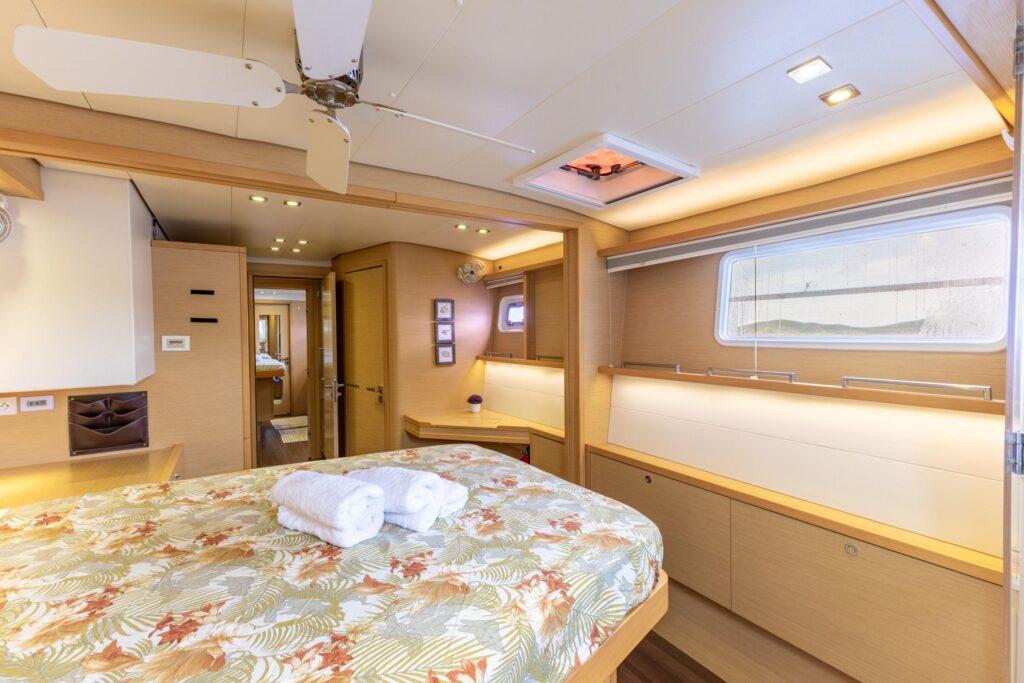

New Ceiling Fan in Master Stateroom
Installed Dome for Starlink Unit (unit itself is not transferable)

2022
Custom Helm Seat, Fabricated in California
New High-Capacity Water Maker
New Mainsail Quantum
New Headsail Quantum
New Rocna 55 Primary Anchor

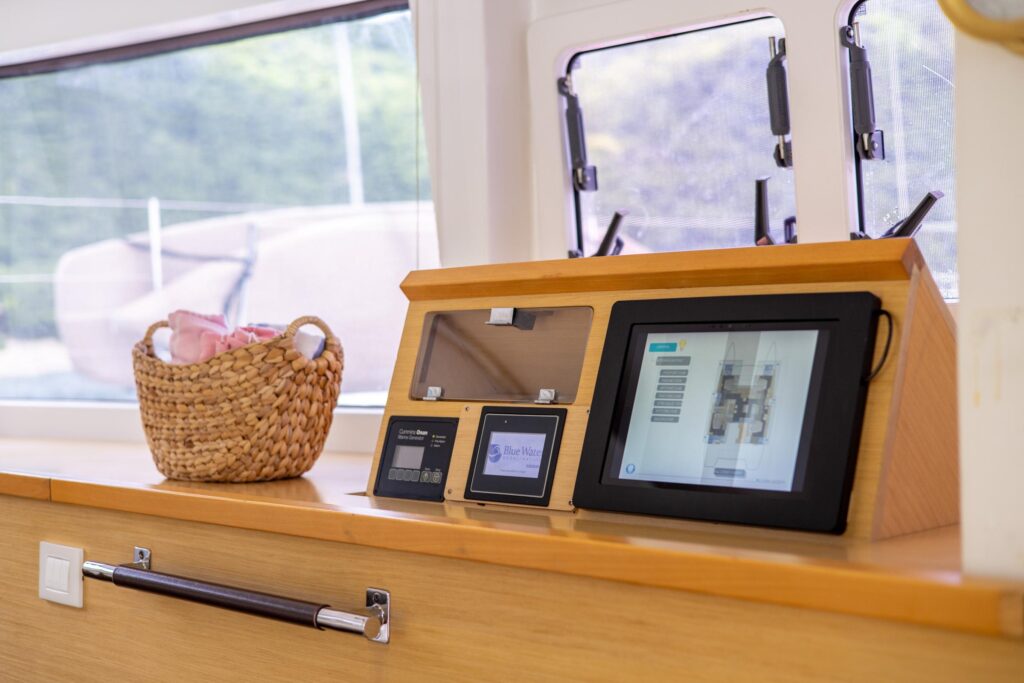

New Eplex Consoles (converted to MS Surface platform)
New Icom Radios, Flybridge & Salon

2021
New House Batteries
New Icemaker
New Nets
New 24V Underwater Lights

2020
New Sparcraft Canoe Boom
New Tenderlift Hydraulic Pump
Canvas Storage for Mask, Fin, & Snorkel on Stern Pulpits

Pre 2020
Custom Stainless Additions:
– Mast Pulpit

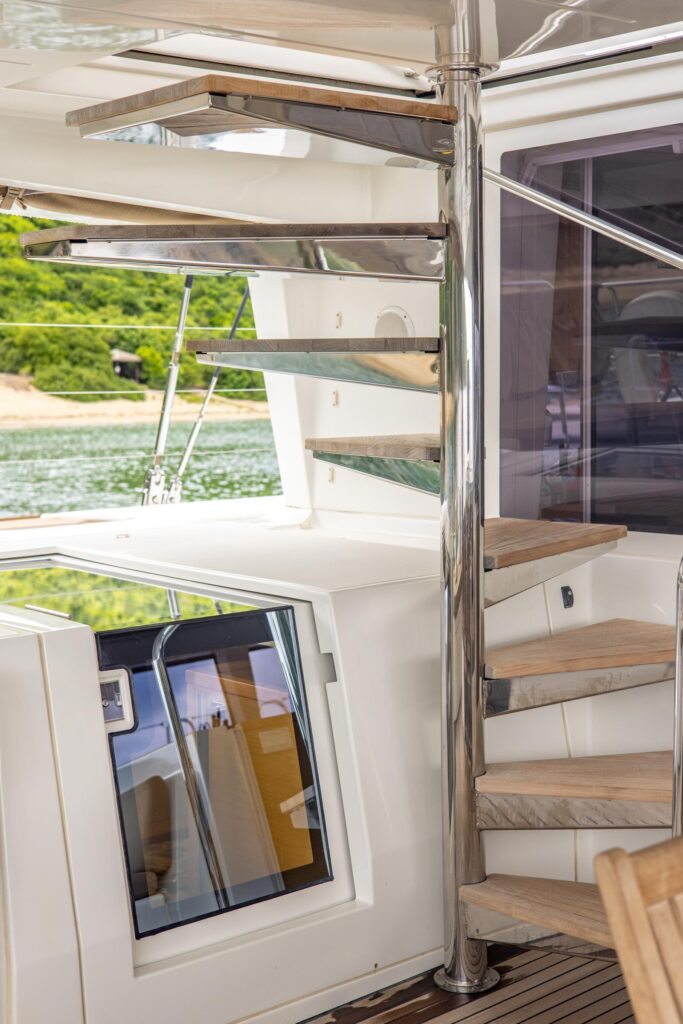

– Grab Rail for Stairs to Flybridge
– Rails added to Port Side Deck Access (to match factory on starboard side)

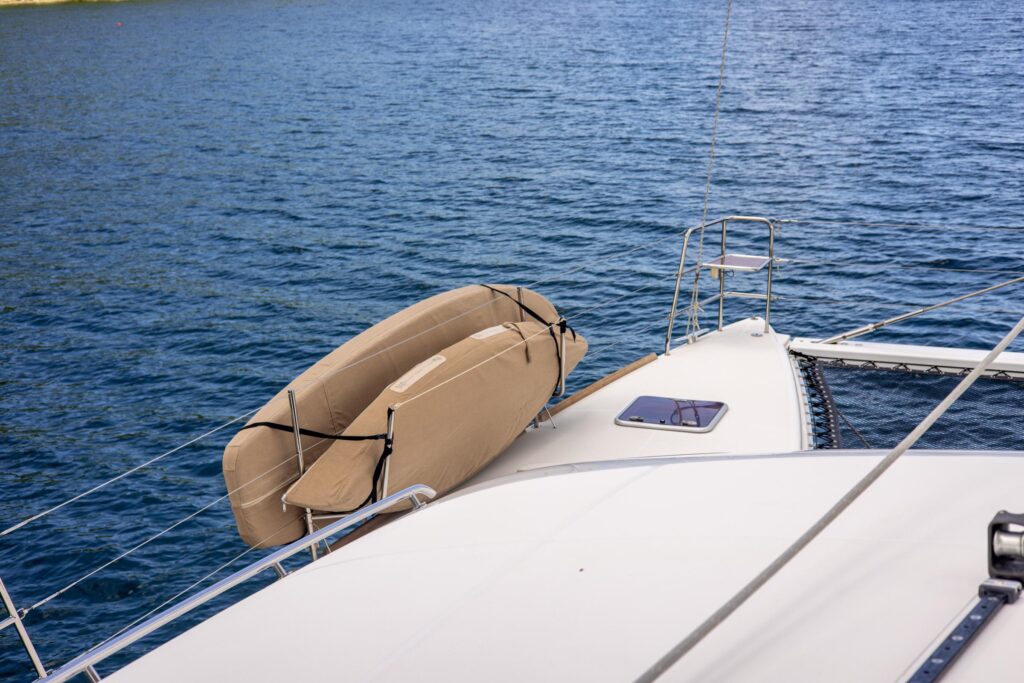

– Custom-Made Rail Racks for (2) Paddle Boards & (2) Kayaks
Hydraulic Teak Passerelle with Life Lines & Adjustable Height/Length (Ezberci TR, telescoping with lights)
Granite Counter Tops on Galley Island & Prep Area
New Aft Freshwater Deck Washdown Pump
External Shade Screens (in black netting for salon windows)
Central Panel for Controlling 24V Black Water Valves

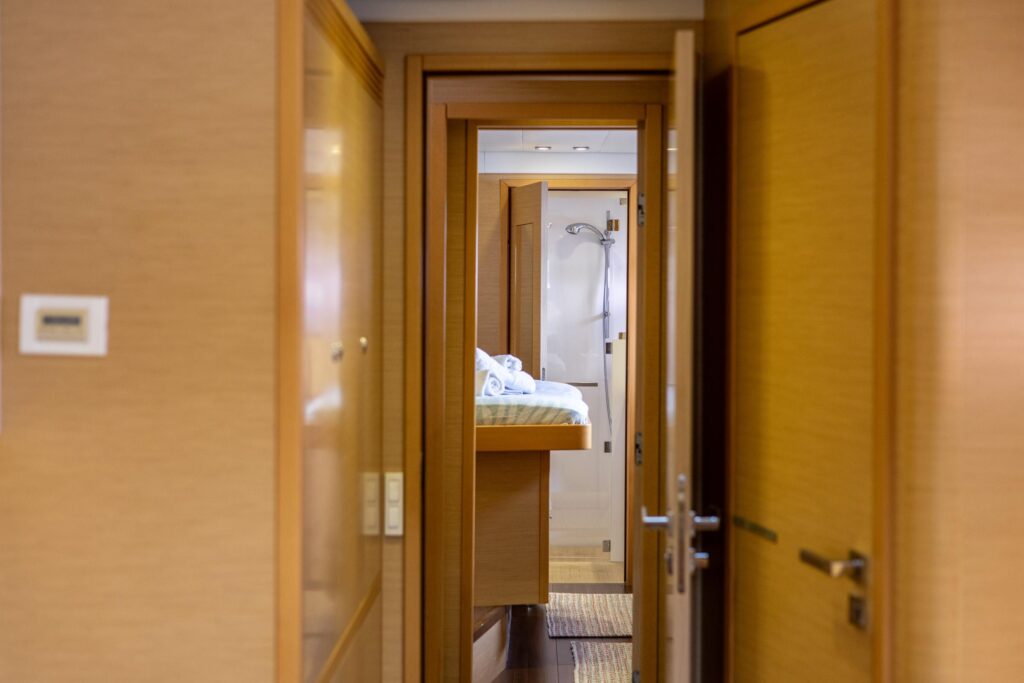

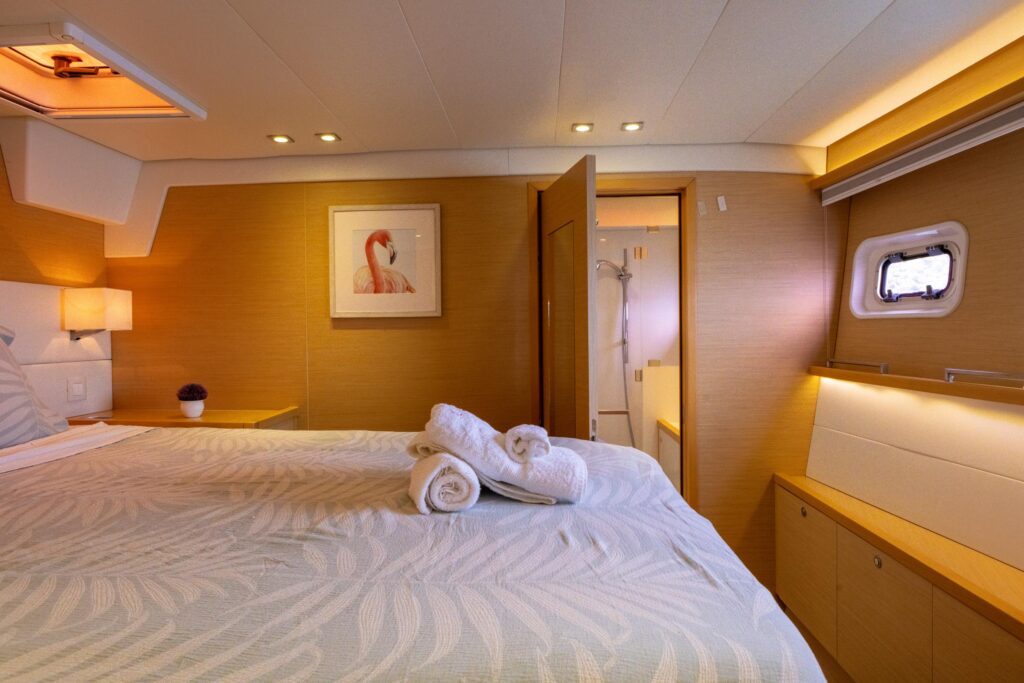

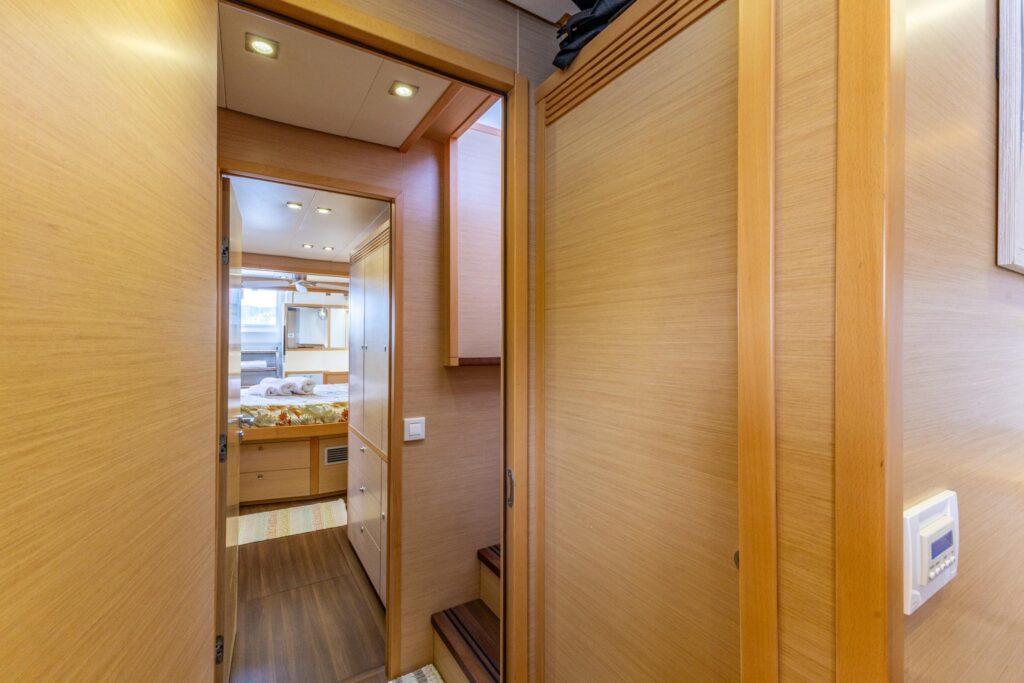

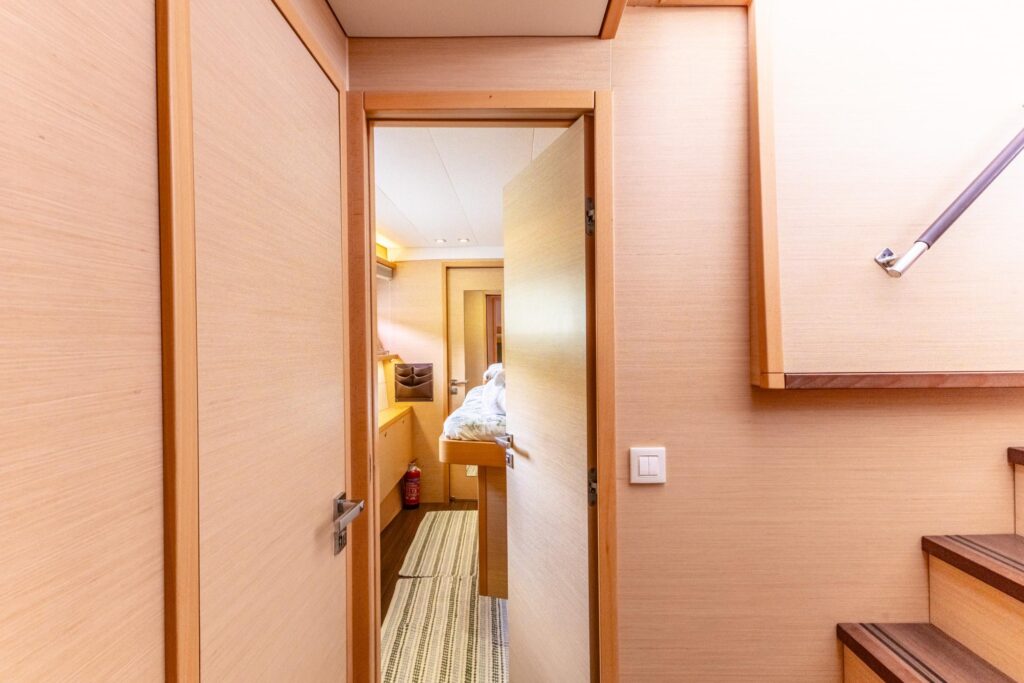

Interior

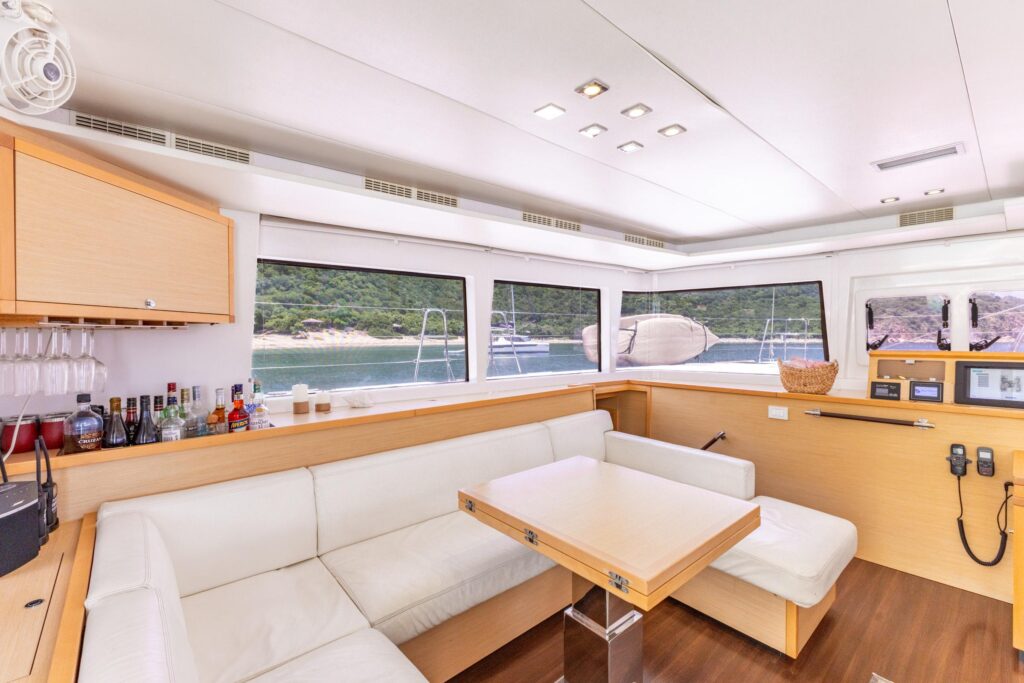

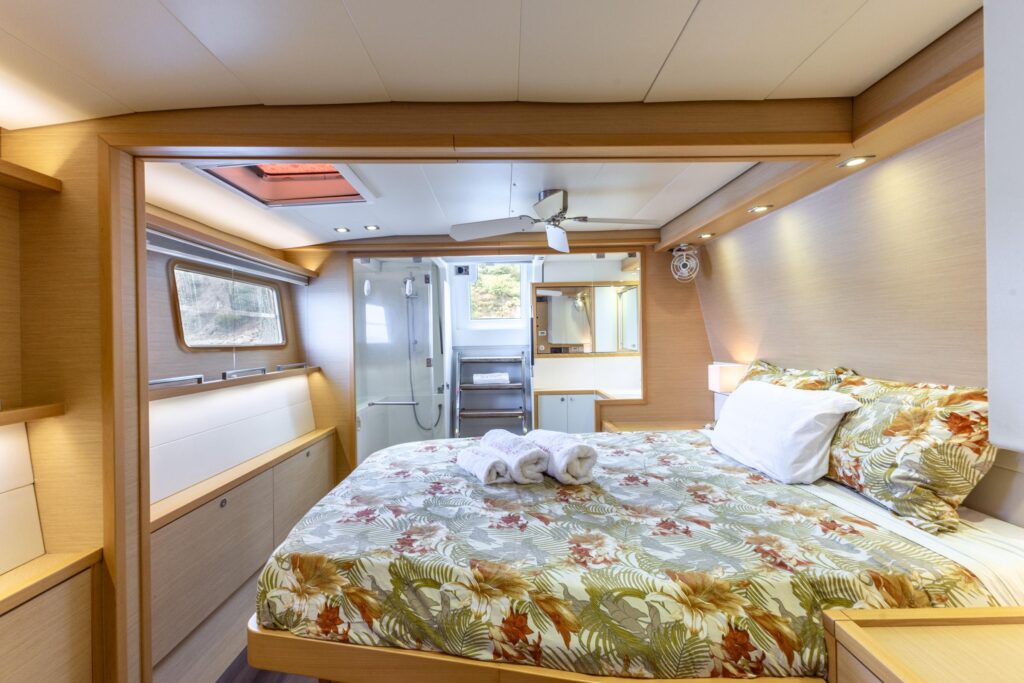

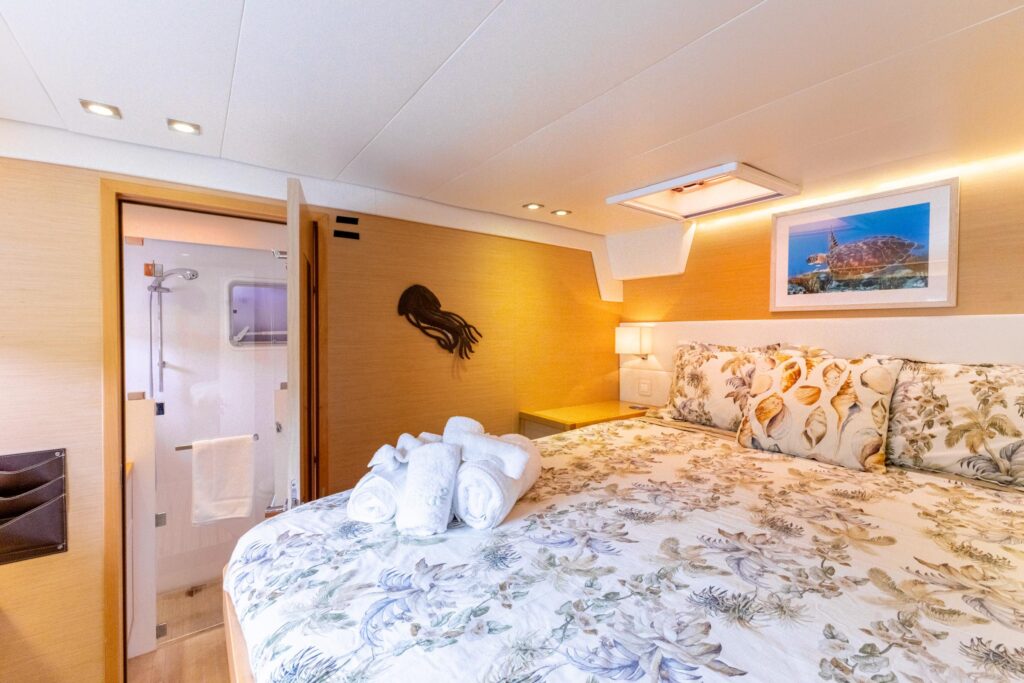

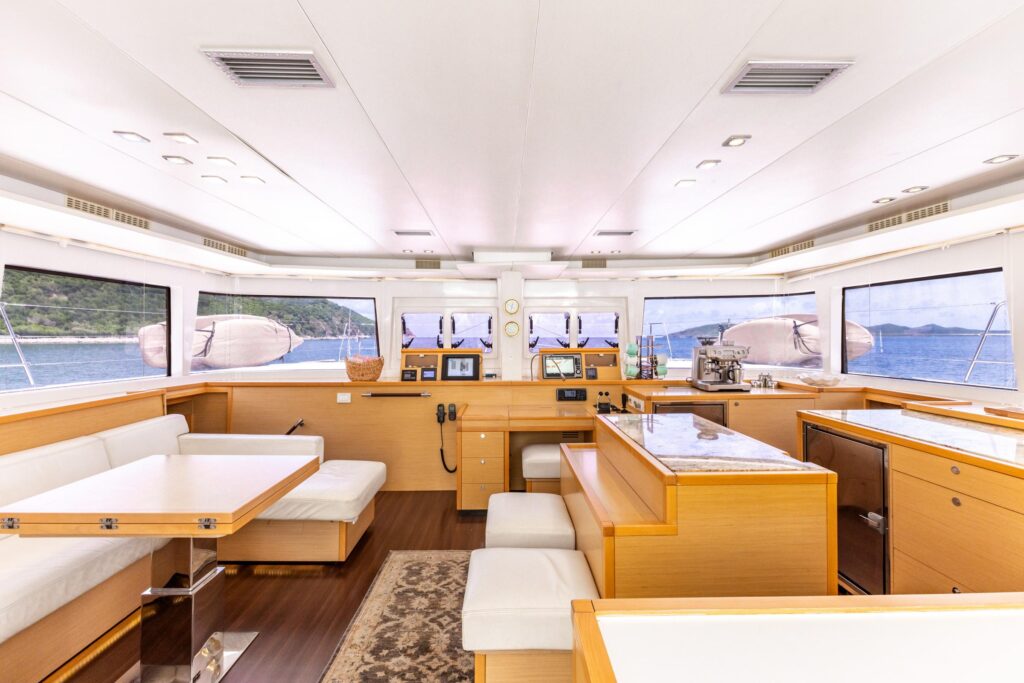

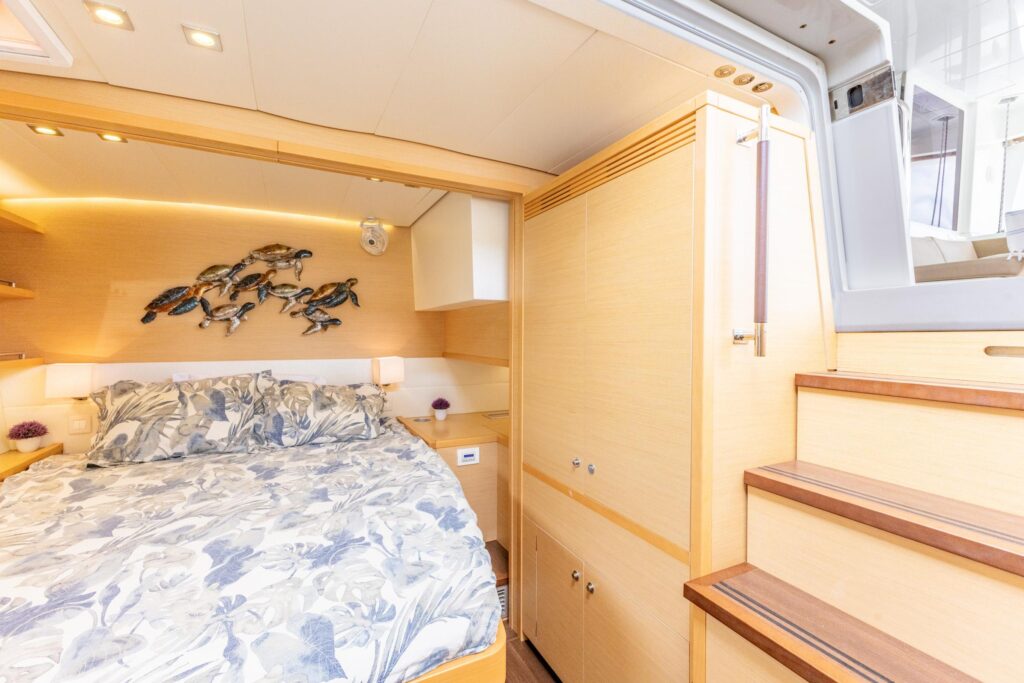

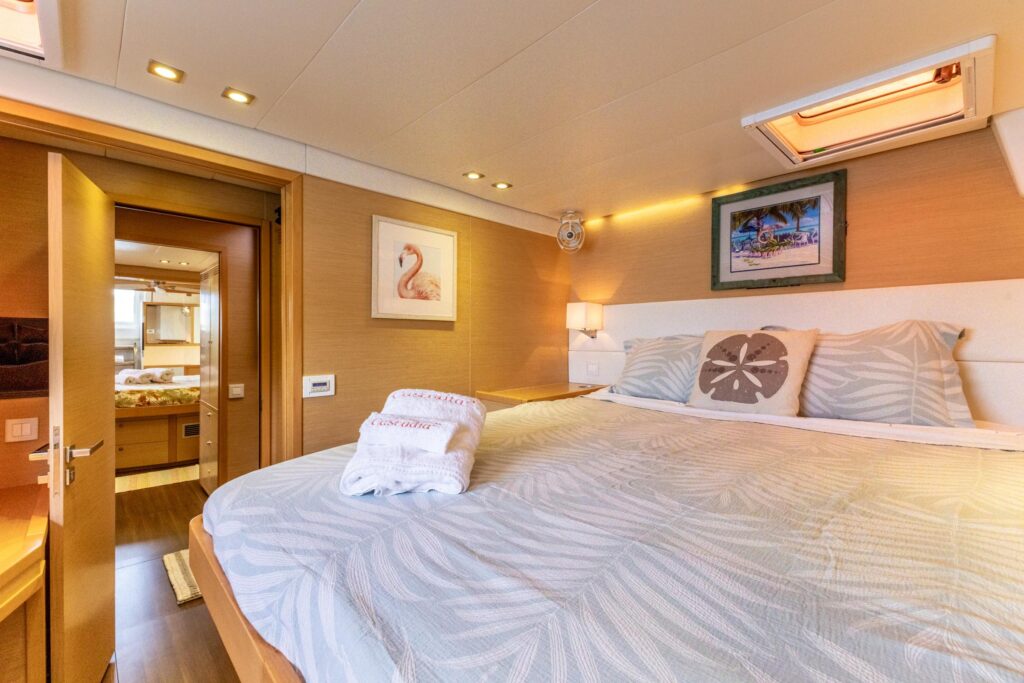

Accommodations & Salon

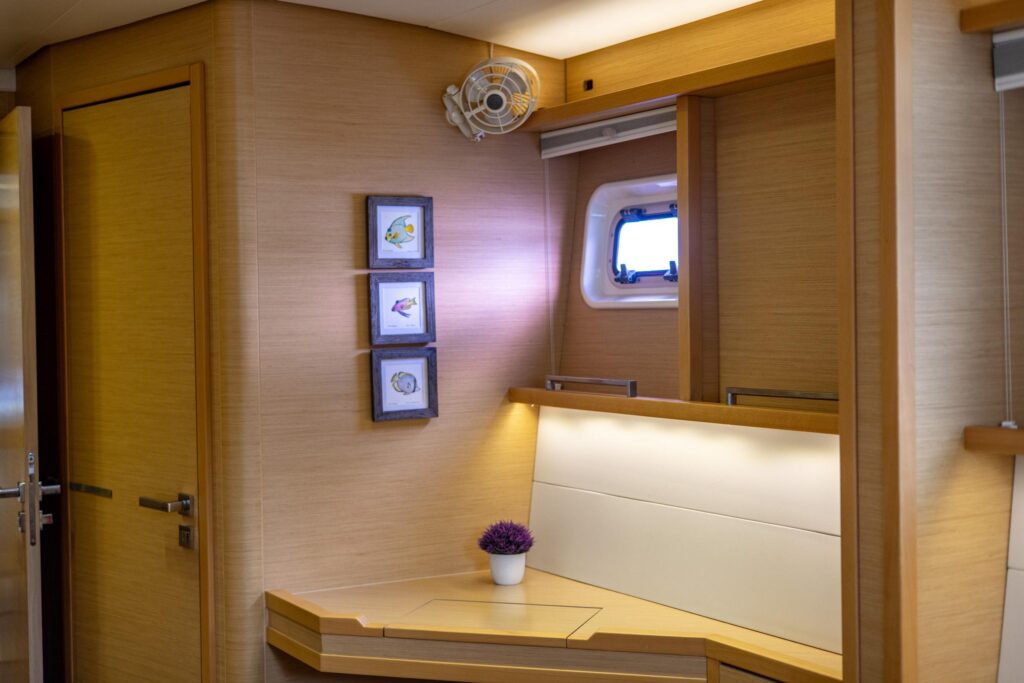

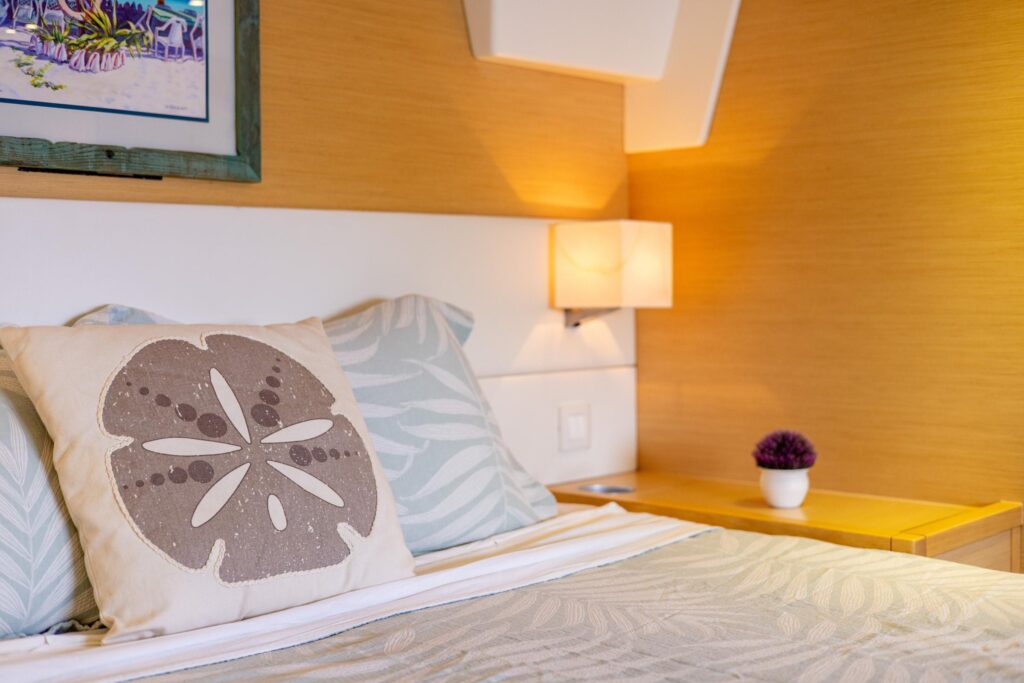

CASCADIA 2 can accommodate up to 10 guests in 5 staterooms along with 1 crew member.

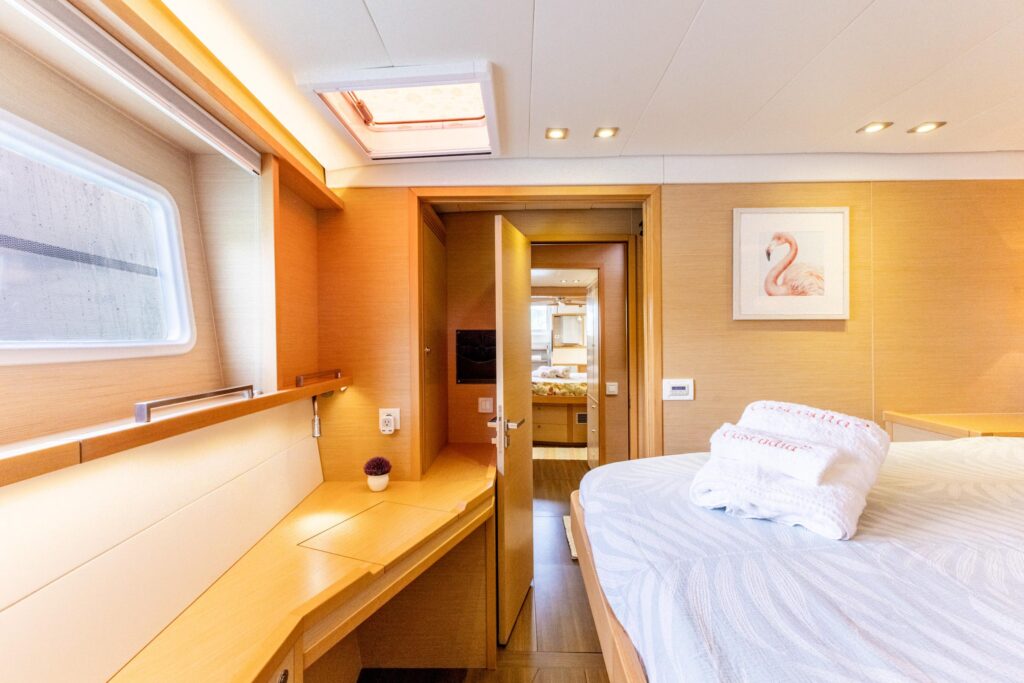

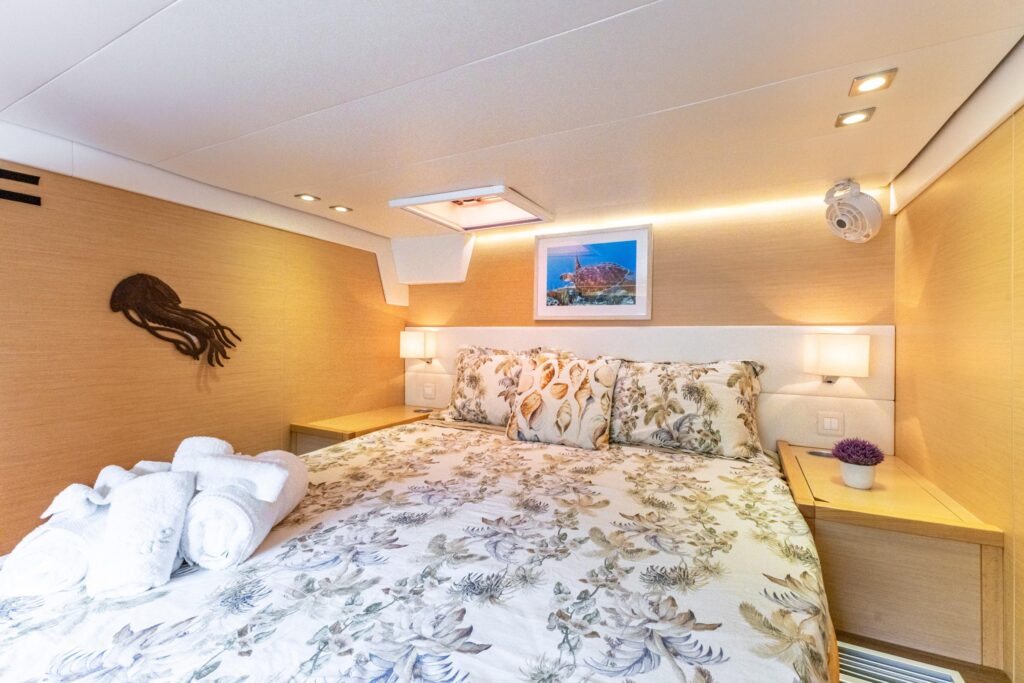

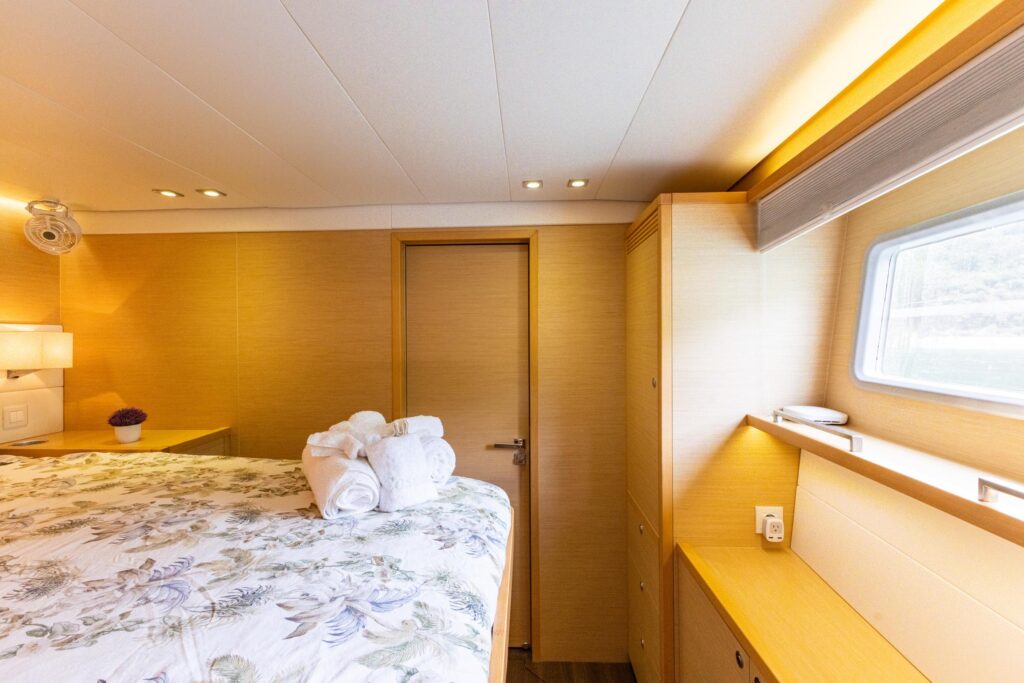

(5) Guest Staterooms

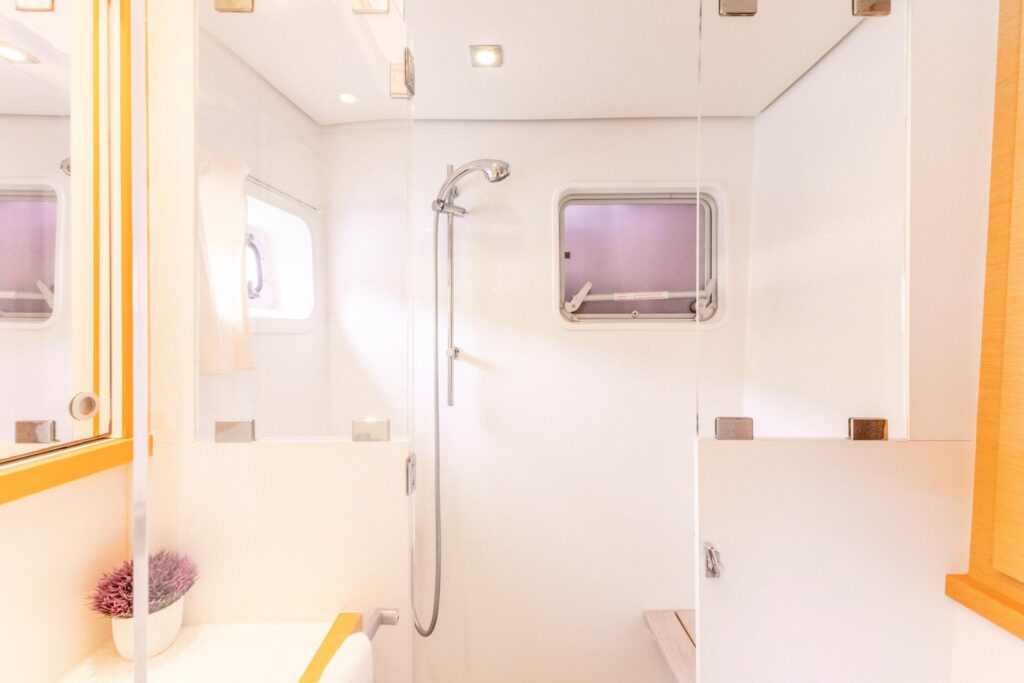

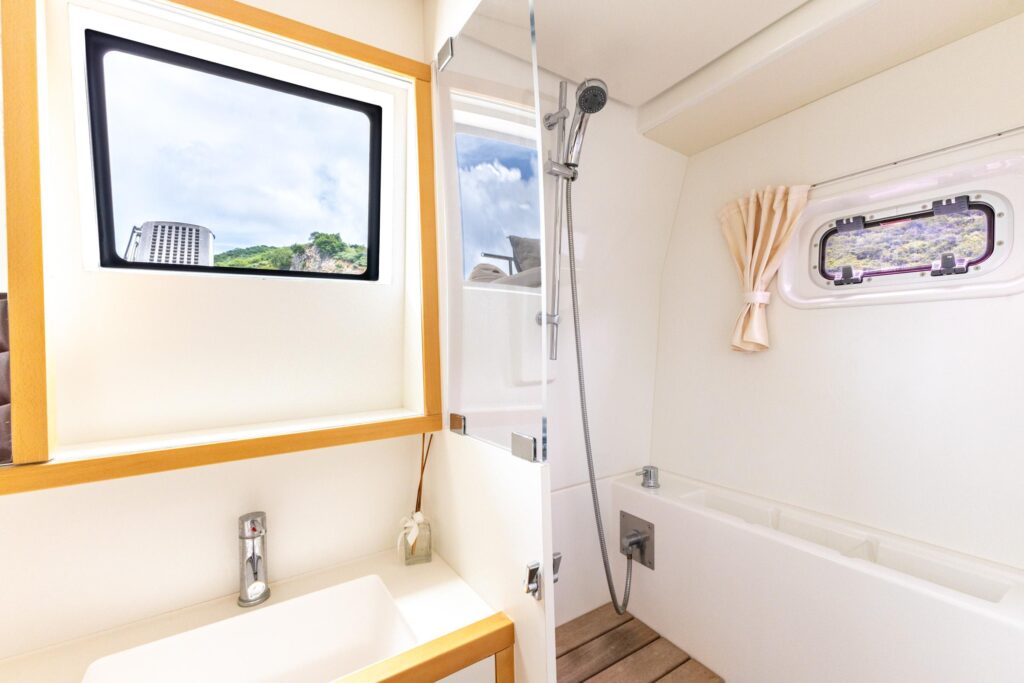

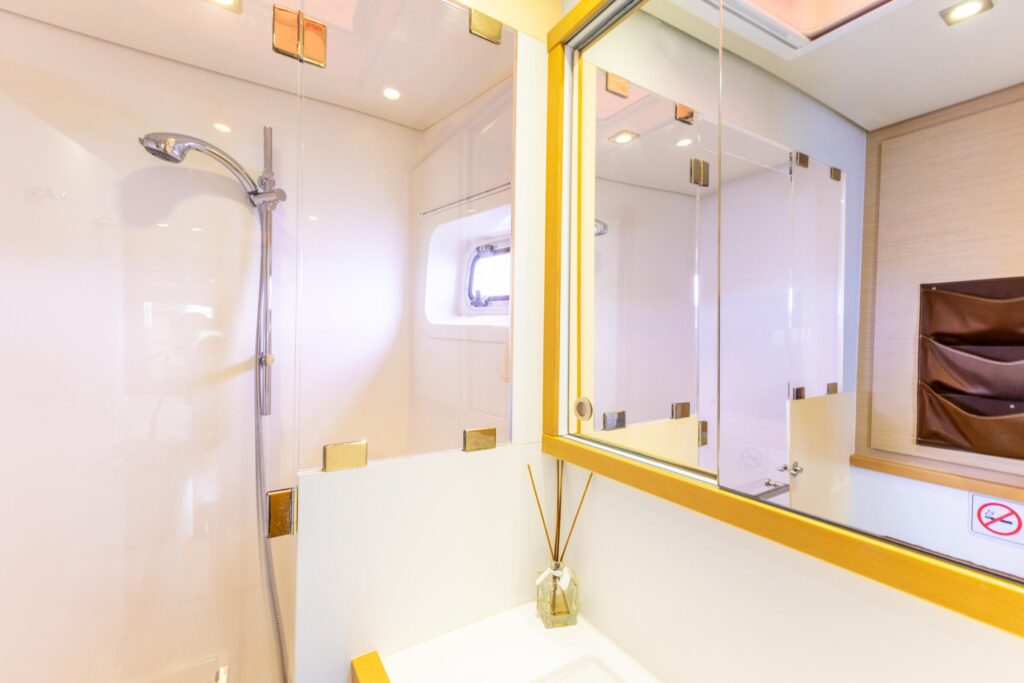

(5) Guest Heads (bidets in all heads)
(1) Crew Cabin + (1) Crew Head (in port bow compartment)
Sleeps 10 Guests + 1 Crew Member
Marine Mattresses
Flooring: Wood; Carpet in Salon & (5) Staterooms (Orion)
Interior Lighting: LED
Interior Finish: Alpi Oak
Alpi Walnut Furniture, Asburgo Floorboards
Indirect Lighting in Cabins & Salon
(5) Fans (1 for each stateroom)
Fan in Salon
Charter Base with Central Galley
Leather Upholstery (salon)
Standard Upholstery: Shark Brown (salon & settees)
Special Leather Capri Upholstery (salon & settees) Central Galley
Pleated Blinds in Salon & Cabins
Blinds on Aft Cabin Companionways
Ombre Curtains on Salon Door & Aft Window
(2) Additional Stools in Galley + (1) in Owner’s Stateroom
Flat Screen TV in Electrically Activated Storage
Salon Table: Foldable Wood
Electrical Table Leg in Salon – Central Galley
Wildlife Reference Books
Games
Cards

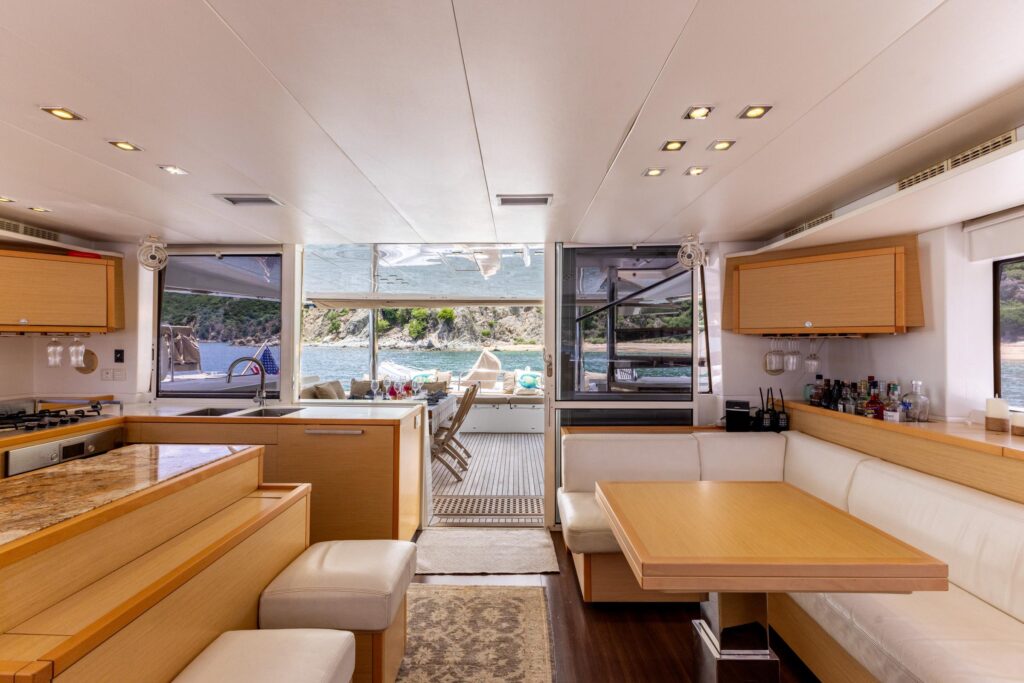

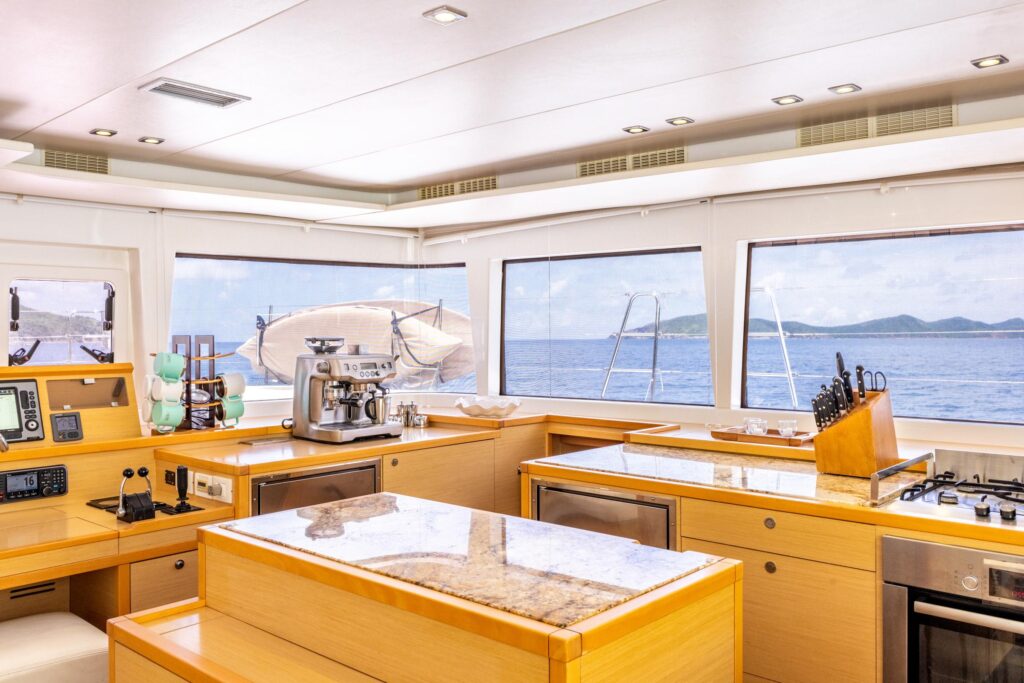

Galley, Dining, & Coffee Bar

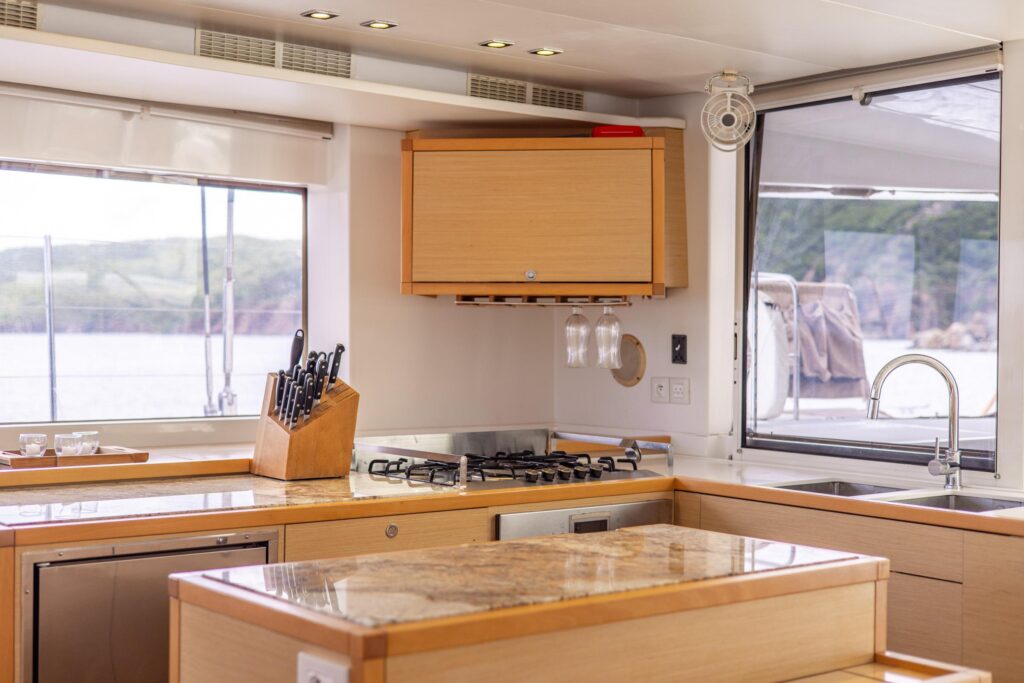

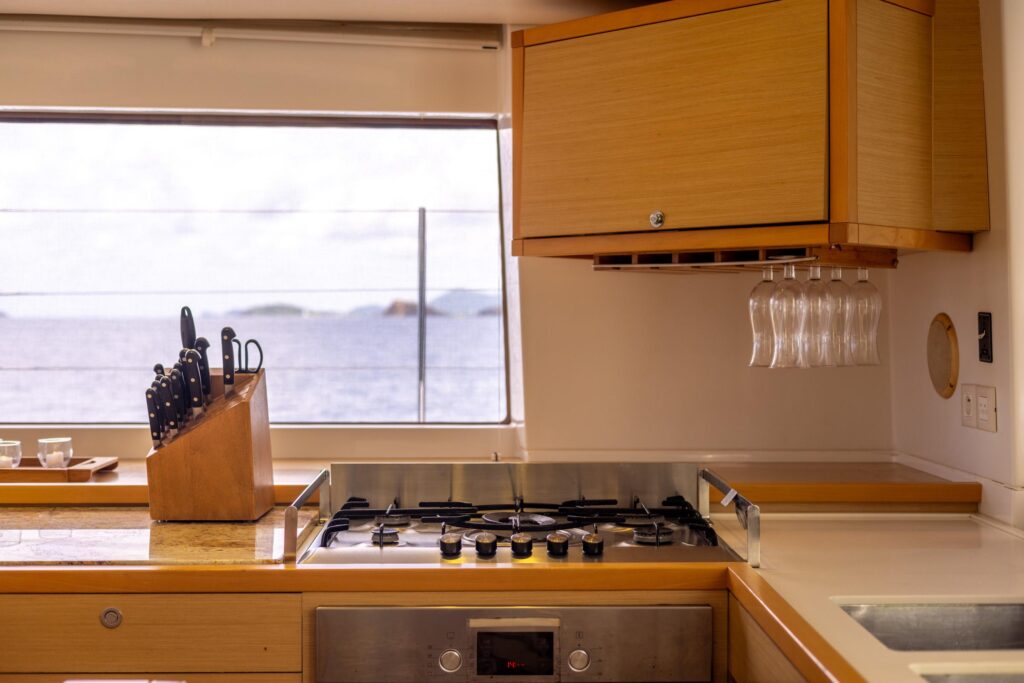

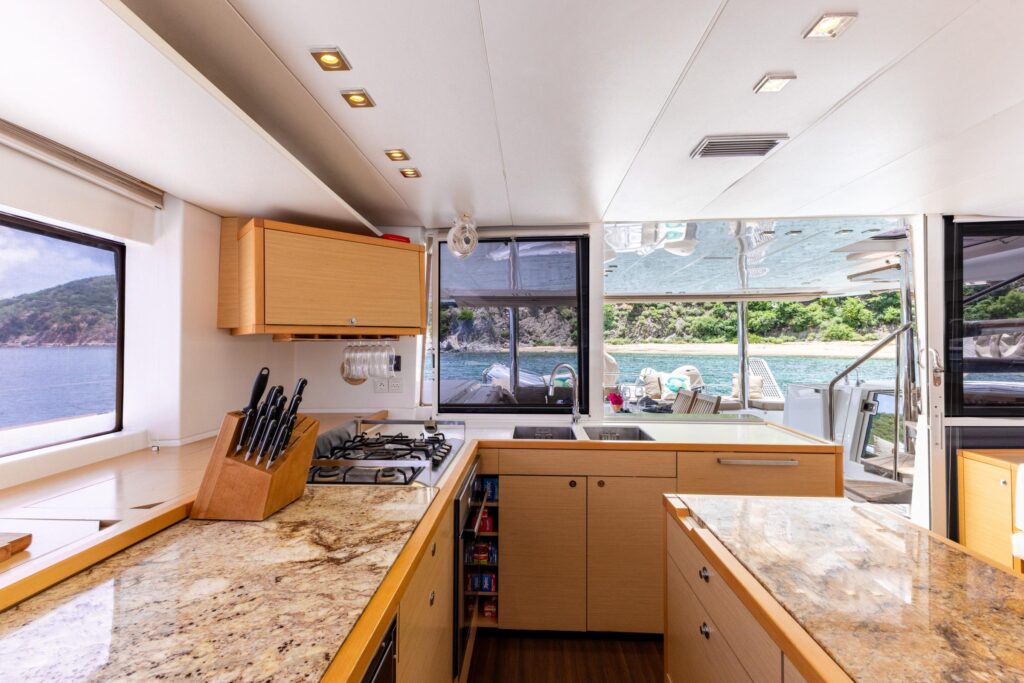

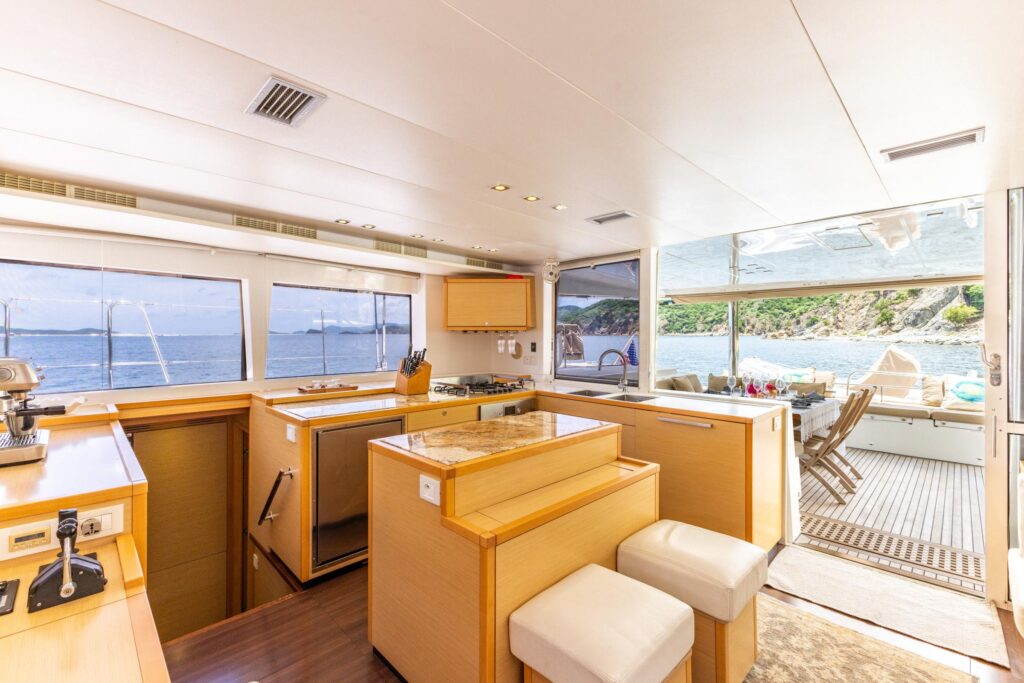

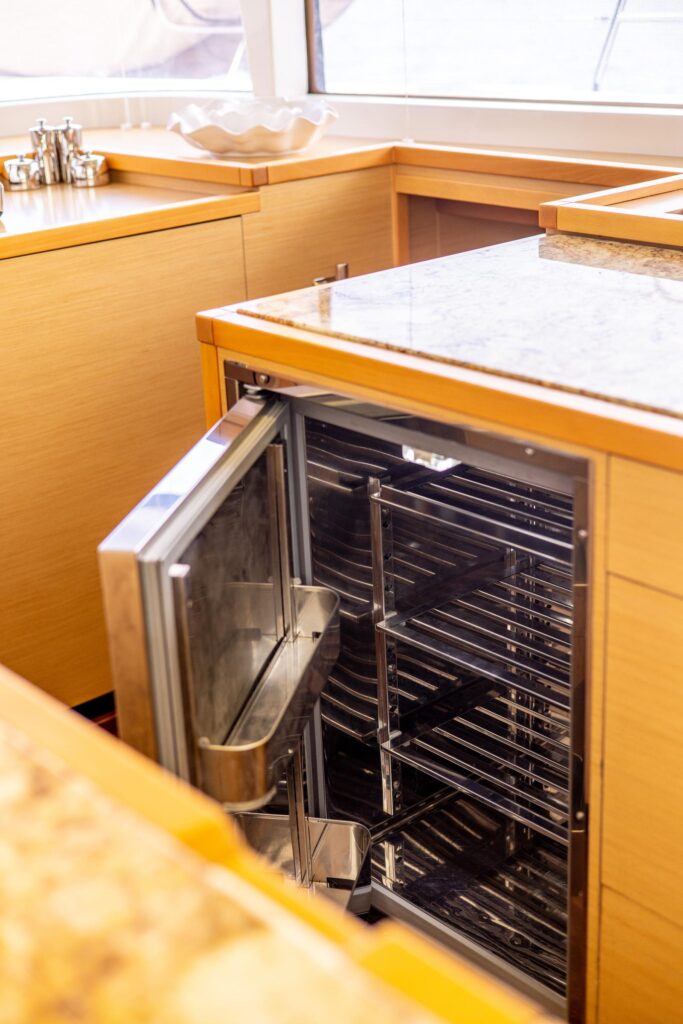

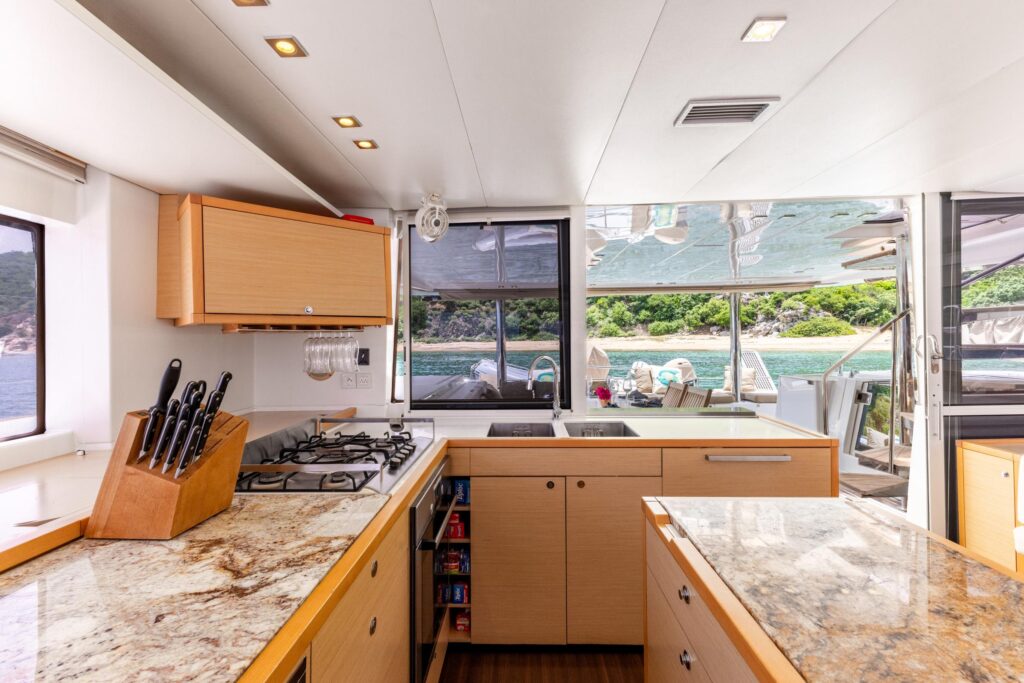

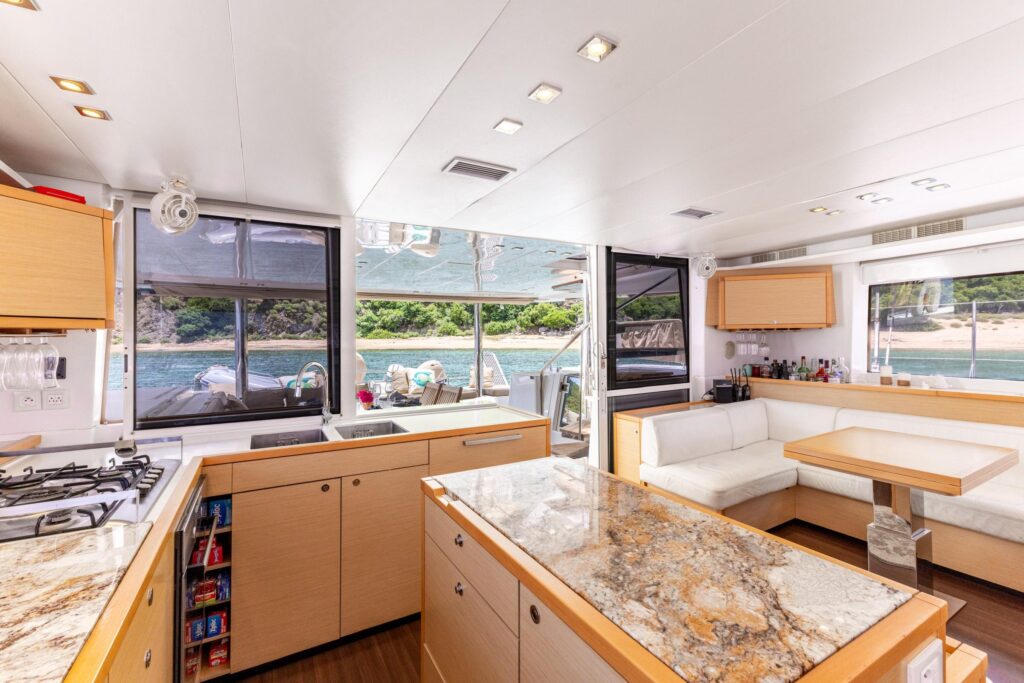

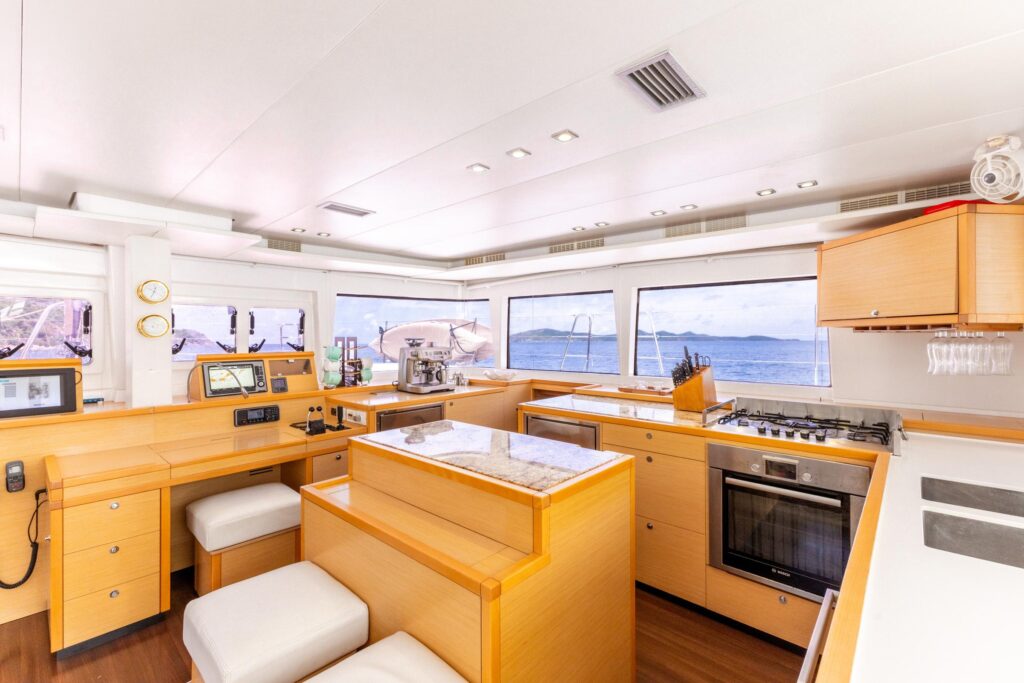

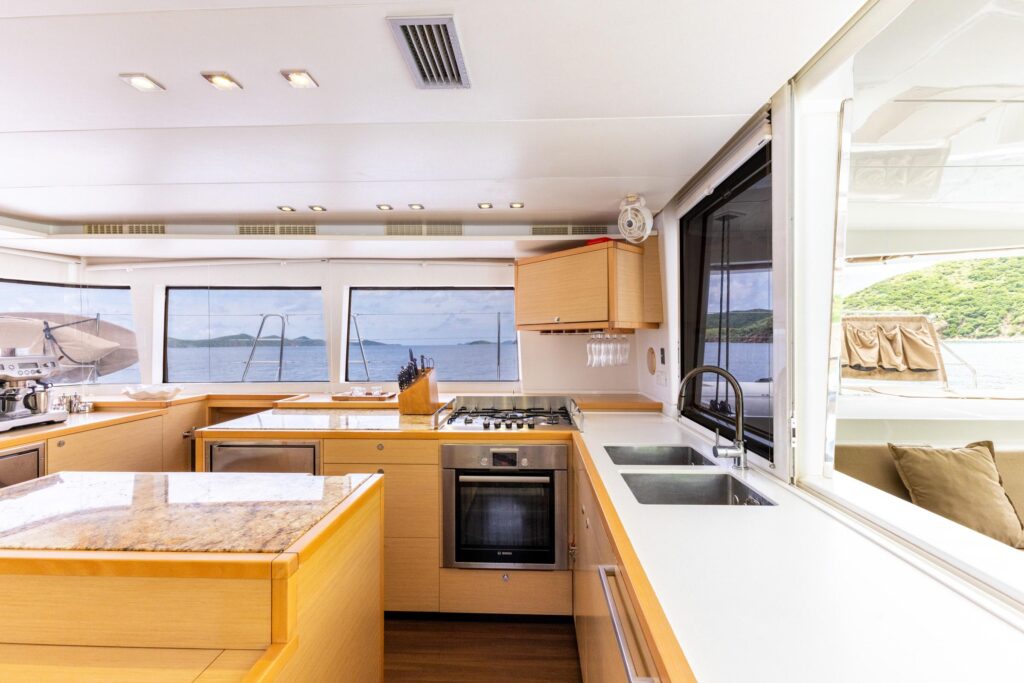

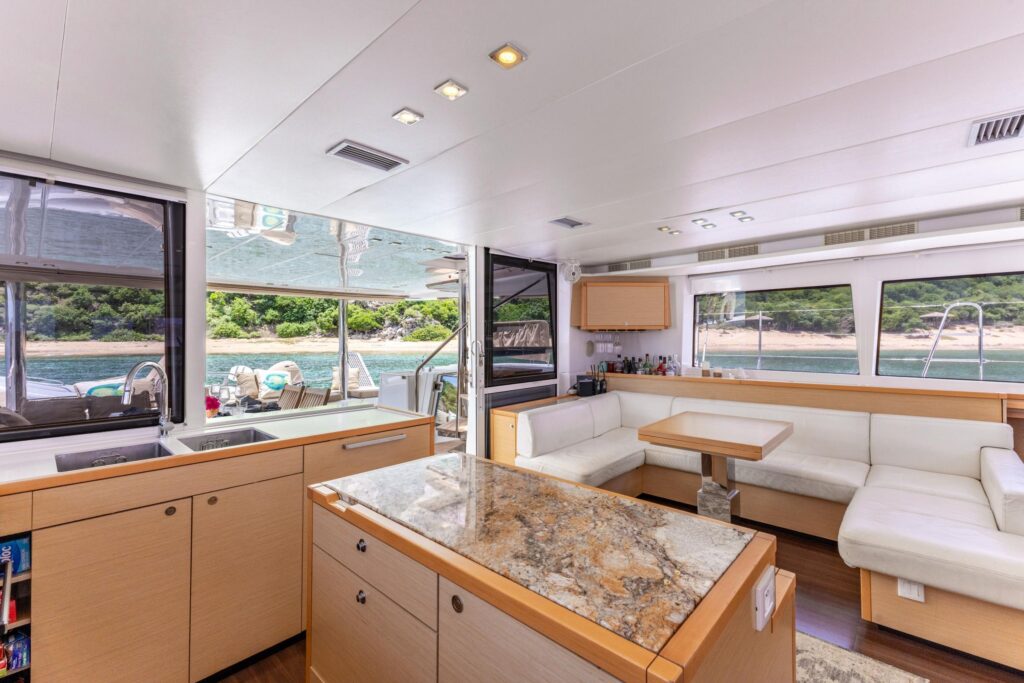

Galley
100L Vitrifigo Refrigerator
100L Freezer
Liebherr (196 fridge 59 freezer) Home-Style Fridge with Integrated Icemaker

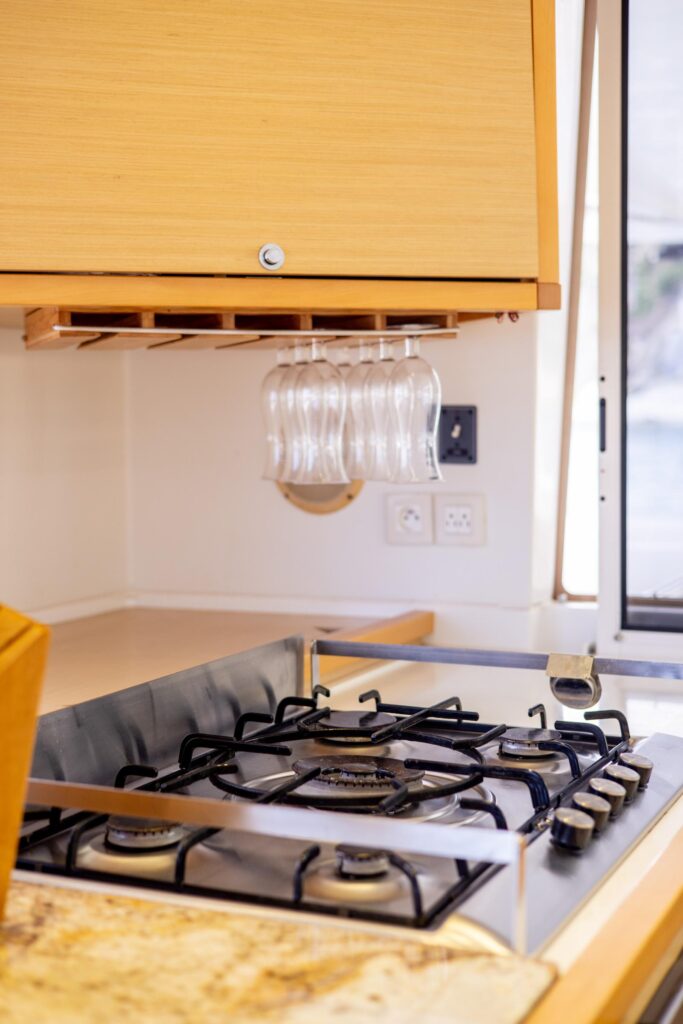

Bosch 5-Burner Hob
Bosch Built-In Convection Oven
Miele Full-Size Dishwasher
Double Sink
Granite Countertops
Wine Cellar – 12 Bottles
Food Processor, Prep Bowls, Mandolin, Ramekins, Blender, Juicer, etc…
Full Set of Baking Pans
Full-Set of Magna Nesting Nonstick Pots/Pans
Extra Saucepans, Pots, & Saut Pans
Full Set of Chef & Steak Knives

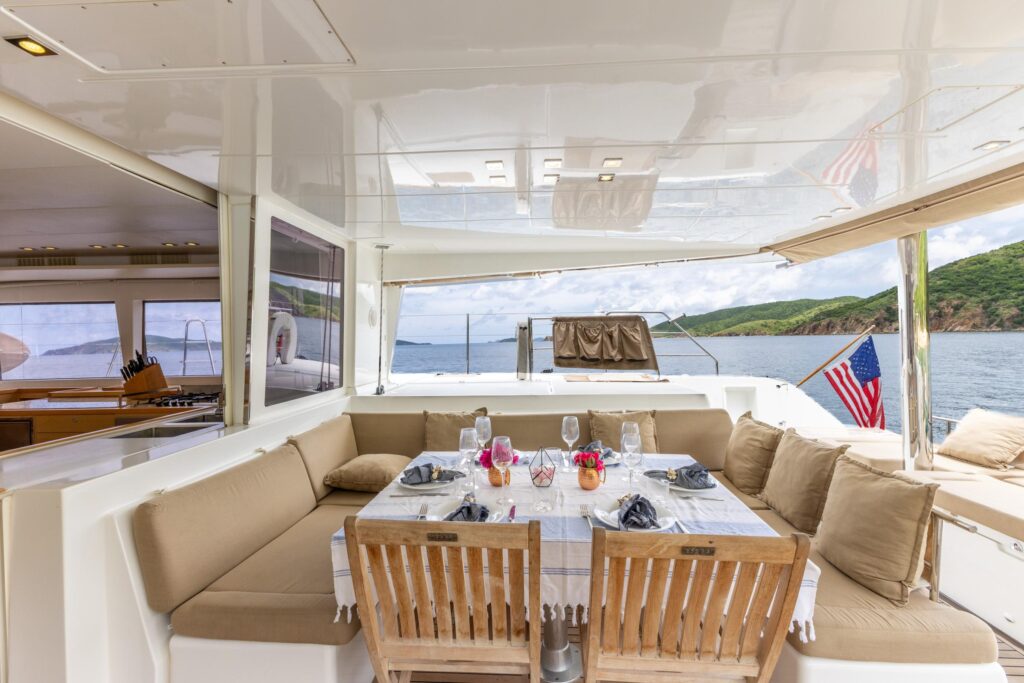

Dining
Villeroy and Boch Full Service for 10 Formal Settings
White Heavy Melamine Plates & Bowls
Plastic “Seascape” Plates & Bowls (picnic & casual)
Full Complement of Nautical Themed Serving Dishes
Full Complement of Stemware
Full Complement of Cutlery
Yeti Insulated Coffee Mugs, Wine Cups, & Insulated Water Bottles for 10
Decor: Runners, Electric Candles, Fairy Lights, etc…

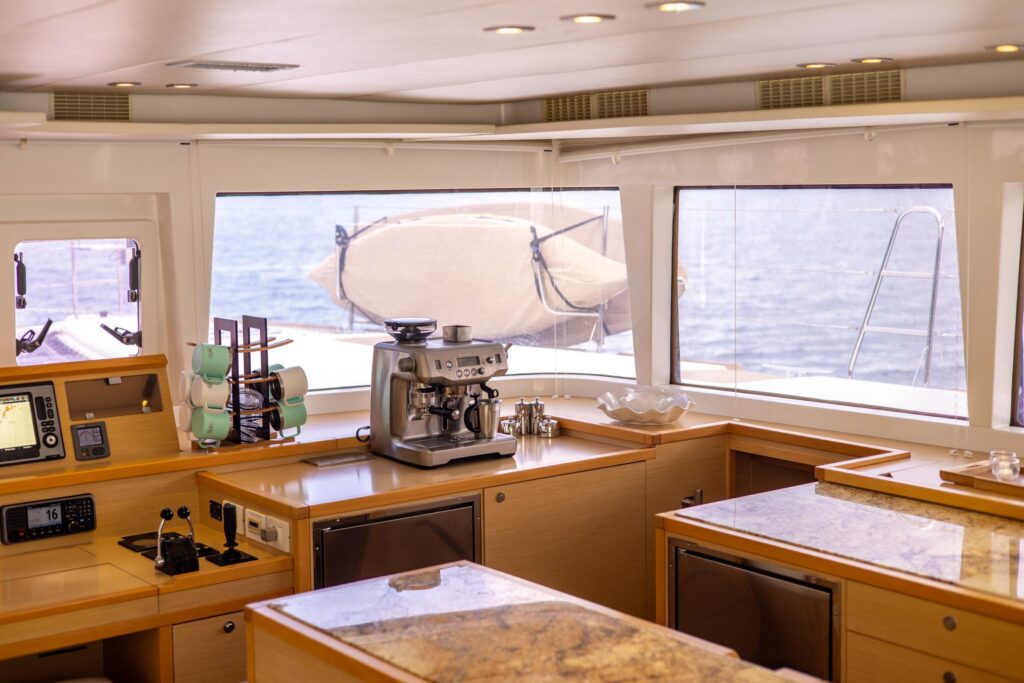

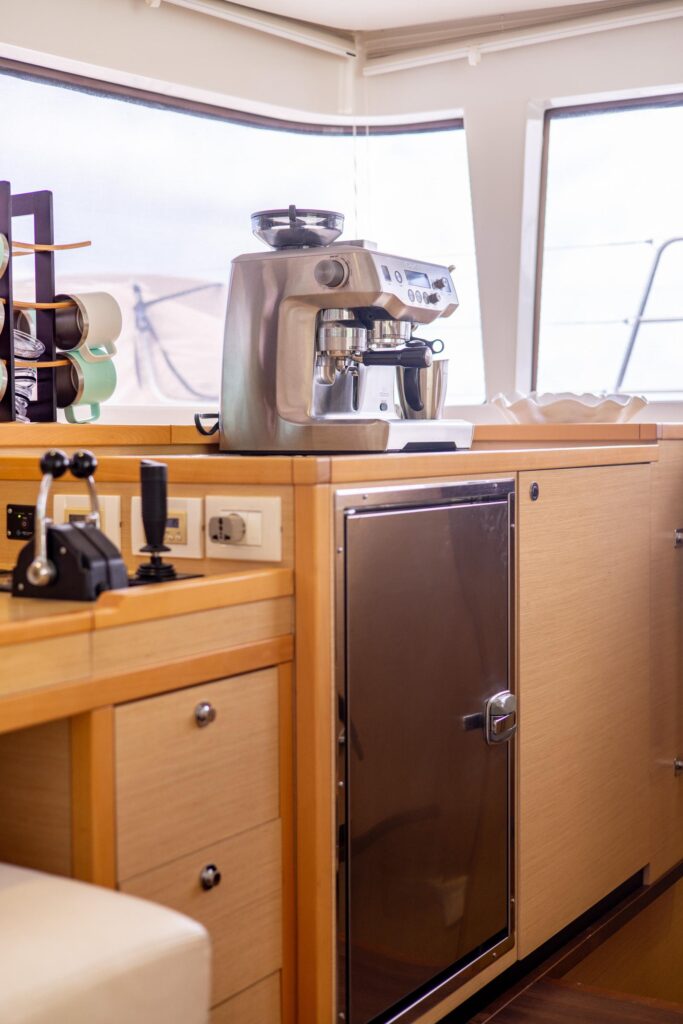

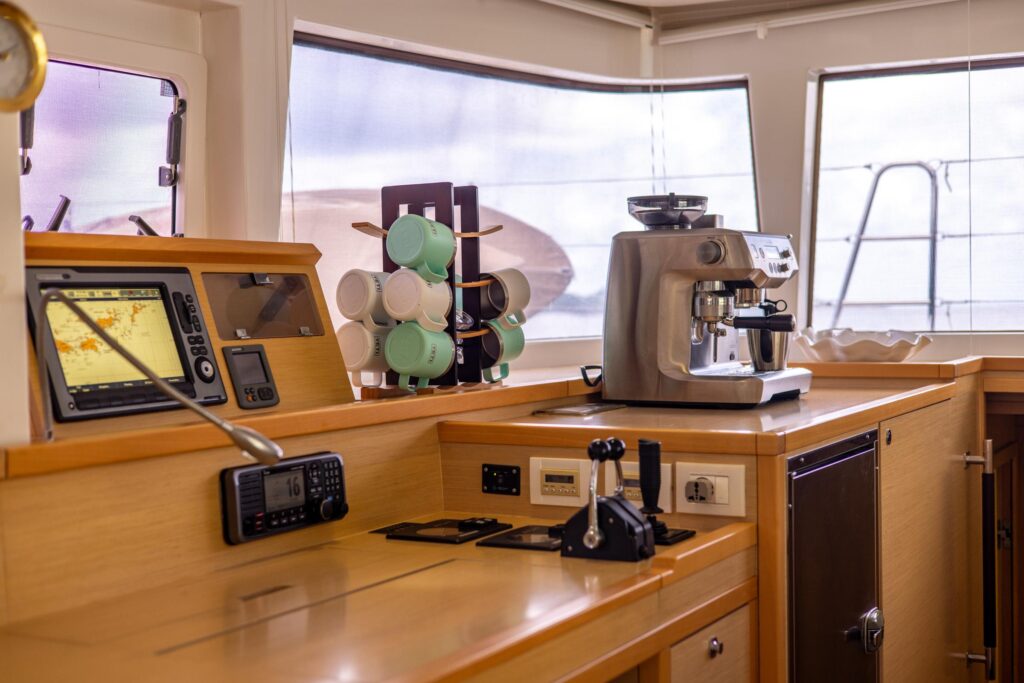

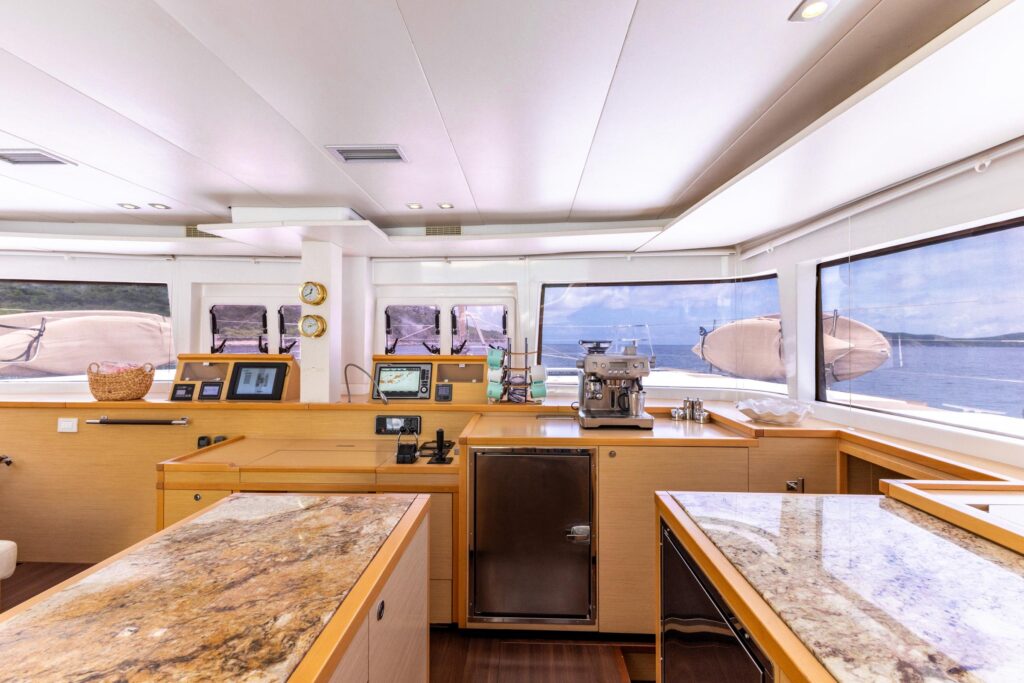

Coffee Bar
Coffee Bar Forward with Commercial Espresso Machine with Built-In Mill & Steamer & Coffee Machine
(3) Insulated SS Carafes & Variable Temp Tea Kettle

Linens & Laundry
Tommy Bahama Linens for all Staterooms
Warm & Cold Weather Blankets for each Stateroom
(2) Sets of Turkish Towels, Embroidered with the Name of the Staterooms for 10 Crew/Guests
(2) Full-Size Beach Towels for 10 Guests
Custom Bathmats for each Stateroom
Color-Coordinated, Washable Throw Rugs for each Stateroom
Embroidered Canvas Day Bags for each Stateroom
Dry Bags for each Stateroom
Miele Washer
Miele Dryer

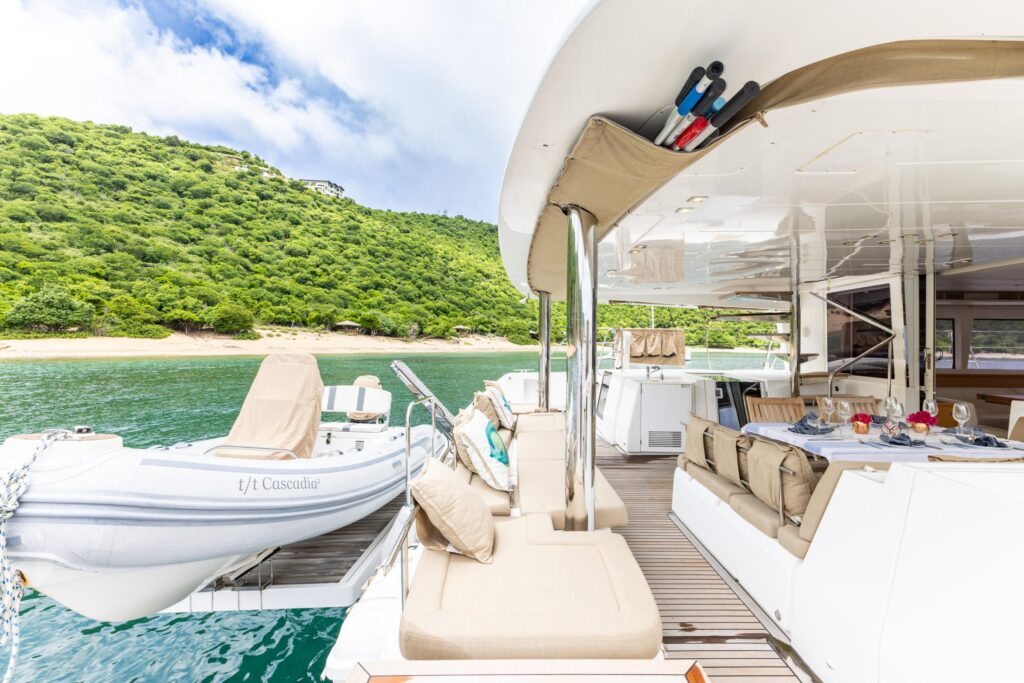

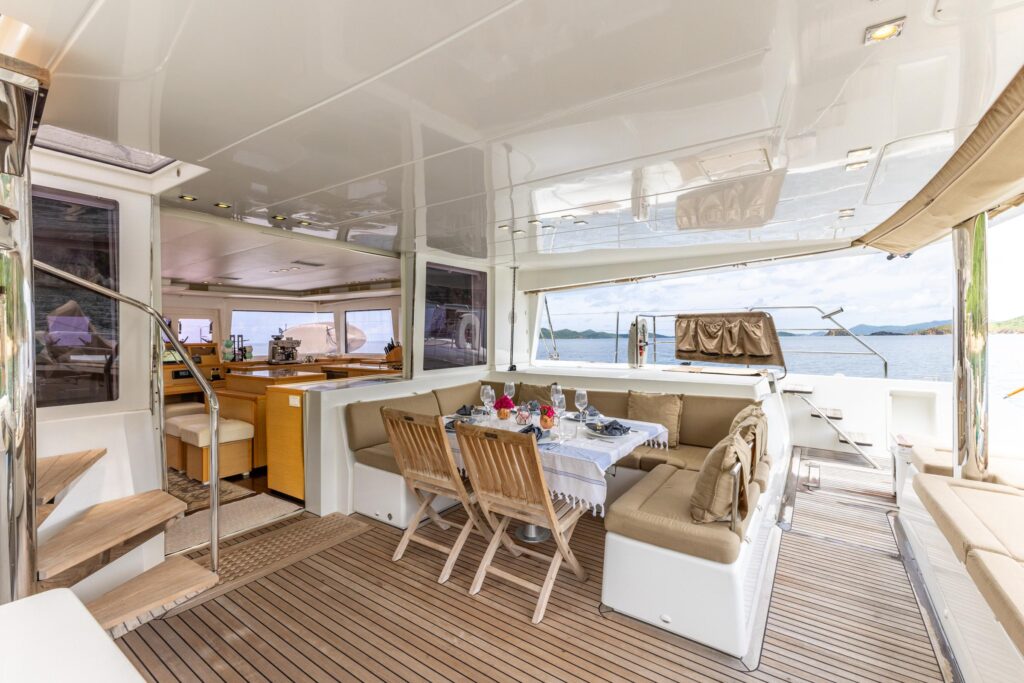

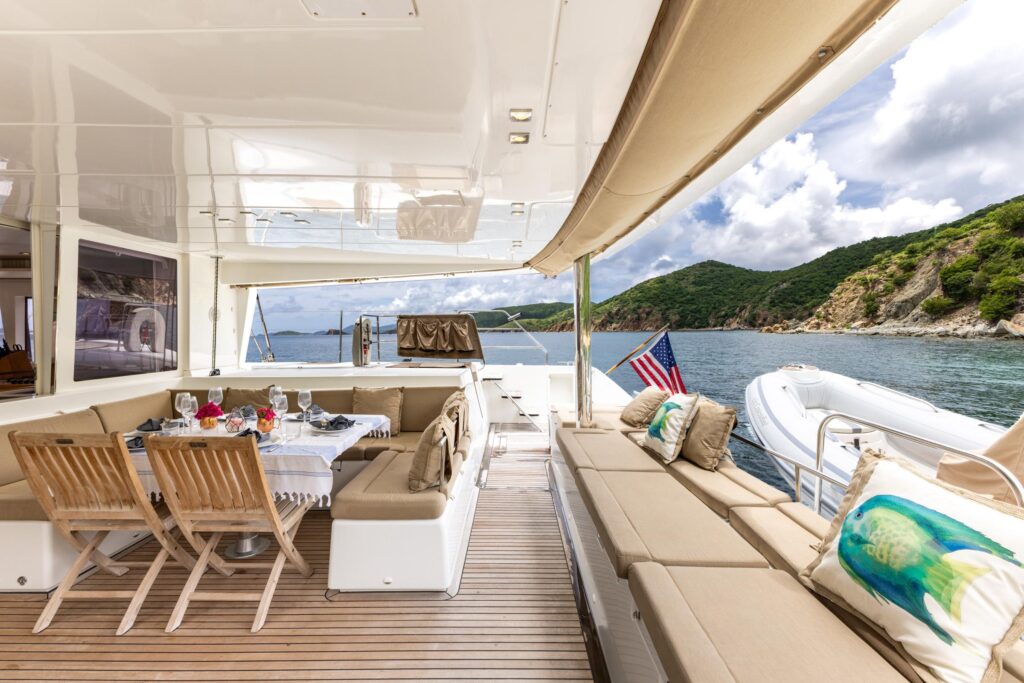

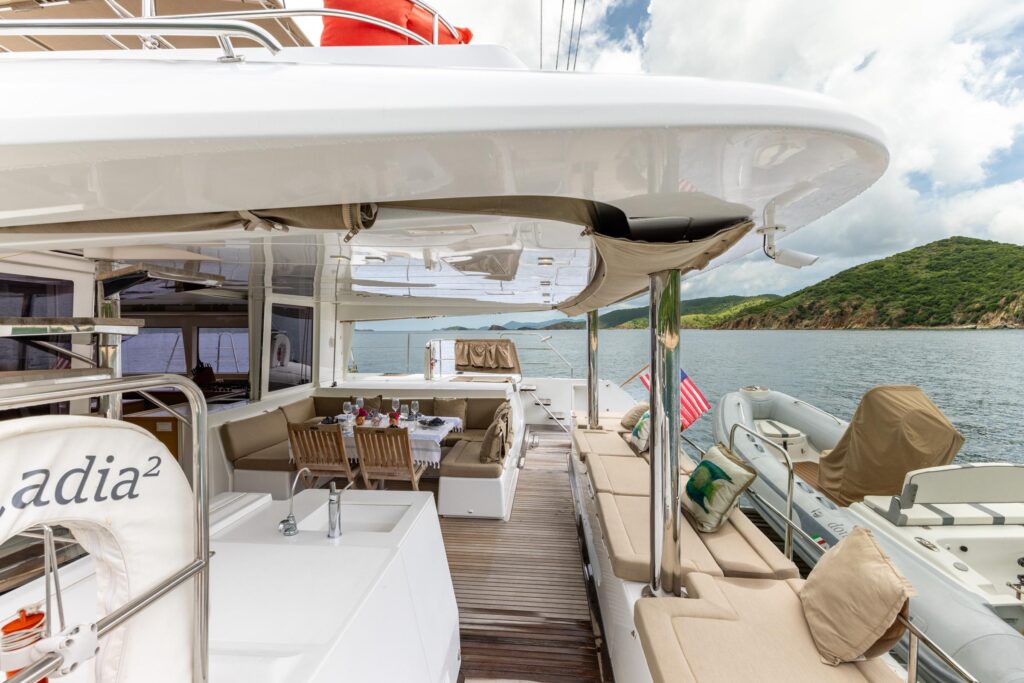

Exterior

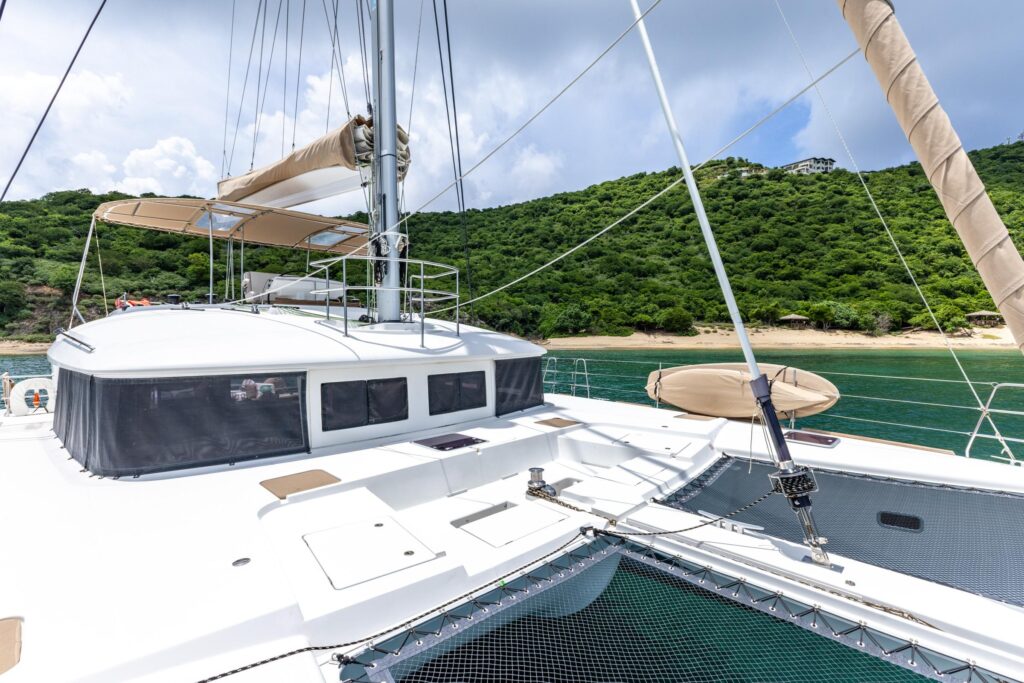

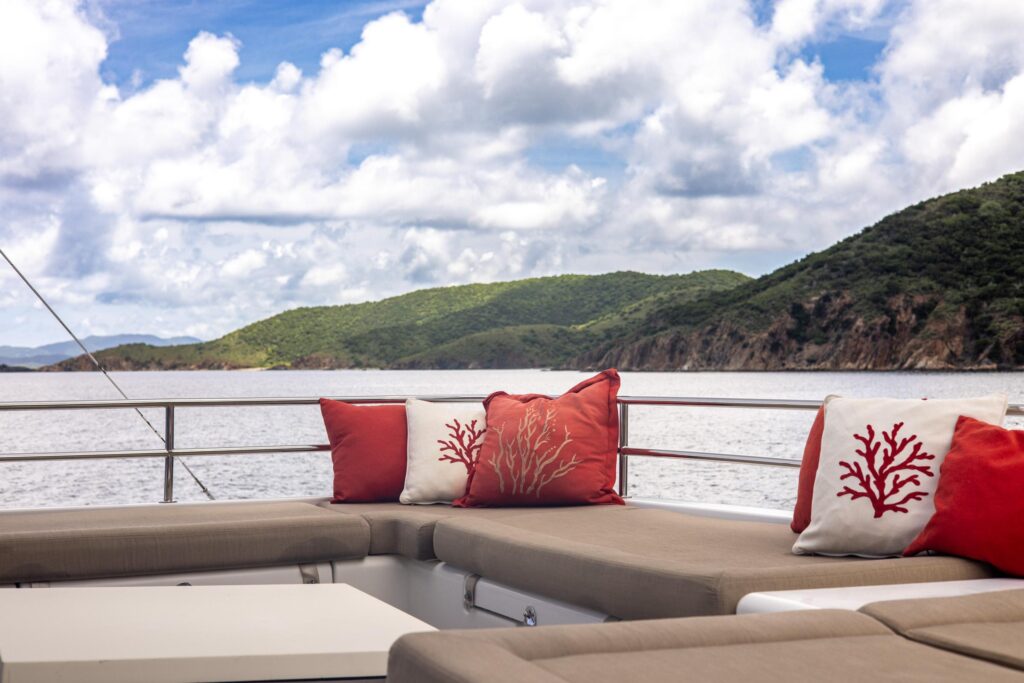

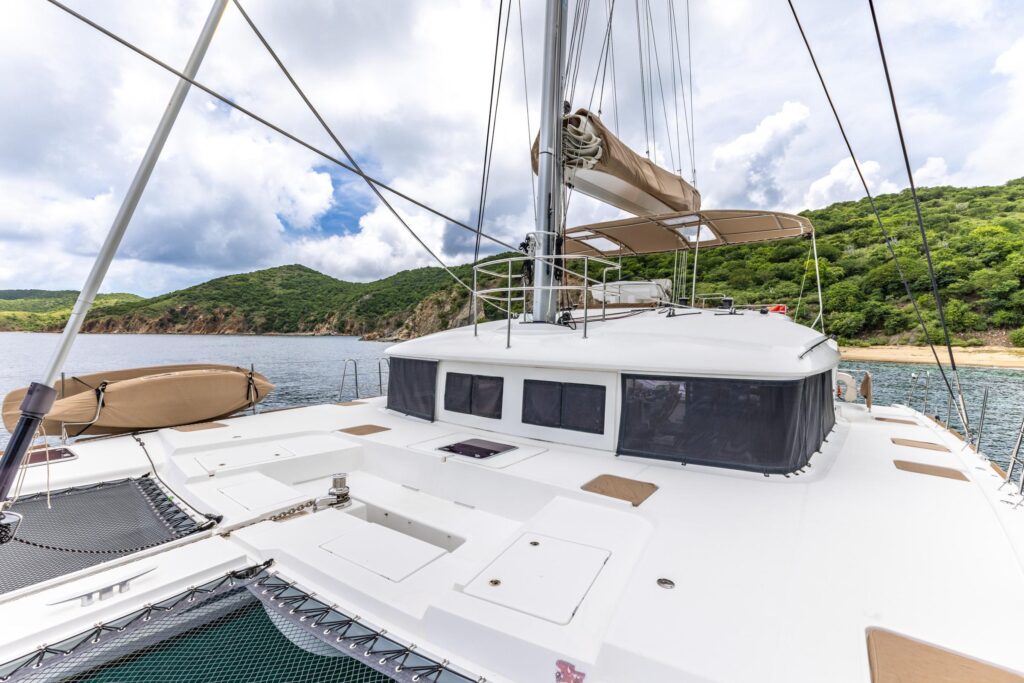

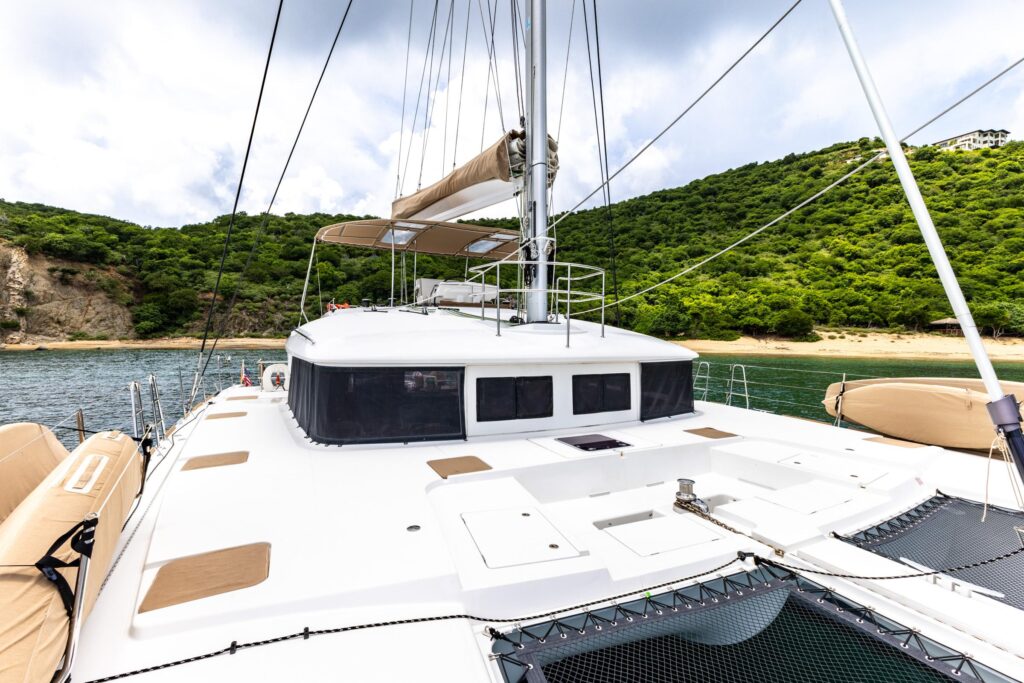

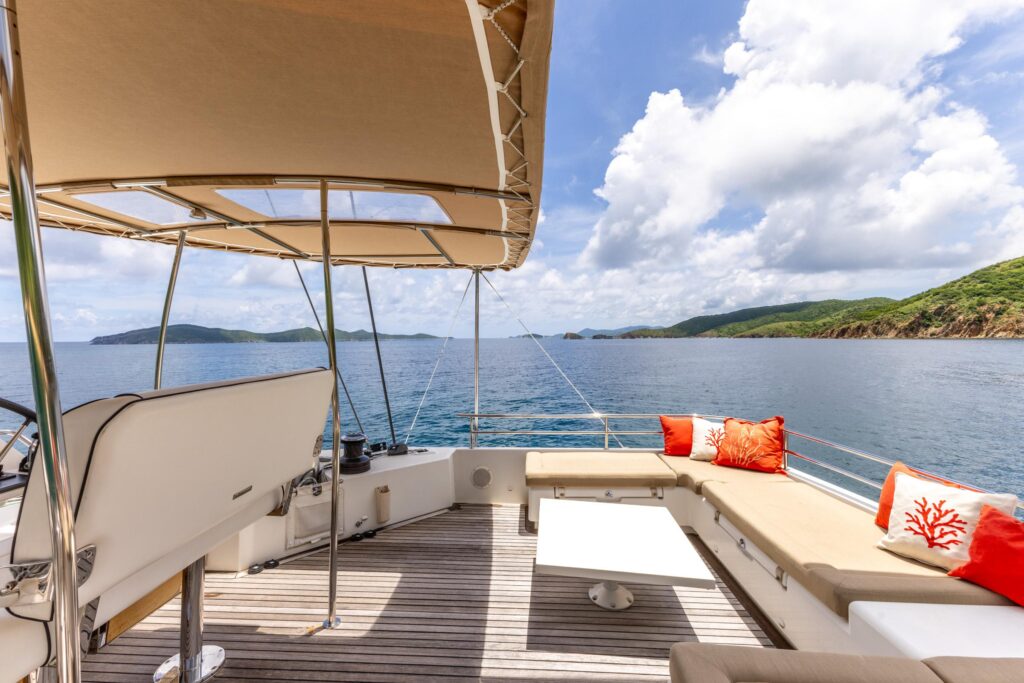

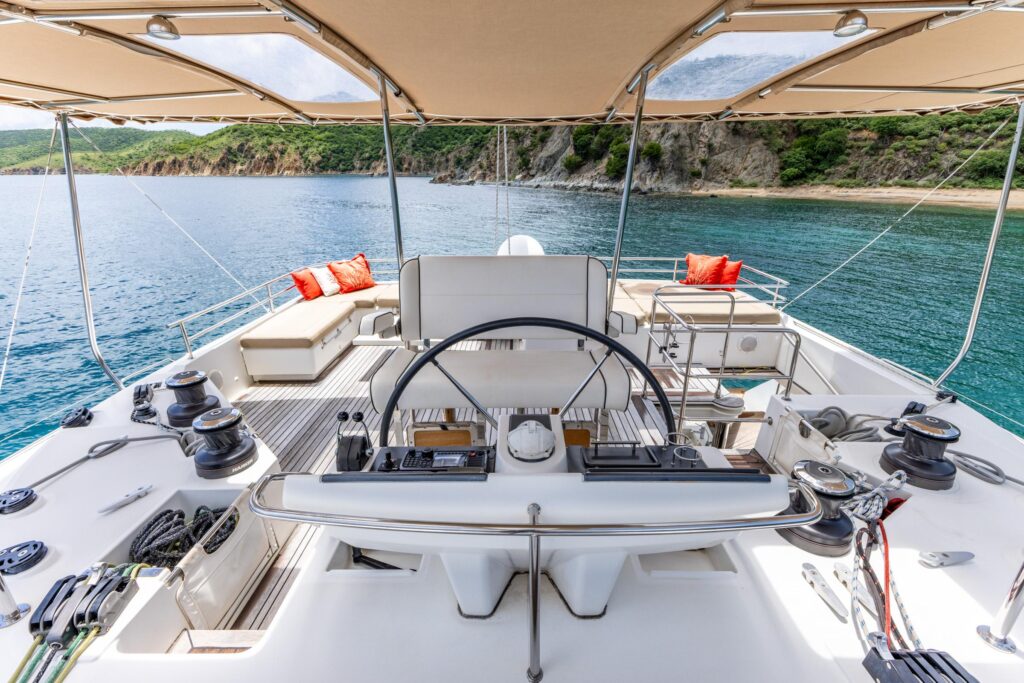

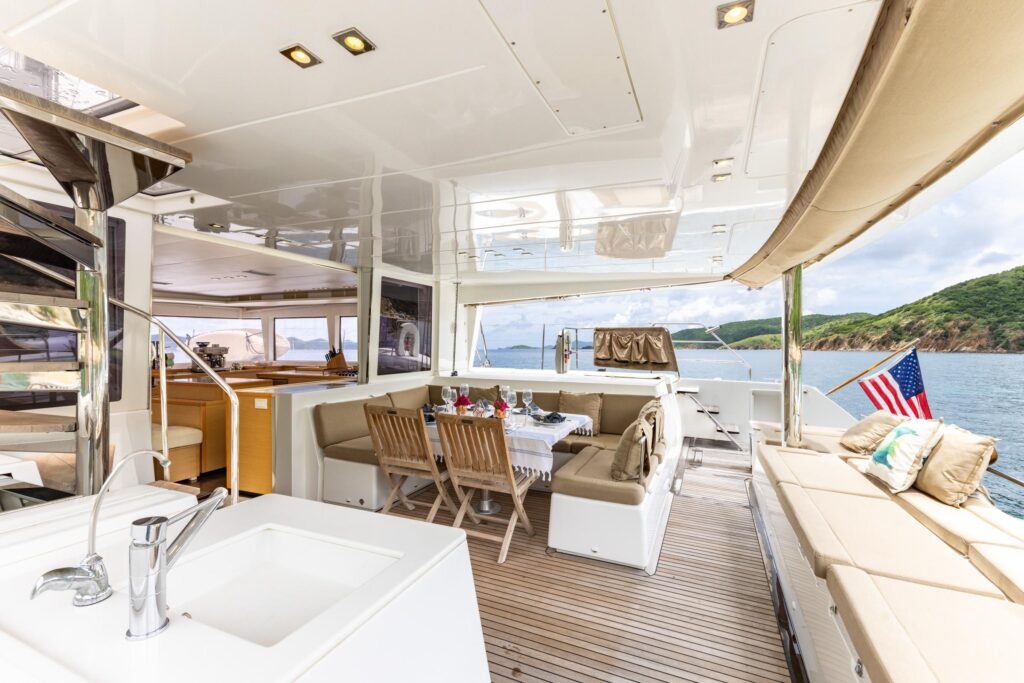

Deck Layout
Dark Gray Furniture, Flybridge
Chain Counter, Flybridge

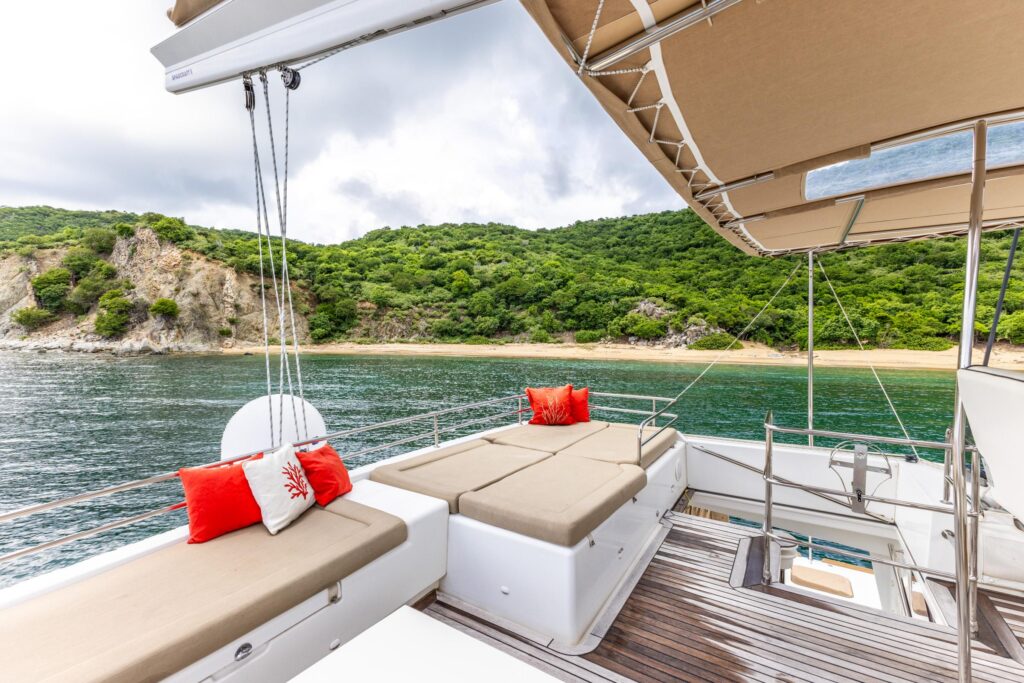

Sun Lounger Pads, Flybridge (Dark Gray/Tundra Argyle)
Electrical Flybridge Door
(2) Sun Lounger Pads, Foredeck (Dark Gray/Tundra Argyle)

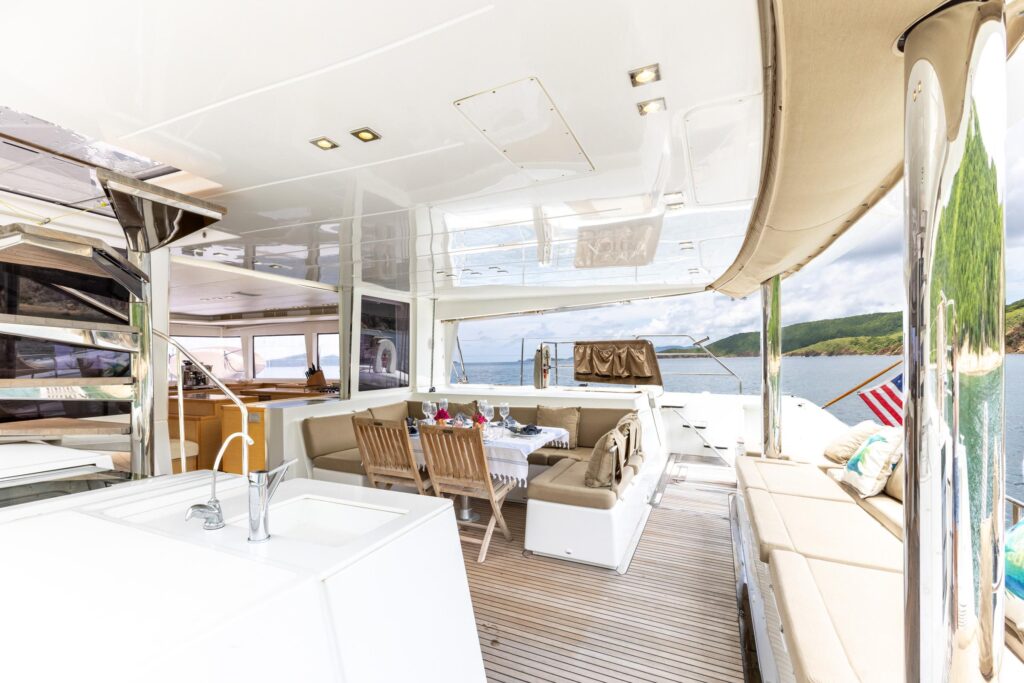

Cockpit Fridge

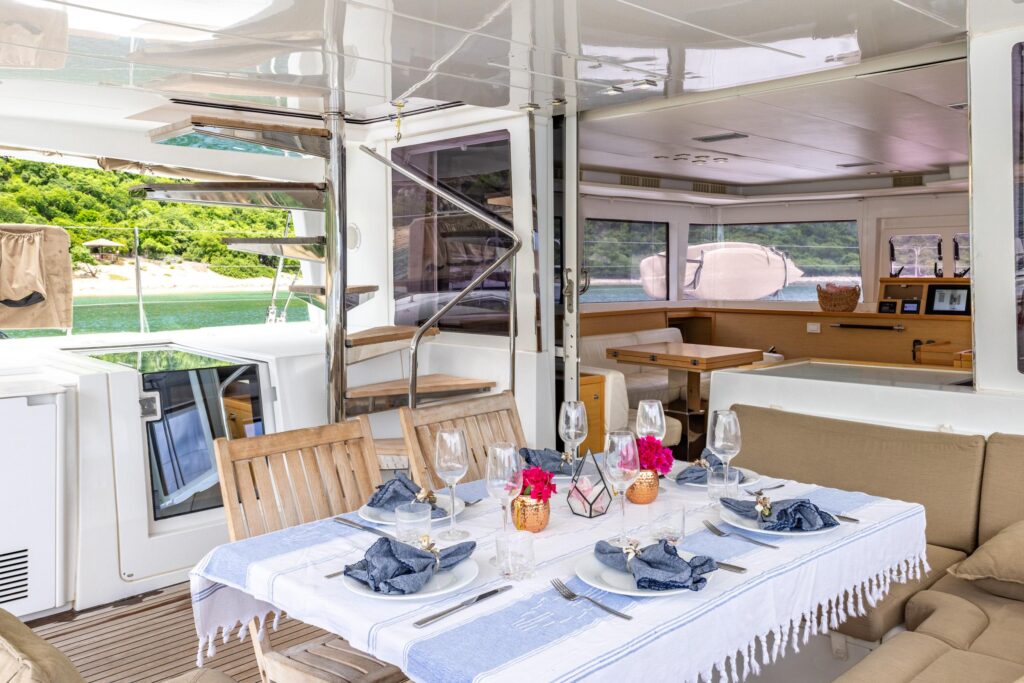

Wooden Cockpit Table
Forward Sunbrella Cockpit Cushions (Dark Gray/Tundra Argyle)
Aft Cockpit & Aft Beam Cushions
Icemaker 220V, Cockpit
Sun Canvas, Cockpit Sides & Aft, + Sides around Aft Cockpit & Windows + Curtains (Graphite/Taupe)
Flybridge, Transoms, Forward Cockpit, & Aft Cockpit Teak Flooring

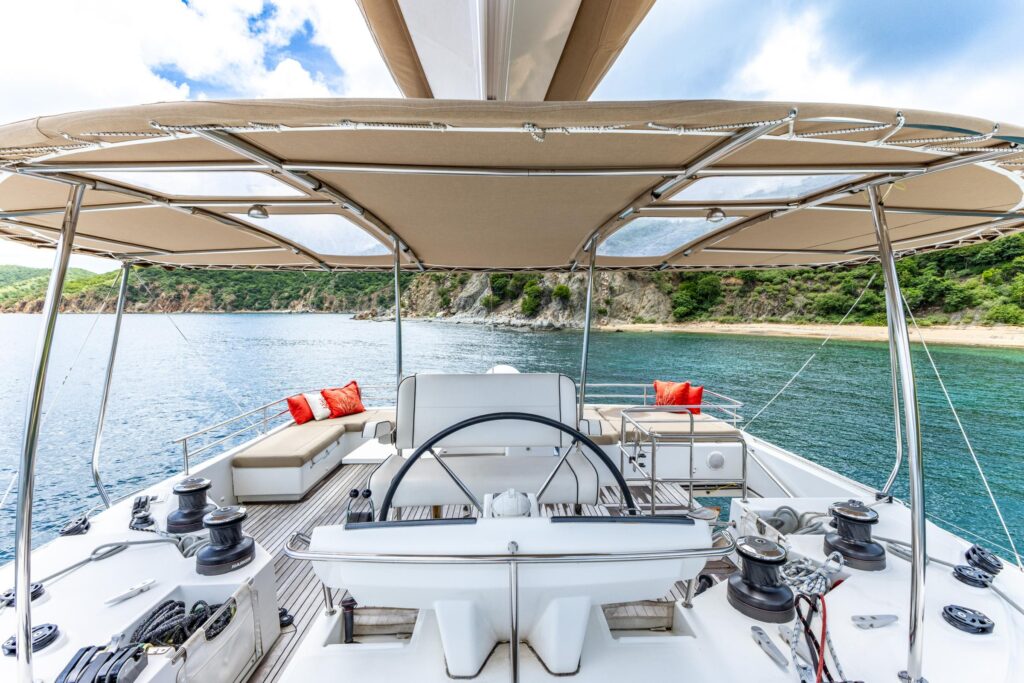

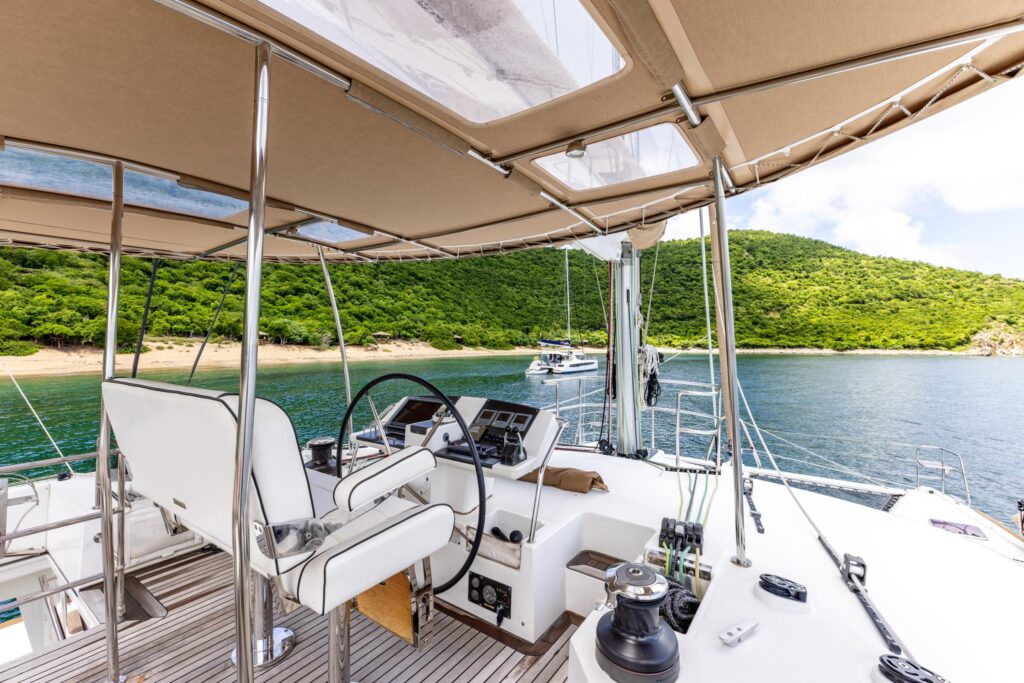

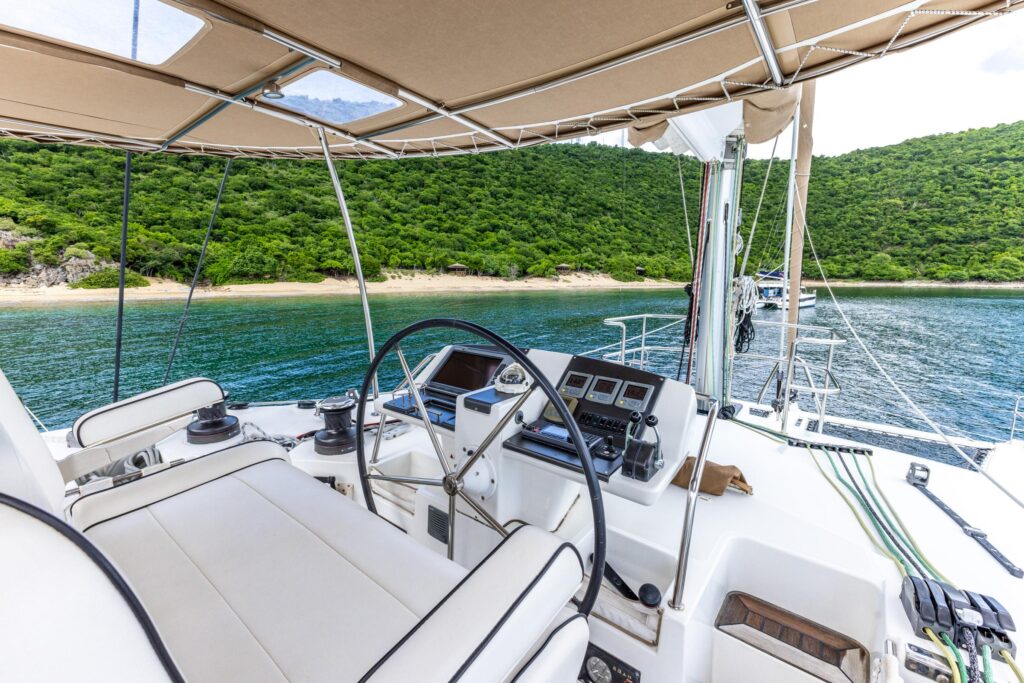

Large Bimini on Helm Station with Footpath under Boom, LED Lights – Graphite/Taupe
Kit of Covers (Graphite/Taupe) (helm station, cockpit tables, life raft compartments)
Teak Bow Pulpit Seats

Deck Equipment

60kg Stainless Steel Ultra Anchor
55kg Delta Anchor
Rocna 55
130m (426′) 8mm Stainless Steel Chain
Lewmar V6 Vertical Type 24V 2000 W Electrical Windlass
Harken Deck Hardware; Spinlock Organizers & Clutches
(4) Lewmar 70.2 ST Winches with 2-Speed Foot Switches
Deck Wash Pump Seawater/Freshwater in Chain Locker
Lewmar Hatches
Cleats: Harken
Harken Traveler
Winches: Harken, 70, 2×4 (all electrical)
(2) Spreaders, Aluminum Mast & Boom
Freshwater Dock Inlet
Mooring Kit: Dock Lines & (8) Fenders
LED Exterior Lighting
Spectra Halyards
(2) Hot/Cold Deck Showers, Cockpit
(2) Swim Ladders
Stainless Steel Boarding Ladder
Wheel with Leather Cover
Large BBQ with Mount for Starboard Scoop Area with Canvas Bag & Canvas Protection for Stains on Deck/Hull
Tenderlift Hydraulic Platform

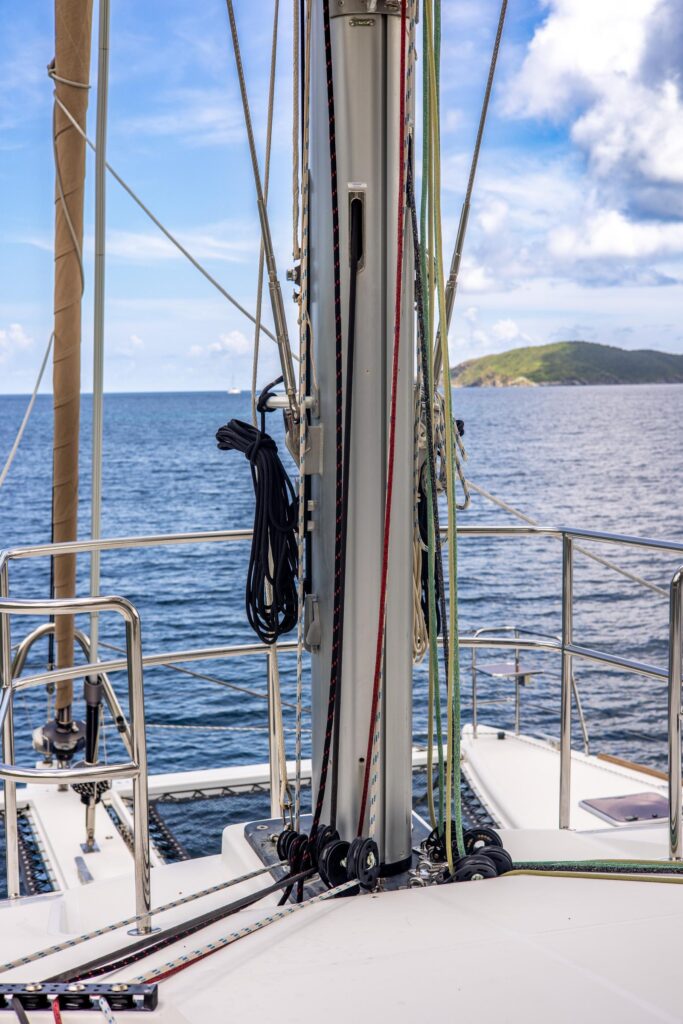

Sails & Rigging
Facnor Furling Gear (LS 330, LS200, FXT 7000)
Asymmetric Spinnaker (Code Zero) – Incidences-France
Sloop Mast
Composite Bowsprit
Mainsail: Dacron 125 m2, 2012
Jib: Dacron 2012, Staysail 45 m2
Genoa: Dacron 82 m2, 2012
Dacron Staysail + Running Rigging & Halyard + Manual Furler
Hydranet Staysail + Running Rigging & Halyard +Manual Furler
Gennaker: Code 0 (Incidences) 155 m2 (can be furled at helm/flybridge)
Lazy Bag for Standard Aluminum Boom – Graphite
Harken Running Rigging
Stack Pack with Lazy Jacks

Engine Room

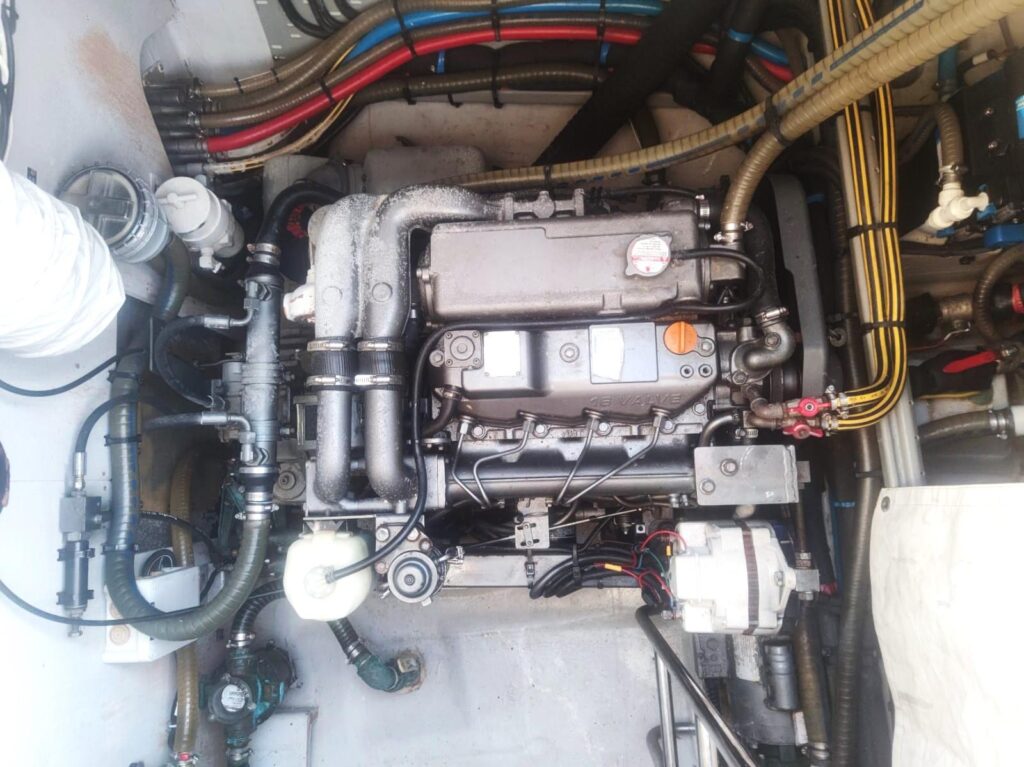

Engine & Propulsion

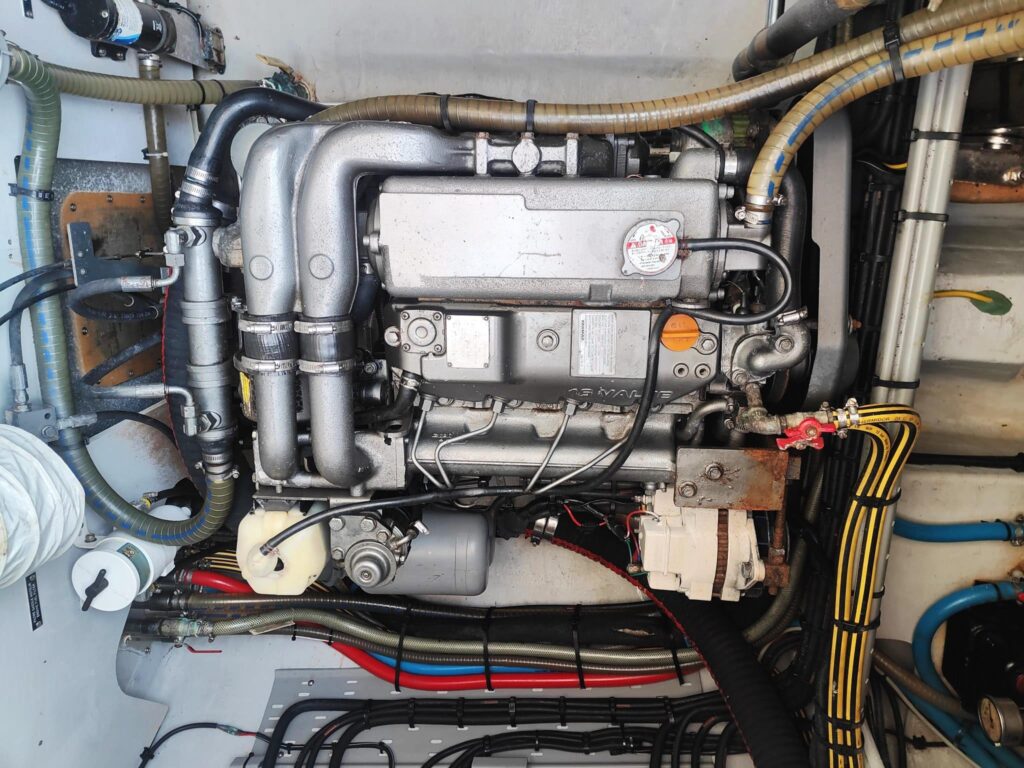

(2) 4JH4-HTE Yanmar Marine Diesel Engines
Engine Hours: — (June 2024)
(2) ZF63 IV V Drive Gearboxes
Kobelt Shaft Brakes
Hydraulic Steering System
Hydraulic 4-Blade Twin Propeller Bow Thruster (stb hull)

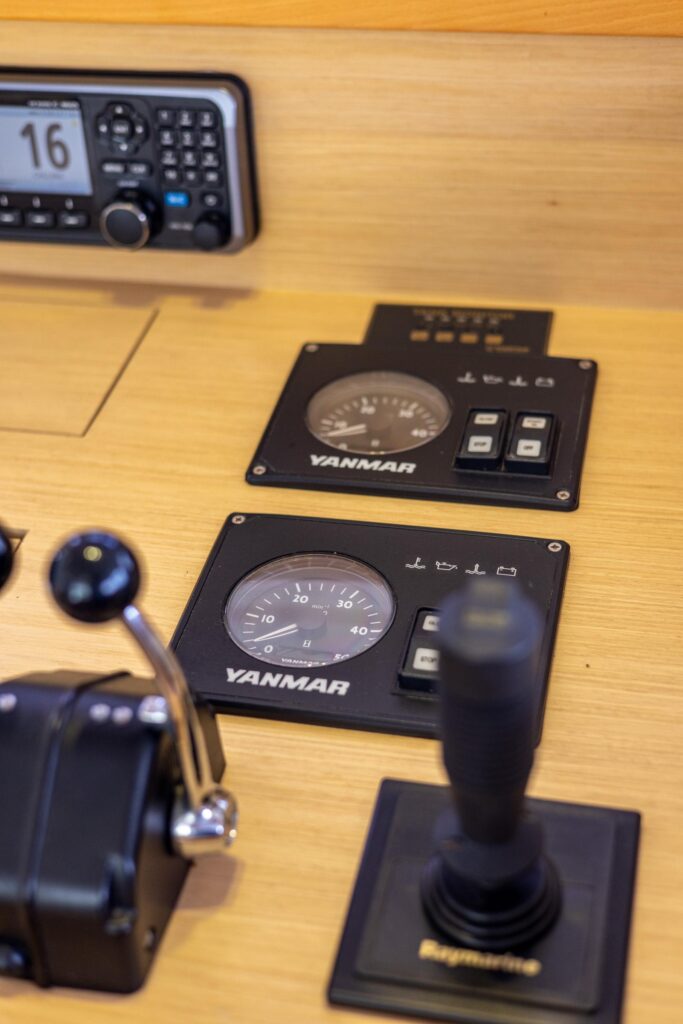

Micro Commander Dual Throttle Controls

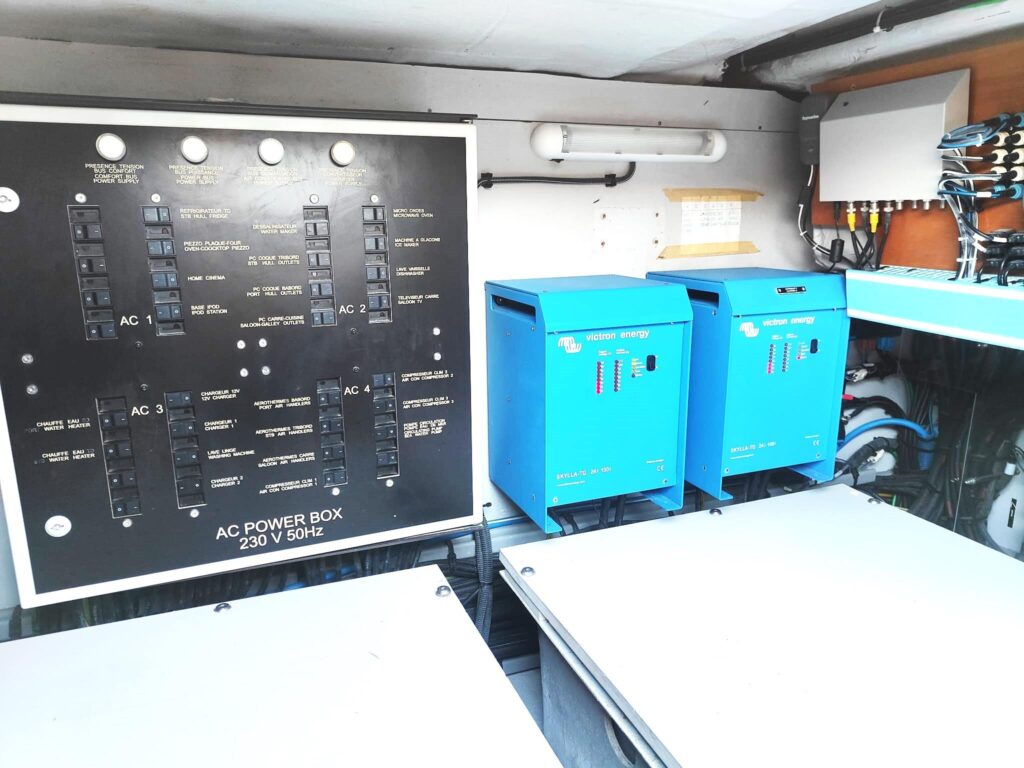

Electrical

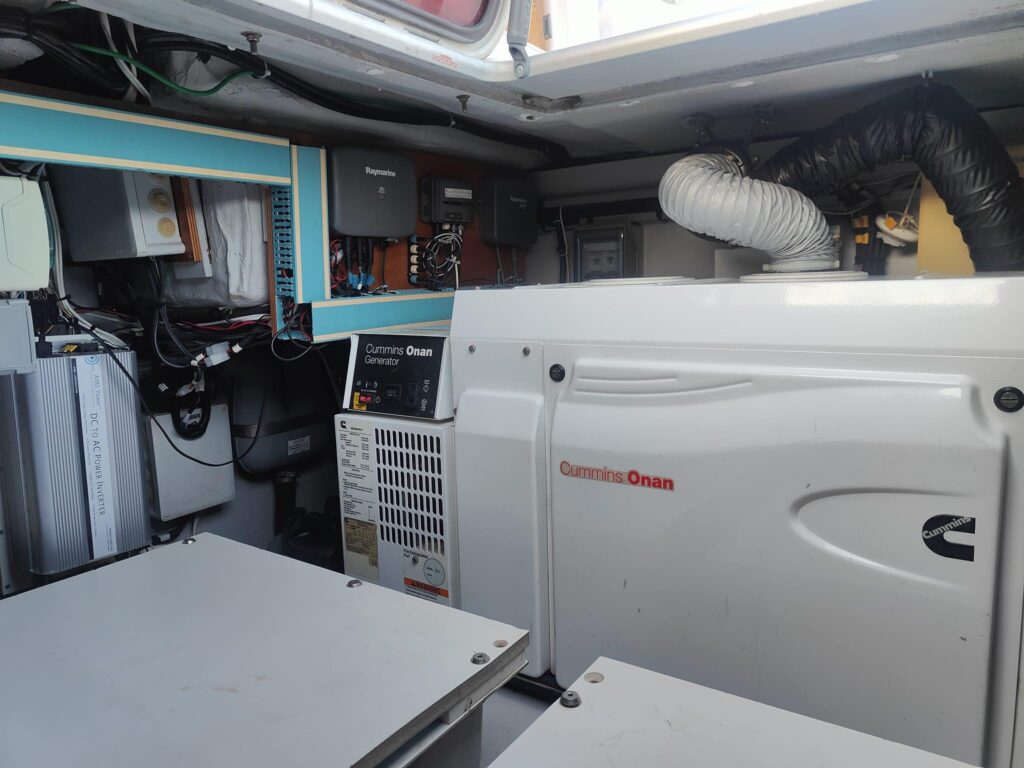

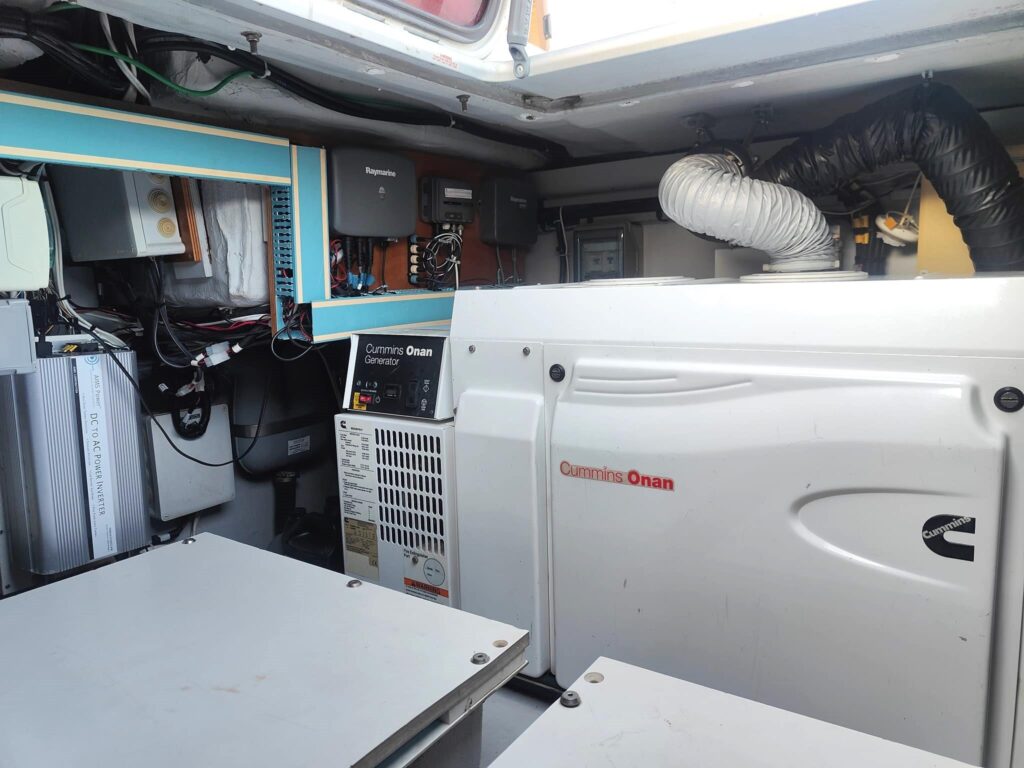

Onan 17.5 KW Genset 1500rpm + Cocoon
Generator Hours: —- (June 2024)
(2) Victron Chargers
(2) Victron Inverters
Sinewave Inverter
(2) Battery Chargers 24V/100amp
Gel Service Batteries 24V/840amp
840A 24V AGM Batteries for Services
(2) 48A 12V Batteries for each Engine
(2) 24V 65AH Alternator
100V Inverter Dedicated to Coffee Bar
Pack of (2) Inverters 2x 5000 VA
50 hz to 60 hz Converters in each Stateroom
Shaver Sockets 220V in each Head (5)

Mechanical
(2) 40L Water Heaters
(2) Jabsco High Output Freshwater Pumps

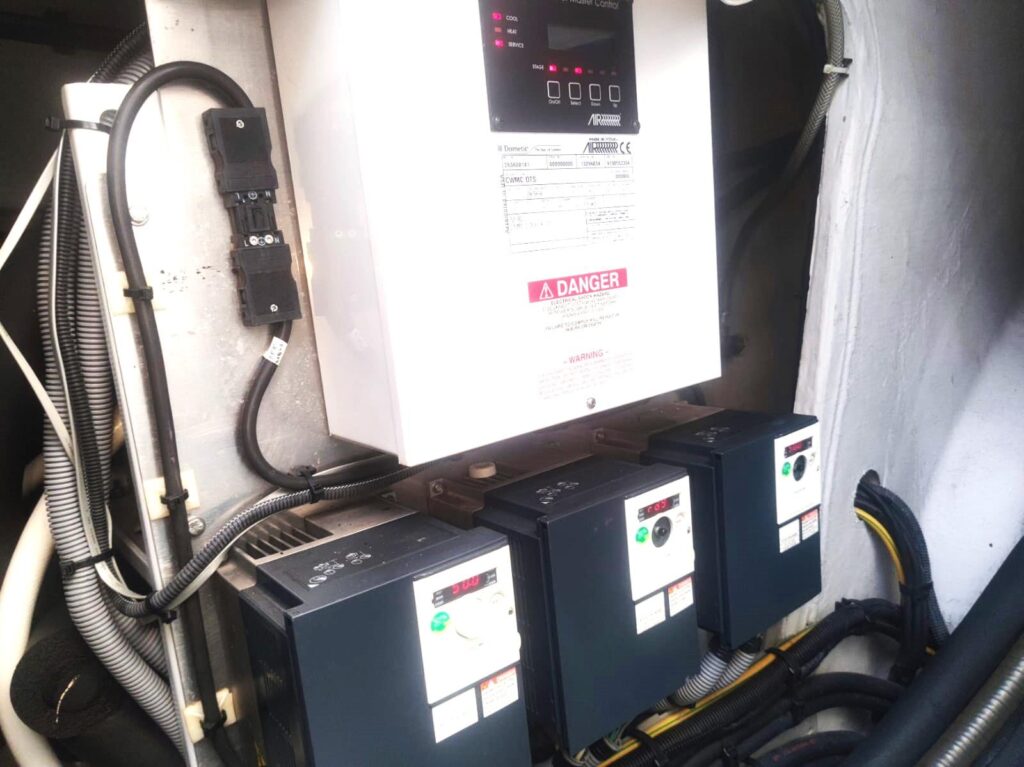

(3) 24 BU Dometic Marinair A/C Units with Full Distribution – (2) Condensers in Main Salon, (5) Condensers in Staterooms
Saltwater Pump
Watermaker: 280L/Hr Sea Recovery Aquamatic 220V
(1) Electric & (1) Manual Bilge Pump in each Hull
(1) Electric Bilge Pump in each Engine Room

Tankage
(2) 650L Fuel Tanks
(2) 240L Water Tanks
(5) 80L Holding Tanks with Remote 24V Y-Valves Switches
(1) 80L (sailor’s)
1400L Gray Water Tank with Jabsco Waste Pump

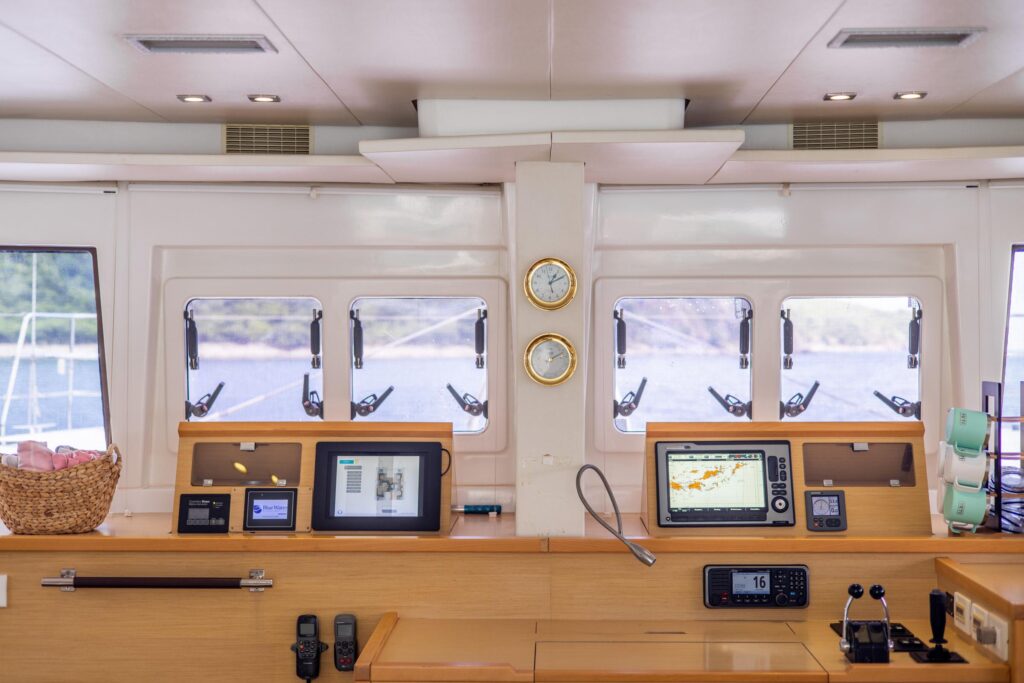

Electronics, Communication, and Navigation

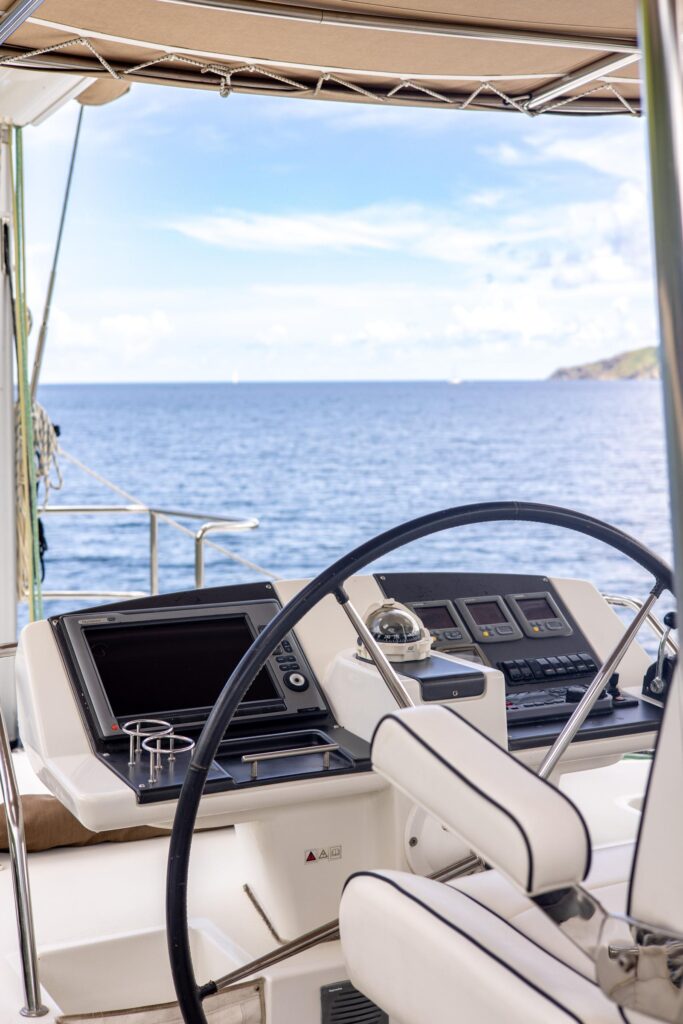

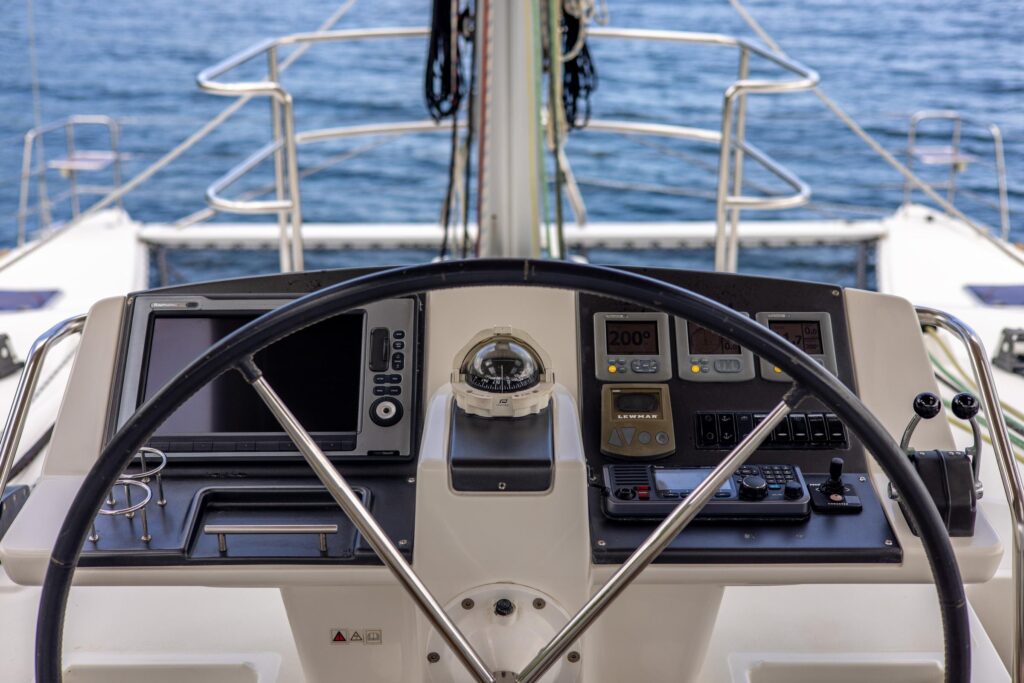

Raymarine Instruments, (2) Chart Plotters, Radar, AIS
– Raymarine Chart Plotter E120W – Navigation Table
– Raymarine Chart Plotter E140W – Helm
– Raymarine GPS
– Raymarine Smart Pilot ST 70 (24 VDC Powered Hydraulic Power Pack 2 xLS VHM 50 DTP Hydraulic Rams)
– Raymarine A 22111 Depth Sounder
– Raymarine E22078 Wind Speed & Direction Model
– Raymarine E12199 Autopilot
– VHF Raymarine 240E Double Handset with DSC, E42002 + E 45012 (2 in total)
– (2) Raymarine Cam 100 Cameras under Flybridge
Autopilot Remote Smart Control
Radar HD Digital Raymarine 18″ 48NM 4KW (E92142 + E 55079 + EM 92722)
Plastimo Compass
Satellite TV Antenna, Raymarine 455 TV MK 11
Double Electronic Engine Throttle at Nav Station & Panels
W120W Display at Nav Station
(2) B&G Cameras under Flybridge
RR Mast Antenna (TV, VHF, Am-FM, GSM)
AIS 500 B&G Transceiver
Radar B&G Broadband 4G
Autopilot Remote B&G
VHF B&G R590 Double Handset (240E)
B&G Rudder Joystick at Nav Station
Navigation Pack B&G 2017/2018
Fusion MS-RA70N + (4) Loudspeakers in Salon & (4) Loudspeakers in Cockpit
(2) Spotlights, 12V, Aft Beam
Deck Courtesy Lights in Cockpits, Transoms, & Flybridge
LED Navigation Lights
TV LED 40″ PAL/SECAM with Electric Lift in Salon – Central Galley
TV LED 23″ PAL/SECAM in Owner’s Stateroom
Waterproof Bluetooth Speakers
Radio, DVD, MP3 Player
(4) Oceanled Underwater Spotlights
Waterproof Radio Remote for Hydraulic Platform or Davits

Safety and Security

(2) 4kg Automatic & Remote Fire Extinguishers
(5) Fire Extinguishers (1 for each stateroom)
Full Set of PFDs for Water Sports + Inflatable PFDs for Passages
(2) Plastimo 6-Person Life Rafts in GRP Container
Flares
Strobes
Life Vests
MOB Gear
Ditch Bag
Drogue
Medical Kit
Tiller
Fog Horn

Tender and Toys

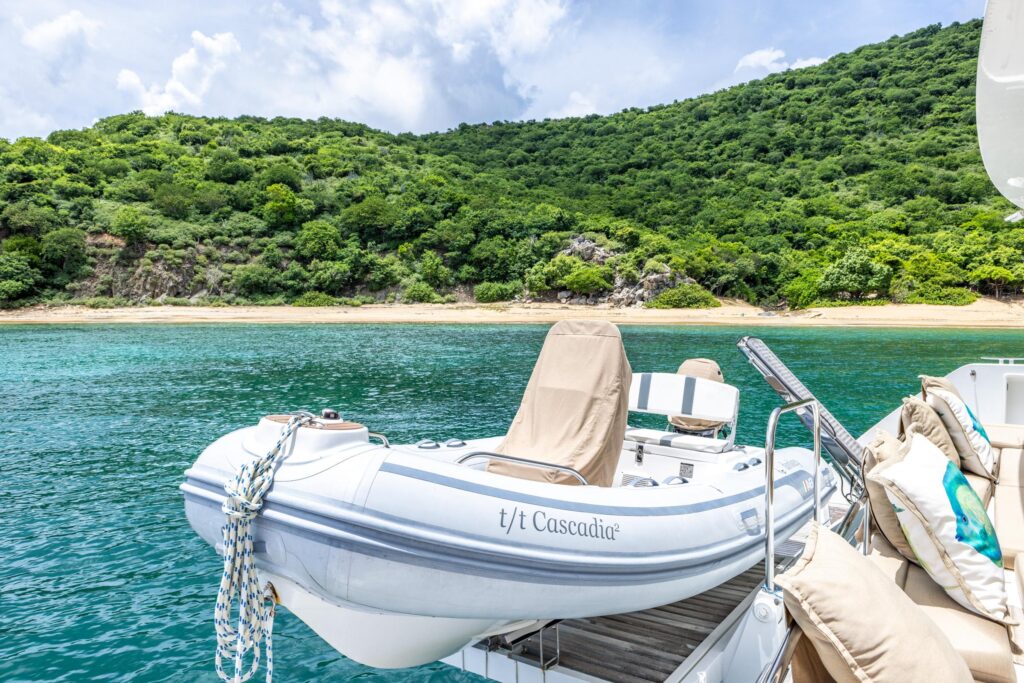

Dinghy: Zodiac Yacht Line, 420 Deluxe Neoprene, Color White & Gray + Protection Cover
1 Motor Yamaha 50HP, 4 Strokes F50 PETL
2019 AB 14VST with 2019 Yamaha 70HP Motor with Cavitation Plates
(3) Streak Kayaks (2 stored on boat with custom canvas covers)
(2) Stand Up Paddle Boards with Adjustable Carbon Paddles & Custom Canvas Covers
Masks, Fins, Snorkels
Water Skis & Wakeboard
SeaBob
Dive Compressor

Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.



Request More Information

  Add to Favorites

  Receive Updates



Open Close

 More Information

Recent News

We take pride in our happy customers

Your team delivered on every mark. You’ve got an amazing broker in Mark Wattrus and I’m confident you will have continued success moving forward together. He was available 24/7 whenever I had questions. We had a great initial visit on the boat and his marketing plan and photos were superb

— Jimmy

I bought a yacht that I had never seen. I did this because I trusted my broker Andrew Holland. It was not an easy job for Andrew, as I am an experienced boat builder and owner of previous yachts, but work in West Africa. Imagine how hard it was to communicate what I was looking for. Andrew came up with exactly what I wanted. He dealt with time delays, all my questions at odd hours, and was there for the survey. He reported honestly and professionally. After buying the yacht, I arrived at the boat on a Sunday night, after dark, after travelling from West Africa to the Caribbean, and found it was better than expected. He never pulled punches and made me aware of shortfalls. I expected to spend my one month leave working on the boat, but actually spent less than one week, and was able to spend 3 weeks sailing – wonderful bonus.

Thank you Andrew for putting up with all my questions, all my worries and all my crazy out of the time zone concerns – you were totally professional, but also I know that if and when we meet up, it will be like a friend finally meeting. You are always welcome on Aseka.



— Beverly Cory

Outstanding company with professional subject matter experts. If I were to buy or sell cruising sailboat, particularly a catamaran, Andrew would be my go to broker.

— JT

I have been sailing since I was a child and attended Massachusetts Maritime Academy. But when my wife and I began the process of purchasing an ocean cruising/racing catamaran, I realized that this is a world unto itself. Obviously, we needed to find someone knowledgeable to help us make an informed decision. More importantly, we needed someone honest and willing to put our interests before his or her own. I was lucky to work with Phil Berman at The Multihull Company. He repeatedly shunned the fast buck, choosing instead to work the long road to connect us with the “perfect boat”. I would be glad to recommend Phil and his company to anyone planning to purchase or sell a performance sailing machine.

— Eric Boutiette

Andrew Hodgdon was our broker when we bought our 2018 Lagoon 450F in Antigua in April 2922. He provided great service and was very attentive to our needs. We would highly recommend Andrew and the Multihull Company.

— Jim

See All Testimonials

Trust & ExpertiseAbout Us

Successful relationships cannot exist without it. At The Multihull Company we base every relationship on a firm commitment to earning and retaining our client’s trust.

Advice of any kind is valuable only when grounded in hard-won expertise. It too, must be trustworthy. Trust and expertise define the heart and soul of The Multihull Company. We are a team of skilled professionals who thrive on providing expert, trustworthy advice and service to catamaran and trimaran sailors around the globe.

Read More

Follow us @themultihullcompany
