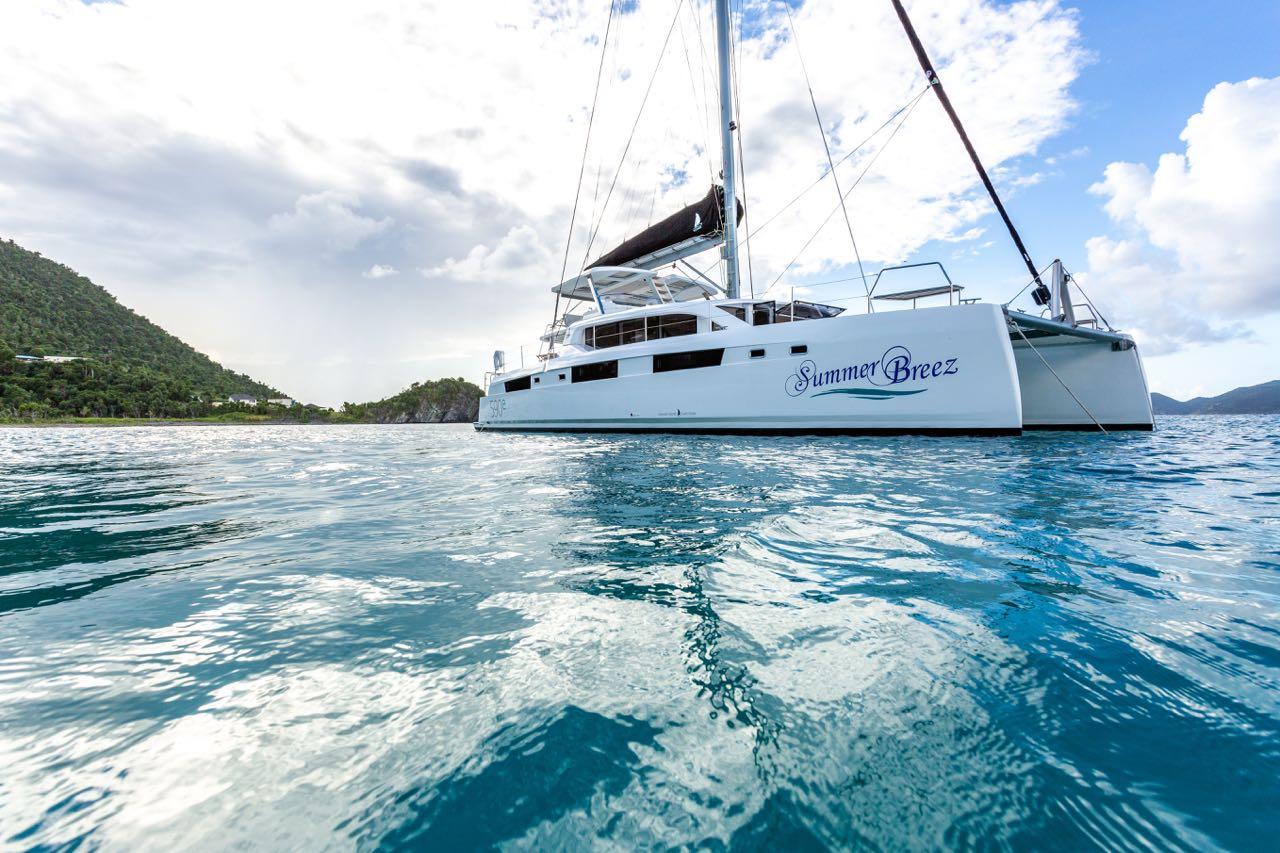

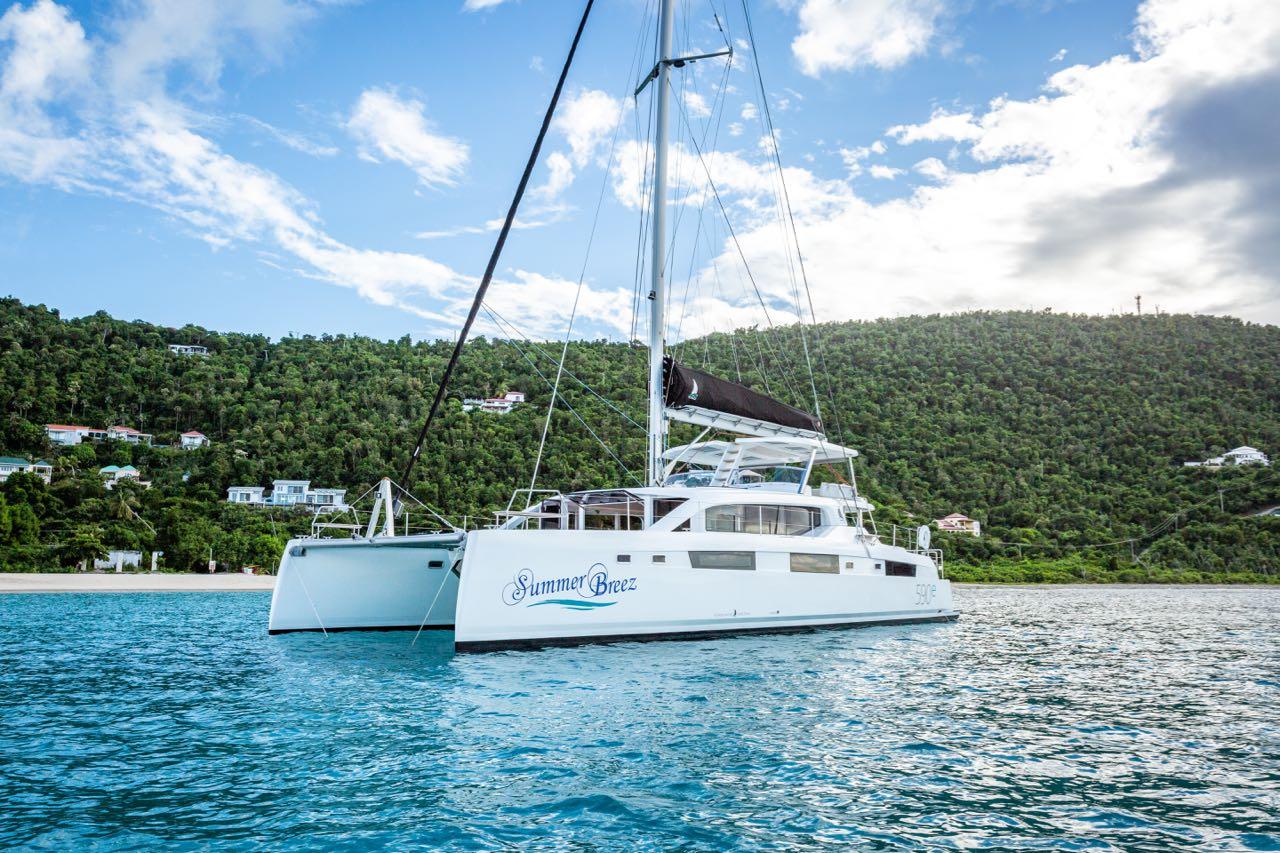

Summer Breez | 2020 Voyage Yachts VOYAGE 590e

Additional Information

VOYAGE 590e Detailed Specification & Equipment List

Upgrades from Standard Specification in BLUE UNDERLINED TEXT

HULL DECK AND BULKHEADS

1. Antifouling over epoxy based osmosis barrier
2. Closed cell PVC foam core, vacuum bonded for stiffness, strength and minimal weight
3. Forward water tight compartments with horizontal bulkheads
4. Vacuum closed cell core construction using multi layers of Quadraxial glass roving, using highest grade polyester resins.
5. Low aspect reinforced keels
6. Reinforced fitting areas for cleats and chain plates
7. Spade rudders with stainless steel rudder shafts

DECK LAYOUT

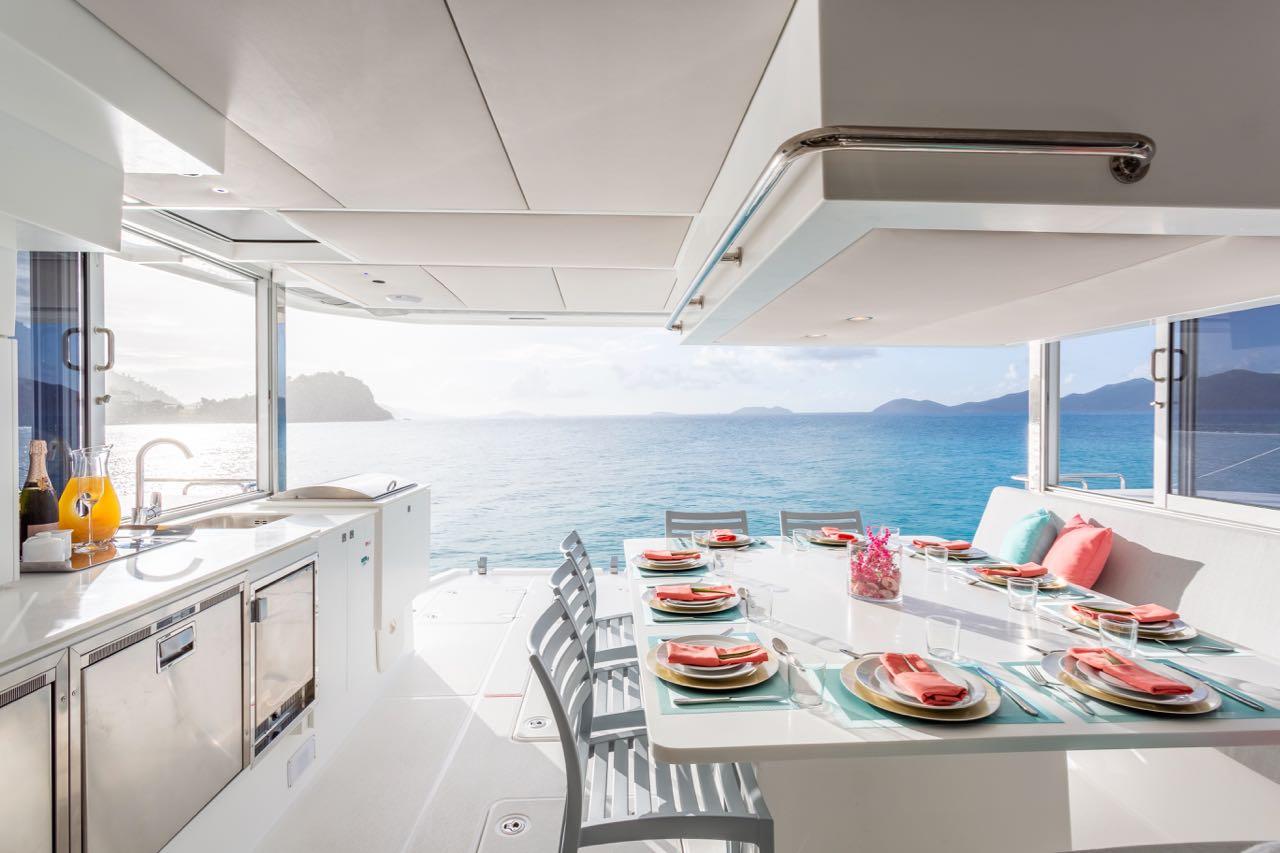

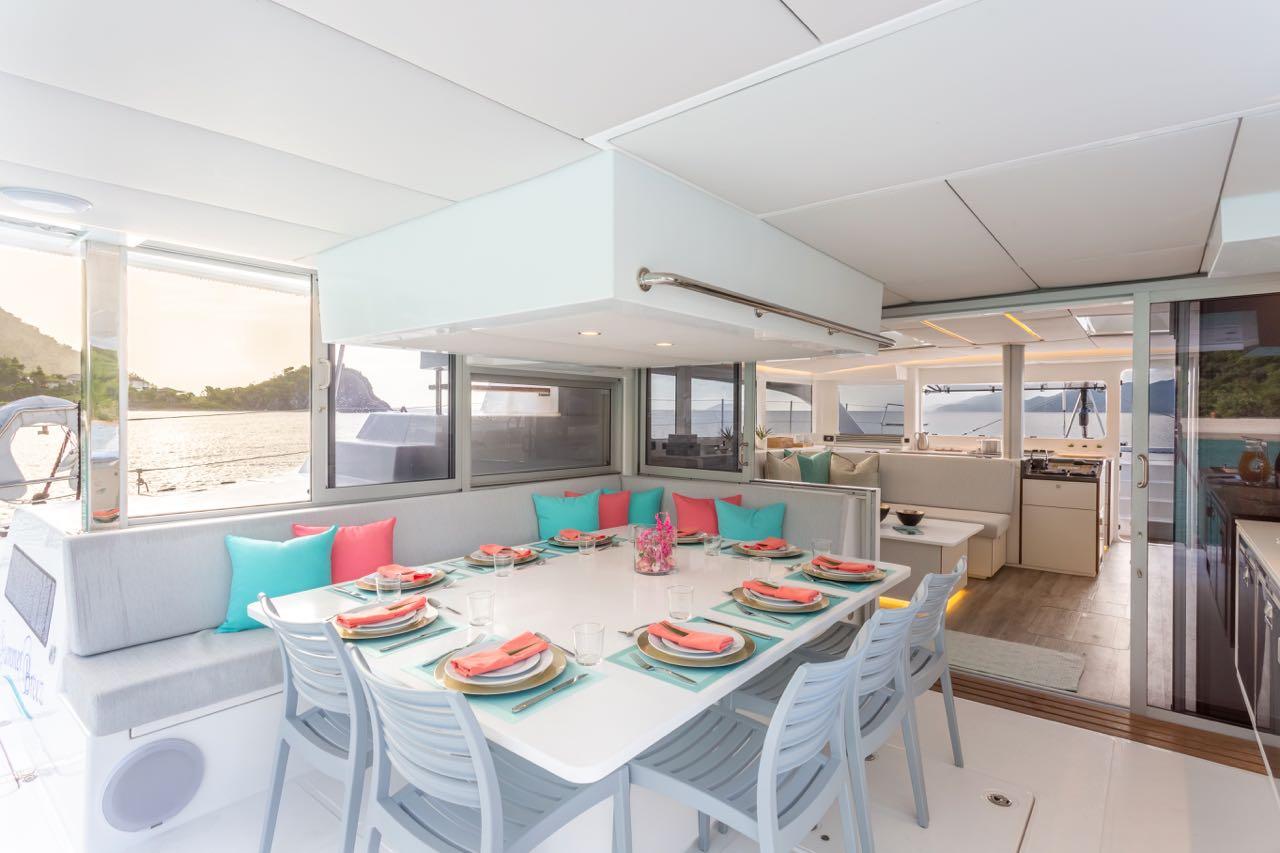

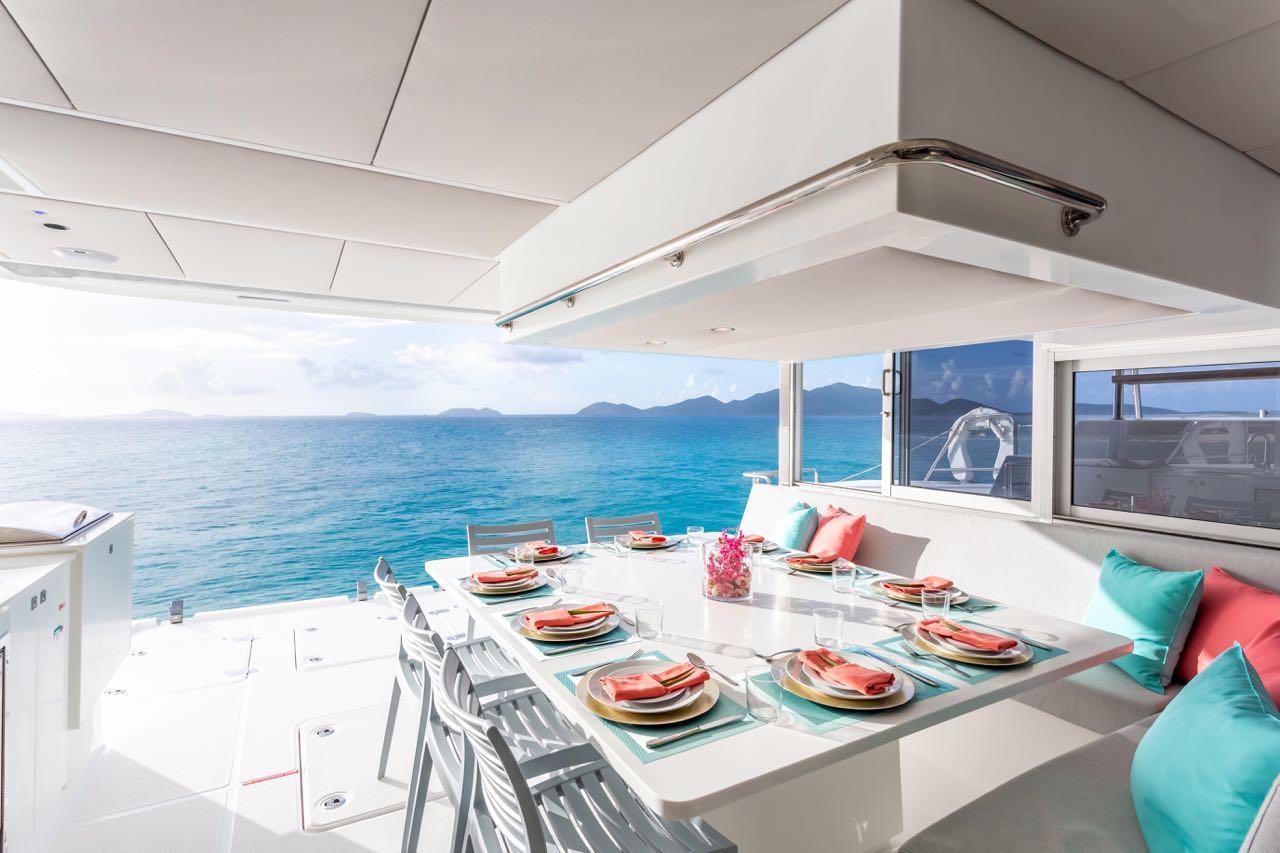

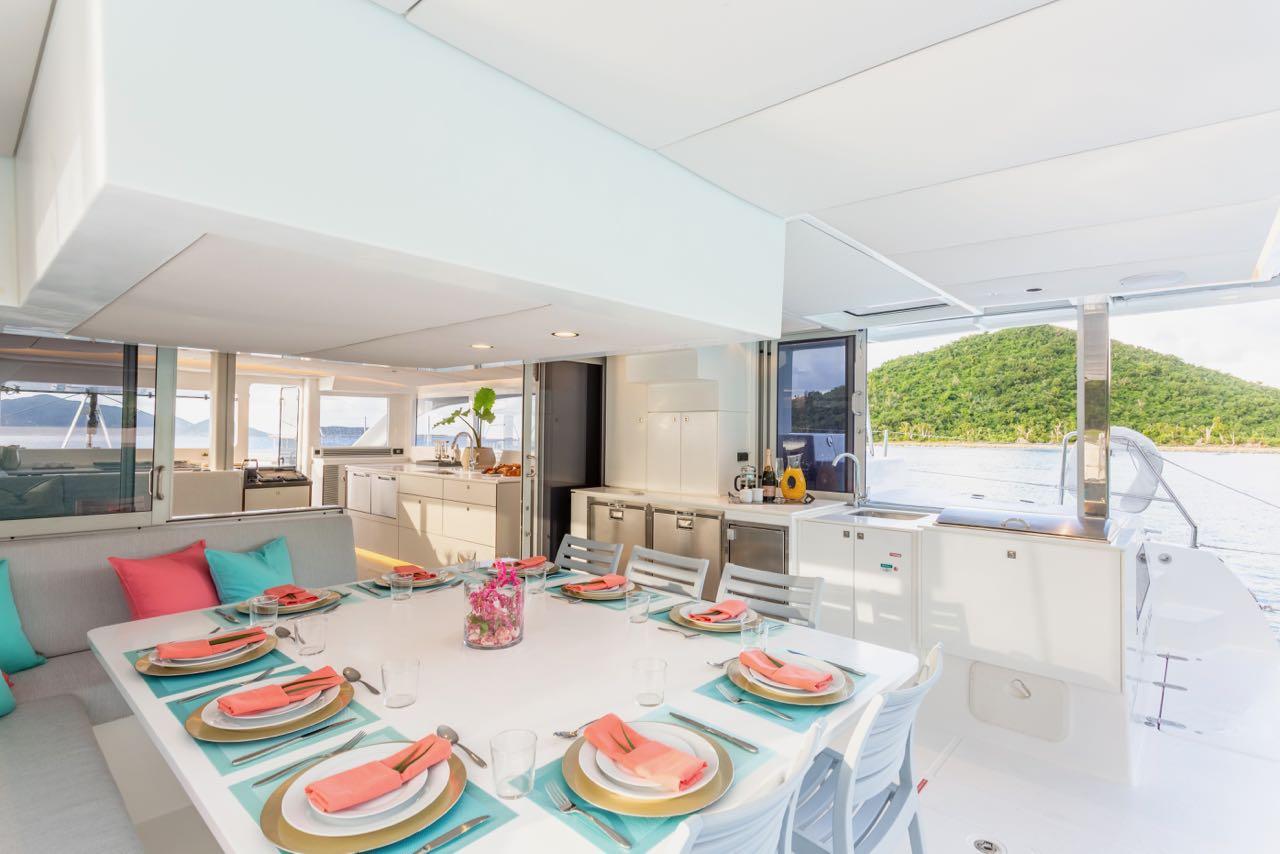

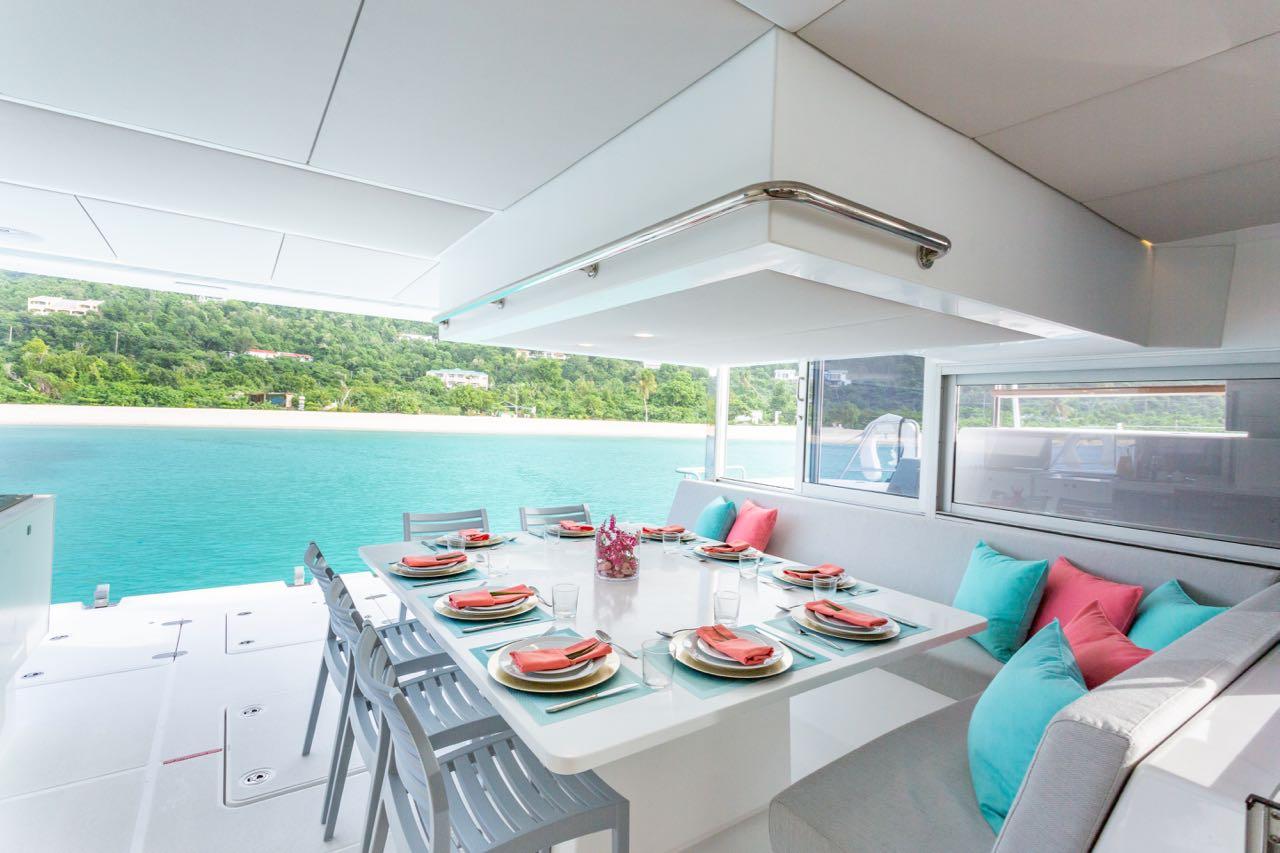

Cockpit / Aft Deck

1. GRP Cockpit table and chairs with exterior upholstery, seating and dining for 12
2. Prep basin with pressurized hot and cold water
3. Built into the countertop electric BBQ grill
4. 2 x VITRIFRIGO 90L Drawer Refrigerators
5. Dedicated storage cupboard for drinks glasses, coffee station, blender etc, with 110V and USB outlets
6. Ice Maker
7. Sliding glass doors for rain protection
8. SOLTIS aft sun screen, roll away in recessed stowage
9. Dive/Snorkel gear lockers port and starboard
10. Dinghy lift platform, aluminum frame, teak decking, recessed dinghy chocks, twin electric winch operation

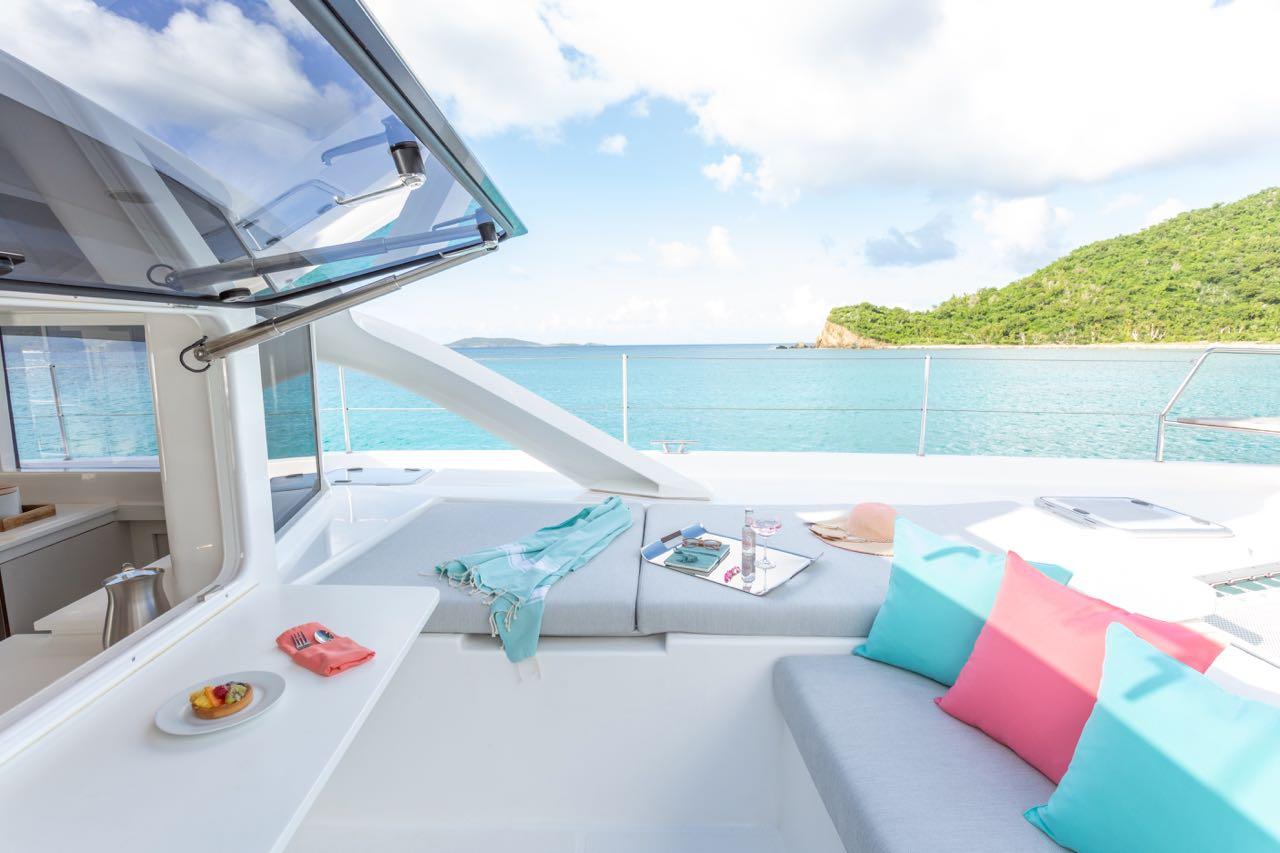

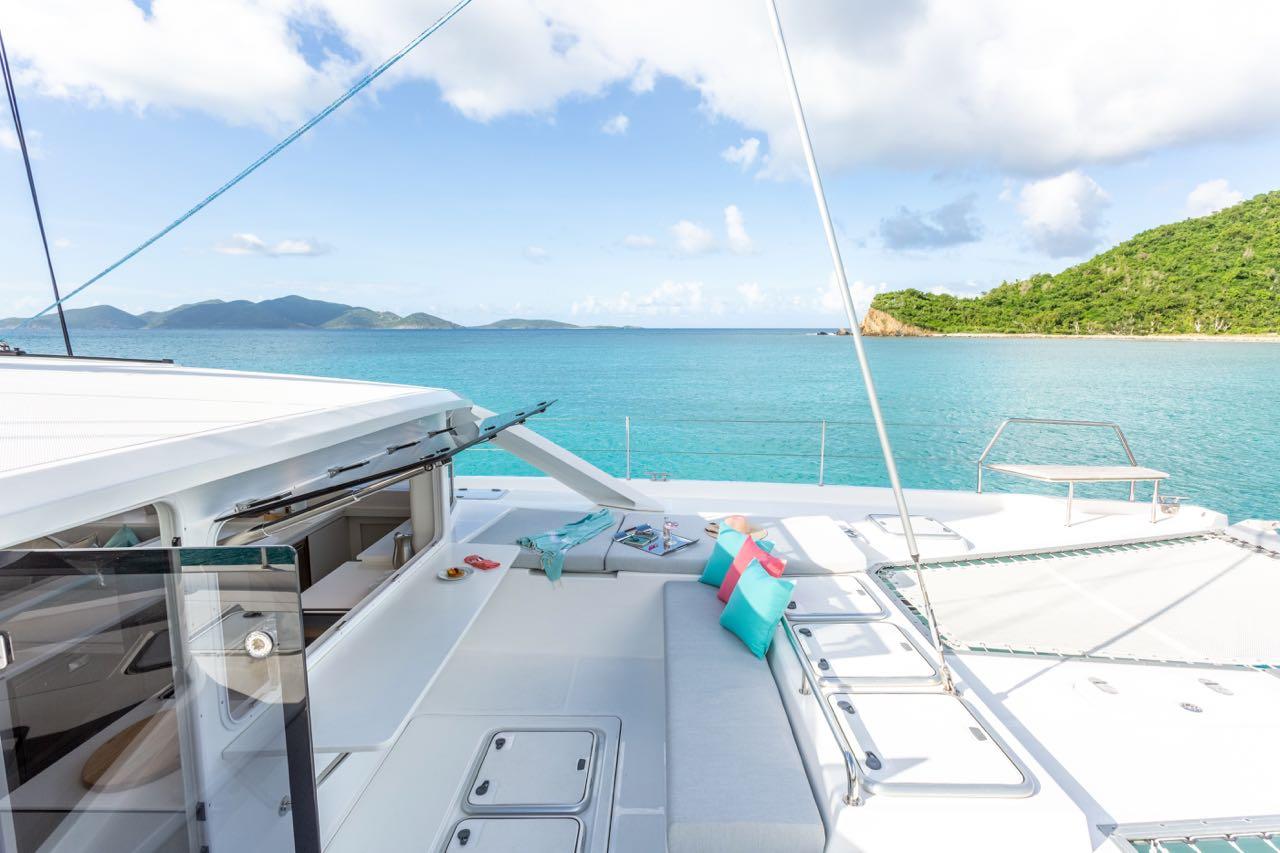

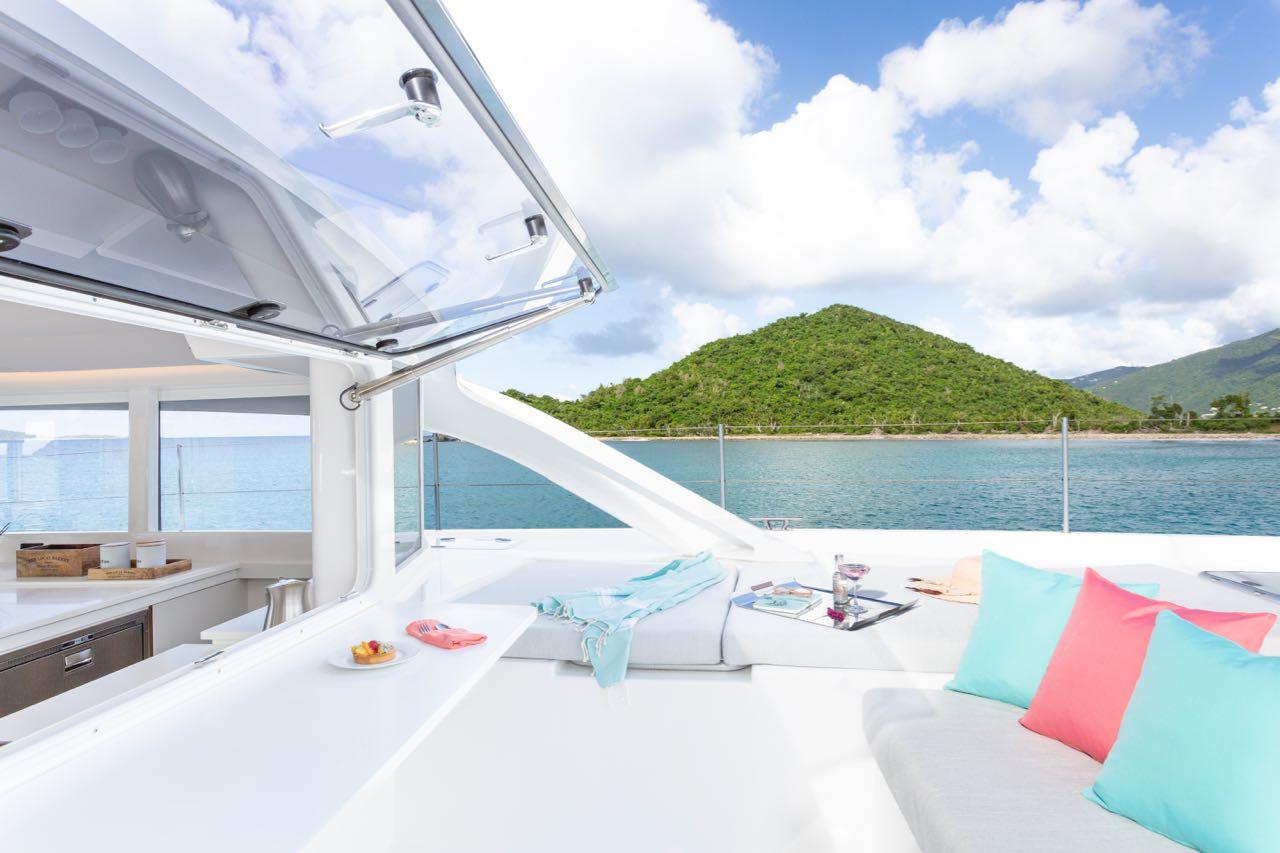

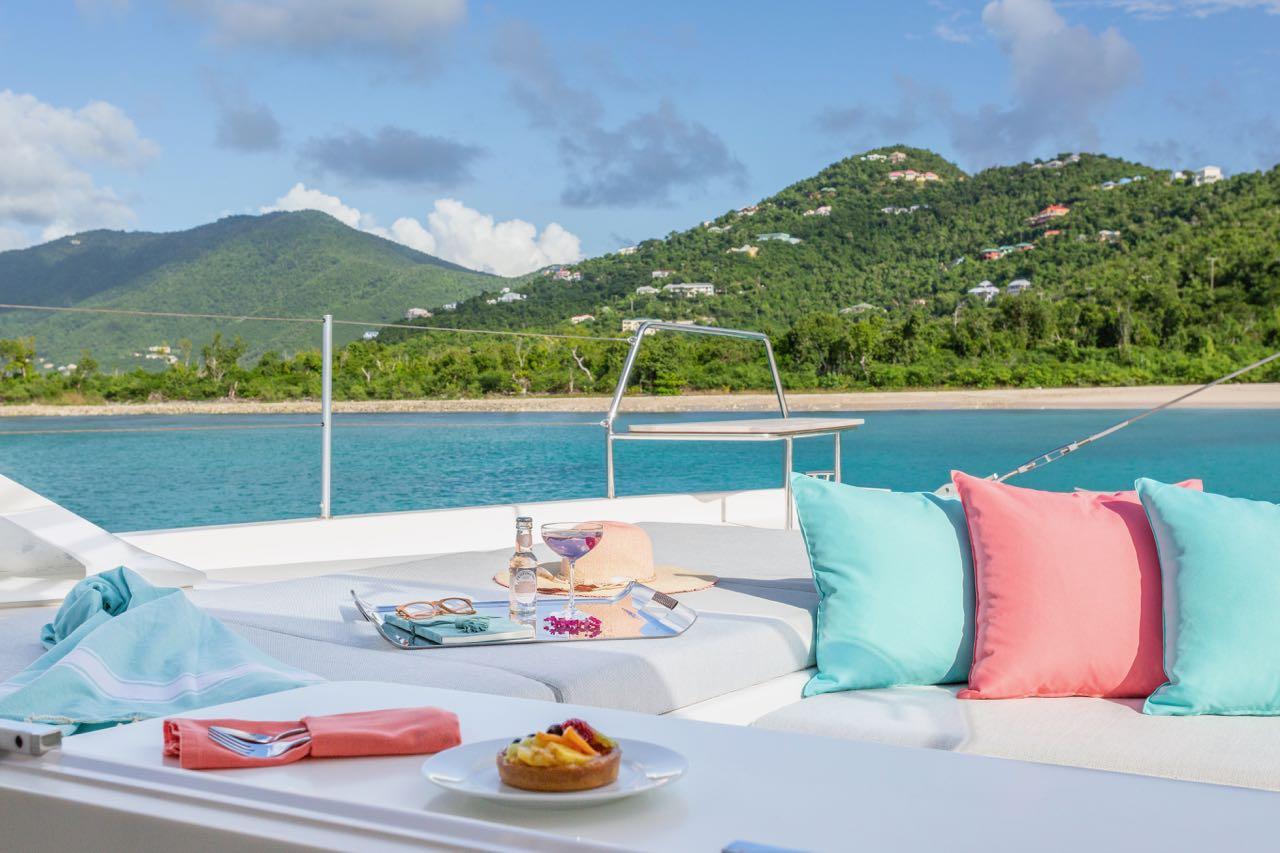

Cockpit / Forward Deck

1. Front door access to salon
2. GRP cockpit counter
3. Upholstered seating & sunbeds
4. Forward, electric, awning window
5. Storage lockers

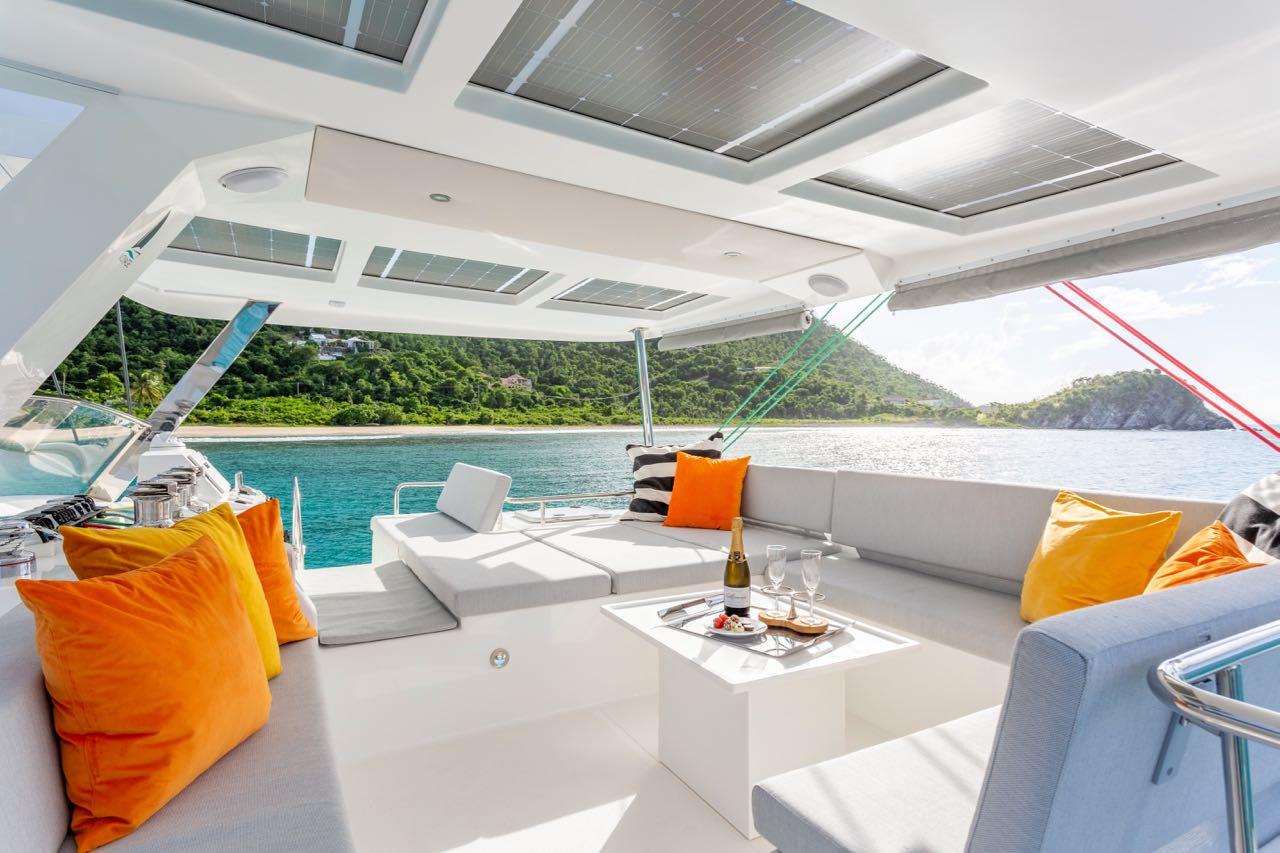

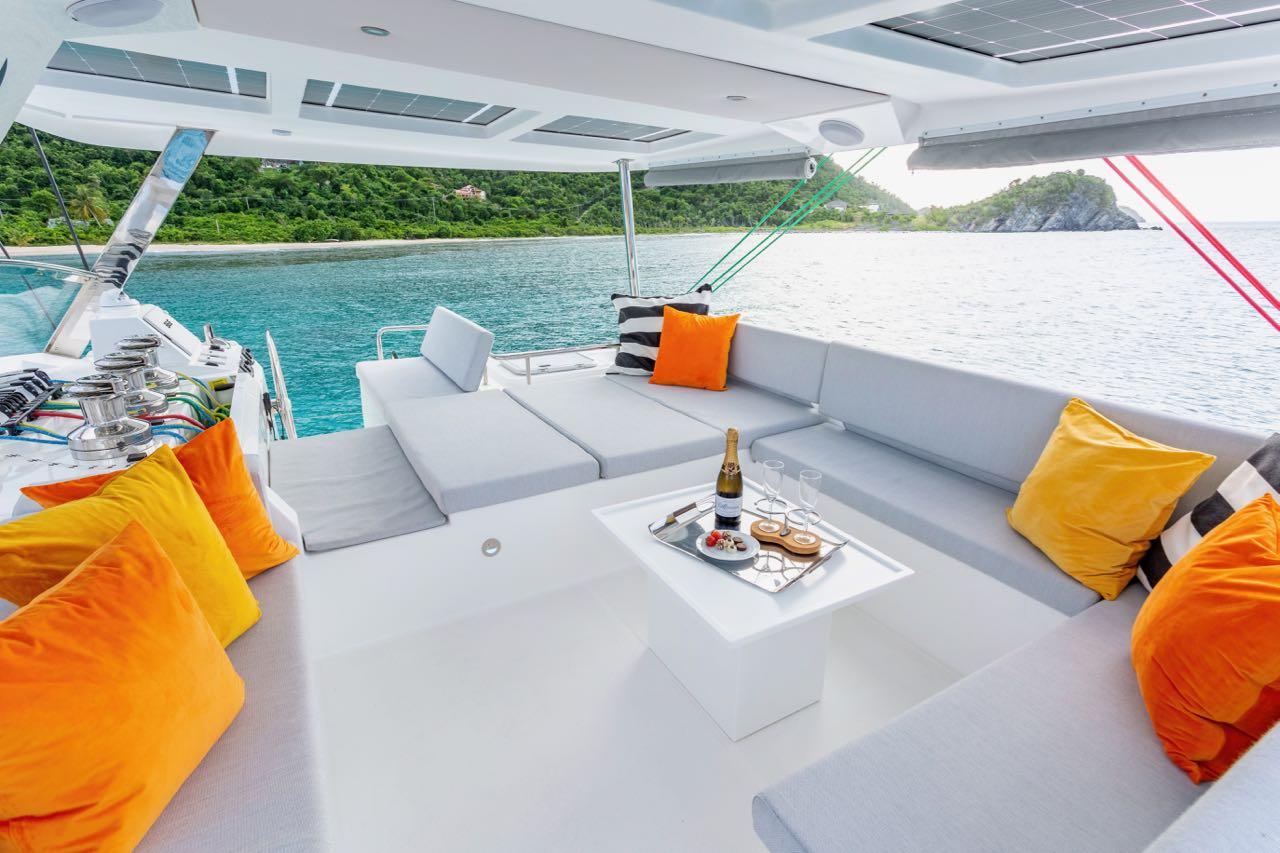

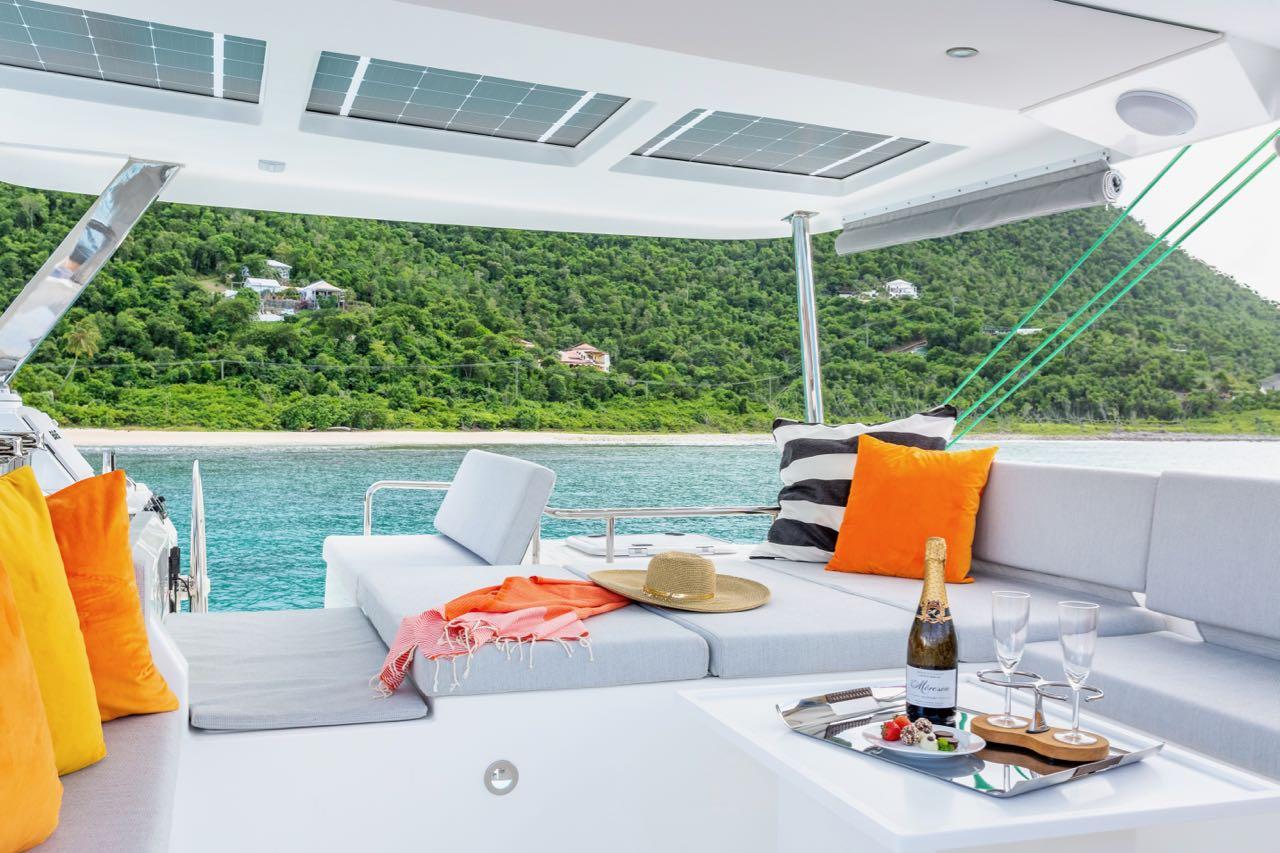

Flybridge:

1. Access port or starboard
2. Upholstered seating & large sunbed
3. Stainless Steel grab rails
4. Sheet and utility storage trough
5. Helm station starboard, double helmsman seat, instrument console, windshield, stainless steel steering wheel
6. Hard top bimini with lights, forward wind screen and rear sun screen

ACCOMMMODATION

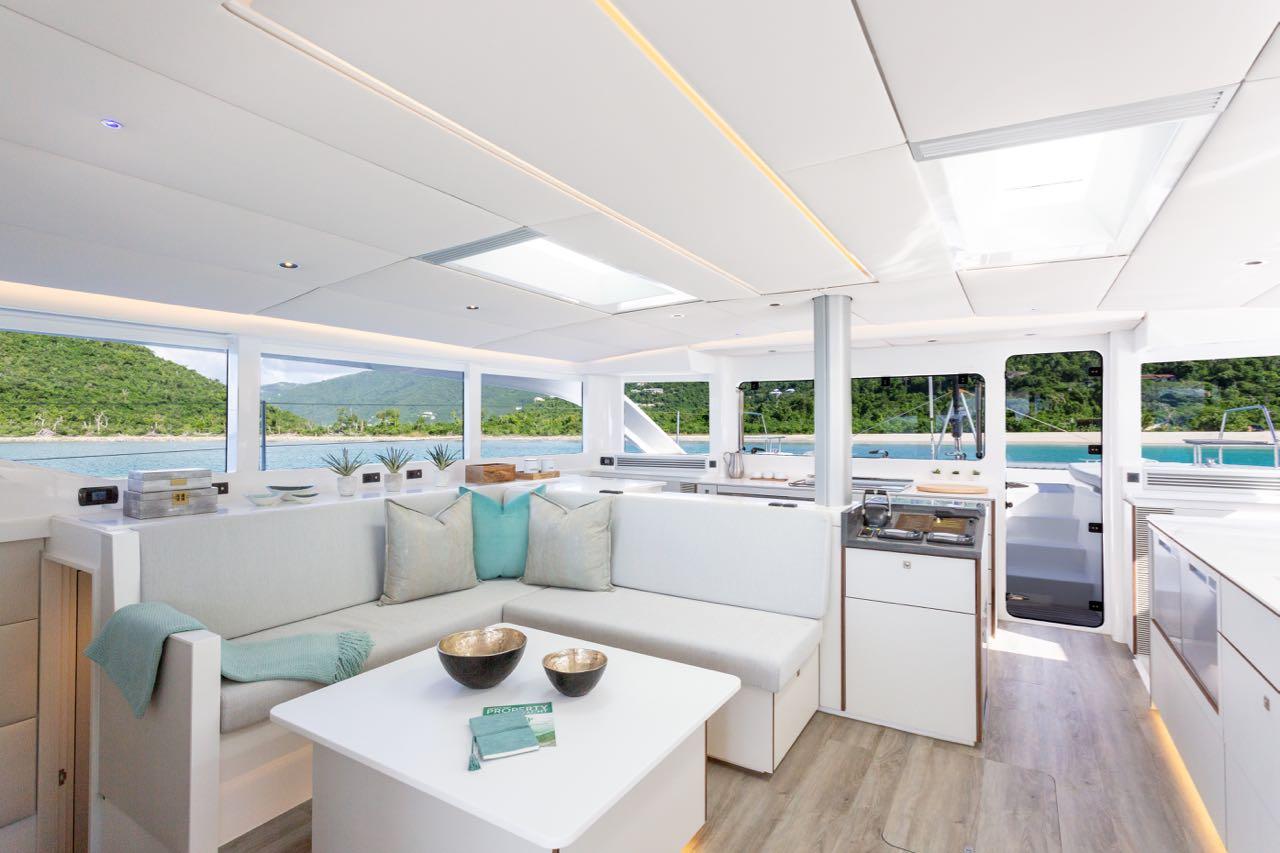

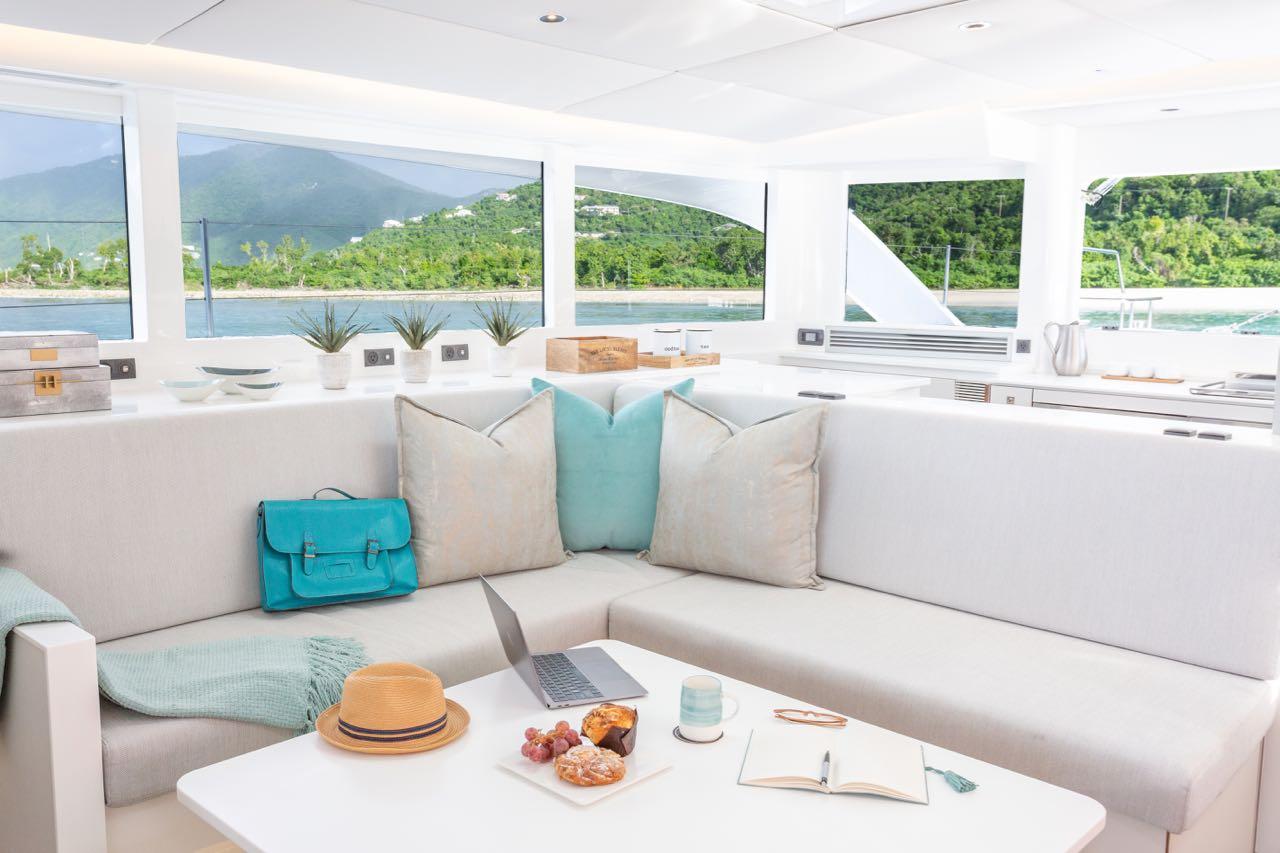

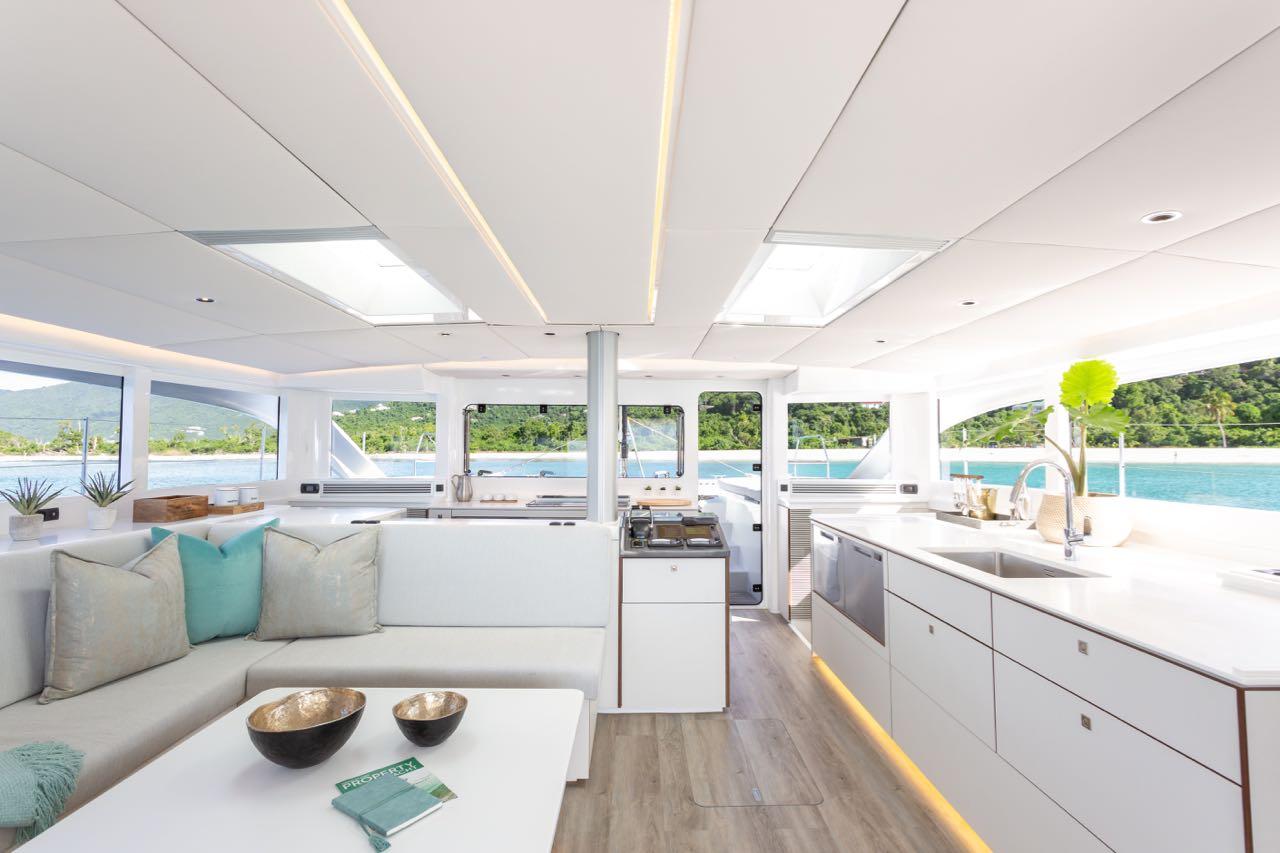

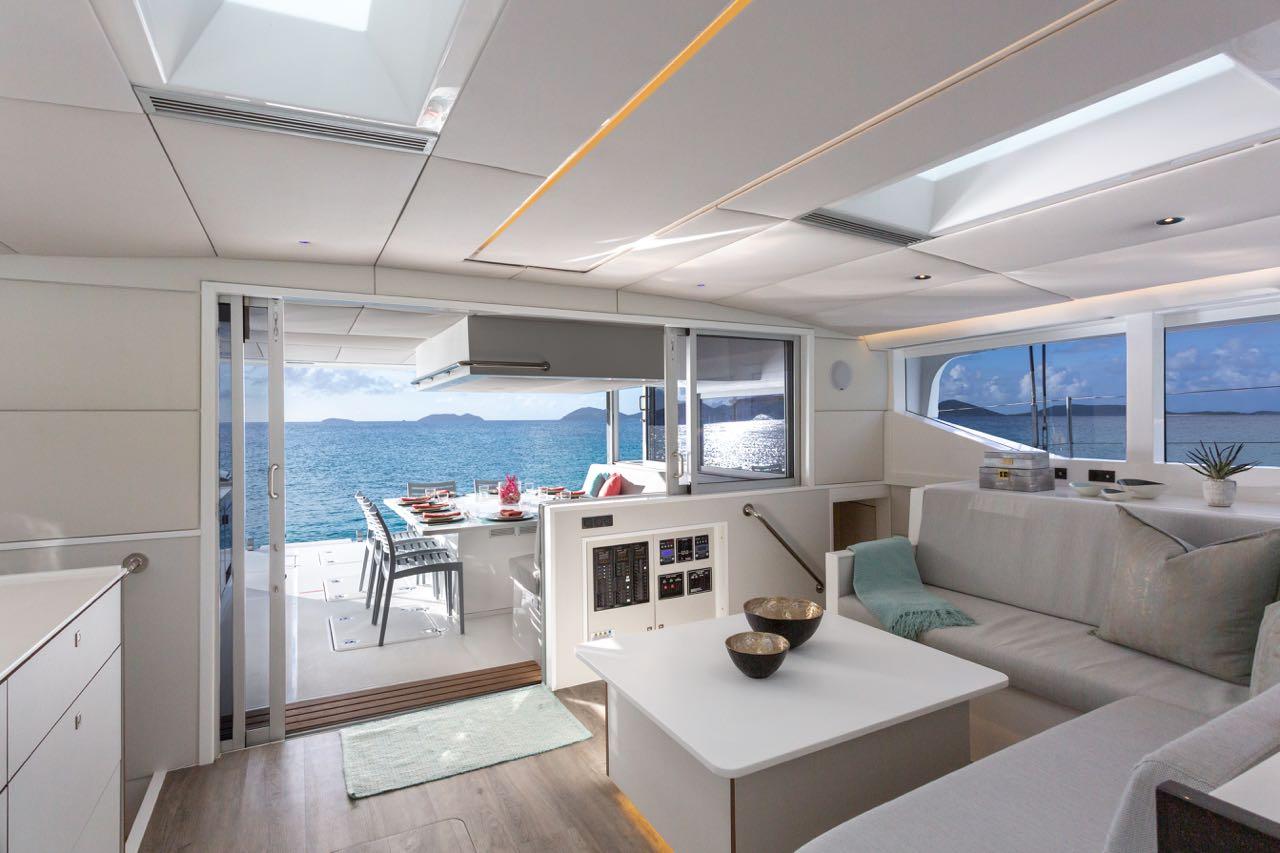

Main Salon

1. Acrylic counter surfaces
2. Synthetic hardwearing furniture
3. Flooring in hard wearing vinyl
4. Headliner with ambient lighting
5. Upholstered settee
6. Counter surfaces with drawers underneath
7. Salon coffee table with seating for 6
8. Standing height throughout 2.1 to 1.9 m
9. 110V outlets x 6
10. Double USB outlets x 4

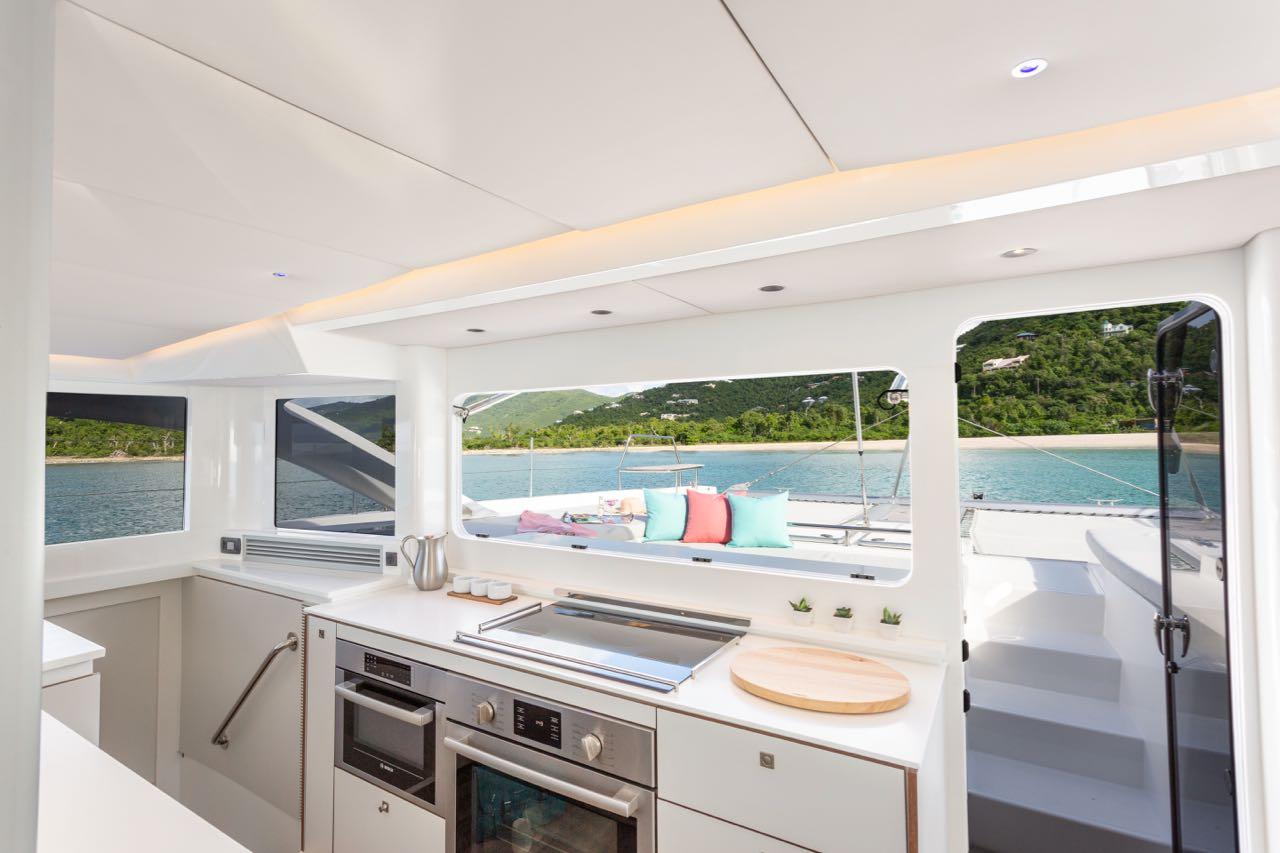

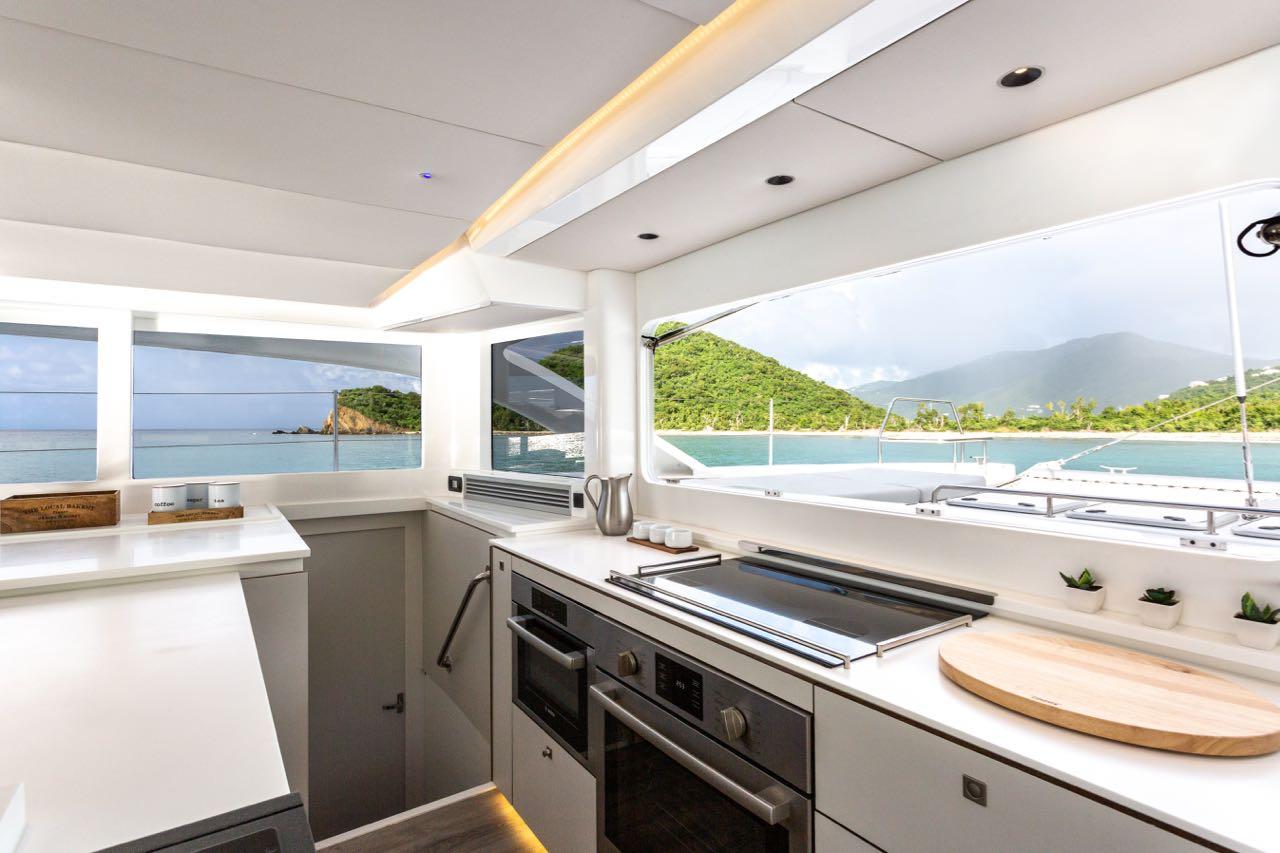

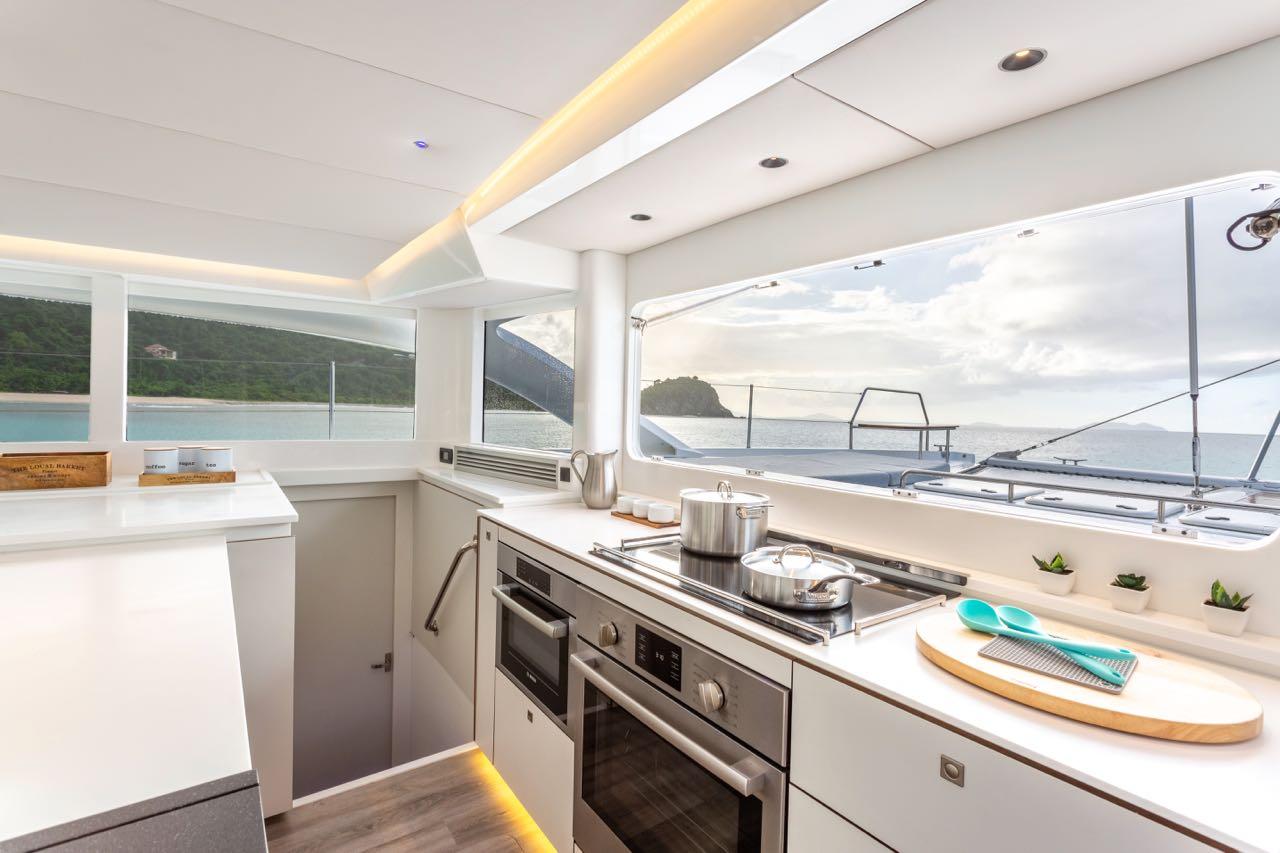

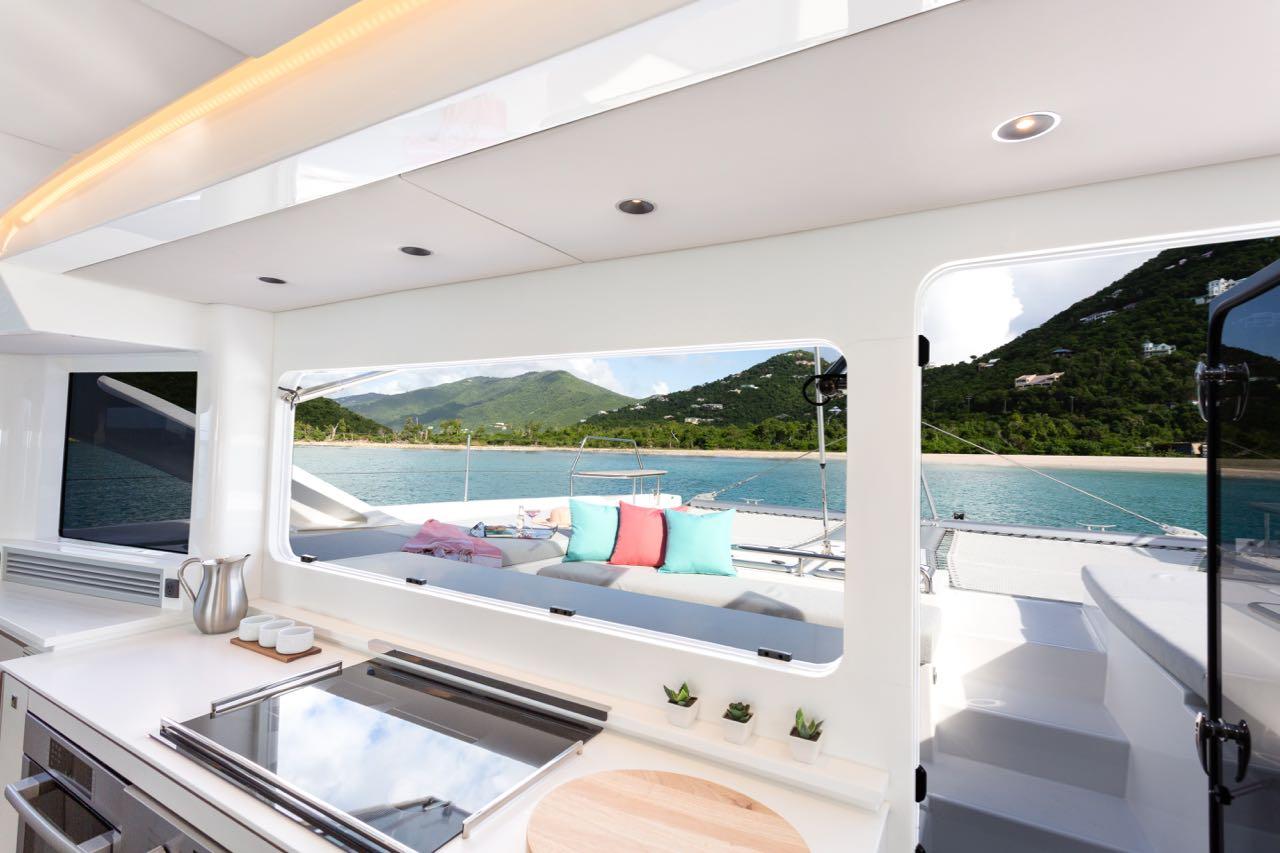

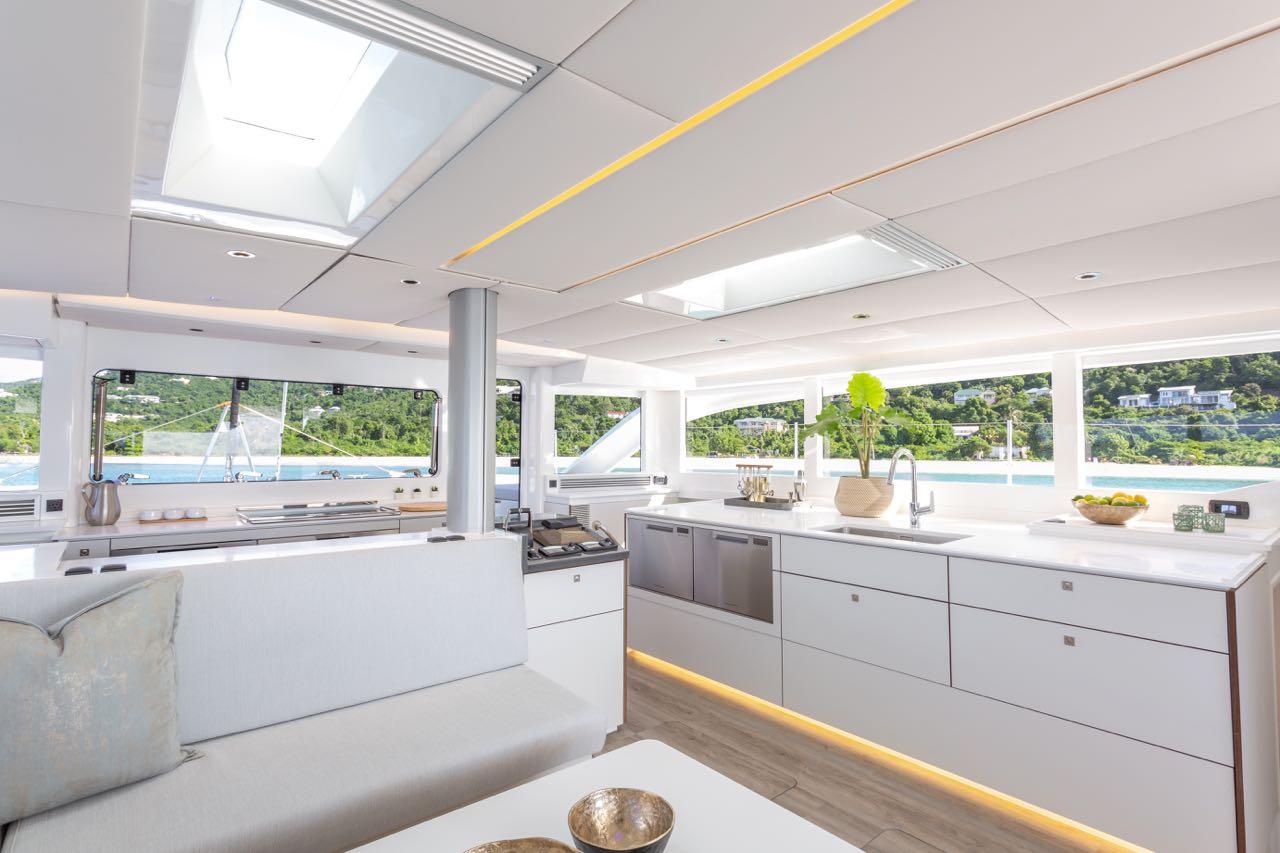

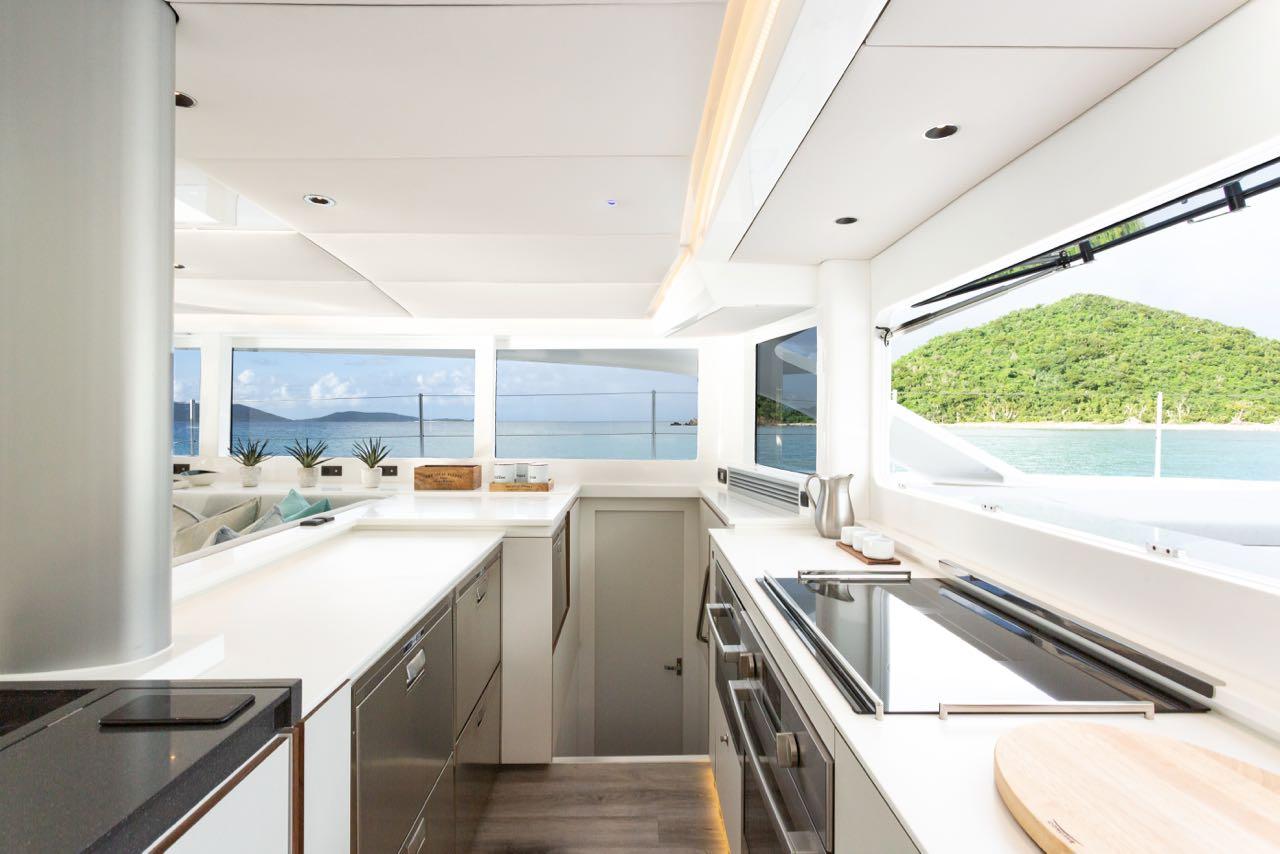

Galley

1. Acrylic counter surfaces
2. Synthetic hard wearing furniture
3. Flooring in hard wearing vinyl
4. Galley forward facing window opening to forward cockpit bar seating
5. Bosch electric stainless steel oven with rotisserie
6. BOSCH induction cooktop
7. BOSCH convection microwave oven
8. Cutlery and crockery drawers
9. Headliner with ambient lighting
10. Large working areas
11. Pressurized hot and cold water
12. 2 x Fischer Paykal drawer dishwashers
13. Waste bin locker with acrylic hinged cover
14. Stainless steel sink
15. Double Vitrifrigo Drawer refrigerator 24V
16. Double Vitrifrigo Drawer freezer 24V
17. Single drawer Vitrifrigo freezer, 95L
18. Ice Maker
19. 110V outlets x 6

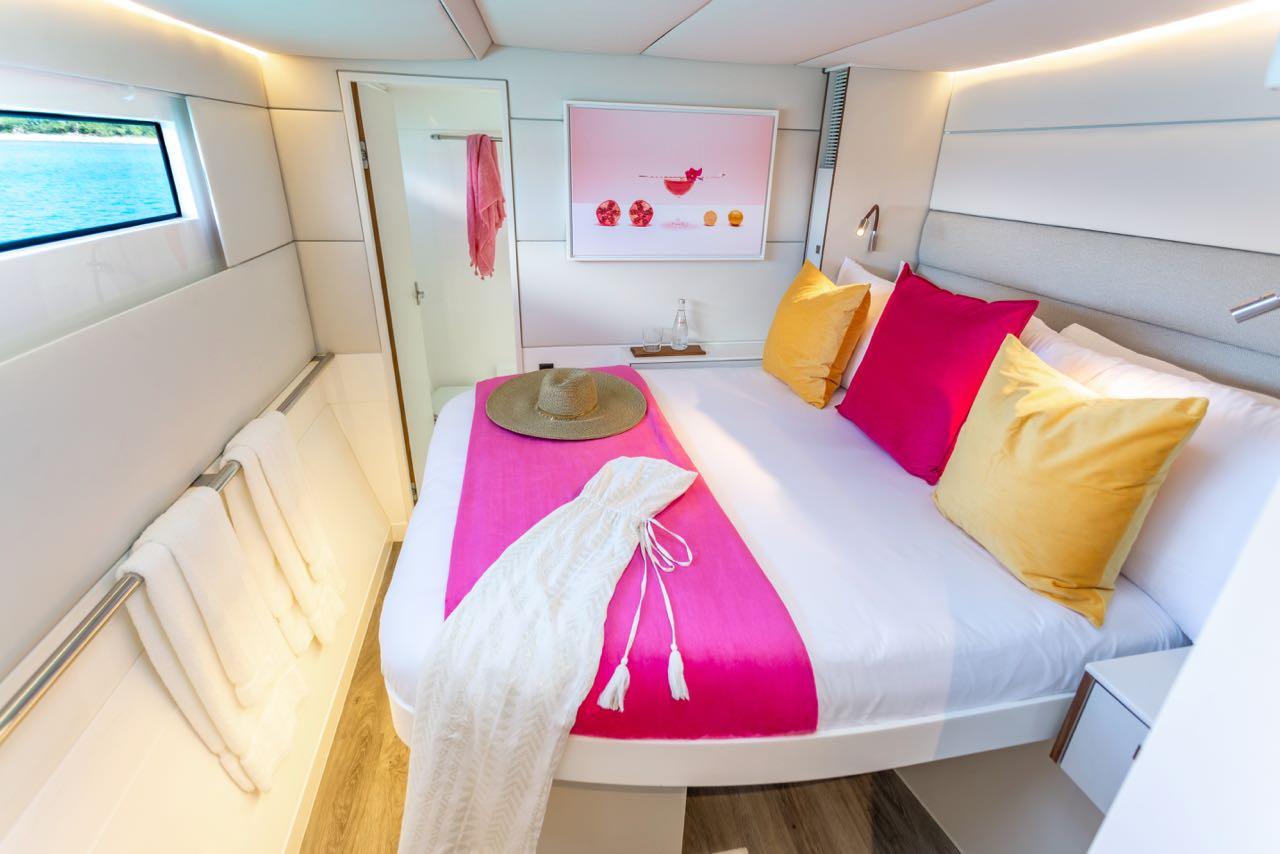

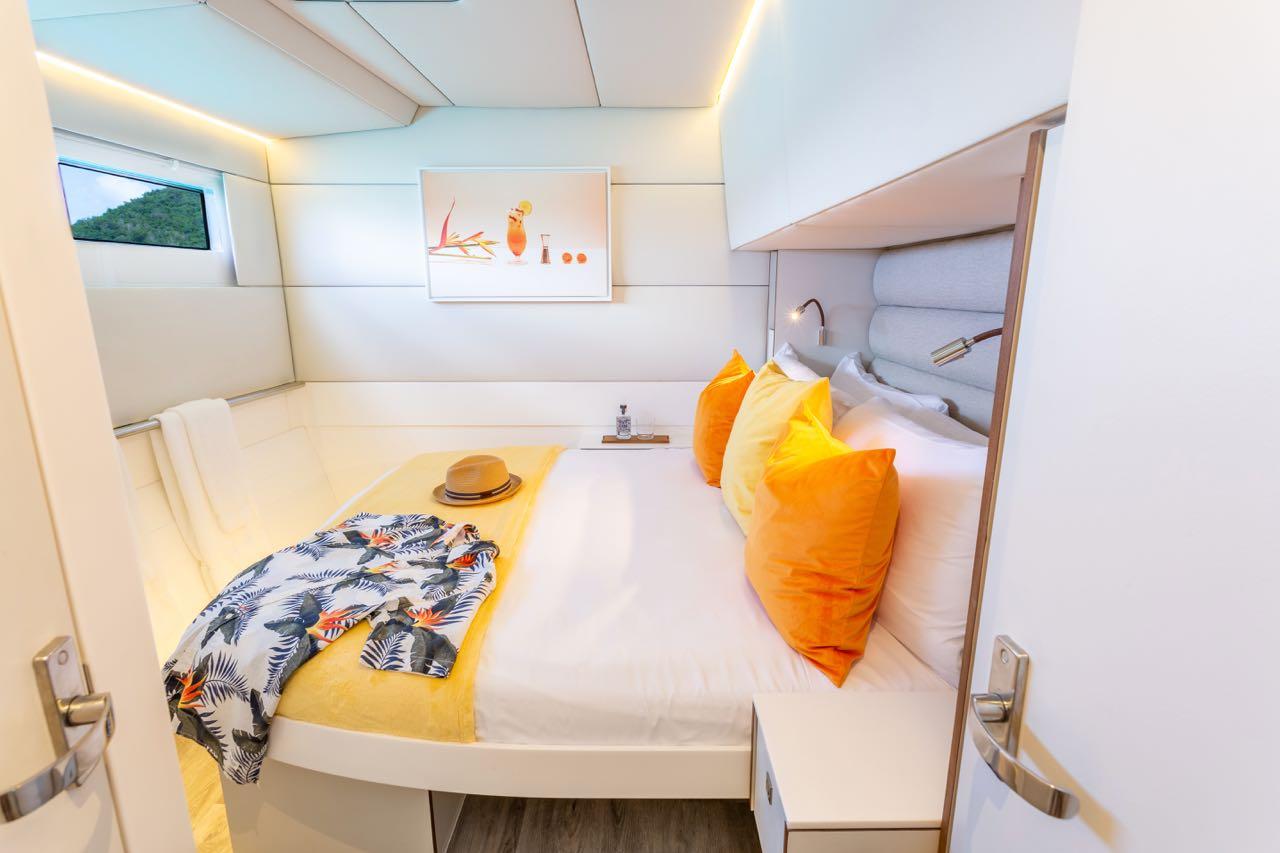

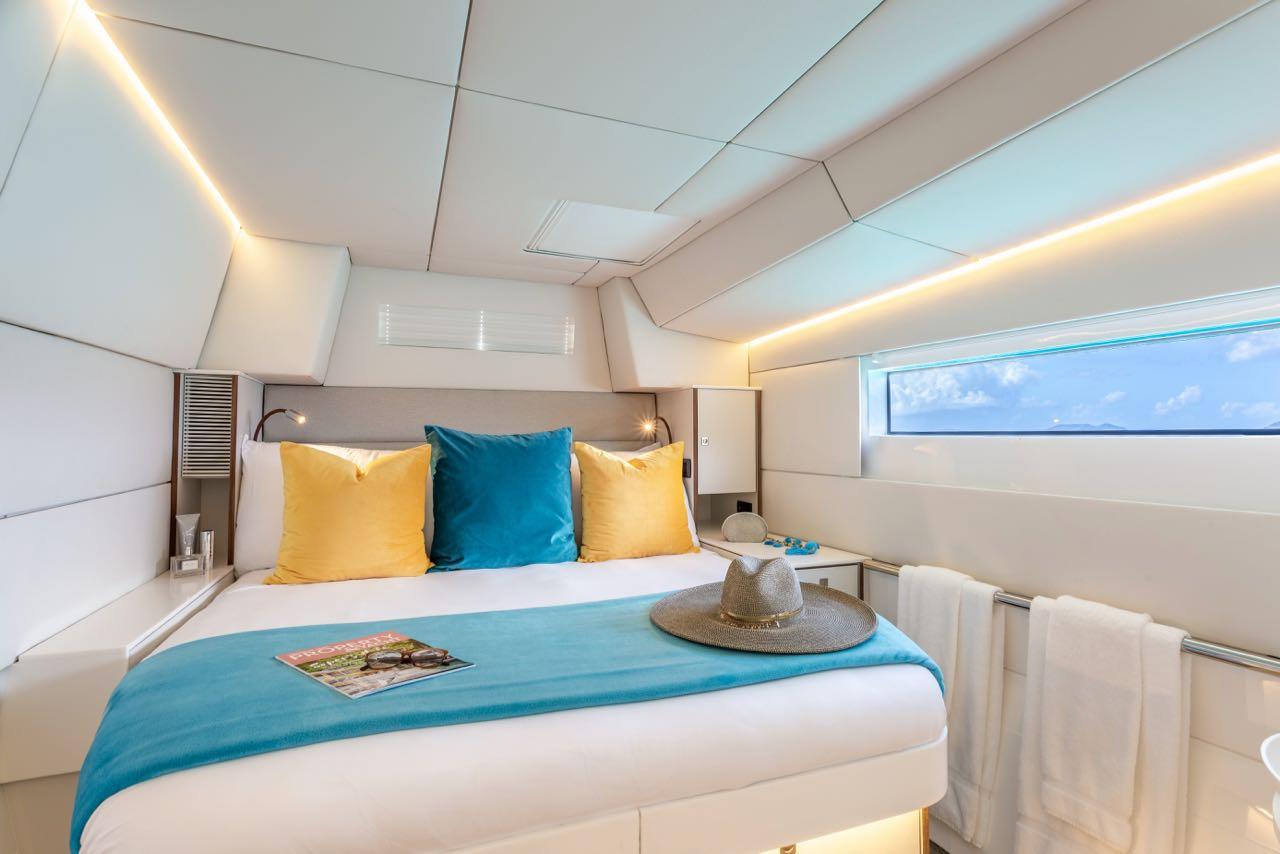

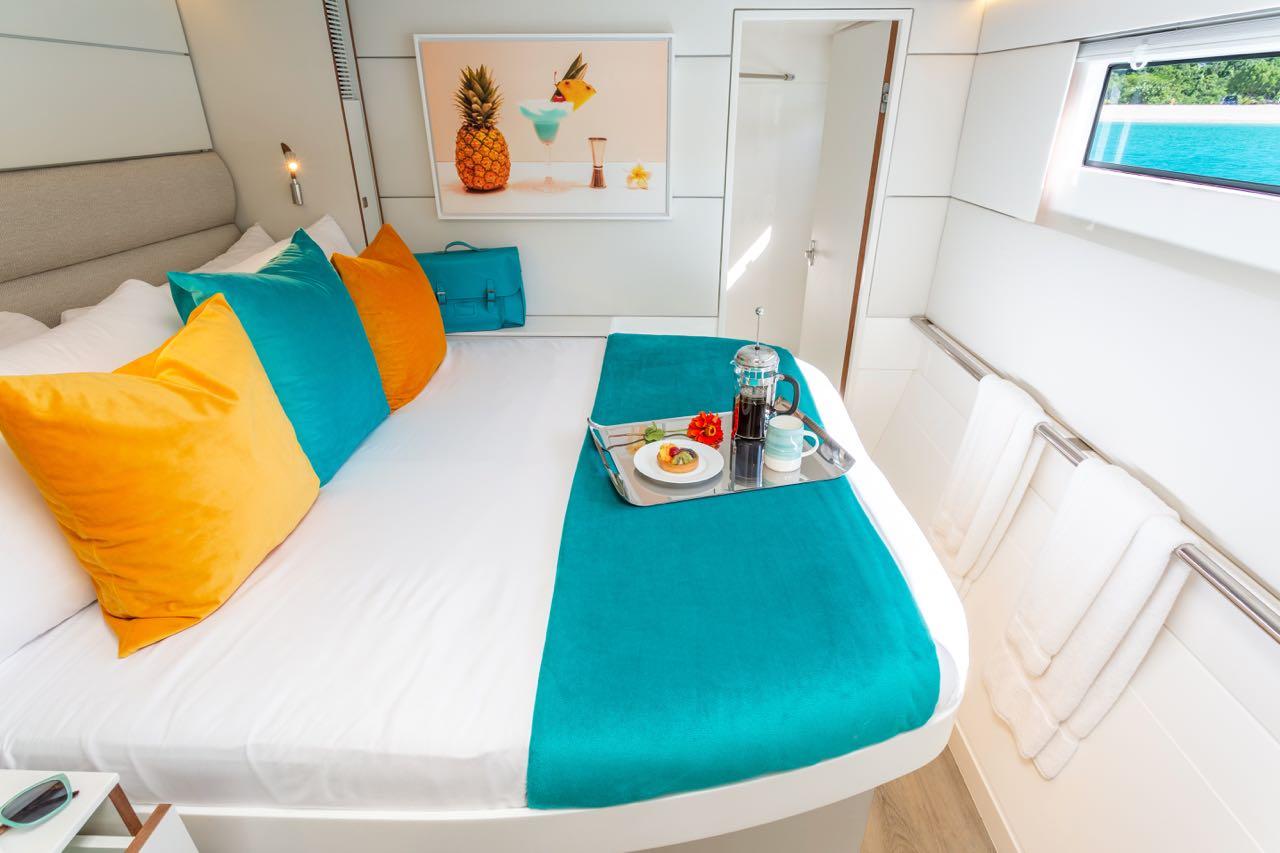

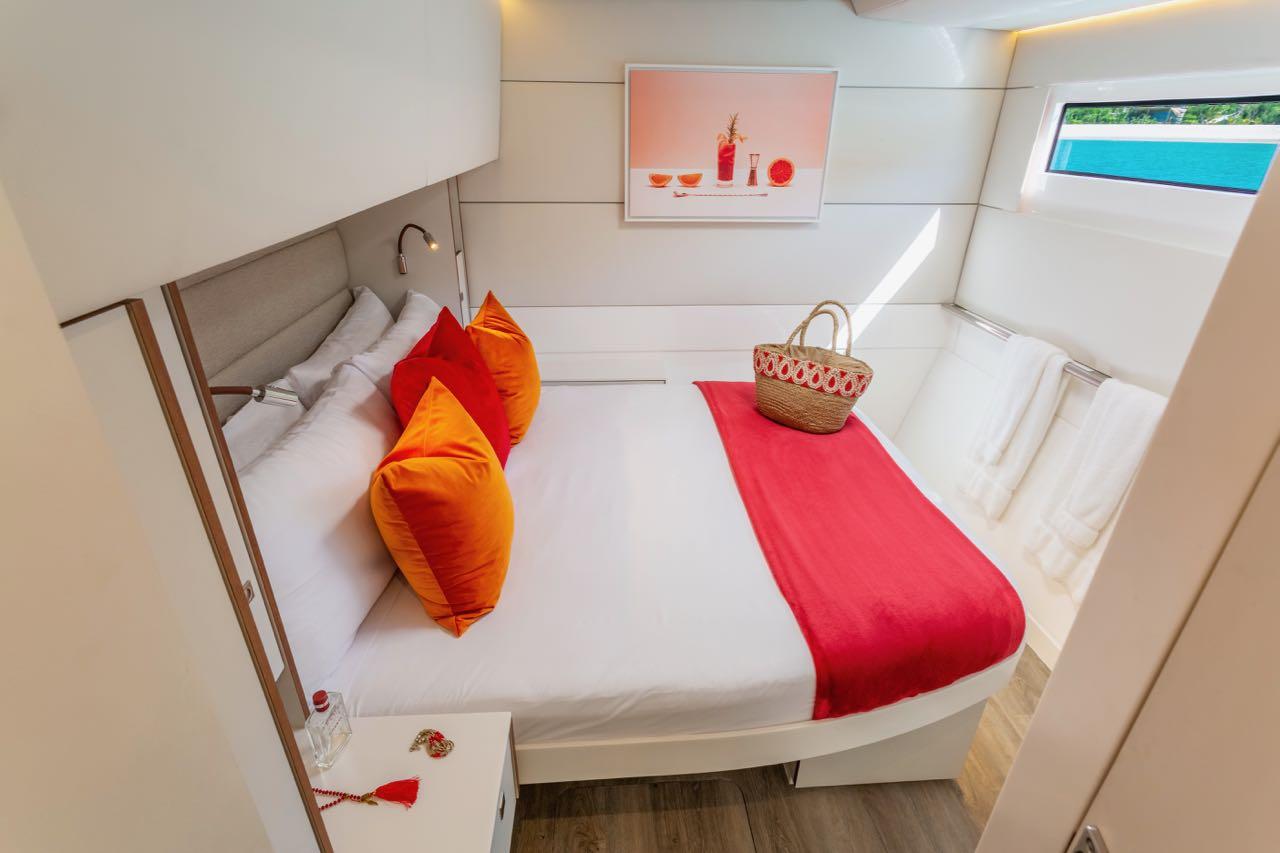

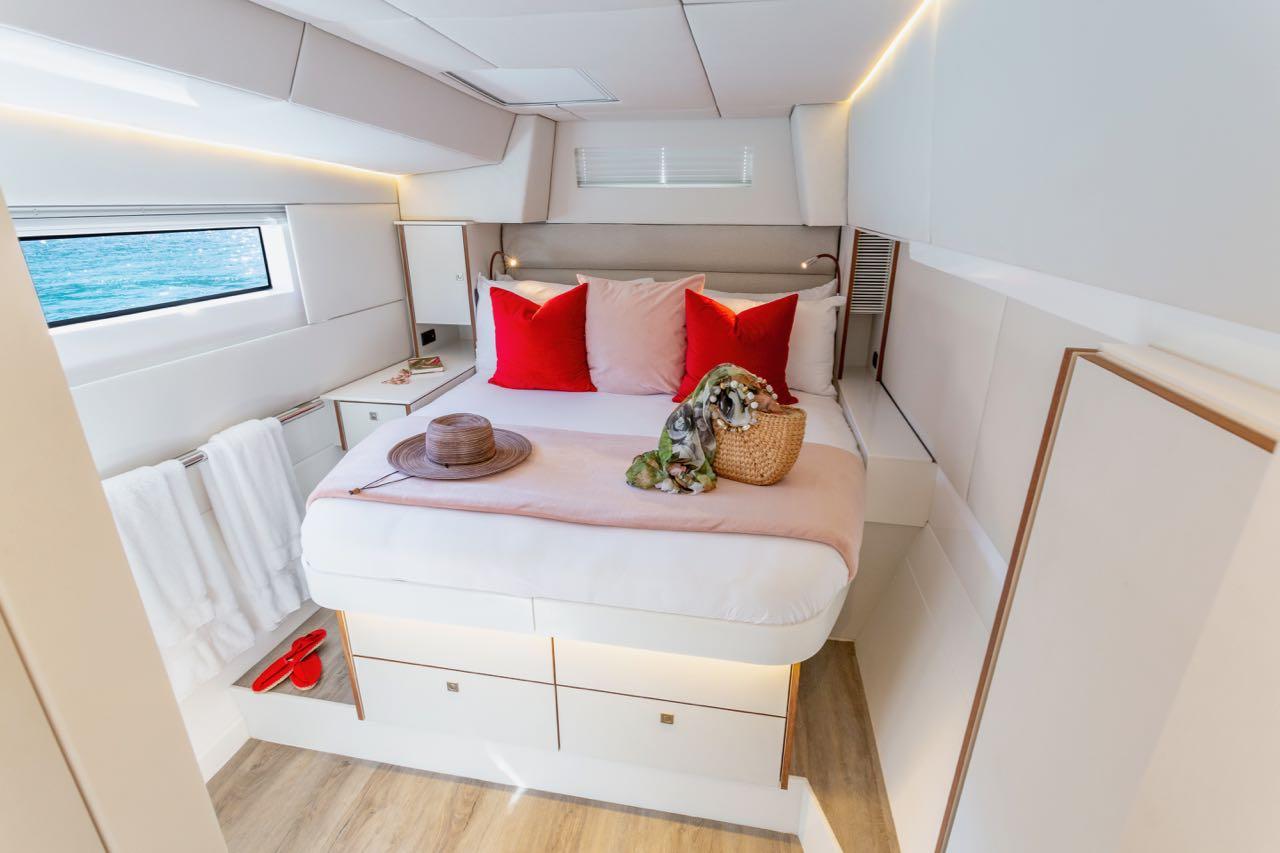

Cabins en suite:

1. Acrylic corian type work surfaces
2. Synthetic hard wearing furniture
3. Upholstered headliner with ambient lighting
4. Cabin and reading lights
5. Super queen size bunk with split mattresses
6. Double drawers under the bunk
7. Hanging and storage wardrobes
8. Full length mirrors
9. Electric marine toilet
10. Separate shower with pressurized hot and cold water
11. Stainless steel towel rail
12. Stainless steel towel hooks
13. Vanity above wash basin with mirror
14. Washbasin in the cabin with pressurized hot and cold fresh water
15. 110V outlets x 3
16. double USB outlets x 2

Crew cabins, en suite:

1. Crew cabins finished as guest suites, acrylic work surfaces, vinyl flooring, v-bunk, port lights, air conditioning, reading lights, S/S rails, cupboards, electric flush toilet, shower & basin, fan

COMFORT AND LIFESTYLE:

1. Air Conditioning: 11 x 7,000 BTU FRIGOMAR self contained, inverter, direct expansion units, with additional 5kW VICTRON inverter
2. Sound System – FUSION RA770 Wifi, Bluetooth, 1600W amplifier, subwoofer, NRX300 remote in flybridge
3. Zones of Speakers: forward cockpit, salon/galley, aft cockpit, flybridge, transoms

ENGINE EQUIPMENT:

1. BELL MARINE Drivemaster Ultimate 35kW 144V with displays
2. 2 x engine controls: 1 at helm in flybridge & 1 at interior nav station
3. Duplex stainless steel prop shafts with stern tubes
4. Folding, 3-blade GORI propellers
5. Bow thruster – Lewmar TT185 6Kw 24V with control at helm

ELECTRICS:

1. US 240VAC/120VAC/60Hz split-phase supply (L1/L2)
2. 50A/240V shore cable socket
3. Battery isolator switches
4. BLUE SEA circuit breaker panel and 2 x VICTON CCGX monitors
5. Forward, Fly Bridge and aft cockpit lights
6. Underwater lights
7. VICTRON inverter/charger 5kW / 120V x 2
8. VICTRON inverter/charger 5kW / 230V x 2
9. Batteries: Propulsion Bank: OSN Power 80kW/144V LiFePo4 with ORION Battery Management System
10. Batteries: House Bank: Victron 20kW/24V LiFePo4
11. 5 x 290W LUMOS solar panels on top of bimini
12. Saloon & deck lights, gauges are controlled by digital switching
13. Generators: 2 x 22kW Fischer Panda AGT-DC 144V, with auto start

INSTRUMENTATION:

1. B&G Autopilot with 24V whitlock rotary drive
2. B&G Tri data & wind
3. B&G 16″ chart plotter at helm station
4. Compass
5. B&G VHF radio
6. B&G NAIS-500 class B AIS with GPS-500 antenna
7. Additional instrumentation at interior nav station, including throttle controls, 12” B&G Multifunction display.

PLUMBING:

1. Automatic electric bilge pumps with high-level alarms, in main bilges and engine bilges, port and starboard
2. Black water systems and holding tanks
3. Water heaters 60 liters (16USG) each (hot water system)
4. Grey water systems for basins and showers
5. Pressurized hot and cold fresh water system with 2 fresh water pumps
6. Fresh water tanks, 950 liters total (250 USG)
7. Deck wash fresh water faucets forward and aft for deck wash-down
8. Deck wash pump system for salt water chain-locker wash down
9. Manual bilge pumps operable from the cockpit
10. Hot and cold deck shower, port and starboard
11. Self draining cockpit fwd and aft

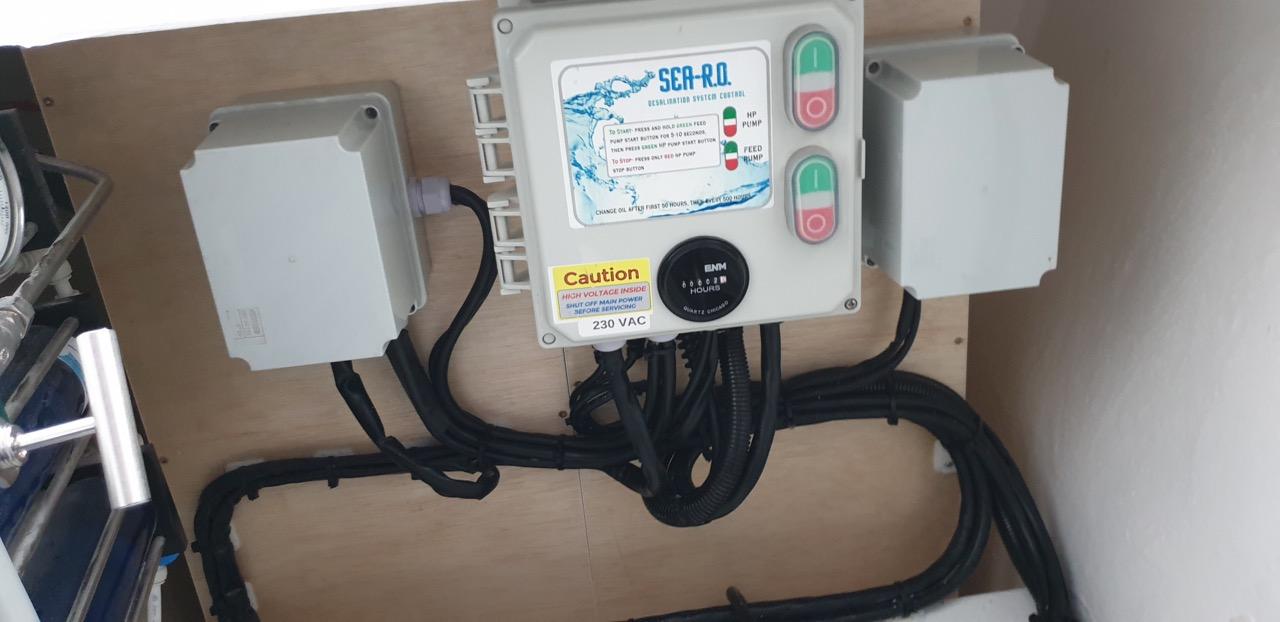

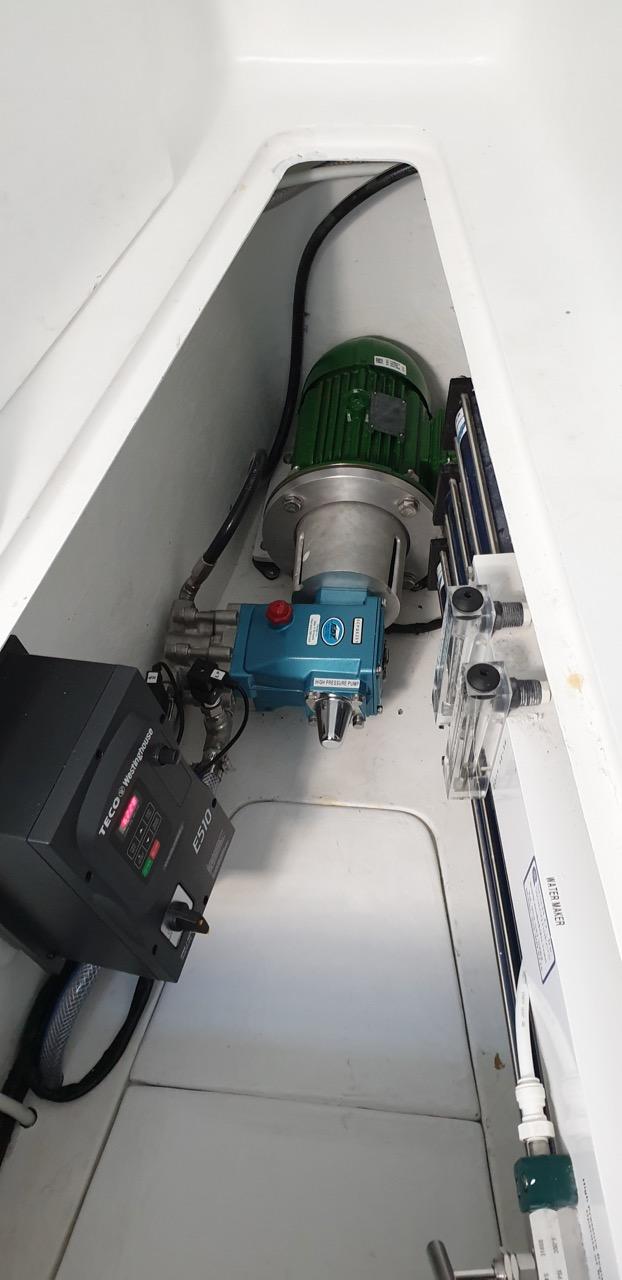

12. Water Maker – 1500 gpd SEA-R-O with automatic fresh water flush

DECK FITTINGS:

Hatches and Windows

1. Rear aluminum framed sliding door with tinted toughened glass
2. Forward aluminum framed door with tinted toughened glass
3. Tinted toughened glass forward and side windows
4. Tinted toughened glass hull windows in each cabin
5. LEWMAR hatches x 10
6. LEWMAR port lights x 10
7. OCEAN AIR Sky hatch screens x 6
8. OCEAN AIR Port-light screens x 10

STAINLESS STEEL (Grade 316):

1. Bow pulpits with seats
2. Stanchions and stanchion bases
3. Double guard wires
4. Stern push pits with brackets for horseshoe life buoys and lights
5. Swim ladders

Deck equipment

1. ANDERSEN 58ST Sheet winch, electric x 2
2. ANDERSEN 58ST Main Halyard winch, electric x 1
3. HARKEN Black Magic Blocks
4. Stainless steel mooring cleats x 10
5. HARKEN tracks and cars
6. SPINLOCK jammers and organizers
7. Trampolines

RIGGING:

1. 7/8 fractional rig
2. Anodized aluminum mast, boom, cross beam
3. Hayrack to boom for easier sail access and stowage
4. Mast supported by single spreader, intermediate and cap shrouds
5. Double purchase main halyard
6. Color coded sheets and control lines
7. Mainsheet system
8. Flag halyards
9. Laxy jacks
10. Luff pendants
11. Reefing lines
12. Deck flood light and spreader lights
13. Down lighting from top of mast and under spreaders
14. Navigation lights and VHF antenna
15. Boom internal dinghy lift system

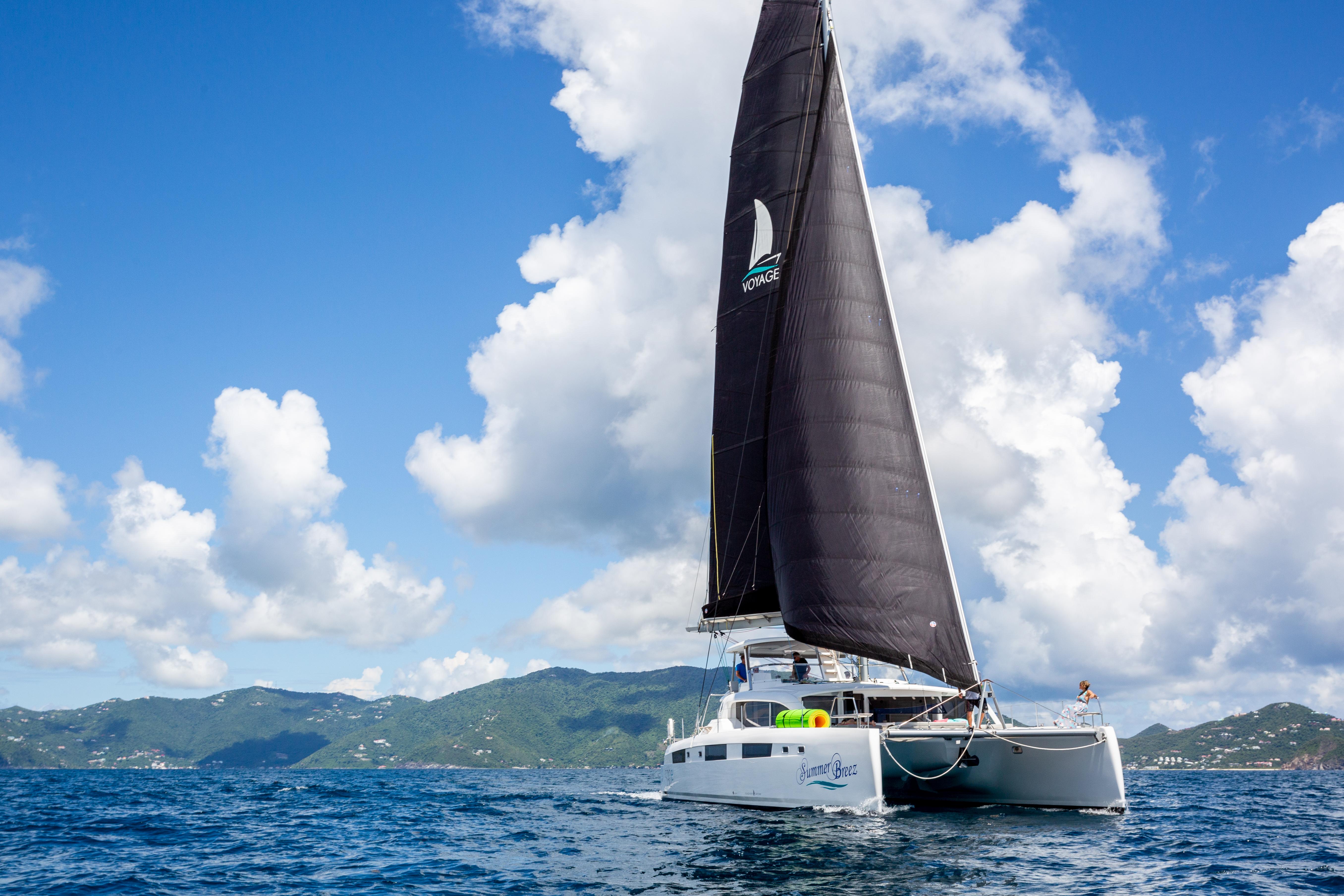

SAILS:

1. HARKEN Batt car system for mainsail
2. Mainsail stowage pack with lazy jacks
3. PROFURL Electric Genoa Roller Furler
4. ULLMAN Fully battened main, 3 reef points, High aspect cross cut BLACK Dacron with laminated leech
5. Headboard hook system for square top main sail
6. ULLMAN furling genoa with foam luff and UV cover, high modulus cross cut BLACK Dacron
7. Sheets and control lines

MOORING GEAR AND GROUND TACKLE:

1. LOFRANS 24V windlass
2. Anchor bridle with thimbles for anchoring
3. Anchor chain, 12mm, 80m stainless steel and 60 m nylon anchor rode
4. DELTA anchor, 63kg stainless steel
5. Two anchor rollers, one with tipper
6. Dock lines and fenders

Tender

• 15’ Rigid inflatable HIGHFIELD with center console and 60hp 4 stroke HONDA outboard
