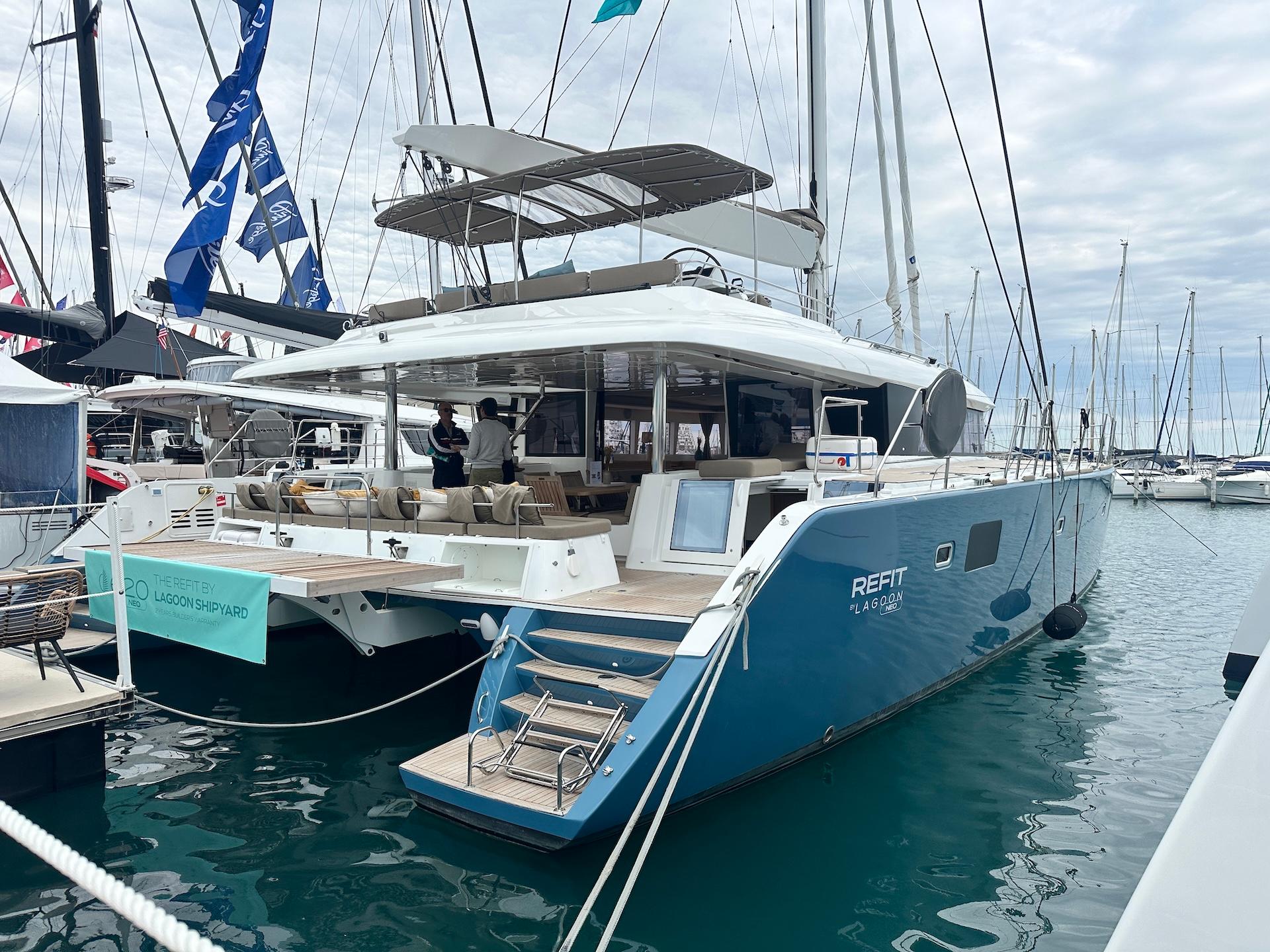

2012 Lagoon 620

LAGOON NEO

What is Lagoon NEO?

•   Official Lagoon refit programme – carried out by the Lagoon shipyard

•   Developed to bring used Lagoon yachts technically and visually up to new-build standard

•   Ideal for buyers who value quality, sustainability and a shipyard warranty

What makes Lagoon NEO special?

•   Comprehensive refit: technology, electrics, rigging, interior, comfort & safety – all checked and modernised

•   Certified & guaranteed With Lagoon shipyard certificate and 2 year warranty on key components

•   Sustainable Thinking: component re-use, resource efficient processes

•   Yacht is delivered fully operational

EQUIPMENT

• Polyester and high quality anti-osmotic resin

• Hull, deck and coachroof laminated by infusion

• Balsa core hull and deck, solid laminated under waterline

• Laminated or glued plywood composite bulkheads

• Awlgrip Stars & Stripes Blue painted hulls – NEW

• White gelcoat deck and roof with non-skid areas – NEW

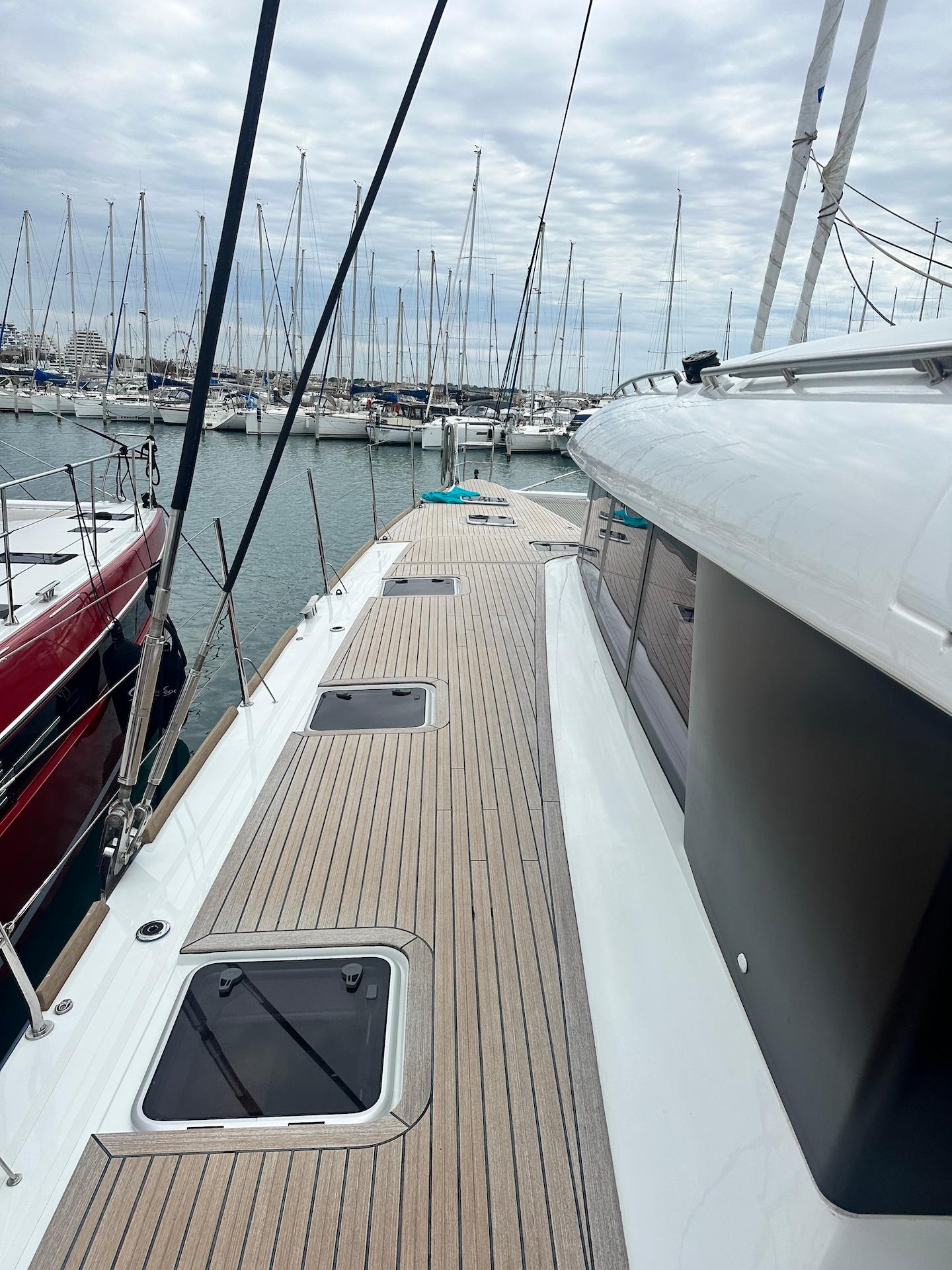

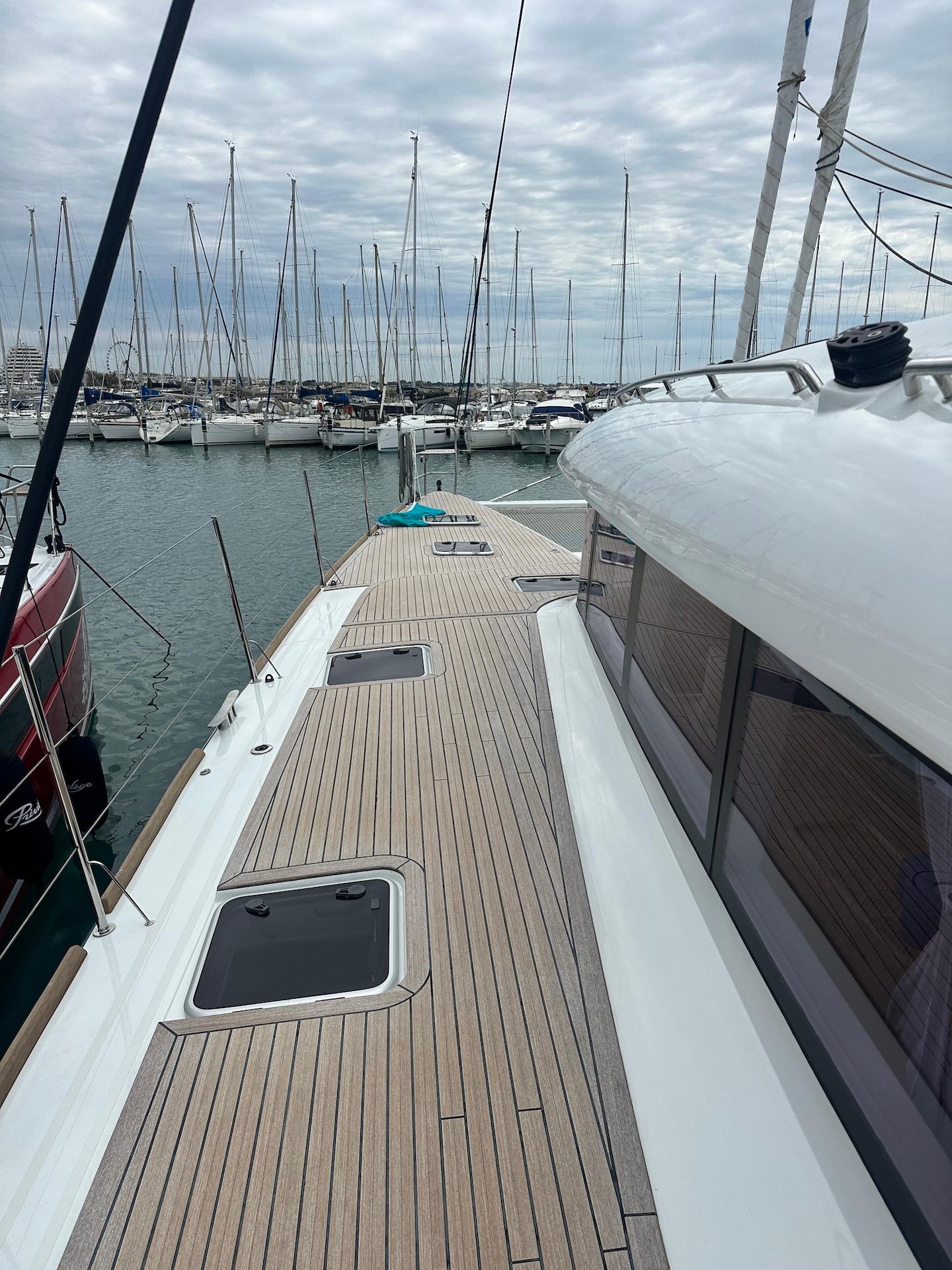

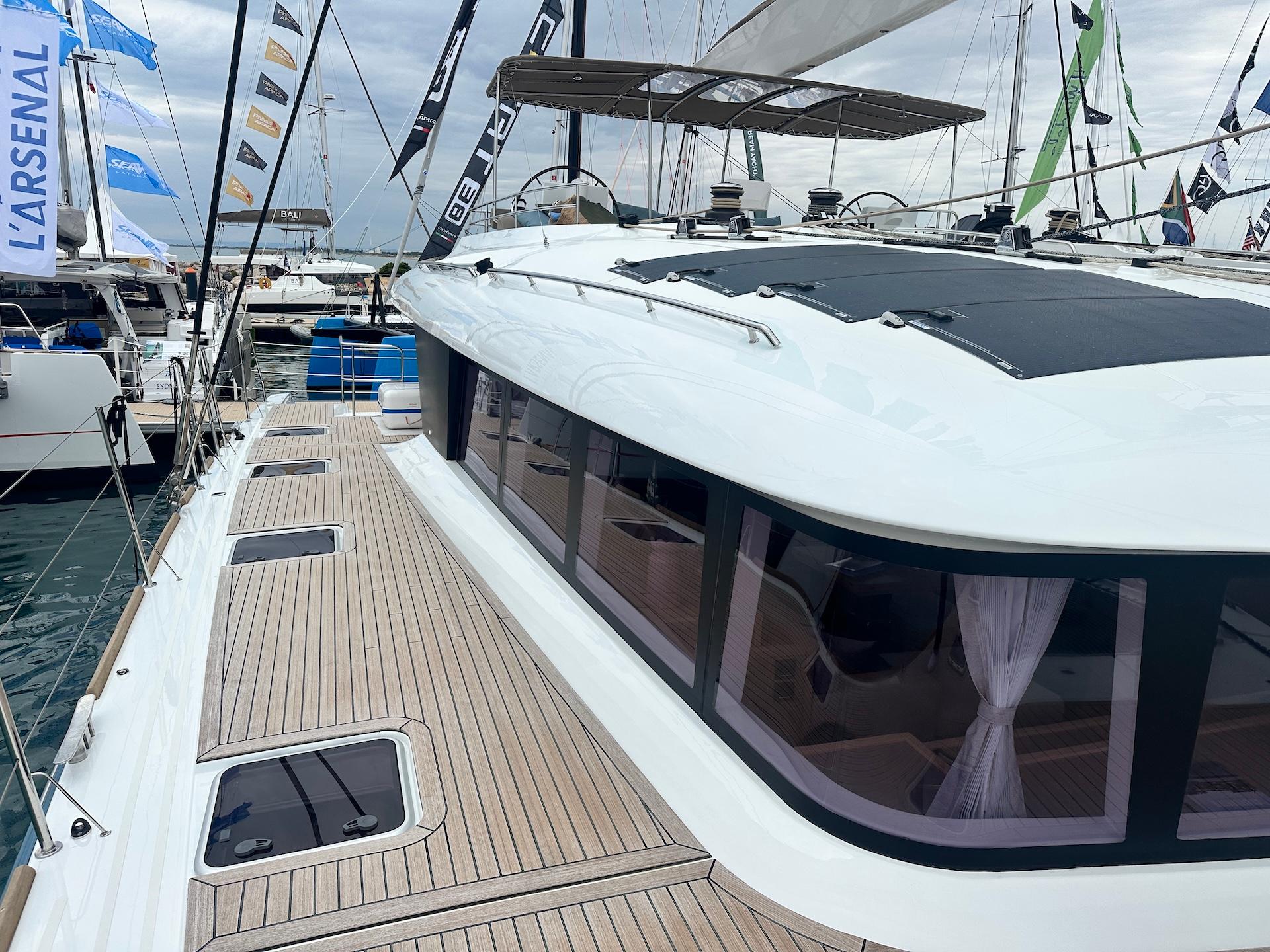

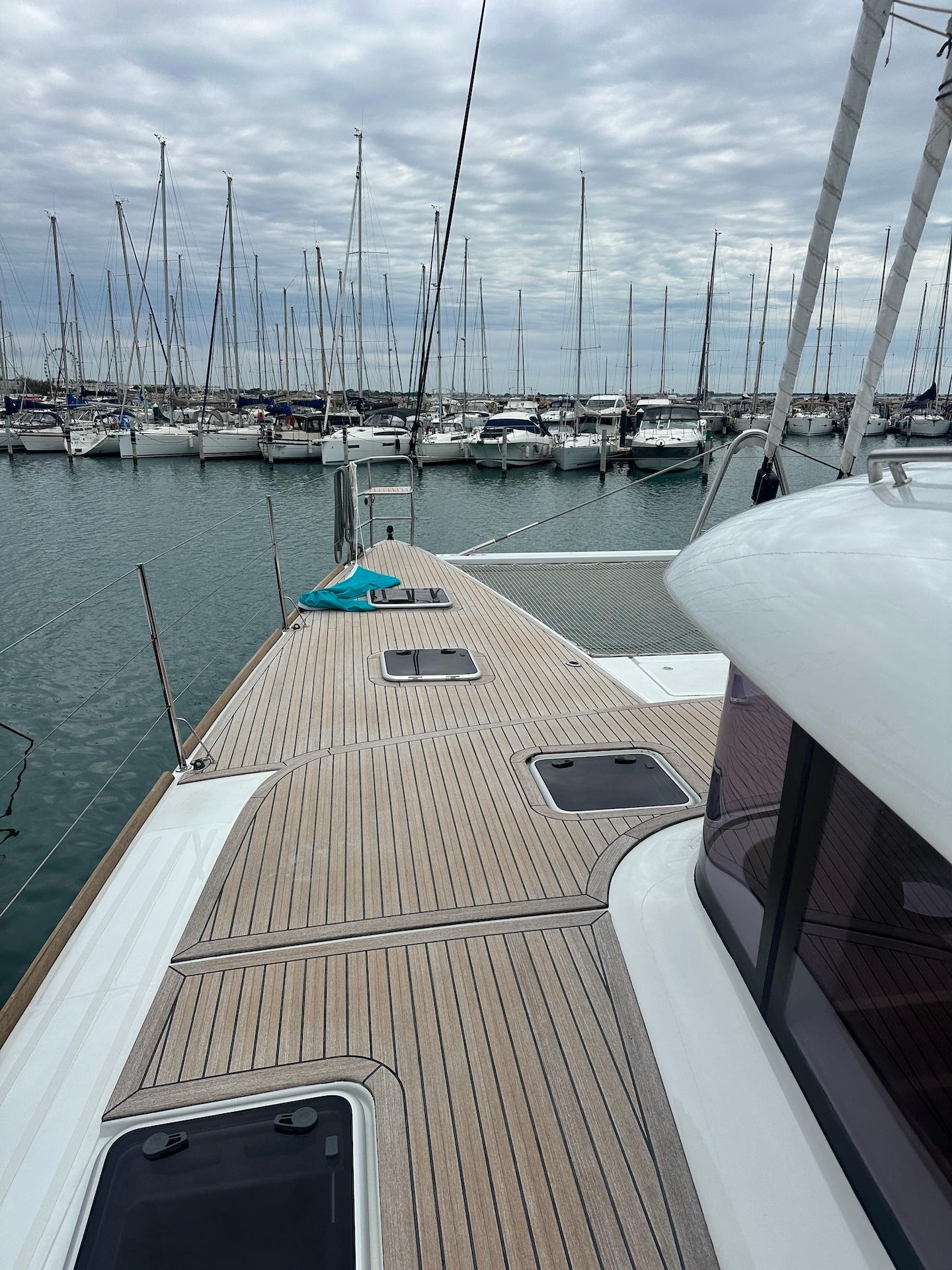

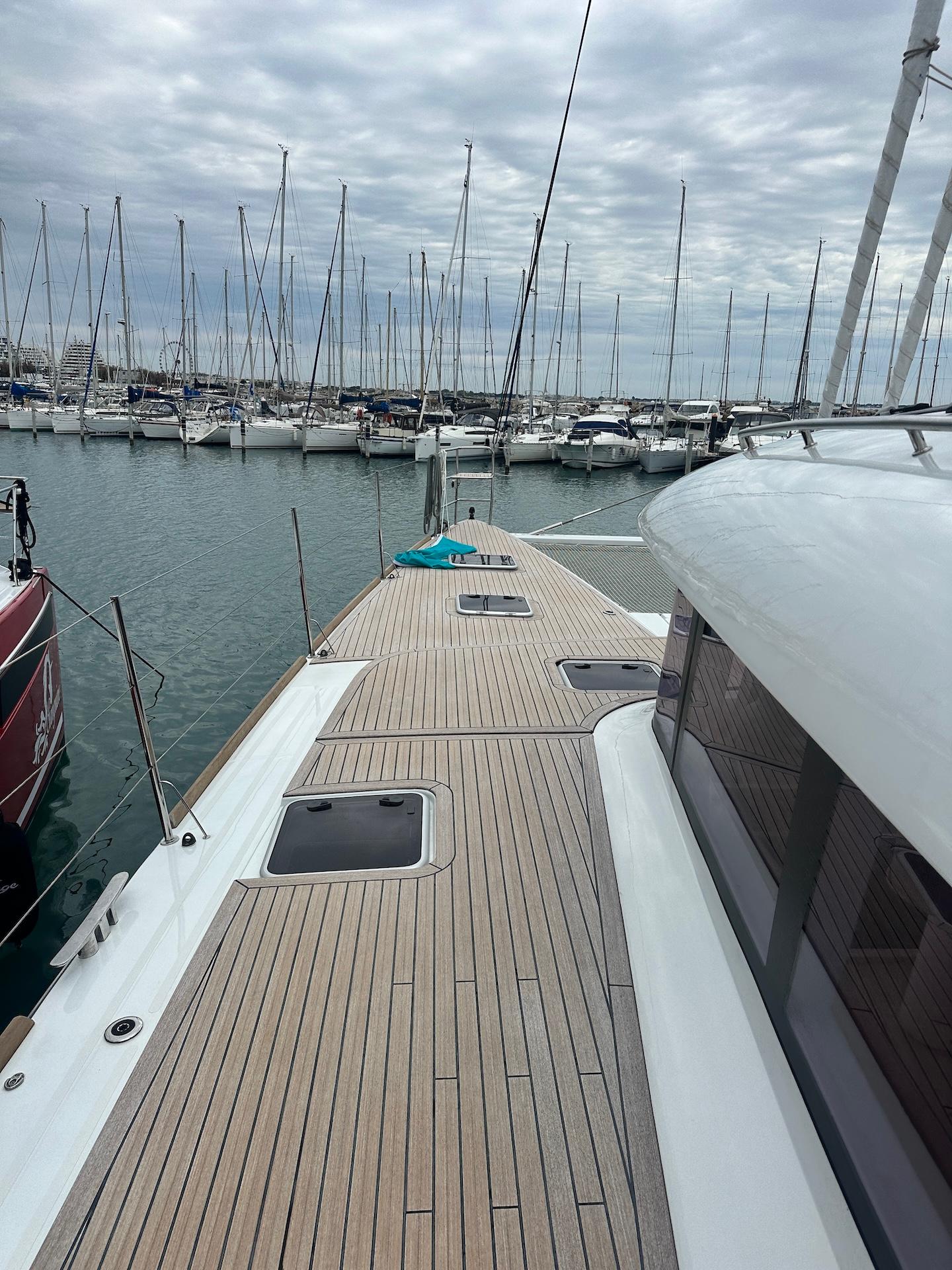

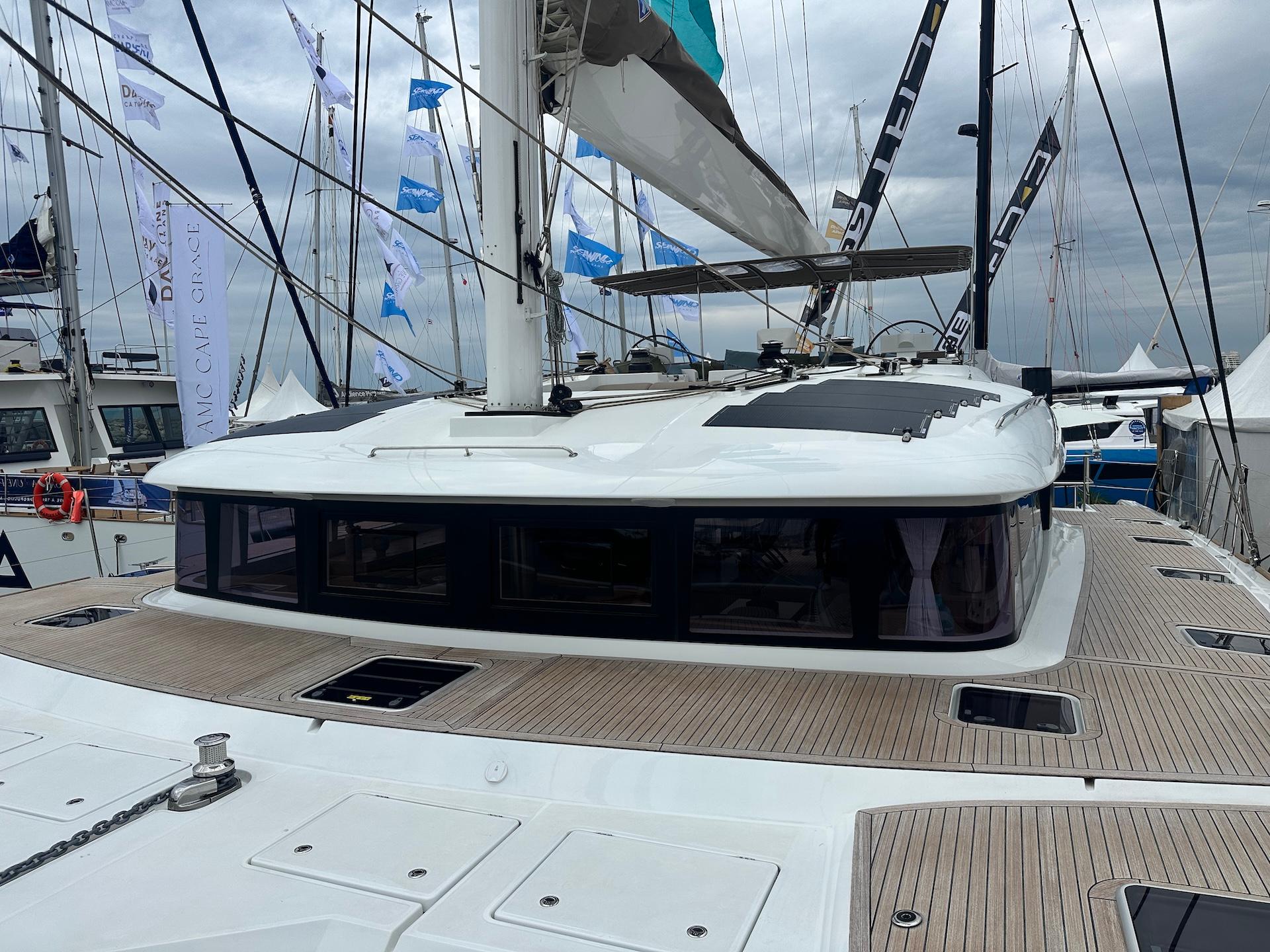

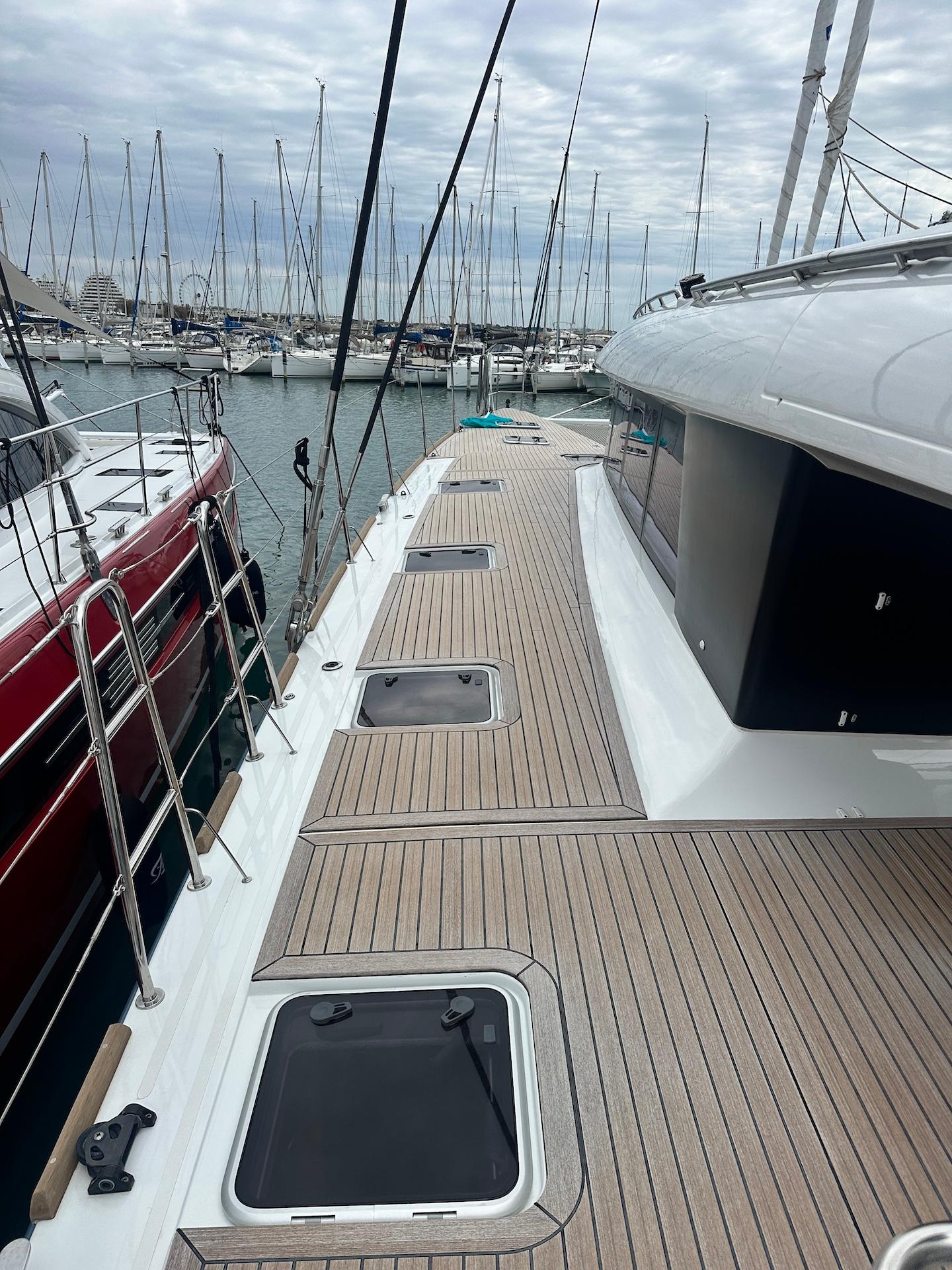

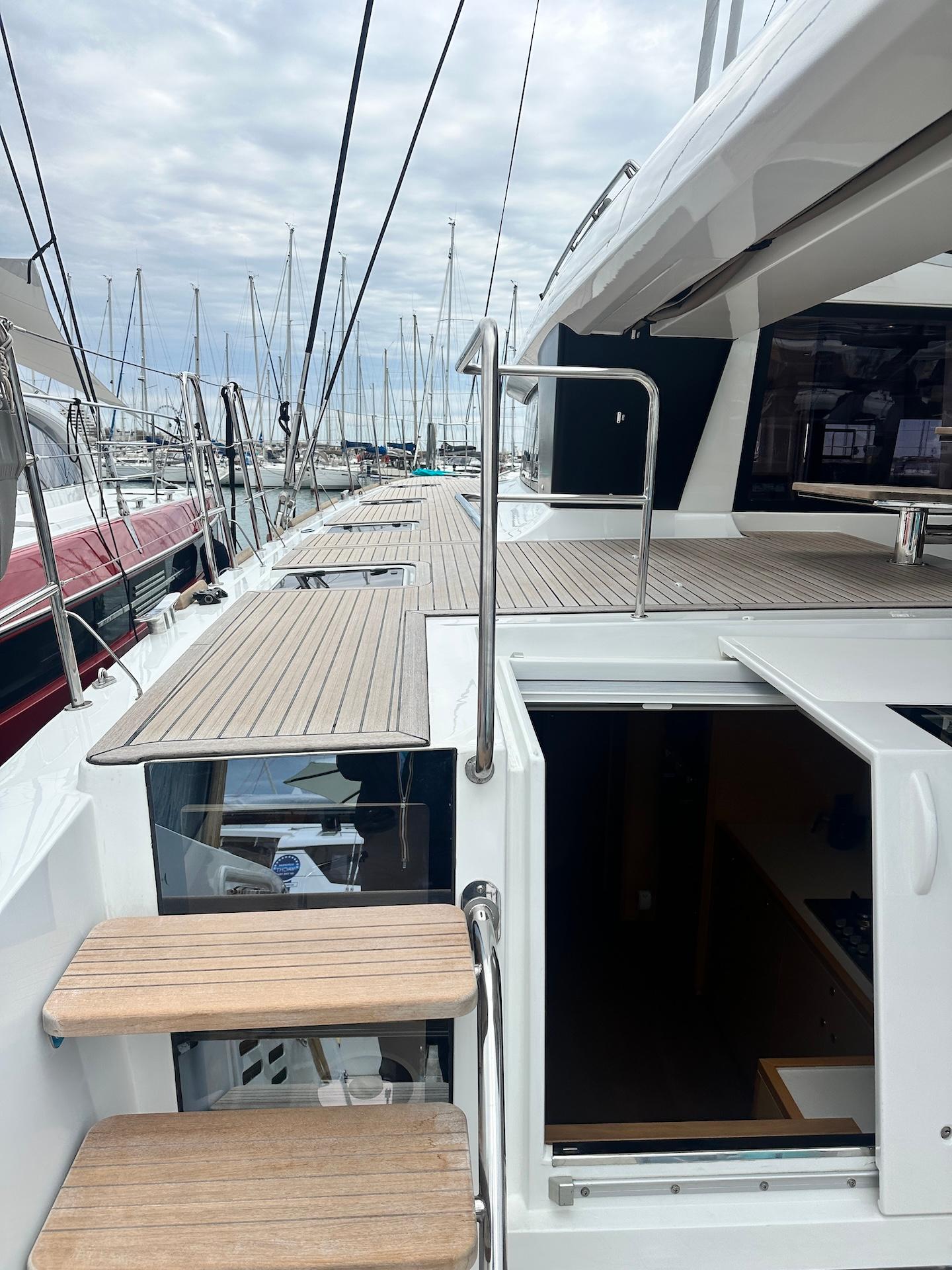

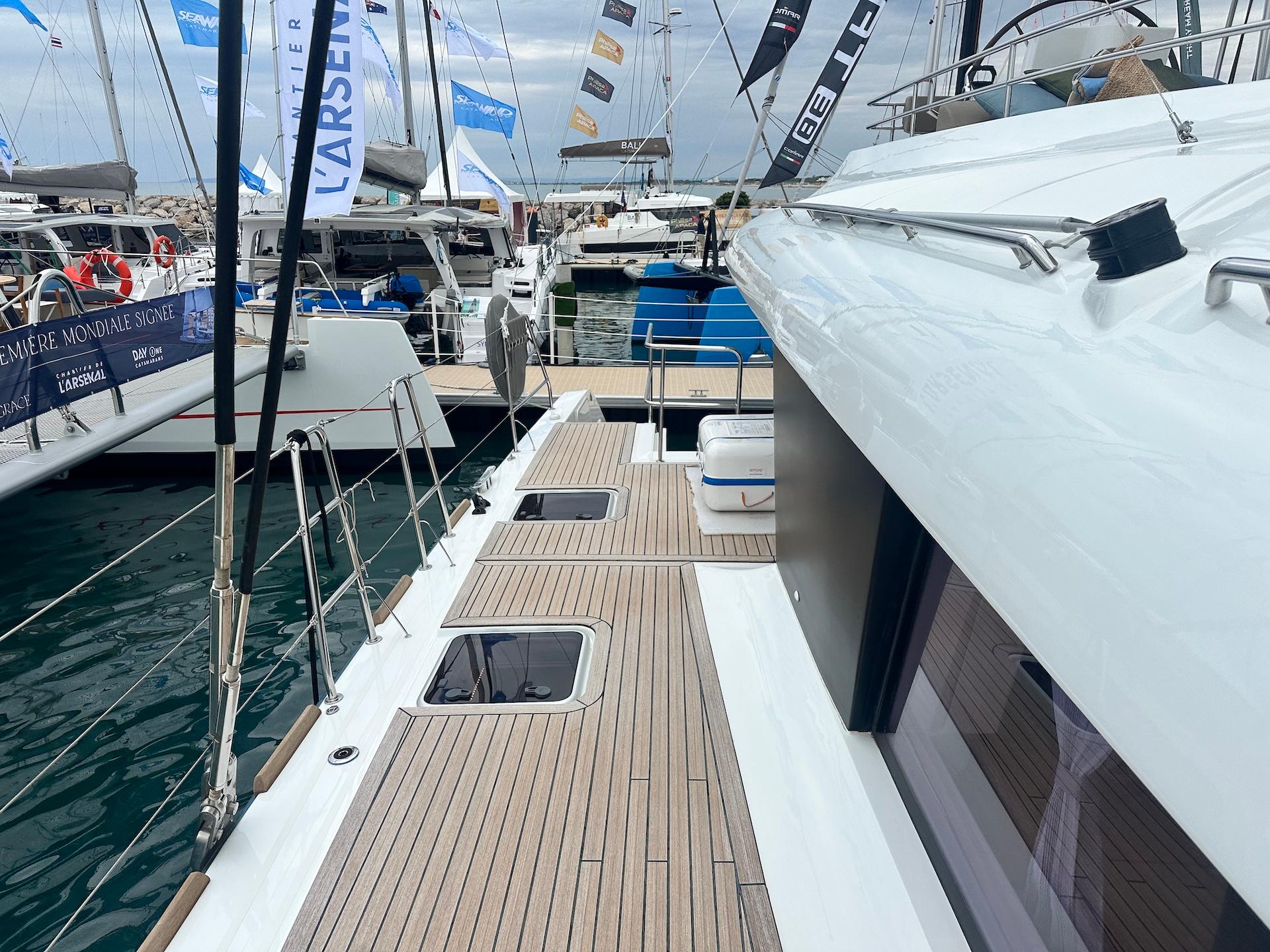

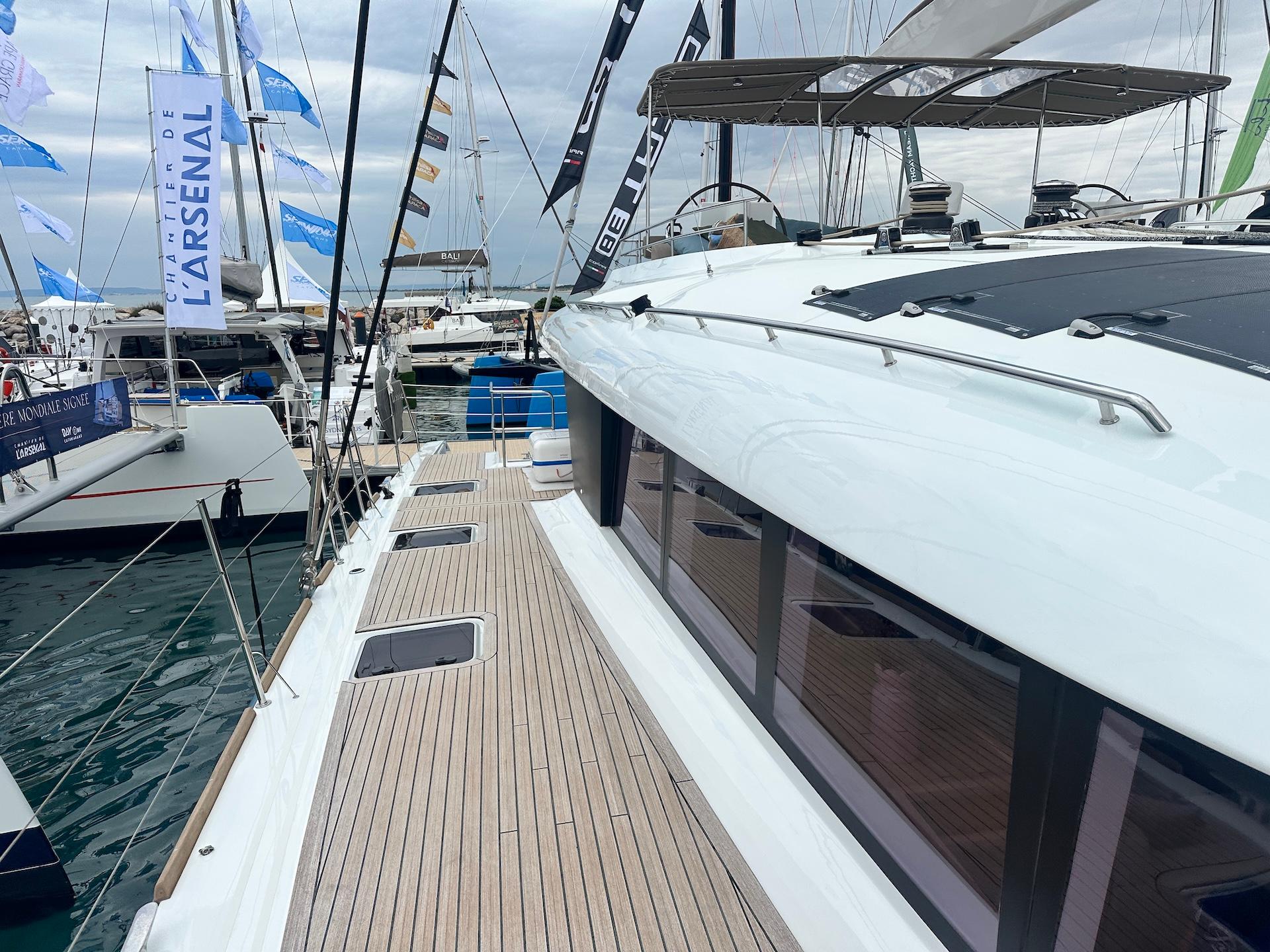

• Iroko deck on main deck – NEW

• Teak deck on flybridge

• 2 suspended rudder blades

• Hydraulic steering transmission

• Emergency tiller

sails

• Squared top, full battened, hydranet Mainsail – NEW

• Furling Hydranet Genoa – NEW

• Furling Hydranet Staysail – NEW

standing rigging

• White painted aluminium mast

• White painted carbon canoe boom

• 2 spreaders stages rig

• Coated shrouds – NEW

• Electric furling forestay for genoa – NEW

• Electric furling stay for staysail – NEW

• Ajustable lazy-jacks – NEW

running rigging – NEW

• Mainsail halyard

• Genoa halyard

• Staysail halyard

• Mainsheet

• 2 genoa sheets

• 2 staysail sheets

• 3 reefing lines

• Mainsail sheet led back to winches via boom

• Boom uphaul

• 4 electrical winches Harken® 80.2

• Footblocks & clutches for halyards, reefing lines and sheets

• Genoa car on port and starboard

• White painted aluminium crossbeam with fixing point for the genoa forestay – NEW

Composite longitudinal Frontbeam with integrated chain run, anchor spade 55kg (NEW) and mooring cleat

• 10 mooring cleats

• Lewmar® 2000W / 24V electrical windlass with vertical axis, chain 14 mm – NEW

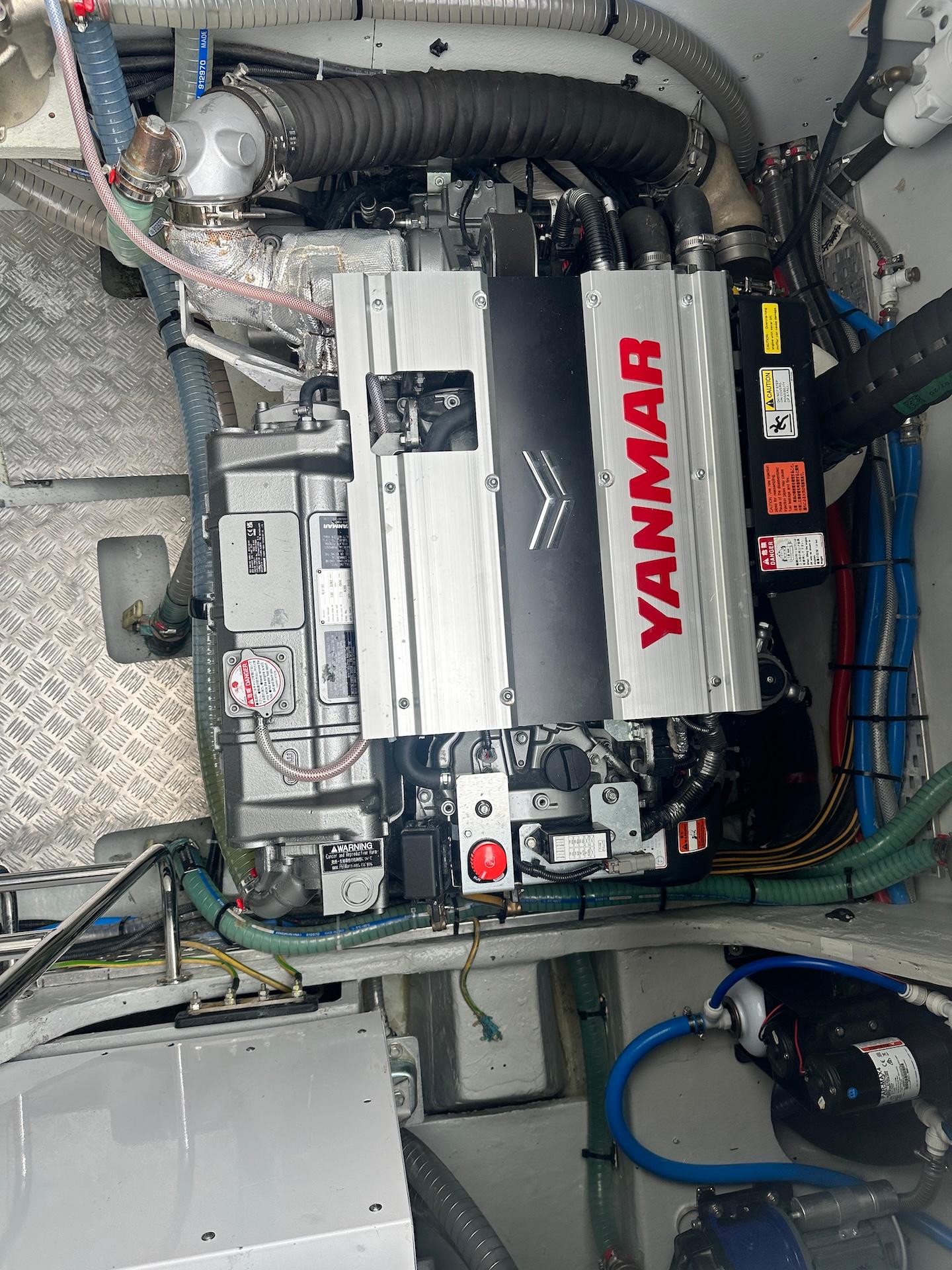

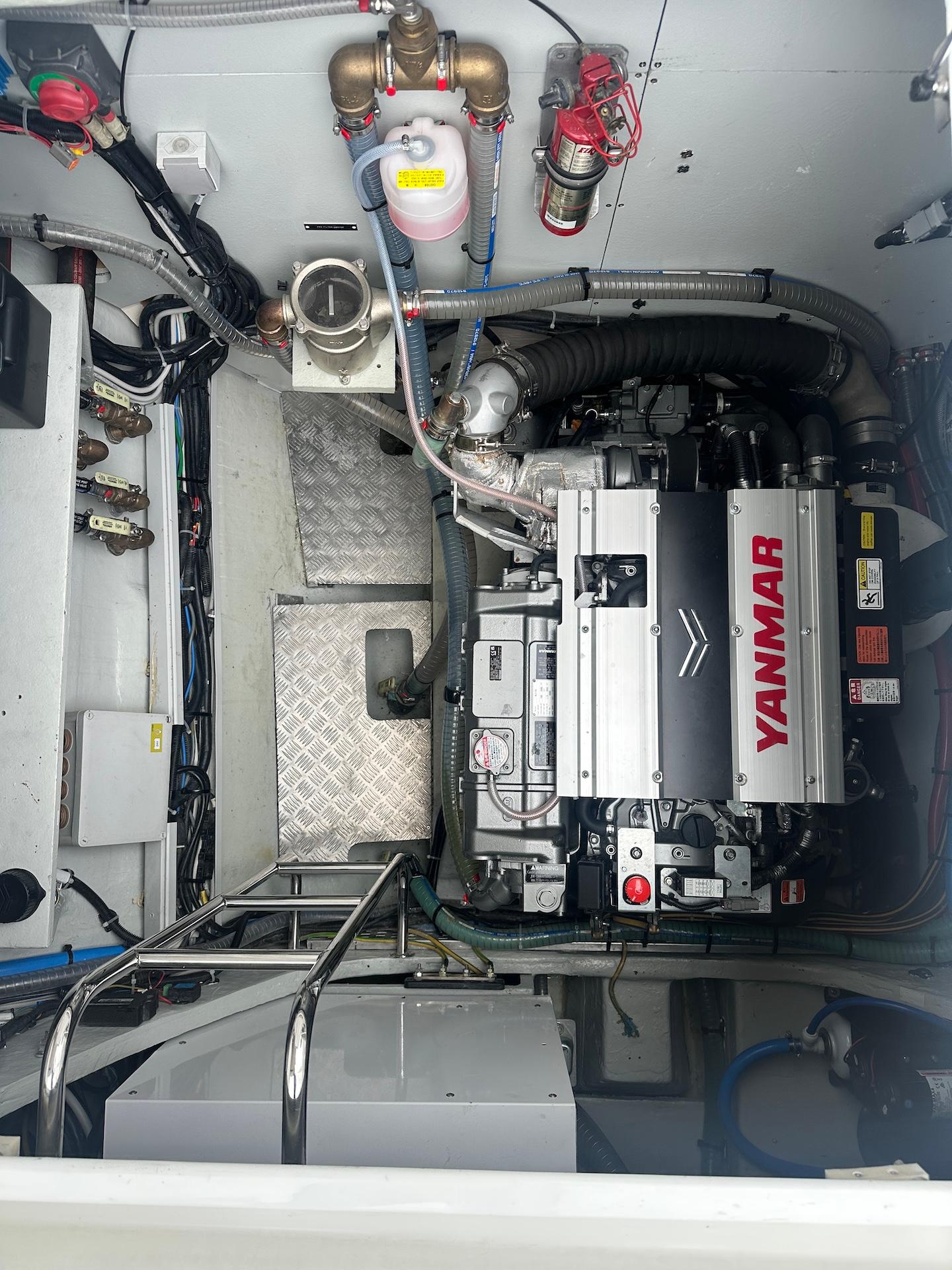

• 2 diesel engines Yanmar® 4LV150 150CV – NEW

• Foldable 4-blade Flexofold® propellers – NEW

• Sea water filter

• Electrical engine throttles at the 2 helm stations

• Engine compartment ventilation: 24V electrical extraction in the aft transom – NEW

• Fuel circuit:

– 2 tanks of 650L / 172 US gal

– Fuel filter systems

– Fuel shut off valve

– Gauge at the general control panel on touch screen

• 1 hydraulic Max Power® bow thruster on starboard – NEW

fresh water circuit

• Fresh water tank: 960L with gauge at the chart table

• Fresh water circuit with 1 main water group 36L/mn – NEW

• 2 water heaters 60L / 12 US gal water heater – NEW

• UVOJI UV water disinfection for galley tap – NEW

• 1 Watermakers : 1x BlueWater® 1850 (220V, 290 L/h) – NEW

• Grey water drainage cockpit and salon direct to the sea

• Shower and sink draining integrated into shower tray composite.

Dedicated unitary pump.

black water circuit

• Black water holding tanks: 4 x 110L + 50L (forward peak)

• Tank drain by gravity or deck plate

• Electric toilet freshwater

bilge pump circuit

• 1 manual bilge pump per hull

• 1 automatic pump per forward peak

• 1 automatic and electric bilge pump in each engine compartment

• Connection of the engine compartments and forepeaks to the main pump and sump

• Bilge pump management on general control panel

• Self-draining cockpit compliant with EC certification

• Seanapps® connectivity – Battery voltage and GPS position on mobile app – NEW

• Raymarine® Navigation Pack – NEW

dc power circuit – 24V

• 2 engine starting batteries 50Ah (AGM) – NEW

• 1 generator starting battery 50Ah (AGM) – NEW

– 1 dedicated charger 25A

– 2 alternators 24V – 100A

– Battery shutoff switch in each engine compartment + 1 coupling

• 5 Victron® service batteries 200Ah (Lithium) – NEW

– 2 Dolphin® chargers 24V – 100A – NEW

– Battery shutoff switch in each engine compartment

electric distribution panel

• 24V general distribution panel

• USB socket 24V included in the electrical panel and helm station

• Scheiber multiplexing with navicolor display and Yatch Management System via Raymarine

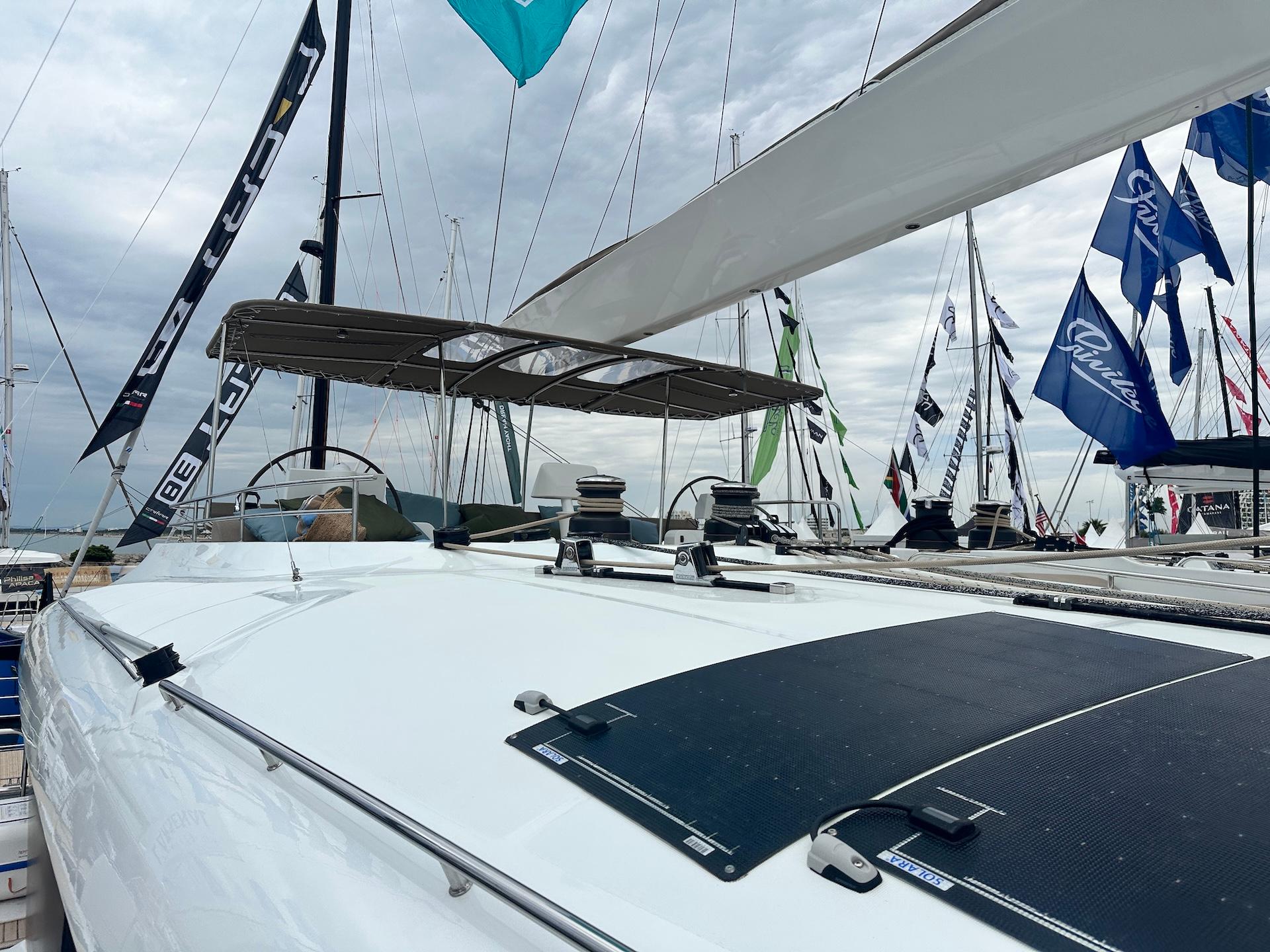

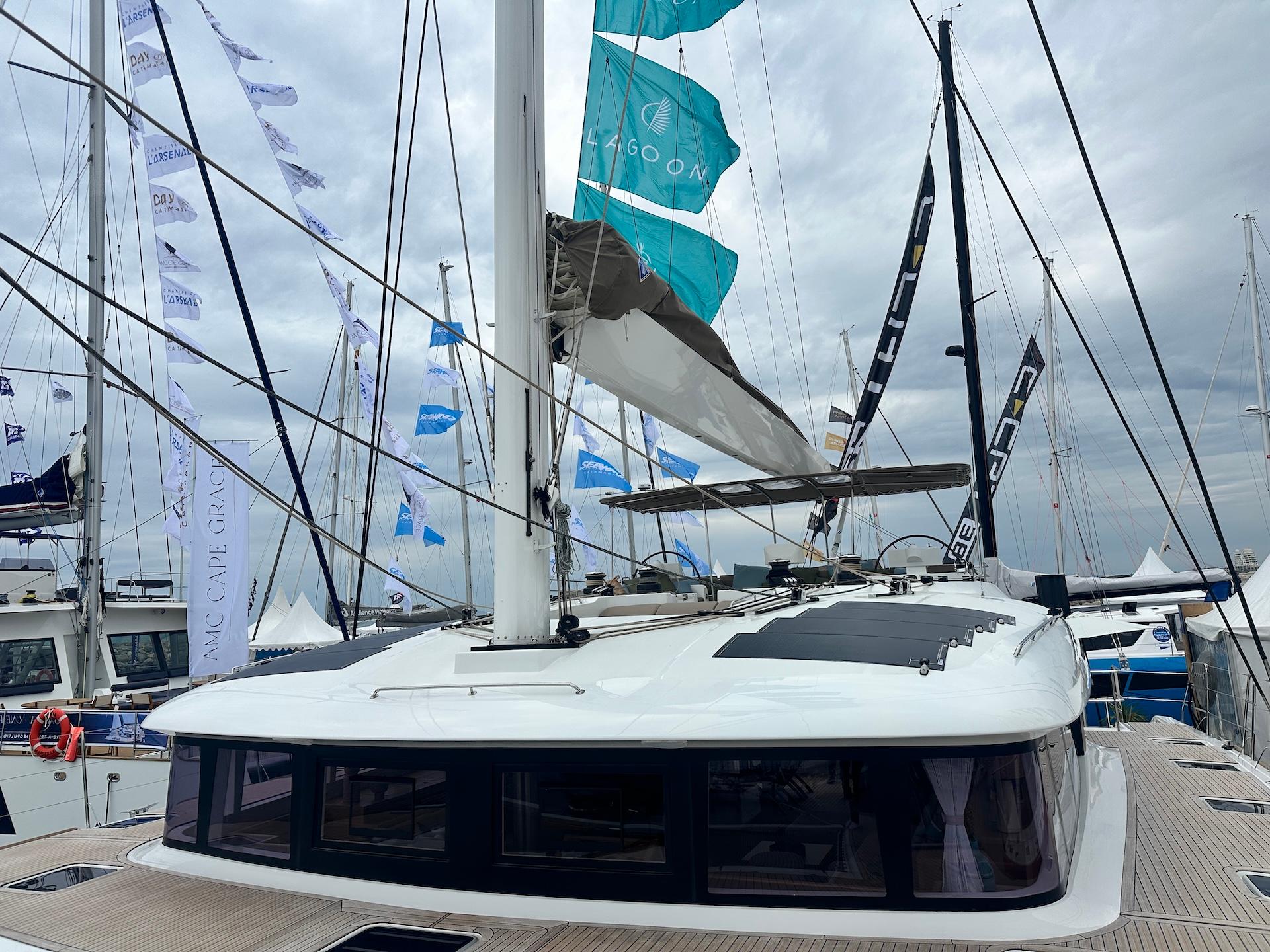

• Solara® Solar panels 8 x 115W – NEW

220V ac circuit

• Inverter 24/220V 50Hz 5000VA

– NEW

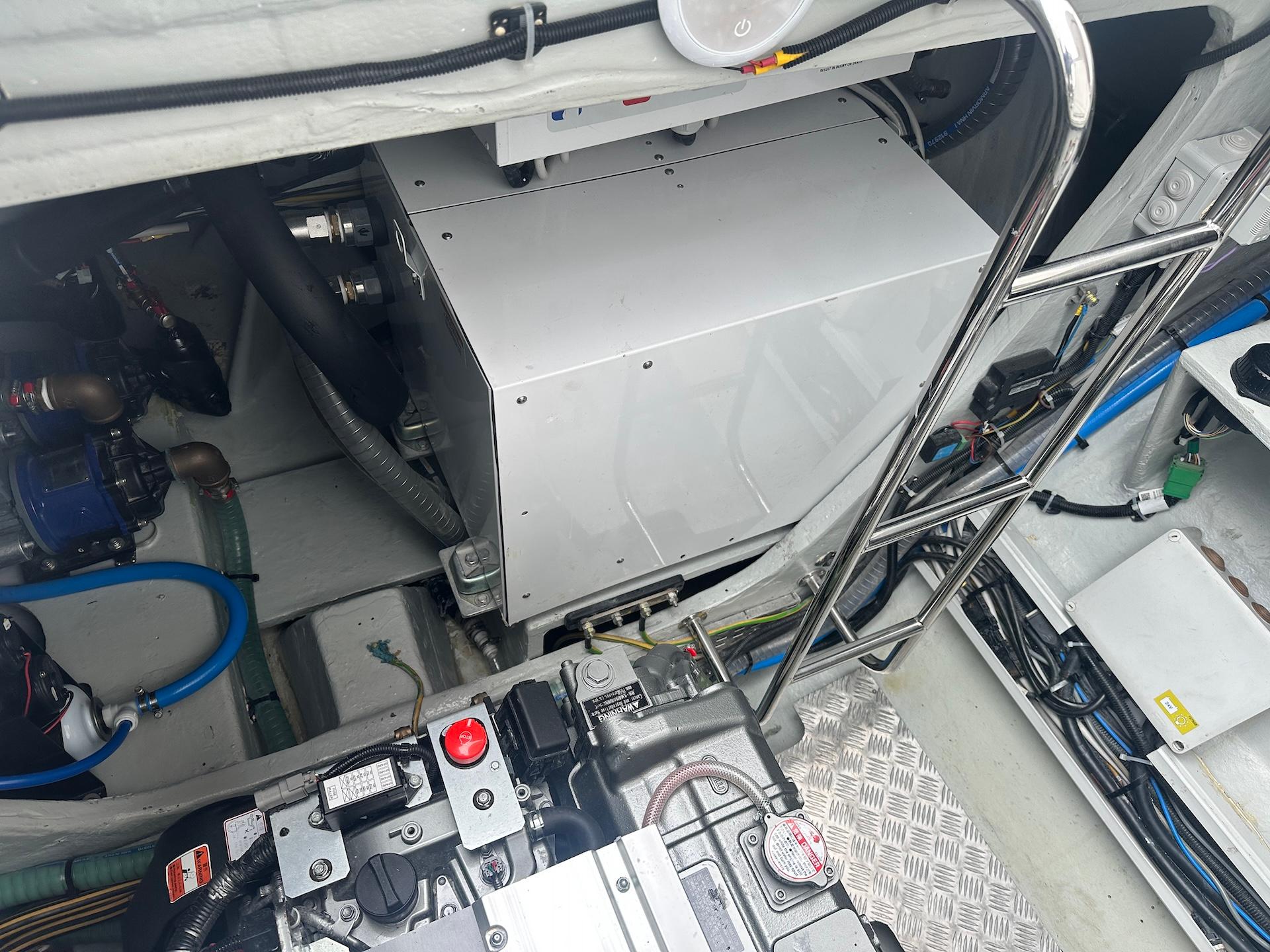

• Onan® Generator set 19 kVA – NEW

• Sources selectors via Scheiber

lighting

• LED interior lighting and reading lights

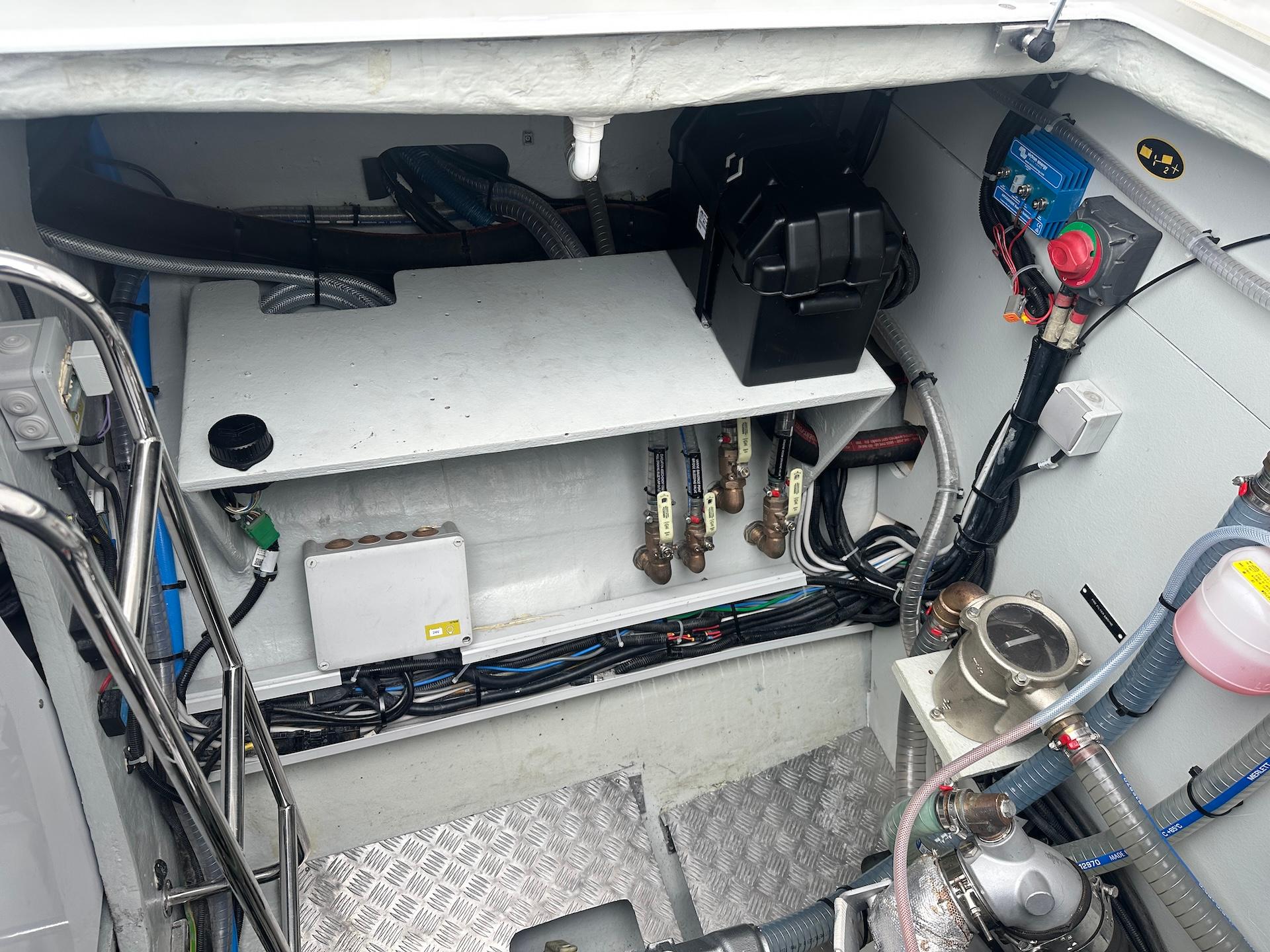

• Lighting in engine compartment

• LED navigation lights

Air conditioning

• Webasto® 77,000 BTU – NEW

Audio Video

• LCD TV screens in all cabins and salon – NEW

• Fusion® audio display in all cabins and salon – NEW

Hot/cold deck shower on port and starboard side

• S/S telescopic swim ladder with fixed handles on starboard side

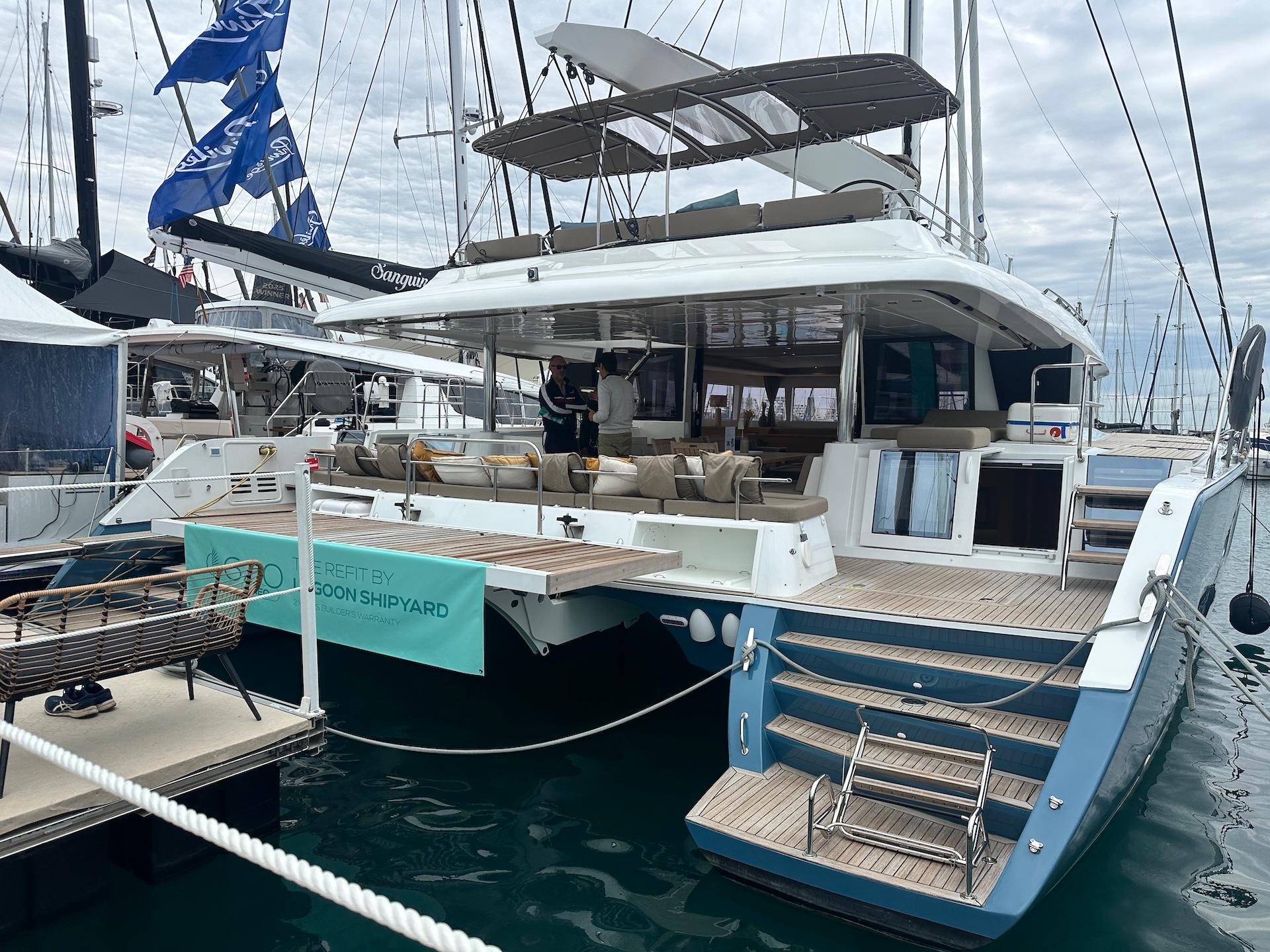

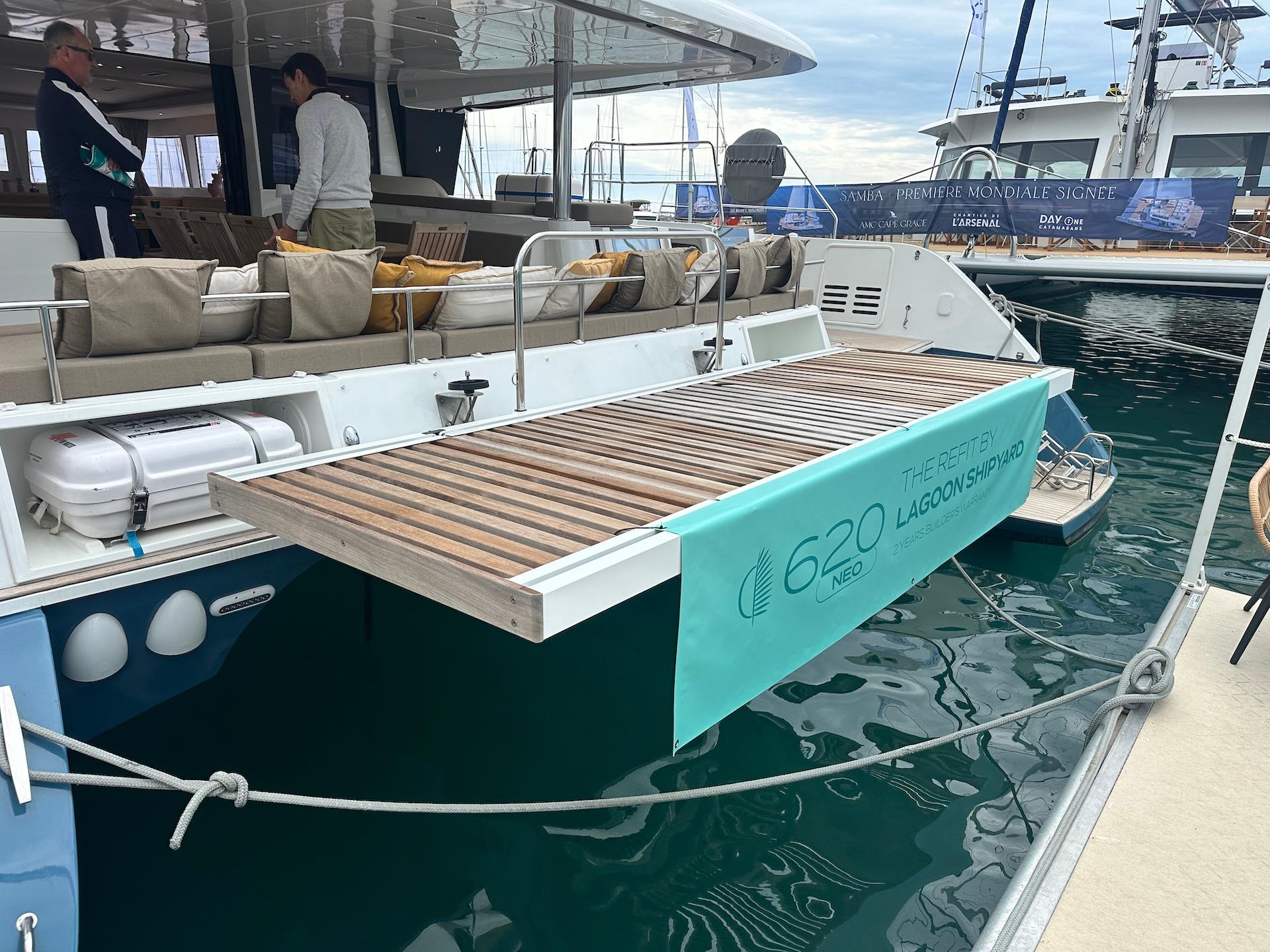

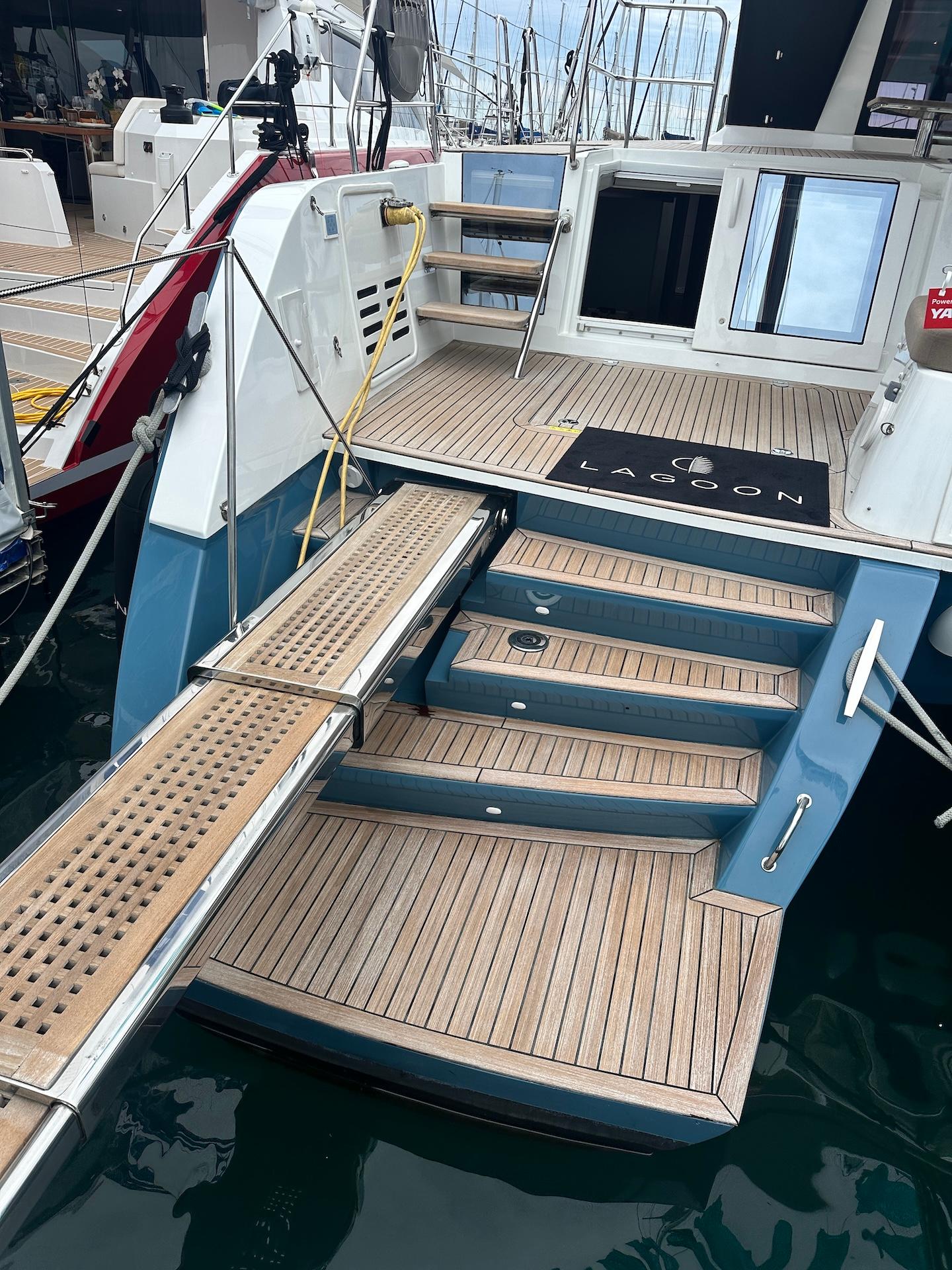

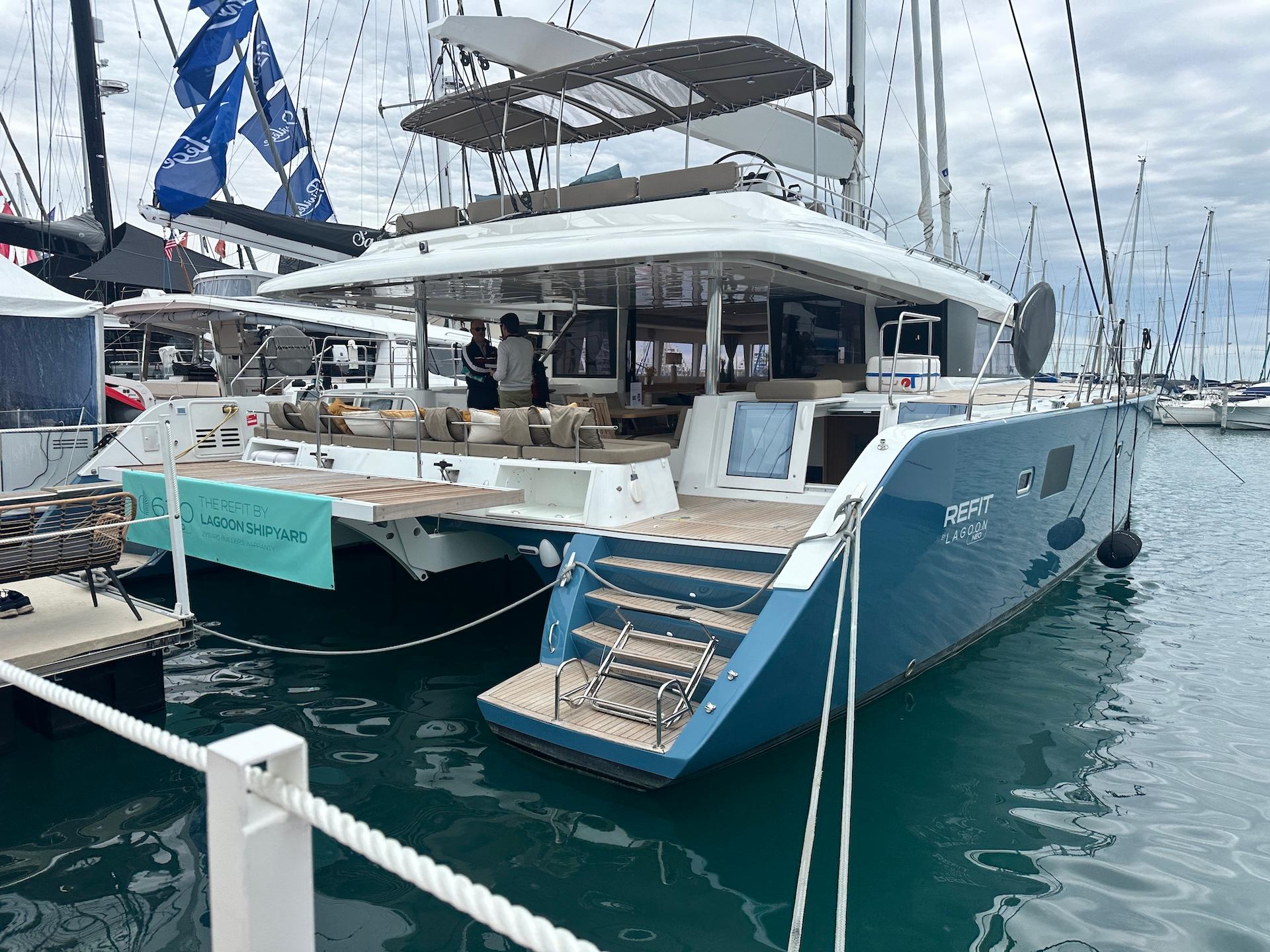

• Hydraulic Tenderlift® platform

– NEW

NEW carpets

• Hydraulic Opacmare® gangway on starboard side

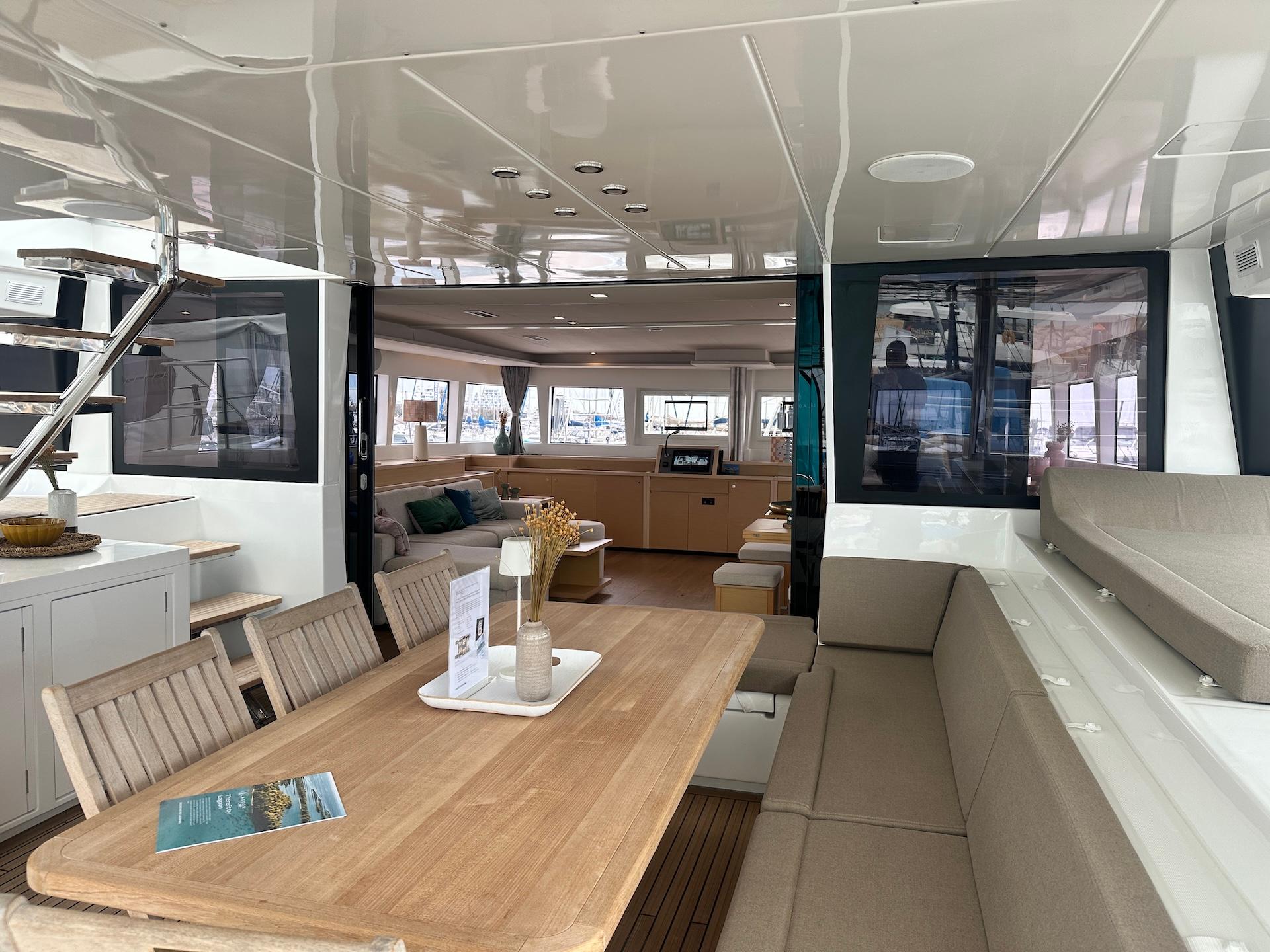

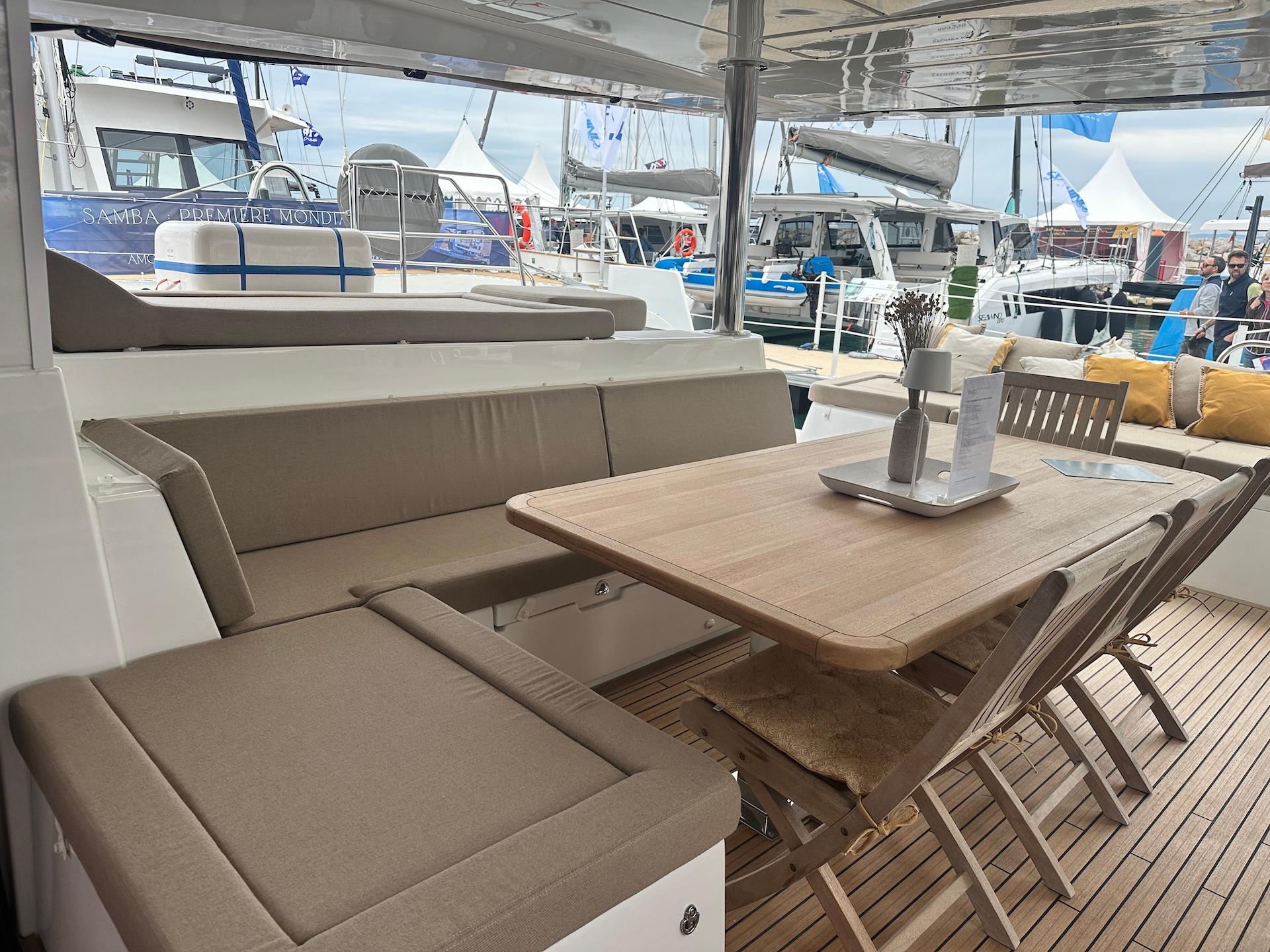

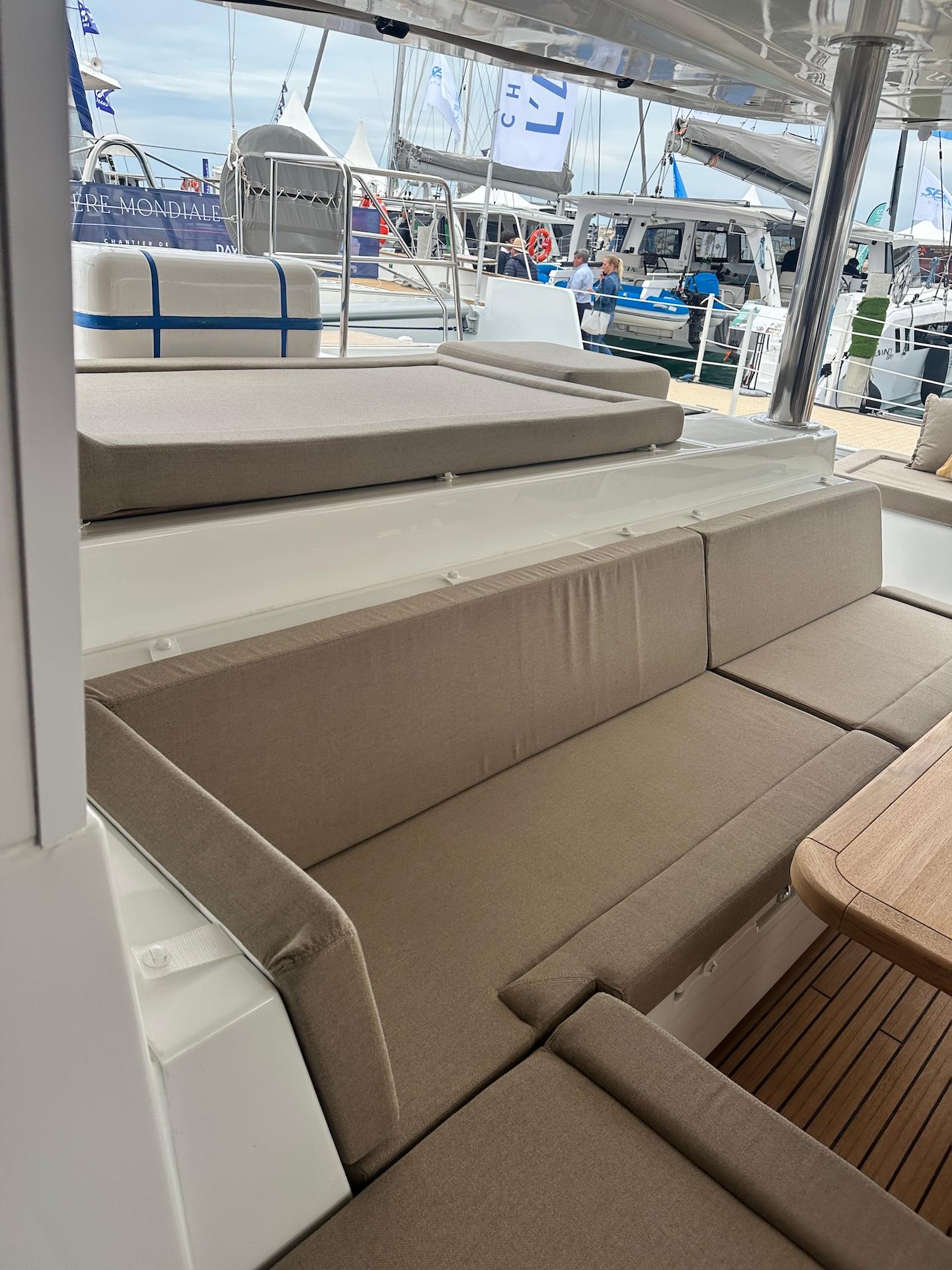

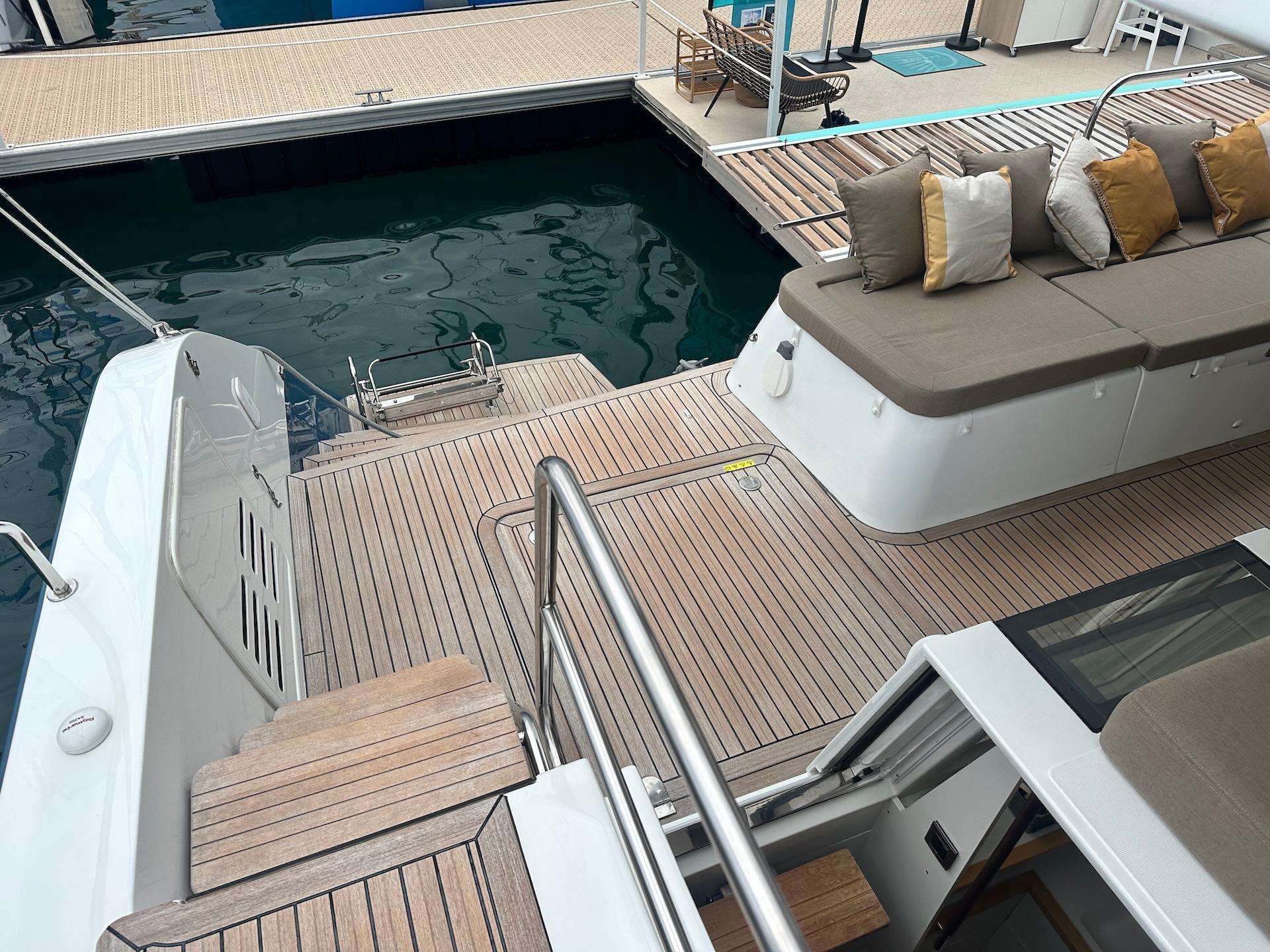

aft cockpit

• Seating and lounging area on port and starboard sides

• Teak cockpit table top – NEW

• Cockpit flush-decked with saloon

• Iroko cockpit floor – NEW

• Self-draining cockpit with wooden grating

flybridge

• Stairway access from cockpit on portside

• Double helm seat

• L-shaped seating area with storage lockers

• Sunbathing area forward of flybridge

• Steering wheel ø900mm

• Engine throttles and panel

• Console for screen and instrumentation

• Storage bag for halyards

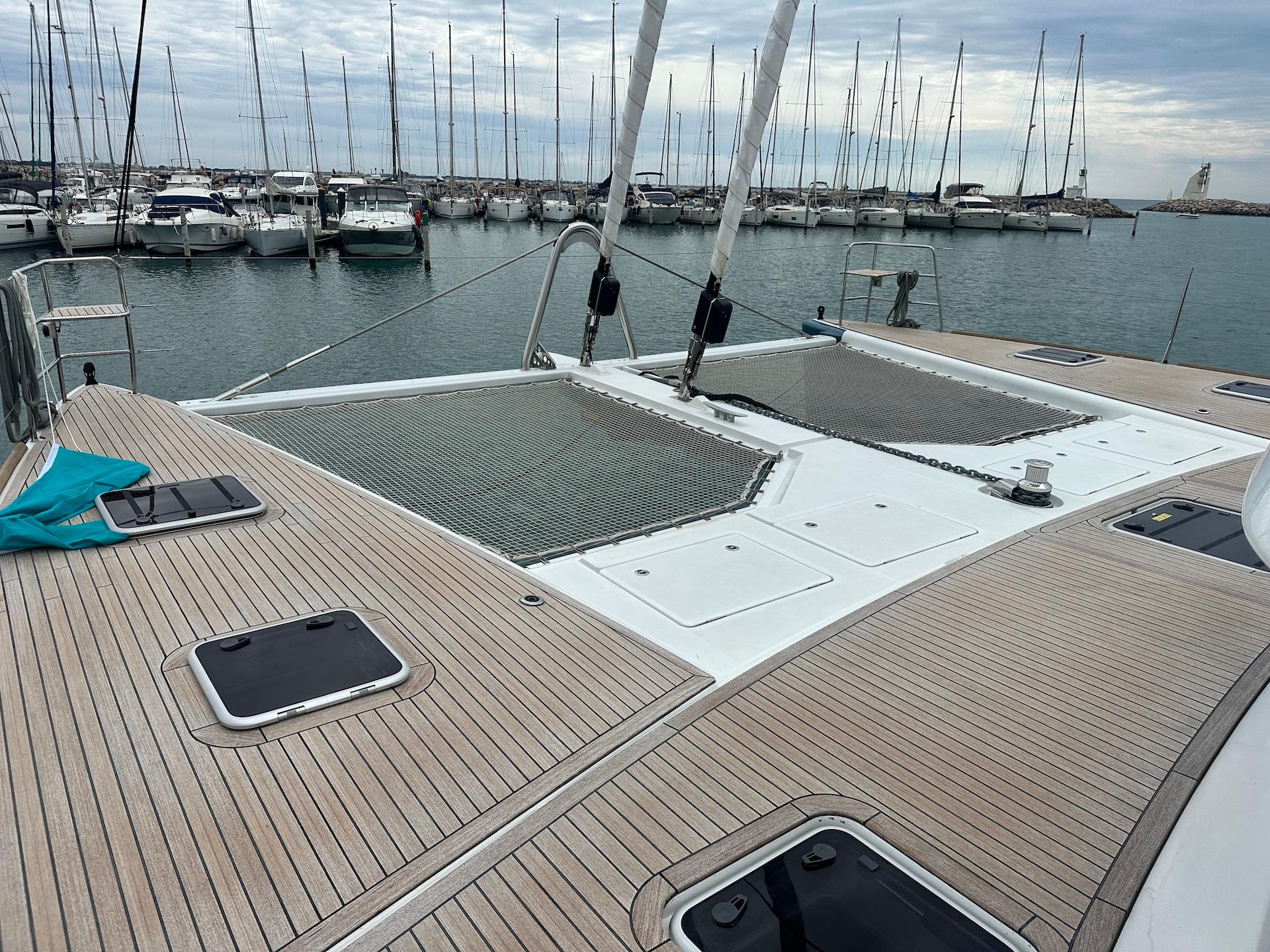

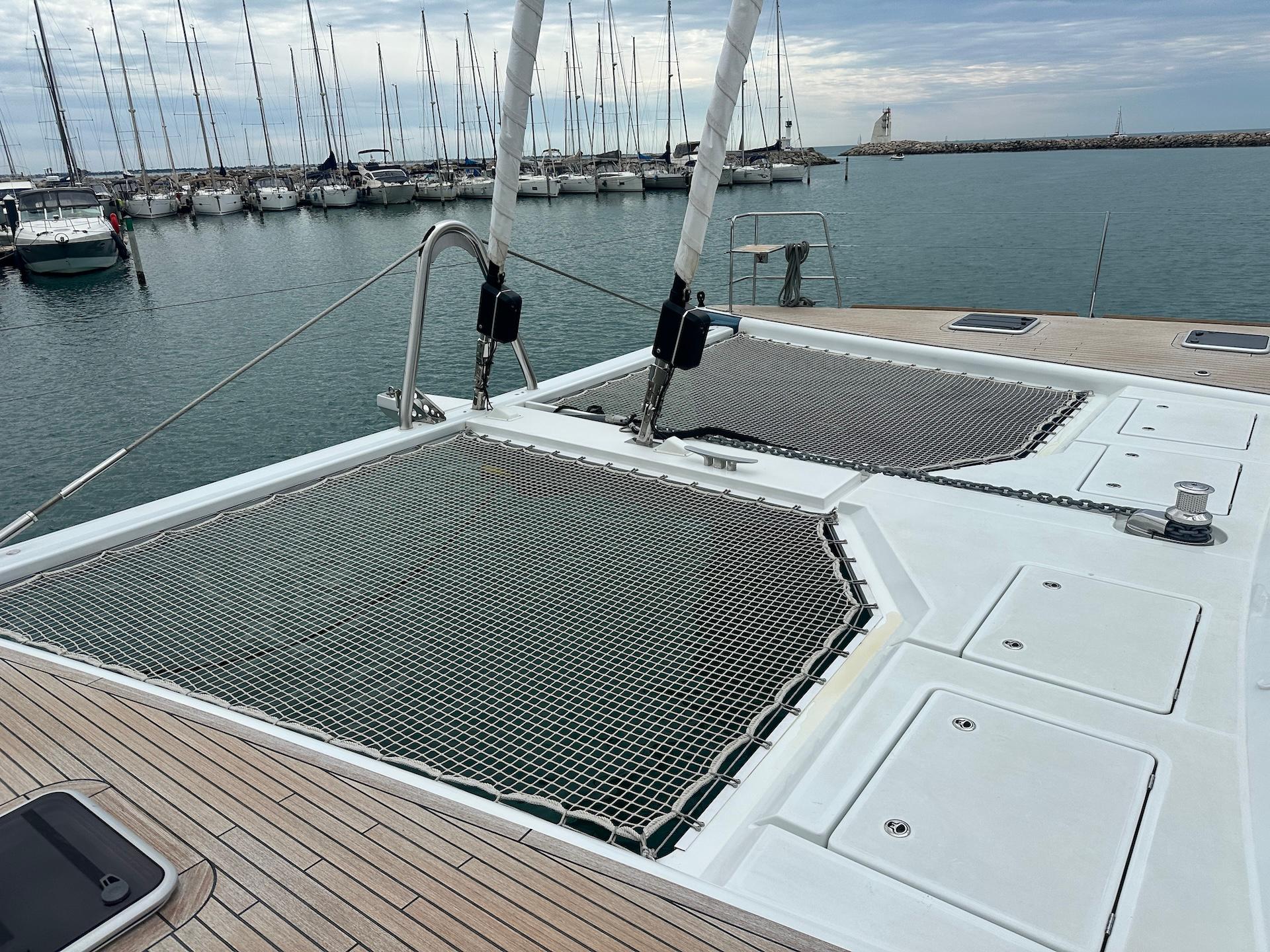

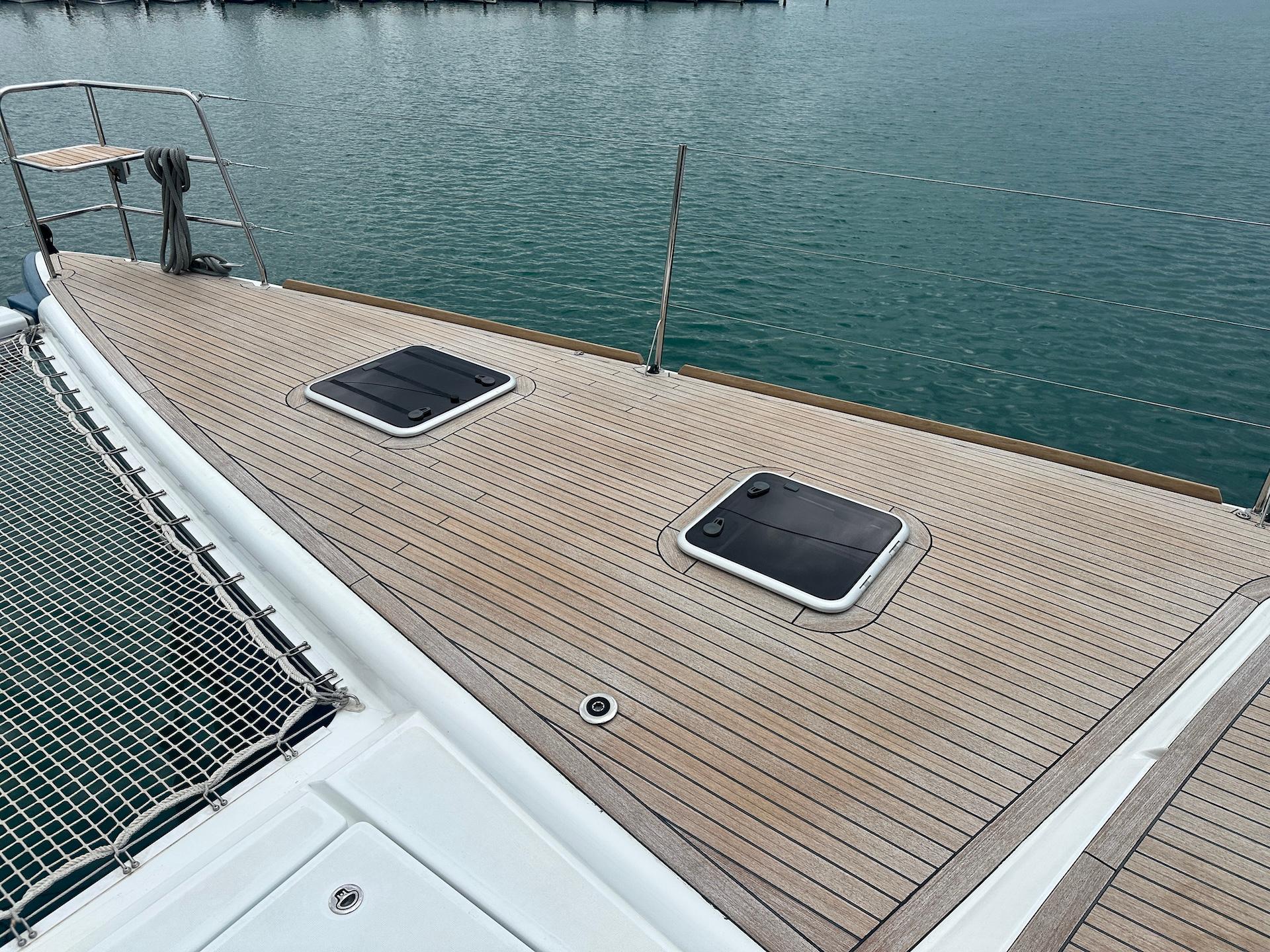

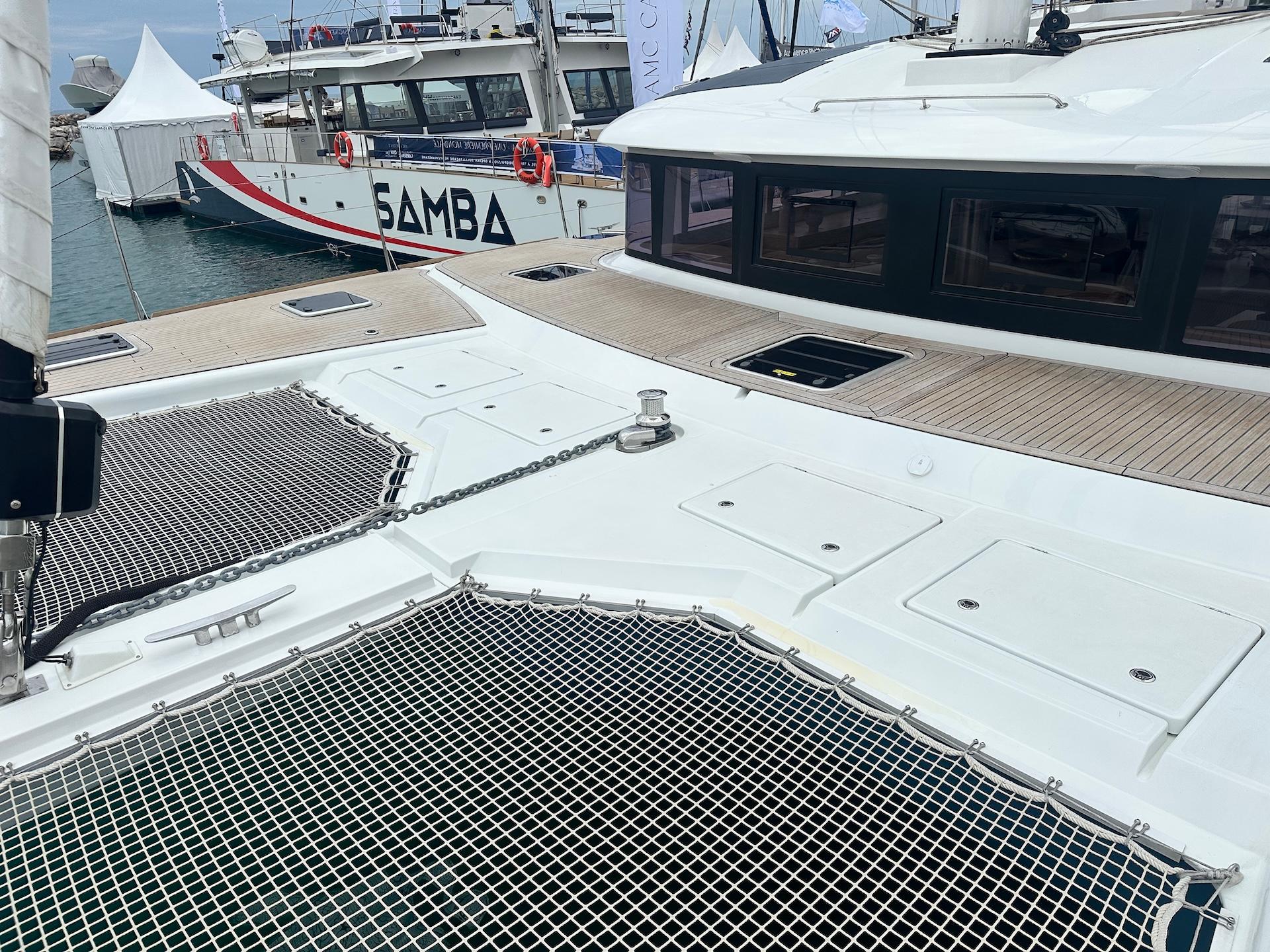

forward cockpit

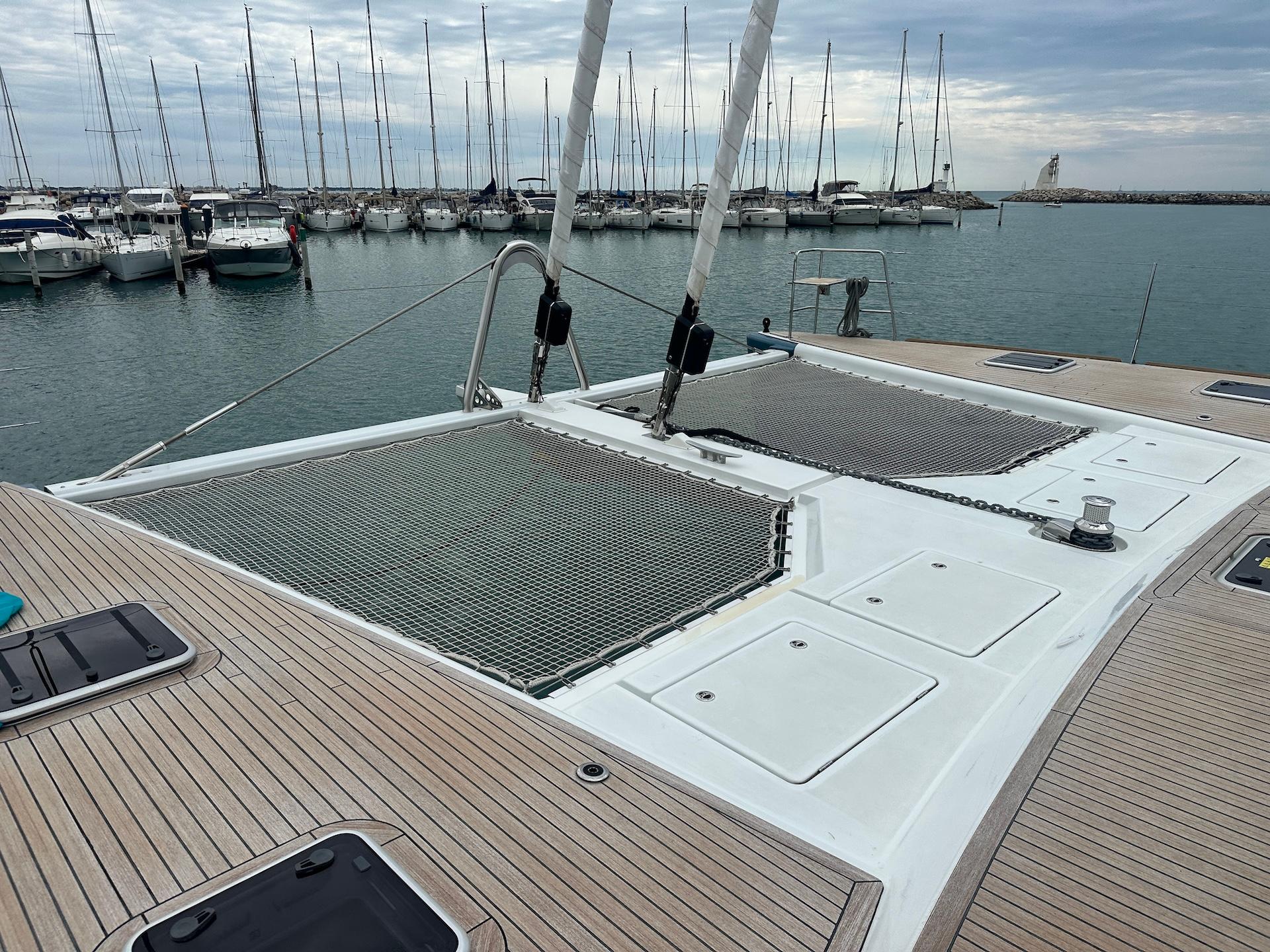

• Sunbathing area

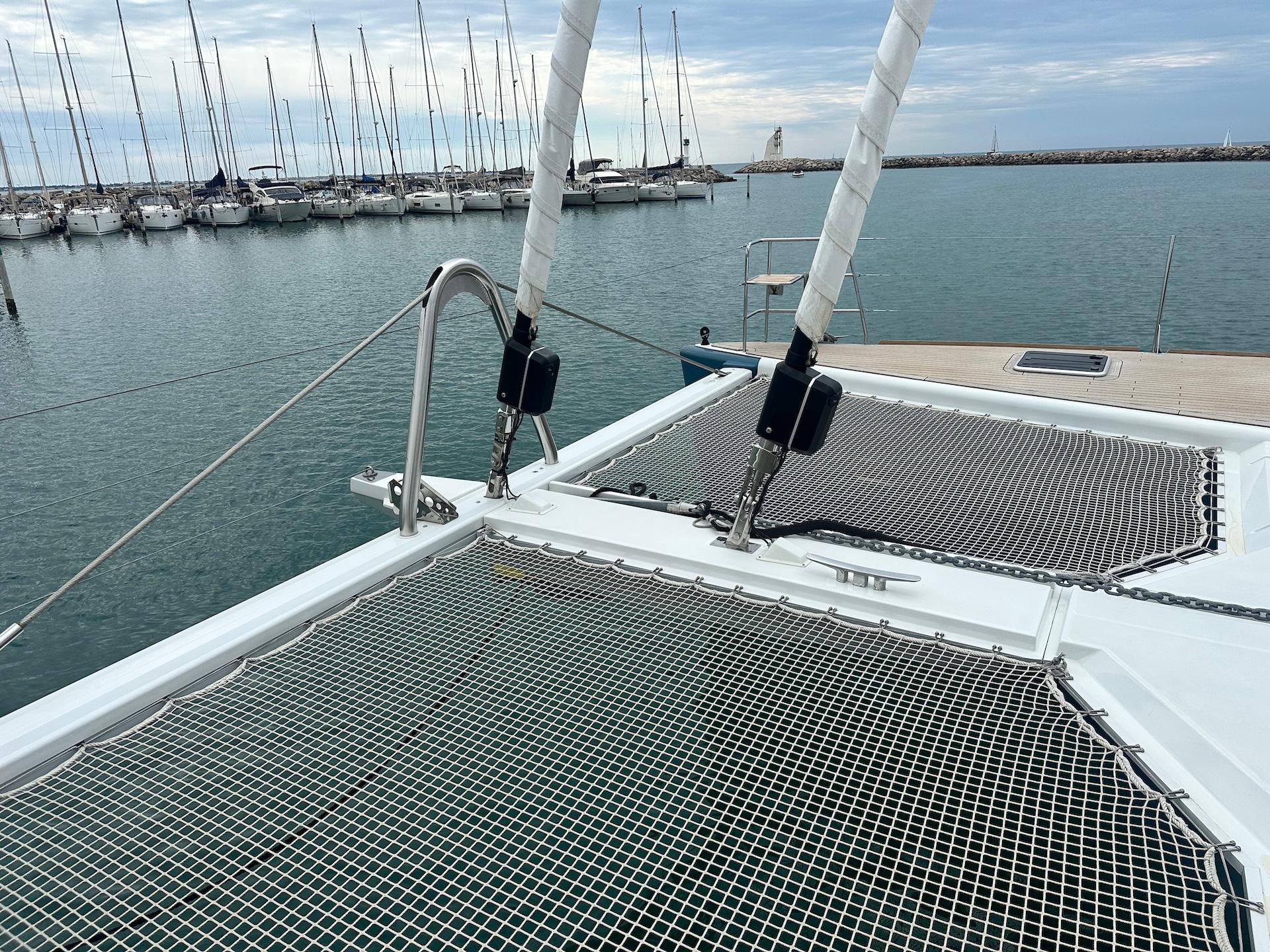

• Nylon netting – NEW

bow lockers

• Access through LEWMAR T70 deck hatches – NEW

• Grey non-slip floor

• LED lighting

• Port bow compartment with integrated berth, sink, shower and toilet for crew

stanchions and lifelines

• Pushpits: H850 mm / 2’9’’

• Stanchions and pulpit: H700 mm / 2’4’’

• Double S/S lifelines – New

general

• Construction in Alpi Blond Oak UV finish plywood

• Laminated floor Dark Oak in the cabins – equipped with

• Laminated floor Light Oak in the saloon and galley – NEW

• Upholstered plywood ceilings and linings

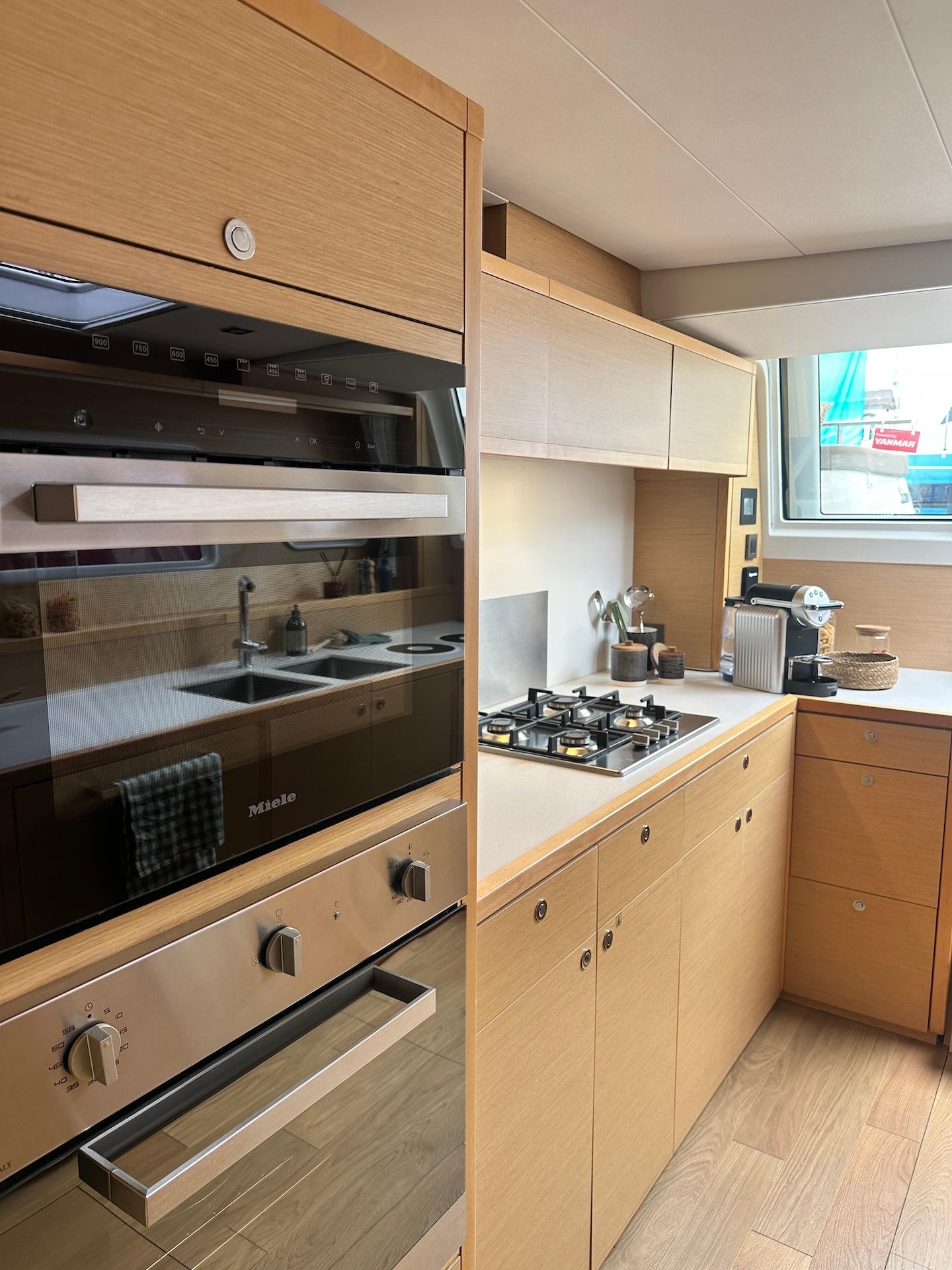

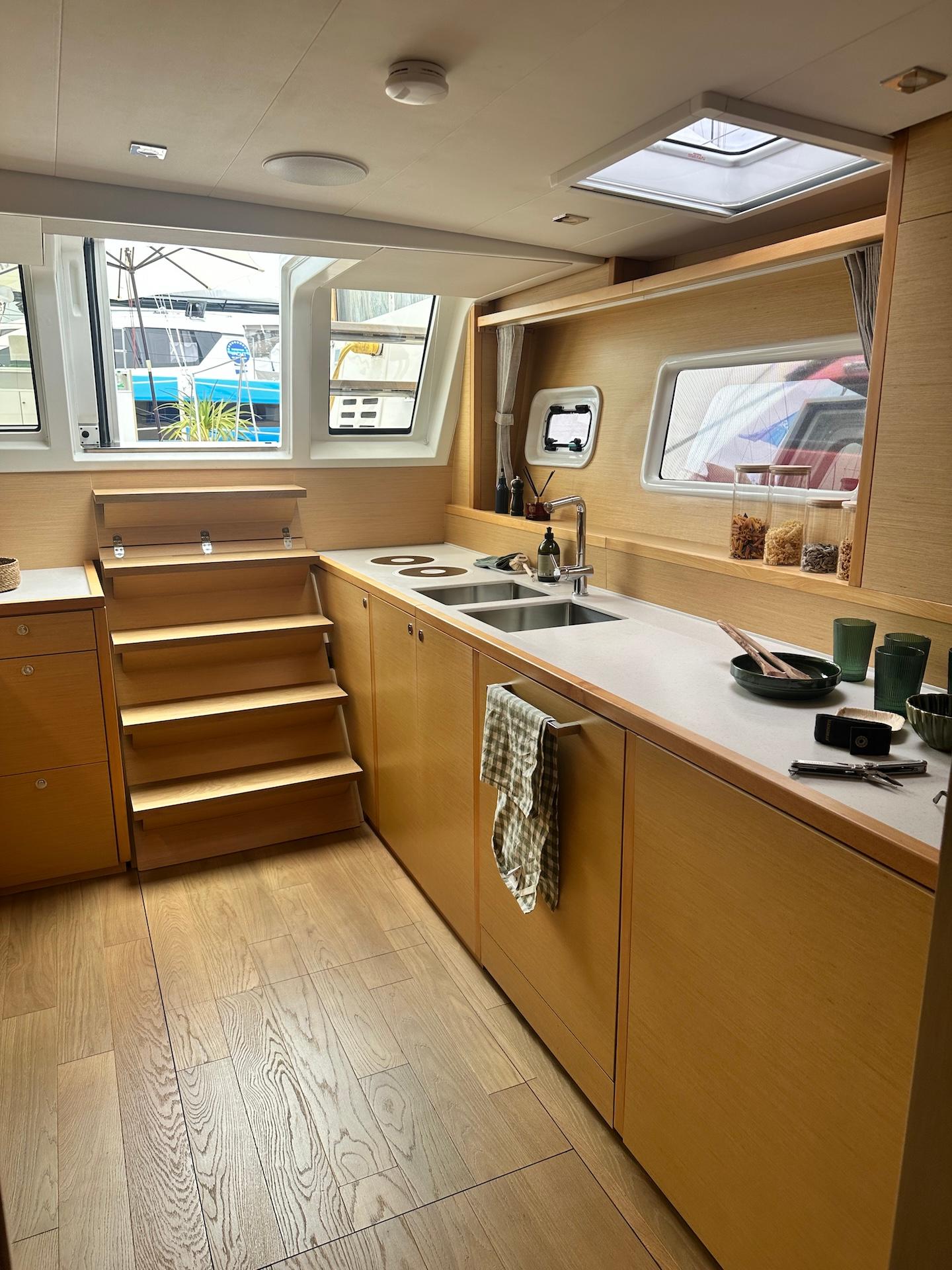

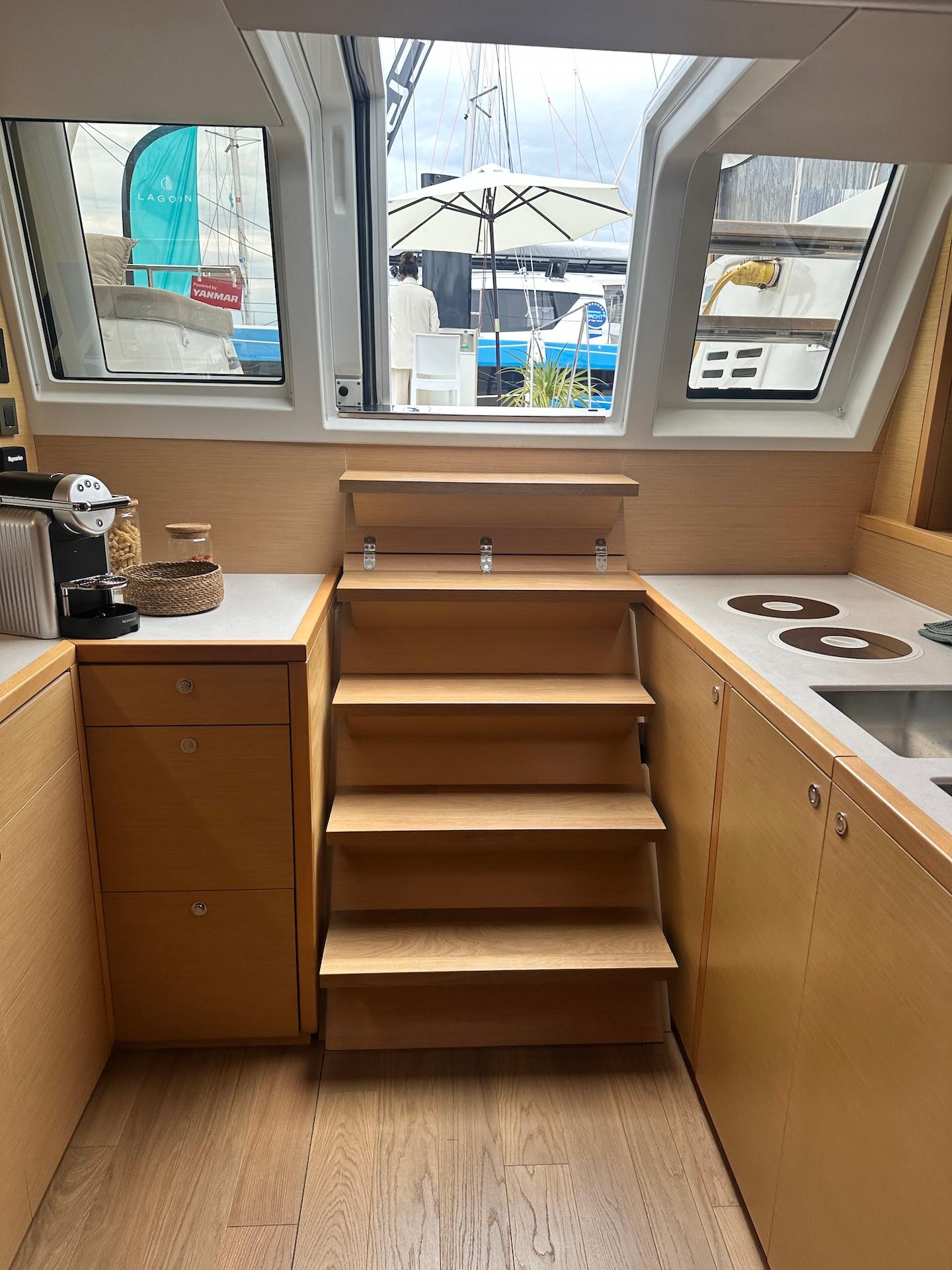

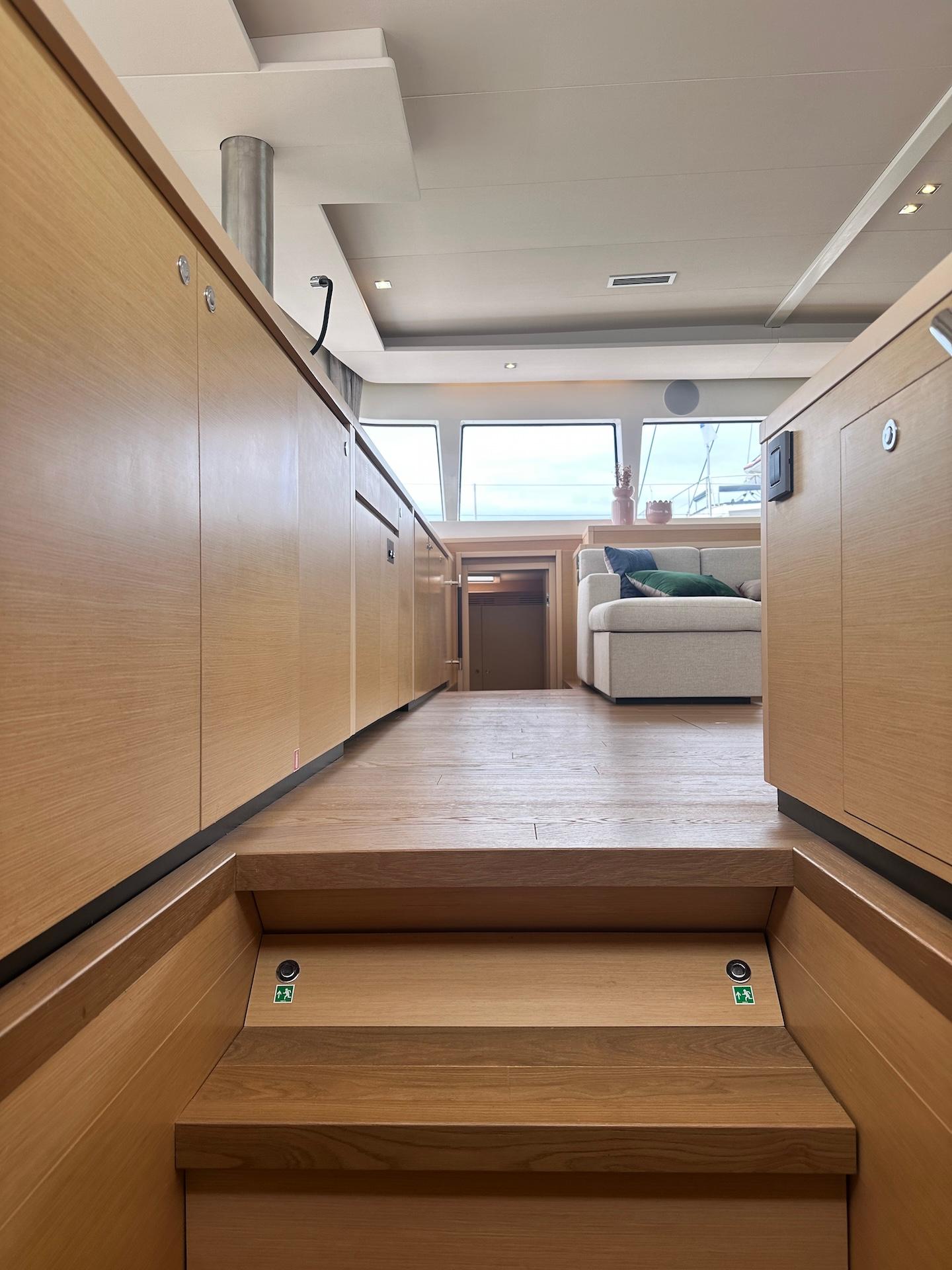

lateral galley

• Direct access from the aft cockpit

• Limestone Prima Corian® countertop – NEW

• Double stainless steel sink

• Hot/cold mixer tap – NEW

• Gas cooktop and oven – NEW

• Miele® Microwave oven – NEW

• Samsung® Fridge / Freezer 617L / 163 US gal 220V – NEW

• Miele® Dishwasher – NEW

• Siemens® Washer-Dryer – NEW

• 2x Bin caps 42L / 11 US gal – NEW

• High and low-level storage units

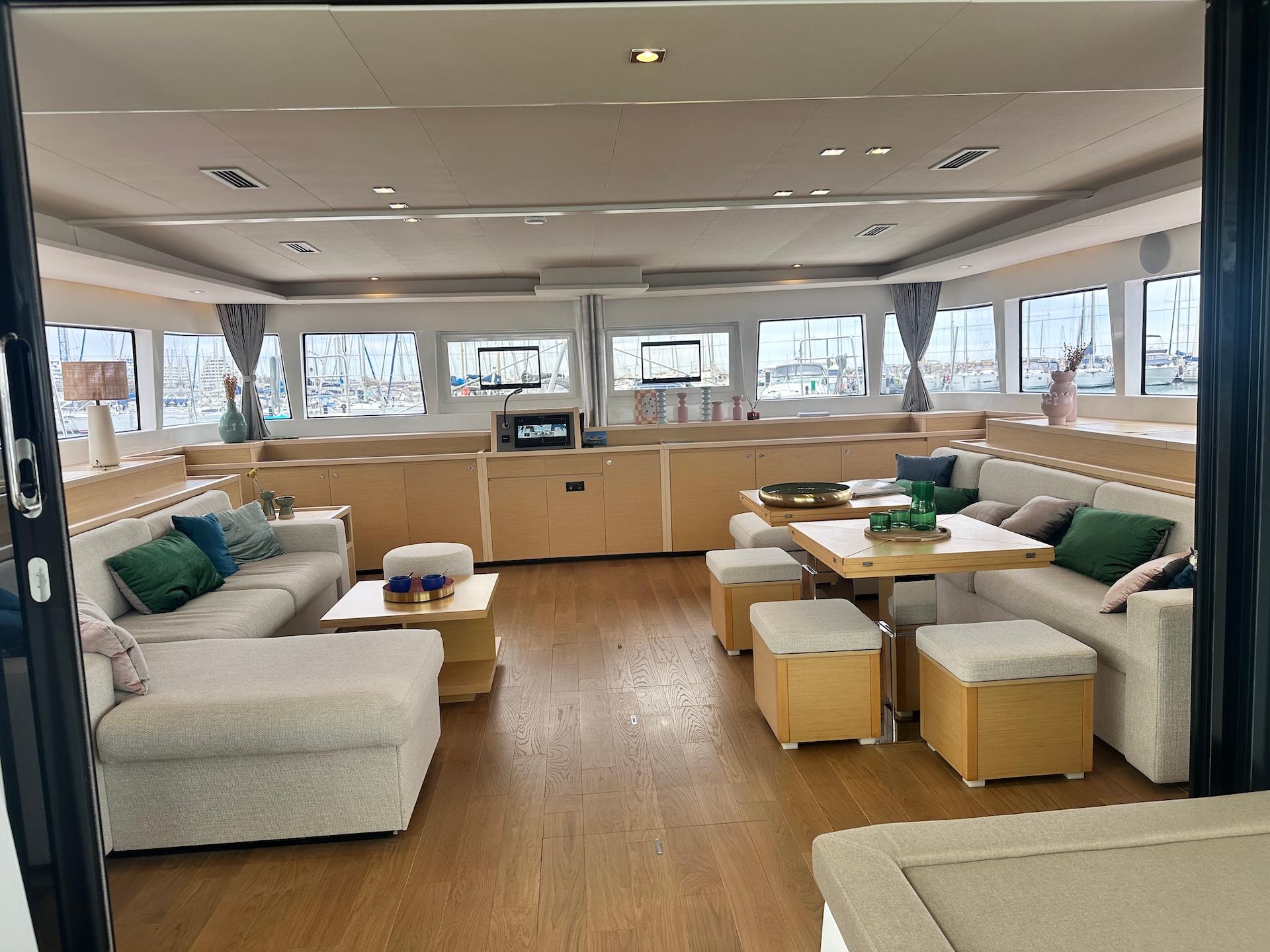

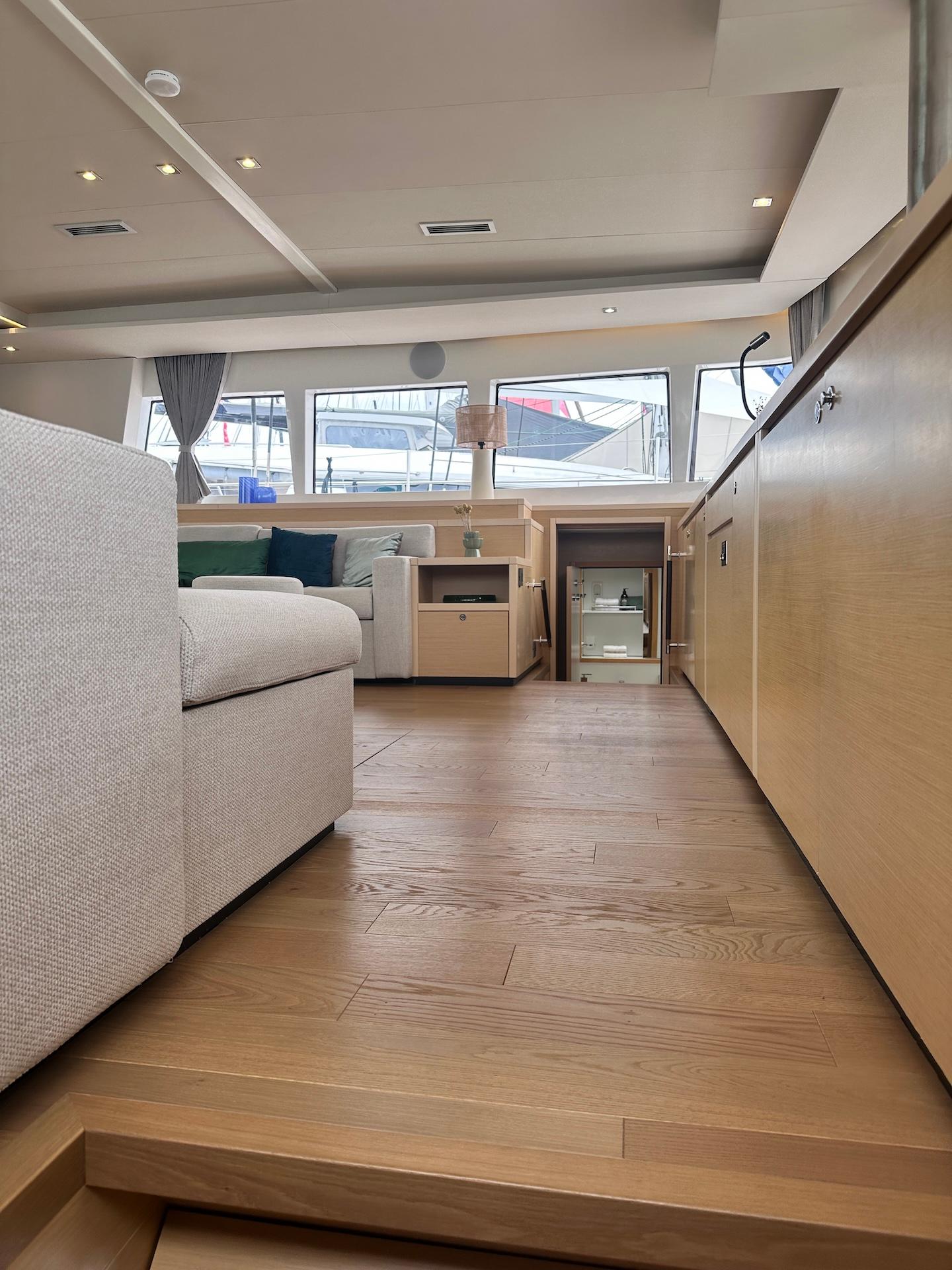

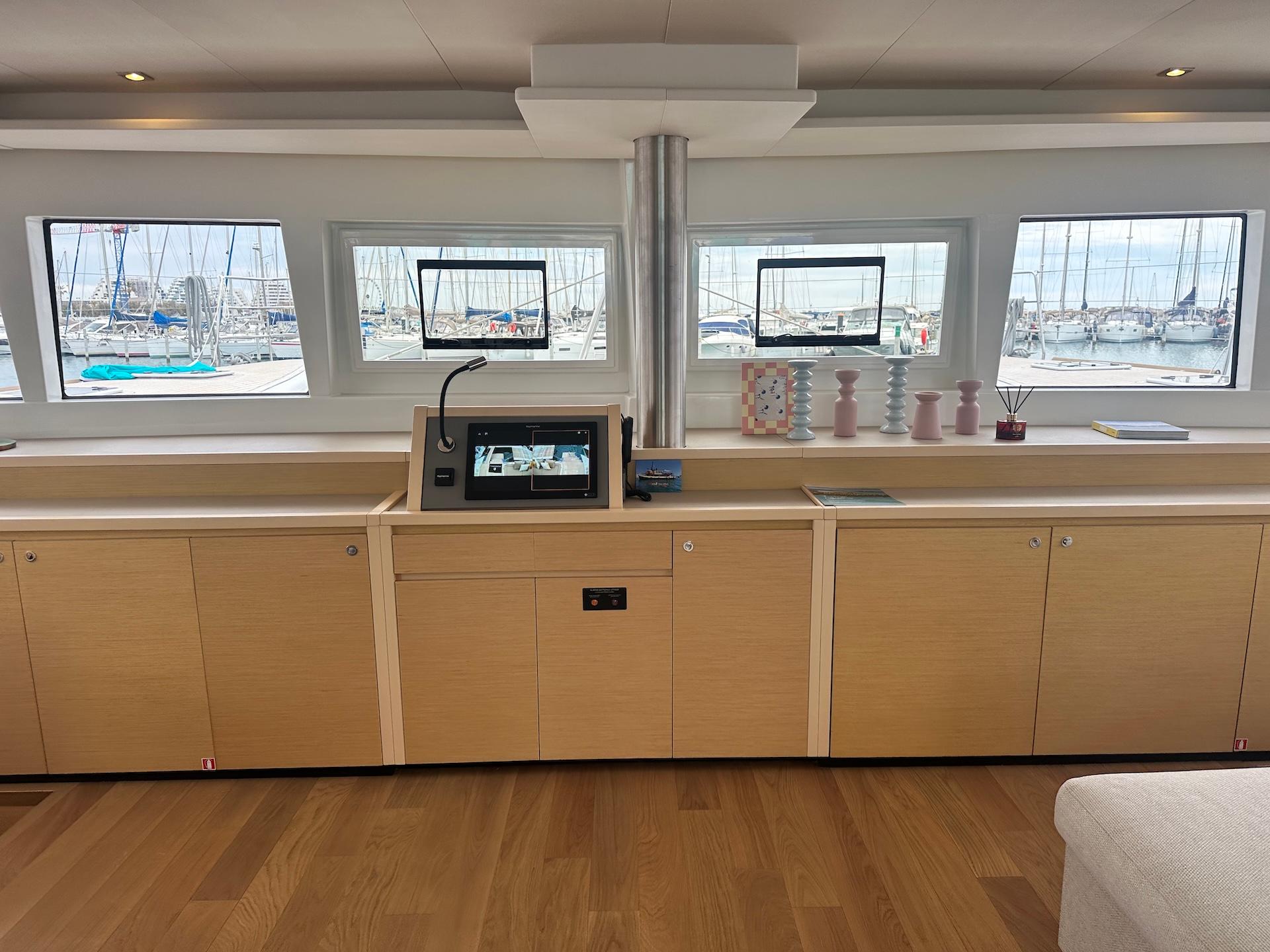

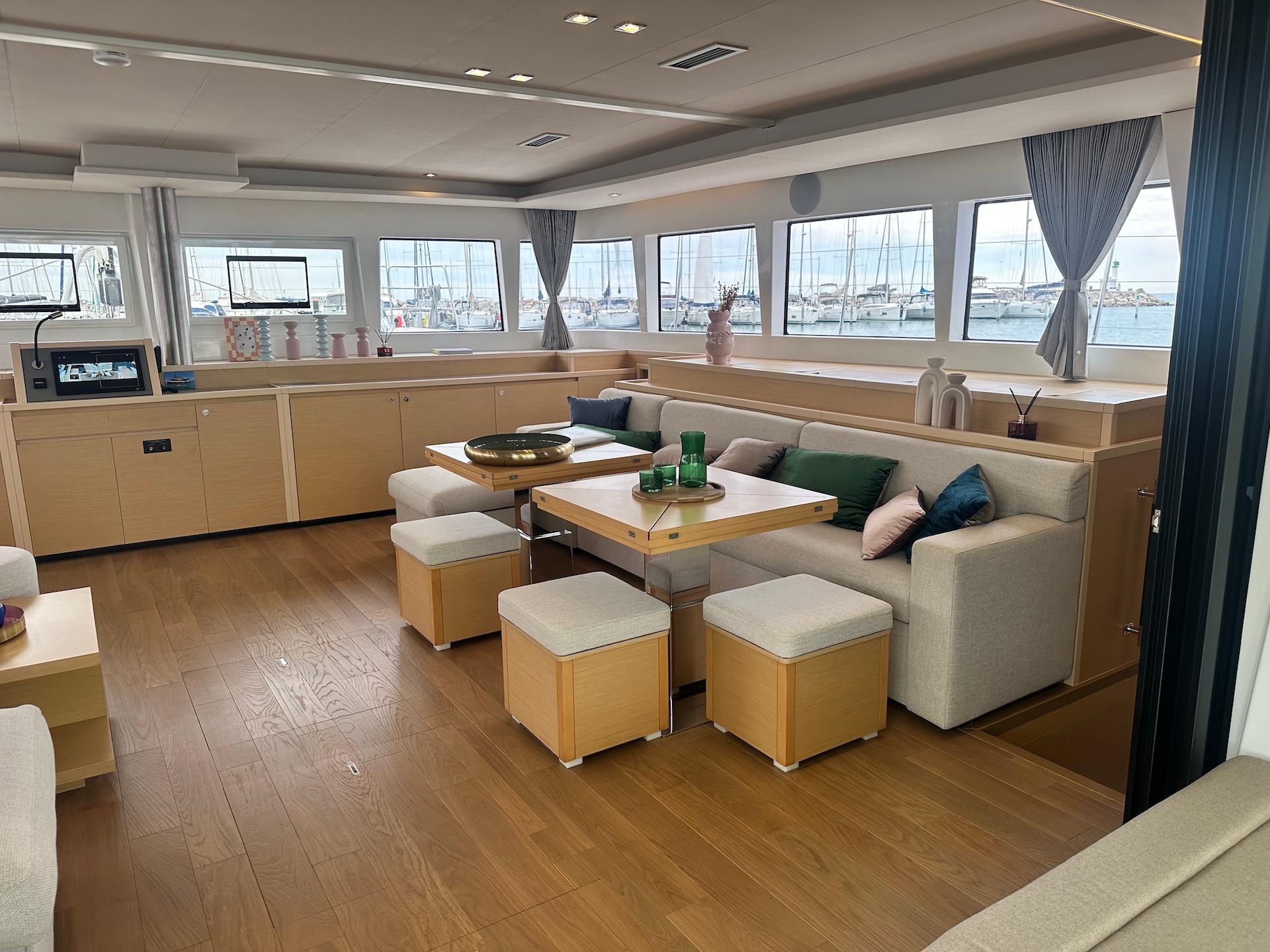

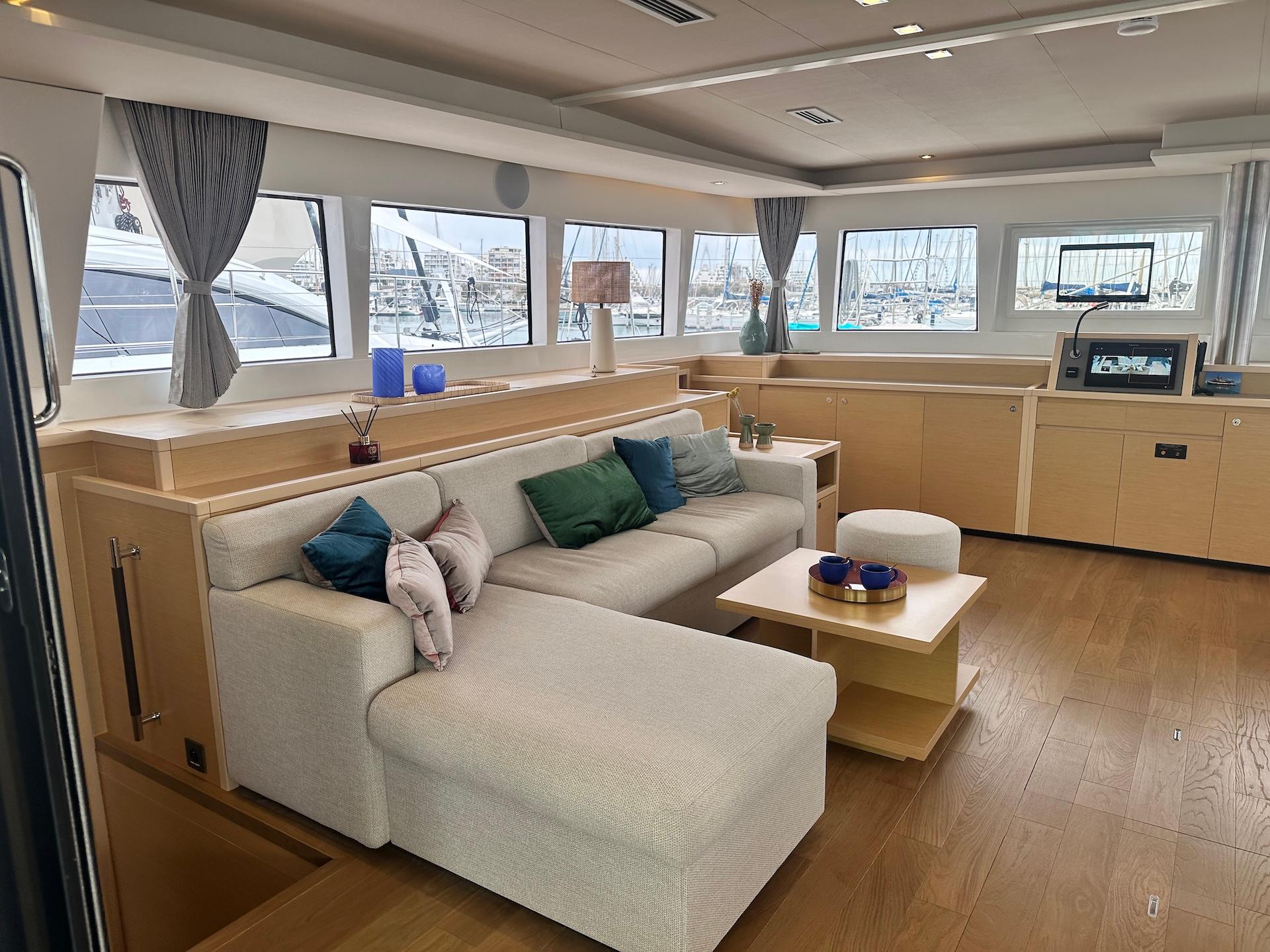

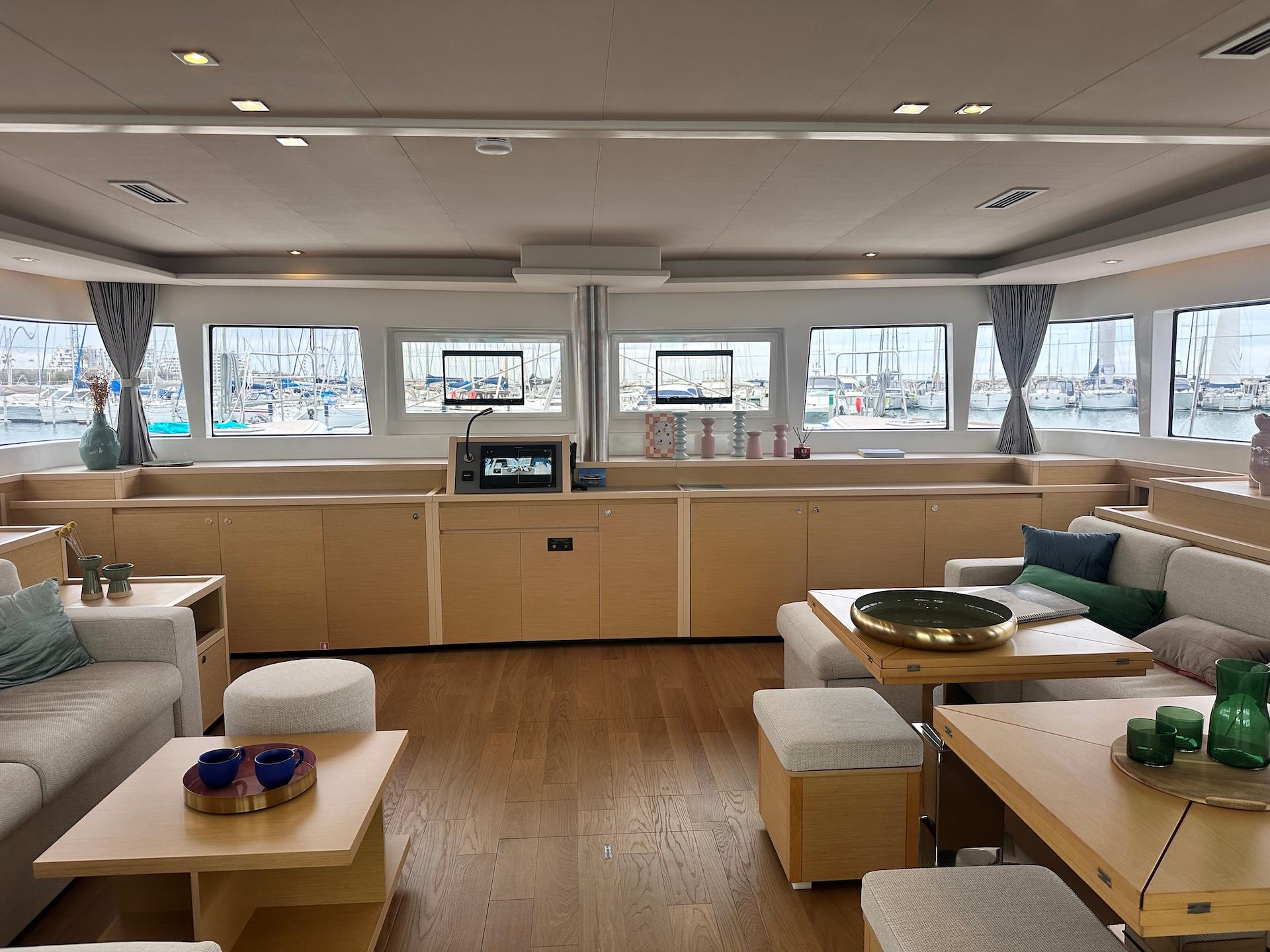

salon

• L-shaped benches

• High and low wooden tables

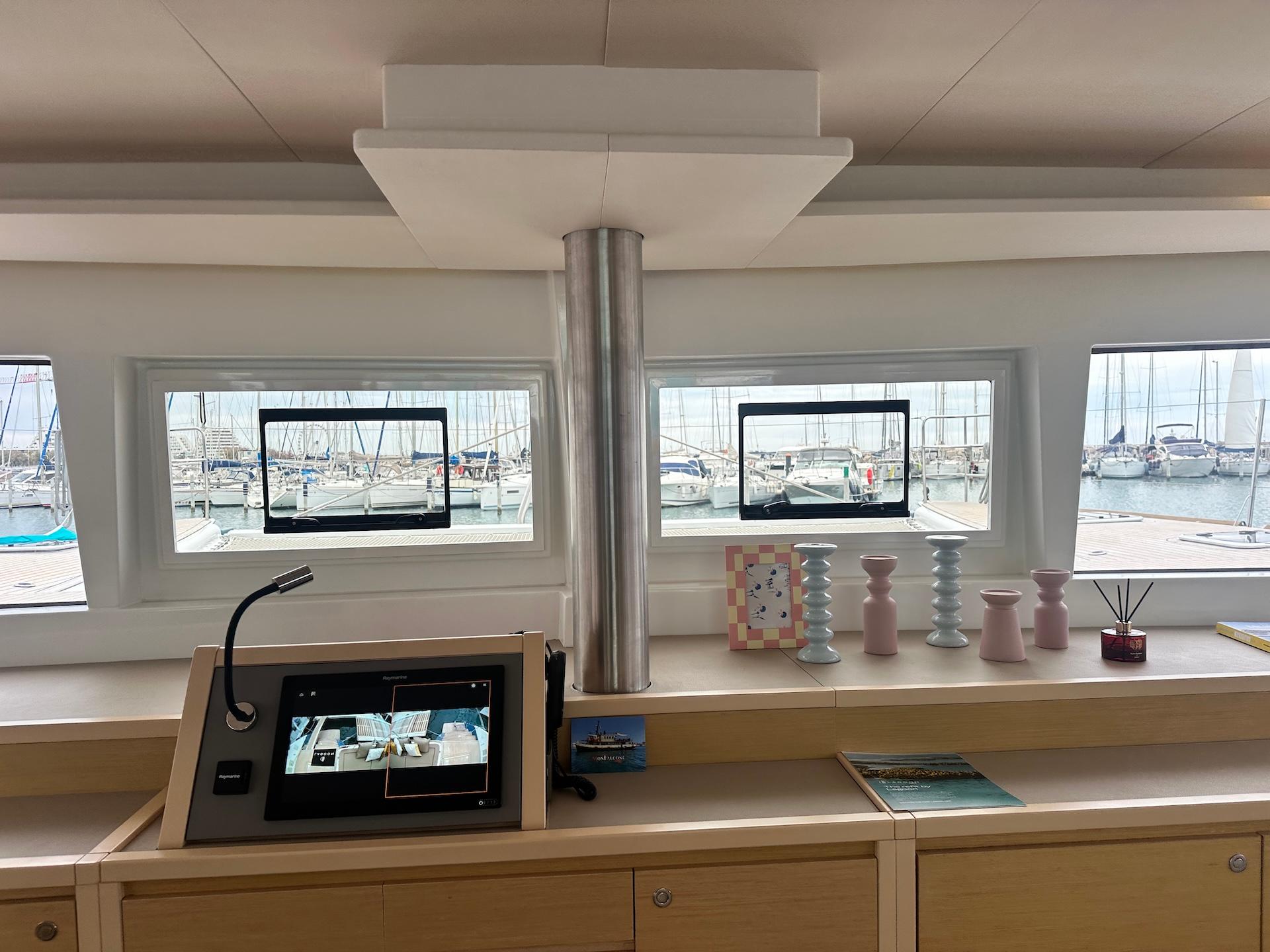

• Console with navigation instruments – NEW

• High and low storage units and bottle rack

• New front cockpit windows

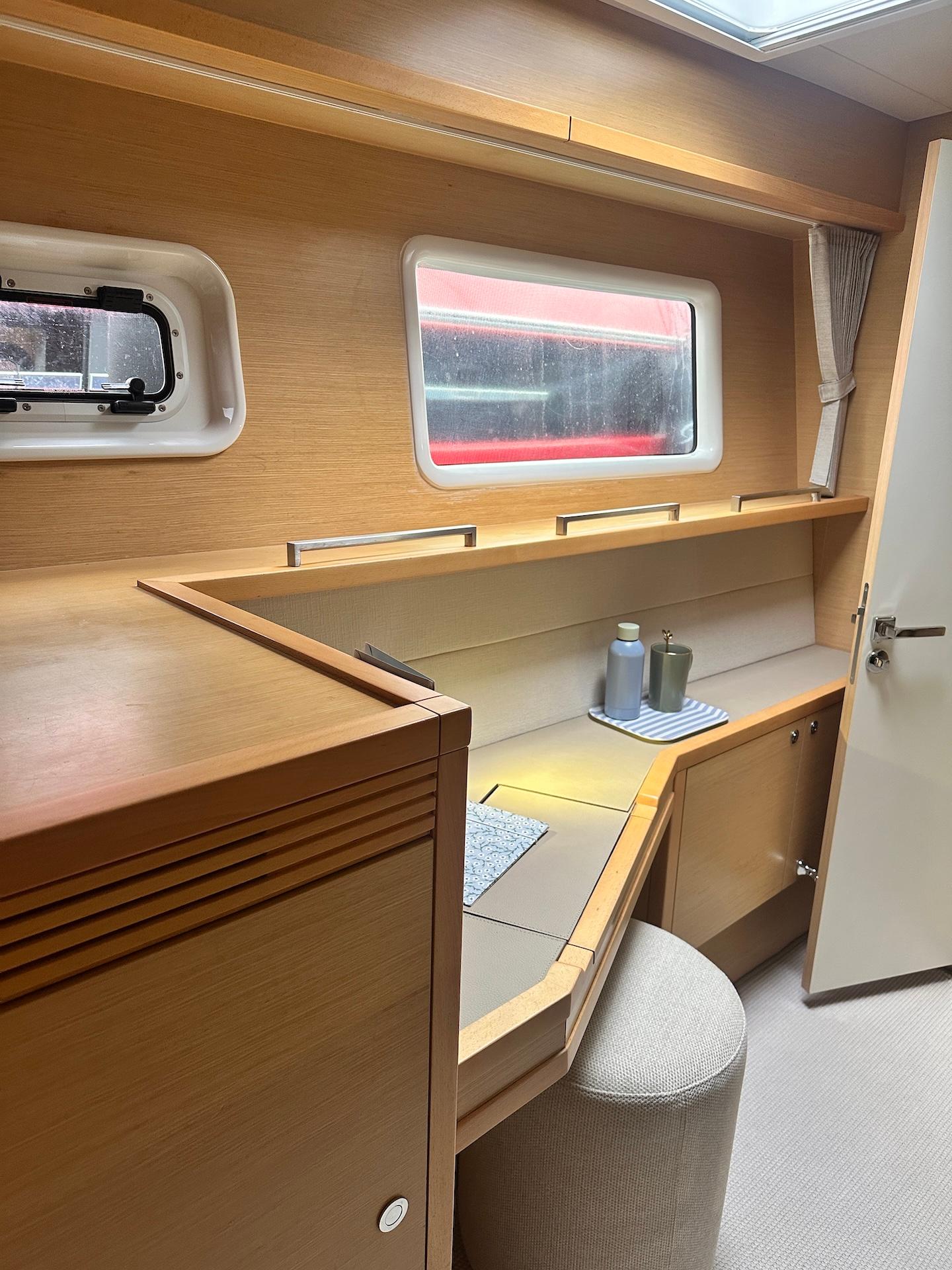

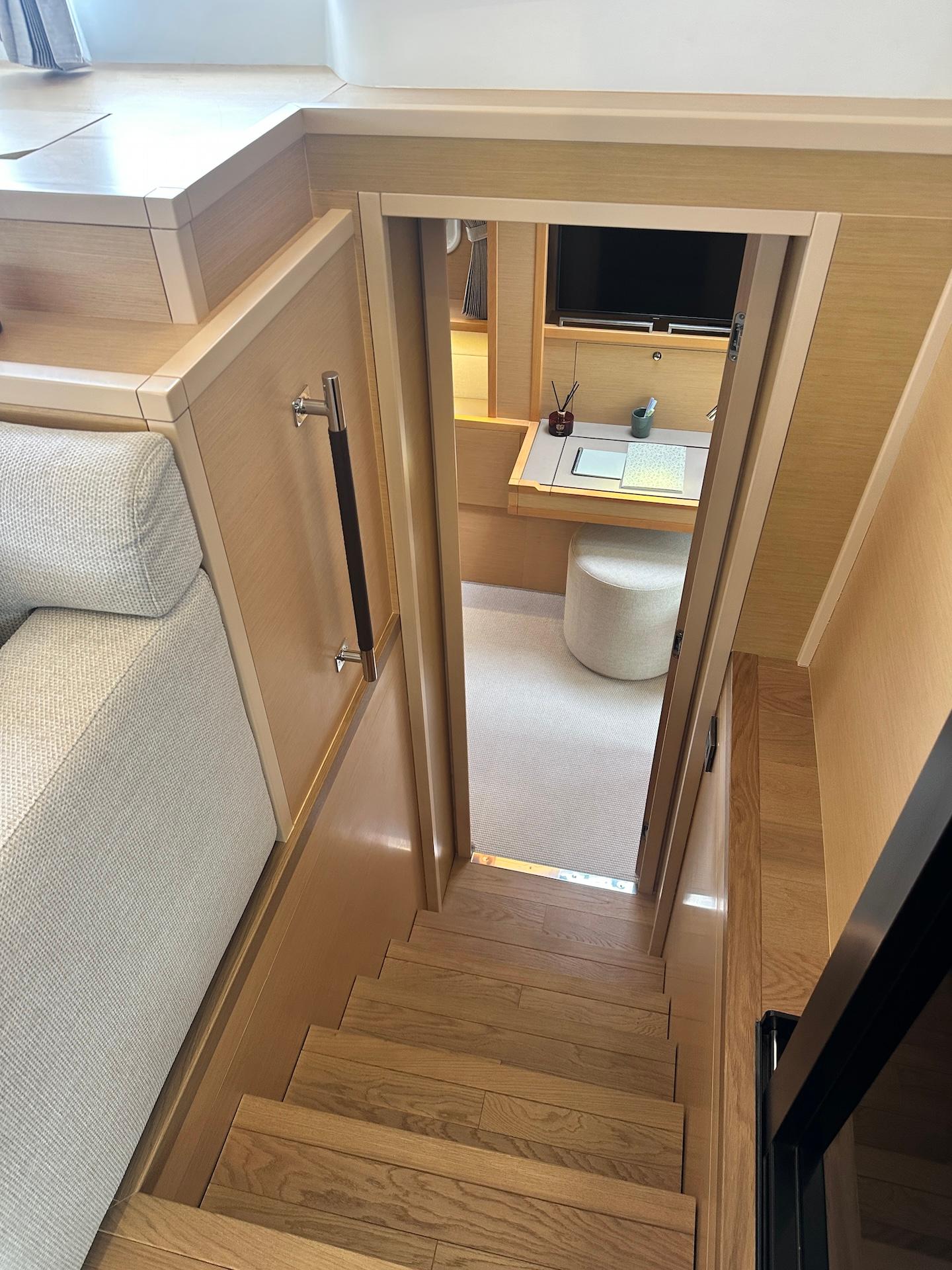

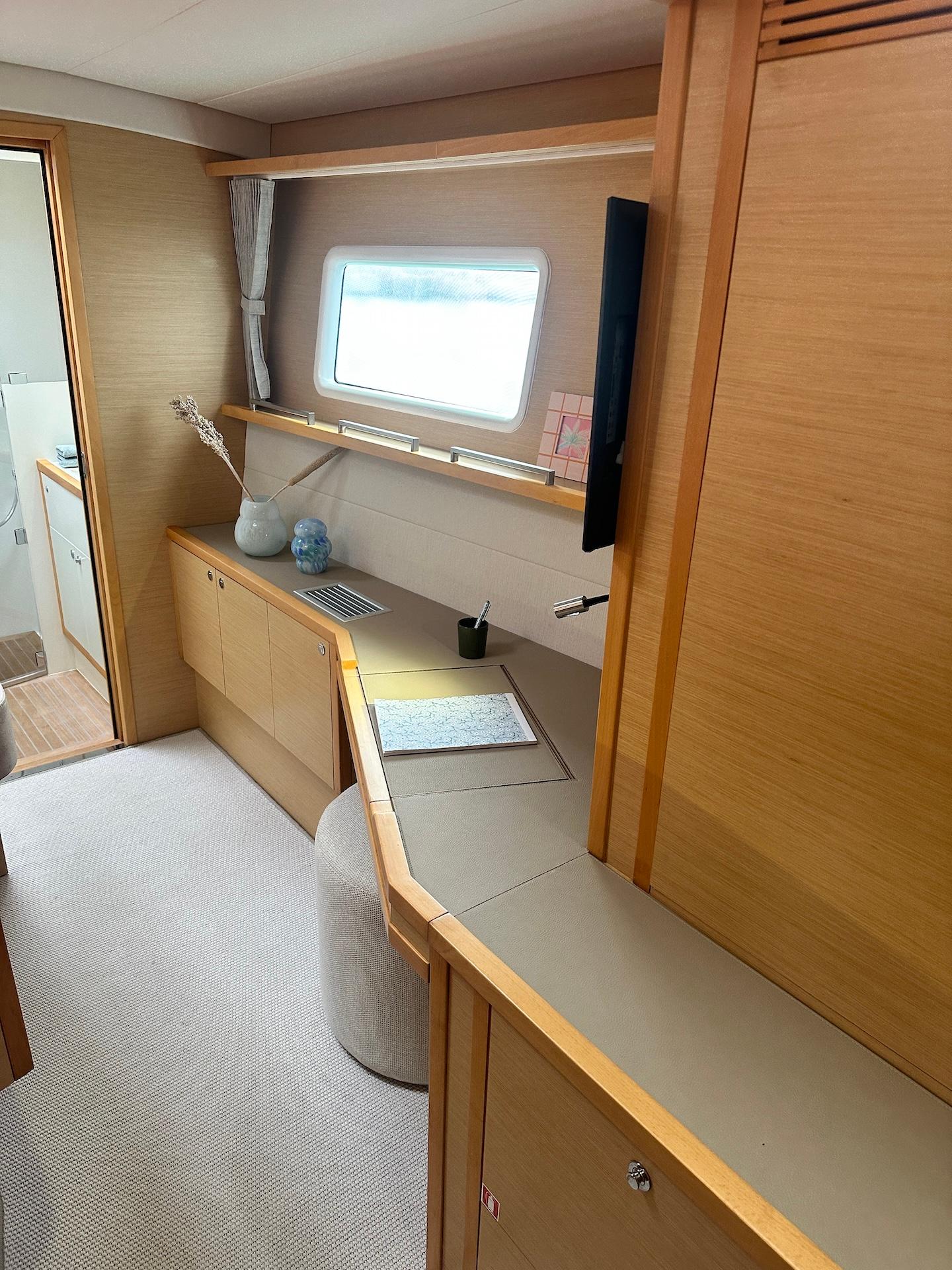

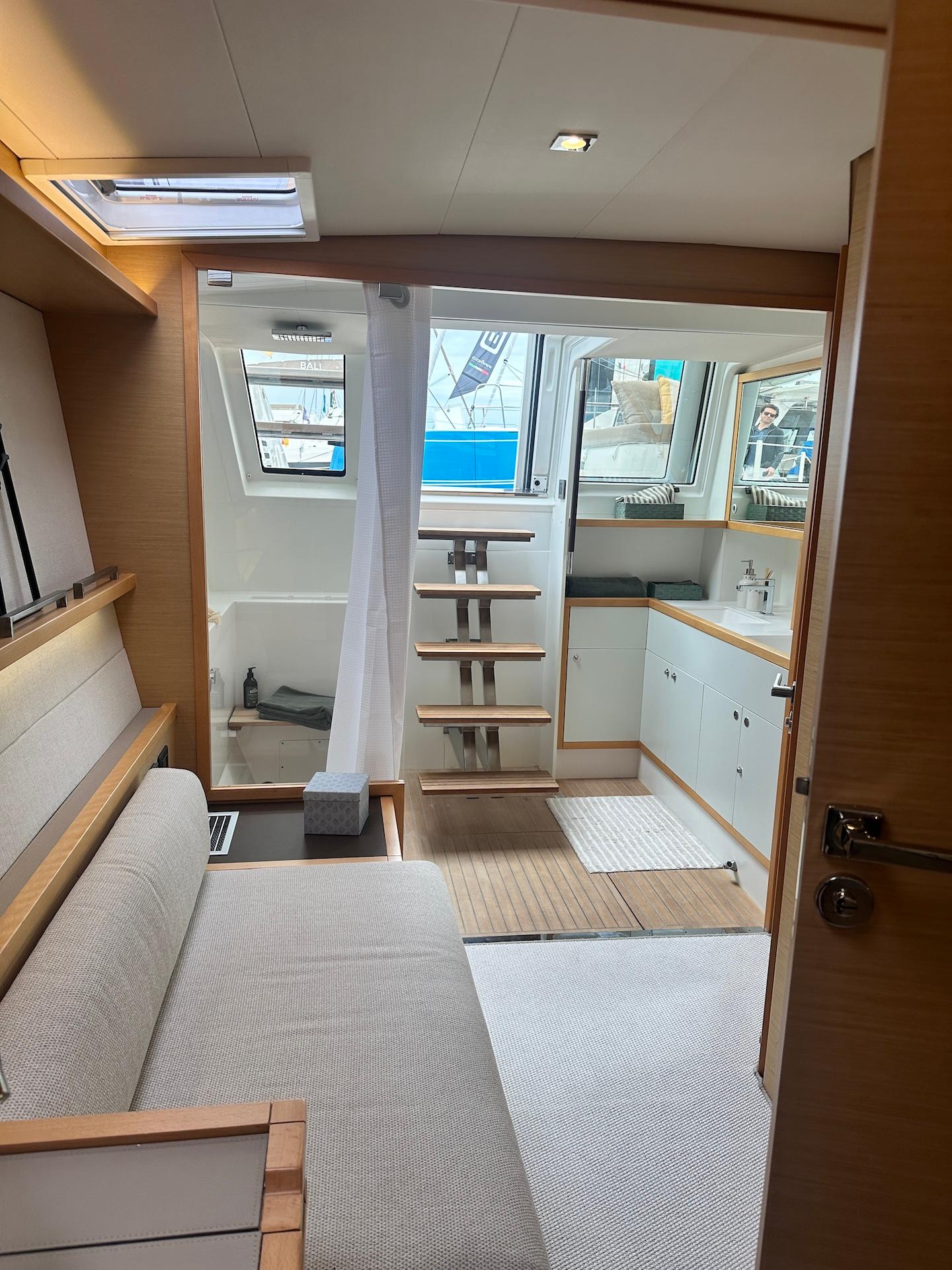

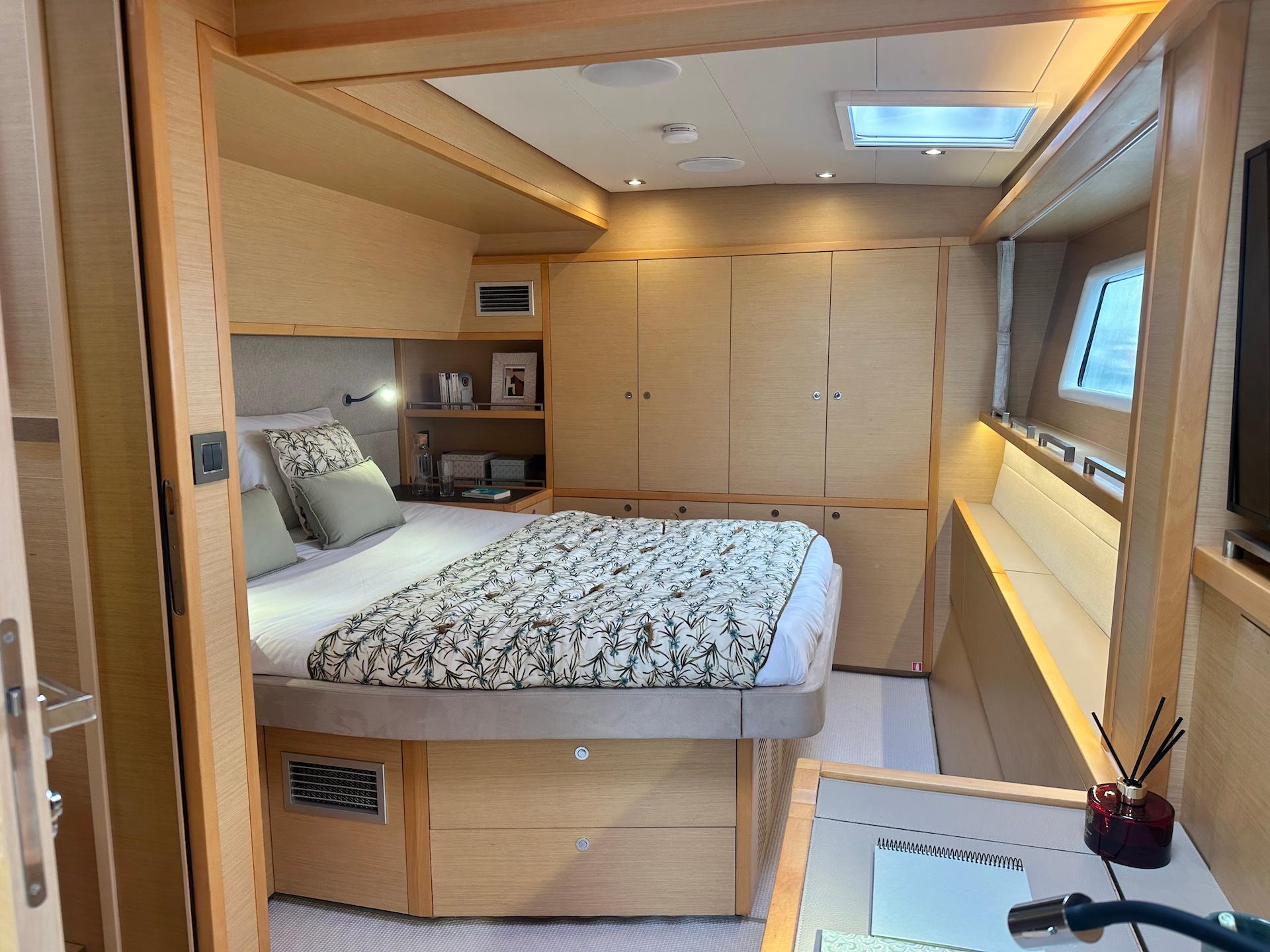

owner’s cabin

• Private access from the aft cockpit

• Double bed with lateral access (2,00 x 1,70 m / 6’7’’ x 5’7’’)

• Treated cellular foam mattress

• Bedside tables

• Under bed storage

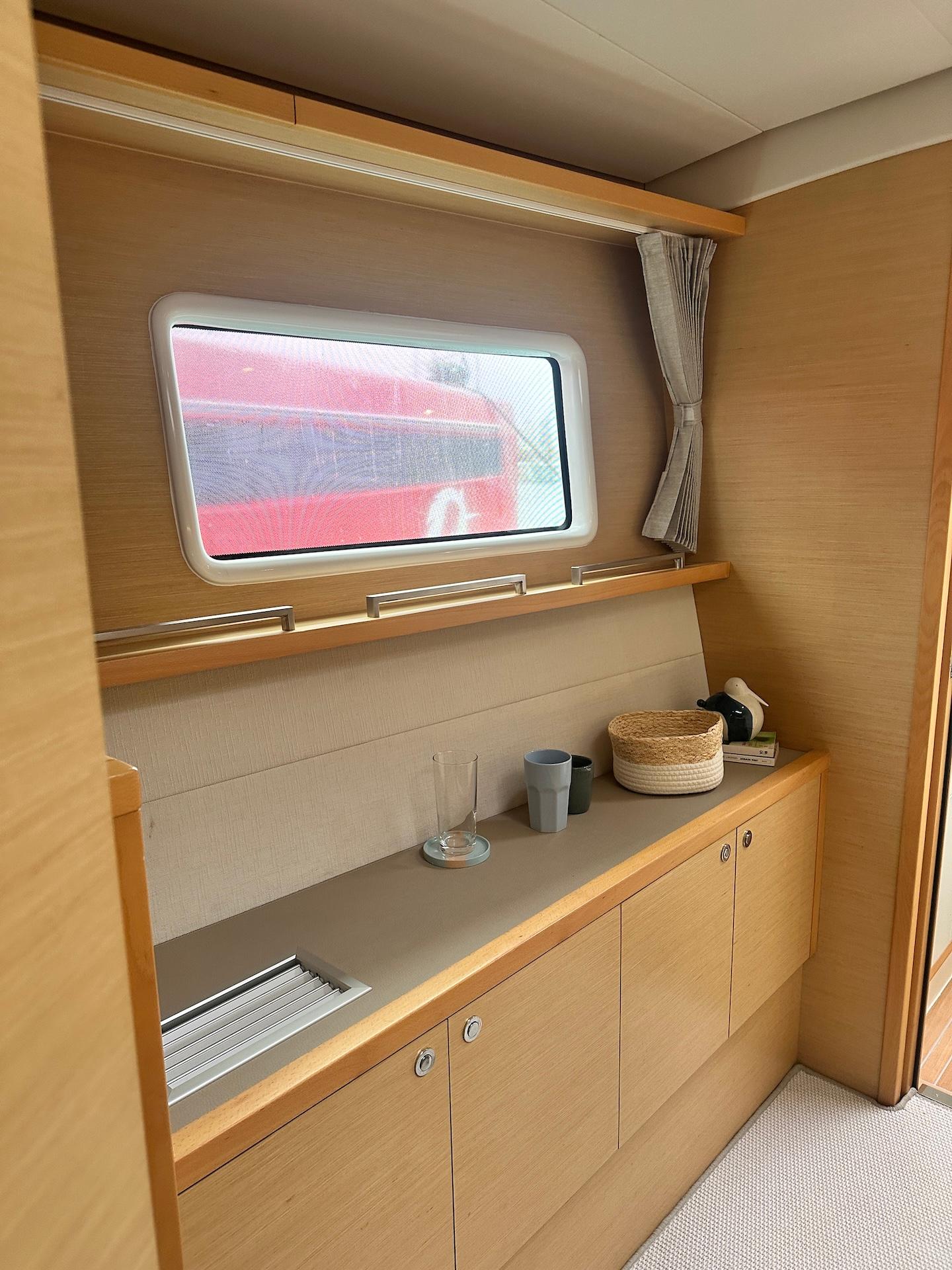

• Storage units with shelves, drawers and wardrobe

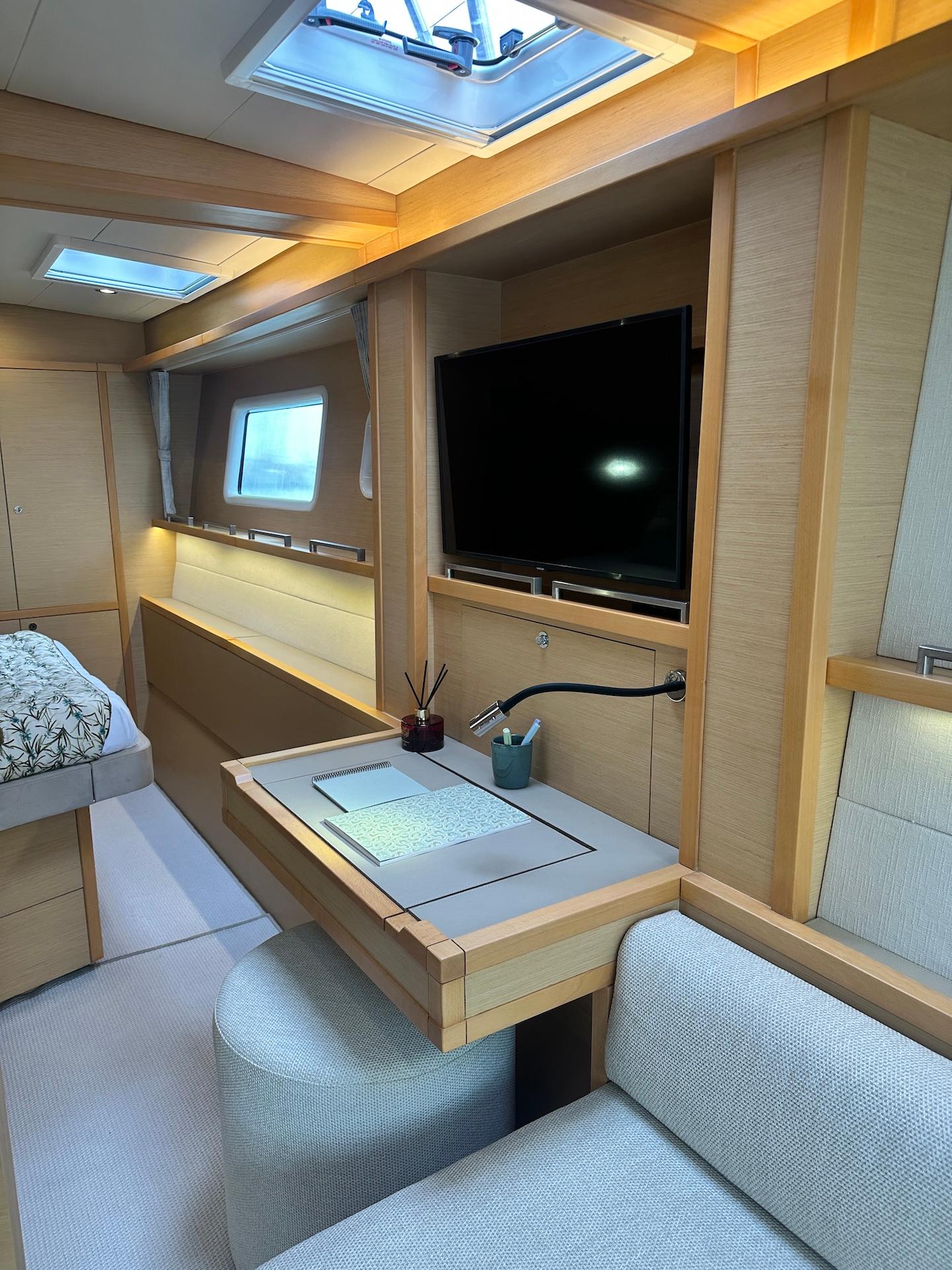

• Desk with 1 stool

• T10 and T44 opening flush deck hatches – NEW

• Fixed hull window in PMMA with integrated opening portholes and roller blinds – NEW

owner’s head

• Private access from the Owner’s cabin

• Corian® countertop

• Integrated sink with hot/cold mixer tap

• High and low-level storage units

• Separated shower with PMMA door

• Separate electric toilet with storage space

• T44 and T10 opening flush deck hatches – NEW

• Fixed hull window in PMMA with integrated opening porthole and roller blinds – NEW

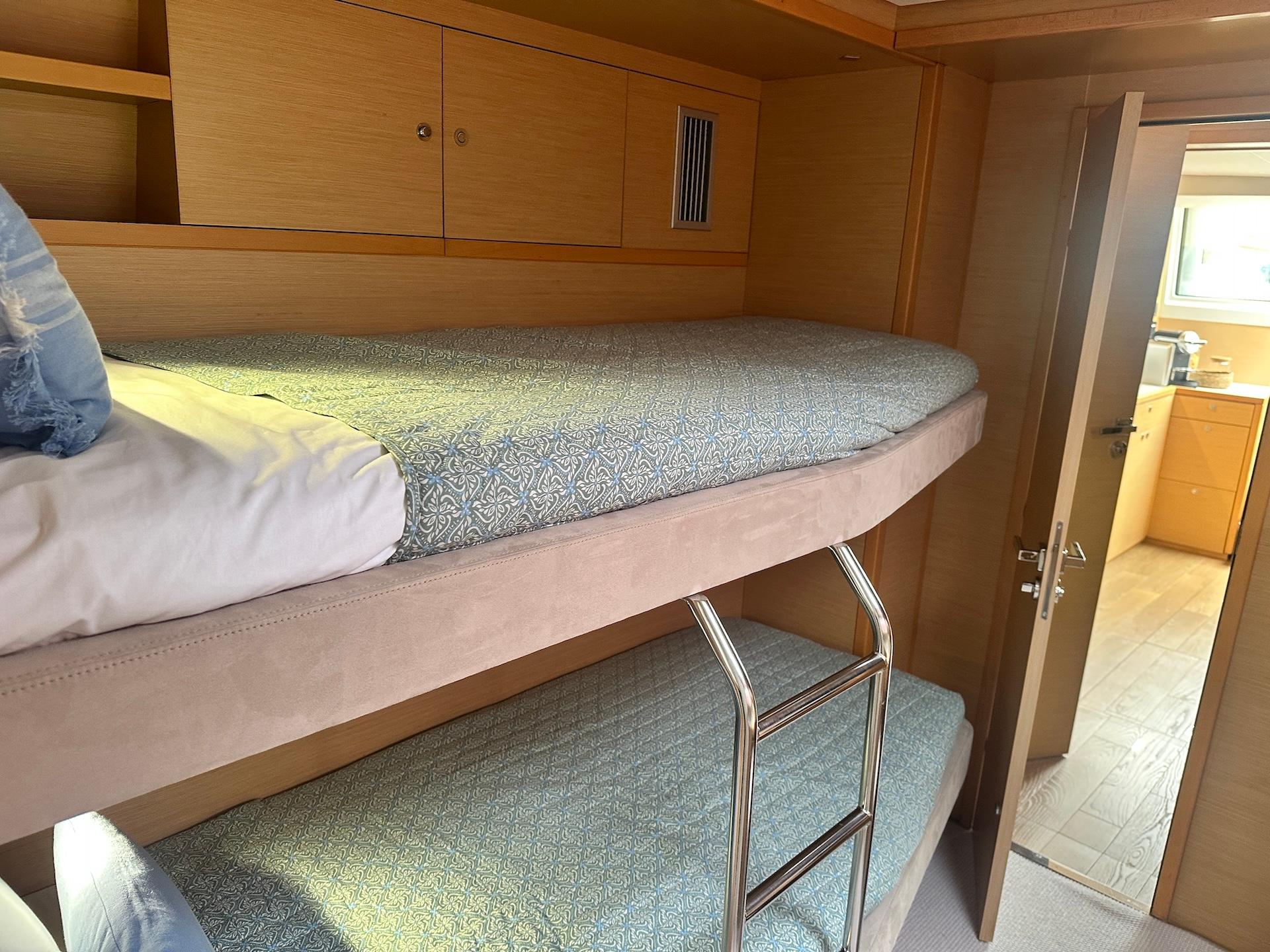

lateral cabin

• Modular single beds (2,00 x 0,85 m / 6’7’’ x 2’9’’)

• Treated cellular foam mattress

• Bedside table

• Storage units with shelves and wardrobe

• T44 opening flush deck hatches – NEW

• Fixed hull window in PMMA with integrated opening porthole – NEW

and roller blinds

• Private access to the dedicated head

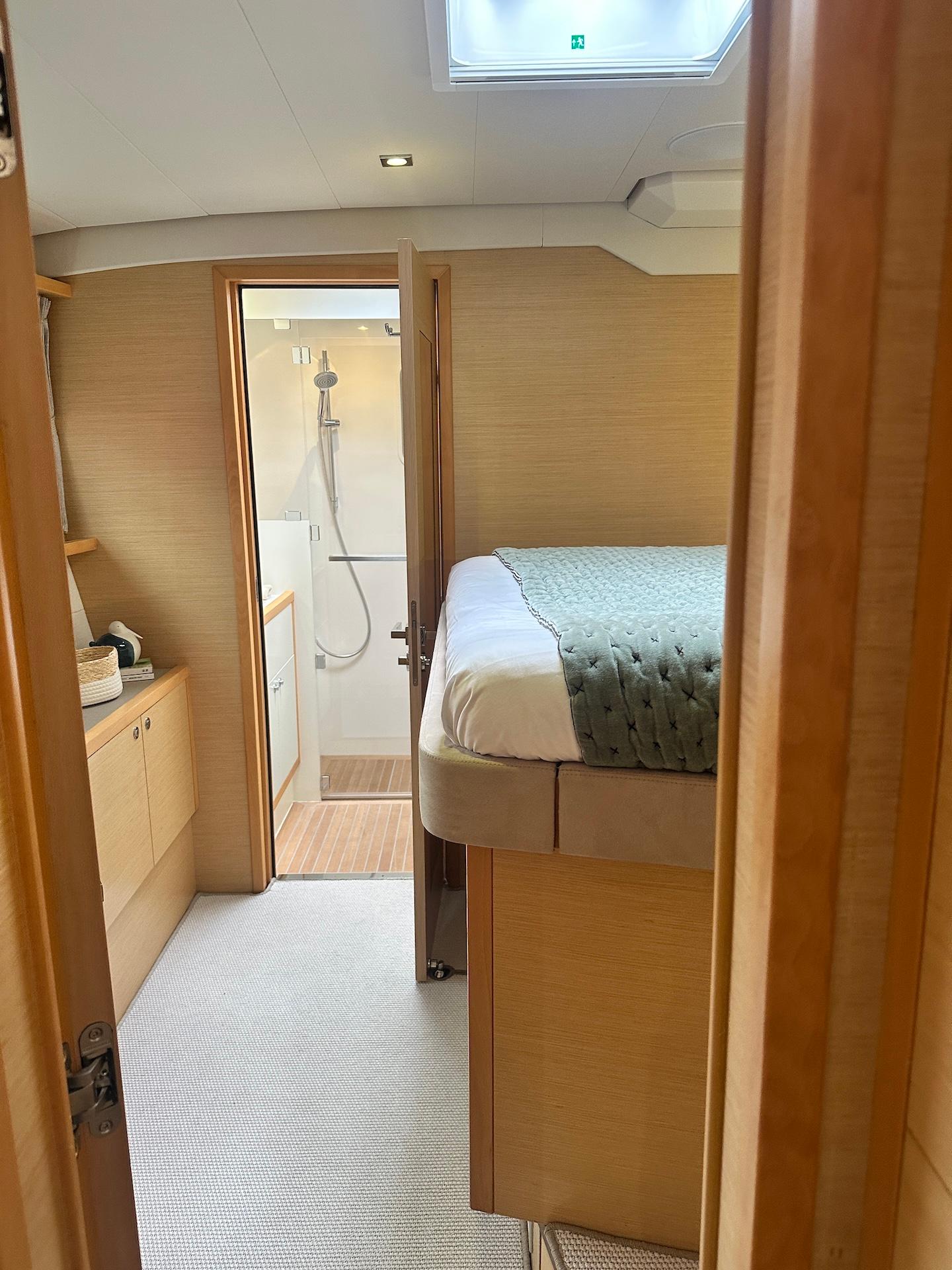

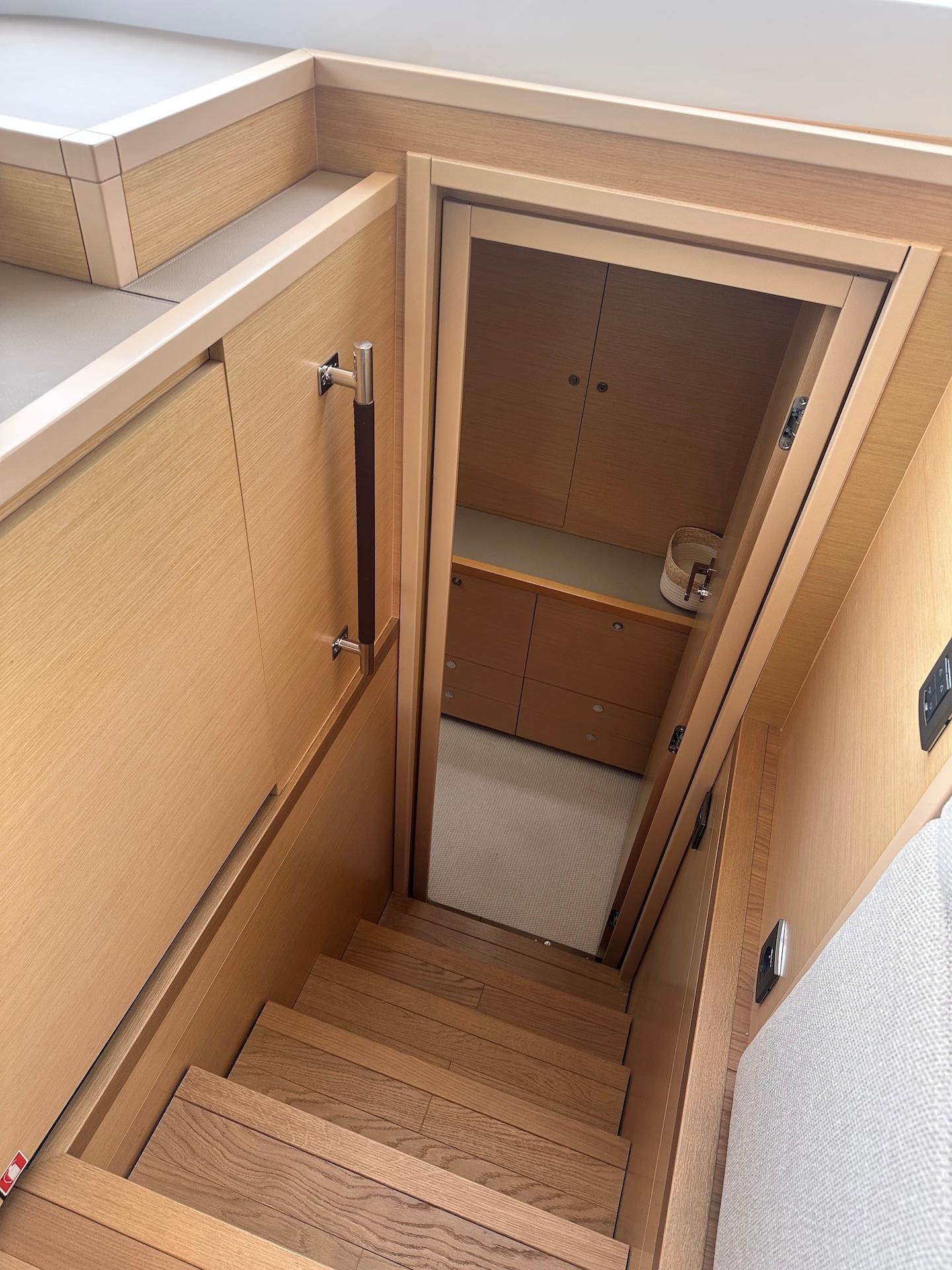

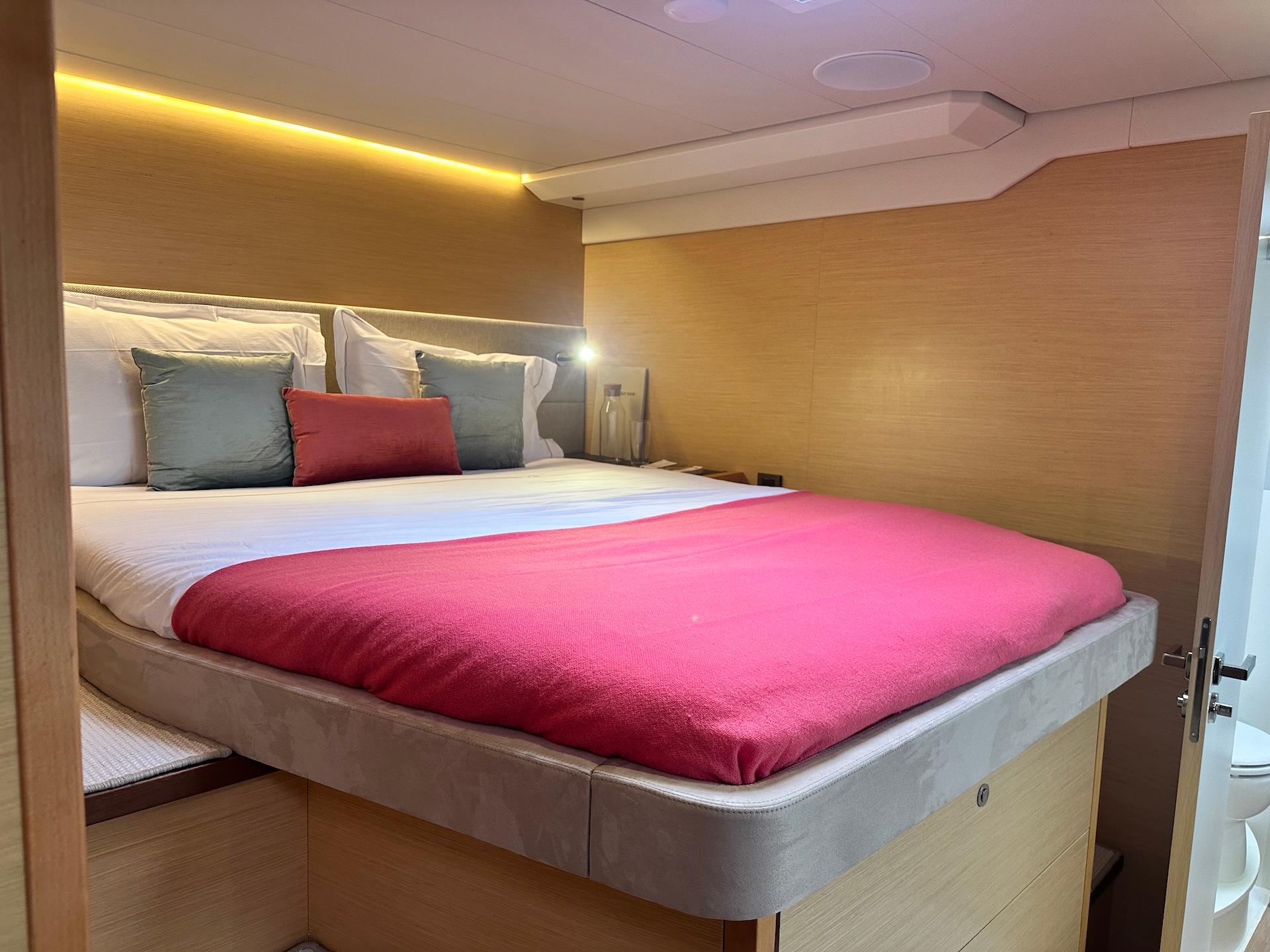

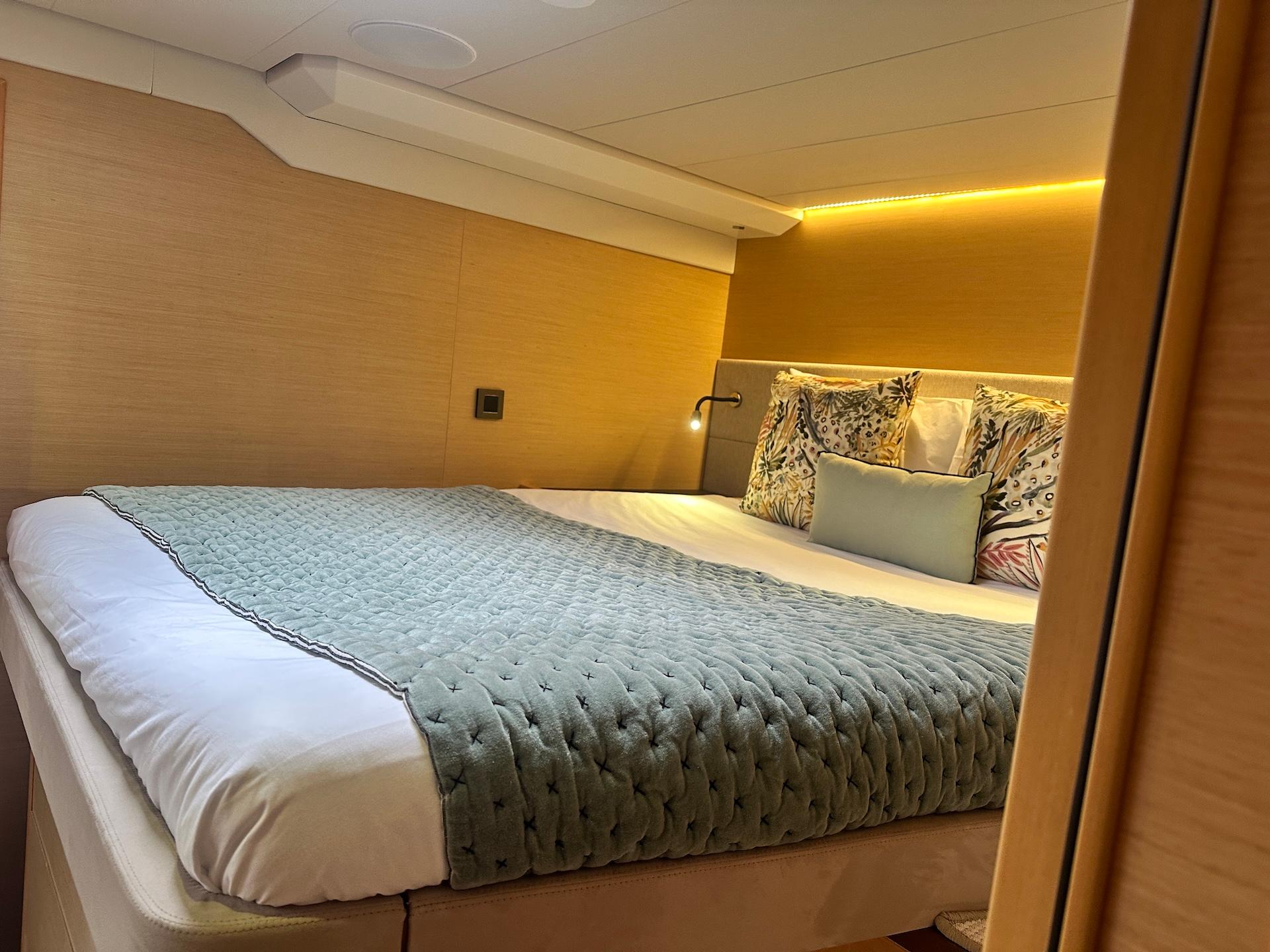

forward cabins

• Double bed with lateral access (2,00 x 1,60 m / 6’7’’ x 5’3’’)

• Treated cellular foam mattress

• Bedside shelves

• Under bed storage

• Storage units with shelves, drawers and wardrobe

• T44 and T10 opening flush deck hatches – NEW

• Fixed hull window in PMMA with integrated opening portholes and roller blind – NEW

• Private access to the dedicated head

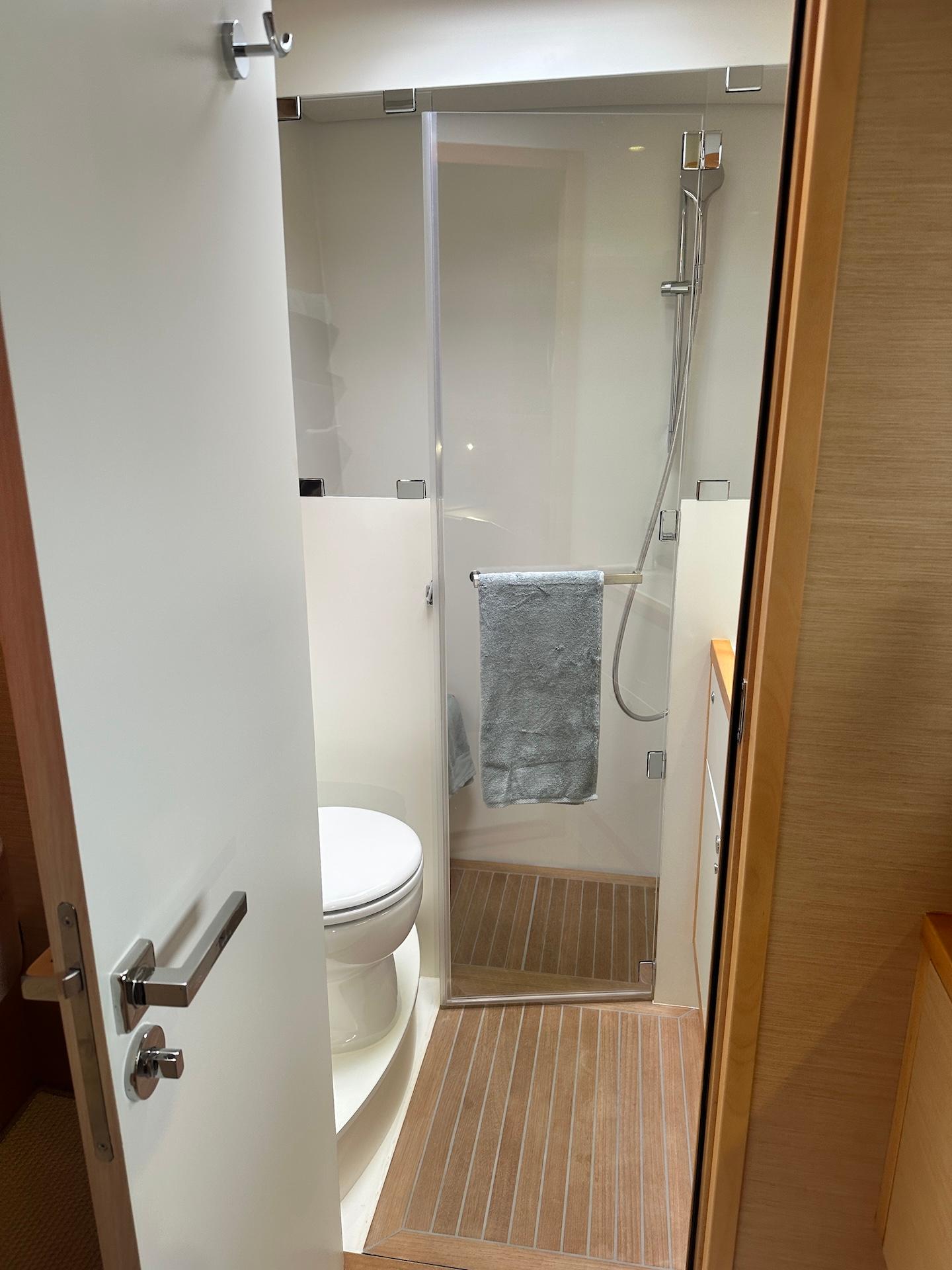

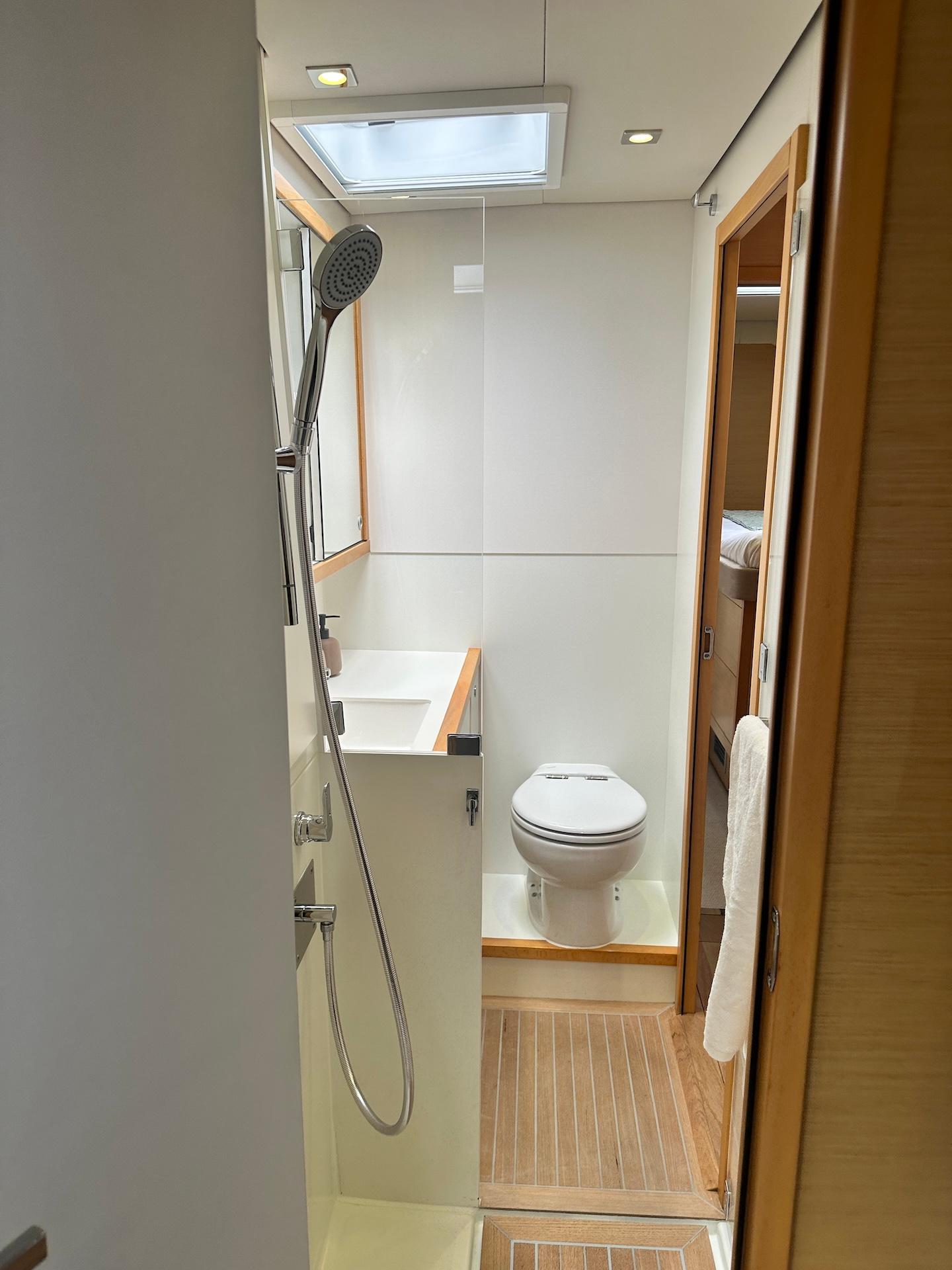

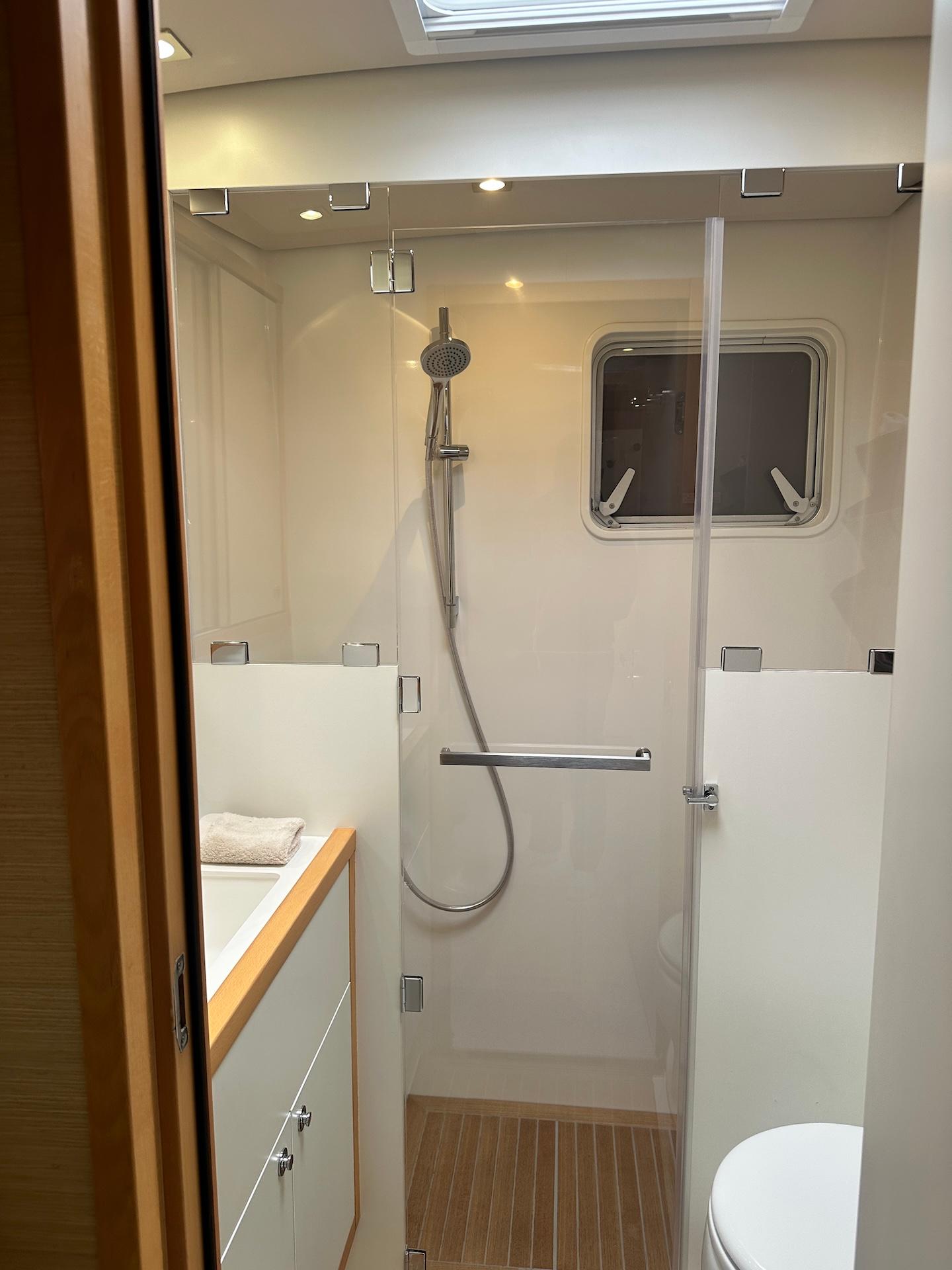

heads

• Corian® countertop

• Integrated sink with hot / cold mixer tap

• High and low-level storage units

• Separated shower with PMMA door

• Electrical toilet

• T10 or T44 opening flush deck hatch (depending on the head) – NEW

• Fixed hull window in PMMA – NEW
