2025 Lagoon 51 ICONIC

North American Specifications

ONLY FOR BOATS SOLD IN US

• 110V electric panel & electric equipment
• US 110V outlets
• Gas propane circuit with solenoid valve

Construction

• Polyester and high quality anti-osmotic resin
• Hull, deck and coachroof laminated by infusion
• Balsa core hull and deck, solid laminated under waterline, white gel coat
• Laminated or glued plywood

Steering Gear

• 2 suspended rudder blades
• Hydraulic steering transmission
• Emergency tiller

Sails and Rigging

SAILS

• High roach mainsail in Dacron with battens
• Genoa in Dacron with UV protective band

STANDING RIGGING

• Anodized aluminum mast on the roof
• Anodized aluminum boom
• 2 spreaders rigs
• Coated shrouds
• Furling forestay for self-tacking jib
• 2 forestay chainplates and 1 shroud chainplates
• Adjustable lazy-jacks

RUNNING RIGGING

• Mainsail halyard
• Genoa halyard
• Mainsheet
• 2 genoa sheets
• 3 reefing lines
• Genoa furling line
• Mainsheet traveler lines
• Boom uphaul
• Mainsheet fuse

Hardware

• 3 manual winches size 50.2 STA
• Footblocks & clutches for halyards, reefing lines and sheets
• Mainsail track and ball-bearing car
• 2 genoa sheet tracks
• Anodized aluminum crossbeam with fixing point for the genoa furler, and anchor roller

Mooring

• Composite longitudinal crossbeam with integrated chain run and mooring cleat
• 8 mooring cleats
• 2000W / 12V electrical windlass with vertical axis, chain 12 mm

Engines

• 2 diesel engines YANMAR 4JH80 80CV SailDrive
• Fixed three blade propeller
• Sea water filter
• Mechanical engine throttles at the helm station
• Engine compartment ventilation: 12V electrical extraction in the aft transom
• Fuel circuit:
  • 2 rotomoulded tanks of 520L / 137 US gal
  • Fuel filter systems
  • Fuel shut off valve
  • Gauge at the general control panel on touch screen

Plumbing

FRESH WATER CIRCUIT

• Fresh water tank: 830L / 219 US gal with gauge at the chart table
• Fresh water circuit with 1 main water group 36L/mn
• Hot water circuit with 60L / 16 US gal water heater and engine exchanger

GREY WATER CIRCUIT

• Shower and sink draining by automatic water sensor with timer
• Grey water drainage cockpit and salon direct to the sea black water circuit
• Black water holding tanks:
  • 4-cabin, 3 heads version: 240L / 63 US gal
  • 4-cabin, 4 heads version: 310L / 82 US gal
  • 6-cabin, 4 heads version: 310L / 82 US gal
• Tank drain by gravity or deck plate

BILGE PUMP CIRCUIT

• 1 manual bilge pump per hull
• 1 automatic immersed bilge pump per hull, with alarm signal
• 1 float swith per sump
• Self-draining cockpit compliant to the CE certifications

Electrical

• Seanapps connectivity – Battery voltage and GPS position on mobile app

DC POWER CIRCUIT 12V

• 2 harnessed alternators 125A
• 2 engine batteries 50A (AGM)
• 3 service batteries 140A (AGM)
• Battery circuit breakers in the engine compartments

DISTRIBUTION ELECTRIC PANEL

• General control panel 12V at chart table
• USB sockets 12V included in the electrical panel
• 2 USB sockets 12V at the helm station

220V AC CIRCUIT

• Inverter 24/220V 50Hz 1200VA

LIGHTING

• 12V LED interior lighting and reading lights
• 12V lighting in engine compartment
• LED navigation lights
• Deck light on mast

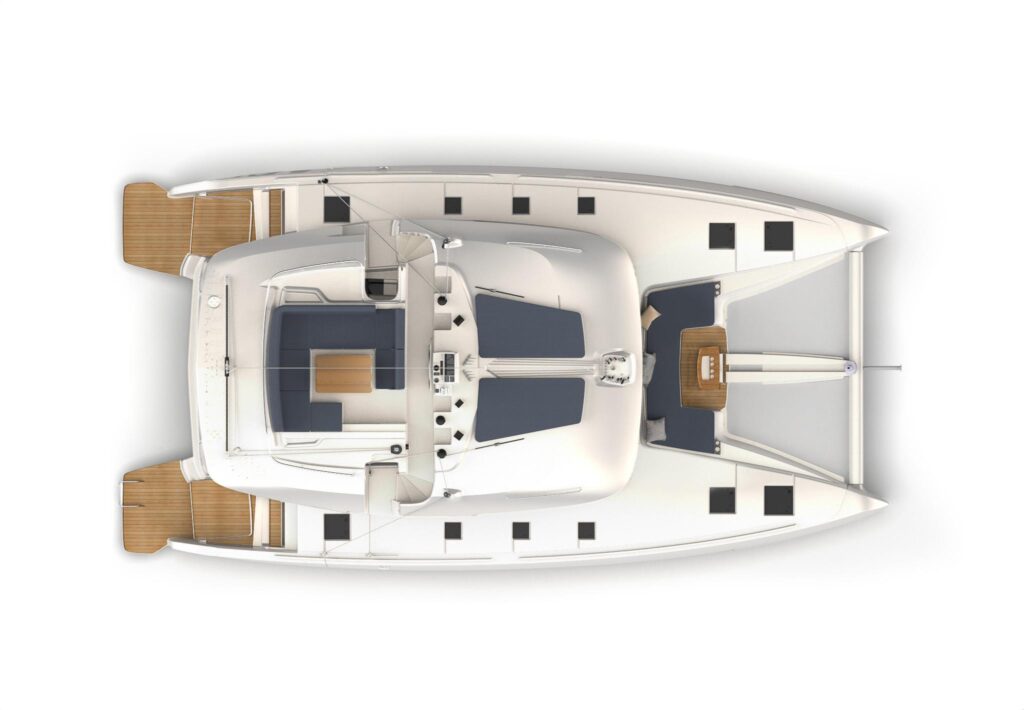

Deck Layout

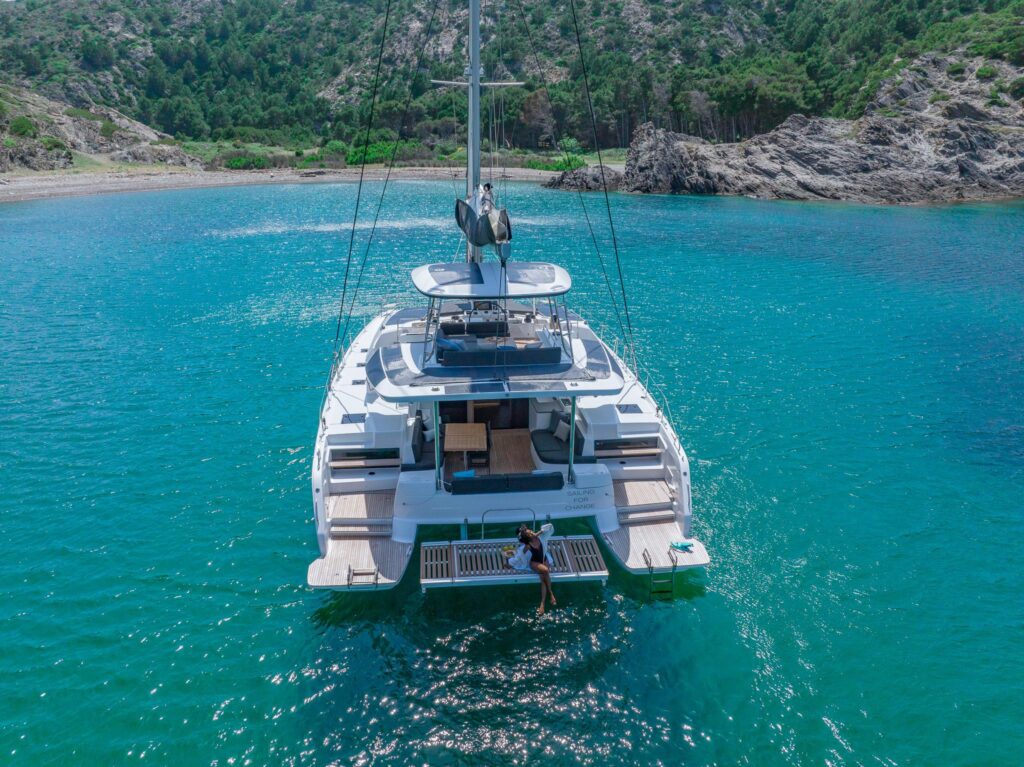

TRANSOM

• Hot/cold deck shower on starboard
• S/S telescopic swim ladder with fixed handles on starboard

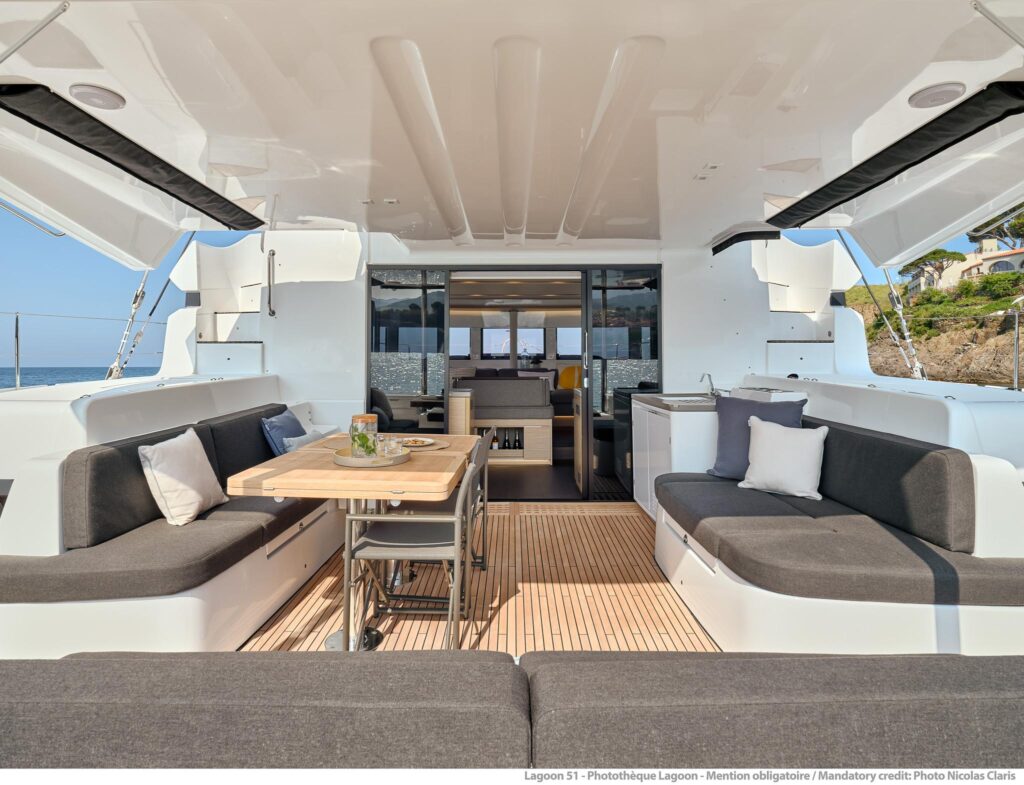

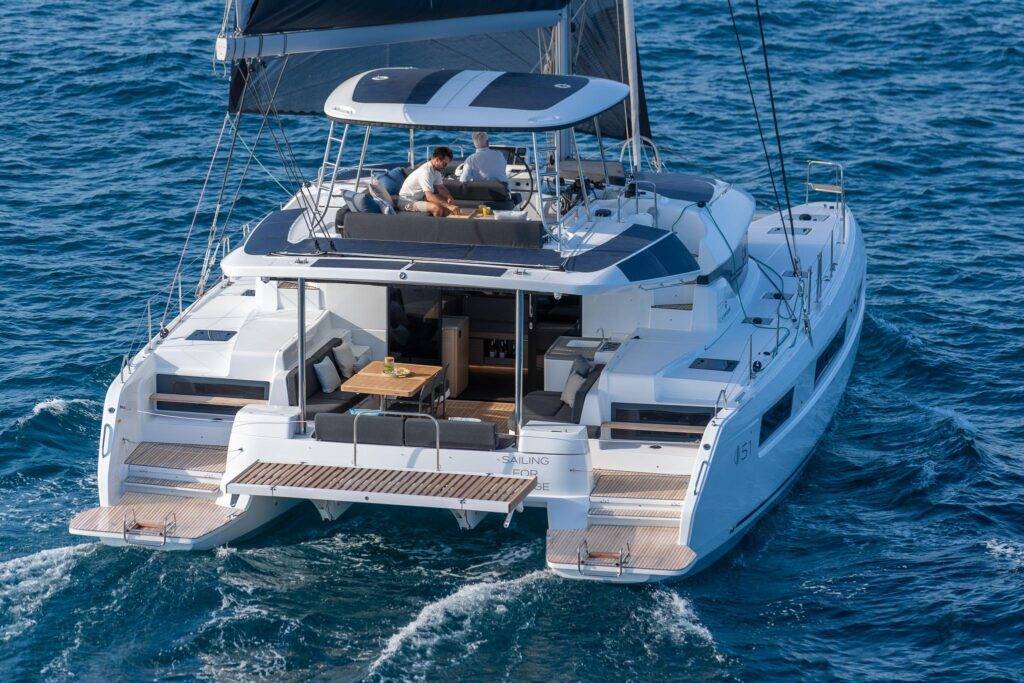

AFT COCKPIT

• L-shaped bench on port side
• Gas locker
• Polyester cockpit table
• Exterior furniture on starboard:
  • Corian countertop
  • Integrated sink
  • Tray and cup holder
  • Double door with shelves
• Lounger with locker to starboard
• Composite aft beam:
  • Seats
  • Liferaft locker under seat
• Cockpit flush-decked with saloon
• Composite non-streaming toe rails on cockpit sides
• Non-slip cockpit floor
• Self-draining cockpit with wooden grating

FLYBRIDGE

• Access from the cockpit and deck
• Double helm seat
• C-shaped seats aft of the helm station
• Leather covered steering wheel 900mm
• Engine throttles and panel
• Console for screen and instrumentation
• Storage bag for halyards

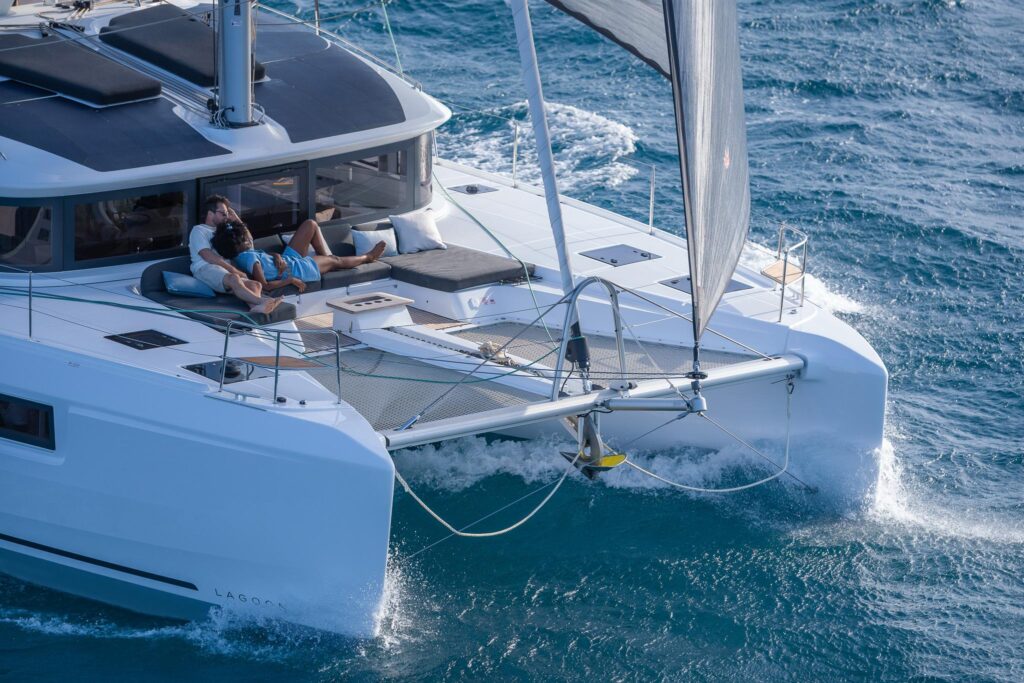

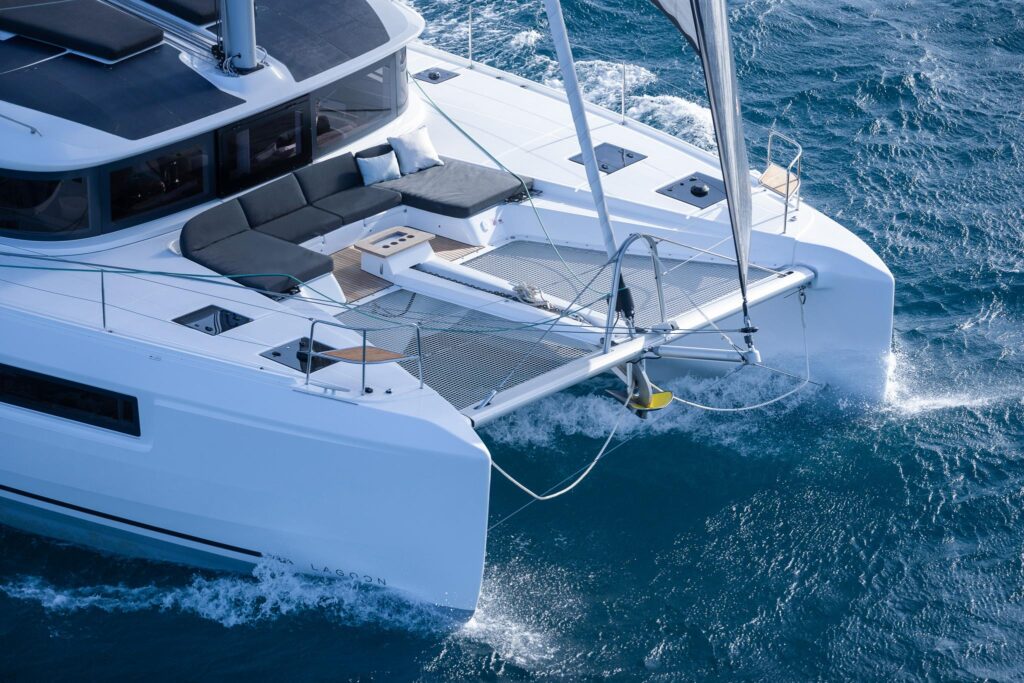

FORWARD COCKPIT

• U-shaped seating area
• Large hatches for technical access
• Nylon netting

BOW LOCKERS

• Access through LEWMAR T60 deck hatches
• Wooden floor
• LED lighting

STANCHIONS AND LIFELINES

• Pushpits: H610 mm / 24in
• 10 stanchions: H610 mm / 24in
• Double S/S lifelines

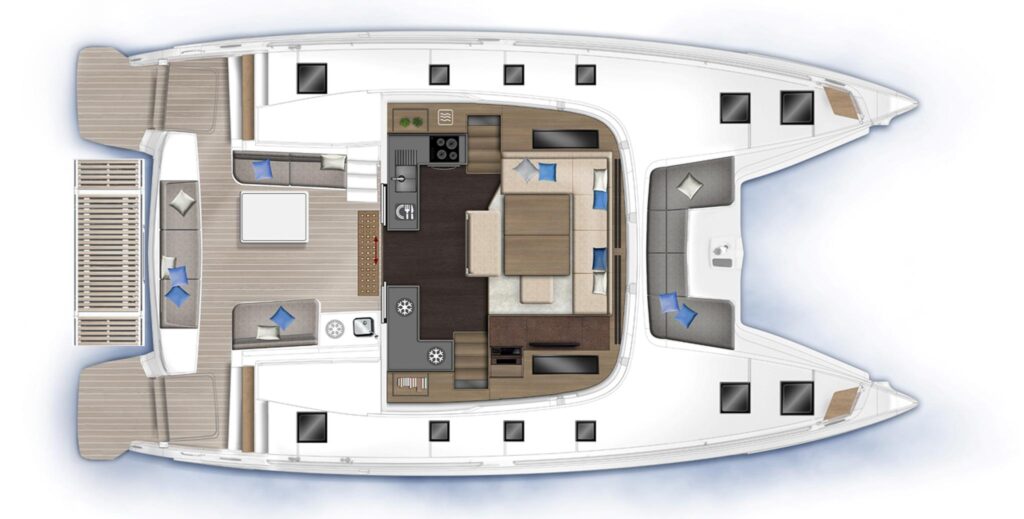

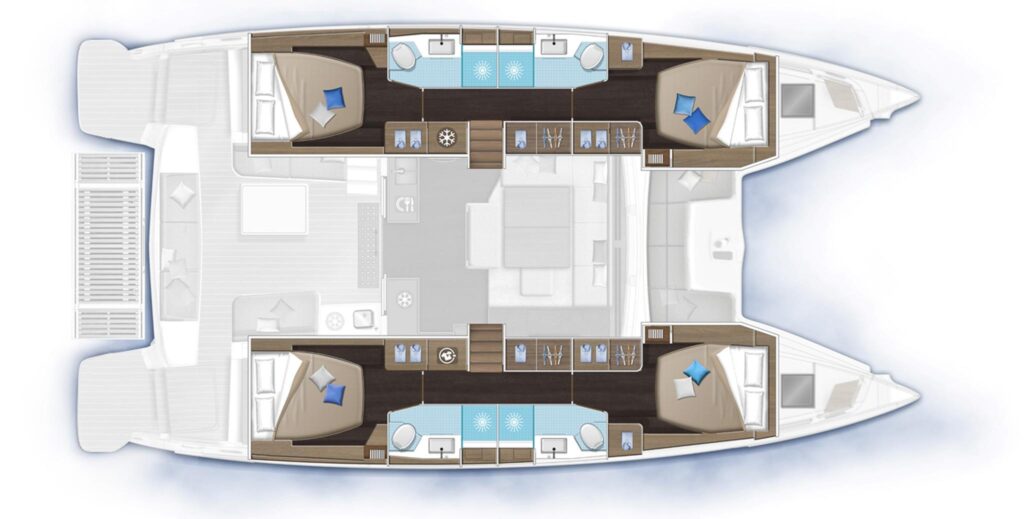

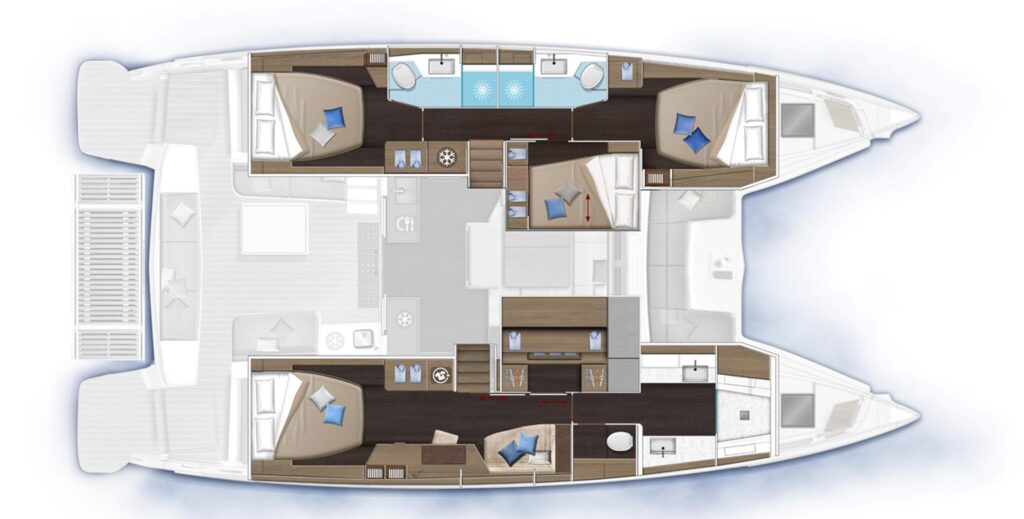

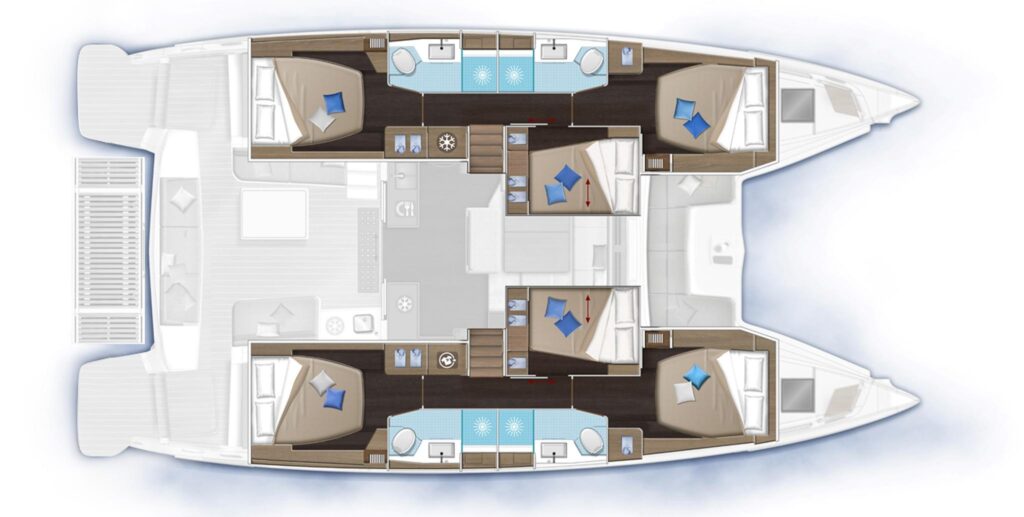

Interior Layouts

GENERAL

• Construction in Alpi Sand Oak plywood, horizontal grain
• Laminated floor: Dark Oak
• 100% recycled upholstery, adapted to the marine environment
• Ceiling and hull linings in padded PVC foam
• Eco-Cleaning Pack
• Furniture interiors in Okoum finish

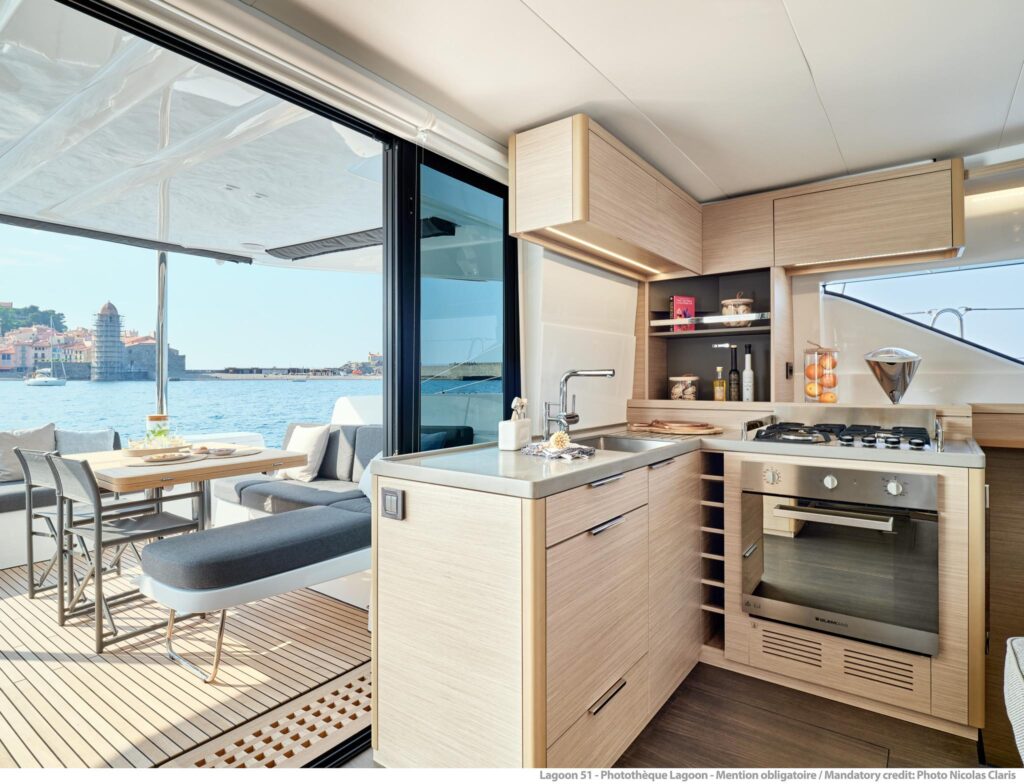

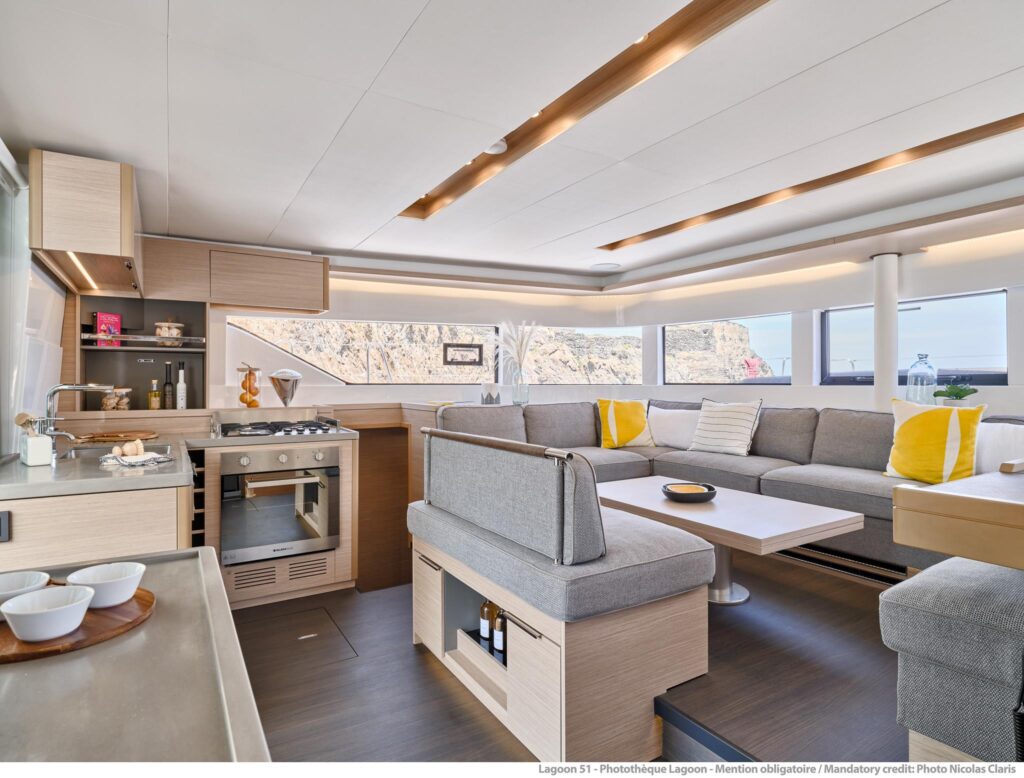

GALLEY

• Corian countertop
• Port side:
  • U-shaped galley
  • Large s/s sink with Corian cover
  • Hot/cold mixer tap
  • 4-burner gas stove
  • Gas oven
  • Bin
• Starboard:
  • 12V 190L / 50 US gal refrigerator
• High and low storages with shelves, drawers and bottle rack

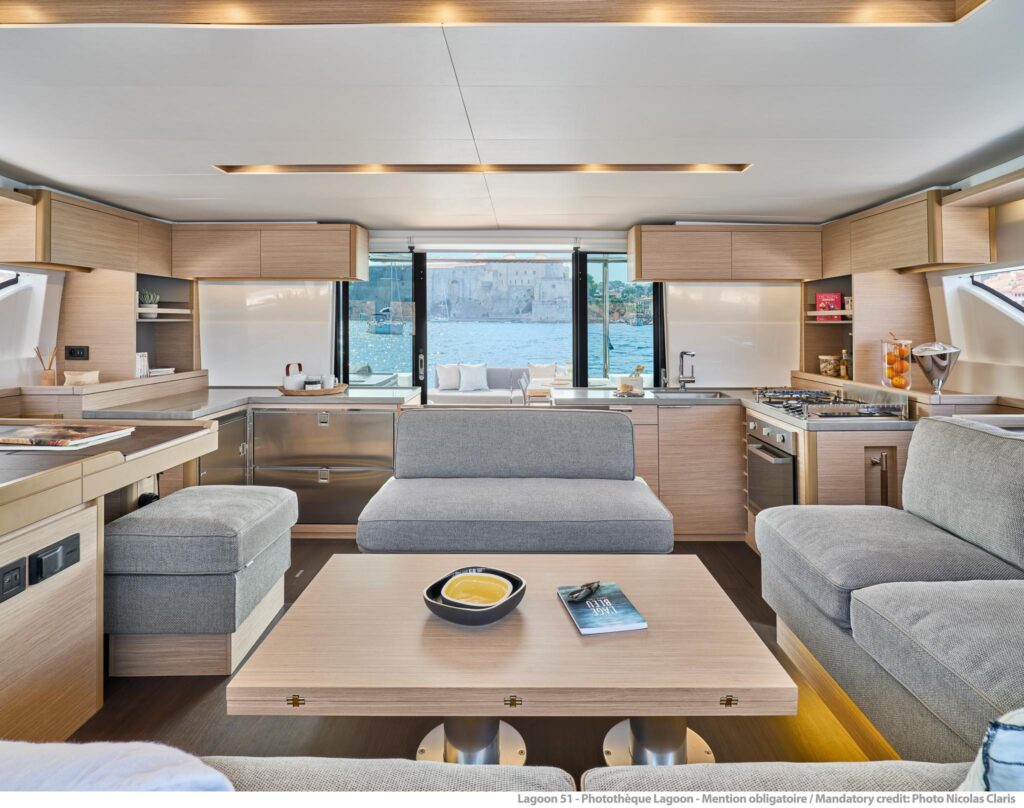

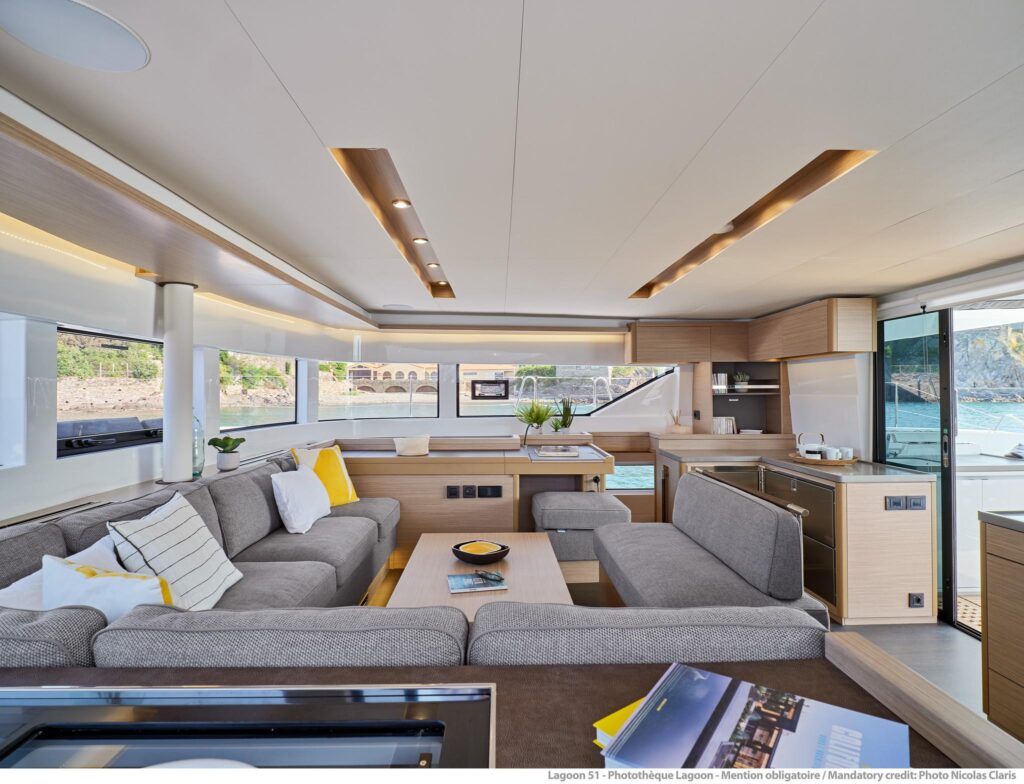

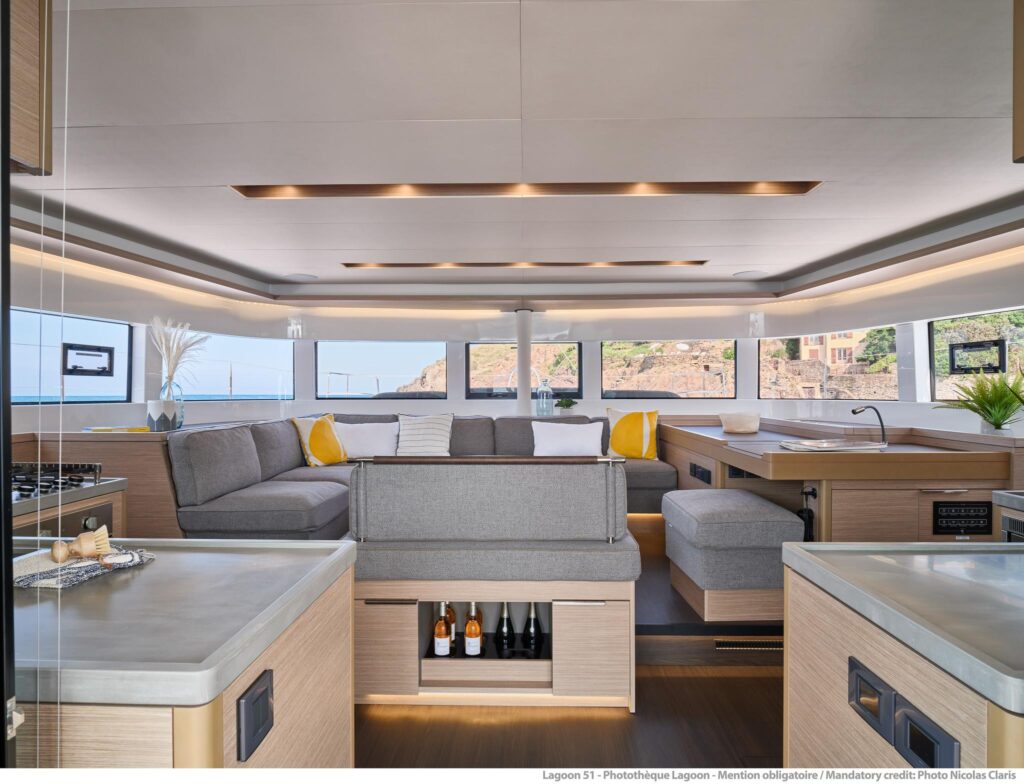

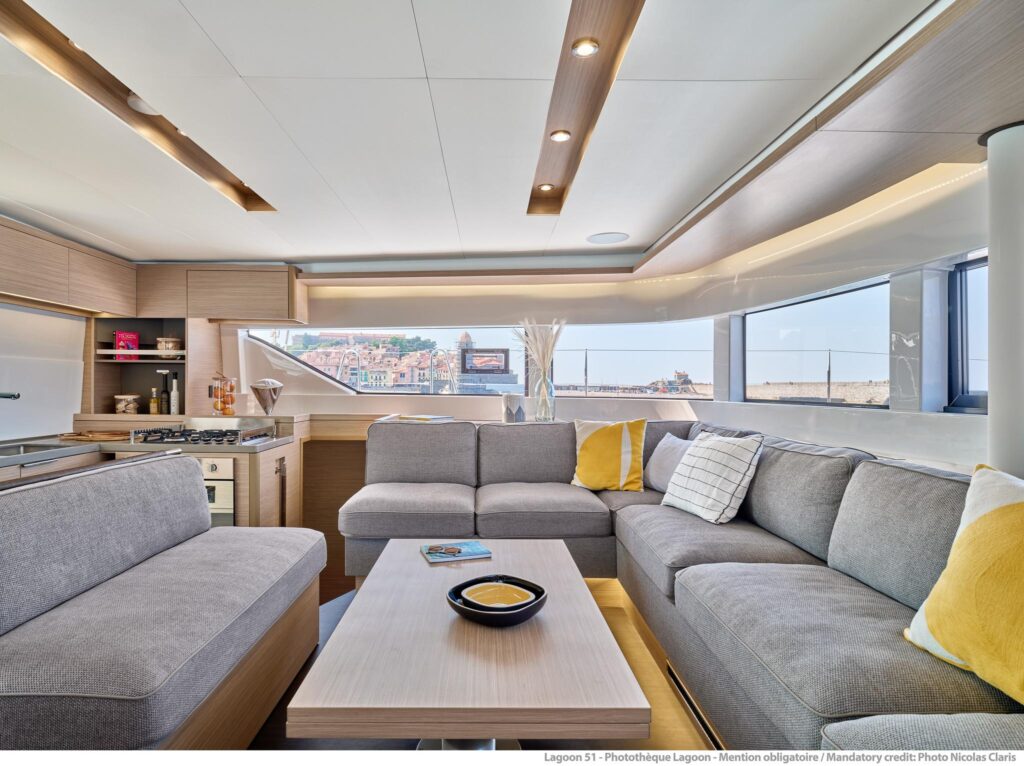

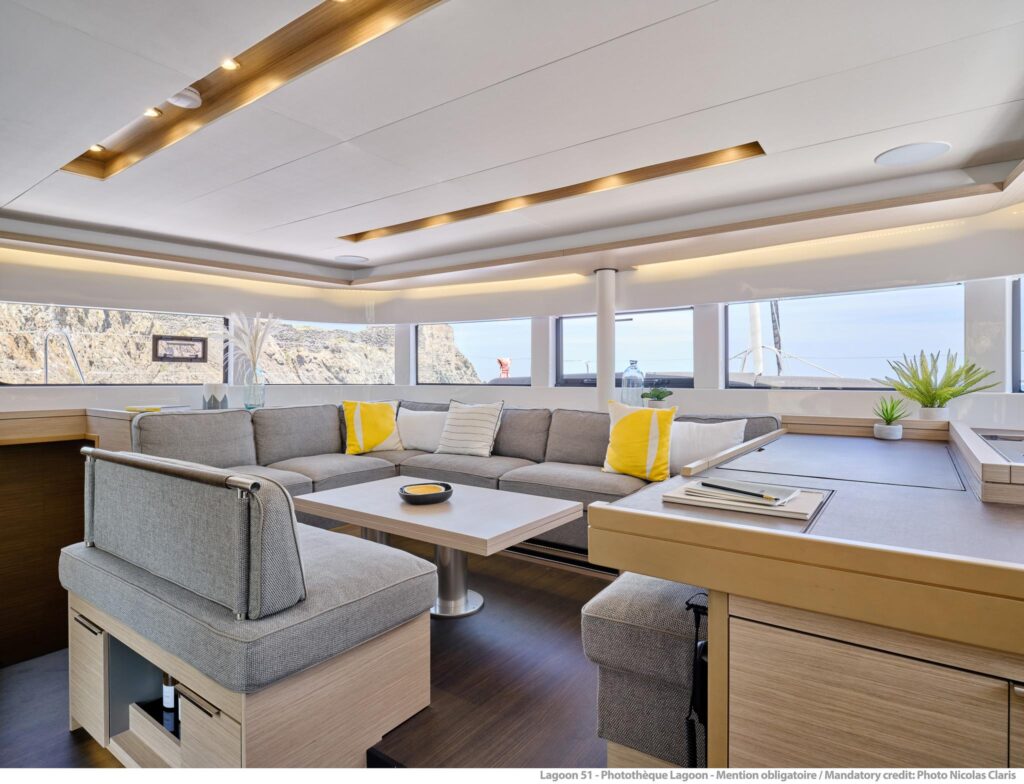

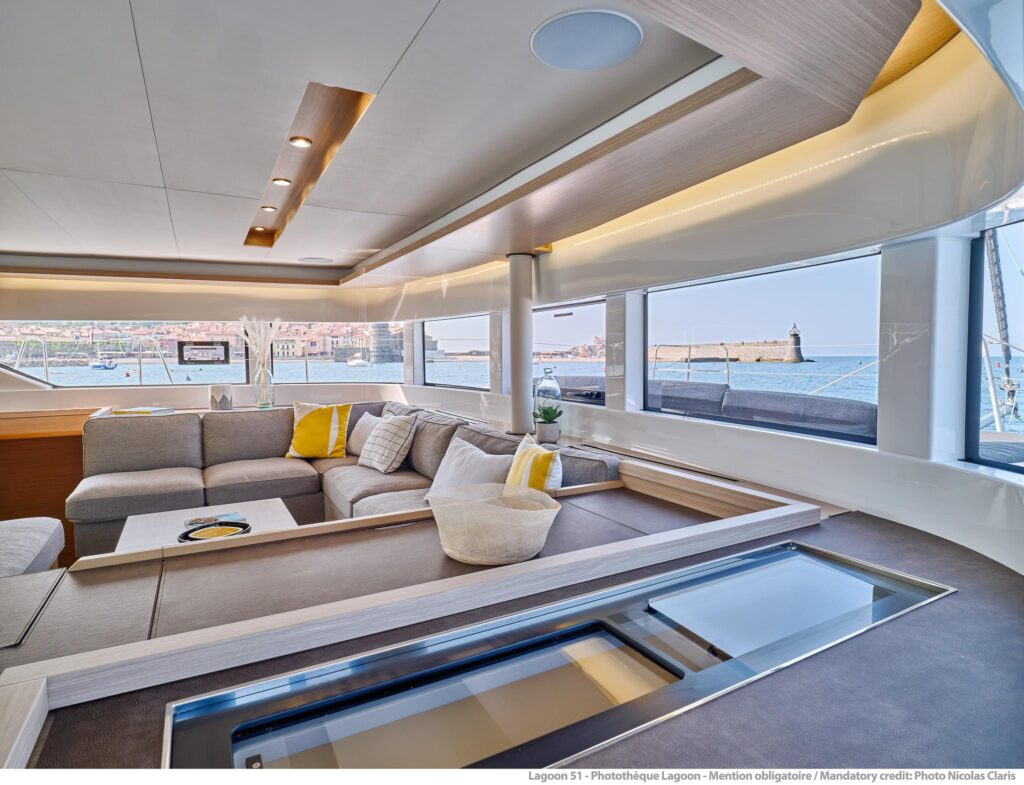

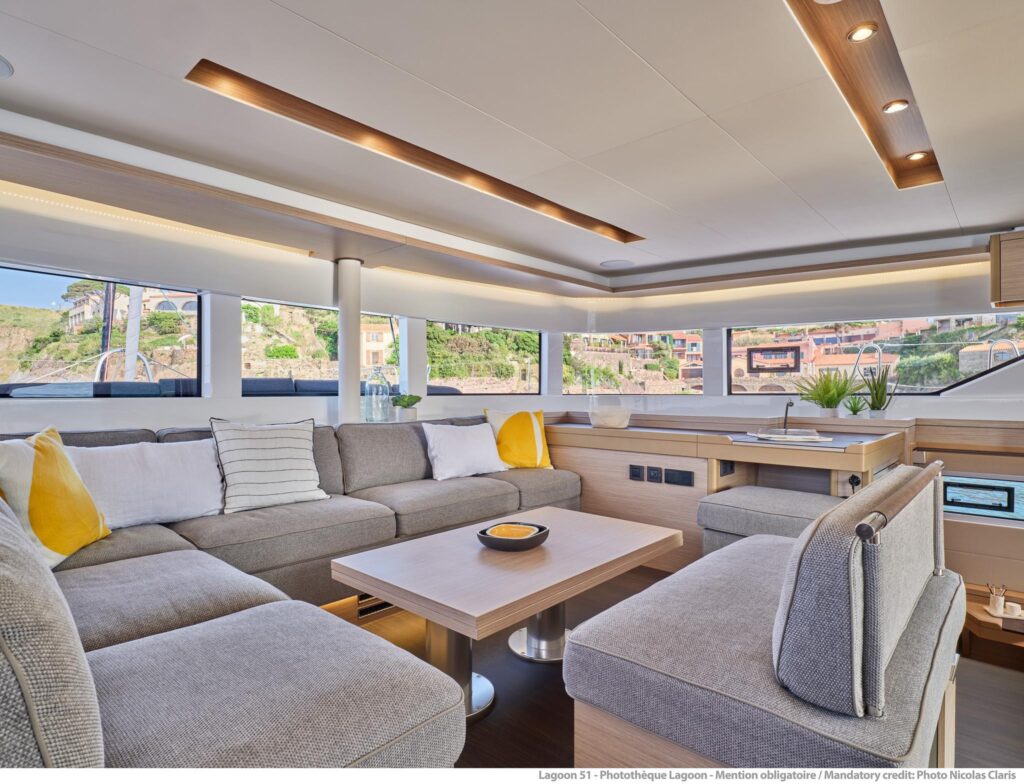

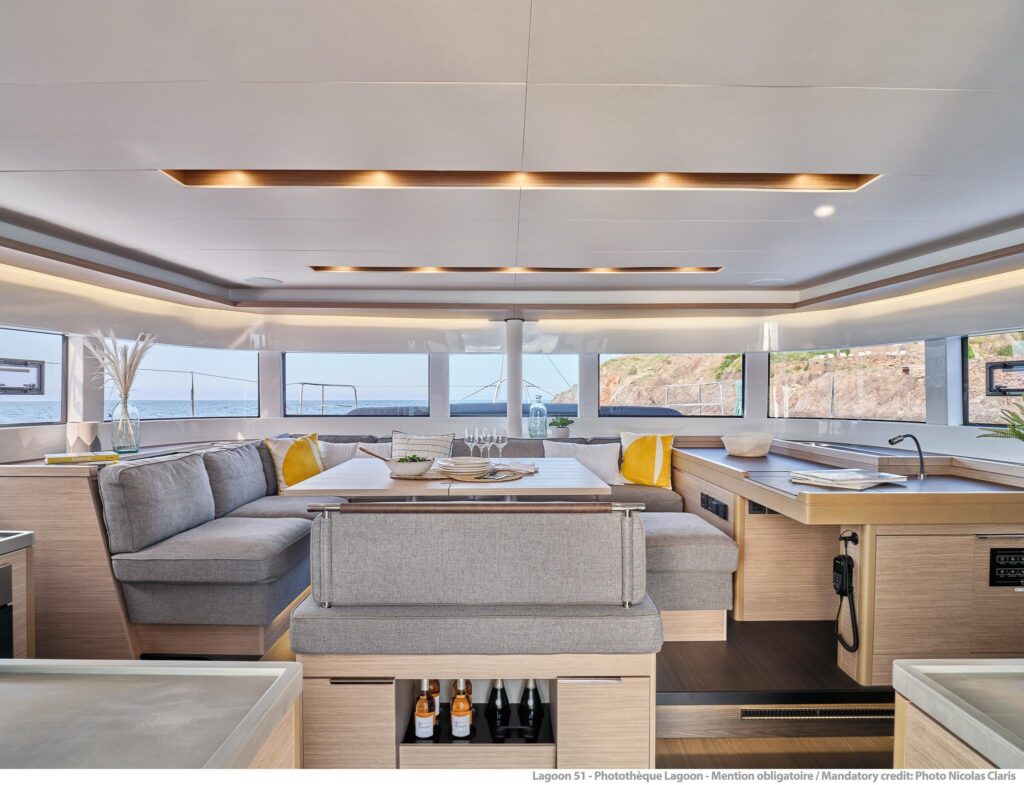

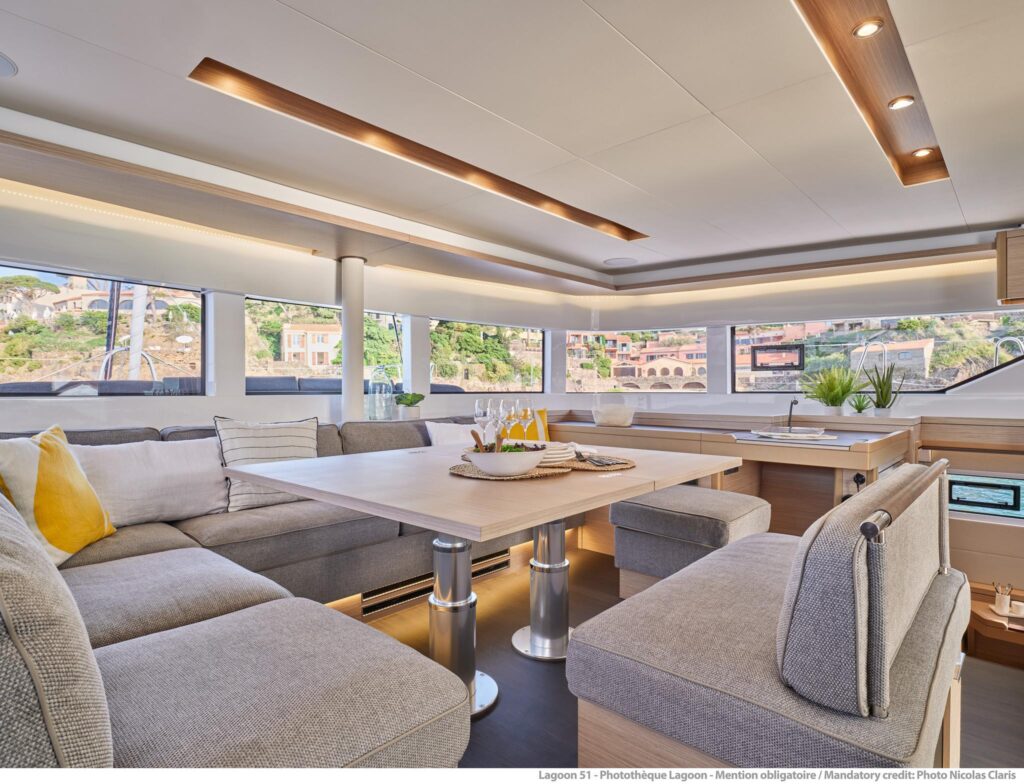

SALON

• L-shaped sofa
• Wooden dining table
• Chart table on starboard
• Central furniture:
  • Seat with backrest
  • Bottles storage

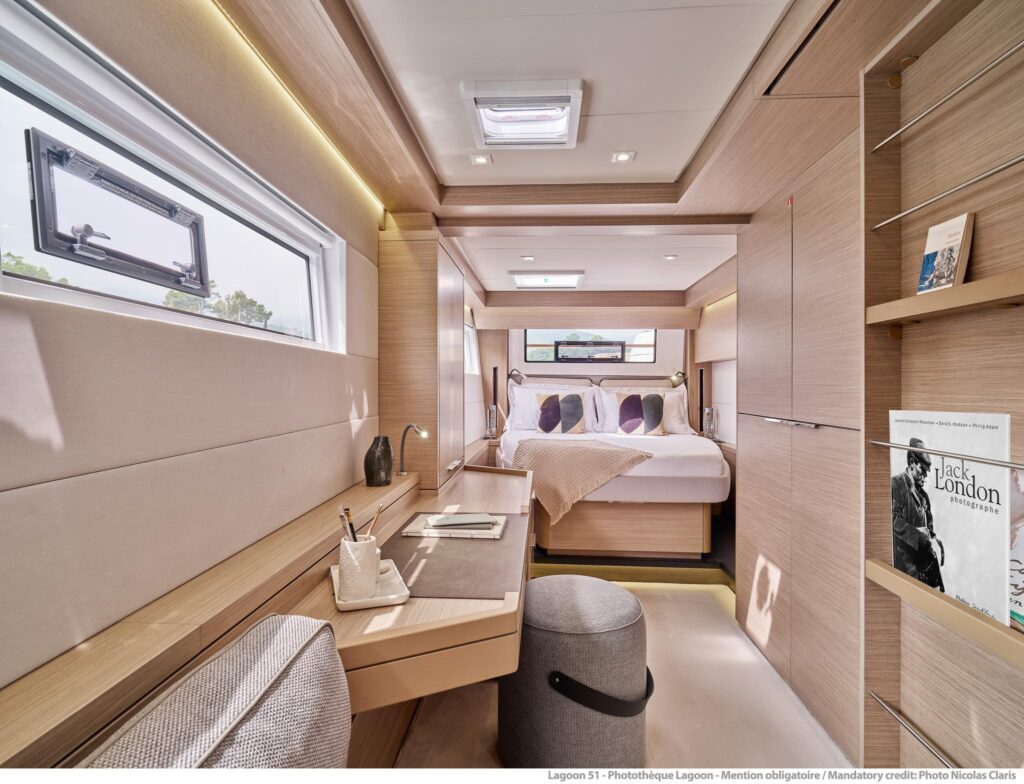

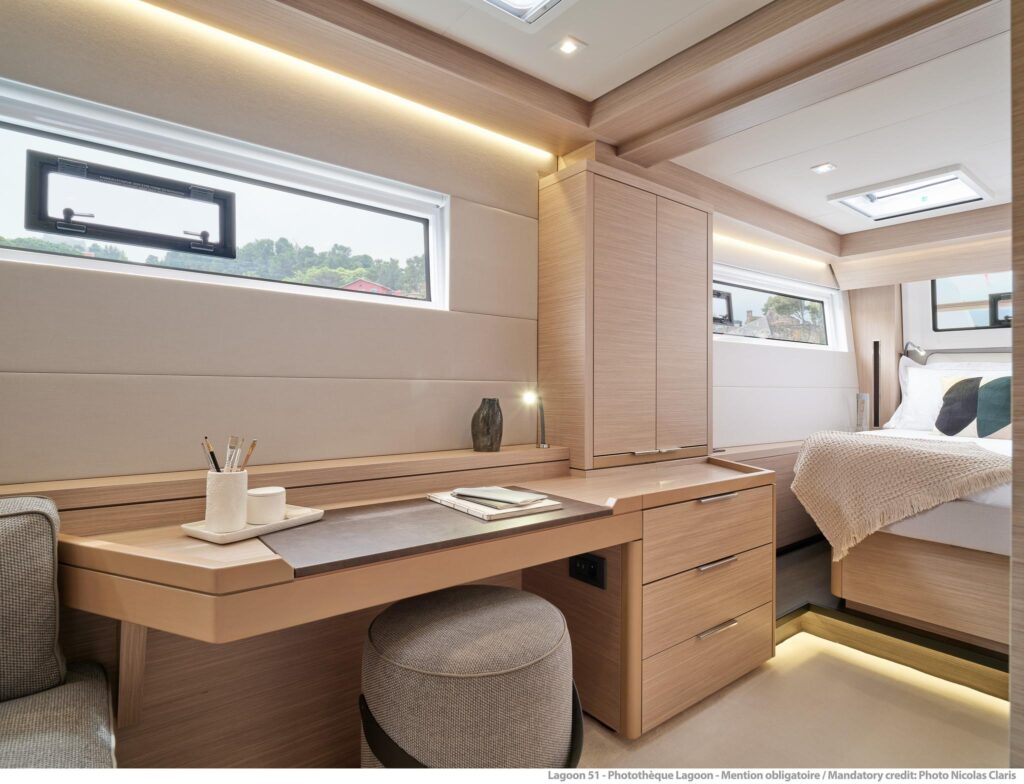

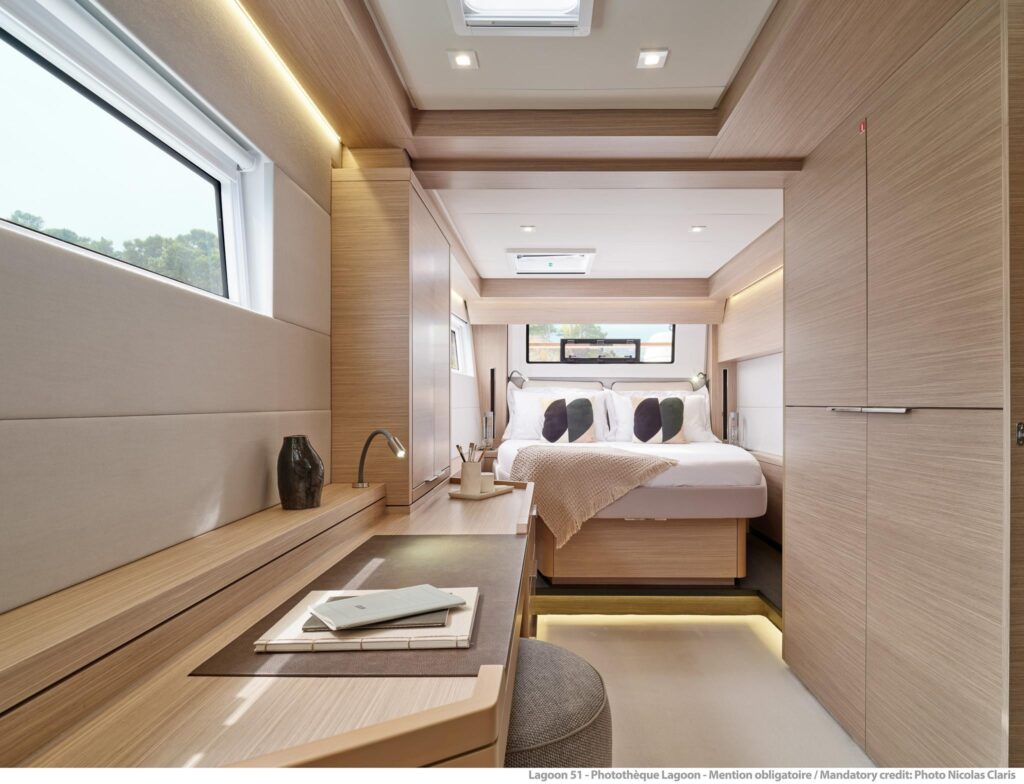

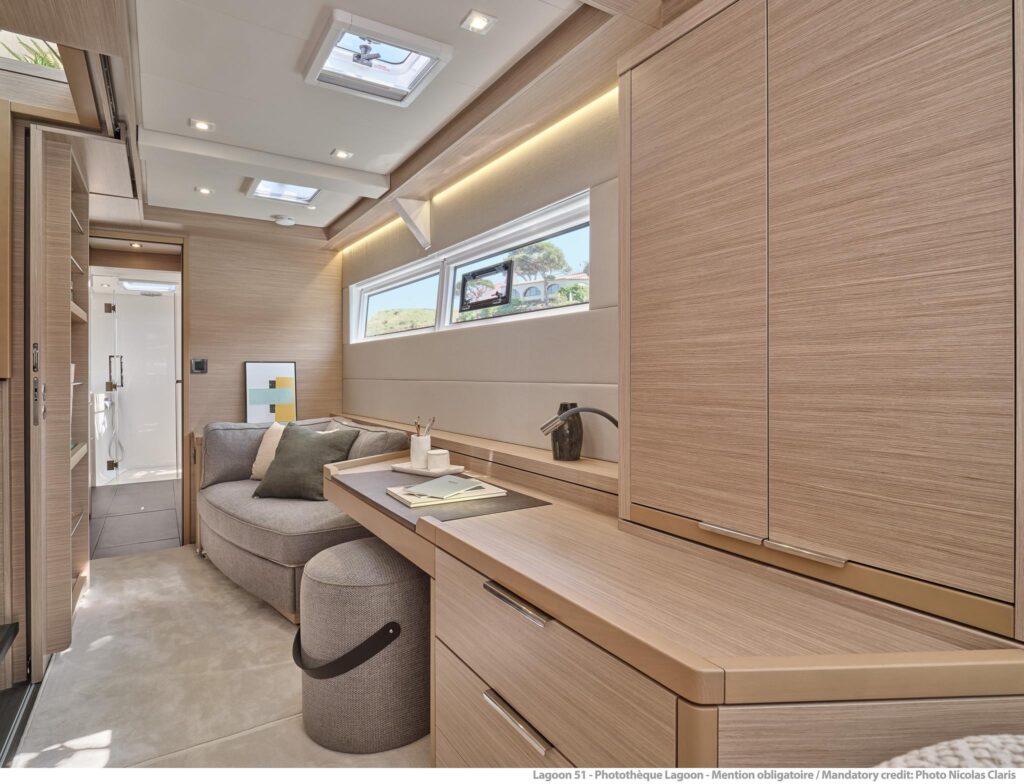

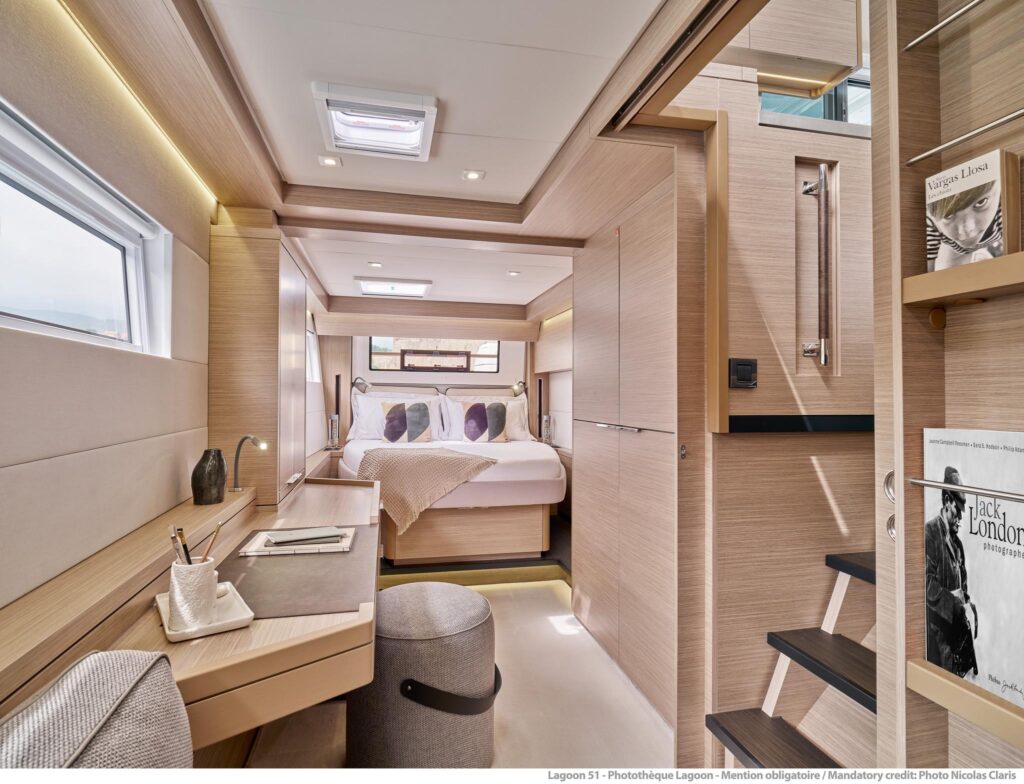

OWNERS CABIN

• Double bed with lateral access (2,00 x 1,60 m / 67 x 53)
• Treated cellular foam mattress
• Under bed storage

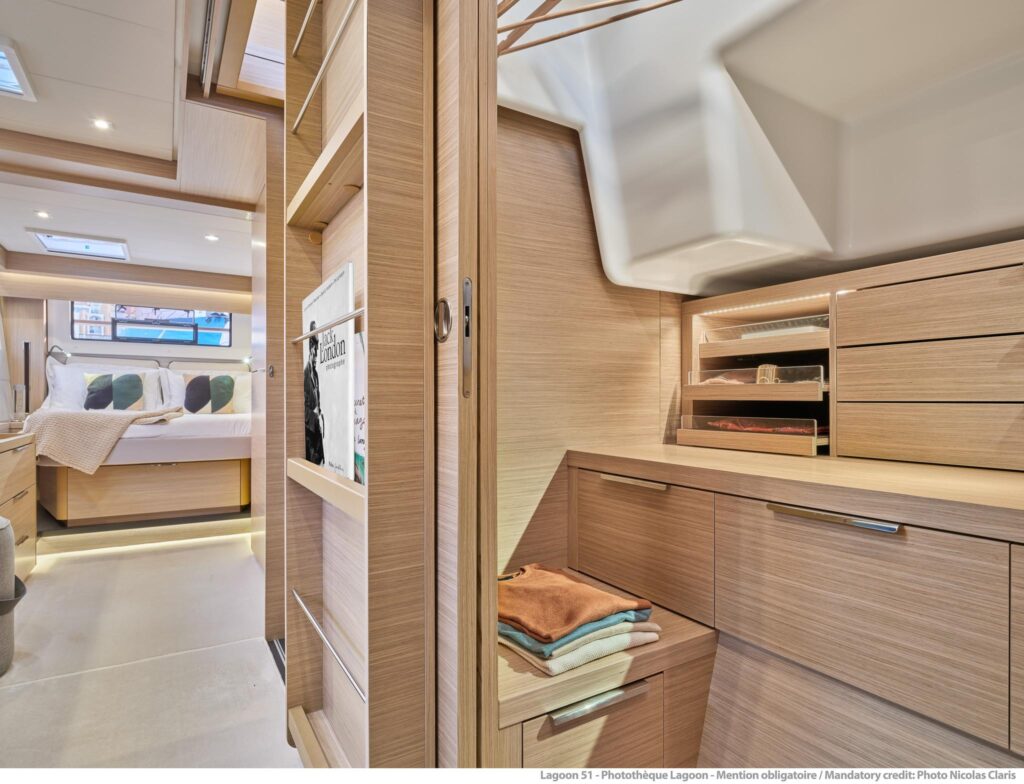

• Walk-in dressing with sliding door
• Storage units with shelves, drawers and wardrobe
• Sofa
• Desk with 1 stool
• T44 and T10 opening flush deck hatches
• Fixed hull window in PMMA with integrated opening portholes and roller blind

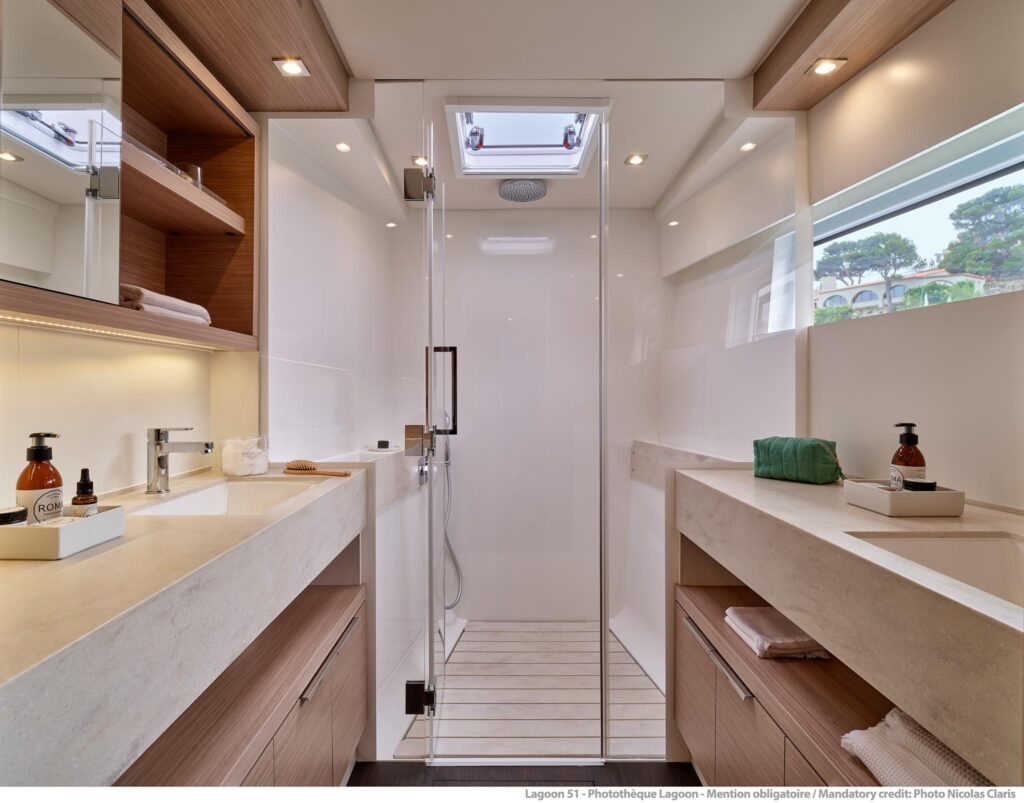

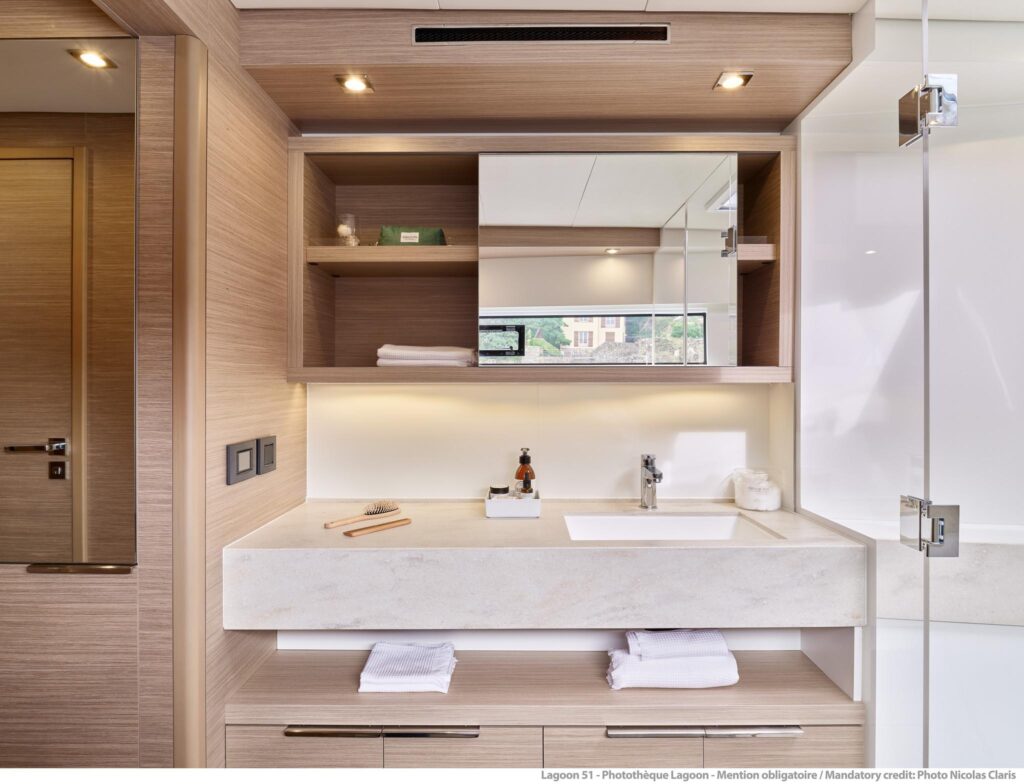

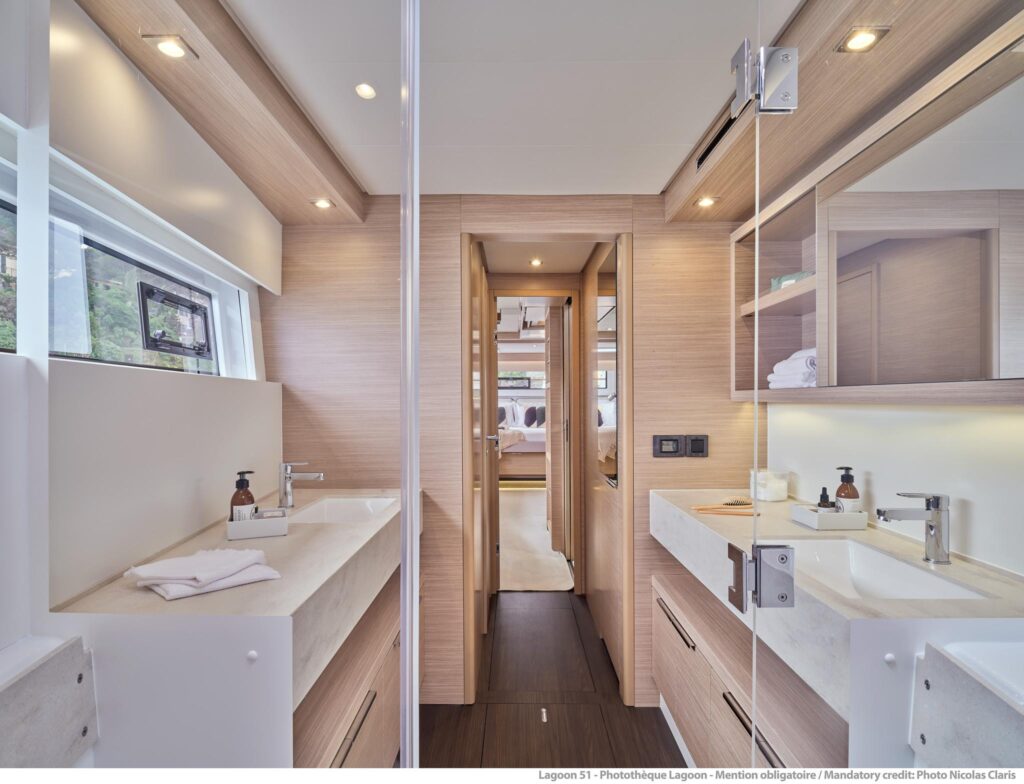

OWNERS HEAD

• Private access from the Owners cabin
• Corian countertop
• Integrated sink with hot/cold mixer tap
• High and low-level storage units
• Separated shower with PMMA door
• Separated toilets with storages
• T44 and T10 opening flush deck hatches
• Fixed hull window in PMMA with integrated opening porthole

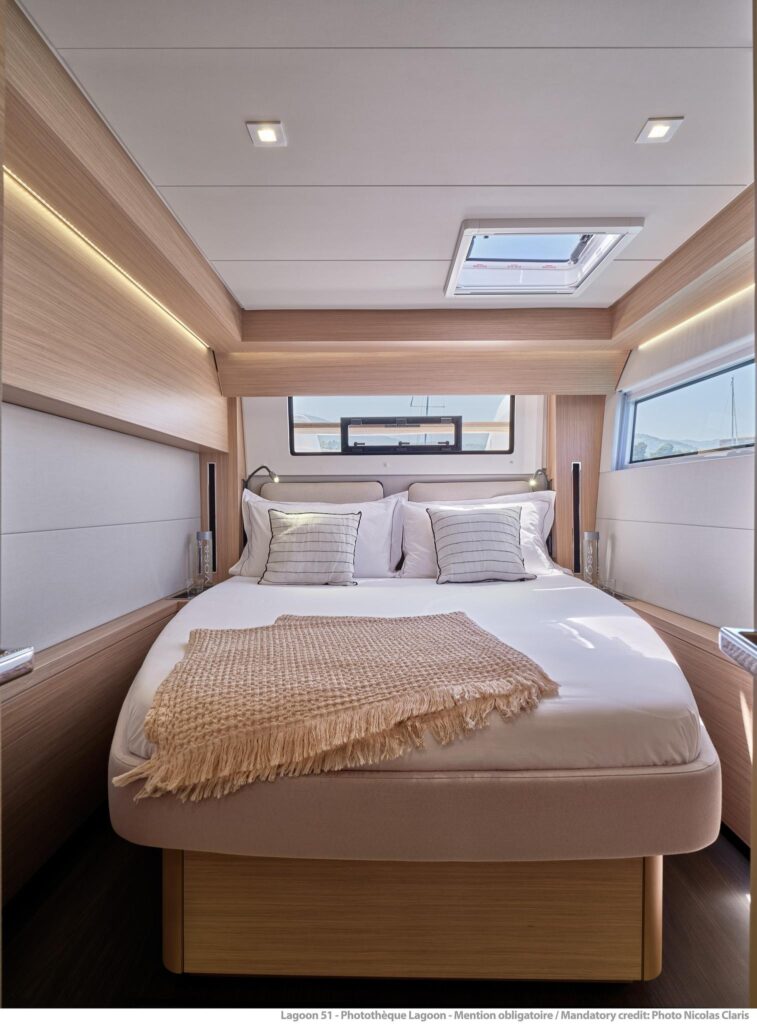

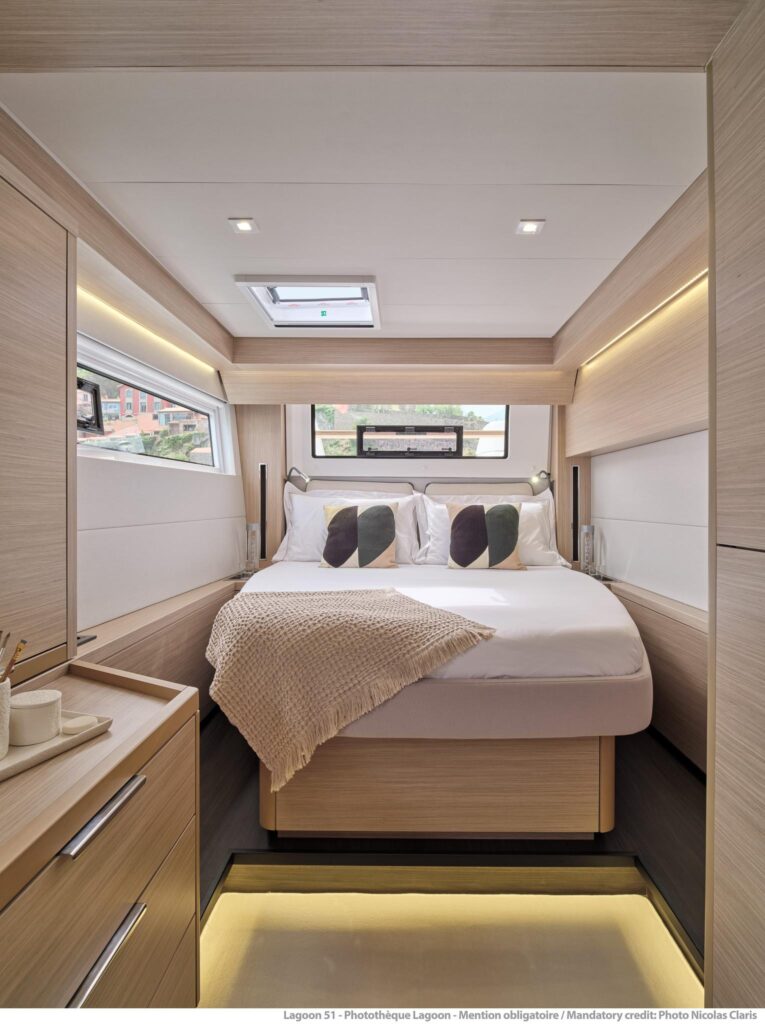

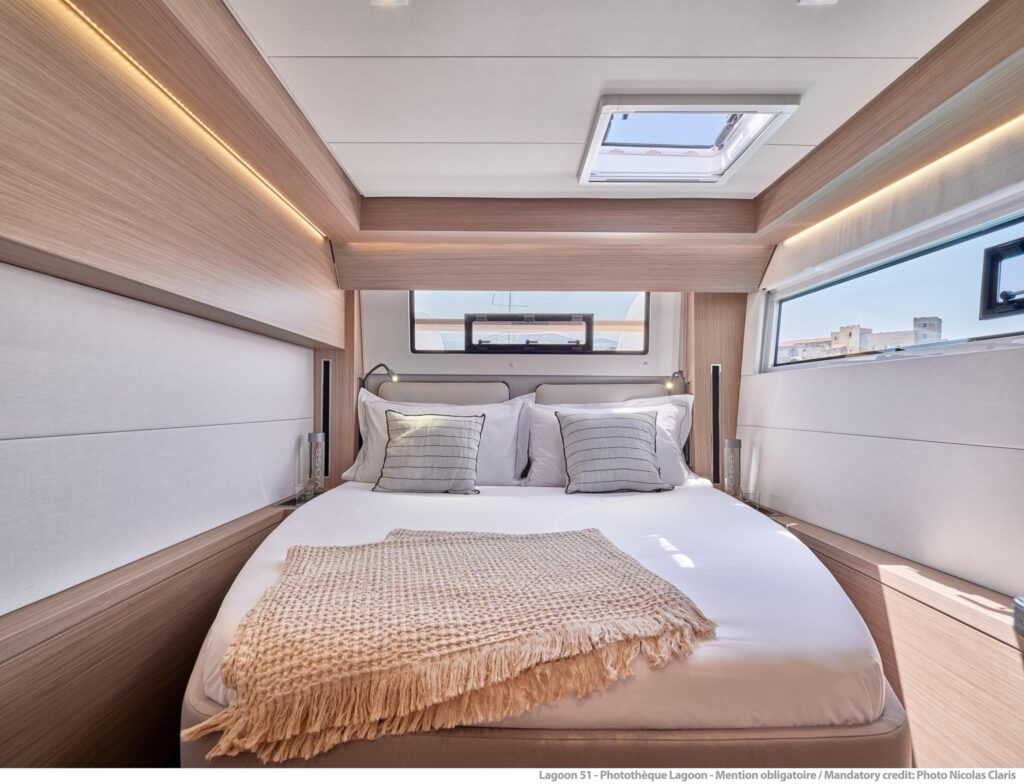

AFT CABINS

• Double bed with lateral access (2,00 x 1,60 m / 67 x 53)
• Treated cellular foam mattress
• Under bed storage
• Meubles de rangement avec tagres, tiroirs et penderies
• T44 opening flush deck hatch
• Fixed hull window in PMMA with integrated opening porthole and roller blind

LATERAL CABIN

• Bed with lateral access (2,00 x 1,60 m / 67 x 53)
• Treated cellular foam mattress
• Full height unit with shelves and wardrobe, and storage units
• Sliding hatch on salon with blackout blind

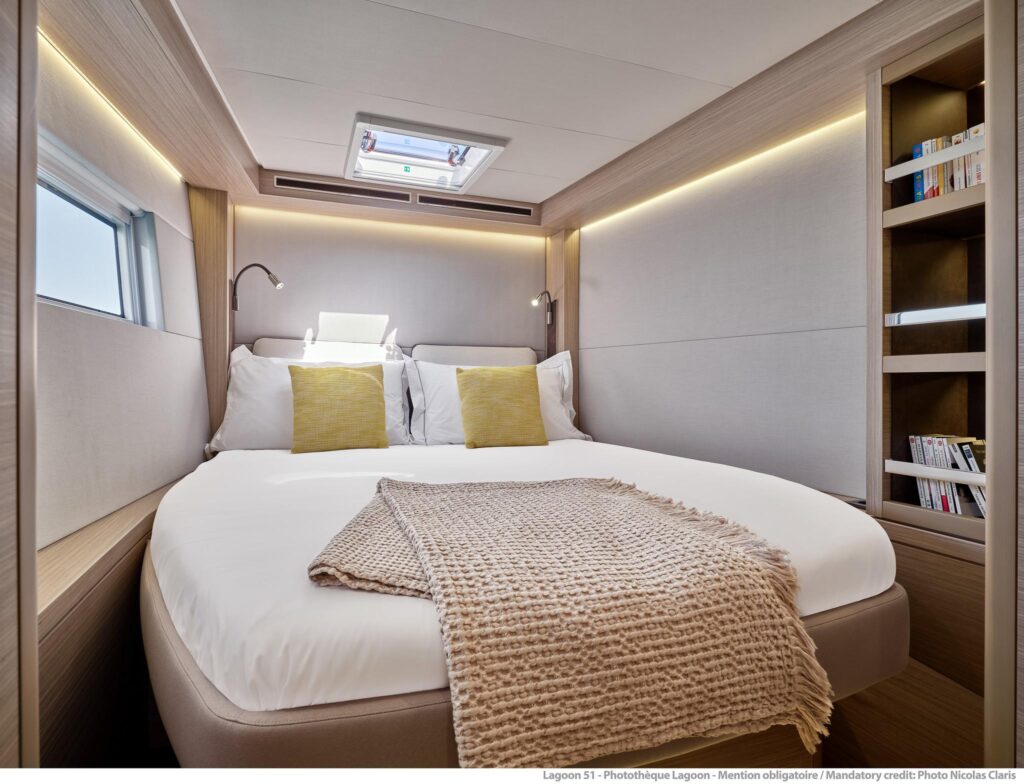

FORWARD CABIN

• Bed with lateral access (2,00 x 1,60 m / 67 x 53)
• Treated cellular foam mattress
• Under bed storage
• Full height unit with shelves and wardrobe
• T44 opening flush deck hatch
• Fixed hull window in PMMA with integrated opening porthole and roller blind

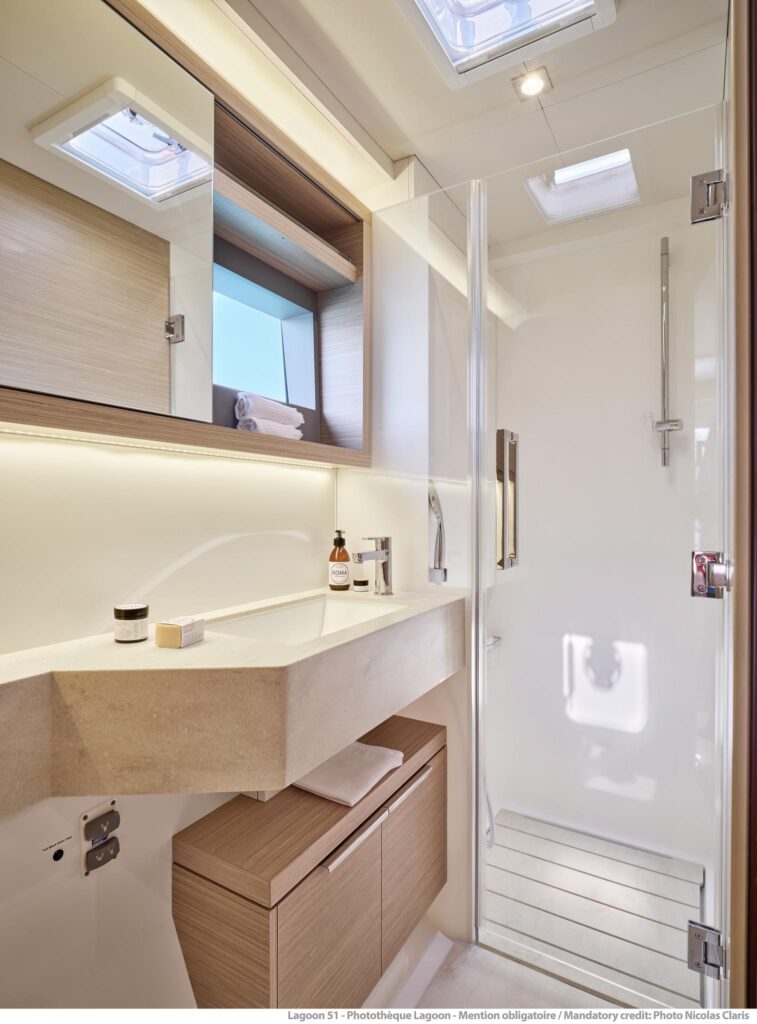

HEADS

• Corian countertop
• Integrated sink with hot/cold mixer tap
• High and low-level storage units
• Separated shower with PMMA door
• Manual toilet
• T10 opening flush deck hatch
• Fixed hull window in PMMA

Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
