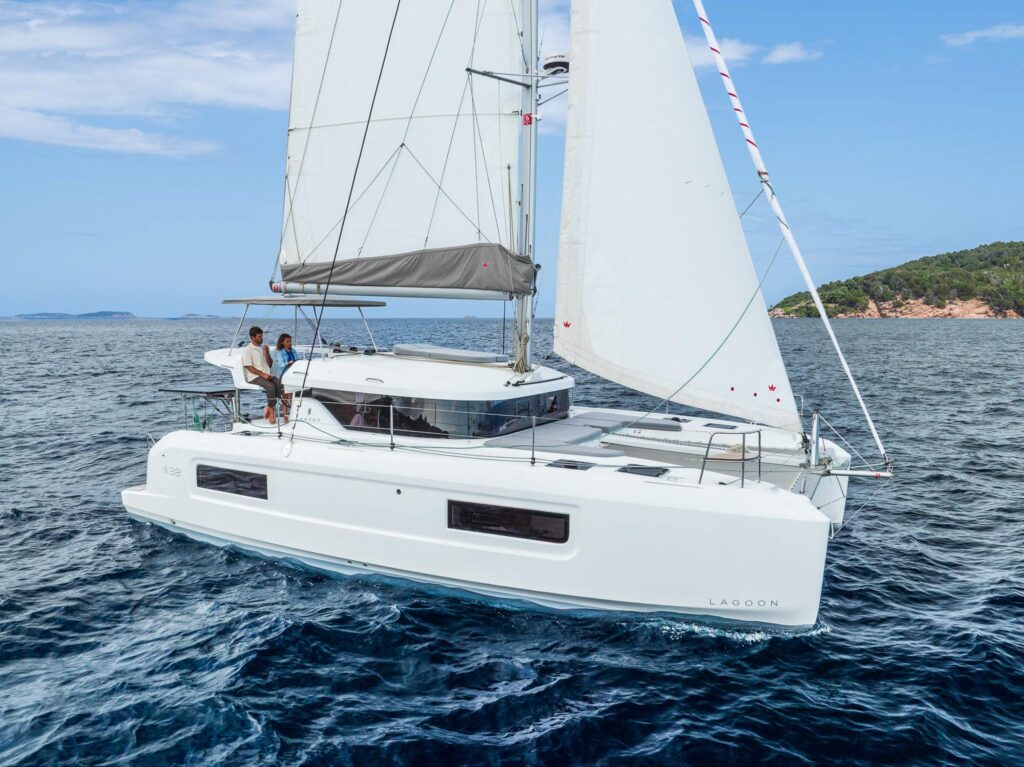

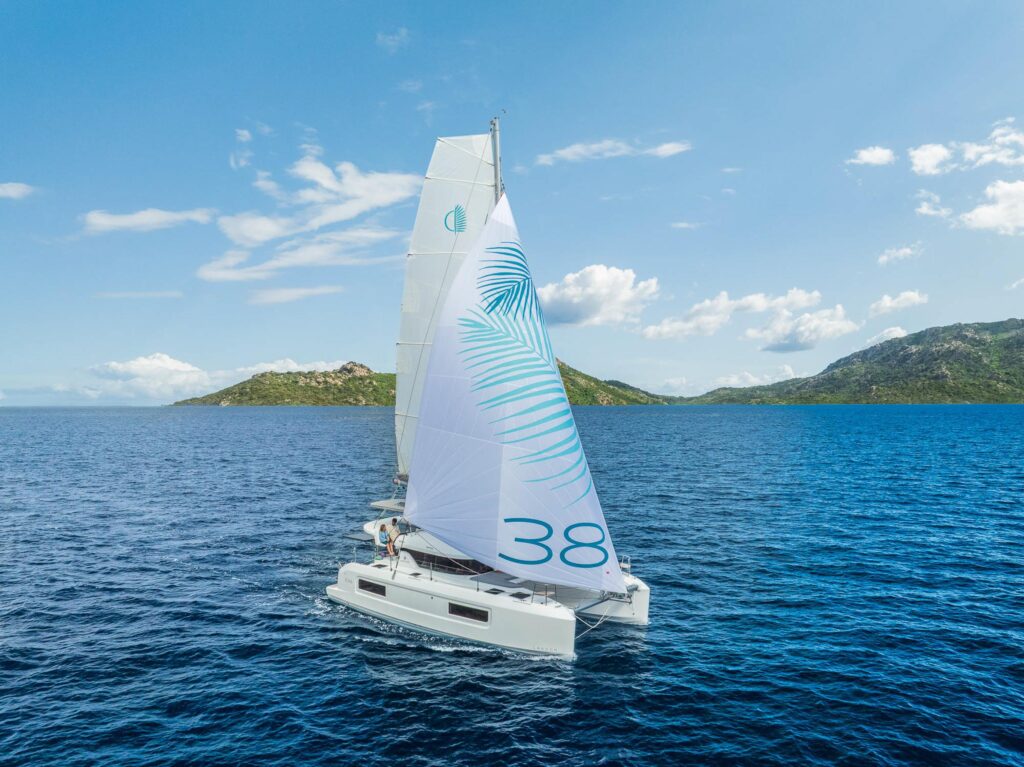

2026 Lagoon 38

North American Specifications

ONLY FOR BOATS SOLD IN US

• 110V electric panel and electric equipment
• US 110V outlets
• Gas propane circuit with solenoid valve

Construction

• Polyester and high quality anti-osmotic resin
• Hull in infusion, deck and coachroof in injection
• Sandwich hull & deck, white gel coat
• Laminated or glued plywood

Sails and Rigging

STANDING RIGGING

• Anodized aluminum mast
• Anodized aluminum boom
• 2 spreader rig
• Coated shrouds
• Furling forestay for self-tacking jib
• 2 shroud chainplates and 1 forestay chainplate
• Adjustable lazy-jacks

RUNNING RIGGING

• Mainsail halyard
• Self-tacking jib halyard
• 2 mainsheets
• Self-tacking jib sheet
• 2 reefing lines
• Self-tacking jib furling line
• Boom uphaul
• Mainsheet fuse

Hardware

• 1 manual winch size 40.2 STA
• Footblocks & clutches for halyards, reefing lines and sheets
• Self-tacking jib track
• 1 block, ropes and blocker on starboard deck for maneuvering self-tacking jib furler
• Anodized aluminum crossbeam with fixing point for the self-tacking jib furler, and anchor roller

Mooring

• Composite longitudinal crossbeam with integrated chain run and mooring cleat
• 6 mooring cleats
• 1000W / 12V electrical windlass with vertical axis, chain 10 mm

Engines

• 2 diesel engines YANMAR 3YM30AE 29CV SailDrive
• Fixed three blade propeller
• Sea water filter
• Mechanical engine throttles at the helm station
• Engine compartment ventilation: 12V electrical extraction in the aft bulwarks
• Fuel circuit :
  • Fuel filter systems
  • Fuel shut off valve
  • Gauge at the general control panel on touch screen

Plumbing

FRESH WATER CIRCUIT

• Fresh water tank: 300L / 79 US gal with gauge on touchscreen
• Fresh water circuit with 1 main water group 18,5L/mn

GREY WATER CIRCUIT

• Shower and sink draining by automatic water sensor with timer
• Grey water drainage cockpit and salon direct to the sea

BLACK WATER CIRCUIT

• Black water holding tanks:
  • 3-cabin, 2 heads version: 2 x 80L (180L) / 48 US Gal
  • 4-cabin, 2 heads version: 2 x 80L (180L / 48 US Gal)
• Tank drain by gravity or deck plate

BILGE PUMP CIRCUIT

• 1 manual bilge pump per hull
• 1 automatic immersed bilge pump per hull, with alarm signal
• Self-draining cockpit compliant to the CE certifications

Electrical

DC POWER CIRCUIT 12V

• 2 harnessed alternators 125A
• 2 engine batteries 50A (AGM)
• 3 service batteries 95A (AGM)
• Battery circuit breakers in the engine compartments

DISTRIBUTION ELECTRIC PANEL

• General control panel 12V at chart table
• USB sockets 12V included in the electrical panel

LIGHTING

• 12V LED interior lighting and reading lights
• 12V lighting in engine compartment
• LED navigation lights

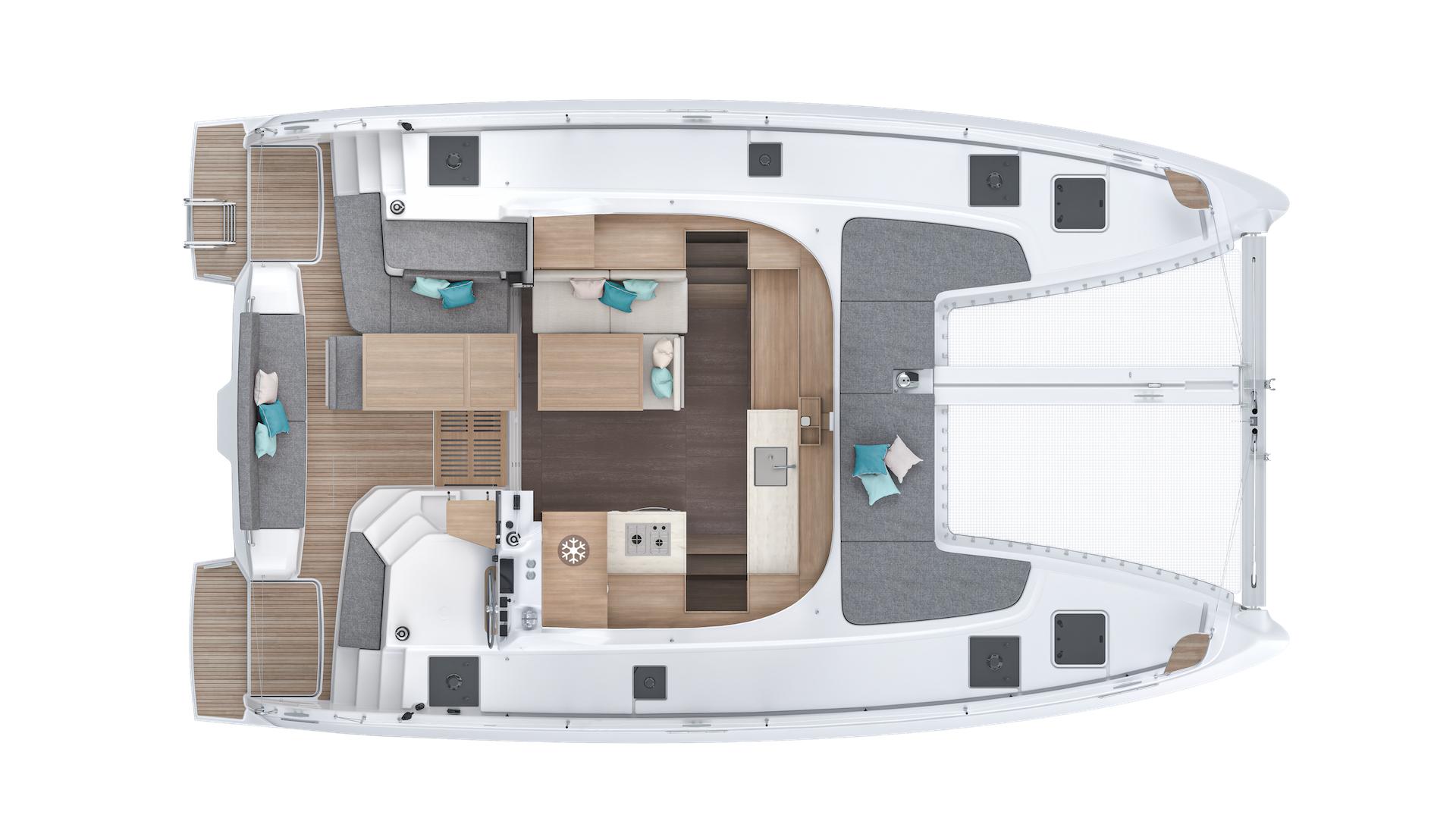

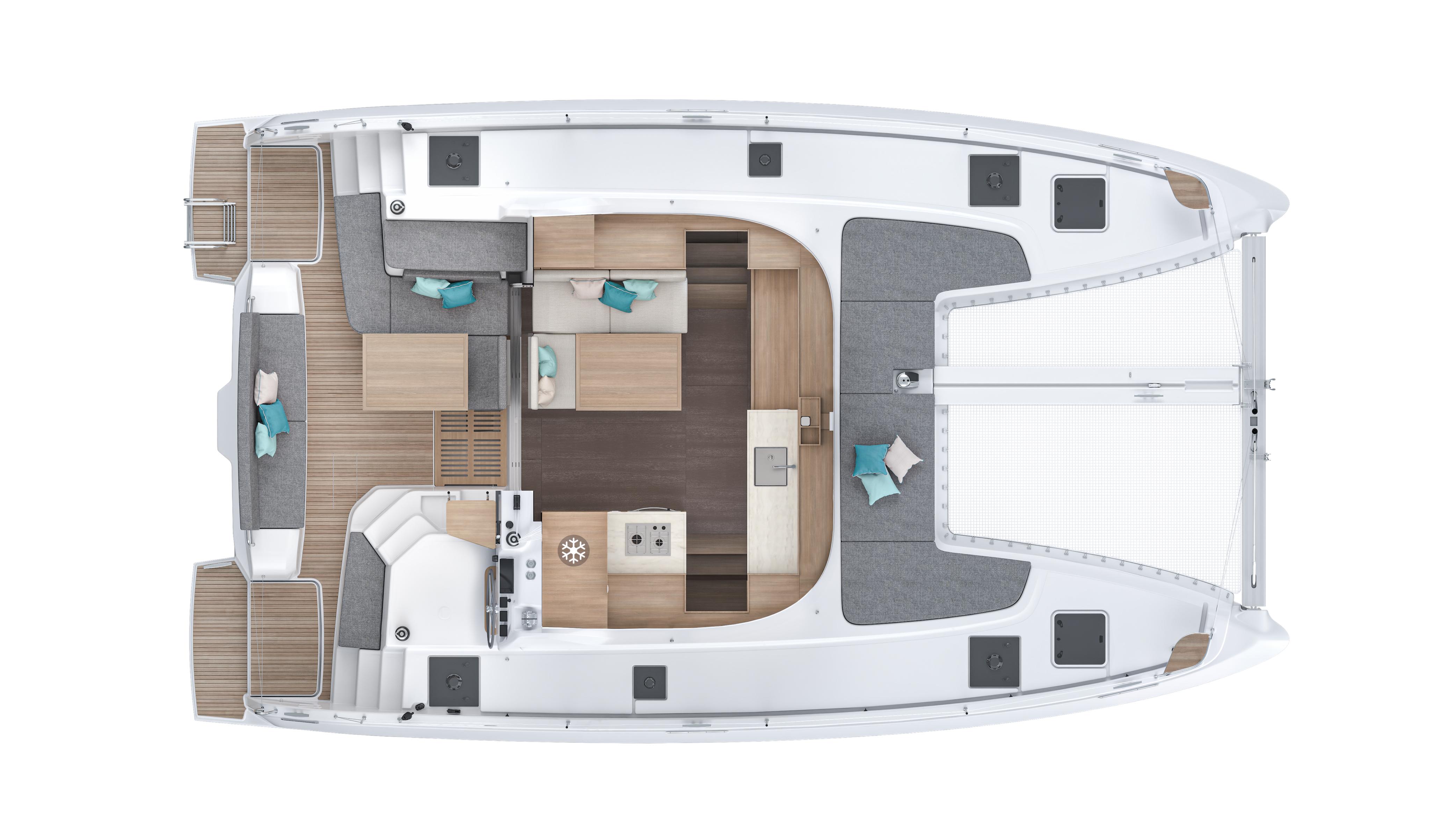

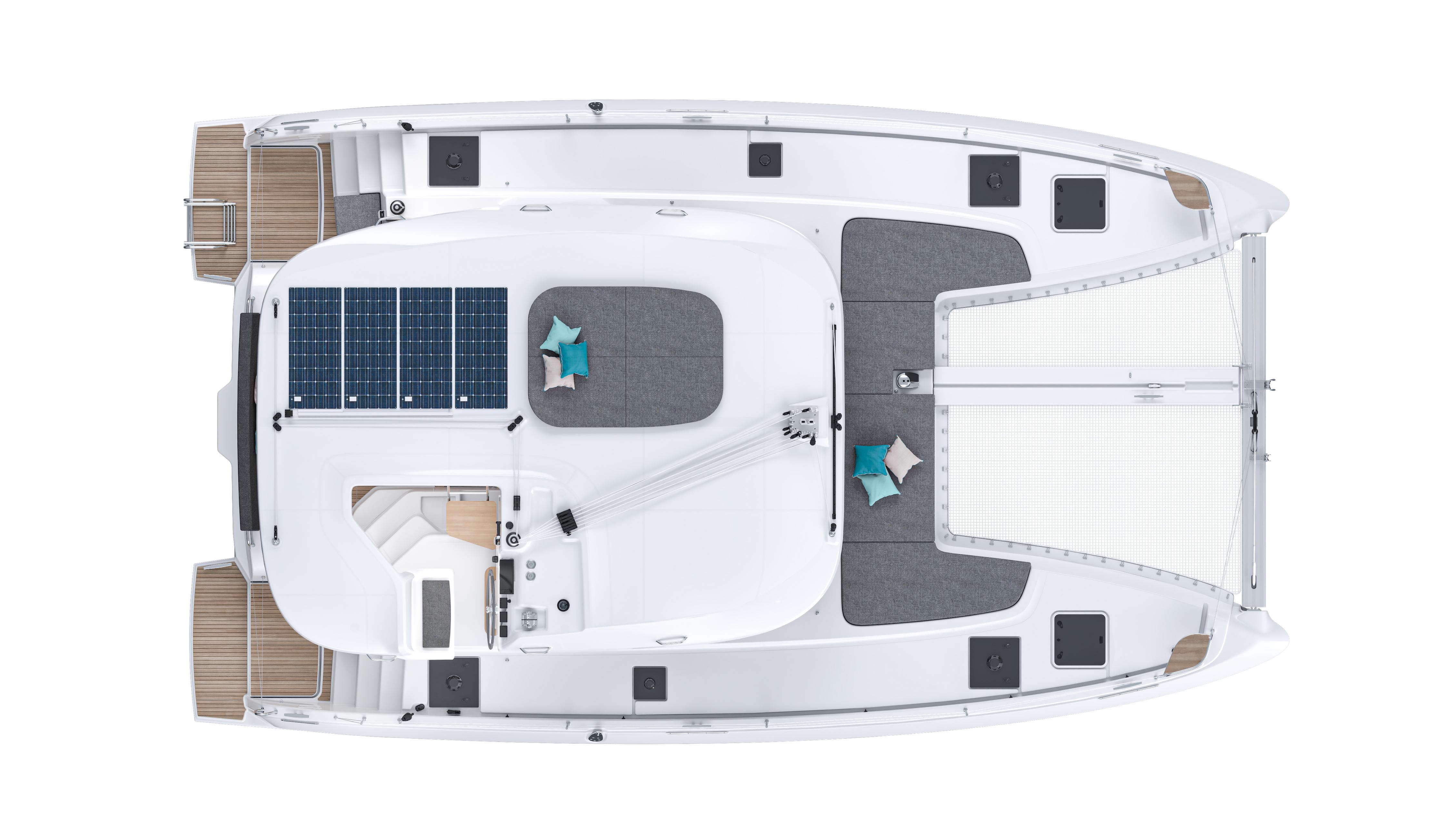

Deck Layout

TRANSOM

• Hot/cold deck shower on port side
• S/S telescopic swim ladder with fixed handles on port side

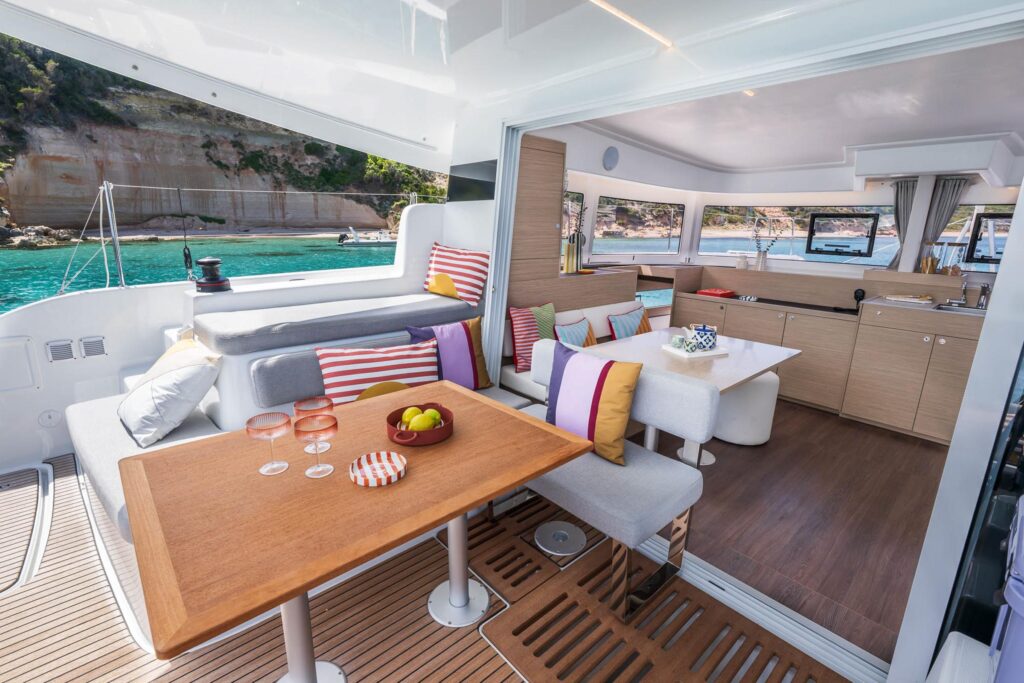

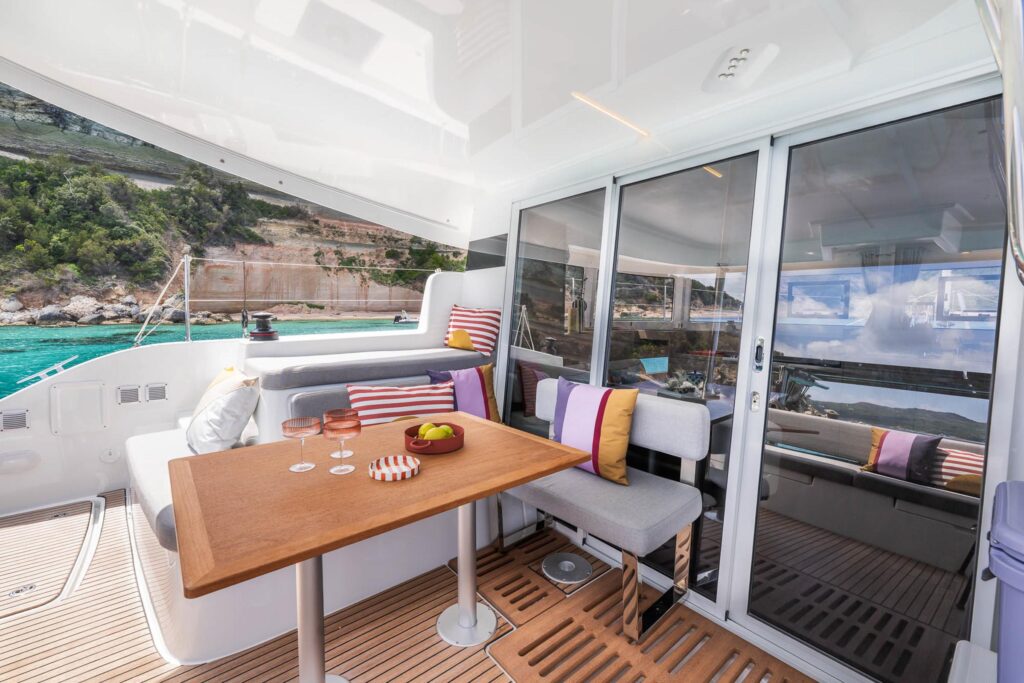

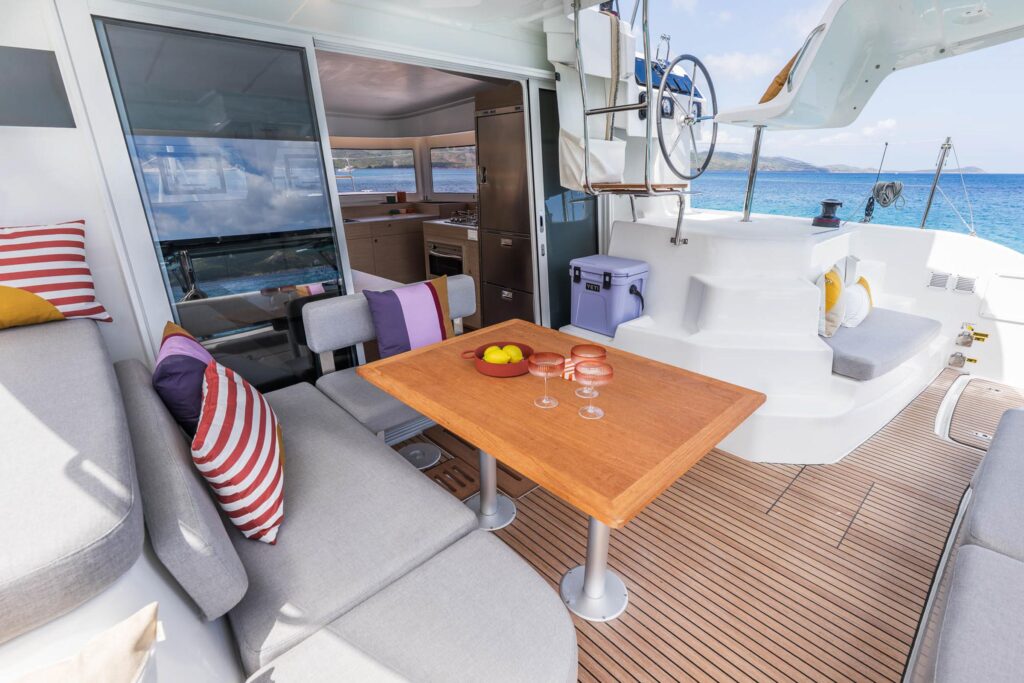

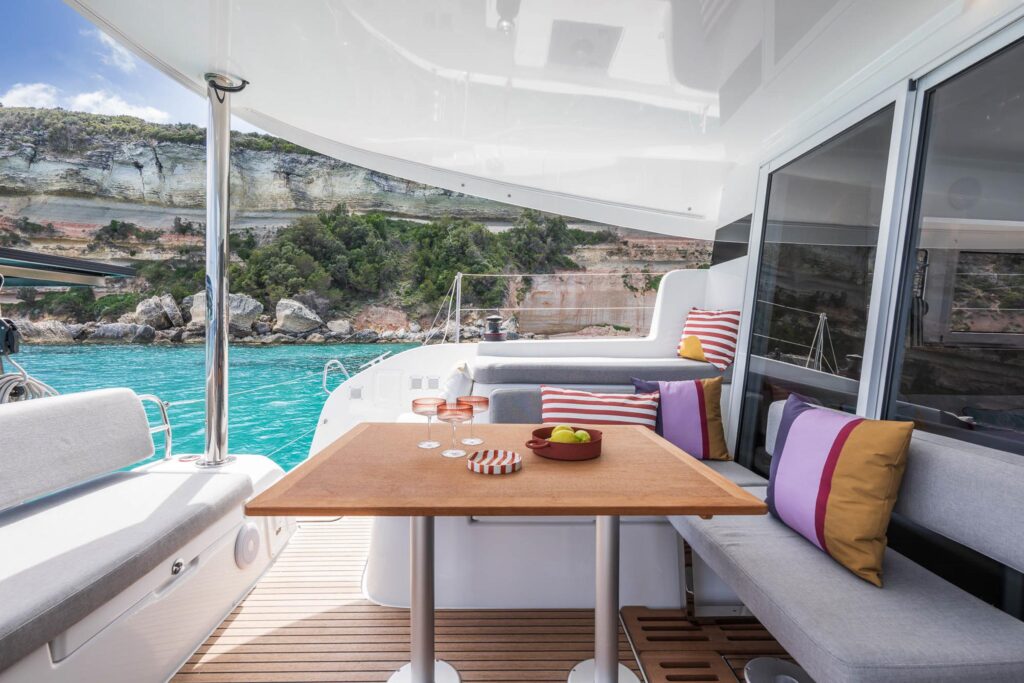

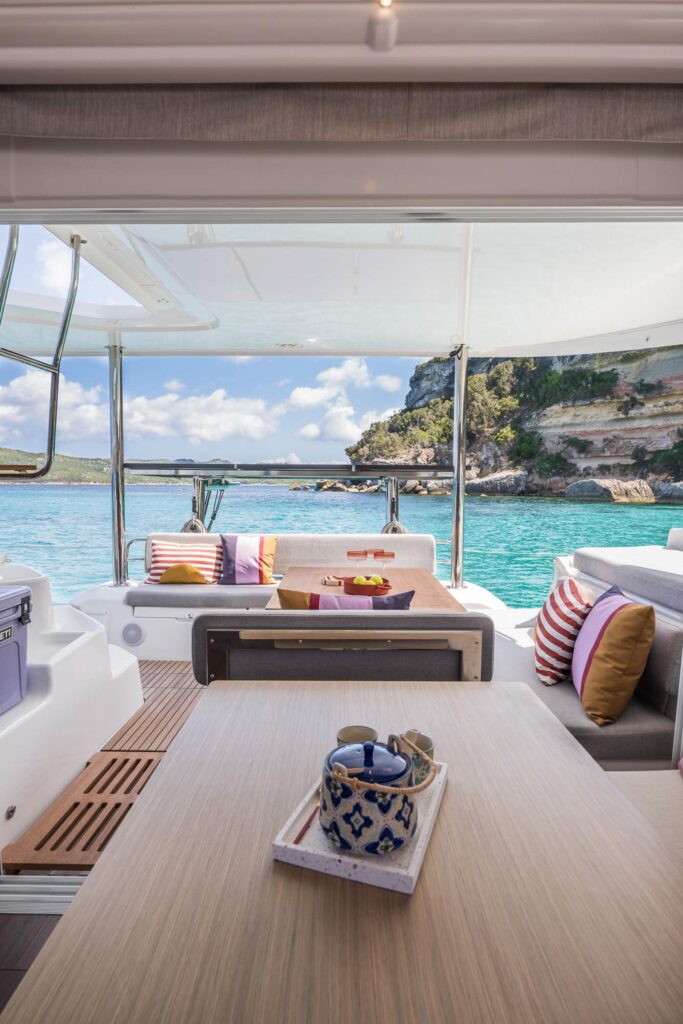

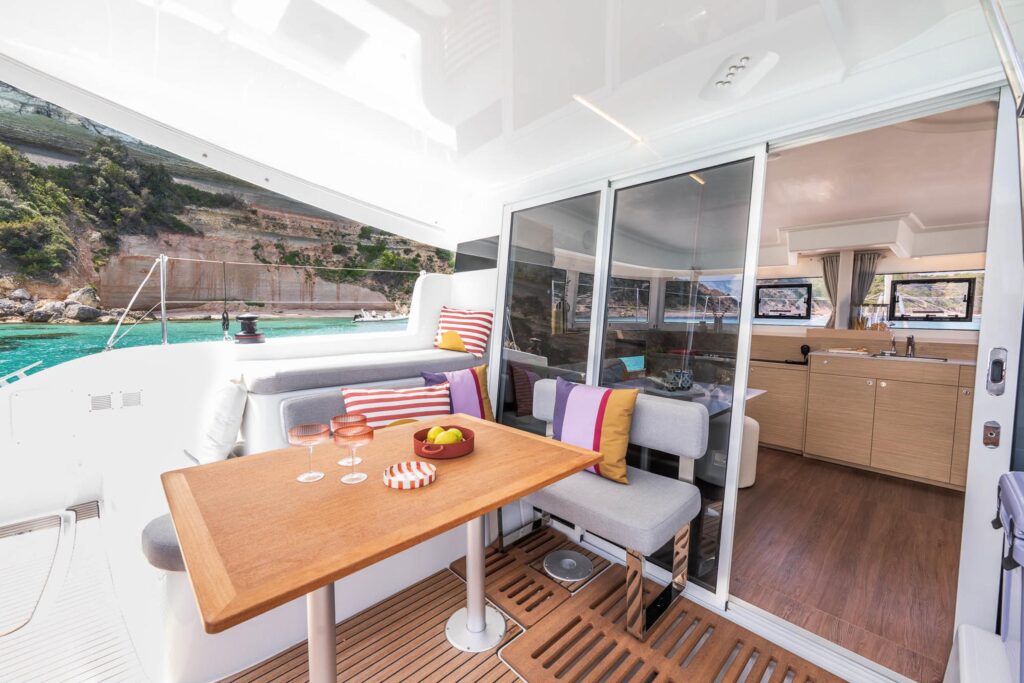

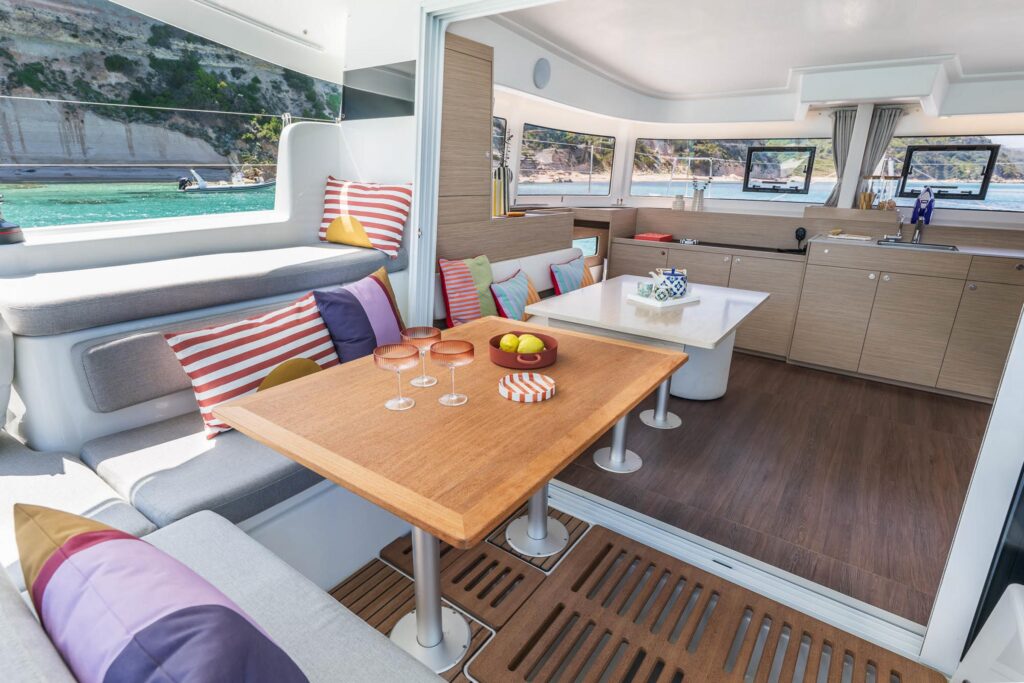

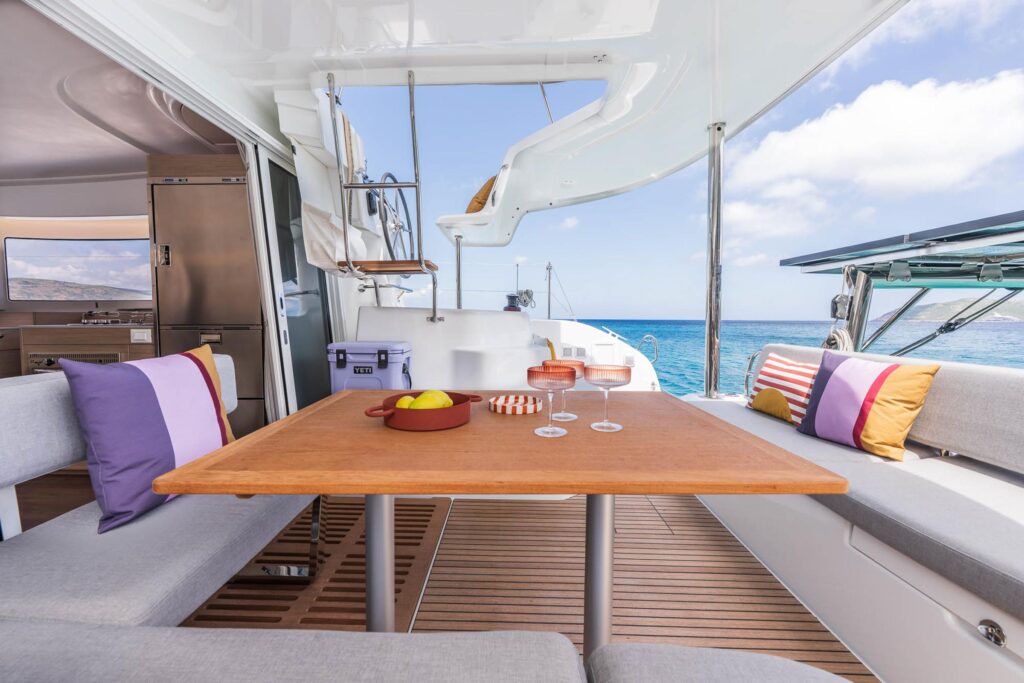

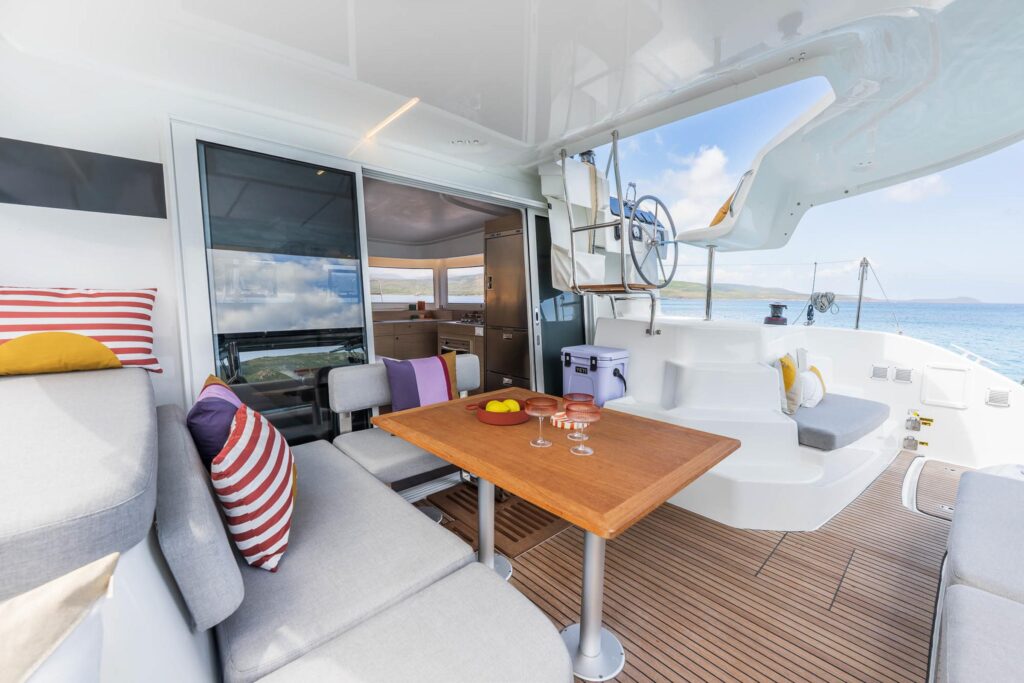

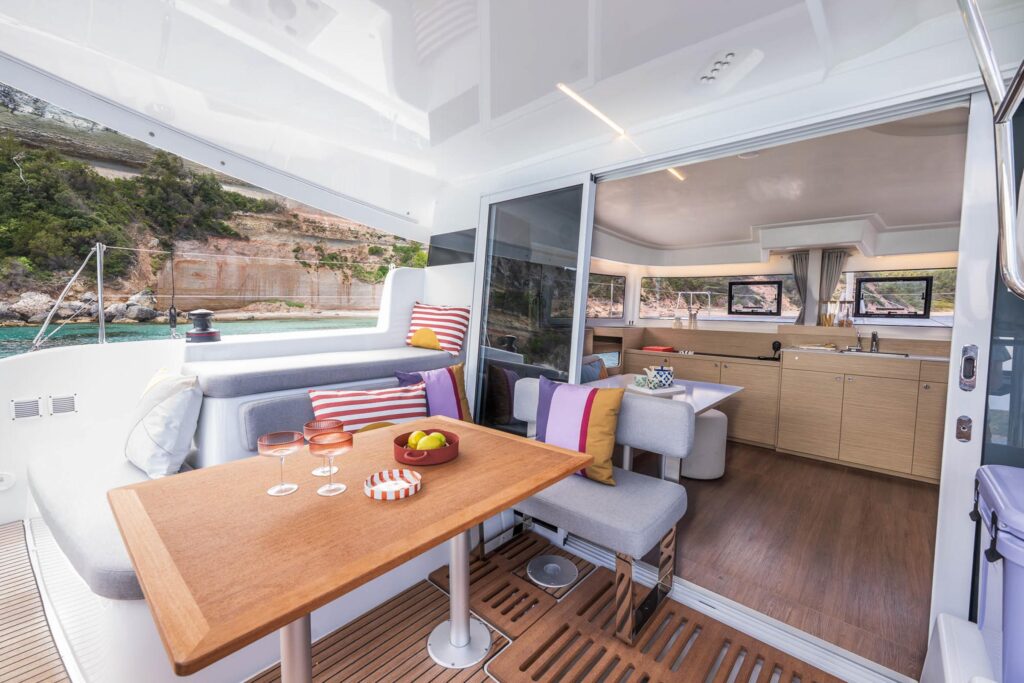

AFT COCKPIT

• Seats and sunbed on port side
• Gas locker
• Polyester cockpit table
• Composite aft beam
• Liferaft location
• Cockpit flush-decked with salon
• Composite non-streaming toe rails on cockpit sides
• Non-slip cockpit floor
• Self-draining cockpit with wooden grating

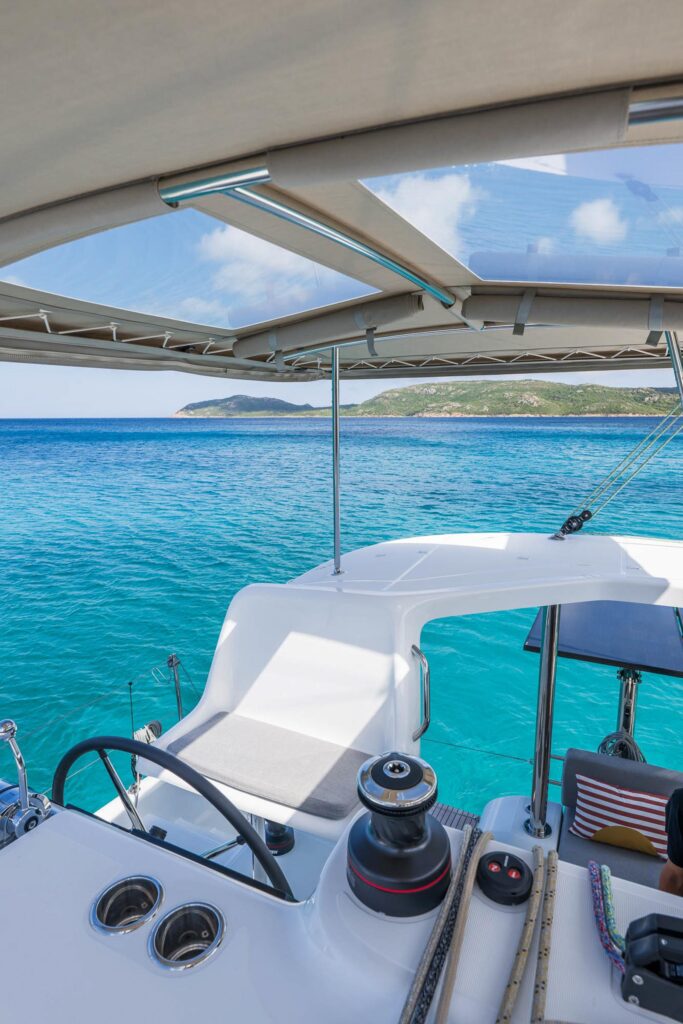

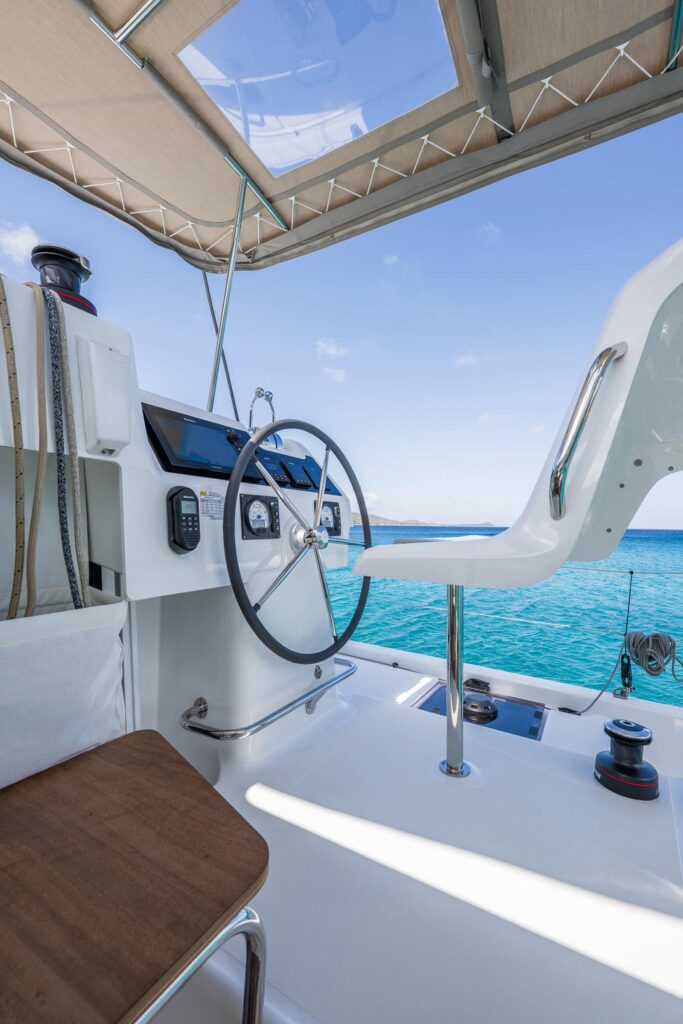

HELM STATION

• Helm seat
• Leather covered steering wheel 800mm
• Engines throttles and panel
• Console for screens and instrumentation
• Storage bag for halyards

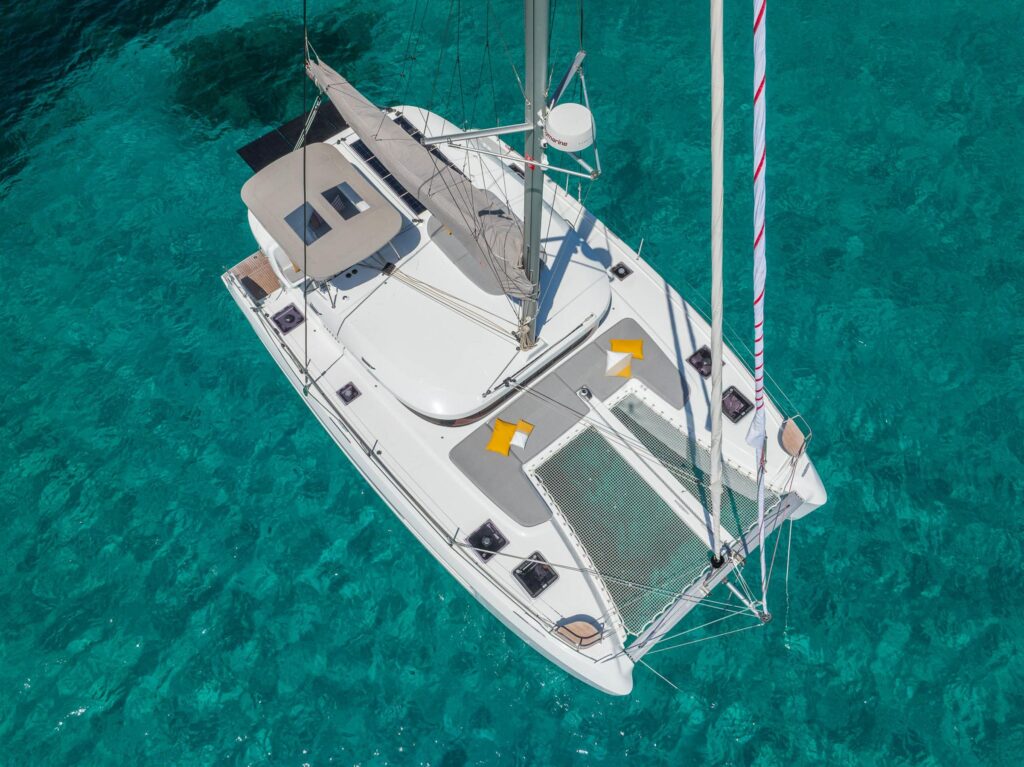

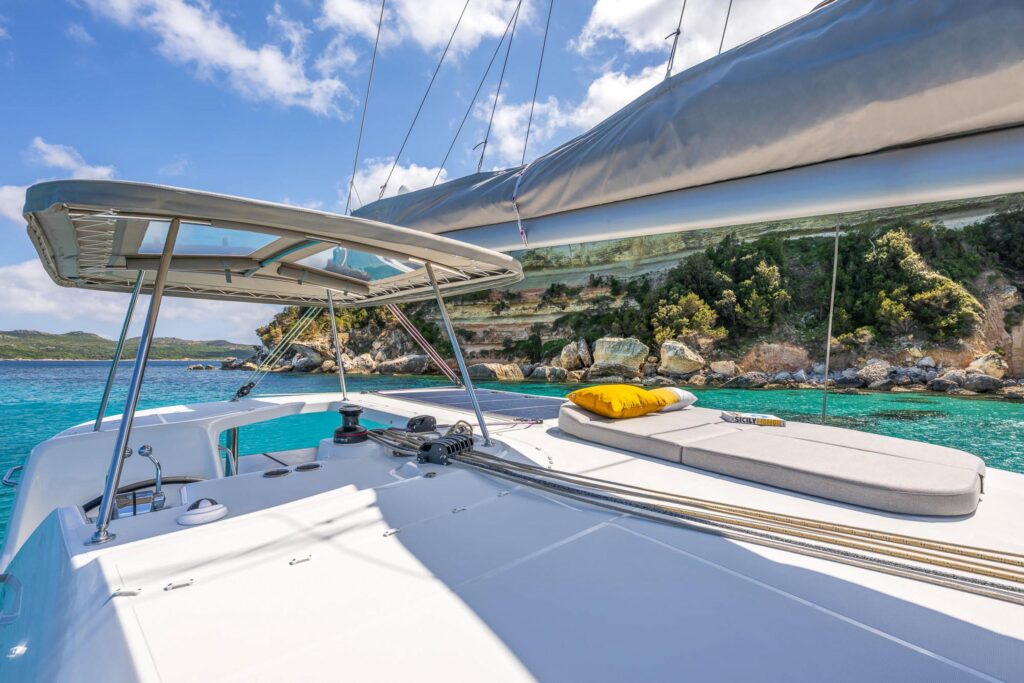

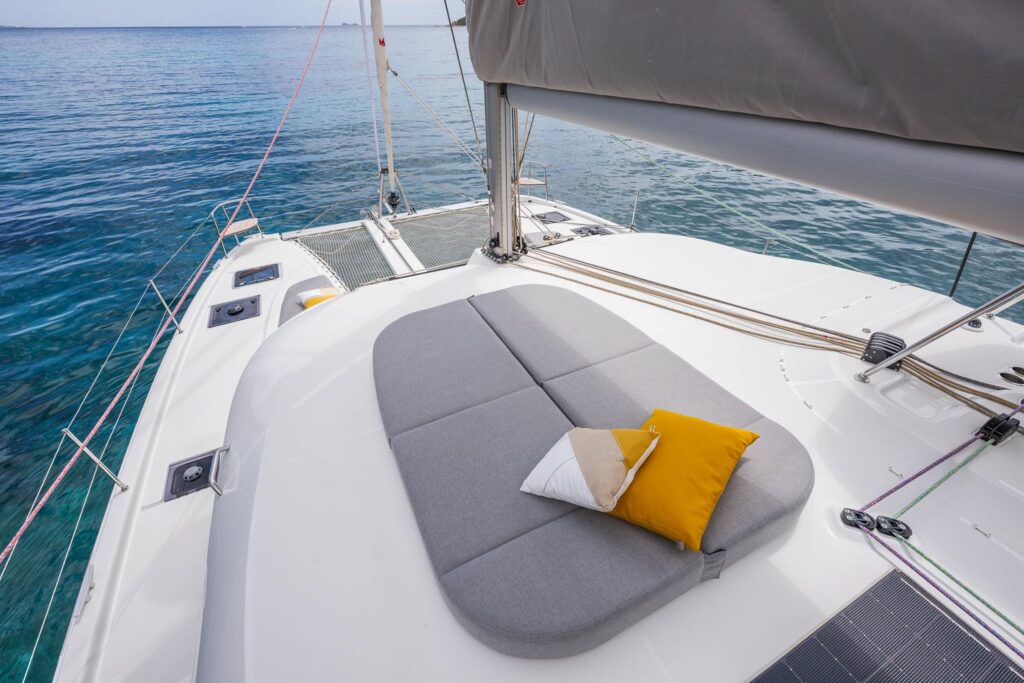

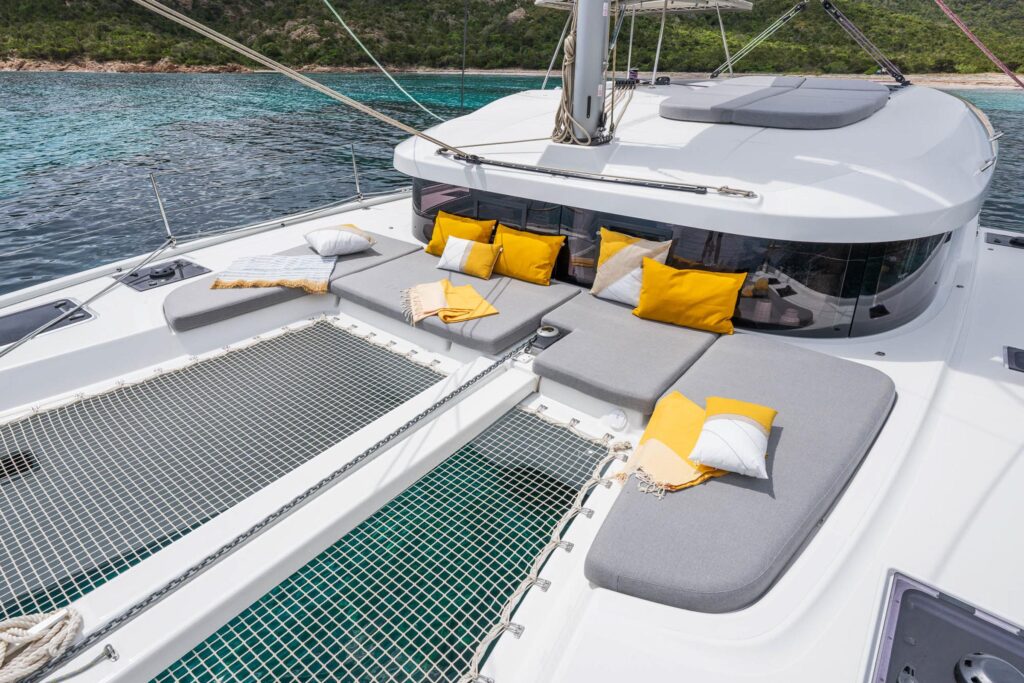

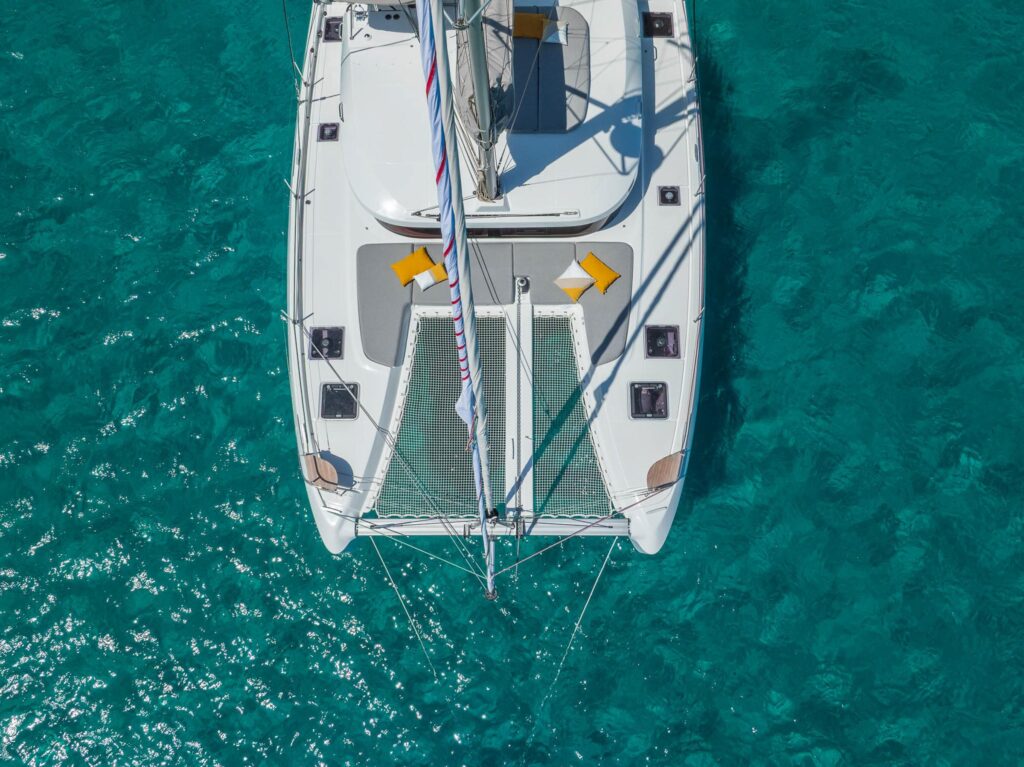

FORWARD COCKPIT

• Large hatches for technical access
• Nylon netting

BOW LOCKERS

• Access through deck hatches
• Wooden floor
• LED lighting

STANCHIONS AND LIFELINES

• Pushpits: H610 mm / 24in
• 8 stanchions: H610 mm / 24in
• Double S/S lifelines

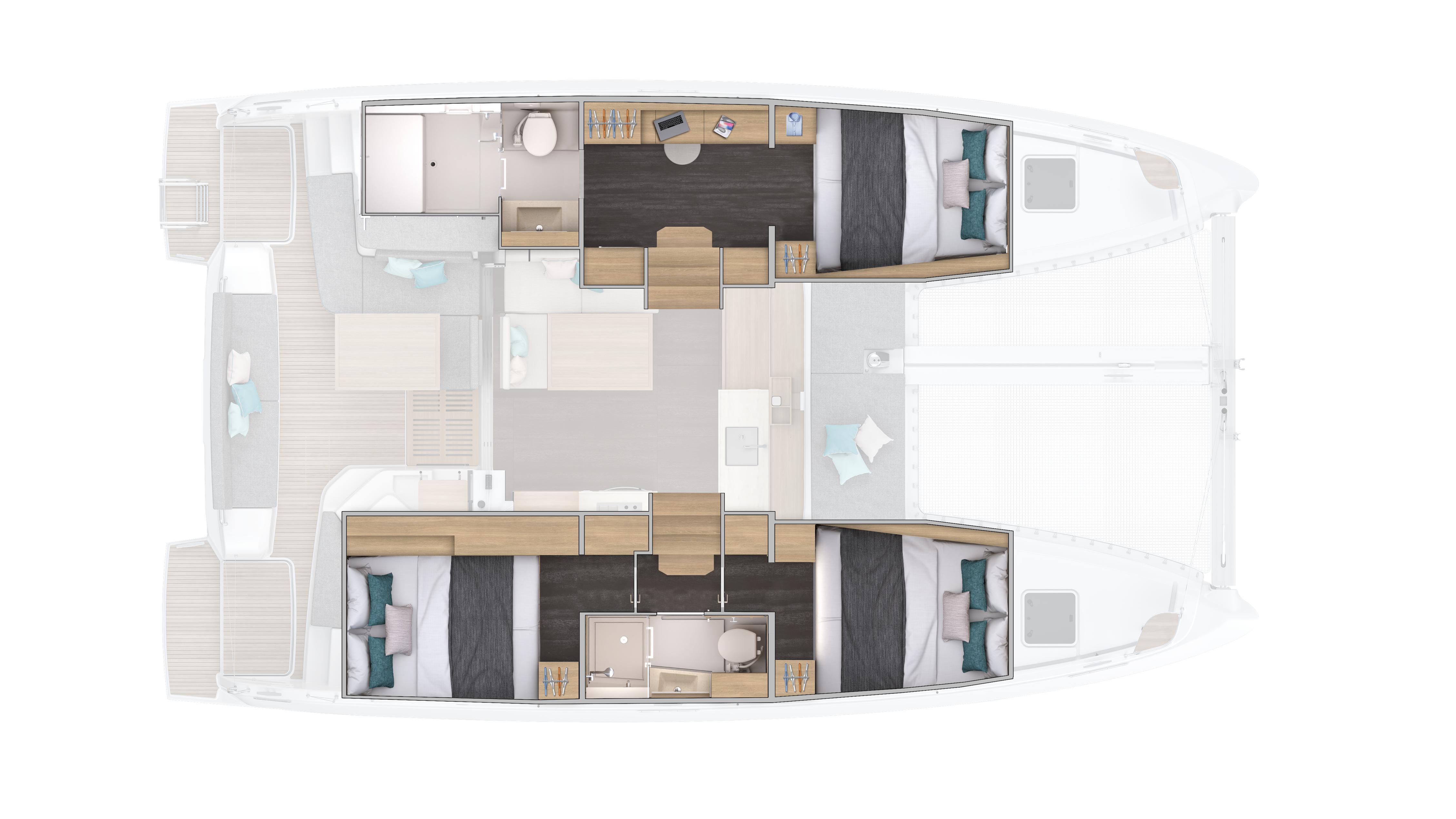

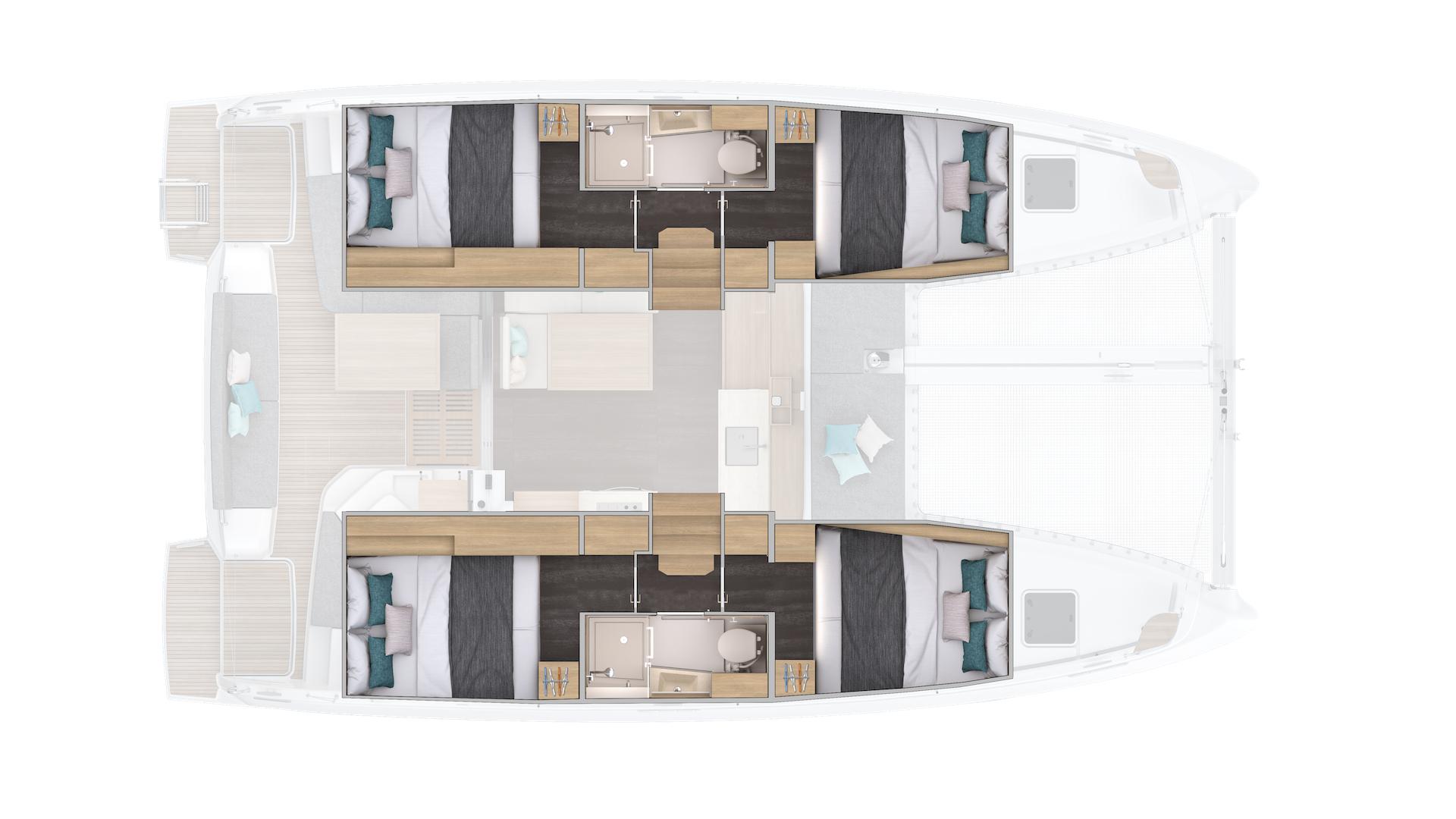

Interior Layouts

GENERAL

• Construction in Alpi Sand Oak plywood, horizontal grain
• Laminated floor: Dark Oak
• 100% recycled upholstery, adapted to the marine environment
• Ceiling and hull linings in padded PVC foam
• Eco-Cleaning Pack
• Furniture interiors in Okoum finish

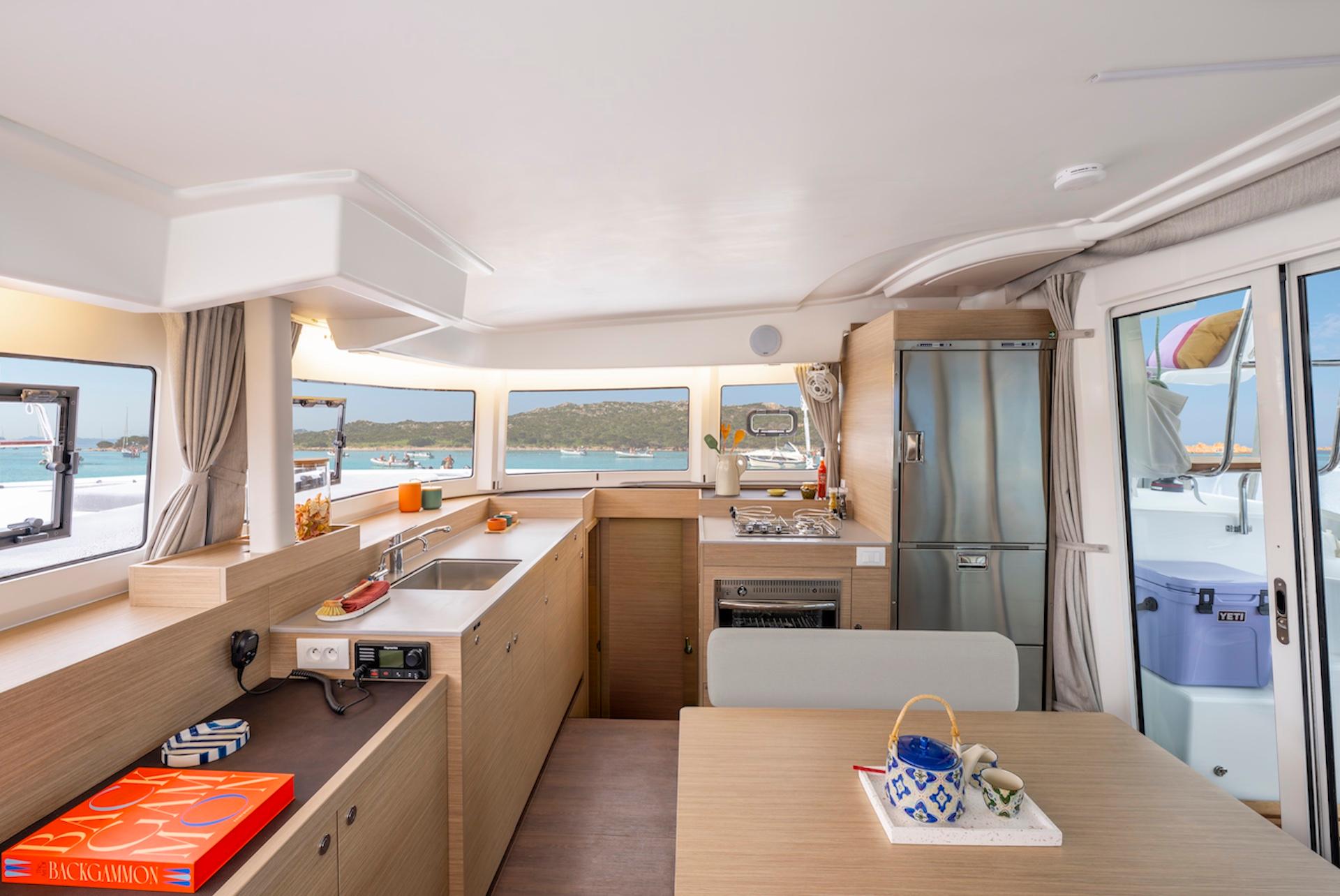

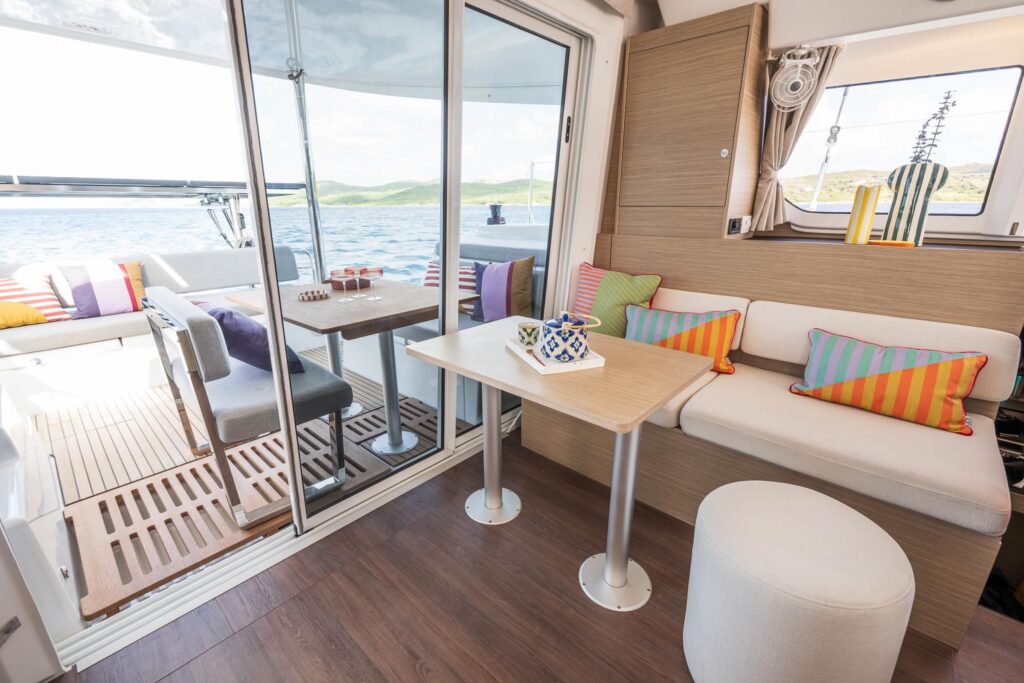

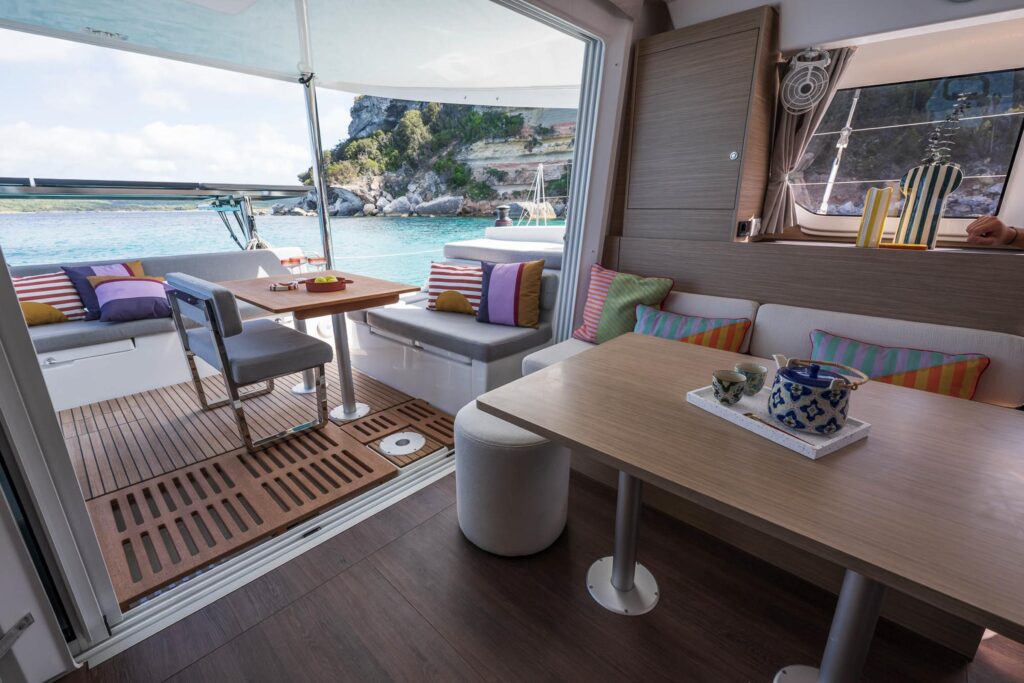

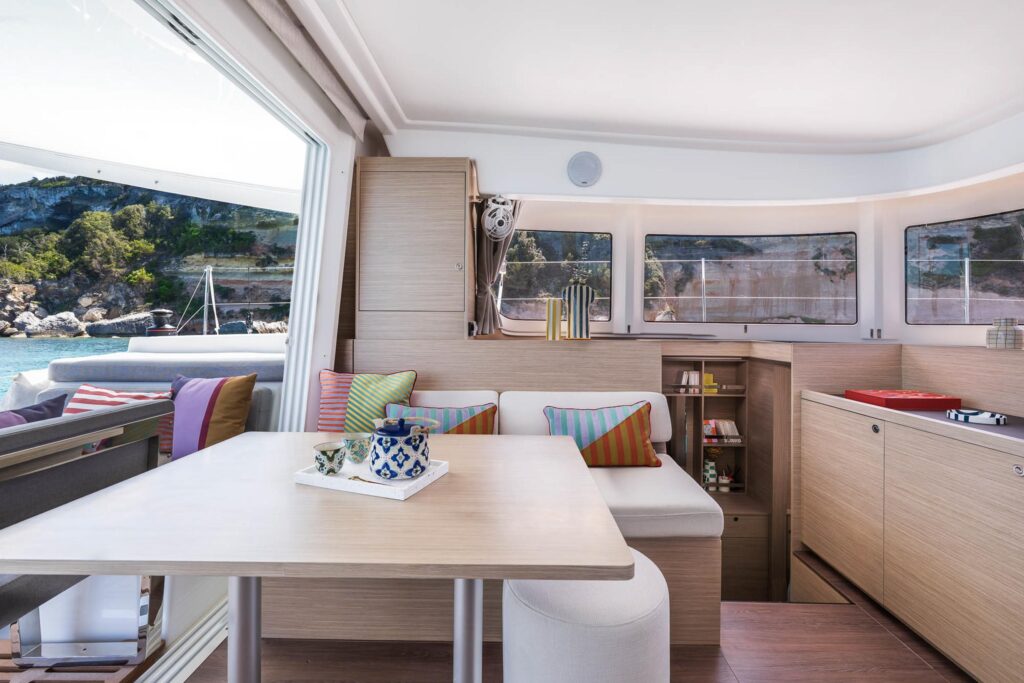

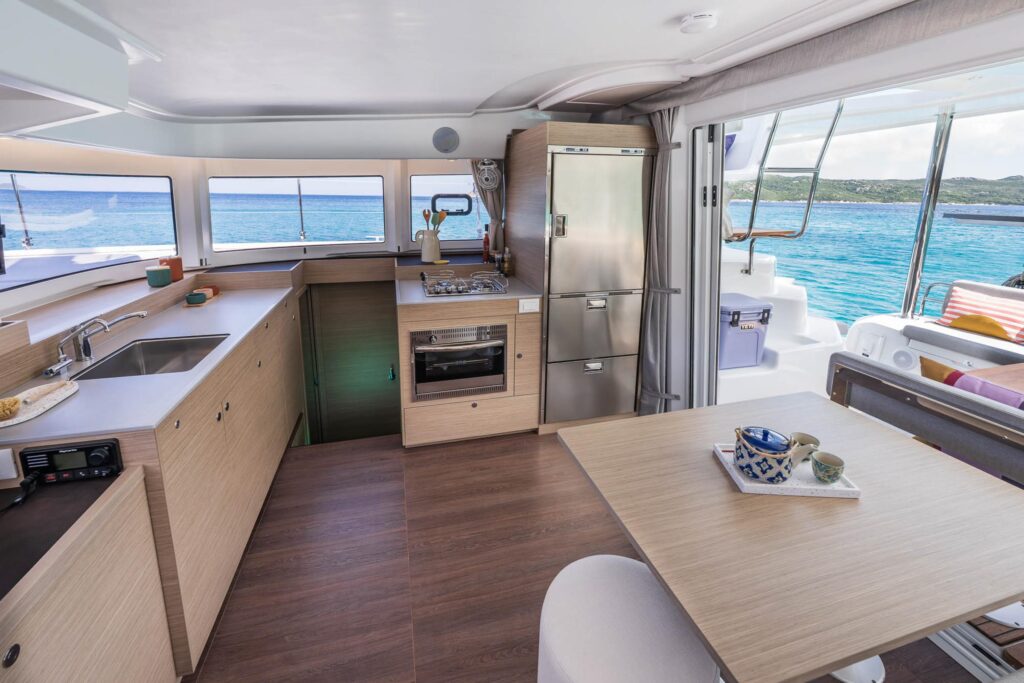

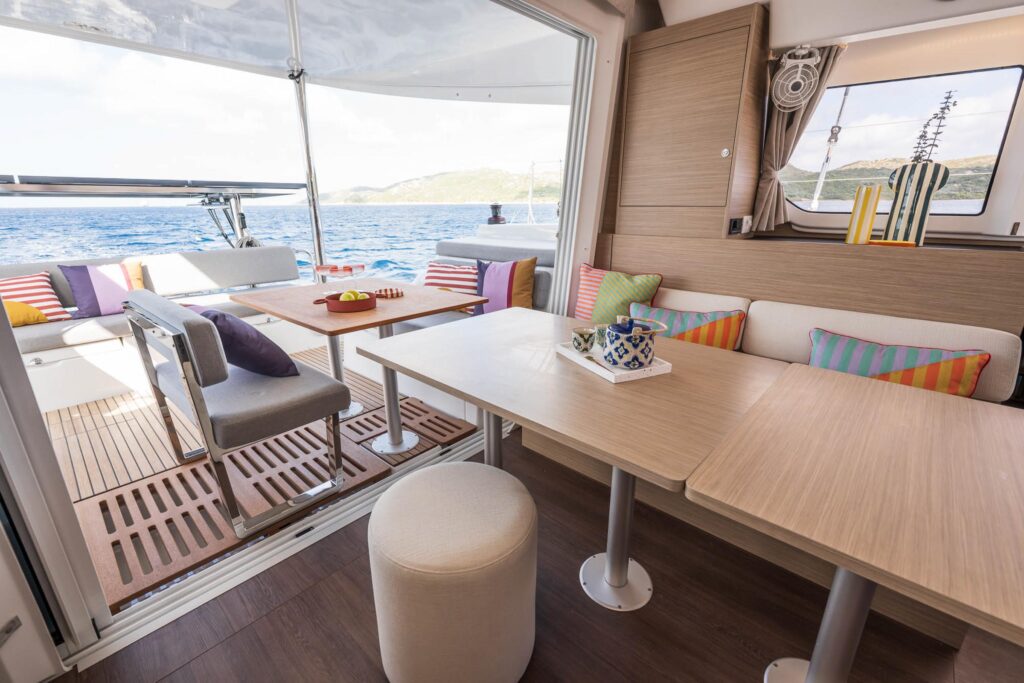

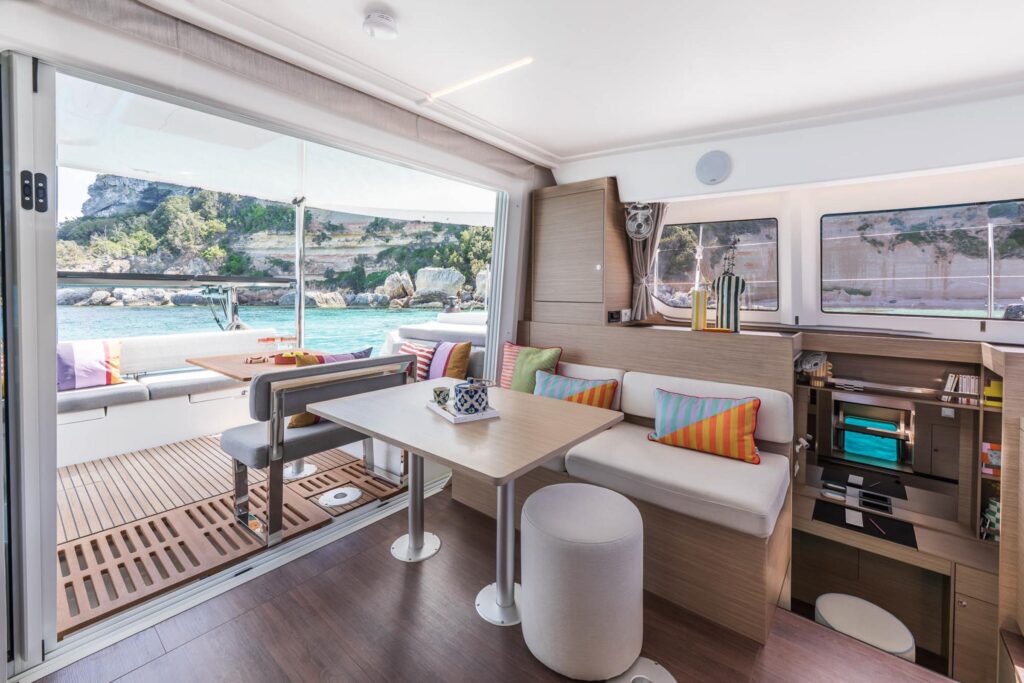

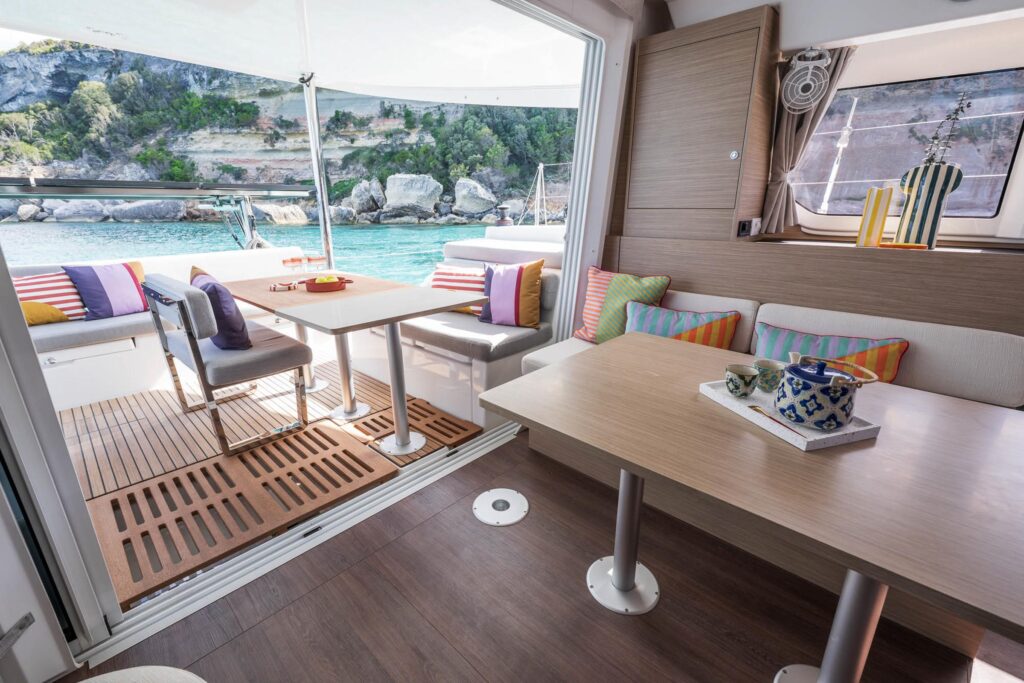

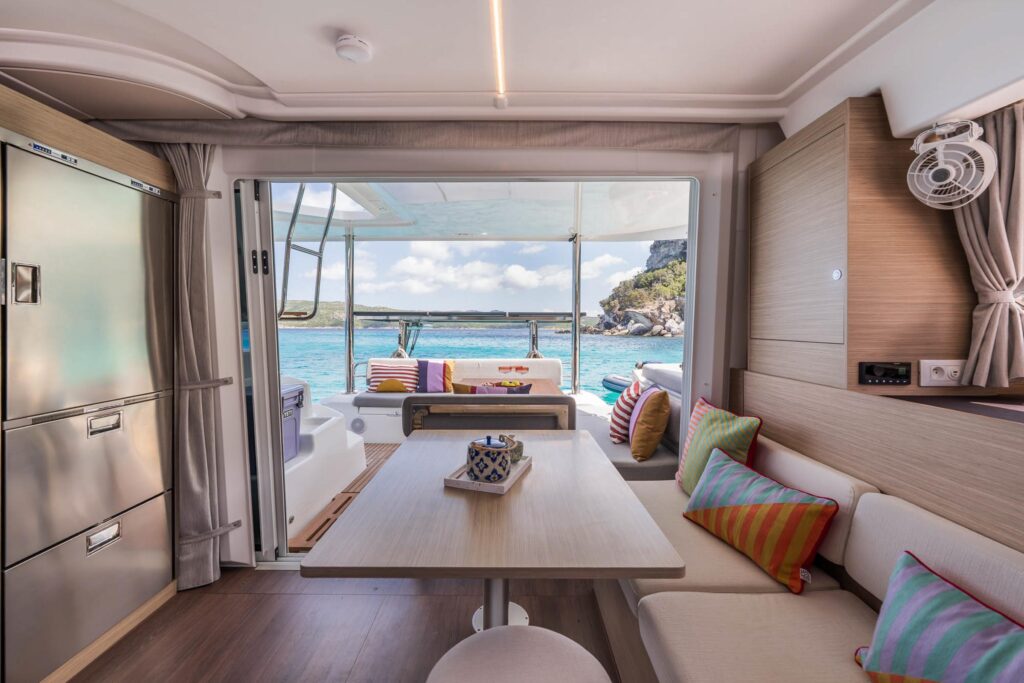

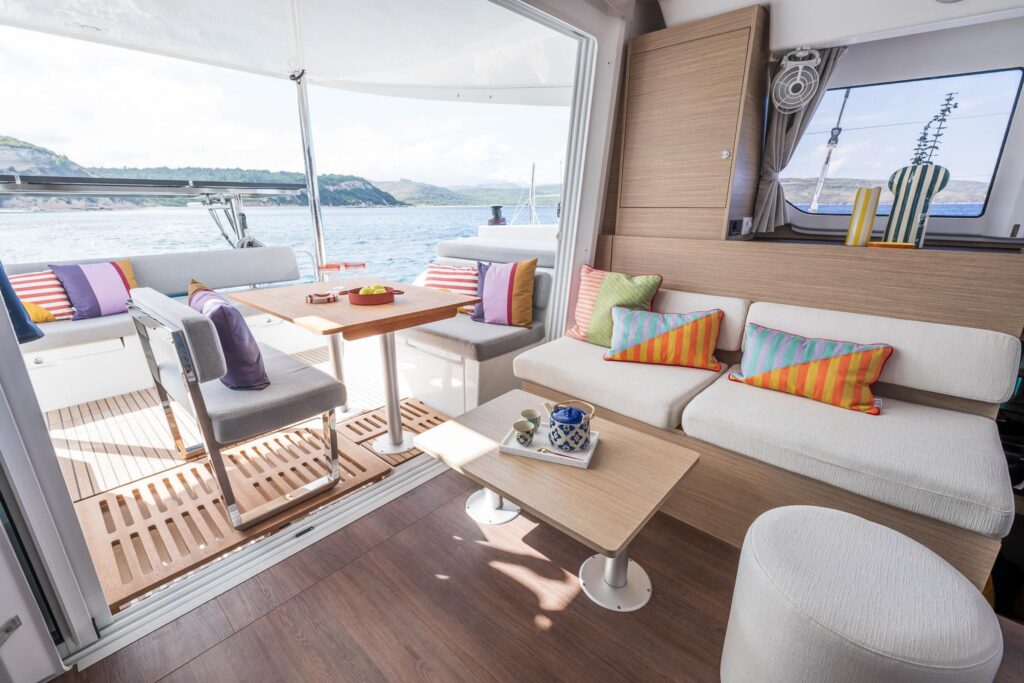

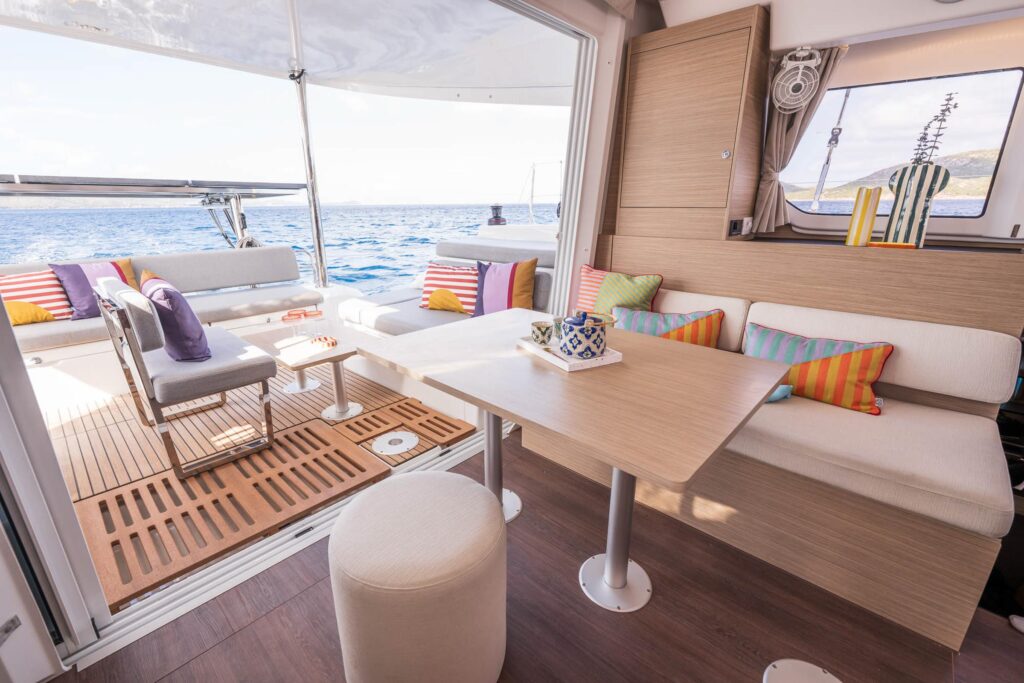

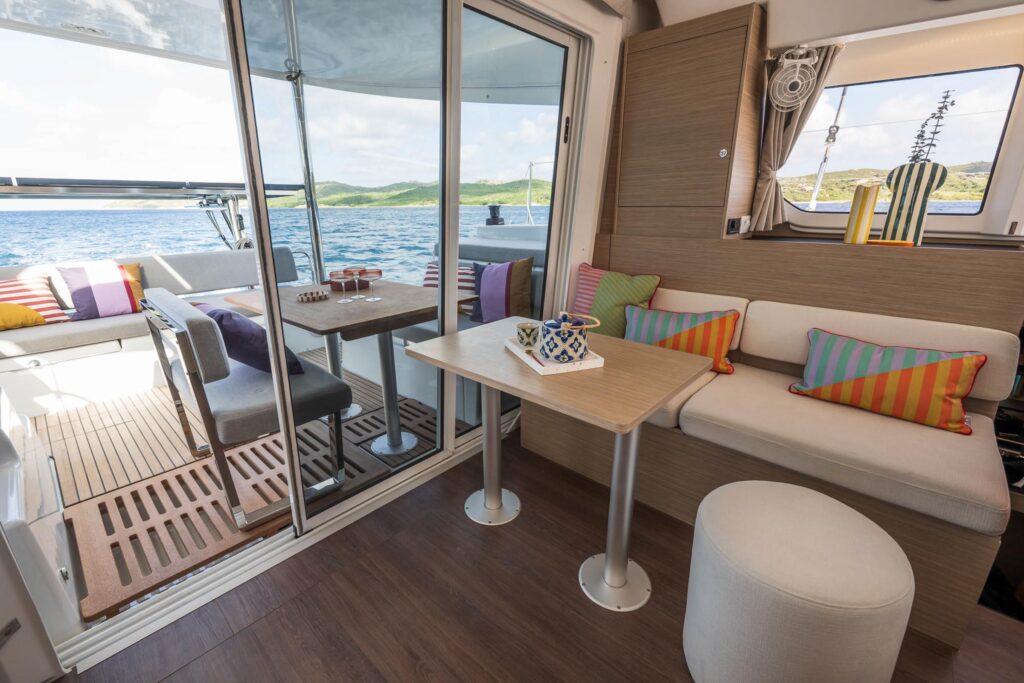

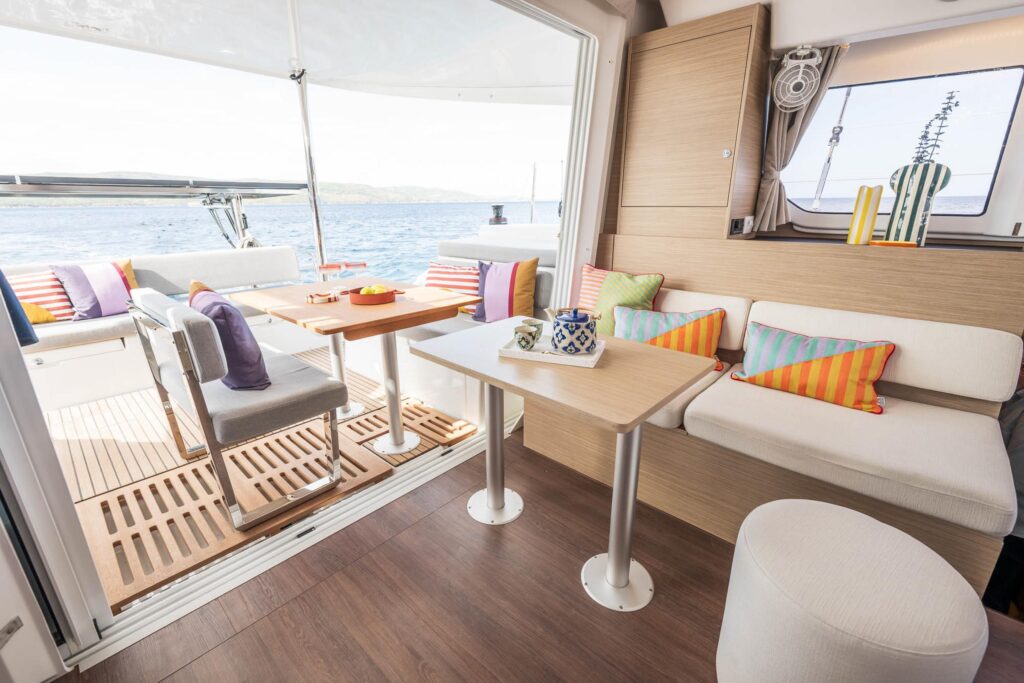

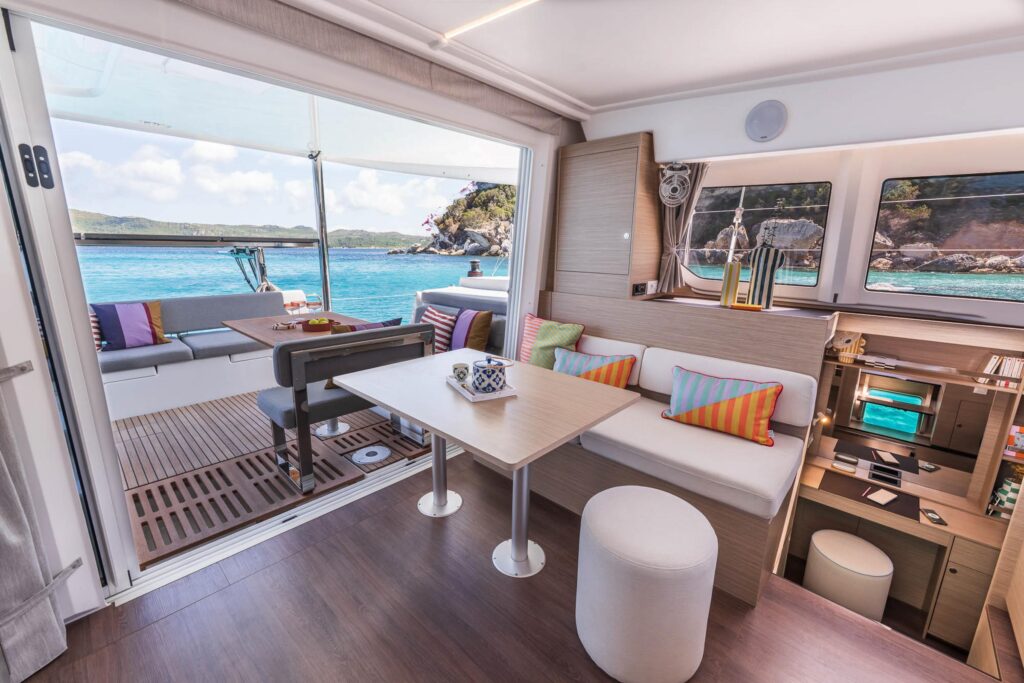

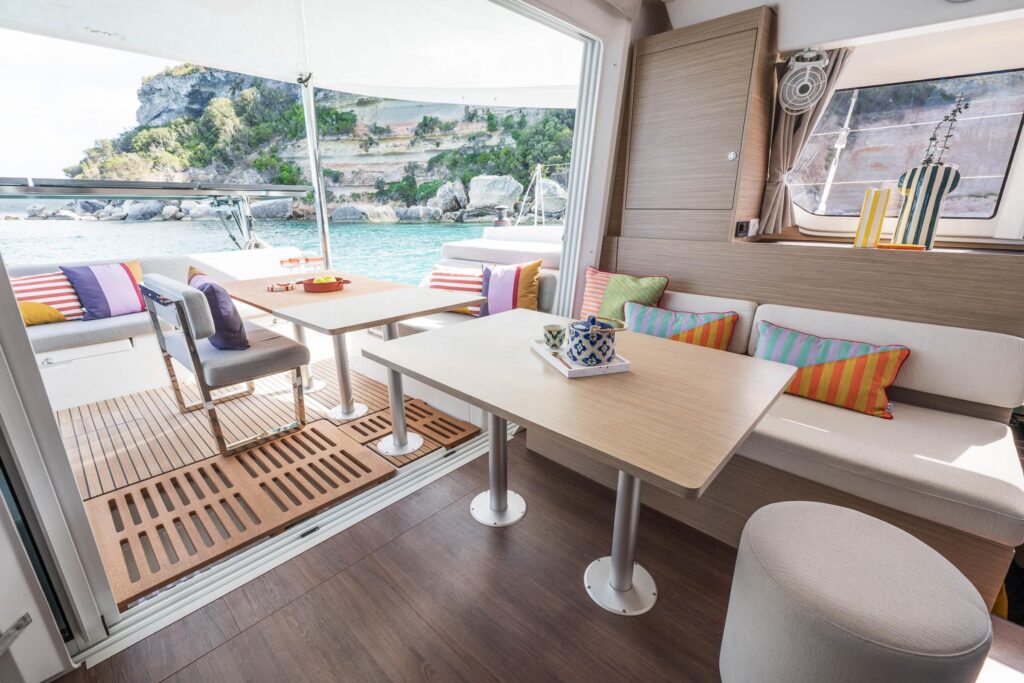

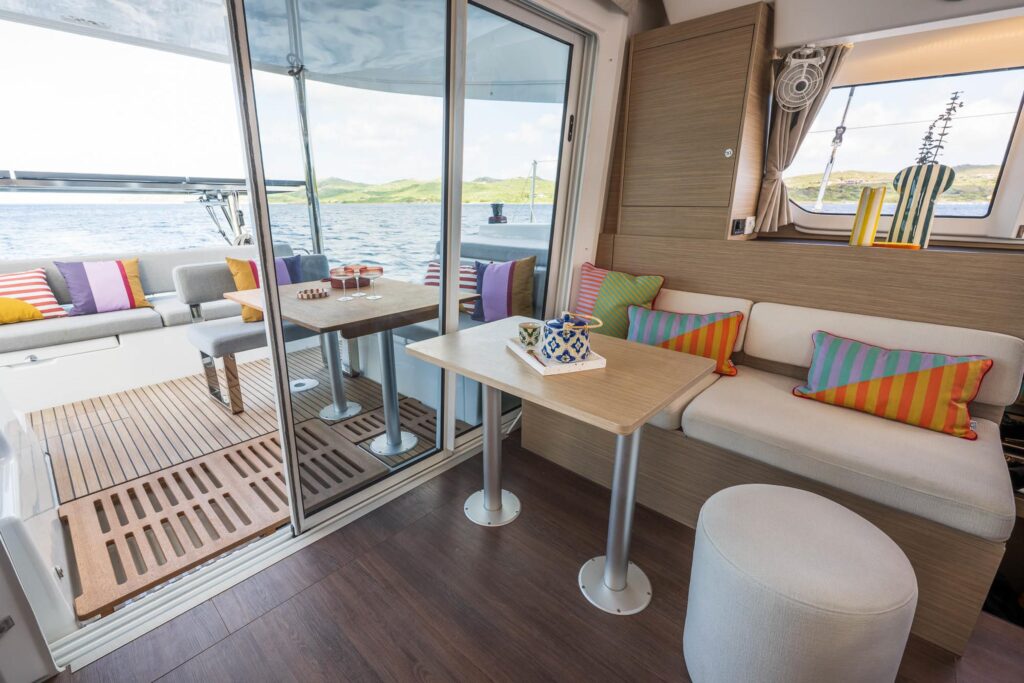

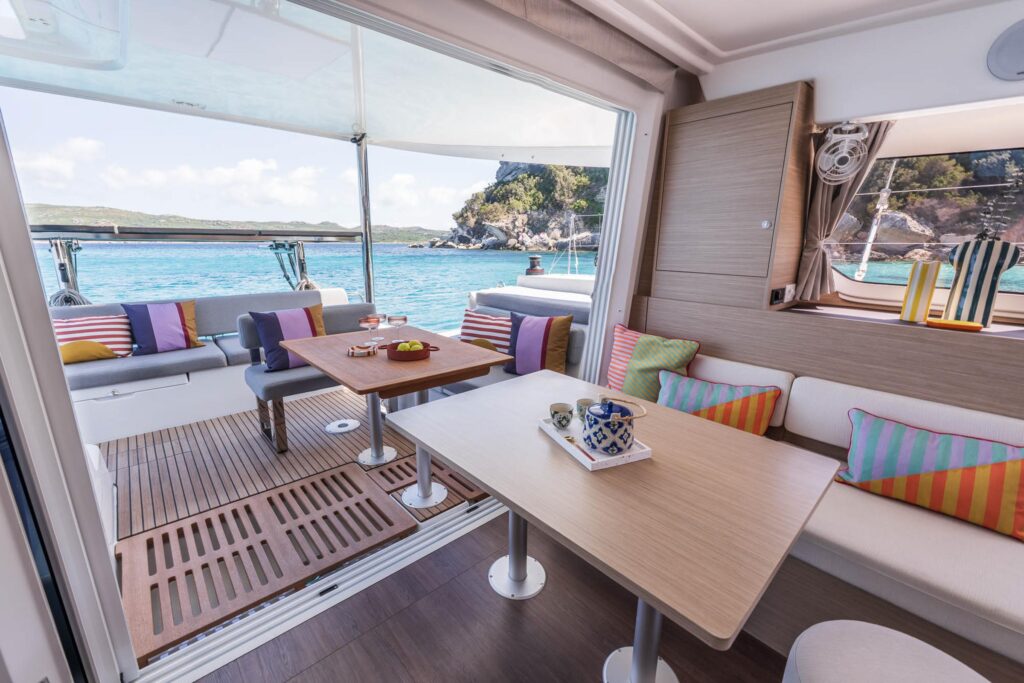

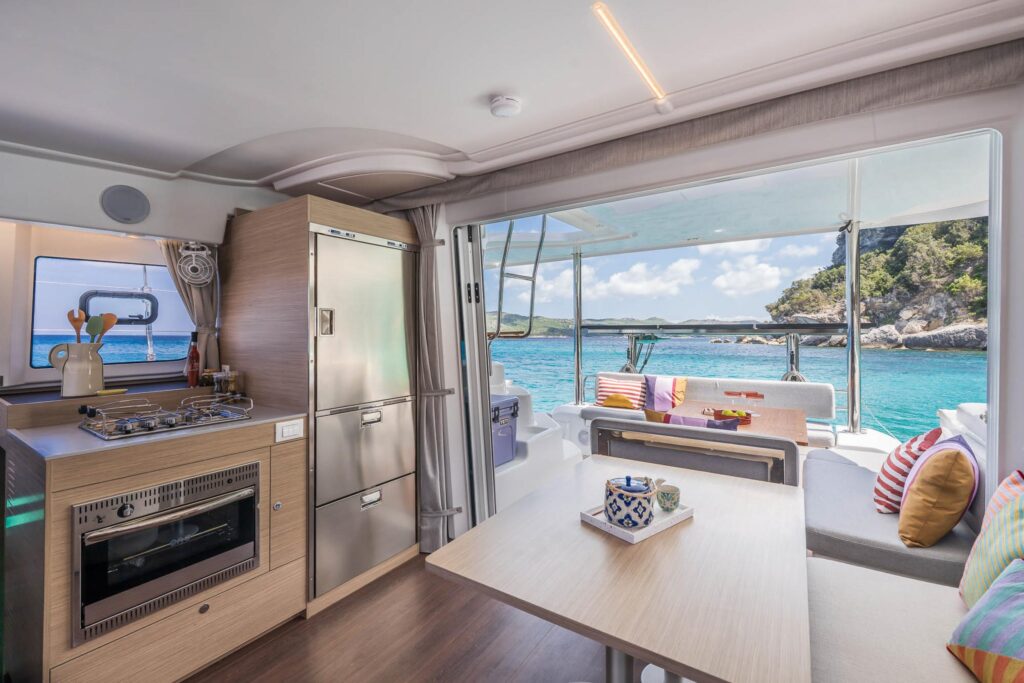

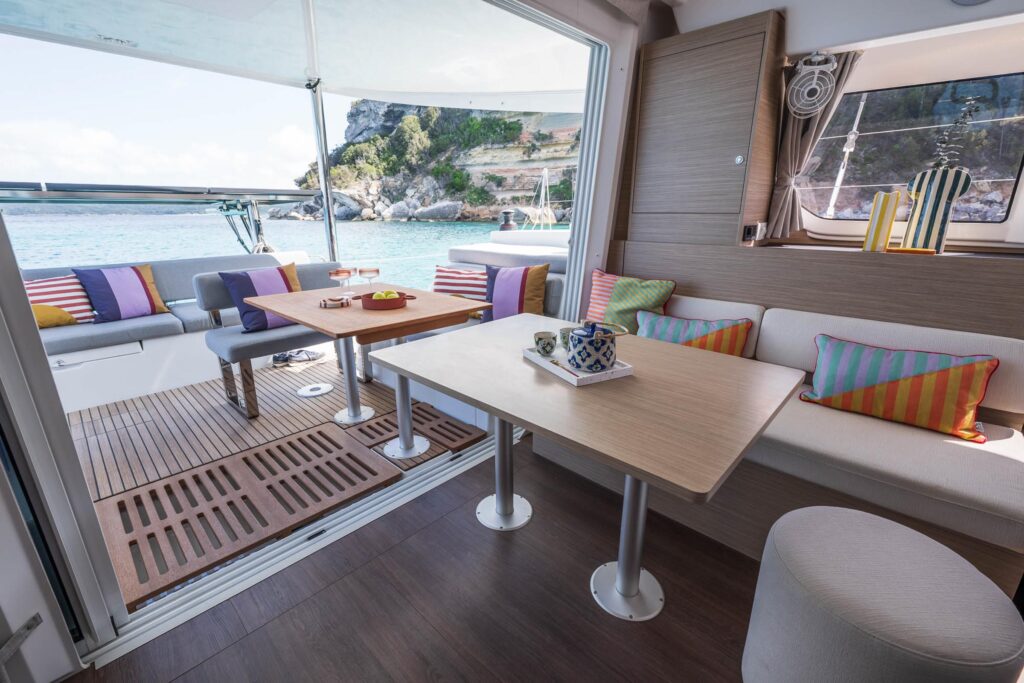

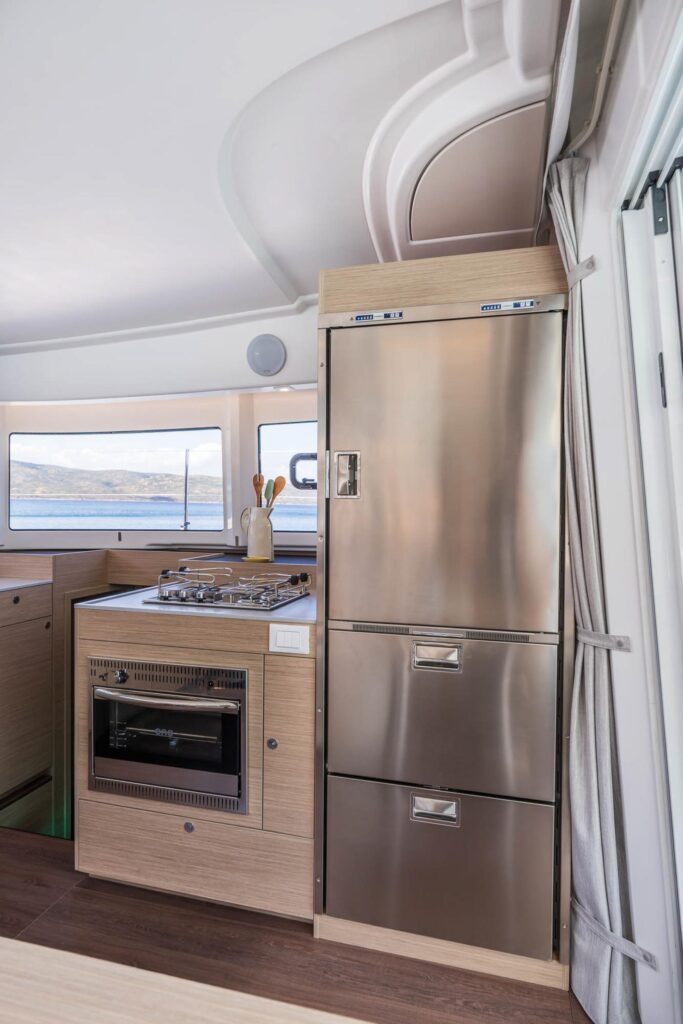

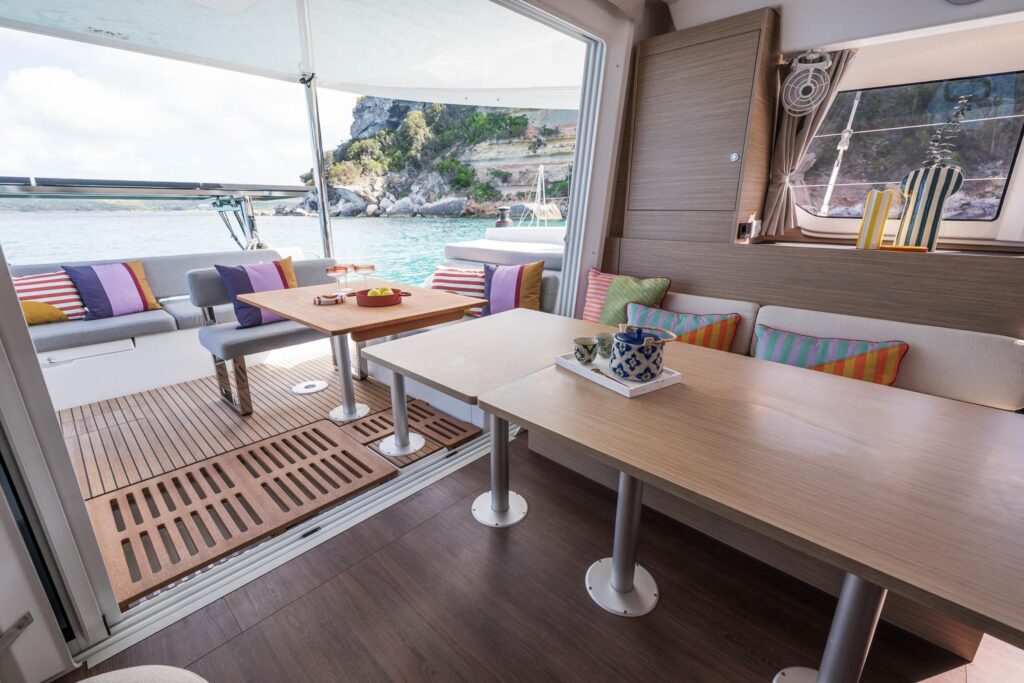

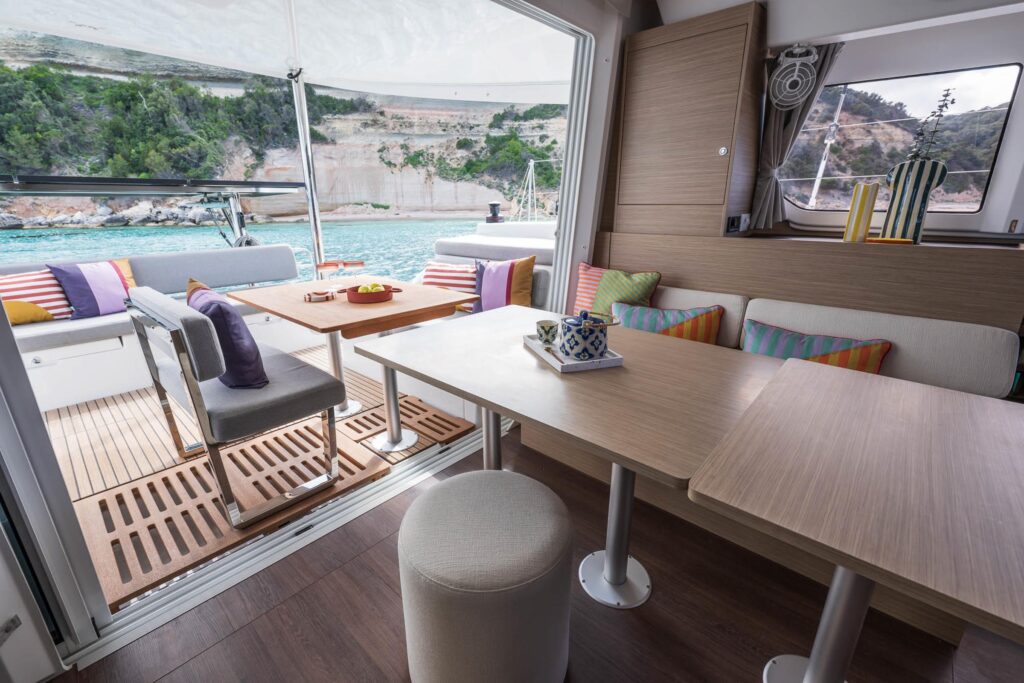

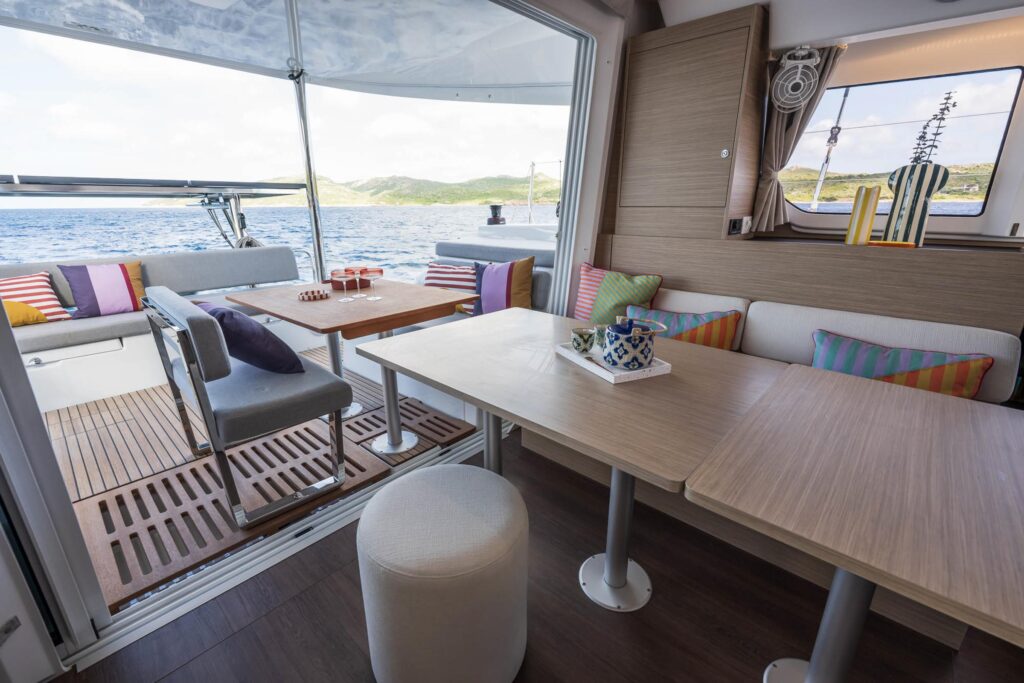

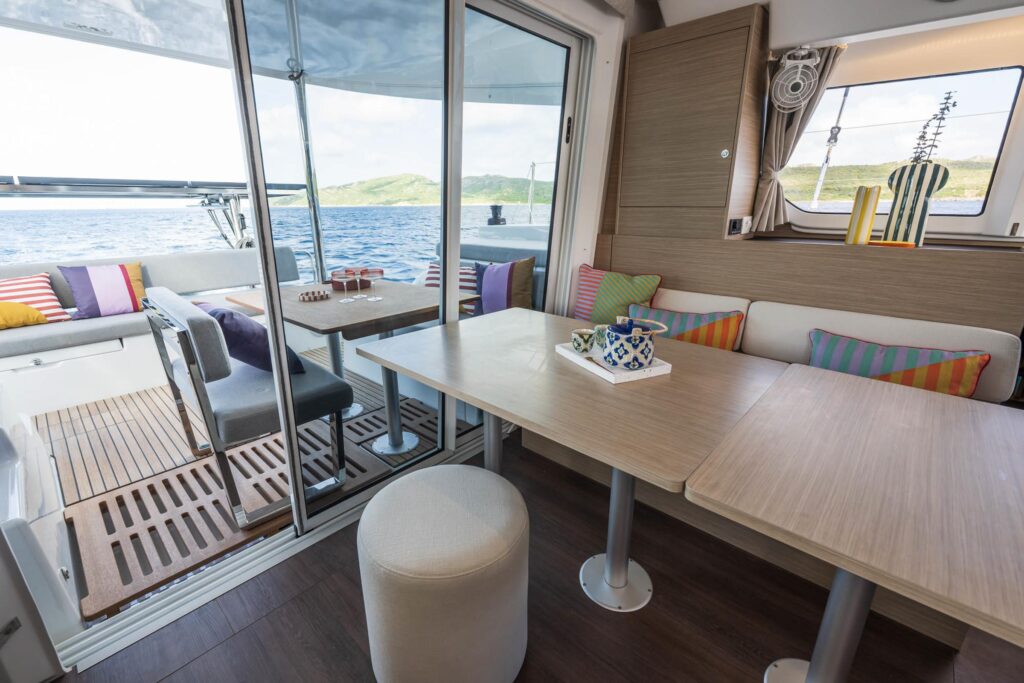

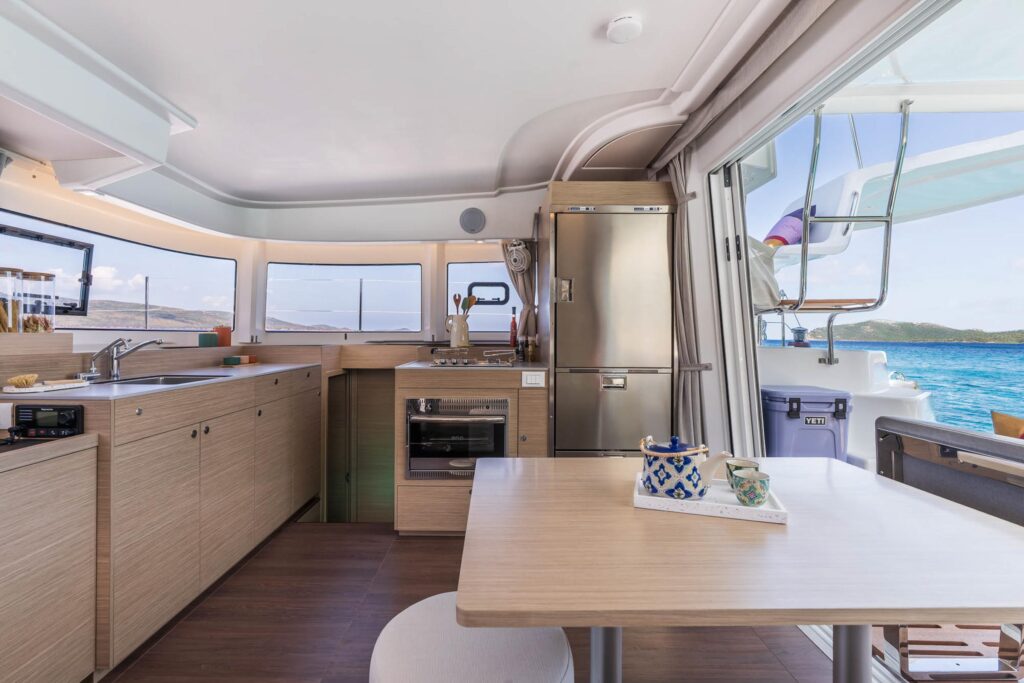

SALON I GALLEY

• Bench seat and under-seat storage

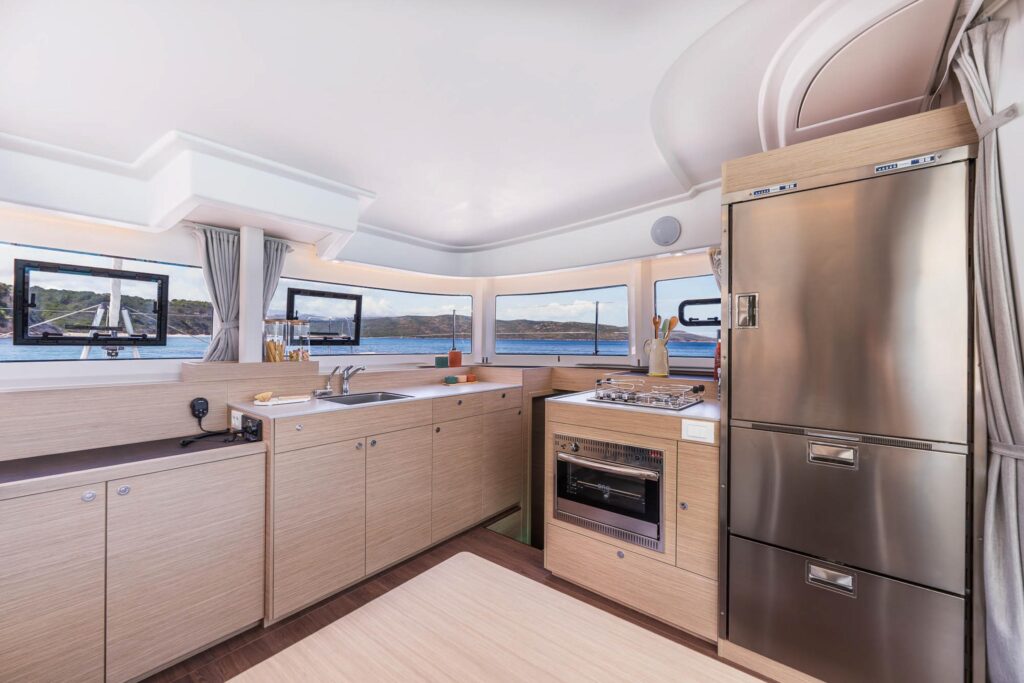

• Galley at front of saloon
• Compact worktop
• Stainless steel sink with compact lid
• Hot/cold water mixer tap
• Low storage lockers with shelves and drawers
• Starboard :

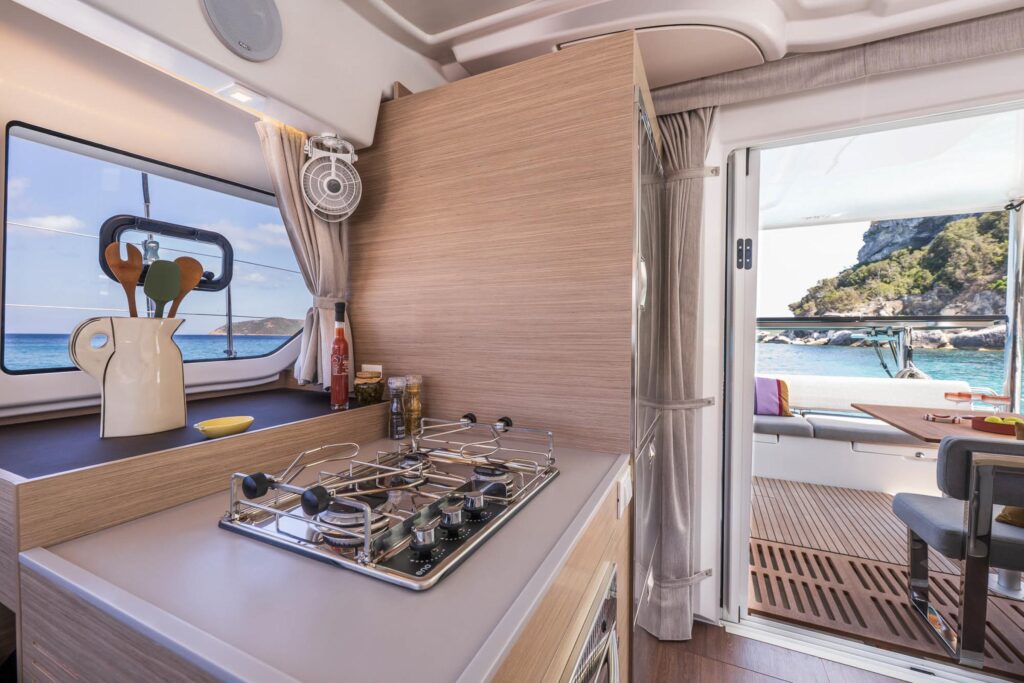

  • 2-burner gas stove
  • 12V 130L / 34 US gal refrigerator

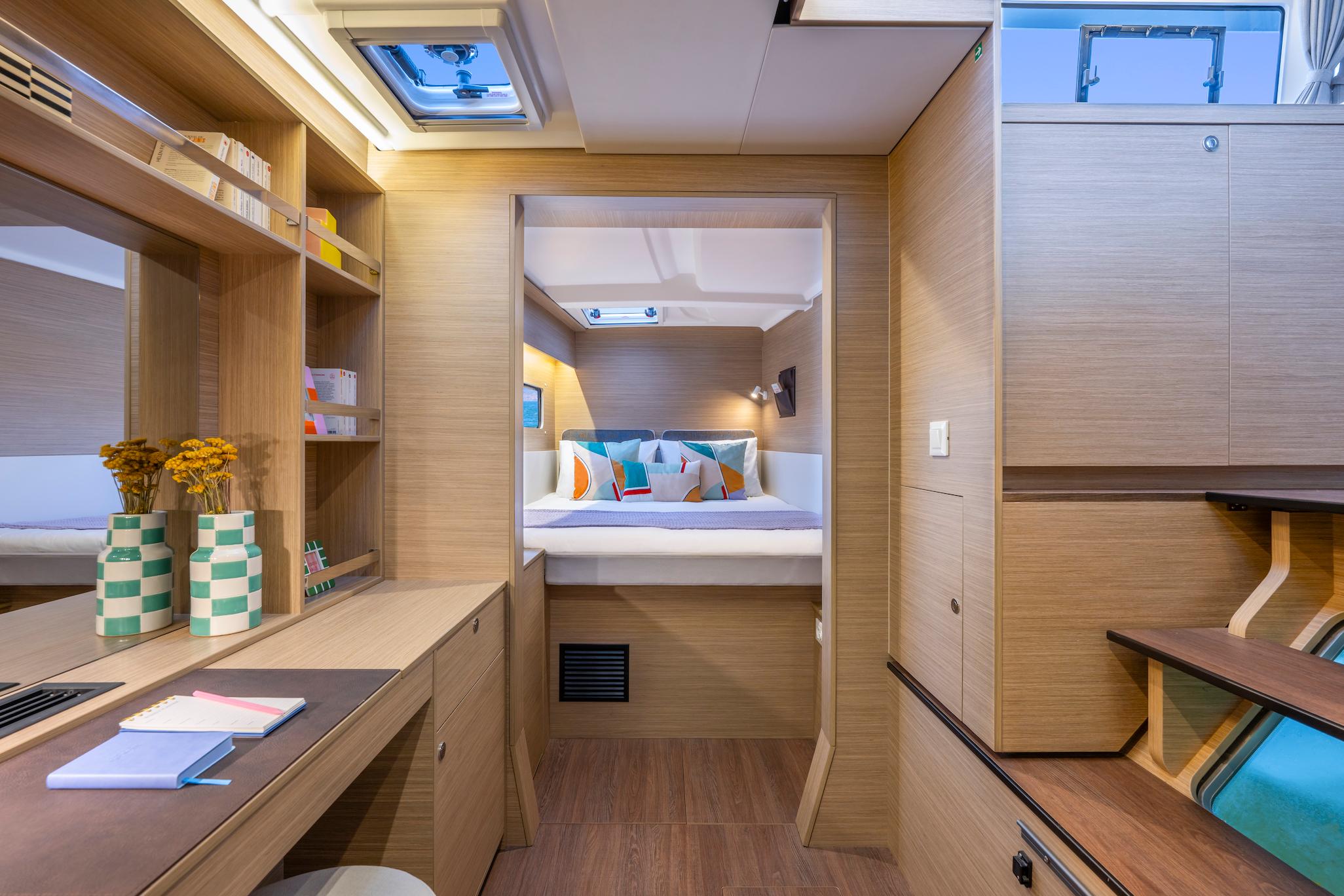

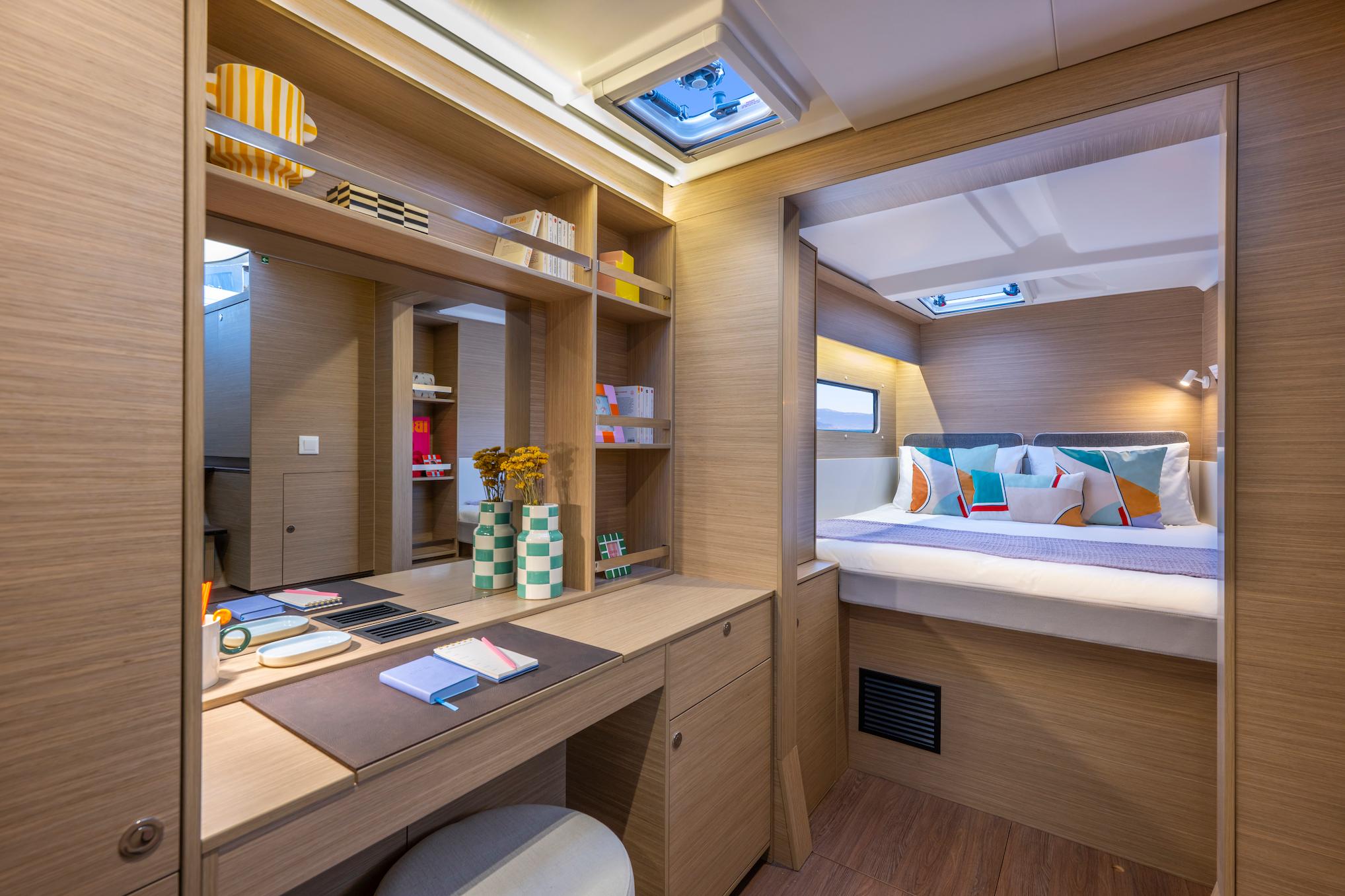

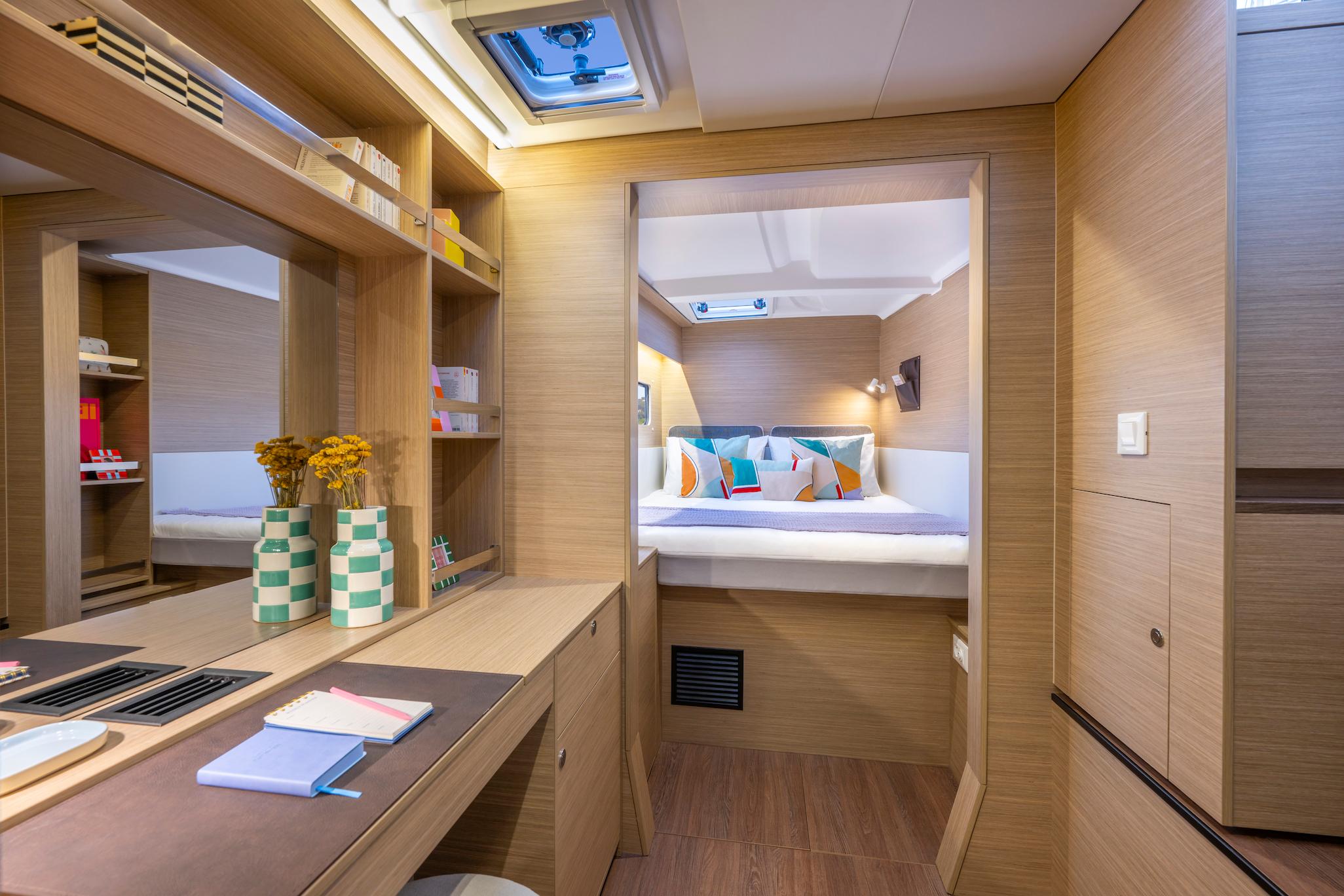

OWNERS CABIN

• Double bed with front access (2,00 x 1,60 m / 67 x 53)
• Treated cellular foam mattress
• Under bed storage
• Storage units with shelves, drawers and wardrobe
• Desk
• T44 and T10 opening flush deck hatches
• Fixed hull window in PMMA with integrated opening portholes with curtains

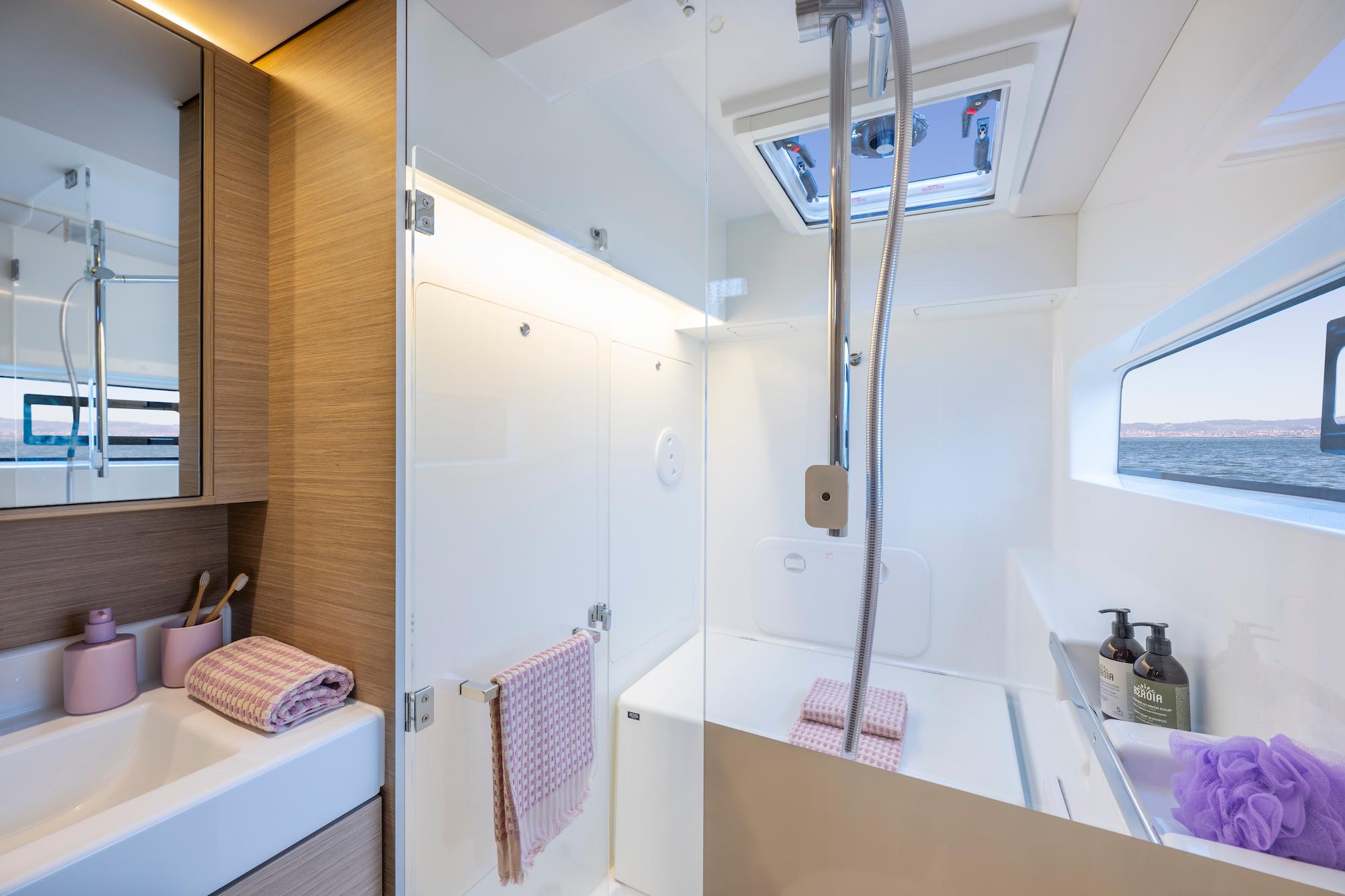

OWNERS HEAD

• Private access from the Owners cabin
• Composite countertop
• Integrated sink with hot/cold mixer tap
• High and low-level storage units
• Separated shower with PMMA door
• Manual toilet
• T44 opening flush deck hatch
• Fixed hull window in PMMA with integrated opening porthole

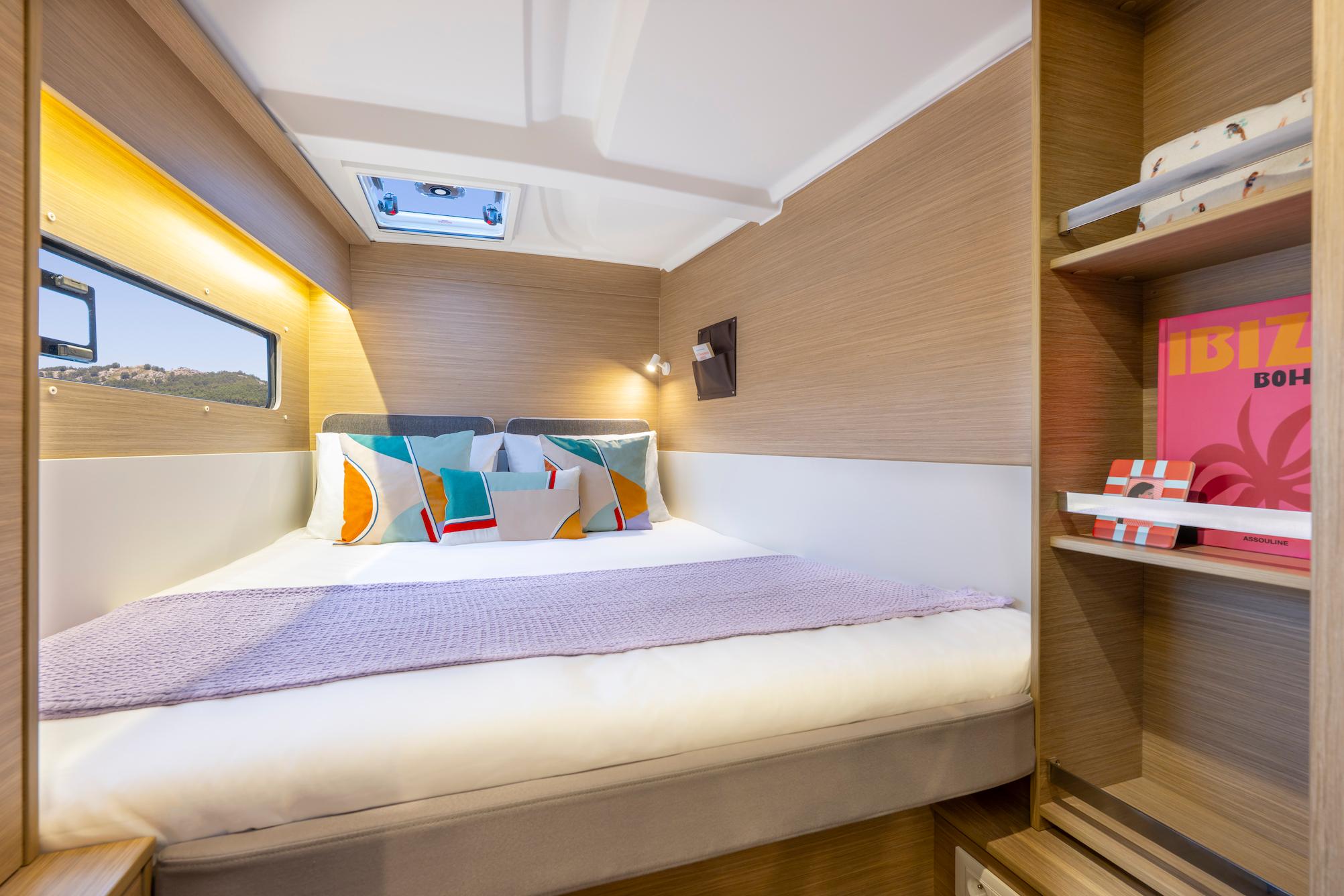

AFT CABINS

• Double access with front access (2,00 x 1,60 m / 67 x 53)
• Treated cellular foam mattress
• Headboard niche
• Under bed storage
• Storage units
• T44 opening flush deck hatch
• Fixed hull window in PMMA with integrated opening portholes with curtains

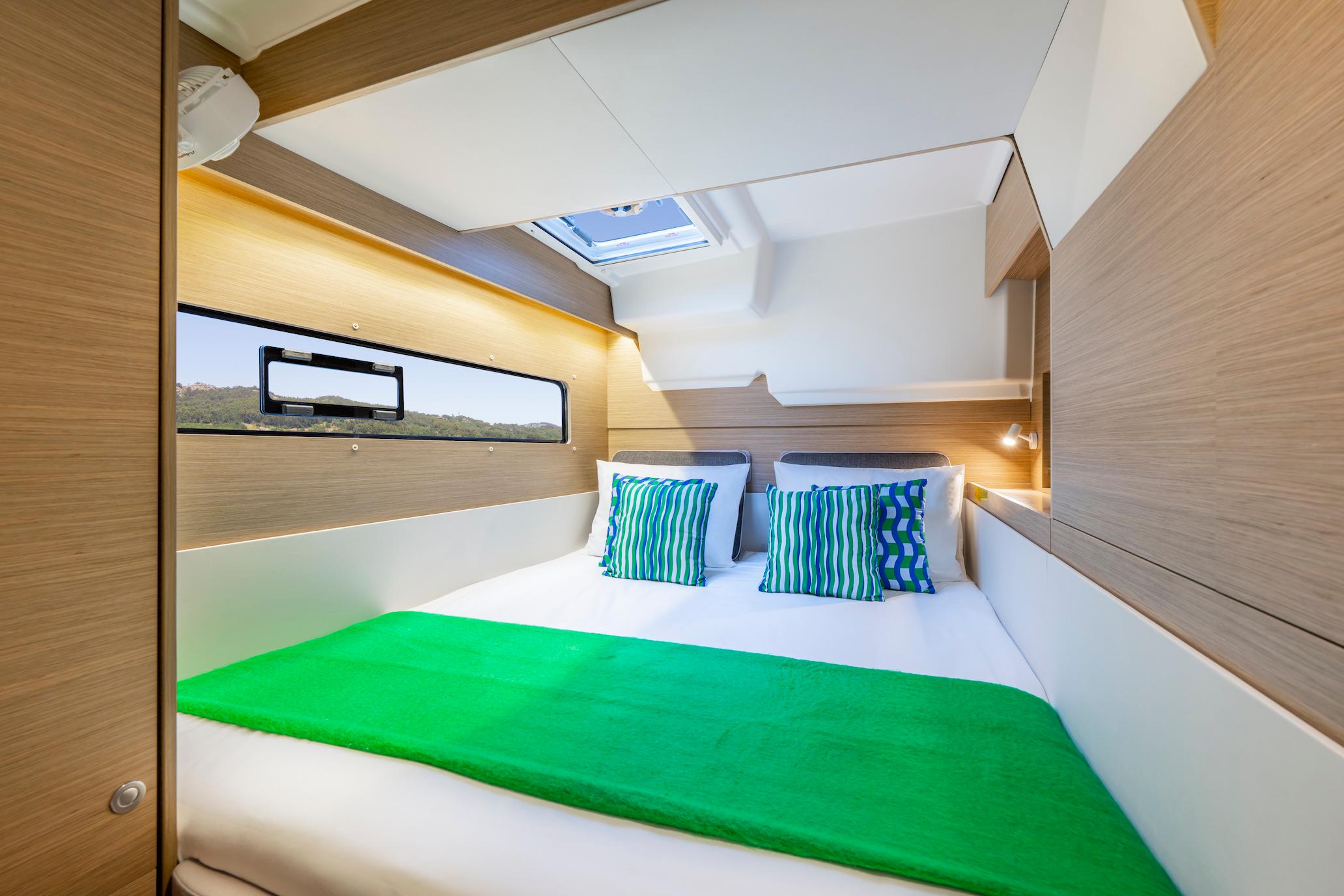

FORWARD CABINS

• Double access with front access (2,00 x 1,50 m / 67 x 411)
• Treated cellular foam mattress
• Under bed storage
• Storage units
• T44 opening flush deck hatch
• Fixed hull window in PMMA with integrated opening portholes with curtains

HEADS

• Composite countertop
• Integrated sink with hot/cold mixer tap
• High and low-level storage units
• Separated shower with PMMA door
• Manual toilet
• T10 opening flush deck hatch
