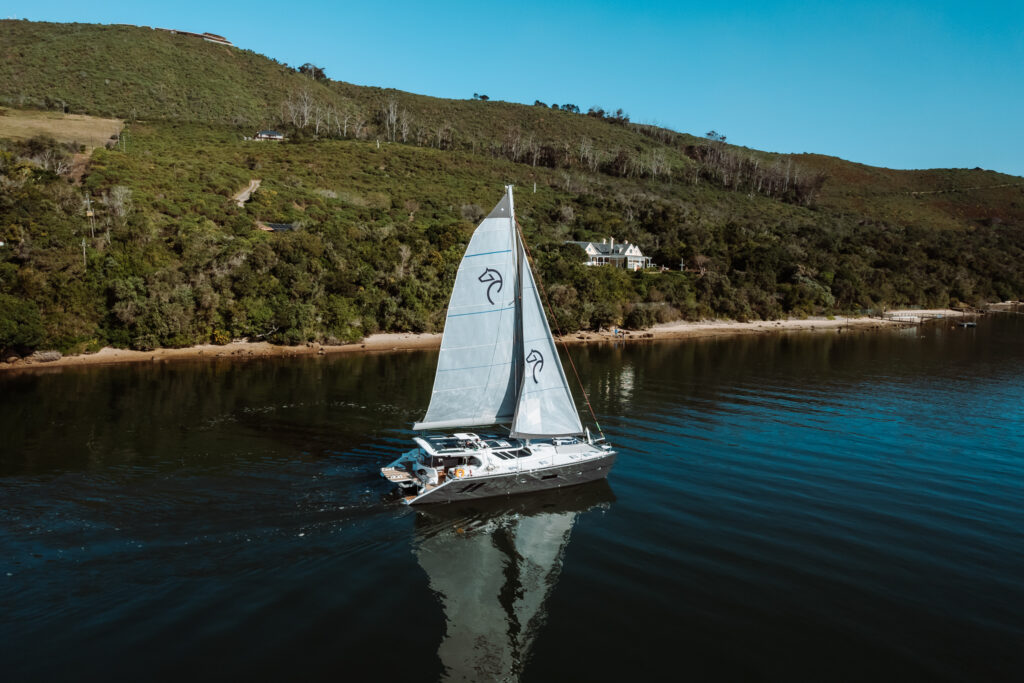

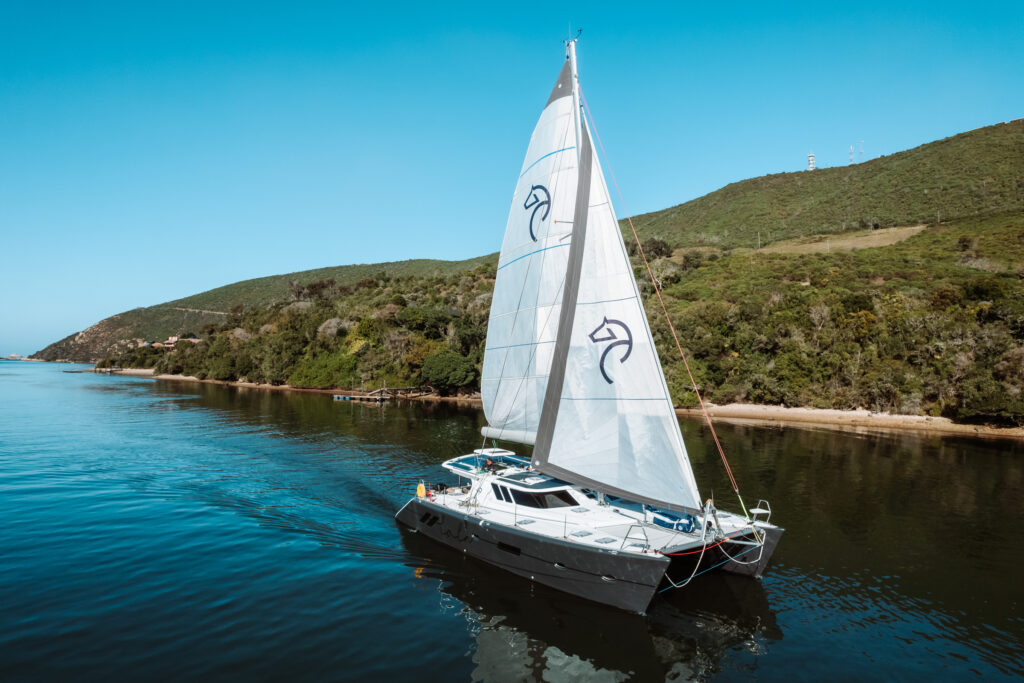

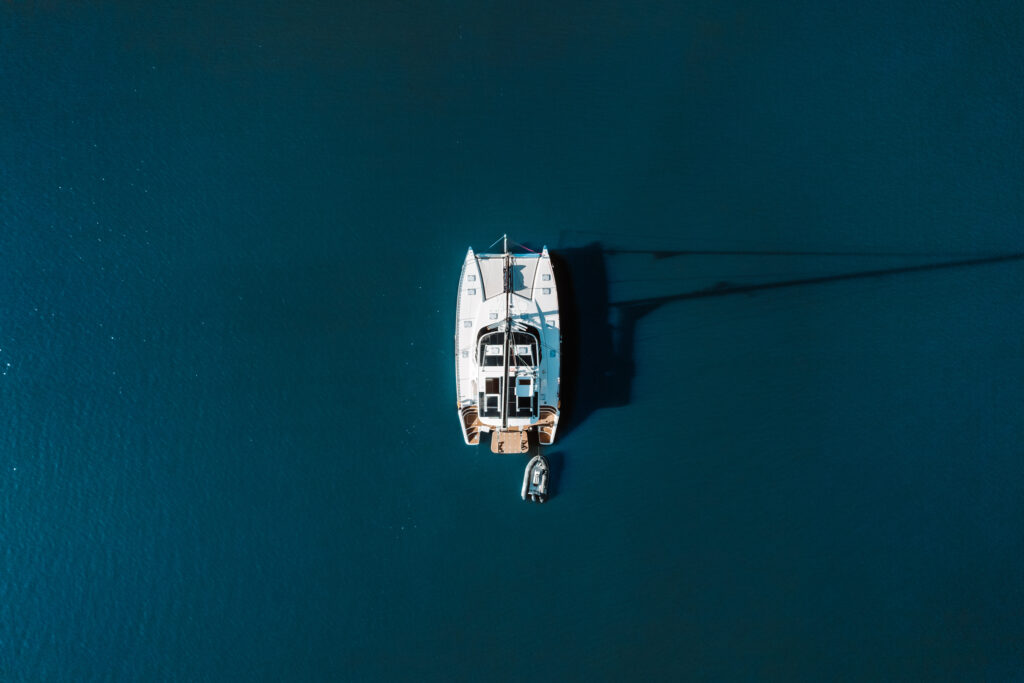

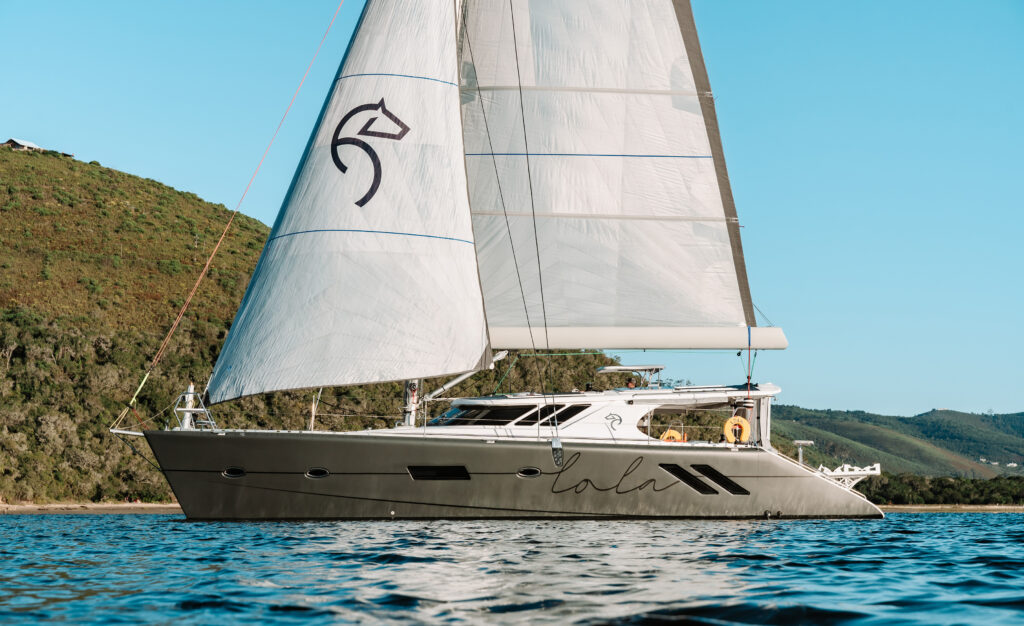

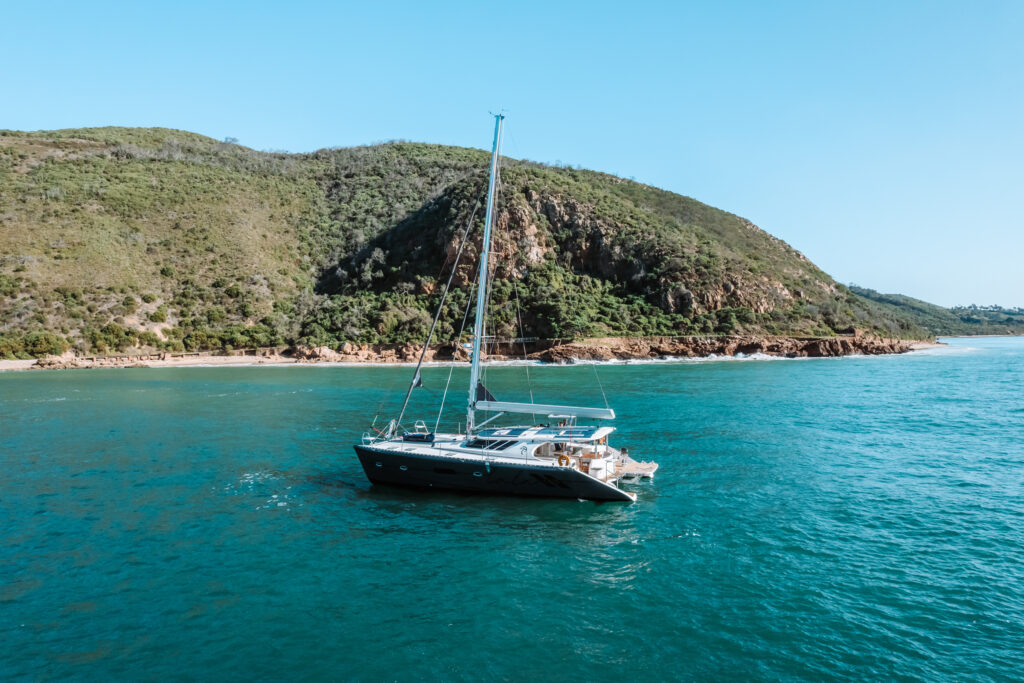

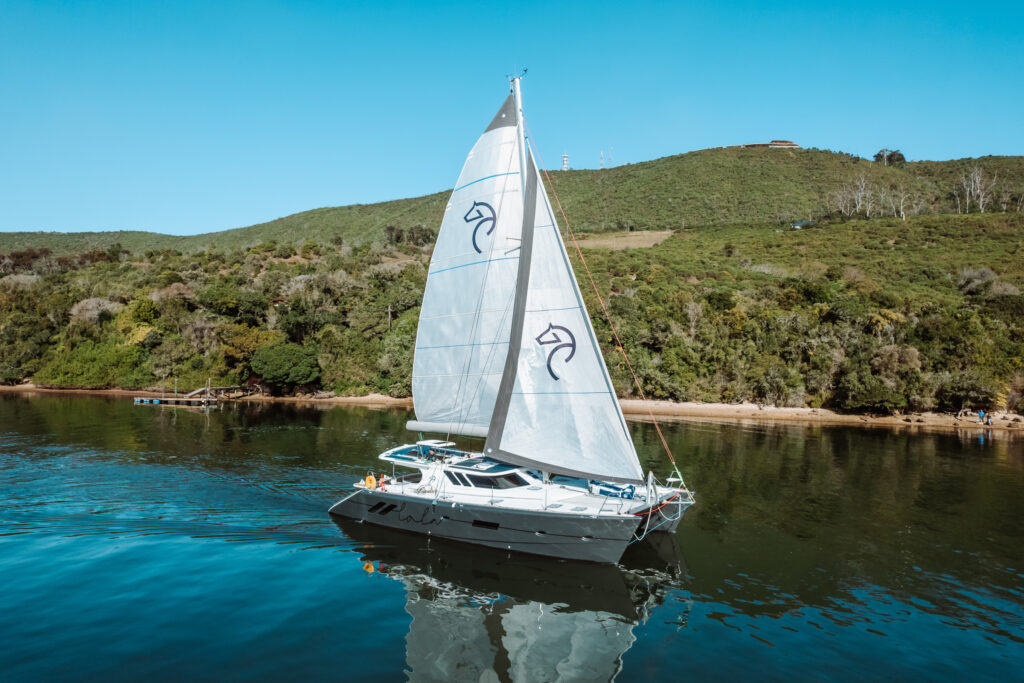

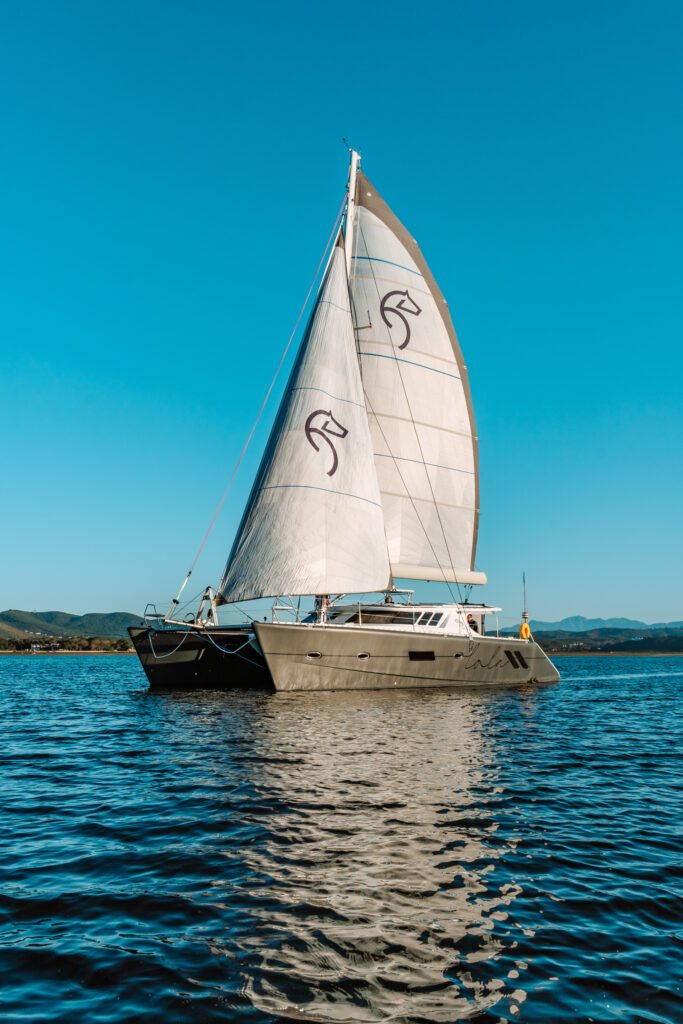

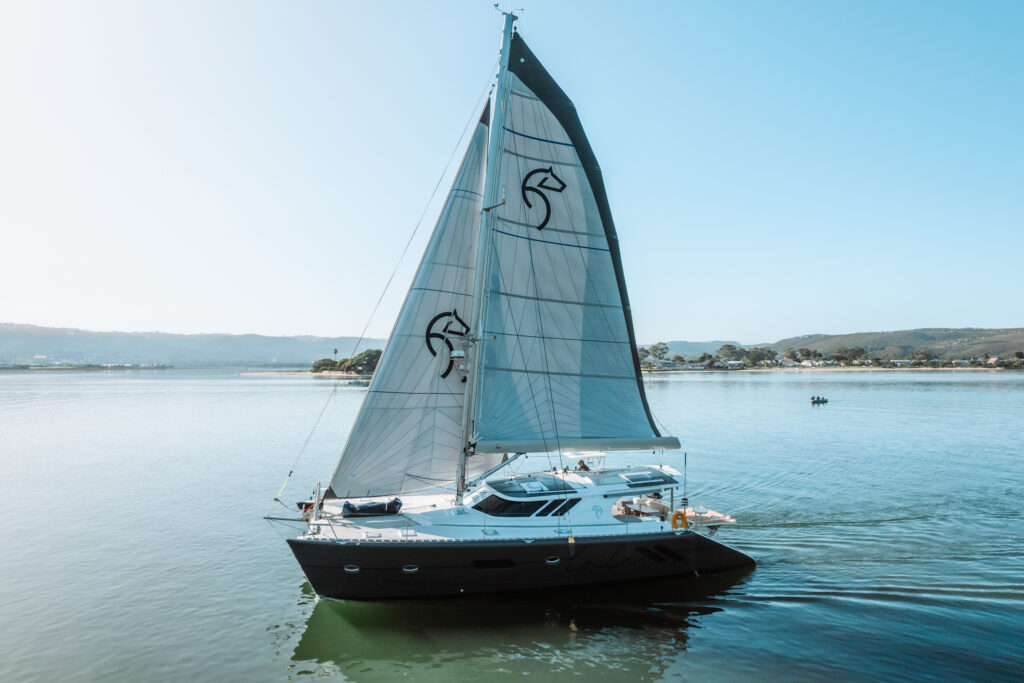

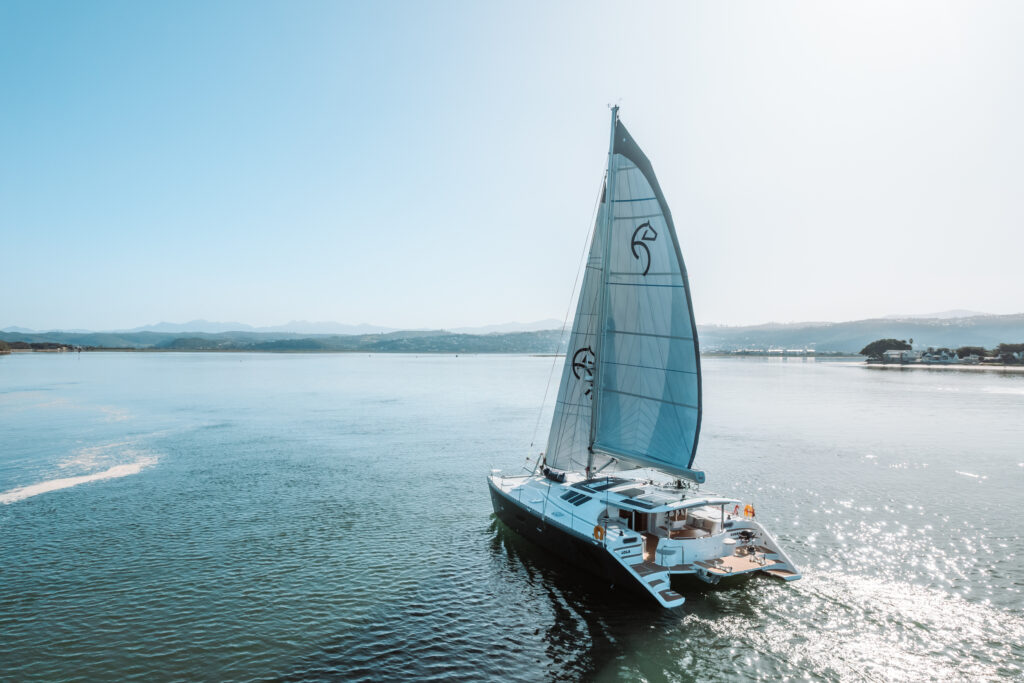

Lola | 2022 Knysna 500SE

Dimensions

Length overall 15.24 m / 50.00 ft

Length waterline 13.77 m / 45.15 ft

Mast height above waterline 20.0 m / 65.6″

Beam 7.96 m / 27 ft

Draft 1.21 m / 3’11.5″

Displacement (DWL) 16 000 kg / 35 274 lbs

Genoa 50.00 m2 / 538.00 ft2

Mainsail 75.00 m2 / 800 ft2

Engines 2 x 57 hp

Water Capacity 600lt / 158.5 US gal

Fuel Capacity 600lt / 158.5 US gal

Construction

• E-glass & vinyl-ester laminate with 80 density closed cell PVC foam core
• Declaration of conformity to CE standards
• 2 year structural guarantee

Vessel Walkthrough

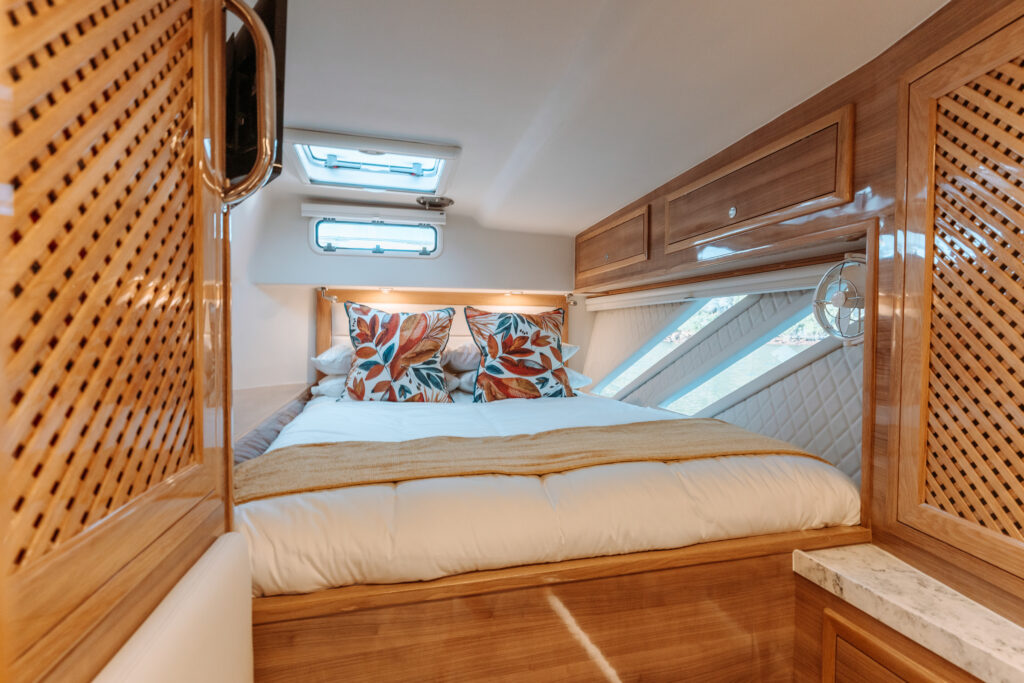

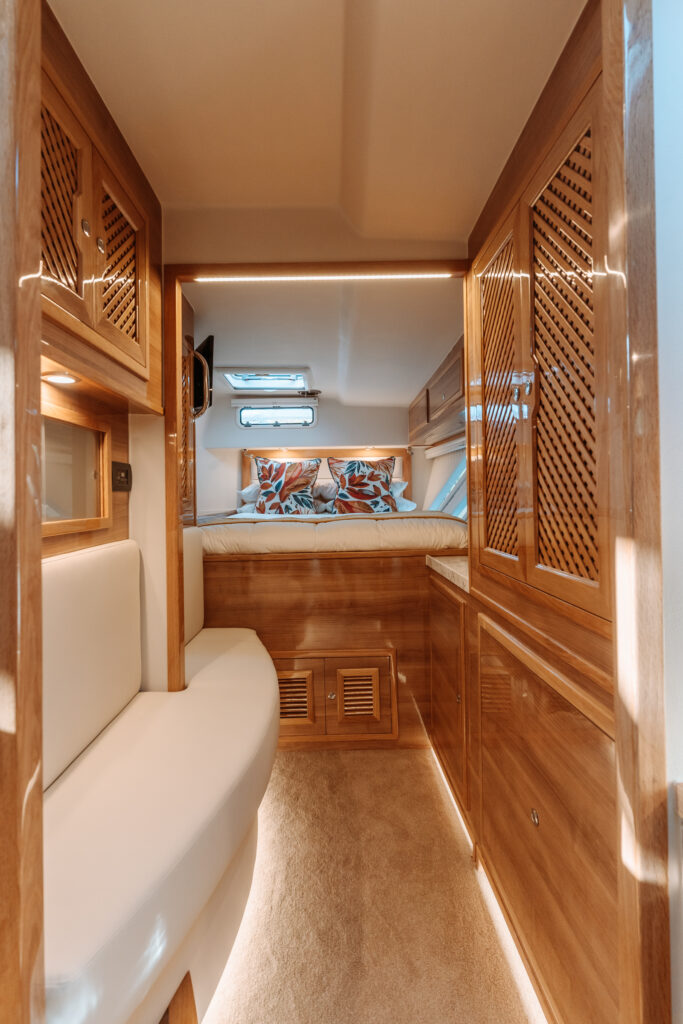

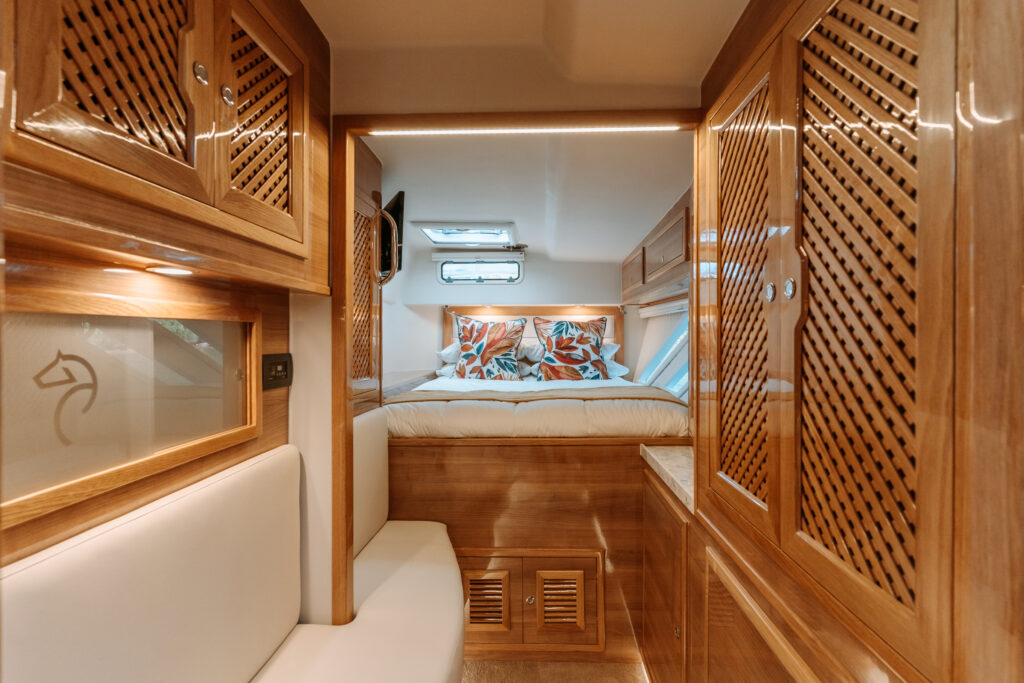

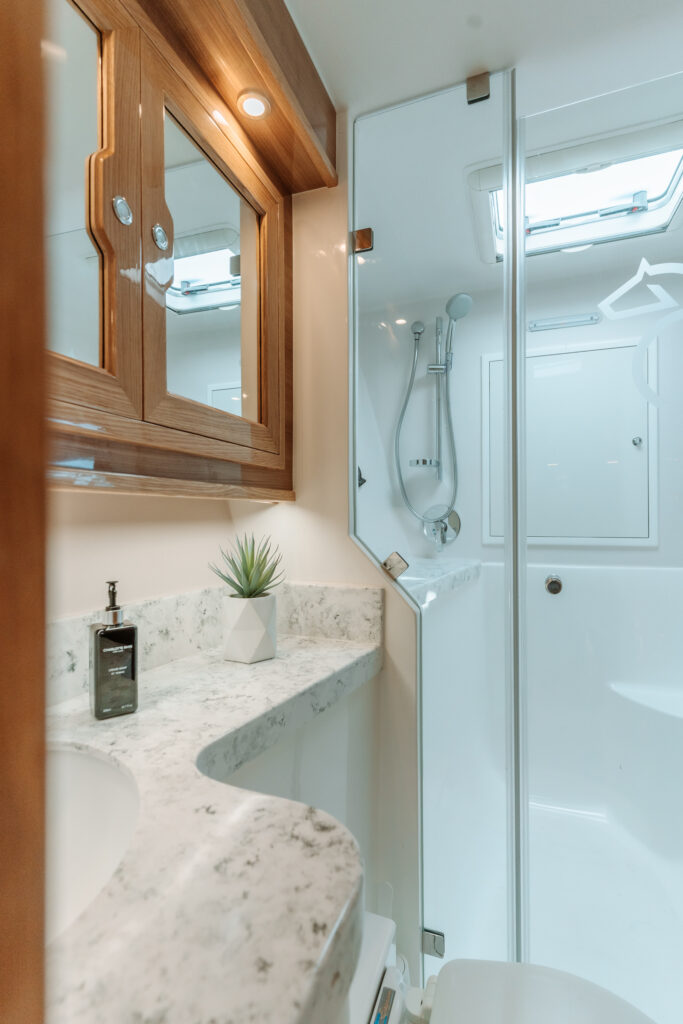

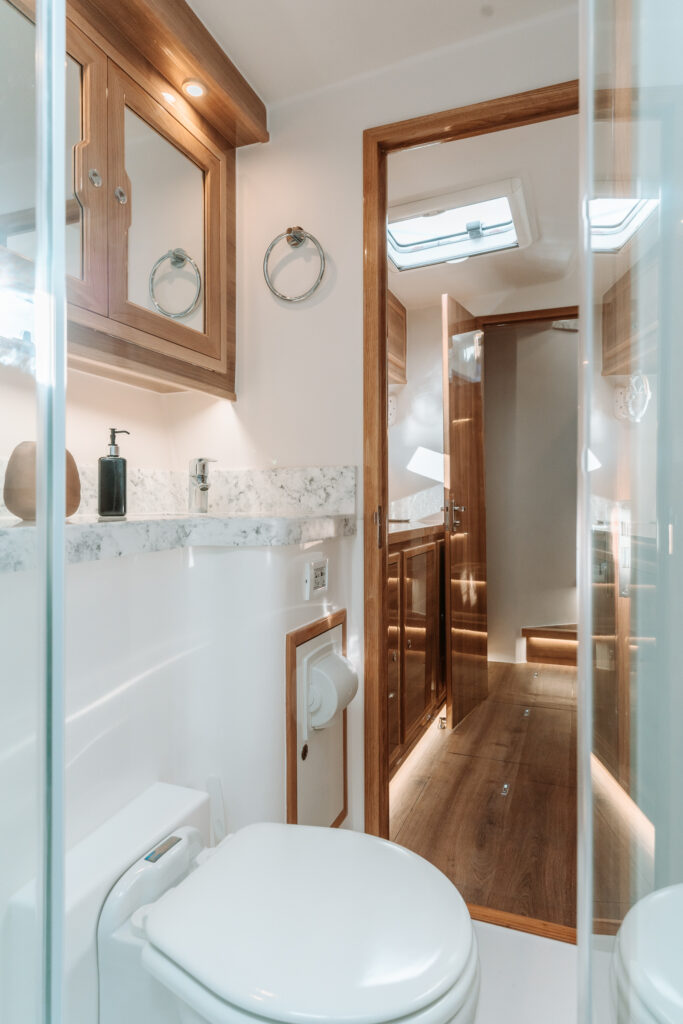

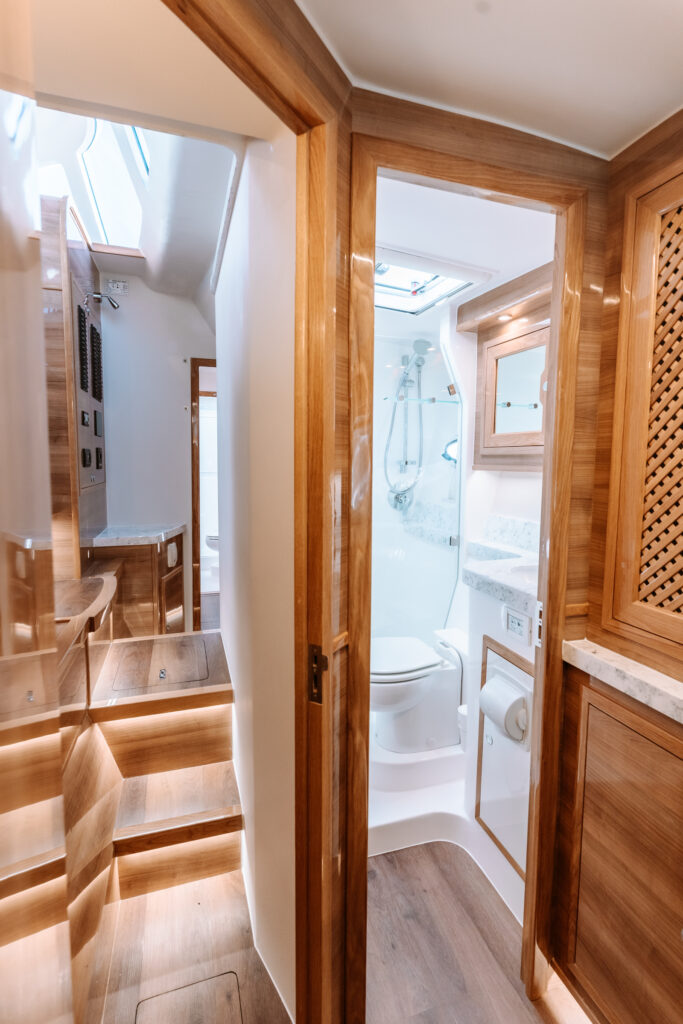

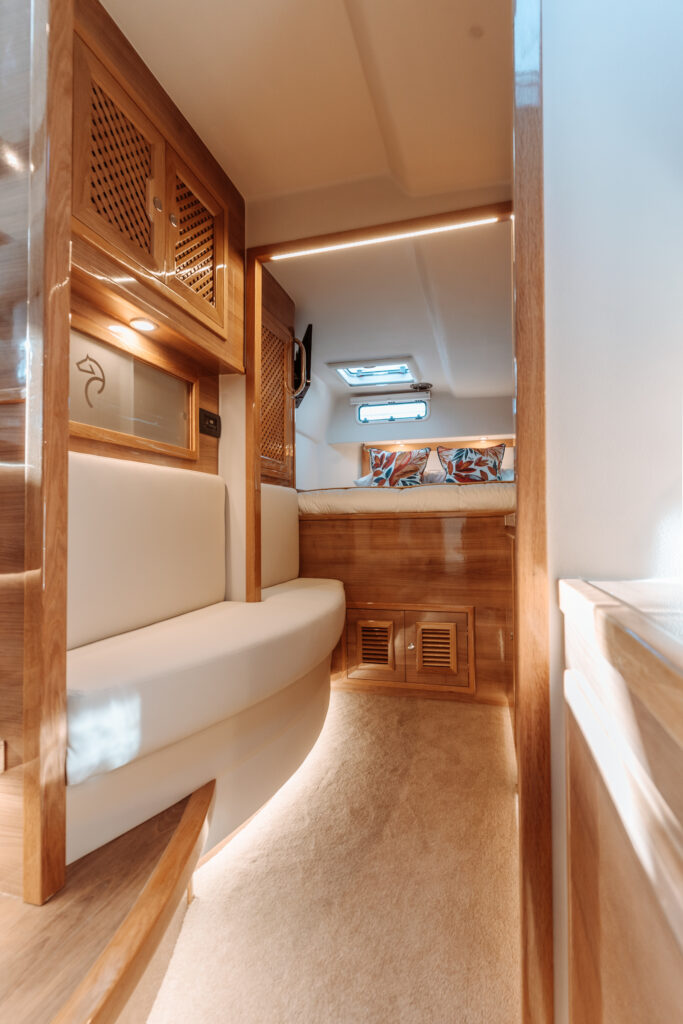

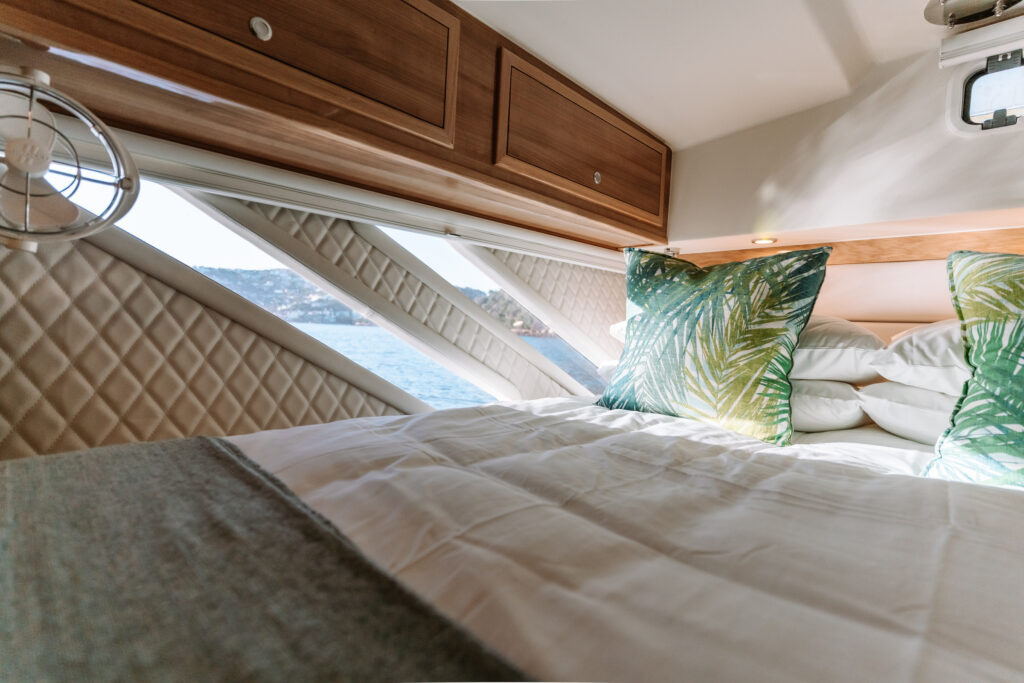

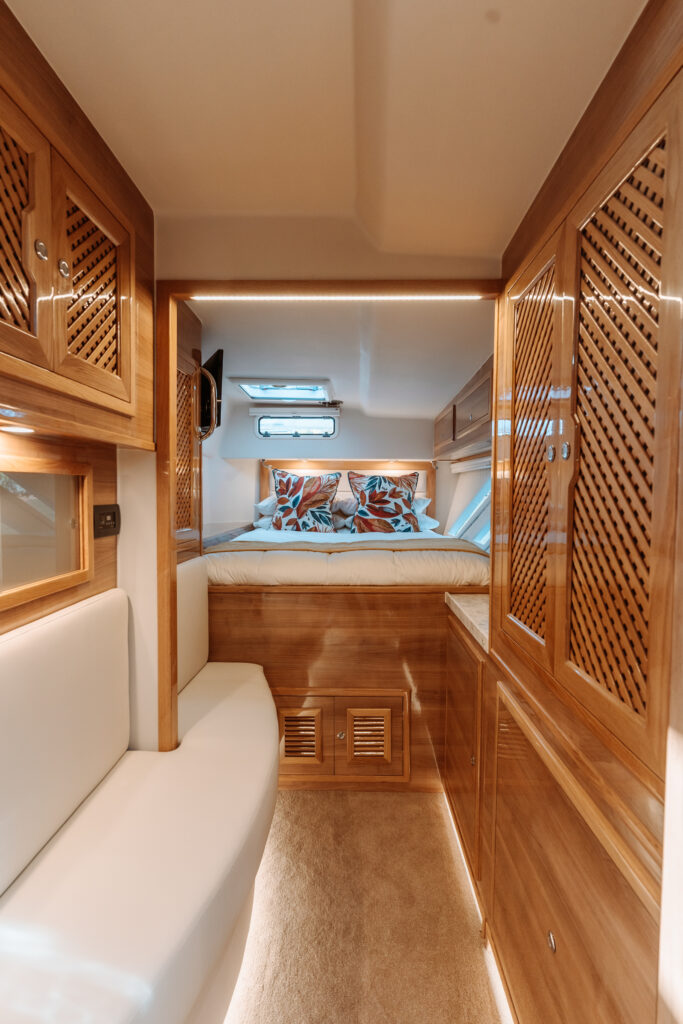

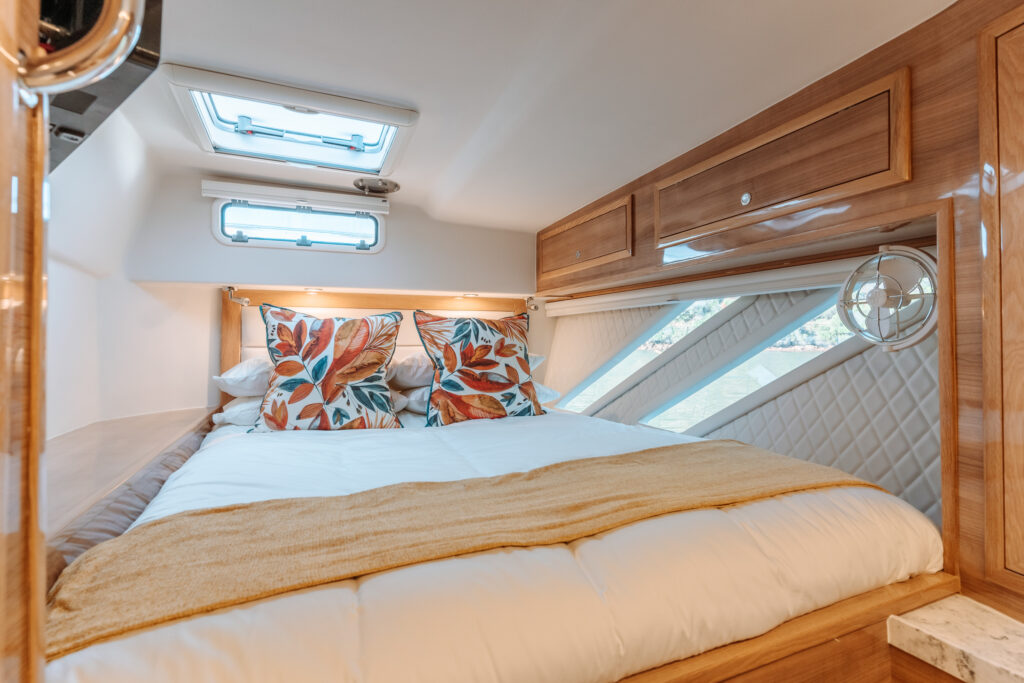

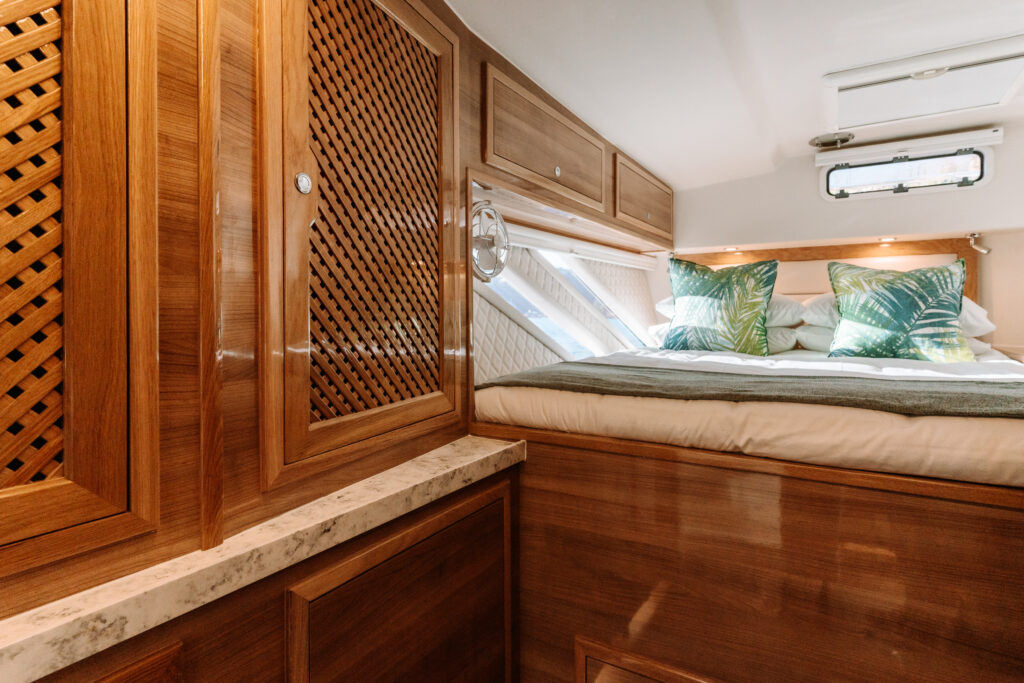

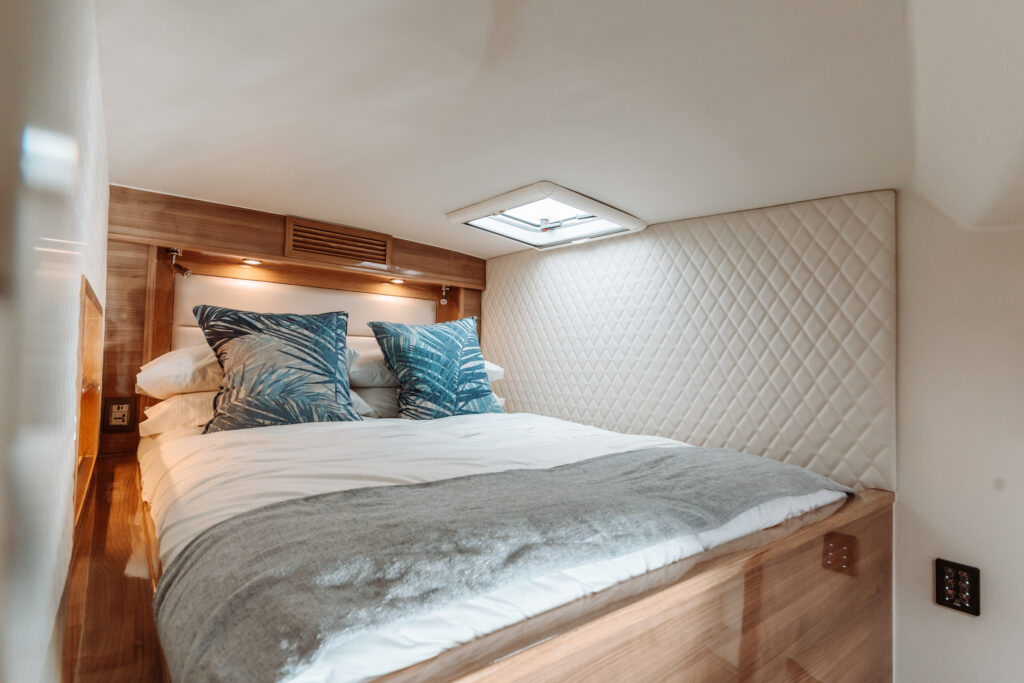

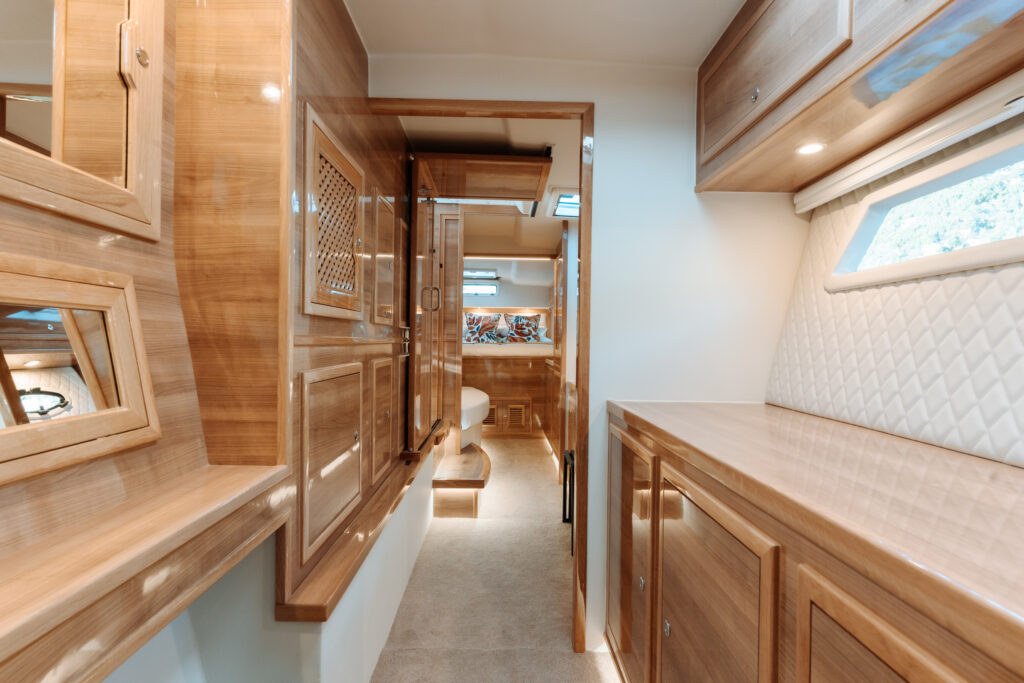

• 3 cabins & 3 head layout with (1 )master suite & (2) guest cabins

HULL, DECK AND SUPERSTRUCTURE

General

• Hulls and bridge deck hand laid with e-glass and vinyl ester resin throughout. Closed cell 80 density.
• PVC foam core vacuum bagged to outer laminate and balanced with hand laid inner laminate.
• Monolithic areas and coosa board reinforcements between laminates.
• Structural bulkheads infused with 25mm closed cell PVC foam core and laminated directly to hull and bridge deck
• Watertight crash bulkheads in bows
• Structural keels, integrated into hulls (foam filled)
• Isophthalic gelcoat – White

Paint

• 5 x coats of gel shield primer
• 2 x coats of ablative anti-fouling – black
• Vinyl wrap in metallic gunmetal

MECHANICAL

Rudders and Steering

• 2 x Balanced spade rudders, with reinforcement (foam filled)
• 2 x 316 Stainless steel stocks in Vesconite bushes
• Hydraulic bulkhead steering system

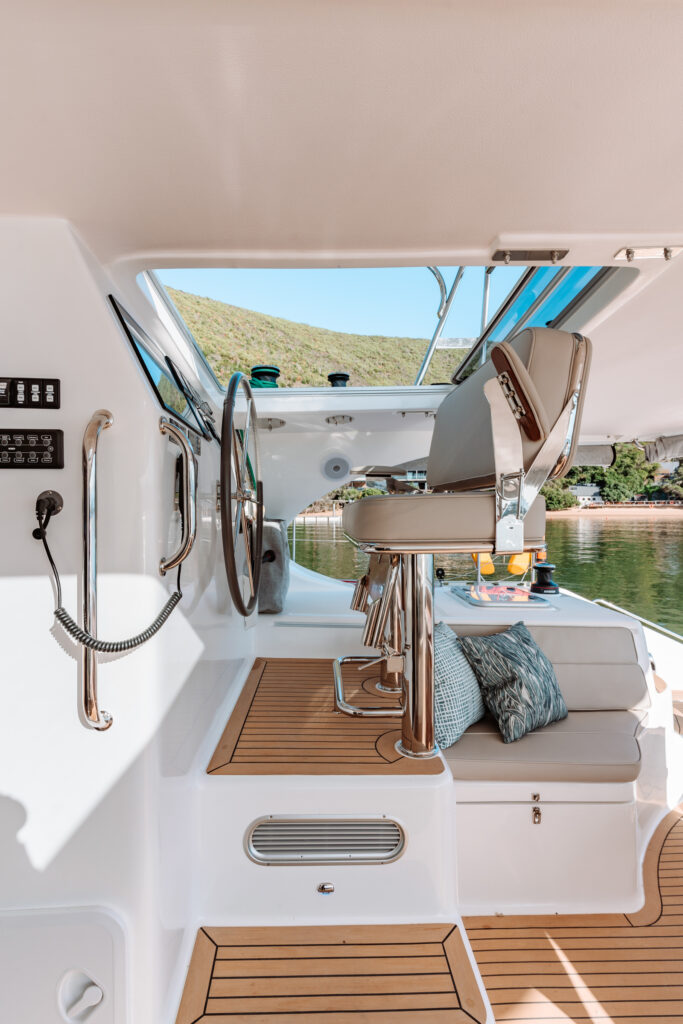

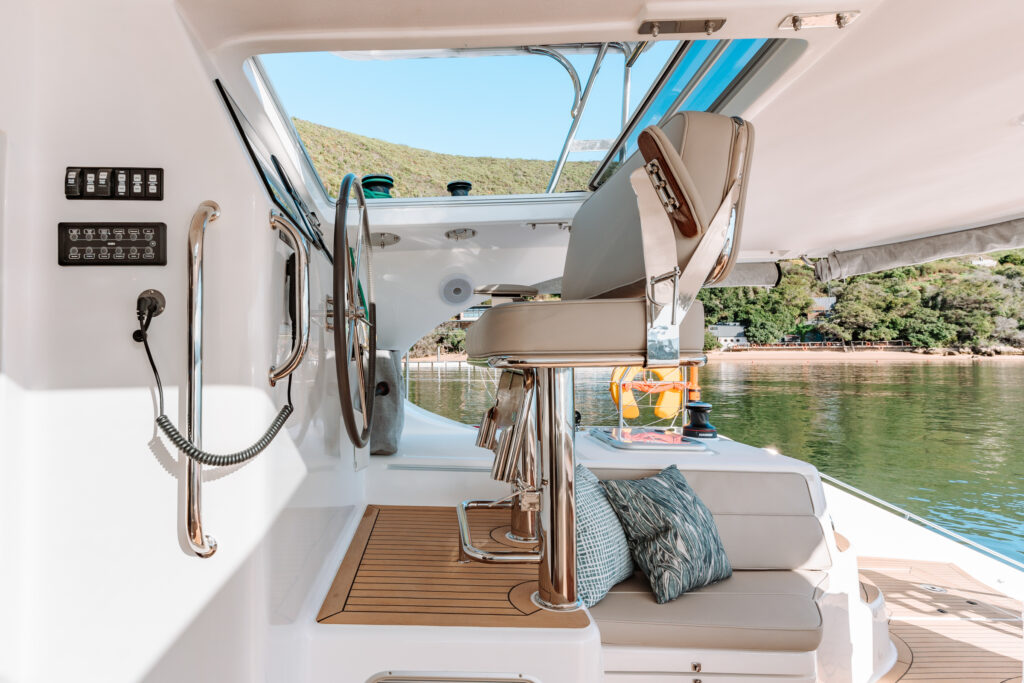

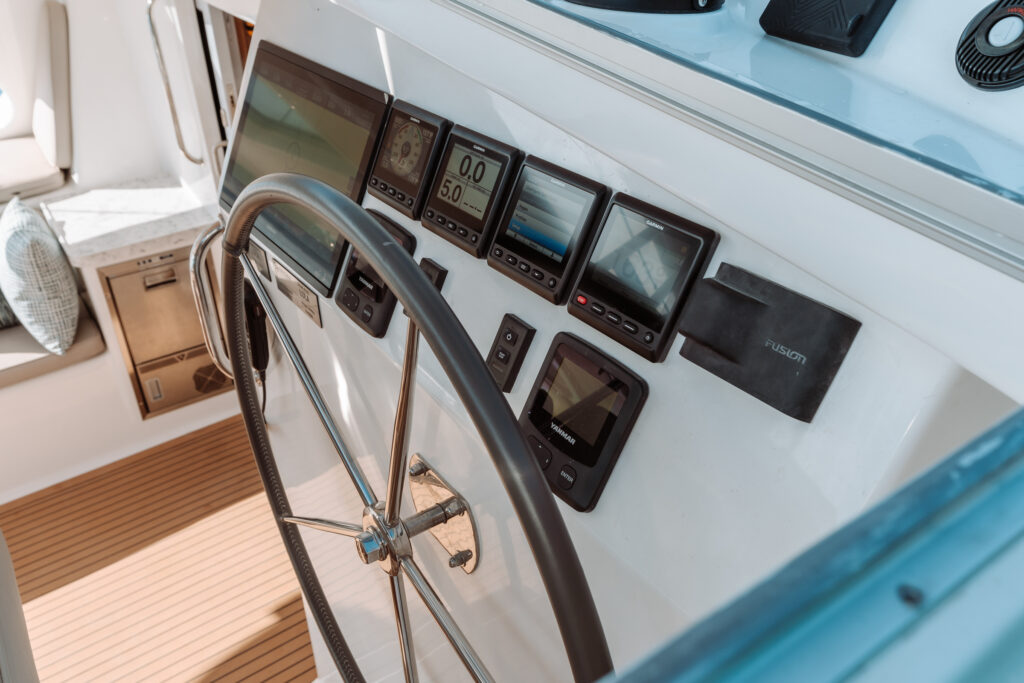

• 32″ stainless steel helms wheel – leather covered: Leather color – Grey

Propellers

• 2 x Yanmar Propellers — upgraded to Bruntons feathering props
• 2 x rope cutters (Ambassador to fit Bruntons feathering props)

Engines

• 2 x 57 hp common rail Yanmar – diesel engines and SD 60 sail drives (fresh water cooled)
• 2 x exhaust systems
• 2 x exhaust blowers
• Twin top engine throttle controls
• Battery cables and connections
• 2 x exhaust anti – siphon valves

2 x engine beds and fittings

• 2 x engine compartments (under aft bunks)
• 2 x engine instrument panels
• upgrade to Yanmar VCS electronic throttle control and engine displays

Fuel system

• Built in tank approximately 600 litres (158.5 US gal) – VE 671 resin & fiberglass
• Deck filler fitted on tank
• 2 x fuel filter with water traps (Racor FG500)
• 9 x stop cocks
• Tank inspection hatch
• Tank sender (fuel gauge)
• 1 x CE approved flame arrestor
• 1 x fuel scrubber (FPS80S04 – fuel polishing system 80 series 24v)

Water Tank

• Built in tank approximately 600 litres (158.5 US gal) – VE 679 resin & fiberglass
• Deck filler fitted on tank
• Tank inspection hatch
• Tank sender
• Overflow fitting into chain locker
• Inlet from watermaker

HVAC (Heating, Ventilation & Cooling)

• Self-contained 16000 BTU aircon in saloon
• 2 x self-contained 12000 BTU air conditioners (one for port side and one for starboard side)
• AC waterpump with 3-way balancing manifold
• 4 x gimbal cabin fans (galley, cabins, other) – (3 cabin layout)

ELECTRICAL

• Marine distribution board (230V AC | 24V DC | 12V DC)
• Appropriately sized multicore wires in conduits
• Set of control boxes divided into the boat include breakers and relays

24V

• 24V DC network
• 3 x 24V 230 amp hour lithium Ion batteries
• Battery management system (7″ touch screen LCD display)
• Additional 230 amp hour lithium Ion batteries
• 2 x secondary 110 Amp alternators including regulators

12V

• 12V DC network
• 3 x AGM (sealed & maintenance free) engine and generator 12V starter batteries

230V AC

• 230V AC, 50 Hz network
• 12 x 230V AC outlets in Brushed grey 20642.C15
• Inverter (24V / 4000Kw)
• Additional inverter (24V / 4000Kw)

Shore power/Charging

• Shore power charging unit 24V
• Shore power cable 50A – 220V + pigtail to 2x30A – 110V

Generator

• Built in Fisher Panda DC generator 4.8Kw
• Water / gas splitter box for generator – water is ejected below waterline for dampening exhaust noise

Solar

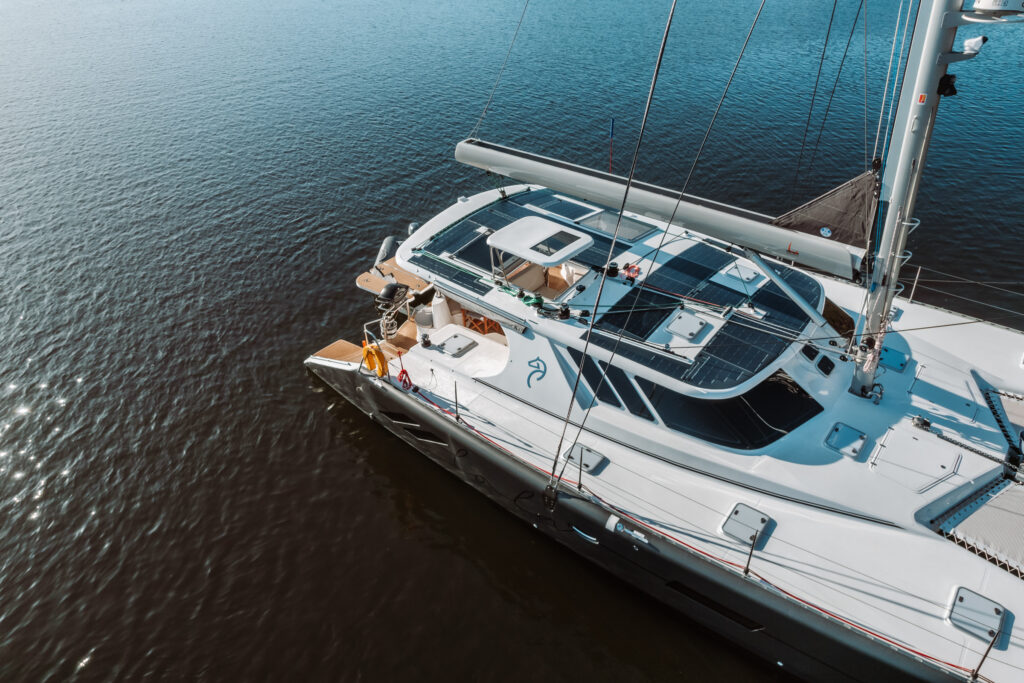

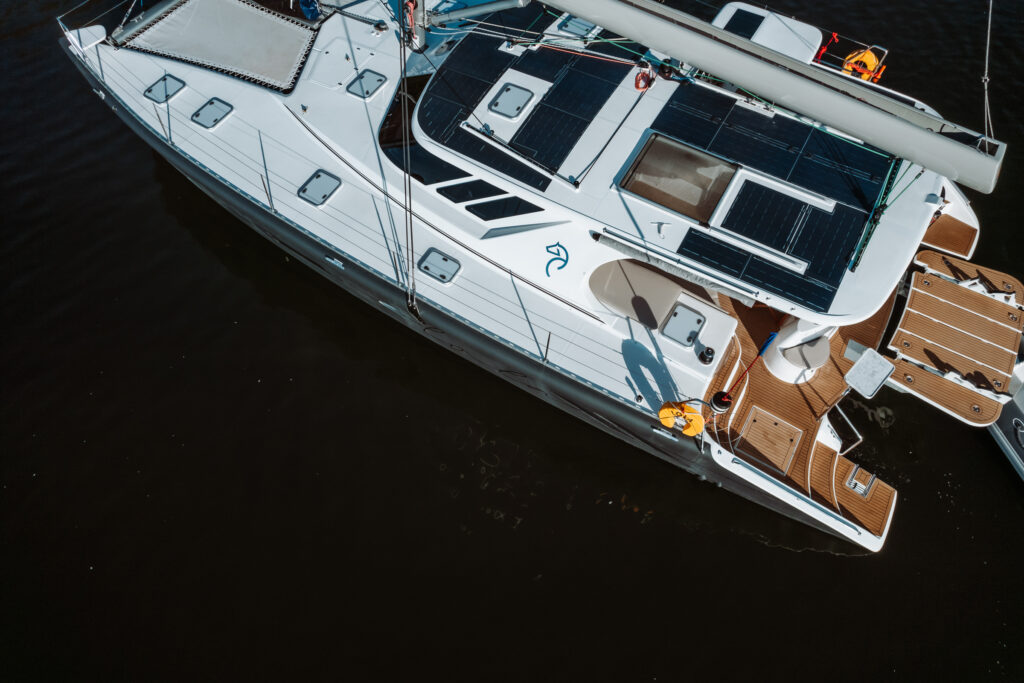

• 2 x monocrystiline 400W glass solar panels (mounted on coachroof)
• Solar mppt for 2 x 400W glass solar panels

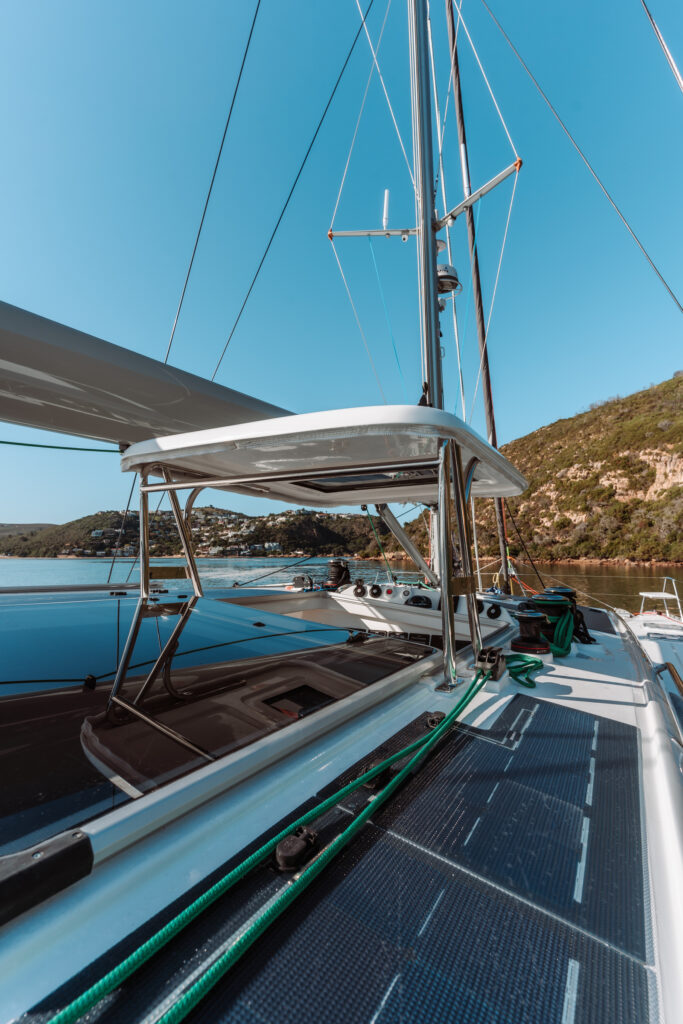

• 2 x “walk-on” type solar panels SR186L (186 watts each) – middle of coachroof and below boom
• Ssolar mppt for 2 x SR186L “walk-on” solar panels
• 2 x “walk-on” type solar panels SR186Q (186 watts each) – port side of coachroof in front of sliding hatch
• Solar mppt for 2 x SR186Q “walk-on” solar panels
• 2 x “walk-on” type solar panels SR186L (186 watts each) – forward edge of coachroof
• Solar mppt for 2 x SR186L “walk-on” solar panels

Lighting

• 1 x bi-colour navlight on bow
• 1 x tri-colour navlight on mast
• 1 x steaming light
• 1 x stern light
• 1 x anchor light
• 1 x decklight
• LED downlighting arranged thoughout the yacht including combination of red and white in cockpit & saloon
• 12 x touch control service lights (forepeaks, engine bays, showers & distribution board)
• LED light above washup in galley
• 2 x silicon diffused LED lights integrated into bulkhead cappings
• Flexible led light positioned above saloon setee
• 6 x adjustable reading lights one above each berth – 3 cabin only
• Flexible linear LED courtecy lighting thoughout interior (saloon, galley, cabins, vanities and companion ways)
• 2 x underwater lights
• 1 x light at end of boom
• Search light with remote control at helm and hand held remote
• 2 x spreader lights to illuminate mast (1st spreader facing downward)

ELECTRONICS AND NAVIGATION

Navigation and Sailing Instruments

• 2 x Garmin GMI 20
• Garmin reactor 40 autopilot package
• Autopilot hydraulic pump
• Garmin gwind package (includes 1 x tri-data transducer, 1 x GMI20 sailing instrument)
• GPS 24 NMEA 2000 antenna
• Garmin 12″ chart plotter GPS Map 8412
• Garmin 16″ chart plotter upgrade to GPS Map 8416xsv (includes sonar module)
• Garmin GMR 18xHD radar – including mast mounted radar bracket
• Garmin AIS 800 + 1 x AIS antenna GA38 GPS \ glonass
• Garmin GRID 20 wired remote for MFD (fitted in saloon)
• Airmar P319 (50/200 kHz) depth transducer
• Garmin Panoptix forward facing sonar (PS51TH)

Entertainment

• 12V entertainment system – Fusion-type MS RA-70
• 100 watt sound panel – white RV-FS402W (mounted above sliding door in cockpit)
• 2 x 4.5″ speakers – Fusion XS Series Classic White (mounted in cockpit)

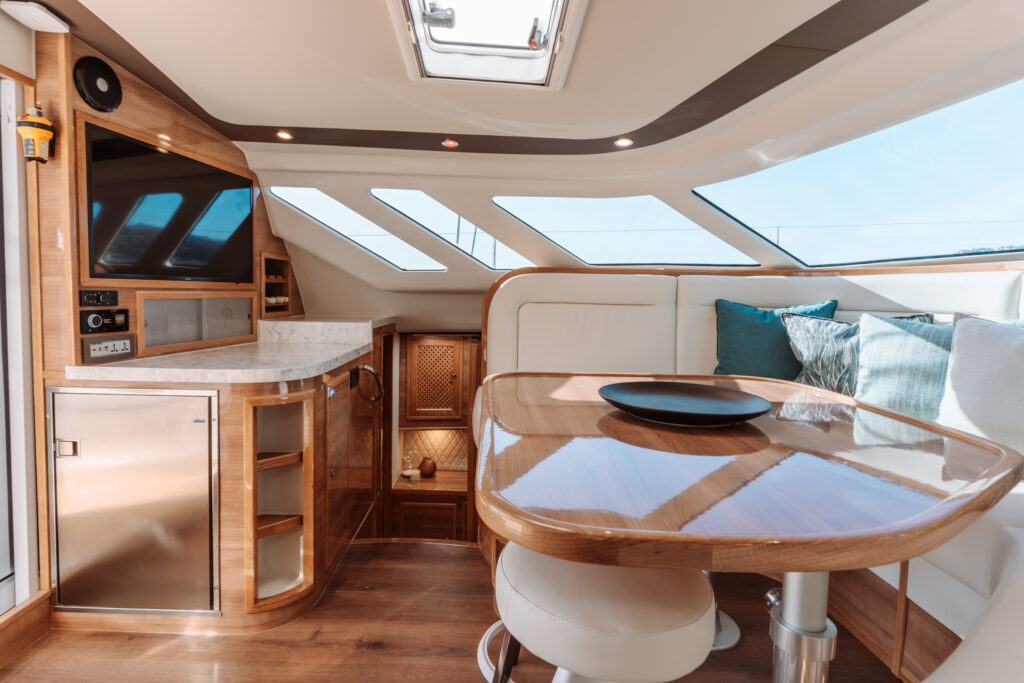

• 40″ 230V flat screen TV – saloon

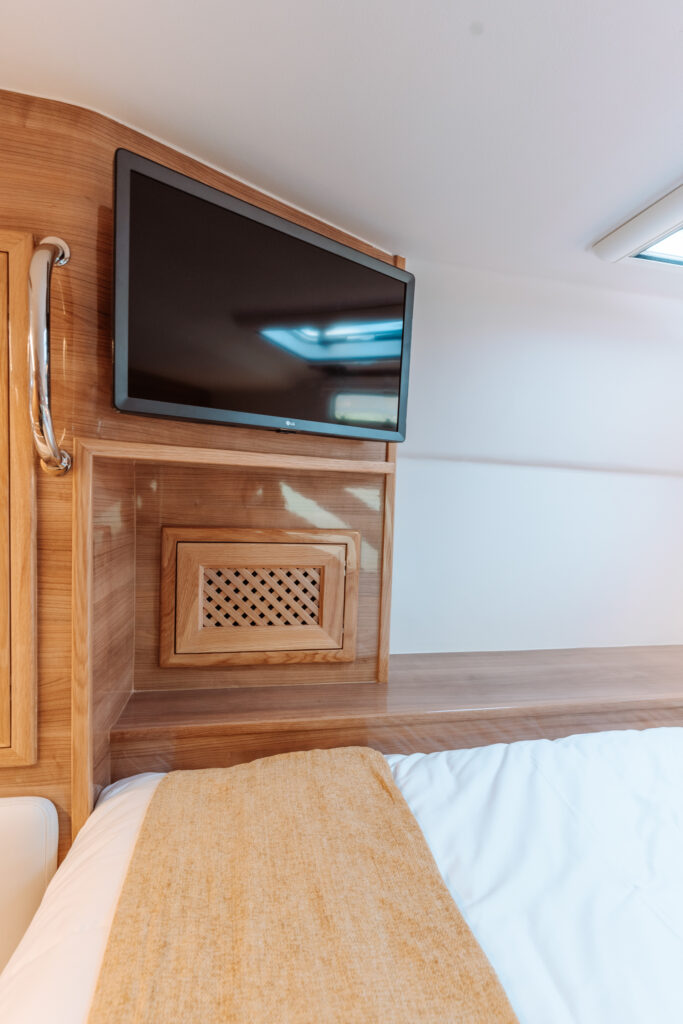

• 24″ 230V flat screen TV – owners cabin
• Media server (Synology NAS Drive)
• HD homerun digital TV tuner (North & South America)

Communications

• Garmin GHS11ii wired radio and antenna
• Iridium GO satphone with marine installation kit
• Omni-directional, marine & coastal LTE MIMO antenna
• Omni-directional, marine & coastal WiFi WAN antenna
• 5G Industrial cellular router
• Ethernet switch (8 port)

Security and Surveillance

• Garmin (GC200) forward facing camera mounted on first spreader
• Garmin (GC200) aft facing camera mounted on first spreader
• Garmin (GC200) downward (deck) facing camera mounted on mast head
• Garmin (GC200) cockpit camera aft facing mounted above saloon sliding door

PLUMBING

Freshwater

• 2 x 24V fresh water pressure pumps with accumulator
• 40L calorifier 230V AC with element and thermostat (connected to stbd engine for heat exchange)

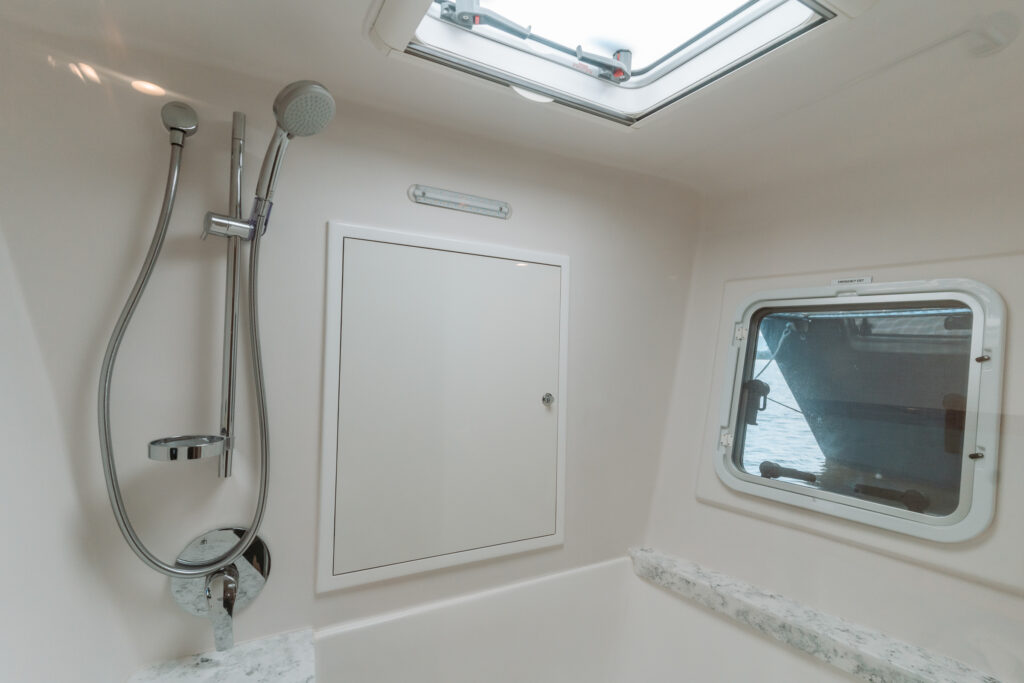

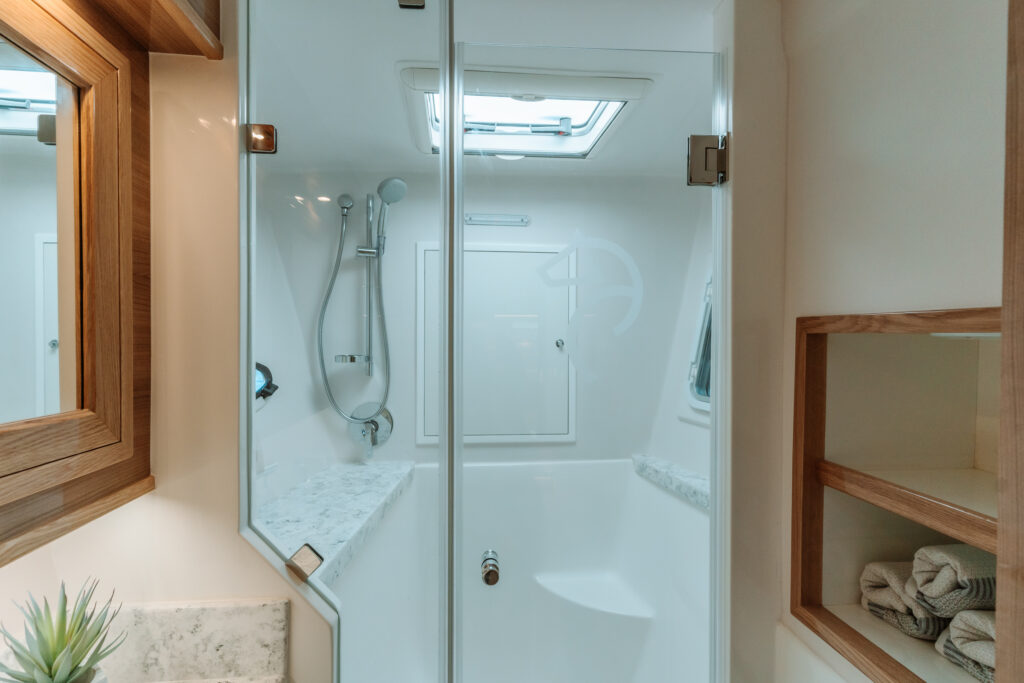

• Fresh water “pull-out” hand-held shower at transom (hot / cold)
• Watermaker modular schenker 100 lt per hour
• Deck wash with outlet only (mounted at foredeck)
• Deck wash & dock connection (mounted aft side of curved cockpit bench) – with pressure regulating valve
• Exterior fixed mounted shower head & mixer (hot and cold) – mounted on port side coachroof support

Blackwater

• 80L moulded blackwater tank in port forepeak (gravity discharge) with fittings
• 80L moulded blackwater tank in stbd forepeak (gravity discharge) with fittings
• 80L moulded blackwater tank stdb midship (gravity discharge) with fittings

Greywater

• 2 x built in grey water tanks including inspection hatch, strainers and filters
• 2 x 24V grey water pumps

Bilges

• 2 x 24V electric bilge pumps
• 2 x manual bilge pumps

GAS

• 24V electonic solenoid valve
• Regulator
• 24V gas snuffer – saloon / galley area
• Separate gas installation dedicated only on transom BBQ – only when no gas installation required on yacht

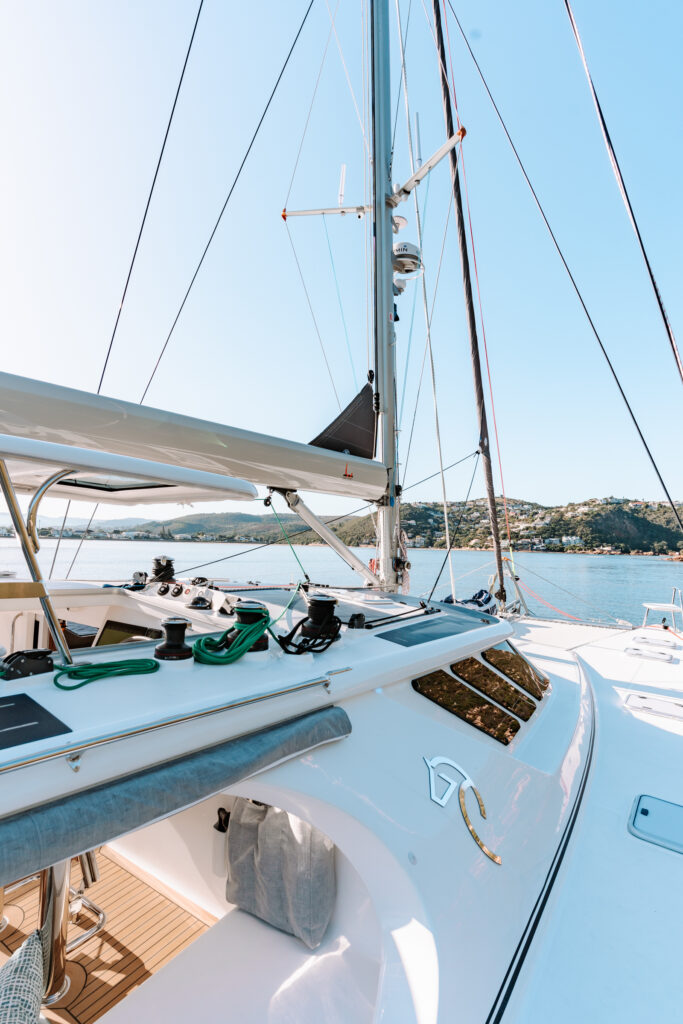

RIGGING

Standing Rigging

• Aluminium anodized mast with fwd crossbeam and compression strut
• 2 x sets of spreaders with leather protectors on ends
• Aluminium boom with integrated gantry for tender handling
• 2 x chain plates with cap shrouds
• Mast plate
• Batt-car system C
• Upgraded to mechanical furling boom – carbon

Mainsheet System

• Traveler track
• Traveler controls and tackle 3:1
• Single block & bracket
• Traveler car circulating torlon ball system
• 4 x single blocks

Winches

• 2 x 24V 50.2 Self tailing electric winches (black)
• 5 x 46.2 Self tailing winches (black)
• 2 Self tailing winch (black)
• 2 x lock in winch handles

Running Rigging

• Main sheet with tackle
• 2 x genoa sheets
• 4 x halyards, main, genoa, storm jib
• Rigging for boom gantry for tender handling (max weight 200Kg)

Genoa System

• 2 x foot blocks & jammer for roller furler
• 2 x 1.5m genoa tracks with stop ends
• 2 x genoa tri-roller cars
• Electrical furling system for the genoa sail (NDE2/C430 roller furler)

ANCHORAGE AND MOORING

Anchor

• 40kg galvanized Rocna anchor and swivel
• 75m (10mm) anchor chain & 25m (18mm) anchor warp
• 15kg galvanized Dan Forth anchor, 10m (8mm) chain, 30m (18mm) anchor warp
• Anchor windlass electric 1500w with deck switches
• Main anchor bridle – 16 meters
• Electronic chain counter (wired remote fixed at helm)

Mooring

• 6 x large (330mm) mooring cleats
• 2 x Medium (260mm) mooring cleats
• 4 x mooring warps 16mm – 12m in length
• 2 x mooring warps 16mm – 6m in length
• 6 x cylindrical fenders std size
• 6 x fender socks

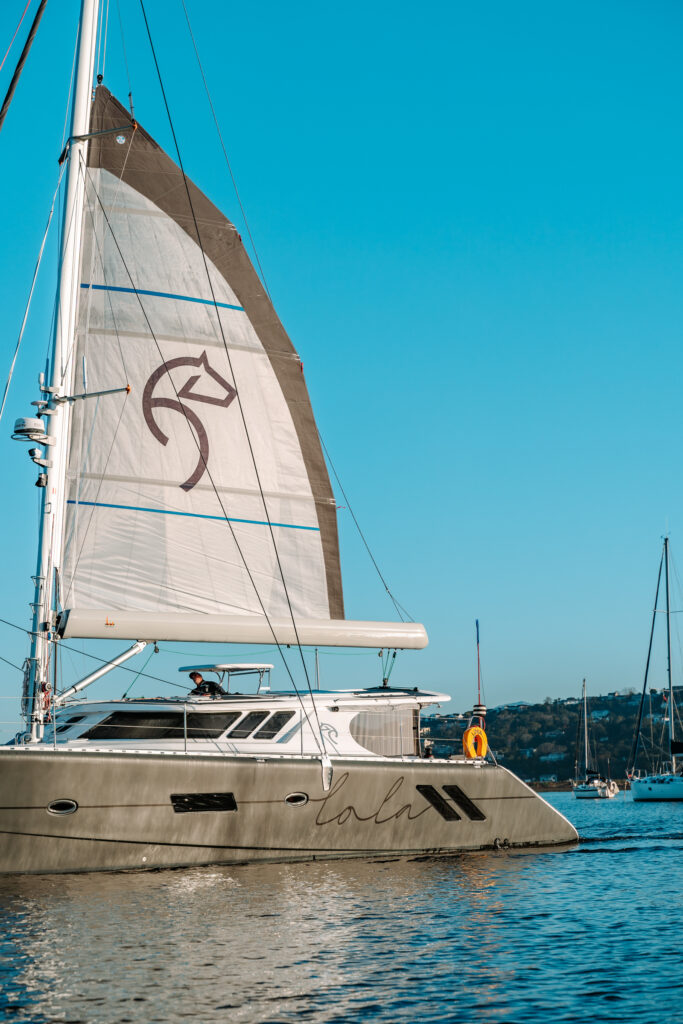

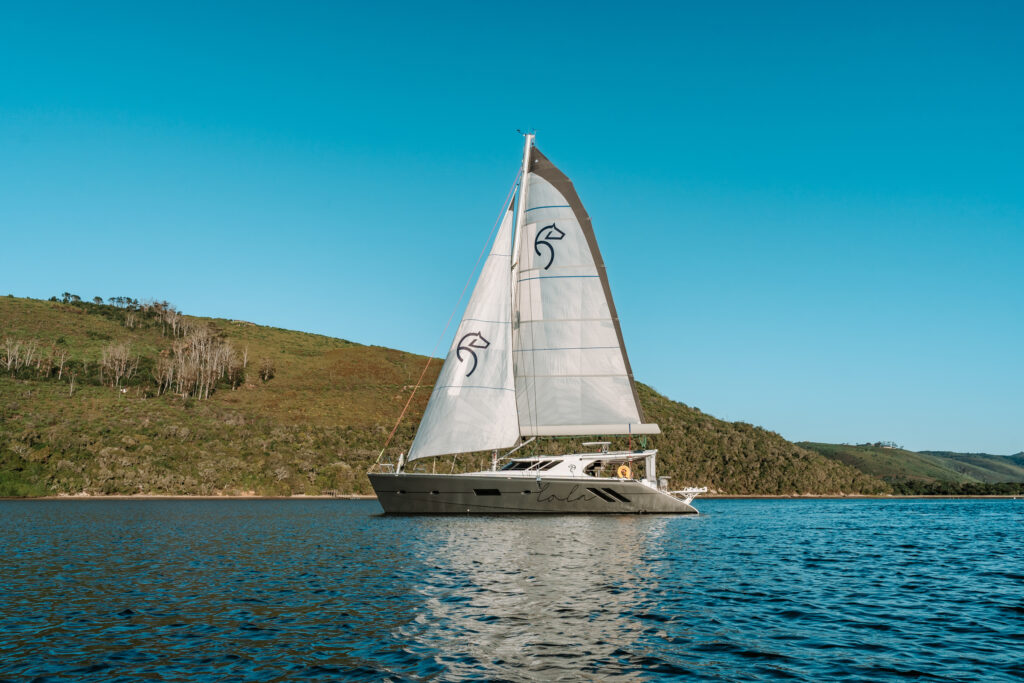

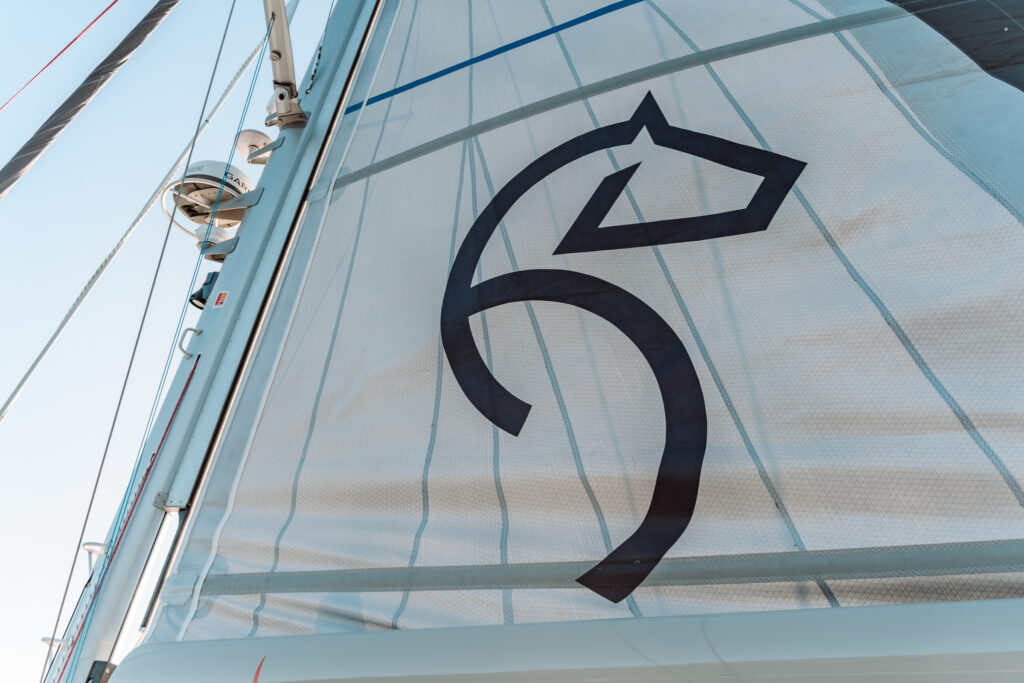

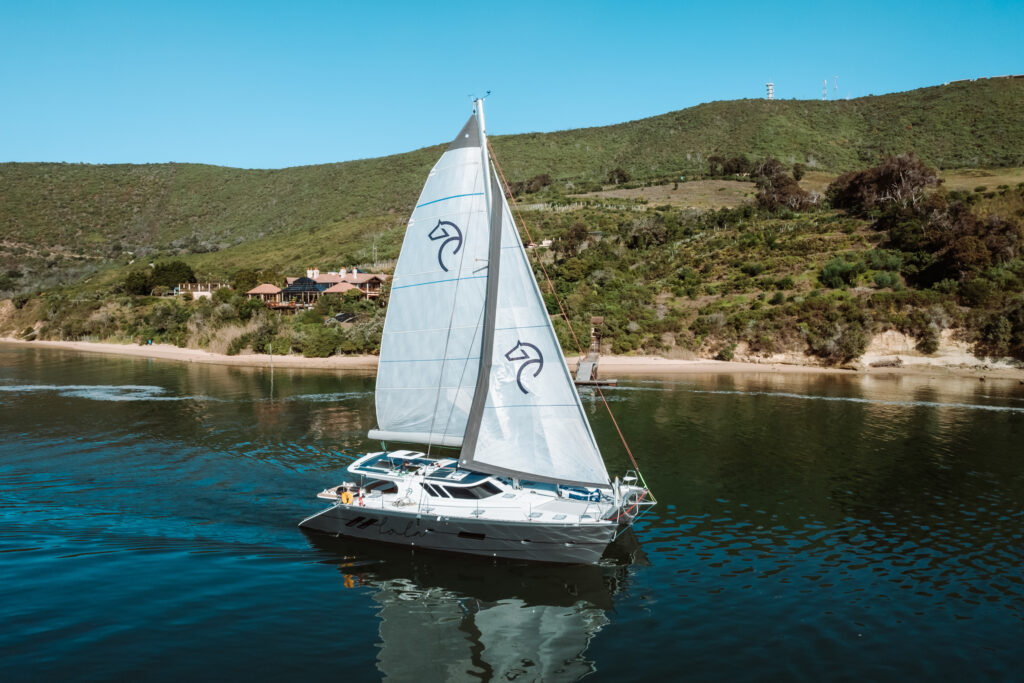

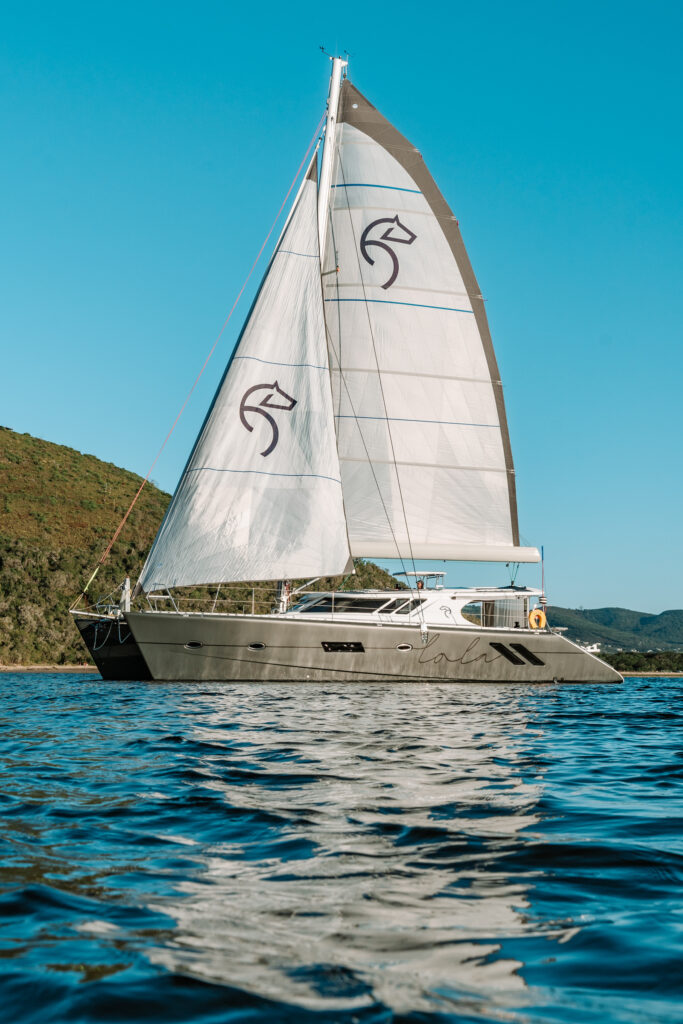

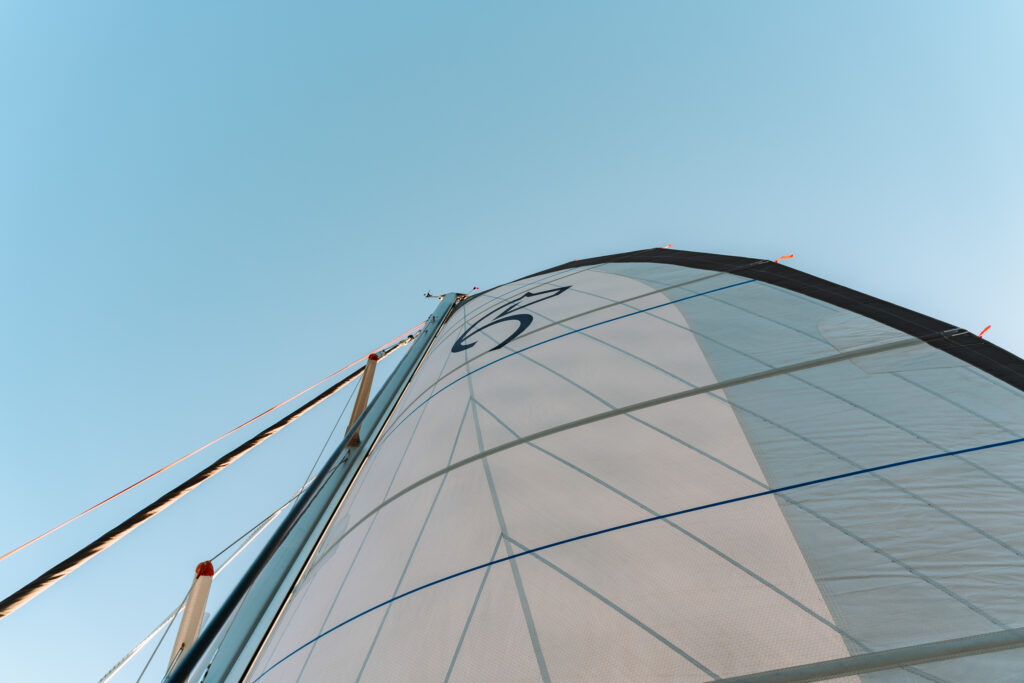

SAILS

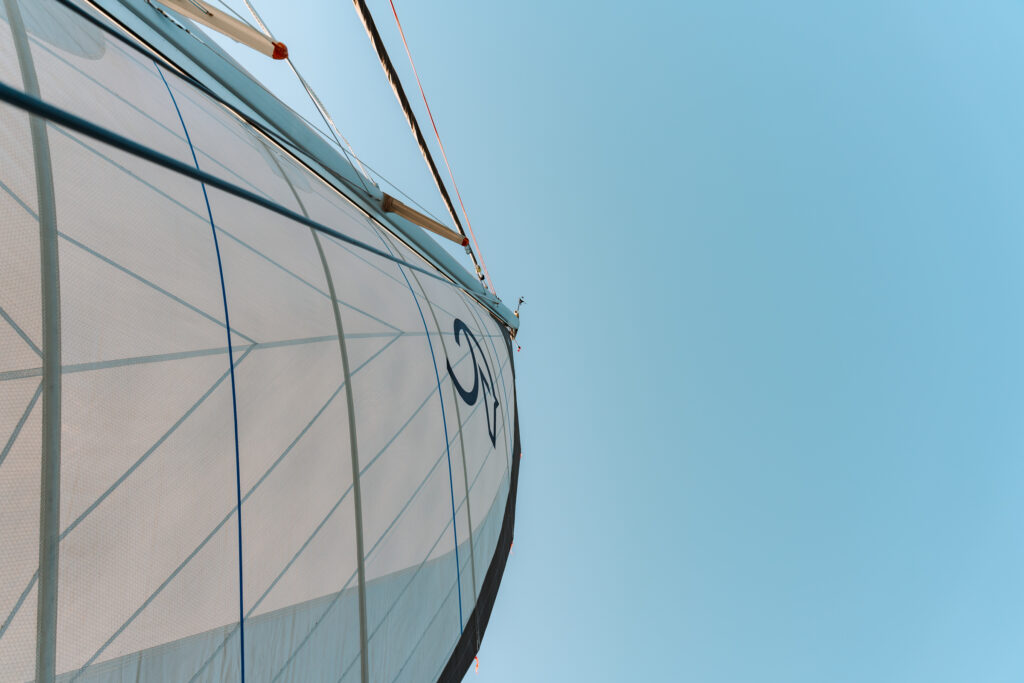

• 1 x fully battened cross cutt Dacron Main Sail (79 m2 / 800 ft2) with lazy jacks (branded with KYC emblem) – Upgraded main sail to North Sails (NPL tour Xi white NorLam Xi09 CRW)
• Easy stow stack-pack for main sail
• Furling Genoa 50 m2 / 538 ft2 radial cut dacron complete with UV strip (branded with KYC emblem) — upgraded genoa sail to North Sails ( NPL tour Xi white NorLam Xi09 CRW) – color: Weathermax Grey
• Screecher rigging package with top down furler (Karver) and rigging
• Screecher sail – North Sails

TENDER AND OUTBOARD

• Zodiac CADET RIB ALU DL + 20 Suzuki (Tiller) – tender weight = 50 KG

EXTERNAL DECK FITTING, FIXTURES AND APPLIANCES

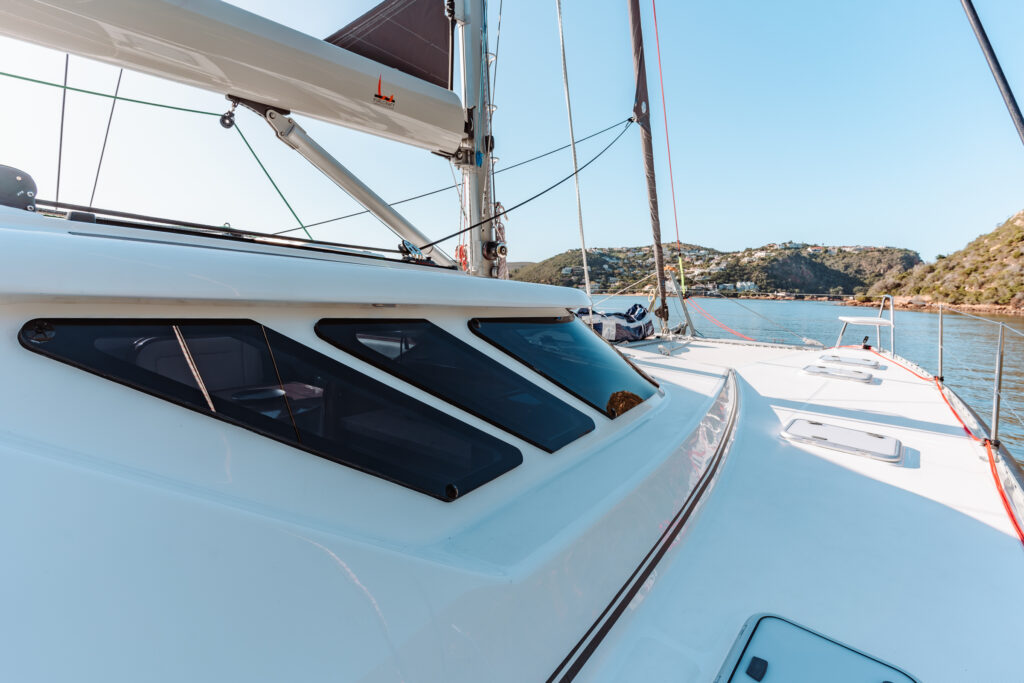

Glazing

• Non – scratch 10mm grey anti – sun armour plated mineral glass to large areas including 2 panel sliding door
• 2 x fixed mineral glass portlights (hulls midship horizontal)
• 4 x fixed mineral glass slanted portlights (hulls aft diagonal)
• 2 x size 8 stainless steel fixed port lights (hulls)
• 4 x size 8 stainless steel opening port lights (hulls)

Hull

• 2 x size 47 (escape hatches in heads below trampoline)
• 30mm vinyl boot stripe on hull – 20mm above antifoul line – in Metallic Gunmetal

Deck

• 2 x stainless steel pulpits with GRP seats
• 2 x stainless steel pushpits

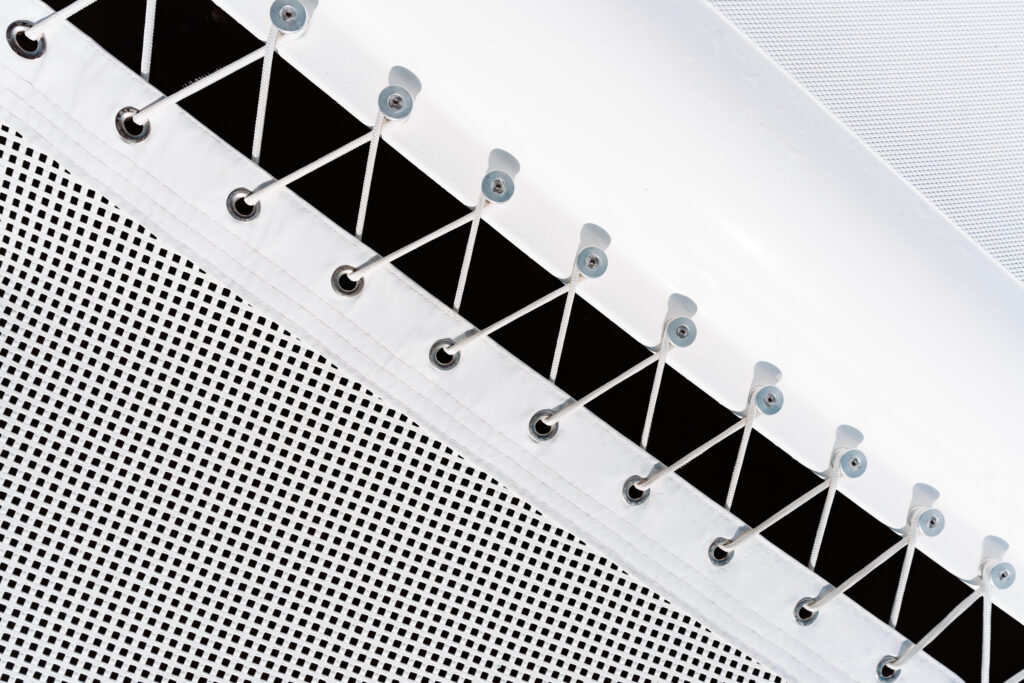

• 2 x trampolines with stainless steel lacing sliders
• Teak planking along catwalk
• Stainless steel mast gooseneck
• 12 x size 54 deck hatches (cabins, saloon, heads, forepeaks)
• 9 x oceanair blinds to size 54 hatches
• 2 x size 30 low profile deck hatches (saloon)
• 2 x oceanair blinds to size 30 hatches
• 2 x size 20 low profile deck hatches (saloon facing fwd at mast)
• 2 x size 4 port lights (aft cabins above headboard)
• 2 x port visors to size 4 portlights
• 2 x side railings 750mm in height including stainless steel stanchions and 2 stainless steel cable guard lines
• 2 x front railings 750mm in height from stainless steel cable guard lines – between pulpit and compression post
• 2 x stainless steel grab rails along sides of deckhouse
• 2 x stainless steel grab rails on outboard sides of sugarscoops
• 9 x stainless steel grab handles various locations
• 2 x custom large hatches above engine compartments
• 20mm vinyl deck stripe on sides of deckhouse 20mm above deck – in Metalic Gunmetal
• 15mm vinyl deck stripe on sides of deckhouse 55mm above deck – in Metallic Gunmetal

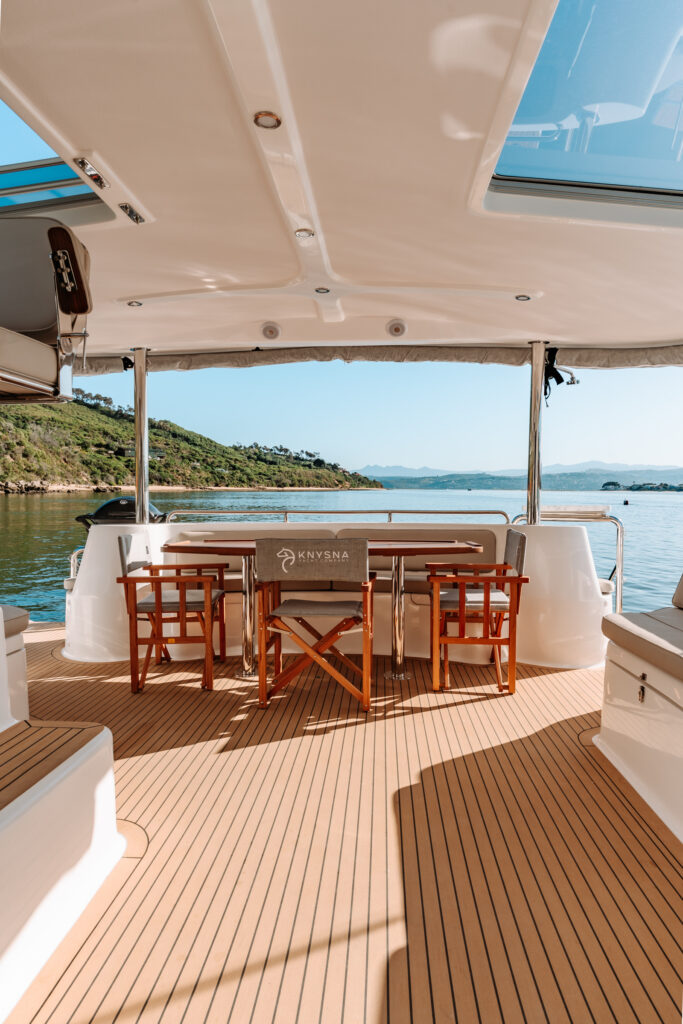

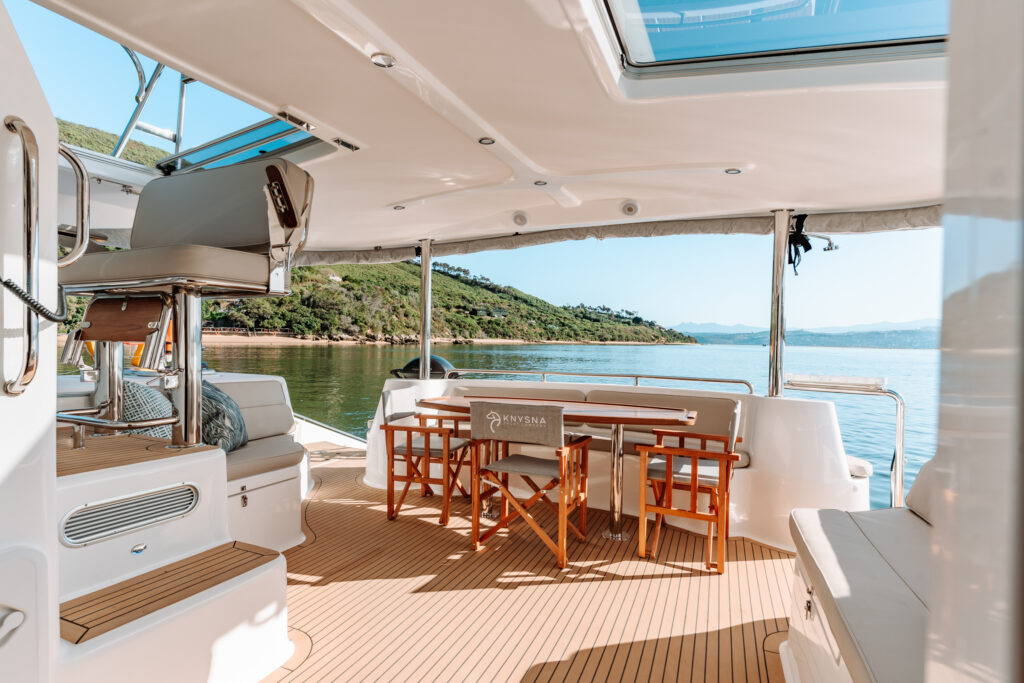

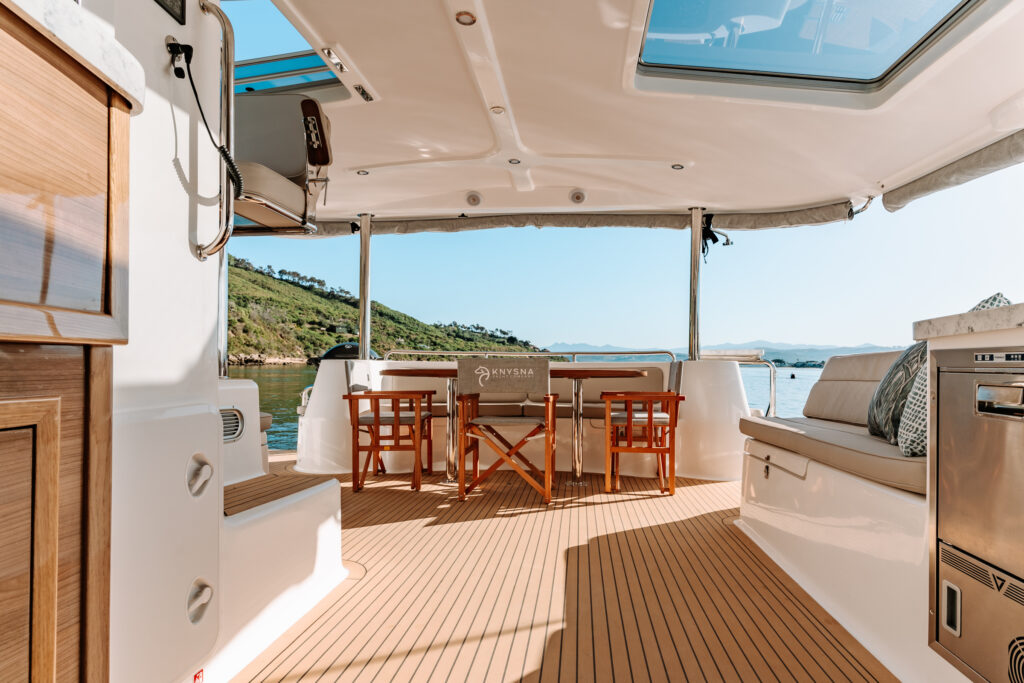

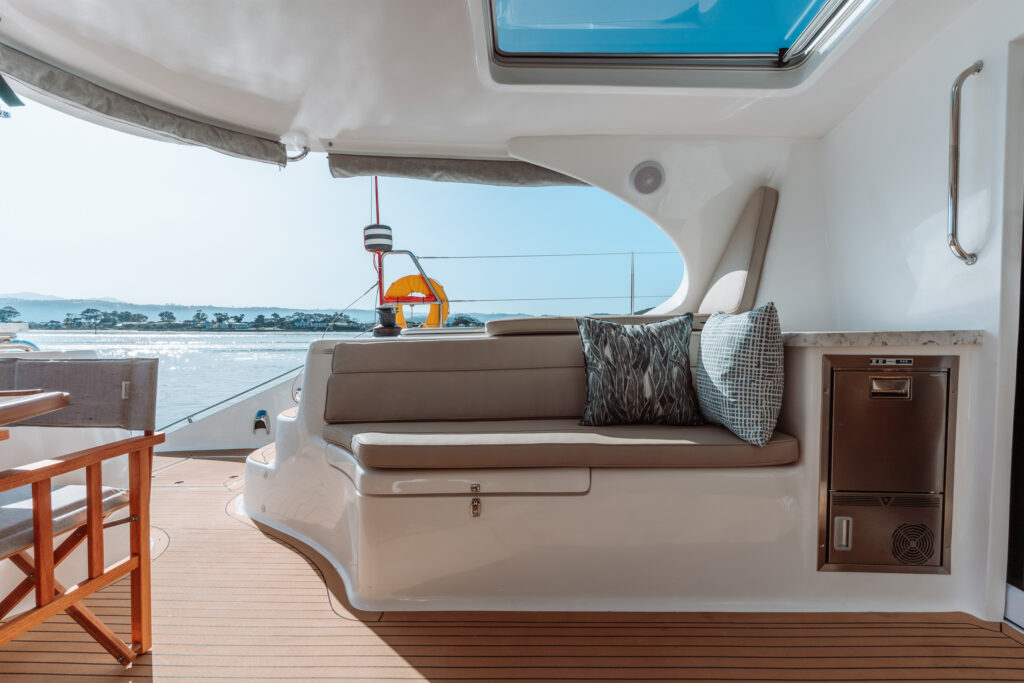

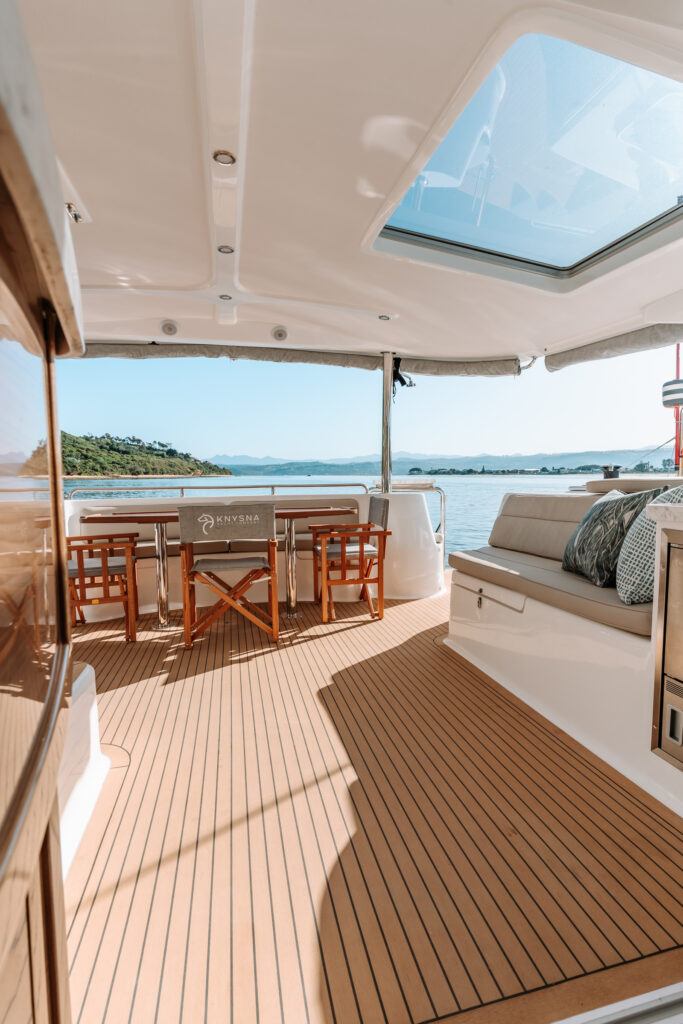

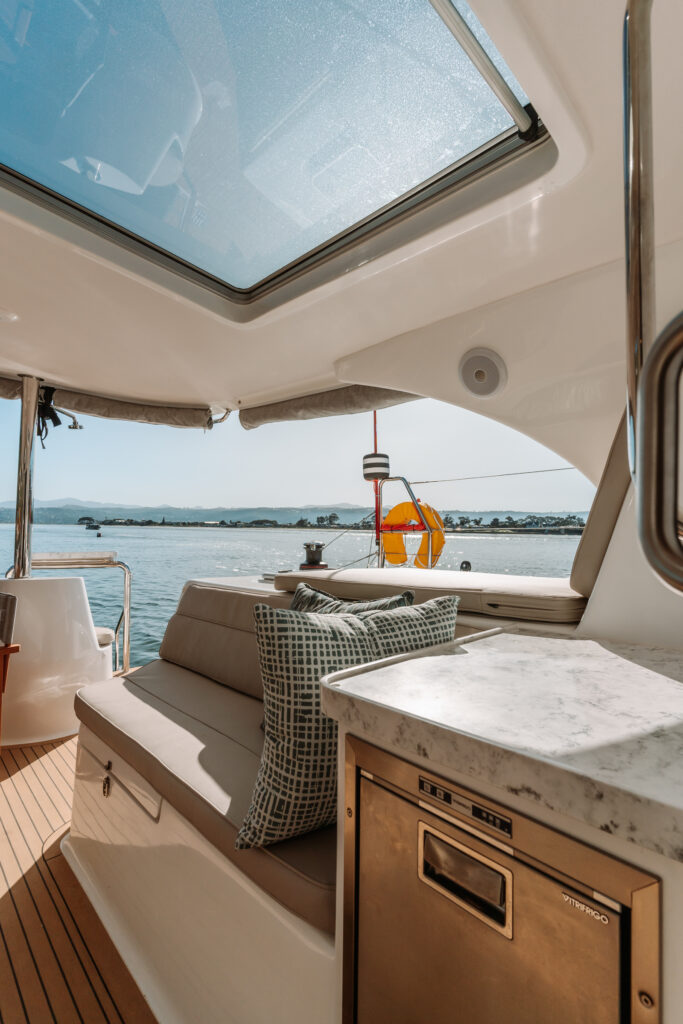

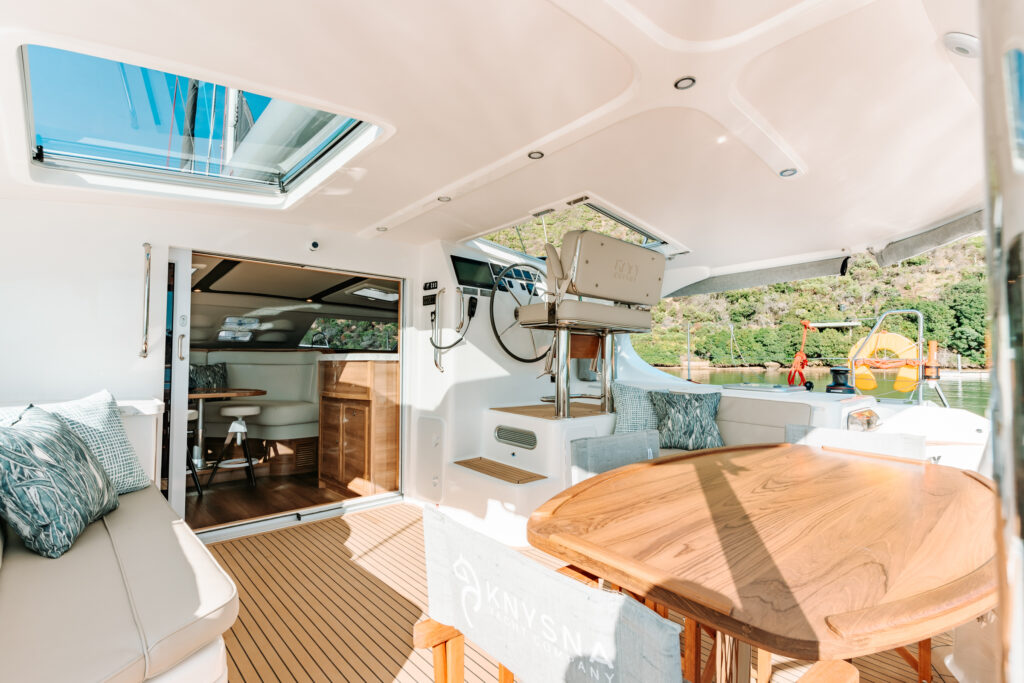

Cockpit

• Burmese teak table with 2 x fixed stainless steel support posts

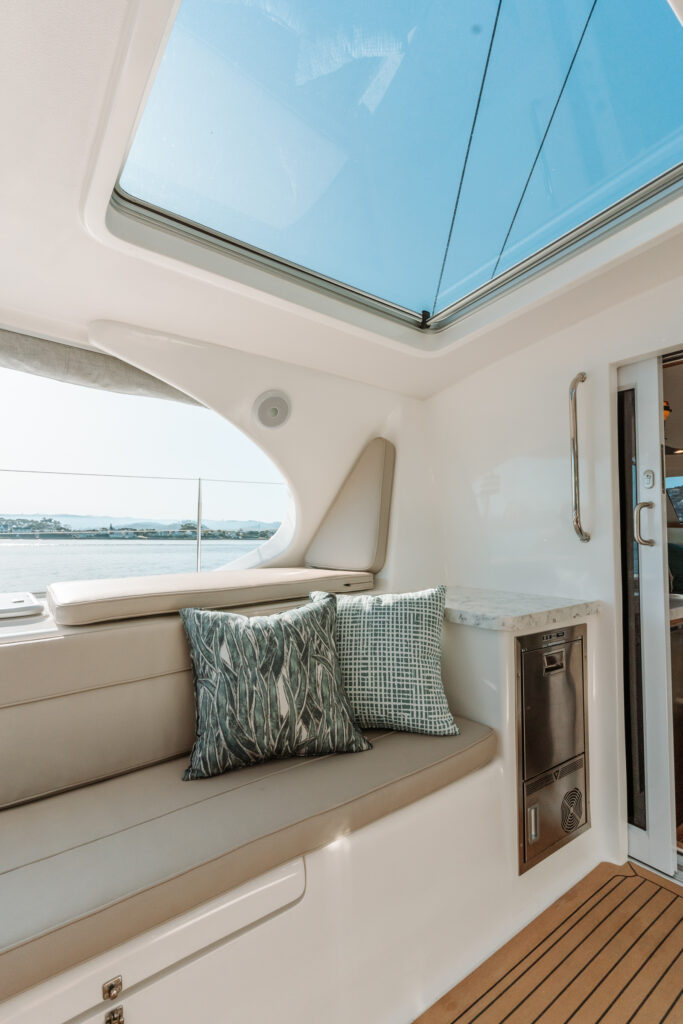

• Integrated GRP seating with 5x underseat lockers (upholstered)
• Integrated refrigerated locker under seat (port side) in cockpit
• Large waterproof sliding hatch in cockpit (port side)
• Synthetic teak decking to cockpit floor – teak with black caulking, Sunbrella Crest Ash
• 3 x Director style chairs for cockpit dining area with Knysna Yacht Company logo – in Sunbrella Crest Ash
• Weber Gas BBQ Q2200 on stainless steel railing
• Ice maker
• Small “wet-bar” with acrylic top above icemaker – in Avonite | Unwind 8909
• Stainless steel – bait board with acrylic top – in Avonite | Unwind 8909
• Extend flexiteek to steps leading up to deck and down onto sugarscoop steps

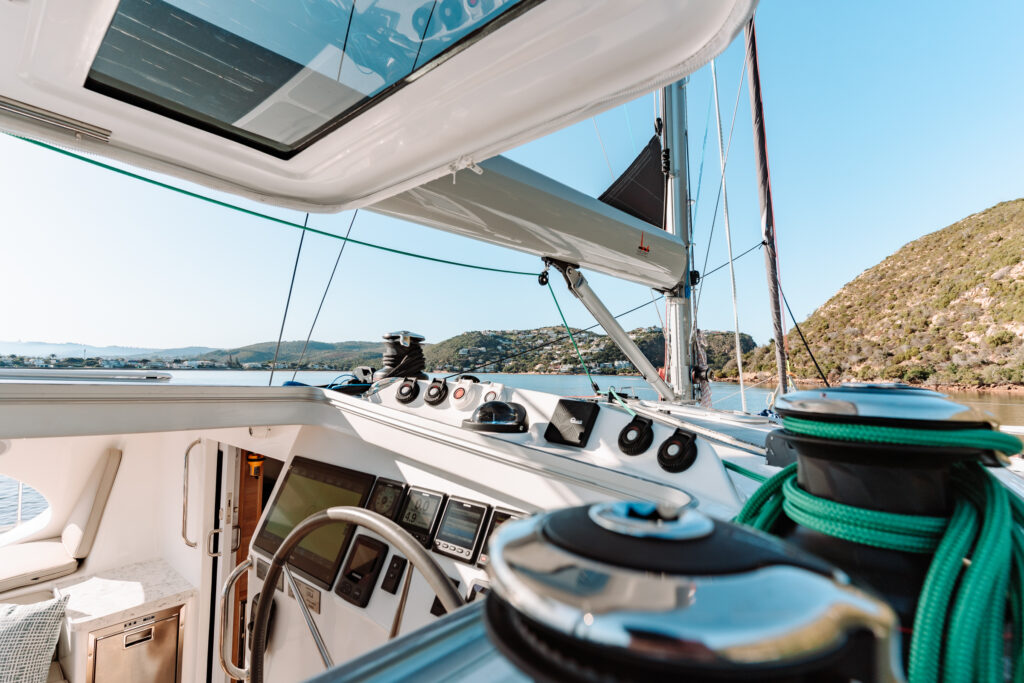

Helm

• Standard double stainless steel helm seat – upholstered with arm and foot rests (Knysna Yacht Company logo) – in Spradling Silvertex, Macadamia, 122-0001
• Large waterproof sliding hatch for helmsman access
• Sheet bag – Sunbrella material – in Sunbrella Crest Ash
• Fixed bimini with integrated mineral glass sunroof
• Spray dodger (roll-down) for full helm enclosure – in Weathermax Grey Sel

Transom and Sugarscoops

• Folding retractable swimming ladder (port – side)
• Anodized aluminum electrical davit system with “swim / dive platform” max load 125Kg per davit
• Synthetic teak on aft davit platform
• 4 x brackets and belts with cam lock buckles to support 4 x dive cylinders

Upholstery (exterior)

• Upholstery for cockpit seating – in Spradling Silvertex, Macadamia
• Set of roll-down blinds for complete enclosure around cockpit – in Sunbrella Crest Ash

INTERNAL – FIXTURES, FITTINGS, FINISHES AND APPLIANCES

General

• Internal furniture and cabinetry construction from foam core faced with high pressure laminate (HPL) in various colors – in Natural Cherry Gloss
• Finished with solid wood trims and edges – in Oak gloss with white stain
• 2 x coats paint to non-cladded surfaces (polycell ripple finish on large areas) – in China White
• All internal flooring in marine vinyl (various colors) – in Warm Teak
• Acrylic countertops in galley, and heads – in Avonite | Unwind
• Acrylic splashbacks – in Avonite | Unwind
• Acrylic basins to all heads – in Glacier White Sel

Upholstery and Blinds

• Pull down blinds to large mineral glass windows in all cabins – in Luxaflex, Duo Tone
• Spradling – full range of colors to all interior upholstered surfaces including seating and backrests
• Wall cladding, ceiling liners and headboards

Saloon

• Saloon dining table with fixed stainless steel pedestals
• Upholstered seats surrounding large seating dining area – can accommodate 6 – 8 people – in Ultra Fabrics Pro
• HPL cladding to ceiling and dashboard – in Natural Cherry Gloss
• 3 x upholstered ceiling liners – in Spradling, Silvertex Ice
• Bar counter below TV unit
• 2 x bar stools for saloon area (upholstered to match) -in Spradling, Marlin Brilliant White
• Marine vinyl flooring throughout
• Saloon table converts to daybed with manually adjustable pedestals
• Mattress to saloon daybed (upholstered to match)

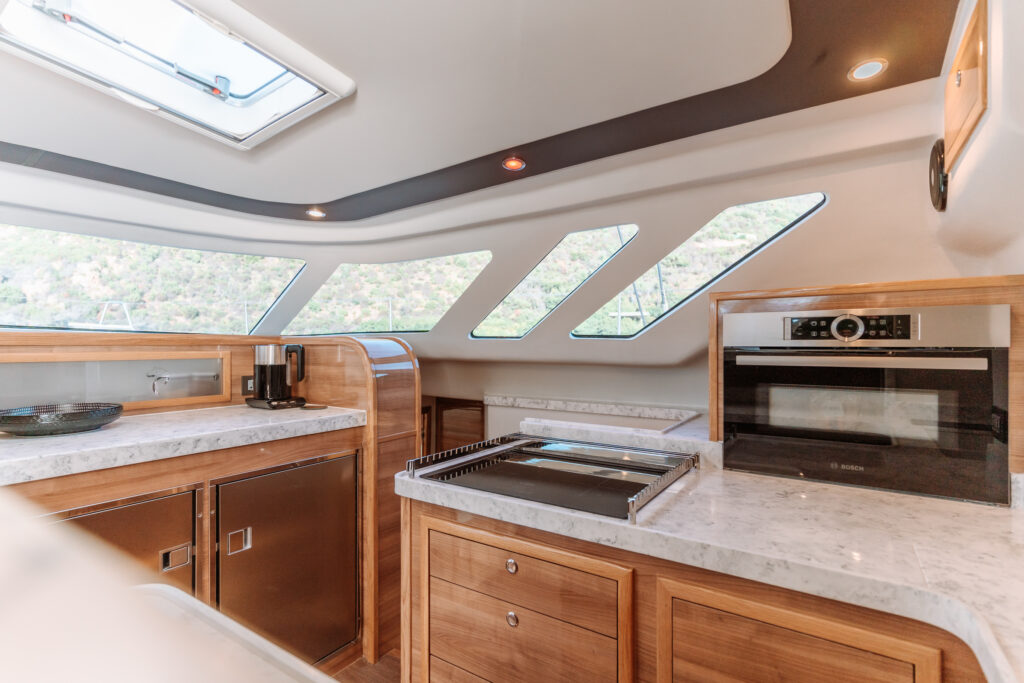

Galley

• 1 x double bowl wash up sink – in White
• Faucet over double bowl sink
• Cupboards and packing space
• 4 plate gas hob
• Gas oven 600mm
• 130L isotherm 12 volt fridge
• 90L isotherm 12 volt freezer
• Microwave with convection oven
• Integrated waste bin
• Marine vinyl flooring throughout
• Upgrade to 4 plate induction stove top
• Water filter system for galley and Ice maker – 2 stage under counter water filter system

Owner’s Suite

• Standard high density foam mattresses
• Upholstered wall panels – in Spradling, Silvertex Ice
• Upholstered headboard – in Spradling Valencia, Pearlessence Metallic
• Upholstered settee in front of berth – in Spradling Marlin, MRL-3202, Pure White
• Marine vinyl flooring throughout
• Carpet in owners cabin (belgotex – reflection) – in Belgotex – Lady Blush
• Safe with digital combination lock

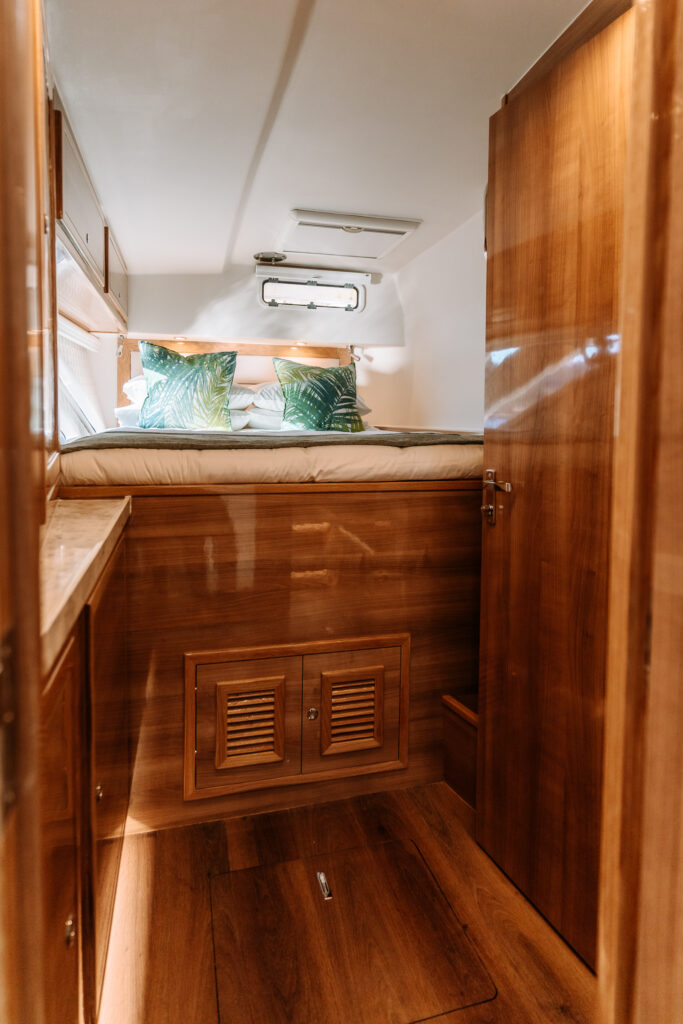

Starboard Aft Cabin

• Standard high density foam mattresses (1960mm x 1420mm)
• Upholstered wall panel – in Spradling, Silvertex Ice Sel
• Upholstered headboard – in Spradling Valencia, 107-8020, Pearlessence Metallic
• Marine vinyl flooring throughout
• Cupboards and hanging / packing space

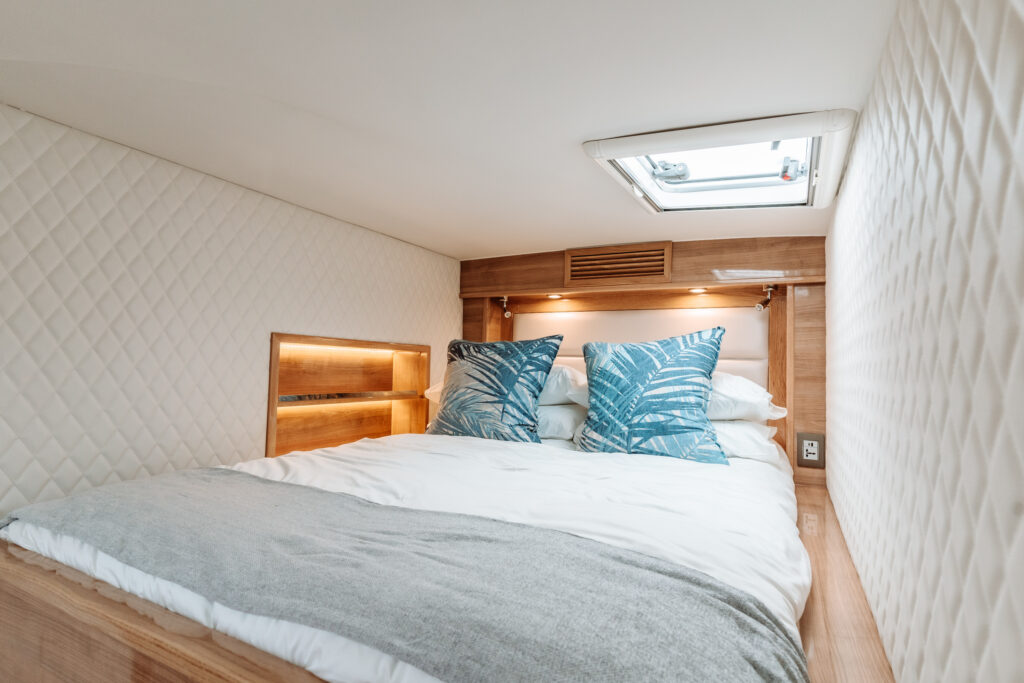

Starboard Fwd Cabin

• Standard high density foam mattresses (1940mm x 1330mm)
• 3 x upholstered wall panels – in Spradling, Silvertex Ice
• Upholstered headboard – in Spradling Valencia, 107-8020, Pearlessence Metallic

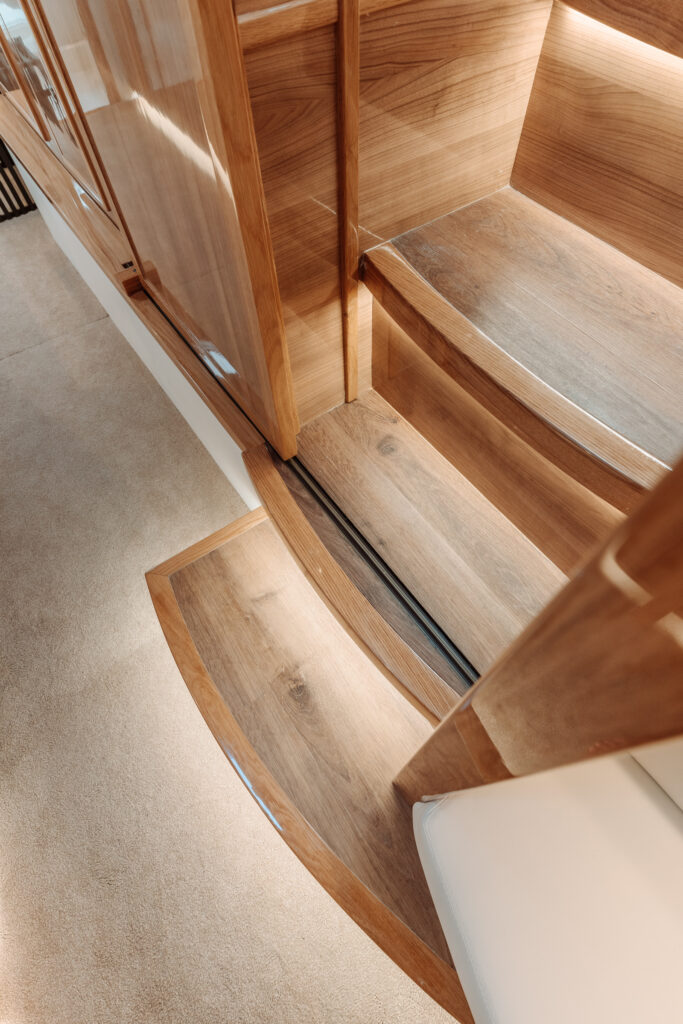

• Upholstered “step-up” to berth – in Spradling Silvertex, Ice,
• Marine vinyl flooring throughout
• Cupboards and hanging / packing space
• Book shelf next to berth with stainless steel railing and led lighting

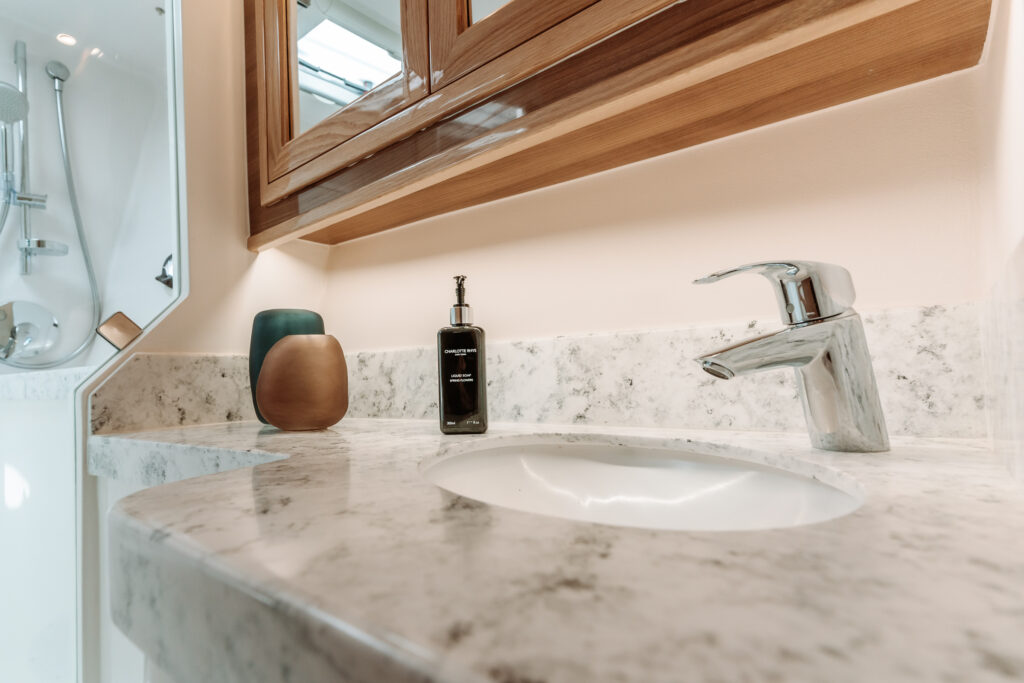

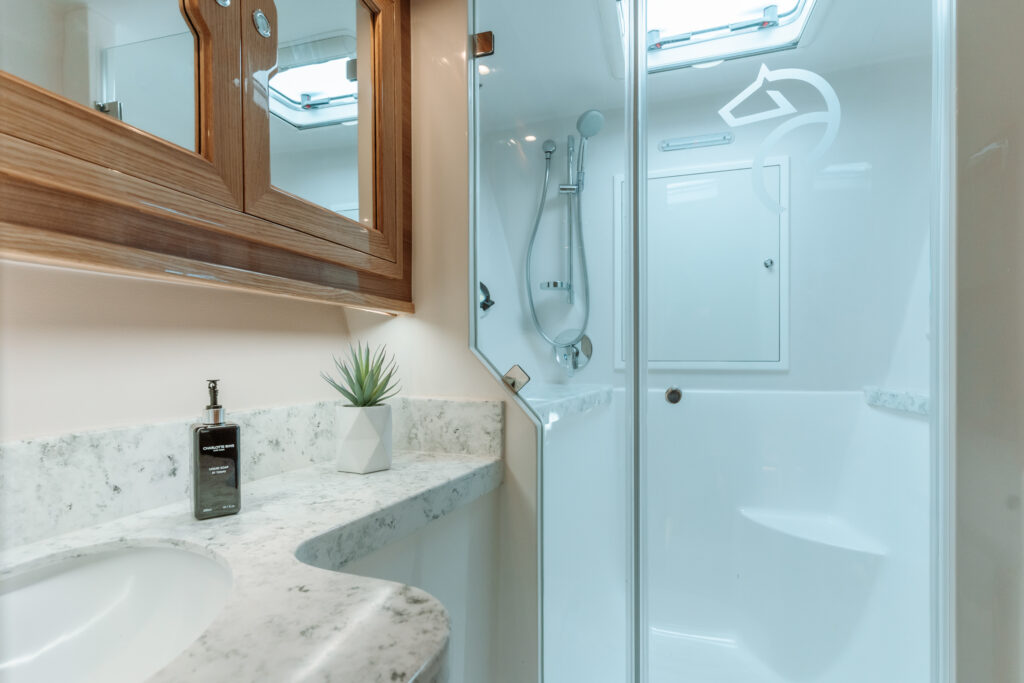

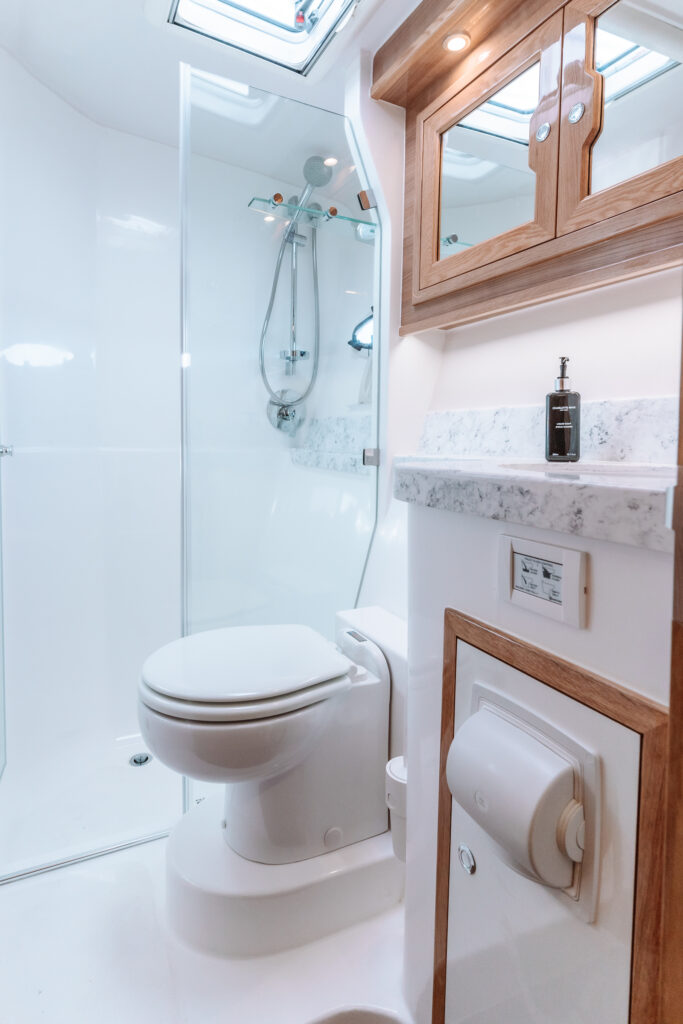

Port Fwd Head

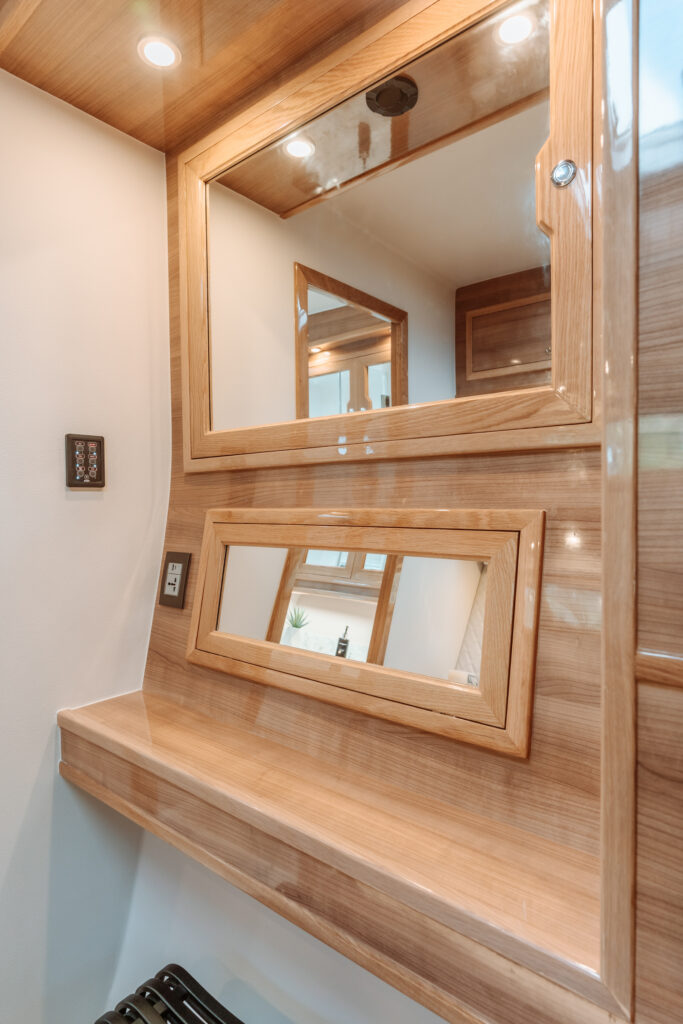

• Overhead vanity cabinet with mirror doors

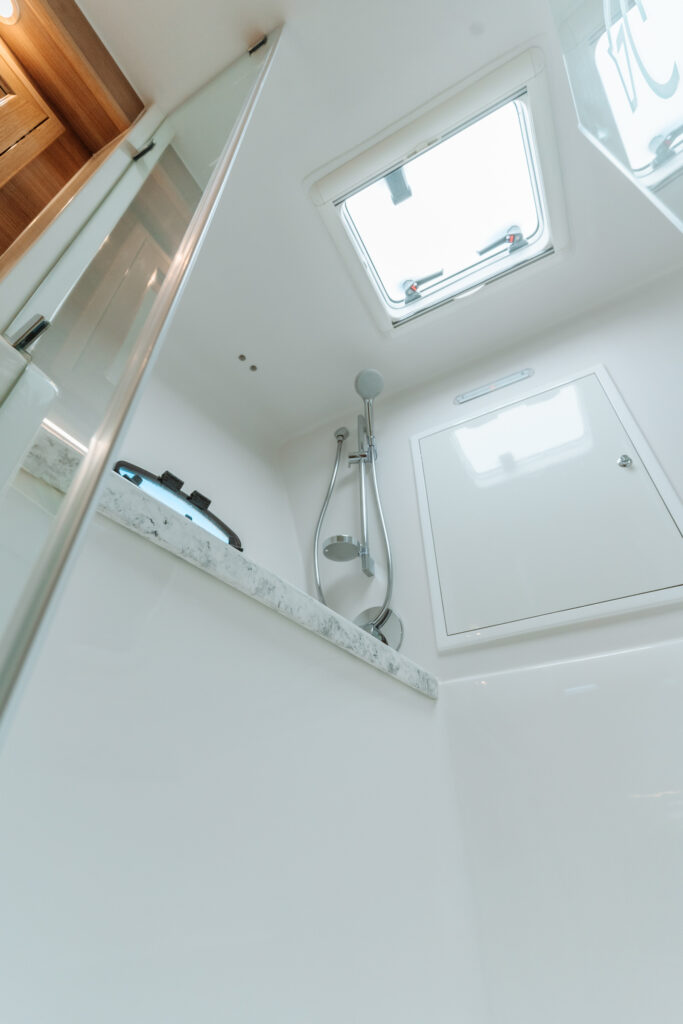

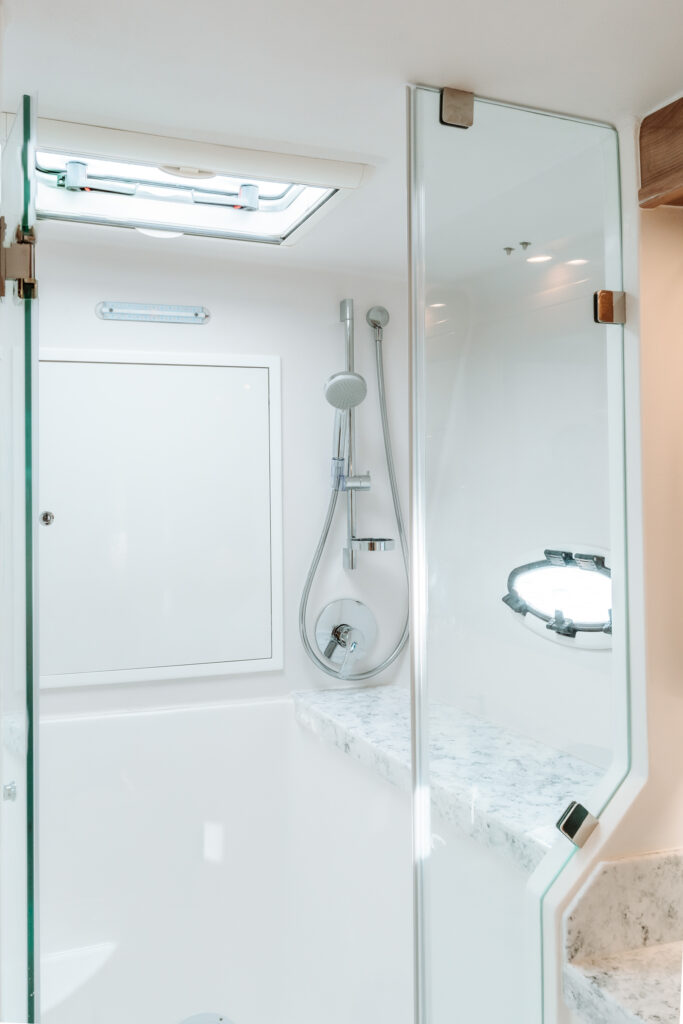

• Shower
• Faucet over basin
• Acrylic counter tops
• Acrylic splash-backs to counter tops

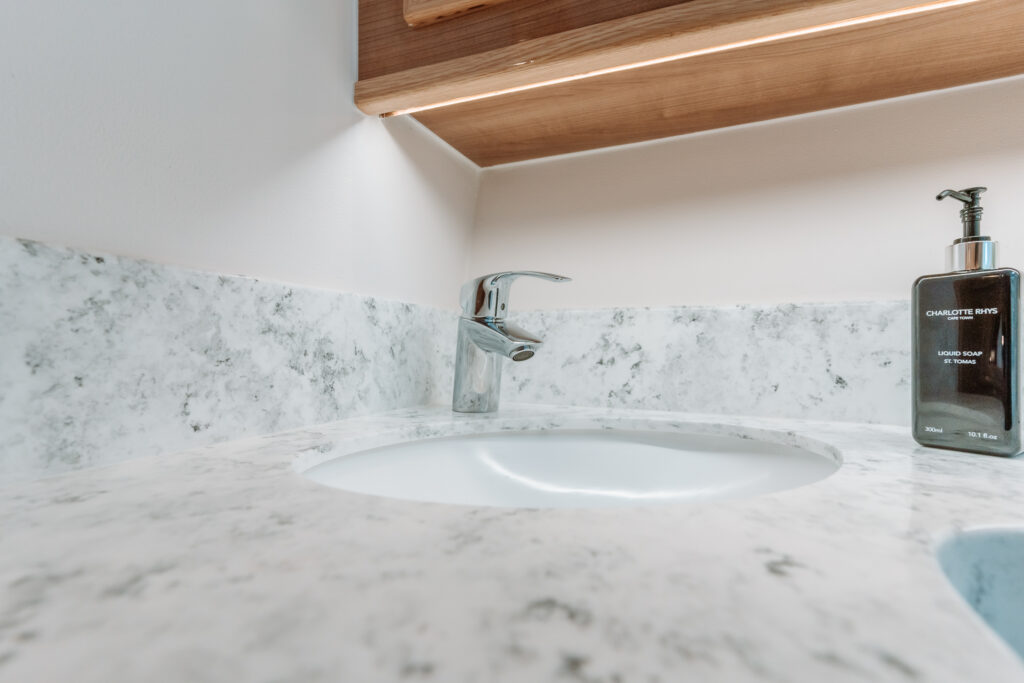

• Acrylic basin
• Marine electric fresh water flush toilet
• Towel ring
• Towel rail
• 2 x towel hooks
• Toilet brush

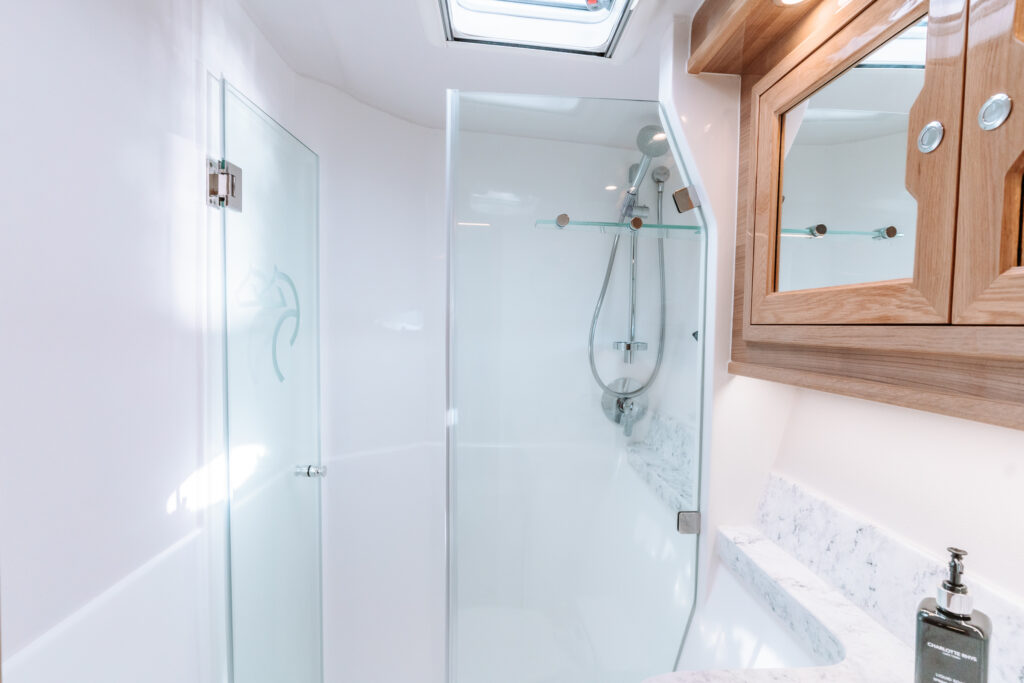

Starboard Aft Head

• Overhead vanity cabinet with mirror doors
• Shower
• Faucet over basin
• Acrylic counter tops
• Acrylic splash-backs to counter tops
• Acrylic basin
• Marine electric fresh water flush toilet
• Towel ring
• 2 x towel hooks
• Toilet brush Std

Starboard Fwd Head

• Overhead vanity cabinet with mirror doors
• Shower
• Faucet over basin
• Acrylic counter tops
• Acrylic splash-backs to counter tops
• Acrylic basin
• Marine electric fresh water flush toilet
• Towel ring
• Towel rail
• 2 x towel hooks
• Toilet brush
• Samsung 9kg top loader washing machine

Custom

• Galley fully equipped with KYC homeware package
• Linen package
• Scatter pillows, throws and decorative items

SAFETY

• 5 x Battery operated smoke & carbon monoxide detectors
• Complete safety package as per SAMSA Cat A including 8 man life raft and EPIRB
• Spare parts kit
• Tool kit
