WindBorne | 2015 Voyage Yachts VOYAGE 520

Full Specification

2015 VOYAGE 520 SPECIFICATIONS

PRINCIPAL CHARACTERISTICS

Designer: VOYAGE yachts

Overall Length: 15.8 m 51.9 ft

Waterline Length: 14.4 m 47.1 ft

Beam: 8.3 m 27.1 ft

Draft: 1.20 m 3.9 ft

Mast Height off DWL: 20.80 m 68.22 ft

Displacement: 11176 kg 24640 lbs

Sail area: 125m2 1320 ft2

Water Capacity: 800 l 210 US Gal

Fuel Capacity: 500 l 132 US Gal

2 x Motors: 56 Hp YANMAR

Berths: 10

HULL DECK AND BULKHEADS

• Antifouling over epoxy based osmosis barrier

• Closed cell PVC foam core, vacuum bonded for stiffness, strength and minimal weight

• Forward water tight compartments with horizontal bulkheads

• Hand laid-up GRP construction using multi layers of Quadraxial glass roving, isophthalic and orthophthalic polyester resin and other high end materials

• Low aspect reinforced keels

• Marine ply and balsa core on critical structure bulkheads for added strength and stiffness

• Reinforced fitting areas for cleats and chain plates

• Skeg supported rudders

DECK FITTINGS:

STAINLESS STEEL, Grade 316

• Bow pulpits with teak bow seats

• Double guard wires with gates

• Grab rails on coach roof

• Stanchions and stanchion bases

• Stern pushpits with brackets for life ring buoys and overboard lights

• Swim ladder Port & Starboard

• Water stays attachment points for bow sprit

DECK EQUIPMENT

• Aluminium mooring cleats: 8

• ANDERSEN 46ST Secondary winches: 2

• ANDERSEN 52ST Primary winches: 2

• 1 x 52ST Primary winch upgraded to electric

• HARKEN Black Magic blocks

• HARKEN tracks and cars

• QUICK Electric windlass with remote control at helm

• SPINLOCK jammers

• Teak walkway between trampolines

• Webbing trampolines

PLUMBING:

• Automatic electric bilge pumps with alarms: 4

• Black water systems and holding tanks: 2

• Calorifiers 40 liters each (hot water system): 2

• Grey water systems: 5

• Manual bilge pumps: 2

• Pressurized Hot and cold deck shower Port & Starboard

• Self draining cockpit

• Tank tender gauges

• Deck wash system with faucets in aft locker and chain locker, with salt and fresh water supply

• 110V, 800 gpd water maker

SAFETY EQUIPMENT:

• Basic safety equipment including: flares, life jackets, first aid kit, life rings, smoke alarms and propane gas detection system

HATCHES AND WINDOWS:

• Anodised aluminium framed sliding door with safety glass

• GRP locker lids in cockpit: 6

• LEWMAR hatches: 15

• LEWMAR port lights: 10

• Reflective laminated safety glass windows: 8

• Ventilation hatch with teak grid

RIGGING:

• 7/8th fractional rig

• Anodised aluminium mast, boom, cross beam and double compression posts

• Colour coded sheets and control lines

• Double purchase main halyard

• Single purchase dedicated dinghy halyard

• Flag halyards

• Luff pendants: 2

• Mast supported by triple spreaders, intermediate and cap shrouds, forestay and inner forestay

• Navigation lights and VHF antenna

• PROFURL Genoa roller furler

• Reefing lines: 2

• Telescopic boom derrick for hauling dinghy

SAILS:

• HARKEN Battcar system for Mainsail

• Mainsail Stowage Pack with lazy jacks

• QUANTUM Fully battened main with large roach, 3 reef points, 11,9 oz high modulus cross cut Dacron with 2 ply leech

• QUANTUM Furling Genoa with foam luff and UV cover, 8,3 oz high modulus cross cut Dacron

COCKPIT/AFT DECK:

• Cockpit open aft and on single level with dive platform

• Cockpit table

• Dingy stowage supports and BBQ mounting point

• Propane supply for BBQ grill with quick connect attachment point for supply line

• Dive equipment and dive tank lockers: 2

• Double helmsman’s seat

• Hard top Bimini with spray dodger and aft roll-away privacy / sun screen

• Sheet pouches: 2

• Steering console including

• Storage lockers: 6

• Instrument console

• Stainless steel steering wheel

• Teak dive platform and dinghy storage platform

• Teak grating at saloon sliding door

• Traveler arch

• Utility pouch: 1

• Deck wash system with faucet in aft locker with salt & fresh water supply

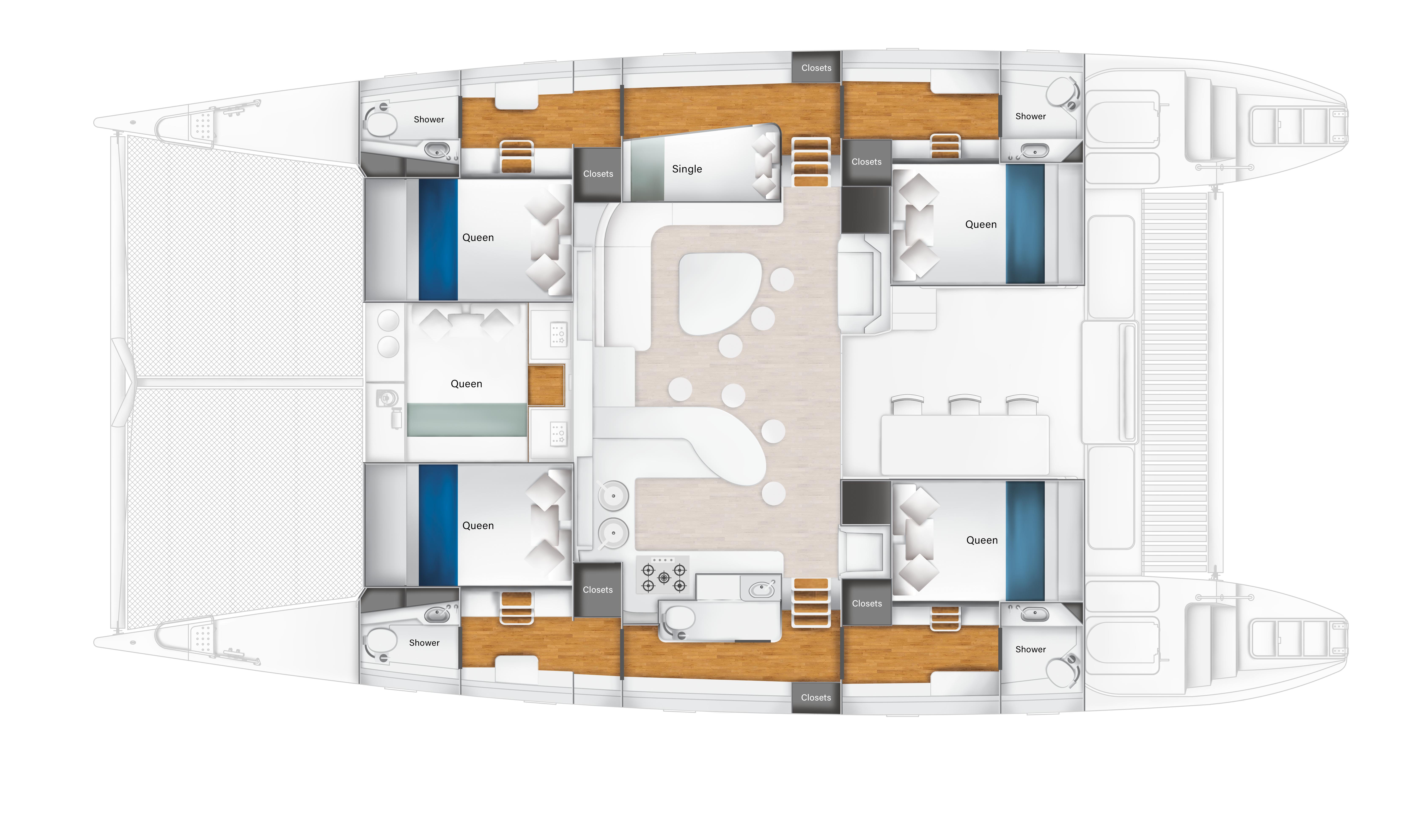

ACCOMMODATION:

MAIN SALOON

• Acrylic work surfaces

• IZIT leather upholstered settee

• Bar with seating for 3

• Coffee table

• Modules in moulded GRP

• Standing height throughout 1,9m

• Storage in seating modules

• Flooring in hard wearing Vinyl

• Air conditioning throughout

• 12V fans for air circulation

GALLEY:

• Acrylic work surfaces with stainless steel rails and fiddles

• Dedicated outlet for microwave oven

• Flooring in hard wearing Vinyl

• Gourmet Stainless Steel propane oven with rotisserie

• Large recessed drip tray

• Modules in moulded GRP

• Pressurized hot and cold water

• Propane hob burners: 4

• Stainless Steel sinks: 2

• Stainless steel waste chute with cover

• VITRIFRIGO Front opening refrigerator, 12V air cooled

• Molded top opening freezers, recessed into galley counter, 12V air cooled x 2

• U-Line ice maker

• Air conditioning throughout

• 12V fans for air circulation

FORWARD AND AFT CABINS:

• Air conditioning throughout

• 12V fans for air circulation

• Cabin and reading lights

• En Suite Heads with electric JABSCO toilet, shower, hand basin and vanity cabinet with mirror

• Hanging and storage cupboards

• Laundry locker with upholstered cover

• Modules in moulded GRP

• Queen size bunk with split mattresses

• Stainless steel towel rail

• Flooring in hard wearing Vinyl

CREW CABIN

• Air conditioning throughout

• 12V fans for air circulation

• Double mattress

• Lights

• Storage locker

DAY HEAD

• Moulded GRP heads with JABSCO electric toilet, shower, hand basin and vanity cabinet with mirror

• Stainless steel towel rail

NAVIGATION CENTRE:

• Access panels to electrical installation and systems

• Chart table with recessed chart stowage

• Instrument console

• Navigation seat

• 22″ flat screen tv

• FUSION AV600G sound system with 3 x speaker zones: salon/galley, aft cockpit, lower spreaders for sound supply to foredeck

INSTRUMENTATION:

• Compass

• ICOM M-402 VHF Radio

• RAYMARINE ST60 Tridata and Wind

• RAYMARINE ST6002 Autopilot with WHITLOCK rotary drive

• RAYMARINE Raychart C95 Chart Plotter

• Remote control for windlass operation

ELECTRICS:

• AC shore cable socket

• AMPLE POWER Alternators, additional, with Smart Multi stage regulators with double belts 120A each: 2

• Battery isolator switches

• Battery management system

• Ceiling lights

• Circuit breaker panel

• Cockpit lights

• Deck light

• Spreader lights

• Underwater lights

• Engine start batteries (12V) @ 65 AH: 2

• Interior AC outlets: 4 in saloon, 1 in each cabin

• Lazarette and engine compartment lights

• Mast top and lower navigation lights

• Ships load battery banks (12V) gel – 400AH x 2 (800AH)

• 6kW NORTHERN LIGHTS generator

• 4 x 50W flush mount, non-skid solar panels

ENGINE EQUIPMENT:

• Alternators 55A: 2

• Fixed blade propellers with two blades: 2

• High pressure fuel line

• Instrument panels with engine hour meters: 2

• Sound insulation

• YANMAR 56 HP diesel engines with sail drive legs, fresh water cooled: 2

MOORING GEAR AND GROUND TACKLE:

• QUICK Electric windlass with remote control at helm

• Anchor bridle with thimbles for anchoring

• Anchor chain lead internally through compression post

• Anchor chain, 200′ galvanized and 150′ nylon anchor rode

• DELTA anchor, 40kg

• GUARDIAN 55 Secondary anchor with 10′ chain, 233′ rope, and dedicated cleat on forward crossbeam

• Dock lines and fenders

• Two anchor rollers, one with tipper

DINGHY

• 12′ AB rigid inflatable tender with 15hp 2 stroke YAMAHA outboard
