2009 Maxweld Maxcat

General Specifications

• Overall length: 40’ (swim platform to bow roller)

• Waterline length: 32’

• Transom to bow length: 35’

• Beam: 12’

• Cruising speed: 26-28kn

• Max speed: 32kn

Tankage

• 280 gal Diesel: 140 gal per side

• 110 gal Water: 55 gal per side

• 40 gal Holding

Engines

•  Twin, Volvo, D6–330 turbocharged 330hp diesels: engine hours 1125

• 330 hp each, 660 hp total

• Twin, Volvo duo prop sterndrives with counter-rotating G series propellers

• Stern drives both replaced 2016

• Fireboy built-in engine room extinguisher with shutdown circuit

• Reverso (plumbed) oil empty/fill oil change system for Volvo engines

Electrical

• Lifeline AGM batteries:

• 4 x 6V GPL-6CT 300 AH house bank (600 AH 12V)

• 2 x 12V GLP-3100T starting batteries replaced 2021

• Charles ISO G2 isolation transformer to 30amp shore power

• Charles 5000 30amp 12V battery charger

• BEP 12V ammeter, Blue Seas breakers

• WEMA gauge monitoring system for fuel, diesel, water, waste

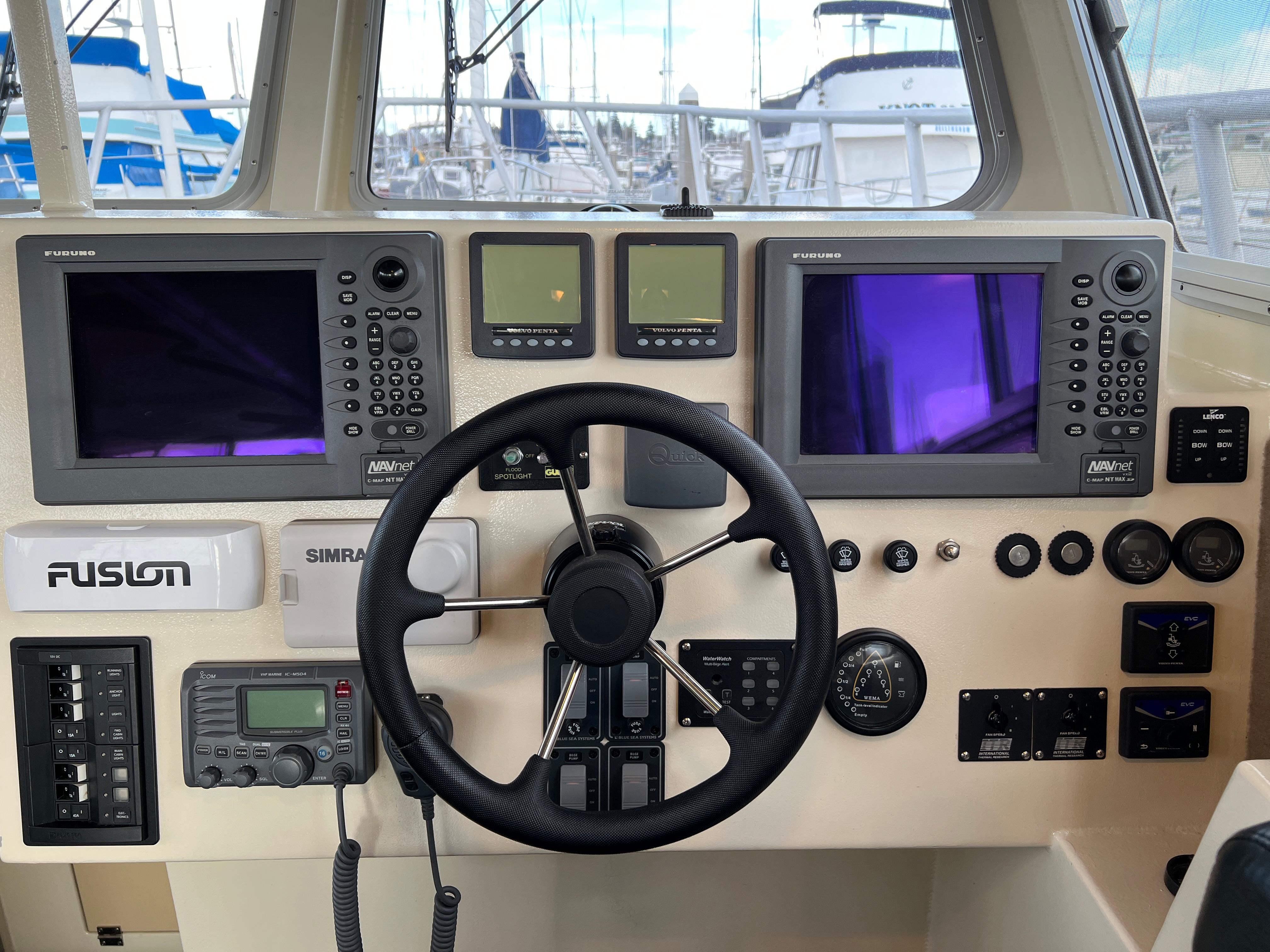

Electronics

• Dual Furuno 10.4” Navnet V2 displays

• Furuno DFF1 Sounder with through hull 1KW transducer

• Furuno FA30 AIS receiver

• Furuno 4’ open array 6KW radar

• Furuno BBW GPS antenna

• Simrad AP28 Autopilot

• ICOM 504 VHF

• Digital Antenna: VHF, AIS, AM/FM

• Fusion marine stere

• Guest Beamer spot/floor joystick light

• 6 sensor Waterwitch bilge monito

• Hailer speaker and horns on radar arch

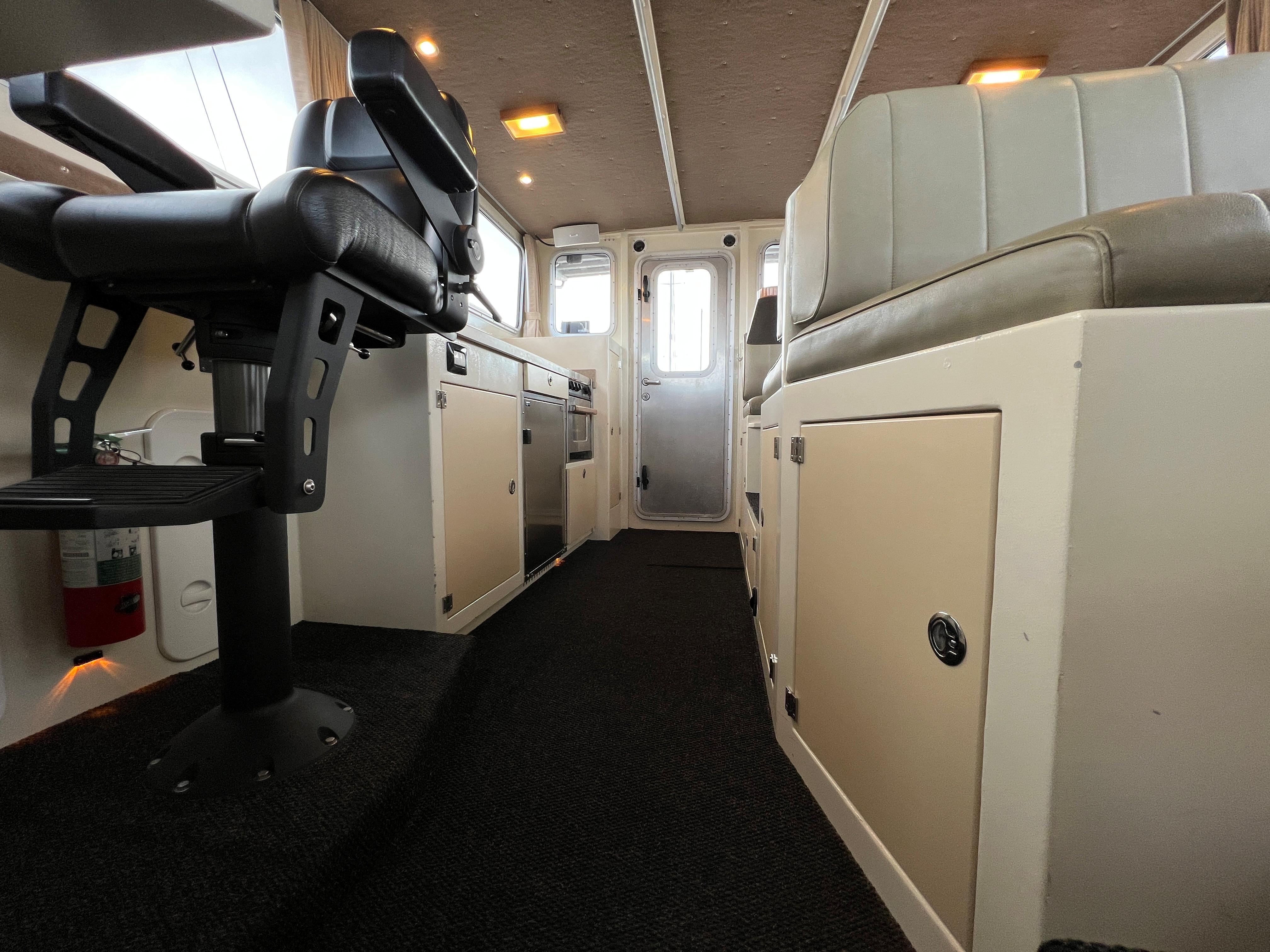

Cabin

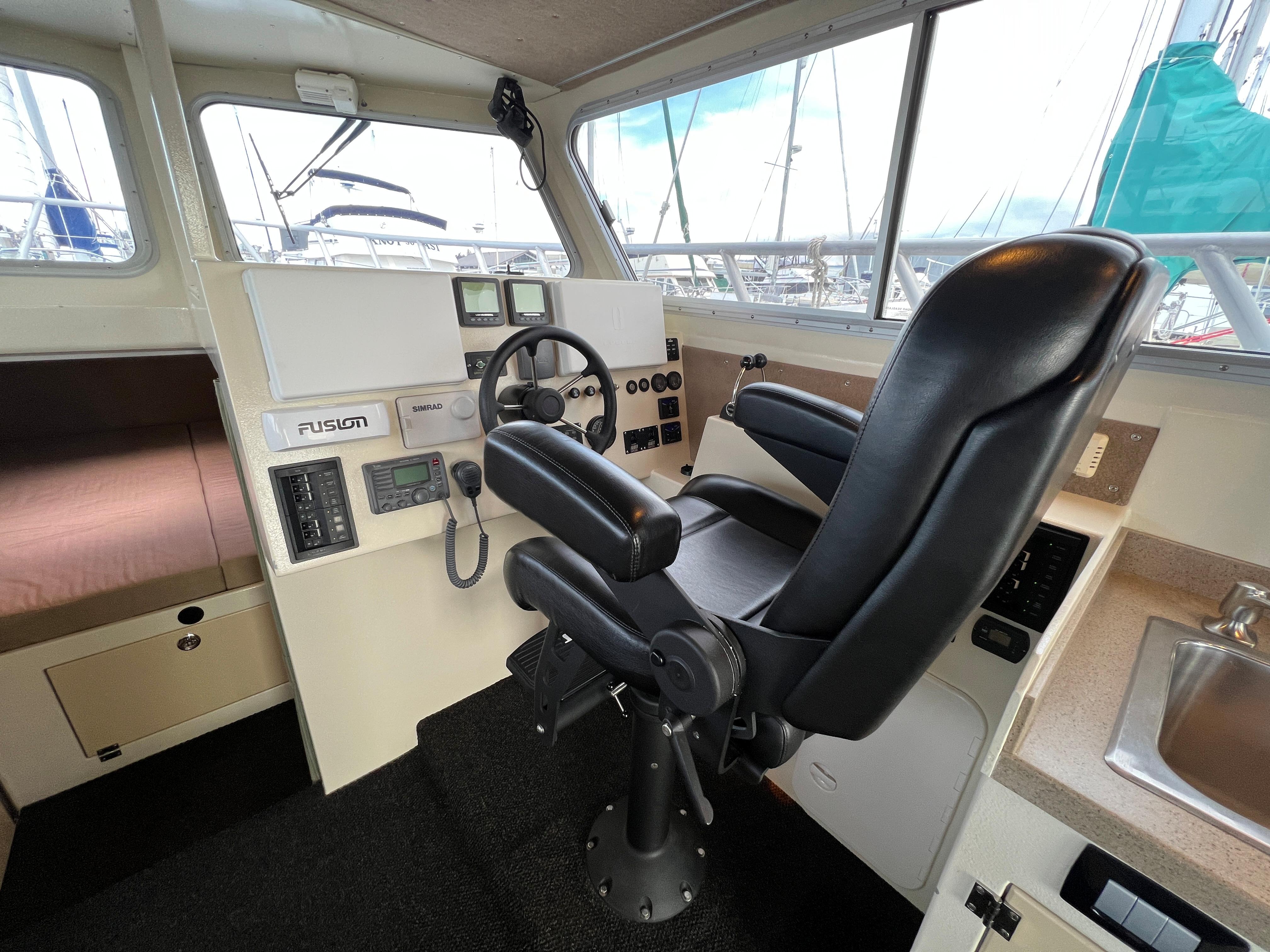

• STIDD 500 Admiral black ultraleather adjustable helm seat with telescoping pedestal

• Hanging locker

• Force10 propane 3 burner stove/ oven/broiler

• Vitrifrigo 130 stainless built-in 4.7 Cu. Ft. refrigerator/freezer

• Seagull water filter plumbed to galley sink

• Moen 16” x 14” x 10” deep stainless sink, Kohler faucet

• Swanstone solid surface counter top

• ITR Hurricane II diesel heating system to heater cores and water heater (465 hrs)

• Interior cabin ceiling height 6’11’’

• Eight Diamond Sea Glaze windows, side and rear open with screens

• Settee with solid wood table, twin adjustable height struts, converts to bunk

• Natural latex cushions covered in UltraFabric Brise Soliel, Sagebrush

• Alpenglow (four) ceiling lights

• Imtra warm LED galley lights

• Bose 151 speakers inside cabin and in outside area

• Custom draperies on lateral cabin windows

• Hella (2) Turbo fans

Forward Berth

• Lewmar Ocean 70 opening hatch with Oceanaire screen

• Imtra warm LED lights in ceiling and reading lights

• Diamond Sea Glaze fixed tinted window with curtain

• Natural latex mattress 6’8” long, 8’ 6” wide

• Sunbrella privacy curtains

Tunnel Berth

• Located under cabin to stbd

• 90” long, 33” wide 31” headroom

• Opening Lewmar Ocean window, ceiling light, heat vent, natural latex mattress

Head

• Ceiling height 6’6”

• Sealand 40 gallon holding tank, tank level indicator mounted facing toilet

• Sealand Odorsafe hose throughout, with vent line filter

• Tecma Silence toilet, fresh water system with digital controls

• Lewmar Ocean 40 opening hatch with Nicro solar vent

• Scandvik sink faucet/shower head

• Imtra Resolux 805 warm white 36 LED and warm LED spots with remote waterproof switch

• Trionic 6048 Shower sump

• Isotherm Isotemp 11gallon/40L water heater (heat from shore power, engines, ITR furnace)

Structure

• Bottom thickness, 0.25”, 5086 aluminum

• 0.5” thick beaching plates at bows

• Full length reverse chines

• Five stringer heavy duty superstructure per hull

• Transverse bulkheads 30 inches on center, four watertight

• Bow railing, 1.25 inch schedule 40 aluminum pipe 30 inches above deck

• Radar arch with full width port and starboard antenna mounts

• Custom SoundTech sound reduction insulation throughout vessel

Fishing Deck

• Locking storage, dual fish holds, shelves

• Stbd helm with main engine and kicker controls

• Garmin kicker autopilot controls

• Halogen flood lights, Imtra LED spot lights, amber LED soft lights

• (2) Bose 151 mounted speakers

• (2) Scotty downrigger mounts and electric downriggers

• Built-in aluminum davit at transom (receivers on both port and stbd sides)

• Safe-T-Puller: “Alaska Sports” 12V pot/trap puller

• Johnson 5.0 wash down pump and hose, Stbd side

• Whale Twist hot/cold deck shower

• Garelick 4 step gull-wing ladder with transom mount

• Upgraded lifelines surround forward boat

• 4’ x 12’ swim platform

Anchor / Ground Tackle

• Quick Hector 1500W Windlass with 3/8” chain/rope gypsy

• Quick brand chain counter and controls at inside helm

• Rocna 25Kg anchor

• 120’ 3/8 high-test ACCO chain spliced to 280’ Yale 5/8” 8-plait nylon

• Custom aluminum bow roller

Honda Kicker Package

• 15hp extra long-shaft transom-mounted, electric start and trim

• Garmin TR-1 autopilot with controls in cabin and outside helm

• 15 gal built-in transom fuel tank with Racor filter

Dinghy / Liferaft

• 2009 Achilles 10’ HB/LX RIB with 2016 Honda 20hp electric start/ tilt engine

• Davit on cabin roof, 2.5” x 4’, 500lb capacity, manual winch with Amsteel line

• Non-skid cabin roof with welded tie down anchors along perimeter

• 2007 Winslow ISAF 6 person liferaft

• PW 5G EPIRB 2009

Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
