Don't miss out on an exclusive opportunity to acquire this exceptional 2012 Dean 5000 sailing catamaran!
This well-appointed catamaran is equipped with all the essentials for a cruising couple or family, making it ready for live-aboard adventures. Don't let this unique opportunity sail away!
Specifications
SPECS
MEASUREMENTS
ENGINE(S)
TANKS
Accommodations
Technical Specifications
MAISIE
BASILEA, SWITZERLAND
Registration 05683
Hull ZA-DEA50004G210
SAILING CATAMARAN ‘MAISIE’ – Specifications and inventory
Length overall
15.39m
Engines
2 x 80 HP
Length waterline
15.15m
Fresh water
2 x 395ltr
Beam
8m
Diesel
2 x 395ltr
Draft
1.5m
CE Certified
Category A
Mast height above waterline
24m
Light craft displacement
19000 KG
Sail Area – Mainsail
100 m2
Sail Area-Jib
42 m2
Bridge deck clearance
1000mm
Sail Area-Reacher
90 m2
Engines, drives, props, etc.
• 2 x Yanmar 4JH80 Commonrail Marine Diesel (2x 80HP, ca. 1500 hours) (new 2017, fully serviced 2024)
• SD-60 sail drives (new 2017)
• Alternators – 2 x Yanmar 90 Amp standard on engines (new 2017)
• Alternators – 2 x Yanmar 110 Amp High Output (new 2017)
• SPW Varioprop DF112 4 bladed folding propellers (new 2016)
• Fuel transfer pump with parker filters
• Soundproofing in engine rooms (new 2023)
• Bowthruster Maxpower 60 with 24V Gel battery bank (new 2024) and 24V charger (new 2024)
• Hydraulic steering upgrade: electro-hydraulic autopilot pump EHPE12R, hydraulic steering cylinders MTP175, steering pump HTP42R (new 2019)
Navigation and electronics
• Furuno Touch TZT14 14” (new 2018)
• Navionics charts for Caribbean, Central America, etc.
• Furuno wind transducer (new 2022)
• Furuno FI501 wind instrument at helm station
• Furuno FI503 Multi instrument at helm station
• Furuno Navpilot711 autopilot at helm station (new 2024)
• Furuno RD33 remote display at navigation station (new 2017)
• Furuno Navpilot7011 autopilot at navigation station (new 2017)
• Furuno Navpilot7002 autopilot processor (new 2024)
• Furuno PG700 electronic heading sensor
• Additional solar powered wind sensor Wind Clipper at mast top, with additional wind instruments at helm station and at navigation (new 2017)
• Furuno AIS FA50 Transceiver (new 2016)
• Furuno HD radar DRS4NXT with Doppler receiver (new 2018)
• Furuno SC30 satellite compass (new 2015)
• Airmar DST800 Tridata speed/depth/temp transducer (new 2018)
• ICOM IC M506 VHF radio with Command MIC 3 in cockpit (new 2018)
• SSB ICOM IC-803 with AT-140 ATU, copper strap, ground plate, 19m rope antenna (new 2021)
• Forward echo sounder Echopilot 2D Gemeco with monitor in helm station (new 2018)
• Quick chain counter and control in cockpit
• Iridium satellite phone 9555 with external antenna
• WI-FI Rogue Wave antenna and amplifier (new 2017)
– Starlink (new 2024)
• Samsung 43 inch LED flat screen TV in salon on custom folding bracket (new 2020)
• 24 inch LED flat screen TV in sb aft cabin on sliding brackets
• Hifi: Krell amplifier, NAIM HDX streamer, Blue Ray player, B&W salon speaker, cockpit speaker (new 2017)
• Electric piano Kawai MP10 in custom made piano furniture, connected to internal / external speakers
• Lightning protection (grounding anode connected to sb shroud, ethernet wiring surge protection, AC 220V power surge protection) (new 2019)
• MaxSea TimeZero navigation software on PC, connected to Furuno navigation system
Electrical
• Batteries – Mastervolt 5 x 200 Ah 12V Gel totalling 1000 Ah (new 2024)
• Bowthruster batteries 4 x 50 Ah 12V AGM High Output (new 2024)
• Starter batteries 2 x 110 Ah AGM (new 2024)
• Silent Wind Generator 400 W (new 2018)
• Genset – Fischer Panda 8000i 8KW – 220V – with sound insulation shell (serviced 2025)
• Mastervolt DC heavy current distribution and shunt connected to Masterbus network (new 2018)
• Mastervolt Masterswitch 10kV AC-switch
• Mastervolt EasyView5 control touchscreen at the nav station (new 2019)
• Mastervolt Combi Ultra – Inverter / charger – 12V/3000W/150 Combi Ultra (new 2017)
• Mastervolt – Additional battery charger Chargemaster 100 amp
• Solar panels 2 x 100 Watt on coach roof in front of helm (new 2021)
• Solar panels 2 x 300 Watt on dinghy supports (new 2017)
• Solar panels – 6 x 145 Watt on salon coach roof (recessed), hinged on inside and adjustable (new 2020)
• Mastervolt Solar charger – 60 A MPPT (new 2018)
• Victronic Solar chargers 40 A and 30 A MPPT (new 2017)
• 50A Shore power 220V / 110 V inlet with galvanic isolator Zinc Saver, shore lead
• 110 V shore power inlet, shore lead
• Analogue fuel, water, waste tank gauges at navstation 2 x water/2 x fuel/3 x waste
• Fans – Caframo fans x 7 units in salon and cabins (new 2017)
Plumbing
• Shore water connection on transom
• Quick 60L water heater (new anode 2024)
• SMEG – washer / dryer
• SMEG – dishwasher
• Water maker – Sea RO 220V (new 2024)
• 3 Vetus WCS2 electric toilets with fresh water or sea water flushing in each cabin
• Sea water and fresh water wash down at anchor hatch
• Freshwater washdown in cockpit settee
• Filtered water / fresh water / salt water faucets in kitchen
• Cockpit shower with hot / cold water
• Through hull fittings / sea cocks with high quality GROCO fittings (11) (new 2019)
– Salt water pump (new 2024)
Hull and Deck
• Extended sugar scoops / bathing platforms (new 2019)
• LED Courtesy lights in cockpit and sugar scoops – blue
• Overhead cockpit LED strip lighting
• Extended sunshade for cockpit (new 2017)
• Foredeck foldable seats
• Glass windscreen with electric wiper
• Sliding cloth bimini above helm chair (new 2018)
• Cockpit cushions (new 2019)
• SeaBlaze X2 underwater lights, high power blue / white LED (new 2019)
• Main anchor – Ultra- 45Kg with 50 meters of 10mm stainless chain plus 30 meters braided rope
• Secondary anchor – Ultra – 25Kg with 50 meters of 10 mm stainless chain plus 50 meters braided rope
• Handheld wired remote for windlasses with chain counter (new 2025)
• 2 Selden electric furlers for jib and reacher sails (new 2017)
• 2 electric Harken winches
• Manuel Harken winch foredeck
Sails and Mast

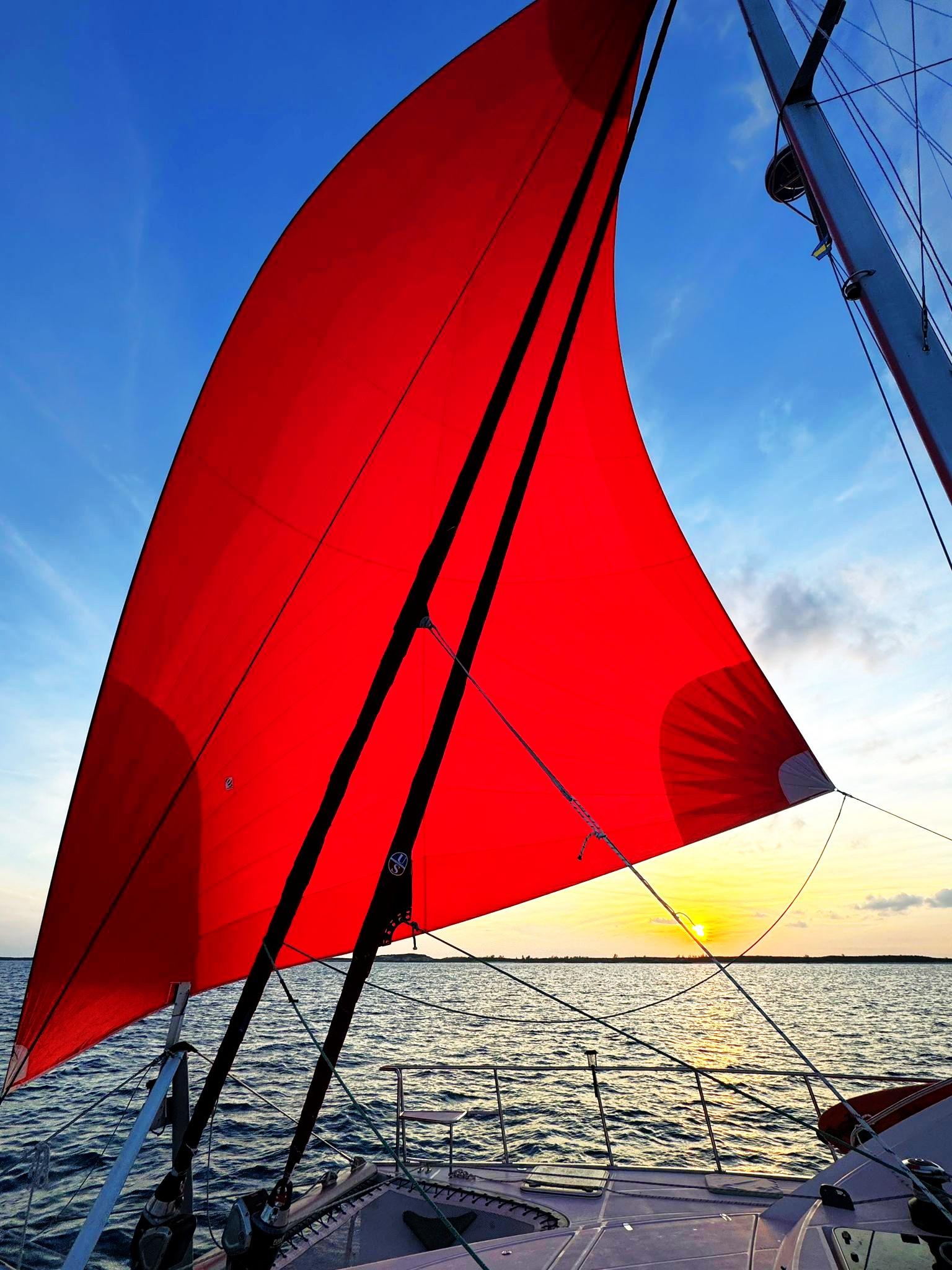

• Laminated sails by Quantum / Cape Town – 100m2 main, 90 m2 reacher on electric furler, 42 m2 jib on 2nd electric furler (new 2024)
• Top down furler with asymmetrical spinnaker 160 m2 (new 2020)
• Custom made mast by Southern Spars / Cape Town
• Boom lifting system
• LED Tri-anchor/anchor light combination on mast top
• LED floodlight on spreaders
Safety Equipment
• 8 man life raft – Viking Rescyou 8 (last serviced October 2024)

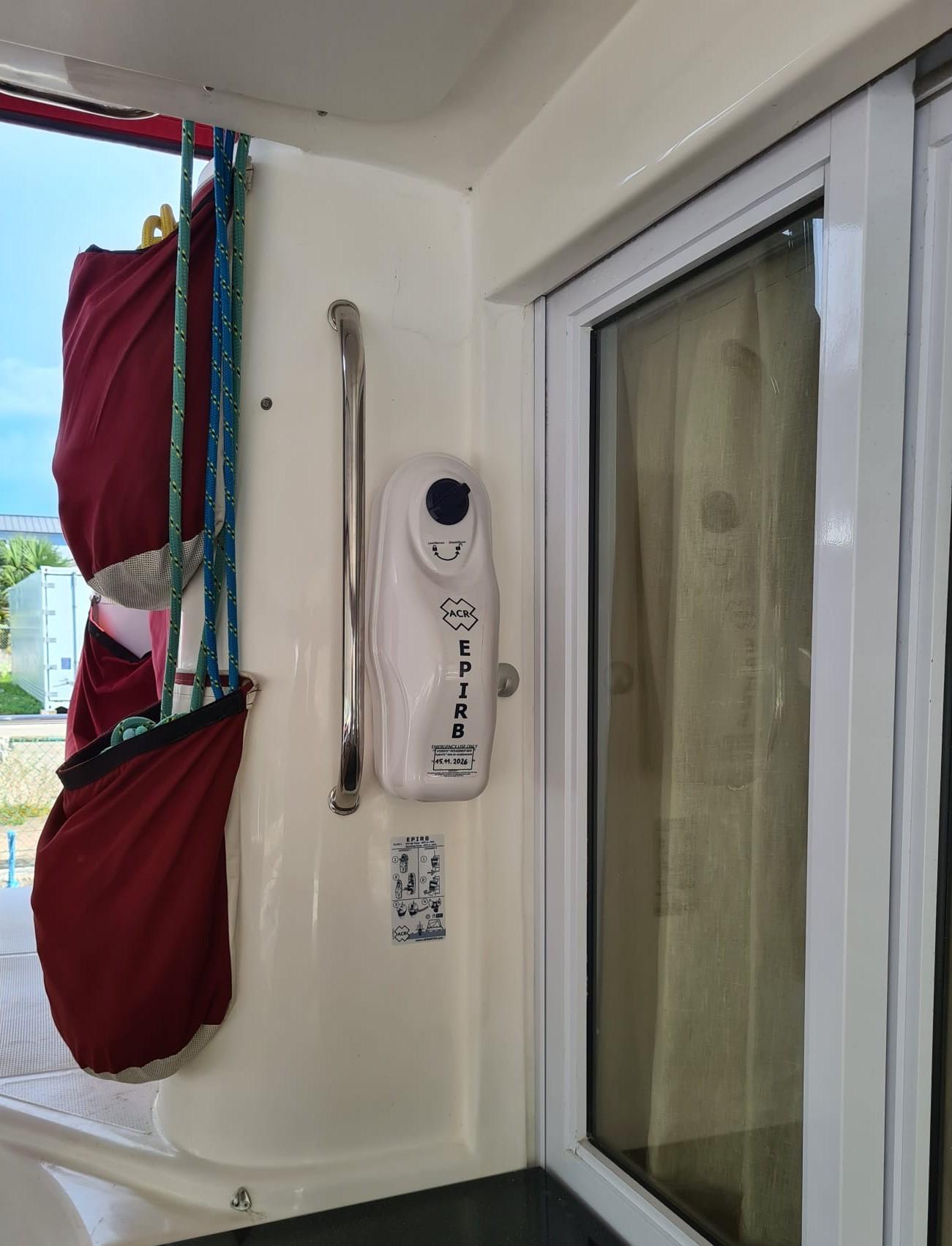

– ACR EPIRB (new 2024)
• Fire fighting equipment
• 5x large inflatable fenders Taylor (new 2017)
• Drogue for extreme weather
Antifouling
• Underwater epoxy primer – 2 coats (new 2019)
• Trinidad hard antifouling – 3 coats (last painted March 2024)
• Sacrificial anodes (new 2024)
Interior
• Shade/mosquito screen on deck hatches (partially new 2017)
• Curtains for salon windows, roller blinds in cabins
• Salon curtains
• Ambient LED strip lighting in ceilings
• LED strips in hulls
• Workshop with storage and tools
– Electric piano
• Complete vinyl headliner replacement (new 2023)
• Fully equipped galley including all appliances, combined electric / gas cooktop, dishwasher, electric stove, ice maker, espresso machine, microwave, toaster, yoghurt maker
• Assorted spare parts for all systems including engines, generator, water maker, rigging, toilets, pumps, general plumbing, general electrical, etc.
– Honeywell 1114 fire and waterproof chest (2024)
Aircon – Refrigeration – Gas
• Air conditioners – Dometic Marine Air – 1 x 16000 and 2 x 12000 BTU units
• 2 drawer fridge in galley – Vitrifrigo
• Freezer in galley – Vitrifrigo
• Fridge in cockpit – Vitrifrigo
• Extra freezer in sb hull – Vitrifrigo
• Oven incl. microwave 220V – (new 2017)
• Gas cooker – 2 burner (new 2017)
• Electric cooker – 2 burner (new 2017)
• Electronic gas shut off with galley sensor
• Composite gas bottles – 2 x 7.5Kg (new 2025)
• BBQ with gas line supply on transom
Water toys
• Dinghy – 3D Tender UL 310 with aluminum hull
• Dinghy motor Tohatsu 2-stroke 9.9 hp
• Dinghy motor electric Torqueedo 1 kw
• SUP
• Offshore fishing gear – 1 pole and 1 large reel, 1 small reel
– Spearfishing gear (new 2025)

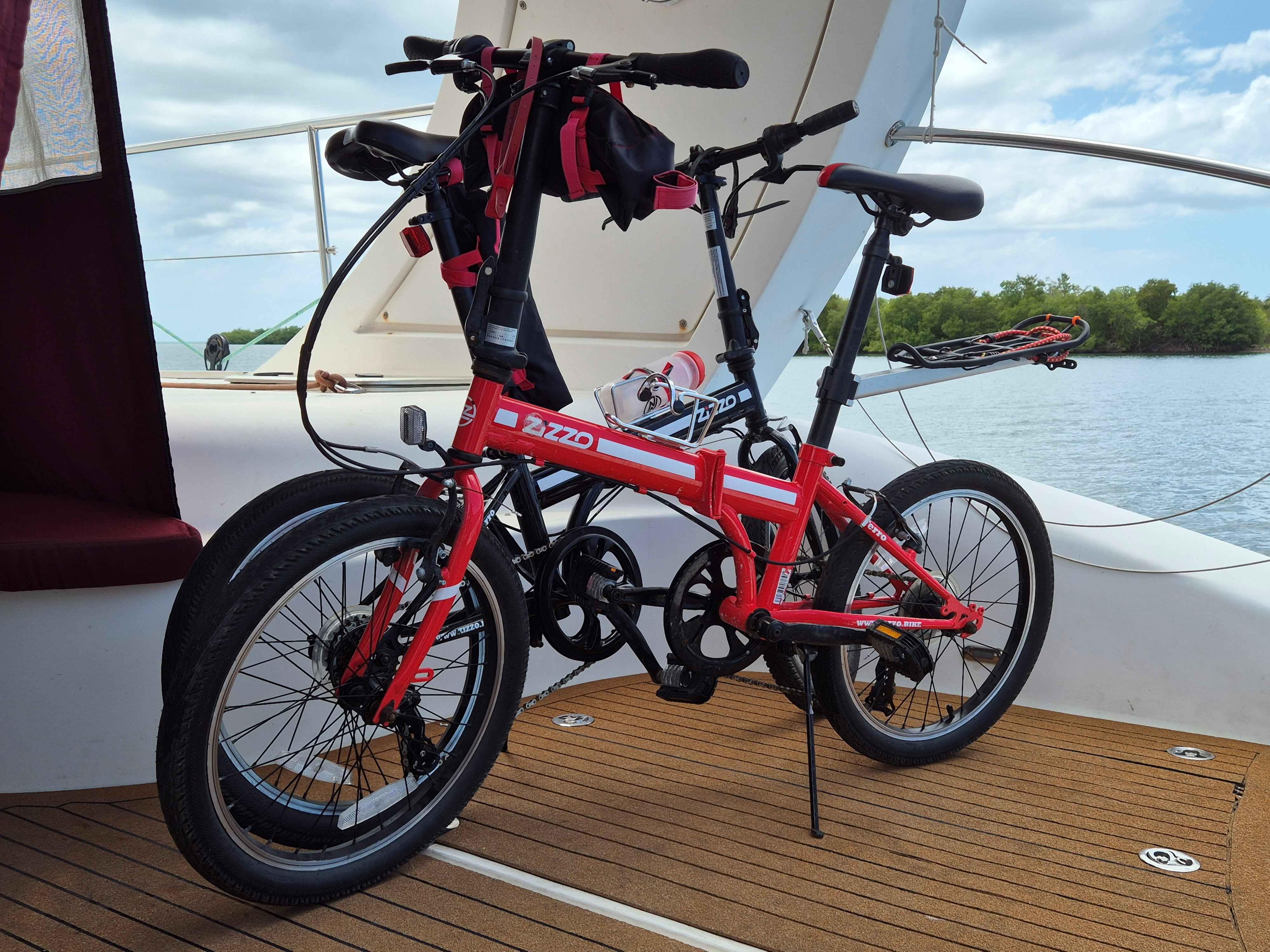

– 2x Folding bikes Zizzo Ferro (new 2025)
• Life jackets – assorted sizes
