2019 Lagoon 42

About This Boat

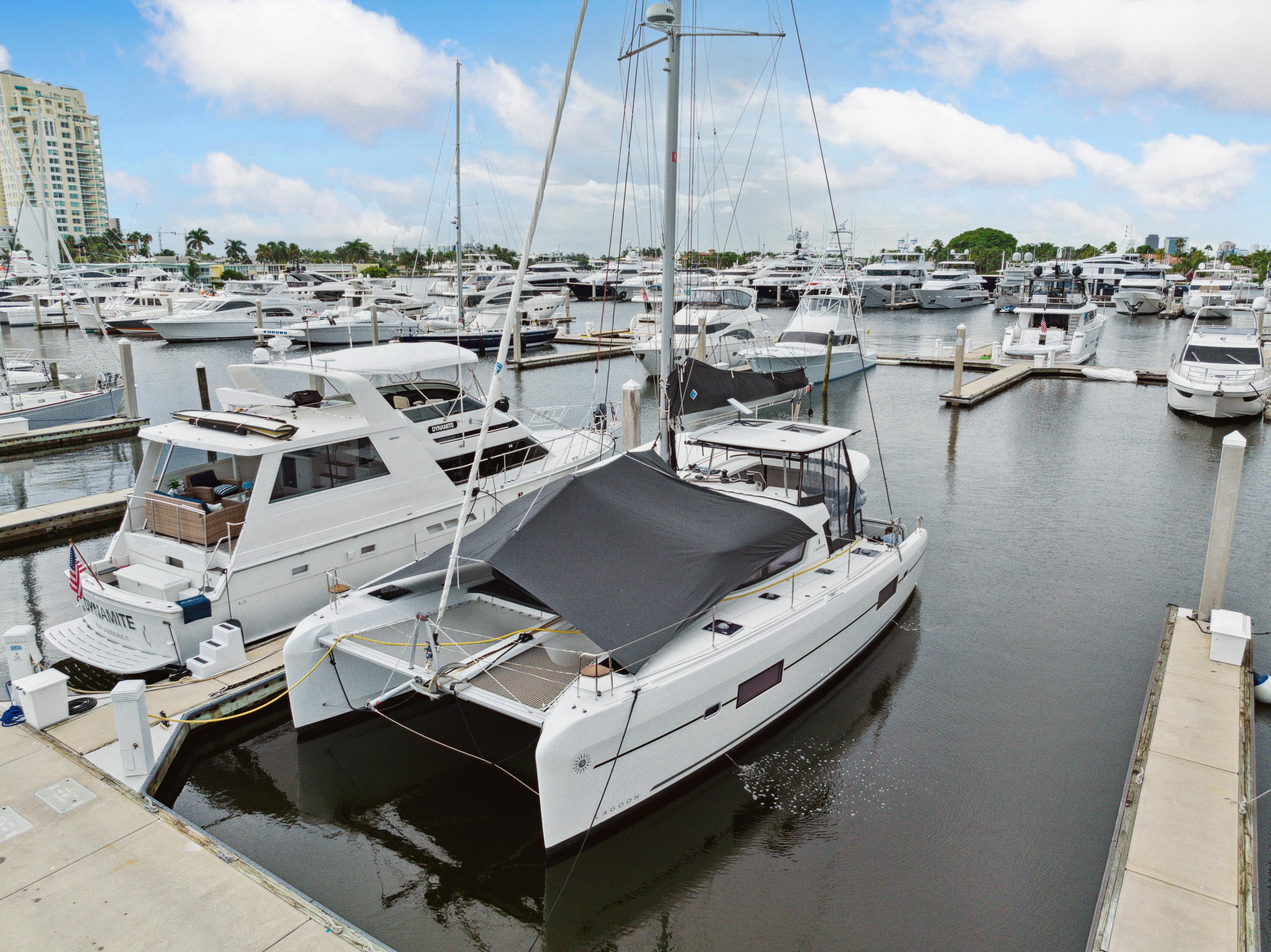

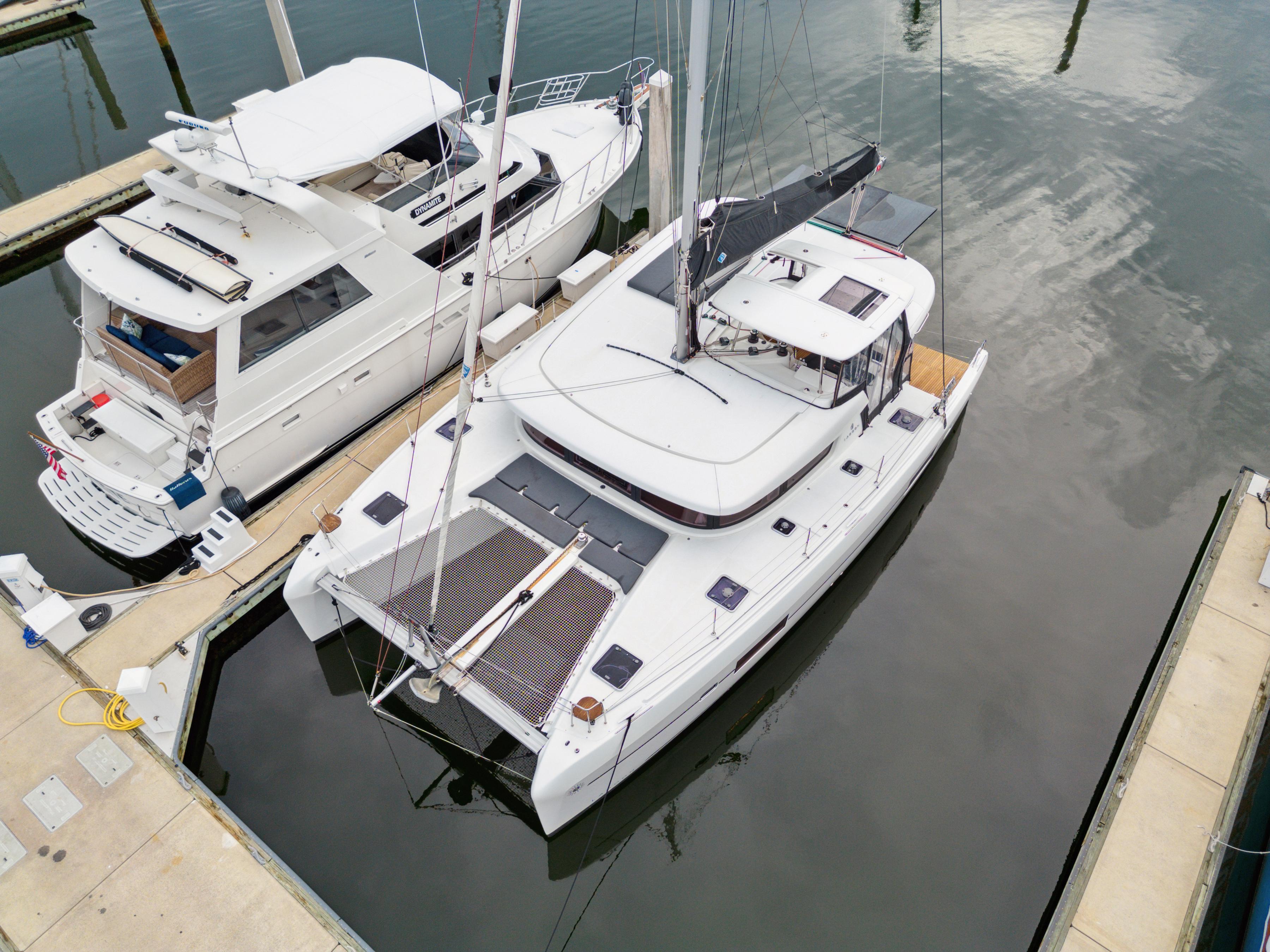

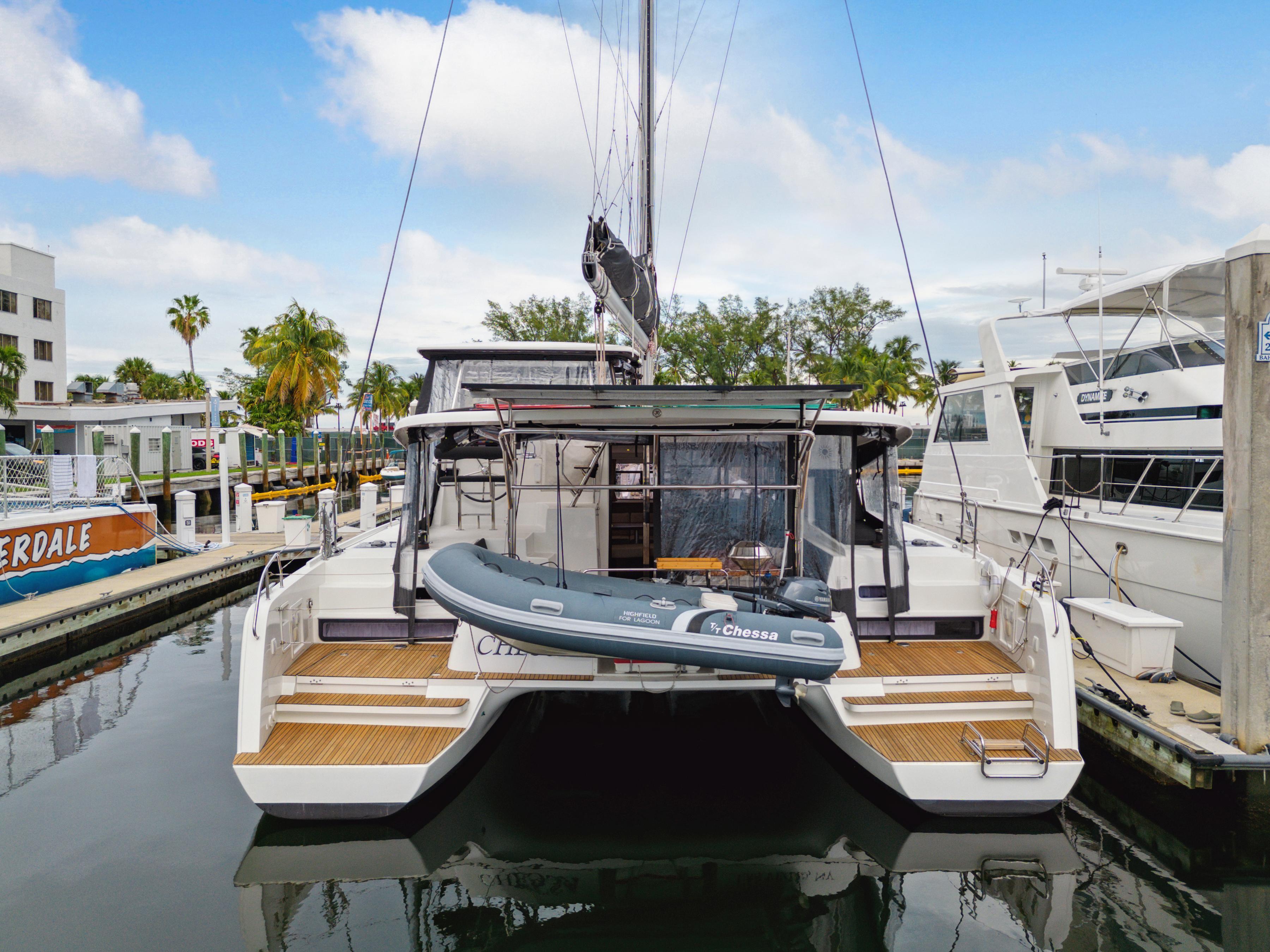

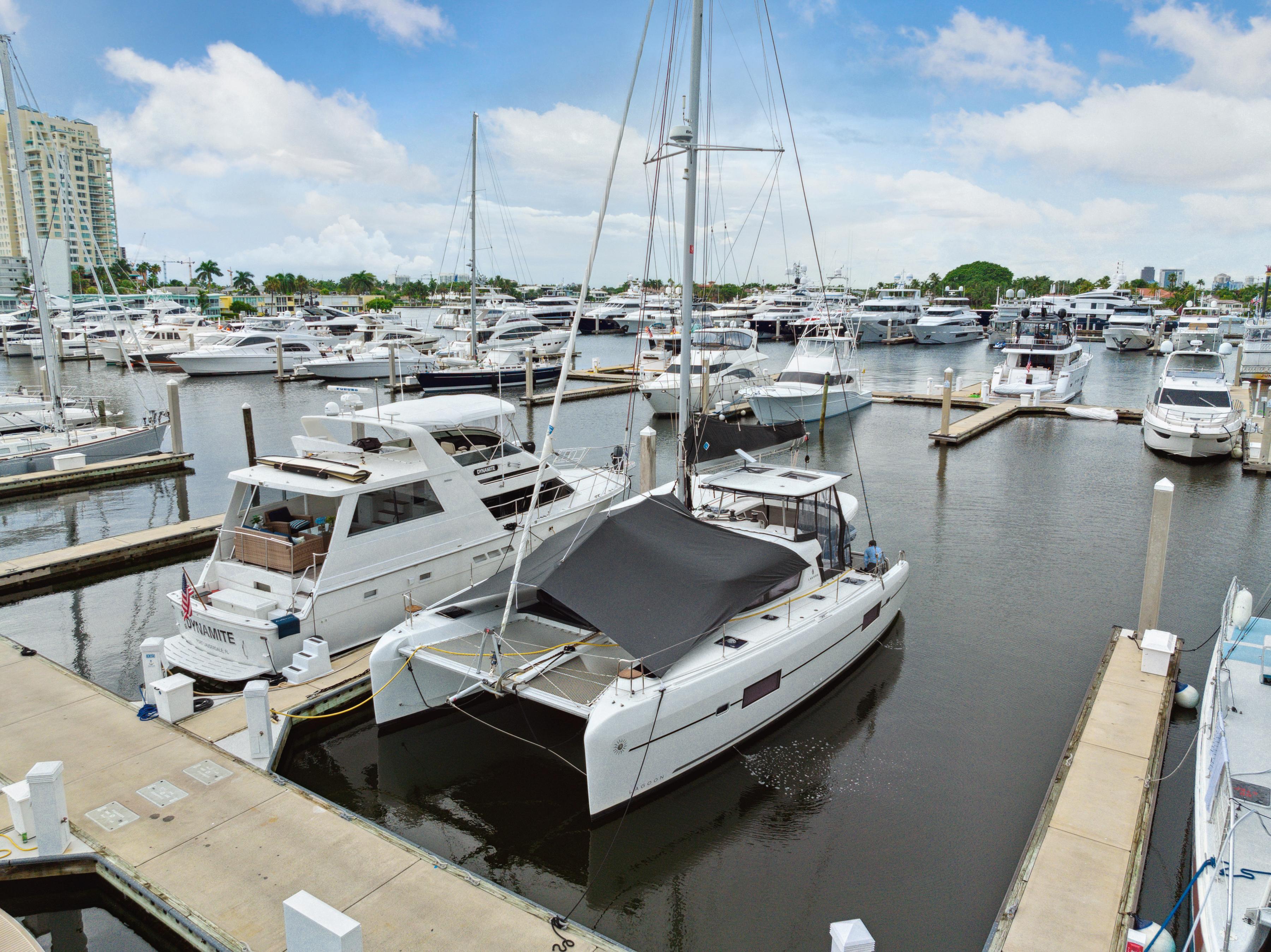

2019 42' Lagoon "Chessa" is a sailing catamaran with a deck-stepped fractional rigged mast and wire rigging. "Chessa" is powered by a pair of 4-cylinder Yanmar diesel engines with Yanmar saildrives. She features a three stateroom and three head layout with a large salon and spacious cockpit.

This Lagoon 42 is well equipped with features such as a generator, water maker, electronics and an 11 foot RIB tender. Call to schedule your showing today!


Additional Details

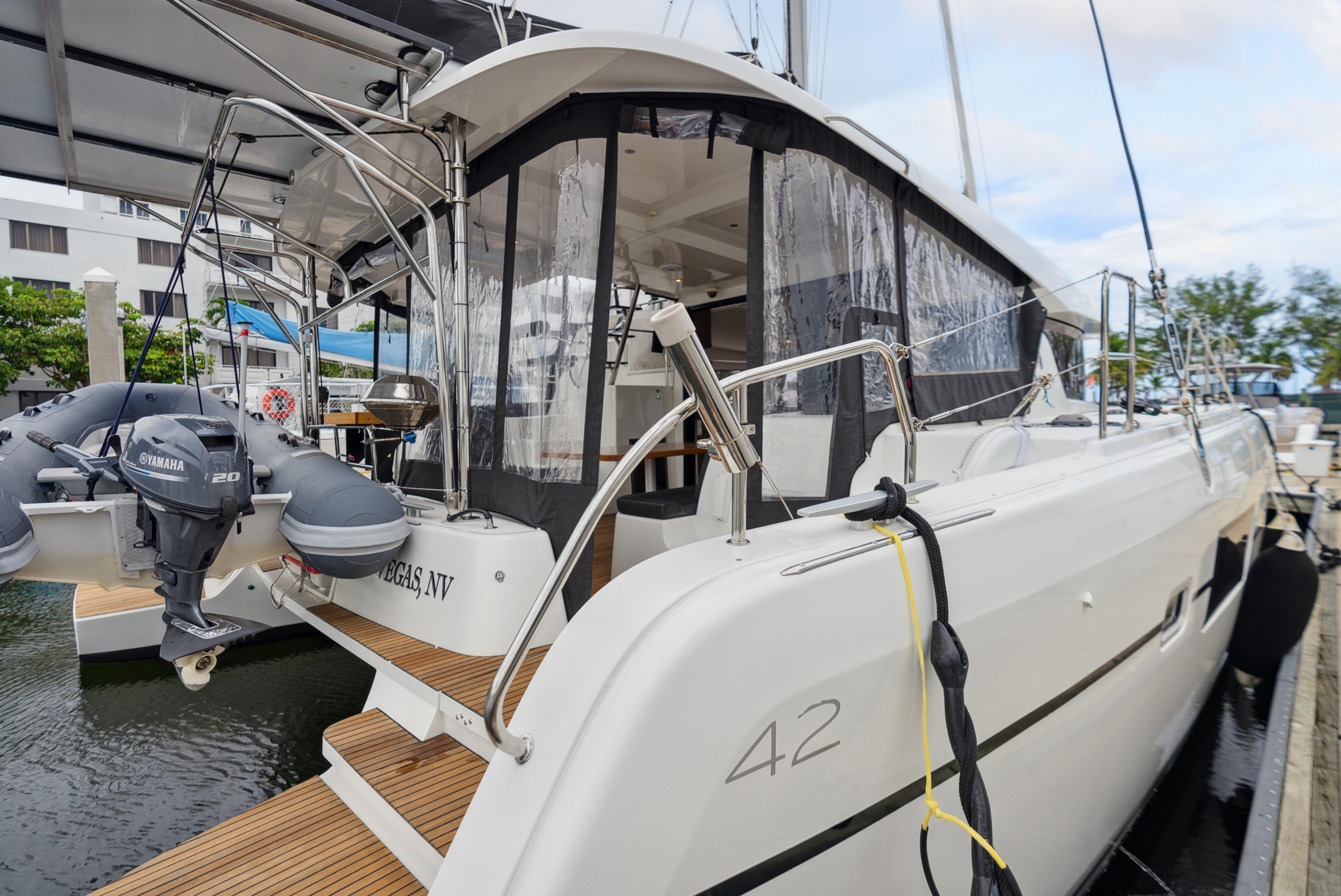

Hull and Transom
  • Fiberglass balsa cored hull above and below waterline in very good condition
  • White plastic thru hulls and stainless steel engine exhausts
  • Built-in swim platforms and steps on transom
  • Transom includes four-step telescopic stainless steel ladder on the starboard side with teak treads
  • Bottom paint is black ablative anti-fouling
  • Bronze fittings on strainers/scoops/screens
  • One speedometer transducer on the starboard bow area and a depth transducer on the port bow area
  • Keel Type: Shoal Keel
  • Fiberglass foam filled spade rudders in good condition
  • (2) Flexofold 3-blade propellers, 18" diameter - both left hand rotation
  • (2) 12-volt Rulemate 1100 GPH bilge pumps with built-in water sensors. One installed in each hull.

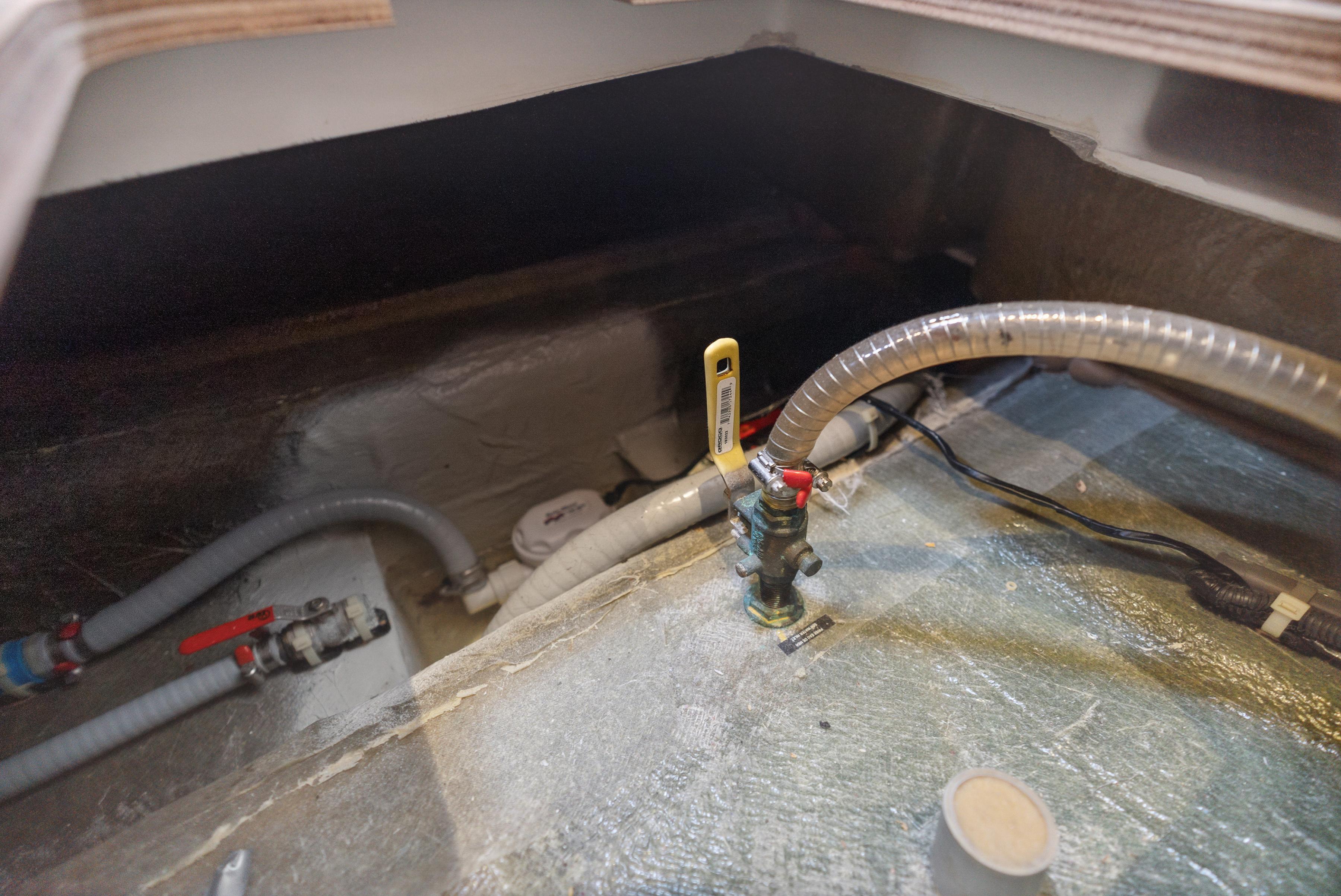

  • All sea valves are bronze quarter-turn ball valves with the exception of the waste tank valves which are either plastic or Marelon.
  • Transducers include one speed and one depth transducer.

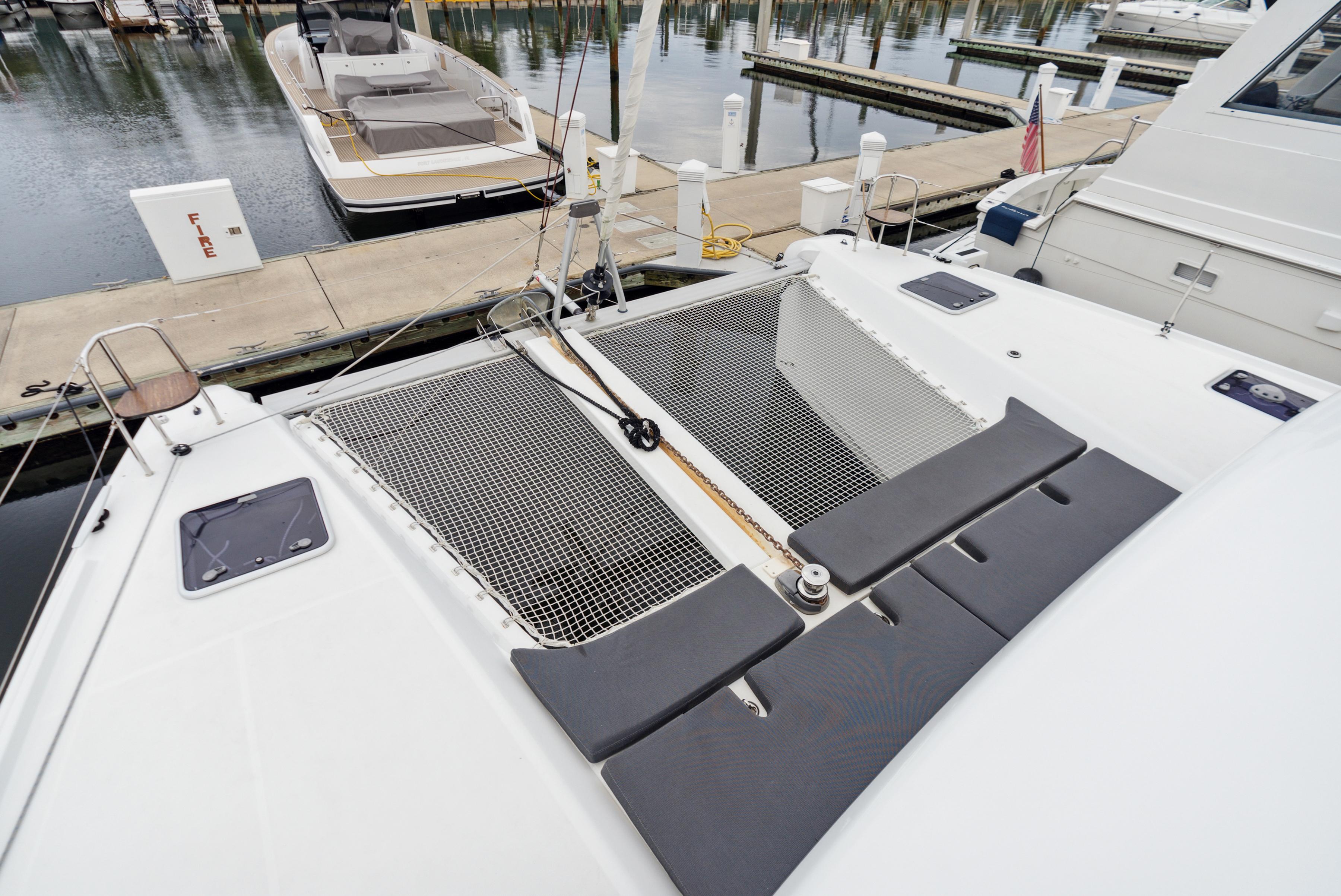

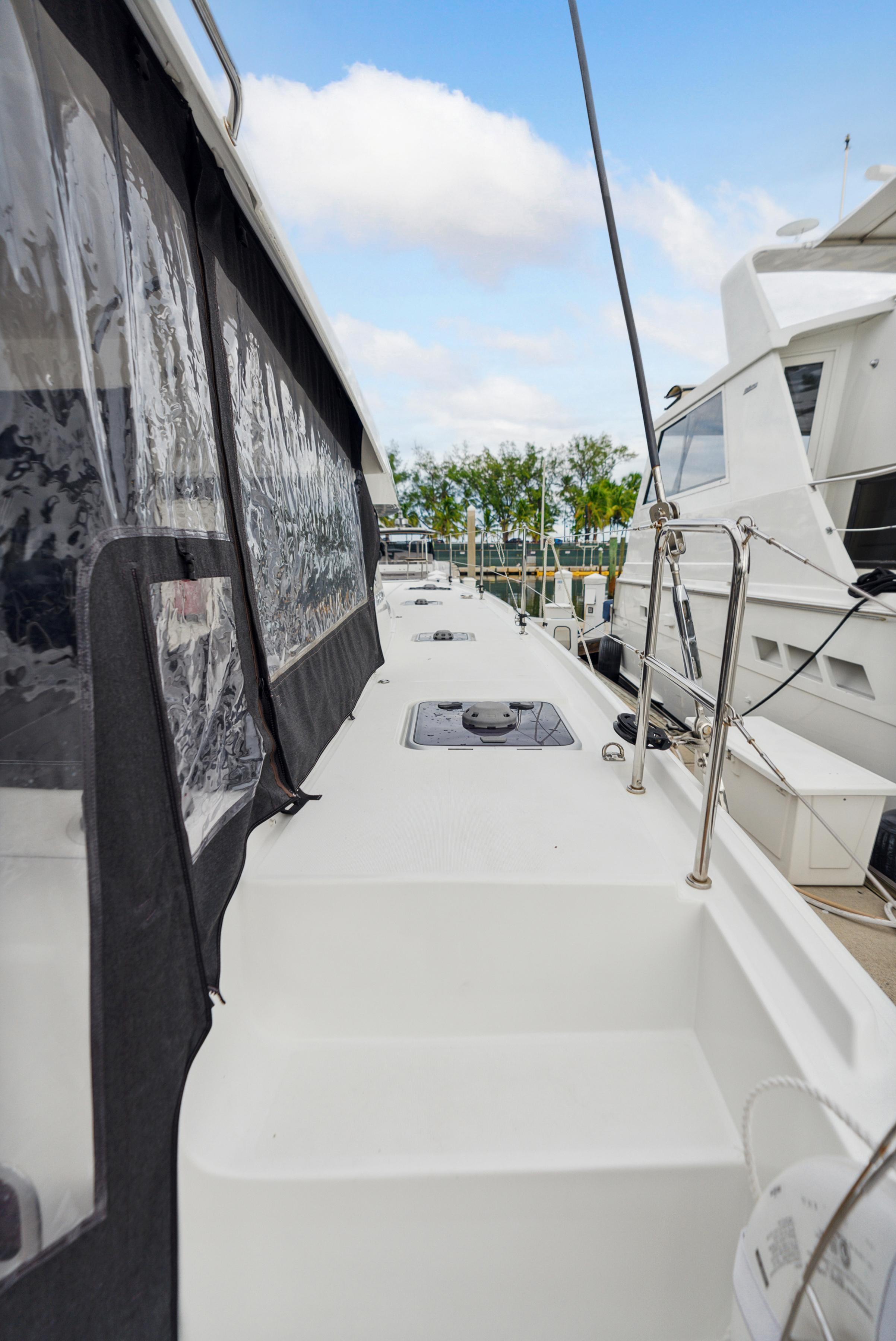

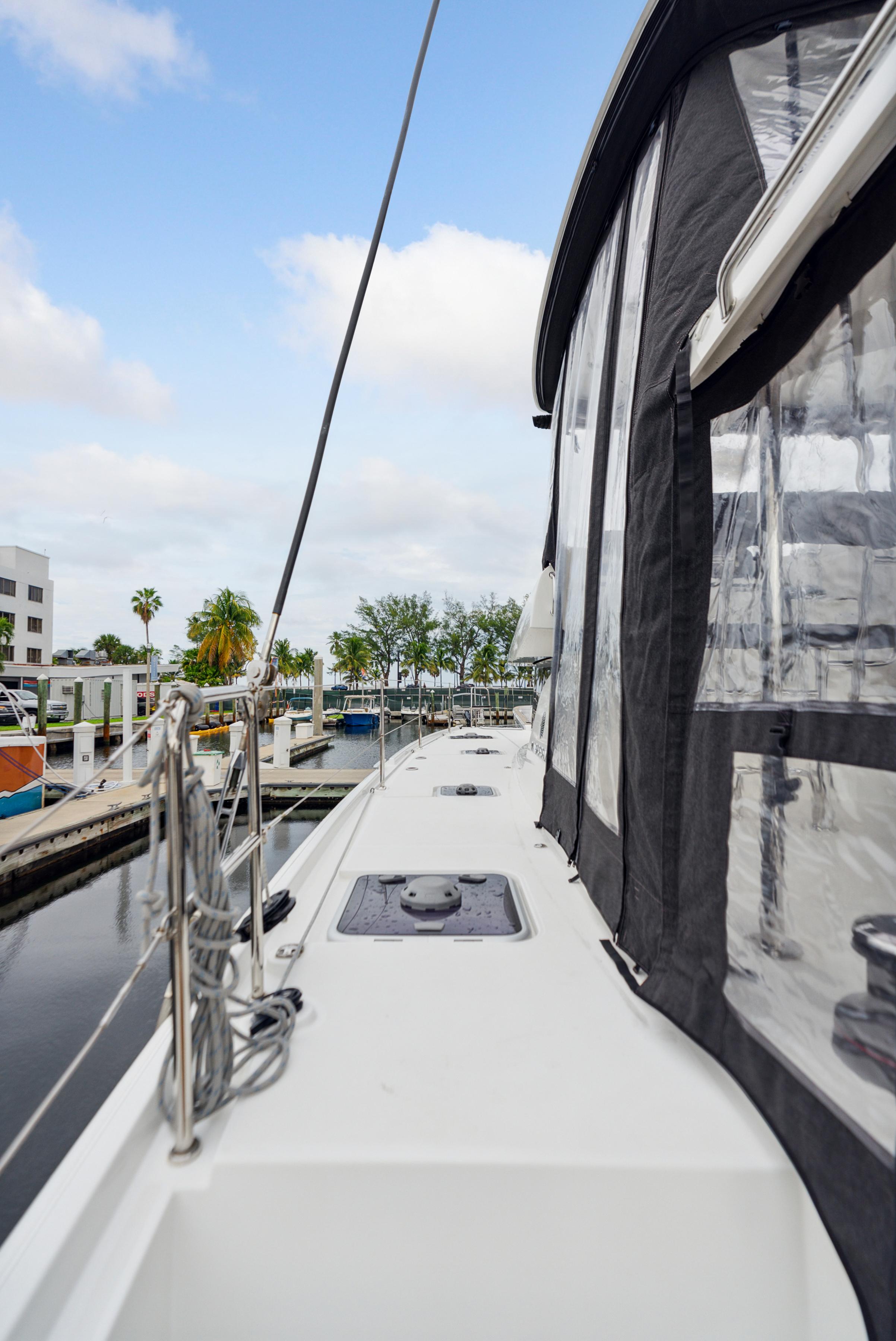

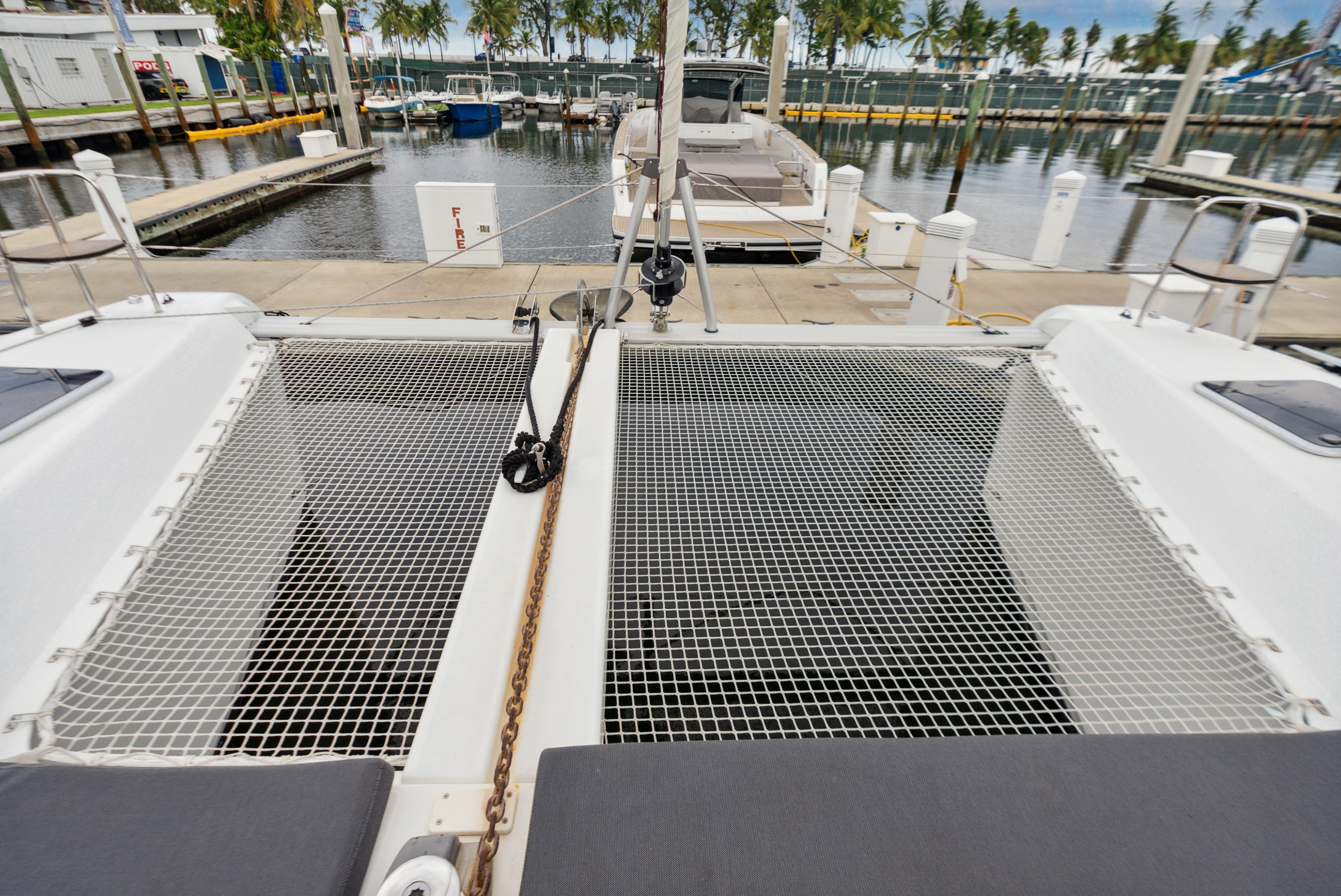

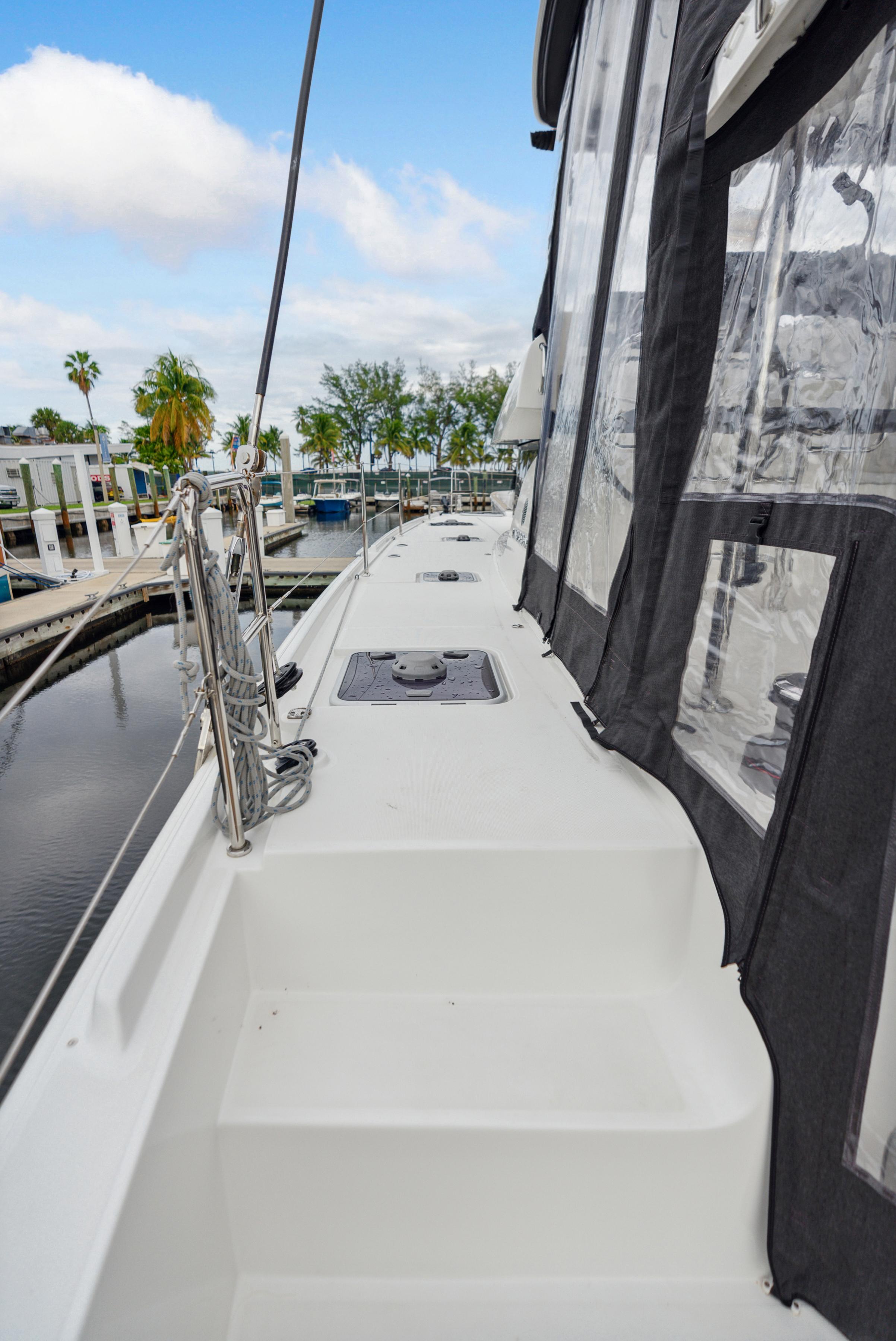

Main Deck and Fittings

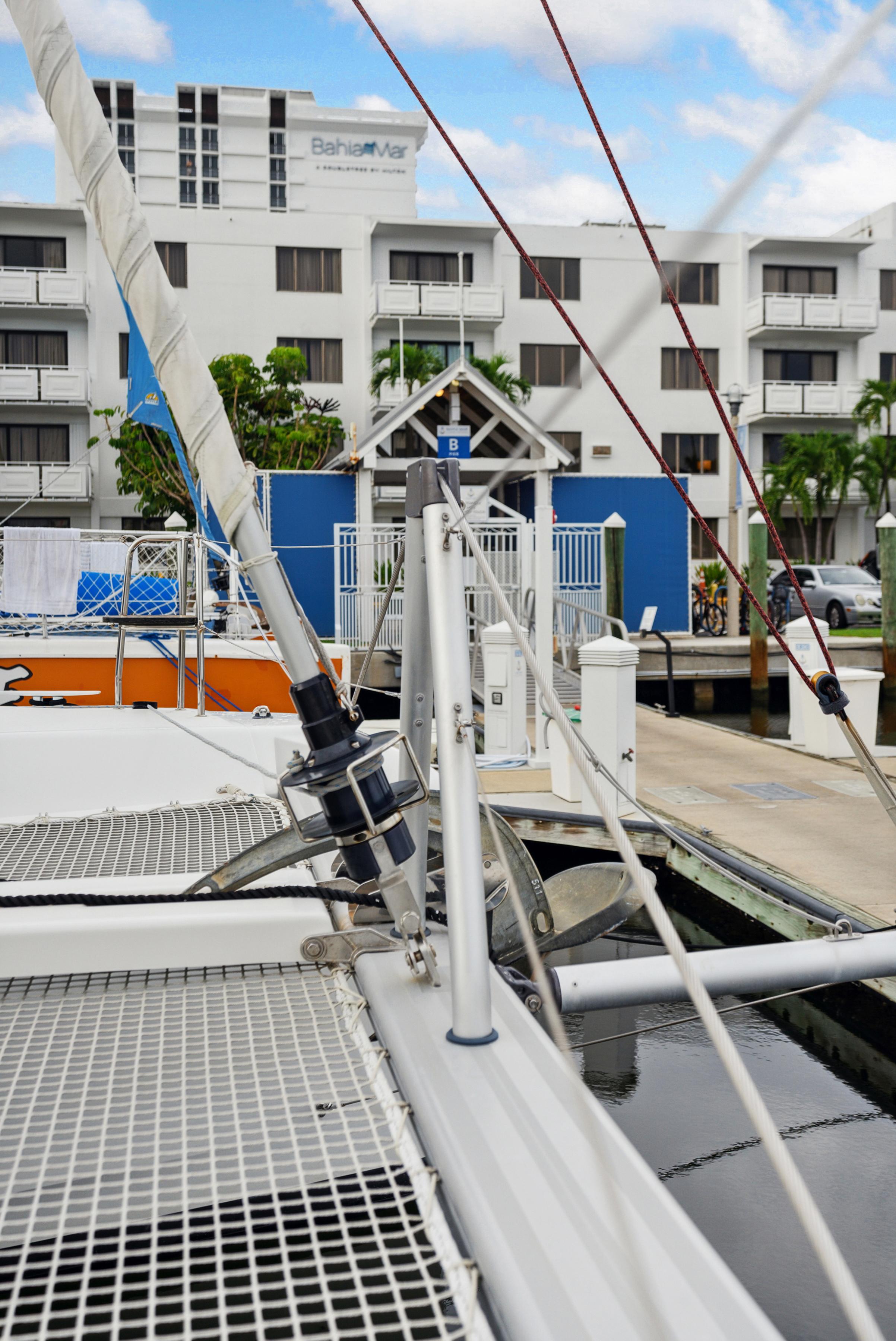

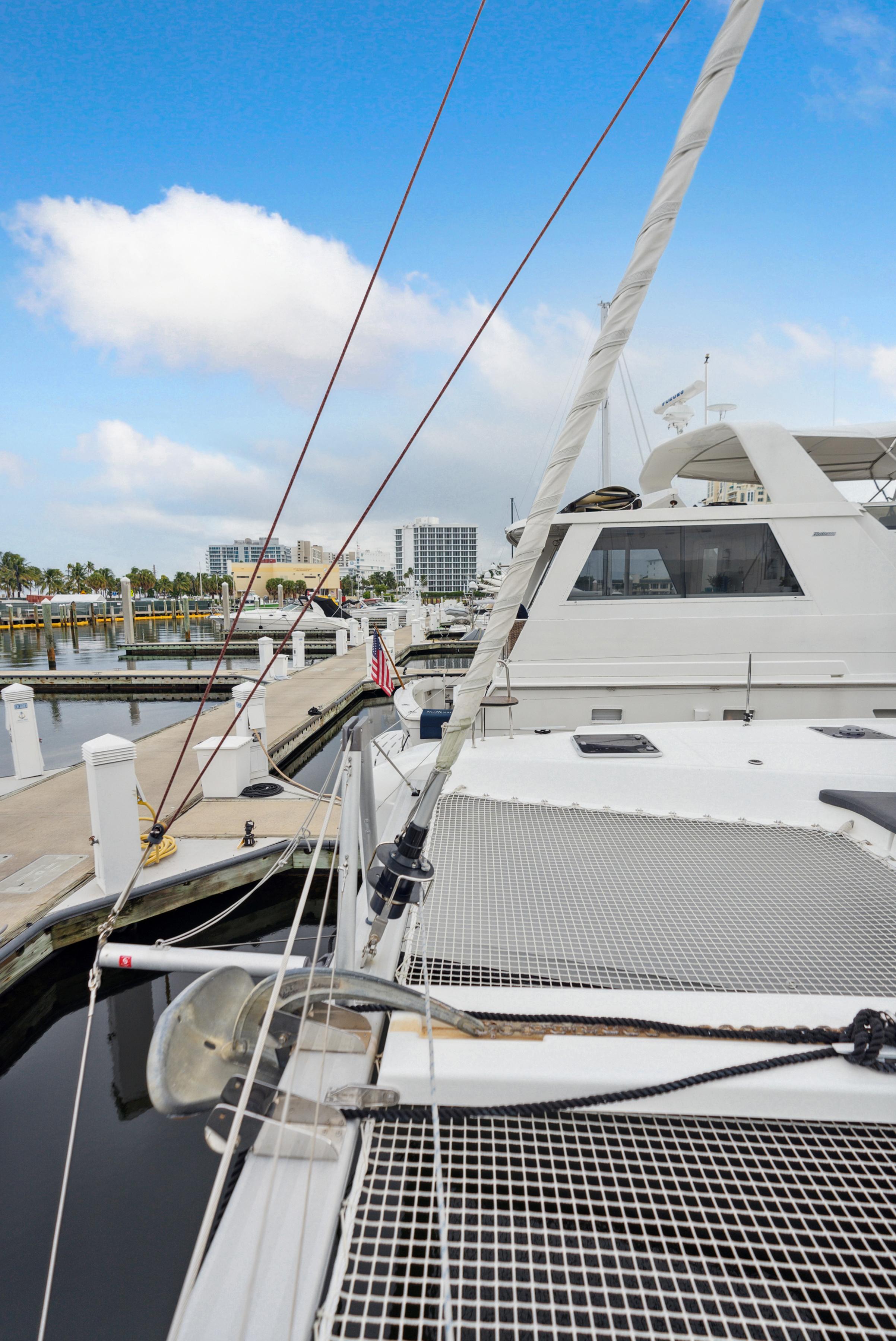

  • (2) Stainless steel anchor rollers

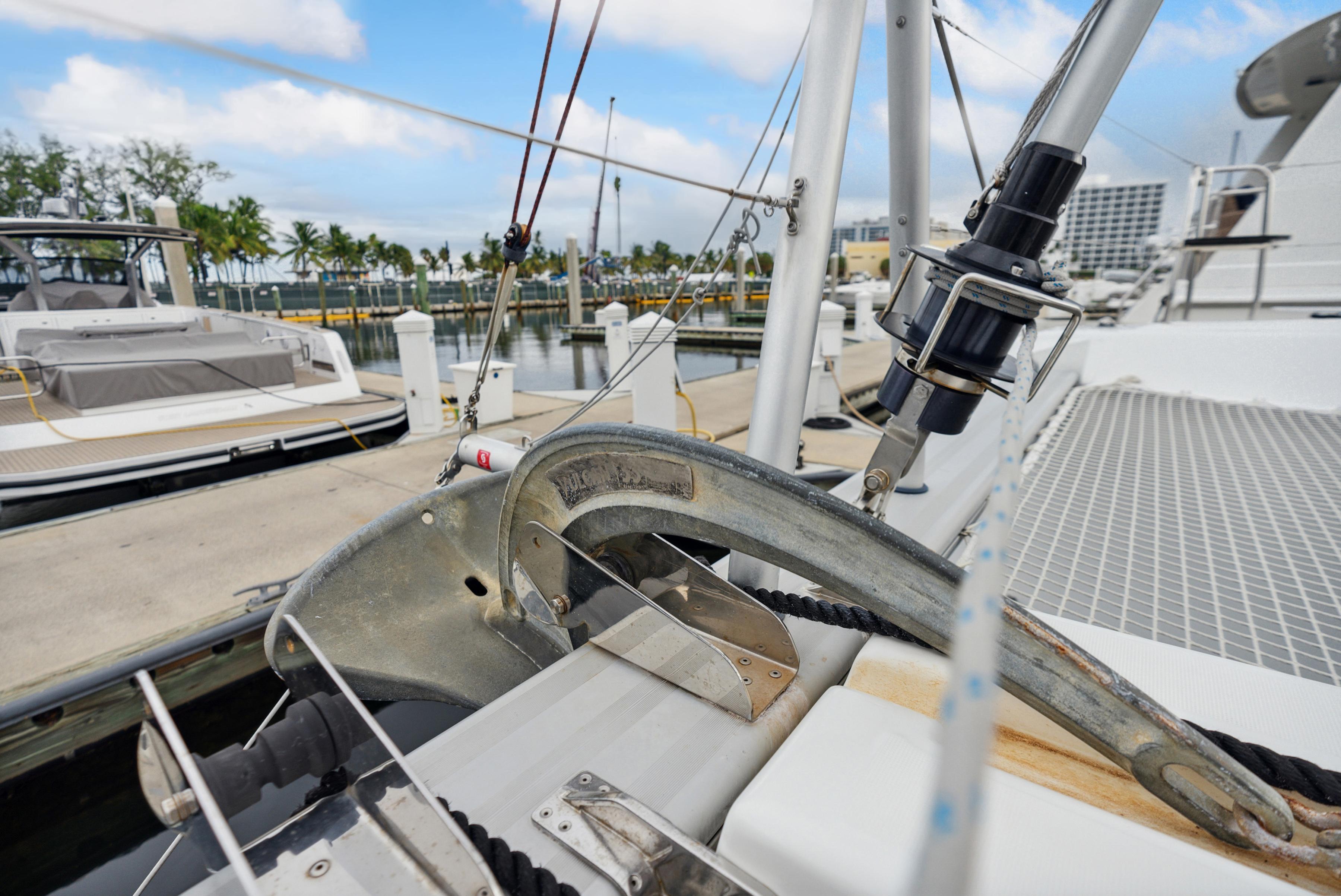

  • Anchor is a 32 kg galvanized steel Rocna anchor with approximately 250’ of galvanized steel anchor chain
  • Spare Delta anchor, rode and 40 feet of chain

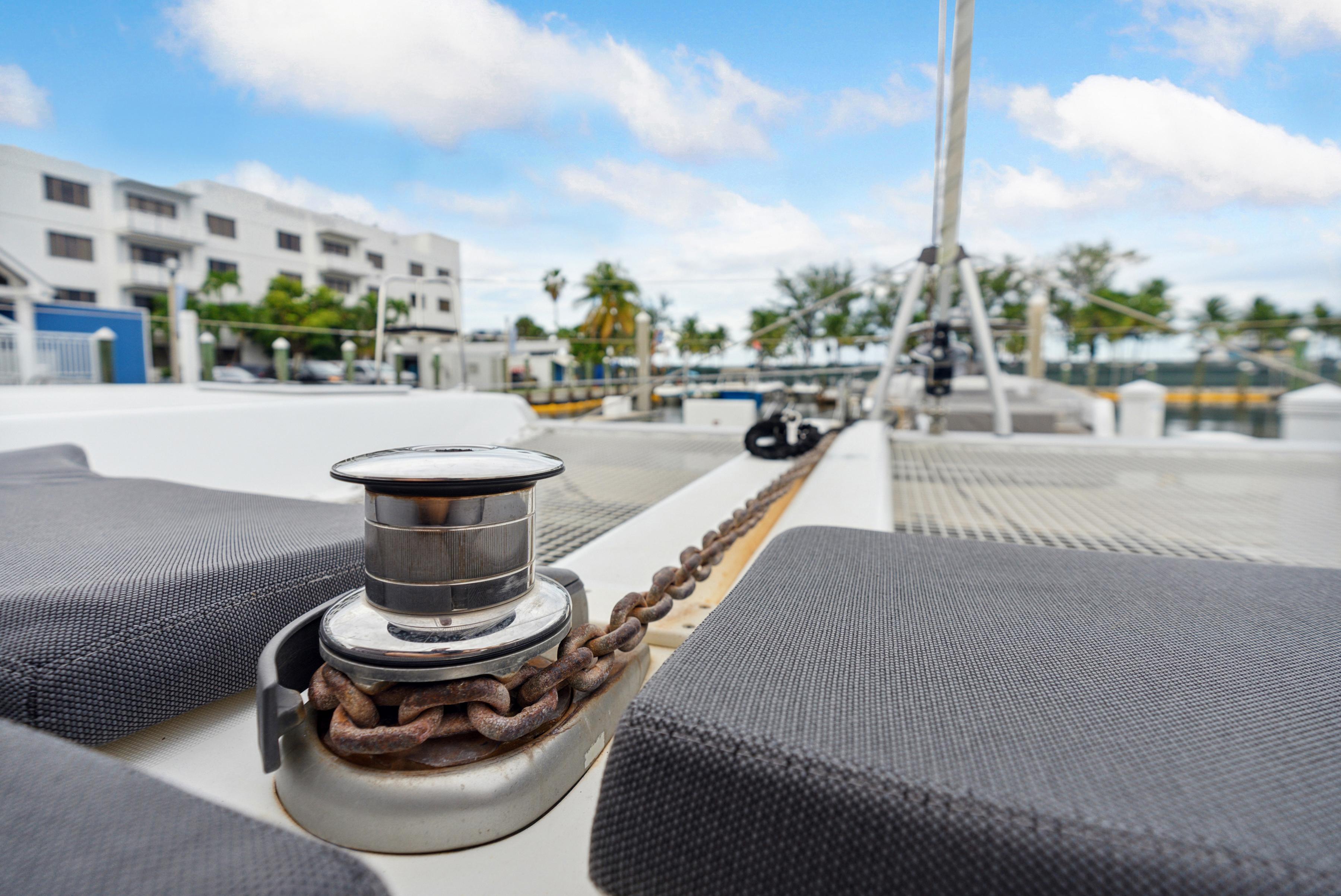

  • Quick Aleph 12-volt Windlass
  • (2) Stainless steel bow rails
  • Stanchions/side rail(s) are stainless steel
  • One boarding gate on each side - Lifeline sections with pelican hooks
  • Uncoated stainless steel lifeline cable
  • (8) 16” Aluminum horn cleats
  • (2) Stainless steel grab rails on cockpit cover sides

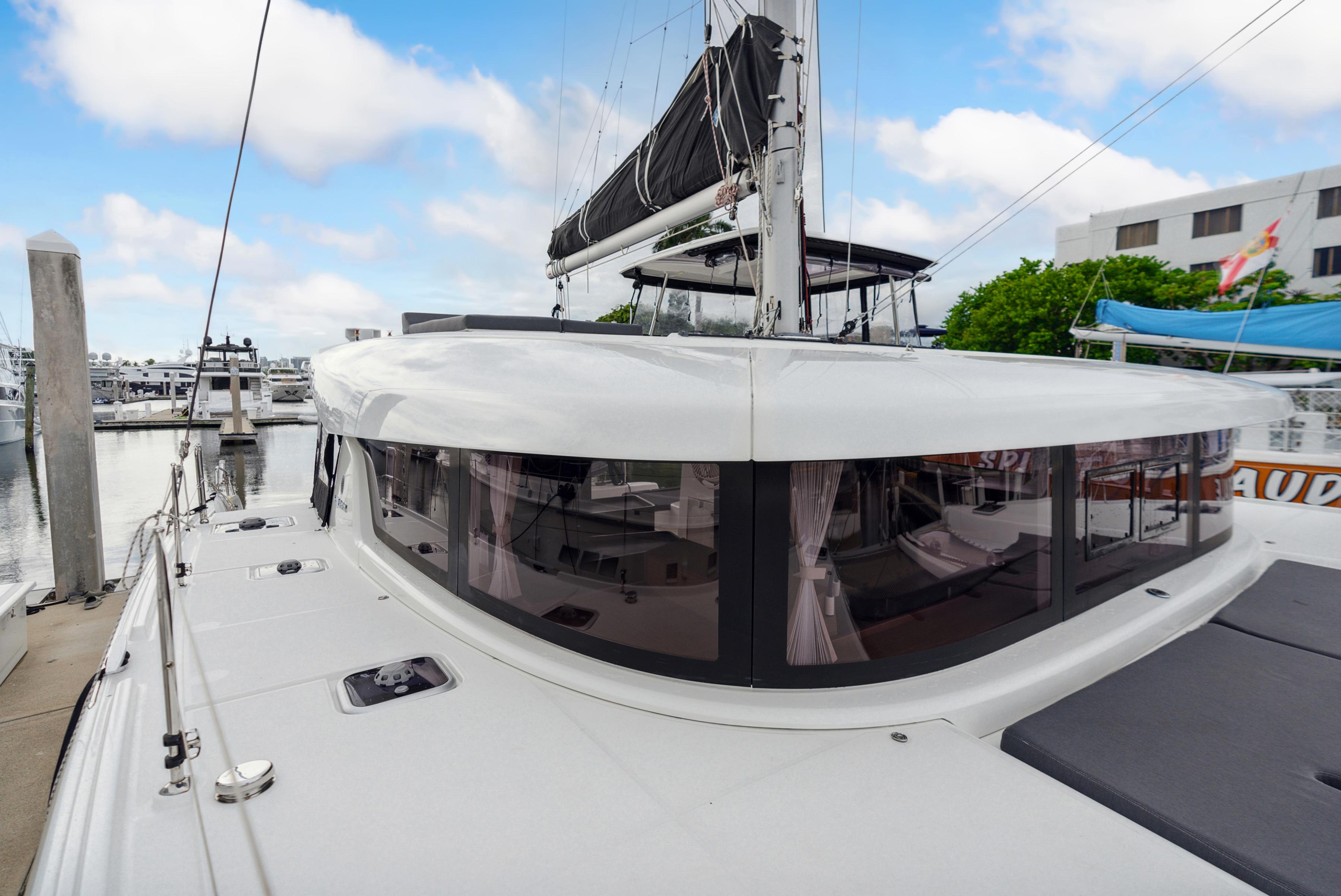

  • Cabin house windows feature tinted tempered safety glass
  • Radar is mounted on the front of the mast.
  • Lewmar hatches - (2) 23” x 23”, (4) 20” x 20” and (4) 13” x 13” hatches
  • Aluminum mast step

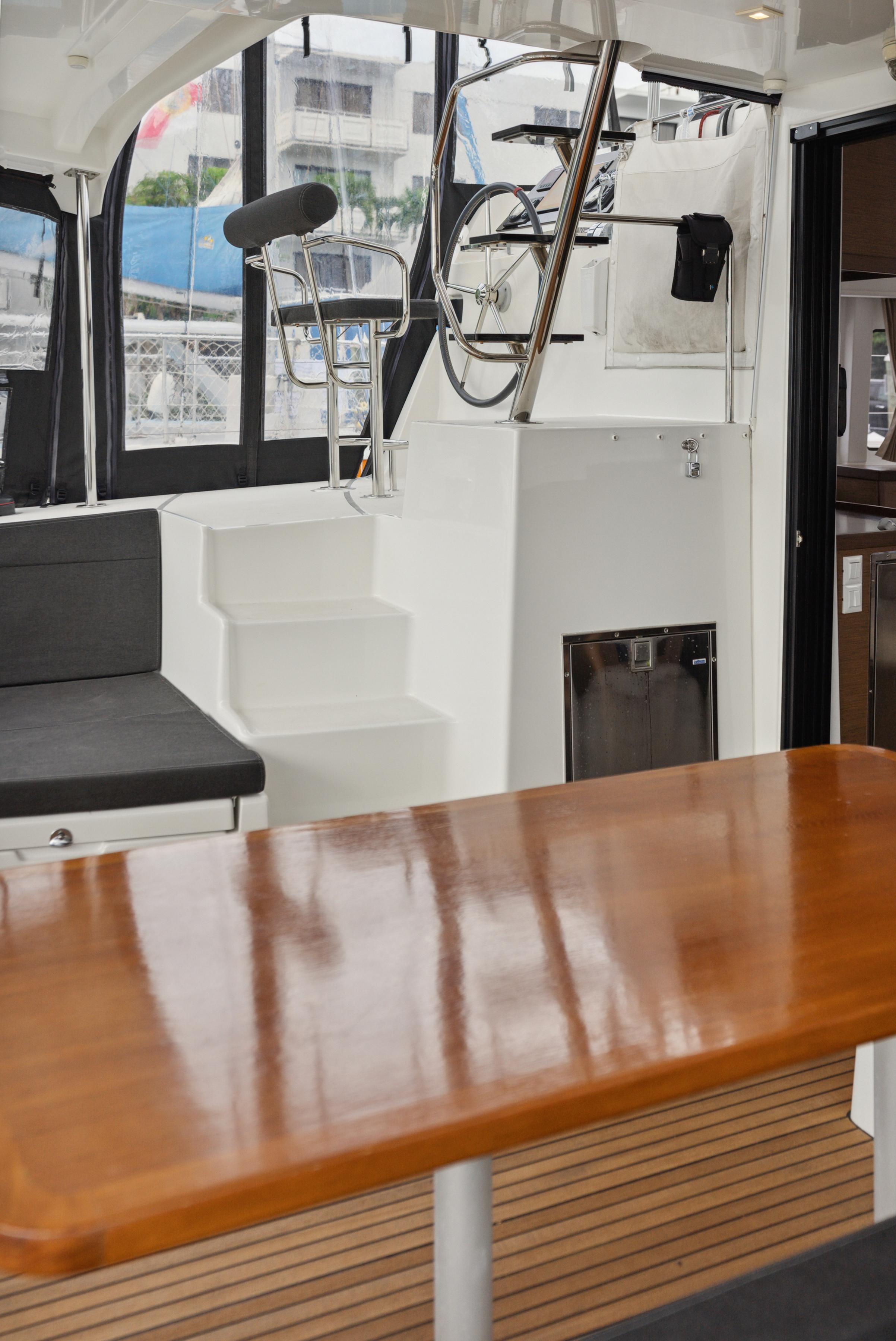

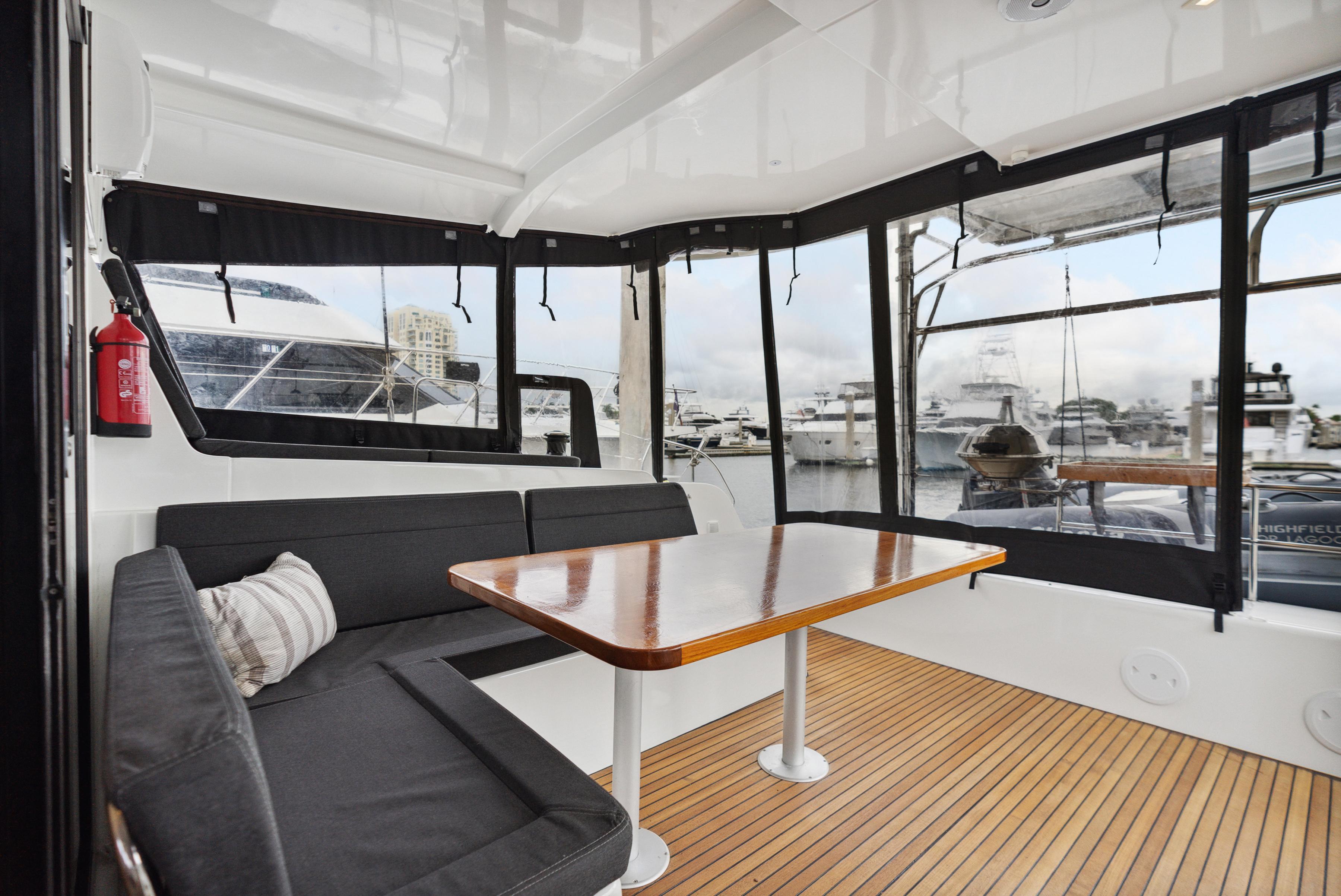

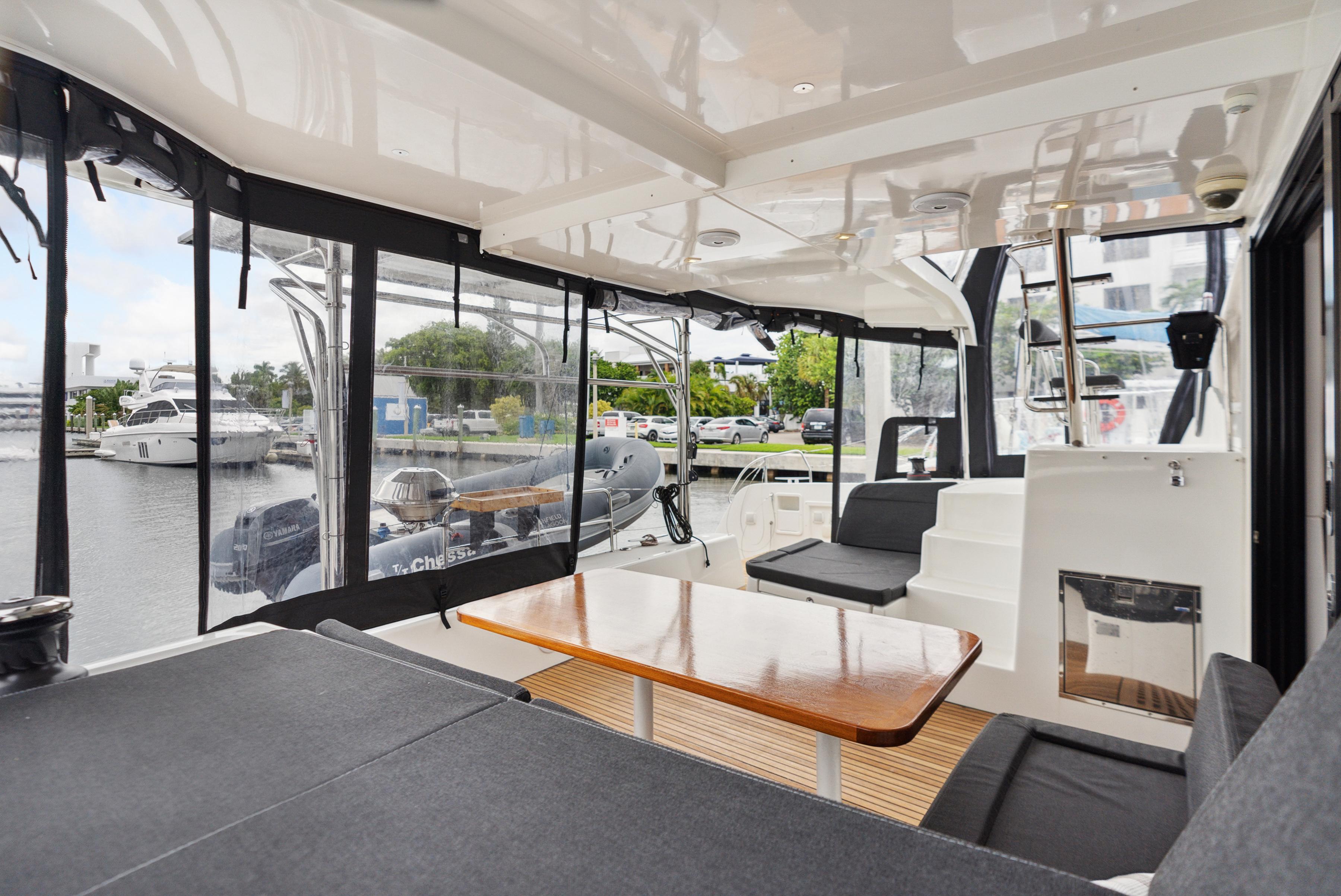

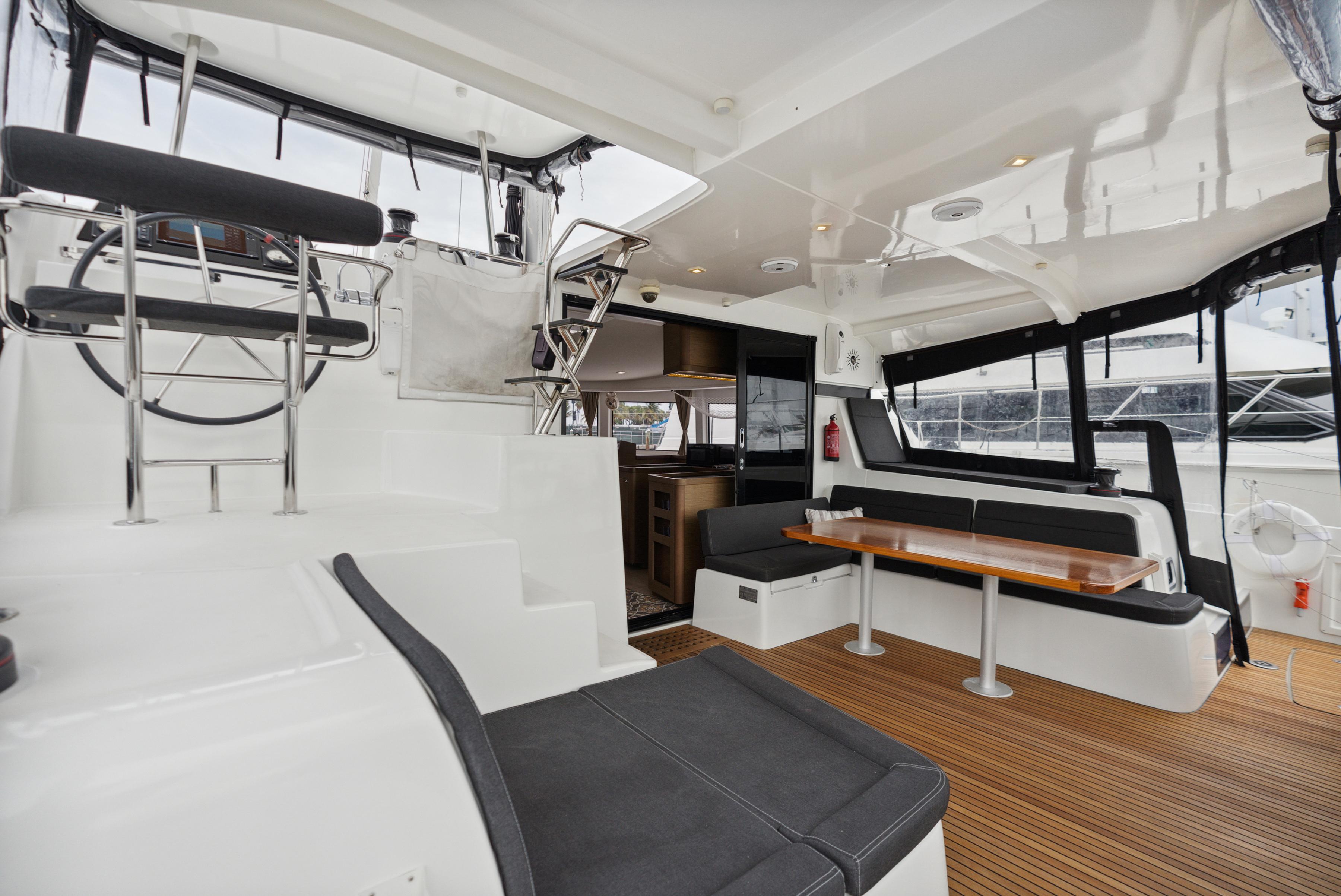

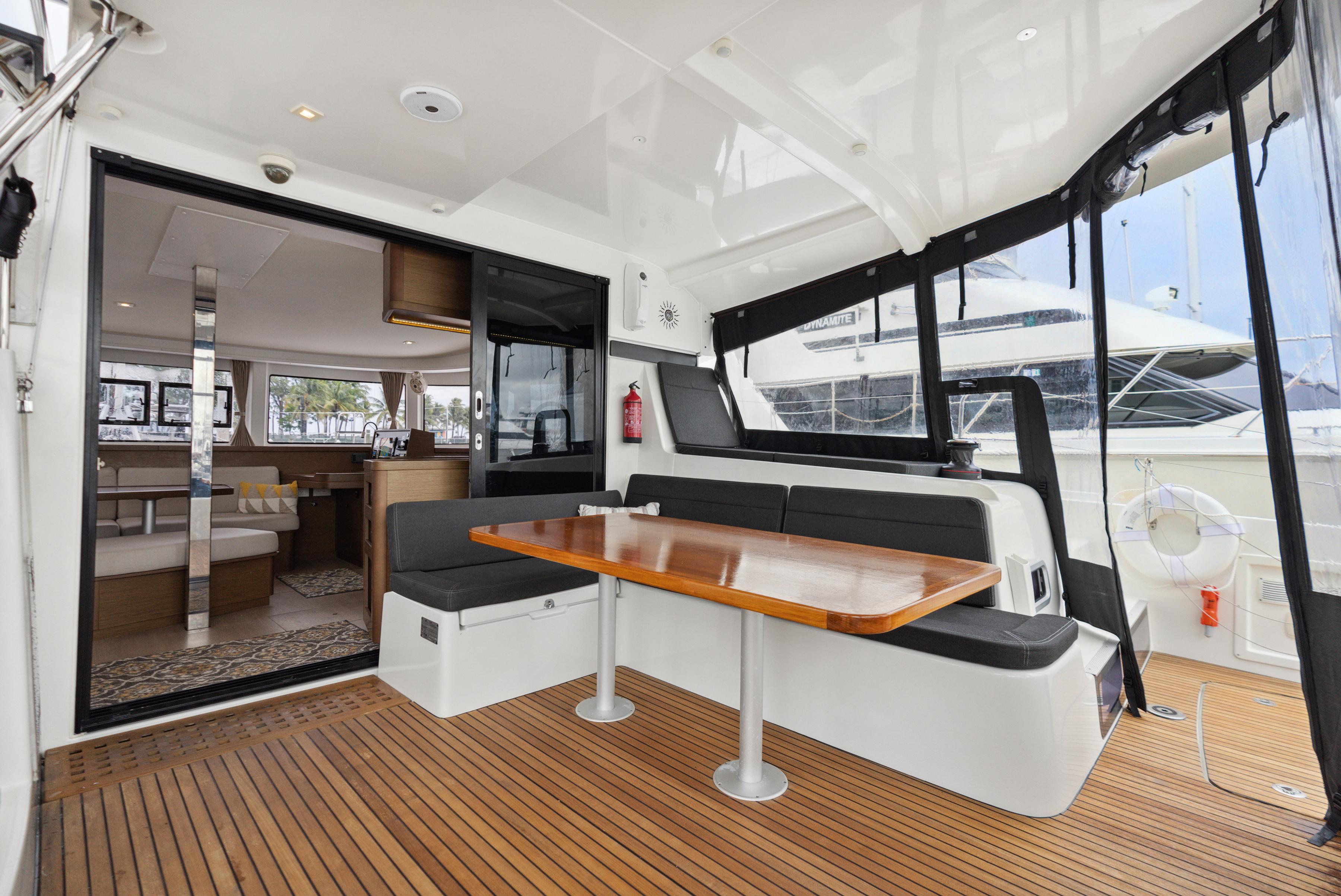

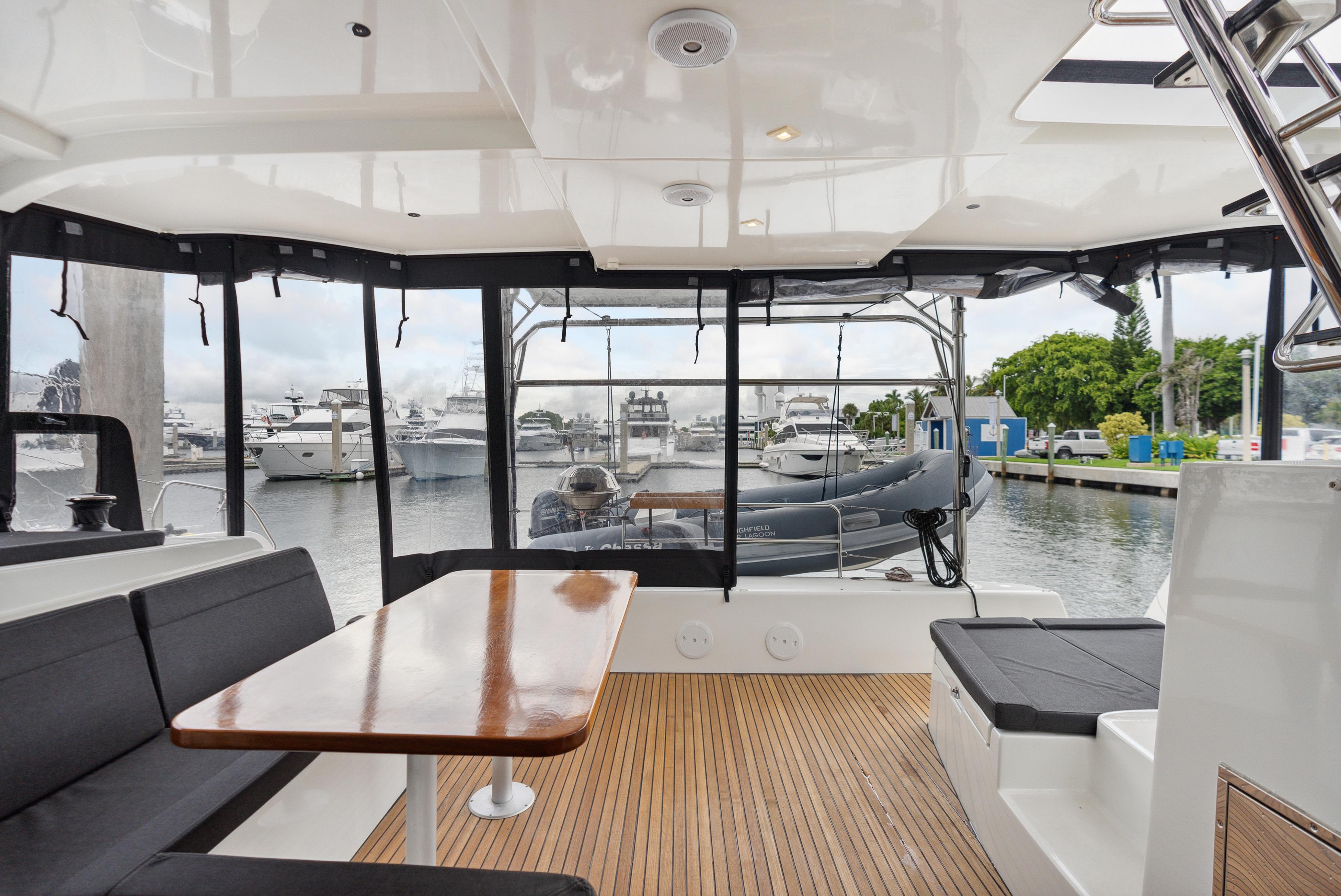

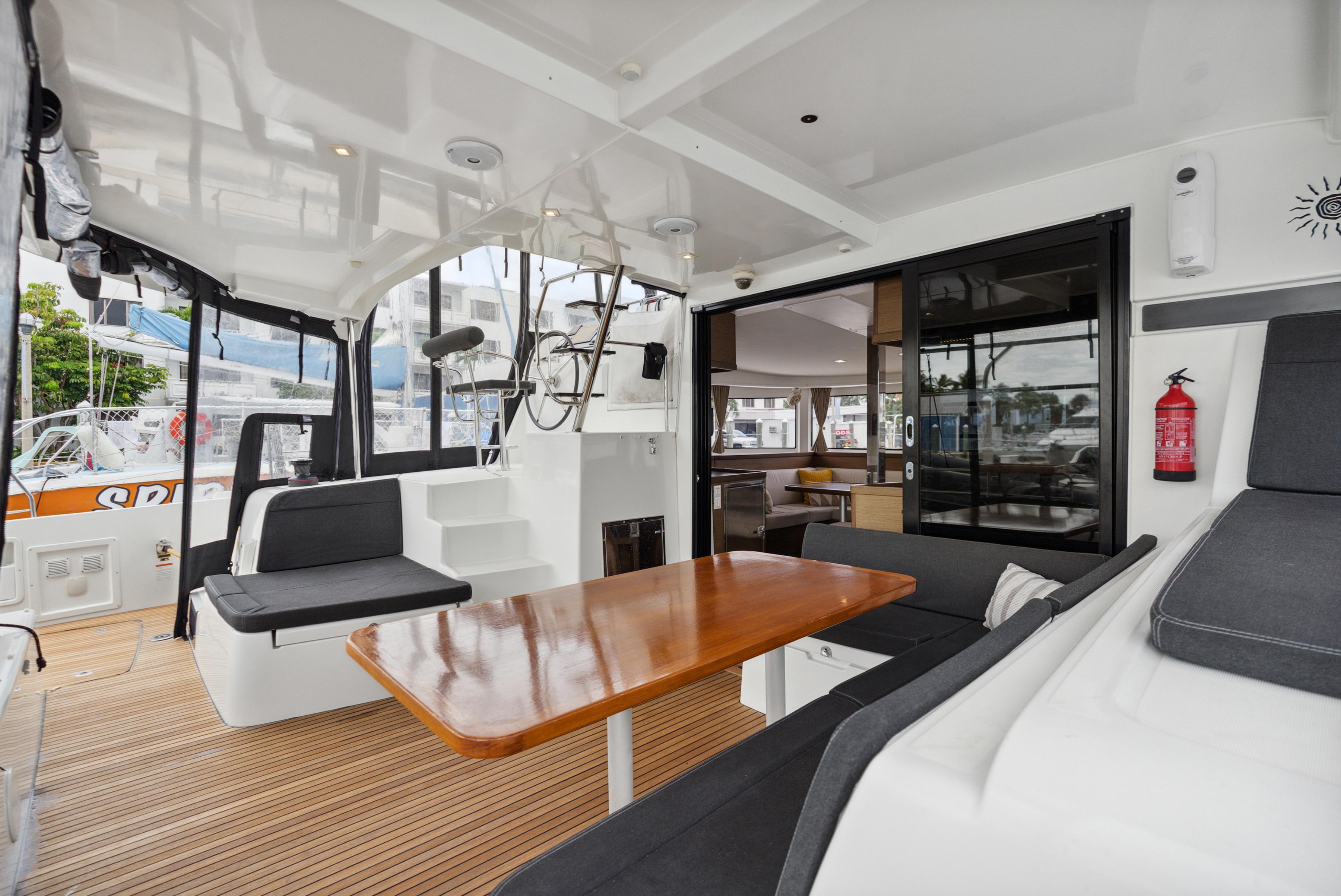

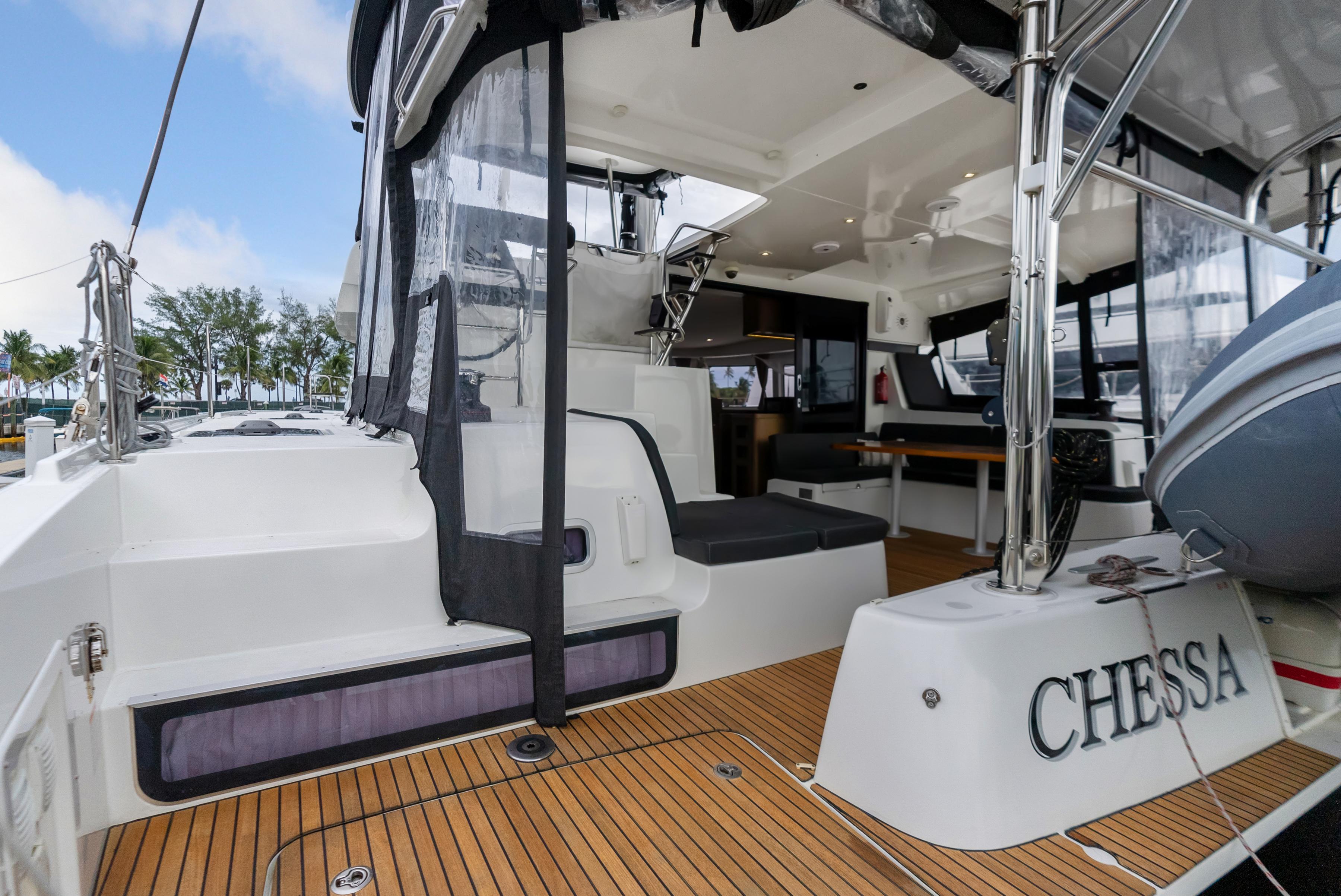

Aft Deck
  • Fiberglass construction with teak decking
  • Sole: Teak decking.
  • Lighting: (2) LED overhead lights and (6) small stick on D.C. lights

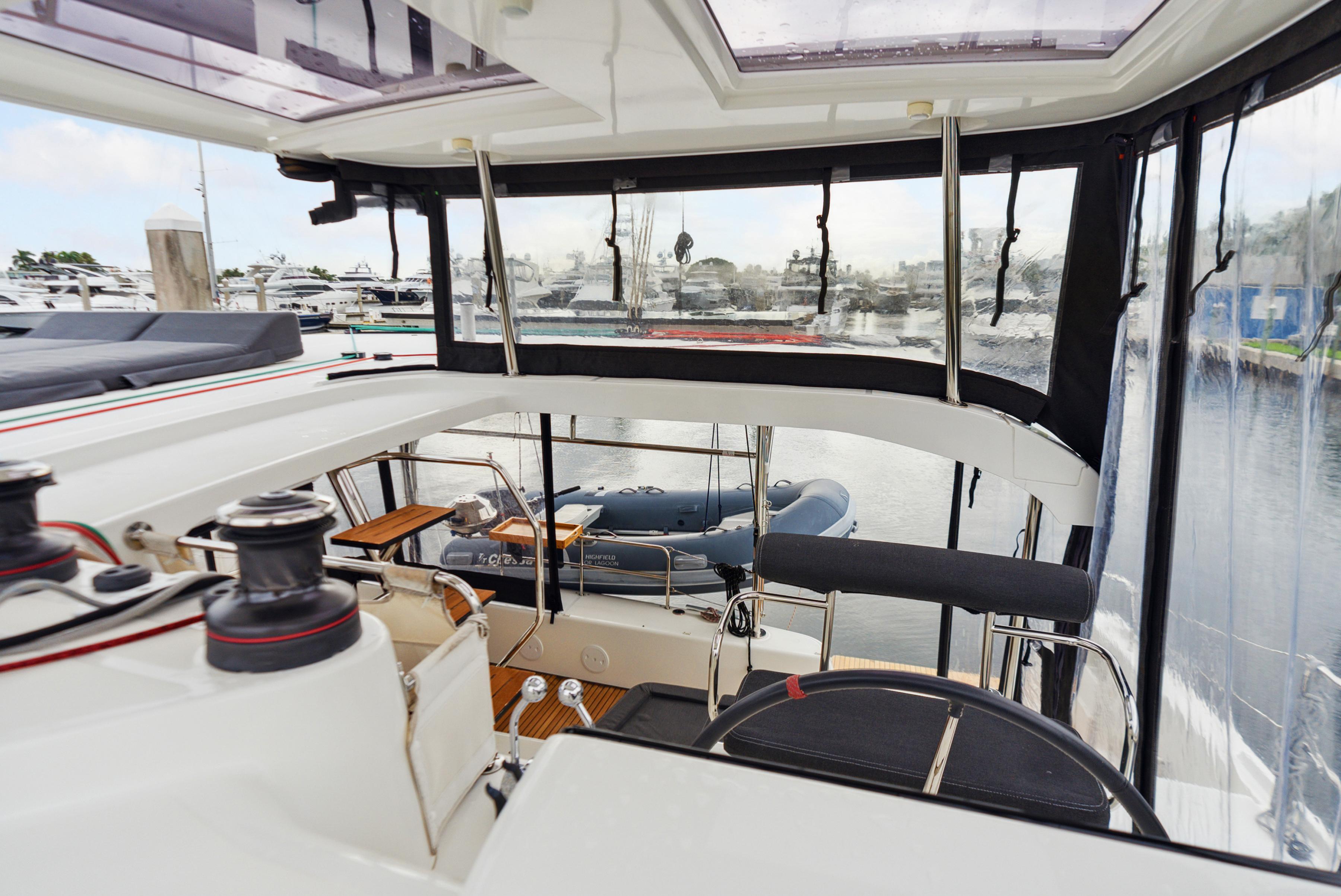

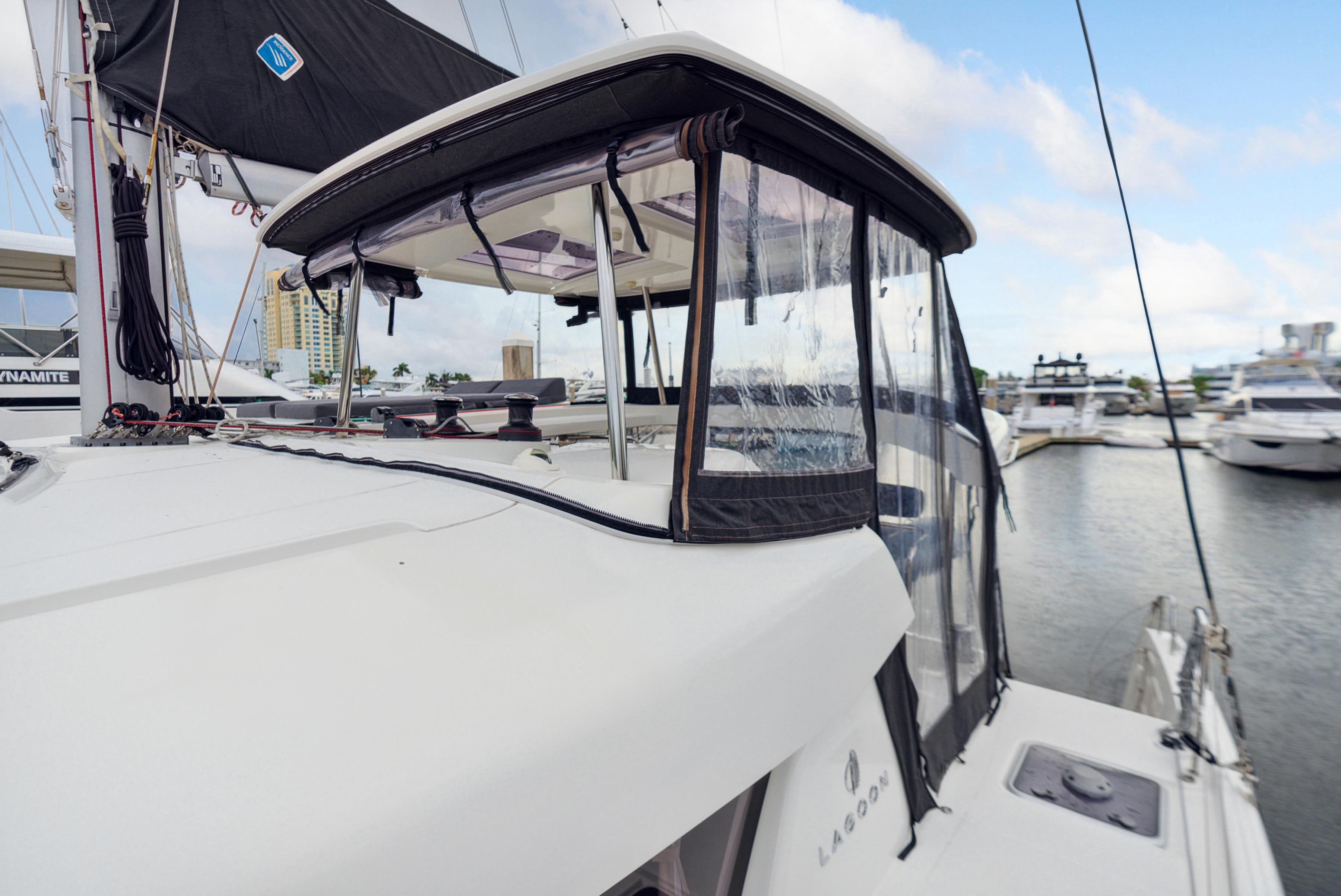

  • Full isinglass enclosure for cockpit and helm area
  • Isotherm 12-volt model DR65 Refrigerator
  • LPG locker under portside cockpit settee with 2 propane bottles
  • Mahogany cockpit table
Navigation and Electronics

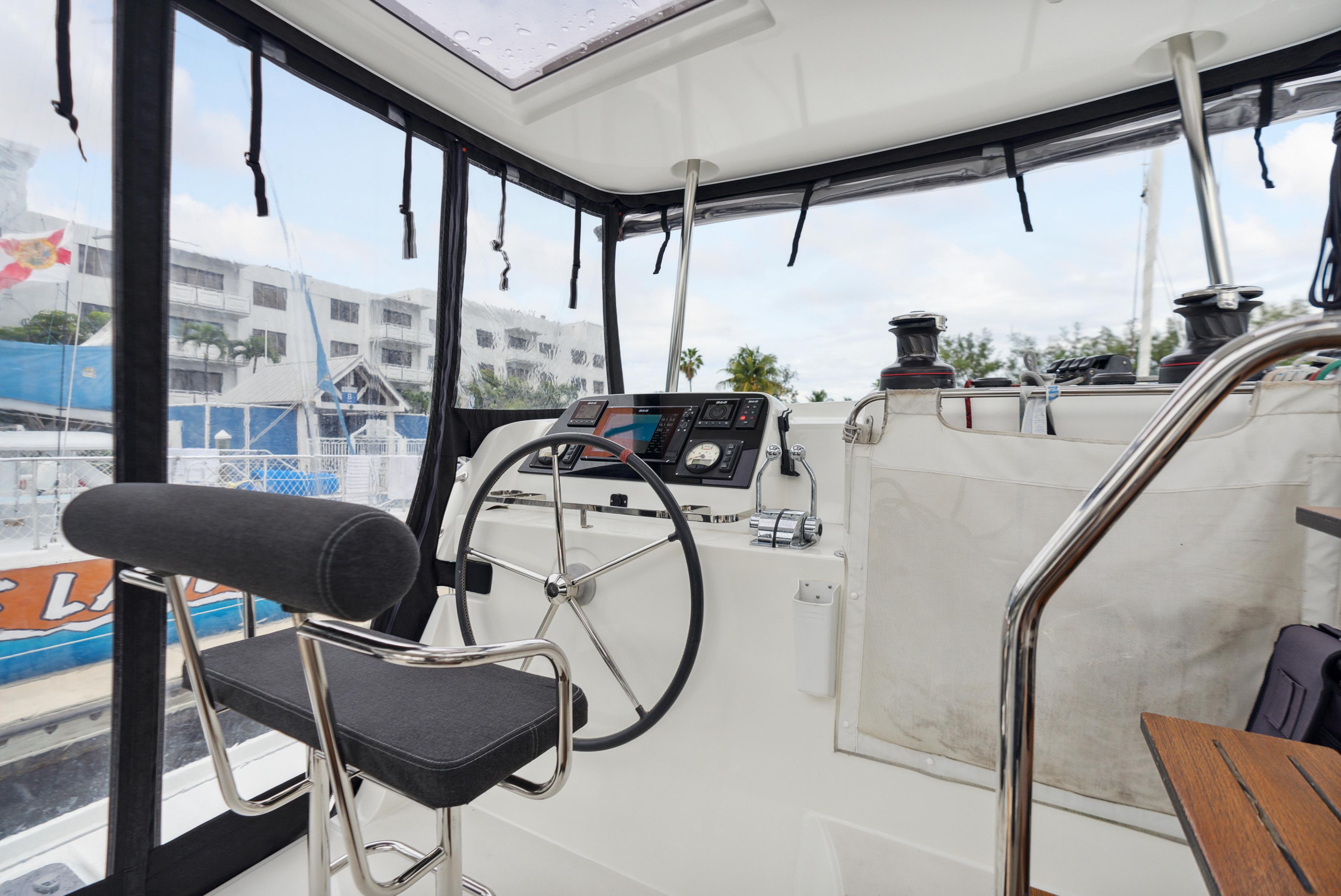

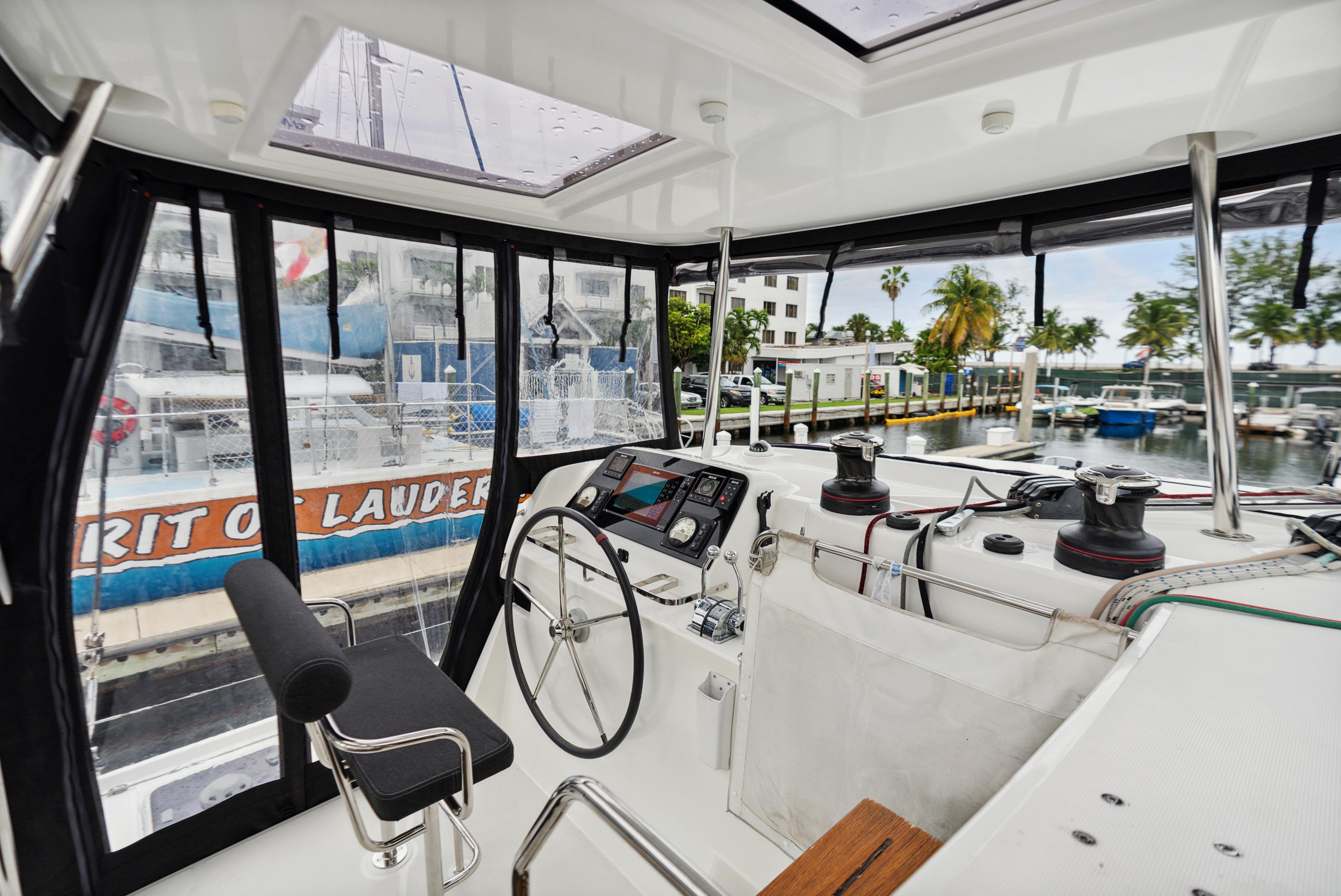

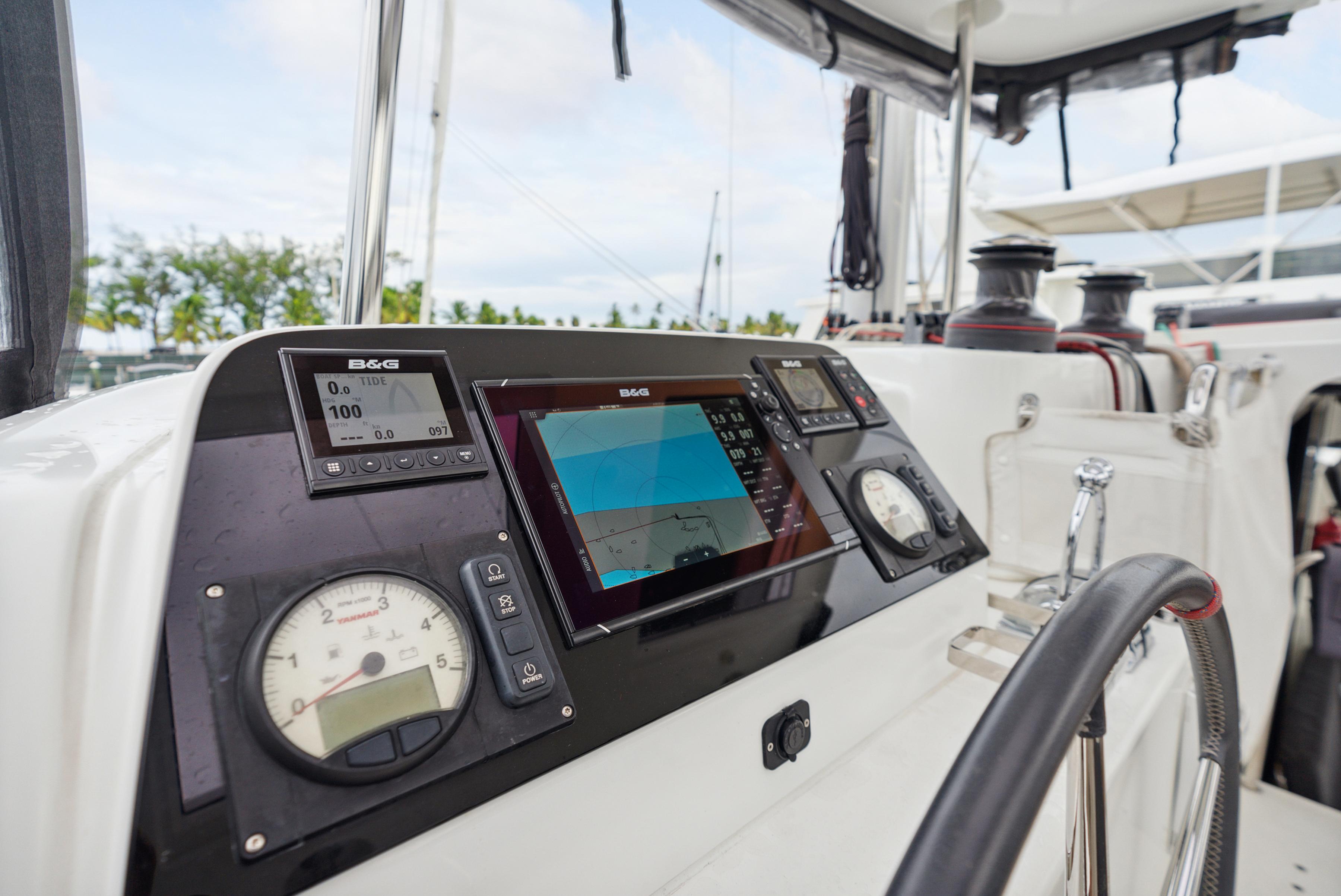

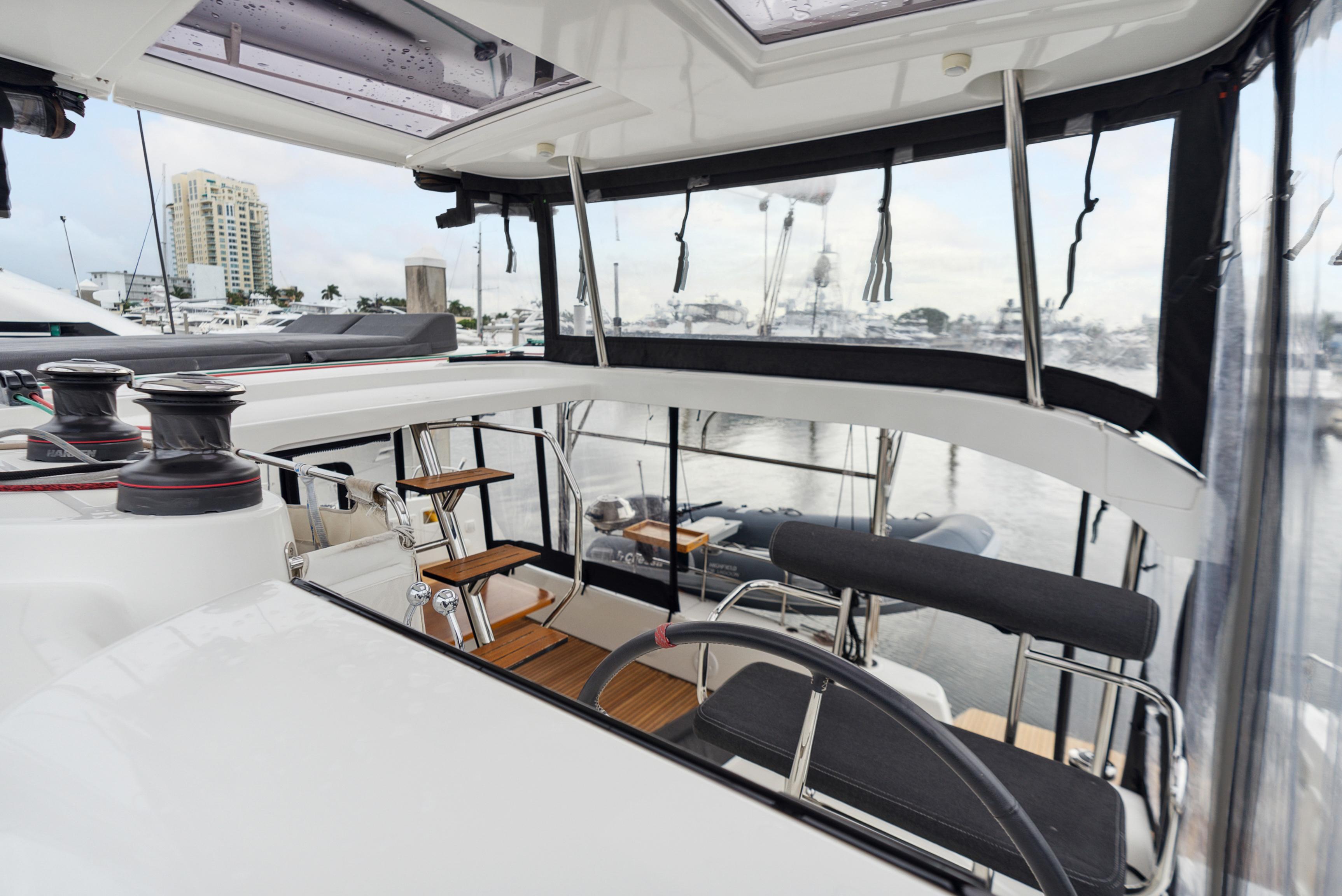

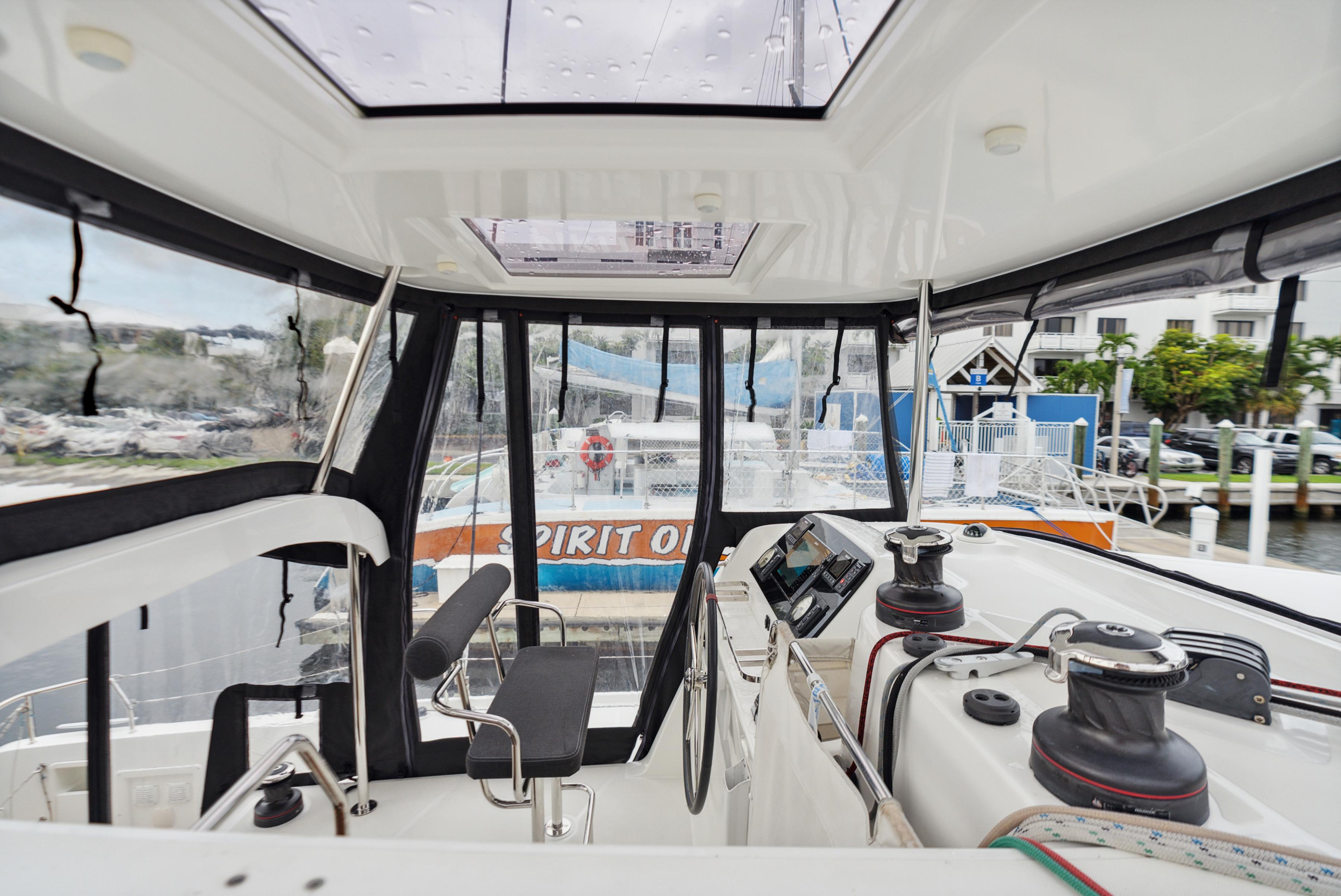

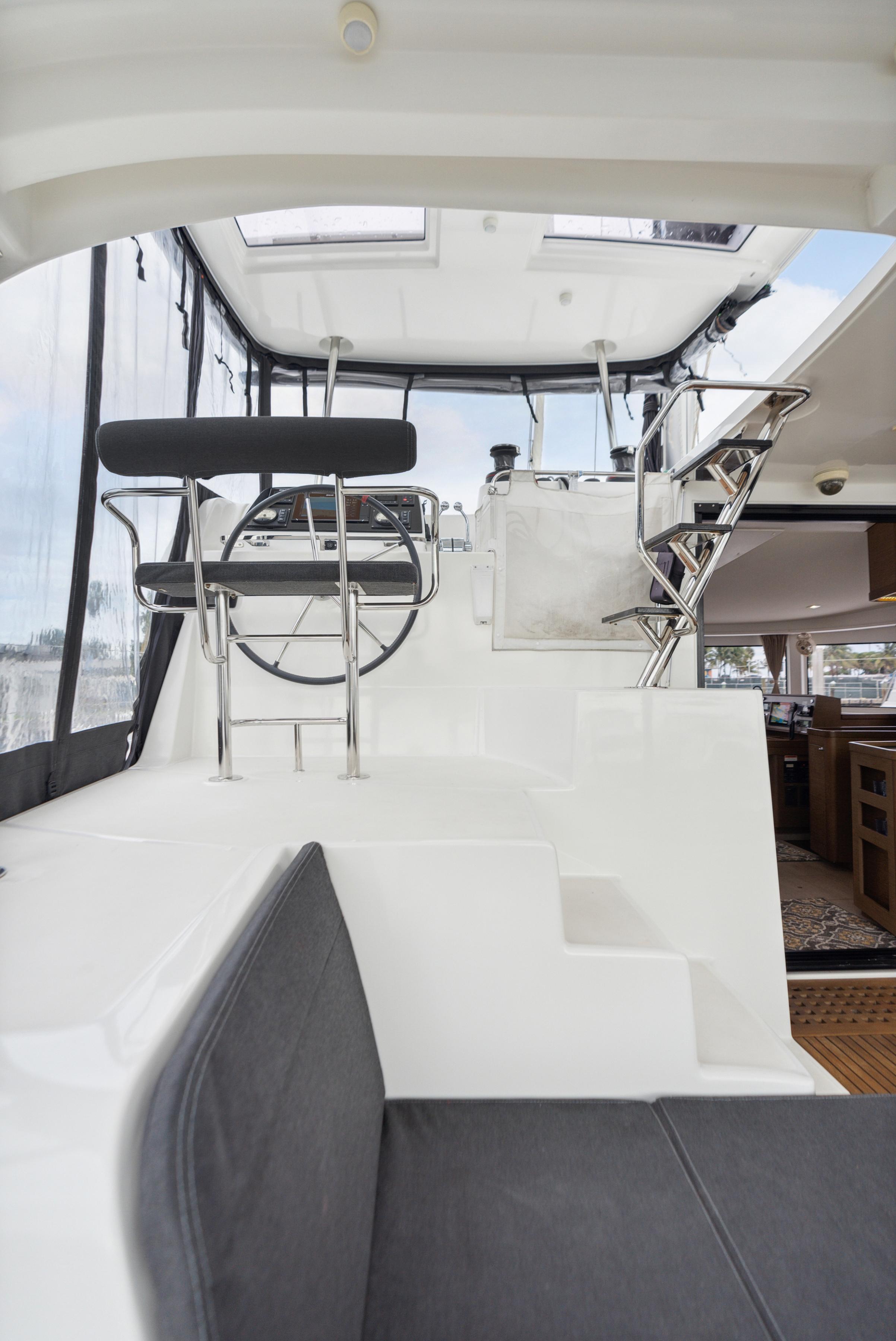

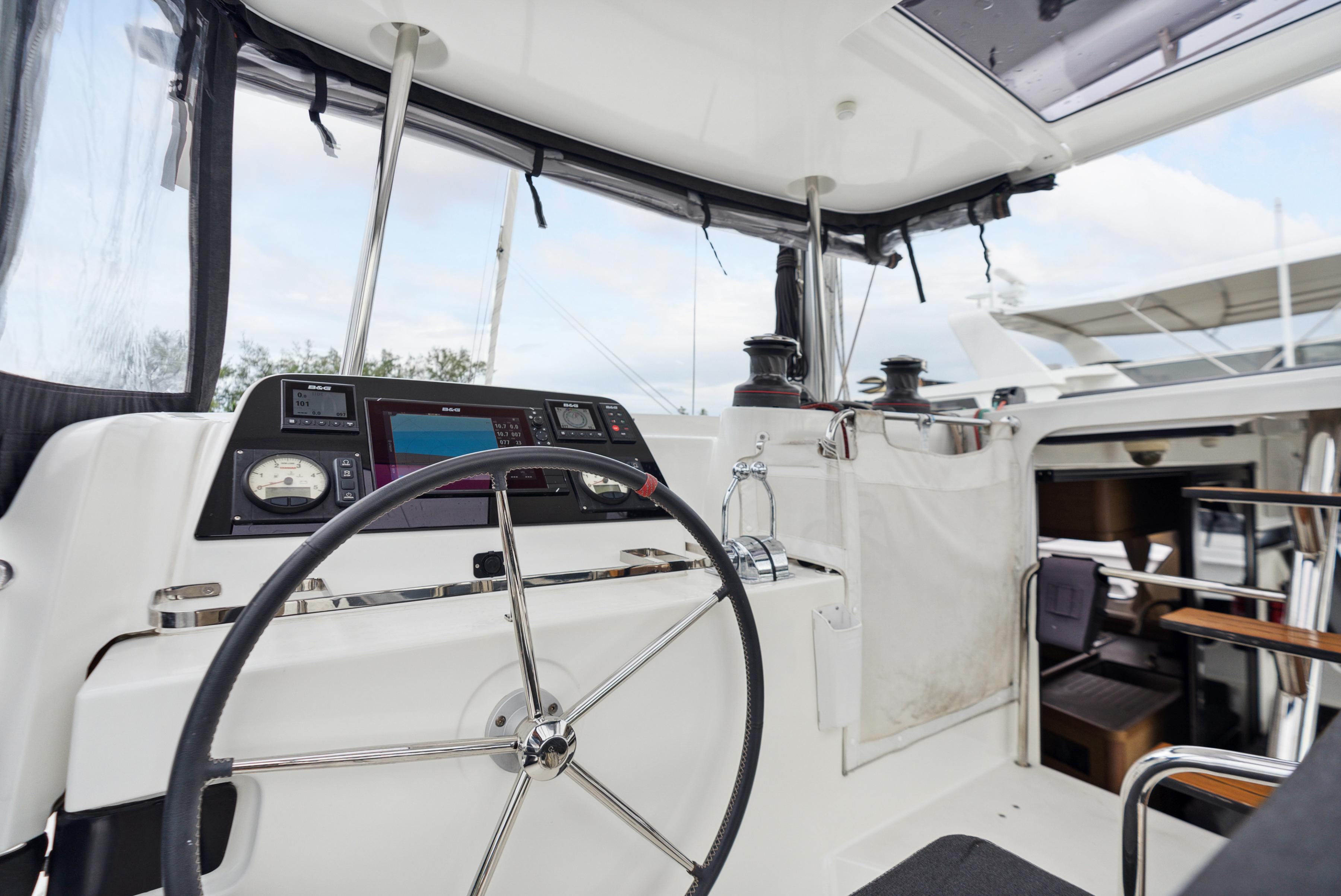

Helm

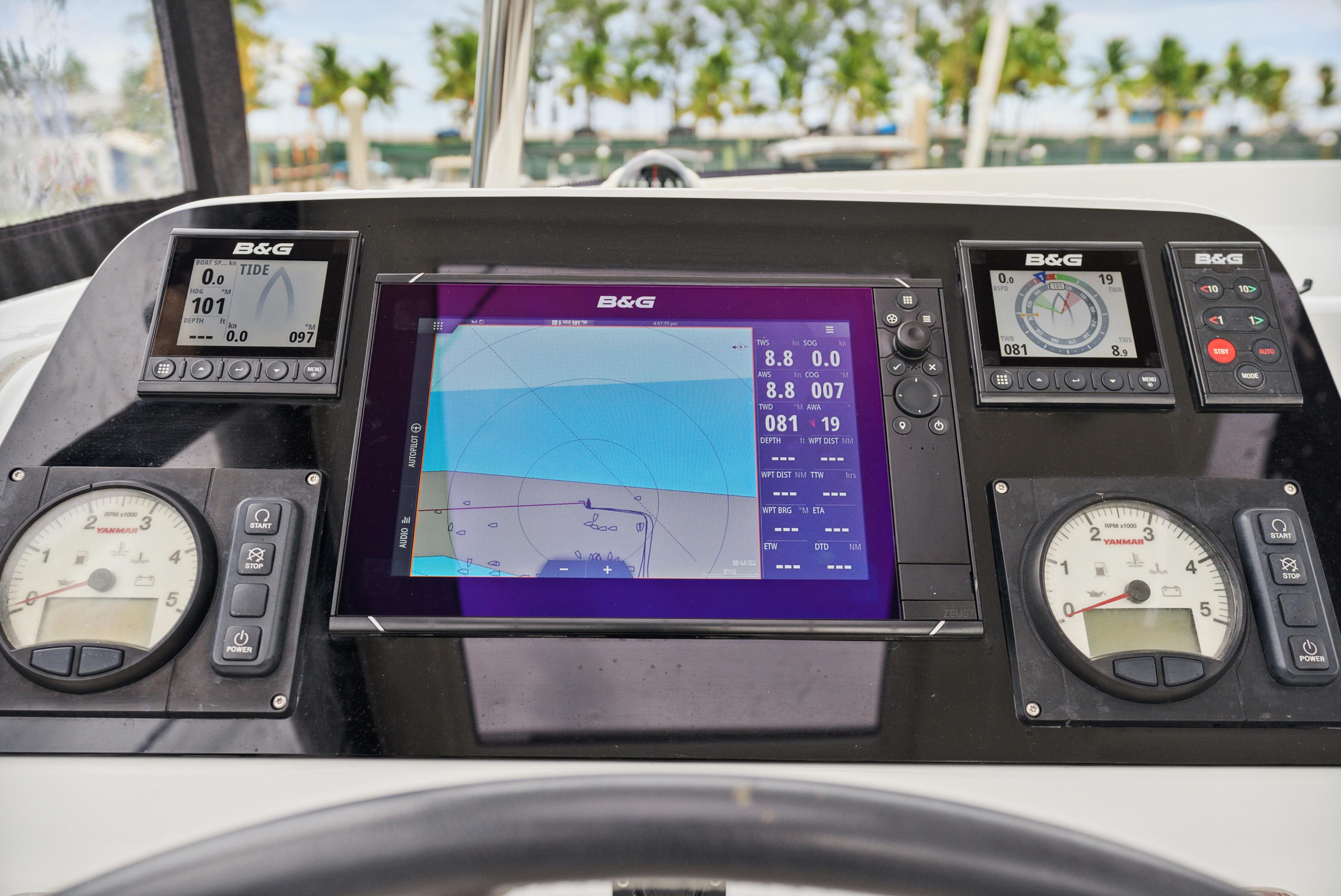

  • B&G Zeus 3 12” GPS chartplotter/ sonar/ radar
  • (2) B&G Triton 2 Multi-function displays
  • B&G Triton 2 Autopilot
  • Plastimo Compass

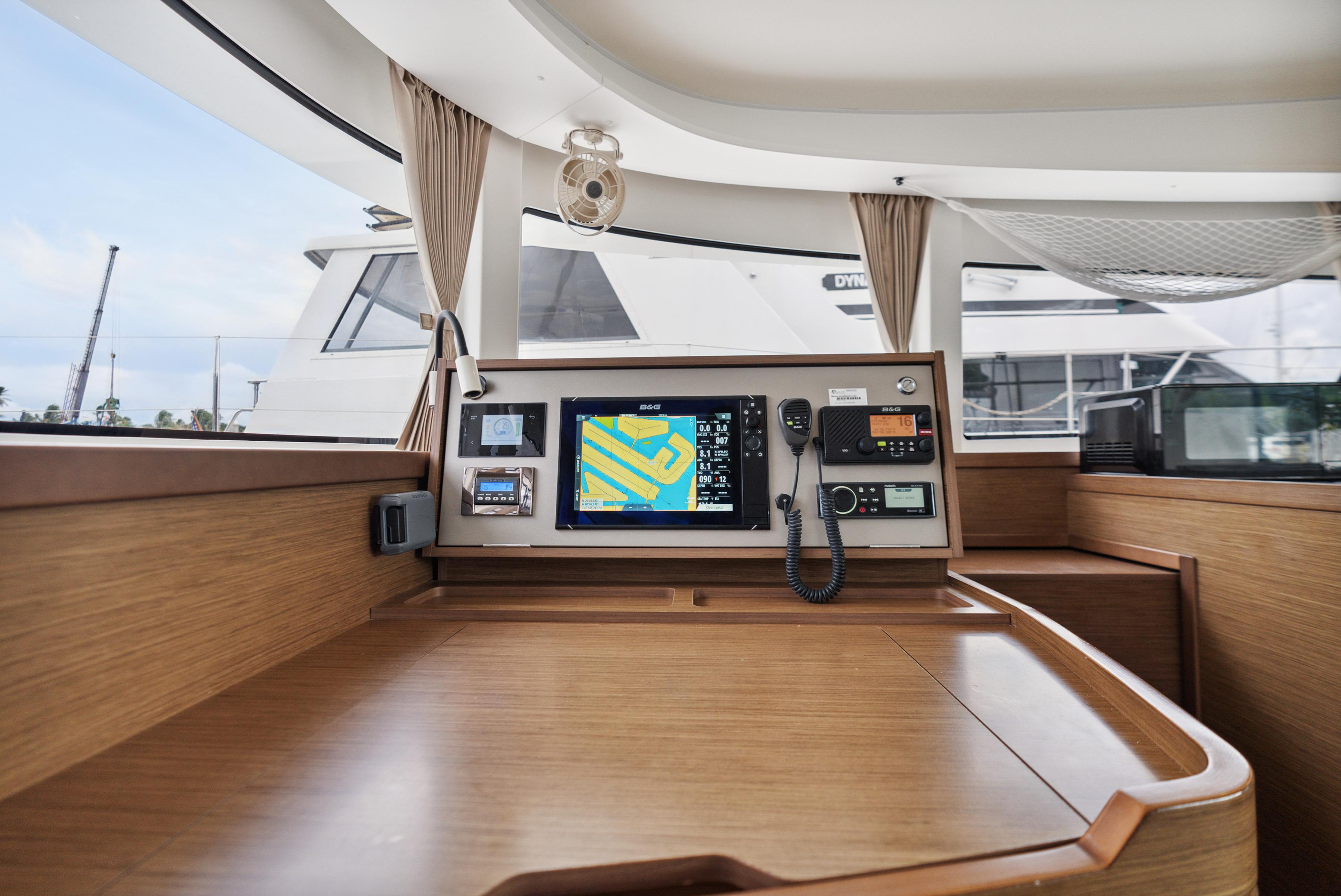

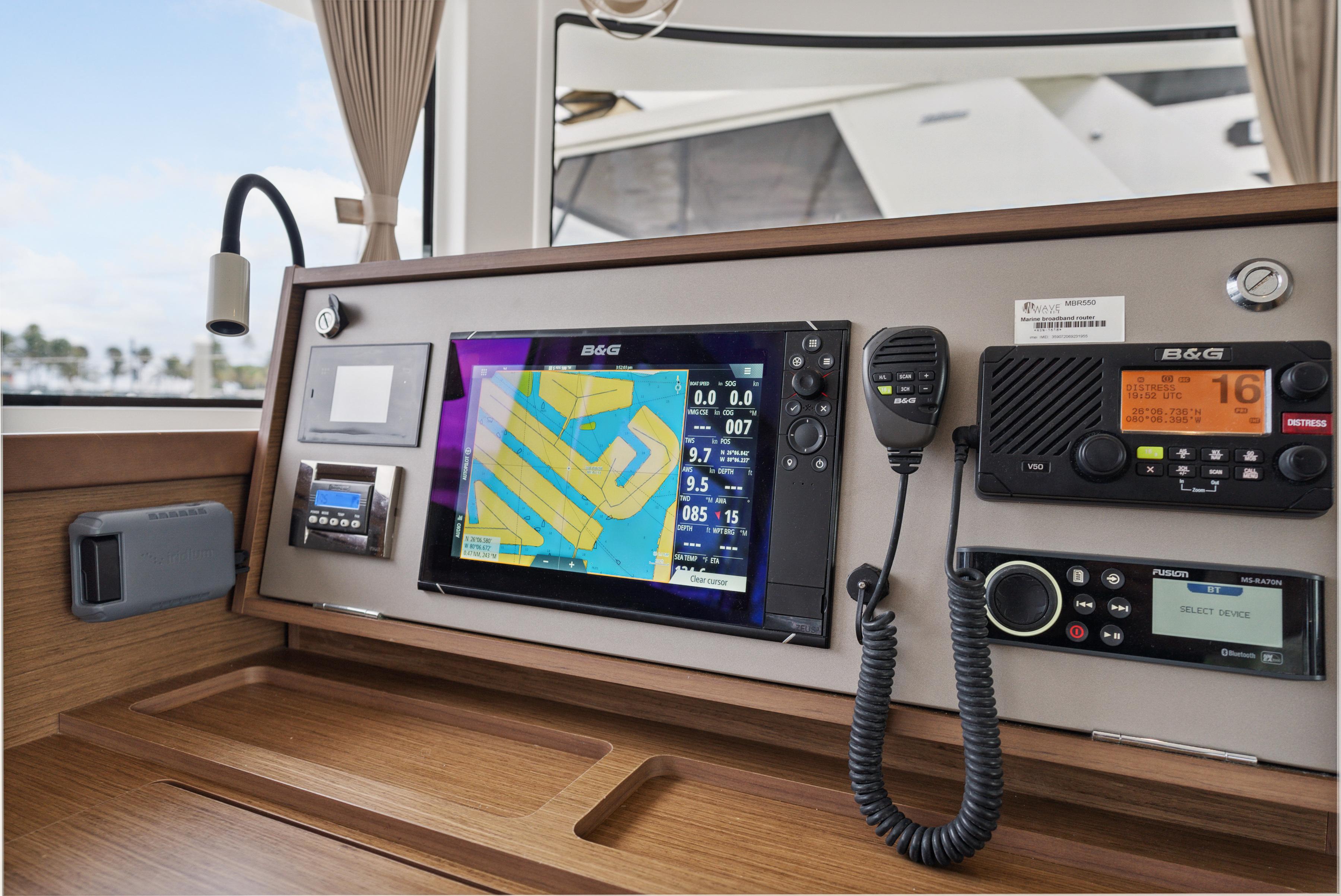

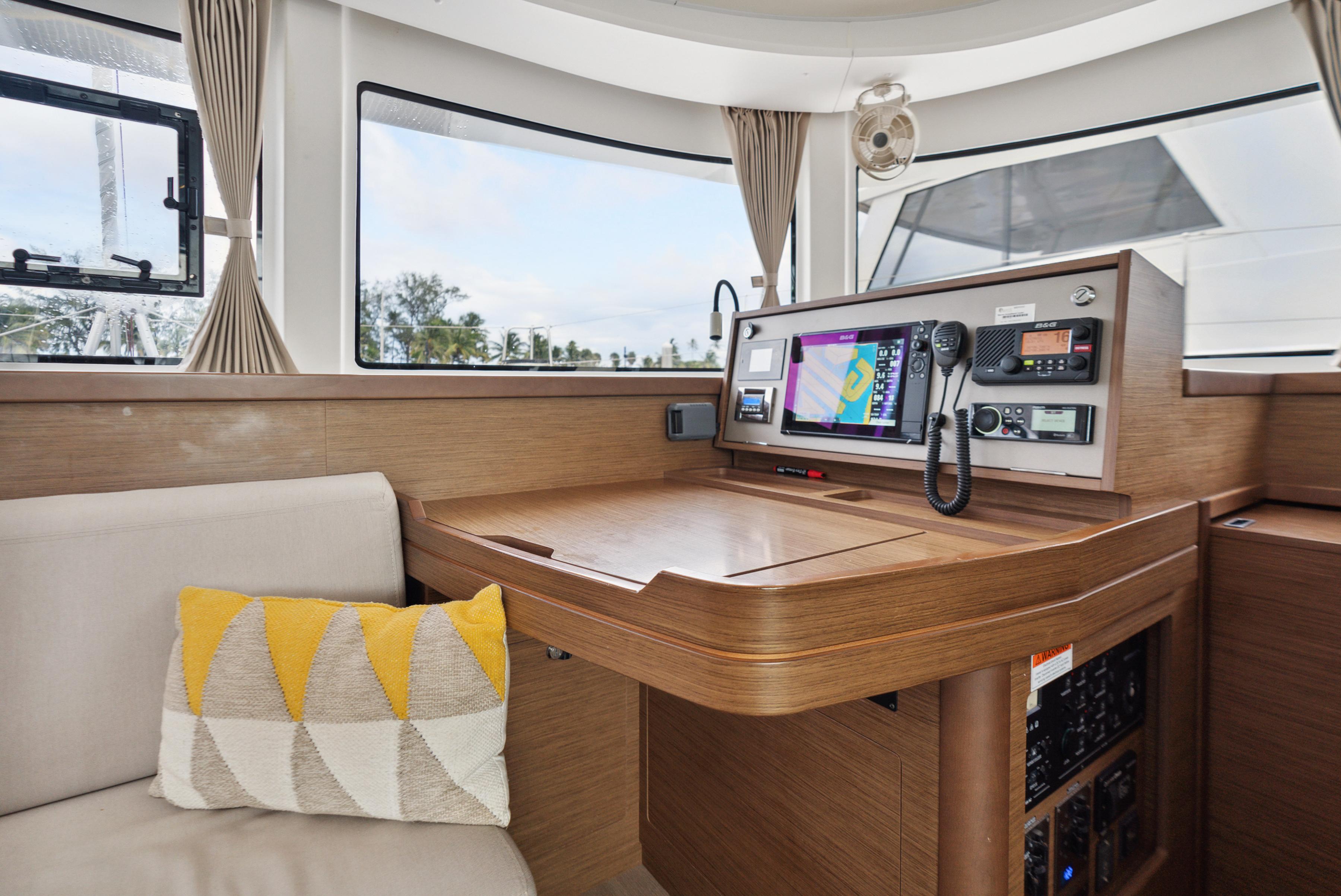

Navigation Station

  • B&G Zeus 3 12” GPS chartplotter/ sonar/ radar
  • B&G V50 VHF



Other Electronics and Controls

  • VHF antenna on masthead

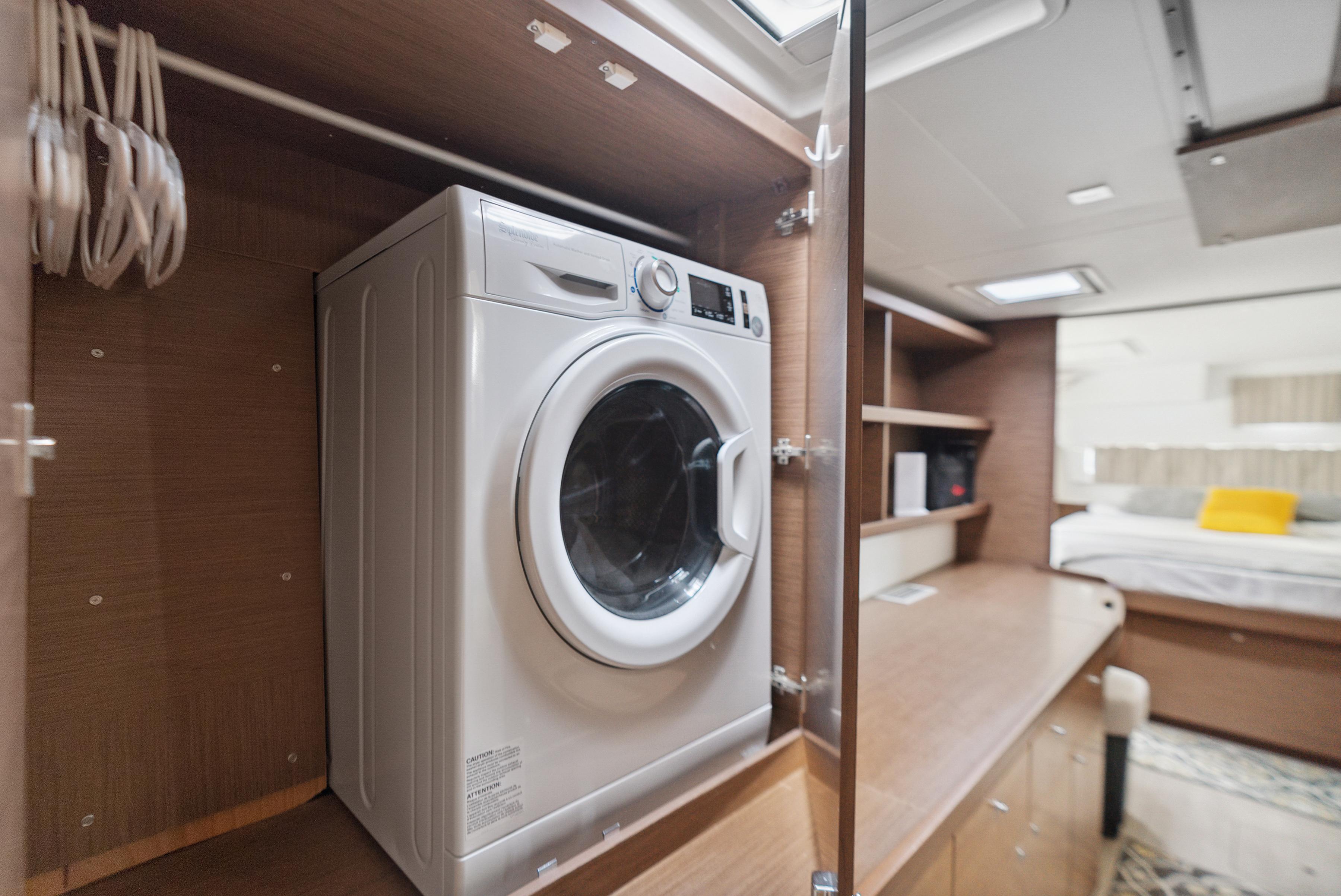

  • Vented Splendide Washing Machine (2021) - Just Catamarans
  • Courtesy lights
  • High water alarm
  • Windlass controls
  • IridiumGo (New 2022)
  • Wifi / Cell system (2021) - Just Catamarans



Entertainment Electronics

  • Fusion MS-RA70N AM/FM/BT Stereo with (2) Fusion speakers in salon and (2) Fusion speakers in cockpit

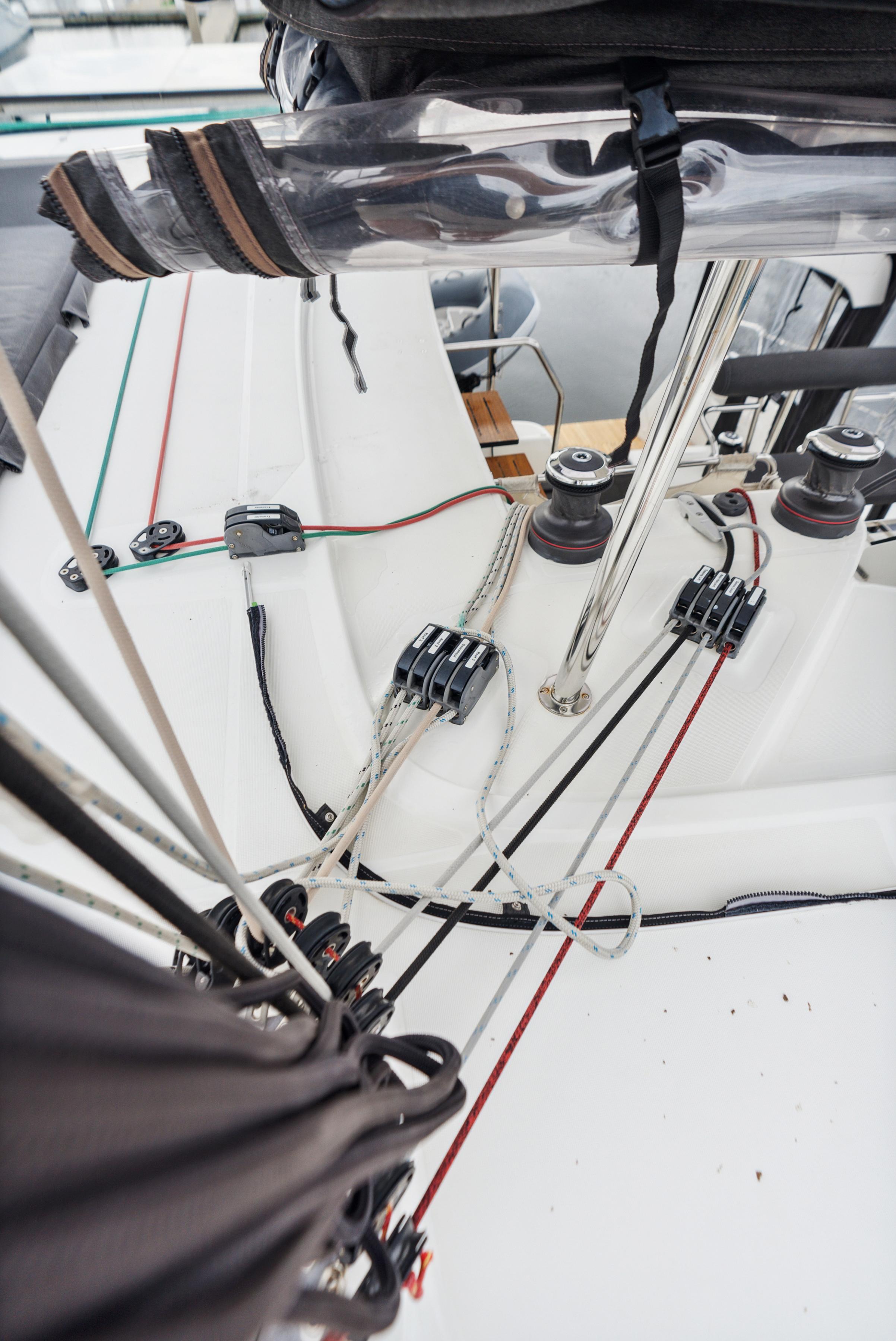

Sails and Rigging
  • Mast: Aluminum deck stepped single spreader fractional rigged mast manufactured by VMG Soromap
  • Standing rigging: 19 strand stainless steel cable

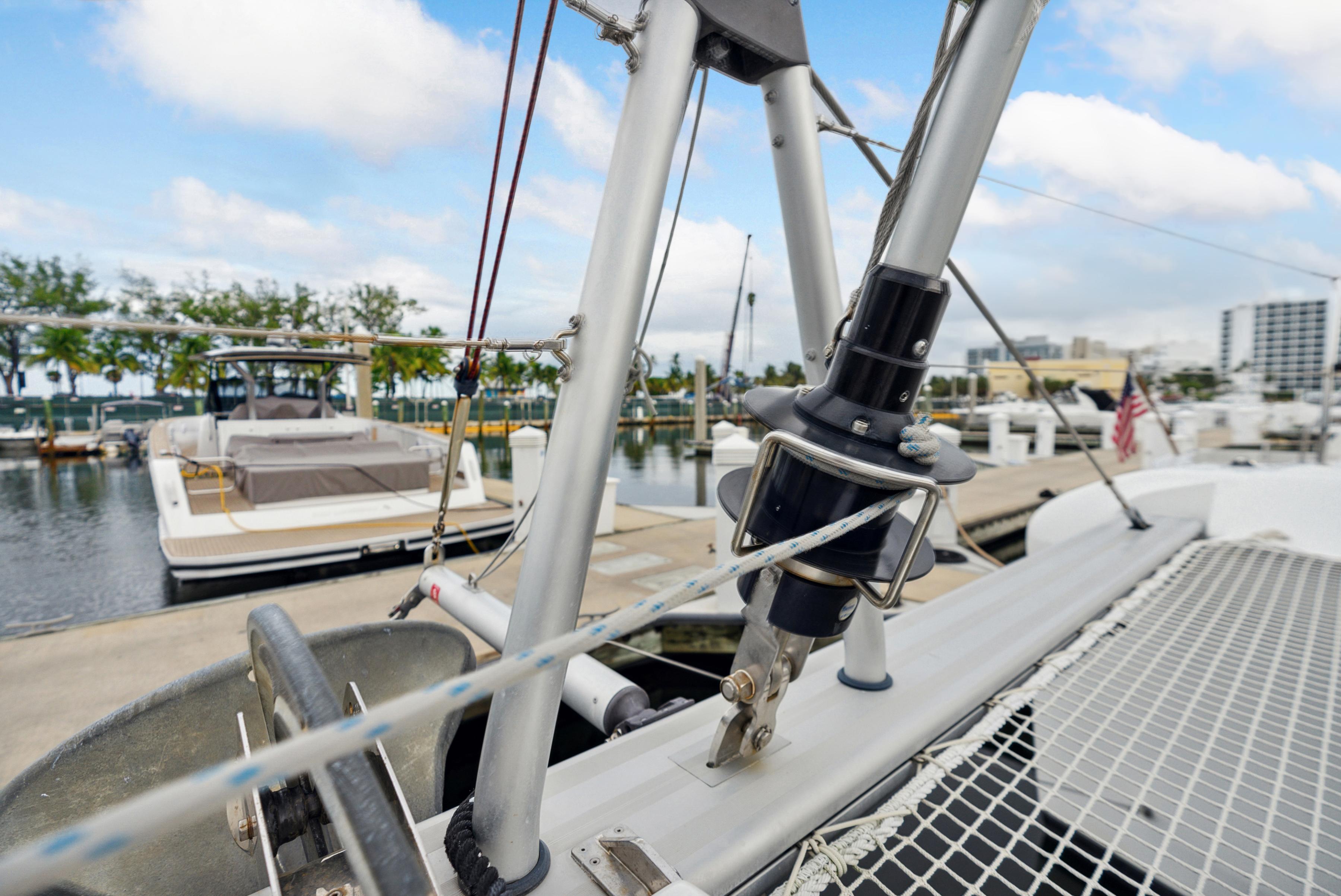

  • Furler: Facnor LS200 furling system
  • Boom: VMG Soromap aluminum boom with stack pack style sail storage system
  • Main sail: Manufactured by Incidence Sails
  • Jib sail: Manufactured by Incidence Sails
  • Code zero sail
  • New Spinnaker - 2022
  • Sail covers: Stack pack style system for main sail and sun cover on genoa.
  • Chain plates
  • Genoa traveler: Harken traveler
  • Aluminum mast base
  • Deck stepped mast
  • (1) halogen light on front of mast

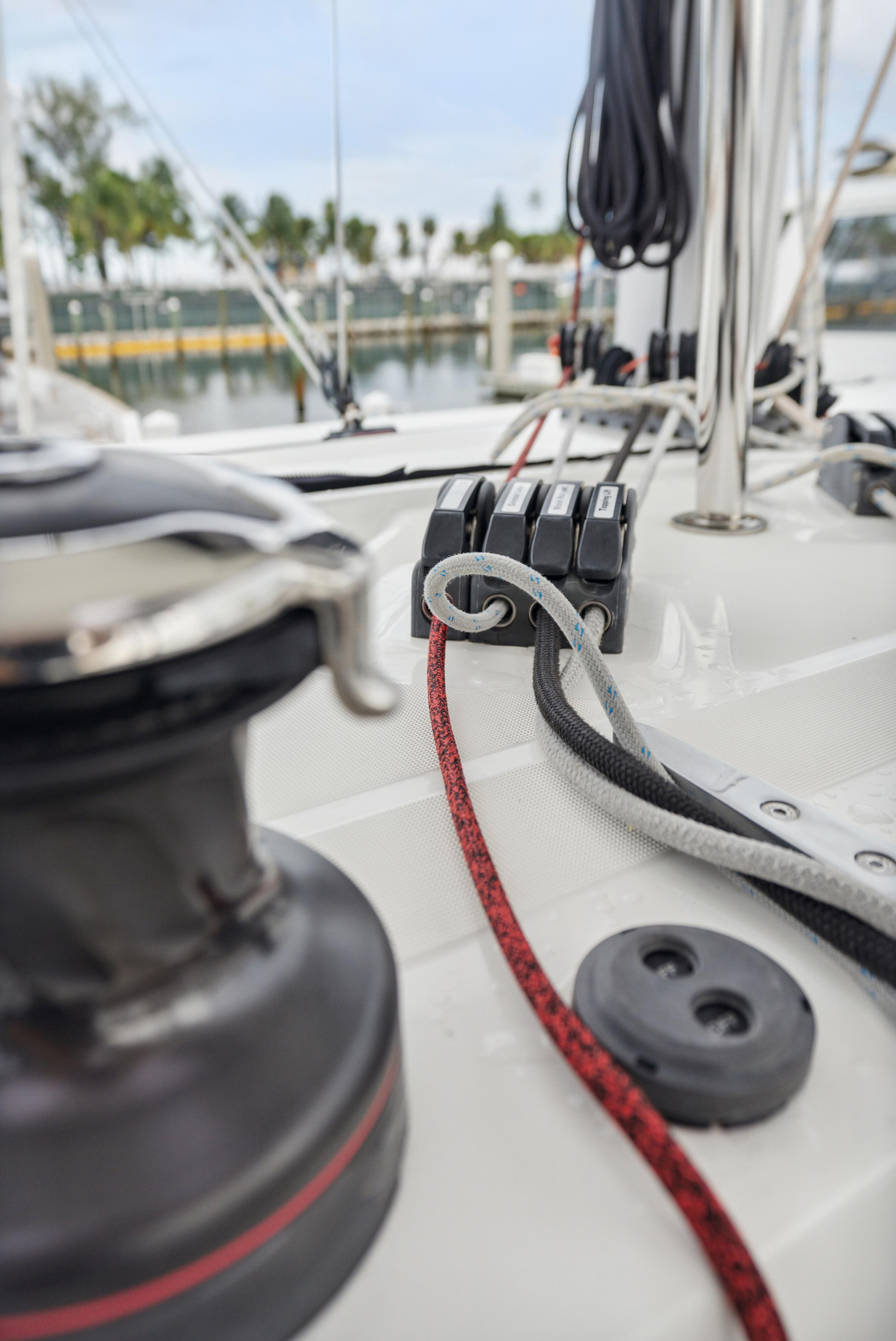

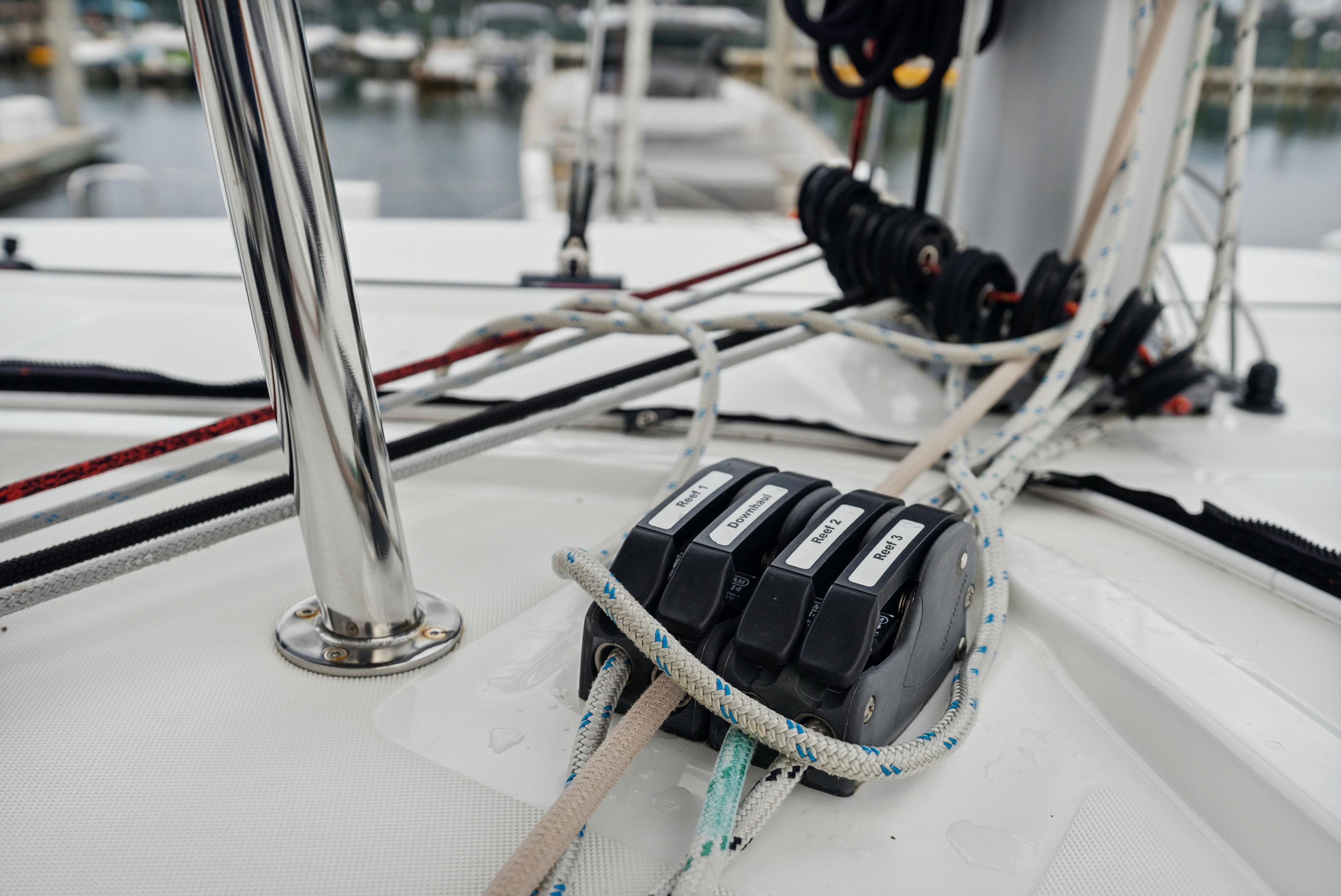

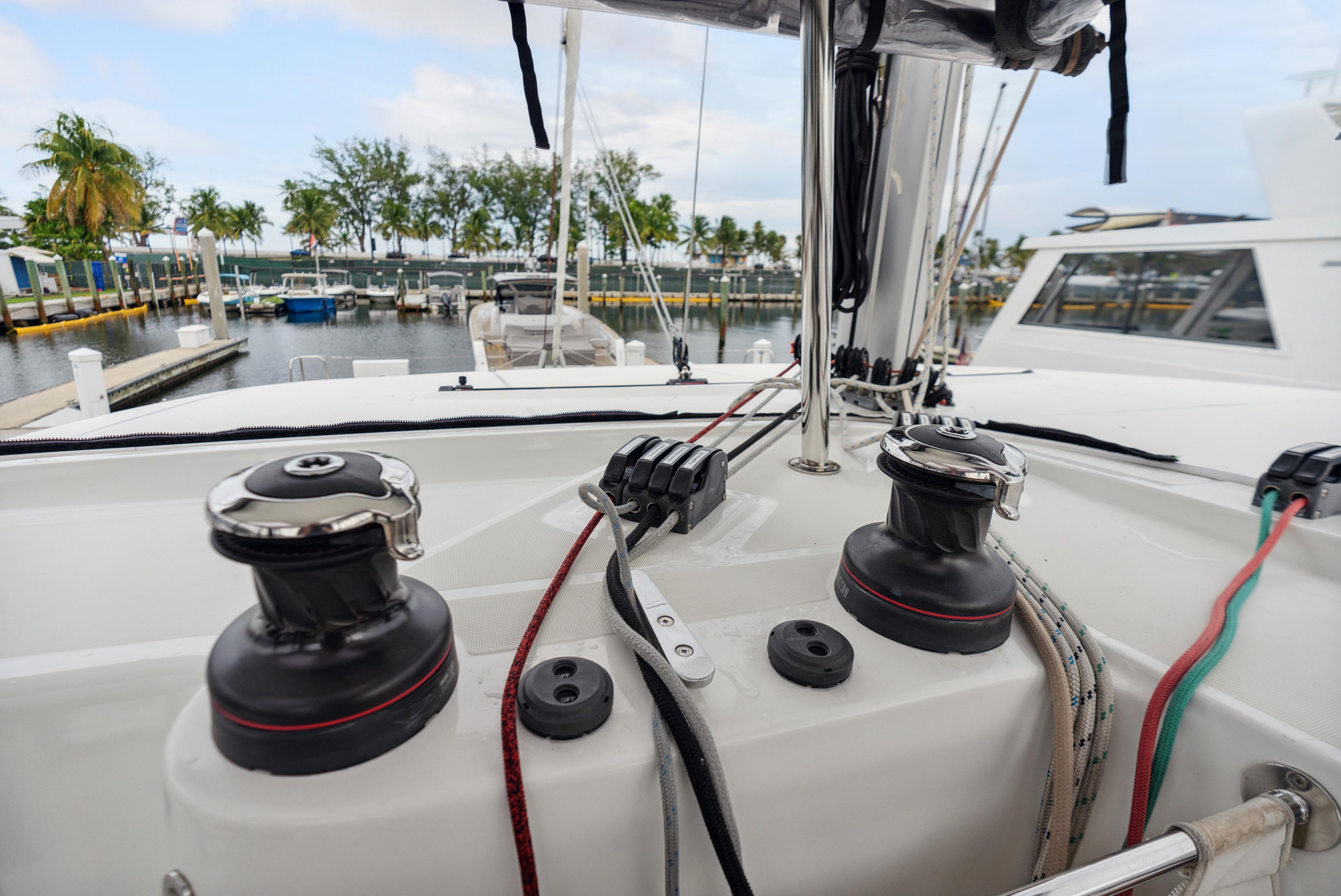

  • (2) Harken electric two-speed size 46 winches
Engine and Mechanical

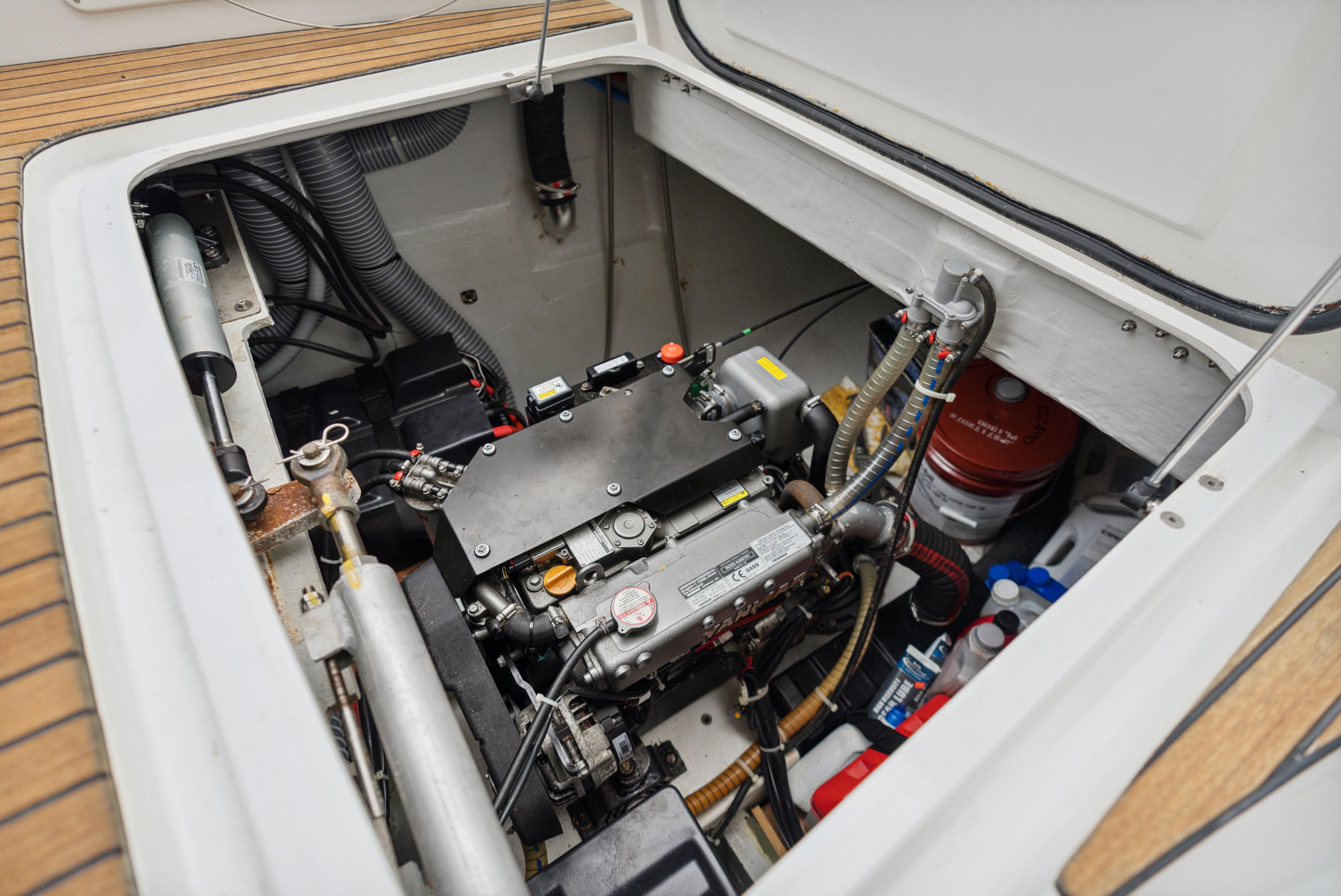

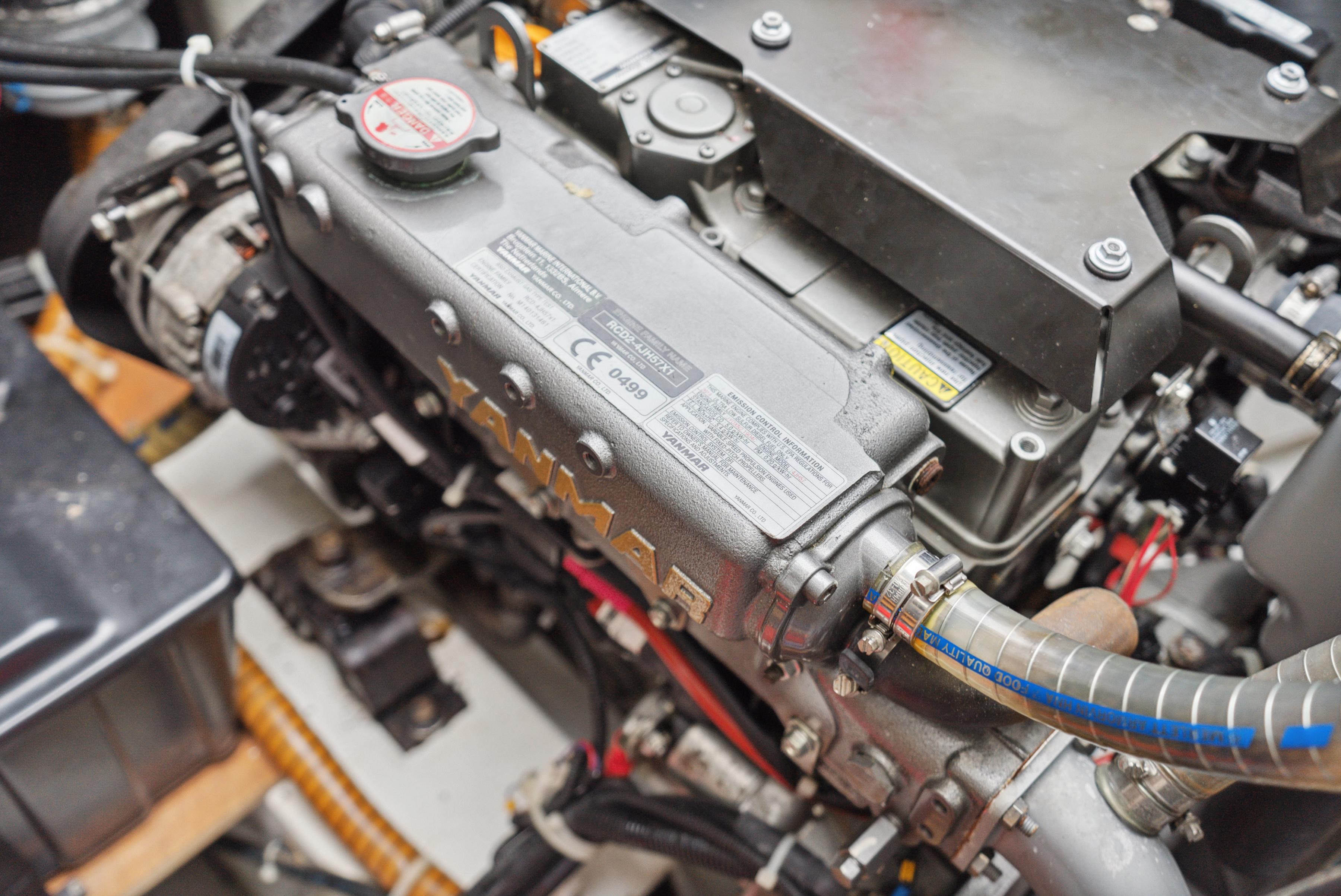

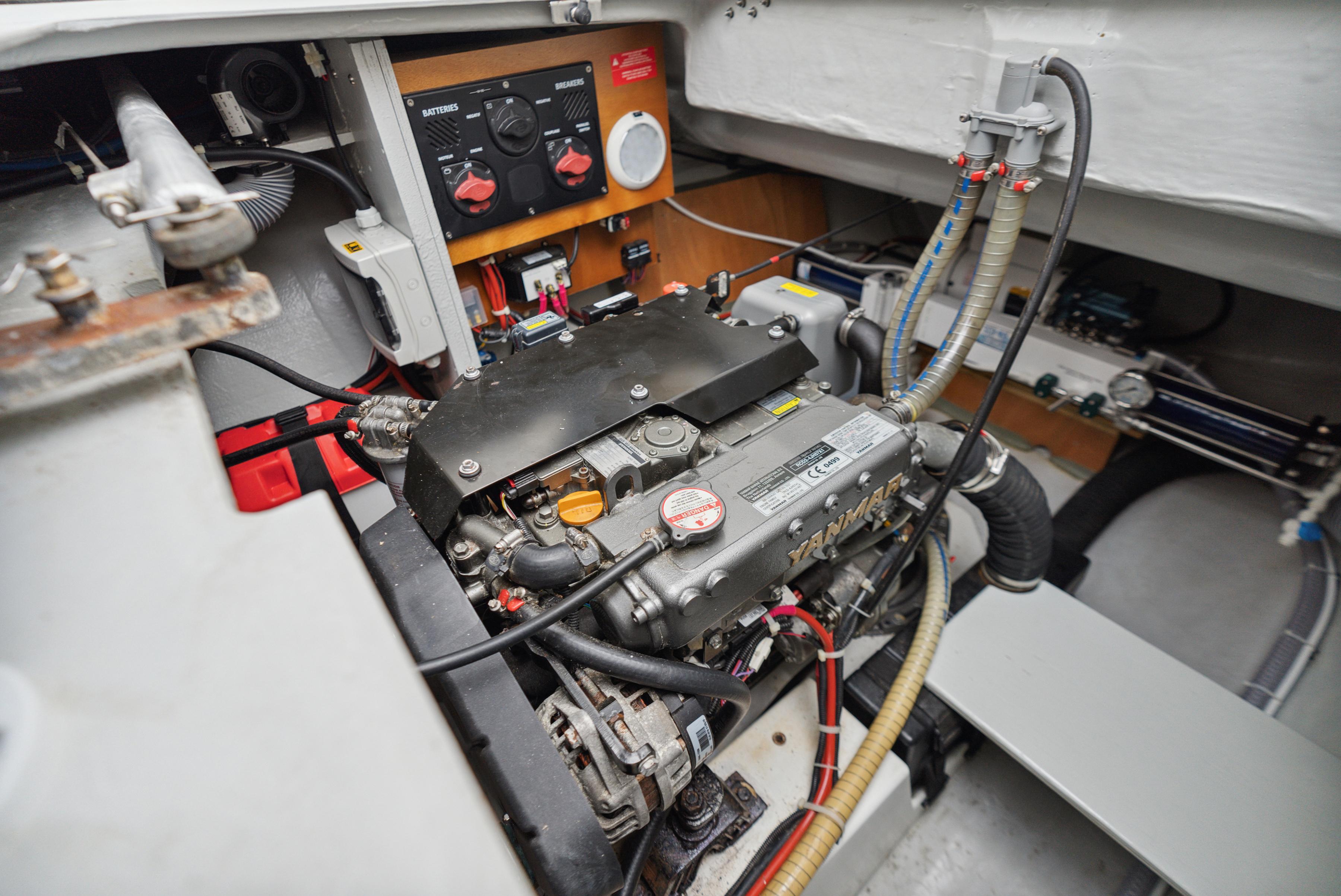

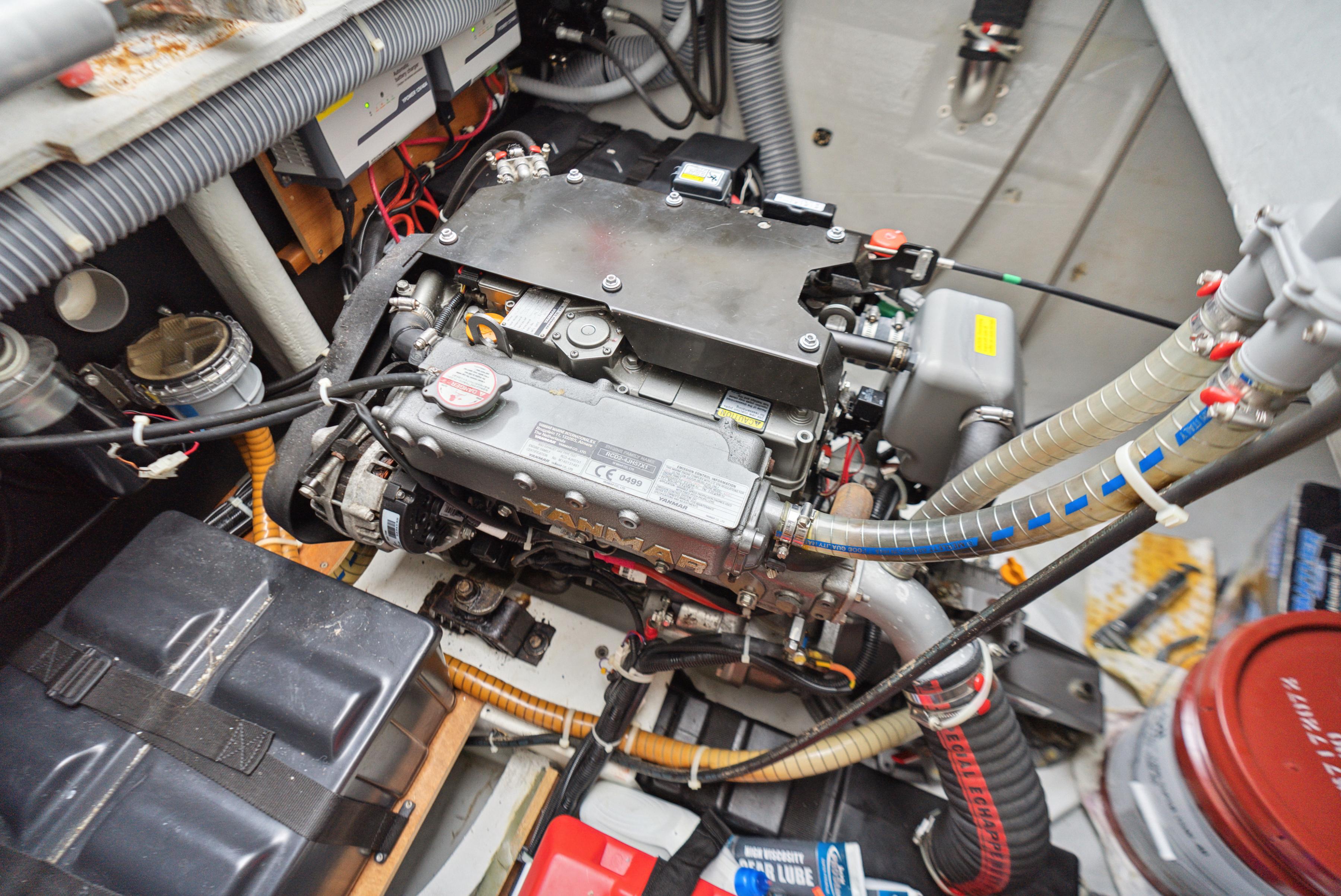

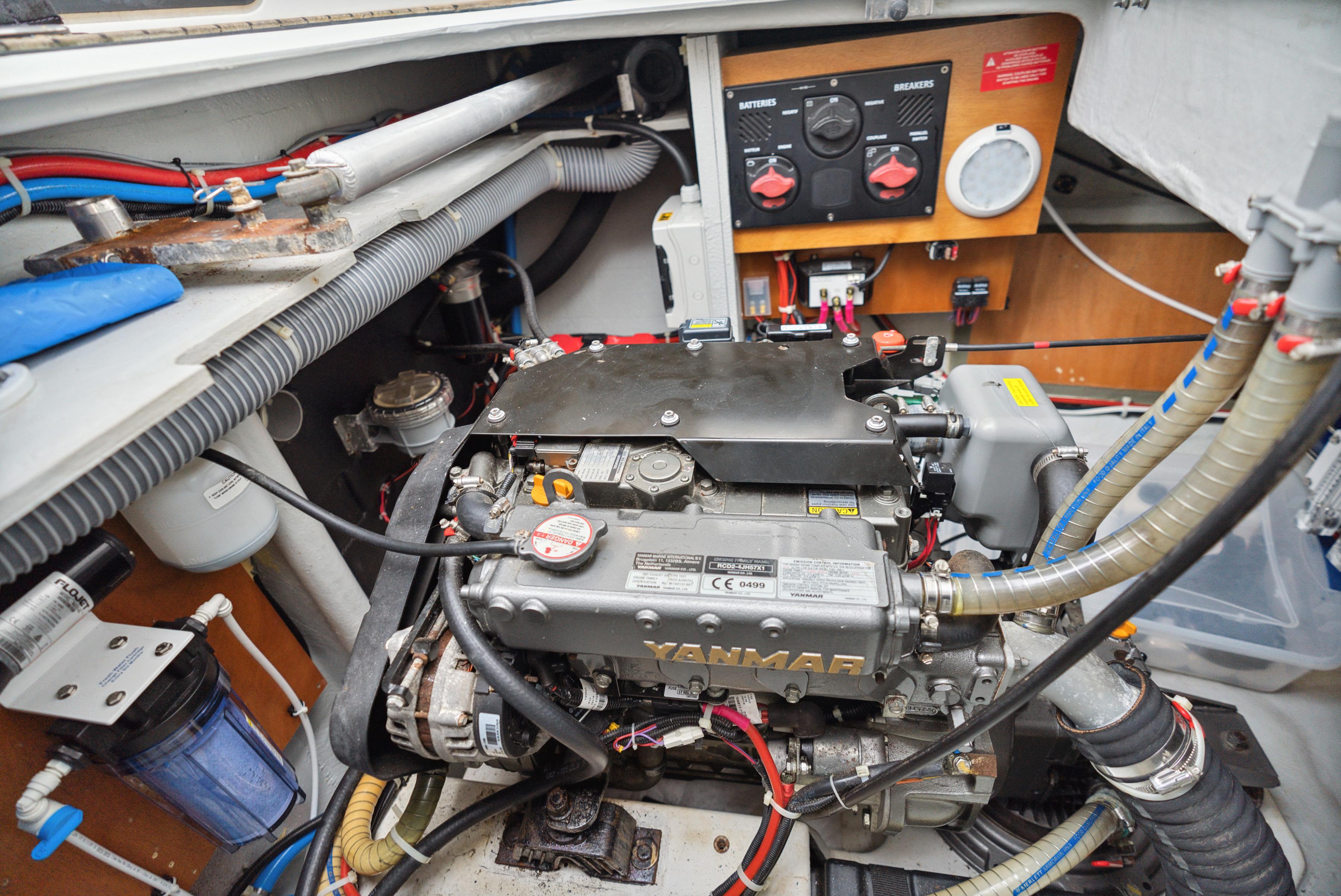

  • (2) Yanmar 4-cylinder diesel engines Model number: RCD-4JH57X1
  • Yanmar engine displays with analog tachometers and digital displays for temperature, oil pressure and voltage

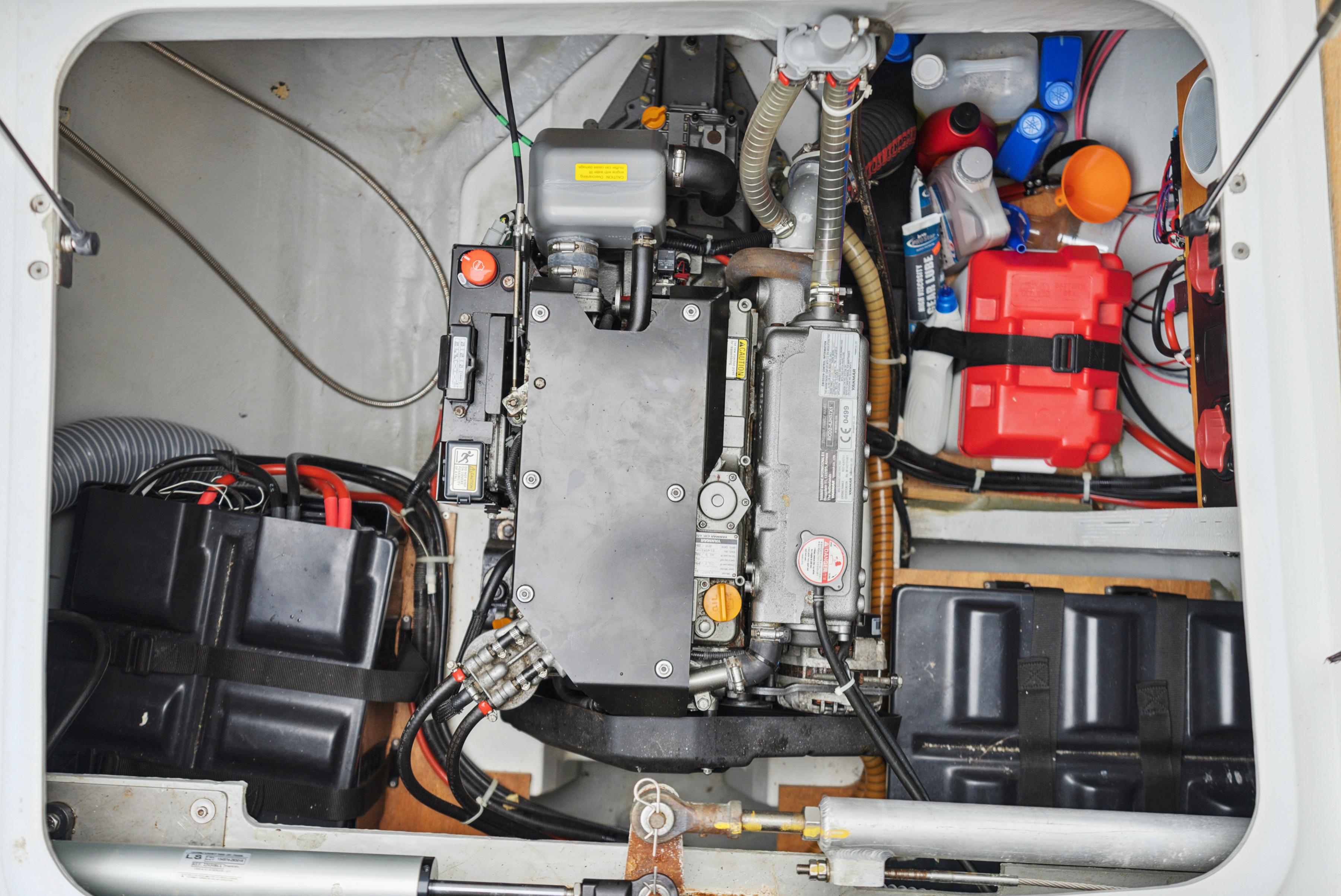

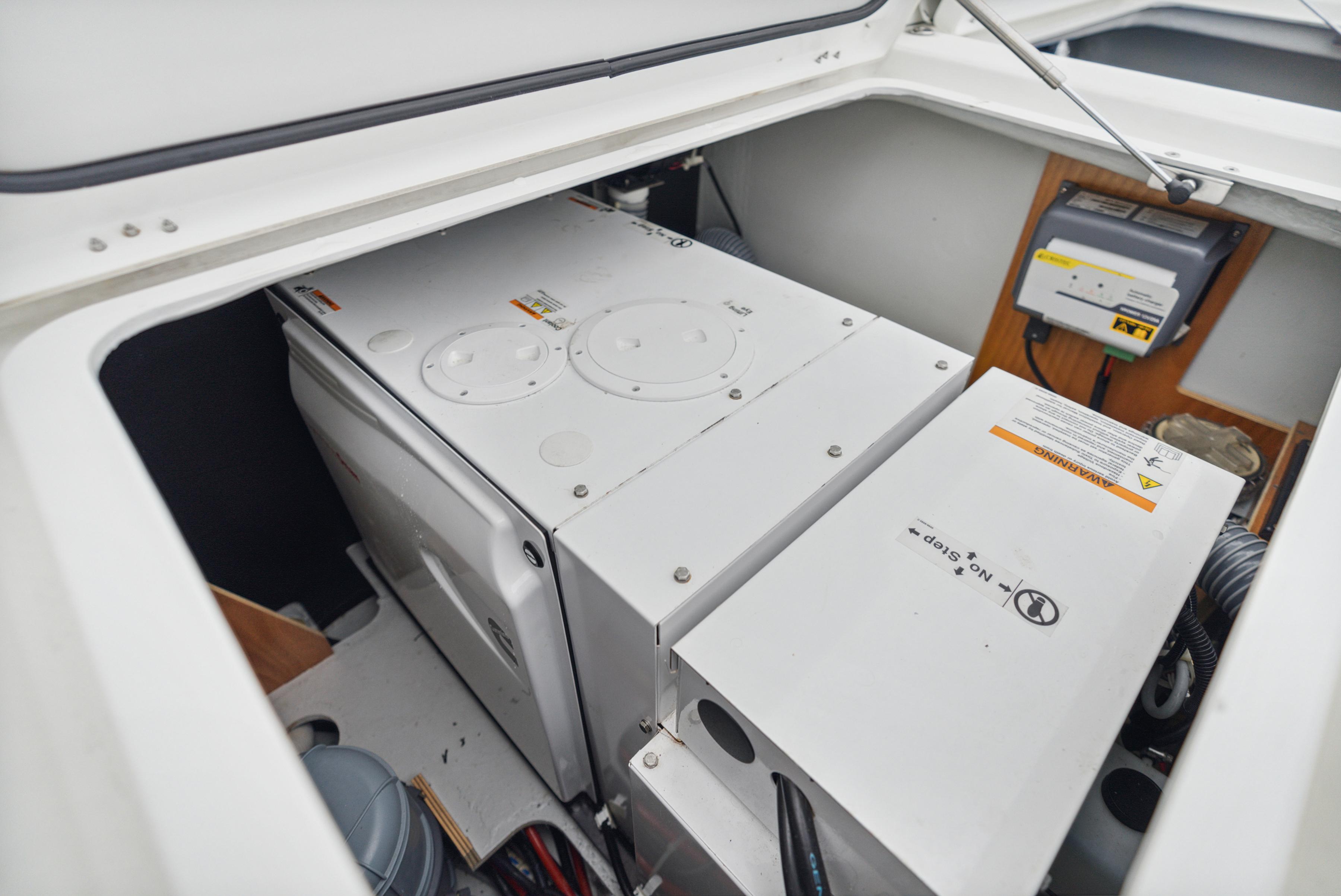

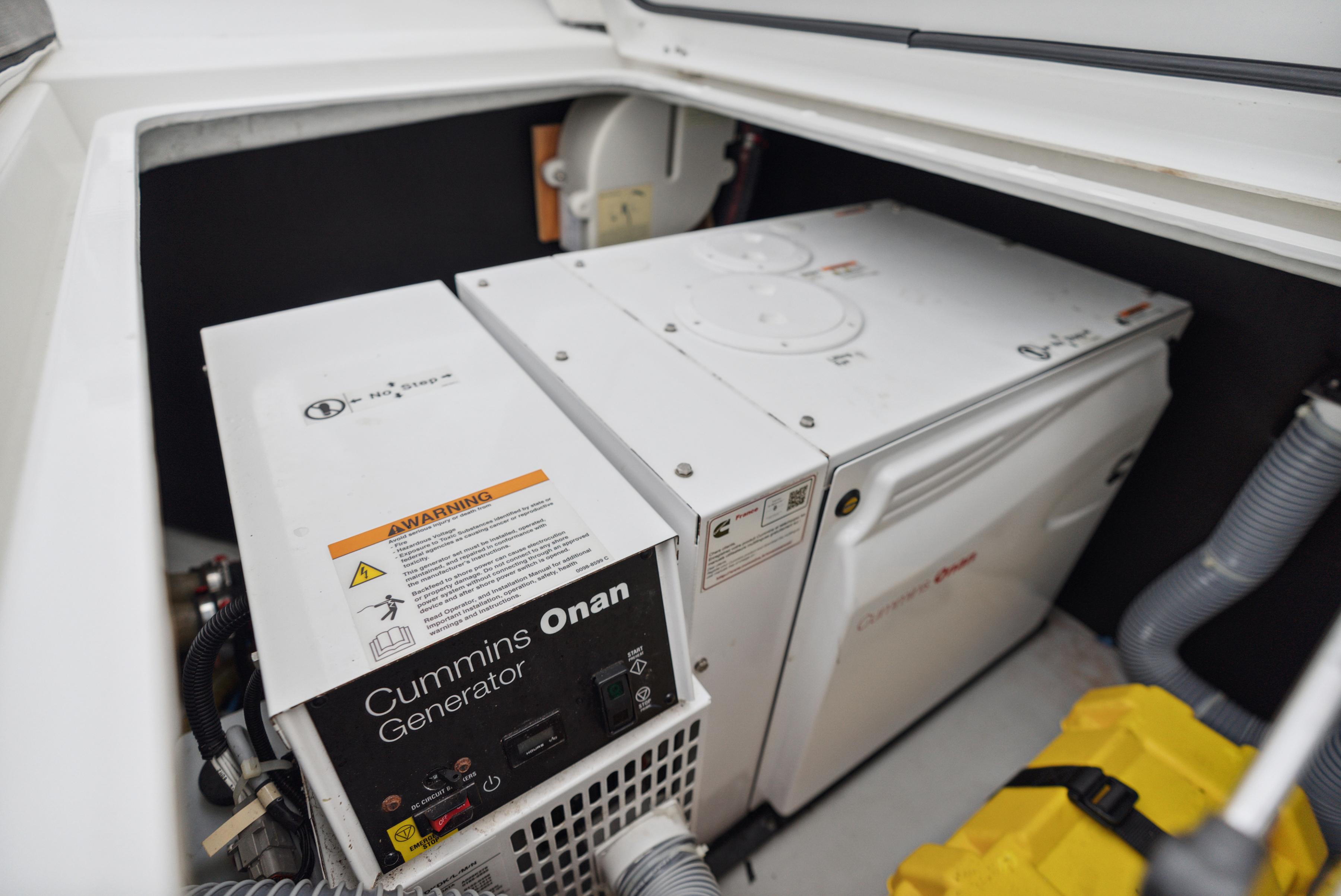

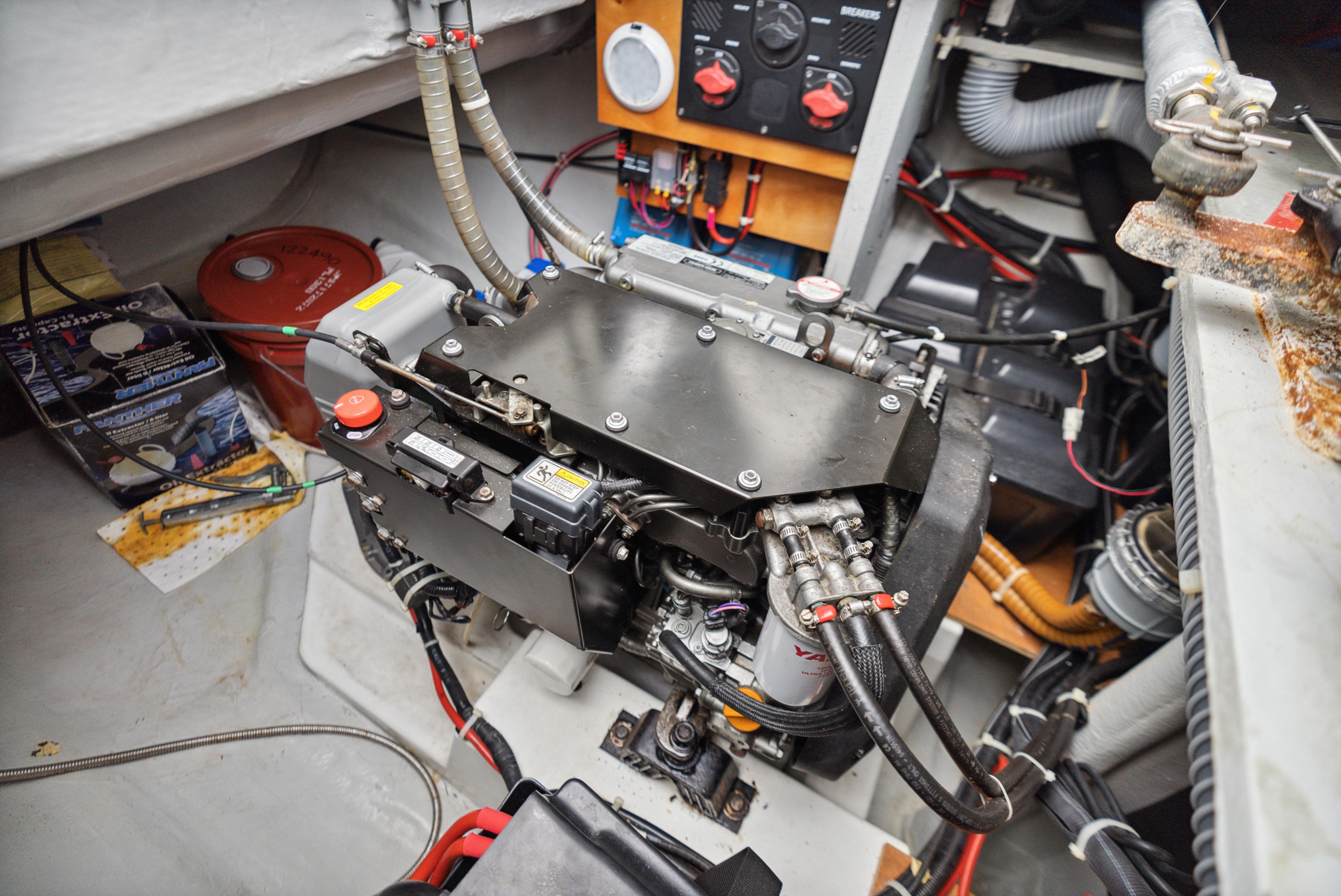

  • Cummins/Onan 13.5 kW Diesel Generator located in starboard foredeck locker. Model: 13.5 MDKND-8140A  Kilowatt/voltage rating: 120/ 240 volt
  • Top mount cable-operated throttle and shift controls
  • Natural ventilation and 12-volt blower in both engine rooms
  • Mechanical lift fuel pumps
  • Proper USCG approved Type A1-15 fuel hoses
  • Yanmar primary fuel filters on bulkheads and secondaries on engines
  • Wire reinforced exhaust hoses and plastic mufflers
  • Alternator in good condition and charging properly
  • Transmission/Saildrive Manufacturer: Yanmar Model number: SD60-5
  • Cable steering system
  • Electric fuel pump. Operational
  • Wire reinforced, double-clamped exhaust hoses

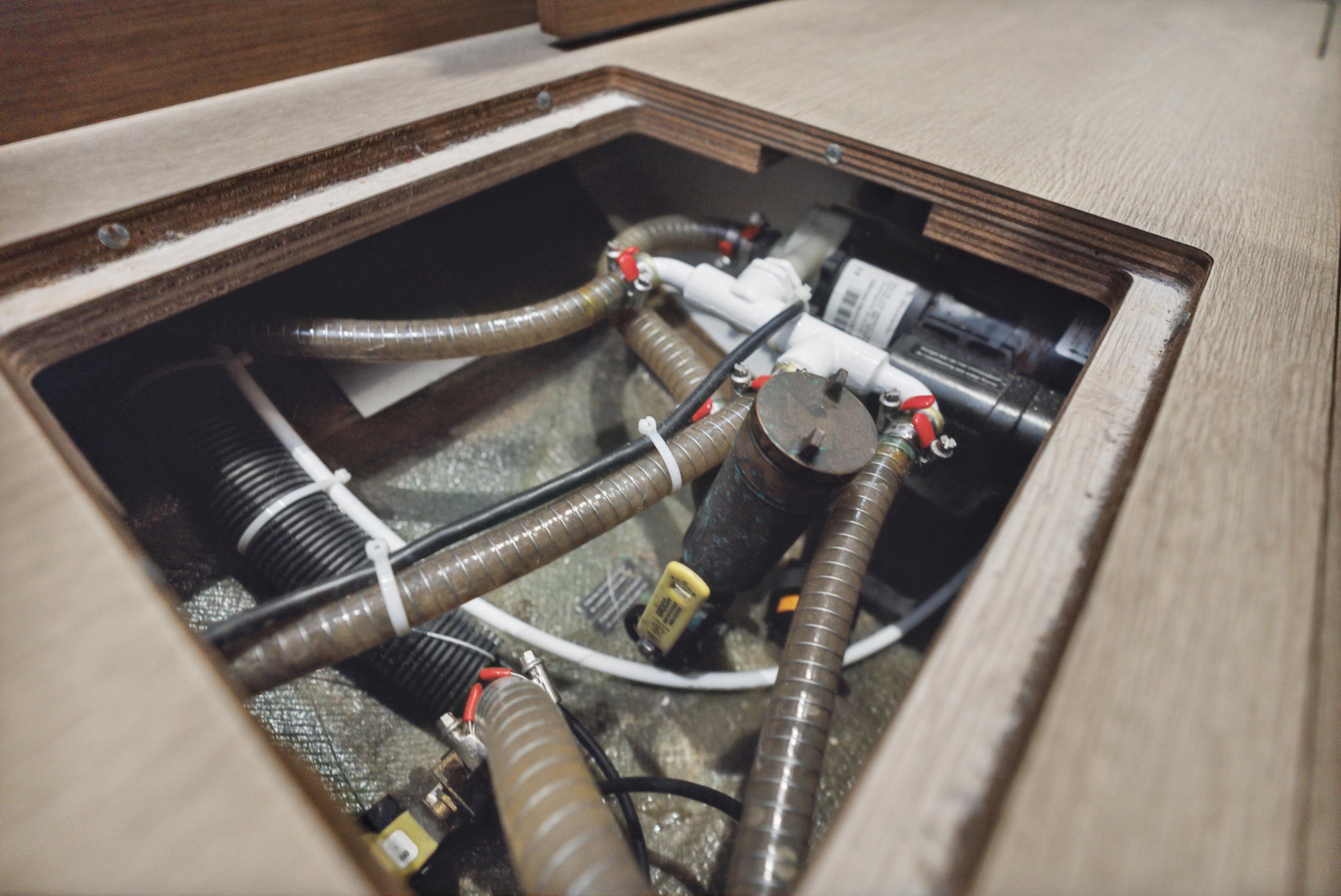

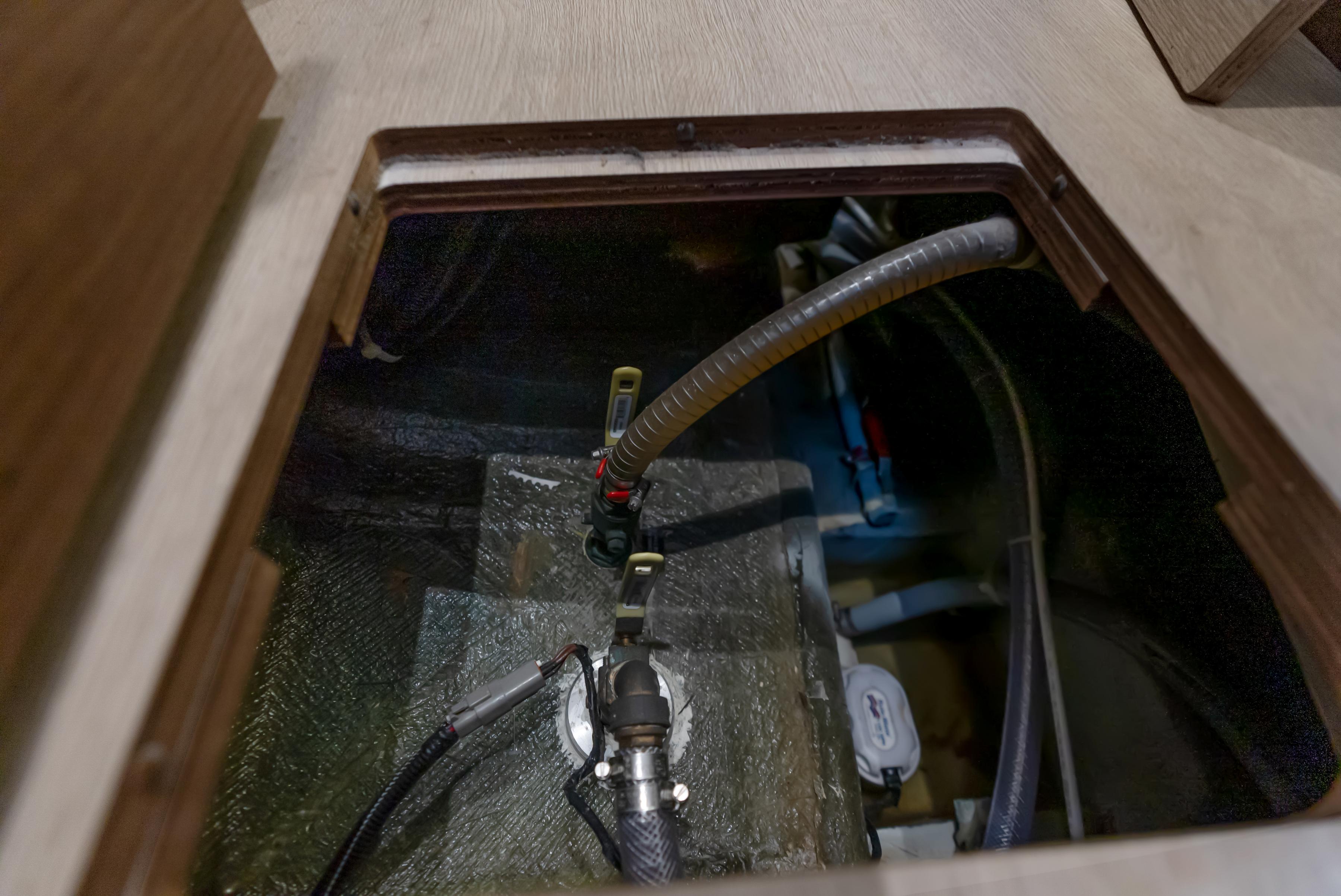

Fuel Tanks and Plumbing
  • (2) Polyethylene 75 gallon fuel tanks Tank type & capacity -- cumulative capacity 150 gallons
  • Proper USCG approved A1-15 fuel supply line hoses
  • Shut off valves
  • Vent line on port and starboard hull sides.
  • (1) 79 gallon polyethylene tank in portside foredeck locker

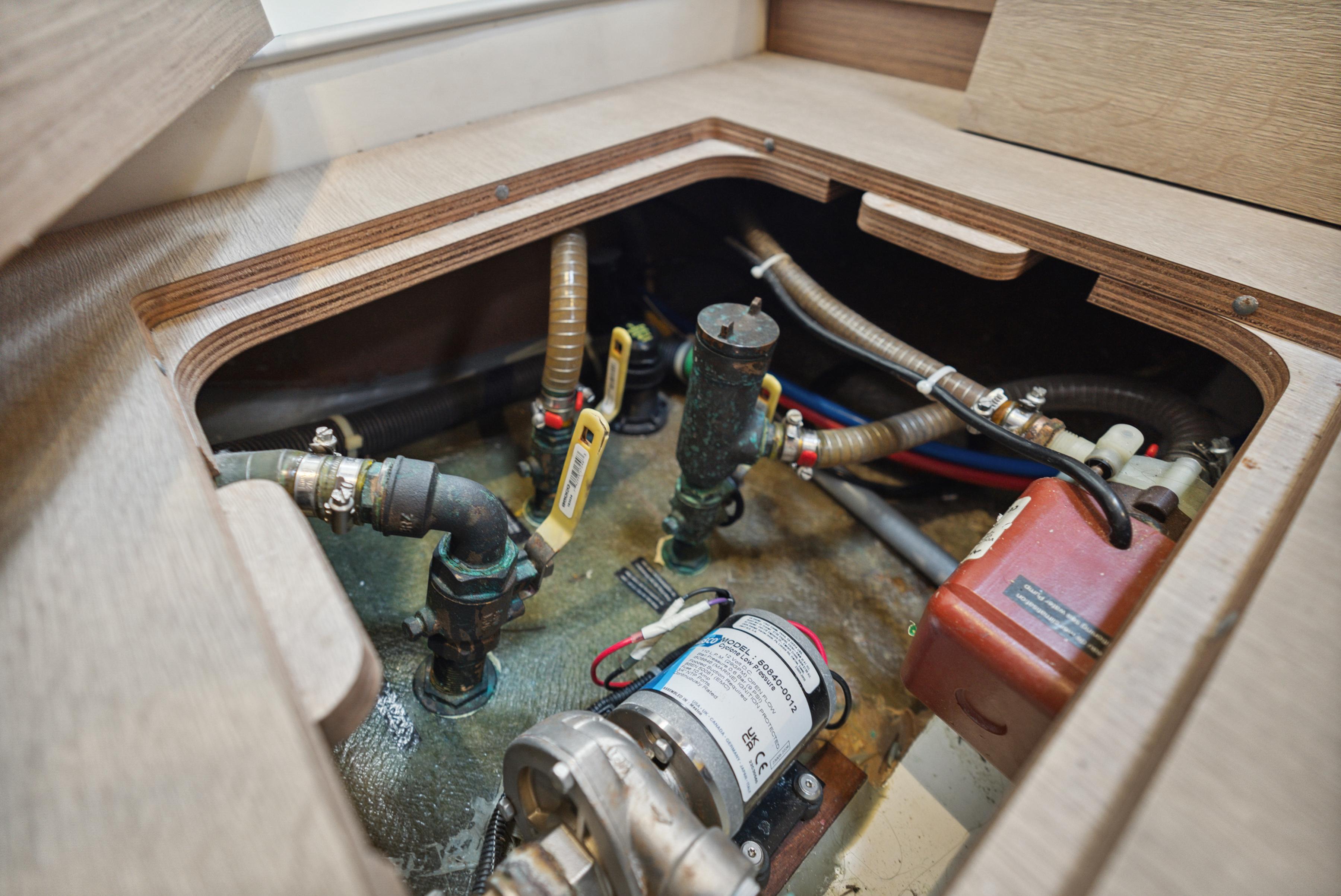

  • Water pump(s): ParMax 4, 4.3 GPM, 12-volt water pump
  • Nautic Boiler Water Heater - 40 liter, 120-volt water heater

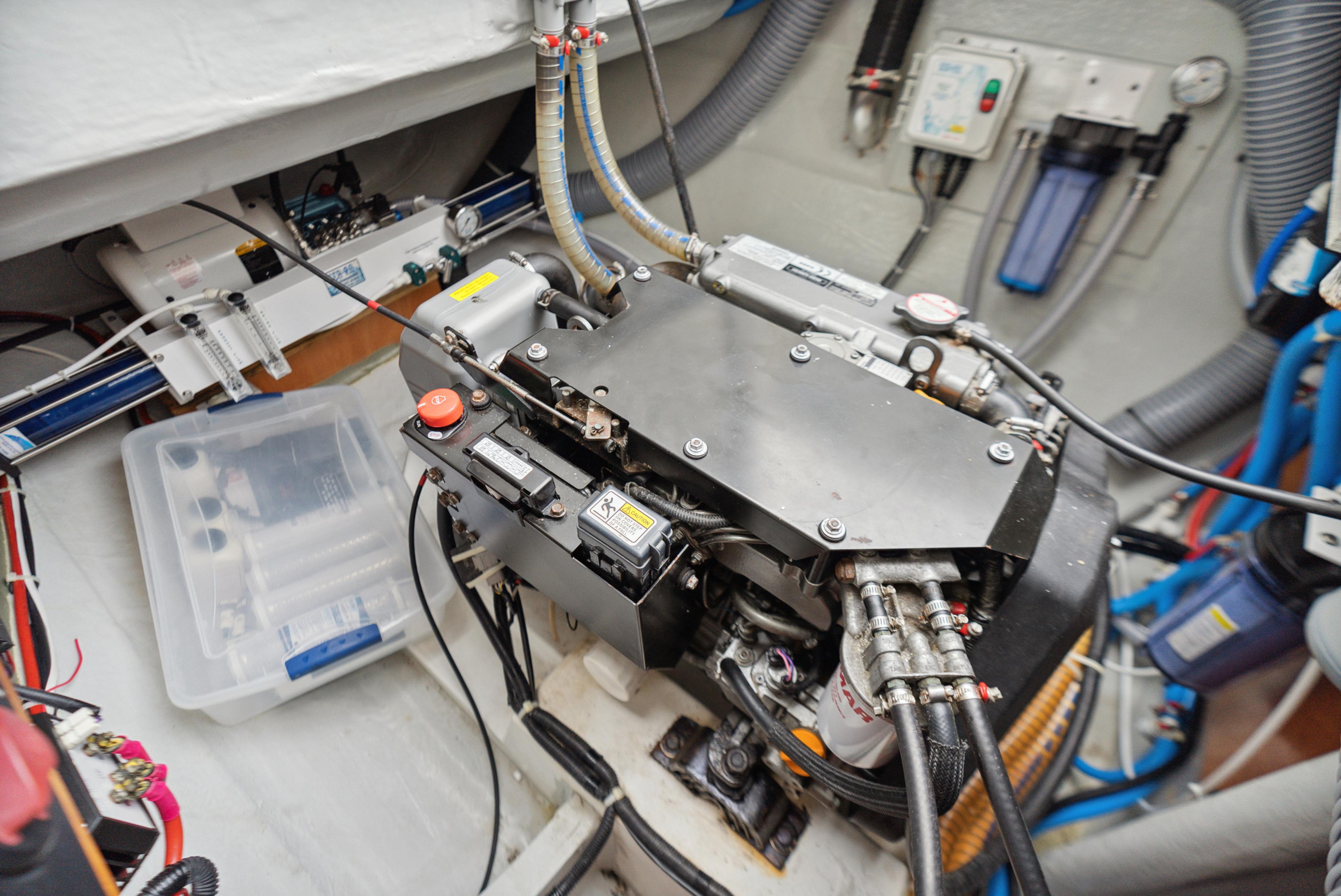

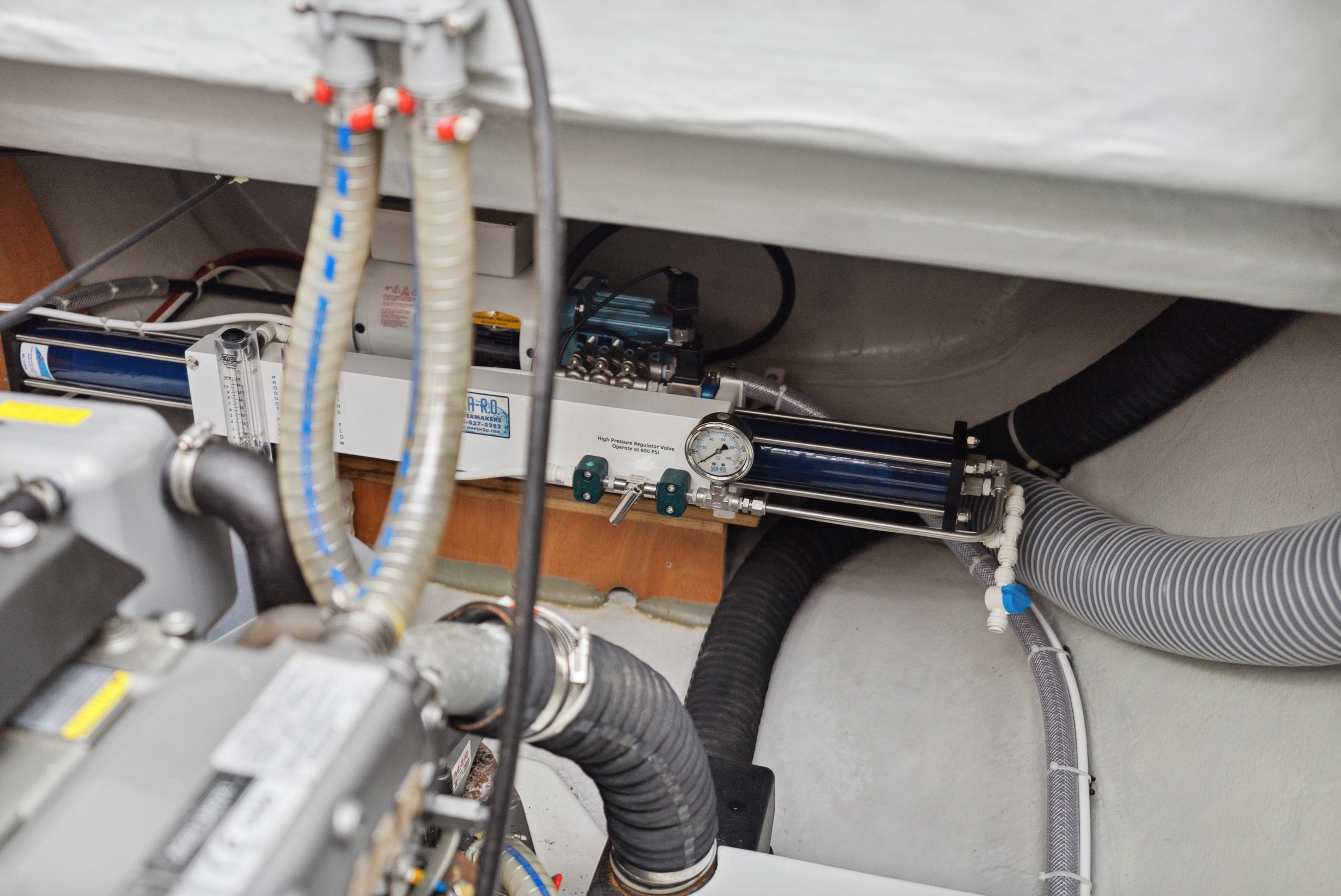

  • Sea Recovery Ultra Whisper DX 16.7 GPH Water Maker

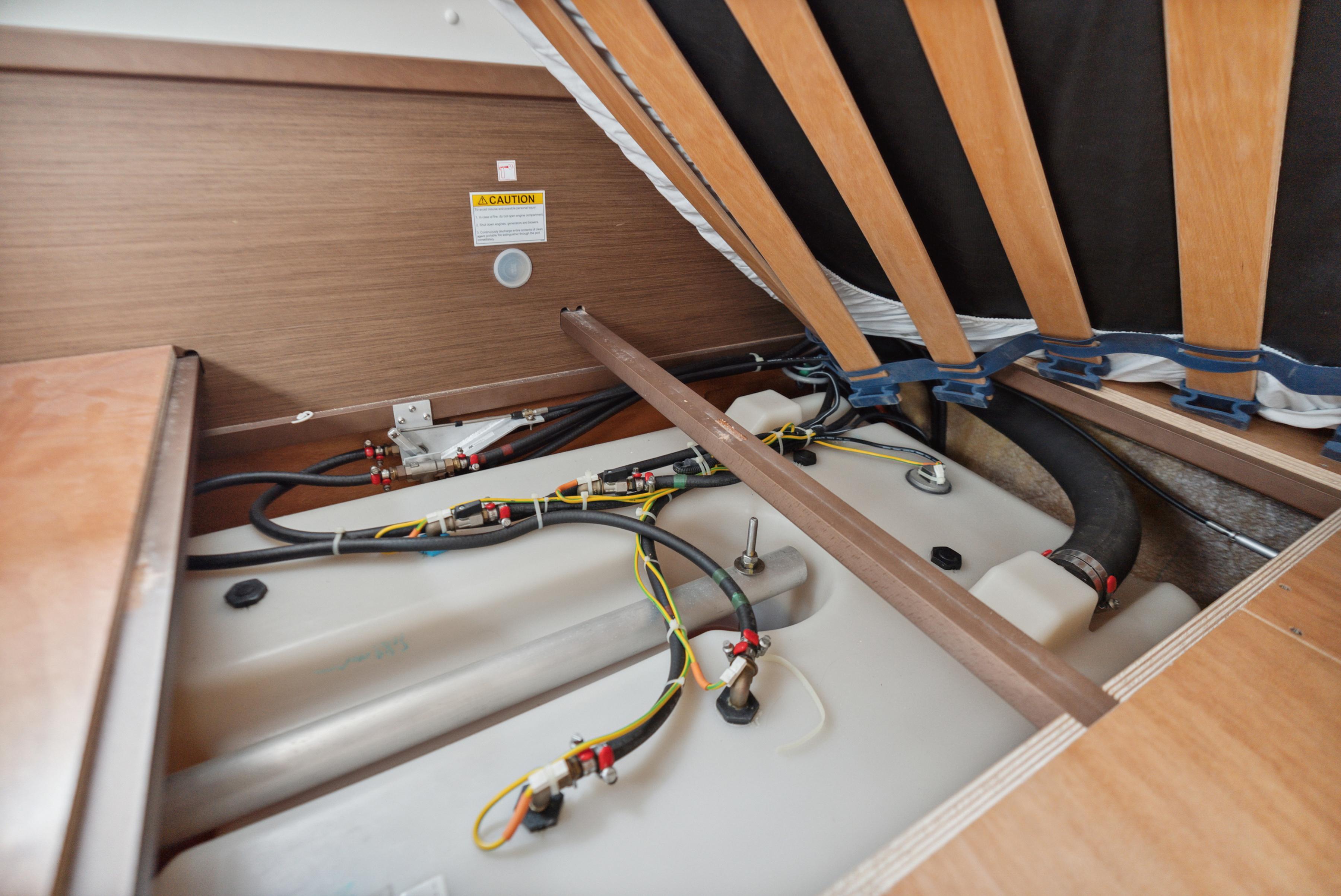

  • (3) Polyethylene holding tanks, one for each head - approximately 21 gallons each
  • Pump out fitting located on port and starboard side decks
  • Vents located on port and starboard hull sides

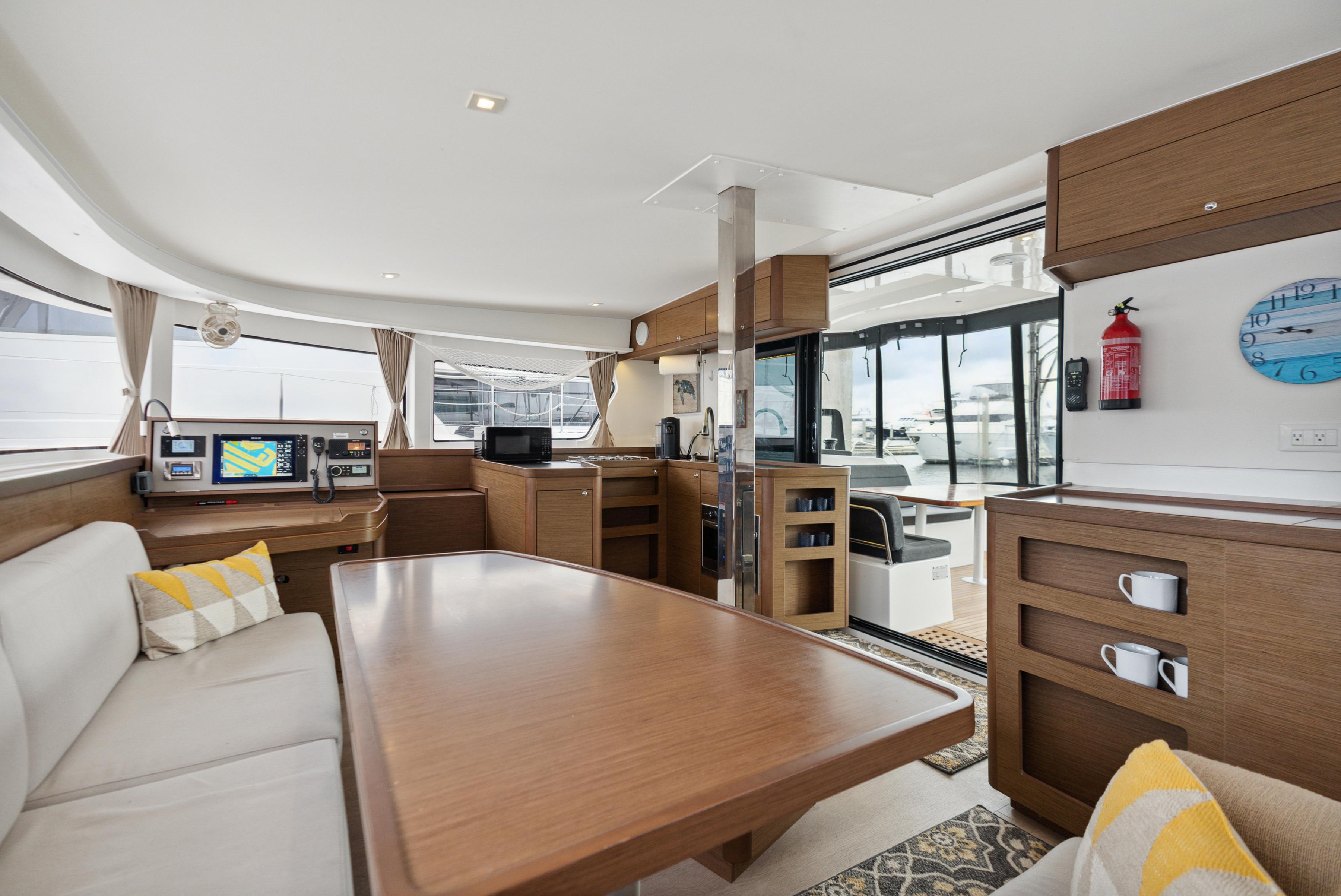

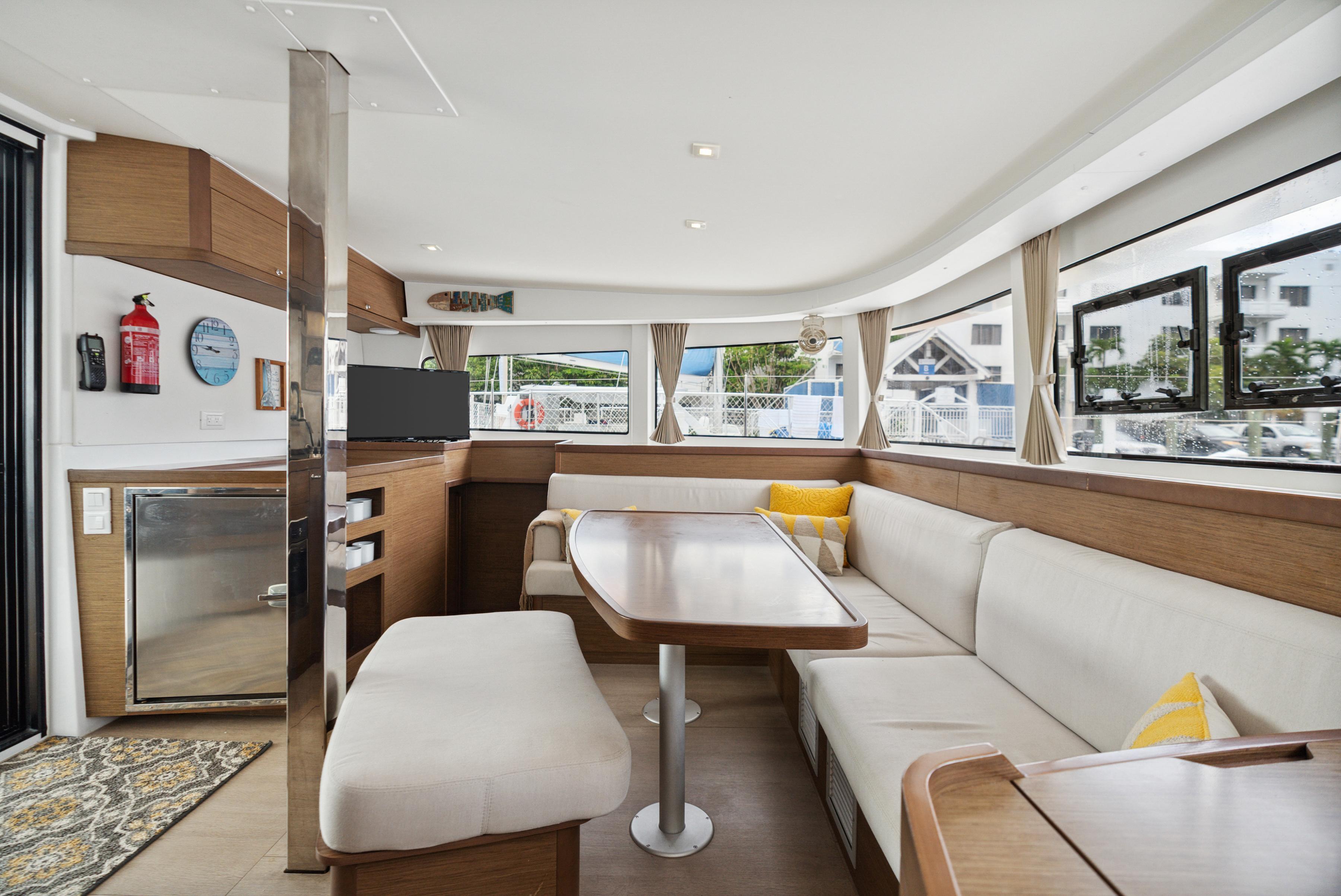

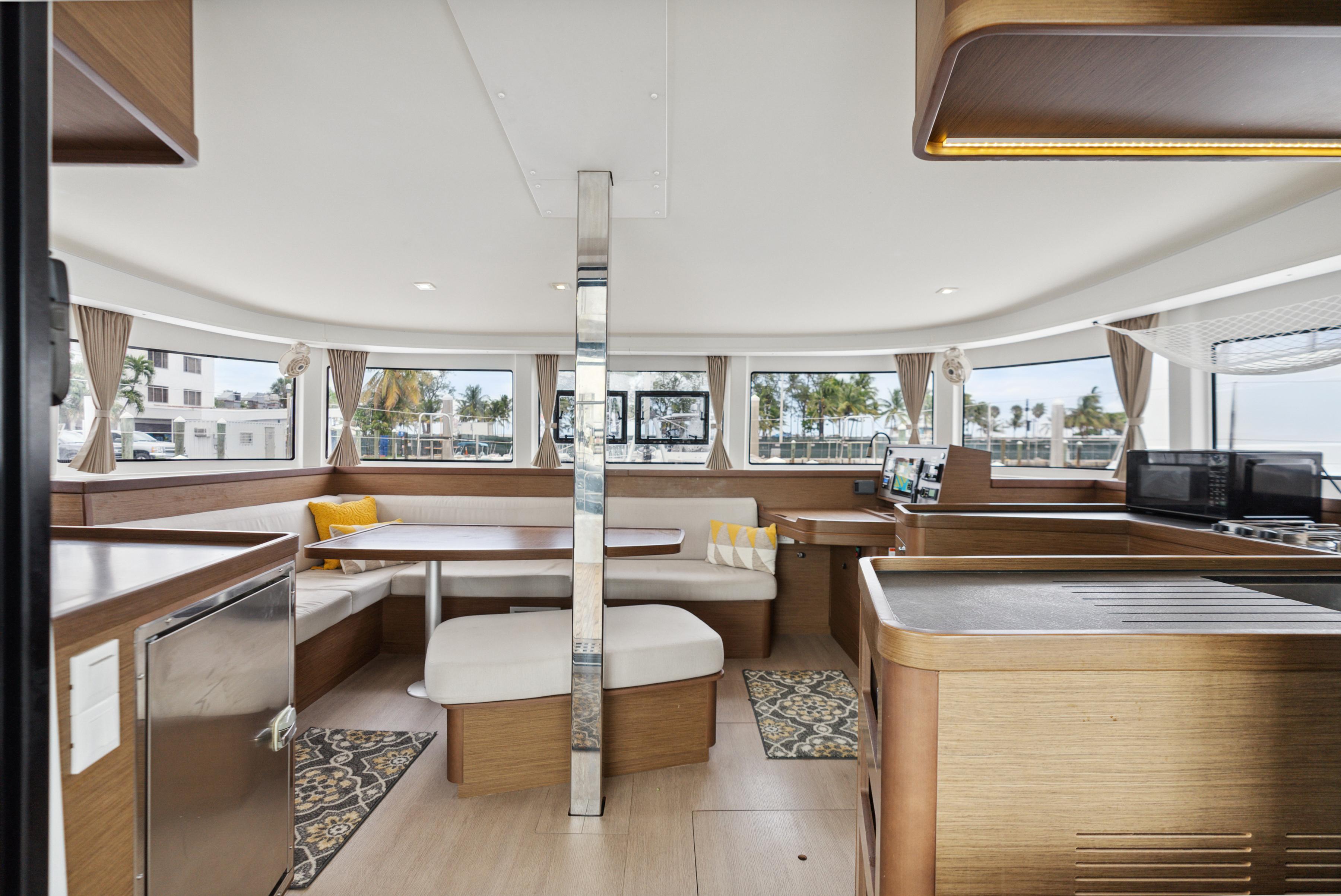

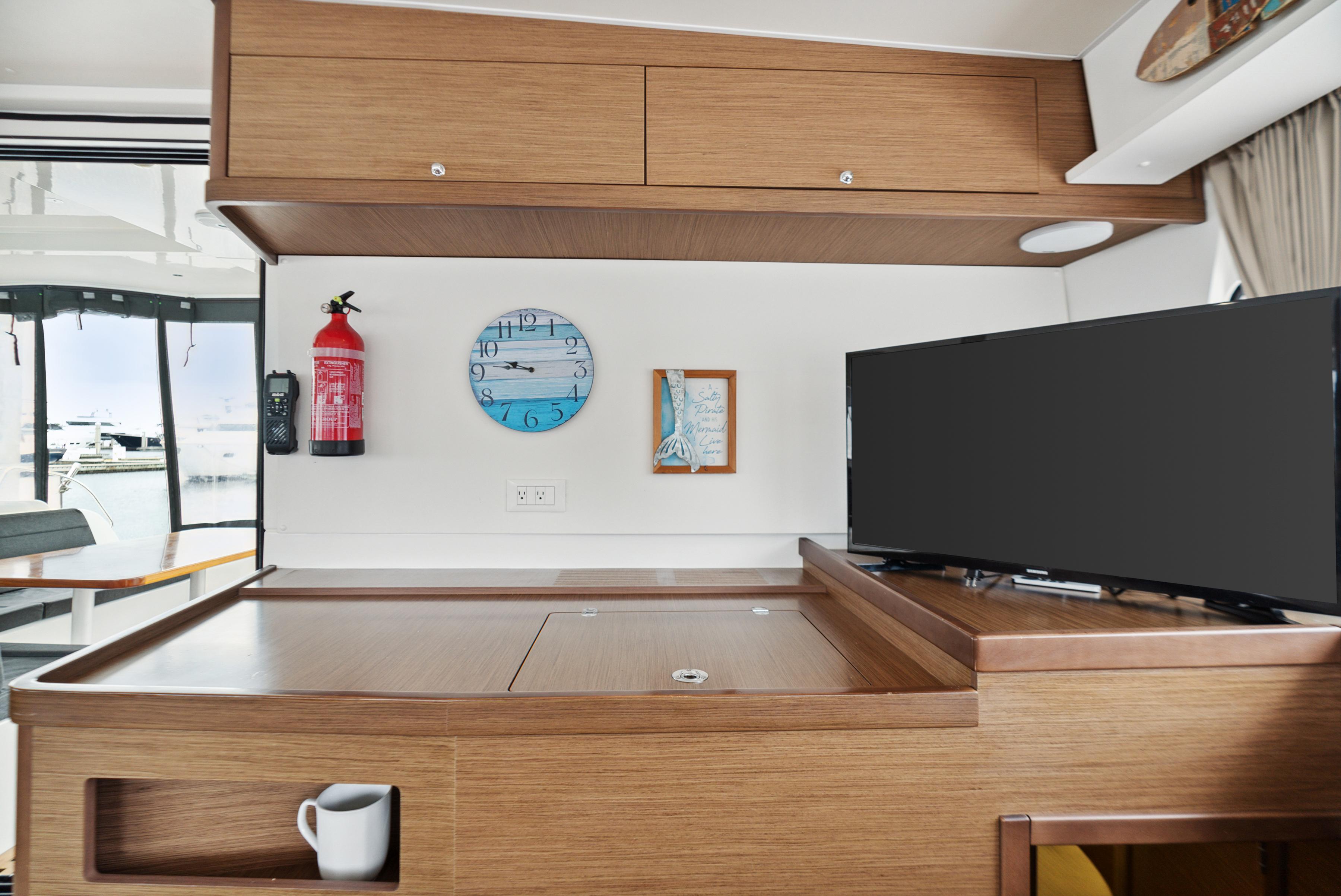

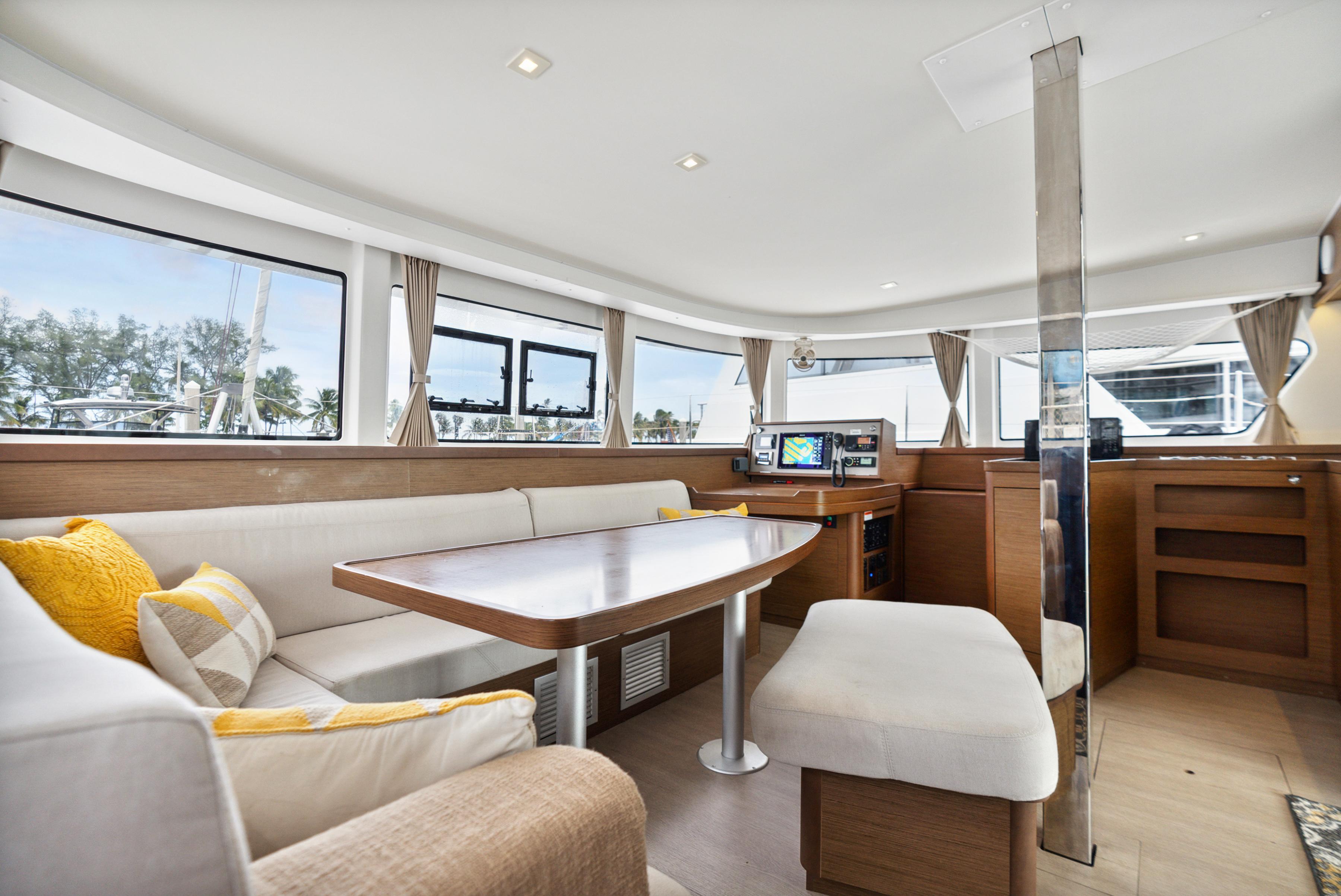

Salon
  • Grey faux wood flooring
  • Sliding salon door
  • Varnished wood table
  • TCL 32” flat screen smart TV

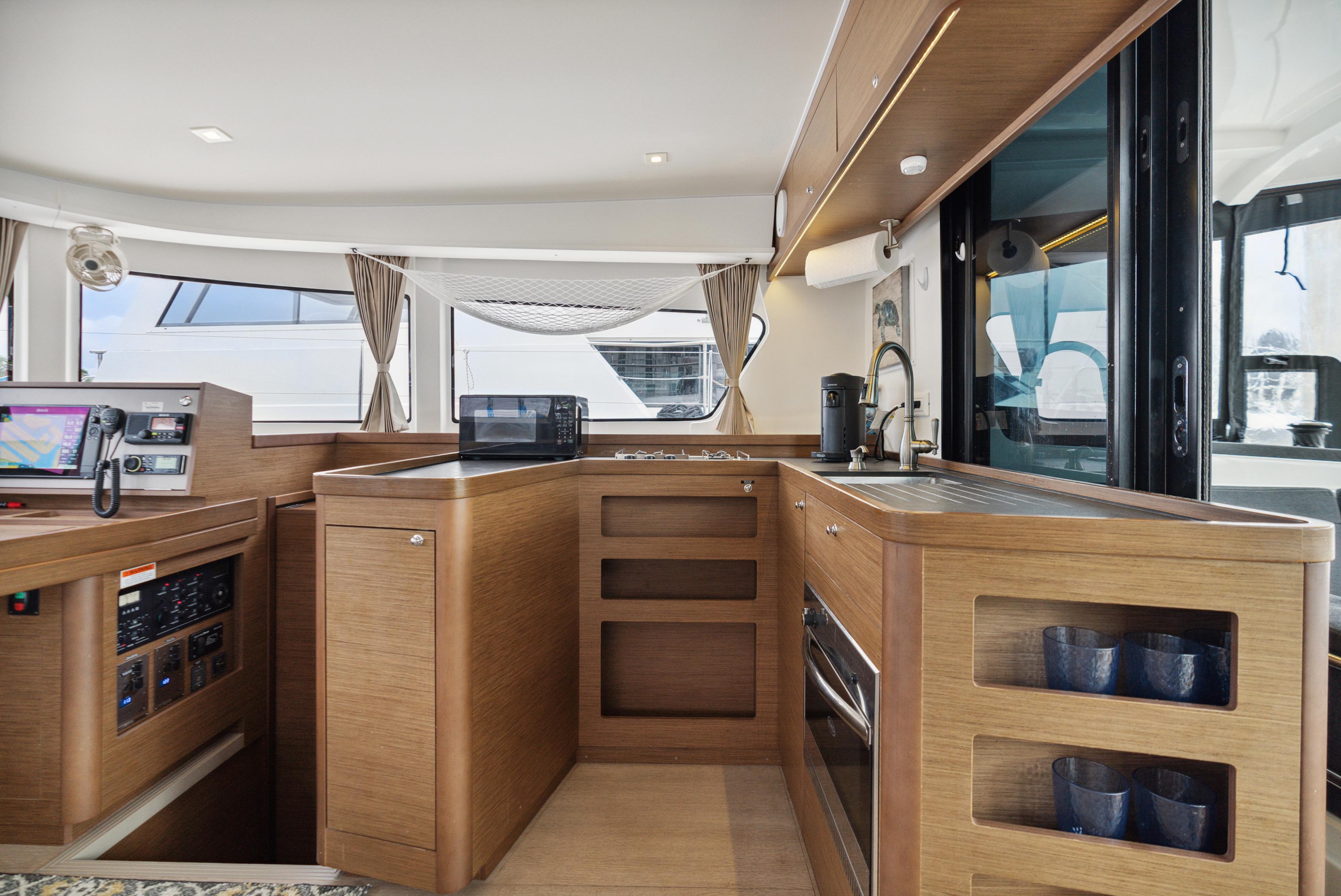

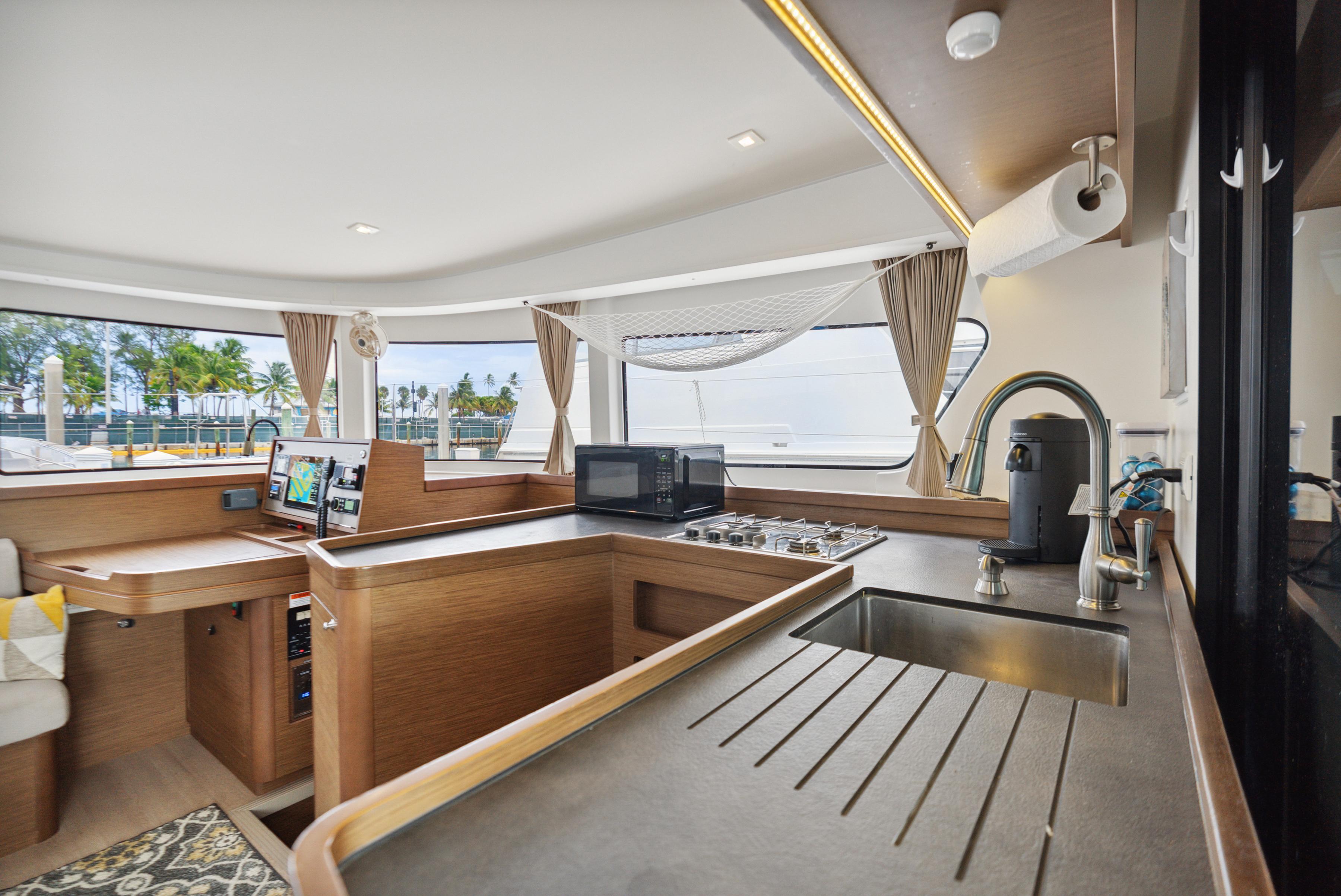

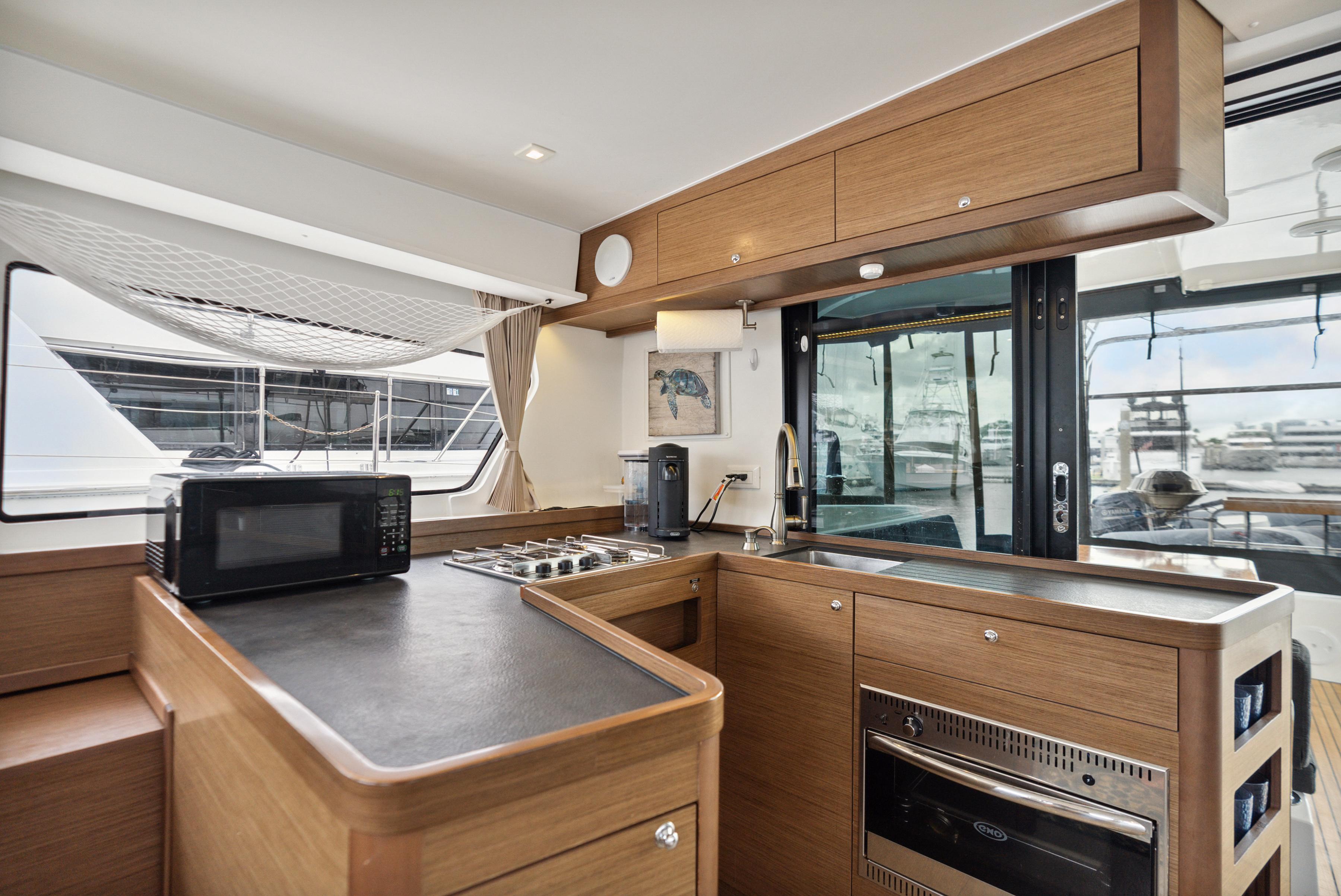

Galley

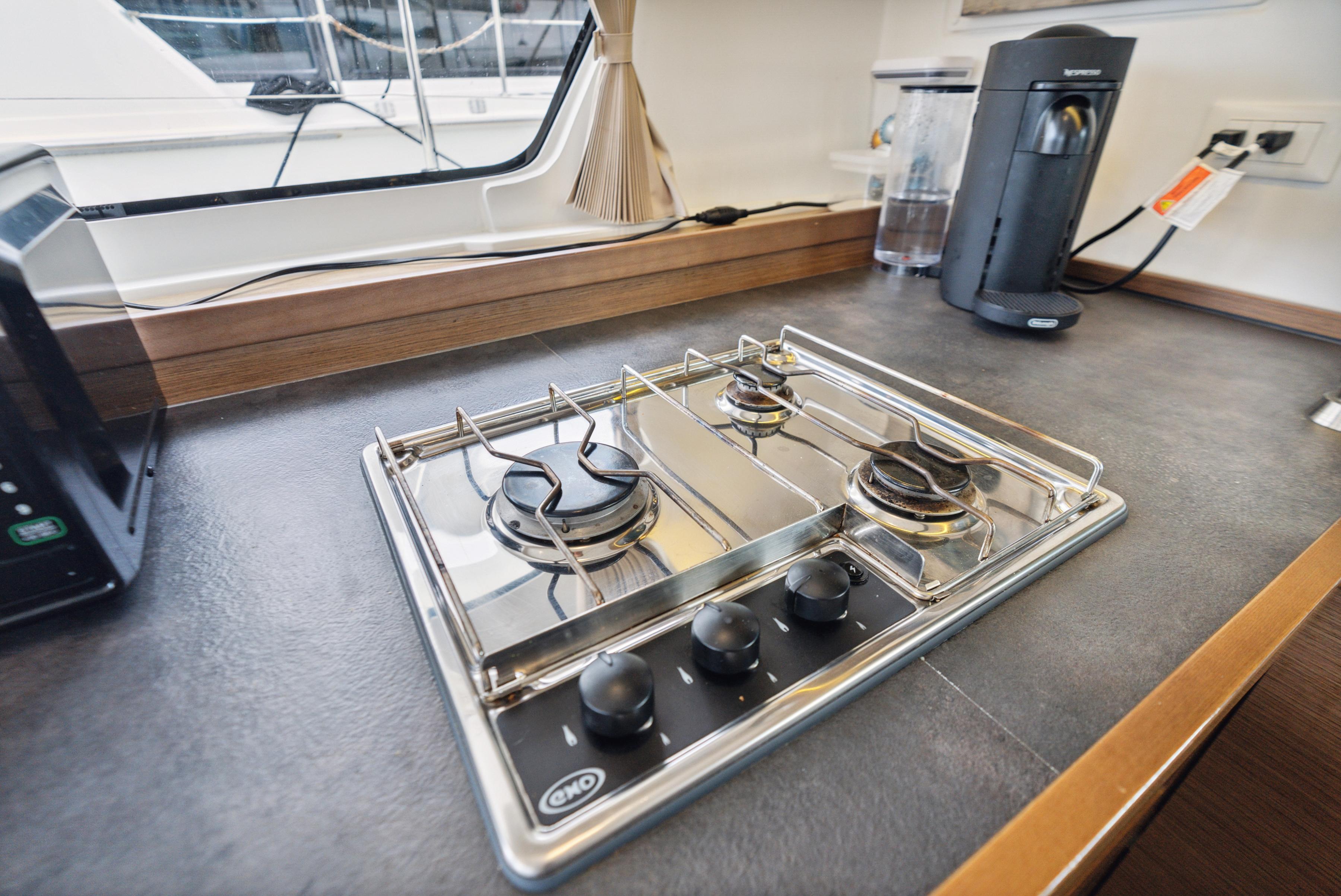

  • Three-burner ENO LPG stove

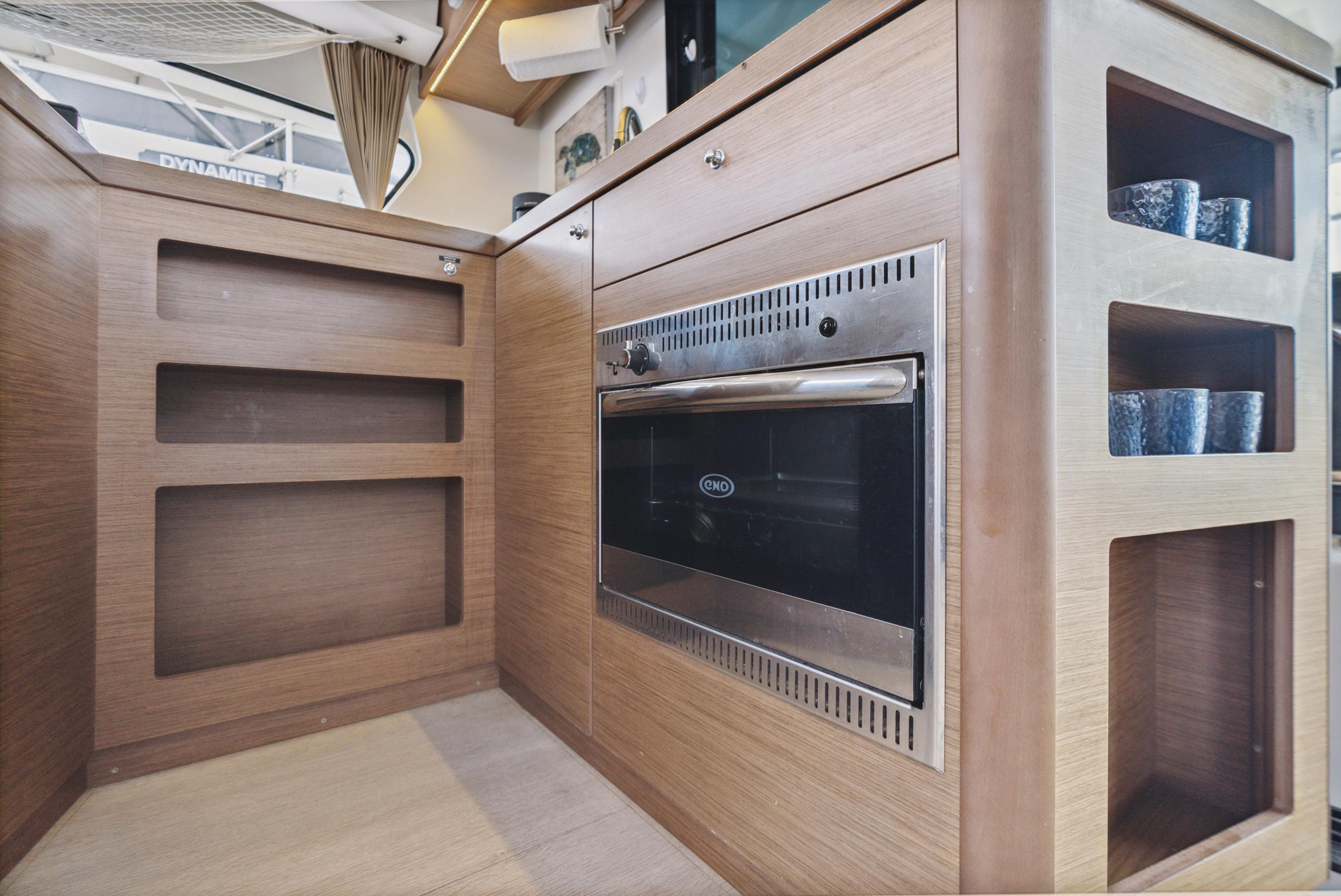

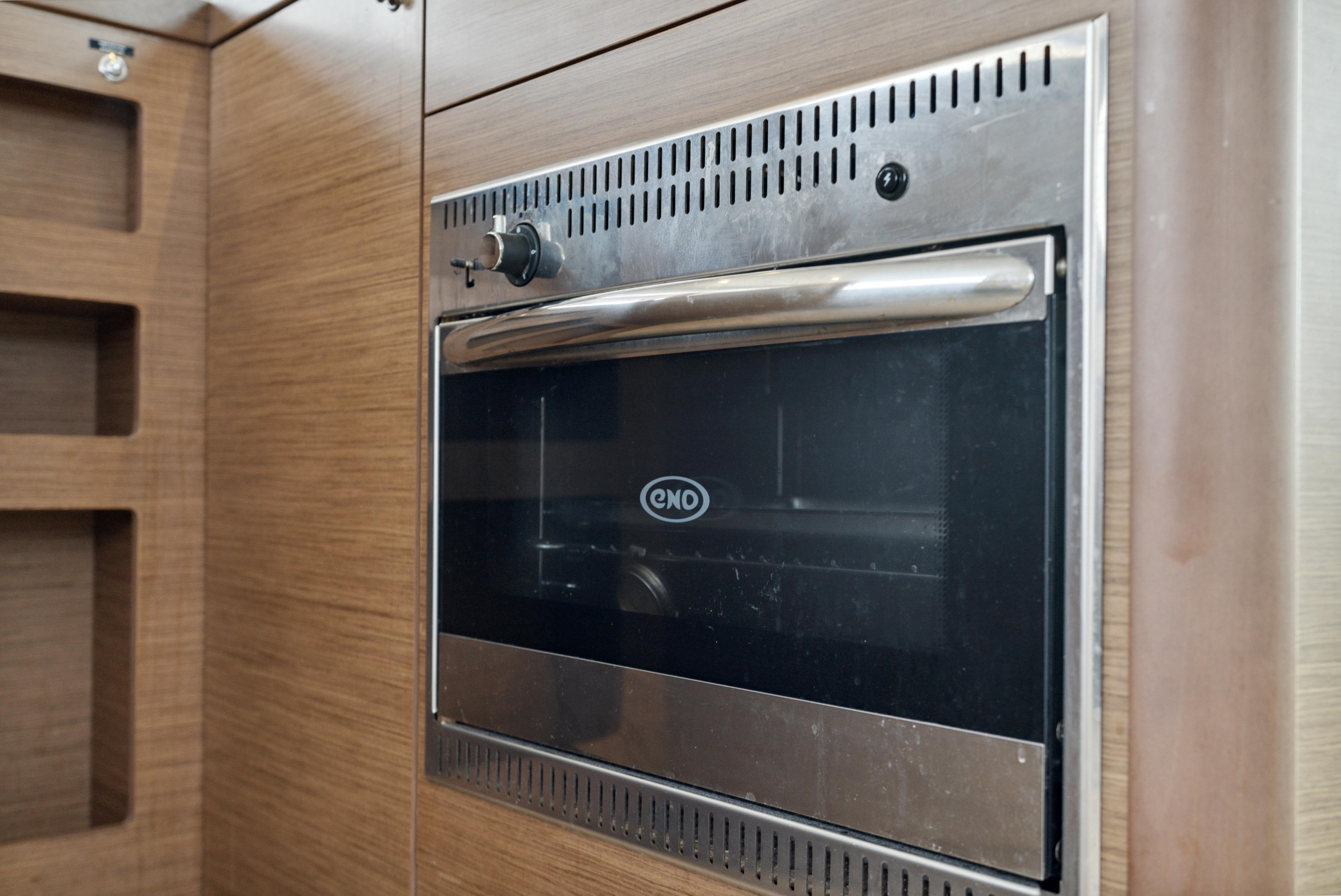

  • ENO LPG oven
  • Microwave on counter (2021)
  • Frigonautica refrigerator
  • Vitrifrigo freezer

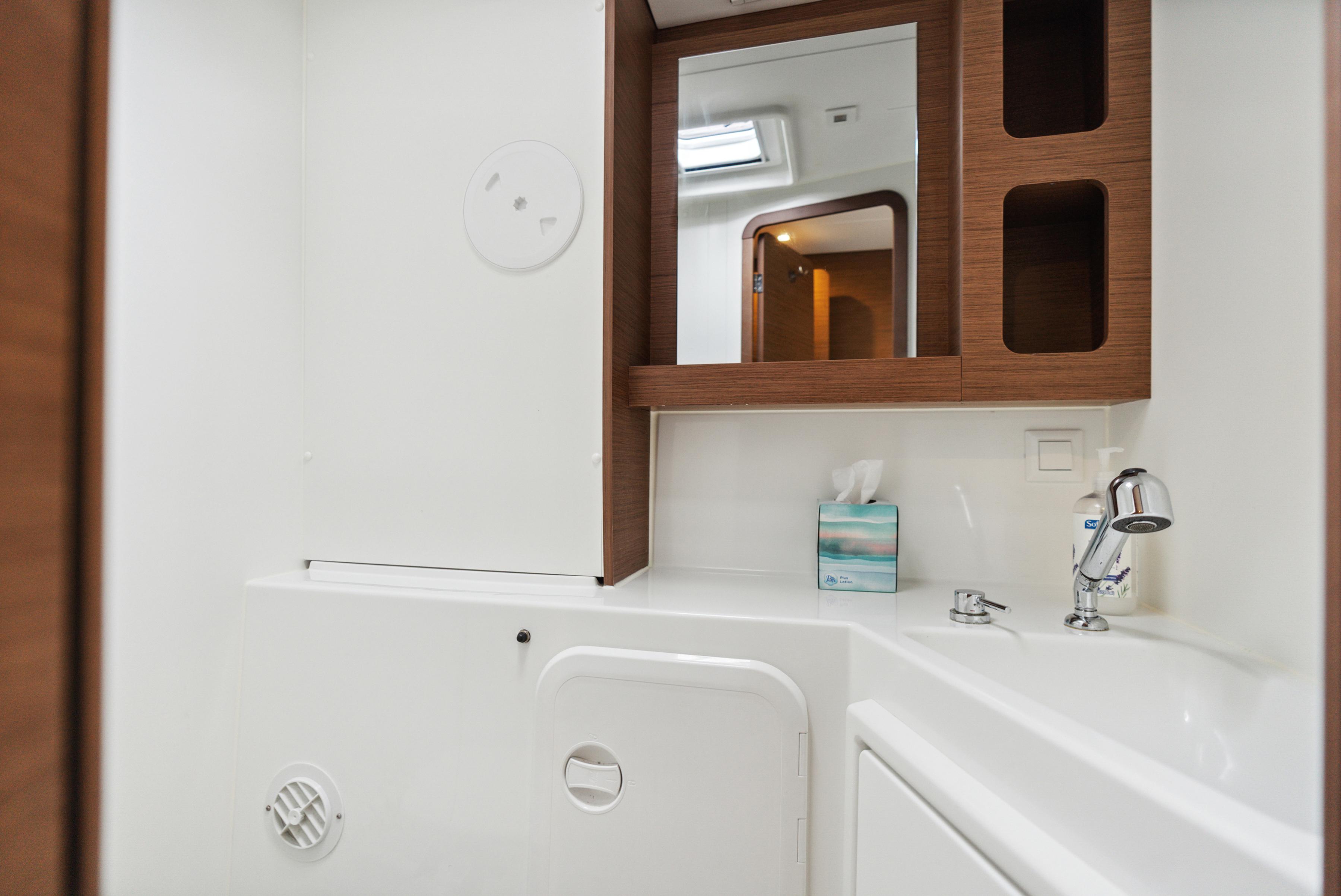

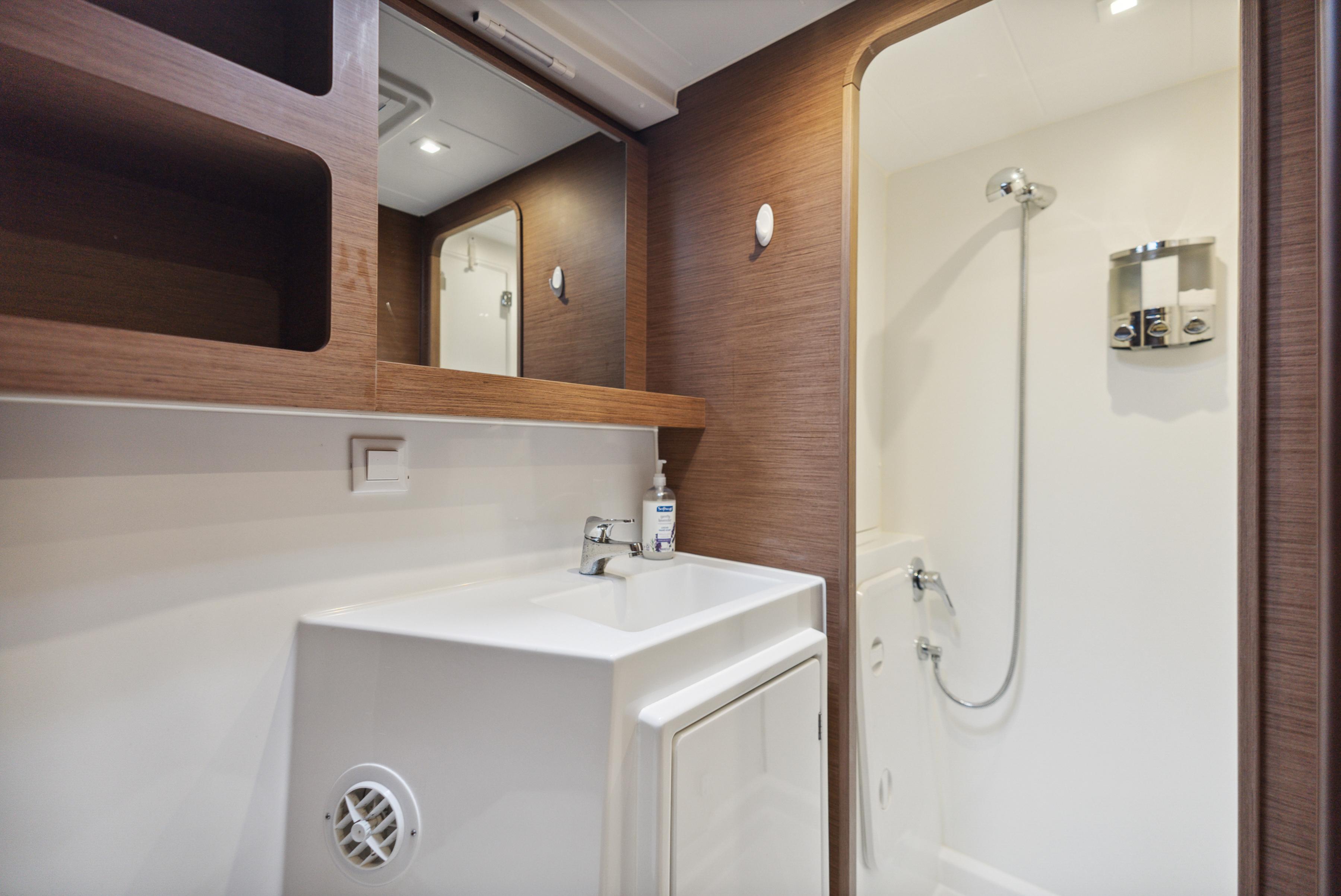

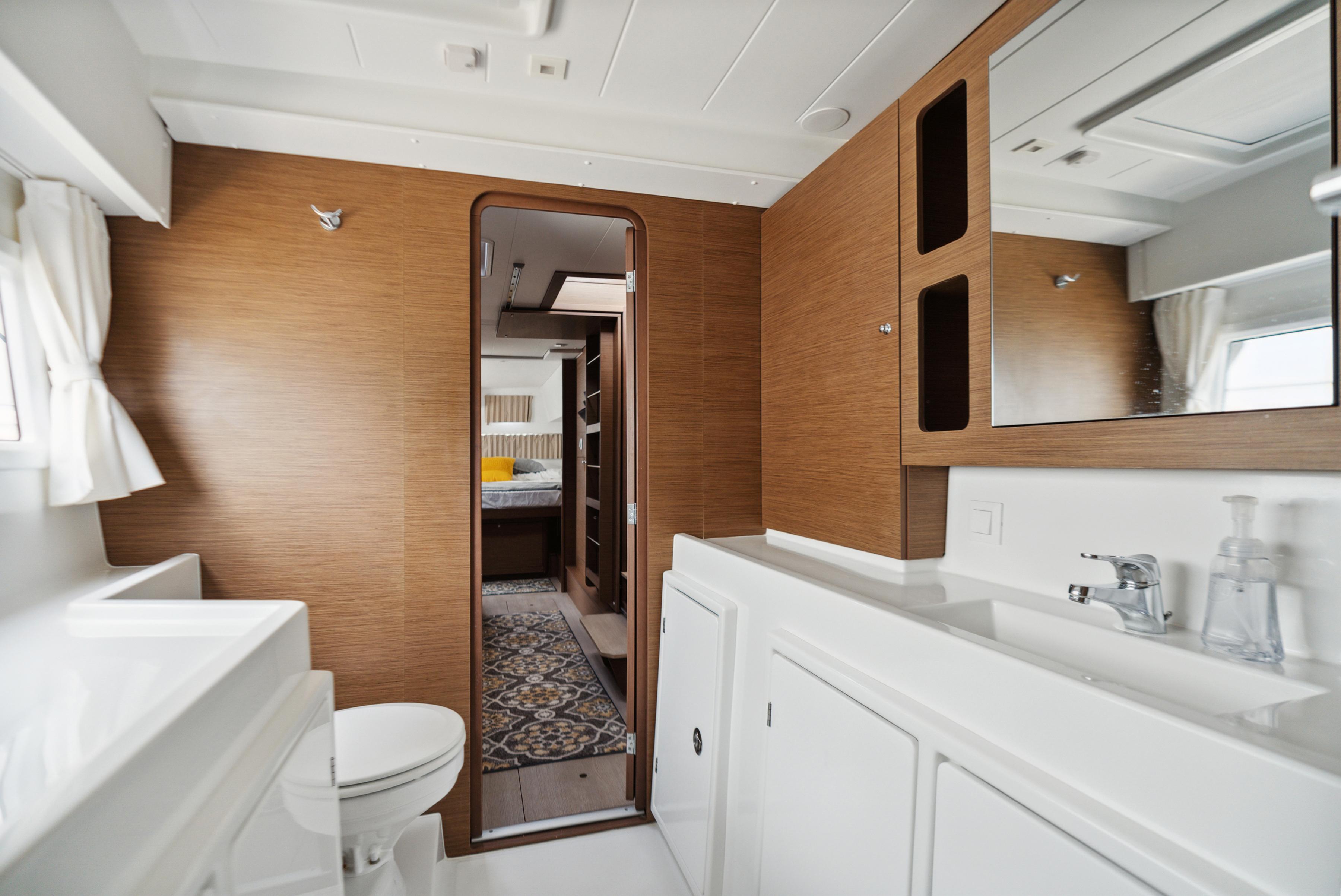

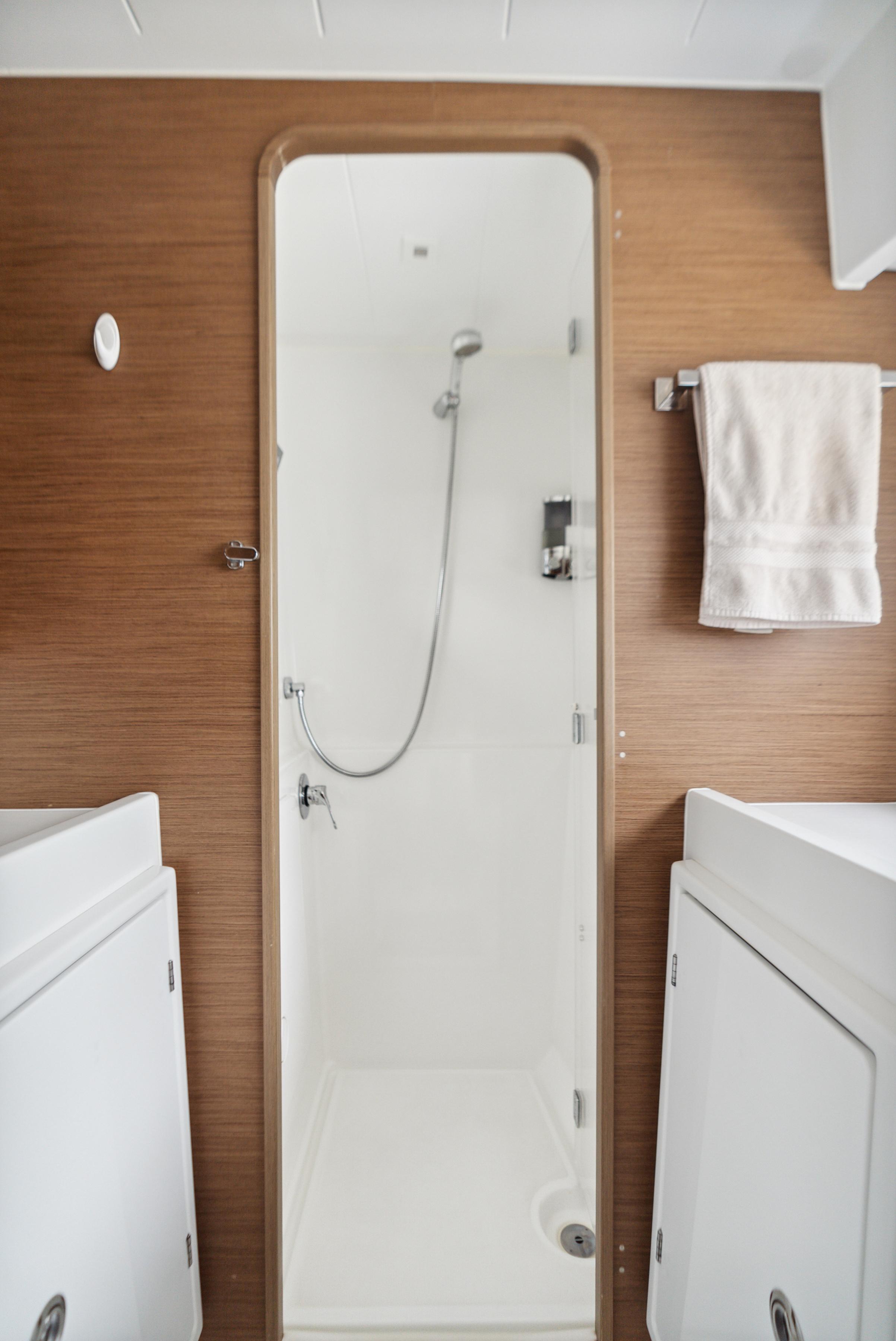

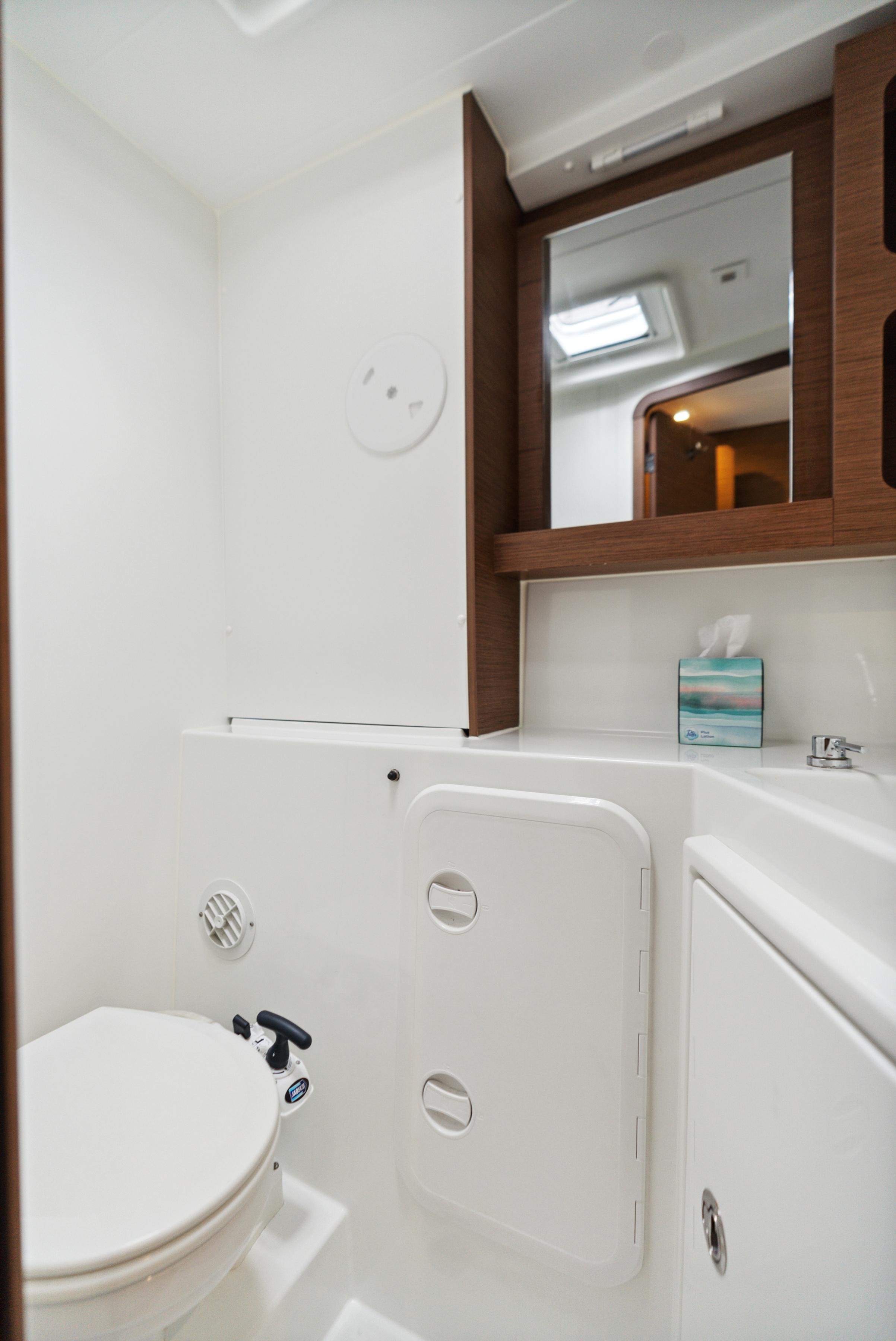

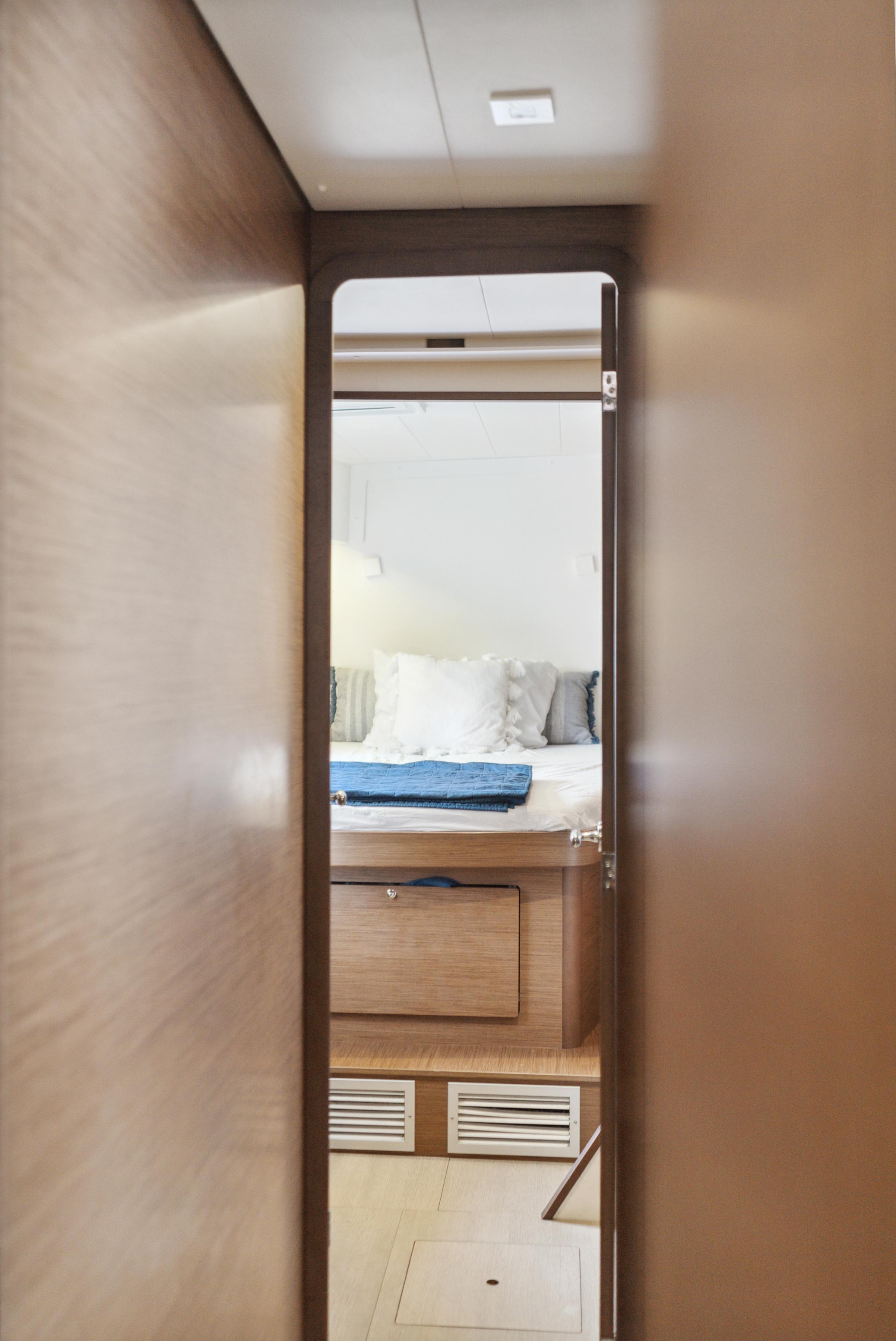

Heads

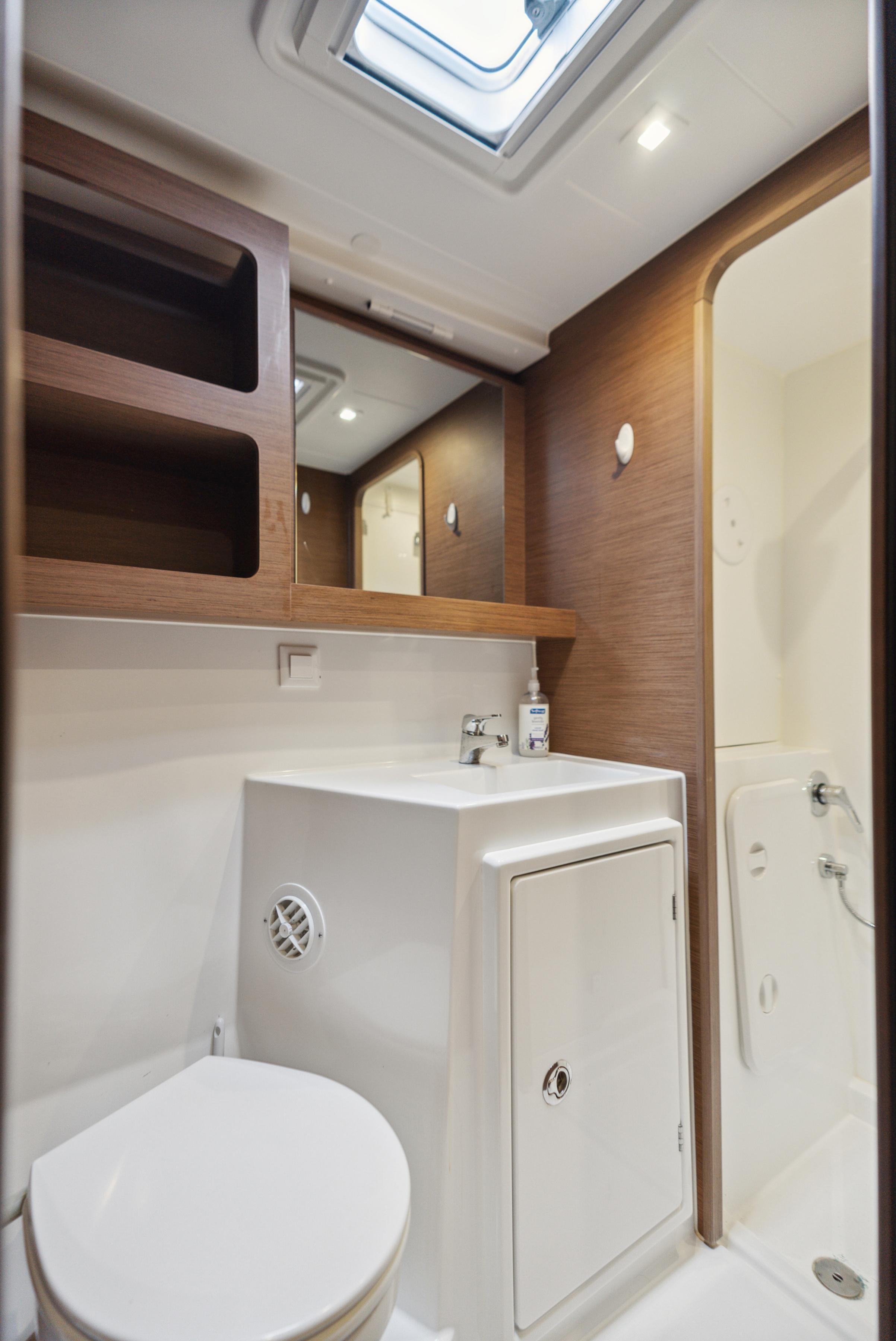

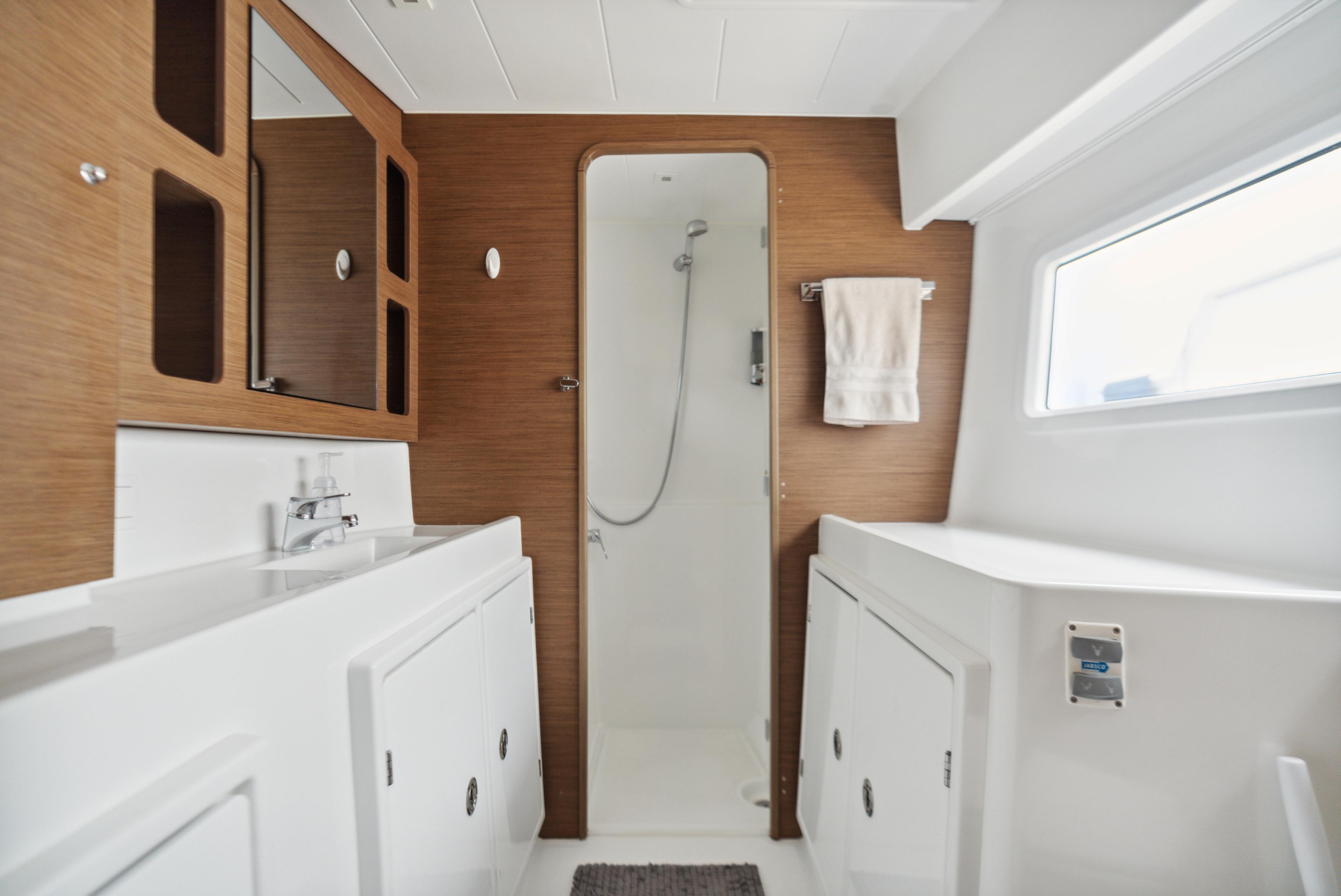

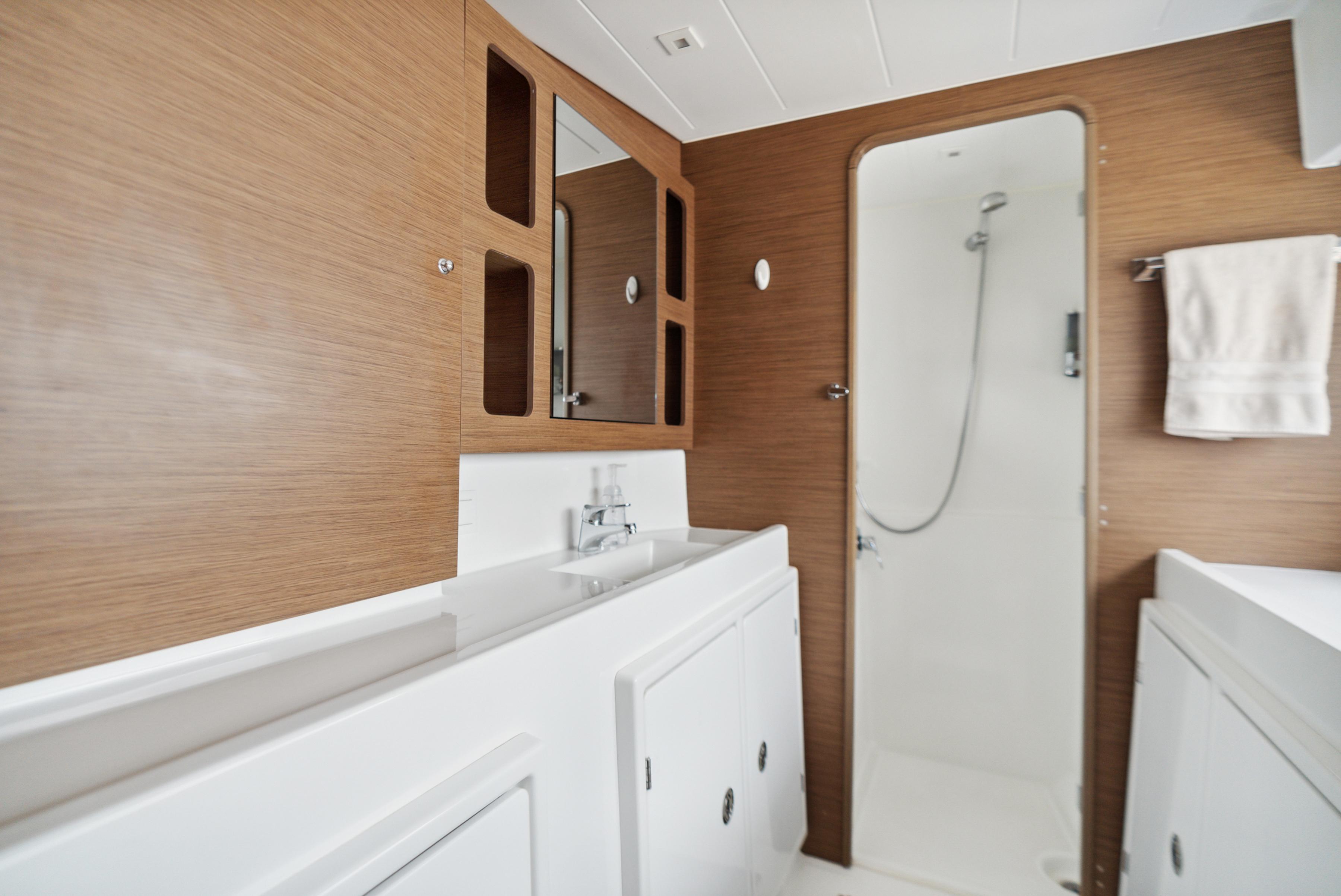

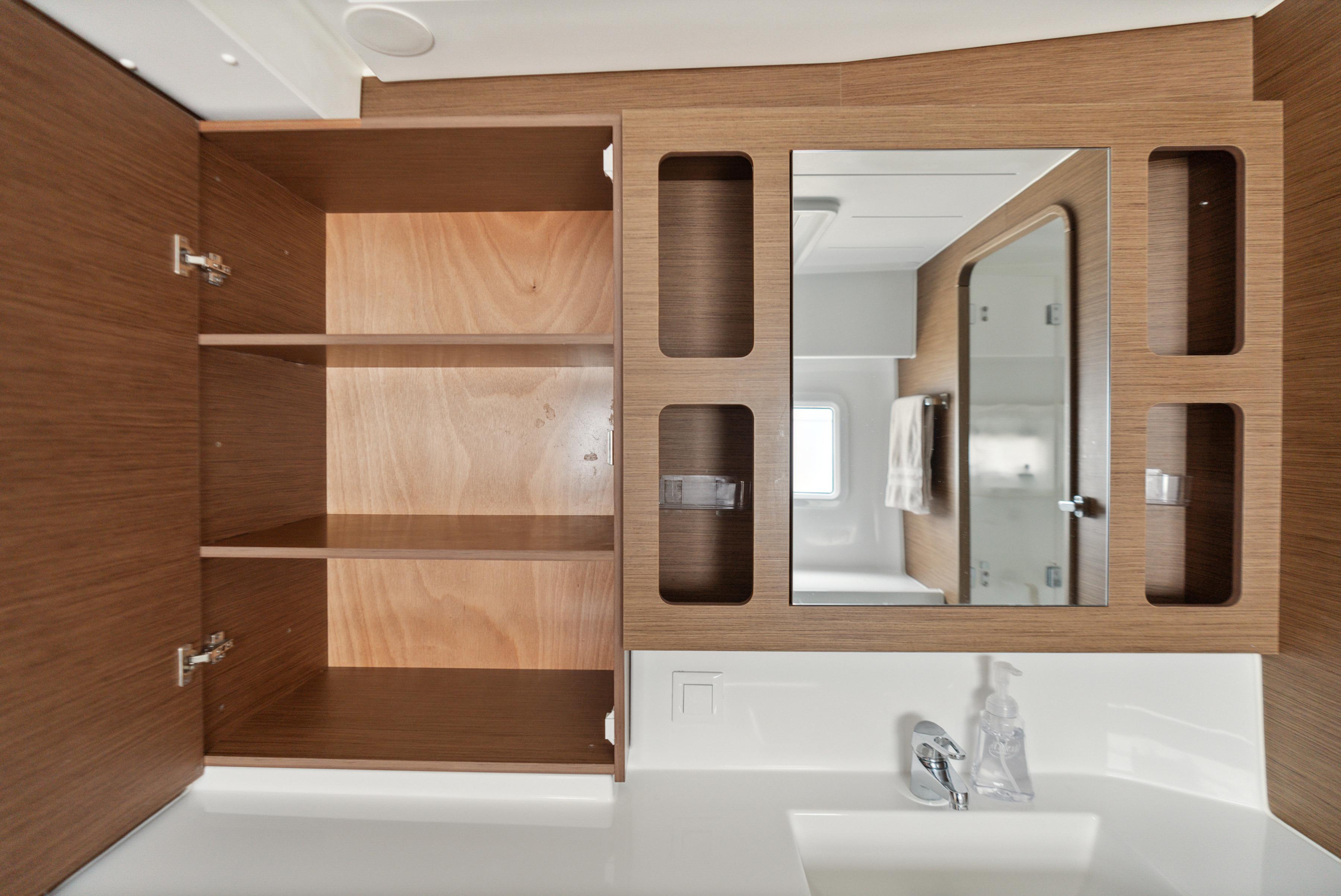

Vessel features 3 Heads: Master, Port Aft and Port Forward. Each includes:

  • Jabsco electric flush toilet

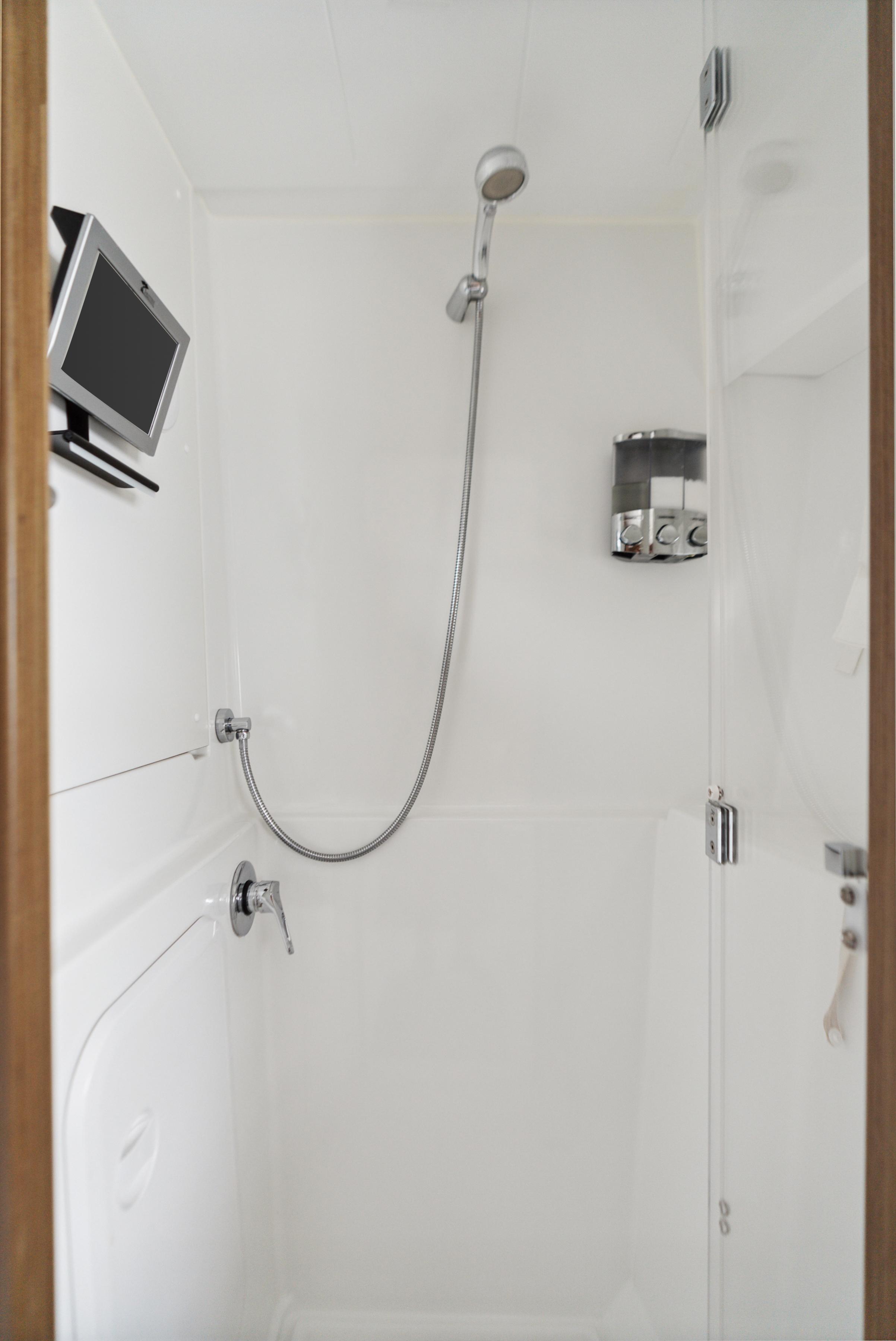

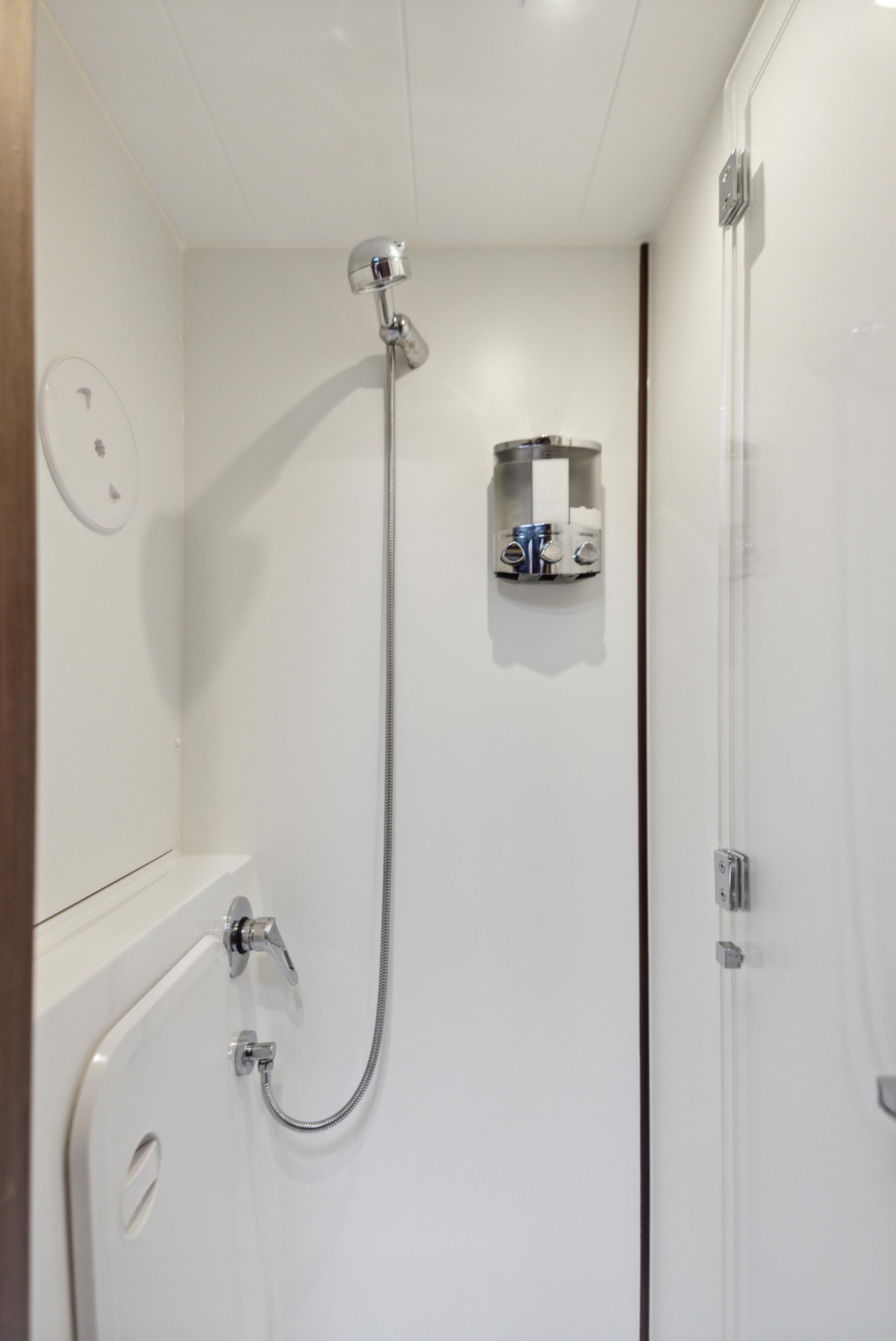

  • Shower
  • Sink
Air Conditioning System
  • Dometic 4-zone AC system
  • Size: Port aft stateroom unit - 8,000 BTU’s, Master stateroom unit- 12,000 BTU’s, Salon unit- 16,000 BTU’s, Port forward stateroom unit- 8,000 BTU’s
  • Model numbers: Port aft stateroom unit - DTU8-1161-410A5MR, Master stateroom unit- DTU12-1161-410A6MR, Salon unit- DTU16-1161-410A7MR, Port forward stateroom unit- DTU8-1161-410A5MR

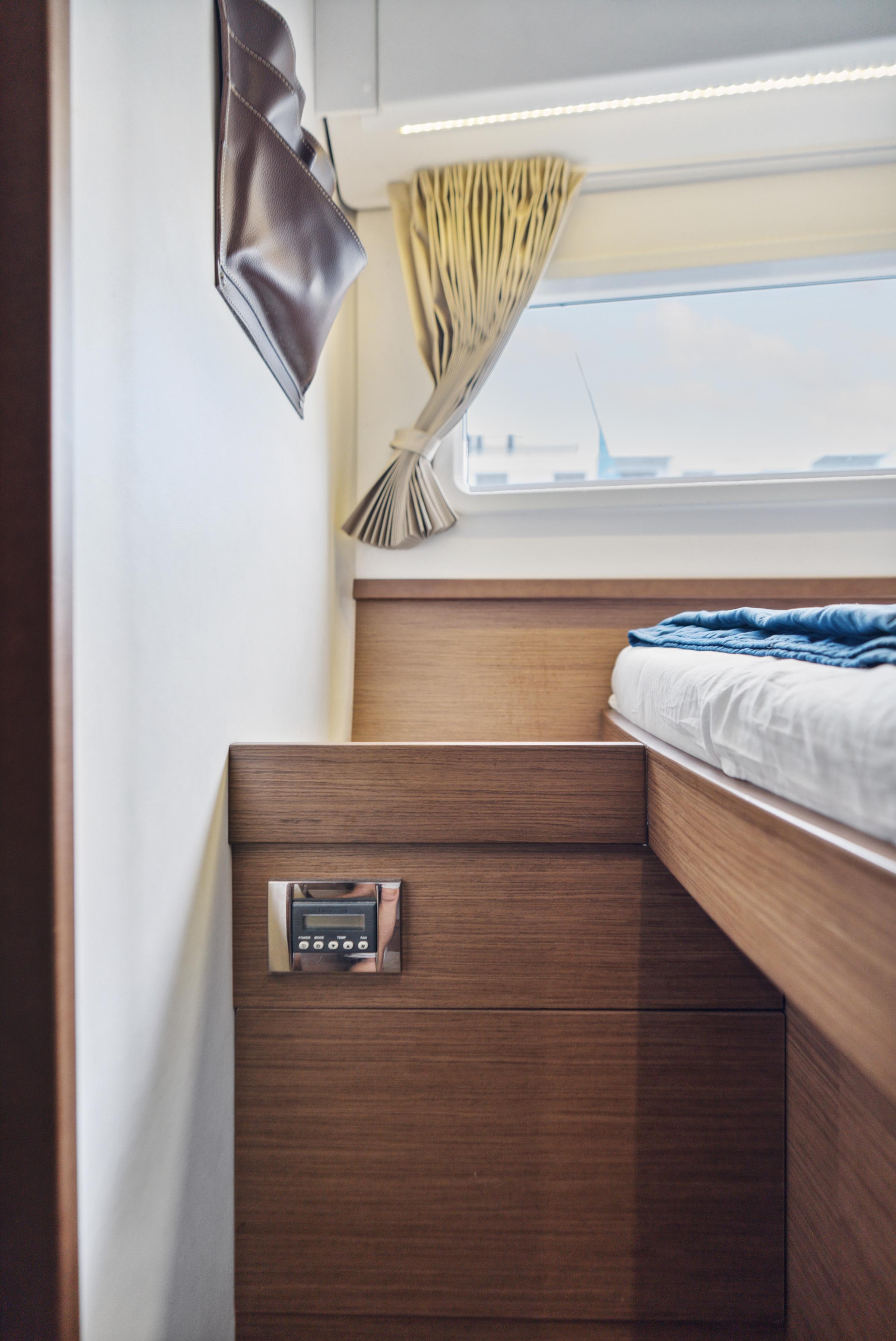

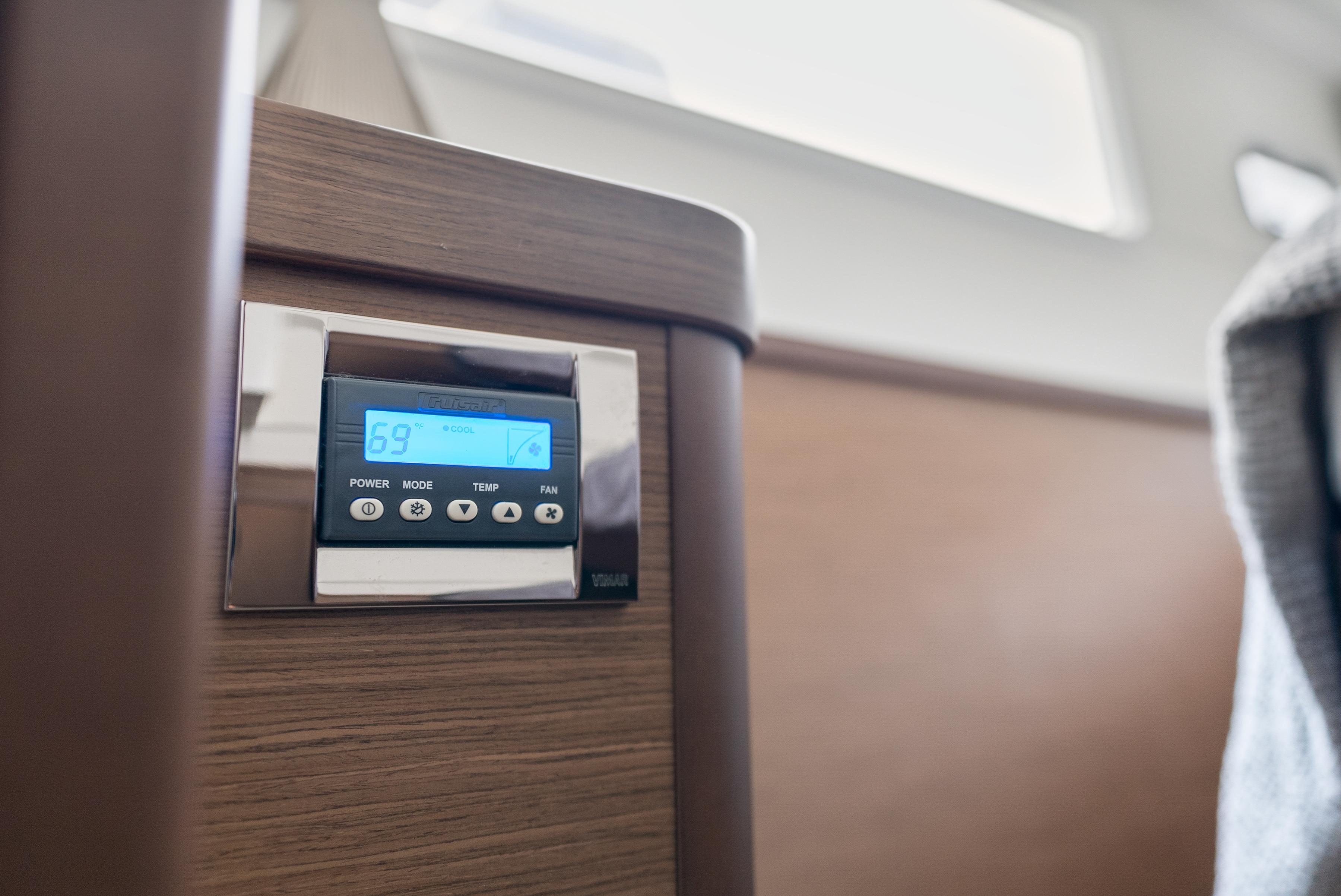

  • Digital thermostat temperature controls
  • (2) Cooling pumps
  • Drip trays
  • Raw water systems professionally flushed - 2022
Electrical System

D.C. ELECTRICAL SYSTEMS

  • 12-volt D.C. voltage system
  • Engine batteries- (2) Precision 24M-1000 batteries
  • House batteries- (4) Exide 4D ES1350 gel cell batteries (New 2022)
  • Generator battery- (1) Exide Start Pro EG1102

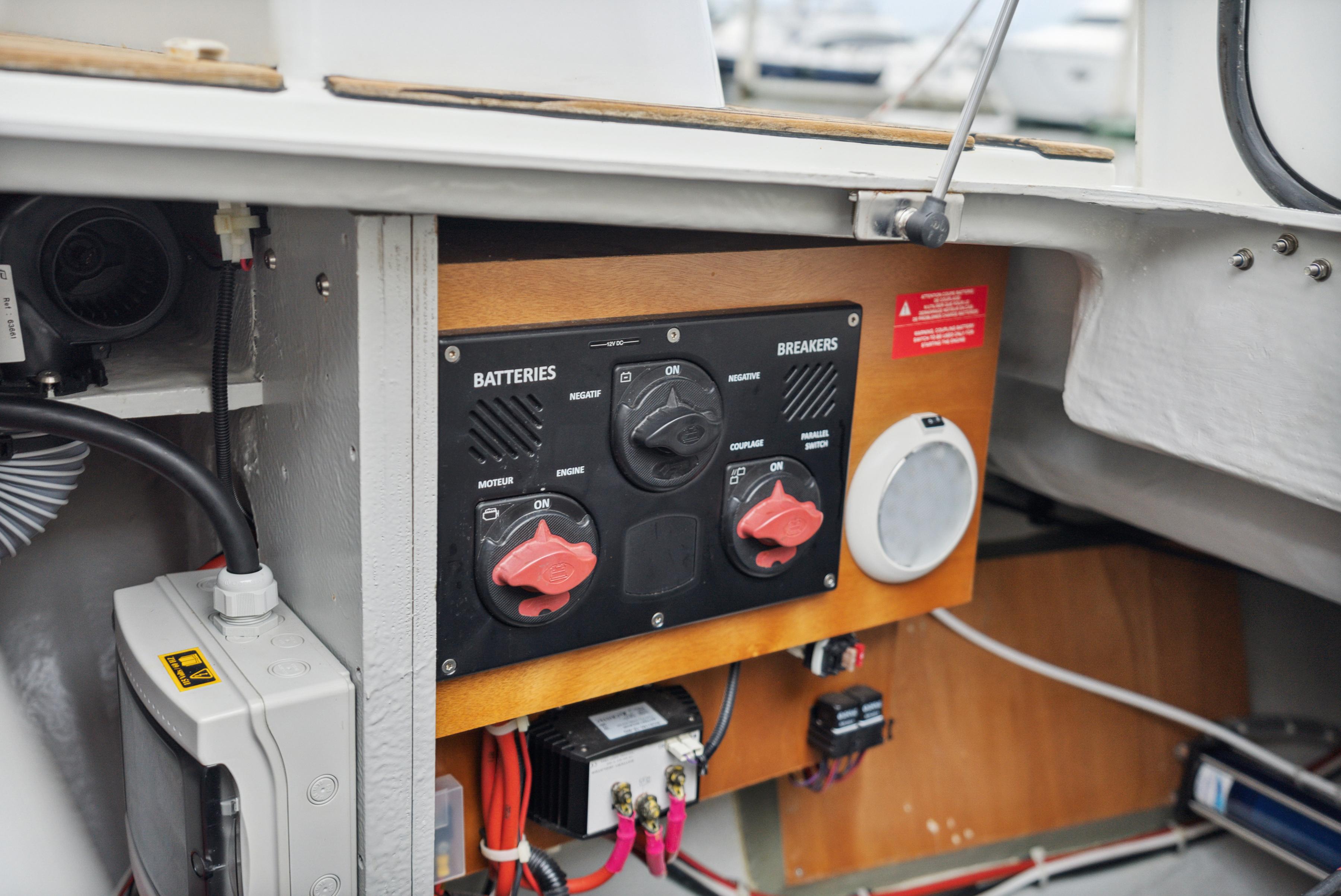

  • Rotary style battery switches
  • Digital volt and amp battery monitor display
  • (2) Cristec YPower 40-amp house & engine battery chargers
  • (1) Cristec YPower 25-amp Generator battery charger
  • DC Electrical distribution panel
  • Digital volt and amp display

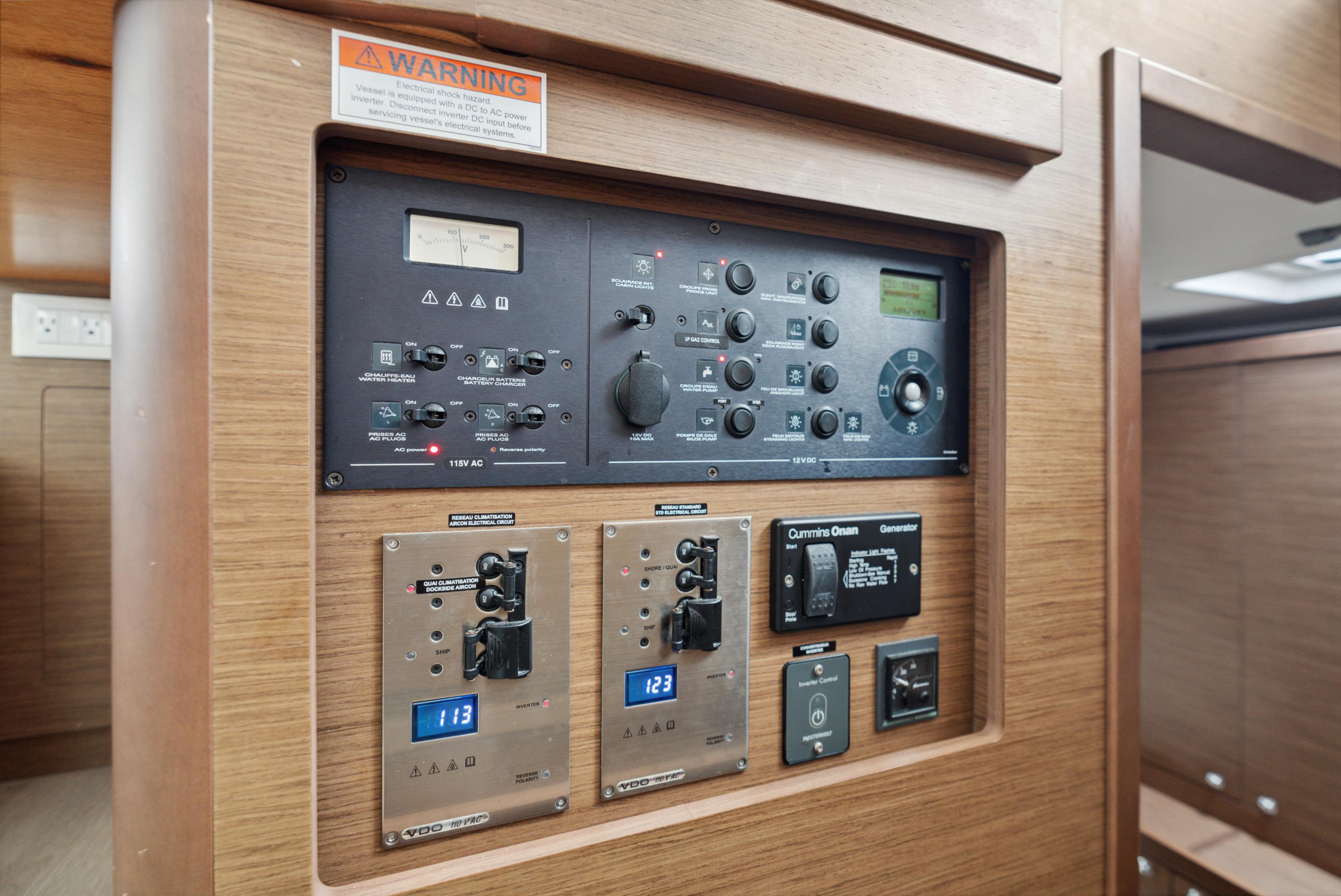

A.C. ELECTRICAL SYSTEMS

  • (1) 50-amp 125/250 shore power cord
  • 50-amp shore power breakers in port engine room and at main distribution panel
  • A.C. power selector switch: (2) brake or make slide protectors

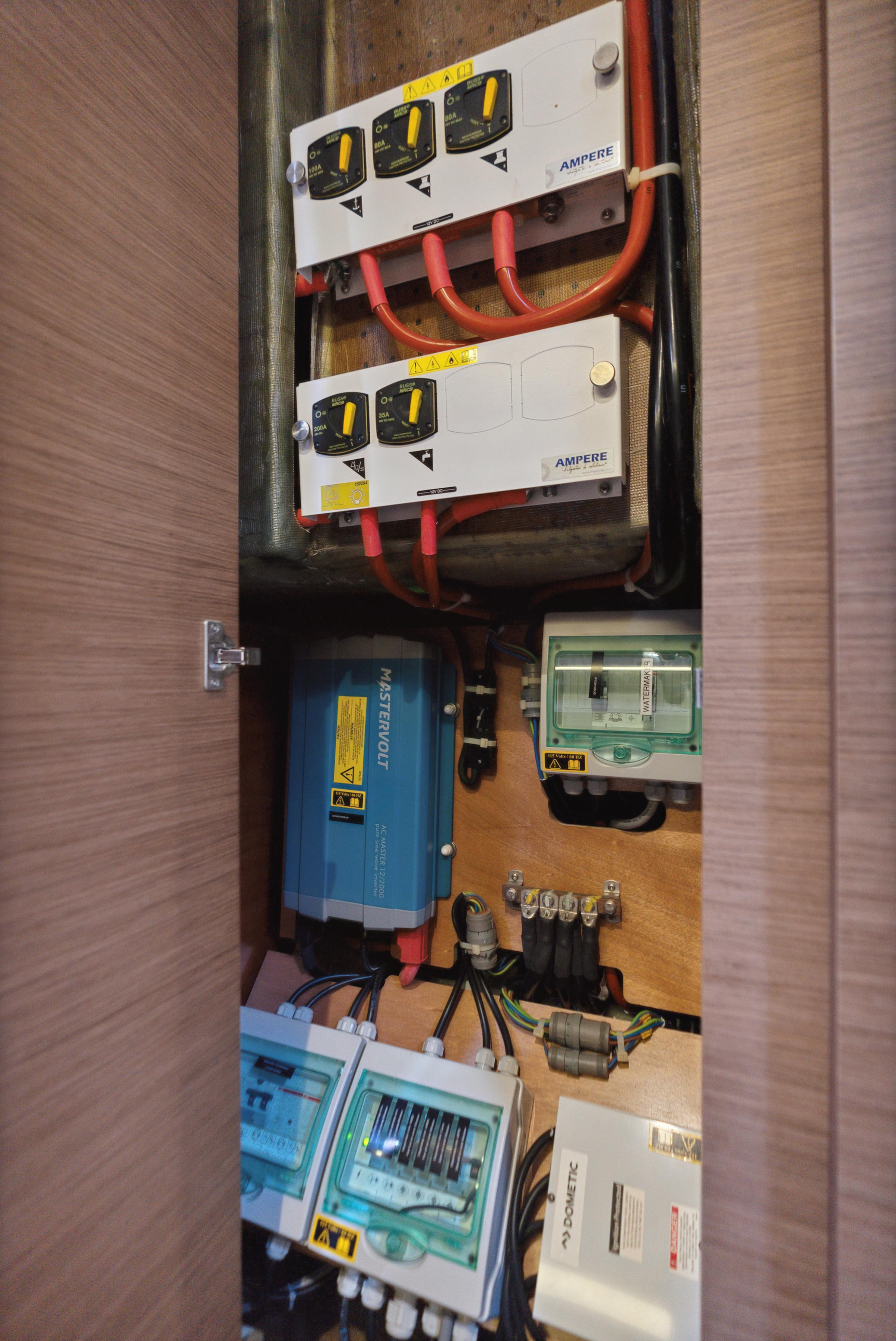

  • AC Electrical distribution panels
  • Branch breakers
  • Reverse polarity indicator
  • GFCI protection
  • A.C. Digital volt meter
  • Mastervolt AC Master 12/2000 2000-watt Inverter

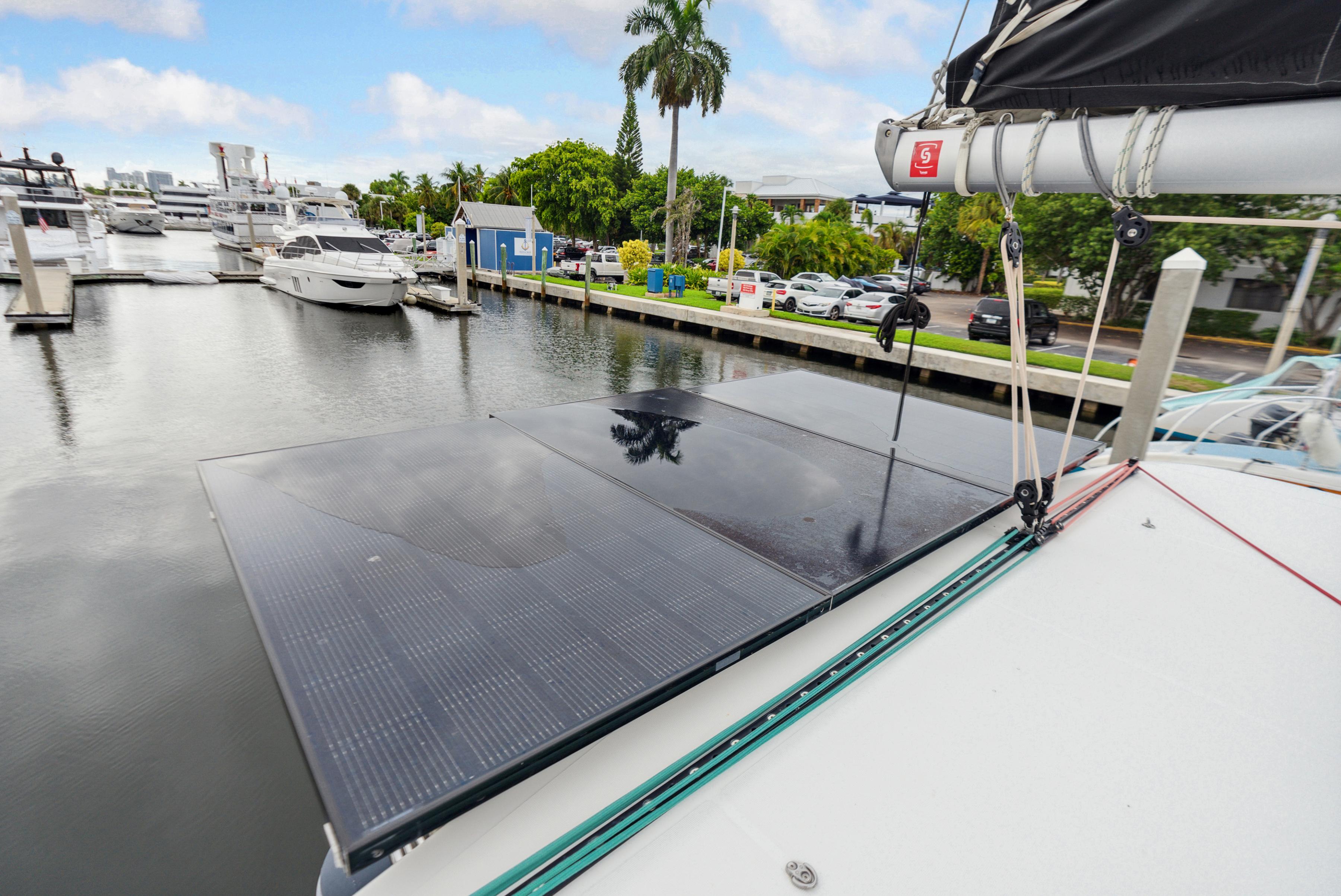

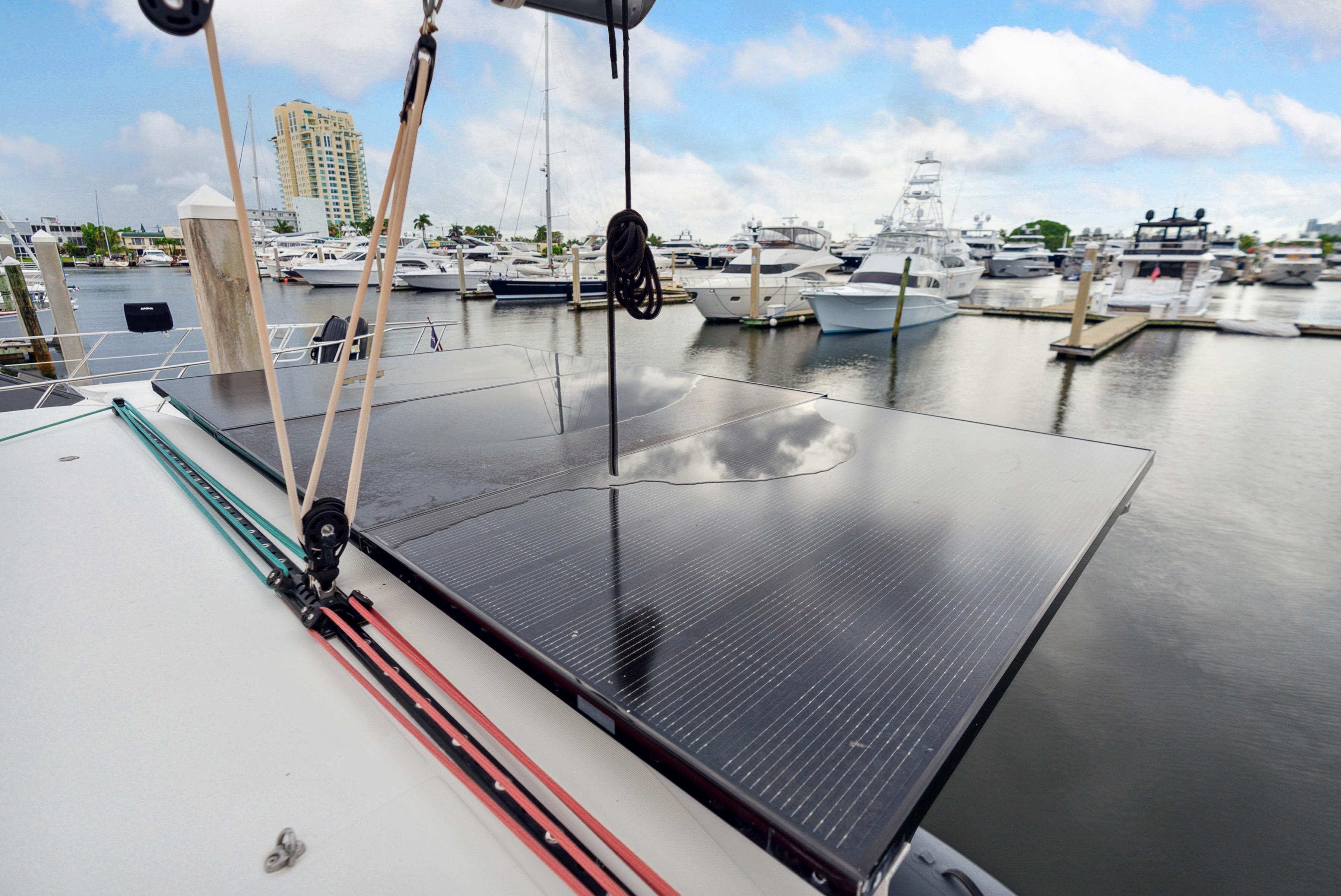

Solar Power System
  • (2) LG 300-watt model LG300N1K-4 solar panels
  • (1) LG 365-watt model LG365Q1K-V5 panel installed on a stainless steel frame mounted on the back of the cockpit hardtop
  • Solar charge controllers: (2) Victron MPPT 150/45 TR solar charge controllers
Additional Equipment

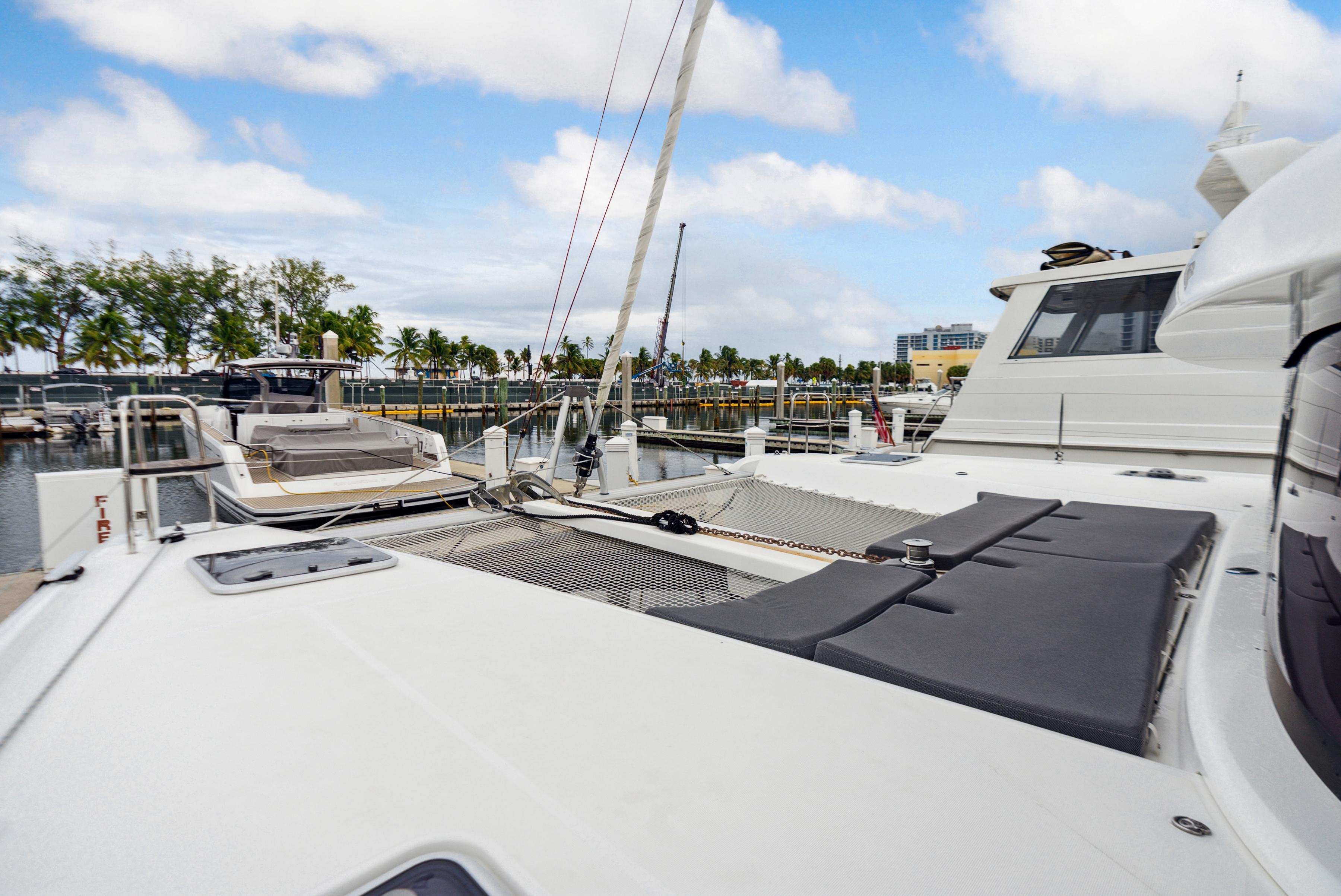

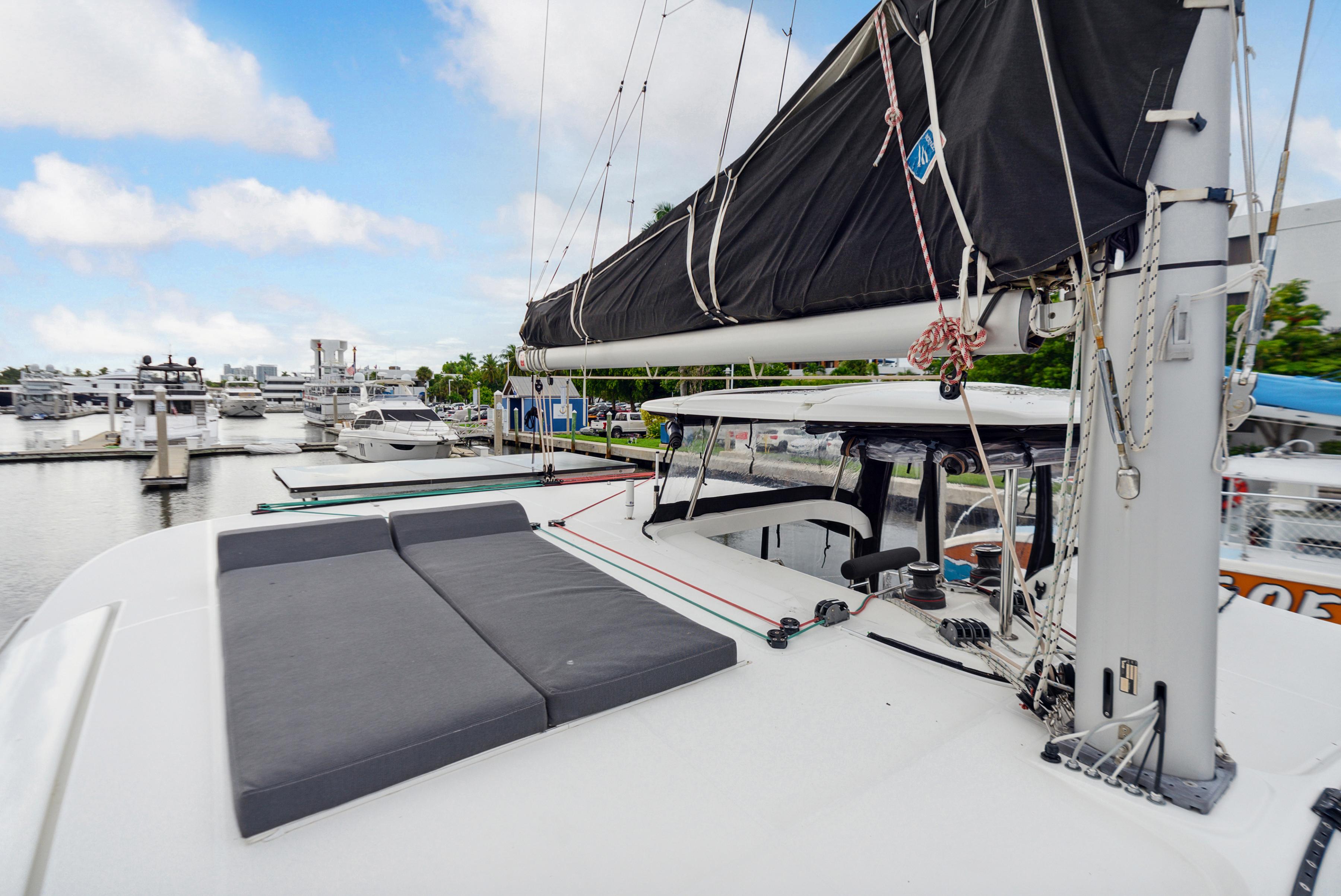

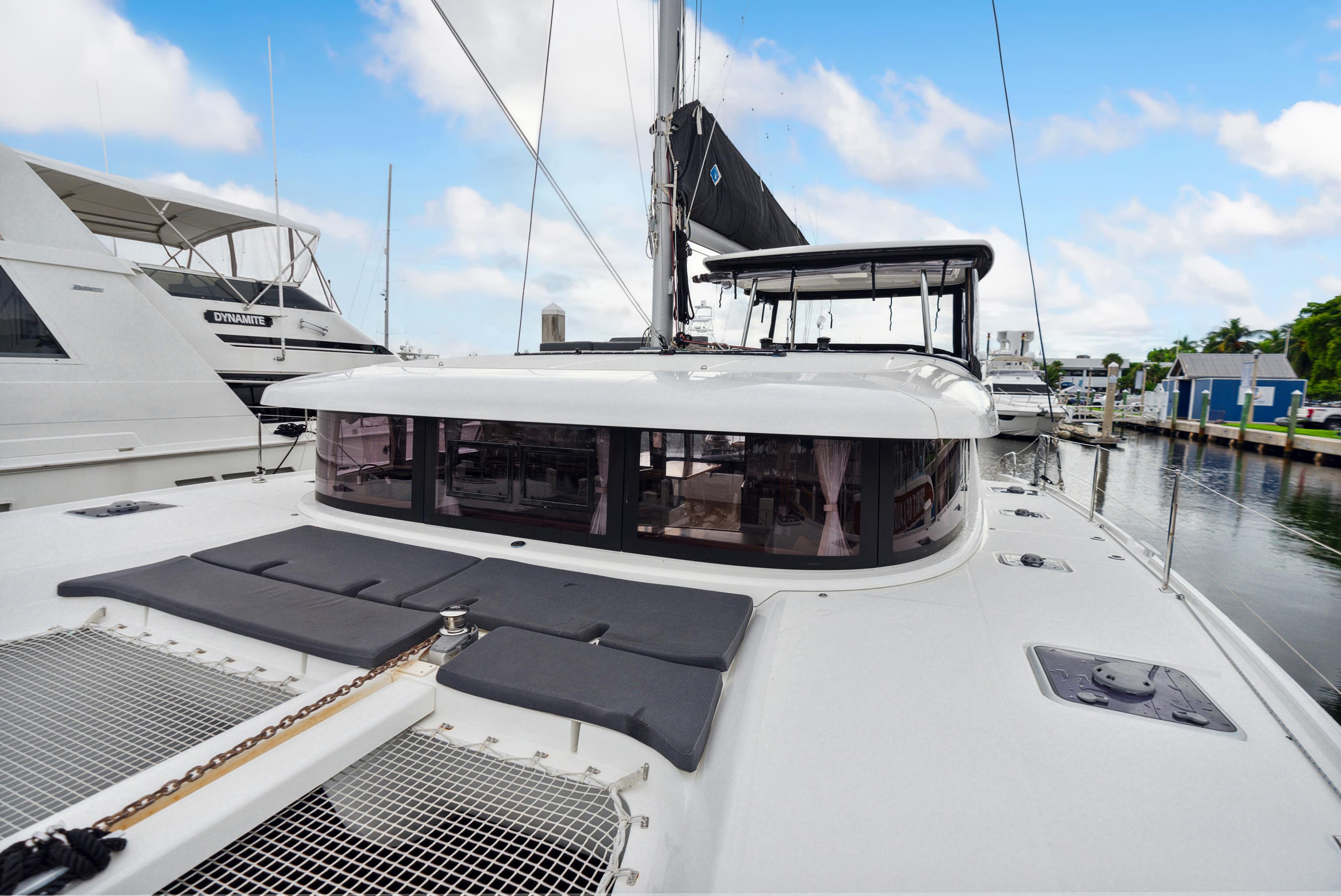

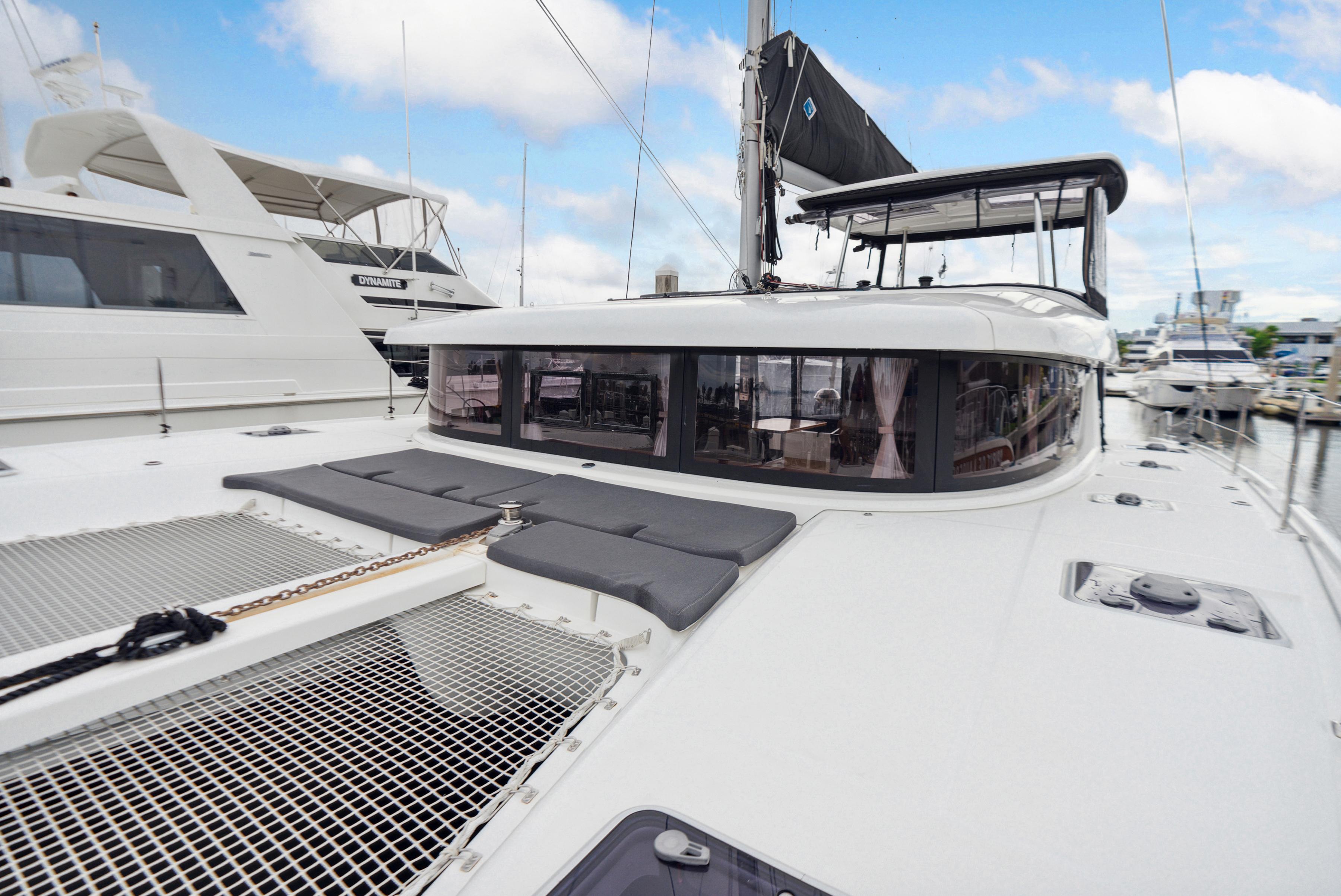

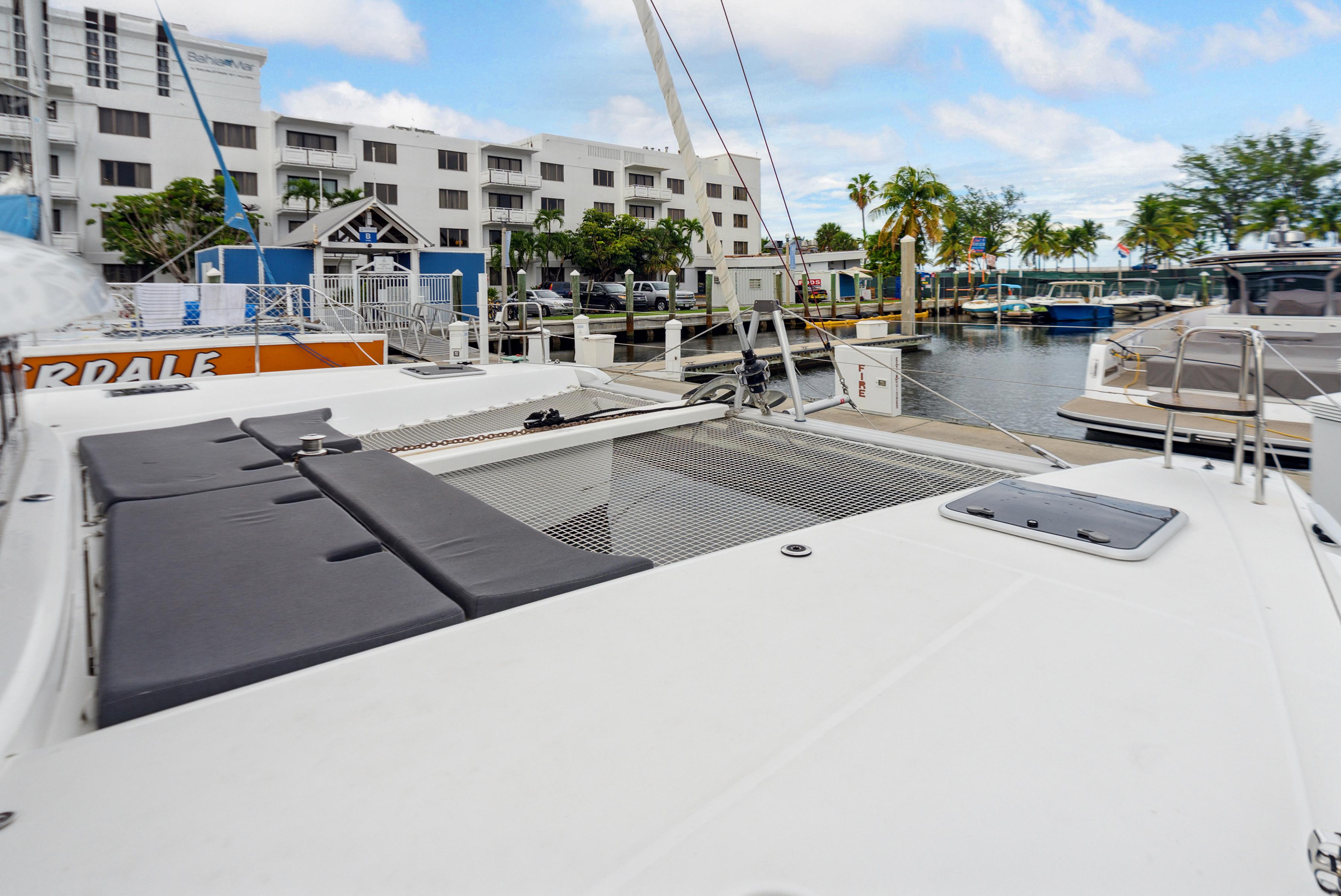

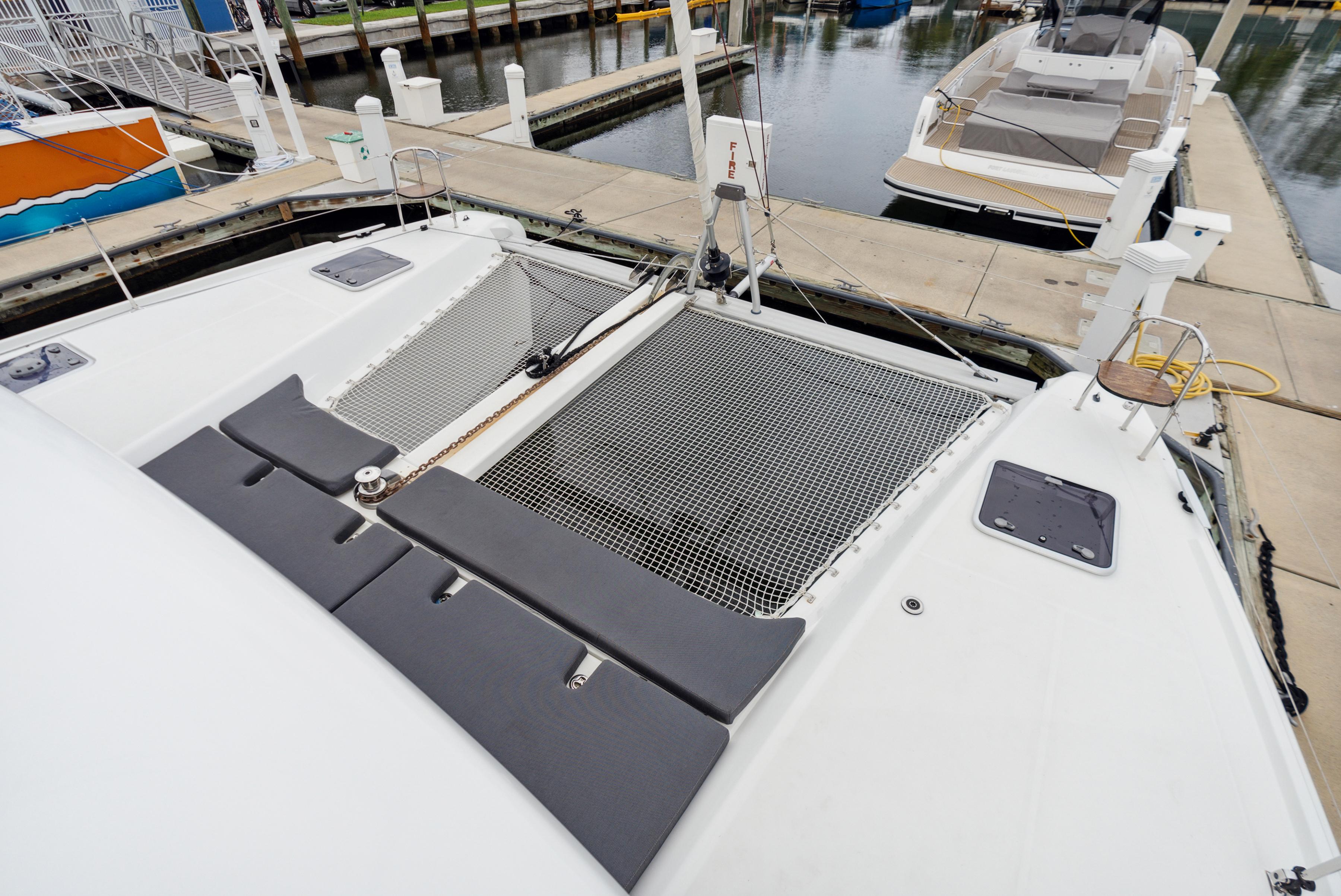

  • Foredeck seating cushions - 2021
  • Coachroof bunny pad seating - 2021

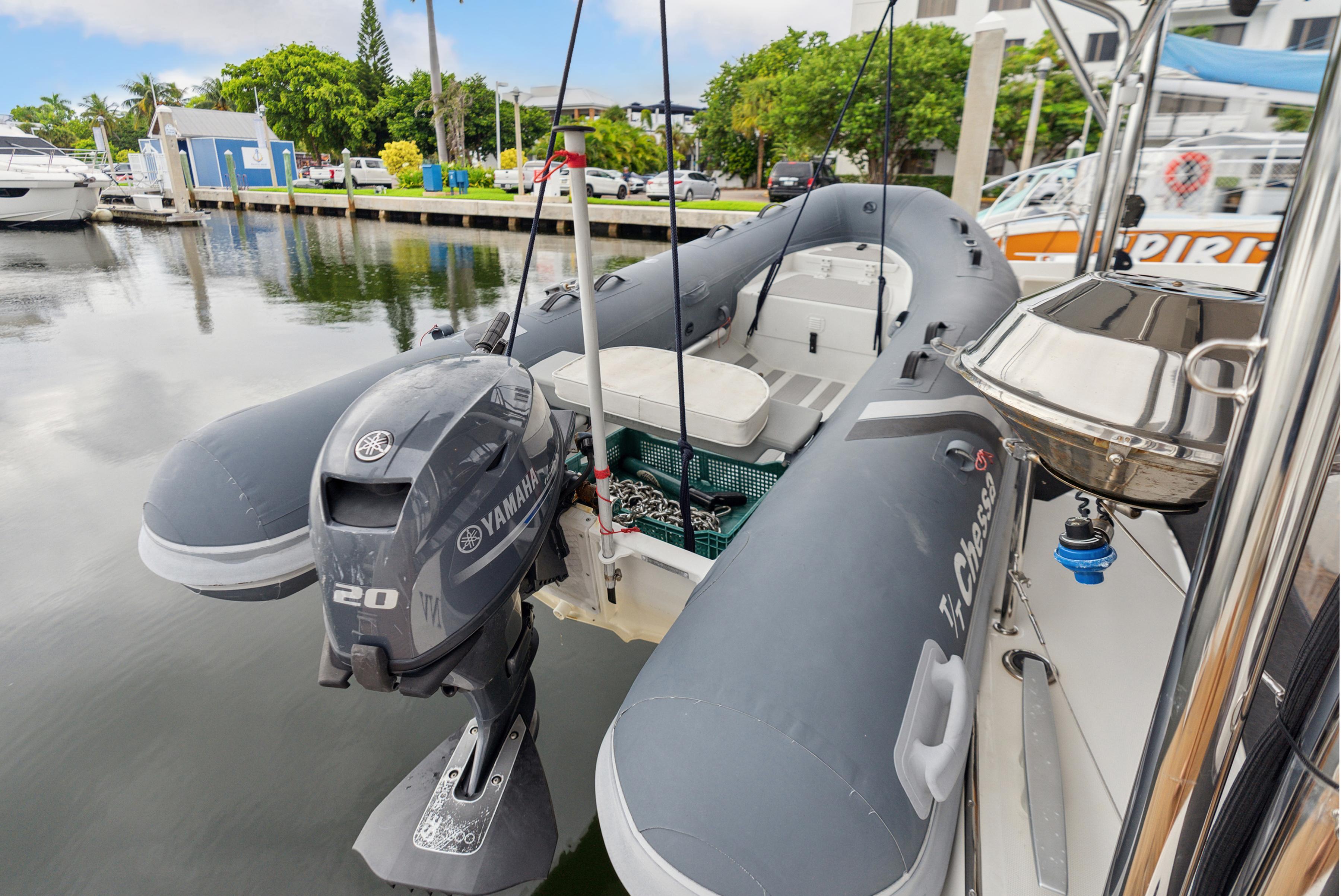

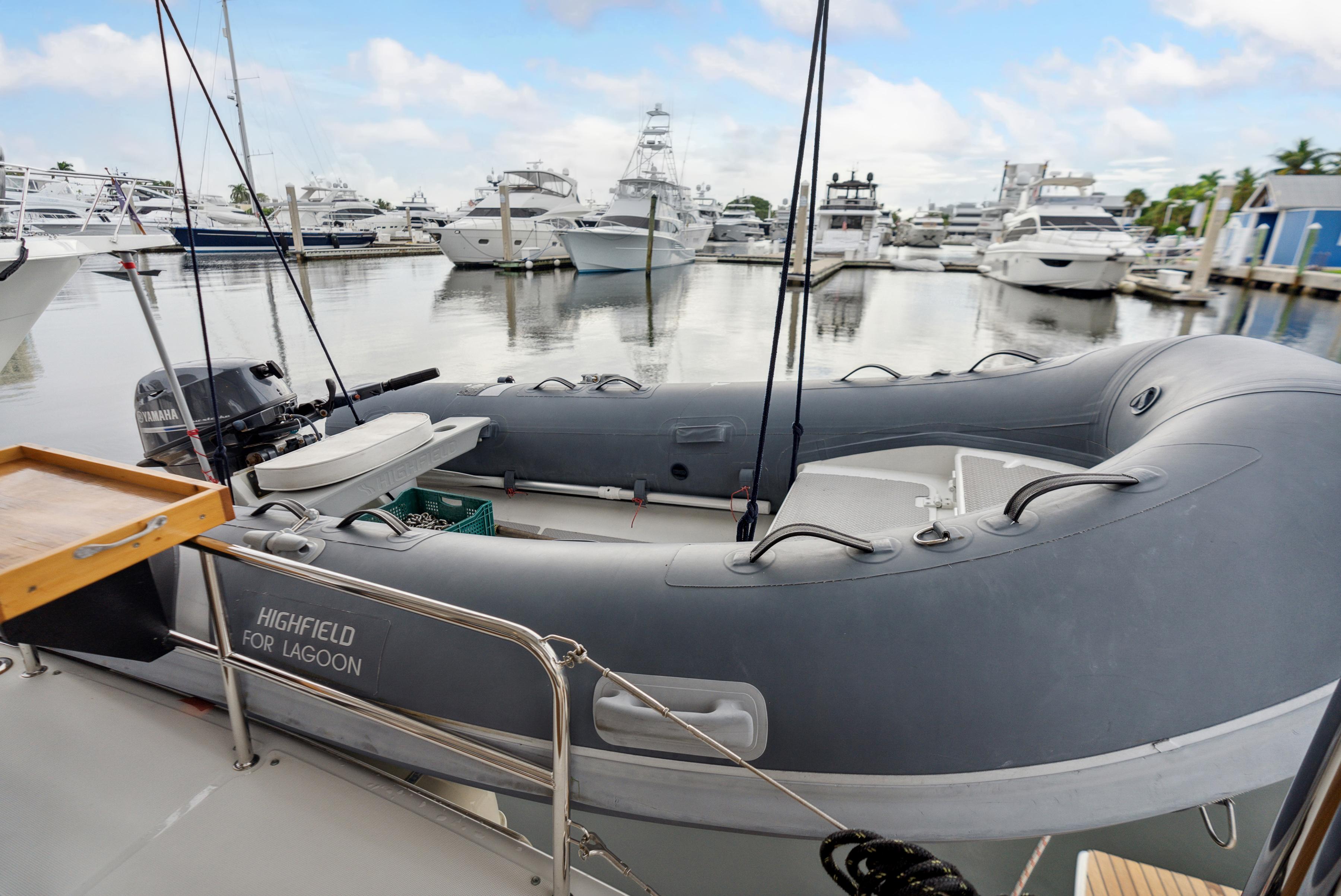

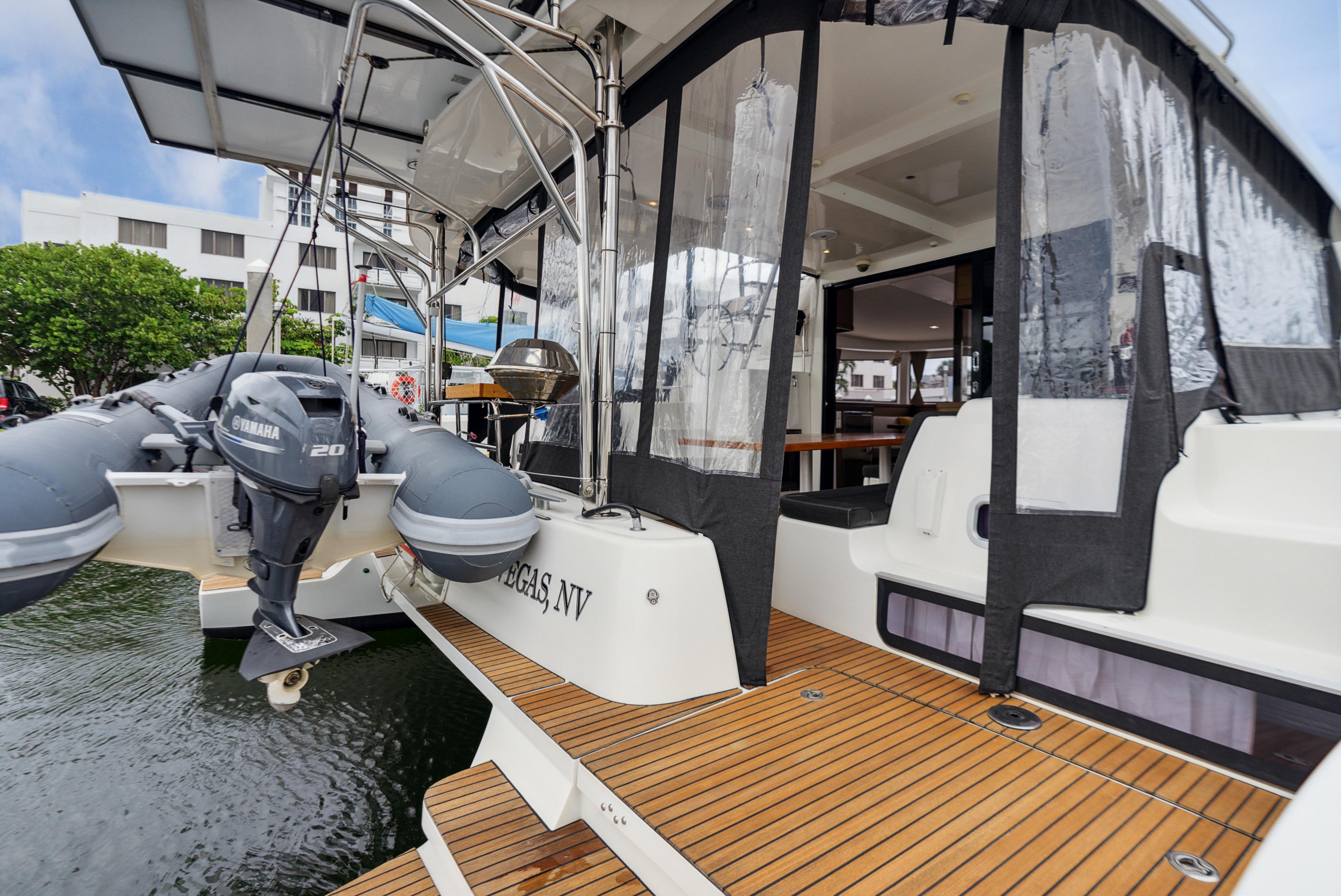

  • Highfield 11' RIB inflatable Tender with aluminum bottom and Yamaha 20 horsepower four-stroke engine.
  • Davit system is in good condition
  • Navigation lights
  • Life jackets (PFDs): (2) Type V inflatable adult USCG approved life jackets and (5) inflatable life jackets that do not have USCG approved on tags
  • (1) Plastimo Rescue Buoy on port aft rail
  • Package of 4 USCG approved visual distress flares - expire 11/2022
  • Portable air horn USCG placards
  • (2) 12-volt blowers in the engine rooms and (1) 12-volt blower in generator compartment
  • Transocean Life Raft - 6 Persons
  • McMurdo EPIRB
  • (4) 2Kg Type ABC European fire extinguishers on board located in the following areas: one in starboard hallway, one in port forward stateroom, one in salon and one on starboard cockpit
  • New AC Water Maker - 2022
Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.customContactInformation

To schedule a preview or for additional information, please contact

Central Listing Agent Will Miller at:

Email: will@multihullcompany.com

Cell Phone: 843-364-4123

Office Phone: +1 215 508-2704

Managing Broker

Contact - Will Miller
The Multihull Company

Located in Charleston, SC

OFFICE: 215-508-2704
CELL: 843-364-4123
FAX: 215-508-2706
Email: Will@multihullcompany.com
View Will Miller's Profile

Boat Specifications

Year

2019

Length

42 ft

Location

Florida

Price

645,000

Status

Active

Make

Lagoon

Model

42

Name

Chessa

Boat Video

Additional Specs

Keel

Engines

Make: Yanmar

Model: 4JH57X1

Type: Inboard

Fuel: diesel

Power: 57|horsepower

Year:

Hours: 1280

Location:



Make: Yanmar

Model: 4JH57X1

Type: Inboard

Fuel: diesel

Power: 57|horsepower

Year:

Hours: 1280

Location:



About This Boat

2019 42' Lagoon "Chessa" is a sailing catamaran with a deck-stepped fractional rigged mast and wire rigging. "Chessa" is powered by a pair of 4-cylinder Yanmar diesel engines with Yanmar saildrives. She features a three stateroom and three head layout with a large salon and spacious cockpit.

This Lagoon 42 is well equipped with features such as a generator, water maker, electronics and an 11 foot RIB tender. Call to schedule your showing today!


Additional Details

Hull and Transom
  • Fiberglass balsa cored hull above and below waterline in very good condition
  • White plastic thru hulls and stainless steel engine exhausts
  • Built-in swim platforms and steps on transom
  • Transom includes four-step telescopic stainless steel ladder on the starboard side with teak treads
  • Bottom paint is black ablative anti-fouling
  • Bronze fittings on strainers/scoops/screens
  • One speedometer transducer on the starboard bow area and a depth transducer on the port bow area
  • Keel Type: Shoal Keel
  • Fiberglass foam filled spade rudders in good condition
  • (2) Flexofold 3-blade propellers, 18" diameter - both left hand rotation
  • (2) 12-volt Rulemate 1100 GPH bilge pumps with built-in water sensors. One installed in each hull.
  • All sea valves are bronze quarter-turn ball valves with the exception of the waste tank valves which are either plastic or Marelon.
  • Transducers include one speed and one depth transducer.
Main Deck and Fittings
  • (2) Stainless steel anchor rollers
  • Anchor is a 32 kg galvanized steel Rocna anchor with approximately 250’ of galvanized steel anchor chain
  • Spare Delta anchor, rode and 40 feet of chain
  • Quick Aleph 12-volt Windlass
  • (2) Stainless steel bow rails
  • Stanchions/side rail(s) are stainless steel
  • One boarding gate on each side - Lifeline sections with pelican hooks
  • Uncoated stainless steel lifeline cable
  • (8) 16” Aluminum horn cleats
  • (2) Stainless steel grab rails on cockpit cover sides
  • Cabin house windows feature tinted tempered safety glass
  • Radar is mounted on the front of the mast.
  • Lewmar hatches - (2) 23” x 23”, (4) 20” x 20” and (4) 13” x 13” hatches
  • Aluminum mast step
Aft Deck
  • Fiberglass construction with teak decking
  • Sole: Teak decking.
  • Lighting: (2) LED overhead lights and (6) small stick on D.C. lights
  • Full isinglass enclosure for cockpit and helm area
  • Isotherm 12-volt model DR65 Refrigerator
  • LPG locker under portside cockpit settee with 2 propane bottles
  • Mahogany cockpit table
Navigation and Electronics

Helm

  • B&G Zeus 3 12” GPS chartplotter/ sonar/ radar
  • (2) B&G Triton 2 Multi-function displays
  • B&G Triton 2 Autopilot
  • Plastimo Compass



Navigation Station

  • B&G Zeus 3 12” GPS chartplotter/ sonar/ radar
  • B&G V50 VHF



Other Electronics and Controls

  • VHF antenna on masthead
  • Vented Splendide Washing Machine (2021) - Just Catamarans
  • Courtesy lights
  • High water alarm
  • Windlass controls
  • IridiumGo (New 2022)
  • Wifi / Cell system (2021) - Just Catamarans



Entertainment Electronics

  • Fusion MS-RA70N AM/FM/BT Stereo with (2) Fusion speakers in salon and (2) Fusion speakers in cockpit
Sails and Rigging
  • Mast: Aluminum deck stepped single spreader fractional rigged mast manufactured by VMG Soromap
  • Standing rigging: 19 strand stainless steel cable
  • Furler: Facnor LS200 furling system
  • Boom: VMG Soromap aluminum boom with stack pack style sail storage system
  • Main sail: Manufactured by Incidence Sails
  • Jib sail: Manufactured by Incidence Sails
  • Code zero sail
  • New Spinnaker - 2022
  • Sail covers: Stack pack style system for main sail and sun cover on genoa.
  • Chain plates
  • Genoa traveler: Harken traveler
  • Aluminum mast base
  • Deck stepped mast
  • (1) halogen light on front of mast
  • (2) Harken electric two-speed size 46 winches
Engine and Mechanical
  • (2) Yanmar 4-cylinder diesel engines Model number: RCD-4JH57X1
  • Yanmar engine displays with analog tachometers and digital displays for temperature, oil pressure and voltage
  • Cummins/Onan 13.5 kW Diesel Generator located in starboard foredeck locker. Model: 13.5 MDKND-8140A  Kilowatt/voltage rating: 120/ 240 volt
  • Top mount cable-operated throttle and shift controls
  • Natural ventilation and 12-volt blower in both engine rooms
  • Mechanical lift fuel pumps
  • Proper USCG approved Type A1-15 fuel hoses
  • Yanmar primary fuel filters on bulkheads and secondaries on engines
  • Wire reinforced exhaust hoses and plastic mufflers
  • Alternator in good condition and charging properly
  • Transmission/Saildrive Manufacturer: Yanmar Model number: SD60-5
  • Cable steering system
  • Electric fuel pump. Operational
  • Wire reinforced, double-clamped exhaust hoses
Fuel Tanks and Plumbing
  • (2) Polyethylene 75 gallon fuel tanks Tank type & capacity -- cumulative capacity 150 gallons
  • Proper USCG approved A1-15 fuel supply line hoses
  • Shut off valves
  • Vent line on port and starboard hull sides.

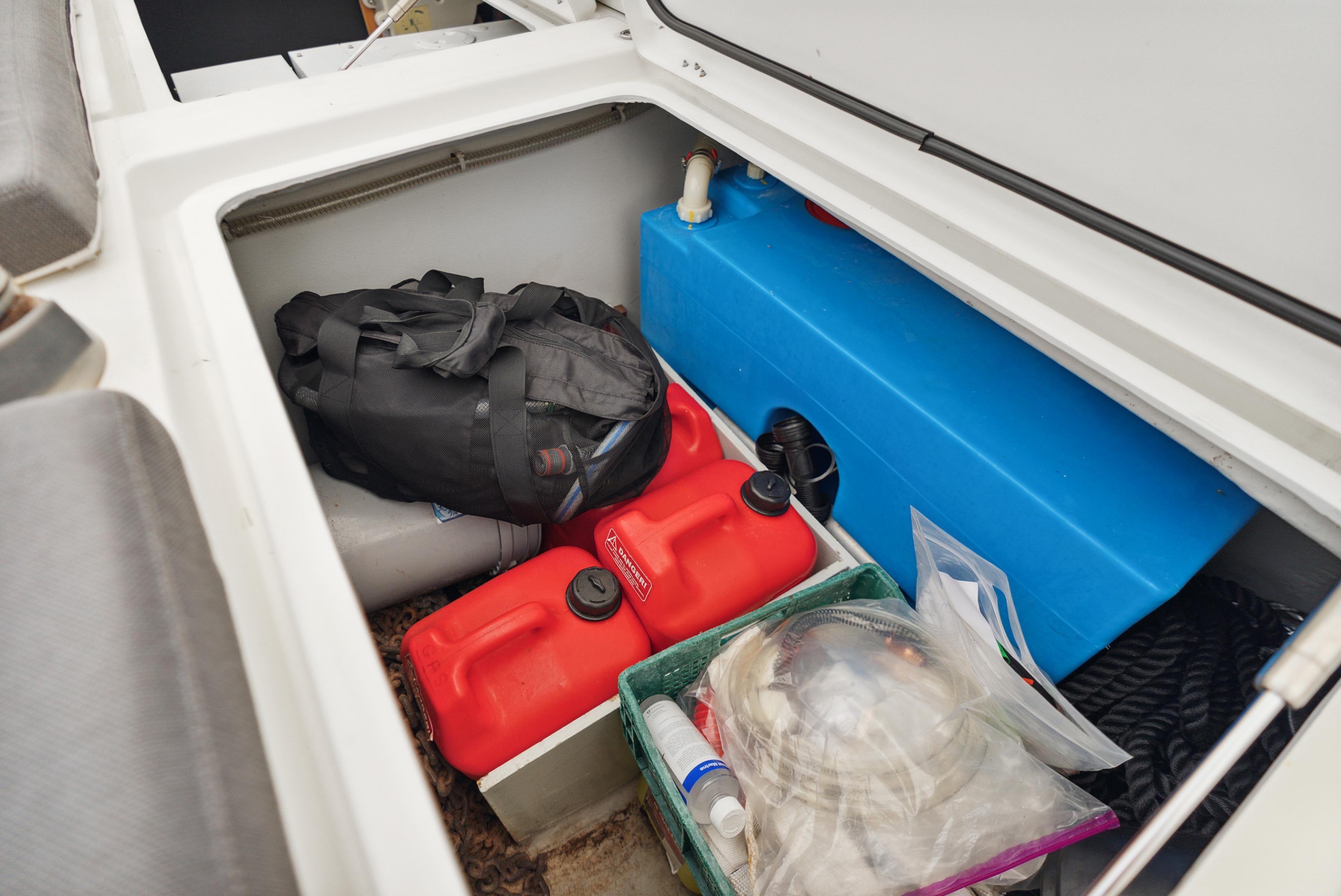

  • (1) 79 gallon polyethylene tank in portside foredeck locker
  • Water pump(s): ParMax 4, 4.3 GPM, 12-volt water pump
  • Nautic Boiler Water Heater - 40 liter, 120-volt water heater
  • Sea Recovery Ultra Whisper DX 16.7 GPH Water Maker
  • (3) Polyethylene holding tanks, one for each head - approximately 21 gallons each
  • Pump out fitting located on port and starboard side decks
  • Vents located on port and starboard hull sides
Salon
  • Grey faux wood flooring
  • Sliding salon door
  • Varnished wood table
  • TCL 32” flat screen smart TV
Galley
  • Three-burner ENO LPG stove
  • ENO LPG oven
  • Microwave on counter (2021)
  • Frigonautica refrigerator
  • Vitrifrigo freezer
Heads

Vessel features 3 Heads: Master, Port Aft and Port Forward. Each includes:

  • Jabsco electric flush toilet
  • Shower
  • Sink
Air Conditioning System
  • Dometic 4-zone AC system
  • Size: Port aft stateroom unit - 8,000 BTU’s, Master stateroom unit- 12,000 BTU’s, Salon unit- 16,000 BTU’s, Port forward stateroom unit- 8,000 BTU’s
  • Model numbers: Port aft stateroom unit - DTU8-1161-410A5MR, Master stateroom unit- DTU12-1161-410A6MR, Salon unit- DTU16-1161-410A7MR, Port forward stateroom unit- DTU8-1161-410A5MR
  • Digital thermostat temperature controls
  • (2) Cooling pumps
  • Drip trays
  • Raw water systems professionally flushed - 2022
Electrical System

D.C. ELECTRICAL SYSTEMS

  • 12-volt D.C. voltage system
  • Engine batteries- (2) Precision 24M-1000 batteries
  • House batteries- (4) Exide 4D ES1350 gel cell batteries (New 2022)
  • Generator battery- (1) Exide Start Pro EG1102
  • Rotary style battery switches
  • Digital volt and amp battery monitor display
  • (2) Cristec YPower 40-amp house & engine battery chargers
  • (1) Cristec YPower 25-amp Generator battery charger
  • DC Electrical distribution panel
  • Digital volt and amp display



A.C. ELECTRICAL SYSTEMS

  • (1) 50-amp 125/250 shore power cord
  • 50-amp shore power breakers in port engine room and at main distribution panel
  • A.C. power selector switch: (2) brake or make slide protectors
  • AC Electrical distribution panels
  • Branch breakers
  • Reverse polarity indicator
  • GFCI protection
  • A.C. Digital volt meter
  • Mastervolt AC Master 12/2000 2000-watt Inverter
Solar Power System
  • (2) LG 300-watt model LG300N1K-4 solar panels

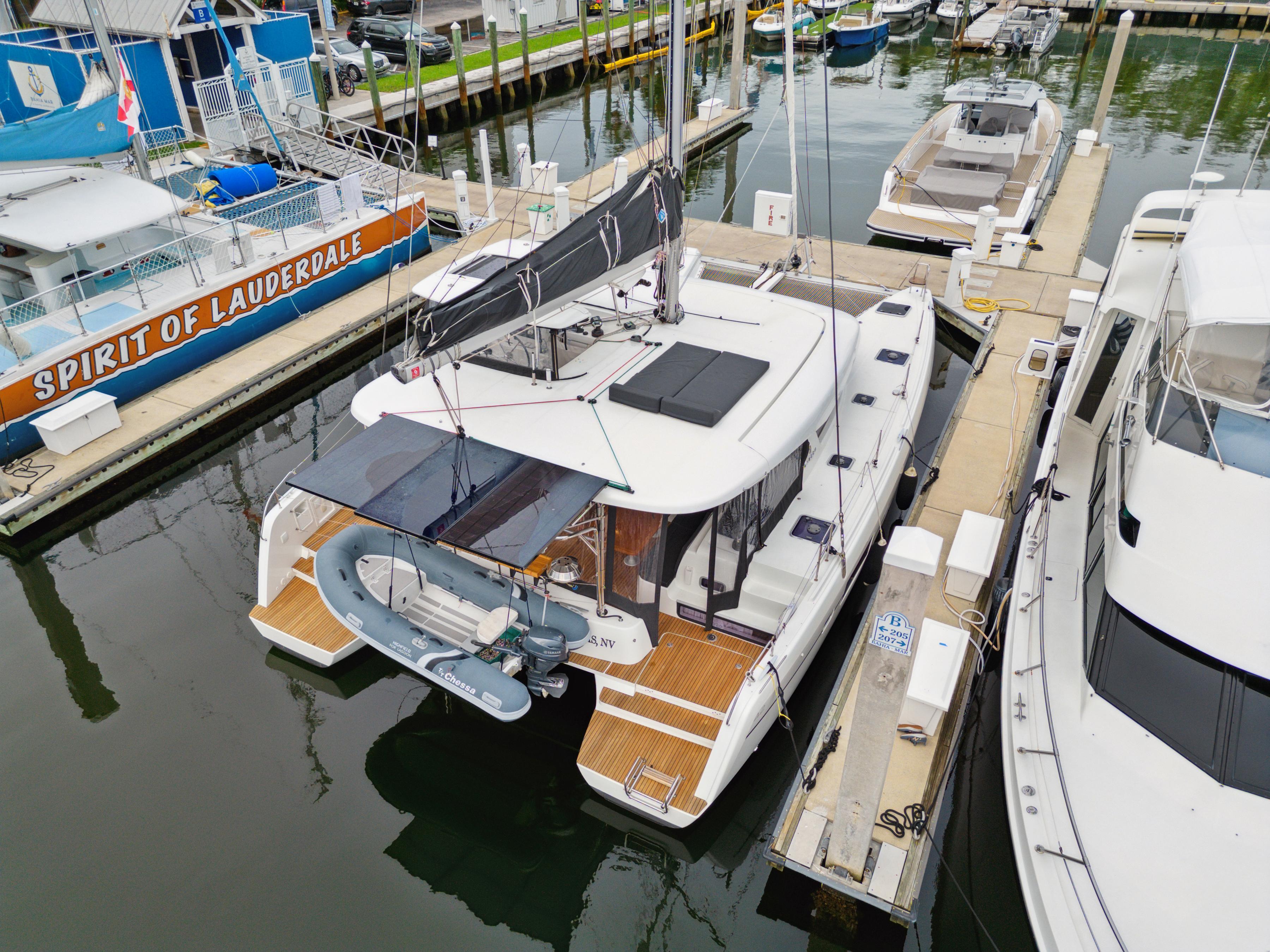

  • (1) LG 365-watt model LG365Q1K-V5 panel installed on a stainless steel frame mounted on the back of the cockpit hardtop
  • Solar charge controllers: (2) Victron MPPT 150/45 TR solar charge controllers
Additional Equipment

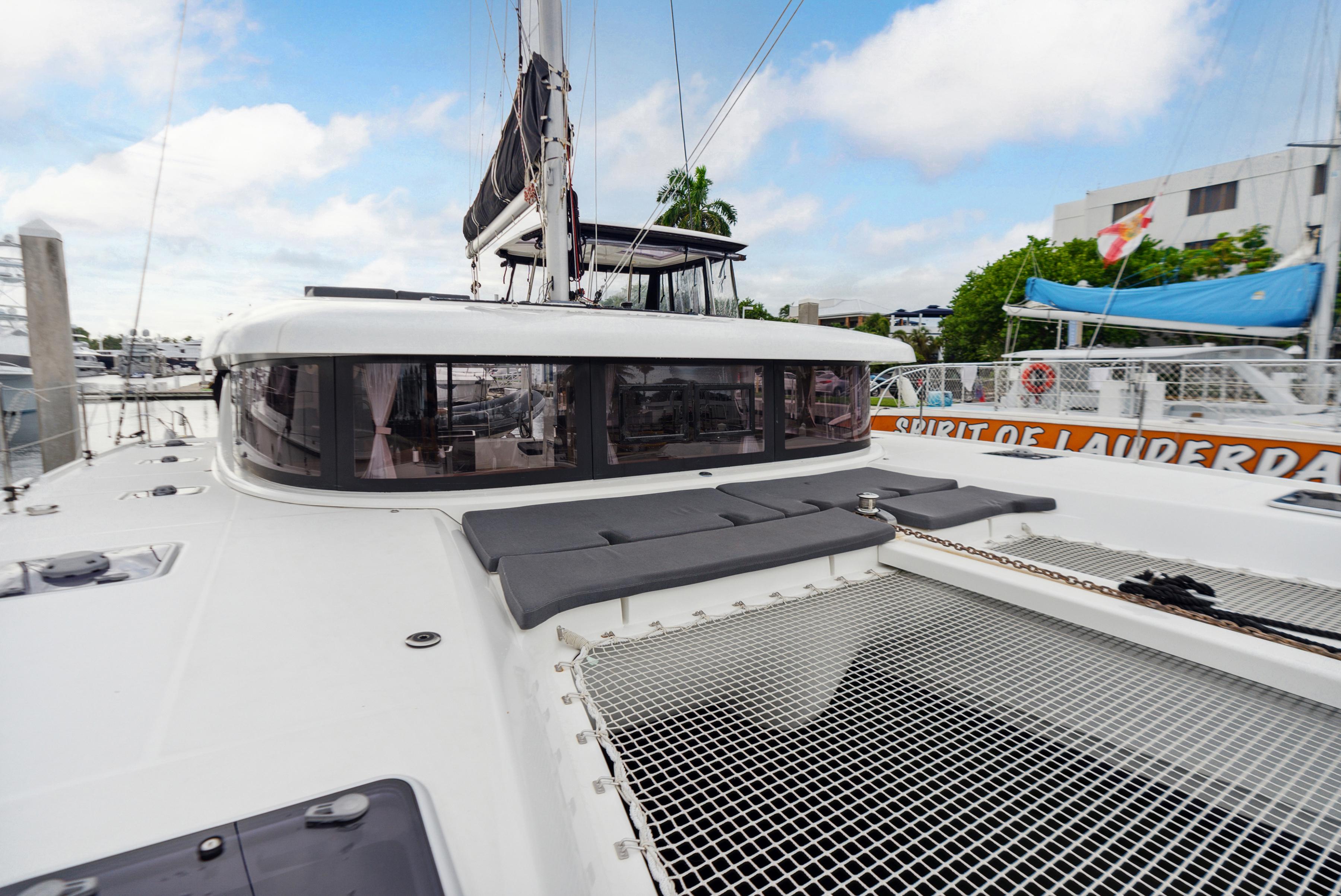

  • Foredeck seating cushions - 2021
  • Coachroof bunny pad seating - 2021

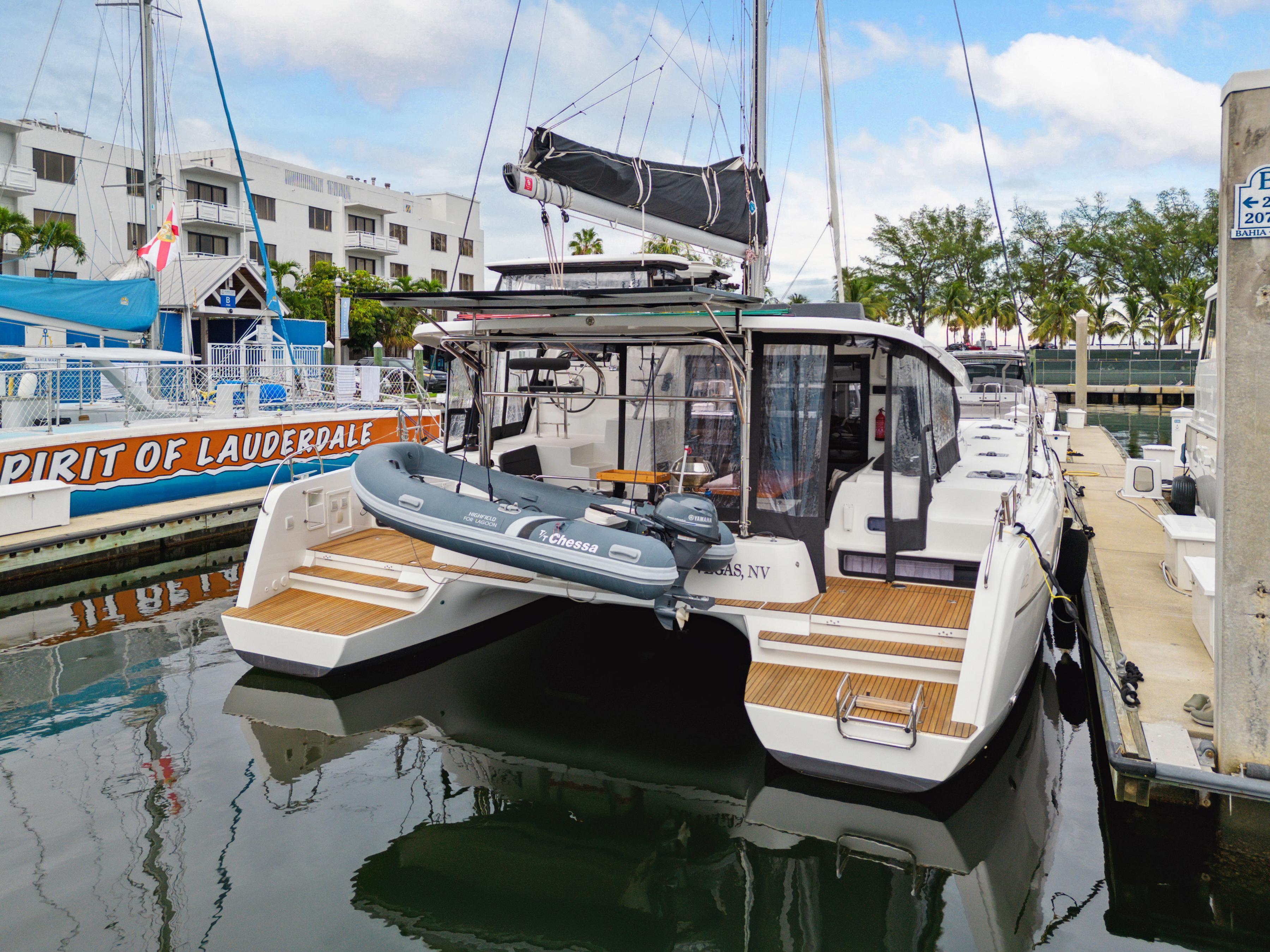

  • Highfield 11' RIB inflatable Tender with aluminum bottom and Yamaha 20 horsepower four-stroke engine.
  • Davit system is in good condition
  • Navigation lights
  • Life jackets (PFDs): (2) Type V inflatable adult USCG approved life jackets and (5) inflatable life jackets that do not have USCG approved on tags
  • (1) Plastimo Rescue Buoy on port aft rail
  • Package of 4 USCG approved visual distress flares - expire 11/2022
  • Portable air horn USCG placards
  • (2) 12-volt blowers in the engine rooms and (1) 12-volt blower in generator compartment
  • Transocean Life Raft - 6 Persons
  • McMurdo EPIRB
  • (4) 2Kg Type ABC European fire extinguishers on board located in the following areas: one in starboard hallway, one in port forward stateroom, one in salon and one on starboard cockpit
  • New AC Water Maker - 2022
Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.customContactInformation

To schedule a preview or for additional information, please contact

Central Listing Agent Will Miller at:

Email: will@multihullcompany.com

Cell Phone: 843-364-4123

Office Phone: +1 215 508-2704

Inquire About This Boat

Managing Broker

Contact - Will Miller
The Multihull Company

Located in Charleston, SC

OFFICE: 215-508-2704
CELL: 843-364-4123
FAX: 215-508-2706
Email: Will@multihullcompany.com
View Will Miller's Profile
  • This field is for validation purposes and should be left unchanged.
BACK TO TOP
