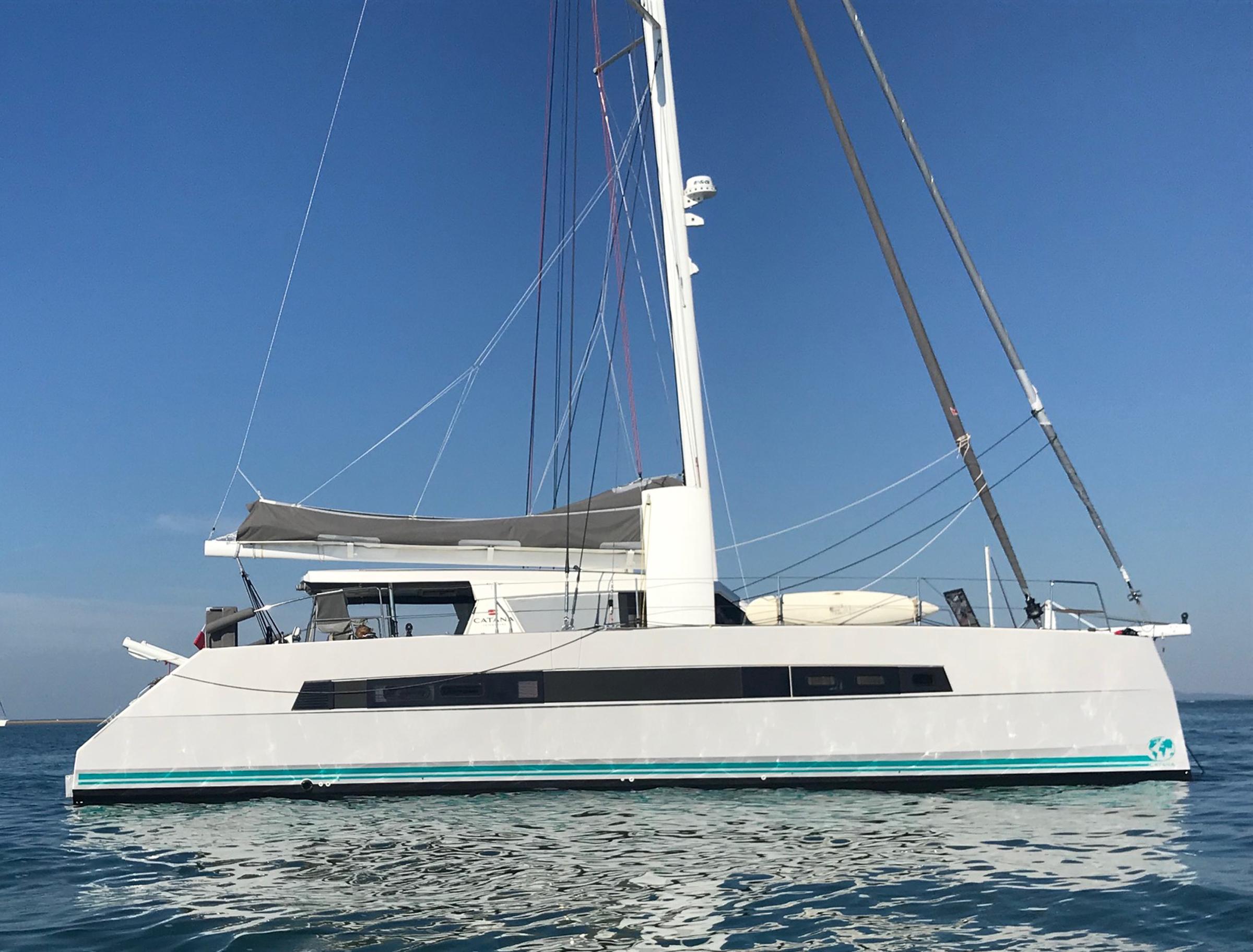

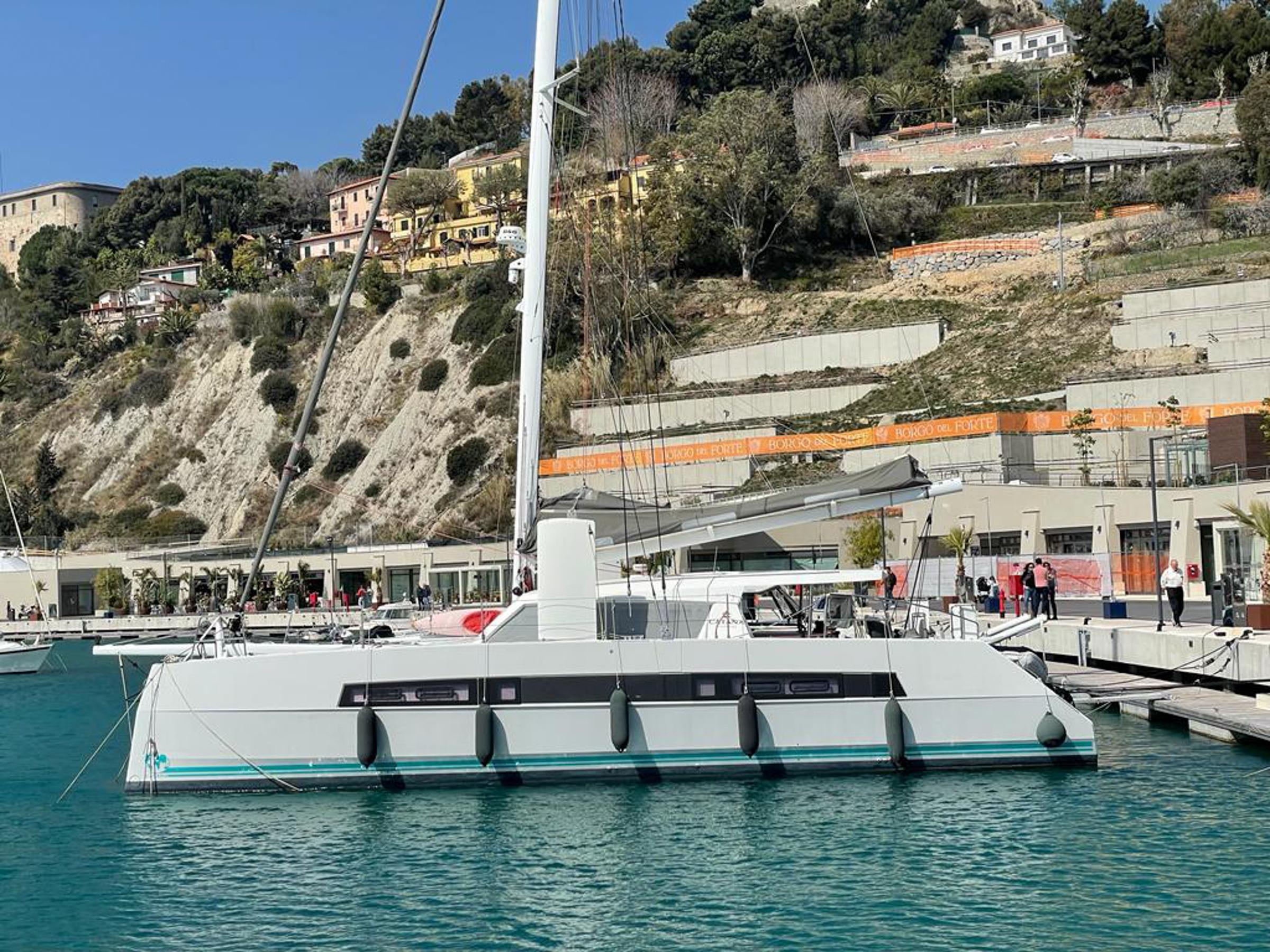

2019 Catana 53 Owner Version

About This Boat

Catana catamarans require no introduction in the world of performance, bluewater cats. They have set the standard for the optimum combination of performance, quality of construction, comfort, interior volume and resale value for four decades.

The Catana 53 model was introduced in 2017 and over a dozen units have been built. This "like new" Catana 53 (hull 5) is just spectacular - full of premium options and it bears the distinction of having the highest specification rig and sails installed on any of these units: high modulus carbon mast, carbon boom, carbon longeron, carbon crossbeam and martingale, Kevlar shrouds, carbon dagger-boards and a gorgeous membrane sail inventory. The foretriangle includes a genoa on a fixed roller furler and three sails on loose luff continuous furlers: solent, code 0 and code D. The ultimate toolkit for the short handed sailor who chooses to sail the full range of conditions.

Catana is now producing only one or two units per year of this 53 model, so this is a rare opportunity on the market. Why wait several years for a new one or 3 to 5 years at the other performance cat yards. Here is a chance to buy a turn key cat with very little use (340 hours on the twin 75 HP Volvo engines) and an outstanding performance specification.

Of course, this cat has all the comfort equipment and amenities to round out the superb sailing kit: 8 KVA generator, solar array, lithium batteries, large watermaker, full air-conditioning and heating.

Check out the complete specification below which details the numerous upgrades and options, over 350 detail photos and walk through video that I recently shot in Italy.

  • Owner version: 3 cabins/3 showers/2 heads + 1 crew cabin with head and shower.
  • Engines and sail drives: twin Volvo 75HP, 5 year Volvo warranty through 2024, 340 engine hours.
  • High modulus carbon mast, carbon boom, beam, seagull striker and daggerboards.
  • ELVSTRÖM membrane sails (spectra/carbon).
  • Optimized deck gear and layout for short-handed navigation.
  • Top of the line B&G electronics, 2 autopilots + router GSM/Wifi + stabilised thermal camera Flir.
  • Air conditioning, reverse heating, watermaker 220L/hr., icemaker, 3 drawer fridges and 1 freezer
  • Lithium battery pack and 2 Mastervolt combi inverter/chargers.
  • Retractable TV in saloon and TV in owner cabin

VAT PAID IN France.


Additional Details

Specifications

LOA: 17m (55’ 10”)
Hull length: 16.5m (53’)
Width: 8.65m (28.3”)
Draft daggerboards up: 1.48m (4’ 11”)
Draft daggerboards down: 3m (9’ 10”)
Displacement light: 14500Kg (31967 pounds)
Diesel tanks: 860 litres
Water tanks: 800 litres

Mechanical and Propulsion

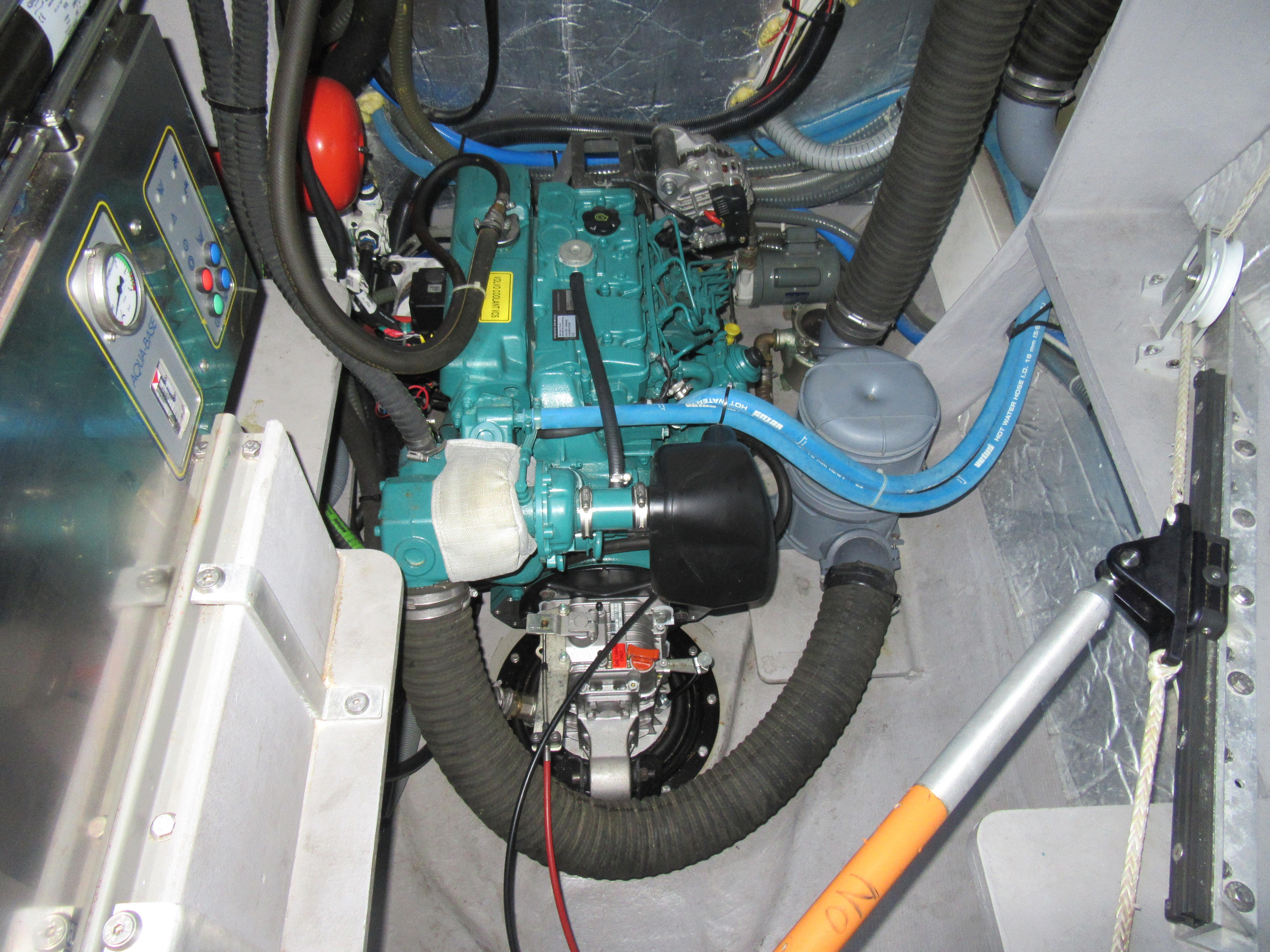

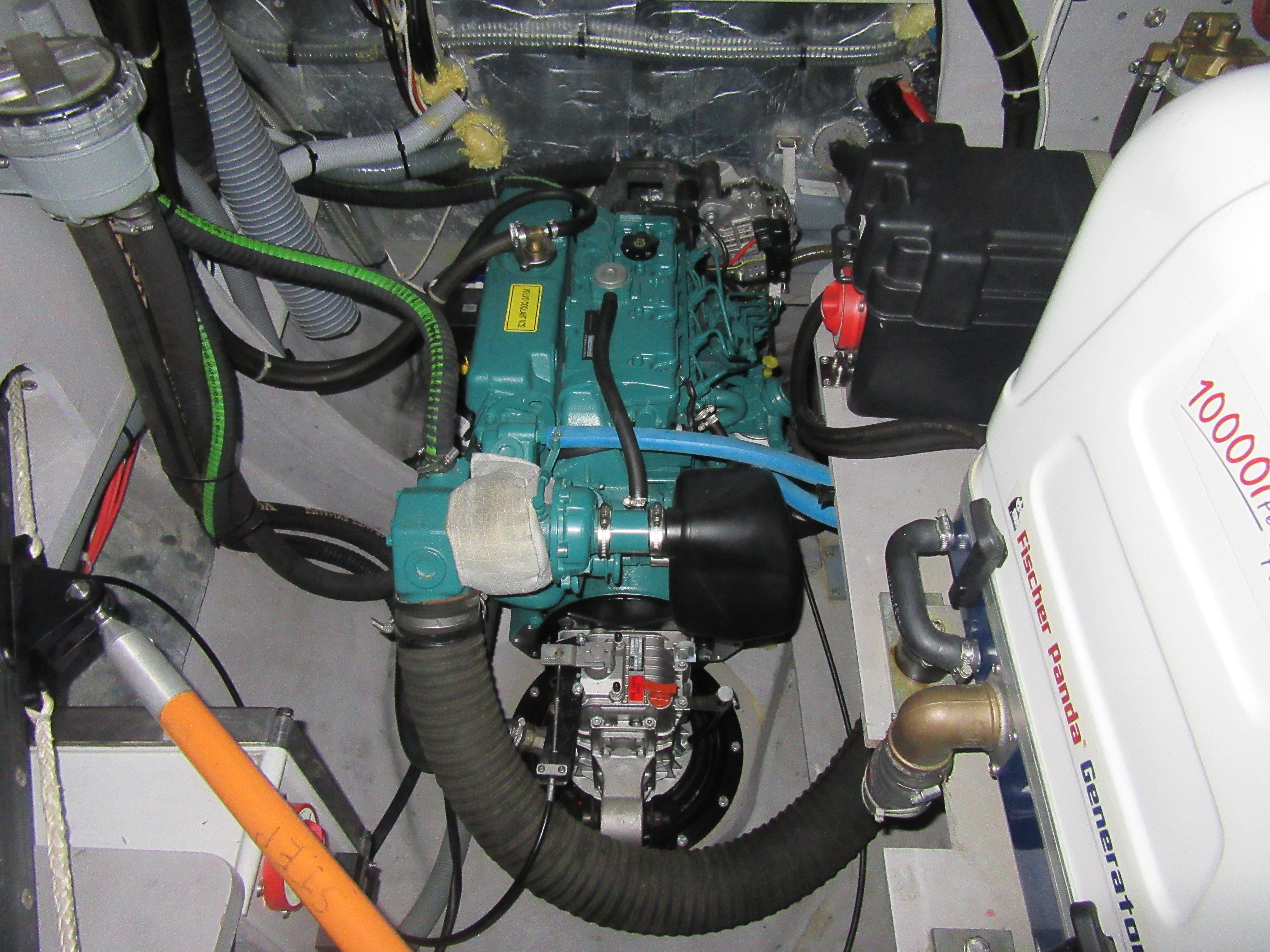

- 2 motors + sail drives Volvo 75HP 340 engine hours. 5 years warranty (until June 2024)
SN4103951702E & 5103951700E

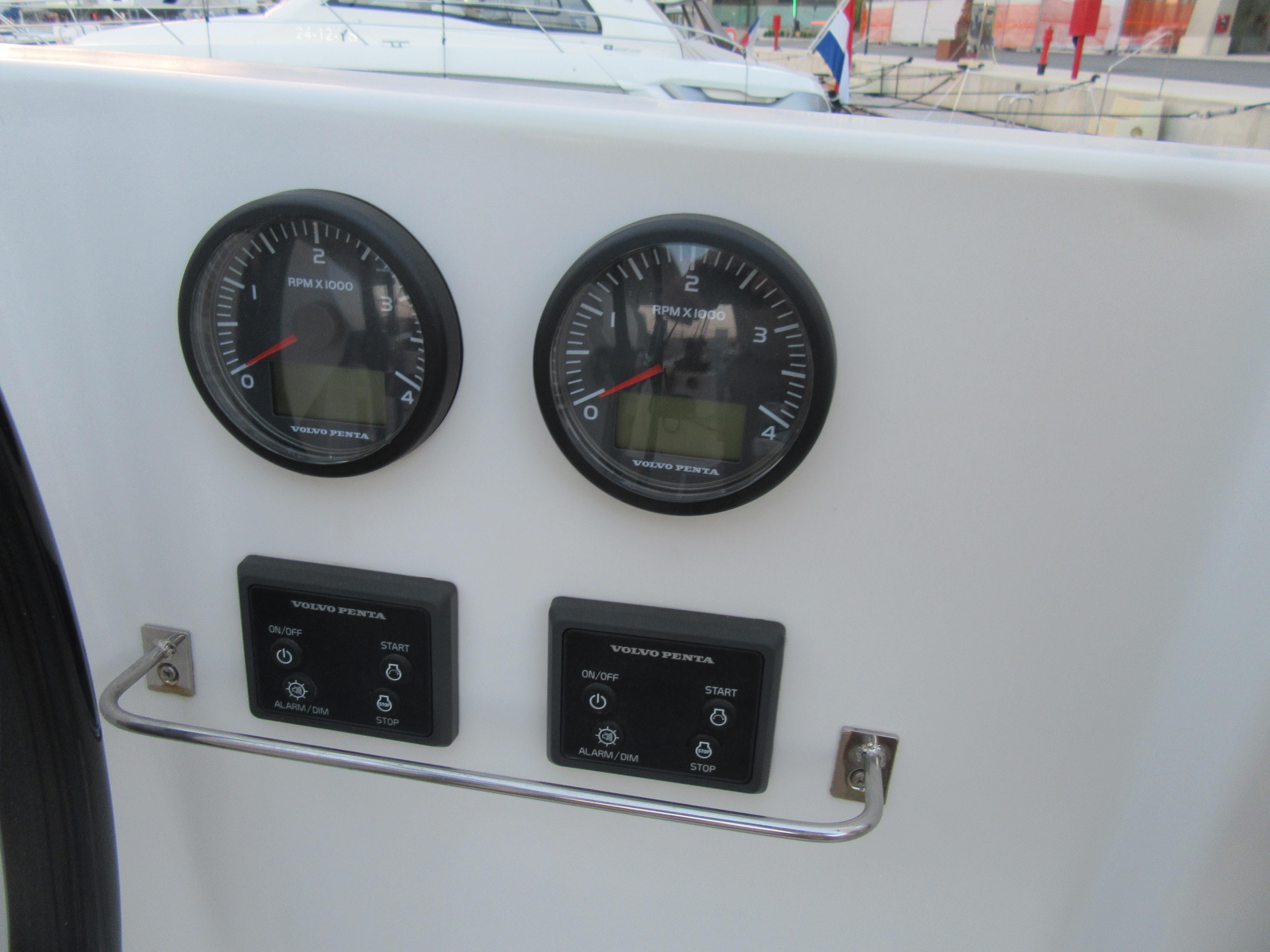

- Electrical engine commands ZF at both steering stations
- 3 blade folding propellers

Sails, Rigging and Deck Gear

Pack Performance Racing Option

Sails: (refer to document “Cahier des charges voiles”)

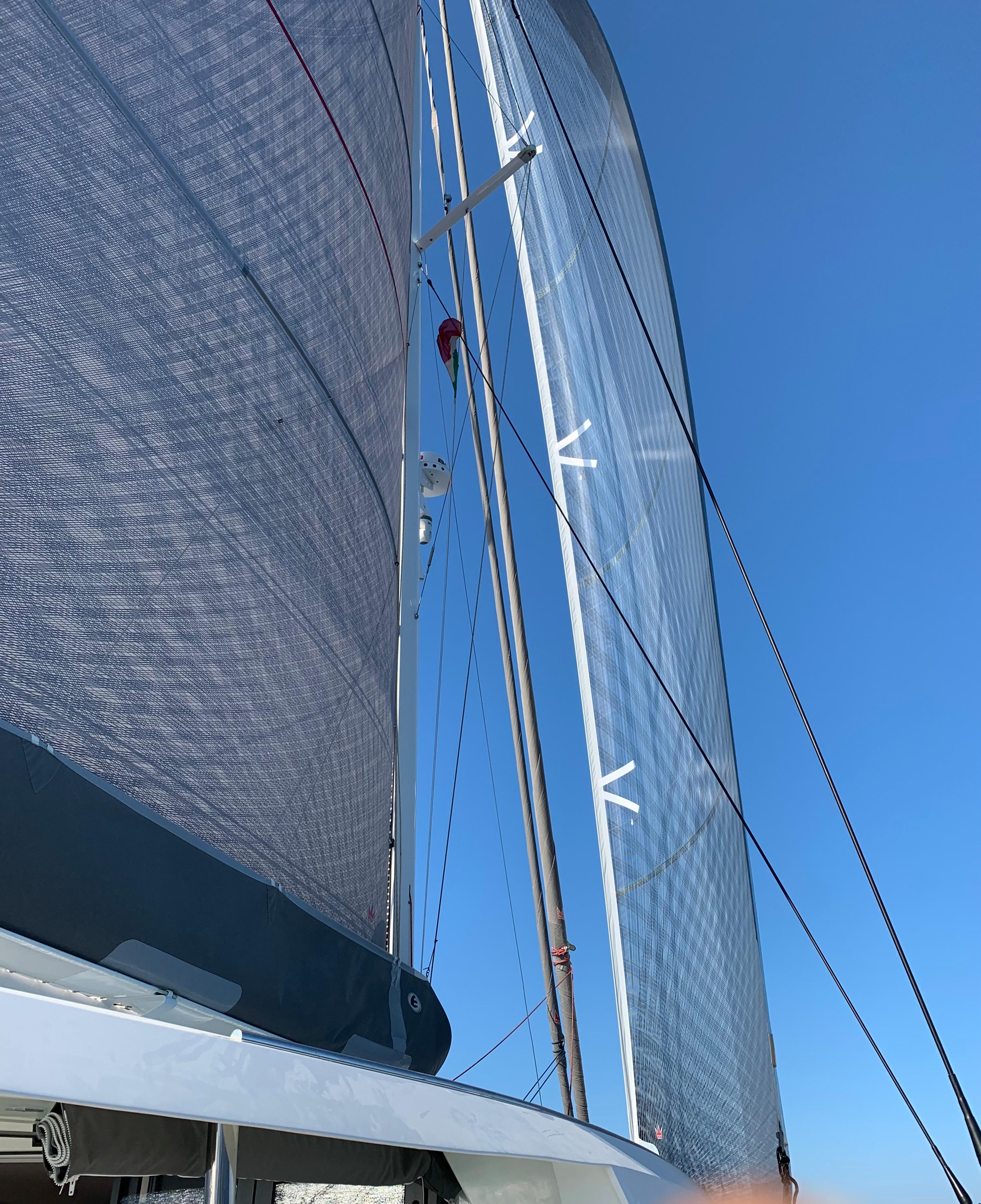

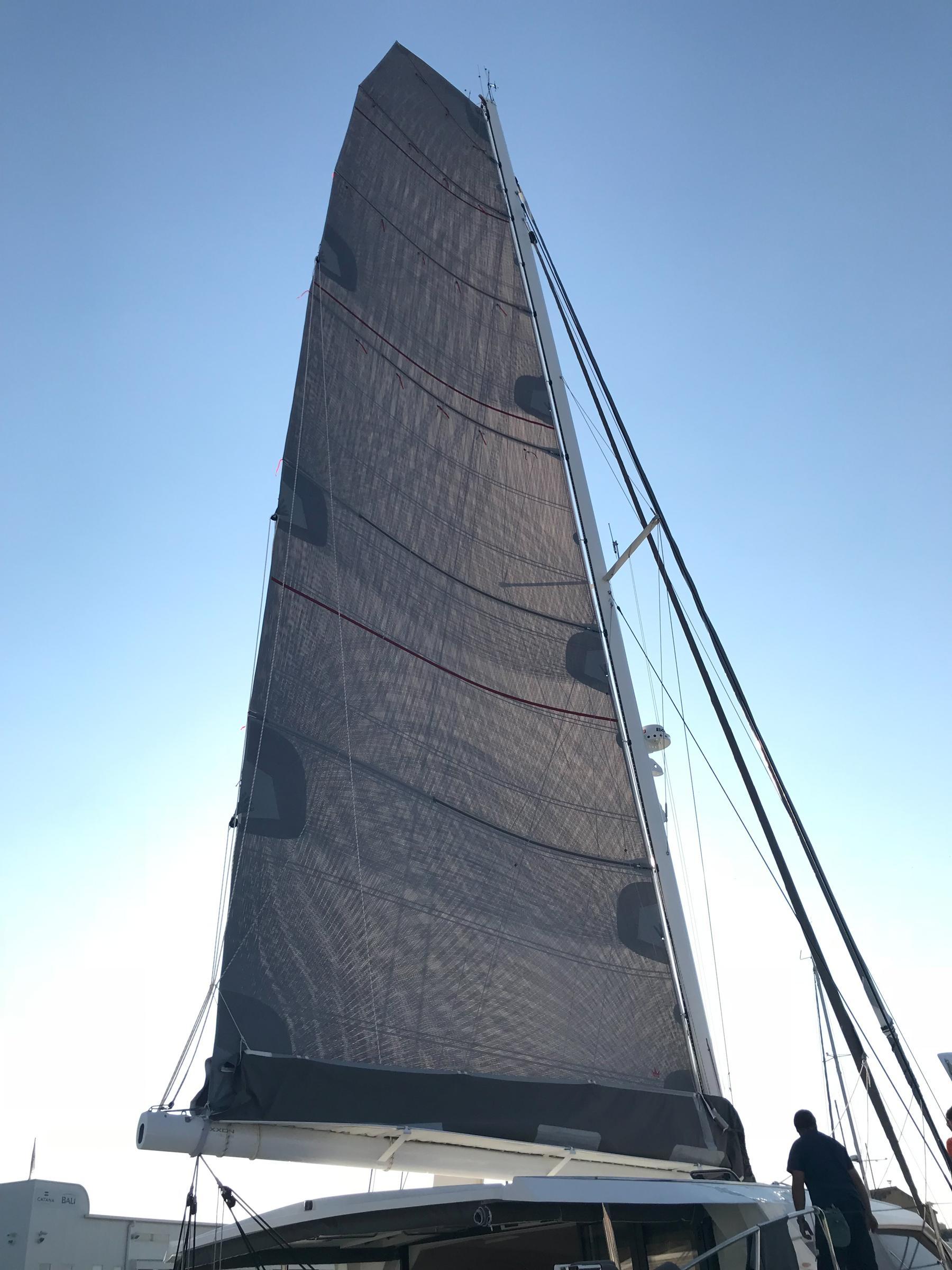

- Mainsail: 114m2 full batten squared top ELVSTRÖM membrane (spectra/carbon) with lazy bag and lazy jacks.

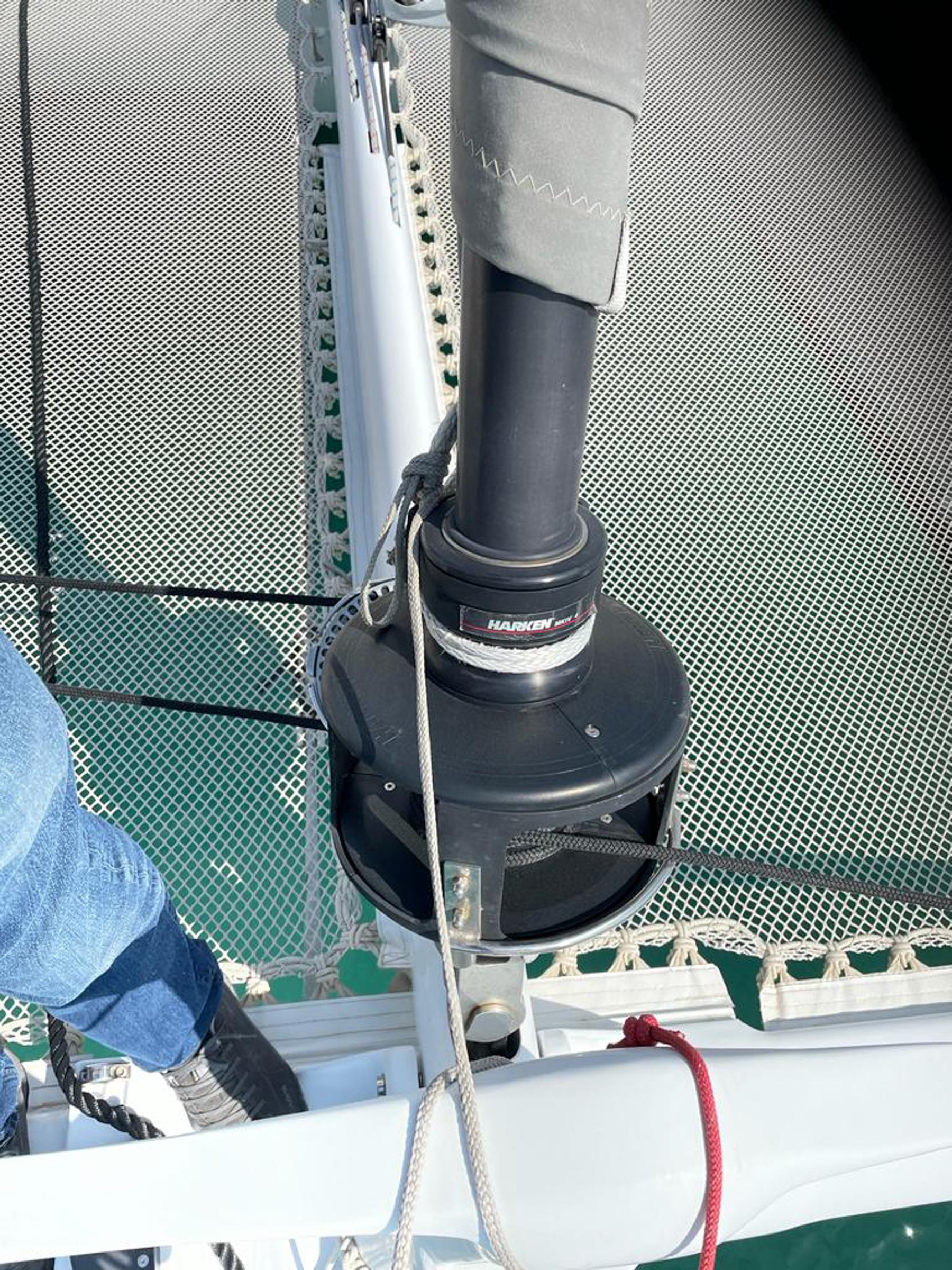

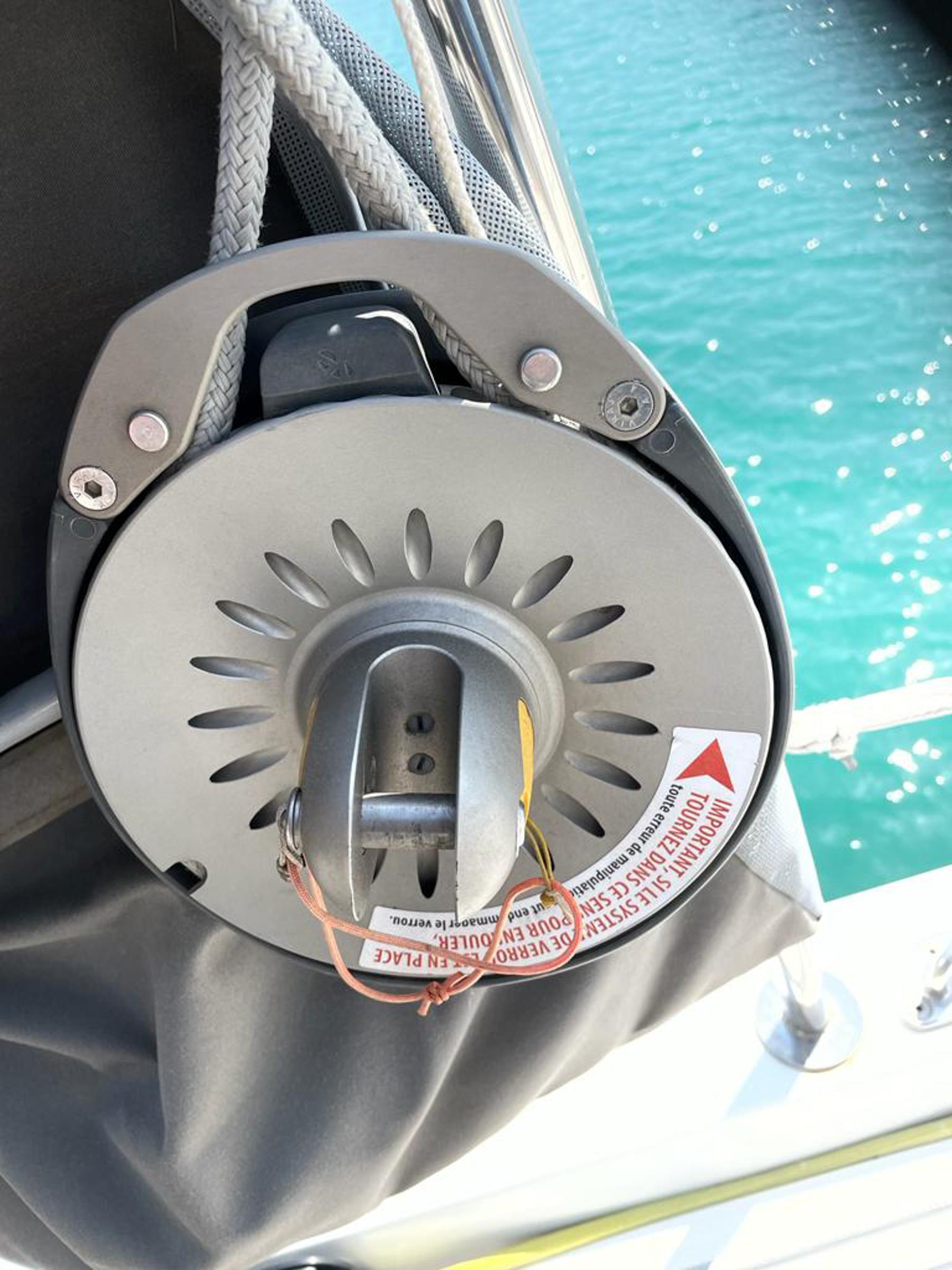

- Genoa: 70m2 ELVSTRÖM membrane (spectra/carbon) with HARKEN furler
- Solent jib: 25m2 self-tacking, ELVSTRÖM membrane (spectra/carbon) hooked halyard and FACNOR FX 7000 furler.
- Code 0: 98m2 ELVSTRÖM membrane (spectra/carbon) hooked halyard with FACNOR Stocker.
- Code D: 163m2 with KARVER KF8000 on sheaved halyard with anti-twist Mafioli cable.

Rigging:

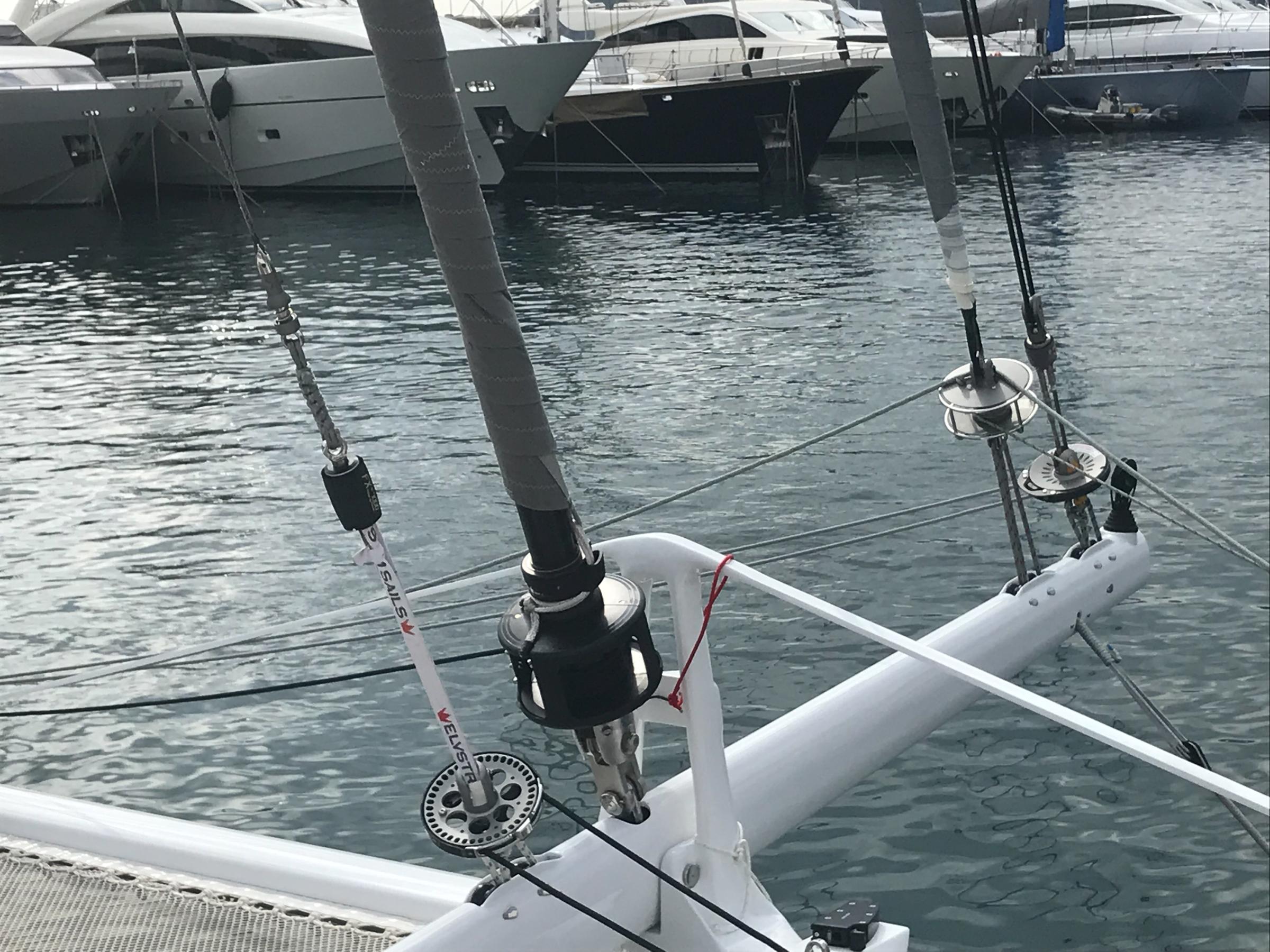

- Carbon fiber mast with option H40 instead of fiber HR for weight gain
- Carbon fiber boom with lazybag supports
- Carbon fiber fwd transverse beam,
- Carbon fiber seagull striker and martingale.
- Carbon fiber longitudinal beam (which prolongs as a bowsprit) with dyneema bobstays
- Carbon fiber daggerboards with downing and locking system on winch with dyneema lines

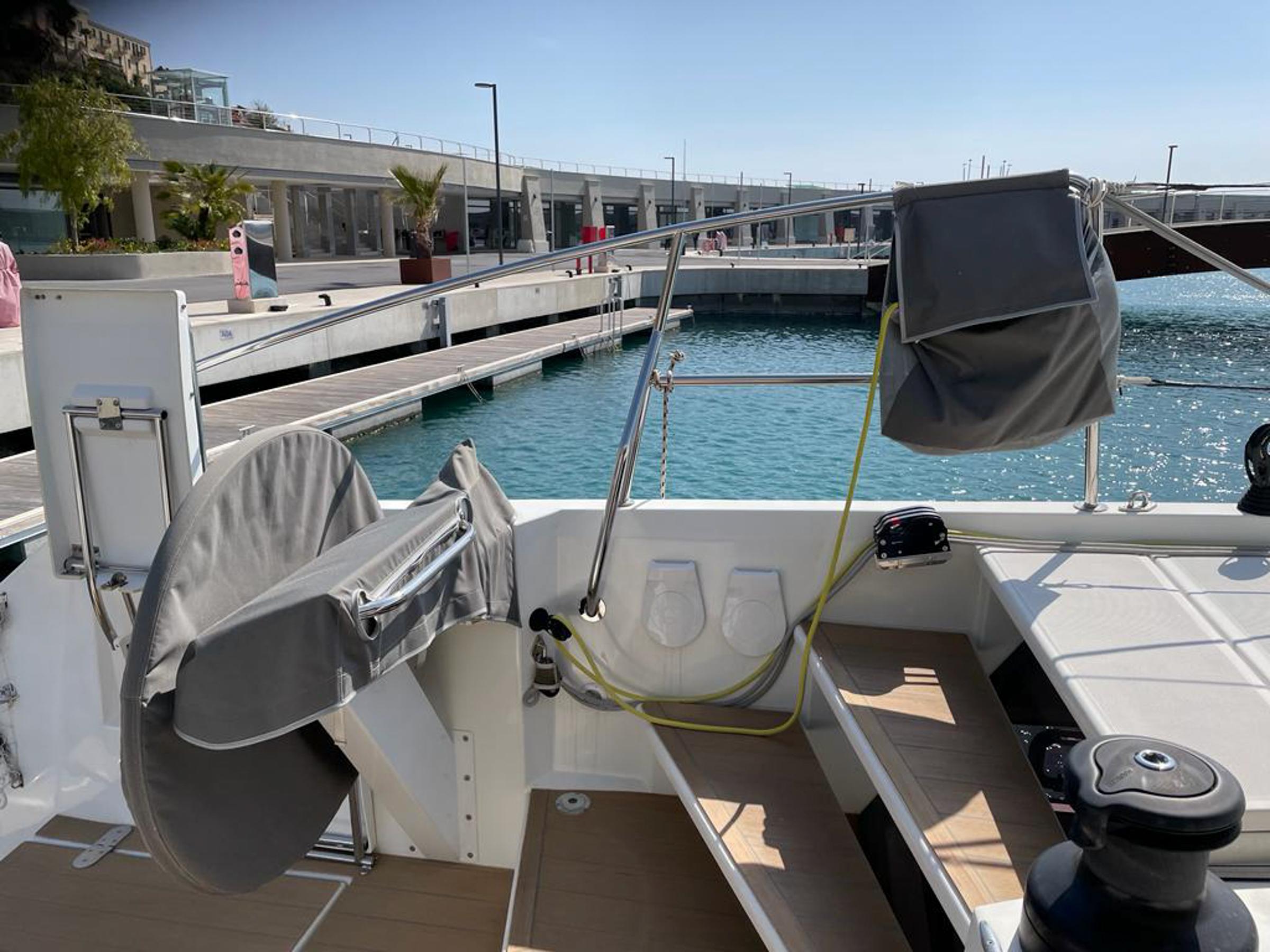

Deck Gear:

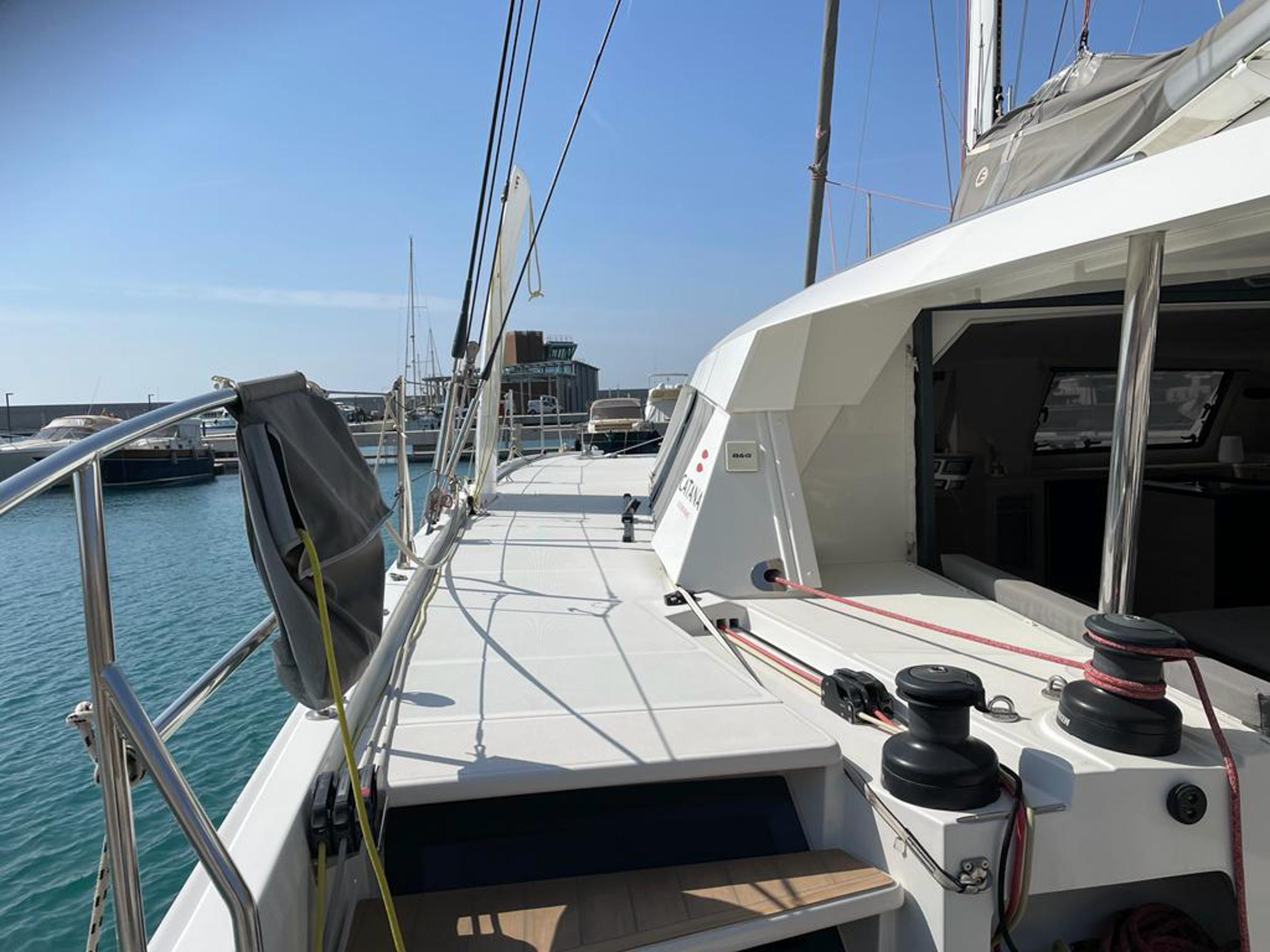

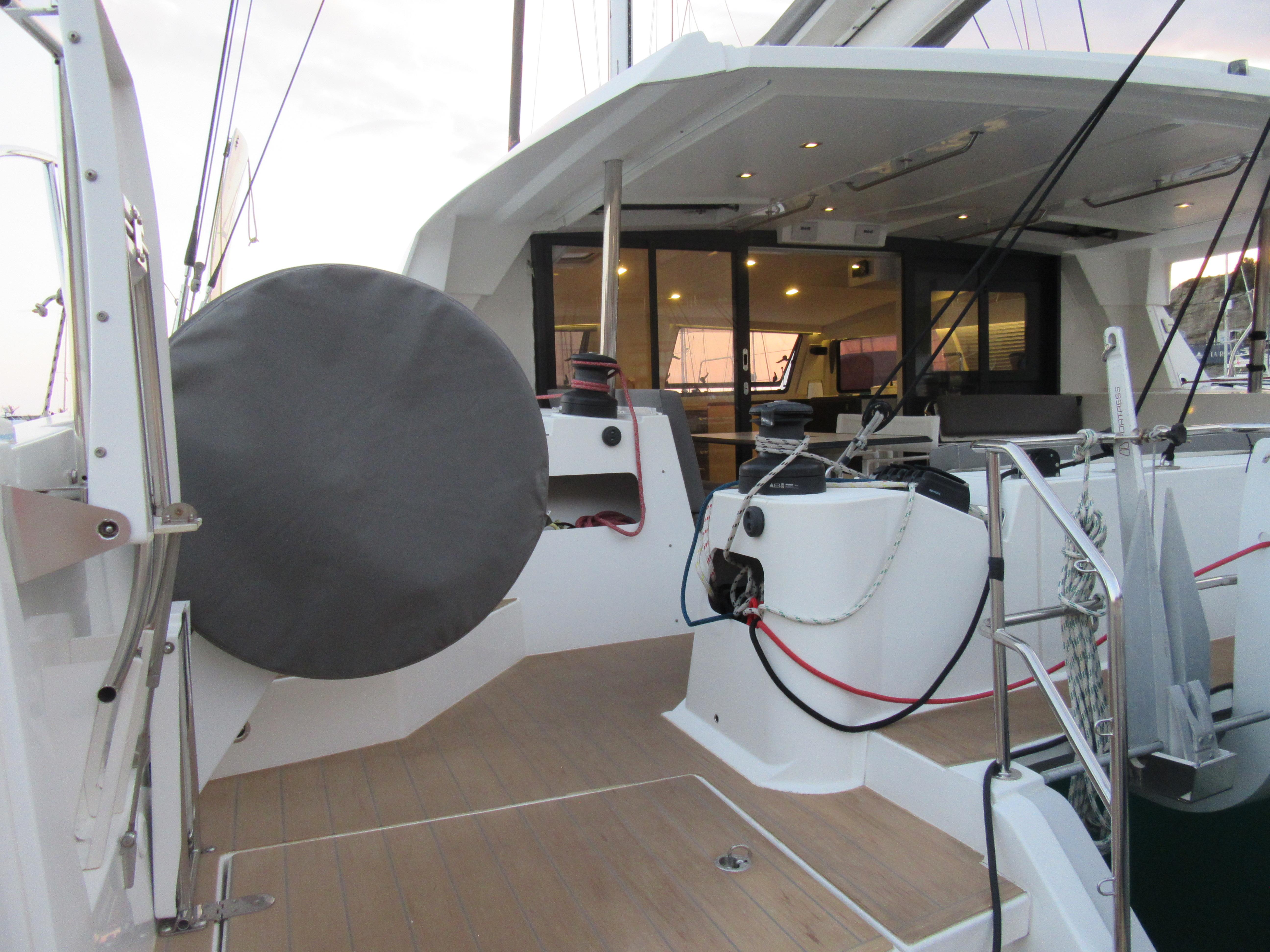

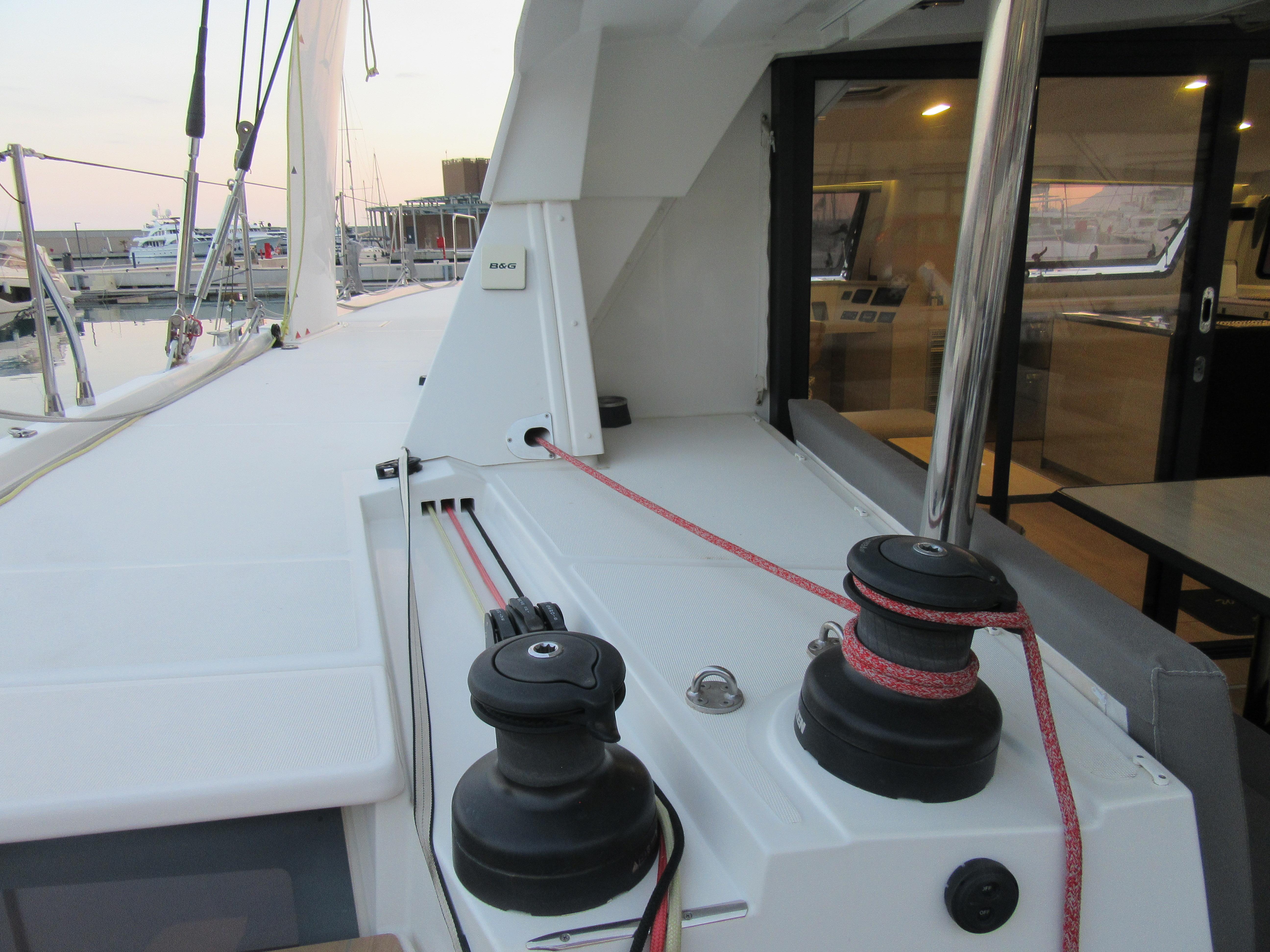

- 2 electric winches PERFORMA 70 for Genoa sheets, Code 0 and Code D furler
- 2 electric winches PERFORMA 60 for Mainsail sheets, halyards, reefing, dinghy, etc…

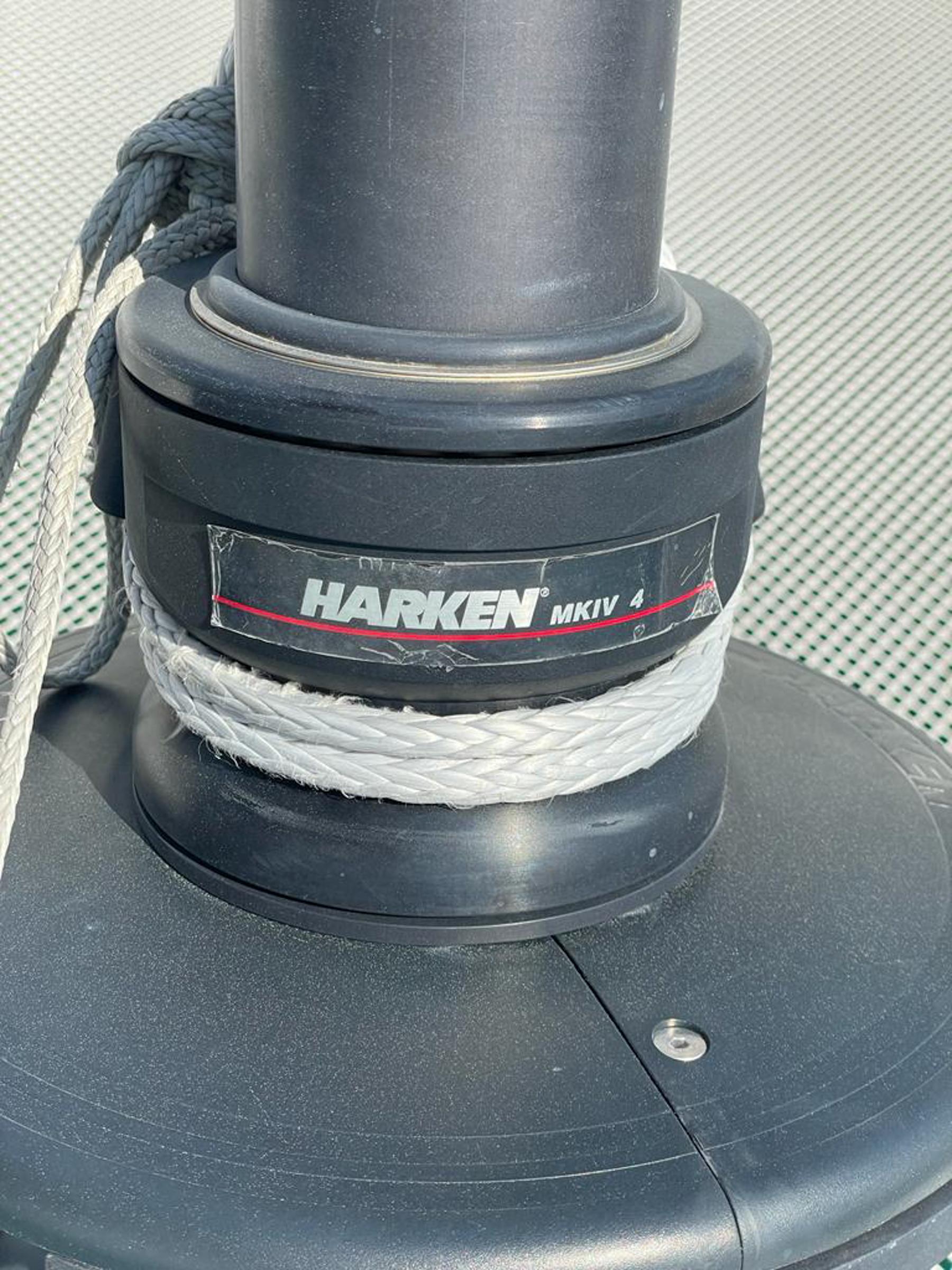

- 2 manual winches PERFORMA 60 for daggerboards and furler
- 1 winch PERFORMA 50 at mast step for halyards and hooks
- Electric winch command on steering station
- Dyneema lifelines
- Additional spinnaker halyard with clutch
- Symmetrical spinnaker fitting: 2 stand-up sheets, 2 guys, blocks and mast fittings
- 4 boarding platform cleats: 2 inner and 2 outer
- All padeyes upgraded to bigger size
- Asymmetrical spinnaker fittings: addition of a stand-up block Harken ⌀ 100mm at        extremity of carbon bowsprit and a clutch Spinlock ZS1214
- Mainsail out-haul trimming system
- Spreader protections
- Dinghy davits with dyneema lines system
- 2 additional padeyes for boarding platform fender attachment
- 2 additional padeyes outer of steering station for fenders
- Lower shroud turnbuckle
- Reefing system: 3 Harken blocks Black Magic instead of standard rings

Additional Equipment:

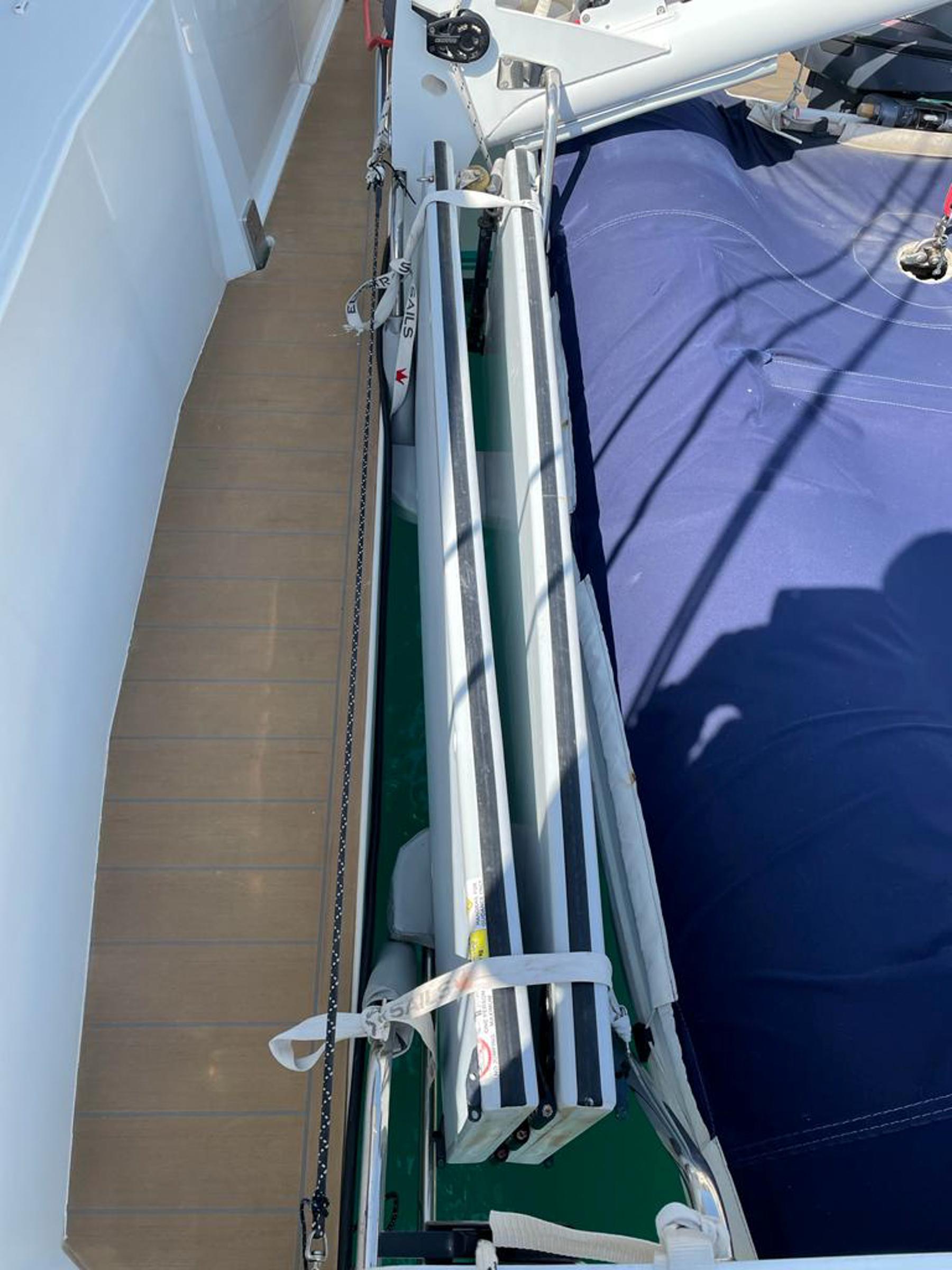

- Lightweight carbon fiber foam sandwich passerelle
- Fixation system for passerelle
- Seawater pressure outlet in kitchen and mast step for deck washing
- Porthole T4 on fwd port bulkhead between cabin and fwd peak sail locker
- Fwd hatches with air intake for ventilation
- 2 kayak deck supports
- Handrail swimming ladder
- 2 Bimini handrails
- Forward pulpit teak seat
- Stainless support on aft beam to store the passerelle

Accomodations

- Countertop colour « Corian » black

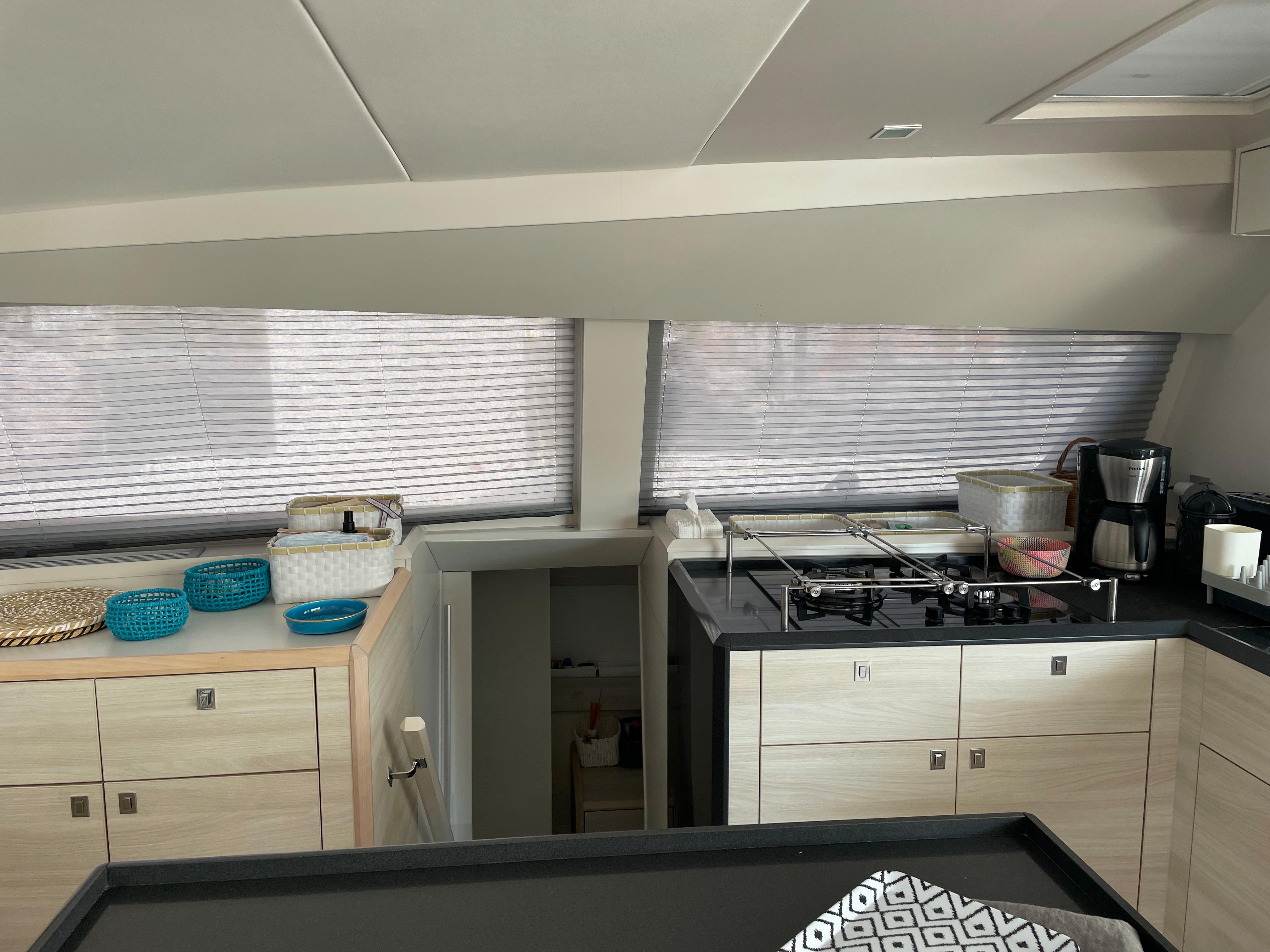

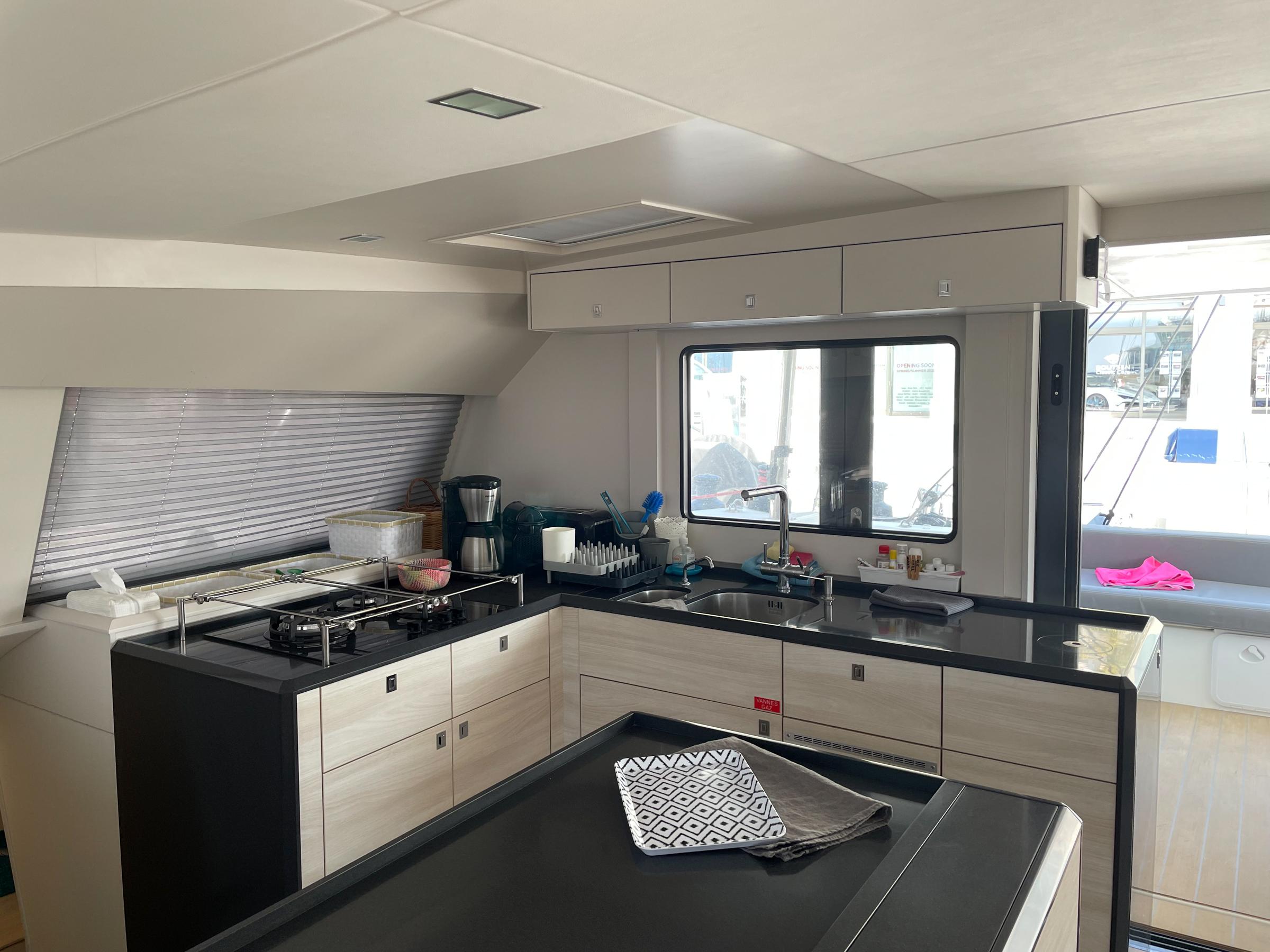

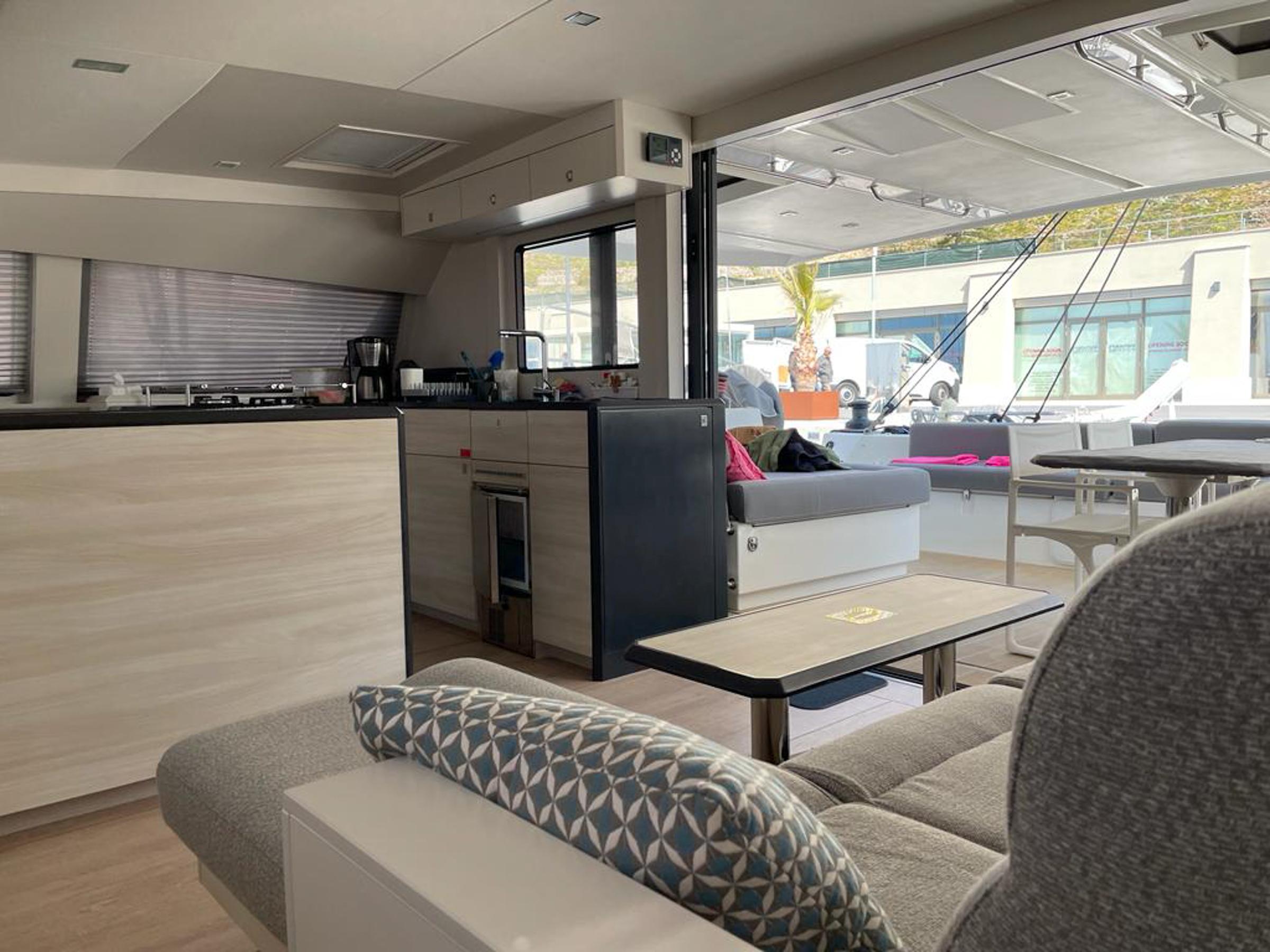

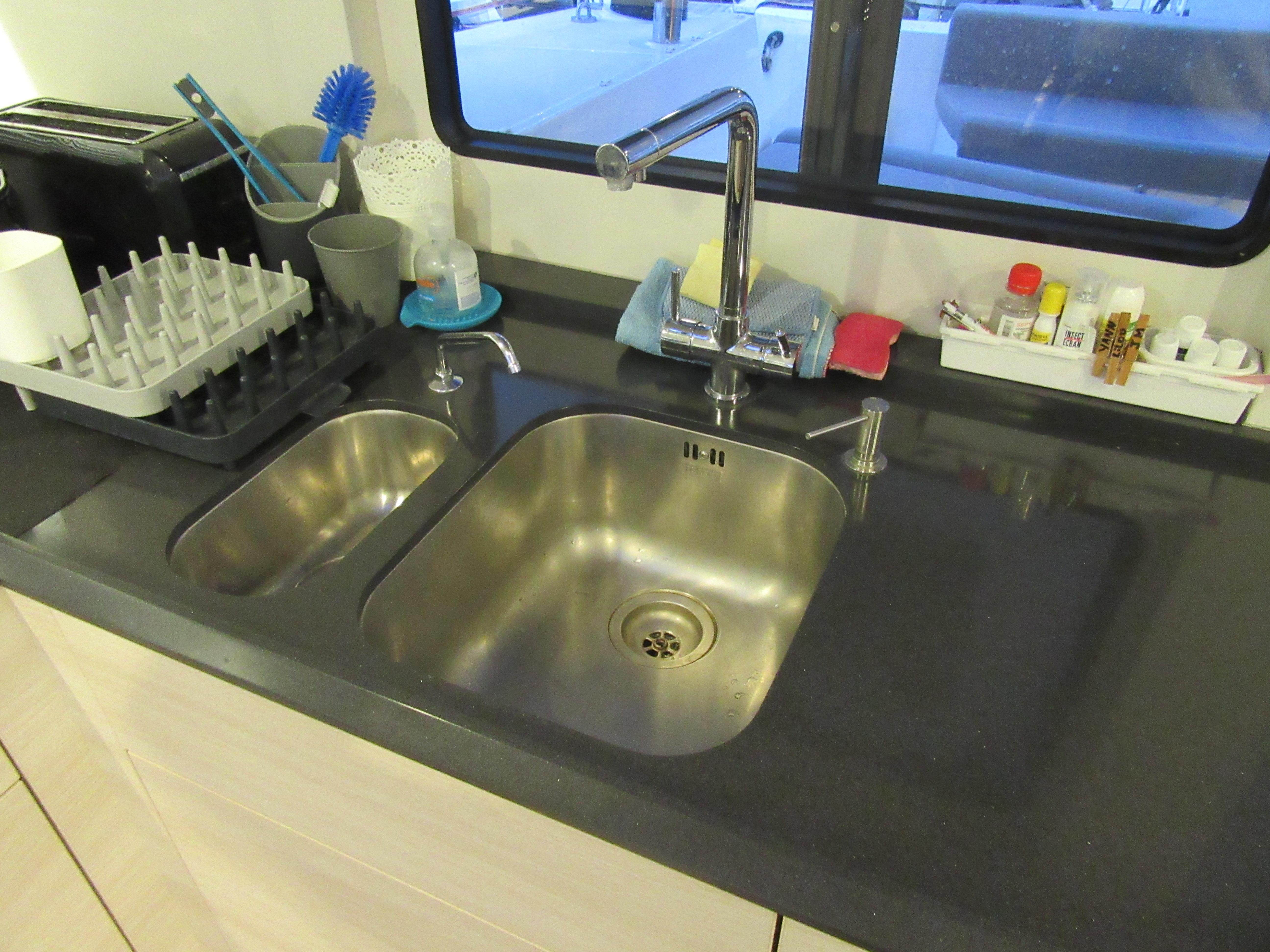

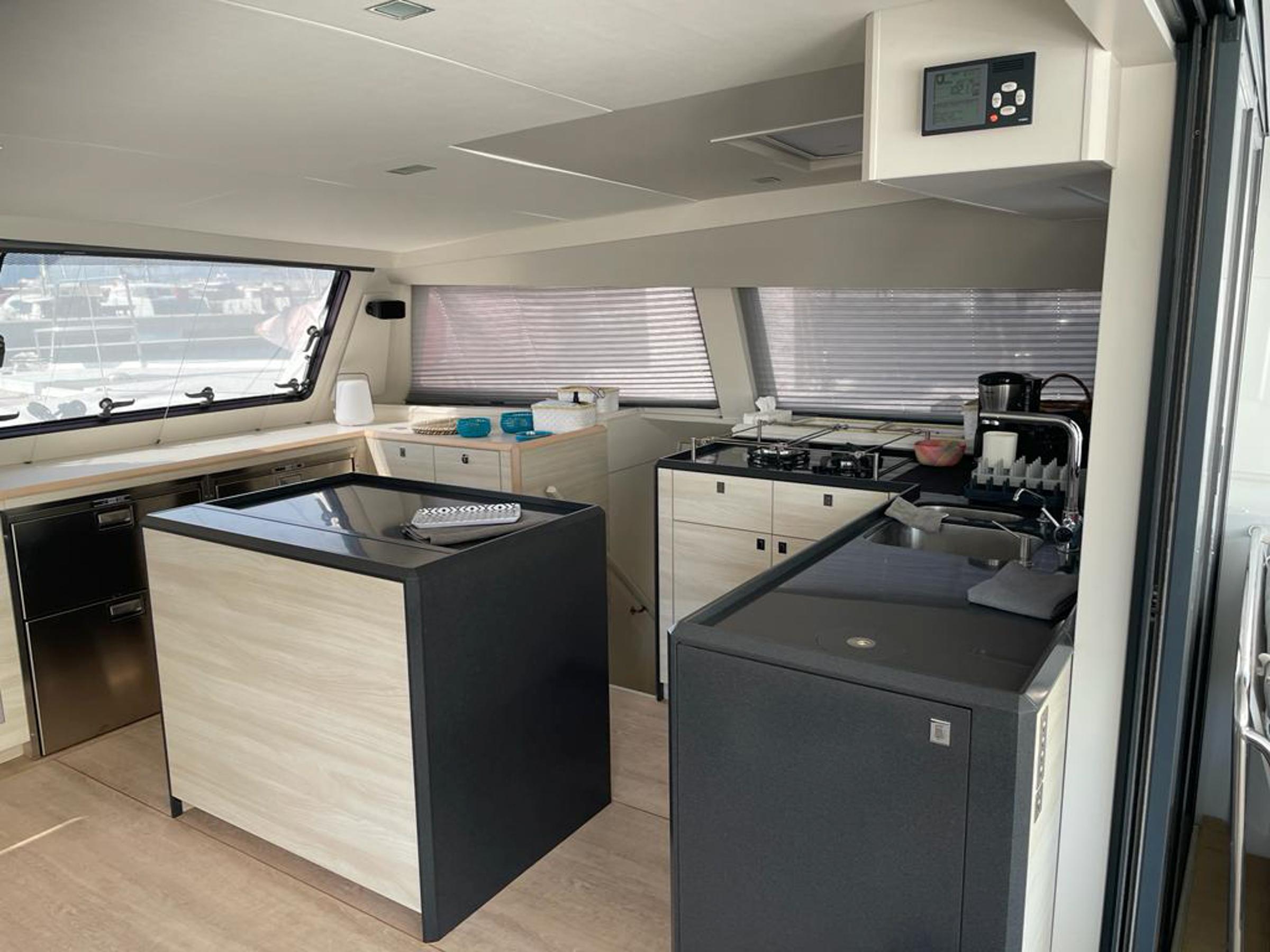

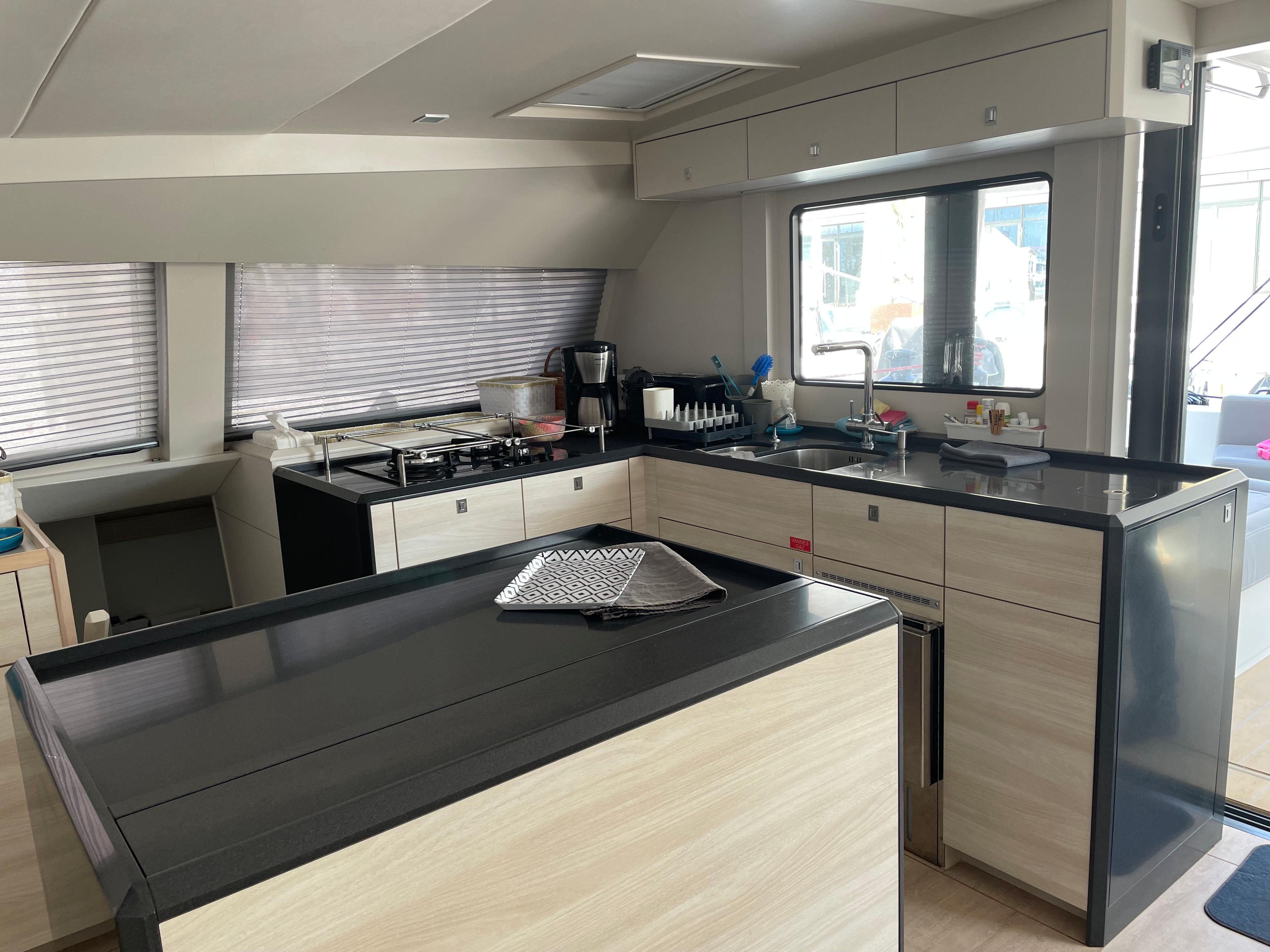

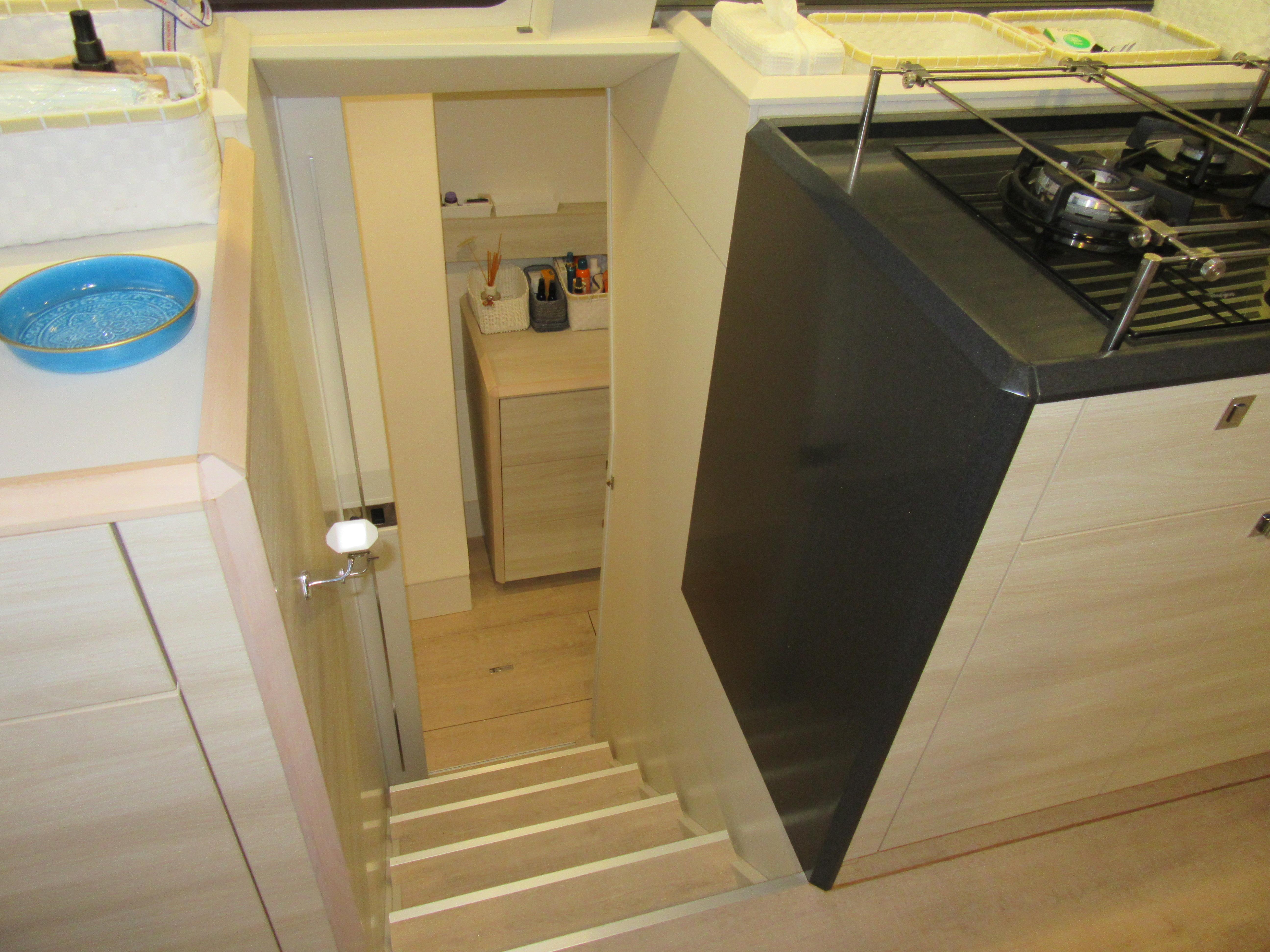

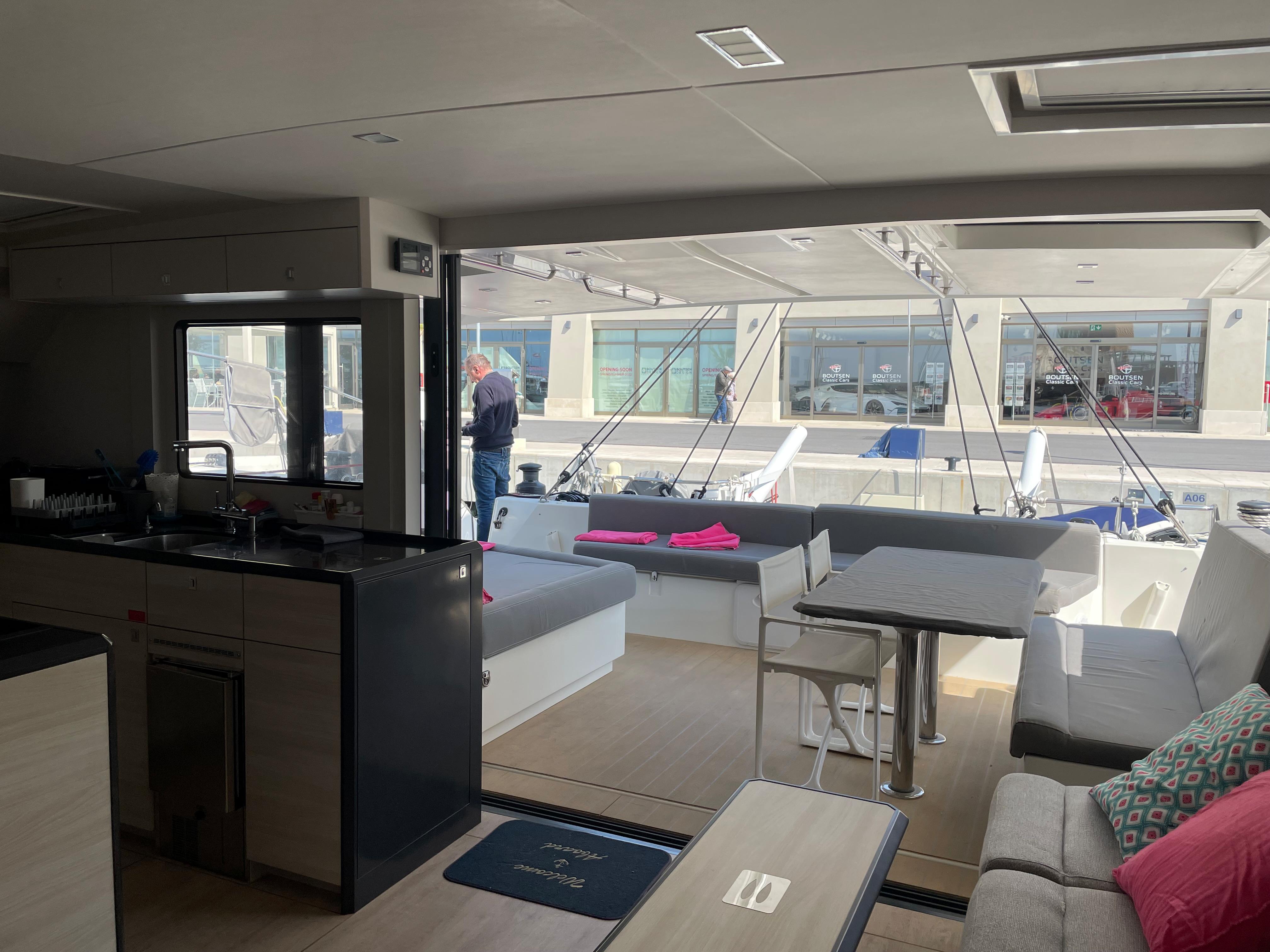

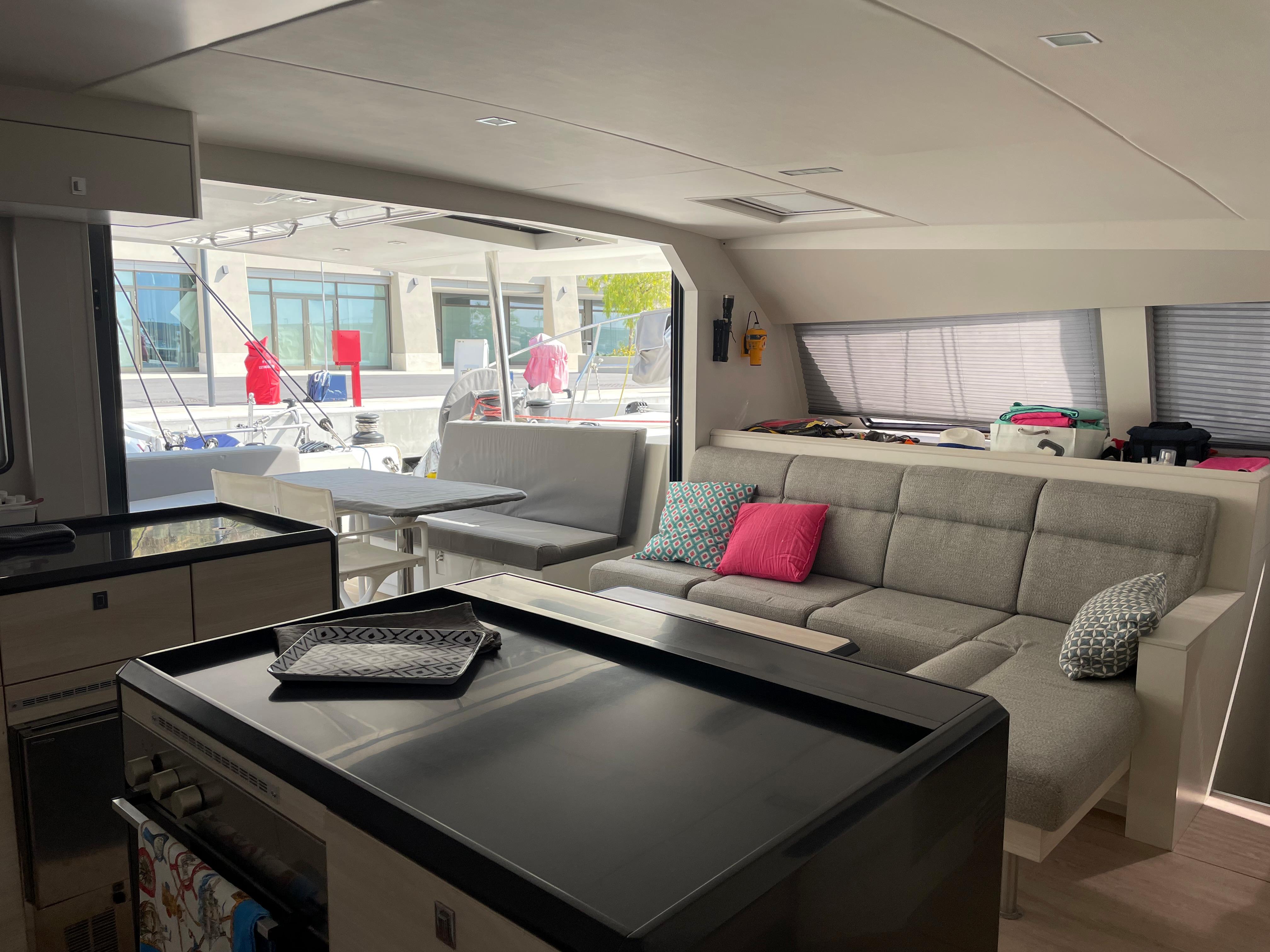

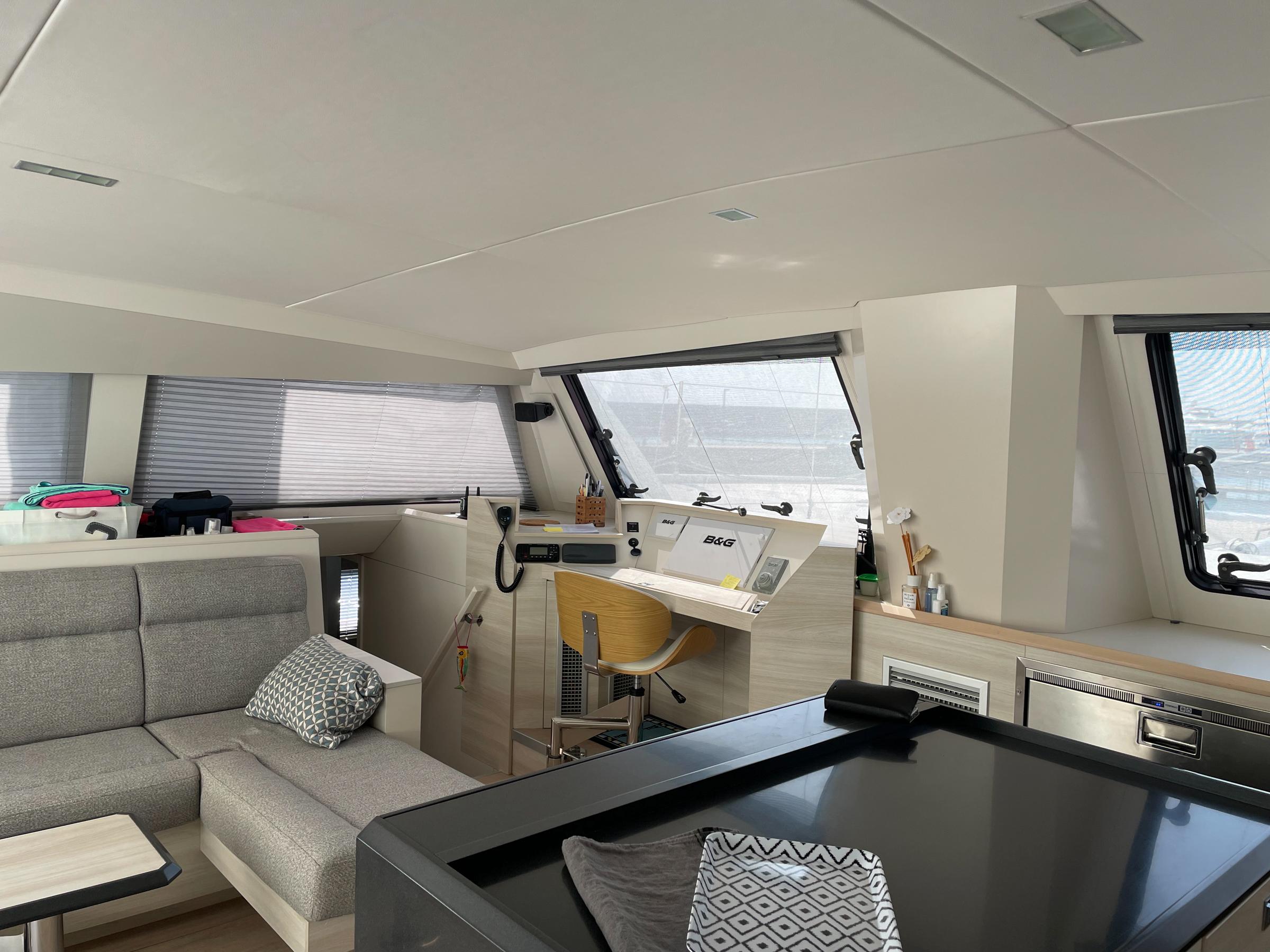

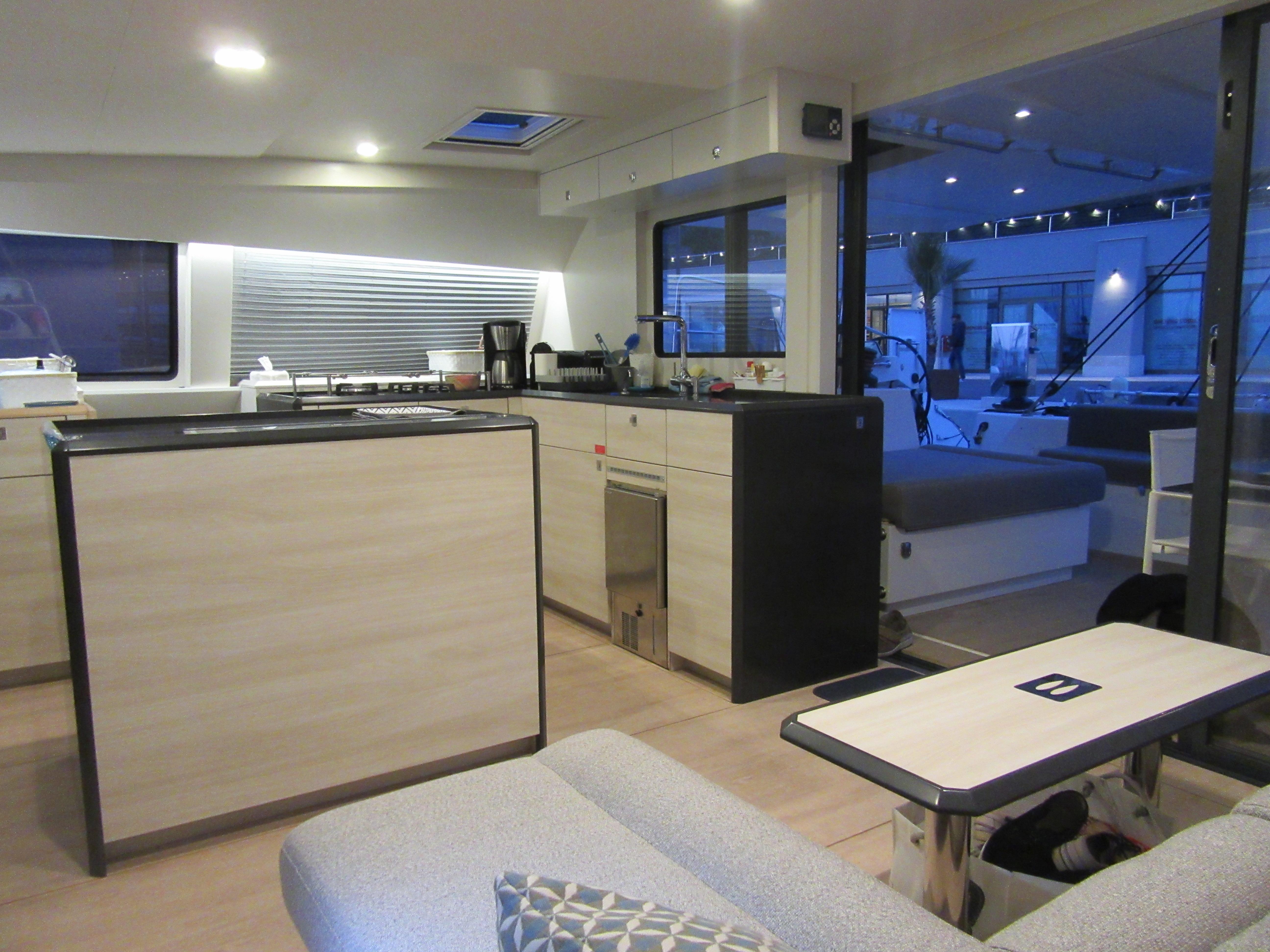

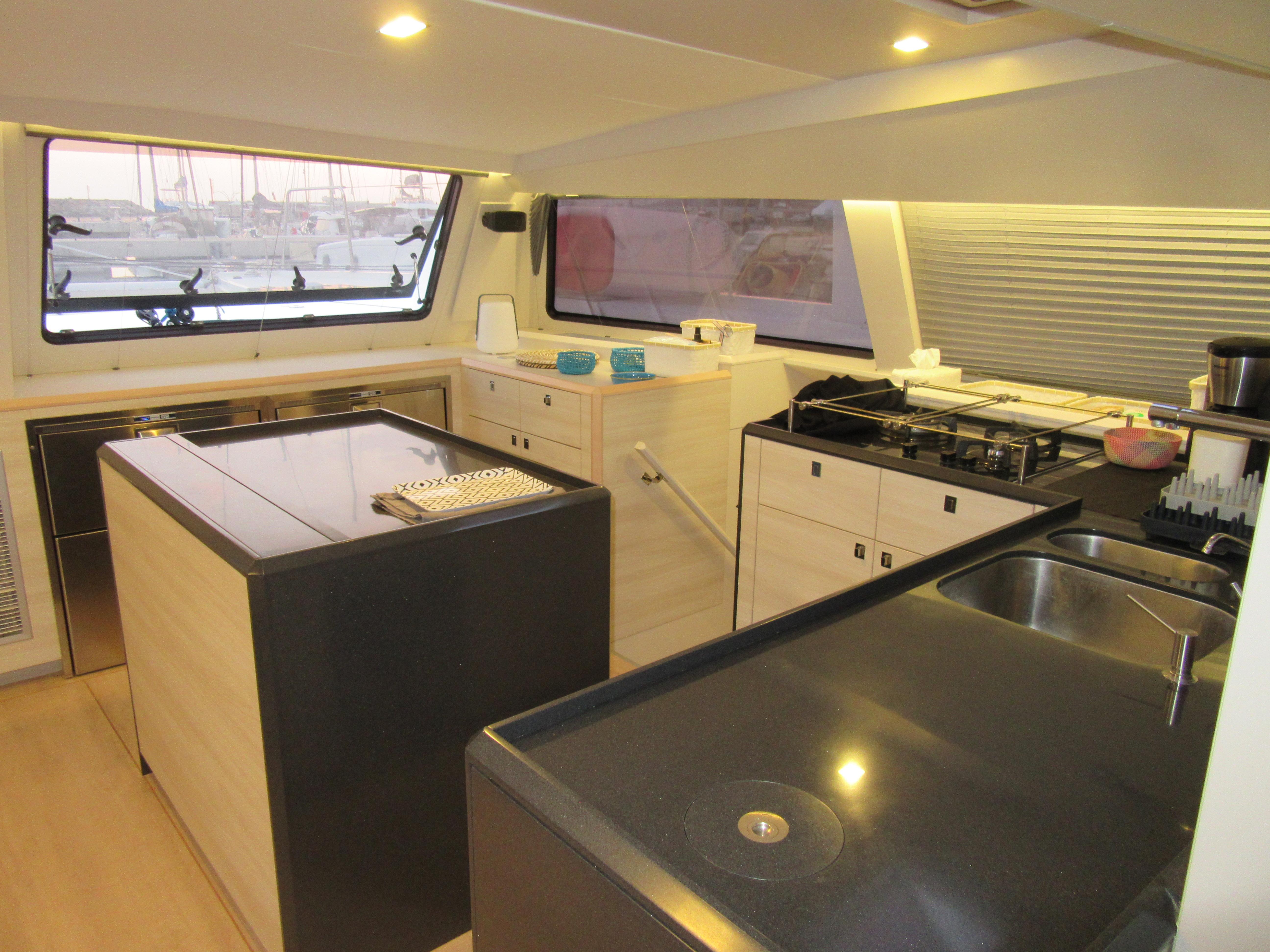

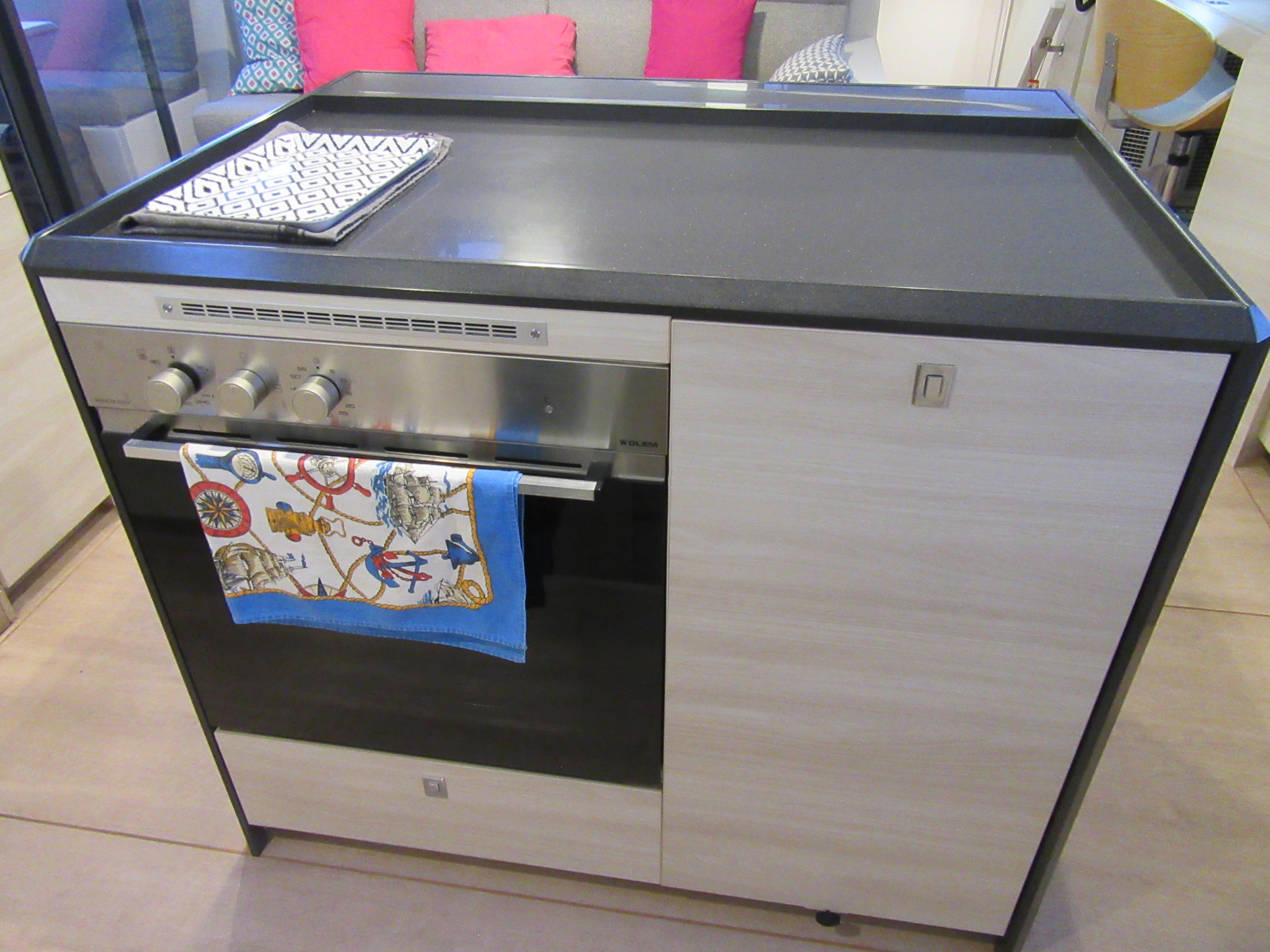

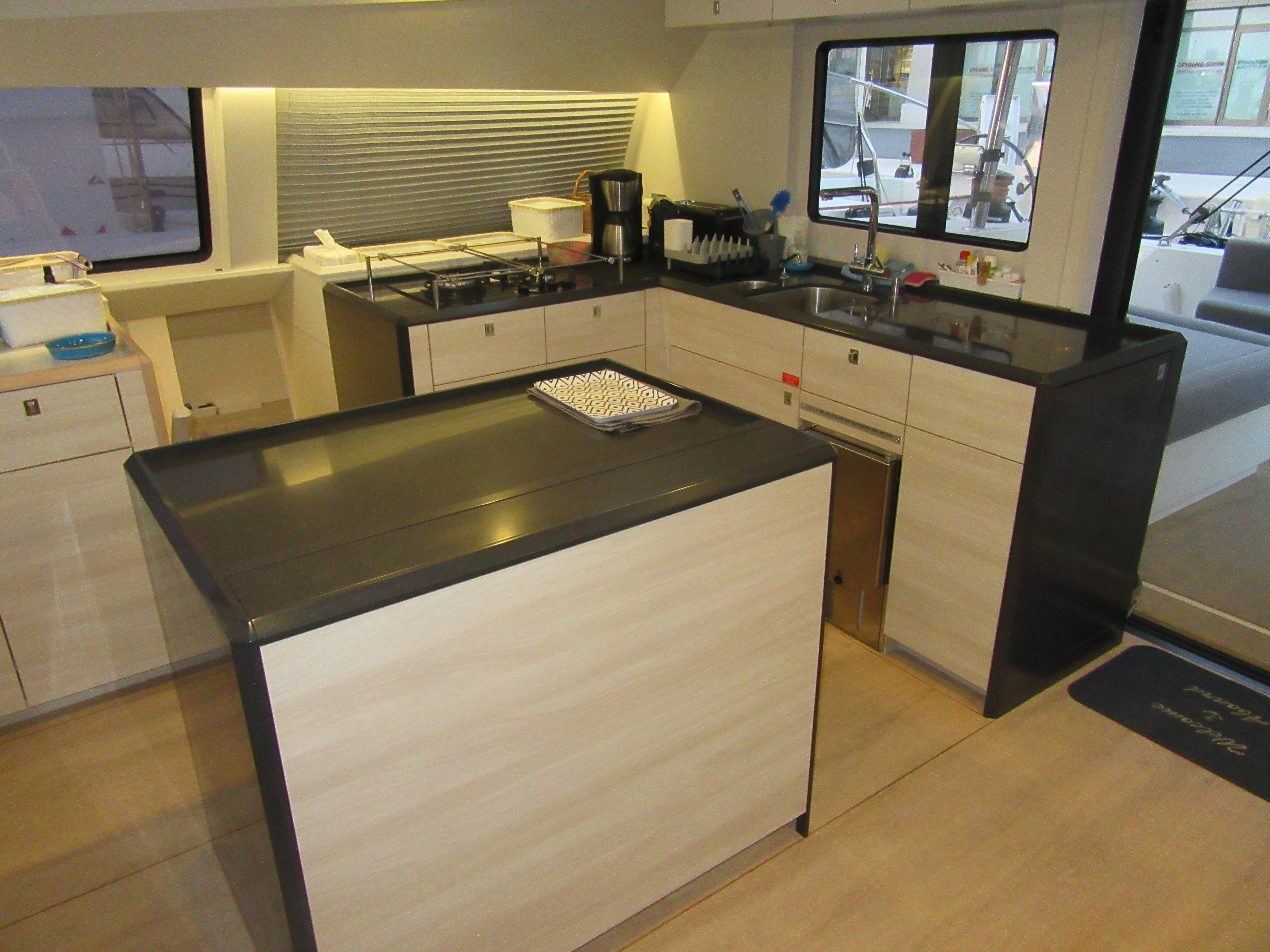

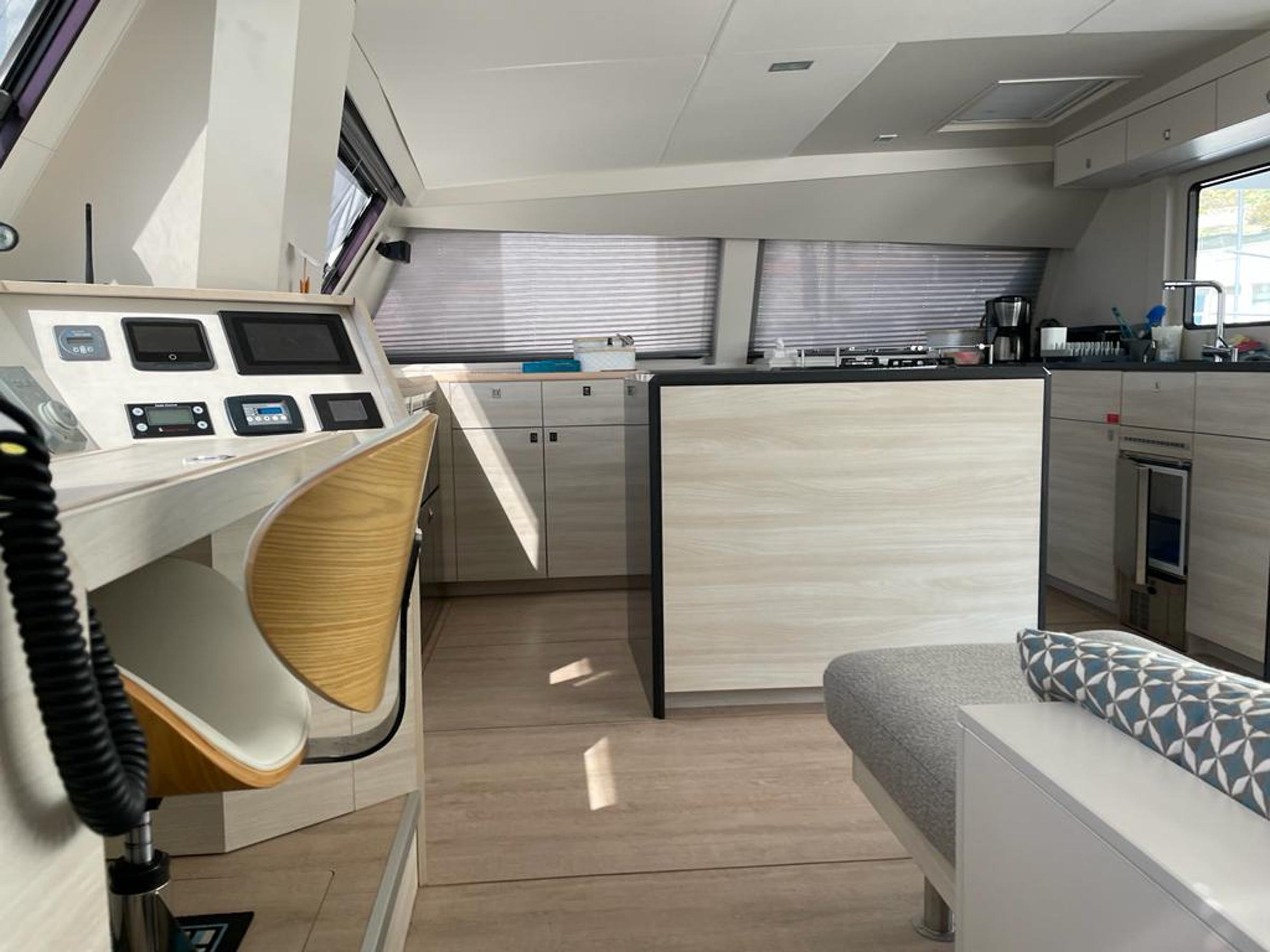

- Kitchen with central island
- Kitchen furniture modification to integrate trash can to access from counter top
- Kitchen drawer modification to store bottles

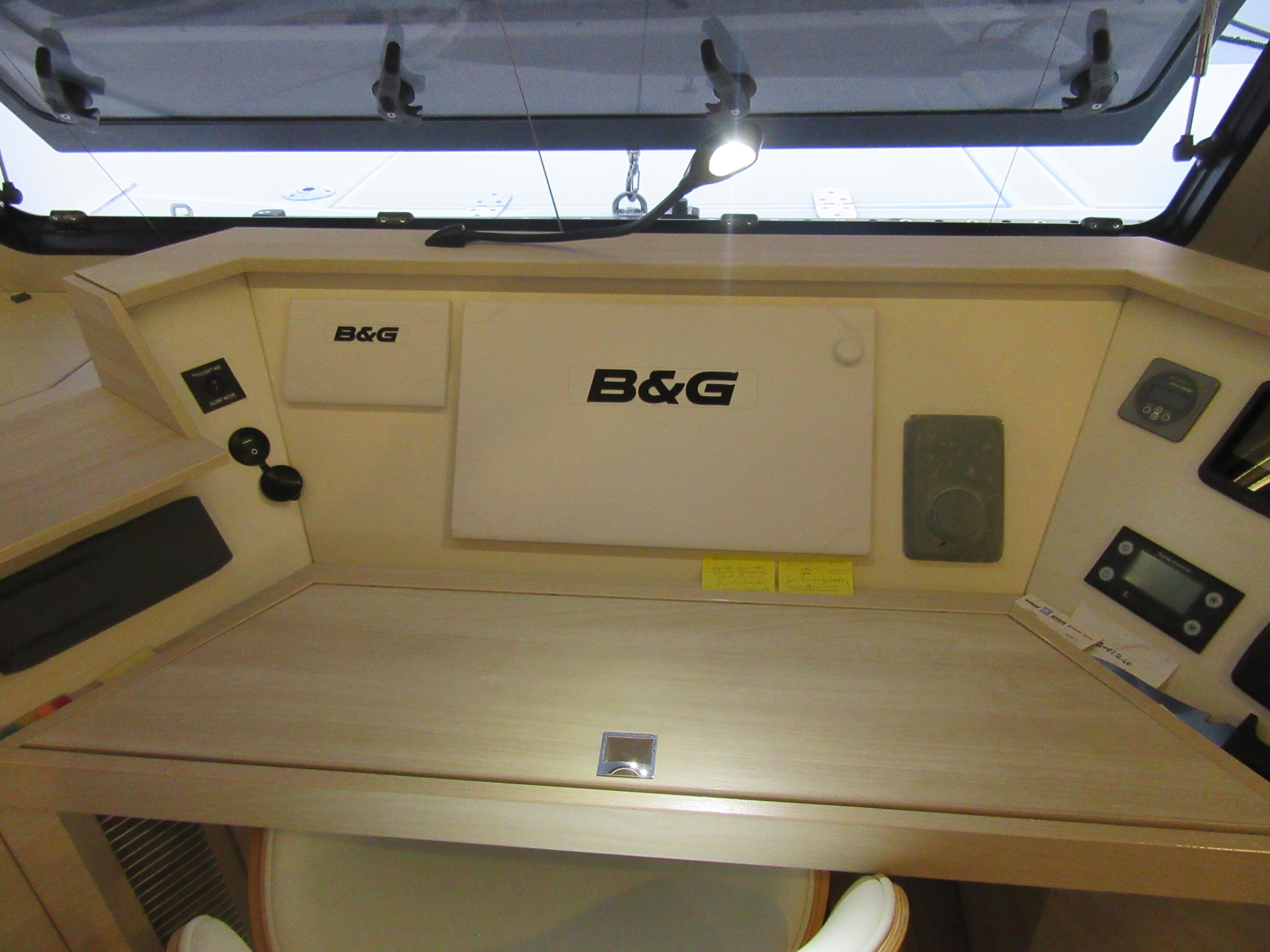

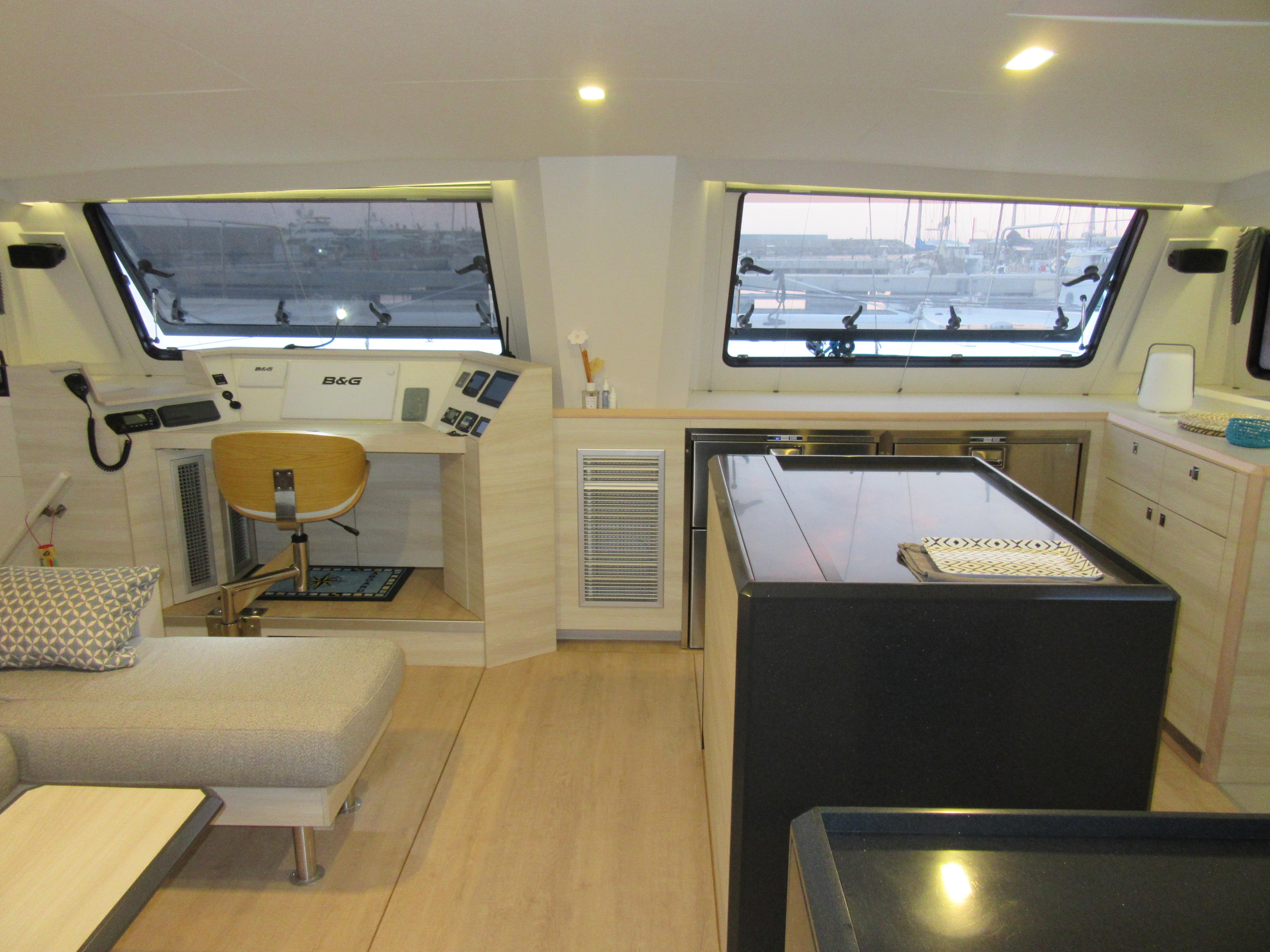

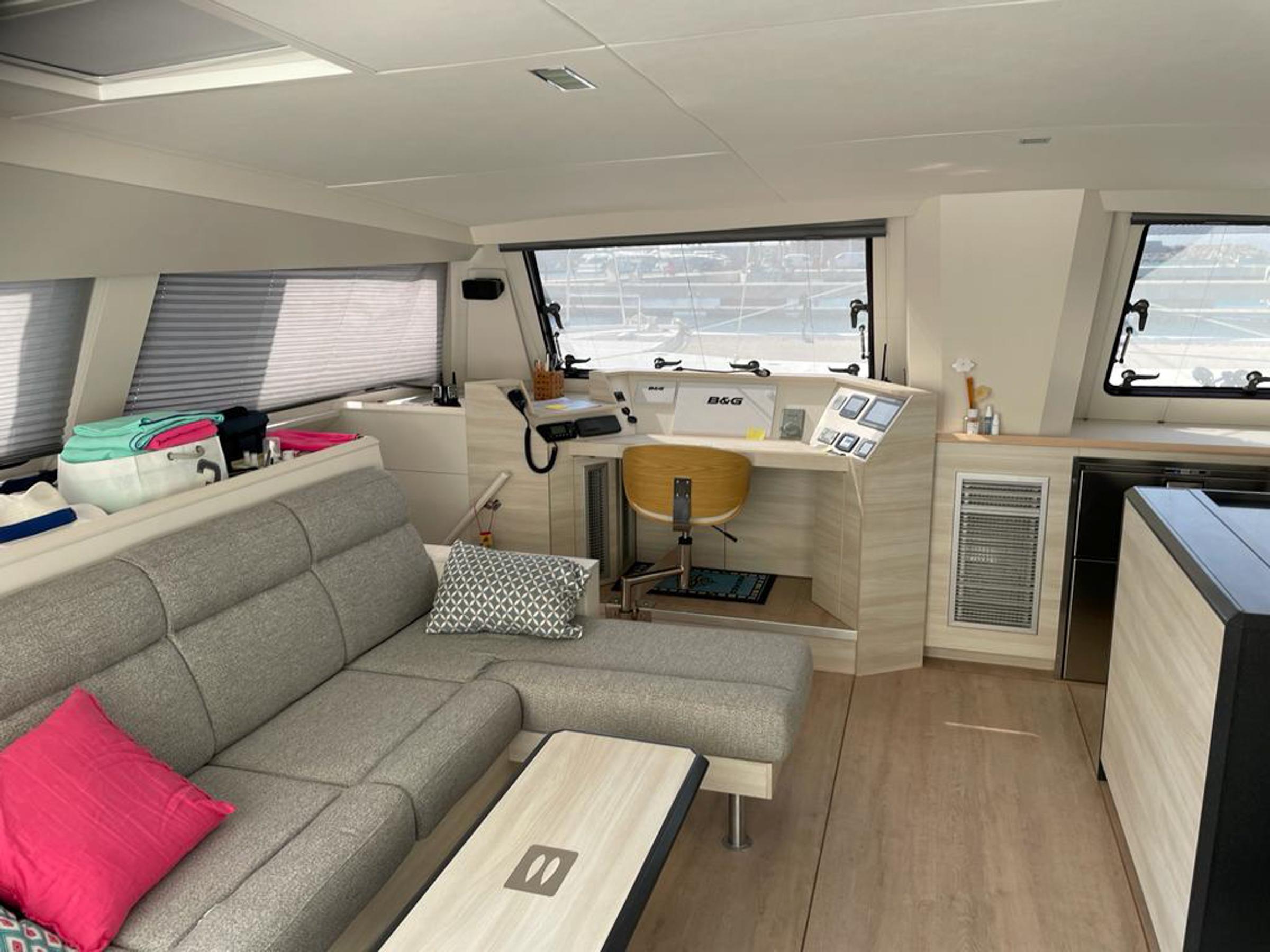

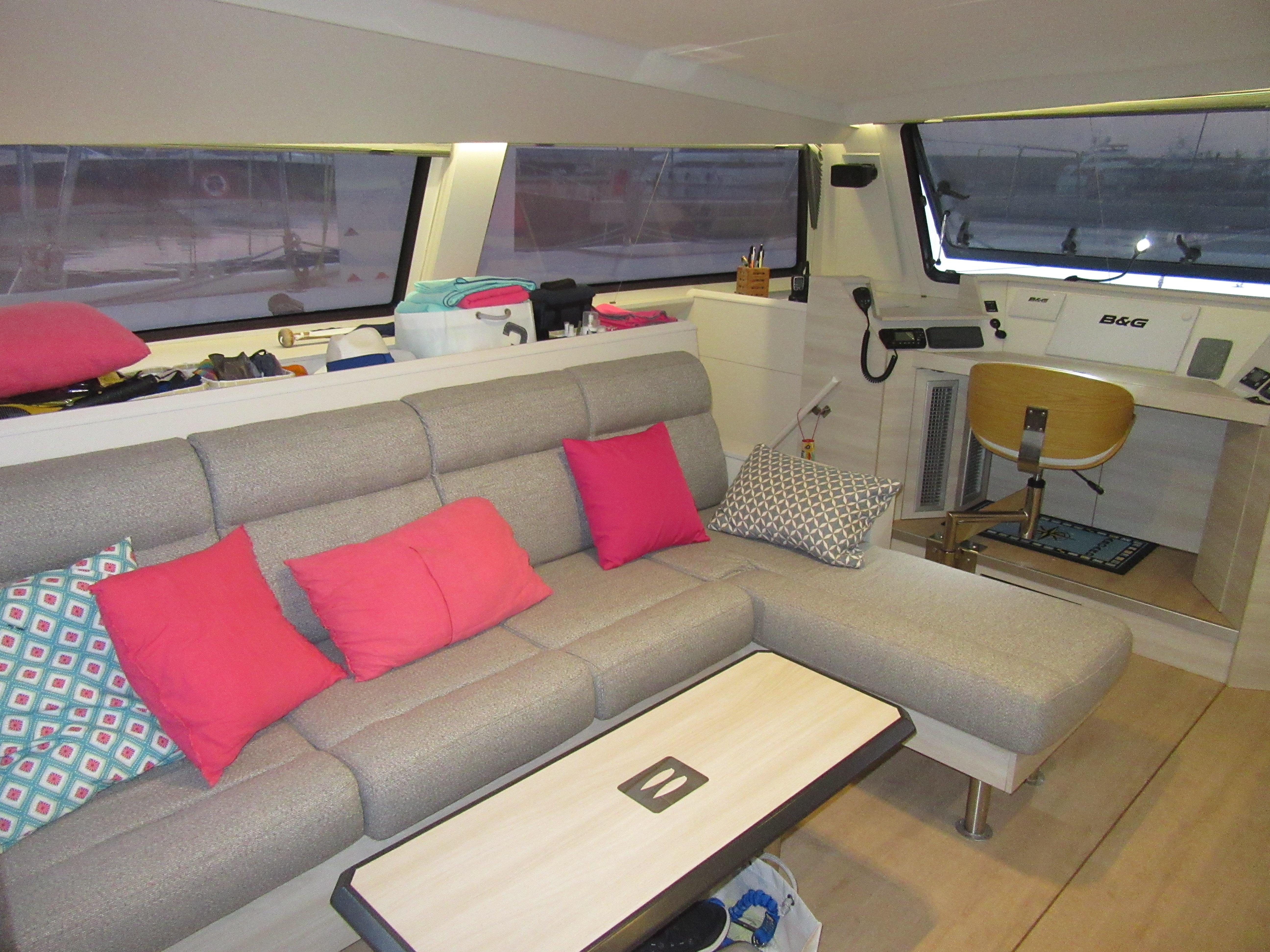

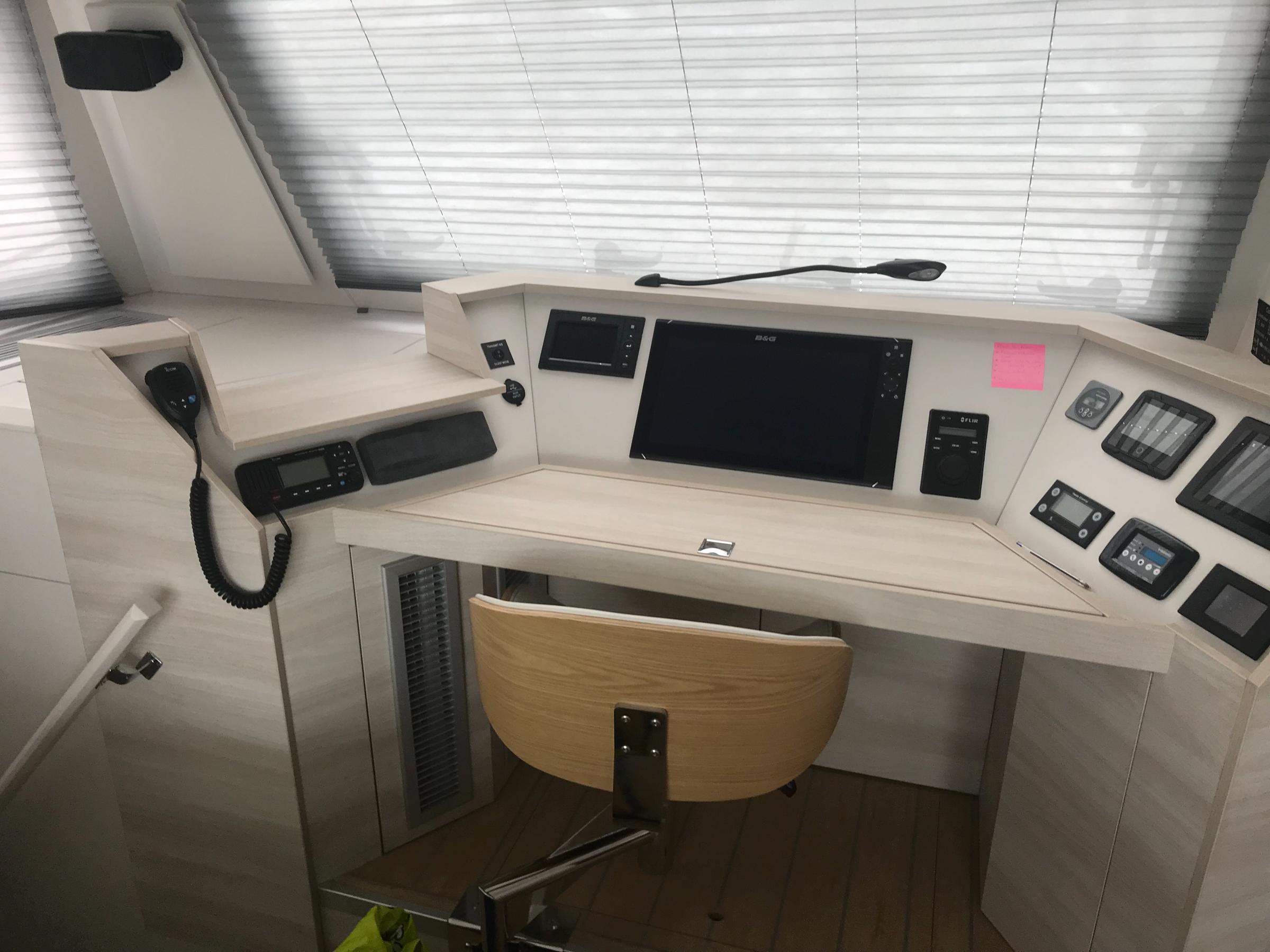

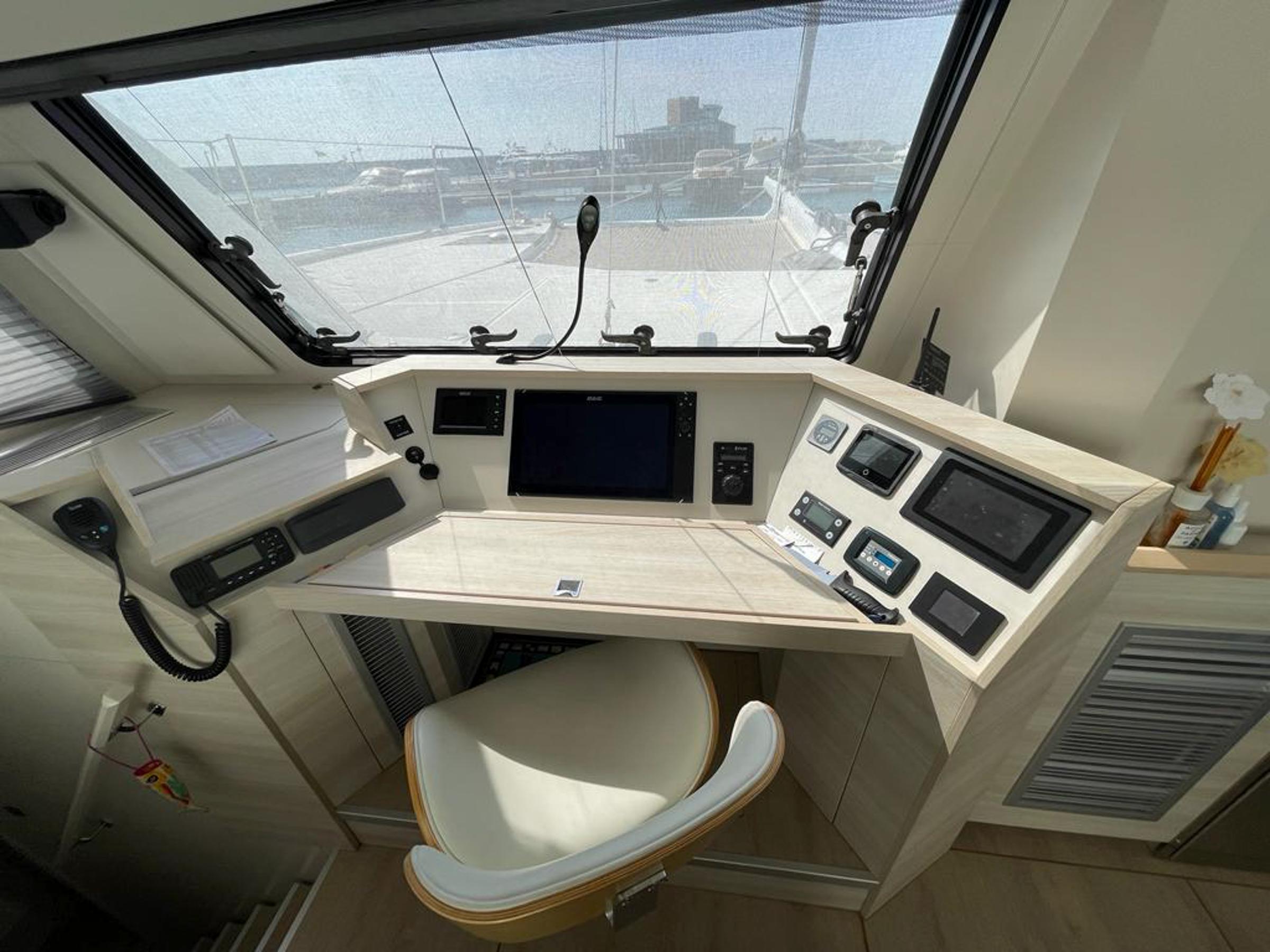

- Modification of chart table for laptop connections

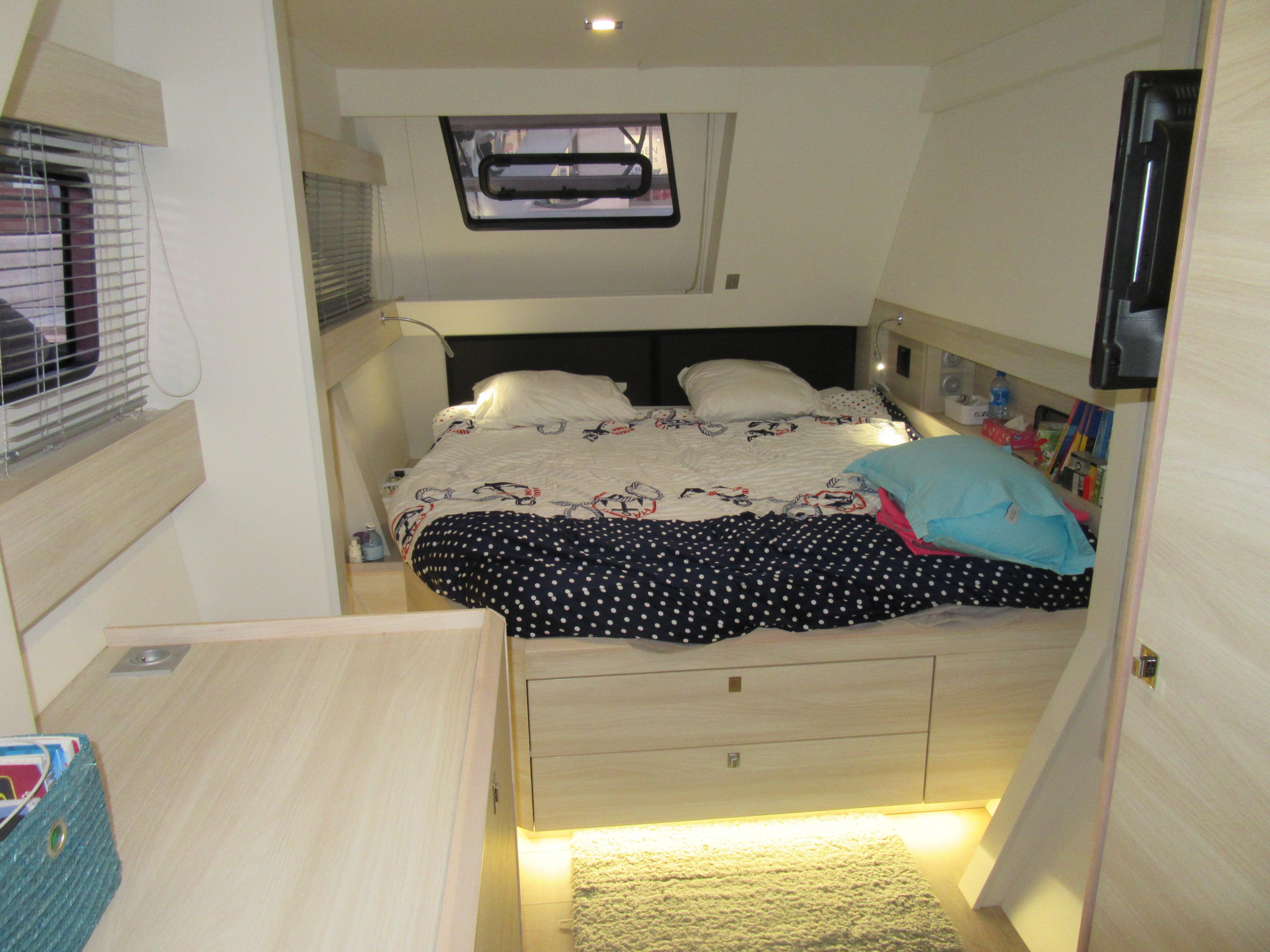

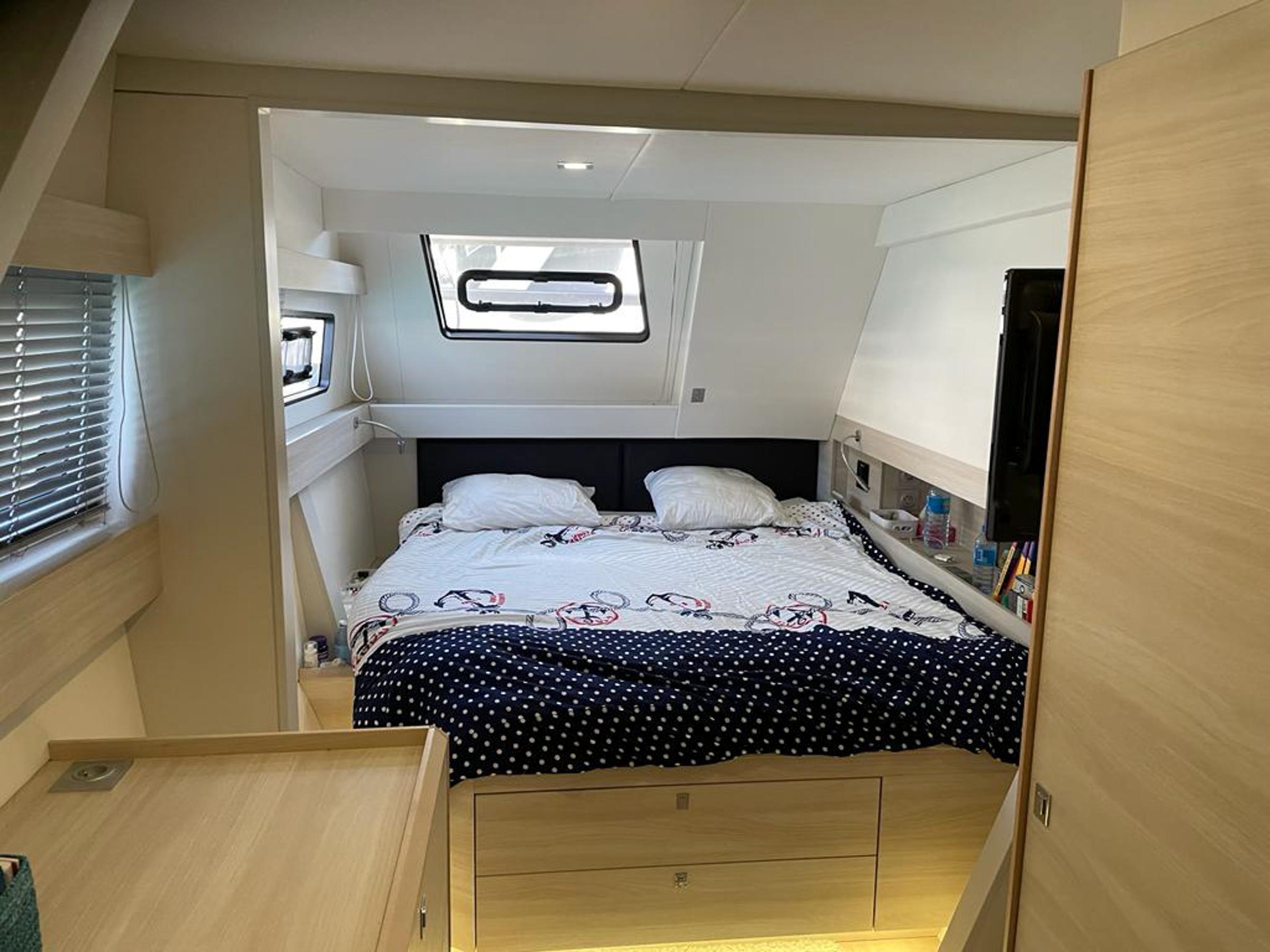

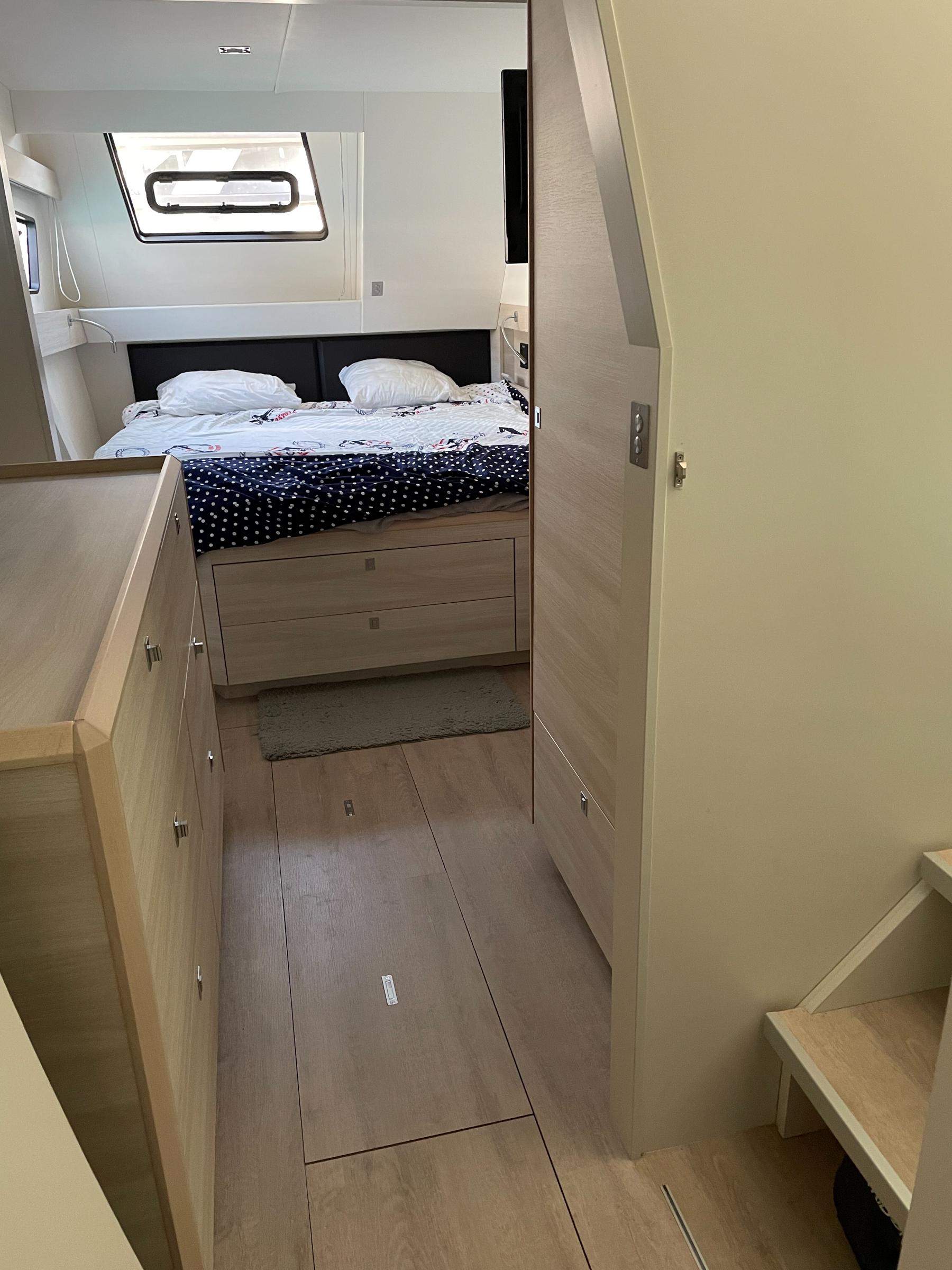

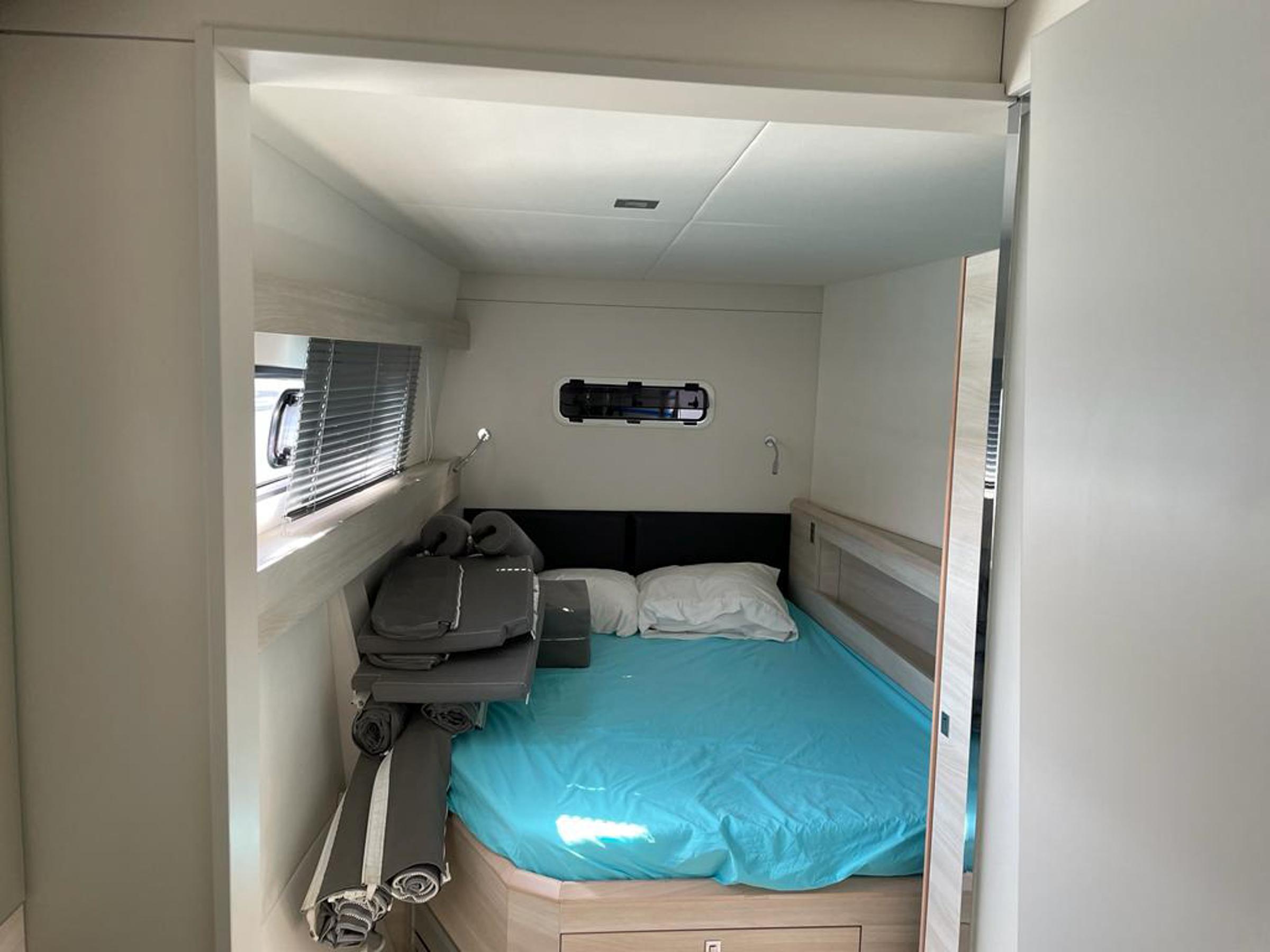

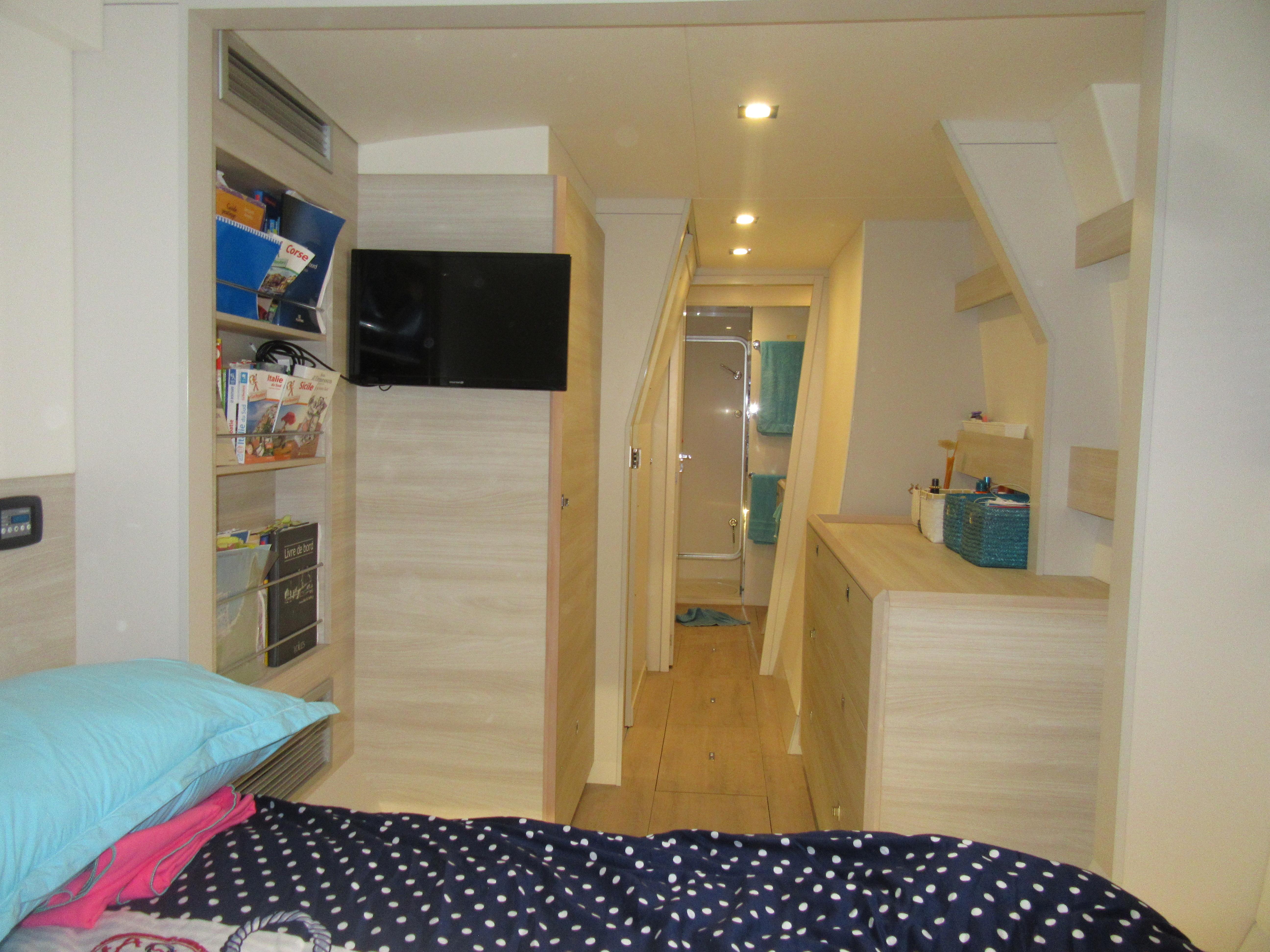

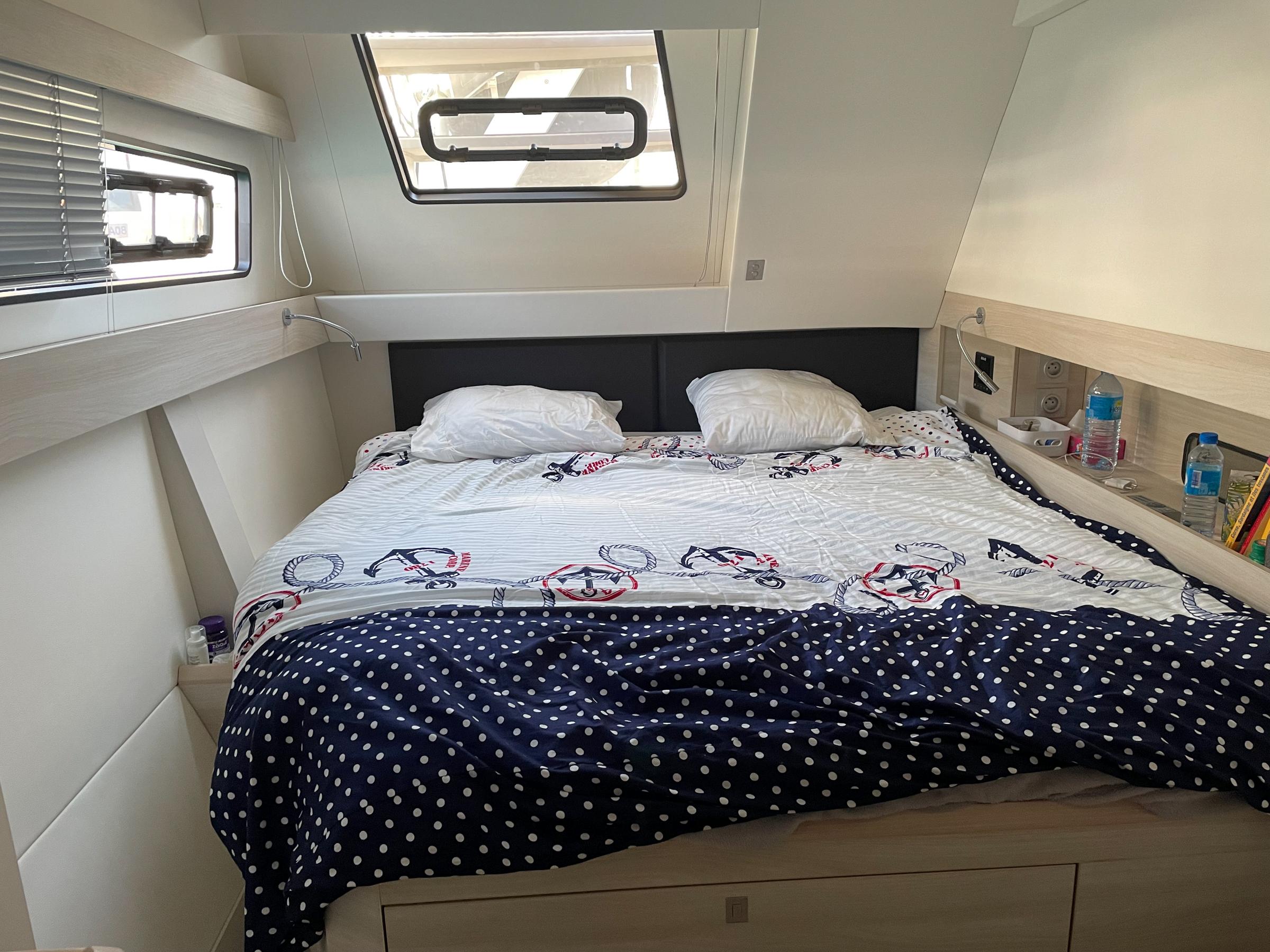

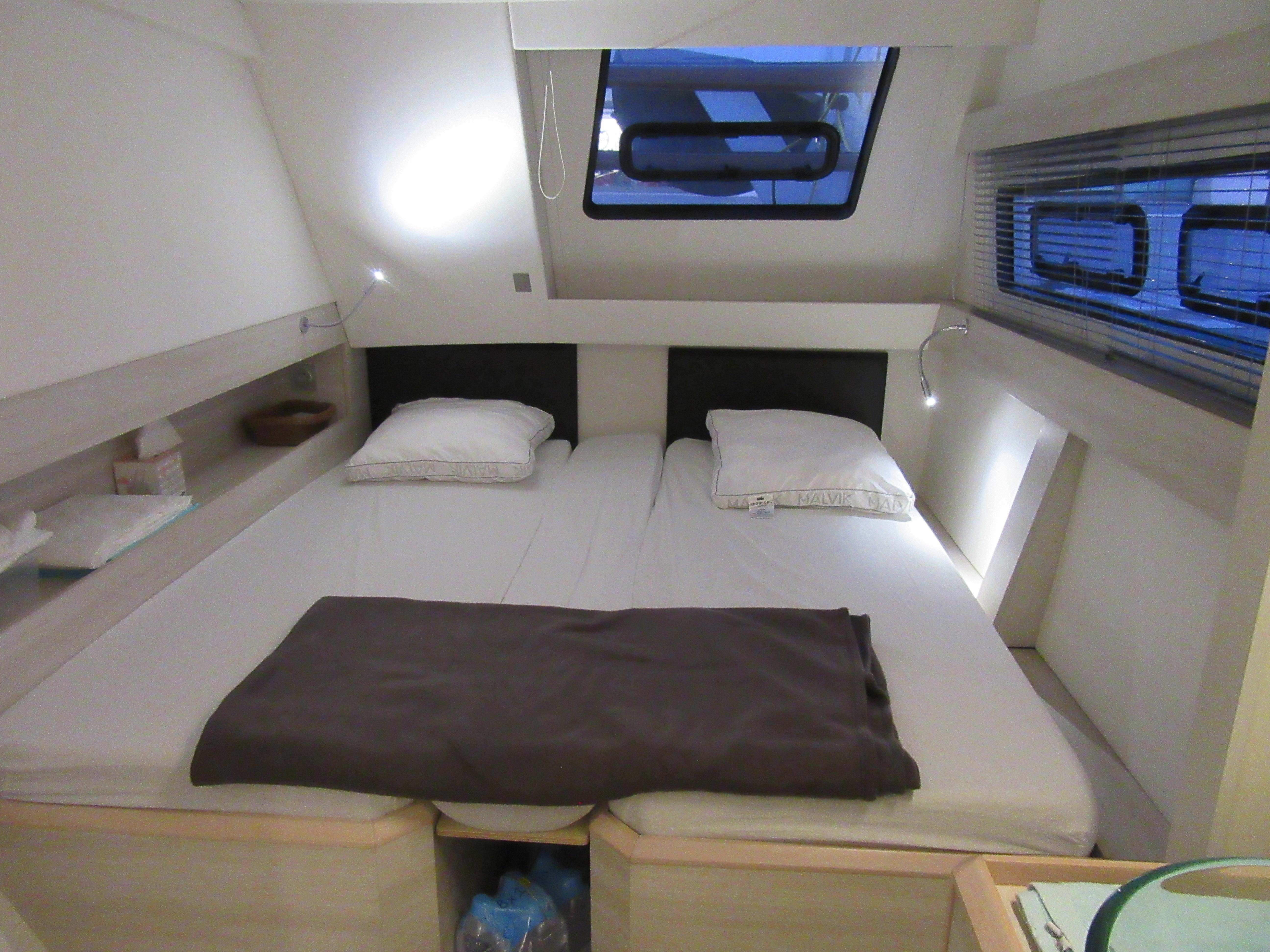

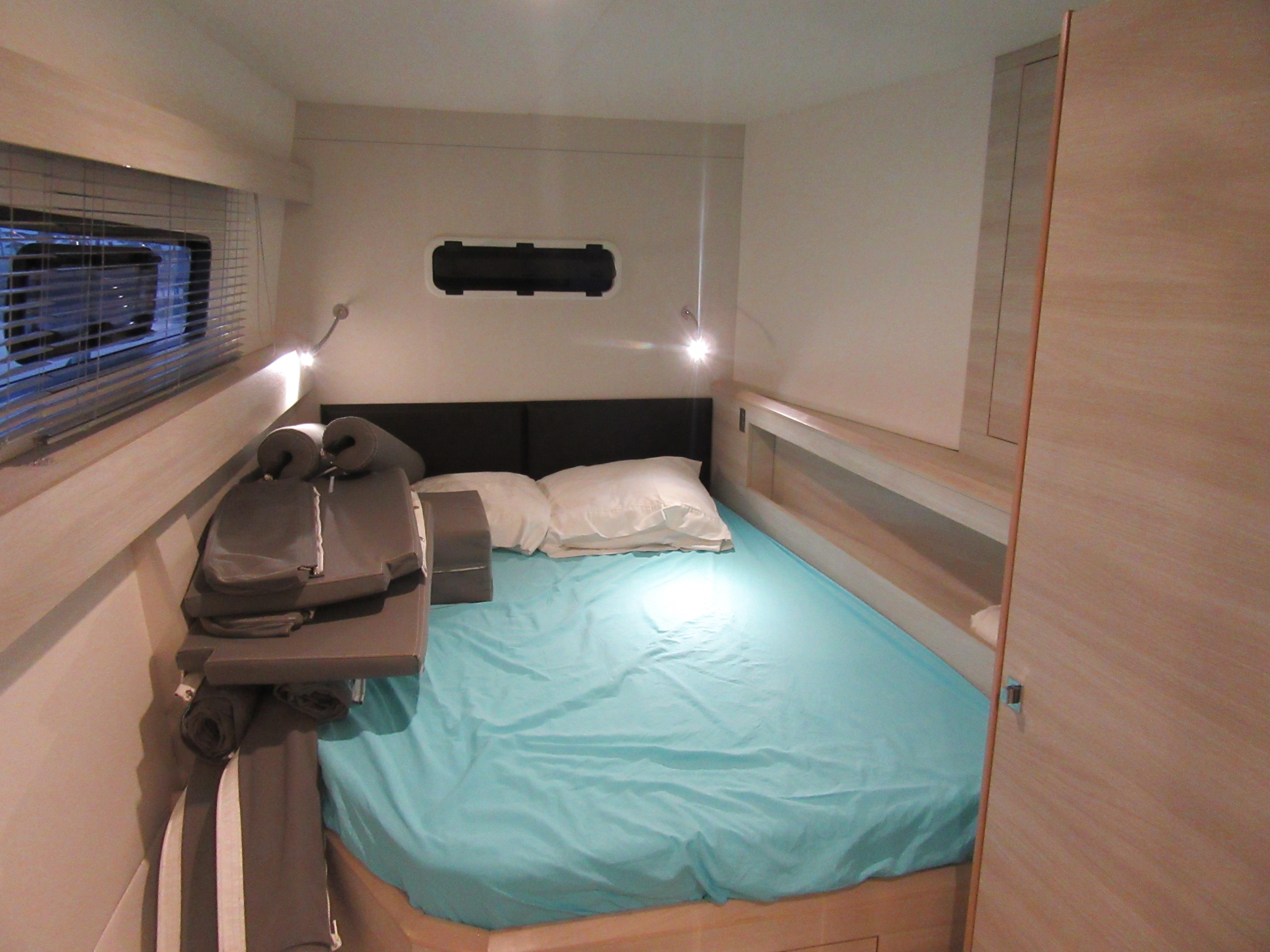

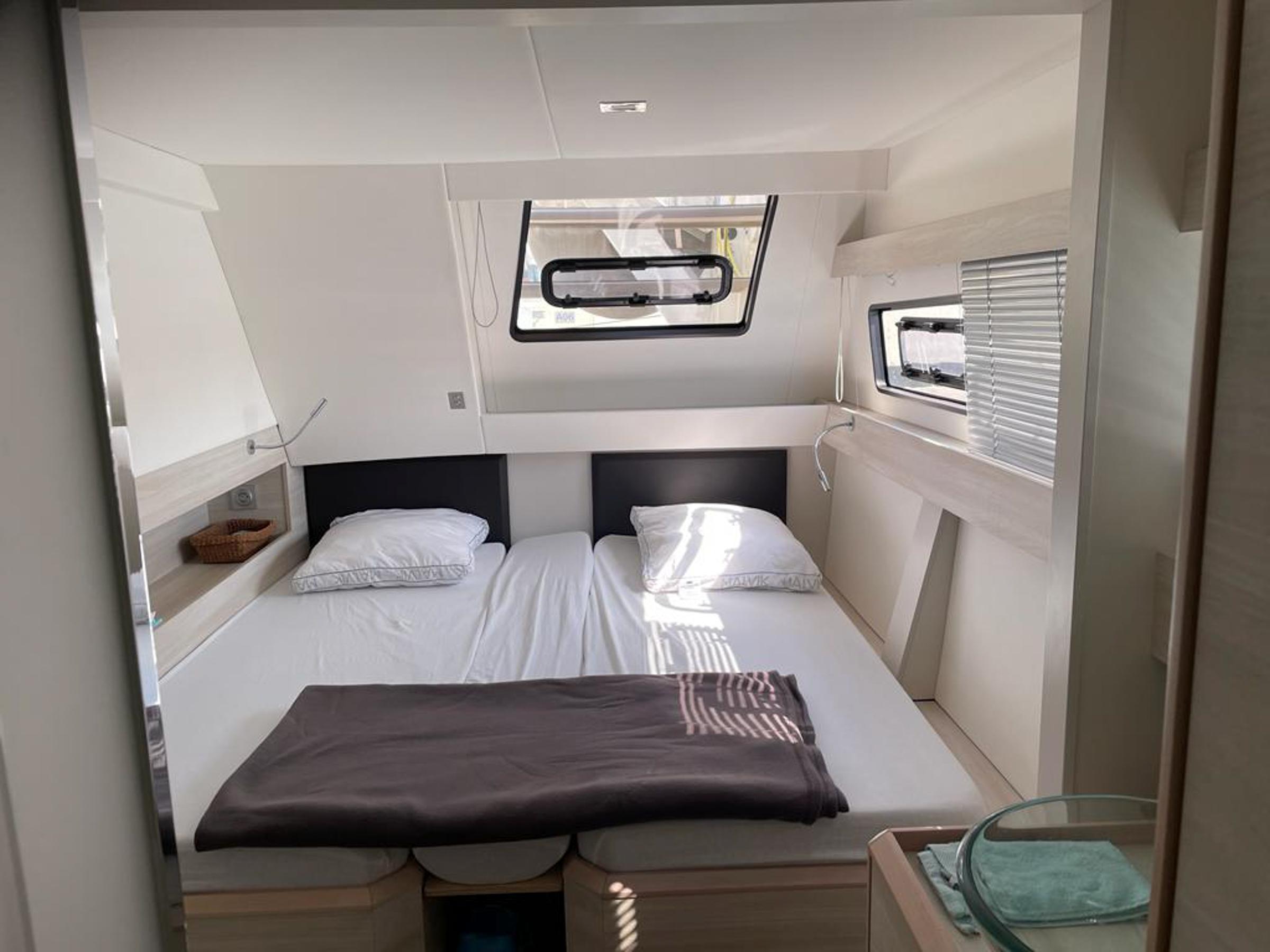

- Semi island bed in aft stbd

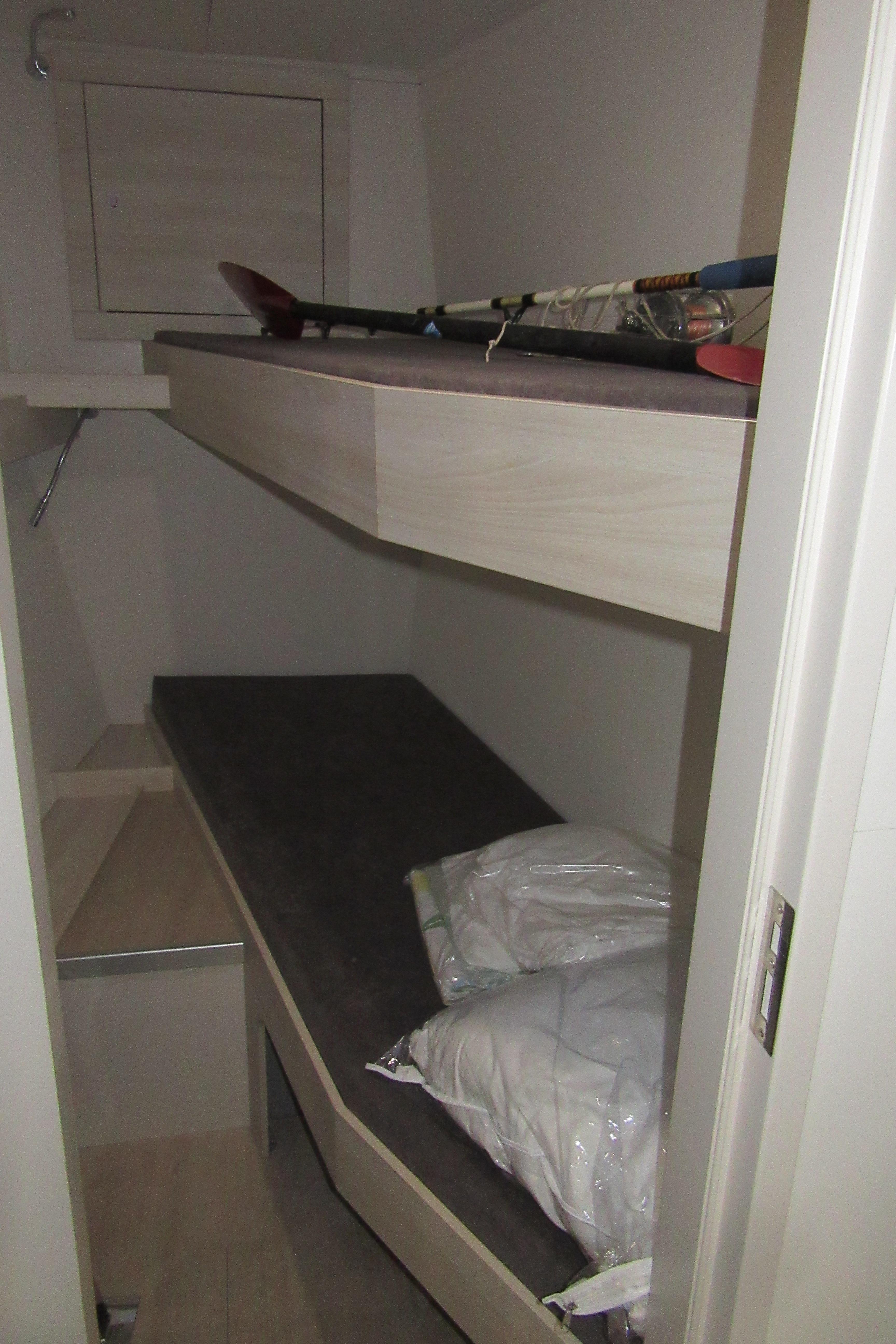

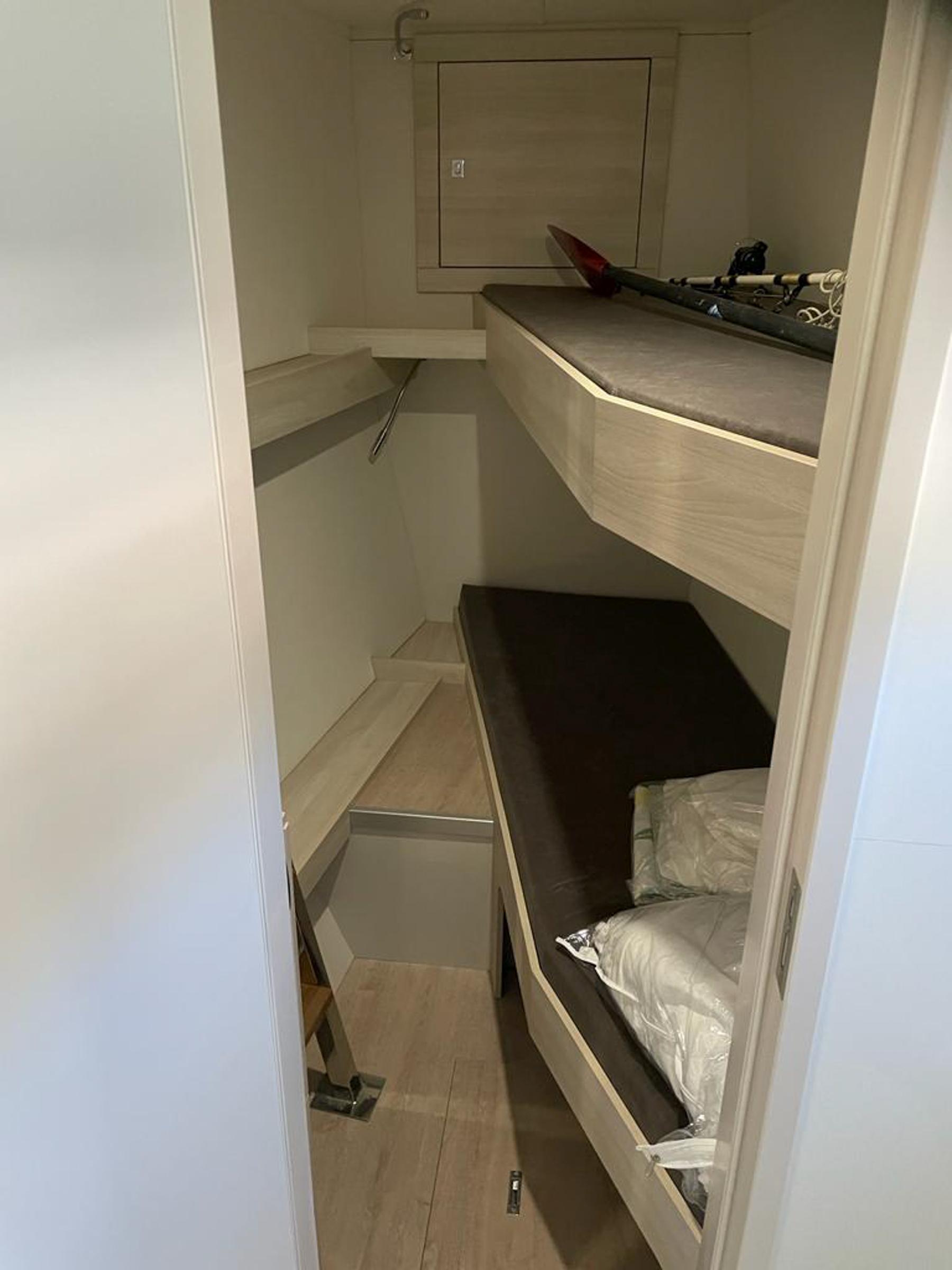

- Crew cabin in stbd peak with double berth and bathroom

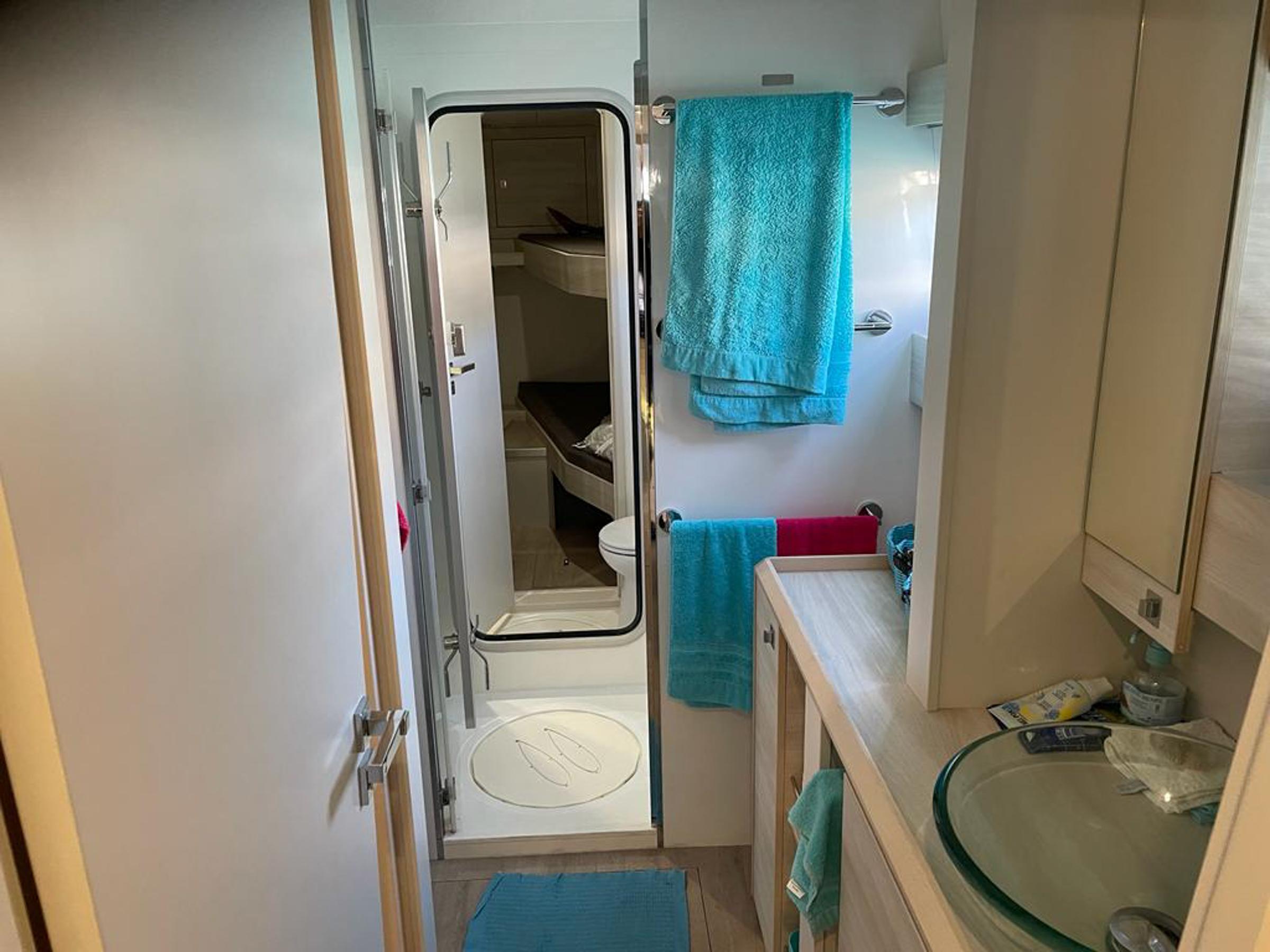

- Watertight forward starboard communication door between owner bathroom and crew cabin

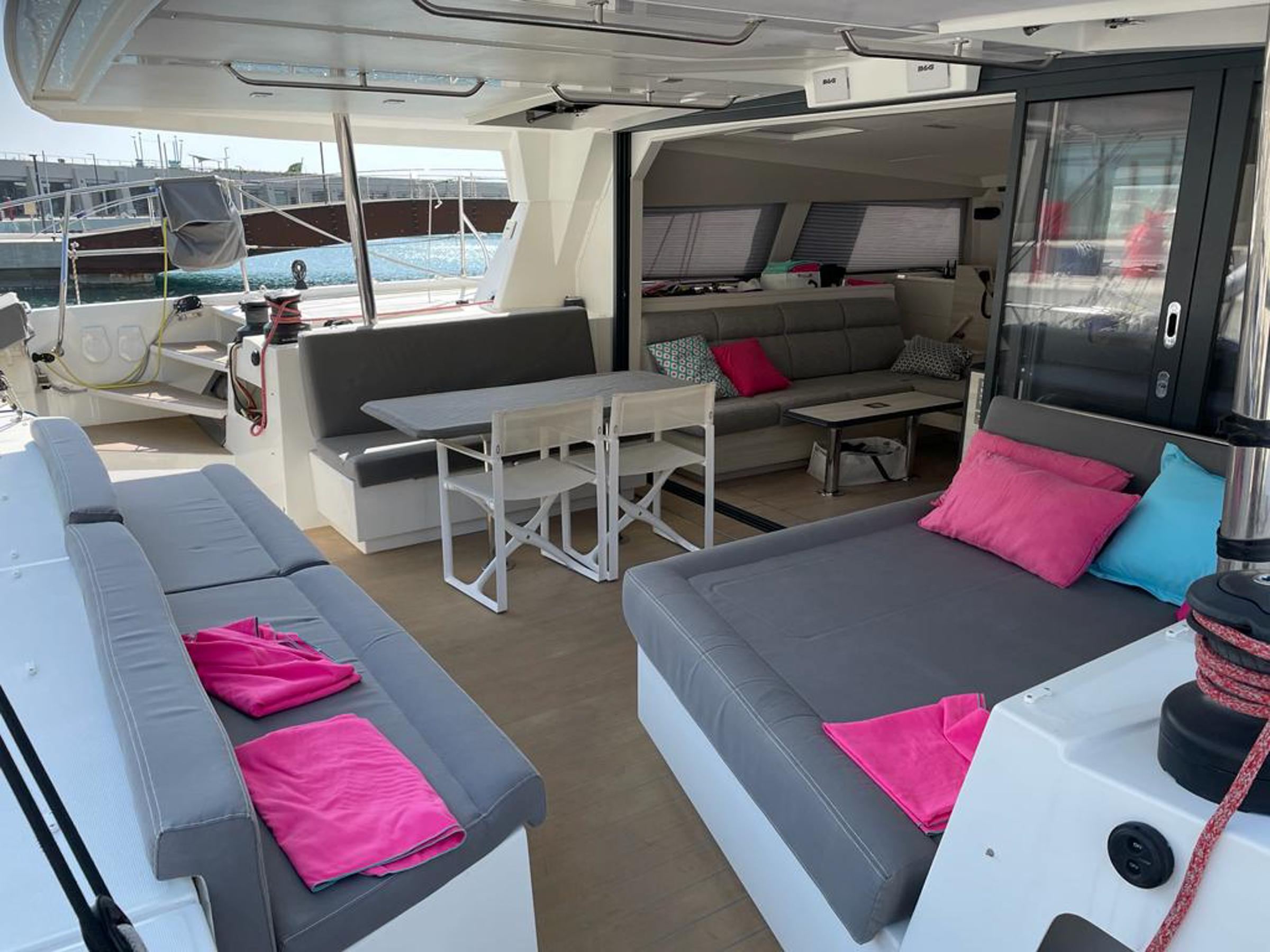

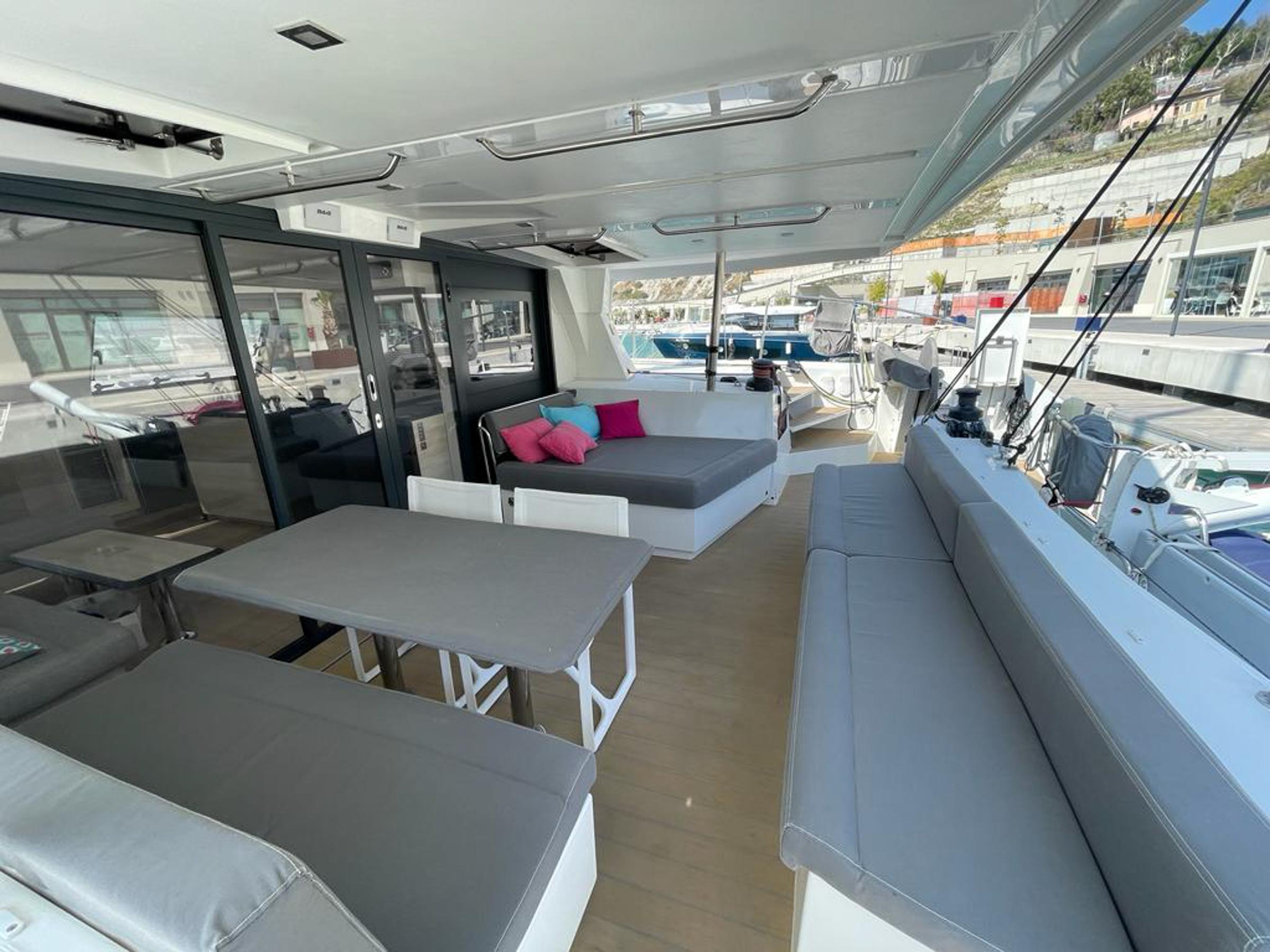

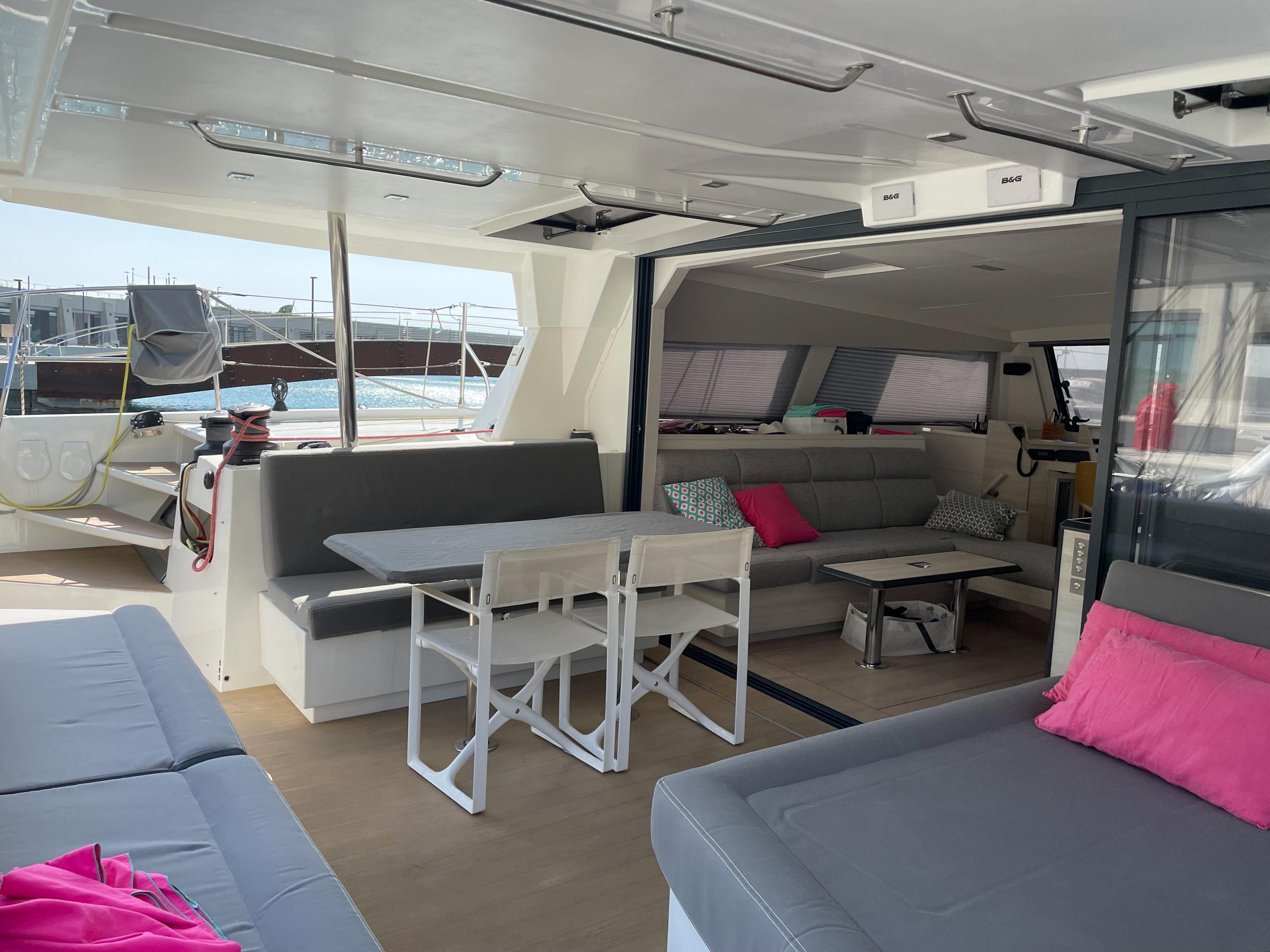

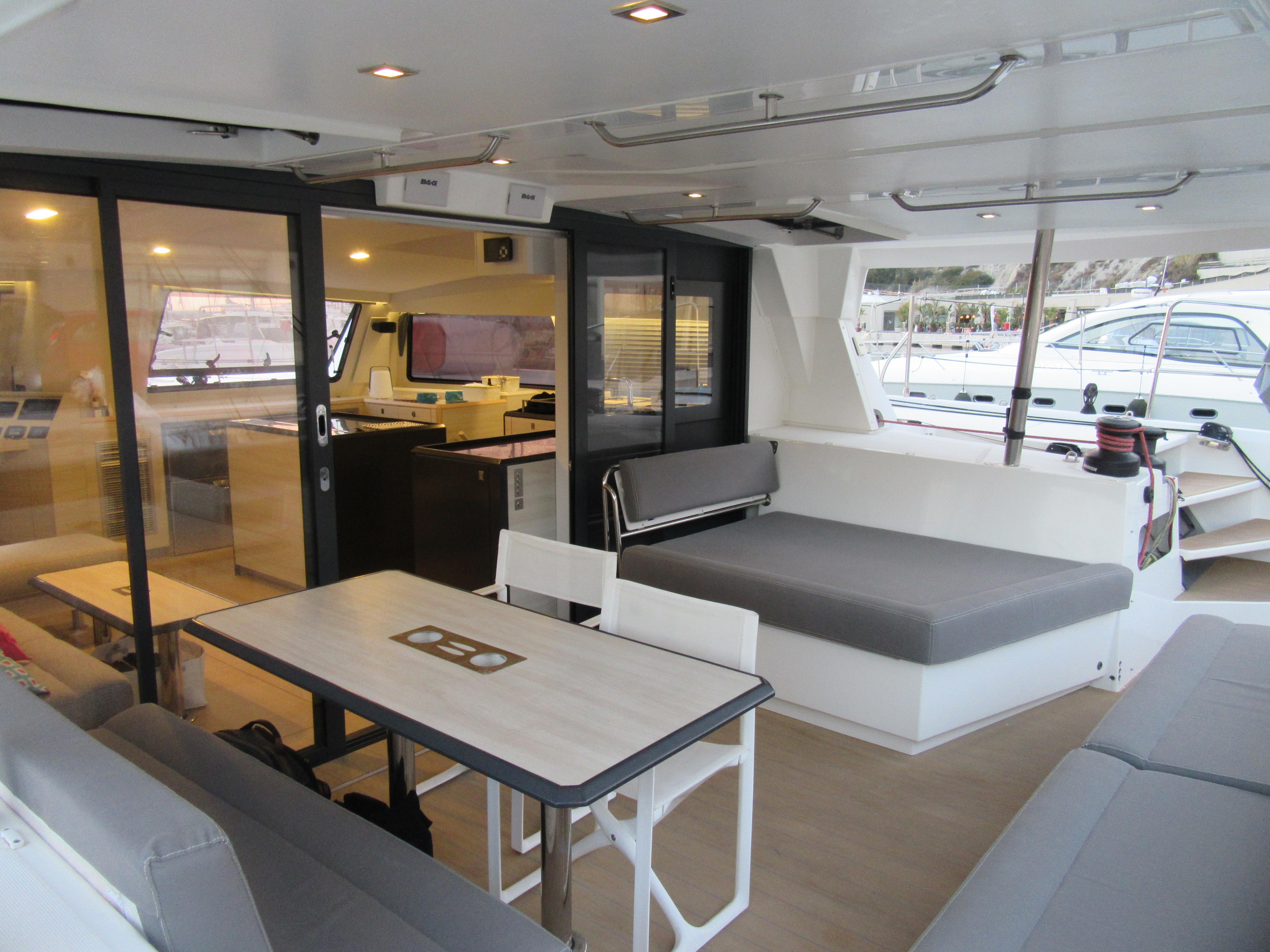

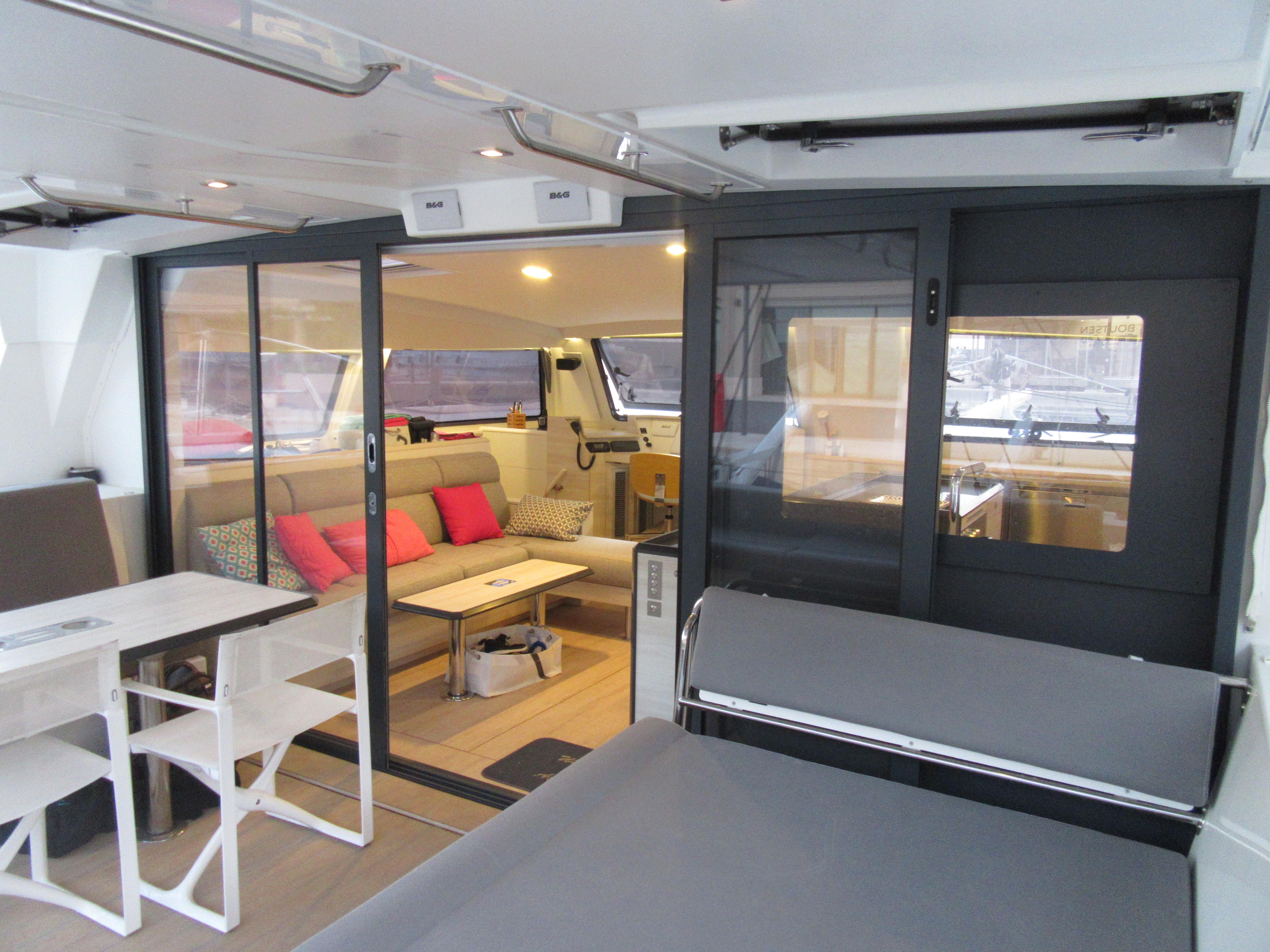

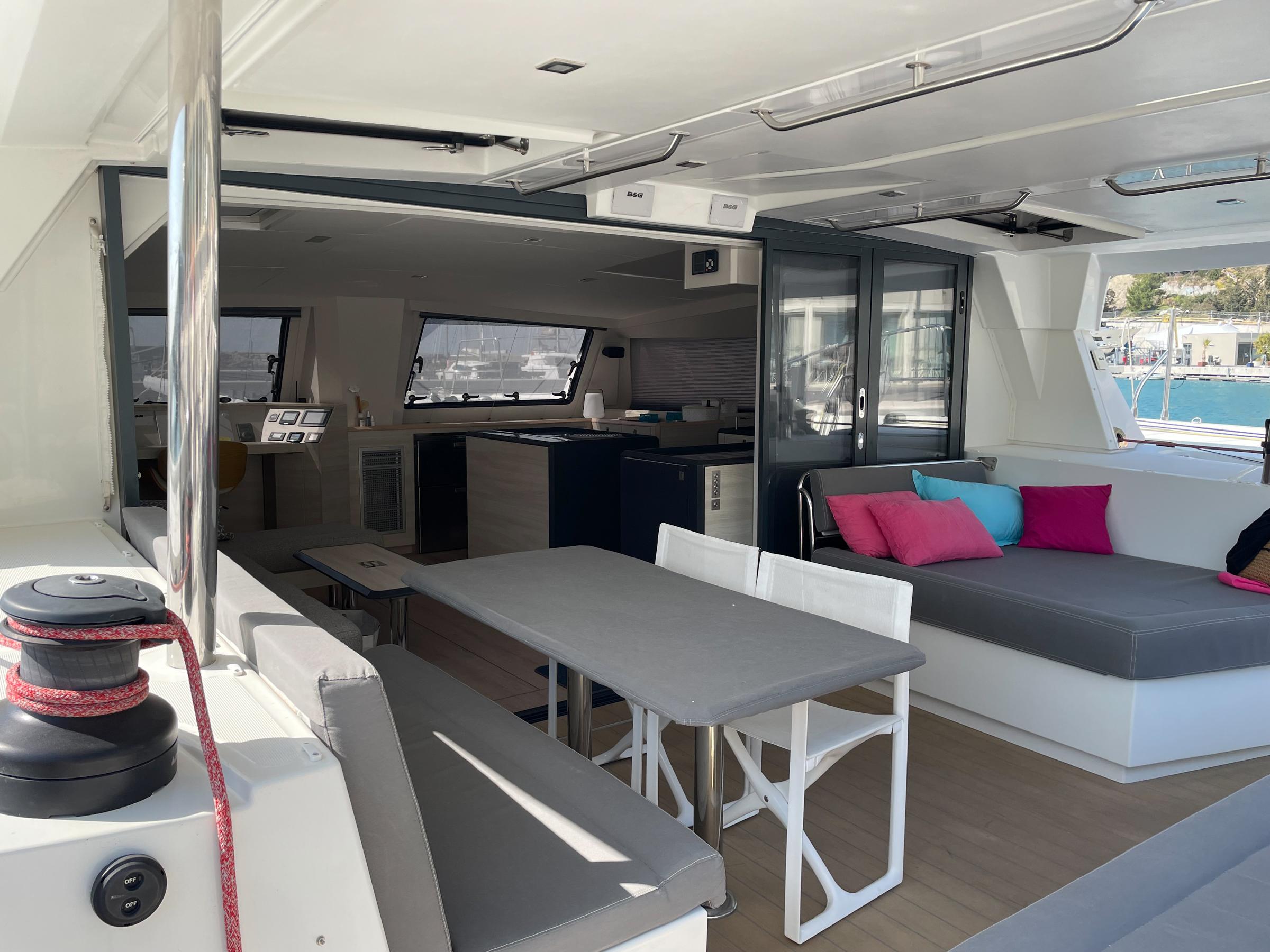

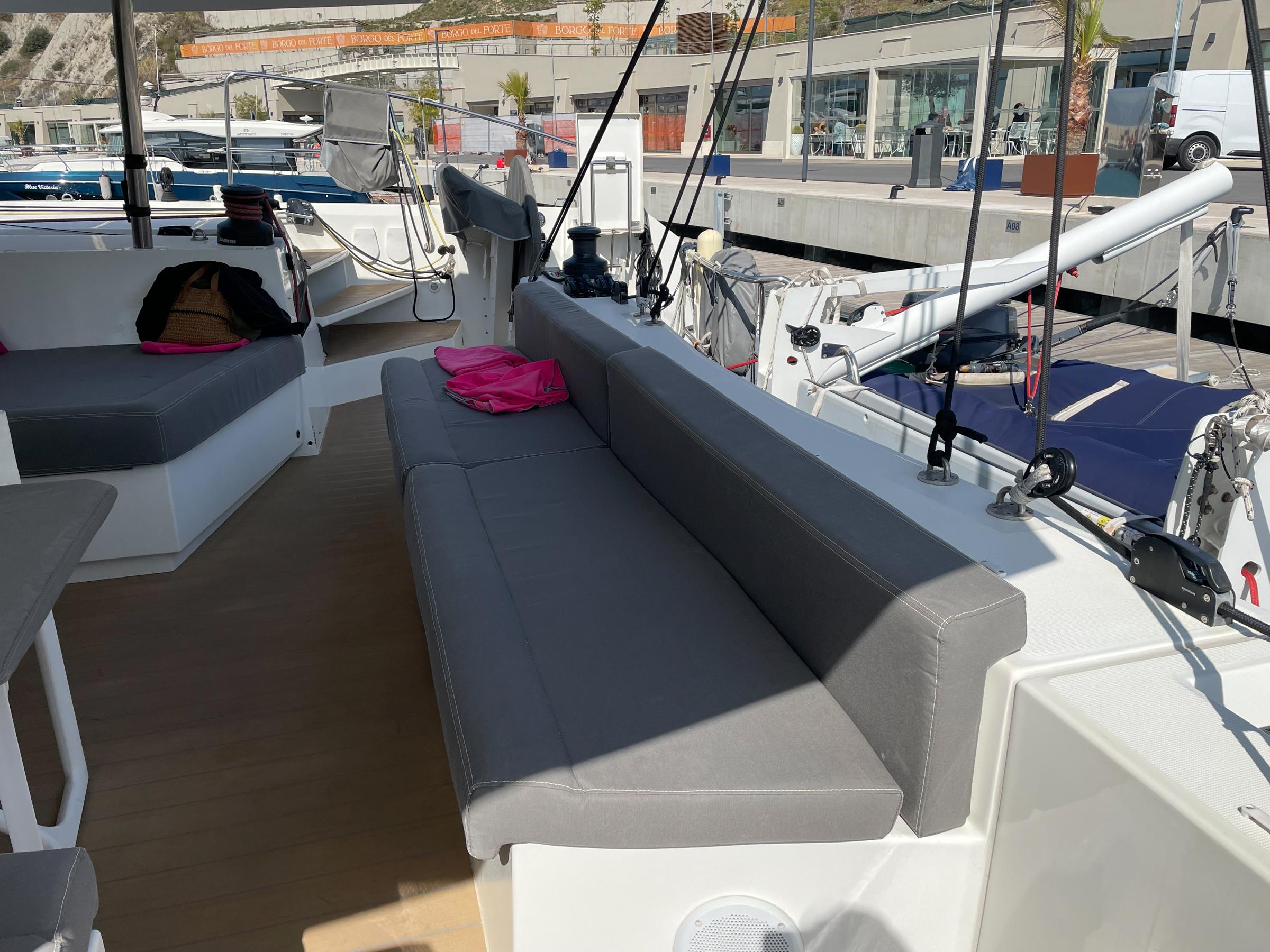

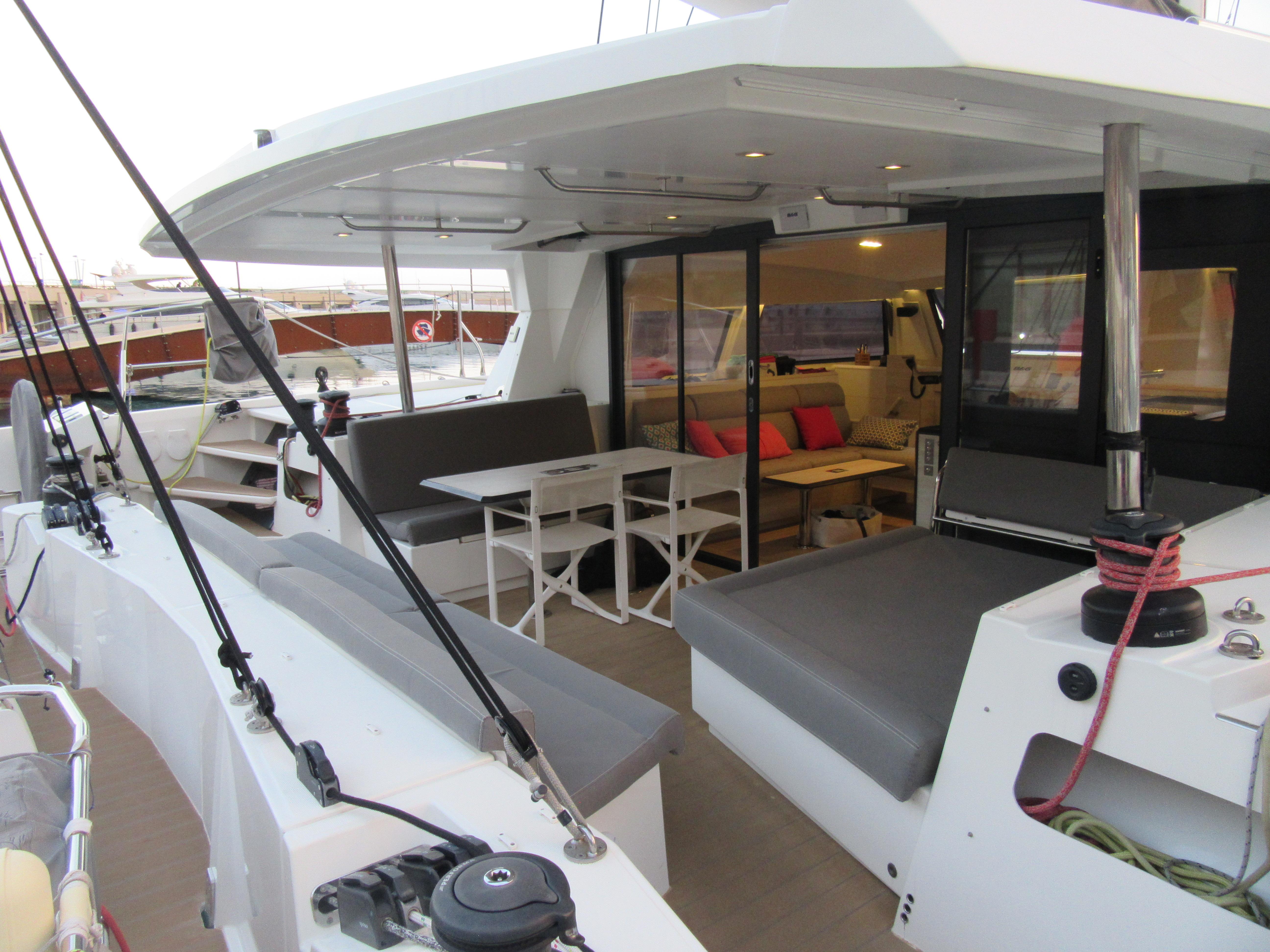

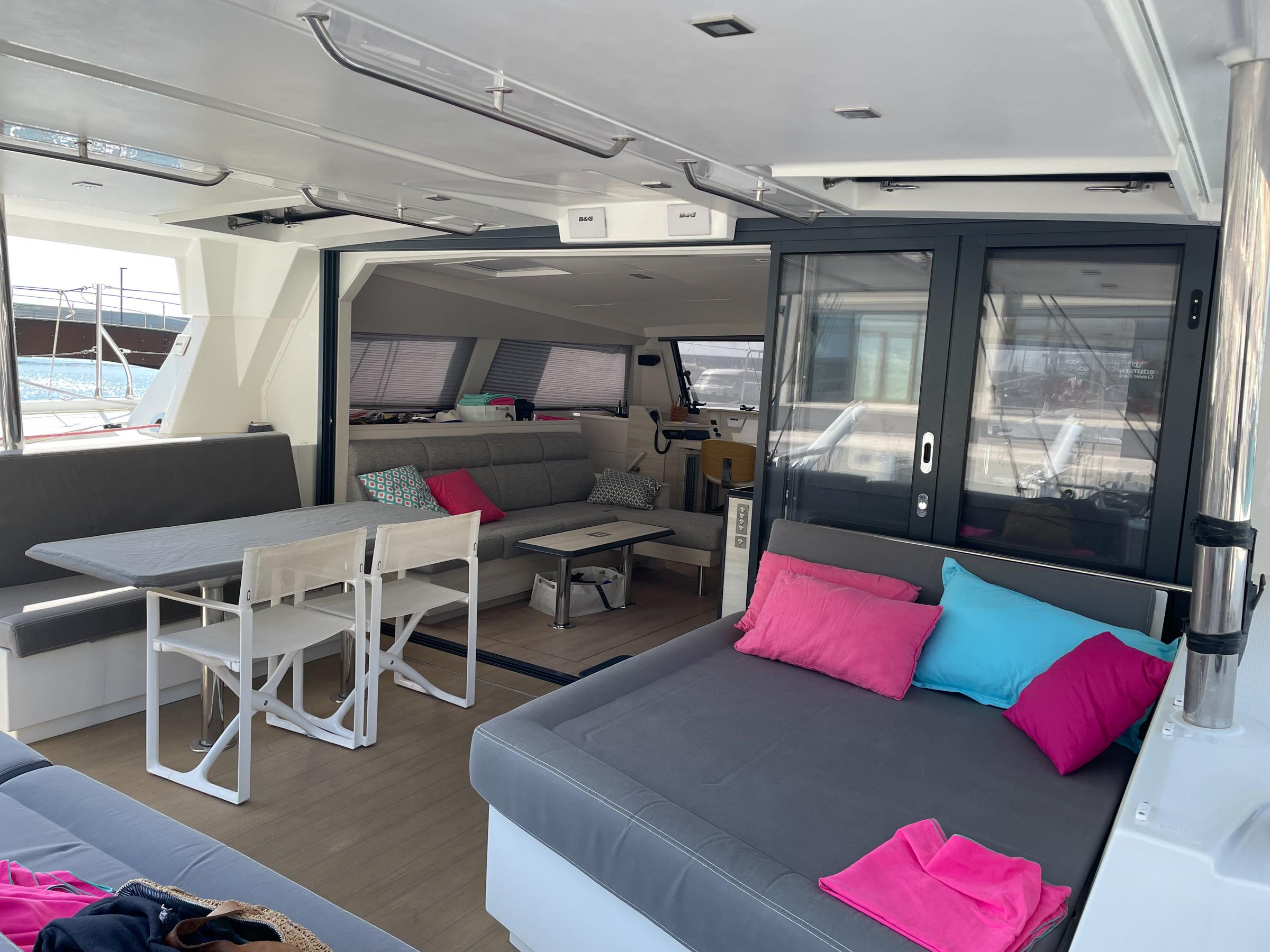

- Cockpit bed with cushions and storage + complete cockpit upholstery
- Board + mattress in port aft cabin
- Cockpit and boarding platform in polyurethane lathing rot-proof teak brushed finishing
- Flexiteek on 2 first stairs to deck

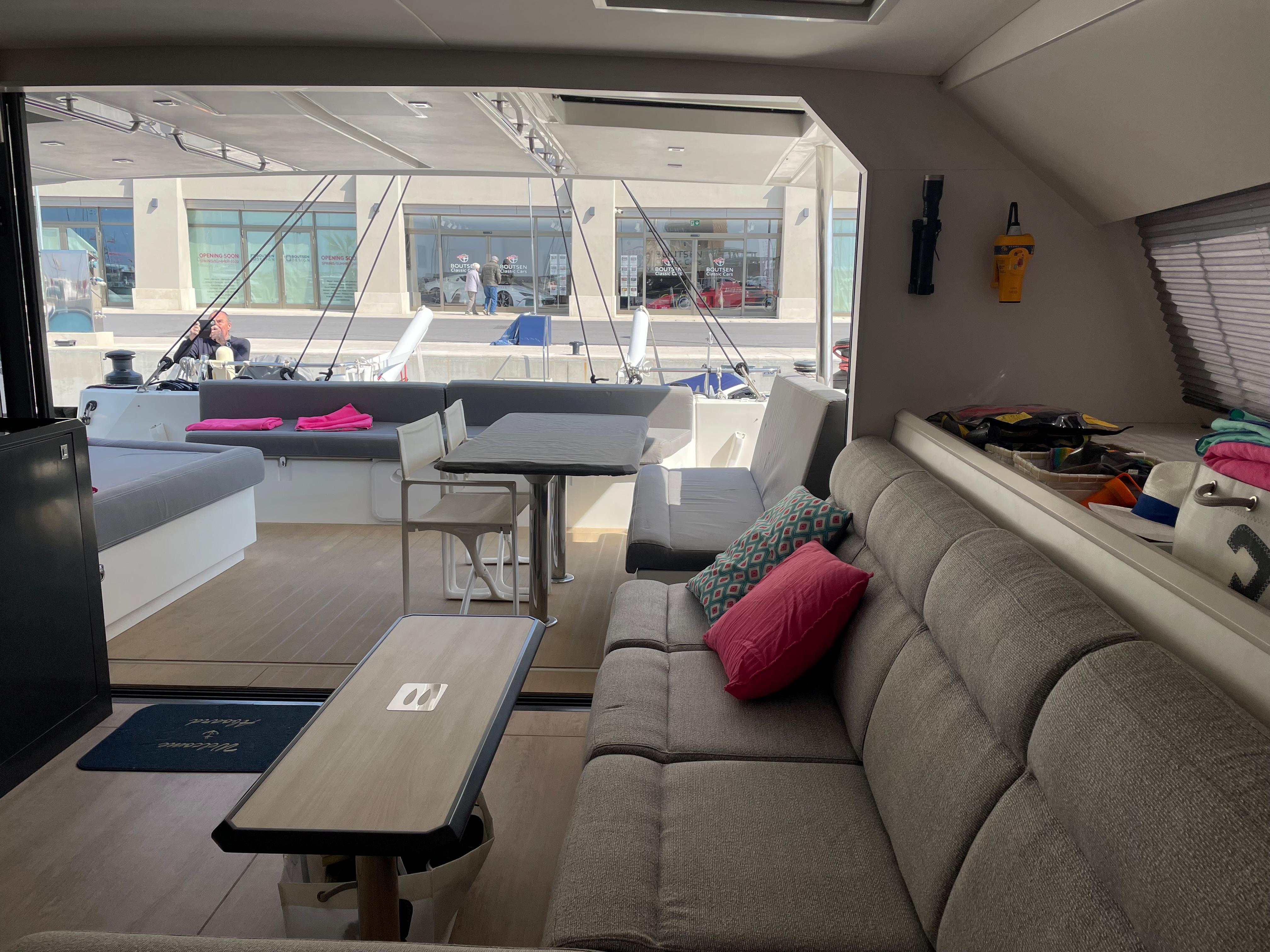

- Bar in saloon armrest

Electricity

- 2 x Mastervolt Combi Ultra 3500 – 100A
- USB outlets

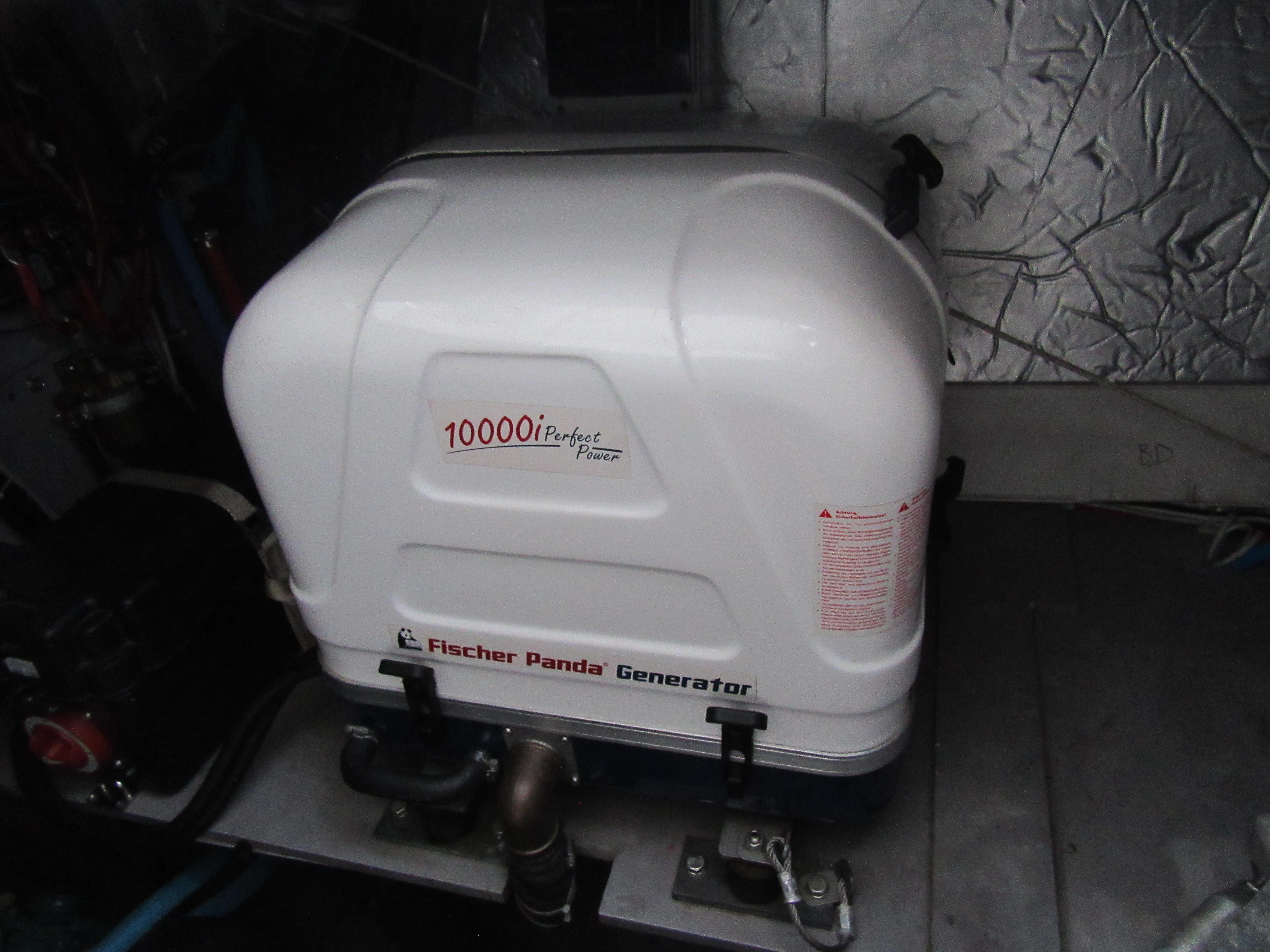

- Generator FISHER PANDA 1000-8KW
- Pack POCHON Lithium batteries
- 8 solar panels on coach roof

Air Conditioning and Heating

- Reverse cycle air conditioning with individual setup in each cabin WebastoV50
- Extra cost for reverse cycle aircond in stbd forepeak

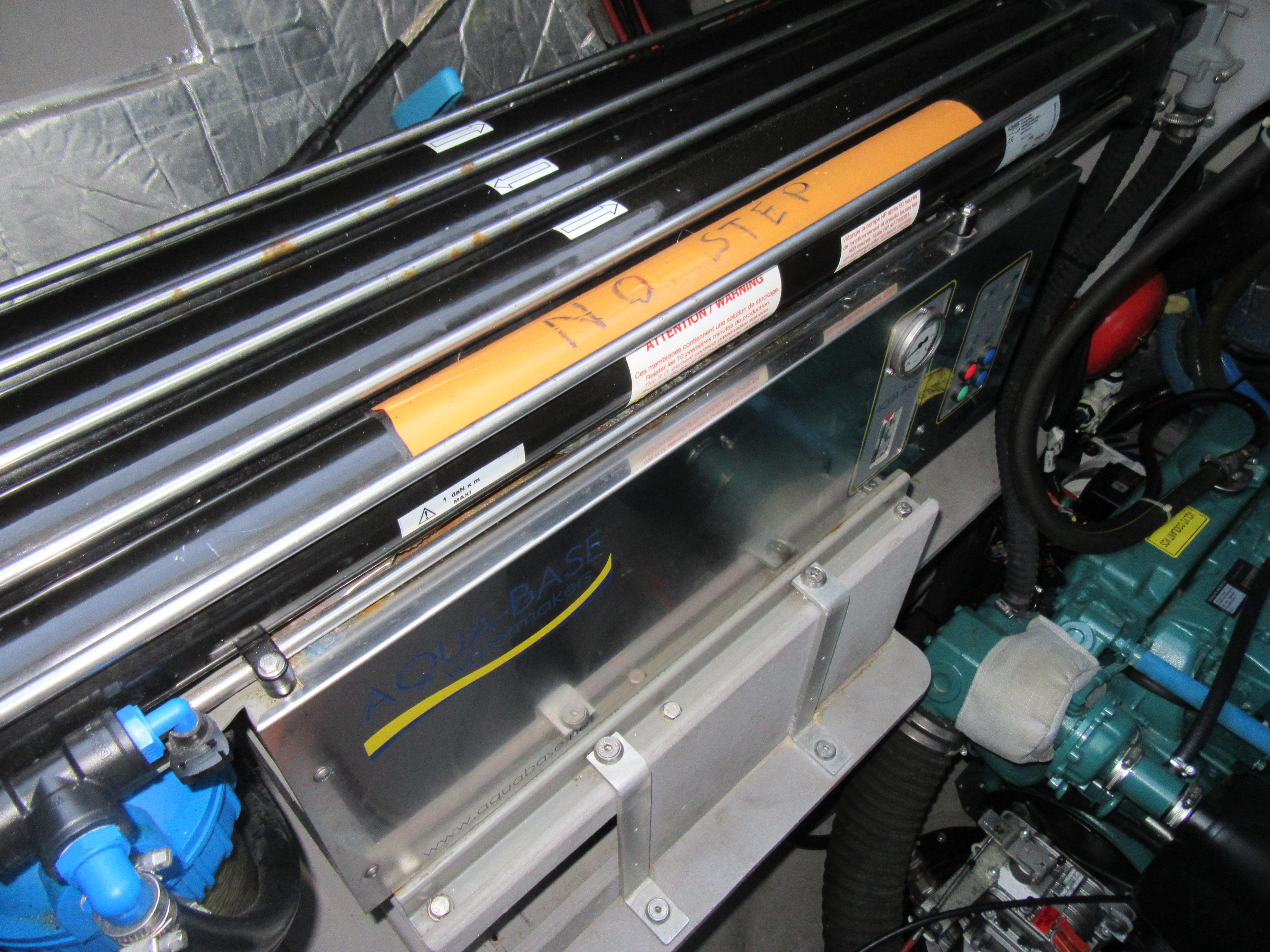

- Watermaker Aquabase 240L/h in 220V

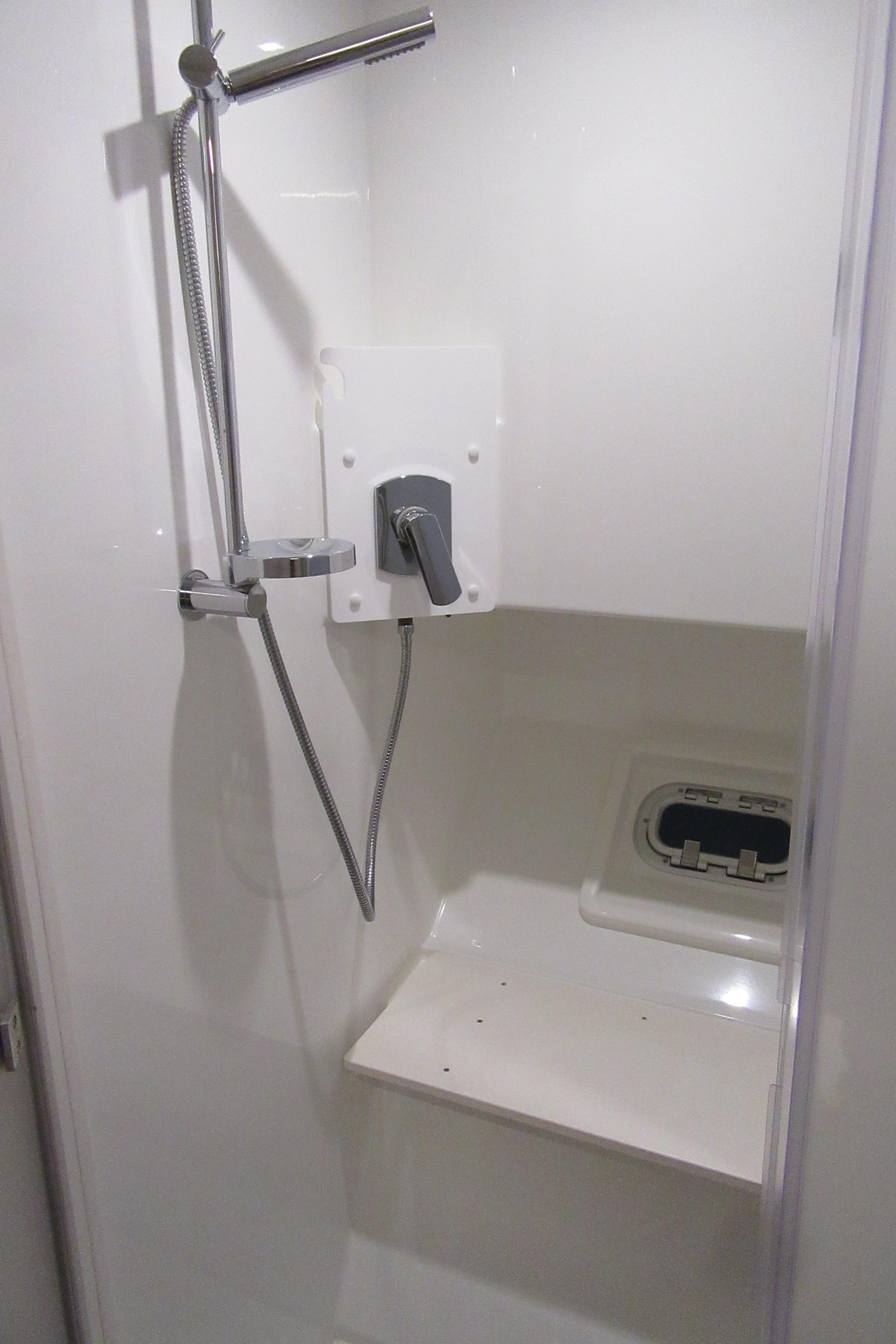

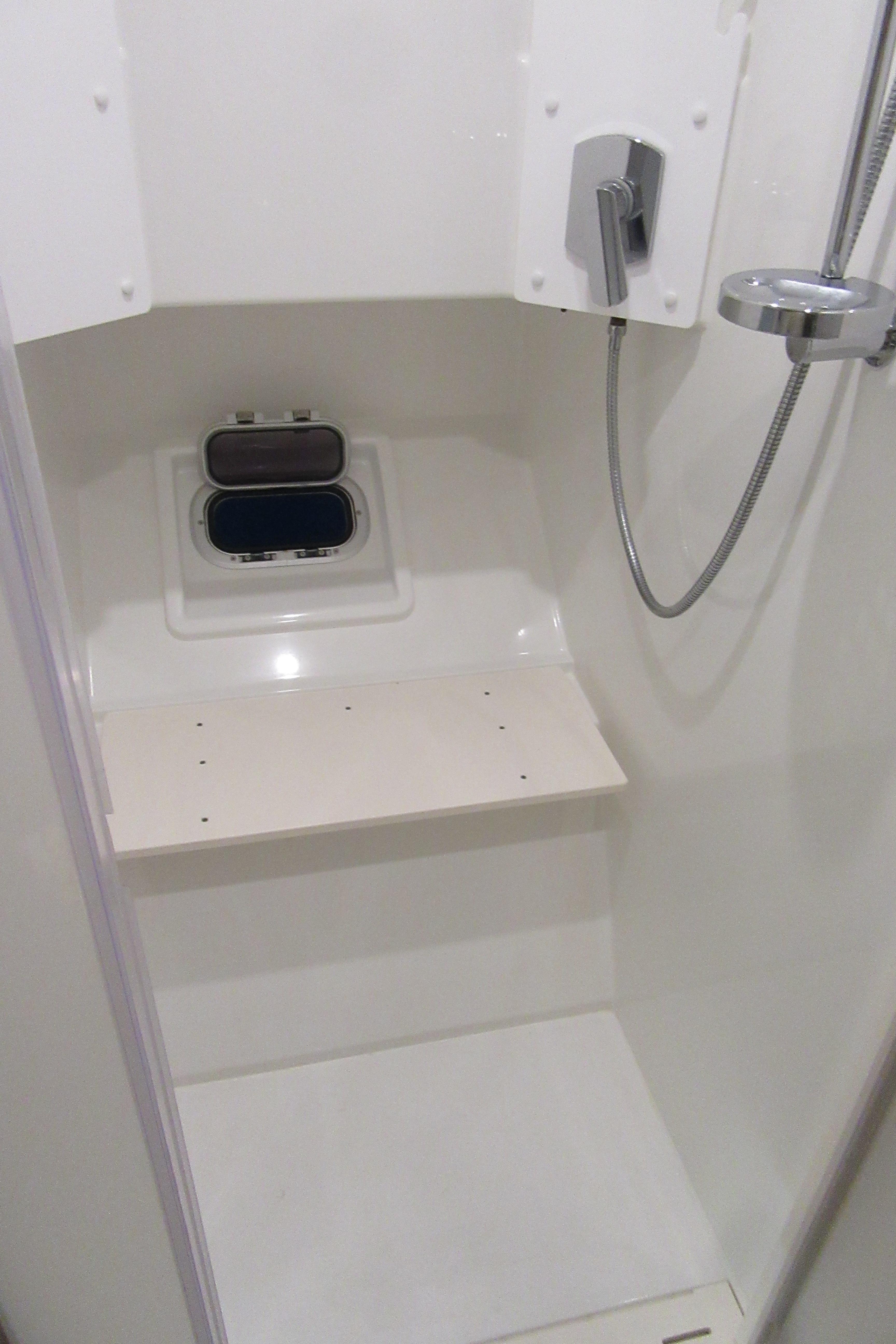

- 4 shower pumps automatic and manual

Kitchen Appliances

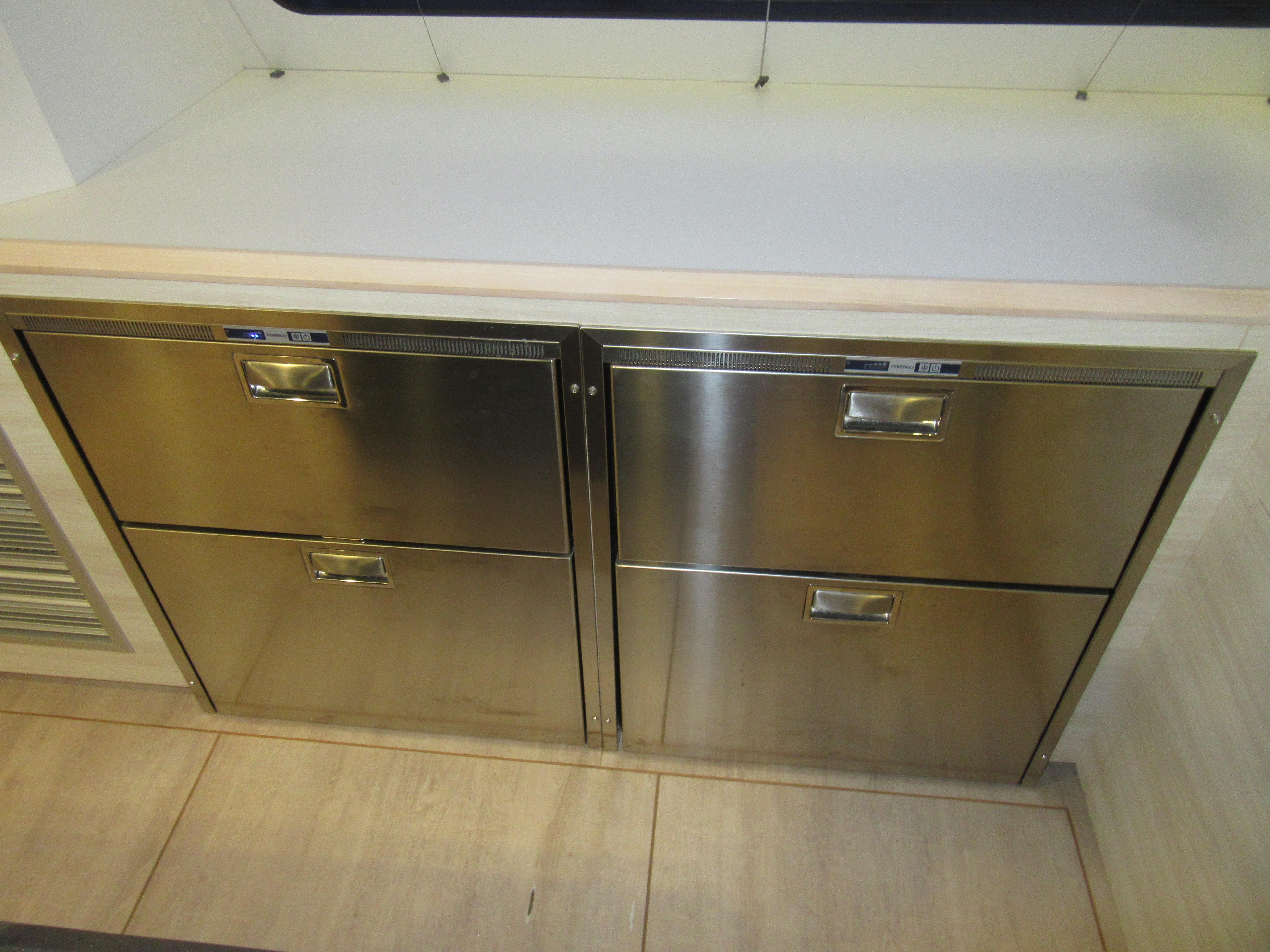

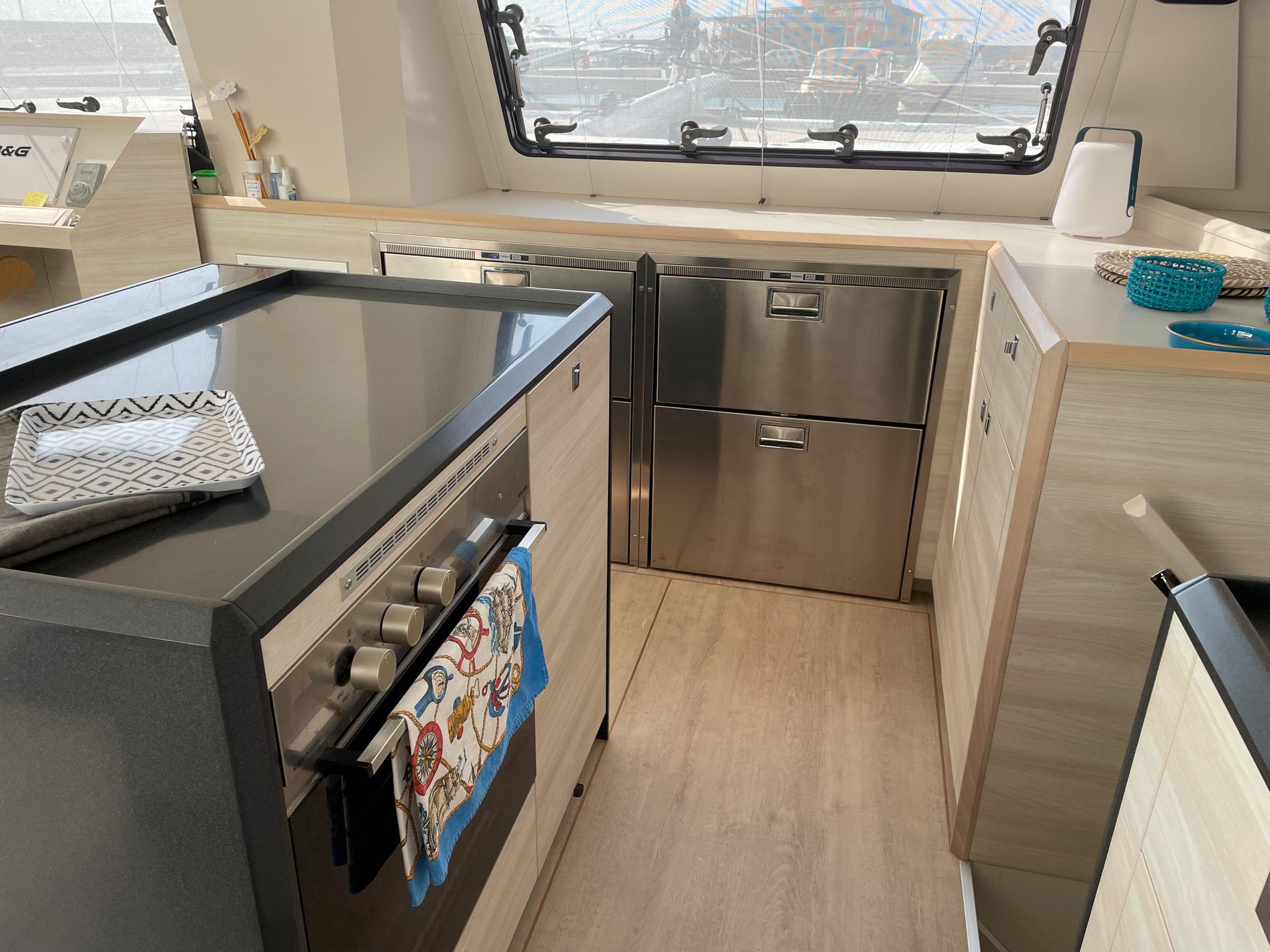

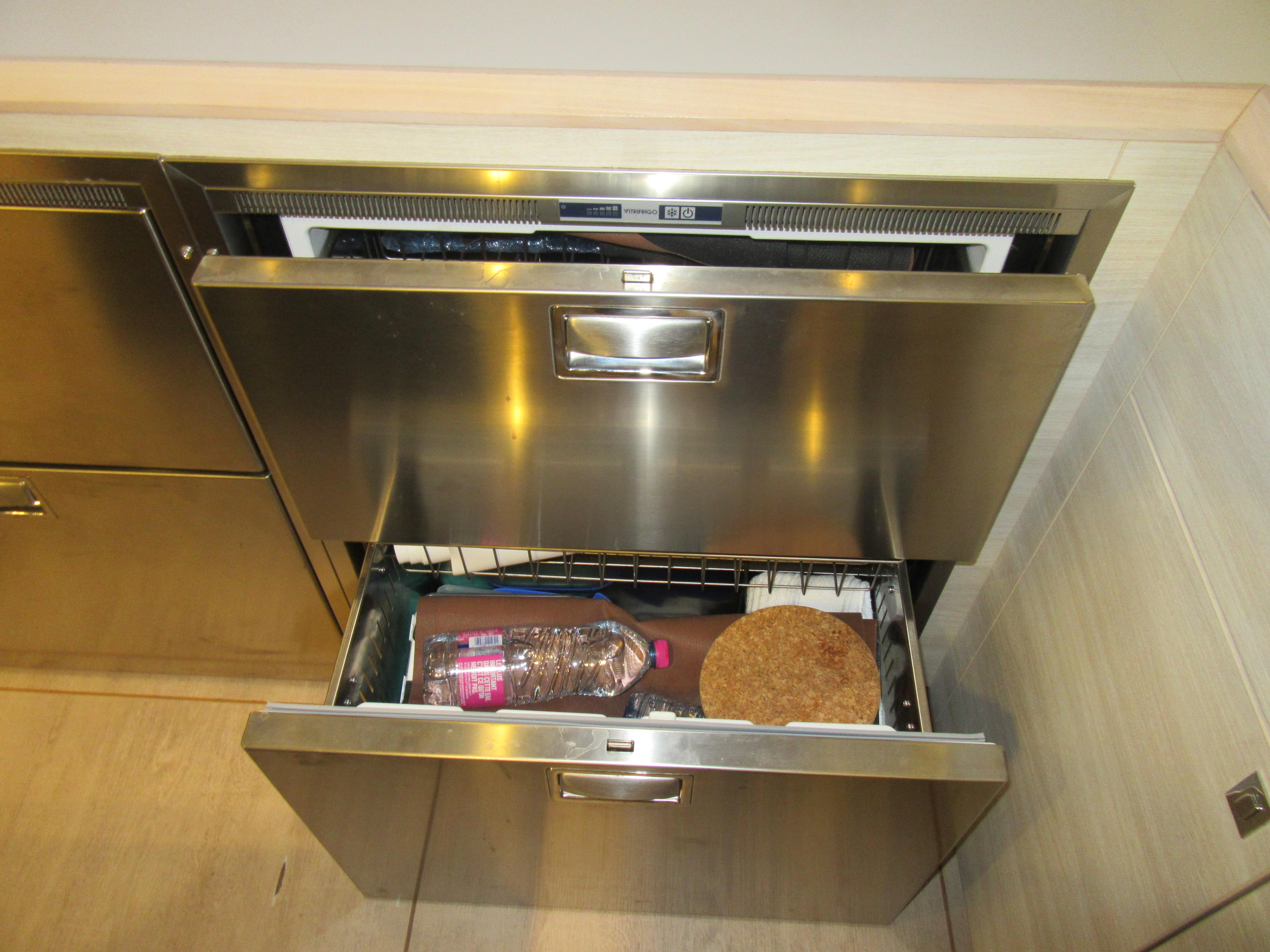

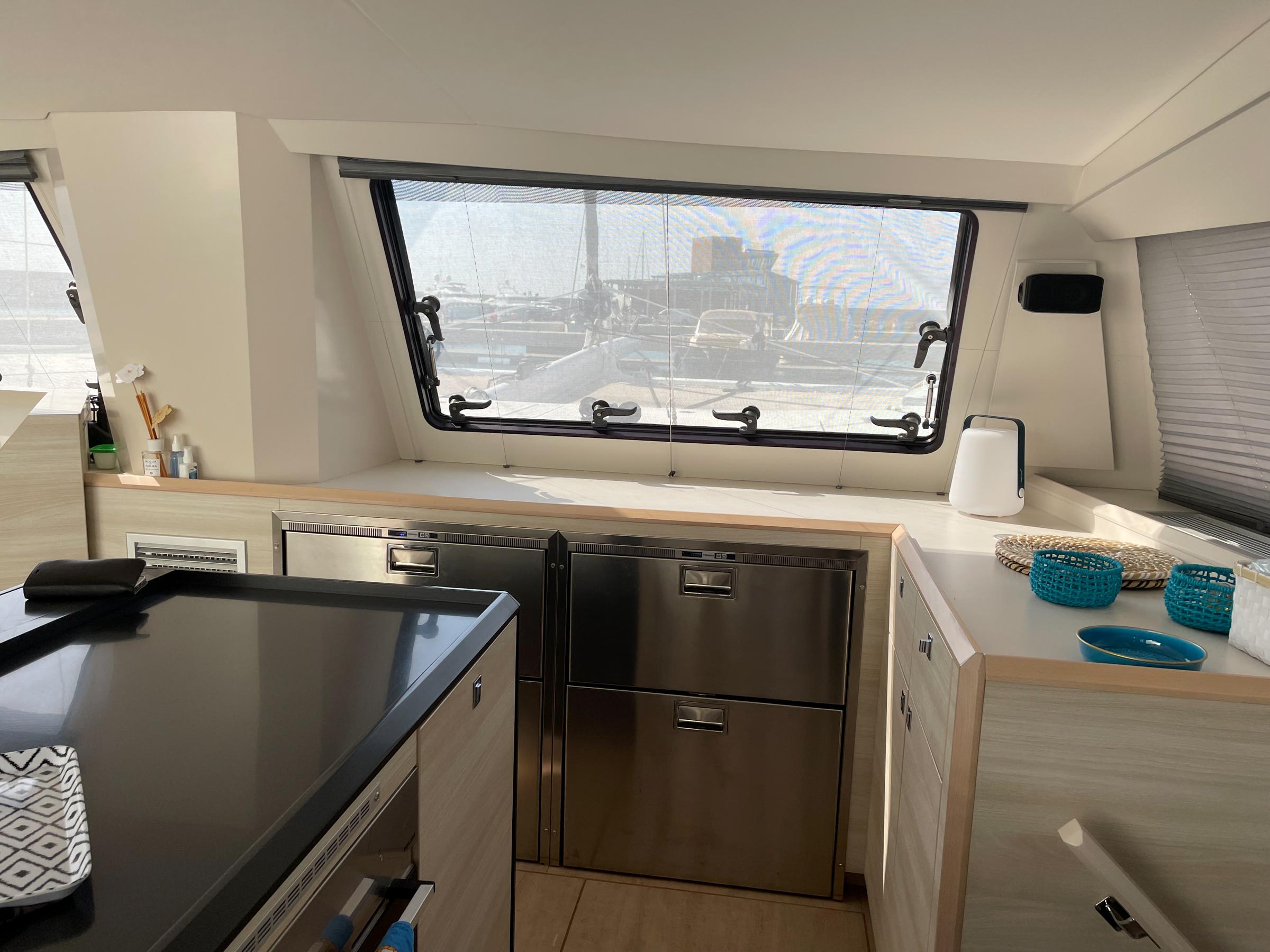

- 3 x 90L fridges in 3 drawers (one can be switched to freezer)
- 1 x 90L freezer in 1 drawer

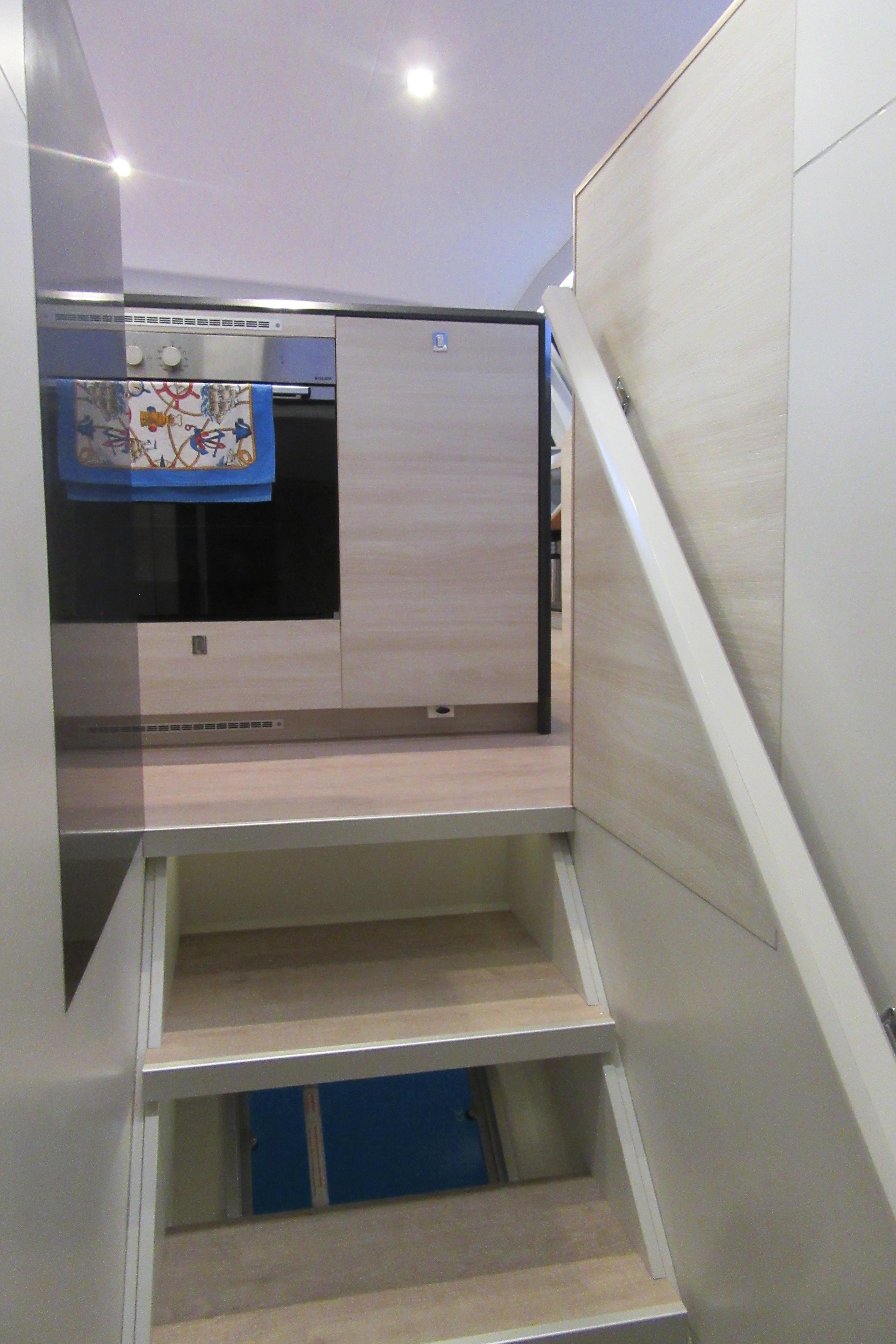

- Gas oven

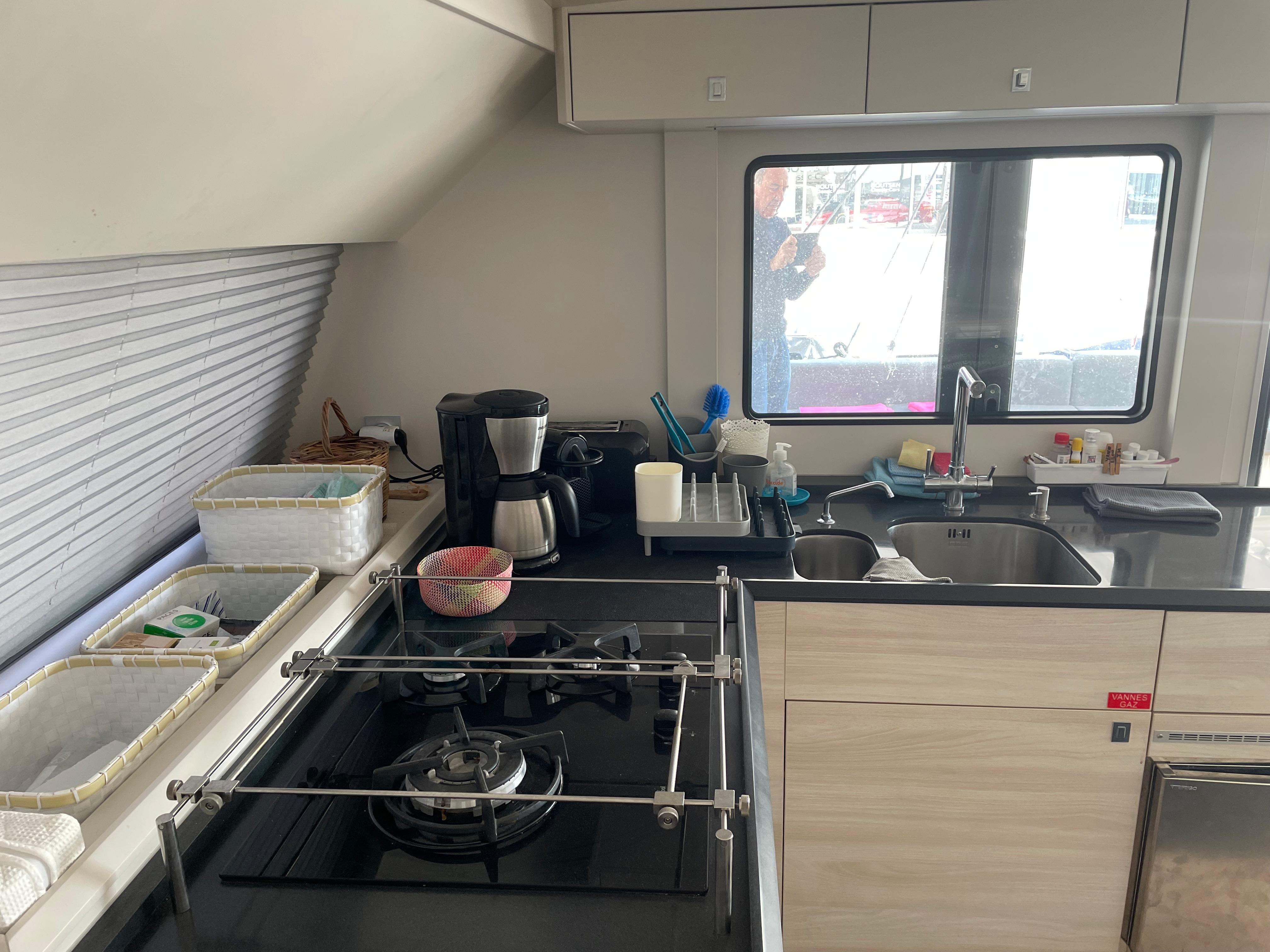

- Stove 3 burners with holding system

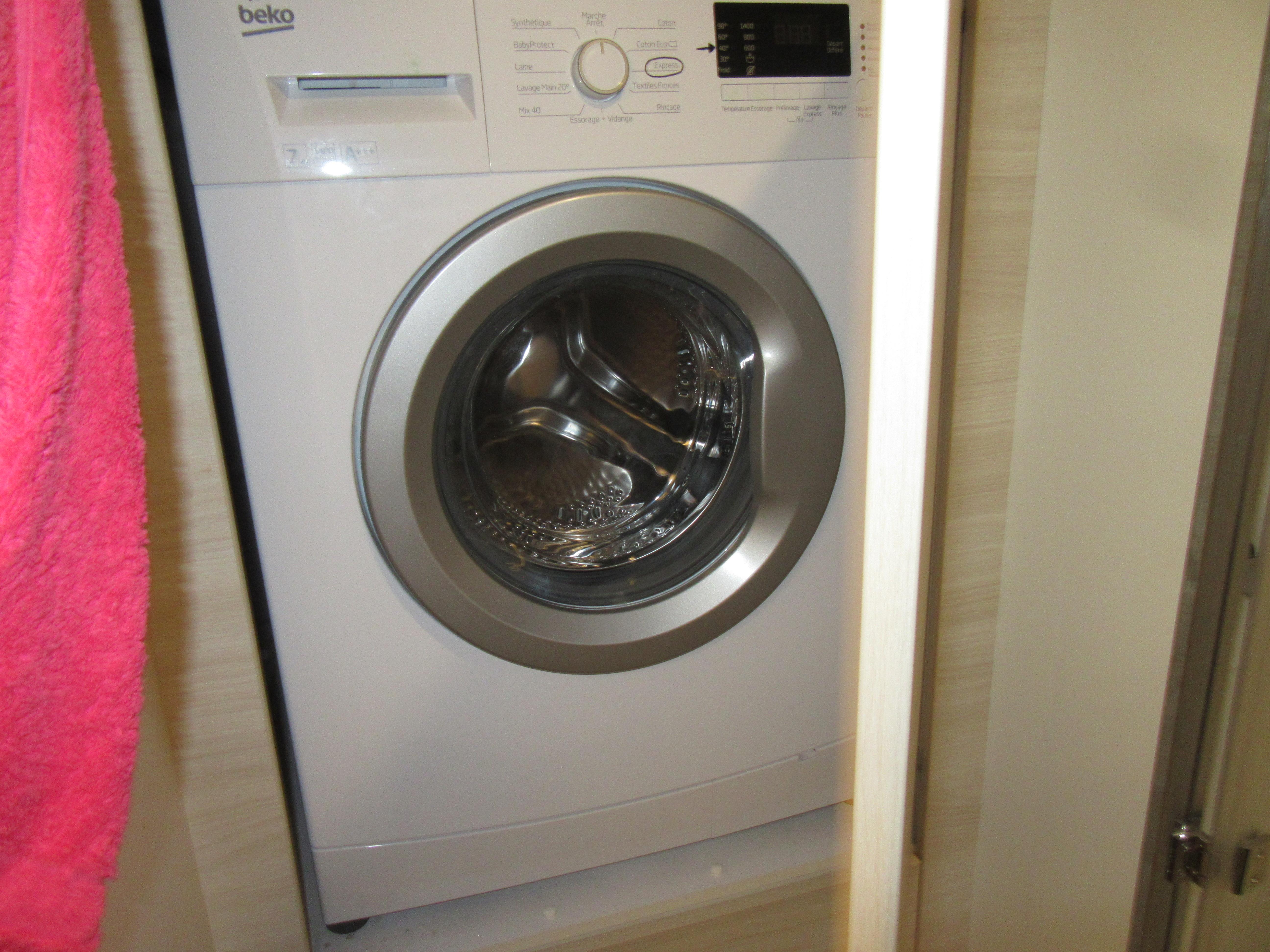

- Washing machine 4kg in owner’s bathroom

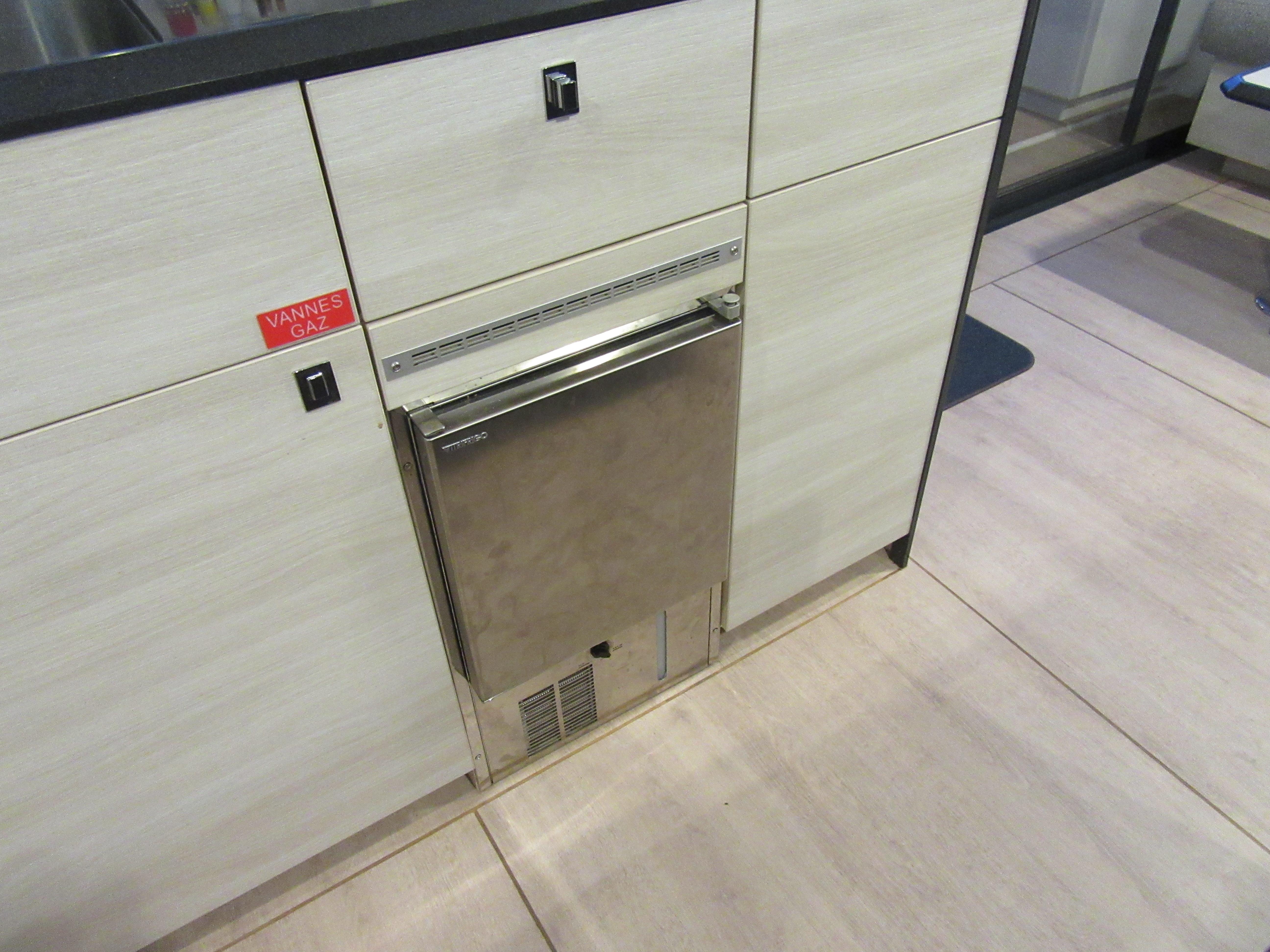

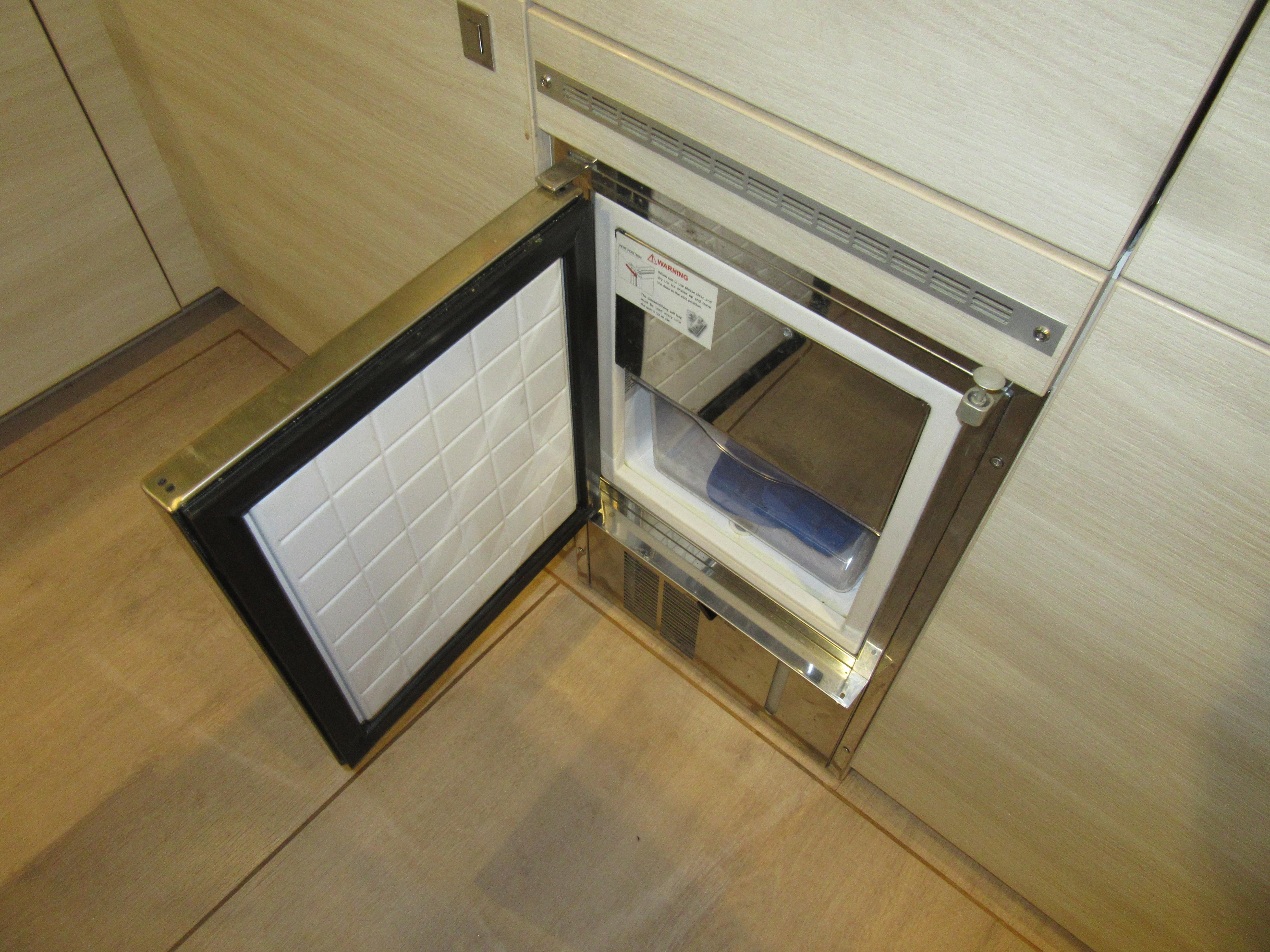

- Ice Maker: 12V with converter 24/12
- Toaster
- Nespresso and filter coffee machine

Saddlery and Curtains

- Sun awning
- Cockpit cushions: high quality
- Cockpit tent (cockpit canopy for complete closure)
- Steering wheel protections 900mm diameter and electronic protections
- Beam tender protection
- Window blinds Oceanair CAT 1 ref 7010 (saloon + hull portholes)
- Outer window protection isothermal in Batyline

Mooring and Equipment

- Anchor: SPADE 55Kg
- Anchor chain: Inox, 100meters 12mm
- Chain meter counter with display and command at steering station
- 2 bow capstan Lewmar INOX 1000W 24V

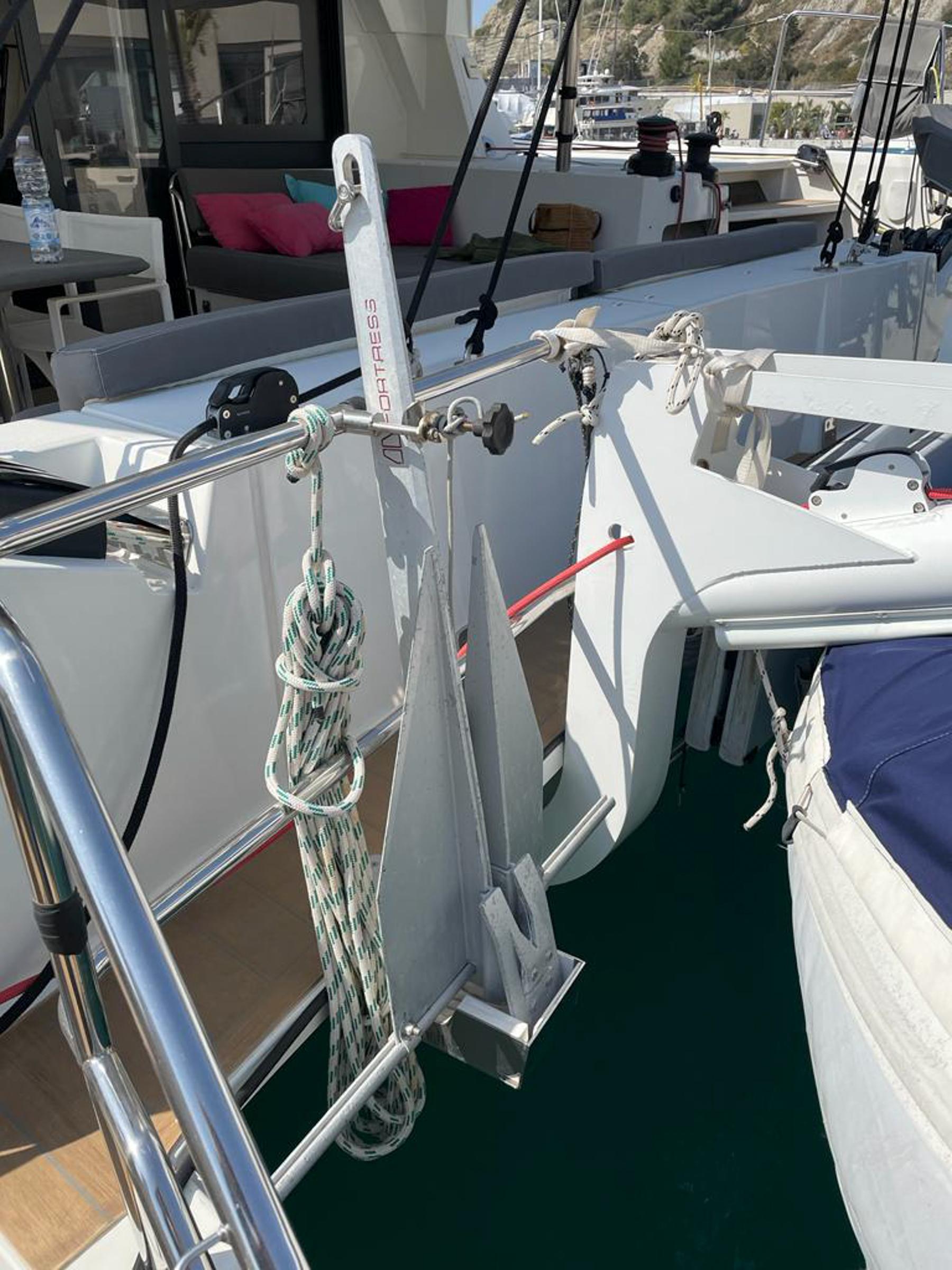

- Support for light anchor on aft beam
- LED tricolour masthead light

Electronics and HIFI

- POCHON electronic according to figures V4 below. Beacon E100G with GPS and Rescueme MOB1

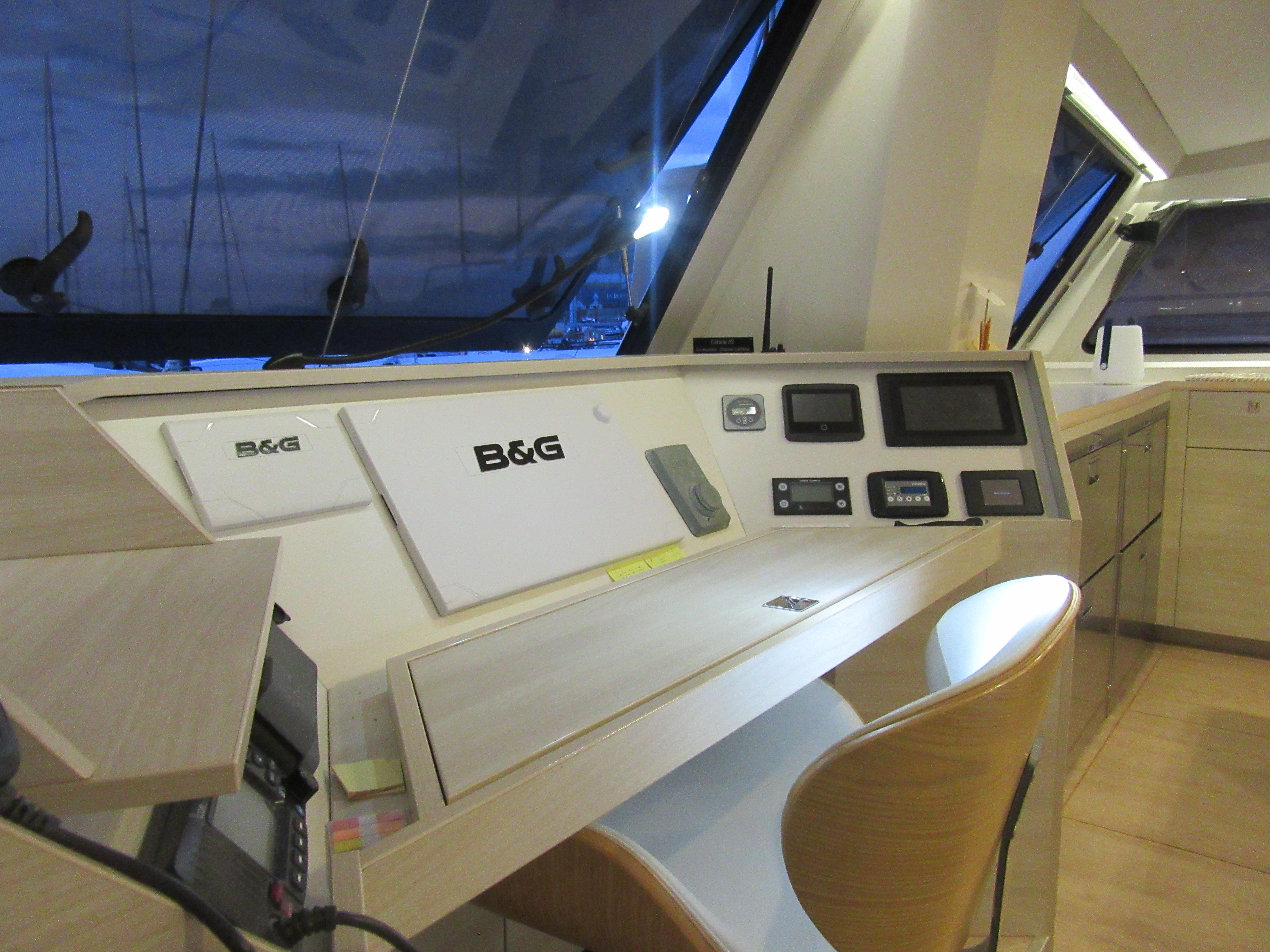

- Central electronic B&G Hercules
- 2 automatic pilots (electric and hydraulic)

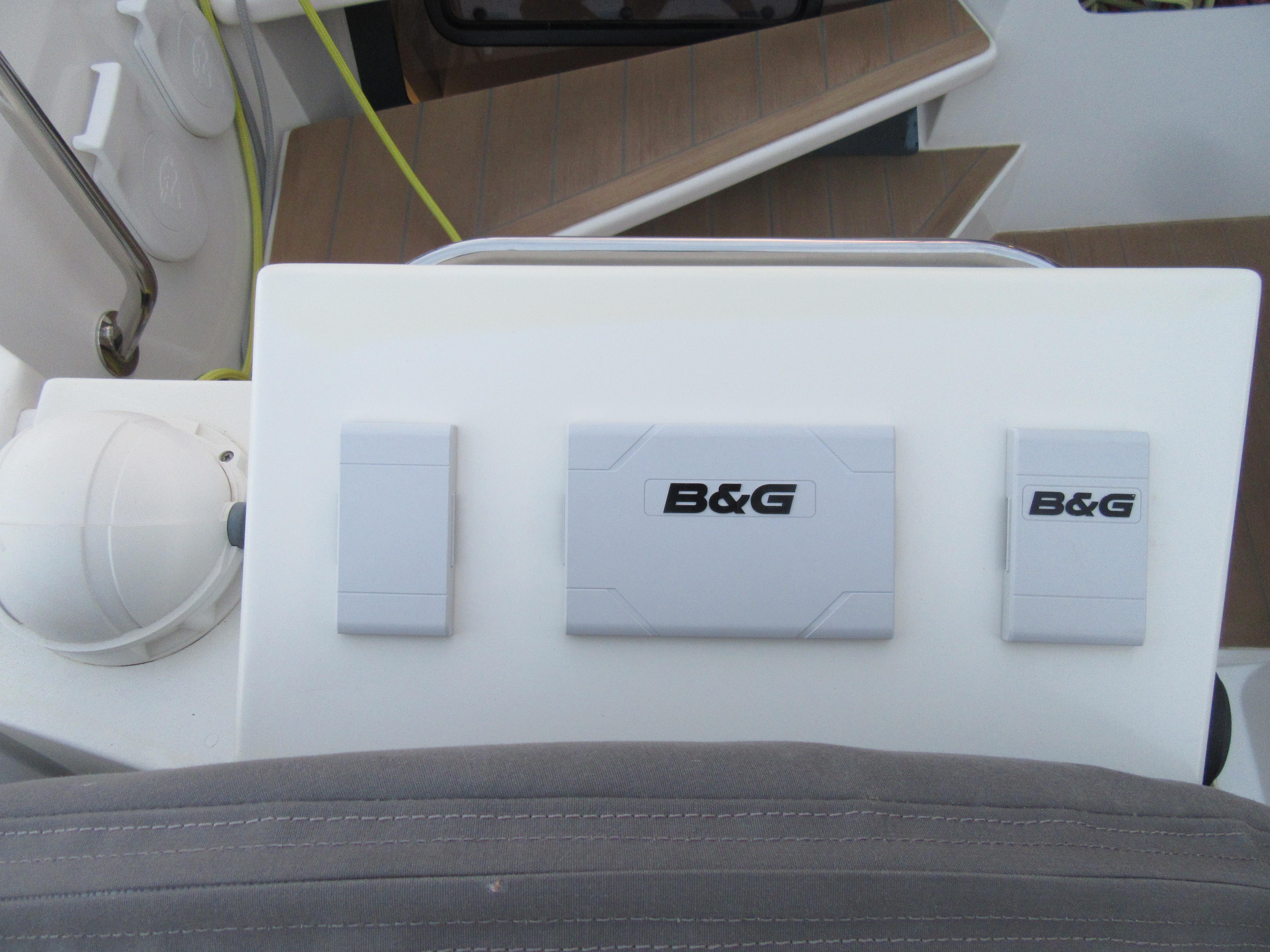

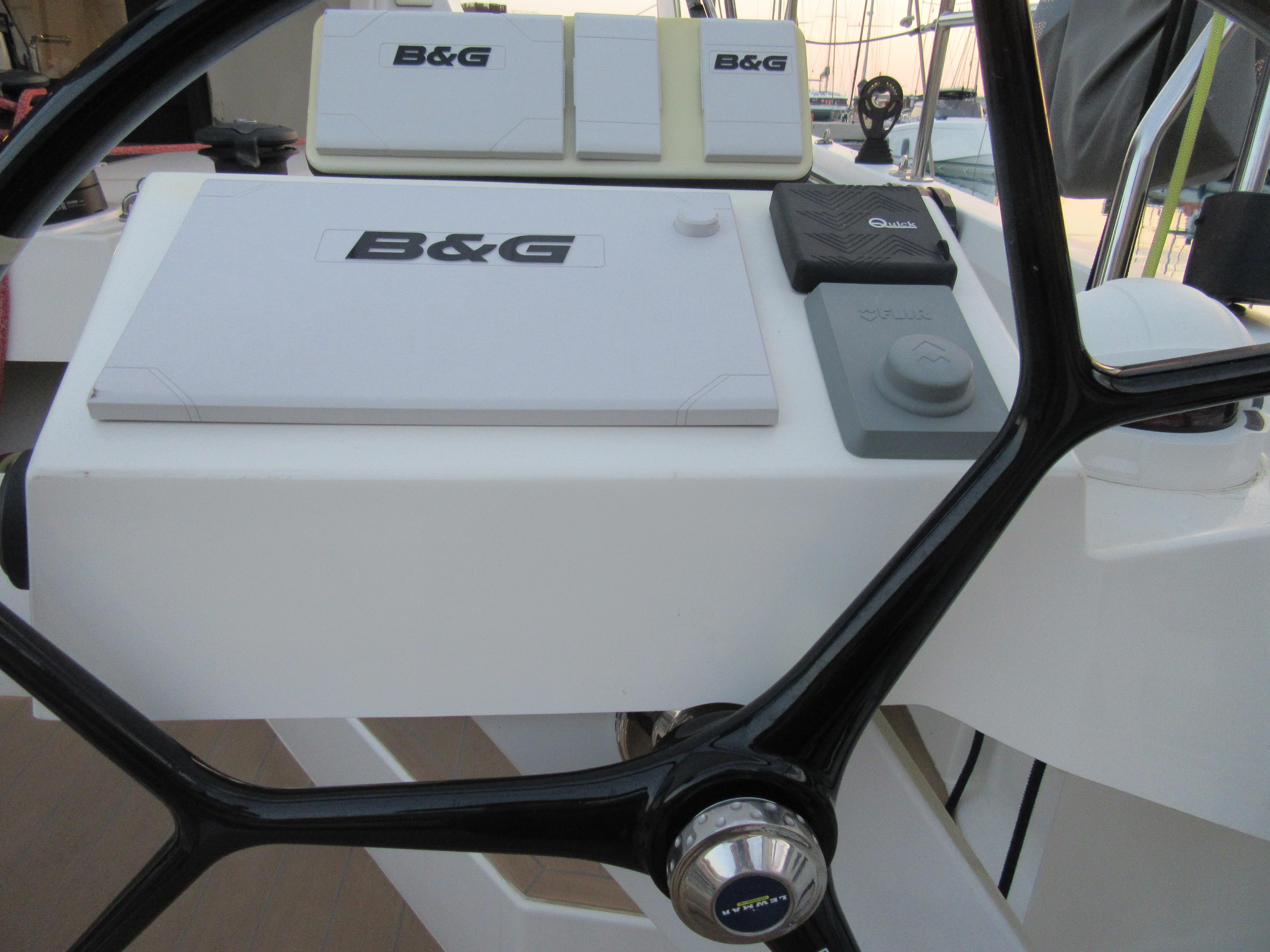

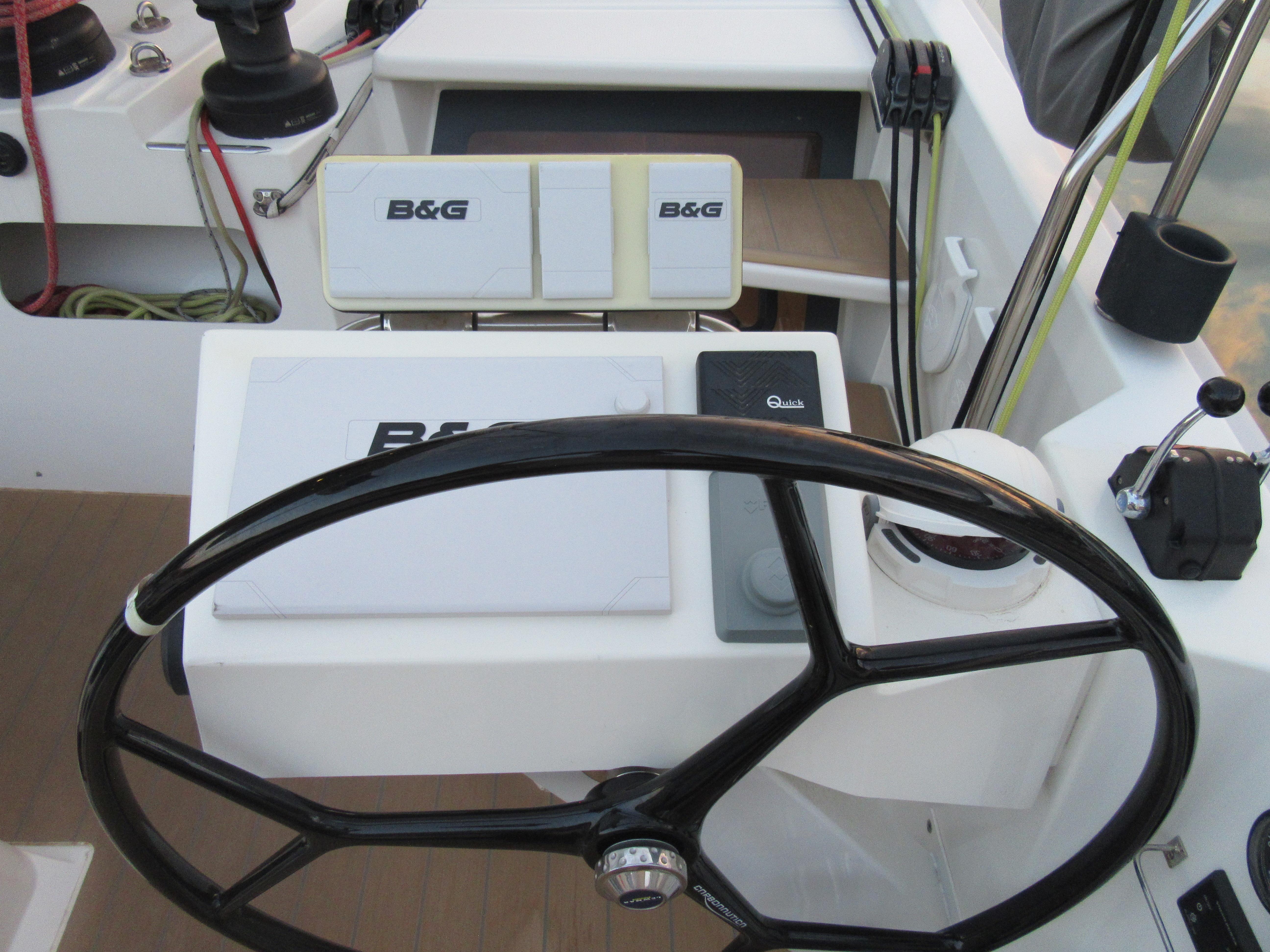

- 2 screens B&G Zeus (chart table and helm station)
- Many instruments display (in owner cabin as well)
- POCHON Flir thermal camera
- TV, GSM & Wi-Fi antenna
- Wi-Fi & router
- TV in saloon remotely retractable in furniture
- TV in owner cabin
- Radar, AIS
- Stereo radio & CD player with 4 loud speakers and Bluetooth connection

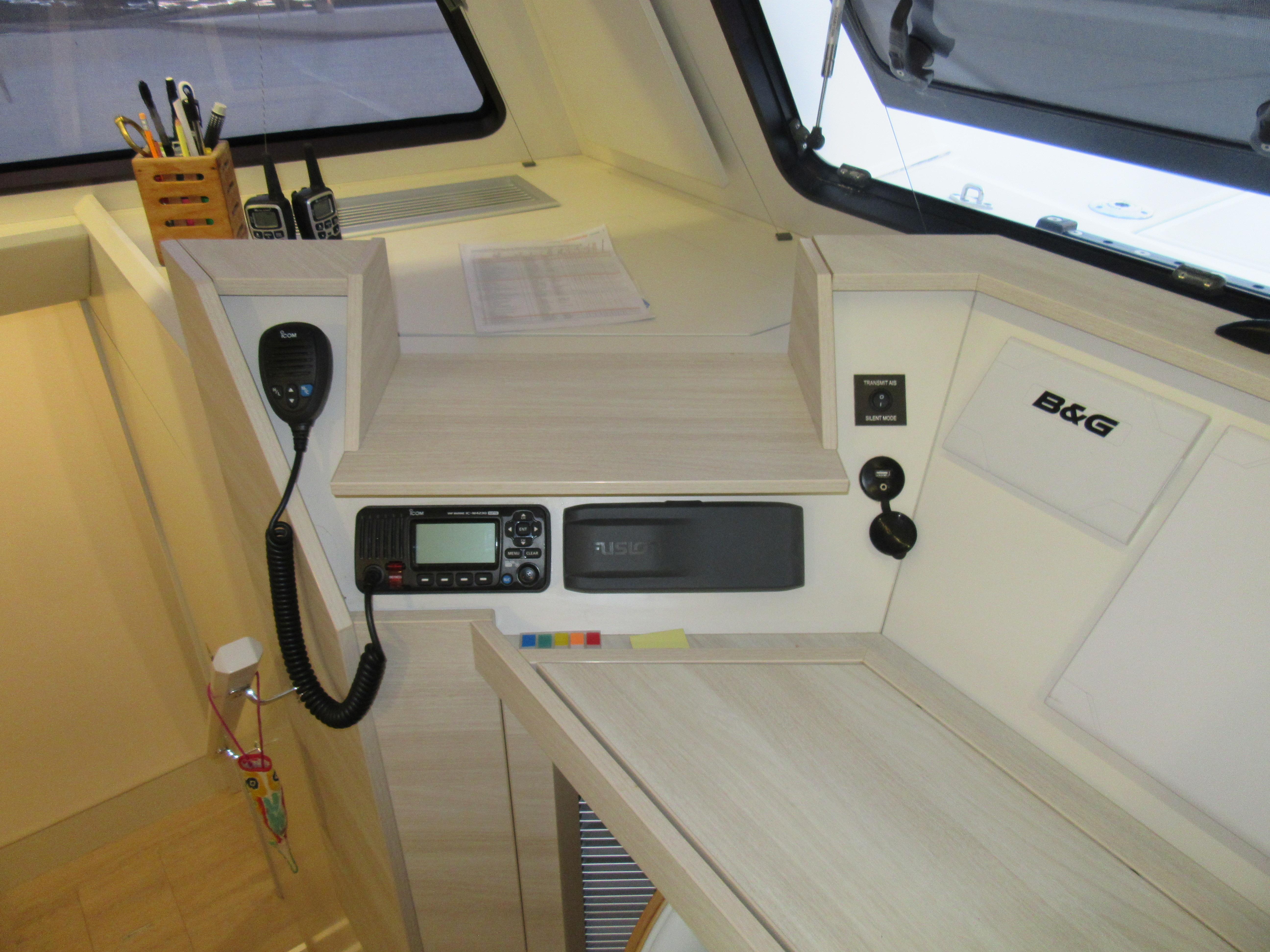

- Cigarette lighter receptacle at chart table
- 2 x 220V socket in owner’s cabin bed head

Safety Equipment

- Complete safety package for 8 people
- Life raft 8 people Zodiac Open Sea
- Antifouling with epoxy base coat temperate zone
- Mooring kit: 12 big fenders and 6 mooring lines
- Tender Apex 3,8m with Yamaha 25hp outboard engine

Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

Managing Broker

Contact - Alexis de Boucaud
The Multihull Company

Located in Fort Lauderdale, FL

US CELL: +1-484-744-2740
French CELL: +33 (0) 6 73 97 17 30
St. Martin: +590 690 58 66 06
Email: Alexis@multihullcompany.com
View Alexis de Boucaud's Profile

Boat Specifications

Year

2019

Length

53 ft

Location

Italy

Price

1,974,533

Status

Active

Make

Catana

Model

53 Owner Version

Name

L'Etoile Des Bergers

Boat Video

Additional Specs

Keel

Engines

About This Boat

Catana catamarans require no introduction in the world of performance, bluewater cats. They have set the standard for the optimum combination of performance, quality of construction, comfort, interior volume and resale value for four decades.

The Catana 53 model was introduced in 2017 and over a dozen units have been built. This "like new" Catana 53 (hull 5) is just spectacular - full of premium options and it bears the distinction of having the highest specification rig and sails installed on any of these units: high modulus carbon mast, carbon boom, carbon longeron, carbon crossbeam and martingale, Kevlar shrouds, carbon dagger-boards and a gorgeous membrane sail inventory. The foretriangle includes a genoa on a fixed roller furler and three sails on loose luff continuous furlers: solent, code 0 and code D. The ultimate toolkit for the short handed sailor who chooses to sail the full range of conditions.

Catana is now producing only one or two units per year of this 53 model, so this is a rare opportunity on the market. Why wait several years for a new one or 3 to 5 years at the other performance cat yards. Here is a chance to buy a turn key cat with very little use (340 hours on the twin 75 HP Volvo engines) and an outstanding performance specification.

Of course, this cat has all the comfort equipment and amenities to round out the superb sailing kit: 8 KVA generator, solar array, lithium batteries, large watermaker, full air-conditioning and heating.

Check out the complete specification below which details the numerous upgrades and options, over 350 detail photos and walk through video that I recently shot in Italy.

  • Owner version: 3 cabins/3 showers/2 heads + 1 crew cabin with head and shower.
  • Engines and sail drives: twin Volvo 75HP, 5 year Volvo warranty through 2024, 340 engine hours.
  • High modulus carbon mast, carbon boom, beam, seagull striker and daggerboards.
  • ELVSTRÖM membrane sails (spectra/carbon).
  • Optimized deck gear and layout for short-handed navigation.
  • Top of the line B&G electronics, 2 autopilots + router GSM/Wifi + stabilised thermal camera Flir.
  • Air conditioning, reverse heating, watermaker 220L/hr., icemaker, 3 drawer fridges and 1 freezer
  • Lithium battery pack and 2 Mastervolt combi inverter/chargers.
  • Retractable TV in saloon and TV in owner cabin

VAT PAID IN France.


Additional Details

Specifications

LOA: 17m (55’ 10”)
Hull length: 16.5m (53’)
Width: 8.65m (28.3”)
Draft daggerboards up: 1.48m (4’ 11”)
Draft daggerboards down: 3m (9’ 10”)
Displacement light: 14500Kg (31967 pounds)
Diesel tanks: 860 litres
Water tanks: 800 litres

Mechanical and Propulsion

- 2 motors + sail drives Volvo 75HP 340 engine hours. 5 years warranty (until June 2024)
SN4103951702E & 5103951700E
- Electrical engine commands ZF at both steering stations
- 3 blade folding propellers

Sails, Rigging and Deck Gear

Pack Performance Racing Option

Sails: (refer to document “Cahier des charges voiles”)

- Mainsail: 114m2 full batten squared top ELVSTRÖM membrane (spectra/carbon) with lazy bag and lazy jacks.
- Genoa: 70m2 ELVSTRÖM membrane (spectra/carbon) with HARKEN furler
- Solent jib: 25m2 self-tacking, ELVSTRÖM membrane (spectra/carbon) hooked halyard and FACNOR FX 7000 furler.
- Code 0: 98m2 ELVSTRÖM membrane (spectra/carbon) hooked halyard with FACNOR Stocker.
- Code D: 163m2 with KARVER KF8000 on sheaved halyard with anti-twist Mafioli cable.

Rigging:

- Carbon fiber mast with option H40 instead of fiber HR for weight gain
- Carbon fiber boom with lazybag supports
- Carbon fiber fwd transverse beam,
- Carbon fiber seagull striker and martingale.
- Carbon fiber longitudinal beam (which prolongs as a bowsprit) with dyneema bobstays
- Carbon fiber daggerboards with downing and locking system on winch with dyneema lines

Deck Gear:

- 2 electric winches PERFORMA 70 for Genoa sheets, Code 0 and Code D furler
- 2 electric winches PERFORMA 60 for Mainsail sheets, halyards, reefing, dinghy, etc…
- 2 manual winches PERFORMA 60 for daggerboards and furler
- 1 winch PERFORMA 50 at mast step for halyards and hooks
- Electric winch command on steering station
- Dyneema lifelines
- Additional spinnaker halyard with clutch
- Symmetrical spinnaker fitting: 2 stand-up sheets, 2 guys, blocks and mast fittings
- 4 boarding platform cleats: 2 inner and 2 outer
- All padeyes upgraded to bigger size
- Asymmetrical spinnaker fittings: addition of a stand-up block Harken ⌀ 100mm at        extremity of carbon bowsprit and a clutch Spinlock ZS1214
- Mainsail out-haul trimming system
- Spreader protections
- Dinghy davits with dyneema lines system
- 2 additional padeyes for boarding platform fender attachment
- 2 additional padeyes outer of steering station for fenders
- Lower shroud turnbuckle
- Reefing system: 3 Harken blocks Black Magic instead of standard rings

Additional Equipment:

- Lightweight carbon fiber foam sandwich passerelle
- Fixation system for passerelle
- Seawater pressure outlet in kitchen and mast step for deck washing
- Porthole T4 on fwd port bulkhead between cabin and fwd peak sail locker
- Fwd hatches with air intake for ventilation
- 2 kayak deck supports
- Handrail swimming ladder
- 2 Bimini handrails
- Forward pulpit teak seat
- Stainless support on aft beam to store the passerelle

Accomodations

- Countertop colour « Corian » black
- Kitchen with central island
- Kitchen furniture modification to integrate trash can to access from counter top
- Kitchen drawer modification to store bottles
- Modification of chart table for laptop connections
- Semi island bed in aft stbd
- Crew cabin in stbd peak with double berth and bathroom
- Watertight forward starboard communication door between owner bathroom and crew cabin
- Cockpit bed with cushions and storage + complete cockpit upholstery

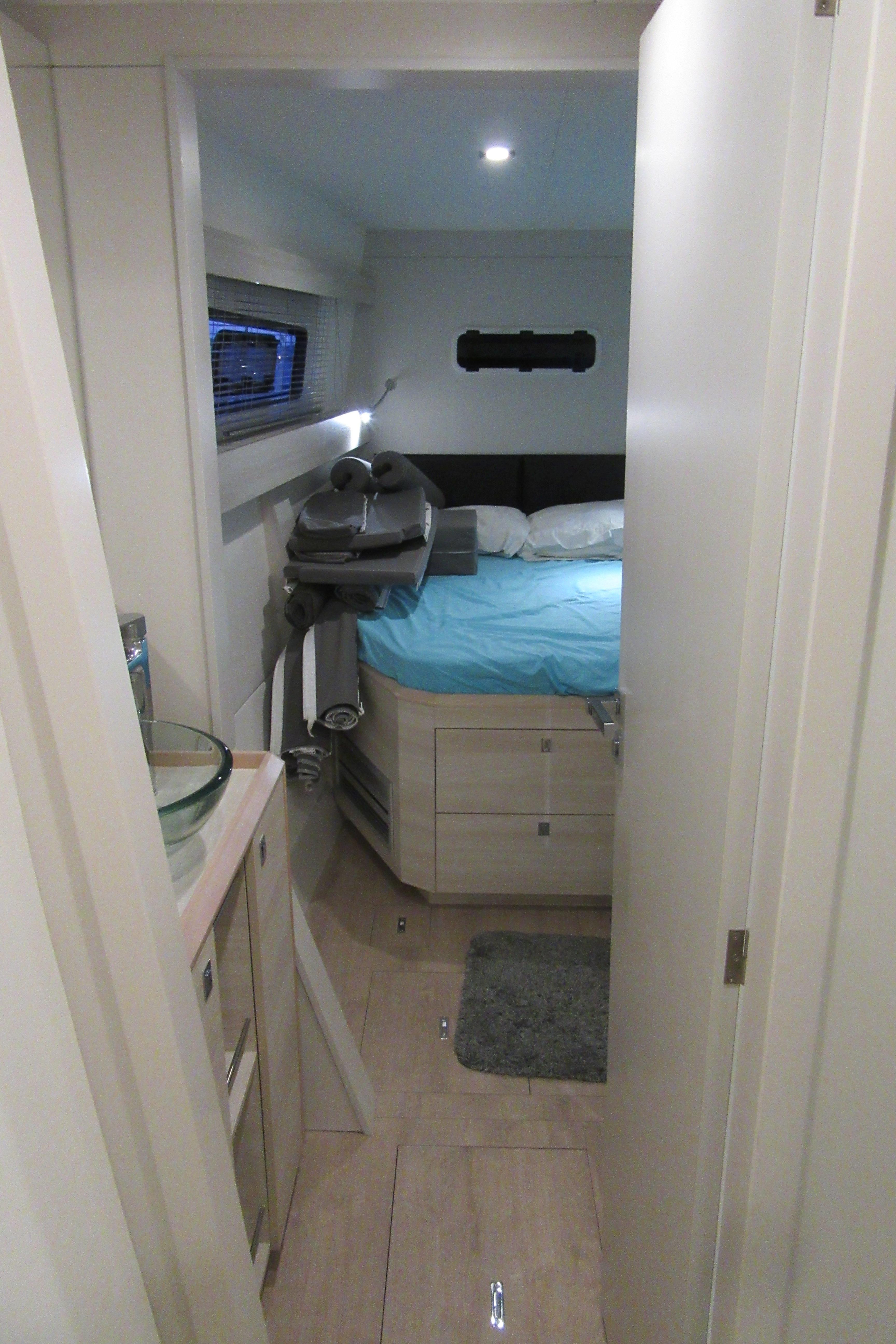

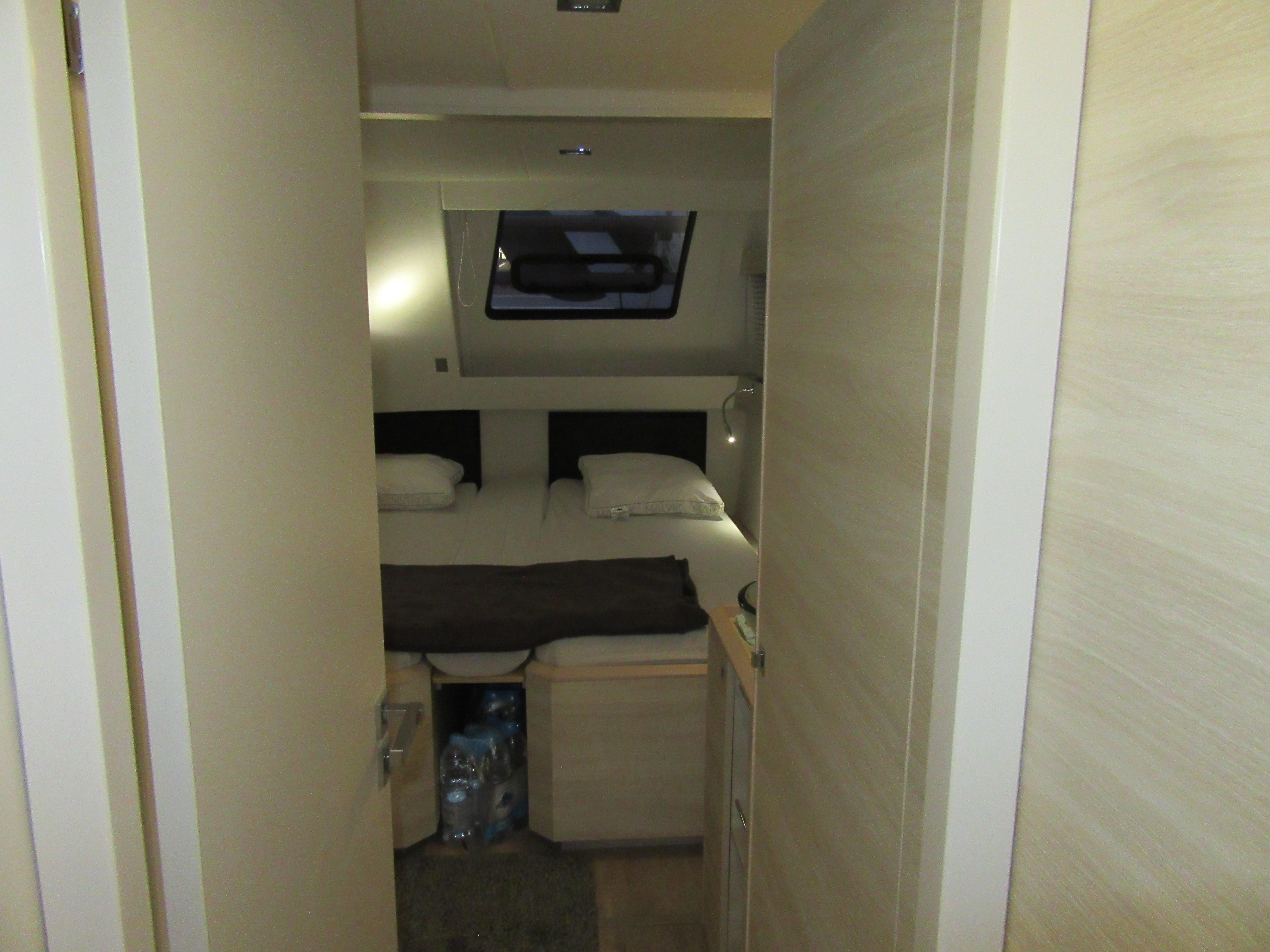

- Board + mattress in port aft cabin

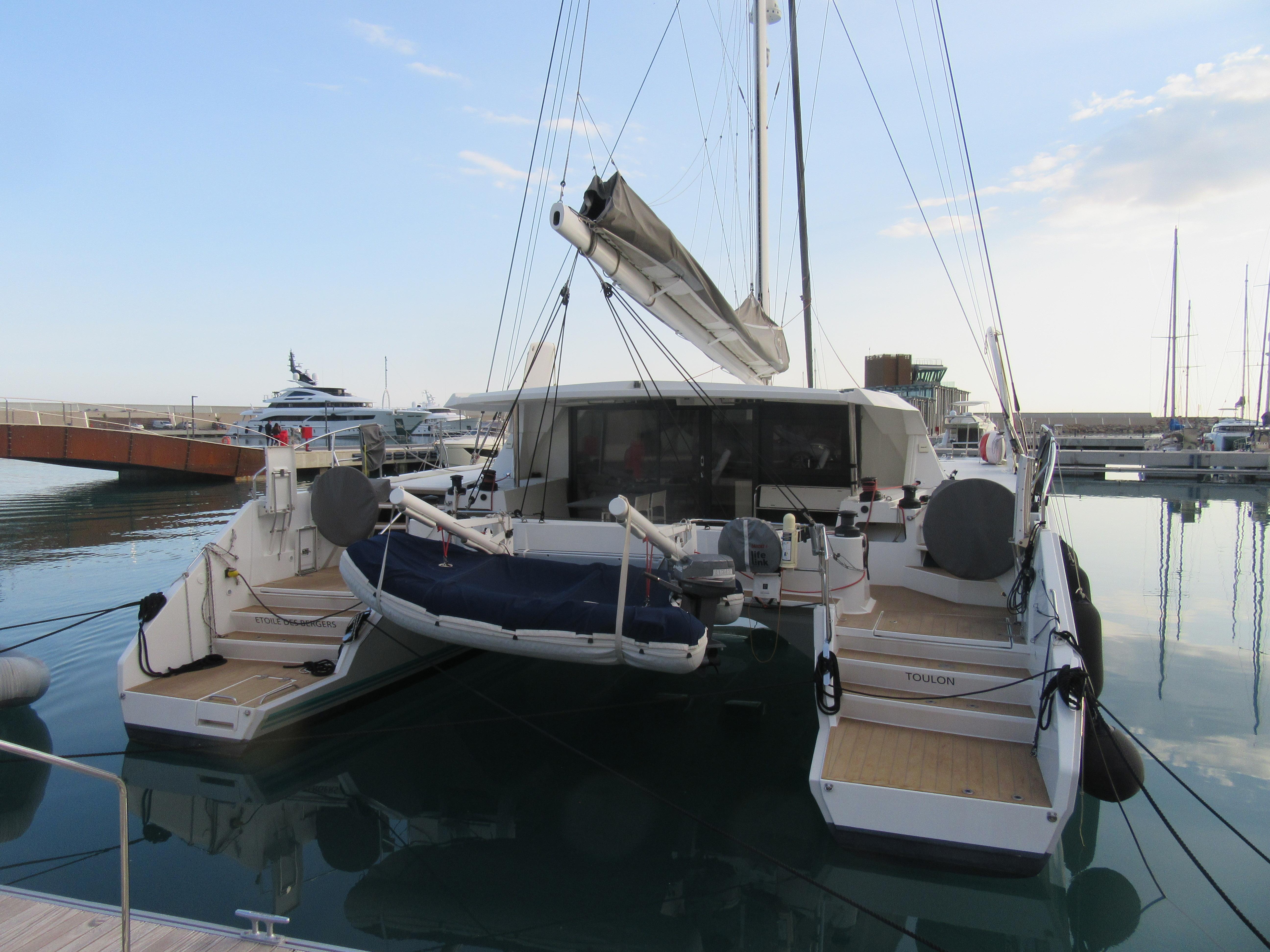

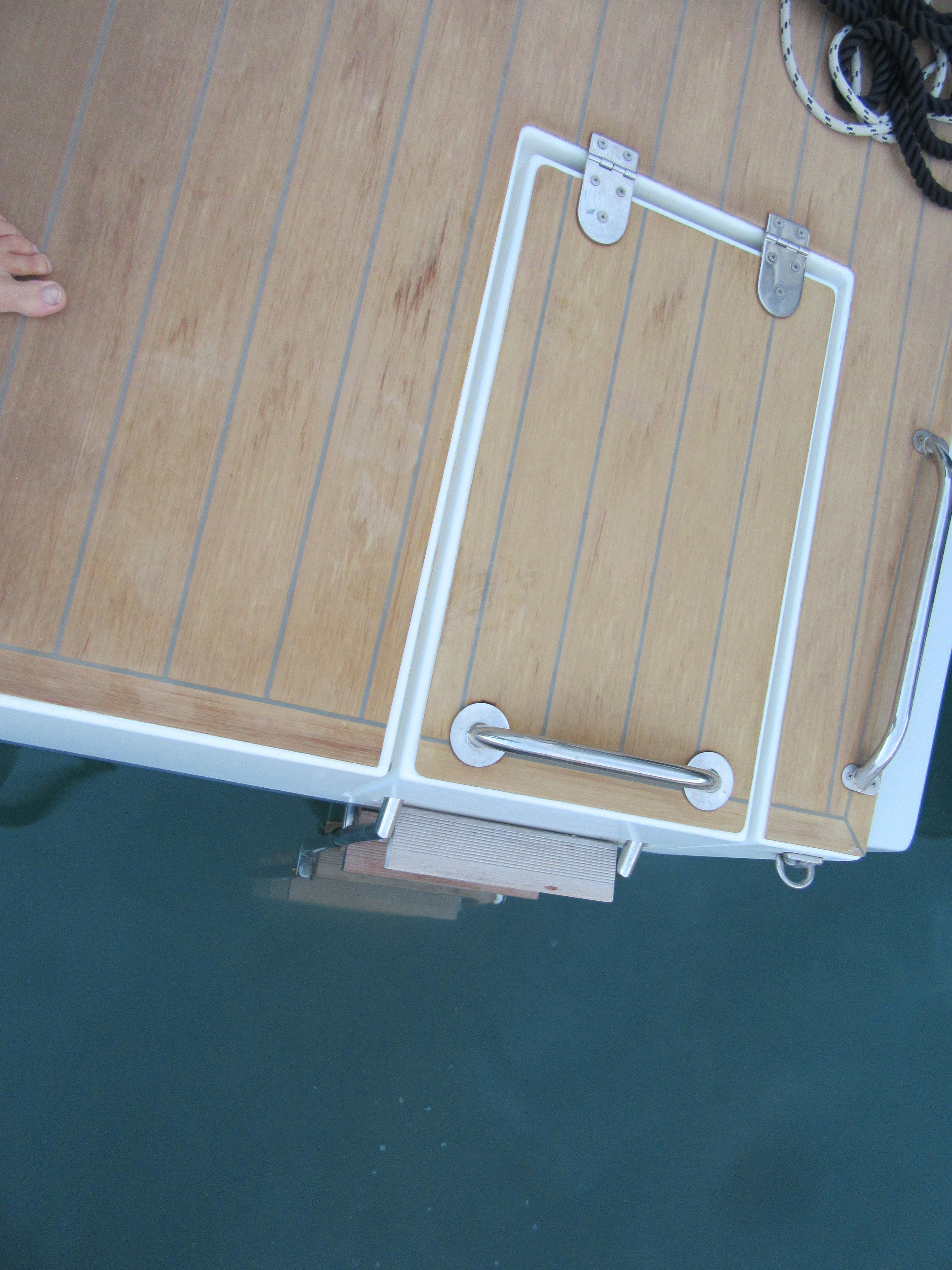

- Cockpit and boarding platform in polyurethane lathing rot-proof teak brushed finishing
- Flexiteek on 2 first stairs to deck

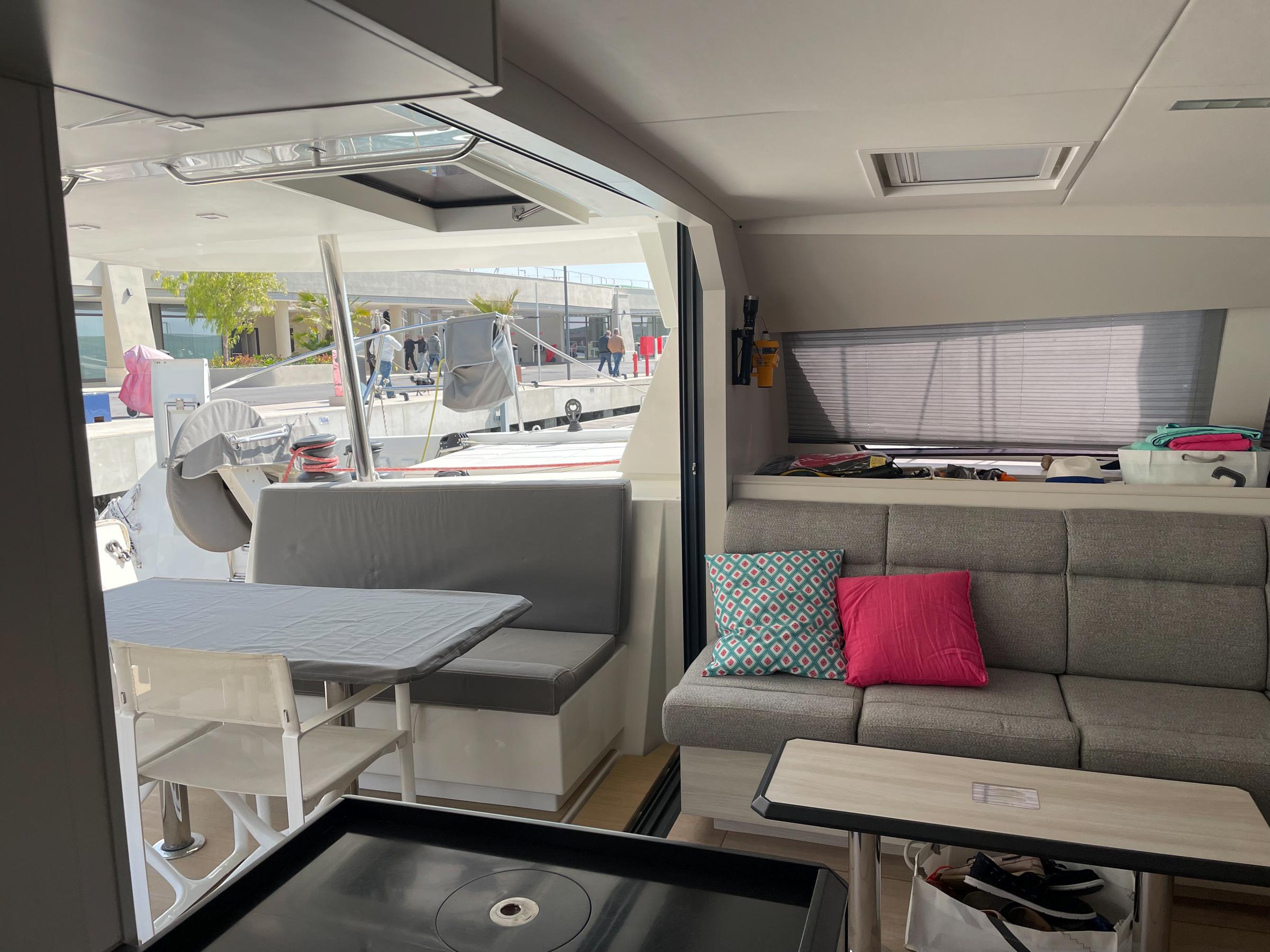

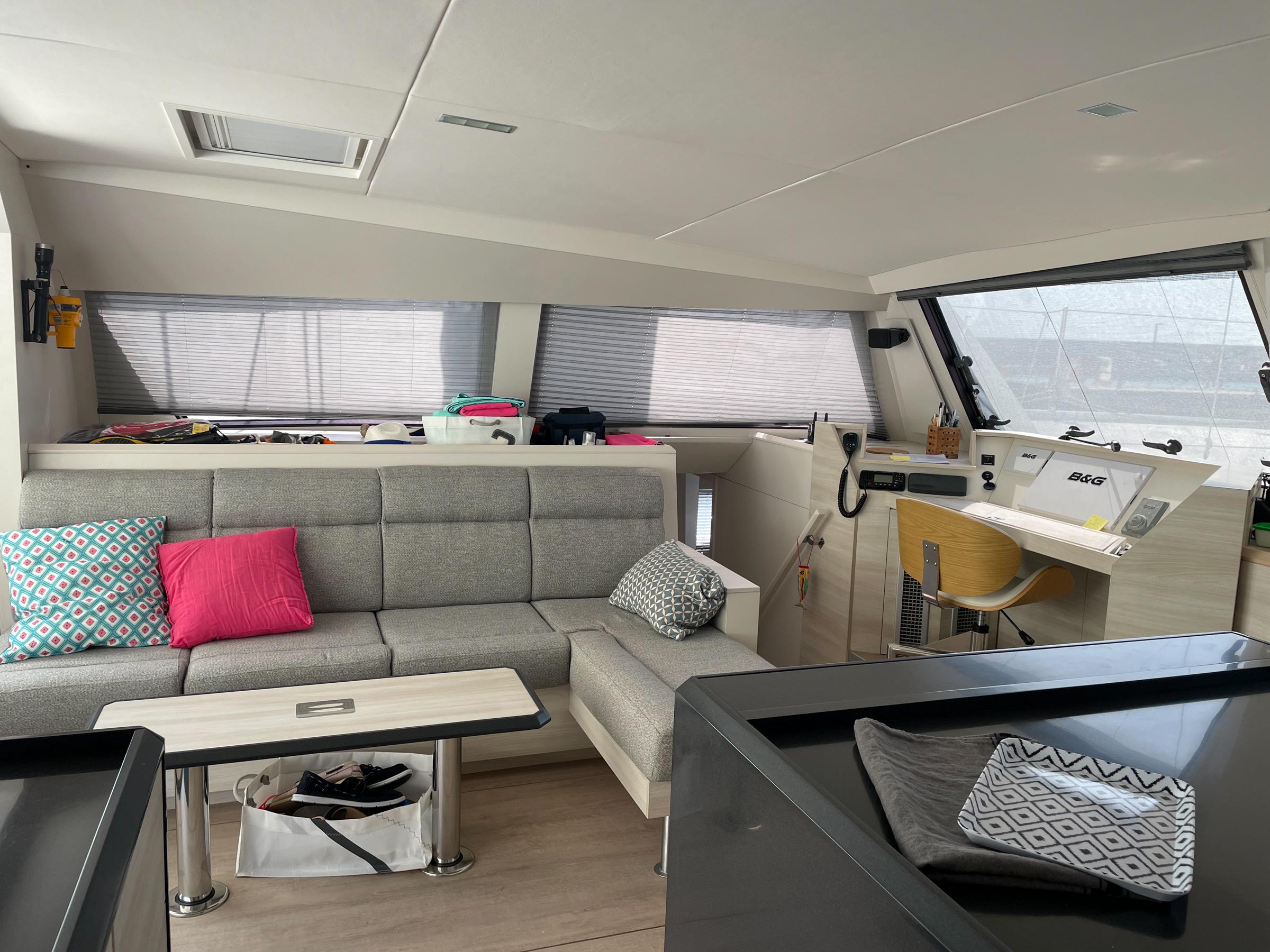

- Bar in saloon armrest

Electricity

- 2 x Mastervolt Combi Ultra 3500 – 100A
- USB outlets
- Generator FISHER PANDA 1000-8KW
- Pack POCHON Lithium batteries
- 8 solar panels on coach roof

Air Conditioning and Heating

- Reverse cycle air conditioning with individual setup in each cabin WebastoV50
- Extra cost for reverse cycle aircond in stbd forepeak
- Watermaker Aquabase 240L/h in 220V

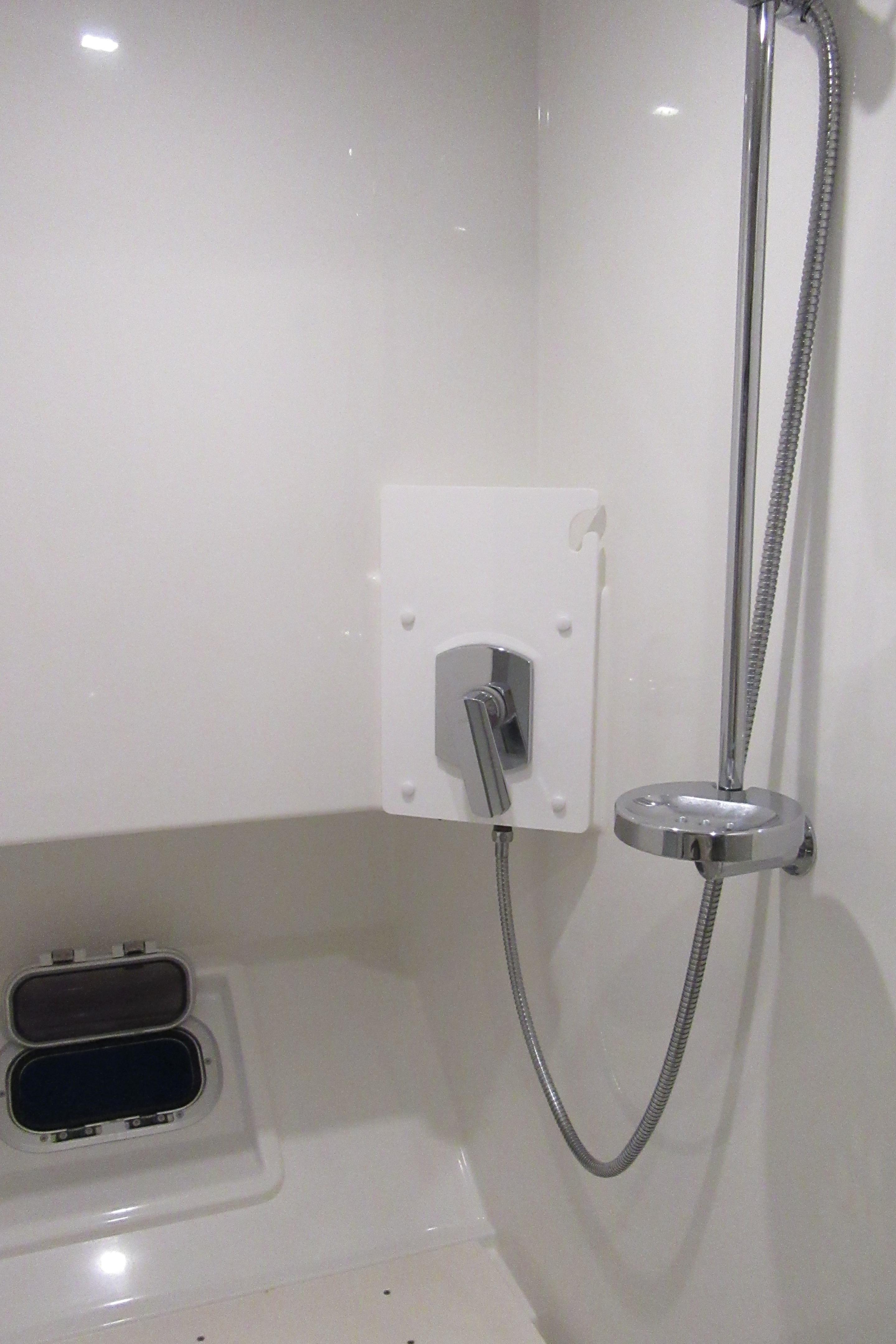

- 4 shower pumps automatic and manual

Kitchen Appliances

- 3 x 90L fridges in 3 drawers (one can be switched to freezer)
- 1 x 90L freezer in 1 drawer
- Gas oven
- Stove 3 burners with holding system
- Washing machine 4kg in owner’s bathroom
- Ice Maker: 12V with converter 24/12
- Toaster
- Nespresso and filter coffee machine

Saddlery and Curtains

- Sun awning
- Cockpit cushions: high quality
- Cockpit tent (cockpit canopy for complete closure)
- Steering wheel protections 900mm diameter and electronic protections
- Beam tender protection
- Window blinds Oceanair CAT 1 ref 7010 (saloon + hull portholes)
- Outer window protection isothermal in Batyline

Mooring and Equipment

- Anchor: SPADE 55Kg
- Anchor chain: Inox, 100meters 12mm
- Chain meter counter with display and command at steering station
- 2 bow capstan Lewmar INOX 1000W 24V
- Support for light anchor on aft beam
- LED tricolour masthead light

Electronics and HIFI

- POCHON electronic according to figures V4 below. Beacon E100G with GPS and Rescueme MOB1
- Central electronic B&G Hercules
- 2 automatic pilots (electric and hydraulic)
- 2 screens B&G Zeus (chart table and helm station)
- Many instruments display (in owner cabin as well)
- POCHON Flir thermal camera
- TV, GSM & Wi-Fi antenna
- Wi-Fi & router
- TV in saloon remotely retractable in furniture
- TV in owner cabin
- Radar, AIS
- Stereo radio & CD player with 4 loud speakers and Bluetooth connection
- Cigarette lighter receptacle at chart table
- 2 x 220V socket in owner’s cabin bed head

Safety Equipment

- Complete safety package for 8 people
- Life raft 8 people Zodiac Open Sea
- Antifouling with epoxy base coat temperate zone
- Mooring kit: 12 big fenders and 6 mooring lines
- Tender Apex 3,8m with Yamaha 25hp outboard engine

Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

Inquire About This Boat

Managing Broker

Contact - Alexis de Boucaud
The Multihull Company

Located in Fort Lauderdale, FL

US CELL: +1-484-744-2740
French CELL: +33 (0) 6 73 97 17 30
St. Martin: +590 690 58 66 06
Email: Alexis@multihullcompany.com
View Alexis de Boucaud's Profile
  • This field is for validation purposes and should be left unchanged.
BACK TO TOP
